June 2019
© Instil Software 2019
The Three Horse Race
Picking a winner between Coroutines,
Reactive Streams and Effects

2. Develop
Consult
Train

3. Garth Gilmour
garth.gilmour@instil.co
6 years as a developer
15 as a coach / trainer
Eamonn Boyle
eamonn.boyle@instil.co
15 years as a developer
2 as a coach / trainer
About Your Presenters

4. We’ve bought into Kotlin in a big way
• Also Android, React and Cloud
About Instil

5. About Instil

8. © Instil Software 2018
• The High Level View
Part 1

9. Pure Functional Coding
DDD and Event Storming
Distributed Event Queues
Property Based Testing
Serverless Computing
Mob Programming
Welcome to the Future!

10. Do You Need All The Shiny Things?

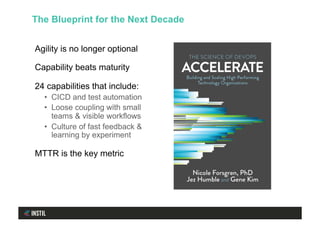

11. Agility is no longer optional
Capability beats maturity
24 capabilities that include:
• CICD and test automation
• Loose coupling with small
teams & visible workflows
• Culture of fast feedback &
learning by experiment
MTTR is the key metric
The Blueprint for the Next Decade

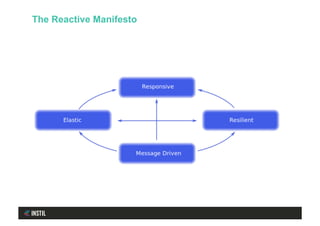

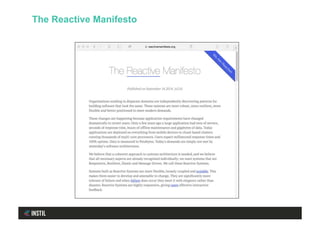

12. The Reactive Manifesto

13. The Reactive Manifesto

14. Evolving Architectures

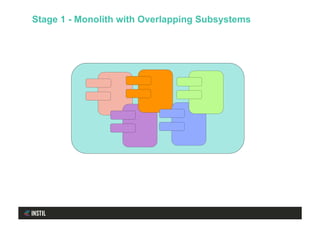

15. Stage 1 - Monolith with Overlapping Subsystems

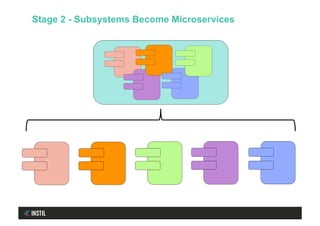

16. Stage 2 - Subsystems Become Microservices

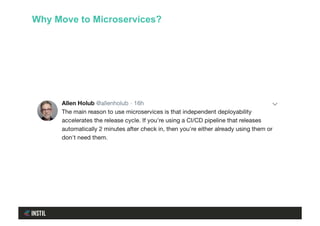

17. Why Move to Microservices?

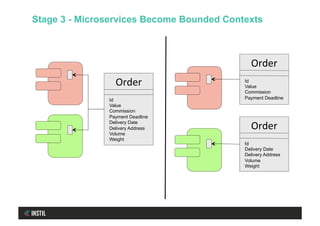

18. Stage 3 - Microservices Become Bounded Contexts
Order
Id
Value
Commission
Payment Deadline
Delivery Date
Delivery Address
Volume
Weight
Order
Id
Value
Commission
Payment Deadline
Order
Id
Delivery Date
Delivery Address
Volume
Weight

19. Stage 3 - Microservices Become Bounded Contexts

20. Stage 3 - Microservices Become Bounded Contexts

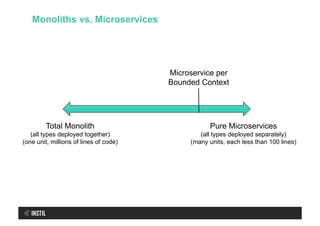

21. Monoliths vs. Microservices
Total Monolith
(all types deployed together)
(one unit, millions of lines of code)
Pure Microservices
(all types deployed separately)
(many units, each less than 100 lines)
Microservice per
Bounded Context

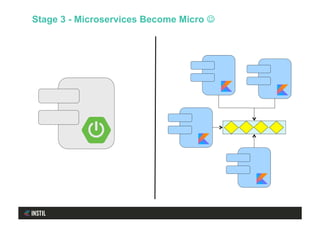

22. Stage 3 - Microservices Become Micro J

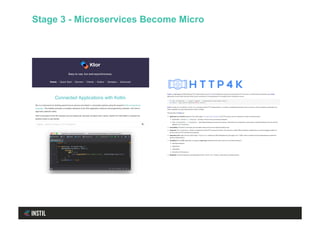

23. Stage 3 - Microservices Become Micro

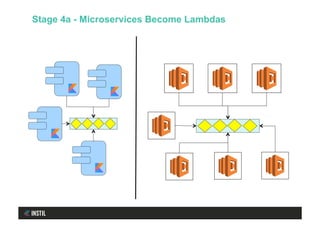

24. Stage 4a - Microservices Become Lambdas

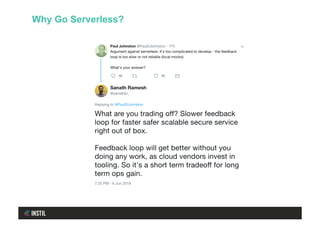

25. Why Go Serverless?

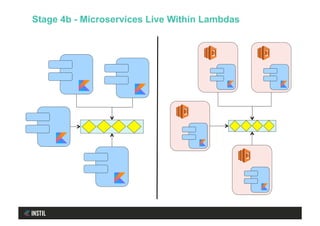

26. Stage 4b - Microservices Live Within Lambdas

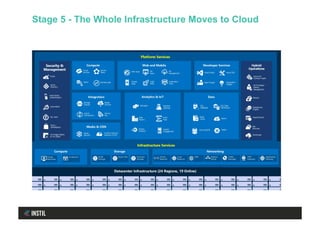

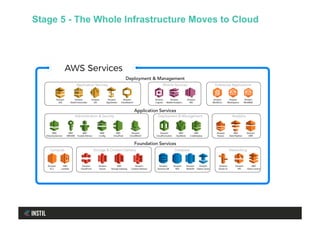

27. Stage 5 - The Whole Infrastructure Moves to Cloud

28. Stage 5 - The Whole Infrastructure Moves to Cloud

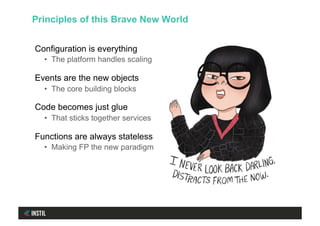

29. Configuration is everything
• The platform handles scaling
Events are the new objects
• The core building blocks
Code becomes just glue
• That sticks together services
Functions are always stateless
• Making FP the new paradigm
Principles of this Brave New World

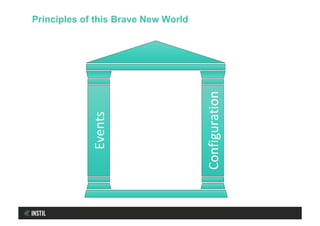

30. Principles of this Brave New World
Events
Configuration

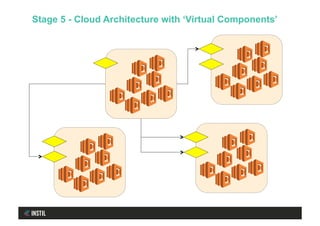

31. Stage 5 - Cloud Architecture with ‘Virtual Components’

32. The Problem This Produces…

33. © Instil Software 2018
• The Low Level
Part 2

34. There’s An Awful Lot to Choose From…

35. It May Feel Like This…

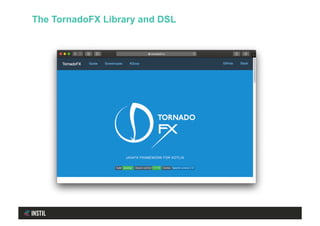

37. The TornadoFX Library and DSL

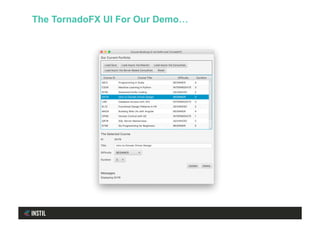

38. The TornadoFX UI For Our Demo…

39. Reactive Streams

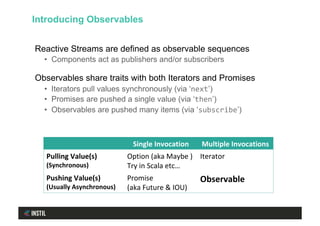

40. Reactive Streams are defined as observable sequences
• Components act as publishers and/or subscribers
Observables share traits with both Iterators and Promises
• Iterators pull values synchronously (via ‘next’)
• Promises are pushed a single value (via ‘then’)
• Observables are pushed many items (via ‘subscribe’)
Introducing Observables
Single Invocation Multiple Invocations
Pulling Value(s)
(Synchronous)
Option (aka Maybe )
Try in Scala etc…
Iterator
Pushing Value(s)
(Usually Asynchronous)
Promise
(aka Future & IOU)
Observable

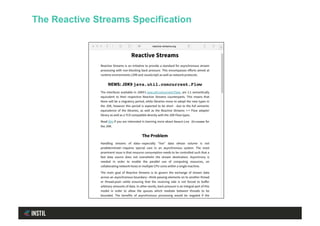

41. The Reactive Streams Specification

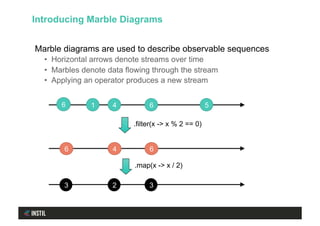

42. Marble diagrams are used to describe observable sequences
• Horizontal arrows denote streams over time
• Marbles denote data flowing through the stream
• Applying an operator produces a new stream
Introducing Marble Diagrams
6 1 6 54
6 64
3 32
.filter(x -> x % 2 == 0)
.map(x -> x / 2)

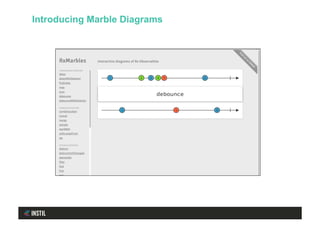

43. Introducing Marble Diagrams

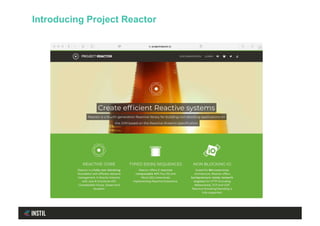

44. Introducing Project Reactor

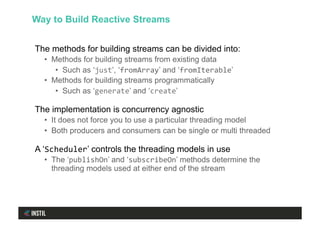

45. The methods for building streams can be divided into:
• Methods for building streams from existing data
• Such as ‘just’, ‘fromArray’ and ‘fromIterable’
• Methods for building streams programmatically
• Such as ‘generate’ and ‘create’
The implementation is concurrency agnostic
• It does not force you to use a particular threading model
• Both producers and consumers can be single or multi threaded
A ‘Scheduler’ controls the threading models in use
• The ‘publishOn’ and ‘subscribeOn’ methods determine the
threading models used at either end of the stream
Way to Build Reactive Streams

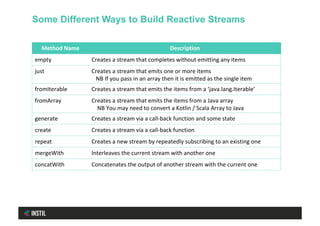

46. Method Name Description
empty Creates a stream that completes without emitting any items
just Creates a stream that emits one or more items
NB If you pass in an array then it is emitted as the single item
fromIterable Creates a stream that emits the items from a ‘java.lang.Iterable’
fromArray Creates a stream that emits the items from a Java array
NB You may need to convert a Kotlin / Scala Array to Java
generate Creates a stream via a call-back function and some state
create Creates a stream via a call-back function
repeat Creates a new stream by repeatedly subscribing to an existing one
mergeWith Interleaves the current stream with another one
concatWith Concatenates the output of another stream with the current one
Some Different Ways to Build Reactive Streams

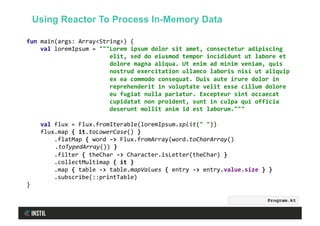

47. fun main(args: Array<String>) {
val loremIpsum = """Lorem ipsum dolor sit amet, consectetur adipiscing
elit, sed do eiusmod tempor incididunt ut labore et
dolore magna aliqua. Ut enim ad minim veniam, quis
nostrud exercitation ullamco laboris nisi ut aliquip
ex ea commodo consequat. Duis aute irure dolor in
reprehenderit in voluptate velit esse cillum dolore
eu fugiat nulla pariatur. Excepteur sint occaecat
cupidatat non proident, sunt in culpa qui officia
deserunt mollit anim id est laborum."""
val flux = Flux.fromIterable(loremIpsum.split(" "))
flux.map { it.toLowerCase() }
.flatMap { word -> Flux.fromArray(word.toCharArray()
.toTypedArray()) }
.filter { theChar -> Character.isLetter(theChar) }
.collectMultimap { it }
.map { table -> table.mapValues { entry -> entry.value.size } }
.subscribe(::printTable)
}
Program.kt
Using Reactor To Process In-Memory Data

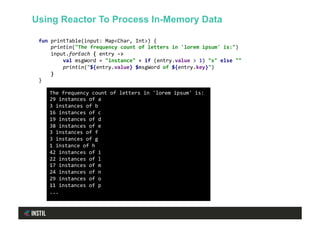

48. fun printTable(input: Map<Char, Int>) {
println("The frequency count of letters in 'lorem ipsum' is:")
input.forEach { entry ->
val msgWord = "instance" + if (entry.value > 1) "s" else ""
println("${entry.value} $msgWord of ${entry.key}")
}
}
The frequency count of letters in 'lorem ipsum' is:
29 instances of a
3 instances of b
16 instances of c
19 instances of d
38 instances of e
3 instances of f
3 instances of g
1 instance of h
42 instances of i
22 instances of l
17 instances of m
24 instances of n
29 instances of o
11 instances of p
...
Using Reactor To Process In-Memory Data

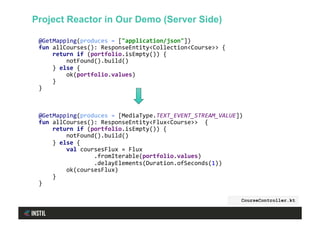

49. @GetMapping(produces = ["application/json"])
fun allCourses(): ResponseEntity<Collection<Course>> {
return if (portfolio.isEmpty()) {
notFound().build()
} else {
ok(portfolio.values)
}
}
@GetMapping(produces = [MediaType.TEXT_EVENT_STREAM_VALUE])
fun allCourses(): ResponseEntity<Flux<Course>> {
return if (portfolio.isEmpty()) {
notFound().build()
} else {
val coursesFlux = Flux
.fromIterable(portfolio.values)
.delayElements(Duration.ofSeconds(1))
ok(coursesFlux)
}
}
CourseController.kt
Project Reactor in Our Demo (Server Side)

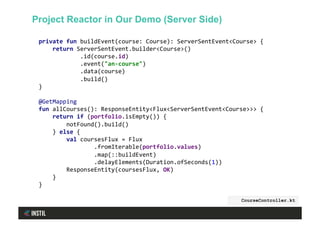

50. private fun buildEvent(course: Course): ServerSentEvent<Course> {
return ServerSentEvent.builder<Course>()
.id(course.id)
.event("an-course")
.data(course)
.build()
}
@GetMapping
fun allCourses(): ResponseEntity<Flux<ServerSentEvent<Course>>> {
return if (portfolio.isEmpty()) {
notFound().build()
} else {
val coursesFlux = Flux
.fromIterable(portfolio.values)
.map(::buildEvent)
.delayElements(Duration.ofSeconds(1))
ResponseEntity(coursesFlux, OK)
}
}
CourseController.kt
Project Reactor in Our Demo (Server Side)

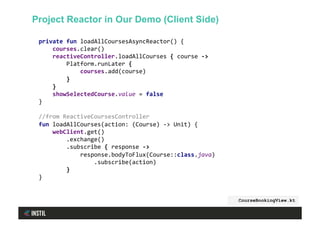

51. private fun loadAllCoursesAsyncReactor() {
courses.clear()
reactiveController.loadAllCourses { course ->
Platform.runLater {
courses.add(course)
}
}
showSelectedCourse.value = false
}
//from ReactiveCoursesController
fun loadAllCourses(action: (Course) -> Unit) {
webClient.get()
.exchange()
.subscribe { response ->
response.bodyToFlux(Course::class.java)
.subscribe(action)
}
}
CourseBookingView.kt
Project Reactor in Our Demo (Client Side)

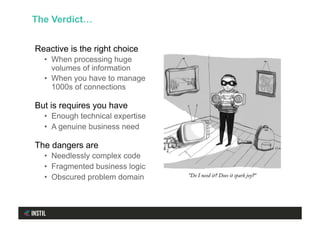

52. Reactive is the right choice
• When processing huge
volumes of information
• When you have to manage
1000s of connections
But is requires you have
• Enough technical expertise
• A genuine business need
The dangers are
• Needlessly complex code
• Fragmented business logic
• Obscured problem domain
The Verdict…

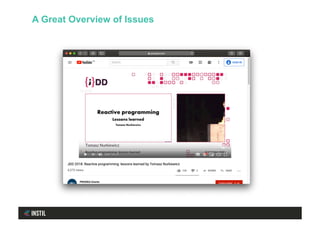

53. A Great Overview of Issues

54. Coroutines

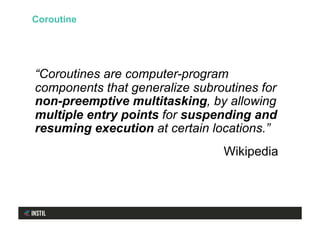

55. “Coroutines are computer-program
components that generalize subroutines for
non-preemptive multitasking, by allowing
multiple entry points for suspending and
resuming execution at certain locations.”
Wikipedia
Coroutine

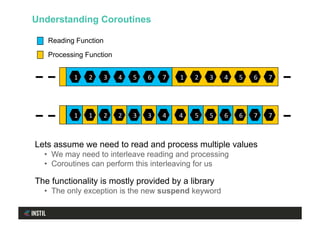

56. Lets assume we need to read and process multiple values
• We may need to interleave reading and processing
• Coroutines can perform this interleaving for us
The functionality is mostly provided by a library
• The only exception is the new suspend keyword
Understanding Coroutines
1 2 3 4 5 6 7 1 2 3 4 5 6 7
Reading Function
Processing Function
1 1 2 2 3 3 4 4 5 5 6 6 7 7

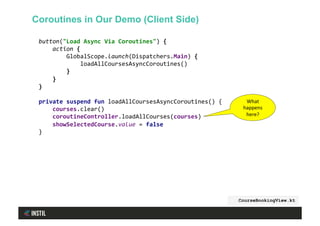

57. button("Load Async Via Coroutines") {
action {
GlobalScope.launch(Dispatchers.Main) {
loadAllCoursesAsyncCoroutines()
}
}
}
private suspend fun loadAllCoursesAsyncCoroutines() {
courses.clear()
coroutineController.loadAllCourses(courses)
showSelectedCourse.value = false
}
CourseBookingView.kt
Coroutines in Our Demo (Client Side)
What
happens
here?

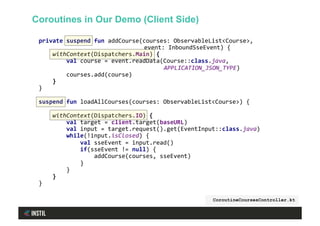

58. private suspend fun addCourse(courses: ObservableList<Course>,
event: InboundSseEvent) {
withContext(Dispatchers.Main) {
val course = event.readData(Course::class.java,
APPLICATION_JSON_TYPE)
courses.add(course)
}
}
suspend fun loadAllCourses(courses: ObservableList<Course>) {
withContext(Dispatchers.IO) {
val target = client.target(baseURL)
val input = target.request().get(EventInput::class.java)
while(!input.isClosed) {
val sseEvent = input.read()
if(sseEvent != null) {
addCourse(courses, sseEvent)
}
}
}
}
CoroutineCoursesController.kt
Coroutines in Our Demo (Client Side)

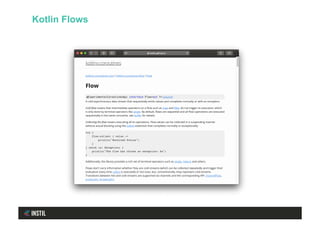

59. Kotlin Flows

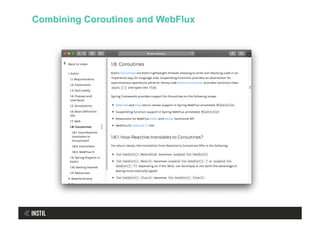

61. Combining Coroutines and WebFlux

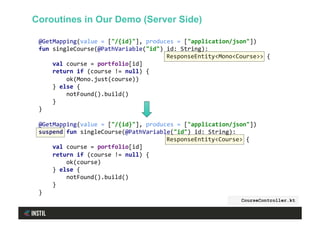

62. @GetMapping(value = ["/{id}"], produces = ["application/json"])
fun singleCourse(@PathVariable("id") id: String):
ResponseEntity<Mono<Course>> {
val course = portfolio[id]
return if (course != null) {
ok(Mono.just(course))
} else {
notFound().build()
}
}
@GetMapping(value = ["/{id}"], produces = ["application/json"])
suspend fun singleCourse(@PathVariable("id") id: String):
ResponseEntity<Course> {
val course = portfolio[id]
return if (course != null) {
ok(course)
} else {
notFound().build()
}
}
CourseController.kt
Coroutines in Our Demo (Server Side)

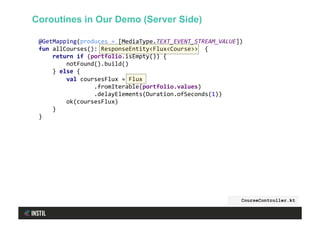

63. @GetMapping(produces = [MediaType.TEXT_EVENT_STREAM_VALUE])
fun allCourses(): ResponseEntity<Flux<Course>> {
return if (portfolio.isEmpty()) {
notFound().build()
} else {
val coursesFlux = Flux
.fromIterable(portfolio.values)
.delayElements(Duration.ofSeconds(1))
ok(coursesFlux)
}
}
CourseController.kt

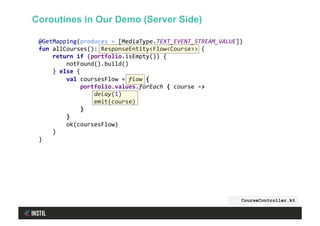

Coroutines in Our Demo (Server Side)

64. @GetMapping(produces = [MediaType.TEXT_EVENT_STREAM_VALUE])
fun allCourses(): ResponseEntity<Flow<Course>> {
return if (portfolio.isEmpty()) {
notFound().build()
} else {
val coursesFlow = flow {
portfolio.values.forEach { course ->
delay(1)
emit(course)
}
}
ok(coursesFlow)
}
}
CourseController.kt
Coroutines in Our Demo (Server Side)

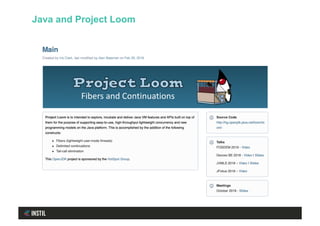

65. Java and Project Loom

66. Coroutines are
• A well proven technology
• Soon to become ubiquitous
• The simplest possible
solution for juggling calls
The coding model is good
• It adds the least possible
cognitive burden to code
• IDEs can provide a lot of
help to mitigate this
Not always the right choice
• Reactive streams are a
better option for parallelism
The Verdict…

67. Effects

68. FP contains a contradiction
• You cannot be both pure and useful
We want to write functions which are:
• Total (work for every input)
• Pure (have no side-effects)
• Deterministic (will always return the
same output for the same inputs)
But then a program can’t do anything
• Since any form of IO is ruled out
A solution is to move IO ‘to the edges’
• Using the IO Monad and Effects
• Effects work as ‘lazy coroutines’
Introducing Effects

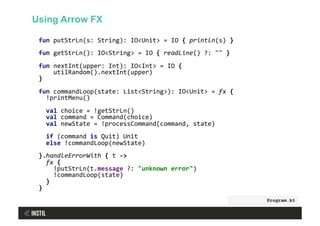

69. Effects and Arrow Fx

70. fun putStrLn(s: String): IO<Unit> = IO { println(s) }
fun getStrLn(): IO<String> = IO { readLine() ?: "" }
fun nextInt(upper: Int): IO<Int> = IO {
utilRandom().nextInt(upper)
}
fun commandLoop(state: List<String>): IO<Unit> = fx {
!printMenu()
val choice = !getStrLn()
val command = Command(choice)
val newState = !processCommand(command, state)
if (command is Quit) Unit
else !commandLoop(newState)
}.handleErrorWith { t ->
fx {
!putStrLn(t.message ?: "unknown error")
!commandLoop(state)
}
}
Program.kt
Using Arrow FX

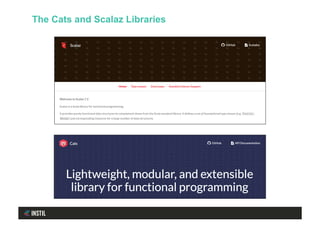

71. The Cats and Scalaz Libraries

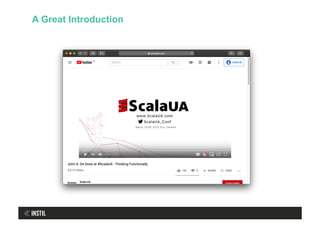

72. A Great Introduction

74. Effects are innovative
• They require that we
change the way we think
They have clear benefits
• The Pure FP style solves
many issues En Passant
• You can run effects on top
of any parallel environment
But the risks are great
• Its unproved technology
• Will it prove viable for the
majority of coding shops?
The Verdict…

75. © Instil Software 2018
• What Are Your Options?
Conclusions

76. Reactive Coroutines Effects Spring Boot Ktor
Reactive
Coroutines
Effects
Spring Boot
Ktor
What Goes With What?

77. Any Questions?

78. Thank You and Farewell!
