- 1. Flooding - Predict,Plan, Prepare & ProtectUsing GIS for Effective Flood ManagementJames Thompson – Local Government Strategist, ESRI (UK)
- 2. Welcome and IntroductionsPresentationAboutmeJames ThompsonLocal Government Strategist, ESRI (UK)Why GIS should be more widely used to support flood managementReview technology, legislative and economic drivers for changeCurrent best practice and where GIS adds value for flood managementStimulate ideas, discussion and debate

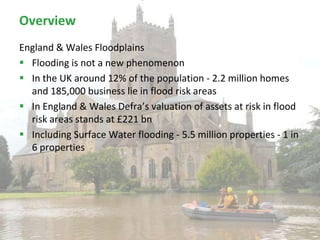

- 3. OverviewEngland & WalesFloodplainsFlooding is not a new phenomenonIn the UK around 12% of the population - 2.2 million homes and 185,000 business lie in flood risk areasIn England & Wales Defra’s valuation of assets at risk in flood risk areas stands at £221 bnIncluding Surface Water flooding - 5.5 million properties - 1 in 6 properties
- 4.
- 5. New responsibilities forLocal AuthoritiesLocal authorities will be given day-to-day responsibility for preparing and putting in place strategies for managing flood risk from groundwater, surface water and ordinary watercourses. Ensure arrangements are in place for the co-ordination of flood risk management across their areaLocal authorities will also be required to take responsibility for new Sustainable Drainage Systems (SUDS) and will be given the power to decide whether new developments will be connected to existing sewage networks.Maintain a register of flood risk management structures, investigate flooding incidents where there is uncertainty over responsibility

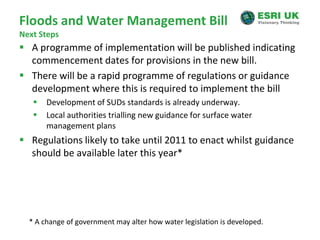

- 6. Floods and WaterManagement BillNext StepsA programme of implementation will be published indicating commencement dates for provisions in the new bill.There will be a rapid programme of regulations or guidance development where this is required to implement the billDevelopment of SUDs standards is already underway. Local authorities trialling new guidance for surface water management plansRegulations likely to take until 2011 to enact whilst guidance should be available later this year** A change of government may alter how water legislation is developed.

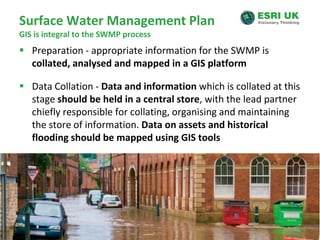

- 7. Surface Water ManagementPlanGIS is integral to the SWMP processPreparation - appropriate information for the SWMP is collated, analysed and mapped in a GIS platform Data Collation - Data and information which is collated at this stage should be held in a central store, with the lead partner chiefly responsible for collating, organising and maintaining the store of information. Data on assets and historical flooding should be mapped using GIS tools

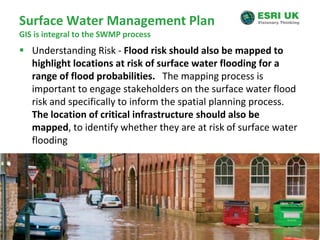

- 8. Surface Water ManagementPlanGIS is integral to the SWMP processUnderstanding Risk - Flood risk should also be mapped to highlight locations at risk of surface water flooding for a range of flood probabilities. The mapping process is important to engage stakeholders on the surface water flood risk and specifically to inform the spatial planning process. The location of critical infrastructure should also be mapped, to identify whether they are at risk of surface water flooding

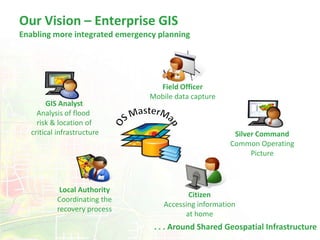

- 9. Our Vision –Enterprise GISEnabling more integrated emergency planningSilver CommandCommon OperatingPictureOS MasterMapField Officer Mobile data capture Local Authority Coordinating the recovery processGIS AnalystAnalysis of flood risk & location of critical infrastructureCitizenAccessing informationat home. . . Around Shared Geospatial Infrastructure

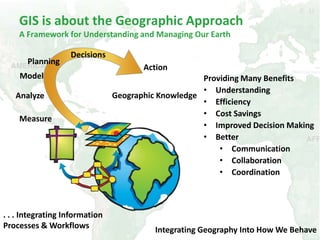

- 10. GIS is aboutthe Geographic ApproachA Framework for Understanding and Managing Our EarthDecisionsPlanningActionModelProviding Many BenefitsUnderstanding
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17. CoordinationGeographic KnowledgeAnalyzeMeasure. .. Integrating Information Processes & WorkflowsIntegrating Geography Into How We Behave
- 18.
- 19.

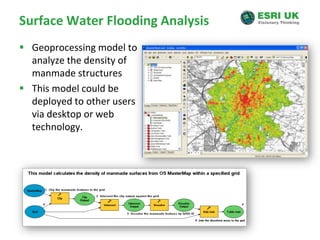

- 20. Surface Water FloodingAnalysisGeoprocessing model to analyze the density of manmade structuresThis model could be deployed to other users via desktop or web technology.

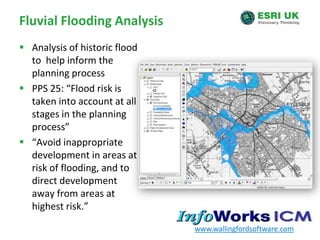

- 22. Fluvial Flooding AnalysisAnalysisof historic flood to help inform the planning processPPS 25: “Flood risk is taken into account at all stages in the planning process”“Avoid inappropriate development in areas at risk of flooding, and to direct development away from areas at highest risk.”www.wallingfordsoftware.com

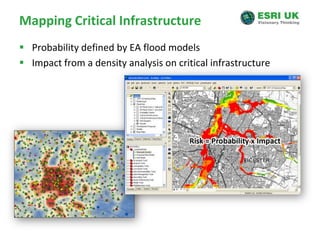

- 23. Mapping Critical InfrastructureProbabilitydefined by EA flood modelsImpact from a density analysis on critical infrastructure

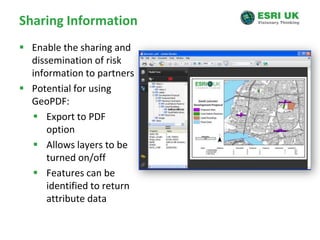

- 24. Sharing InformationEnable thesharing and dissemination of risk information to partnersPotential for using GeoPDF:Export to PDF optionAllows layers to be turned on/offFeatures can be identified to return attribute data
- 25.

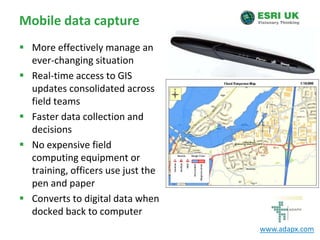

- 26. Mobile data captureMoreeffectively manage an ever-changing situationReal-time access to GIS updates consolidated across field teamsFaster data collection and decisionsNo expensive field computing equipment or training, officers use just the pen and paperConverts to digital data when docked back to computerwww.adapx.com

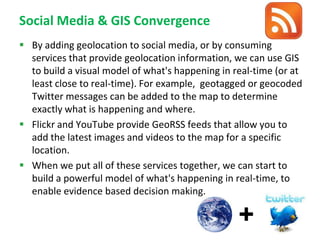

- 27.

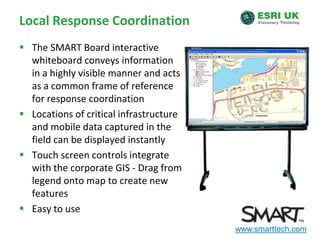

- 28. Local Response CoordinationTheSMART Board interactive whiteboard conveys information in a highly visible manner and acts as a common frame of reference for response coordinationLocations of critical infrastructure and mobile data captured in the field can be displayed instantlyTouch screen controls integrate with the corporate GIS - Drag from legend onto map to create new featuresEasy to usewww.smarttech.com

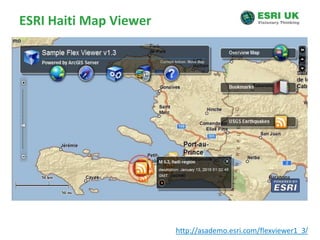

- 29. Improving Situational AwarenessTheCommon Operational Picture Viewer - Web client created using the ArcGIS Server API for FlexBringing together internal / external datasetsWeb technology enables information to be shared easily with all partnersBuild your own (COP) viewer through readily available ESRI templates

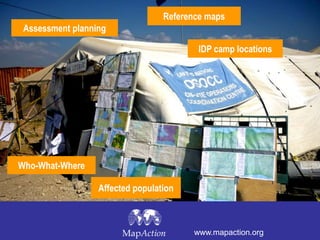

- 30. Reference mapsAssessment planningIDPcamp locationsWho-What-WhereAffected populationwww.mapaction.org
Editor's Notes
- #3 Consider why GIS should be more widely used to support flood managementReview technology, legislative and economic drivers for changeHighlight current best practice and where GIS adds value for flood management & improving situational awareness
- #4 In the last few years the UK has experienced some of the worst flooding in living memory. The impact of recent flooding events in the UK has been dramaticThe 2007 summer floods for example – 55,000 properties affected, 7,000 business disrupted, 8 motorways cut off, £3bn damagePlus we have had Carlisle, Boscastle and the recent flooding in Scotland & Cockermouth in Cumbria

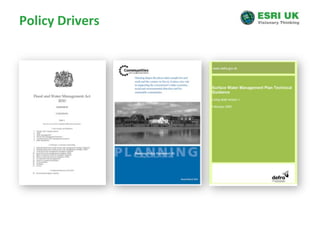

- #5 Policy DriversThe Flood and Water Management BillGained Royal Assent 8th April 2010The Act will implement several key recommendations of Sir Michael Pitt’s Review of the Summer 2007 floods: Strategic overview role for the Environment Agency on all forms of flooding at the National level New statutory responsibilities for local authorities in managing flood risk All partners to co-operate and provide information to improve flood risk management Requirements for more sustainable drainage systemsPlanning Policy Statement 25 (Development & Flood Risk) March 2010Flooding considered at all stages of the planning processLink between spatial planning and emergency planningTechnical Guidance on Surface Water Management Plans 2009
- #6 In terms of new responsibilities for Local Authorities the Act:• New statutory responsibilities for managing flood risk – There will be national strategies and guidance on managing flood risk in England and Wales. • Unitary and county councils will bring together the relevant bodies, who will have a duty to cooperate, to develop local strategies for managing local flood risk. • Protection of assets which help manage flood risk – The Environment Agency, local authorities and internal drainage boards will be able to ensure that private assets which help manage the risks of floods cannot be altered without consent. For example, putting a gate in a wall that is helping protect an area could increase the risk of flooding. However there are still big questions around funding and the timescale for implementation
- #8 The guidance is very clear that coordinated data management and GIS is integral to the overall SWMP process:• Suggests that appropriate information for the SWMP is collated, analysed and mapped in a GIS platform • Big onus on collection and management of data , mapping using GIS tools
- #9 Understanding Risk:• Surface water flood risk should be mapped, engage stakeholders and inform the planning process.• All so identify the risk to critical infrastructure.

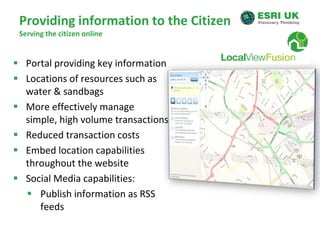

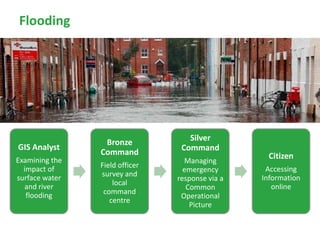

- #12 The flooding scenario looks at how GIS and a coordinated response between multiple organisations can help improve the management of flooding in the UK. In particular it focuses in on four areas; prediction, prevention, planning and response. Each part of the scenario concentrates on one specific role in the overall management of flood:1.GIS Analyst (Local Planning officer)•Investigating the impact land use planning has on flood risk•Reviewing how planners can help reduce the risk of flood by limiting building on flood plains and preventing concreting over of natural surfaces2.Bronze Command•Looking at the role of GIS working out in the field at an operational level•Working with innovative hardware to improve access to GIS software 3.Silver Command•Looking at the role of the Police, Fire, Ambulance and Environment Agency and cross organisation access to data•Examining at a tactical level how to manage resources and deal with a flood incident when it happens4. Citizen•Accessing the internet to find up to date information about the flood situation and resources available to help
- #13 1.GIS Analyst (Local Planning officer)• Investigating the impact land use planning has on flood risk• Reviewing how planners can help reduce the risk of flood by limiting building on flood plains and preventing concreting over of natural surfaces

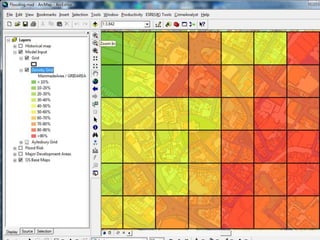

- #14 Created a model in ArcGIS to analyse the density of manmade surfaces based on MAKE field within the OS MasterMap Topography layerMAKE attribute field between ‘Manmade’ and ‘Natural’If we zoon in we can see the output for each 100m x 100m grid (CLICK)This analysis can be used to help inform the planning process about the potential flooding risk associated with building over green spaces.
