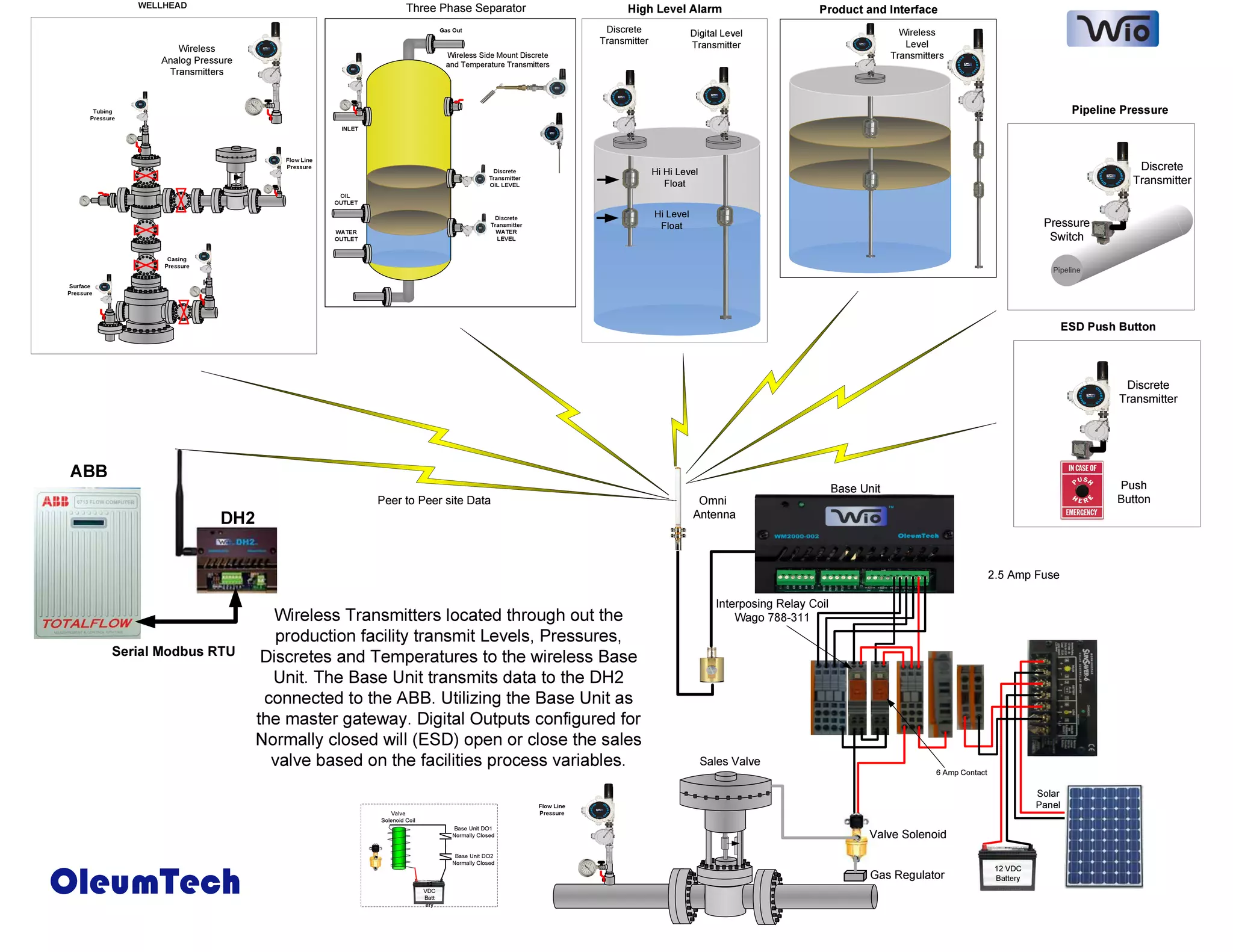

This document describes a wireless monitoring system for an oil and gas wellhead. Wireless transmitters located throughout the production facility transmit levels, pressures, discrete values and temperatures to a wireless base unit. The base unit then transmits this data via serial Modbus RTU to an ABB control system. Digital outputs from the base unit are configured to open or close a sales valve based on process variables, providing high and high-high level alarm protection for the separator.

1. WELLHEAD Three Phase Separator High Level Alarm Product and Interface
Gas Out Discrete Digital Level Wireless
Transmitter Transmitter Level
Wireless
Wireless Side Mount Discrete Transmitters
Analog Pressure and Temperature Transmitters
Transmitters
Tubing Pipeline Pressure
Pressure
INLET
Flow Line
Pressure
Discrete Hi Hi Level
Discrete
Transmitter
OIL LEVEL Float Transmitter
OIL
OUTLET
Discrete Hi Level
Transmitter Float Pressure
WATER WATER
OUTLET LEVEL Switch
Casing
Pressure
Pipeline
Surface
Pressure
ESD Push Button
Discrete
Transmitter
ABB
Base Unit Push
Peer to Peer site Data Omni Button
DH2 Antenna
2.5 Amp Fuse
Interposing Relay Coil
Wireless Transmitters located through out the Wago 788-311
production facility transmit Levels, Pressures,
Serial Modbus RTU Discretes and Temperatures to the wireless Base
Unit. The Base Unit transmits data to the DH2
connected to the ABB. Utilizing the Base Unit as
the master gateway. Digital Outputs configured for
Normally closed will (ESD) open or close the sales
valve based on the facilities process variables. Sales Valve
6 Amp Contact
Solar
Flow Line Panel
Valve Pressure
Solenoid Coil
Base Unit DO1
Normally Closed Valve Solenoid
Base Unit DO2
Normally Closed
12 VDC
OleumTech 12
VDC
Batt
ery
Gas Regulator Battery
