This document provides an agenda and discussion for a class on user research, building tools, more JavaScript, and putting a website up. The class will include discussions of homework, UX and collaboration strategies, build tools like Grunt, integrating JavaScript into web pages, functions and scope in JavaScript, and exercises. For homework, students will create a web page that allows a user to select pizza toppings and displays the total price.

1. Untangling the web
Class 6: user research, build tools, more javascript, and putting a website up

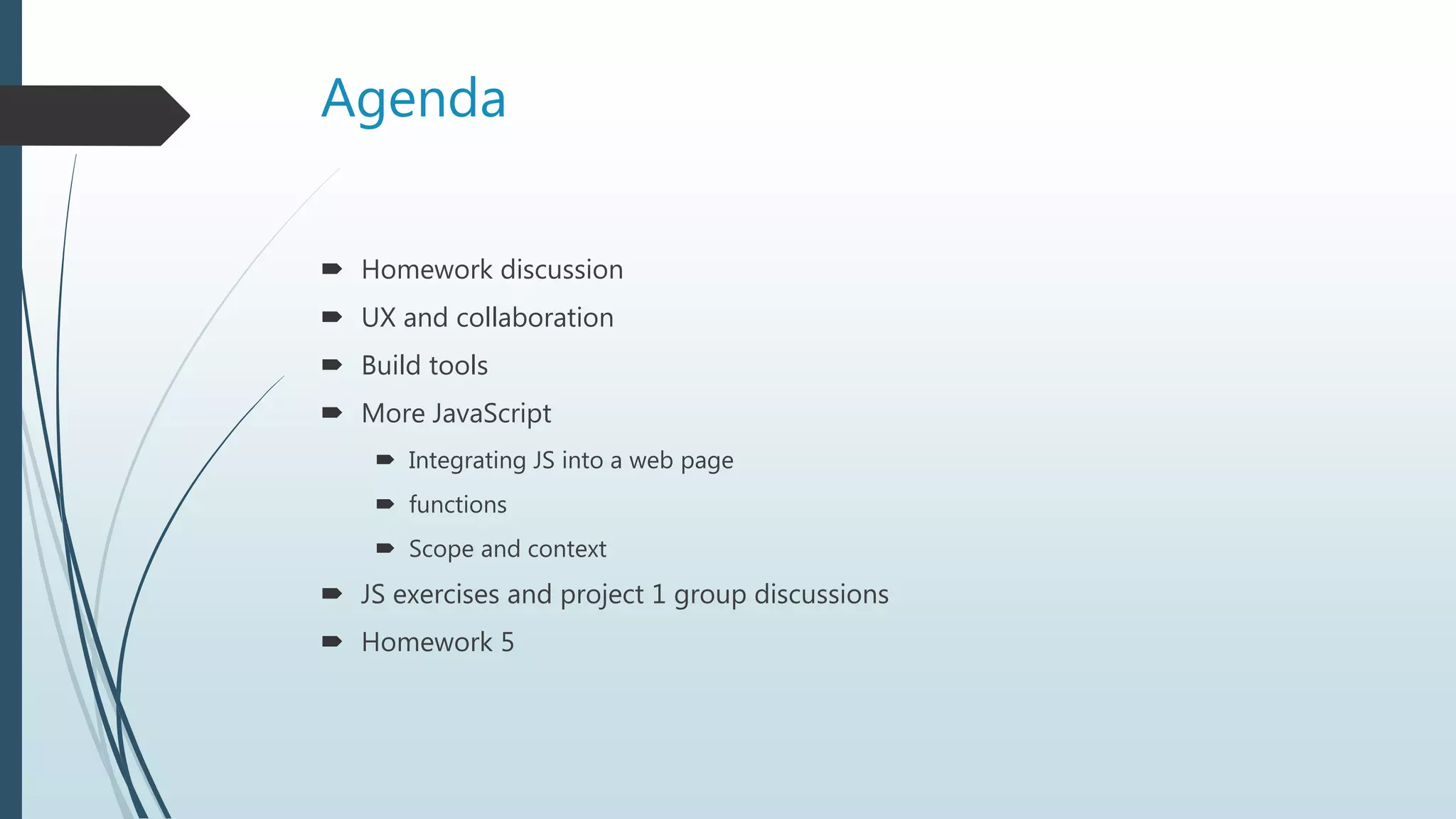

2. Agenda
 Homework discussion
 UX and collaboration
 Build tools
 More JavaScript
 Integrating JS into a web page
 functions
 Scope and context
 JS exercises and project 1 group discussions
 Homework 5

3. Homework 4
 Folks had a harder time with this than previous homeworks
 As we get into the programming assignments, more time will be required and
more work on your own
 Resources:
 The computer science assistance centre, ECS 251,
https://connex.csc.uvic.ca/portal/site/cscassist
 For this initial exercise: http://www.teaching-materials.org/javascript/
 Ask for help on the slack channel
 Start early in case you get stuck!
 If you copy code from online, reference where you got it!

4. Homework 4
 Concepts:
 Arrays
 Functions
 Looping
 Printing (one form, console.log)

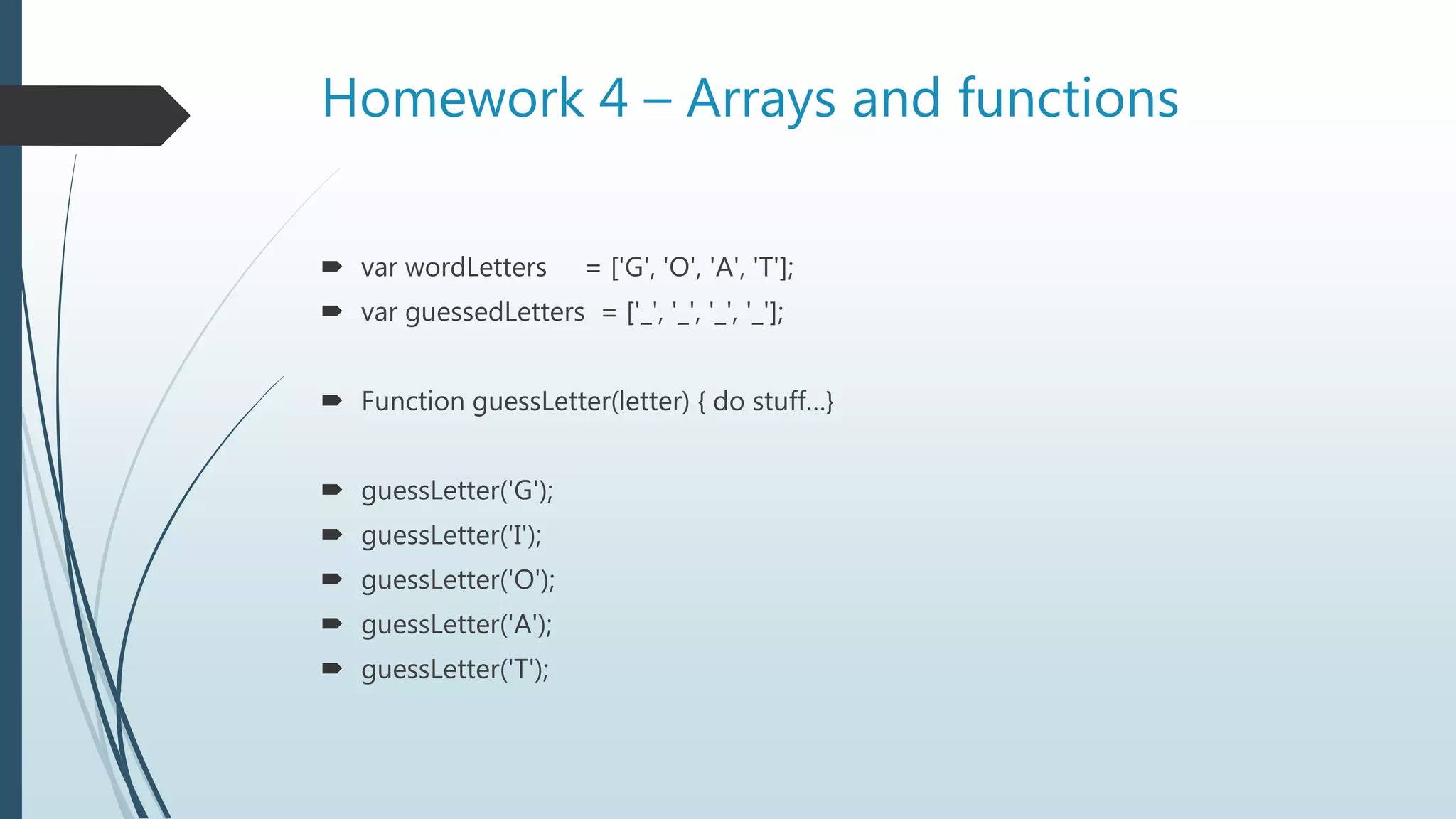

5. Homework 4 – Arrays and functions
 var wordLetters = ['G', 'O', 'A', 'T'];
 var guessedLetters = ['_', '_', '_', '_'];
 Function guessLetter(letter) { do stuff…}
 guessLetter('G');
 guessLetter('I');
 guessLetter('O');
 guessLetter('A');
 guessLetter('T');

6. Homework 4 – looping and printing
function guessLetter(letter) {
var goodGuess = false;
var moreToGuess = false;
for (var i = 0; i <
wordLetters.length; i++) {
if (wordLetters[i] == letter) {
guessedLetters[i] = letter;
goodGuess = true;
}
if (guessedLetters[i] == '_') {
moreToGuess = true;
}
}
if (goodGuess) {
console.log('Yay, you found a
letter!');
console.log(guessedLetters.join(''));
if (!moreToGuess) {
console.log('YOU WON!');
}
} else {
console.log('Oh noes, thats not
right!');
}
}

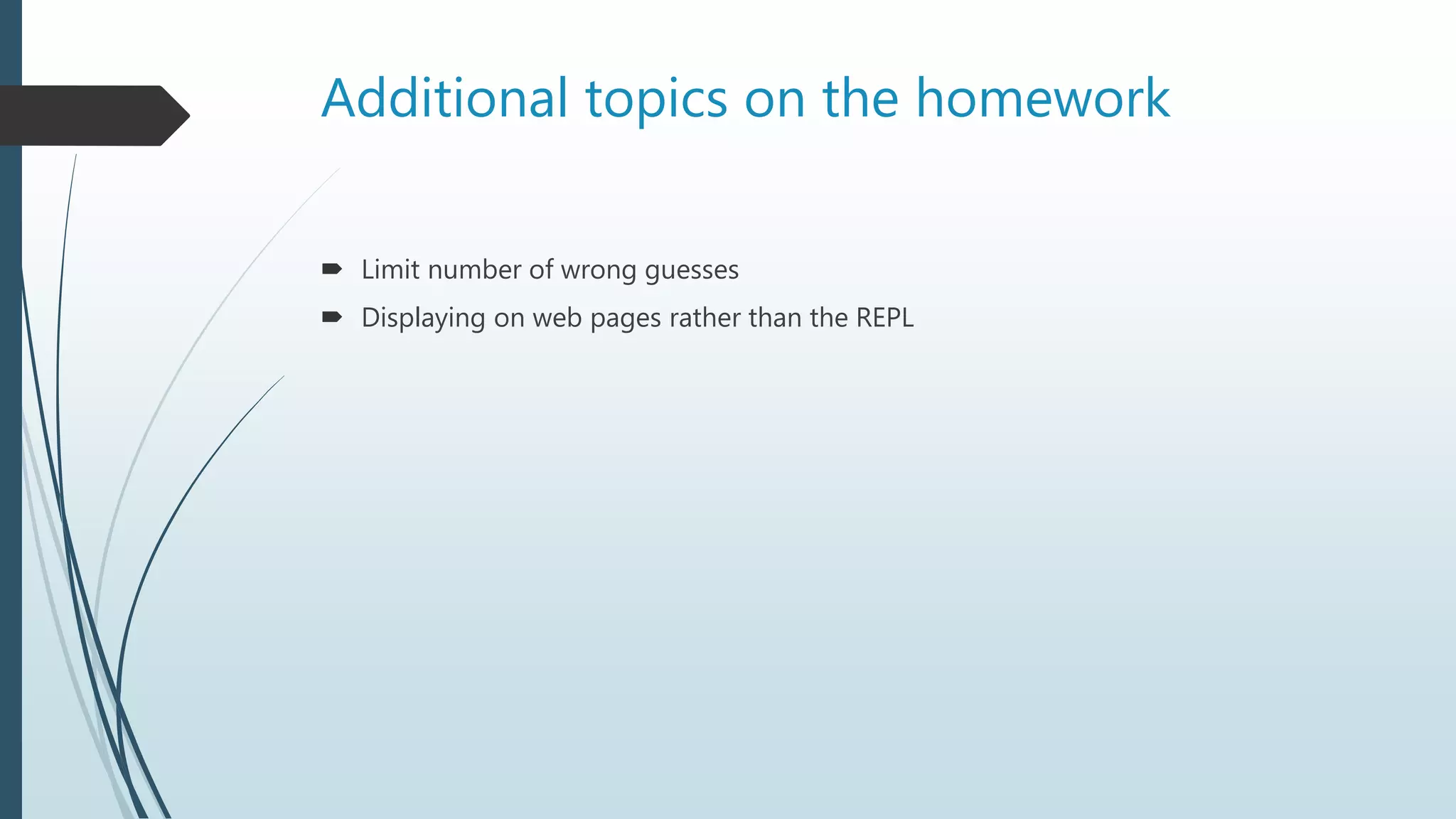

7. Additional topics on the homework
 Limit number of wrong guesses
 Displaying on web pages rather than the REPL

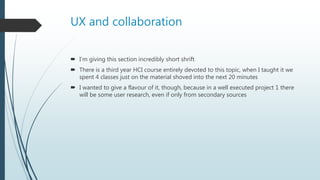

8. UX and collaboration
 I’m giving this section incredibly short shrift
 There is a third year HCI course entirely devoted to this topic, when I taught it we
spent 4 classes just on the material shoved into the next 20 minutes
 I wanted to give a flavour of it, though, because in a well executed project 1 there
will be some user research, even if only from secondary sources

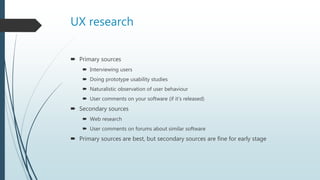

9. UX research
 Primary sources
 Interviewing users
 Doing prototype usability studies
 Naturalistic observation of user behaviour
 User comments on your software (if it’s released)
 Secondary sources
 Web research
 User comments on forums about similar software
 Primary sources are best, but secondary sources are fine for early stage

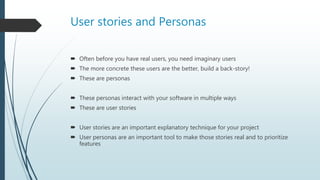

10. User stories and Personas
 Often before you have real users, you need imaginary users
 The more concrete these users are the better, build a back-story!
 These are personas
 These personas interact with your software in multiple ways
 These are user stories
 User stories are an important explanatory technique for your project
 User personas are an important tool to make those stories real and to prioritize
features

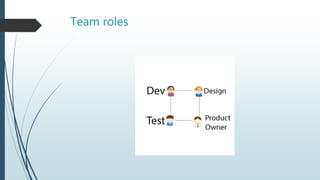

11. Team roles

12. Collaboration strategies
 Hackathons
 Agile development
 Sprints
 Scrums
 Waterfall development

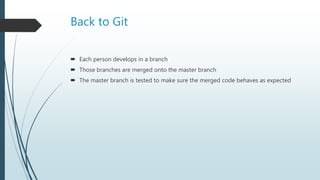

13. Back to Git
 Each person develops in a branch
 Those branches are merged onto the master branch
 The master branch is tested to make sure the merged code behaves as expected

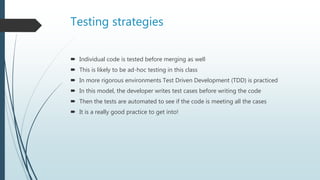

14. Testing strategies
 Individual code is tested before merging as well
 This is likely to be ad-hoc testing in this class
 In more rigorous environments Test Driven Development (TDD) is practiced
 In this model, the developer writes test cases before writing the code
 Then the tests are automated to see if the code is meeting all the cases
 It is a really good practice to get into!

15. Build tools
 This is getting back to class 4
 I’m not going to spend too much more time on a local build environment, but it is
essential to doing time-effective development
 We’ll go through one of my environments to illustrate
 I won’t enforce that you set up an efficient dev environment, but I certainly suggest
it. Meaning:
 Understand the command line
 Understand a local editor (I suggest VS Code, but sublime or atom are fine too)
 Use a local build tool to run a local web server with hot reloading and linting

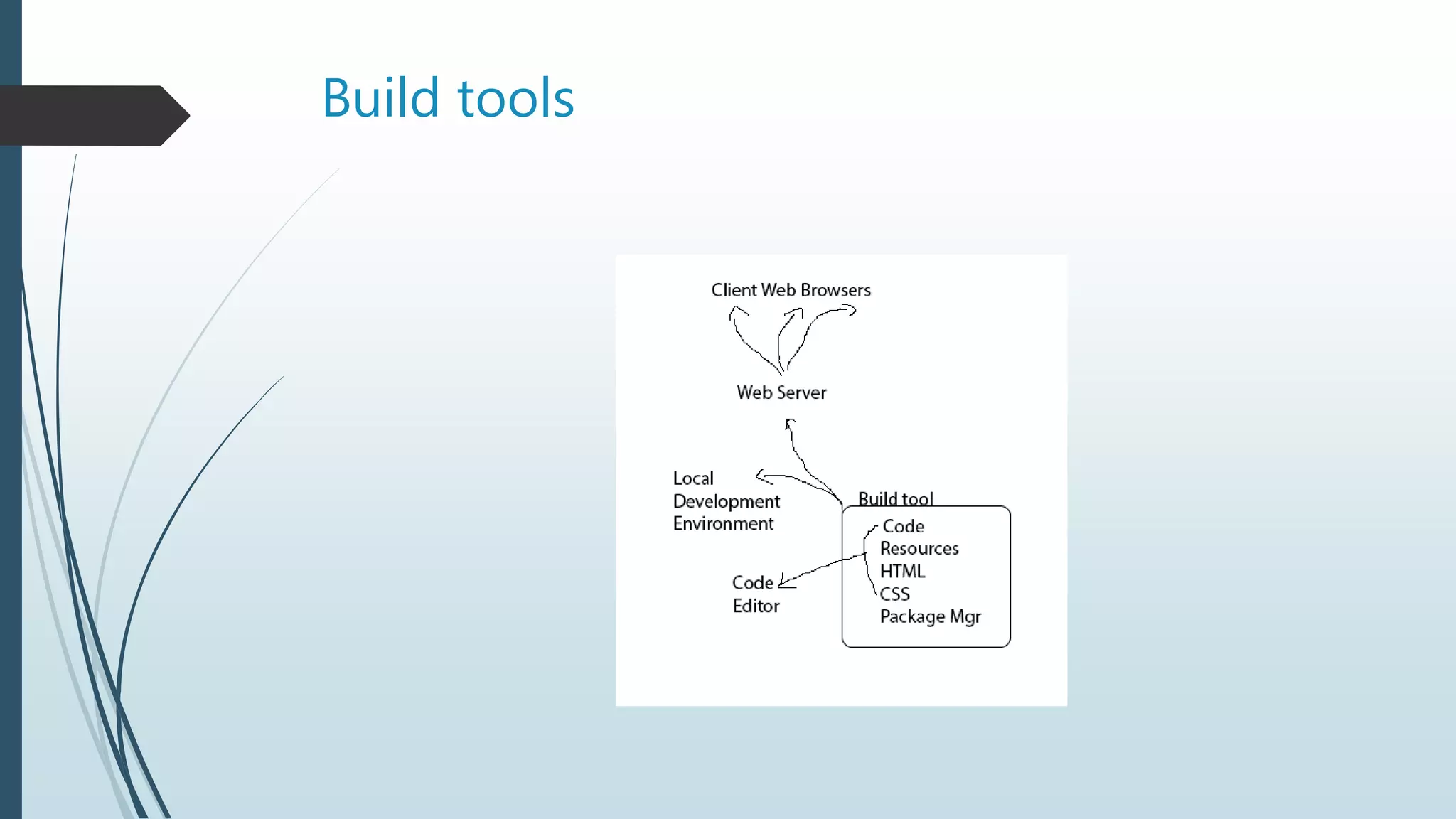

16. Build tools

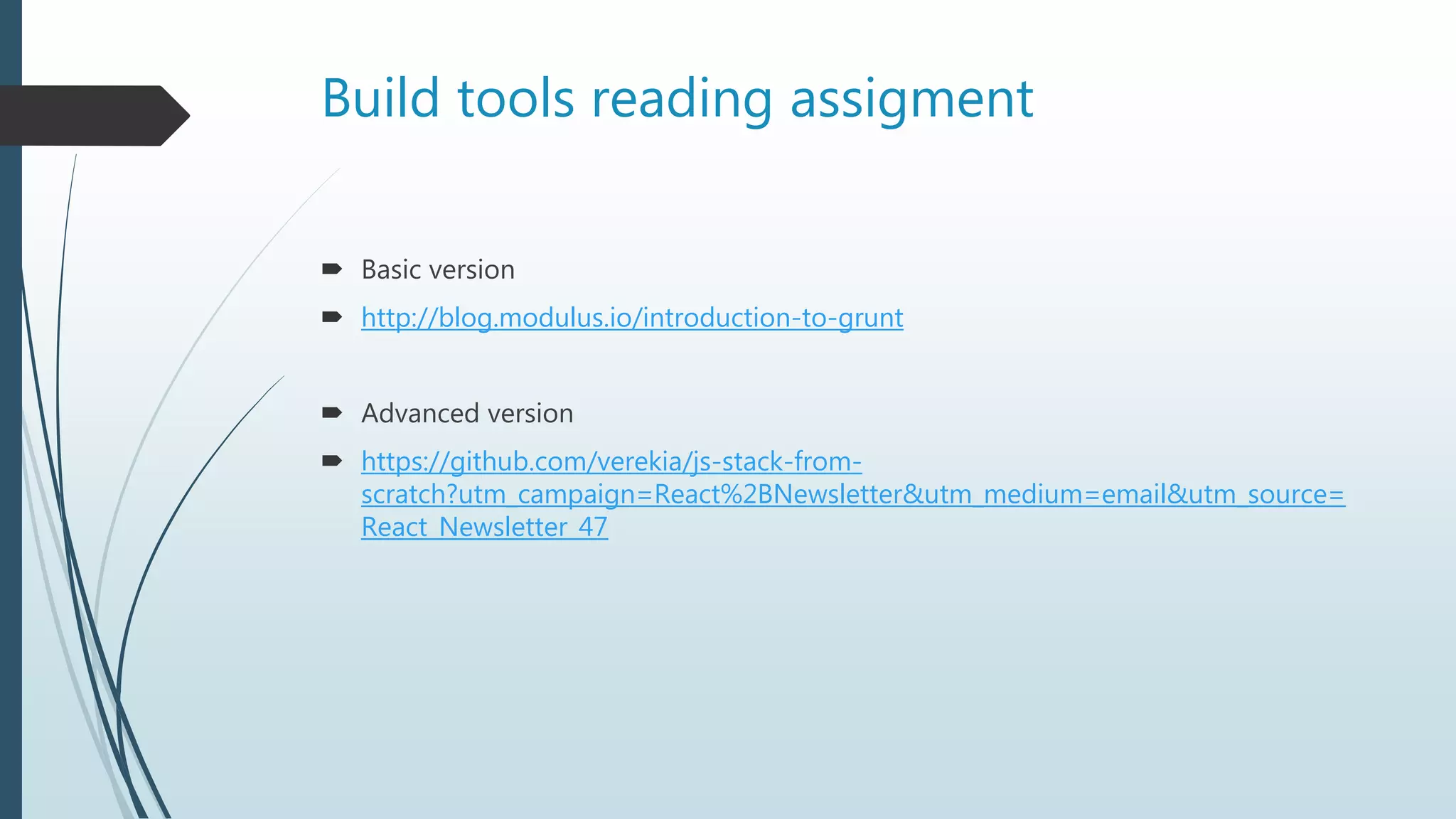

17. Build tools reading assigment
 Basic version
 http://blog.modulus.io/introduction-to-grunt
 Advanced version
 https://github.com/verekia/js-stack-from-
scratch?utm_campaign=React%2BNewsletter&utm_medium=email&utm_source=
React_Newsletter_47

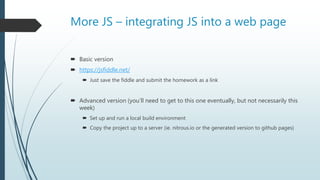

18. More JS – integrating JS into a web page
 Basic version
 https://jsfiddle.net/
 Just save the fiddle and submit the homework as a link
 Advanced version (you’ll need to get to this one eventually, but not necessarily this
week)
 Set up and run a local build environment
 Copy the project up to a server (ie. nitrous.io or the generated version to github pages)

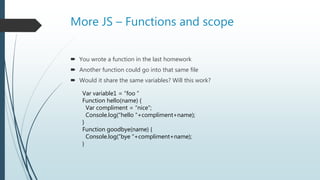

19. More JS – Functions and scope
 You wrote a function in the last homework
 Another function could go into that same file
 Would it share the same variables? Will this work?
Var variable1 = “foo ”
Function hello(name) {
Var compliment = “nice”;
Console.log(“hello “+compliment+name);
}
Function goodbye(name) {
Console.log(“bye “+compliment+name);
}

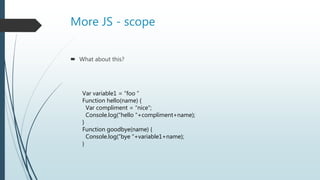

20. More JS - scope
 What about this?
Var variable1 = “foo ”
Function hello(name) {
Var compliment = “nice”;
Console.log(“hello “+compliment+name);
}
Function goodbye(name) {
Console.log(“bye “+variable1+name);
}

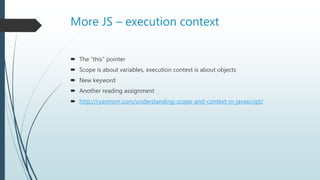

21. More JS – execution context
 The “this” pointer
 Scope is about variables, execution context is about objects
 New keyword
 Another reading assignment
 http://ryanmorr.com/understanding-scope-and-context-in-javascript/

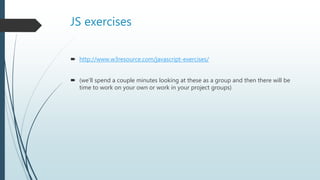

22. JS exercises
 http://www.w3resource.com/javascript-exercises/
 (we’ll spend a couple minutes looking at these as a group and then there will be
time to work on your own or work in your project groups)

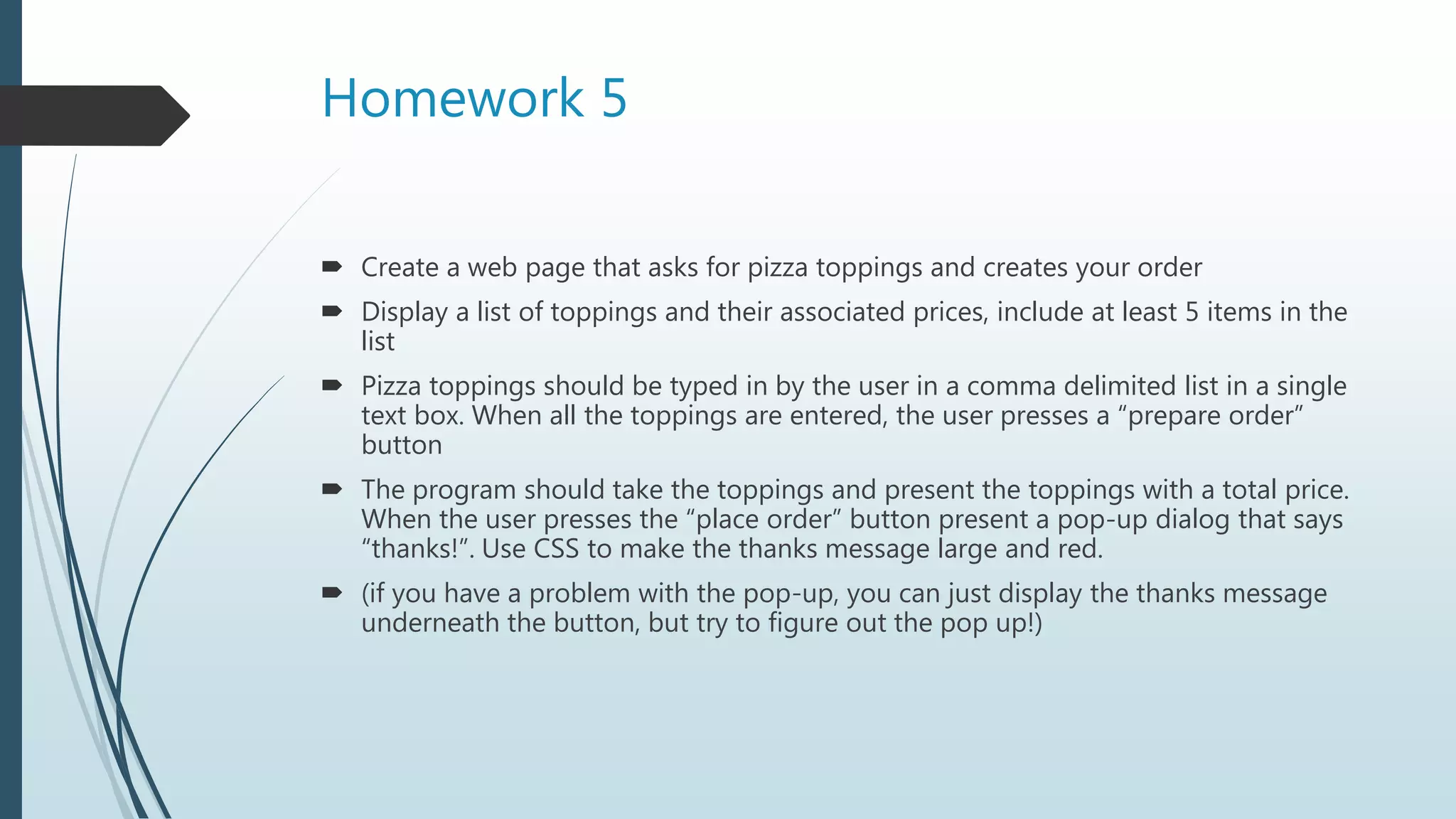

23. Homework 5
 Create a web page that asks for pizza toppings and creates your order
 Display a list of toppings and their associated prices, include at least 5 items in the
list
 Pizza toppings should be typed in by the user in a comma delimited list in a single
text box. When all the toppings are entered, the user presses a “prepare order”
button
 The program should take the toppings and present the toppings with a total price.
When the user presses the “place order” button present a pop-up dialog that says
“thanks!”. Use CSS to make the thanks message large and red.
 (if you have a problem with the pop-up, you can just display the thanks message
underneath the button, but try to figure out the pop up!)
