The document discusses file locking mechanisms in C/C++. It describes using the fcntl API to lock/unlock specific regions of a file. The fcntl function takes a file descriptor, command flag (F_SETLK, F_SETLWK, F_GETLK) and struct flock parameter defining the lock region. A sample program demonstrates locking the last 100 bytes of a file, checking if already locked, reading last 50 bytes if not, then unlocking the region.

1. UNIX SYSTEMS PROGRAMMING
AND COMPILER DESIGN
LABORATORY

2. 3. Consider the last 100 bytes as a
region. Write a C/C++ program to
check whether the region is locked or
not. If the region is locked, print pid of
the process which has locked. If the
region is not locked, lock the region
with an exclusive lock, read the last 50
bytes and unlock the region.

3. • Objective : demonstrate lock unlock
mechanisms on record in a file.
• Last 100 bytes are to be locked
• If already locked then the Process ID which
has locked the file has to be printed
• Else the region has to be locked and last 50
bytes read and then unlock the region

4. • Advisory locking
• Mandatory locking
• Shared locks
• Exclusive lock
• File locking
• Record locking
• lock promotion
• lock splitting

5. Compatibility rules:

6. • File locking locks an entire file
• Record locking allows a process to lock a
specific portion of a file

7. • fcntl API for file locking
#include < fcntl.h >
int fcntl ( int fdesc , int cmd_flag , . . . );

8. • fdesc is a file descriptor for a file to be
processed
• cmd_flag values
cmd_flag Use
F_SETLK Sets a file lock. Do not block if this
cannot succeed immediately
F_SETLKW Sets a file lock and blocks the
calling process until the lock is
acquired
F_GETLK Queries as to which process locked
a specified region of a file

9. • For file locking, the third argument to fcntl is an address of a struct
flock
struct flock
{
short l_type; //what lock to be set or to unlock file
short l_whence; //a reference address for the next filed
off_t l_start; //offset from the l_whence reference address
off_t l_len; //how many bytes in the locked region
pid_t l_pid; // PID of a process which has locked the file
}

10. • The l_type filed specifies the lock type to be
set or unset.
l_type value Use
F_RDLCK Sets a read (shared) lock
on a specified region
F_WRLCK Sets a write (exclusive
lock on a specified region)
F_UNLCK Unlocks a specified region

11. • The possible values of l_whence and their
uses:
l_whence value Use
SEEK_CUR The l_start value is added to
the current file pointer
address
SEEK_SET The l_start value is added to
byte 0 of the file
SEEK_END The l_start value is added to
the end (current size) of the
file

12. • The l_len cannot have a negative value.
• The default lock set by the fcntl is an advisory
lock.
• The child process created through fork will
not inherit the file lock.
• lock promotion
• lock splitting

13. open API
• To open a file and establish a connection between a process
and a file
Function prototype
#include <sys/types.h>
#include <fcntl.h>
int open( const char *path_name, int access_mode , mode_t
permission);
• First argument path_name : path name , may be absolute or
relative
• Second argument access_mode: specifies how the file is to be
accessed by calling process , and defined in <fcntl.h> header

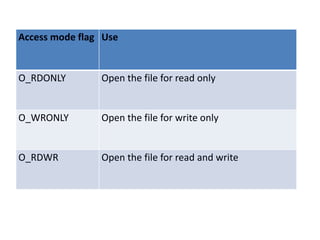

14. Access mode flag Use
O_RDONLY Open the file for read only
O_WRONLY Open the file for write only
O_RDWR Open the file for read and write

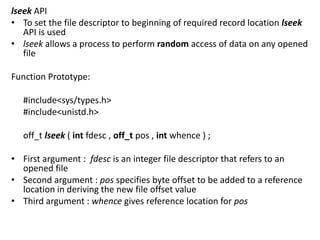

15. lseek API
• To set the file descriptor to beginning of required record location lseek
API is used
• lseek allows a process to perform random access of data on any opened
file
Function Prototype:
#include<sys/types.h>
#include<unistd.h>
off_t lseek ( int fdesc , off_t pos , int whence ) ;
• First argument : fdesc is an integer file descriptor that refers to an
opened file
• Second argument : pos specifies byte offset to be added to a reference
location in deriving the new file offset value
• Third argument : whence gives reference location for pos

16. • The possible values of whence are :
whence value Reference location
SEEK_CUR Current file pointer
address
SEEK_SET The beginning of a file
SEEK_END The end of a file

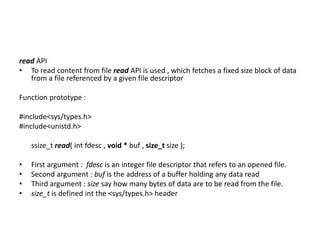

17. read API
• To read content from file read API is used , which fetches a fixed size block of data
from a file referenced by a given file descriptor
Function prototype :
#include<sys/types.h>
#include<unistd.h>
ssize_t read( int fdesc , void * buf , size_t size );
• First argument : fdesc is an integer file descriptor that refers to an opened file.
• Second argument : buf is the address of a buffer holding any data read
• Third argument : size say how many bytes of data are to be read from the file.
• size_t is defined int the <sys/types.h> header

18. • Program layout
– Check if file descriptor can be obtained
– Set file descriptor to last 100th Byte
– Try obtaining Exclusive lock
– If locked print details of process which already has
acquired lock and exit
– Now set file descriptor to last 50th Byte
– Read and print content
– And again Set file descriptor to last 100th Byte and
unlock the region

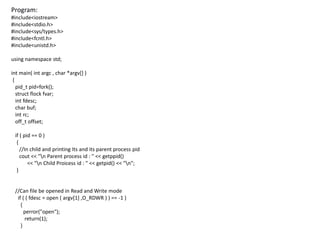

19. Program:
#include<iostream>
#include<stdio.h>
#include<sys/types.h>
#include<fcntl.h>
#include<unistd.h>
using namespace std;
int main( int argc , char *argv[] )
{
pid_t pid=fork();
struct flock fvar;
int fdesc;
char buf;
int rc;
off_t offset;
if ( pid == 0 )
{
//In child and printing Its and its parent process pid
cout << "n Parent process id : " << getppid()
<< "n Child Proicess id : " << getpid() << "n";
}
//Can file be opened in Read and Write mode
if ( ( fdesc = open ( argv[1] ,O_RDWR ) ) == -1 )
{
perror("open");
return(1);
}

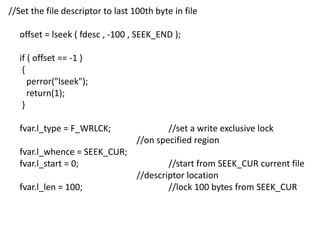

20. //Set the file descriptor to last 100th byte in file
offset = lseek ( fdesc , -100 , SEEK_END );
if ( offset == -1 )
{
perror("lseek");
return(1);
}
fvar.l_type = F_WRLCK; //set a write exclusive lock
//on specified region
fvar.l_whence = SEEK_CUR;
fvar.l_start = 0; //start from SEEK_CUR current file
//descriptor location
fvar.l_len = 100; //lock 100 bytes from SEEK_CUR

21. if( fcntl( fdesc, F_SETLK , &fvar ) == -1 )
{
cout << "nFile has been lockedn";
if( pid == 0 )
{
cout <<"n Child process could not get lock , pid : "<<getpid();
cout << "n Child process does not inherit the lockn";
}
else if ( pid > 0 )
{
cout<<"n Parent process could not get lock , pid : "<<getpid();
}
// Set lock failed
//Checking which process has locked the file and what regions
while( fcntl(fdesc,F_GETLK,&fvar) != -1 && fvar.l_type != F_UNLCK )
{
cout<<"nFile : "<<argv[1]
<<" is locked by process with pid :"<<fvar.l_pid
<<" from "<<fvar.l_start<<" th byte in file"
<<" for "<<fvar.l_len<<" number of bytes , for "
<<(fvar.l_type == F_WRLCK ? "write" : "read" )
<<"nn";
if(!fvar.l_len)
break;
fvar.l_start +=fvar.l_len ;
fvar.l_len = 0;
}
//end of while for check of locks set by other processes
}// end of if check lock not possible

22. else
{
//Locking the file was successful , continue to read last 50 bytes
cout << "nnFile "<<argv[1]<<" was not locked "
<<"and acquring of Exclusive Lock was successfuln";
if ( pid == 0 )
{
cout <<"n Child process acquired the lock"
<<"n Child process pid : "<<getpid();
}
else
{
cout <<"n Parent process acquired the lock";
cout <<"n Parent process id :"<<getpid();
}
//Set the offset to last 50th byte
offset = lseek ( fdesc , -50 , SEEK_END );
if ( offset == -1 )
{
perror("lseek");
return(1);
}

23. //Read the content of file
cout<<"nnLast 50 bytes of file : "<<argv[1];
while( (rc = read( fdesc, &buf , 1 )) > 0 )
{
cout << buf;
}
//Again reset the file descriptor to last 100th byte
offset = lseek ( fdesc , -100 , SEEK_END );
fvar.l_type = F_UNLCK ; //unlocks a specific region
fvar.l_whence = SEEK_CUR;
fvar.l_start = 0;
fvar.l_len = 100;
sleep(5); //sleep for 5 seconds
//now unlock the locked region of file
if ( fcntl(fdesc,F_SETLKW,&fvar) == -1 )
{
perror("fcntl");
return(1);
}
cout << "nFile Unlocked successfullynn";
} // else file locking reading and unlocking successful
return 0;
}

24. Output:
$ cat file.txt
total 36
-rw-rw-r-- 1 rahul rahul 3484 Feb 26 12:47 2q
-rwxrwxr-x 1 rahul rahul 9931 Mar 2 10:51 a.out
-rw-rw-r-- 1 rahul rahul 297 Feb 25 12:46 charFile.txt
-rw-rw-r-- 1 rahul rahul 4007 Mar 2 10:51 excLock.cpp
-rw-rw-r-- 1 rahul rahul 3350 Feb 26 12:28 exclusiveLock.cpp
-rw-rw-rw- 1 rahul rahul 0 Mar 2 10:52 file.txt
-rw-rw-r-- 1 rahul rahul 809 Feb 25 13:48 printfromfile.cpp
-rwxrwxrwx 1 rahul rahul 227 Feb 25 11:57 textfile.txt
$ g++34 excLock.cpp
$ ./a.out file.txt
Parent process id : 18721
Child Proicess id : 18722
File file.txt was not locked and acquring of Exclusive Lock was successful
Child process acquired the lock
Child process pid : 18722
Last 50 bytes of file : file.txtxrwx 1 rahul rahul 227 Feb 25 11:57 textfile.txt
File has been locked
Parent process could not get lock , pid : 18721
File : file.txt is locked by process with pid :18722 from 345 th byte in file for 100 number of bytes , for write
File Unlocked successfully

25. Thank you
