- 1. Simplify VR SébastienKuntz President Thursday, August 30, 12
- 2. Plan • What is VR ? • Hardware • Applications • Challenges of creating a VR application • MiddleVR for Unity Thursday, August 30, 12
- 3. WHY NOW ? Thursday,August 30, 12
- 4. WHY NOW ? •Already changing the world Thursday, August 30, 12
- 5. WHY NOW ? •Already changing the world • Democratization Thursday, August 30, 12
- 6. WHY NOW ? •Already changing the world • Democratization • Are we in the future ? No ! We’re still in prehistory ! Thursday, August 30, 12
- 7. WHY NOW ? •Already changing the world • Democratization • Are we in the future ? No ! We’re still in prehistory ! • WE can make a difference ! Thursday, August 30, 12
- 8. Virtual reality Presence in a virtual world (c) Barco (c) eMagin Thursday, August 30, 12
- 9. Virtual reality Presence in a virtual world (c) Barco (c) eMagin Thursday, August 30, 12
- 10. i’m in! Thursday, August30, 12
- 11.
- 12.
- 13. mersion teraction Thursday, August 30, 12
- 14. mersion teraction Presence Thursday, August 30, 12
- 15. Plan • What is VR ? • Hardware • Applications • Challenges of creating a VR application • MiddleVR for Unity Thursday, August 30, 12
- 16. PROJECTOR BASED VR SYSTEMS Thursday, August 30, 12
- 17.
- 18. http://www.youtube.com/watch?v=Hb29bLHEjUg Clarte - SAS Cube Thursday, August 30, 12
- 19. REALITY CENTER - HOLOSTAGE (c) Arnaud Muthelet Thursday, August 30, 12

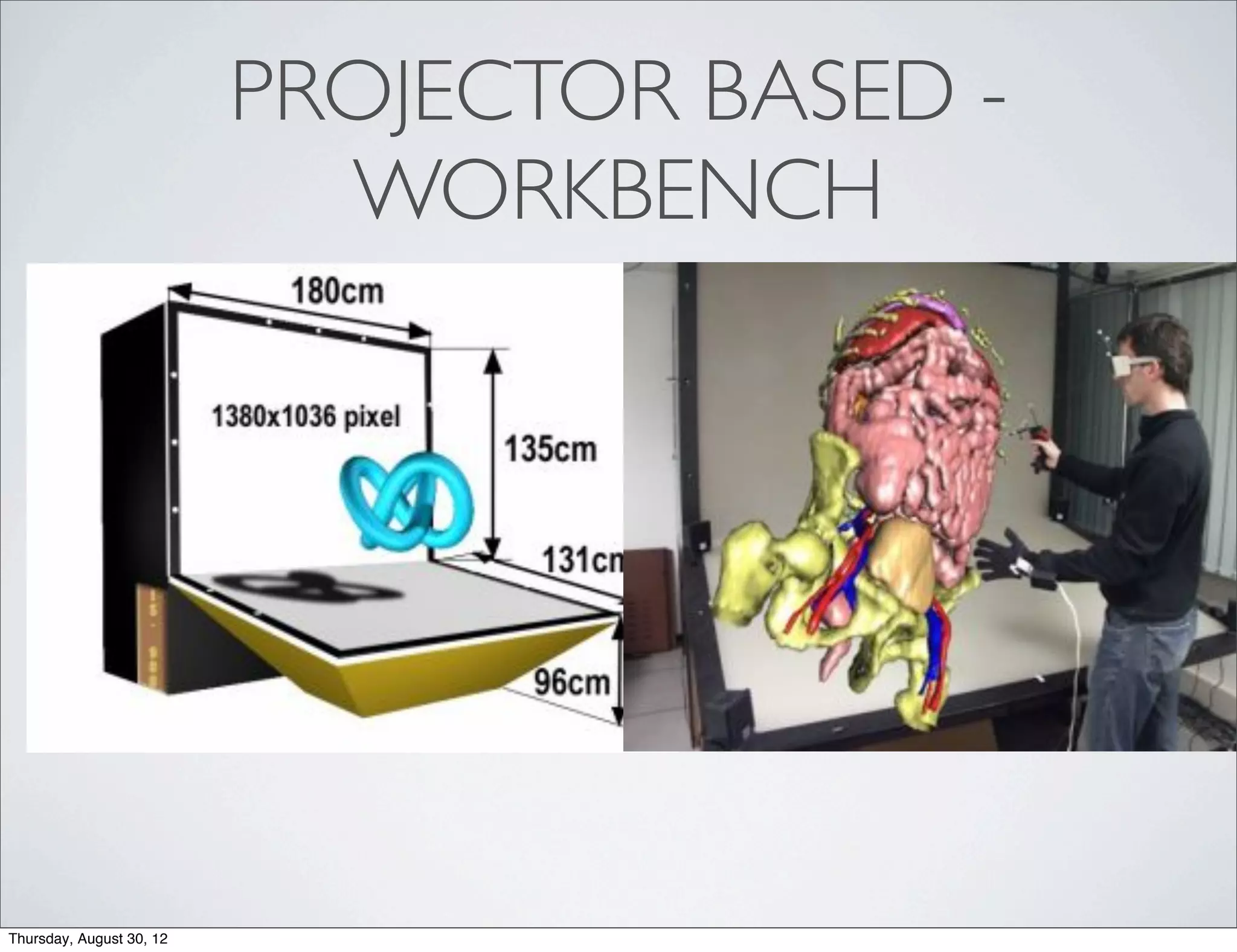

- 20. PROJECTOR BASED - WORKBENCH Thursday, August 30, 12
- 21. PROJECTOR BASED VR SYSTEMS • Cons • (Very) expensive ! • Lots of space ! ( front and behind, AC... ) • Not 360° • Cluster hard to program ! • Pros • +/- Collaborative • Not much to wear • High resolution, big FOV Thursday, August 30, 12
- 22. HMD HEAD MOUNTED DISPLAYS Thursday, August 30, 12

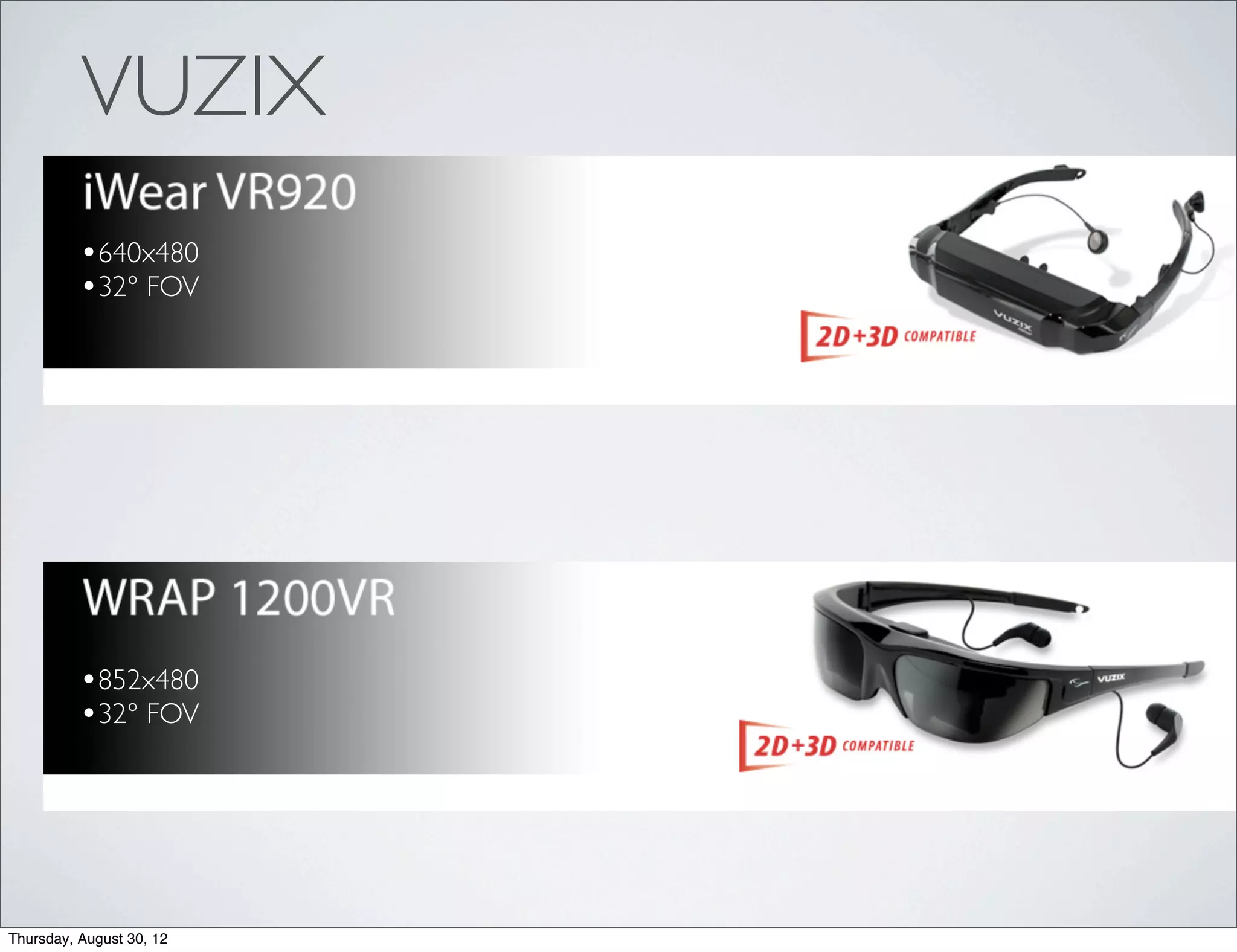

- 23. VUZIX •640x480 •32° FOV •852x480 •32° FOV Thursday, August 30, 12

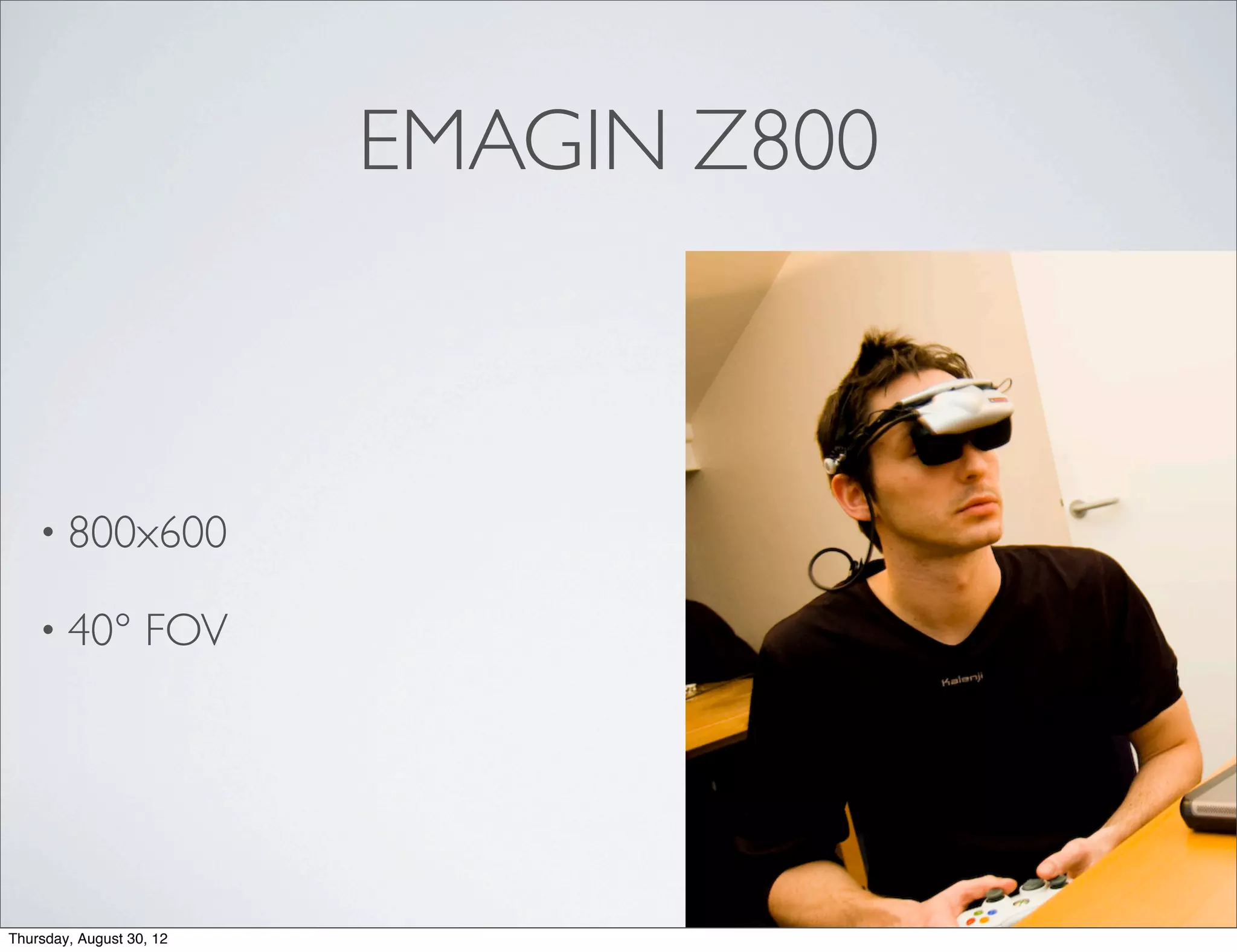

- 24. EMAGIN Z800 • 800x600 • 40° FOV Thursday, August 30, 12
- 25. SONY • HMZ-T1 • 1280x720 (720p) • 45° Thursday, August 30, 12
- 26. SENSICS • piSight • Multiple screens • zSight • 1280x1024 • 70° FOV Thursday, August 30, 12

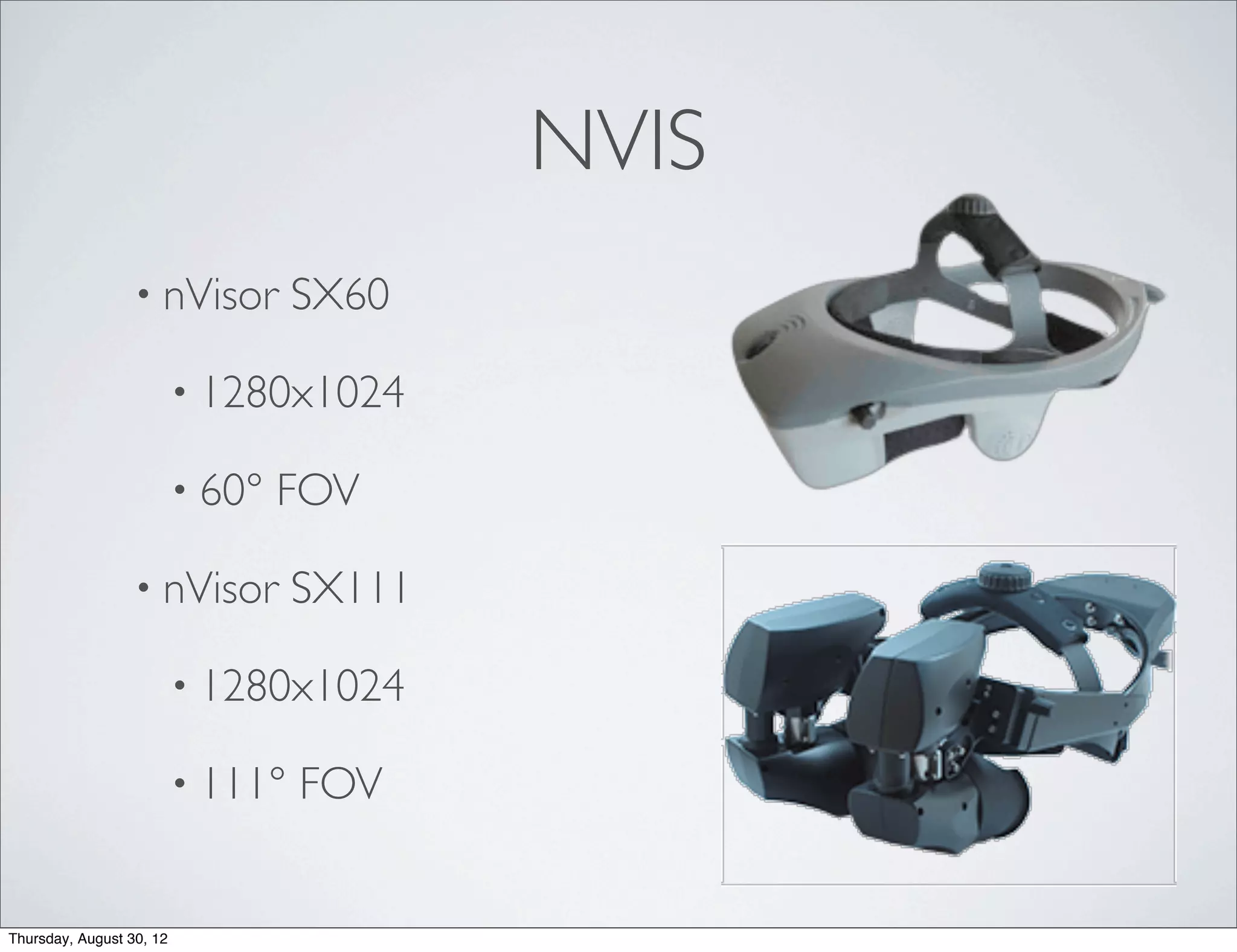

- 27. NVIS • nVisor SX60 • 1280x1024 • 60° FOV • nVisor SX111 • 1280x1024 • 111° FOV Thursday, August 30, 12
- 28. FAKESPACE LABS • Wide5 • 150° horizontal FOV • 1600x1200 • Progressive Thursday, August 30, 12

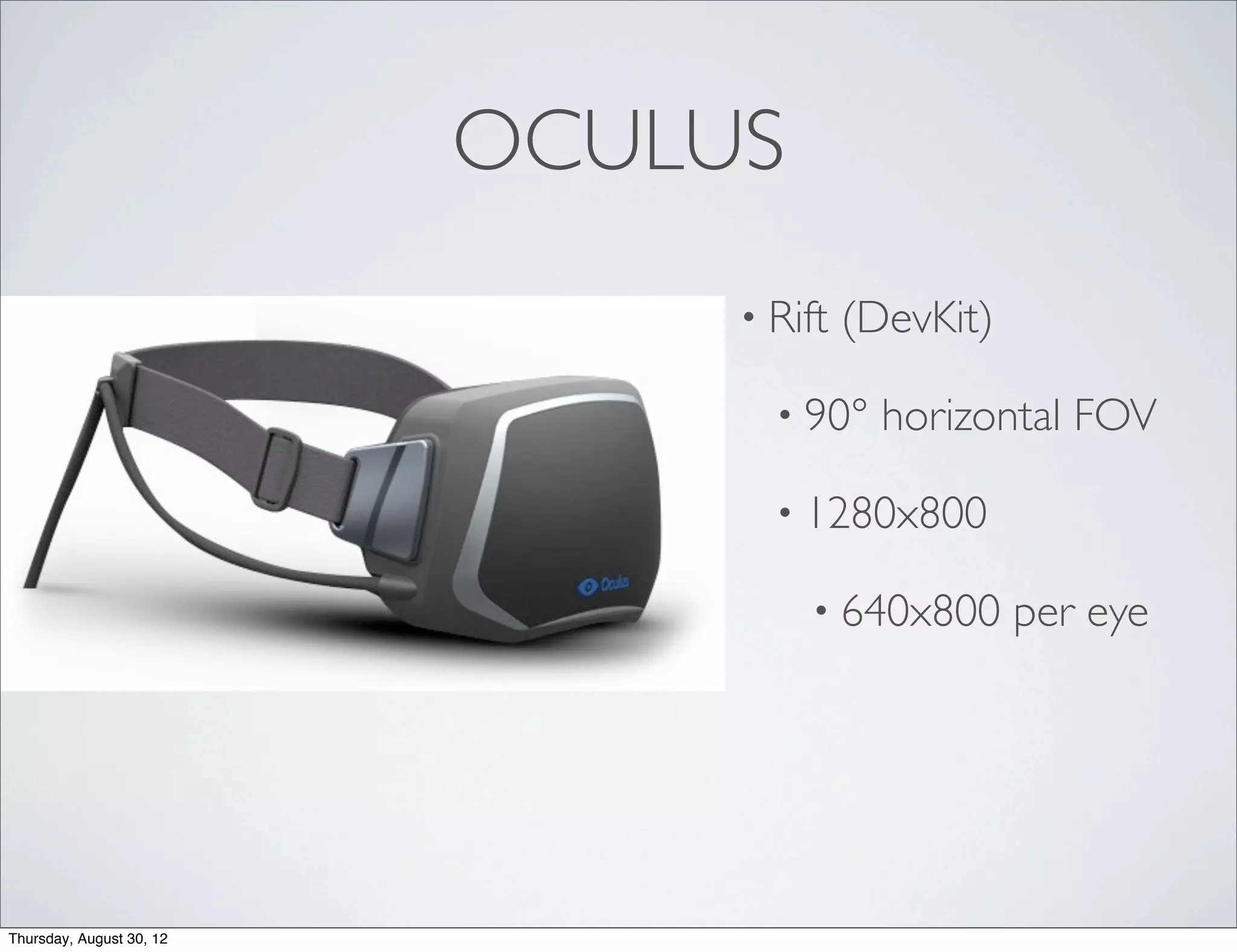

- 29. OCULUS • Rift (DevKit) • 90° horizontal FOV • 1280x800 • 640x800 per eye Thursday, August 30, 12
- 30. HMD • Cons • Low resolution, low FOV • Must wear, adjust • No peripheral vision • Pros • Lightweight • Compact • Easier to program • 360° tracking Thursday, August 30, 12
- 31. LOCOMOTION • Virtusphere • http://www.youtube.com/watch?v=qTnnJR-hS7k • CirculaFloor • http://www.youtube.com/watch?v=rYsvB2y2Ero • OmniDirectionnal Treadmill • http://www.youtube.com/watch?v=BQw1tsgrJOs Thursday, August 30, 12

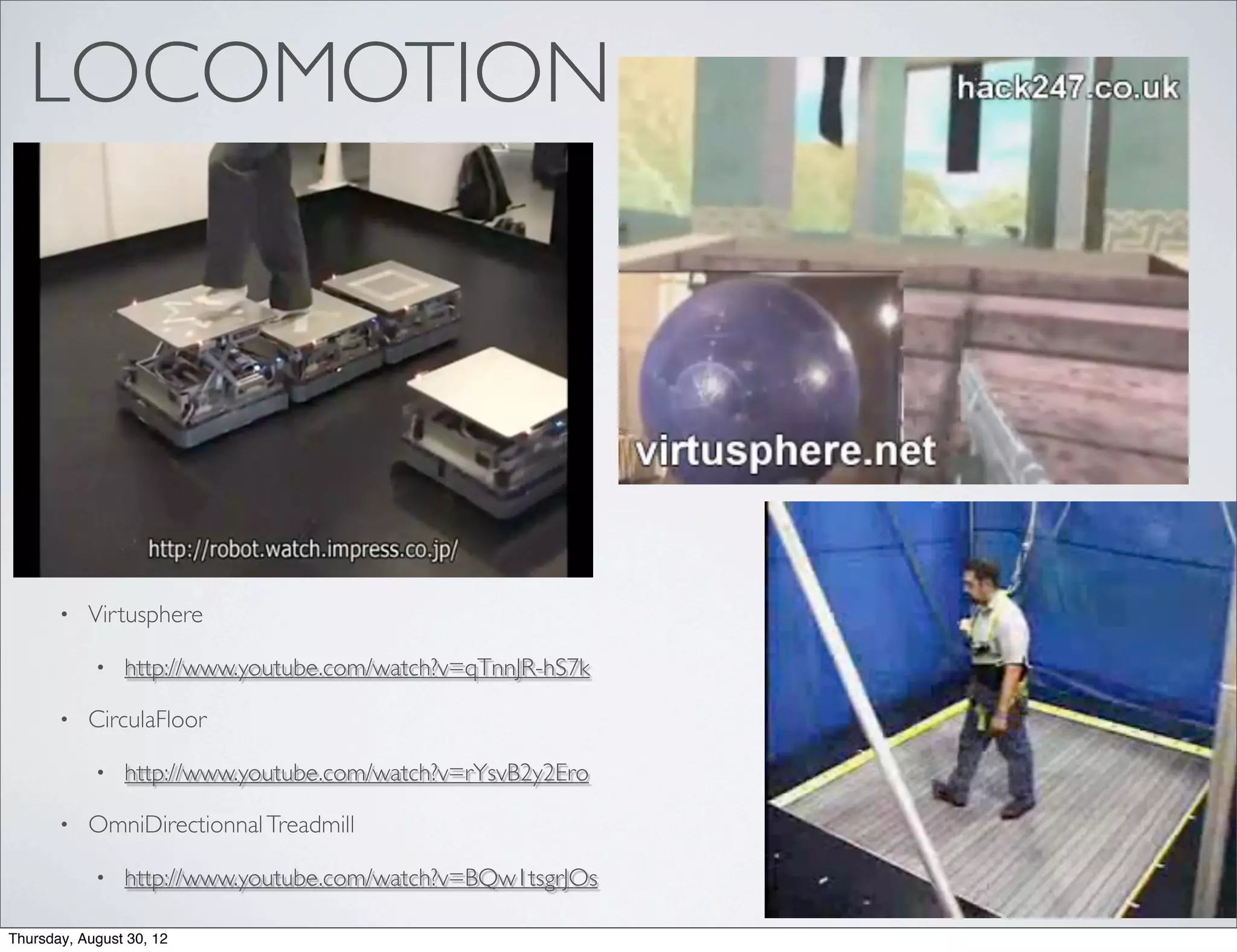

- 32. LOCOMOTION • Virtusphere • http://www.youtube.com/watch?v=qTnnJR-hS7k • CirculaFloor • http://www.youtube.com/watch?v=rYsvB2y2Ero • OmniDirectionnal Treadmill • http://www.youtube.com/watch?v=BQw1tsgrJOs Thursday, August 30, 12
- 33. LOCOMOTION • Virtusphere • http://www.youtube.com/watch?v=qTnnJR-hS7k • CirculaFloor • http://www.youtube.com/watch?v=rYsvB2y2Ero • OmniDirectionnal Treadmill • http://www.youtube.com/watch?v=BQw1tsgrJOs Thursday, August 30, 12
- 34. LOCOMOTION • Virtusphere • http://www.youtube.com/watch?v=qTnnJR-hS7k • CirculaFloor • http://www.youtube.com/watch?v=rYsvB2y2Ero • OmniDirectionnal Treadmill • http://www.youtube.com/watch?v=BQw1tsgrJOs Thursday, August 30, 12
- 35. Plan • What is VR ? • Hardware • Applications • Challenges of creating a VR application • MiddleVR for Unity Thursday, August 30, 12
- 36. IVR APPLICATIONS DESIGN, PROTOTYPING (c) Peugeot PSA (c) Miele Thursday, August 30, 12

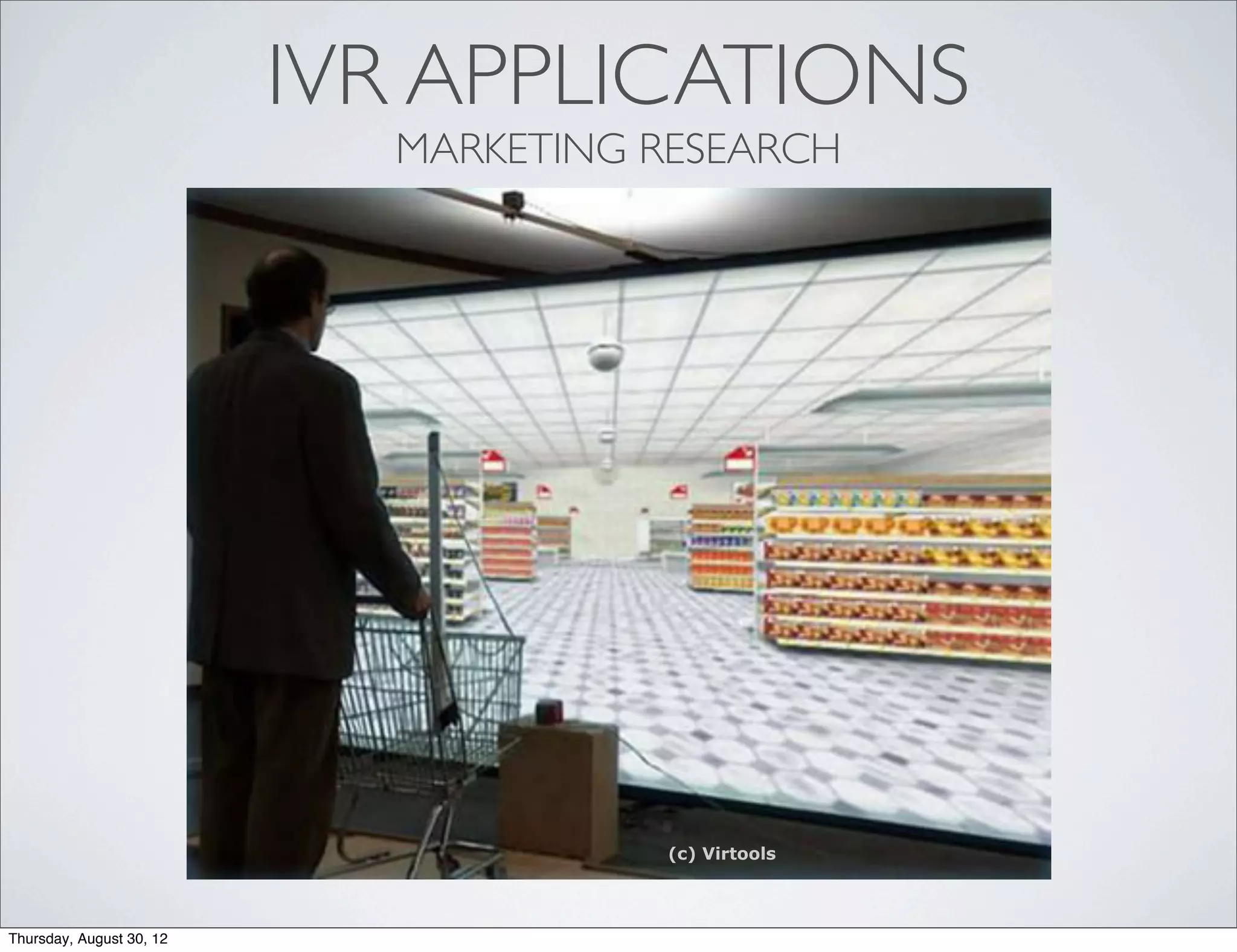

- 37. IVR APPLICATIONS MARKETING RESEARCH (c) Virtools Thursday, August 30, 12

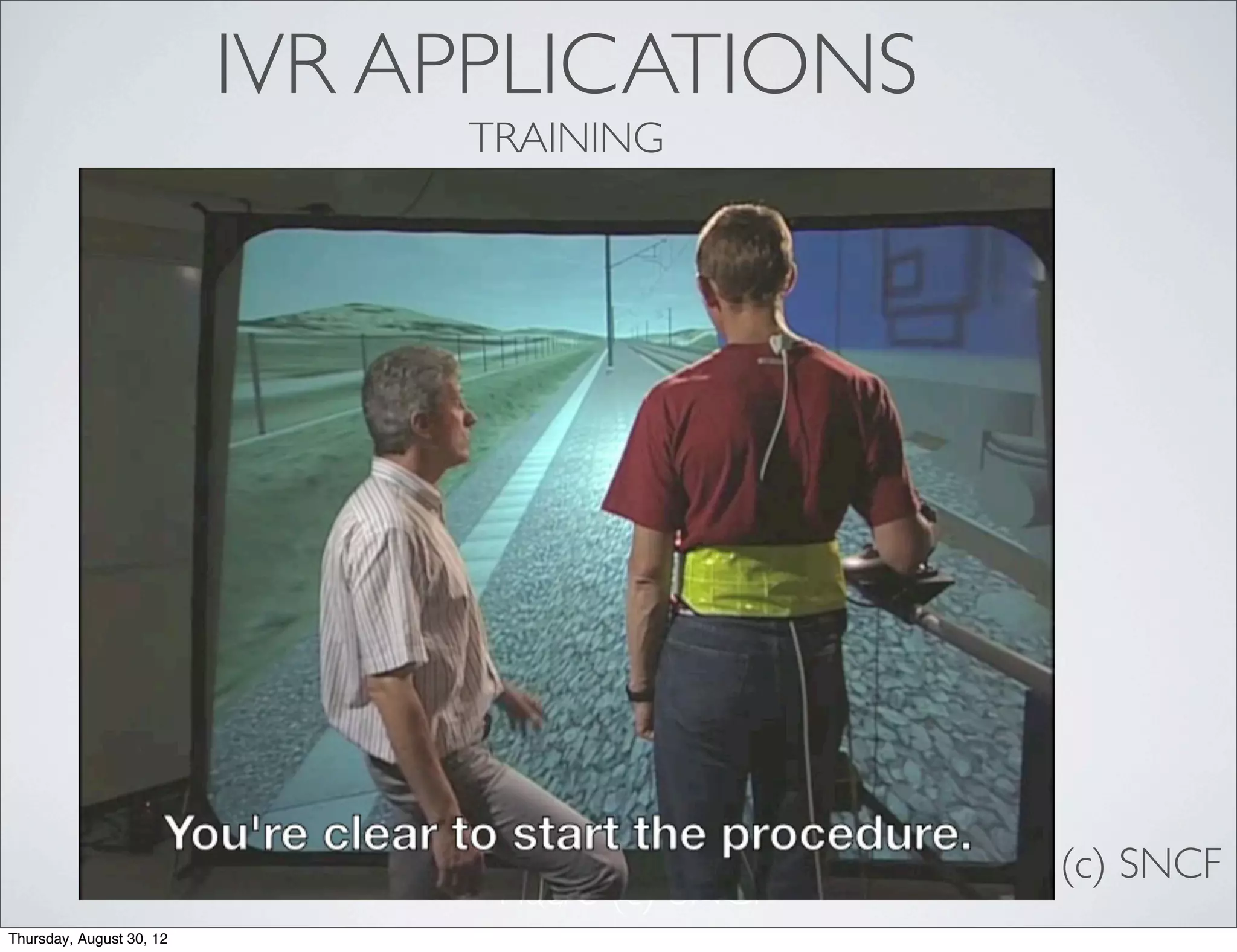

- 38. IVR APPLICATIONS TRAINING (c) SNCF Fiacre (c)- Fiacre (c) SNCF SNCF Thursday, August 30, 12
- 39. RE-LION http://vimeo.com/25032061 Thursday, August 30, 12
- 40. IVR APPLICATIONS RESEARCH • Research on perception Thursday, August 30, 12
- 41. IVR APPLICATIONS RESEARCH • Phobias Thursday, August 30, 12
- 42. IVR APPLICATIONS RESEARCH • Phobias Thursday, August 30, 12
- 43. Art ? Games? Thursday, August 30, 12
- 44. CAVE http://www.youtube.com/watch?v=pagVgeFaR5Q Clarte - Atrium Thursday, August 30, 12
- 45. BATTLEFIELD 3 SIMULATOR • www.youtube.com/watch?v=nQR49JGySTM Thursday, August 30, 12
- 46. Plan • What is VR ? • Hardware • Applications • Challenges of creating a VR application • MiddleVR for Unity Thursday, August 30, 12
- 47. “VR is mainlya software problem” Jaron Lanier Thursday, August 30, 12

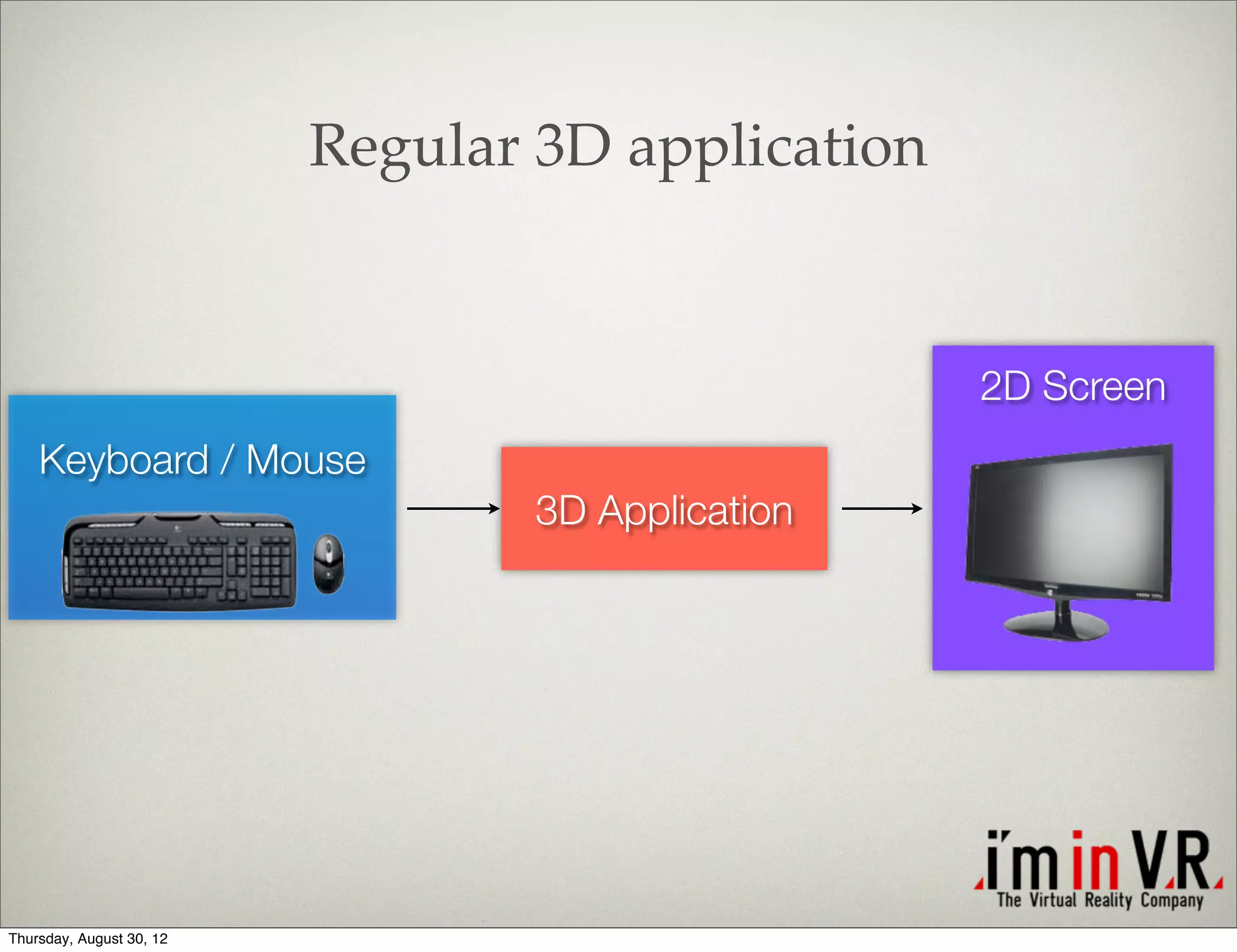

- 48. Regular 3D application 2D Screen Keyboard / Mouse 3D Application Thursday, August 30, 12

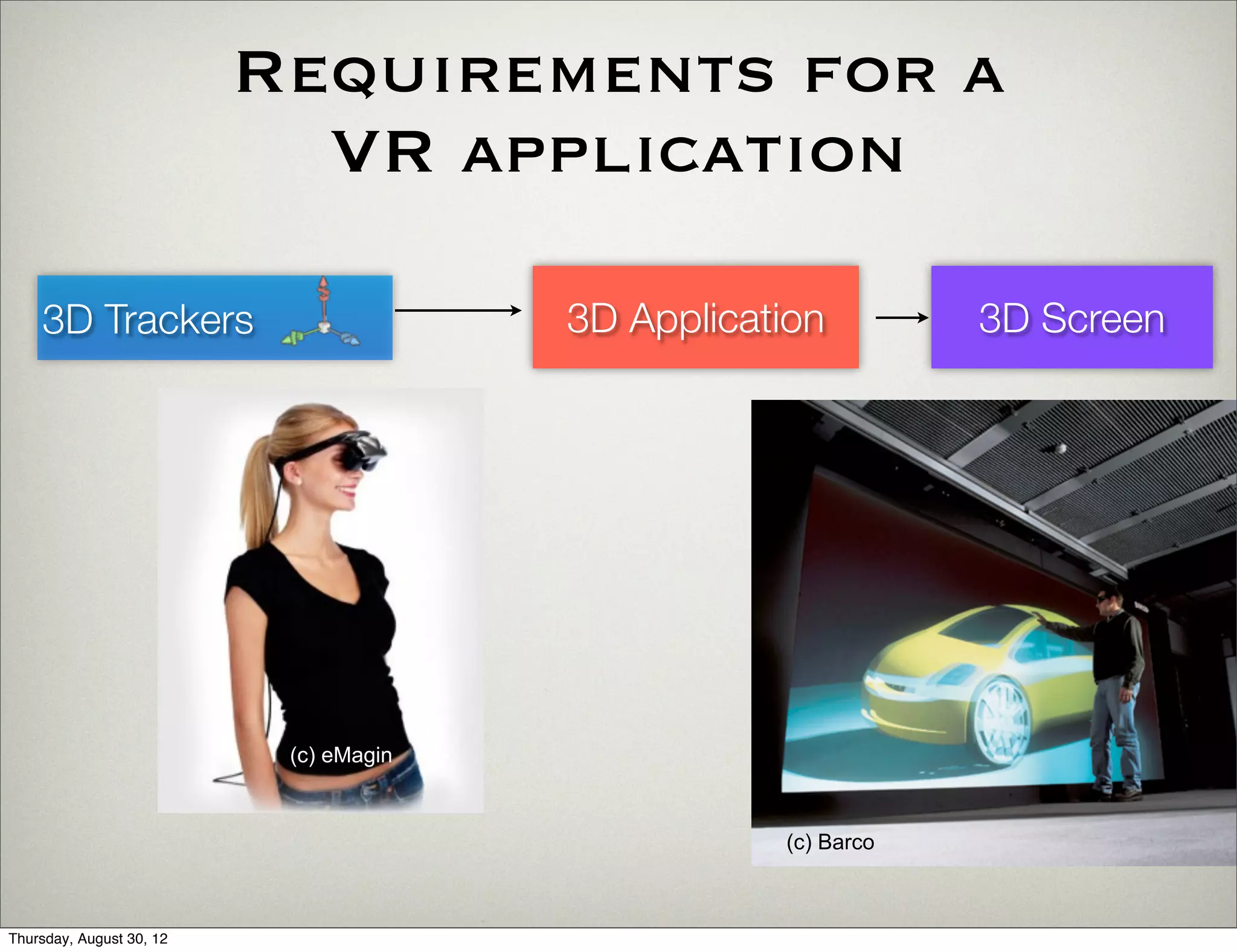

- 49. Requirements for a VR application 3D Trackers 3D Application 3D Screen (c) eMagin (c) Barco Thursday, August 30, 12
- 50.

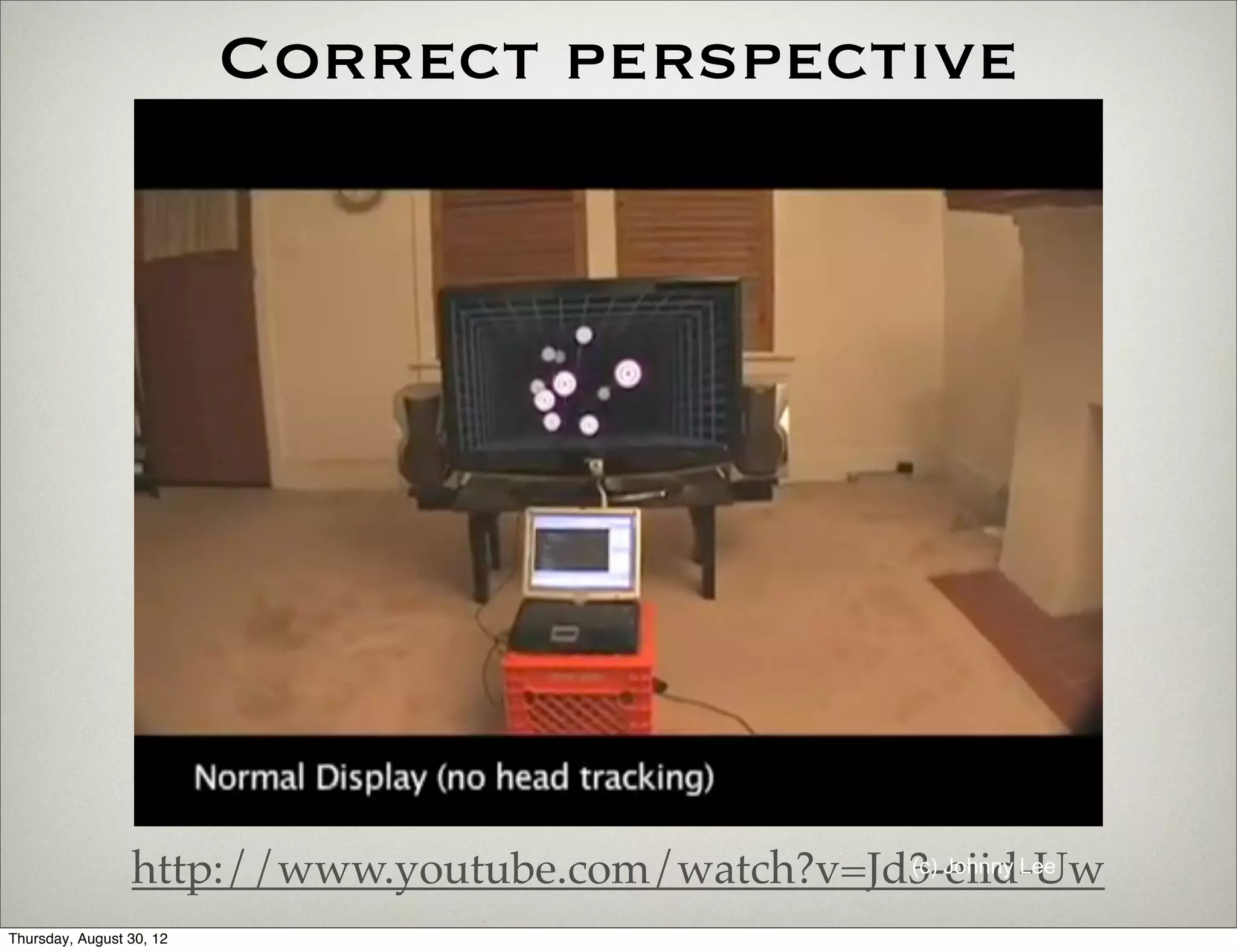

- 51. Correct perspective http://www.youtube.com/watch?v=Jd3-eiid-Uw (c) Johnny Lee Thursday, August 30, 12
- 52.
- 53.

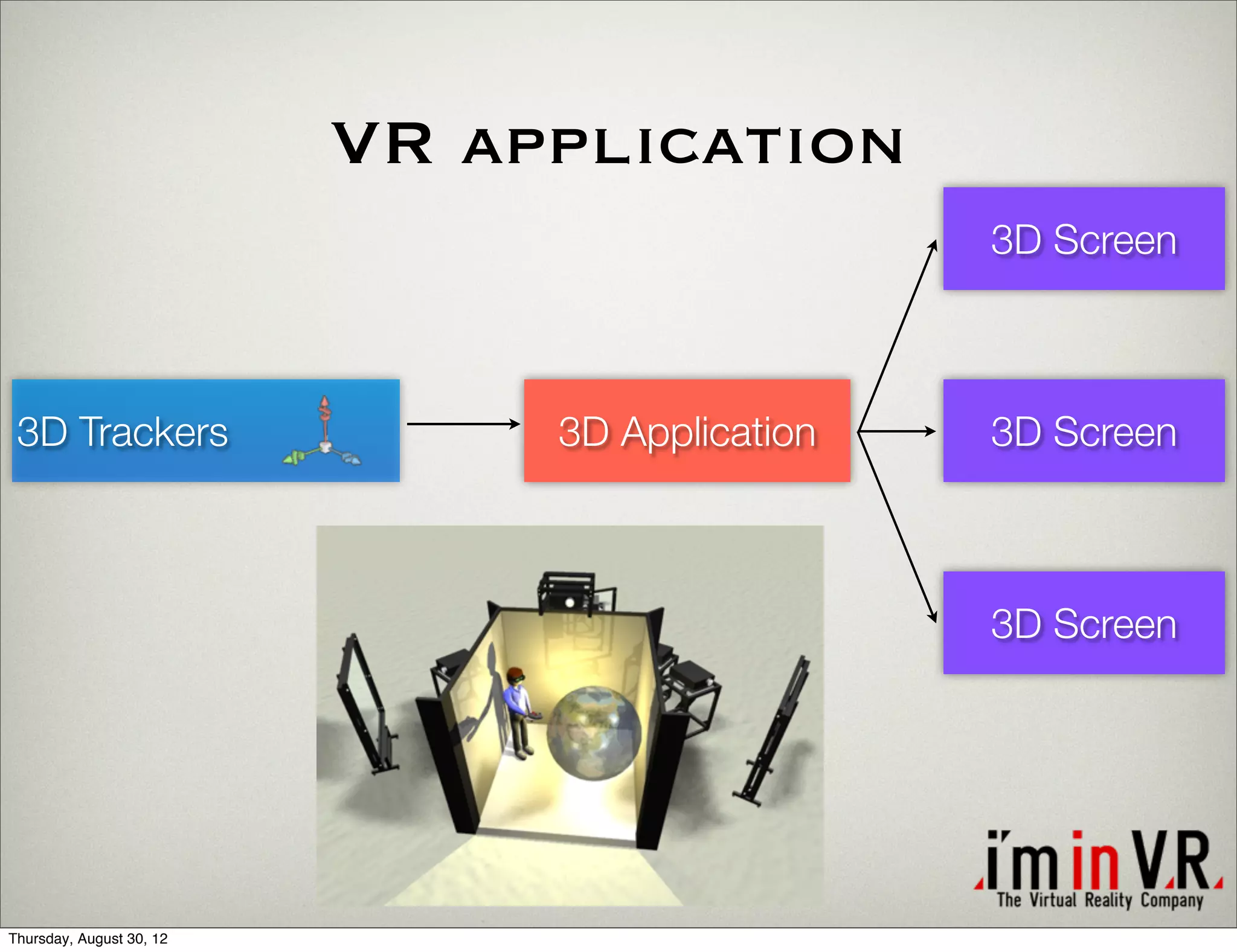

- 54. VR application 3D Screen 3D Trackers 3D Application 3D Screen 3D Screen Thursday, August 30, 12
- 55.
- 56.

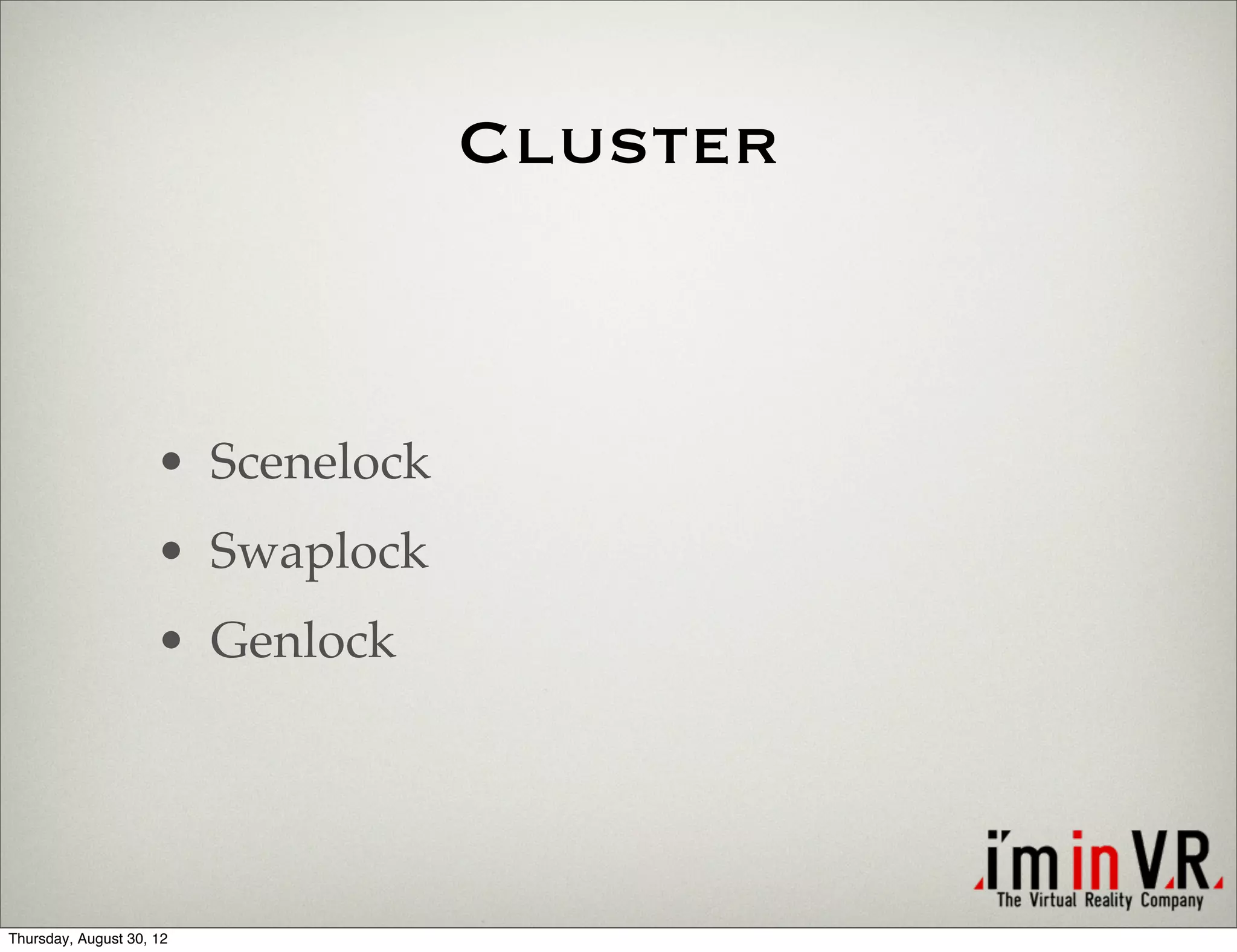

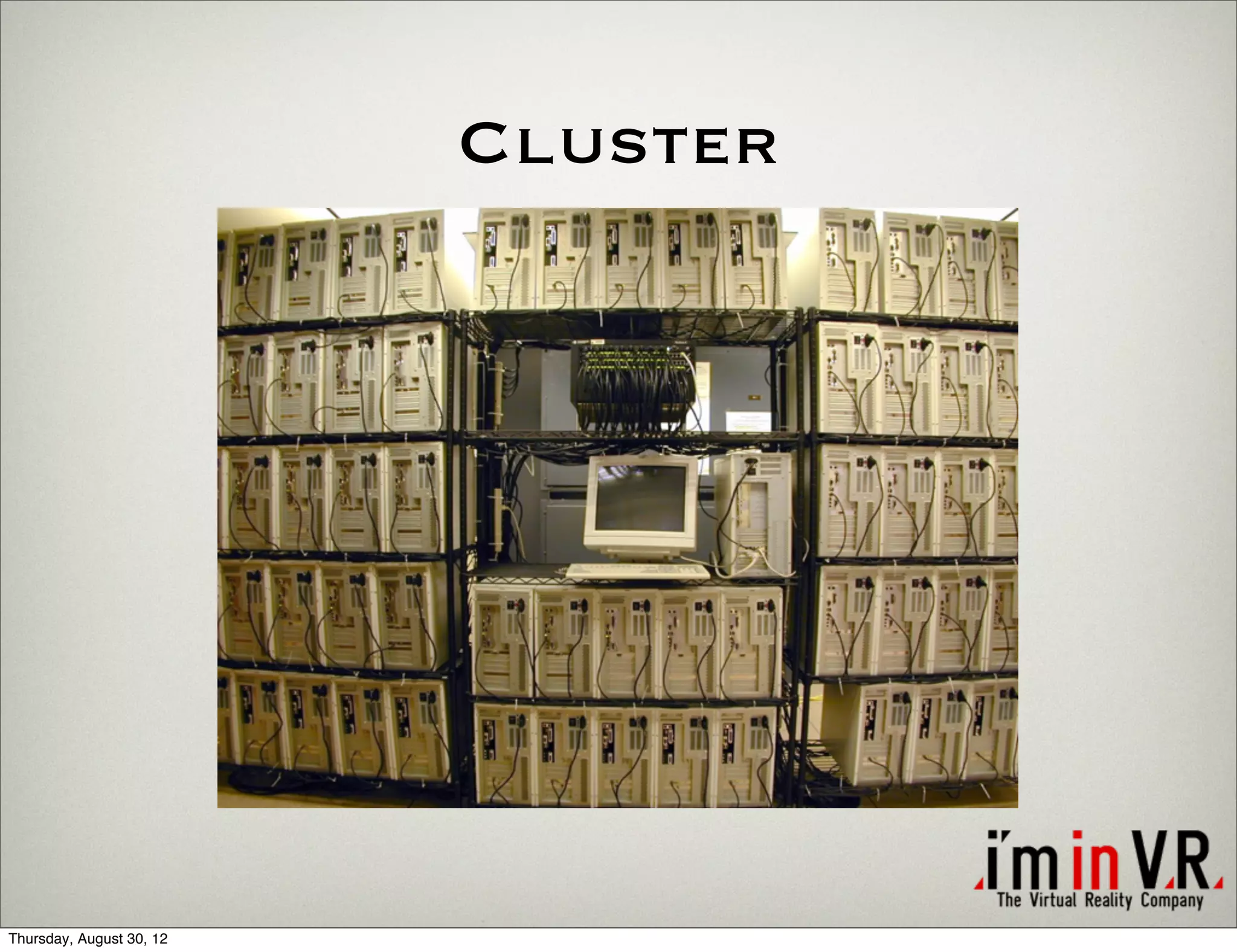

- 57. Cluster • Scenelock • Swaplock • Genlock Thursday, August 30, 12
- 58.

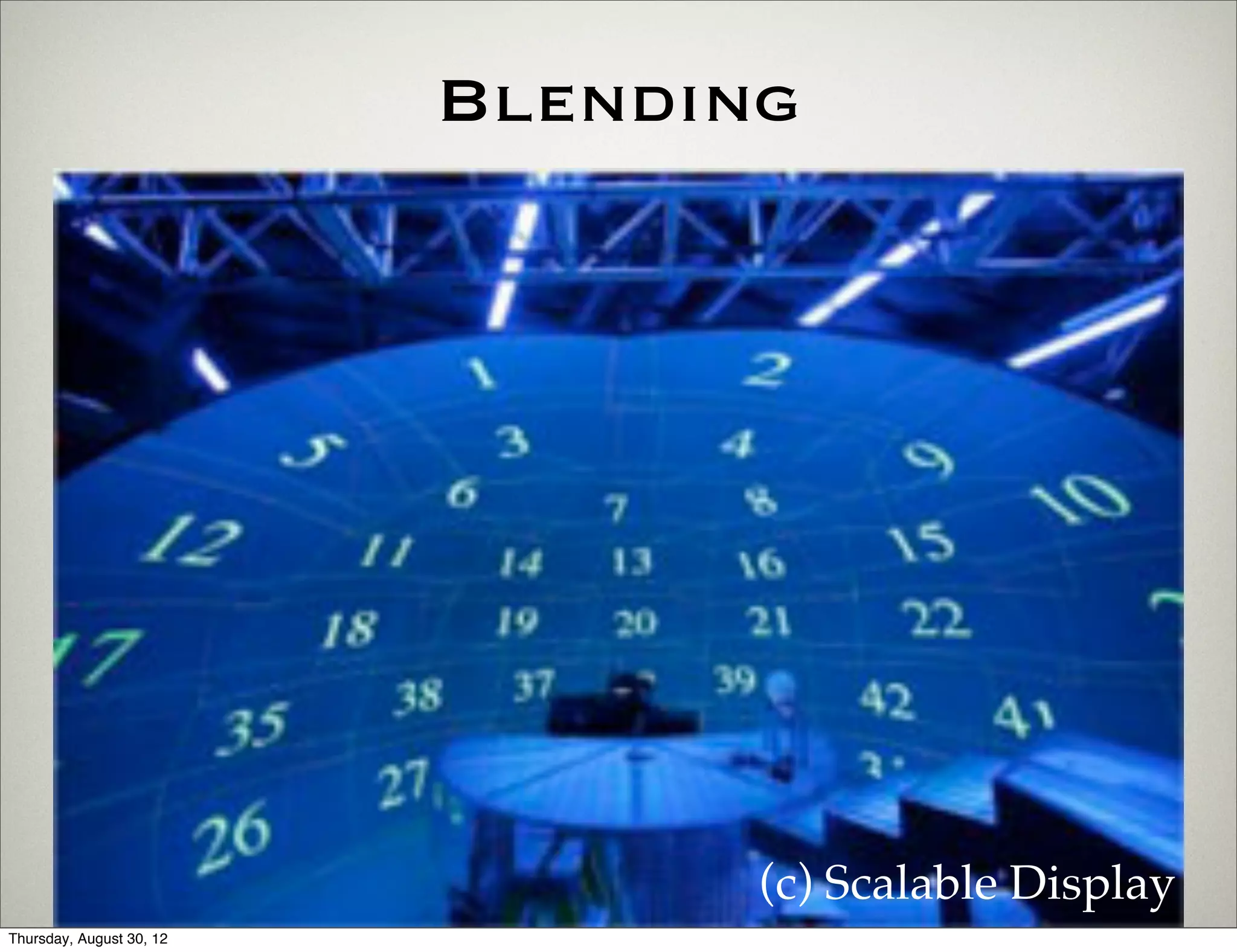

- 59. Blending (c) Scalable Display Thursday, August 30, 12
- 60. Deployment (c) eMagin (c) Barco Thursday, August 30, 12
- 61.
- 62. To achieve agood iVR experience, you need to ... Thursday, August 30, 12
- 63. To achieve agood iVR experience, you need to ... • Build hardware Thursday, August 30, 12

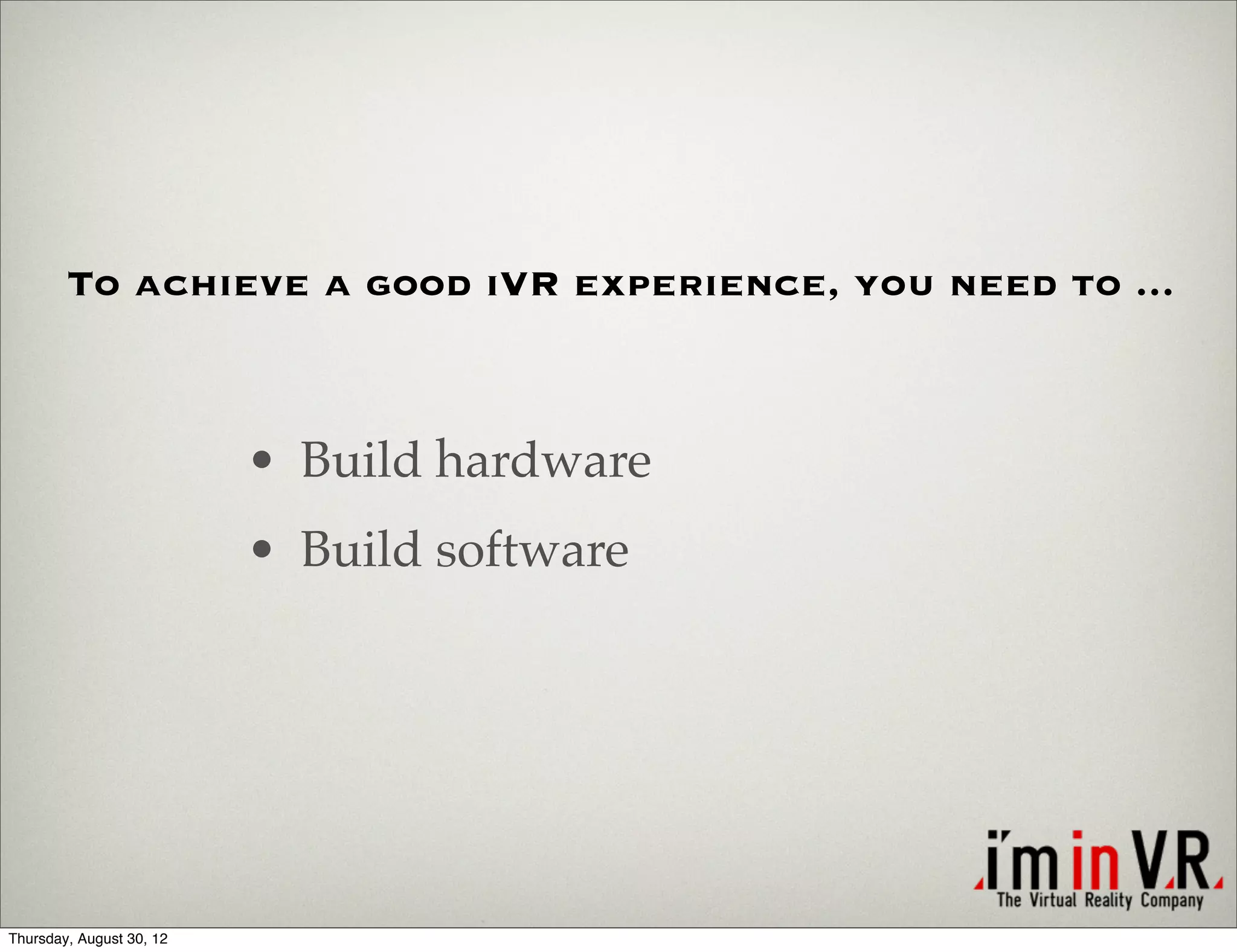

- 64. To achieve agood iVR experience, you need to ... • Build hardware • Build software Thursday, August 30, 12
- 65. To achieve agood iVR experience, you need to ... • Build hardware • Build software • Build experience Thursday, August 30, 12

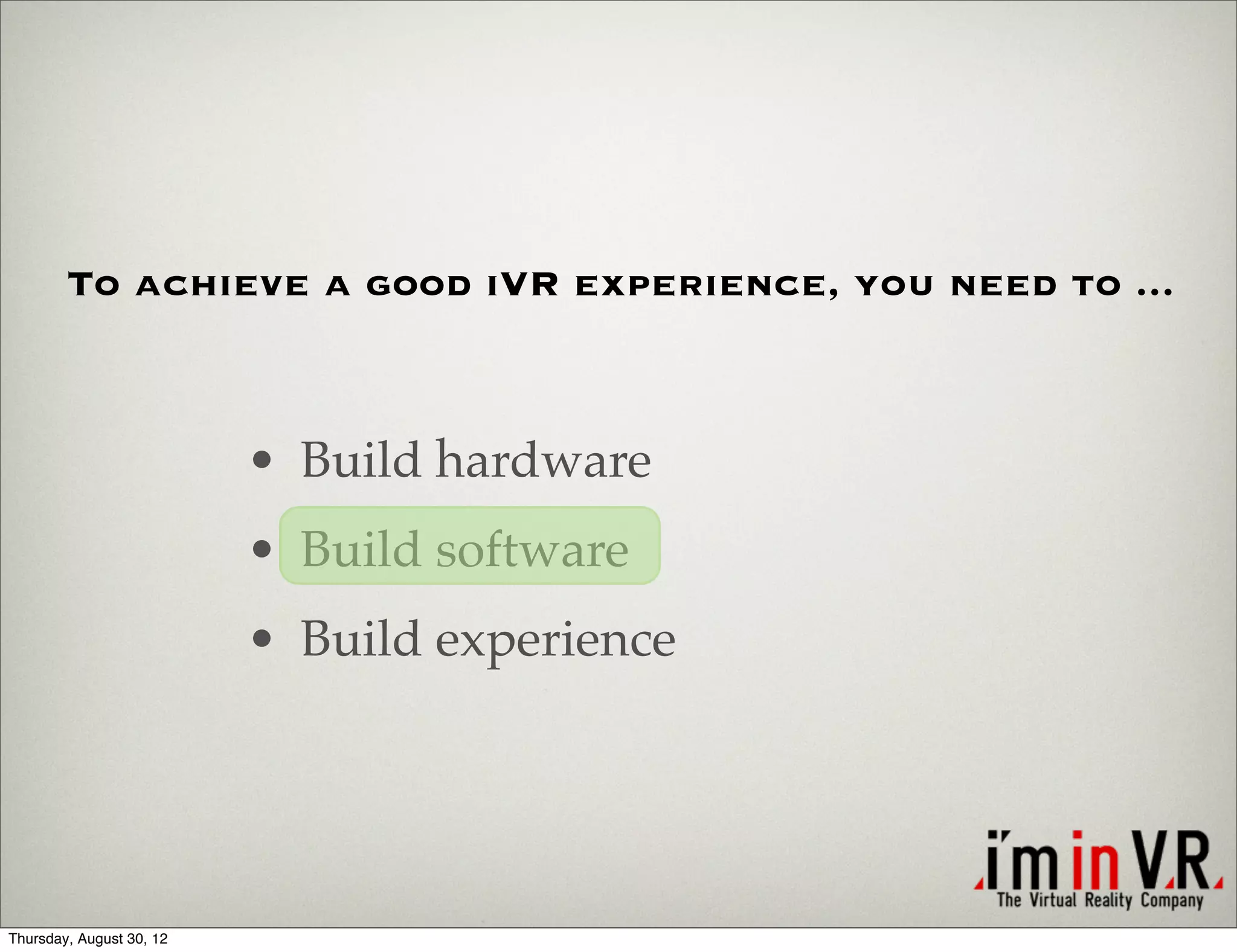

- 66. To achieve agood iVR experience, you need to ... • Build hardware • Build software • Build experience Thursday, August 30, 12

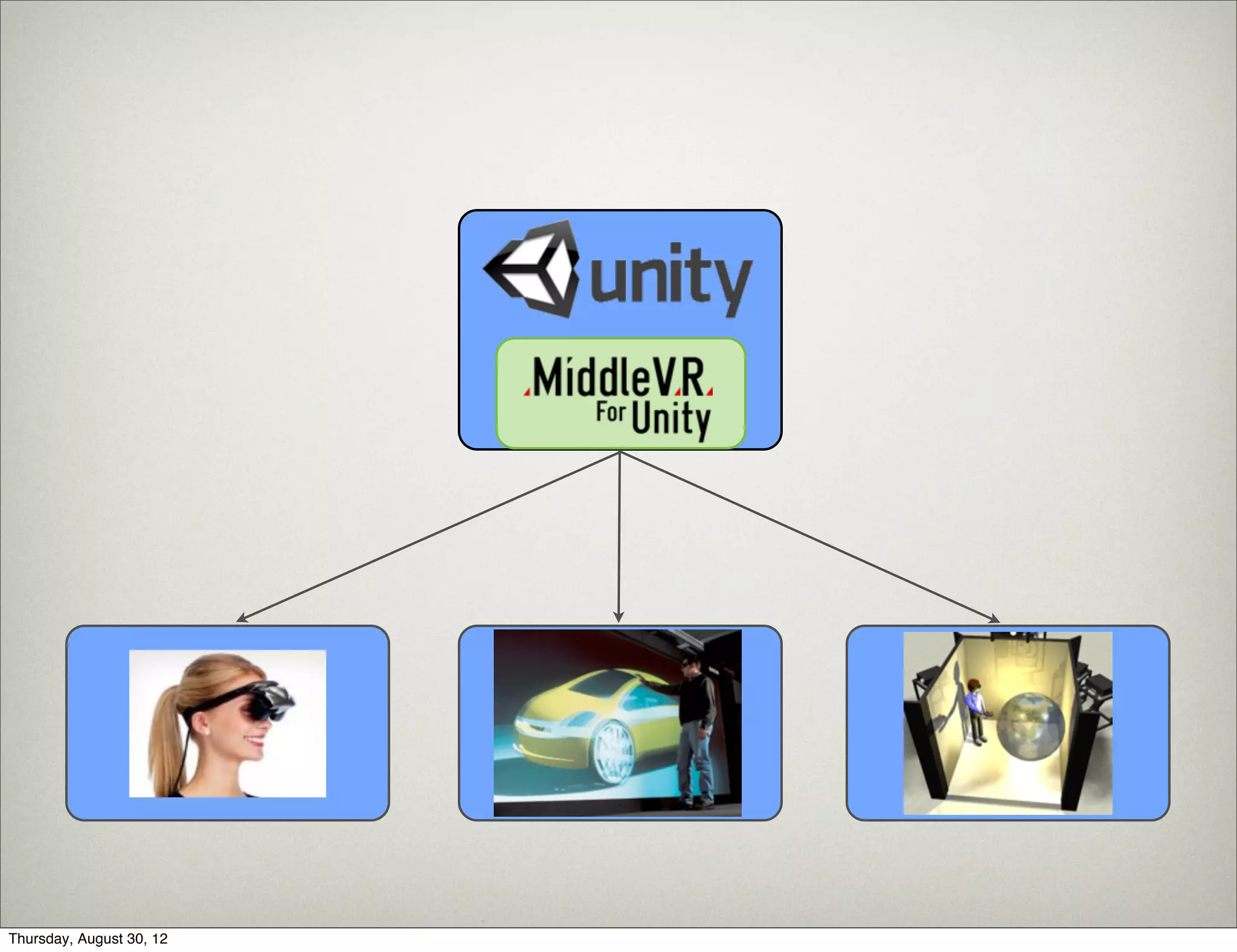

- 67.
- 68. What is MiddleVR? ○Manage input devices •3D trackers, keyboard, mouse, joystick ○Manage displays •Viewports, cameras, stereoscopy, cluster Thursday, August 30, 12

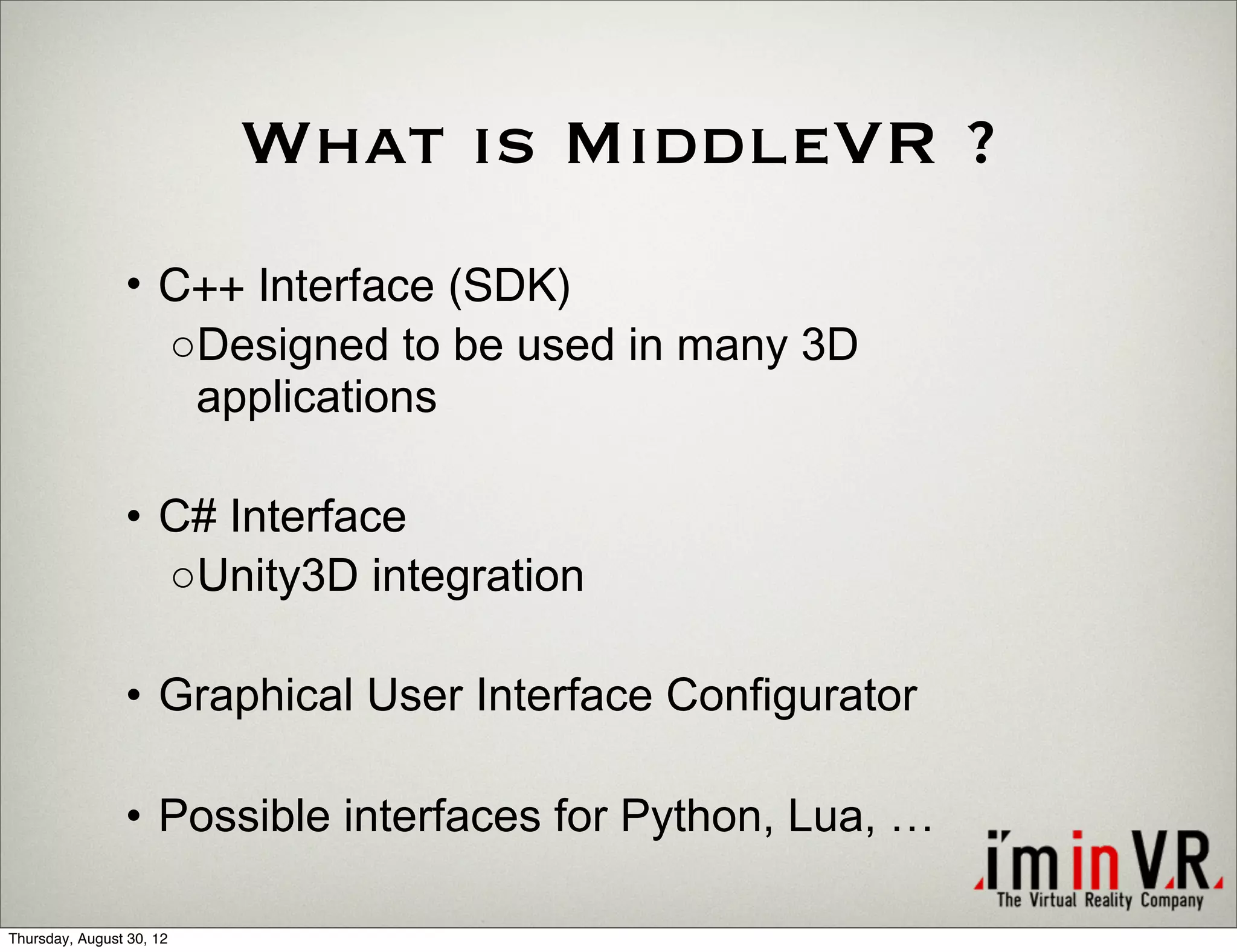

- 69. What is MiddleVR? • C++ Interface (SDK) ○Designed to be used in many 3D applications • C# Interface ○Unity3D integration • Graphical User Interface Configurator • Possible interfaces for Python, Lua, … Thursday, August 30, 12

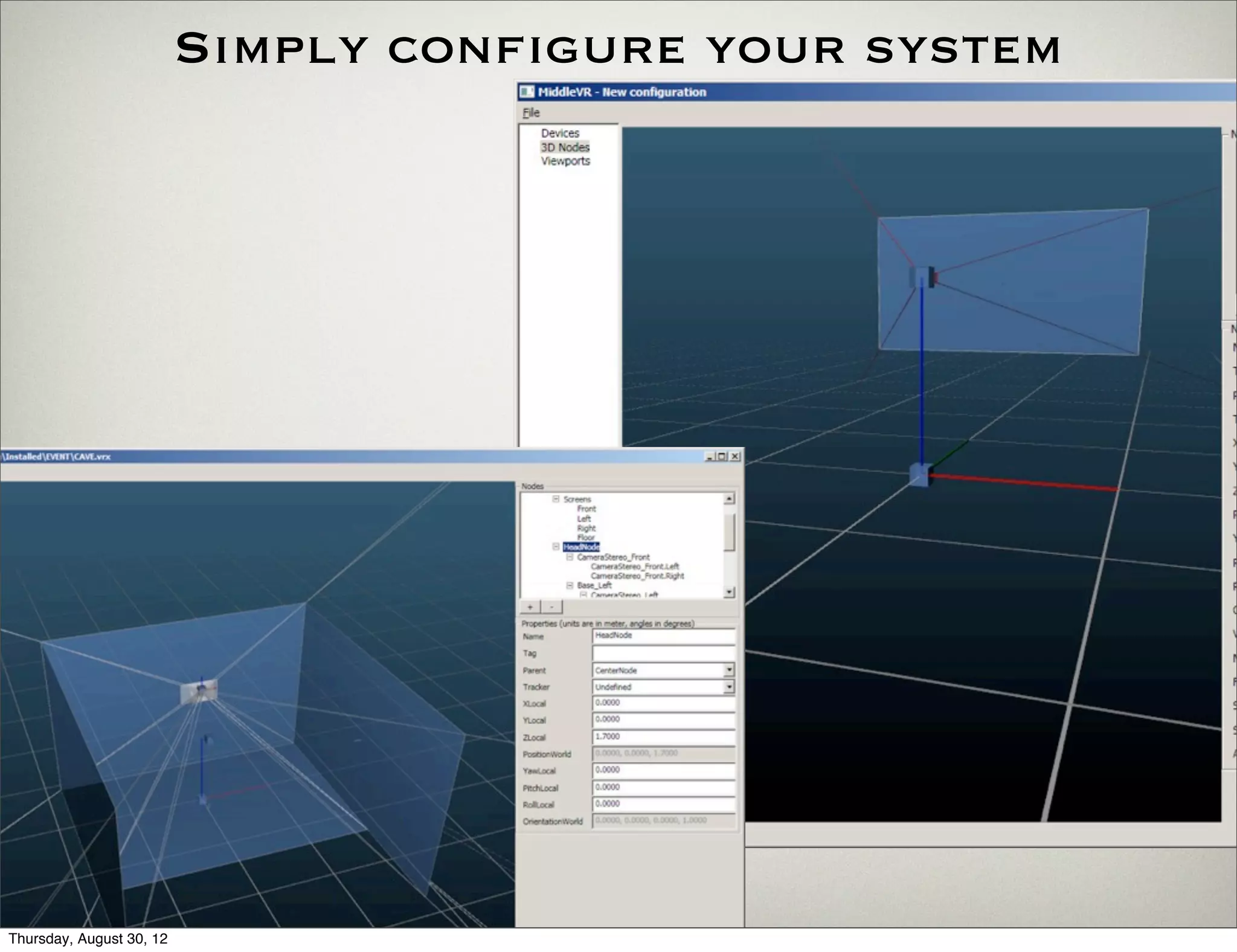

- 70. Simply configure yoursystem Thursday, August 30, 12
- 71.
- 72.
- 73. Supported Devices • Via VRPN : • A.R.T • Vicon • Optitrack • Direct drivers • Wiimote • Kinect (Microsoft SDK) • PNI SpacePoint • Polhemus Fastrak Tracker, 3Space Tracker, Patriot Trackers, Fusion • Ascension Flock of Bird • Intersense IS600, IS900 • GameTrak • 3dTech HiBall-3000 Wide Area Tracker, • Razer Hydra • Advanced Realtime Tracking Gmbh DTrack Client, • Motion Analysis (beta) • World Viz Precision Position Tracker PPT 1.2, • Natural Point Optitrack Rigid Body Toolkit, • Phasespace optical tracking OWL, • ... Thursday, August 30, 12

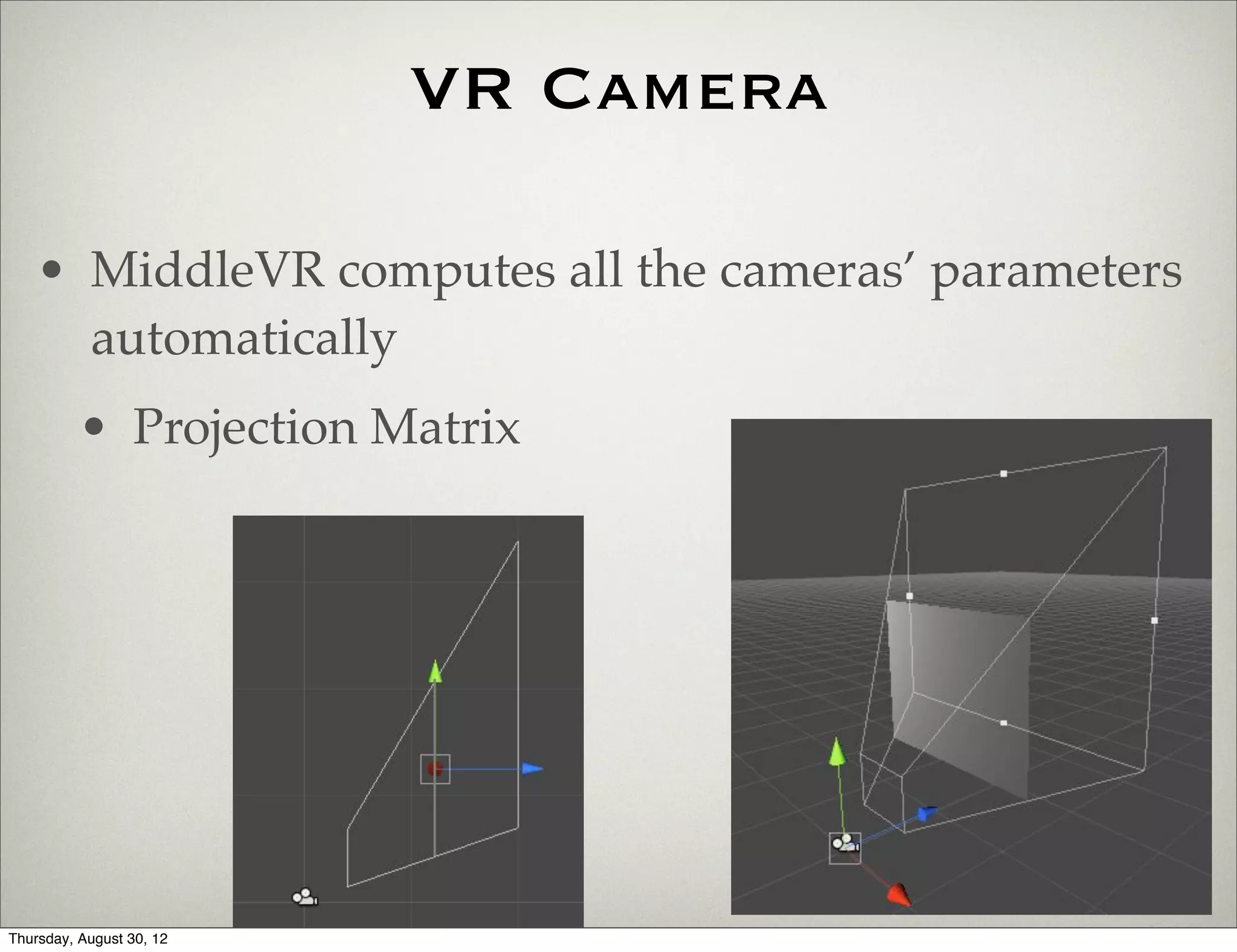

- 74. VR Camera • MiddleVR computes all the cameras’ parameters automatically • Projection Matrix Thursday, August 30, 12

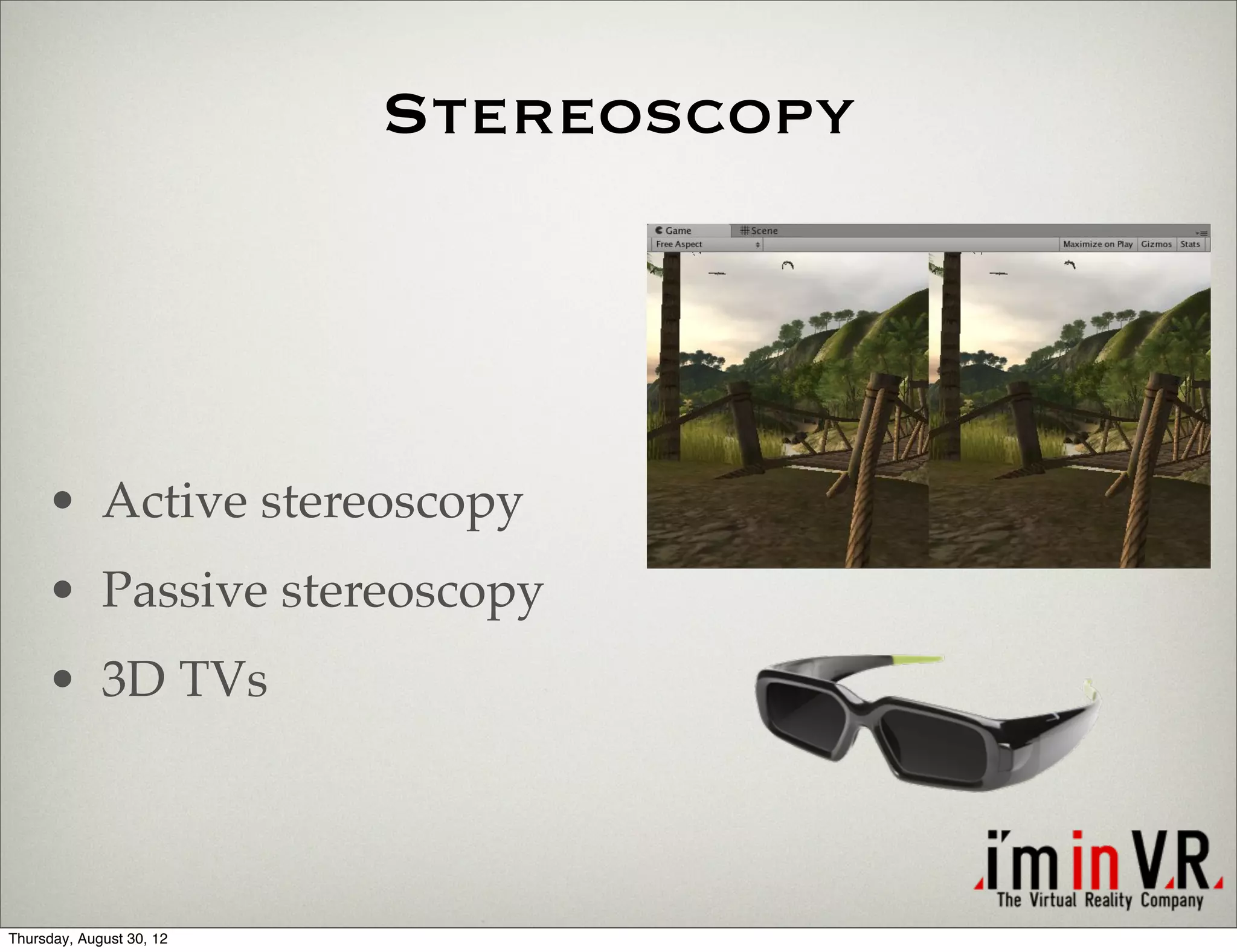

- 75. Stereoscopy • Active stereoscopy • Passive stereoscopy • 3D TVs Thursday, August 30, 12
- 76.
- 77. Supported displays • Virtually any HMD • VR-Wall, Powerwall • Workbench, Holobench • HoloStage • Caves (beta) • 3D TVs • Active stereoscopy • Passive stereoscopy Thursday, August 30, 12
- 78. MiddleVR - Tutorial1 http://www.youtube.com/watch?v=EEKH-1EilXs&feature=youtu.be Thursday, August 30, 12

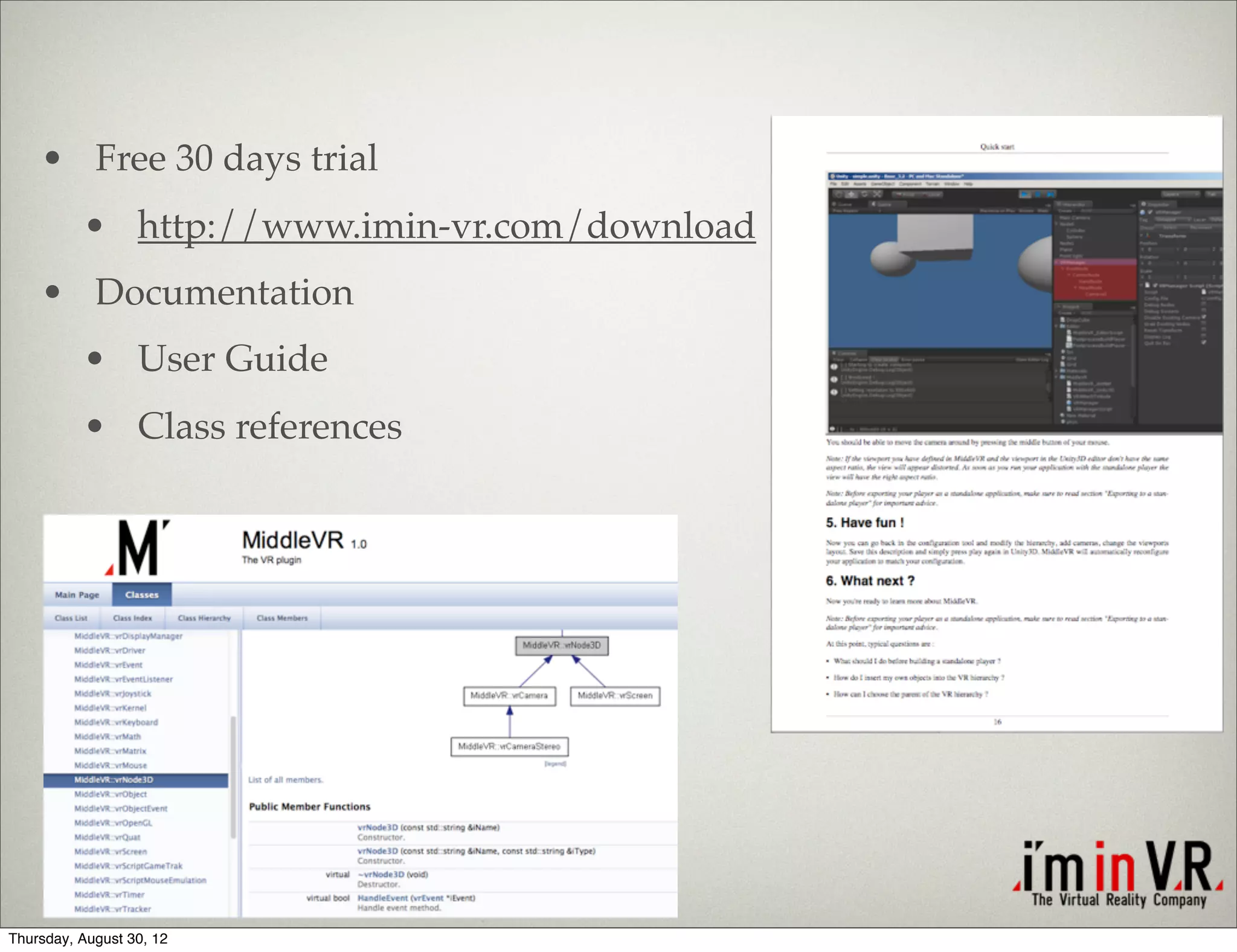

- 79. • Free 30days trial • http://www.imin-vr.com/download • Documentation • User Guide • Class references Thursday, August 30, 12
- 80.
- 81. Requirements • Unity 3.4 / 3.5 free ! Thursday, August 30, 12

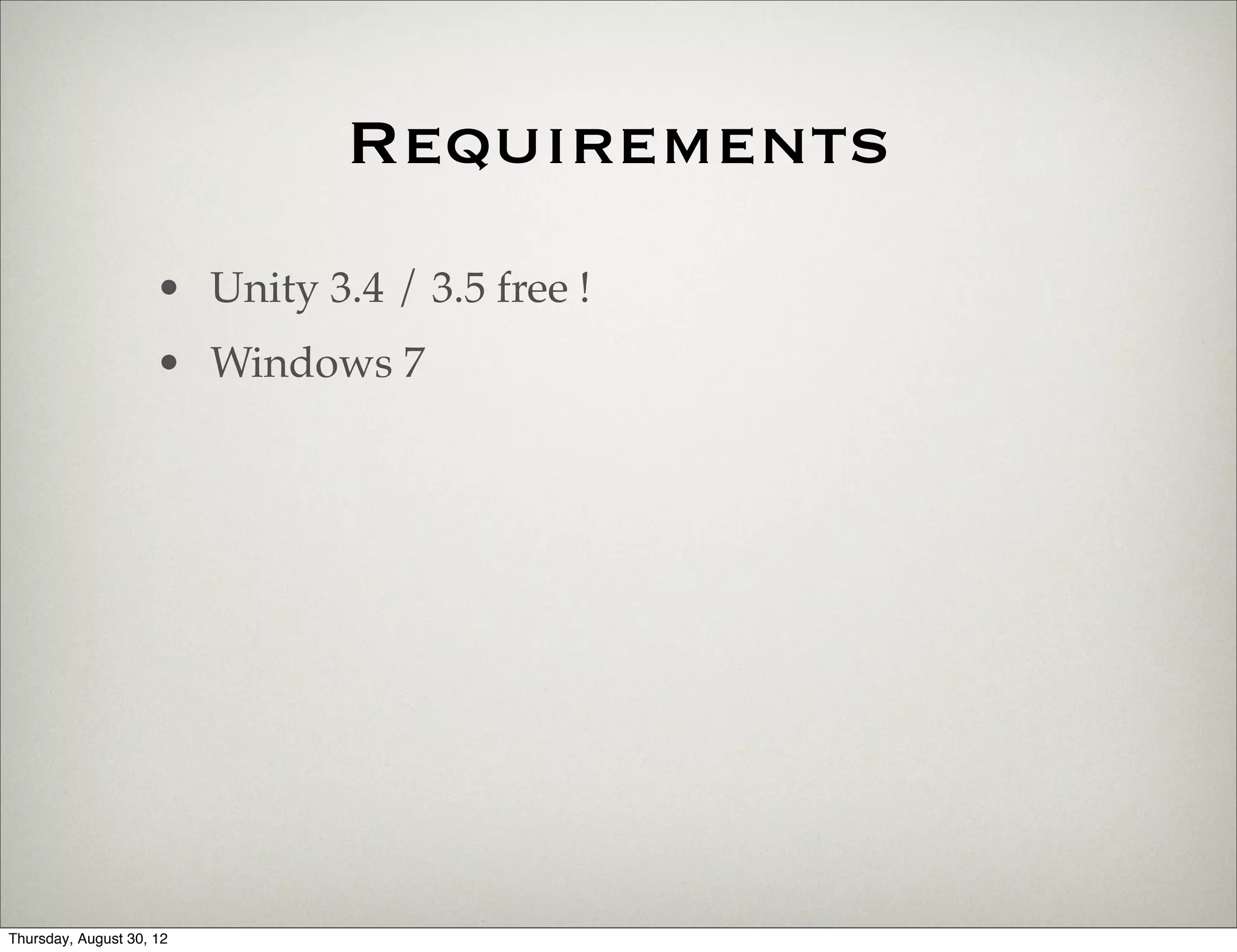

- 82. Requirements • Unity 3.4 / 3.5 free ! • Windows 7 Thursday, August 30, 12

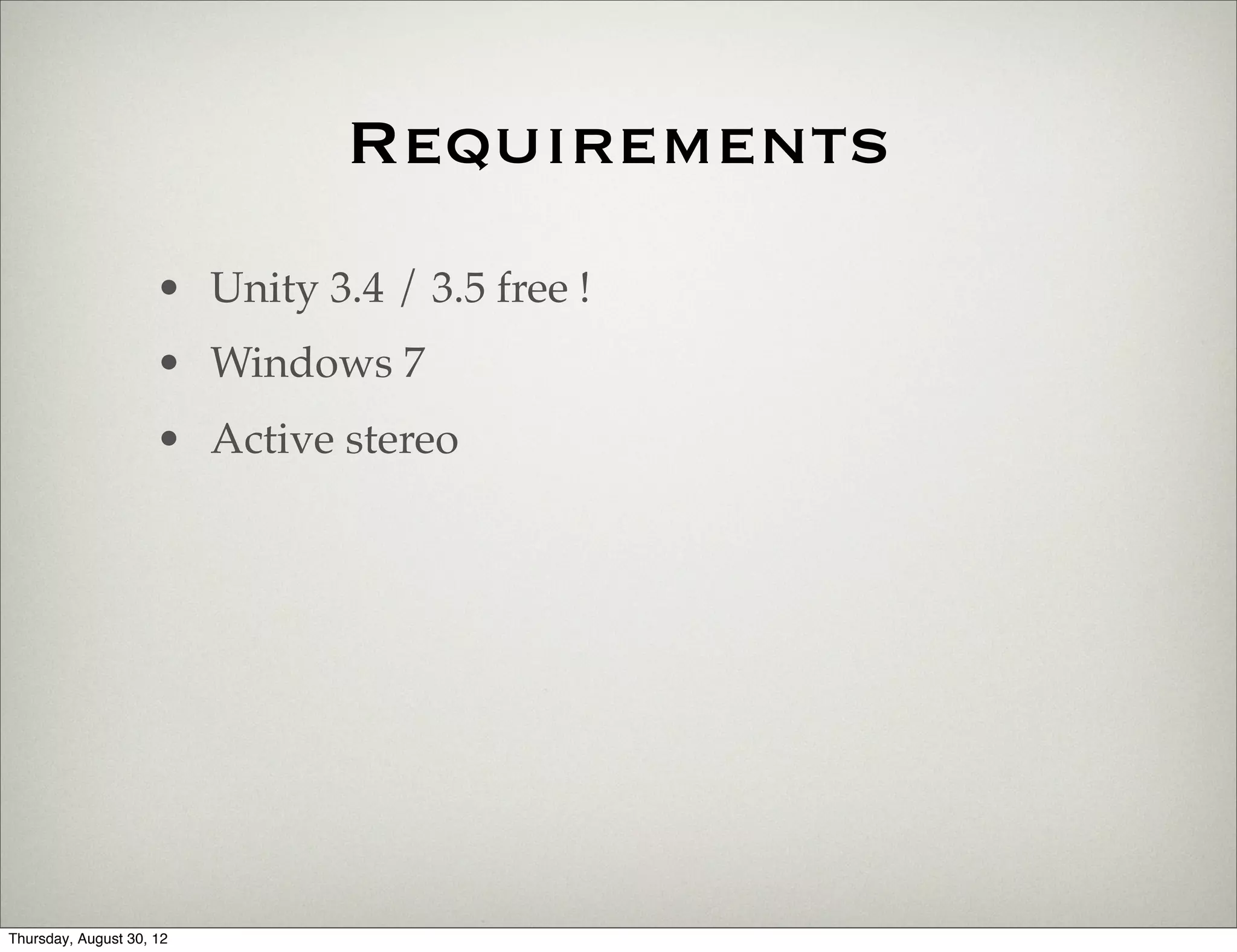

- 83. Requirements • Unity 3.4 / 3.5 free ! • Windows 7 • Active stereo Thursday, August 30, 12
- 84. Requirements • Unity 3.4 / 3.5 free ! • Windows 7 • Active stereo • Unity Pro Thursday, August 30, 12

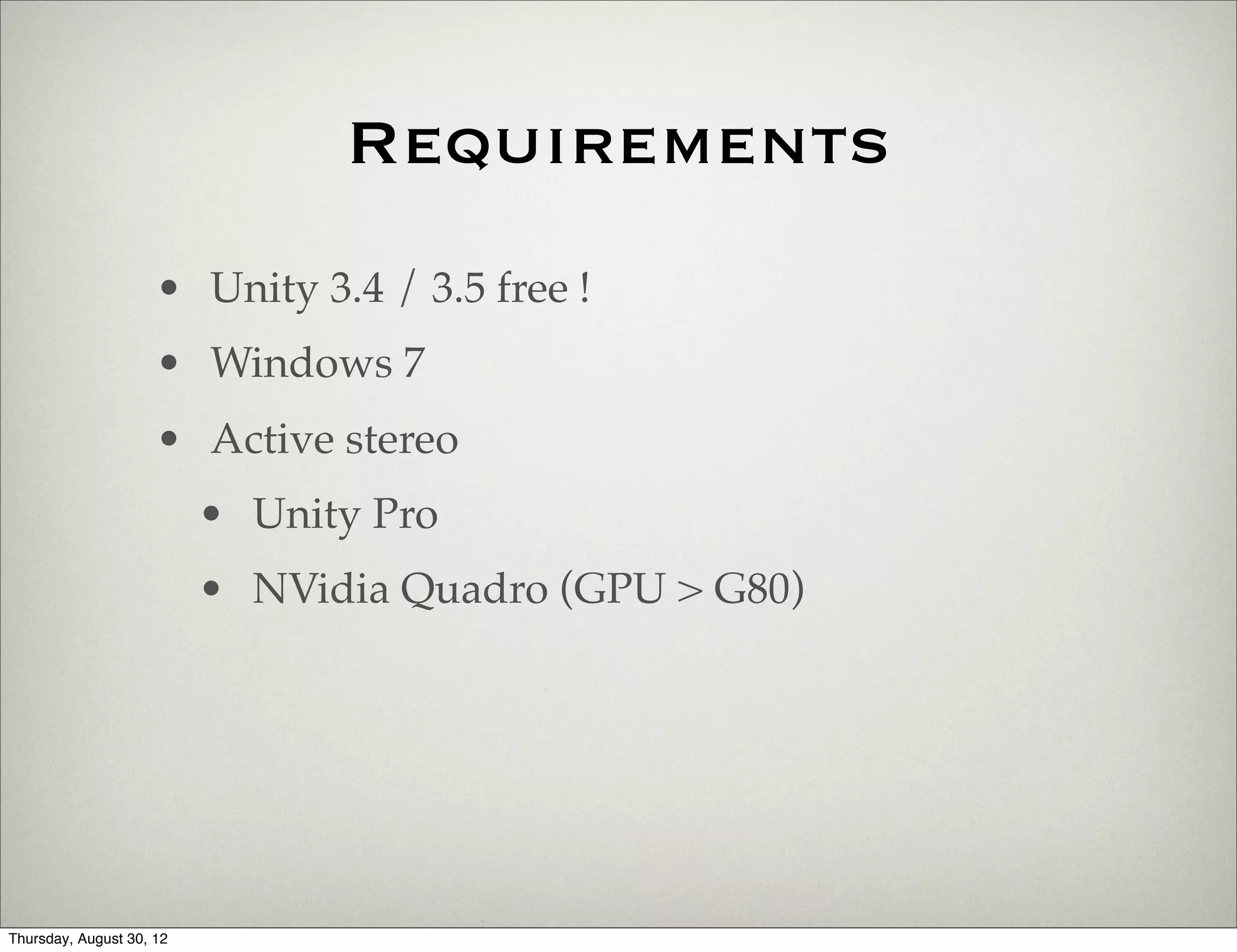

- 85. Requirements • Unity 3.4 / 3.5 free ! • Windows 7 • Active stereo • Unity Pro • NVidia Quadro (GPU > G80) Thursday, August 30, 12

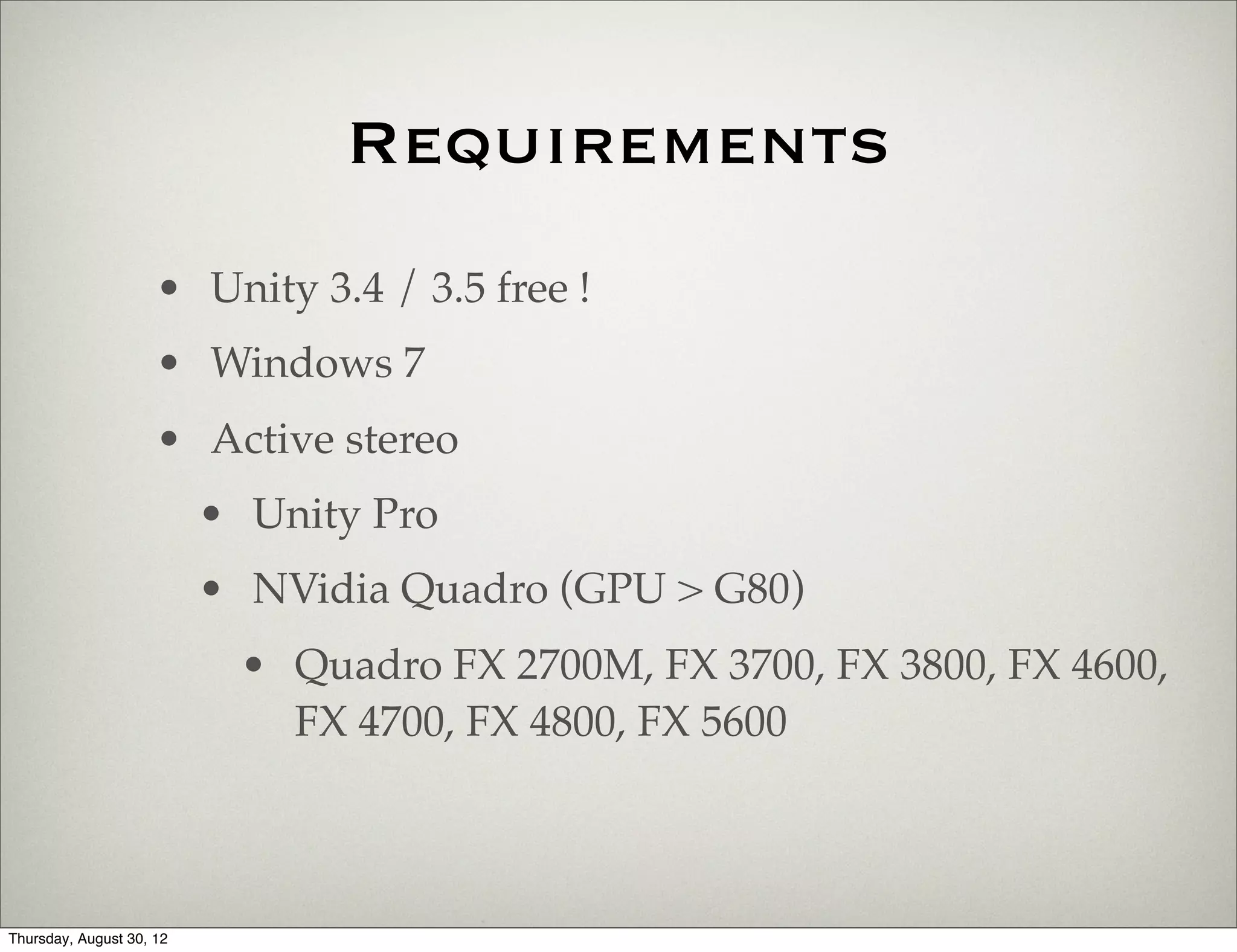

- 86. Requirements • Unity 3.4 / 3.5 free ! • Windows 7 • Active stereo • Unity Pro • NVidia Quadro (GPU > G80) • Quadro FX 2700M, FX 3700, FX 3800, FX 4600, FX 4700, FX 4800, FX 5600 Thursday, August 30, 12

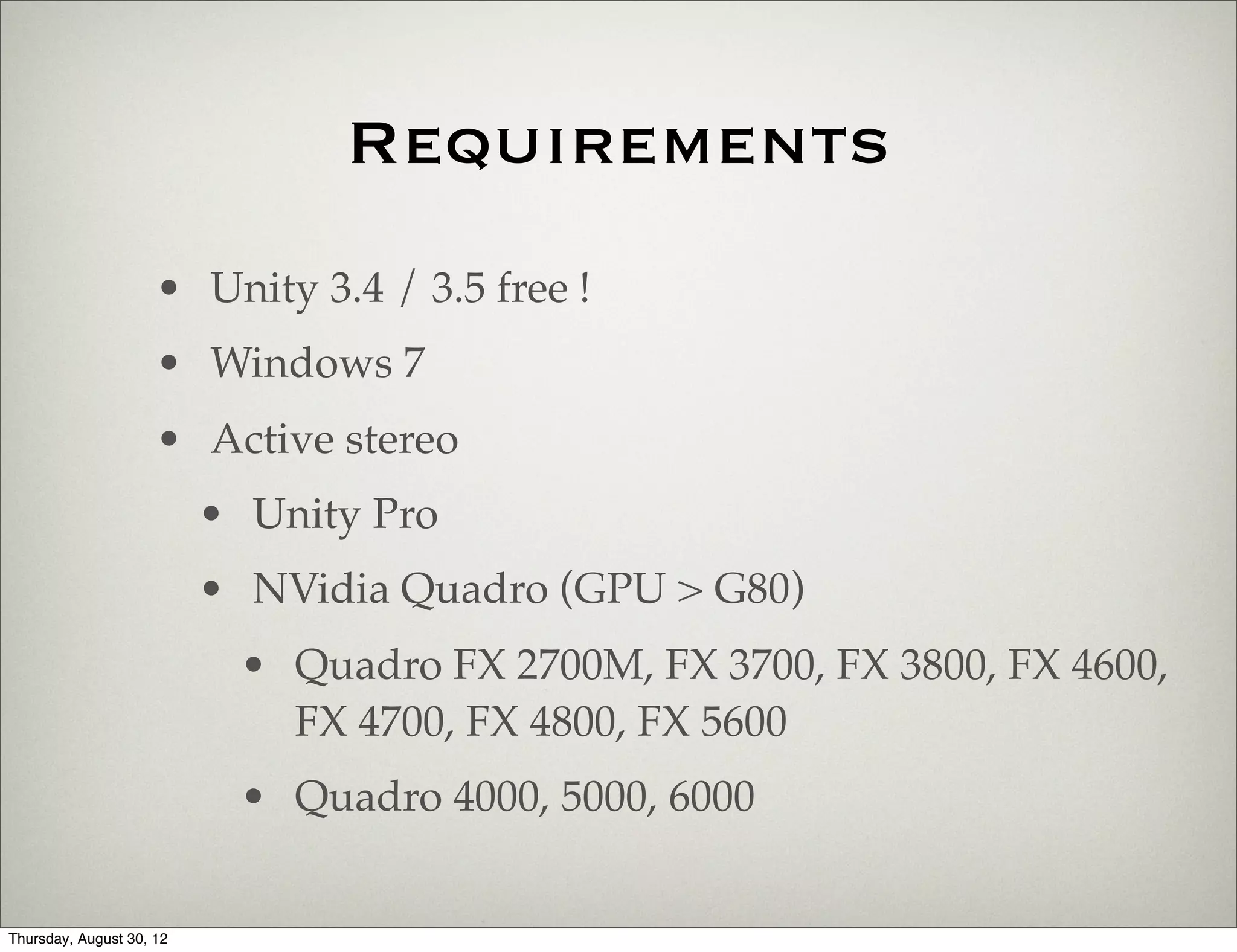

- 87. Requirements • Unity 3.4 / 3.5 free ! • Windows 7 • Active stereo • Unity Pro • NVidia Quadro (GPU > G80) • Quadro FX 2700M, FX 3700, FX 3800, FX 4600, FX 4700, FX 4800, FX 5600 • Quadro 4000, 5000, 6000 Thursday, August 30, 12
- 88. Requirements • Unity 3.4 / 3.5 free ! • Windows 7 • Active stereo • Unity Pro • NVidia Quadro (GPU > G80) • Quadro FX 2700M, FX 3700, FX 3800, FX 4600, FX 4700, FX 4800, FX 5600 • Quadro 4000, 5000, 6000 • Drivers version > 265 Thursday, August 30, 12
- 89.
- 90.
- 91.
- 92. • Adaptability • Software Thursday, August 30, 12
- 93. • Adaptability • Software • Hardware Thursday, August 30, 12
- 94. • Adaptability • Software • Hardware • Simplicity Thursday, August 30, 12

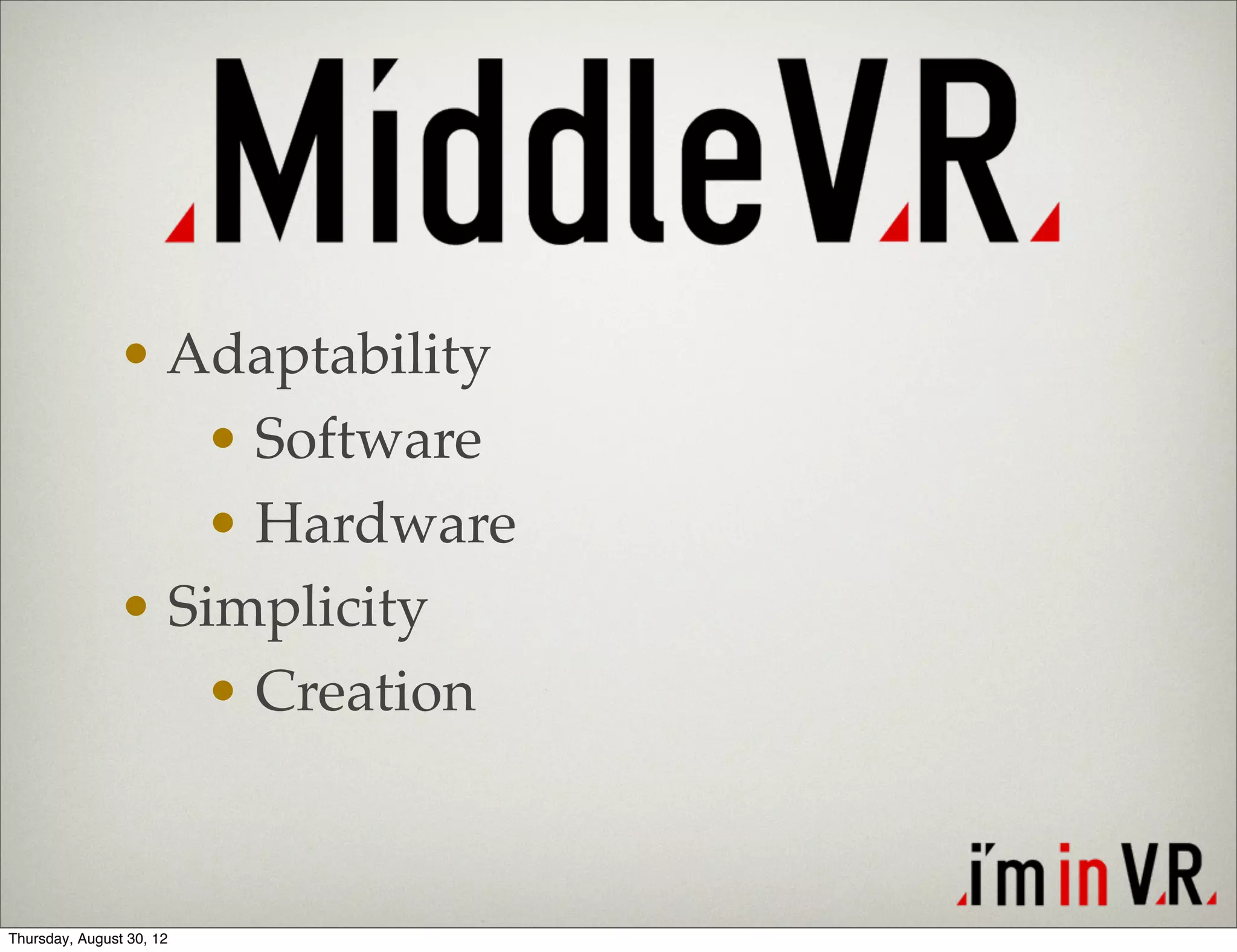

- 95. • Adaptability • Software • Hardware • Simplicity • Creation Thursday, August 30, 12
- 96. • Adaptability • Software • Hardware • Simplicity • Creation • Deployment Thursday, August 30, 12
- 97.
- 98.
- 99. Thank you ! Questions ? Sebastien.Kuntz@imin-vr.com http://www.imin-vr.com/download http://www.slideshare.net/SebKuntz Thursday, August 30, 12
