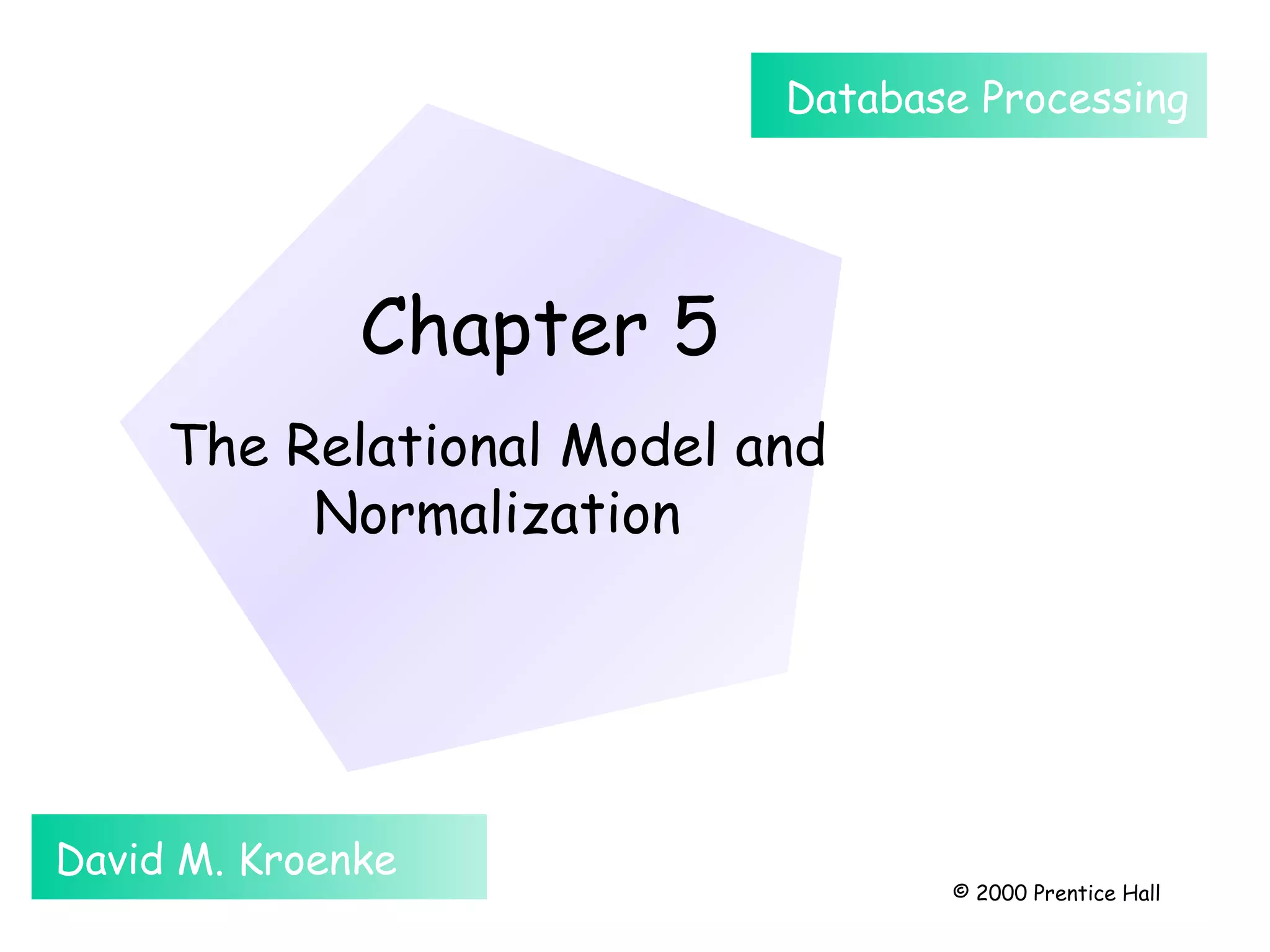

1. Chapter 5
The Relational Model and
Normalization
David M. Kroenke
Database Processing
© 2000 Prentice Hall

2. Chapter 5
© 2000 Prentice Hall
The Relational Model
• Broad, flexible model
• Basis for almost all DBMS products
• E.F. Codd defined well-structured
“normal forms” of relations,
“normalization”
Page 113

3. Chapter 5
© 2000 Prentice Hall
Relation
• Two-dimensional table
• Rows are tuples
• Columns are attributes
Page 113

4. Equivalent Relational Terms
Page 114
Figure 5-1 © 2000 Prentice Hall

5. Functional Dependency
“relationship between or among
attributes”
Page 114
Figure 5-2 © 2000 Prentice Hall

6. Chapter 5
© 2000 Prentice Hall
Functional Dependency
Notation
SID  Major
ComputerSerialNumber  MemorySize
(SID, ClassName)  Grade
Page 115

7. Key
“a group of one or more attributes that
uniquely identifies a row”
Page 116
Figure 5-3 © 2000 Prentice Hall

8. Combination Key
Page 117
Figure 5-4 © 2000 Prentice Hall

9. Chapter 5
© 2000 Prentice Hall
Normalization
“the process of evaluating and
converting a relation to reduce
modification anomalies”
Page 118

10. Chapter 5
© 2000 Prentice Hall
Anomaly
“an undesirable consequence of data
modification in which two or more
different themes are entered
(insertion anomaly) in a single row or
two or more themes are lost if the
row is deleted (deletion anomaly)”
Page 118

11. Chapter 5
© 2000 Prentice Hall
Normal Forms
“classes of relations and techniques for
preventing anomalies”
DK/NF = Domain Key Normal Form
(free of modification anomalies)
Page 118

12. First Normal Form
“any table of data that meets the
definition of a relation”
Figure 5-3 © 2000 Prentice Hall

13. Second Normal Form
“when all of a relation’s nonkey attributes
are dependent on all of the key”
Figure 5-5 © 2000 Prentice Hall

14. Third Normal Form
“if it is in second normal form and has
no transitive dependencies”
Figure 5-7 © 2000 Prentice Hall

15. Boyce-Codd Normal Form
“if every determinant is a candidate key”
Figure 5-8 © 2000 Prentice Hall

16. Fourth Normal Form
“if in BCNF and has no multi-value
dependencies”
Figure 5-11 © 2000 Prentice Hall

17. Chapter 5
© 2000 Prentice Hall
Fifth Normal Form
?
Page 125

18. Chapter 5
© 2000 Prentice Hall
Domain Key Normal Form
“if every constraint on the relation is a
logical consequence of the definition
of keys and domains”
Page 125

19. Chapter 5
© 2000 Prentice Hall
DK/NF Terms
• Constraint “a rule governing static
values of attributes”
• Key “unique identifier of a tuple”
• Domain “description of an
attribute’s allowed values”
Page 126

20. DK/NF Example
Figure 5-13 © 2000 Prentice Hall

21. DK/NF Example
Figure 5-15 © 2000 Prentice Hall

22. DK/NF Example
Figure 5-16 © 2000 Prentice Hall

23. Summary of Normal Forms
Figure 5-18 © 2000 Prentice Hall

24. Chapter 5
© 2000 Prentice Hall
A  B relationships
A  B and B  A one-to-one
A  B but B not  A many-to-one
A not  B and B not  A many-to-many
Page 131

25. Summary of Relationships
Figure 5-19 © 2000 Prentice Hall

26. Chapter 5
© 2000 Prentice Hall
Optimization
• De-Normalization
• Controlled Redundancy
Page 135
