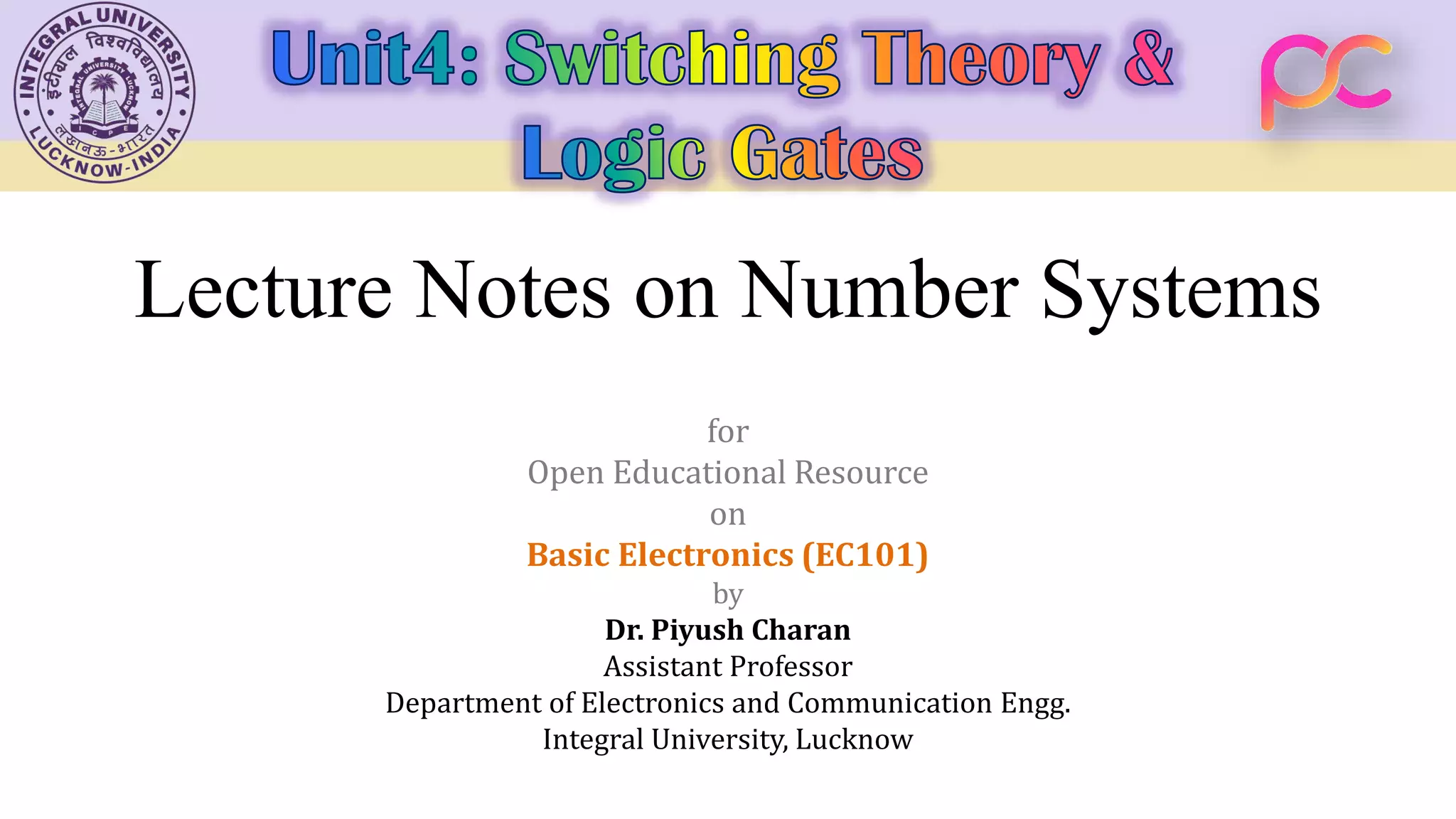

1. Lecture Notes on Number Systems
for
Open Educational Resource
on
Basic Electronics (EC101)
by
Dr. Piyush Charan
Assistant Professor
Department of Electronics and Communication Engg.
Integral University, Lucknow

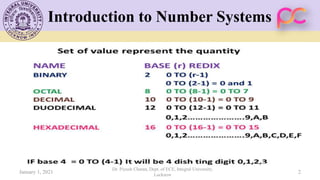

2. Introduction to Number Systems
January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
2

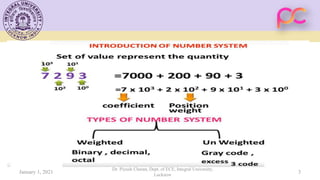

3. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
3

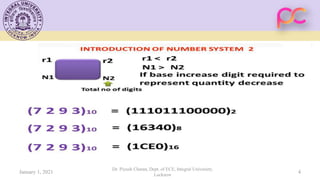

4. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
4
5. Binary Number System
Base Radix = 2
January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
5

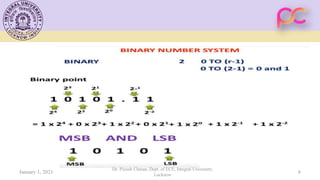

6. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
6

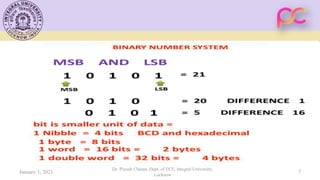

7. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
7

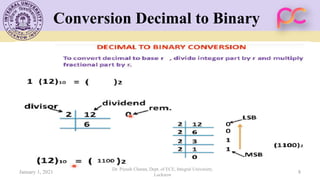

8. Conversion Decimal to Binary
January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
8

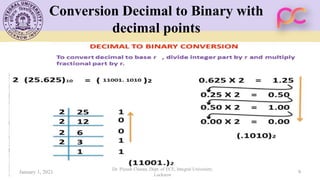

9. Conversion Decimal to Binary with
decimal points
January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
9

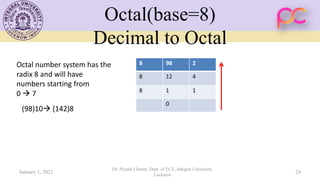

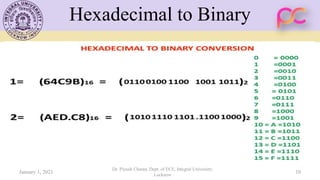

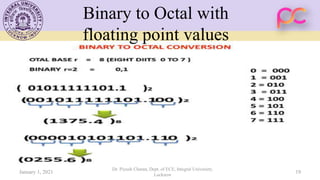

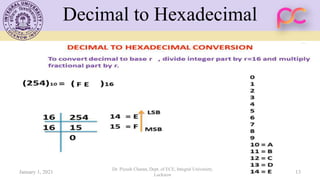

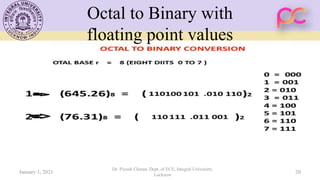

24. Octal(base=8)
Decimal to Octal
8 98 2
8 12 4
8 1 1
0
Octal number system has the
radix 8 and will have
numbers starting from
0 → 7
(98)10→ (142)8
January 1, 2021 24
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow

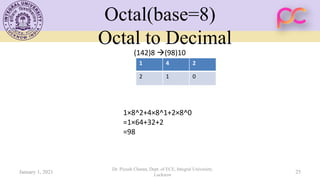

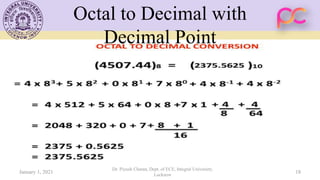

25. Octal(base=8)
Octal to Decimal
1 4 2
2 1 0
(142)8 →(98)10
1×8^2+4×8^1+2×8^0
=1×64+32+2
=98
January 1, 2021 25
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow

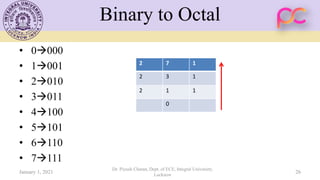

26. Binary to Octal
• 0→000
• 1→001
• 2→010
• 3→011
• 4→100
• 5→101
• 6→110
• 7→111
2 7 1
2 3 1
2 1 1
0
January 1, 2021 26
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow

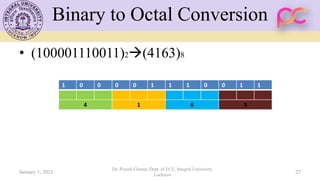

27. Binary to Octal Conversion
• (100001110011)2→(4163)8
1 0 0 0 0 1 1 1 0 0 1 1
4 1 6 3
January 1, 2021 27
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow

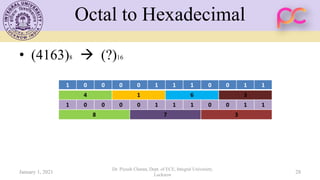

29. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
29

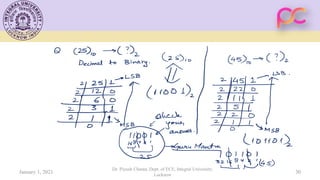

30. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
30

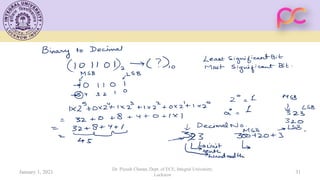

31. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
31

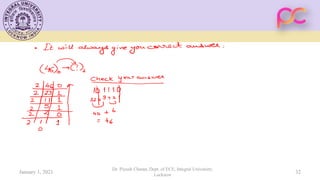

32. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
32

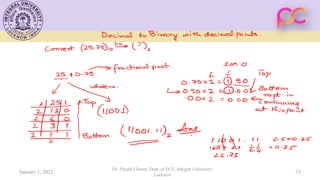

33. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
33

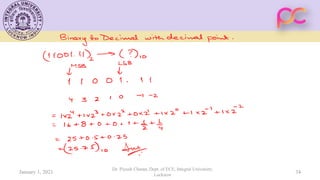

34. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
34

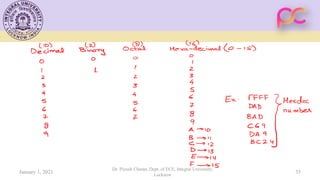

35. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
35
36. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
36

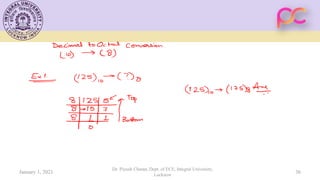

37. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
37

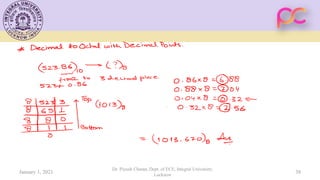

38. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
38
39. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
39
40. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
40

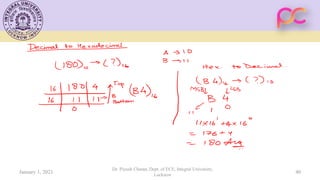

41. January 1, 2021
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
41
42. 42
1. Complement Theory
2. 1’s and, 2’s complement operation
Number System Continued....
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

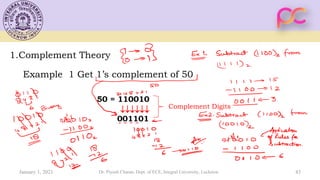

43. 43
1.Complement Theory
Example 1 Get 1’s complement of 50
Complement Digits
50 = 110010
001101
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

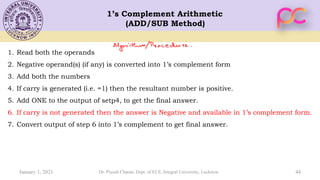

44. 44
1’s Complement Arithmetic
(ADD/SUB Method)
1. Read both the operands
2. Negative operand(s) (if any) is converted into 1’s complement form
3. Add both the numbers
4. If carry is generated (i.e. =1) then the resultant number is positive.
5. Add ONE to the output of setp4, to get the final answer.
6. If carry is not generated then the answer is Negative and available in 1’s complement form.
7. Convert output of step 6 into 1’s complement to get final answer.
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

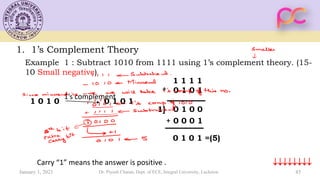

45. 45
1. 1’s Complement Theory
Example 1 : Subtract 1010 from 1111 using 1’s complement theory. (15-
10 Small negative)
1 0 1 0 0 1 0 1
1 1 1 1
0 1 0 1
+
1] 0 1 0 0
+ 0 0 0 1
0 1 0 1 =(5)
1’s complement
Carry “1” means the answer is positive .
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

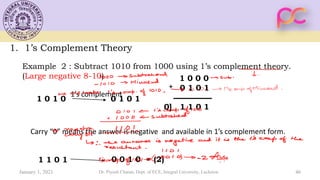

46. 46
1. 1’s Complement Theory
Example 2 : Subtract 1010 from 1000 using 1’s complement theory.
(Large negative 8-10)
1 0 1 0 0 1 0 1
1 0 0 0
0 1 0 1
+
0] 1 1 0 1
1’s complement
Carry “0” means the answer is negative and available in 1’s complement form.
1 1 0 1 0 0 1 0 = (2)
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

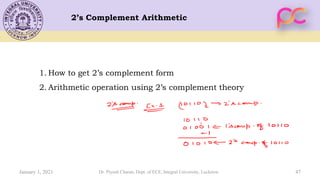

47. 47
2’s Complement Arithmetic
1. How to get 2’s complement form
2. Arithmetic operation using 2’s complement theory
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

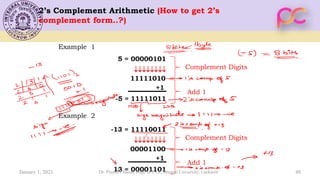

48. 48
2’s Complement Arithmetic (How to get 2’s
complement form..?)
Example 1
Example 2
Complement Digits
Add 1
5 = 00000101
-5 = 11111011
11111010
+1
Complement Digits
Add 1
-13 = 11110011
13 = 00001101
00001100
+1
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

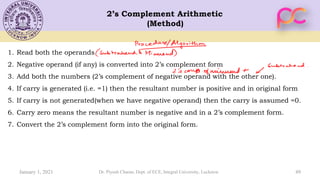

49. 49
2’s Complement Arithmetic
(Method)
1. Read both the operands
2. Negative operand (if any) is converted into 2’s complement form
3. Add both the numbers (2’s complement of negative operand with the other one).
4. If carry is generated (i.e. =1) then the resultant number is positive and in original form
5. If carry is not generated(when we have negative operand) then the carry is assumed =0.
6. Carry zero means the resultant number is negative and in a 2’s complement form.
7. Convert the 2’s complement form into the original form.
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

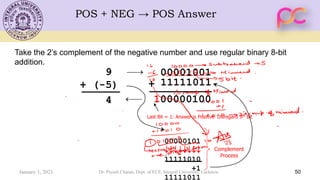

50. POS + NEG → POS Answer
50
Take the 2’s complement of the negative number and use regular binary 8-bit
addition.
00001001
9
+ (-5)
4
⎯→
⎯
11111011
+
00000101
11111010
+1
11111011
2’s
Complement
Process
100000100
Last Bit = 1: Answer is Positive Disregard 9th Bit
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

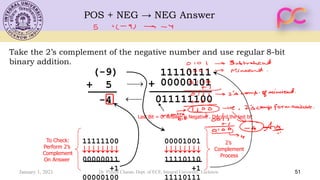

51. POS + NEG → NEG Answer
51
Take the 2’s complement of the negative number and use regular 8-bit
binary addition.
11110111
(-9)
+ 5
-4
⎯→
⎯
00000101
+
00001001
11110110
+1
11110111
2’s
Complement
Process
011111100
Last Bit = 0: Answer is Negative . Discard the last bit
11111100
00000011
+1
00000100
To Check:
Perform 2’s
Complement
On Answer
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

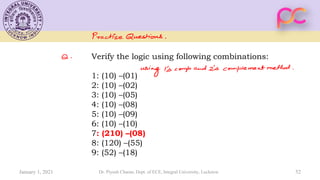

52. Verify the logic using following combinations:
1: (10) –(01)
2: (10) –(02)
3: (10) –(05)
4: (10) –(08)
5: (10) –(09)
6: (10) –(10)
7: (210) –(08)
8: (120) –(55)
9: (52) –(18)
January 1, 2021 52
Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow
53. A+B A B 2’s of B Addition Ans
A=10
B=-1
1 0 1 0
0 0 0 1 1 1 1 0
0 0 0 1
1 1 1 1
1 0 1 0
1 1 1 1 CY =1 So ans is +ve
1 1 0 0 1
+9
B=-2 0 0 1 0 1 1 0 1
0 0 0 1
1 1 1 0
1 0 1 0
1 1 1 0 CY =1 So ans is +ve
1 1 0 0 0
+8
B=-5 0 1 0 1 1 0 1 0
0 0 0 1
1 0 1 1
1 0 1 0
1 0 1 1
1 0 1 0 1 CY =1 So ans is +ve
+5
B=-8 1 0 0 0 0 1 1 1
0 0 0 1
1 0 0 0
1 0 1 0
1 0 0 0
1 0 0 1 0 CY =1 So ans is +ve
+2
B=-9 1 0 0 1 0 1 1 0
0 0 0 1
0 1 1 1
1 0 1 0
0 1 1 1
1 0 0 0 1 CY =1 So ans is +ve
+1
B=-10 1 0 1 0 0 1 0 1
0 0 0 1
0 1 1 0
1 0 1 0
0 1 1 0
1 0 0 0 0 CY =1 So ans is +ve
+0
2’s Complement Arithmetic (Examples)
January 1, 2021
53
Dr. Piyush Charan, Dept. of ECE, Integral University,
Lucknow
54. Example: Perform 2’s complement subtraction on 210-08
210 = 1 1 0 1 0 0 1 0 (Subtrahend)
8= 0 0 0 0 1 0 0 0 (Minuend)
2’s complement of 8 is = 1 1 1 1 1 0 0 0
Add both the numbers:
1 1 0 1 0 0 1 0
+1 1 1 1 1 0 0 0
1 1 1 0 0 1 0 1 0
Carry = 1 means and is positive +202
January 1, 2021 54
Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

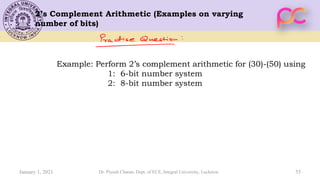

55. 55
2’s Complement Arithmetic (Examples on varying
number of bits)
Example: Perform 2’s complement arithmetic for (30)-(50) using
1: 6-bit number system
2: 8-bit number system
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

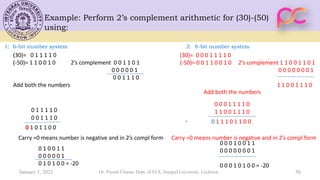

56. Example: Perform 2’s complement arithmetic for (30)-(50)
using:
(30)= 0 1 1 1 1 0
(-50)= 1 1 0 0 1 0 2’s complement 0 0 1 1 0 1
0 0 0 0 0 1
0 0 1 1 1 0
Add both the numbers
0 1 1 1 1 0
0 0 1 1 1 0
0 1 0 1 1 0 0
Carry =0 means number is negative and in 2’s compl form
(30)= 0 0 0 1 1 1 1 0
(-50)= 0 0 1 1 0 0 1 0 2’s complement 1 1 0 0 1 1 0 1
0 0 0 0 0 0 0 1
1 1 0 0 1 1 1 0
0 0 0 1 1 1 1 0
1 1 0 0 1 1 1 0
0 1 1 1 0 1 1 0 0
Carry =0 means number is negative and in 2’s compl form
0 1 0 0 1 1
0 0 0 0 0 1
0 1 0 1 0 0 = -20
0 0 0 1 0 0 1 1
0 0 0 0 0 0 0 1
0 0 0 1 0 1 0 0 = -20
Add both the numbers
1: 6-bit number system 2: 8-bit number system
January 1, 2021 56
Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow

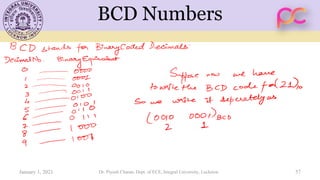

57. BCD Numbers
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow 57

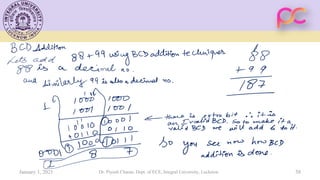

58. January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow 58

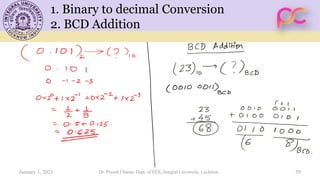

59. 1. Binary to decimal Conversion
2. BCD Addition
January 1, 2021 Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow 59

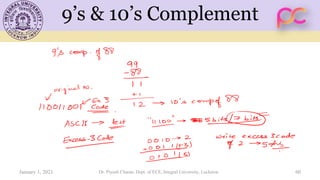

60. 9’s & 10’s Complement
January 1, 2021 60
Dr. Piyush Charan, Dept. of ECE, Integral University, Lucknow
