Mobile communication technology facilitates voice, data, and multimedia transmission to mobile devices over wireless networks, using a system of interconnected cell towers and base stations. It has evolved through multiple generations, from 1G to 5G, improving speed and connectivity and includes various components like cellular networks, radio frequency signals, and protocols. Security remains a critical concern in mobile communications due to vulnerabilities such as eavesdropping and unauthorized access, necessitating robust cryptographic methods for data protection and user privacy.

2. Mobile Communication refers to the technology that enables the transmission of
voice, data, and multimedia content over wireless networks to mobile devices such as
smartphones, tablets, and laptops. This communication takes place through a
network of interconnected cell towers and base stations, which transmit and receive
signals from mobile devices.
Key components of mobile communication include:
1. Cellular Networks: Divided into cells, each with a base station connecting to
mobile devices.
2. Radio Frequency (RF) Signals: Wireless communication over allocated frequency
bands.
3. Mobile Network Generations: Evolving from 1G to 5G, improving speed and
connectivity.
4. Mobile Switching Centers (MSCs): Routing calls and data between mobile devices
and networks.
5. Protocols and Standards: Mobile communication follows various protocols and
standards, such as GSM (Global System for Mobile Communications), CDMA (Code
Division Multiple Access), LTE (Long-Term Evolution), and 5G NR (New Radio).
Mobile Communication

3. Generations of Mobile Networks:
•1G: The first generation of mobile networks, primarily for voice
communication.
•2G: Introduced digital voice encoding and SMS (Short Message
Service).
•3G: Provided higher data rates, enabling internet access and video
calls.
•4G: Offered faster data speeds and supported high-definition video
streaming and other data-intensive applications.
•5G: The latest generation, with ultra-fast data rates, low latency, and
support for massive IoT (Internet of Things) connectivity.

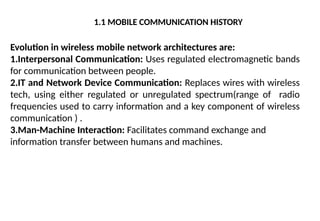

4. 1.1 MOBILE COMMUNICATION HISTORY
Evolution in wireless mobile network architectures are:
1.Interpersonal Communication: Uses regulated electromagnetic bands
for communication between people.
2.IT and Network Device Communication: Replaces wires with wireless
tech, using either regulated or unregulated spectrum(range of radio
frequencies used to carry information and a key component of wireless
communication ) .
3.Man-Machine Interaction: Facilitates command exchange and
information transfer between humans and machines.

5. Cellular Networks
1. Early Systems (1928): First mobile system used by Detroit Police, marking the start
of commercial mobile communication.
2. 1G Era (1970s):
• AMPS (Advanced Mobile Phone System):Emerged in the early 1970s as part of the first
generation of mobile systems.
• The FCC (Federal Communications Commission) allocated spectrum space for cellular
systems to standardize the deployment of various non standardized technologies.
• IMTS (Intelligent Multi-mode Transit System):One of the broadcasting techniques used
before the standardization of cellular systems.
.European Developments : In Europe, early mobile communication systems were based on
broadcasting telephone systems rather than cellular technology. These systems were
primarily analog with some encryption features added for privileged communications.
3. Key Systems in the 1980s
• NMT (Nordic Mobile Telephone) 450 System (1981): An analog system operating on the
450MHz band in North-European countries like Sweden, Norway, Denmark, and Finland.
• C-Netz 450 System: Introduced by Siemens in Germany, similar to the NMT 450 system.
• AMPS (Advanced Mobile Phone Service): Launched with some delays in service due to
administrative obstacles, it became the standard in many European countries in the 800MHz
band in the second half of the 1980s.

6. 4. Technology and Network Architecture
• FDMA (Frequency Division Multiple Access): The primary technology for radio spectrum
exploitation during this era, with geographically distributed radio base stations (RBS).
• Key Features of Network Systems:
• Radio Controller: Managed the RBSs.
• Switching Functions: Handled communications.
• Mobility Management: Limited to hard hand-over management.
• Subscriber Database Management: Managed subscriber information.
• Signalling Management: Handled signalling processes.
• Interconnection Functionalities: Managed network interconnections.
5. Radio Access and Network Architecture :While network architectures across different systems
were relatively similar, there were minor differences in radio access, particularly in channel
bandwidth
GSM : GSM, originally named "Groupe Special Mobile" and later "Global System for Mobile
Communications," is a digital mobile system based on a TDM (Time Division Multiplexing) radio
interface. Initially designed for voice communications at 9 Kbit/s, and minimal broadcasting
capabilities. GSM is a digital mobile system initially designed for voice communication, later
extended to support data services like SMS, FAX, and Circuit Switched Data. Enhanced with higher
data rates through EDGE (Enhanced Data rates for GSM), GSM evolved into UMTS (Universal
Mobile Telecommunication System), a 3G system integrating GSM features with W-CDMA (Code
Division Multiple Access)( allows multiple users to share frequency) technology under the 3GPP
standardization.

7. • VLR - Visitor Location Register
• NSS - Network Switching Subsystem
• HLR - Home Location Register
• Abis Interface - Interface between Base Station
Controller (BSC) and Base Transceiver Station (BTS)
• AuC - Authentication Center
• MSC - Mobile Switching Center
• BSC - Base Station Controller
• BTS - Base Transceiver Station
• MS - Mobile Station
• PSDN - Packet Switched Data Network
• ISDN - Integrated Services Digital Network
• PSTN - Public Switched Telephone Network
• PLMN - Public Land Mobile Network

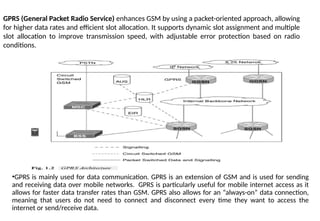

8. GPRS (General Packet Radio Service) enhances GSM by using a packet-oriented approach, allowing
for higher data rates and efficient slot allocation. It supports dynamic slot assignment and multiple
slot allocation to improve transmission speed, with adjustable error protection based on radio
conditions.
•GPRS is mainly used for data communication. GPRS is an extension of GSM and is used for sending
and receiving data over mobile networks. GPRS is particularly useful for mobile internet access as it
allows for faster data transfer rates than GSM. GPRS also allows for an “always-on” data connection,
meaning that users do not need to connect and disconnect every time they want to access the
internet or send/receive data.

10. EDGE and UMTS: EDGE (Enhanced Data Rates for GSM Evolution) is a digital
mobile phone technology that enhances data transmission rates on GSM
networks. Often referred to as 2.75G, it bridges the gap between 2G
and 3G technologies
EDGE enhances mobile data services by enabling faster internet browsing, email
access, multimedia messaging, and better app performance.
UMTS (Universal Mobile Telecommunication System) introduces a new radio access method
based on CDMA, integrating with GSM, GPRS, and EDGE into a unified system that supports
multiple types of network access.
UMTS enables high-speed internet, video calling, multimedia messaging, mobile
TV, online gaming, mobile commerce, and remote work.
Wireless Data Networks :
WPAN: Covers ~10 meters, for personal device connections.
WLAN: Covers ~100 meters, for PC and server connections.
WMAN: Covers ~10 kilometres, for building interconnections

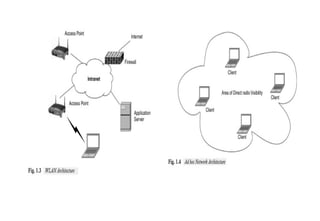

•Wireless LAN :
•Frequency Hopping: A method where signals jump between frequencies to avoid interference.
•Evolution: WLAN began from early wireless systems used in World War II.
•Basic Service Set (BSS): Core component with one Access Point (AP) and connected devices.
•Access Point (AP): Acts as a bridge for devices within the BSS Basic Service Set. to communicate.
•Ad Hoc Network: A peer-to-peer WLAN setup without an AP.

12. Mobile Ad Hoc Networks
Mobile Ad Hoc Networks (MANETs) are decentralized wireless networks where autonomous
nodes communicate directly without relying on fixed infrastructure like routers or access points.
Key Characteristics of MANETs:
1.Decentralization: No central control; each node can act as a router.
2.Dynamic Topology: Network structure changes frequently due to node mobility.
3.Multi-hop Communication: Data is relayed through multiple nodes for long-distance
communication.
4.Peer-to-Peer Communication: Nodes communicate directly with each other without hierarchy.
5.Versatility: Supports various wireless technologies like WLAN, Bluetooth, and GSM.
Wireless PAN
A Wireless Personal Area Network (WPAN) is a short-range, cable-free network that connects
devices within about 10 meters, typically using Bluetooth. It offers seamless connectivity, selective
access to prevent interference, low power consumption, and supports secure voice and data
communication for portable devices. The technology is evolving towards global interconnectivity.

13. Important Features of WPAN:
1.Short-Range Communication: Typically operates within a 10-meter range.
2.Plug and Use: Devices can connect seamlessly when in close proximity, mimicking a wired
connection.
3.Selective Access: Ability to lock out other devices to prevent interference and unauthorized
access.
4.Low Power Consumption: Designed for small, portable devices with minimal power usage.
5.Support for Voice and Data: Enables communication for both voice and data across connected
devices.
6.Security: Ensures secure communication with features like authorization, authentication, and
encryption.
7.Interconnectivity: Aims for global interconnectivity of WPANs across different devices and
networks.

14. Integrated Networks
• Diverse Wireless Access: Supports various wireless technologies for user
access.
• Intelligent Access Layers: Intelligence resides in access layers; the backbone
focuses on packet transport.
• Scalable Data Flows: Handles billions of concurrent micro and mega flows with
varying QoS requirements.
• Mobility Management: Ensures seamless handovers and continuous connectivity
for mobile users across different domains.
• Heterogeneous Networks: Accommodates diverse traffic profiles, including
transaction-oriented and multimedia traffic.
• IP-Based Services: All services are delivered over IP, with data encapsulated in IP
packets.
• Security and Adaptability: Requires robust security infrastructure that can adapt
to environments with limited resources and evolve as more resources become
available.
• Seamless User Experience: Maintains service continuity and security during user
roaming and handovers.

16. SECURITY—WIRED vs WIRELESS
• Increased Vulnerability: Wireless communications are more susceptible to security
attacks than wired systems due to the open nature of the medium.
• Eavesdropping Risk: Anyone can listen to wireless transmissions, and such
eavesdropping is undetectable.
• Lack of Origin Identification: Wireless communication does not uniquely identify the
originator, unlike wired systems.
• Early System Weaknesses: 1G and 2G systems lacked robust security features, making
them vulnerable to attacks like eavesdropping.
• Need for Cryptography: Cryptographic techniques are essential for ensuring security,
authentication, and access control in wireless networks.
• User Privacy Protection: Security measures are crucial for preventing unauthorized use
of communication resources and protecting user privacy.
SECURITY ISSUES IN WIRELESS AND MOBILE
COMMUNICATIONS
Communication security involves ensuring data confidentiality, integrity, authentication, and
nonrepudiation, often using cryptographic methods.
It also includes protecting the privacy of traffic, location, and addresses. Basic security is often
provided implicitly, such as through the need for proximity and special equipment for
eavesdropping, or casual authentication via caller ID and voice recognition.

17. • Cryptography: Provides strong security but can be inconvenient; essential for
sensitive applications. Vulnerabilities often stem from poor management rather
than flaws in cryptographic algorithms.
• Confidentiality: Achieved through encryption of data. In GSM networks, for
example, encryption occurs only between the mobile terminal and the base
station, not throughout the entire network.
• Authentication: Ensures the identity of communicating parties. It is asymmetric,
meaning authentication of A by B is separate from authentication of B by A.
Options vary by protocol, e.g., SSL supports different levels of authentication.
• Non-Repudiation: Ensures that the sender cannot deny sending a message and
that the recipient can prove the message's origin to third parties. Achieved
through digital signatures, which differ from simple authentication in their ability to
convince third parties.
• Applications and Interests: Network operators focus on authentication for
billing and fraud prevention, while users and service providers are concerned
with mutual authentication and verifying network service providers.
Implementation depends on technology and business models.

18. Key Characteristics Making Mobile Networks Vulnerable:
1.Open Medium: Wireless links are prone to various attacks, including
eavesdropping, interference, information leakage, and node impersonation.
2.Distributed Decision-Making: Decentralized decision-making and reliance
on cooperative participation can expose networks to security risks.
3.Dynamic Topology: Changing network topology and location-dependent
operations create unique communication patterns and vulnerabilities.
4.Absence of Central Authority: Difficulty in tracking and managing mobile
nodes on a global scale.
5.Lack of Clear Defense: Inadequate standard security software and
protocols.

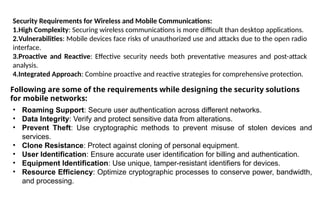

19. Security Requirements for Wireless and Mobile Communications:
1.High Complexity: Securing wireless communications is more difficult than desktop applications.
2.Vulnerabilities: Mobile devices face risks of unauthorized use and attacks due to the open radio
interface.
3.Proactive and Reactive: Effective security needs both preventative measures and post-attack
analysis.
4.Integrated Approach: Combine proactive and reactive strategies for comprehensive protection.
Following are some of the requirements while designing the security solutions
for mobile networks:
• Roaming Support: Secure user authentication across different networks.
• Data Integrity: Verify and protect sensitive data from alterations.
• Prevent Theft: Use cryptographic methods to prevent misuse of stolen devices and
services.
• Clone Resistance: Protect against cloning of personal equipment.
• User Identification: Ensure accurate user identification for billing and authentication.
• Equipment Identification: Use unique, tamper-resistant identifiers for devices.
• Resource Efficiency: Optimize cryptographic processes to conserve power, bandwidth,
and processing.

20. SECURITY FOR MOBILE APPLICATIONS
Network Security Goals:
1.Prevent Unauthorized Access: Protect against unauthorized data reading,
modification, and resource misuse, including denial of service.
2.User-Based Protection: Traditionally, security focused on user authentication and
protecting users from each other.
3.Application Management: Ensure applications are managed to prevent unintended
behaviors that could lead to significant security issues.
Two concepts can aid in security design at the application
level.
• Application as a Unit of Protection: Treat applications as the primary security units,
ensuring they operate within defined parameters and are managed independently.
• Application as a Unit of Reasoning: Adapt to modern complexities by maintaining a
clear view of all code and processes on a system, allowing users to make informed
security decisions and detect malicious software.

21. Application-level Security Architecture
•Architecture: Applications interact with
cryptographic modules (software,
hardware, or smart cards).
•Device Management: Handled by
device drivers, which manage multiple
devices and transactions.
•Interface: Applications use simple API
calls, hiding complexity of cryptographic
processes.
•Security Functions: Security schemes
are categorized into five main functions
for effective implementation.

22. Trust-based Context-aware Security
• Trust and Security Management: Trust drives a decentralized security approach that can
manage partial information but involves risks. Clear trust relationships enable effective
security measures and informed decision-making.
• A hospital trusts external vendors to manage patient data, but this trust comes with risks if a
vendor's security fails.
• Context Definition: Context includes various factors like location, identity, environment, and
social situations, characterizing the dynamic states of people and objects in computing
environments.
• The hospital system considers factors like location, identity, and environment to determine
access, such as allowing a doctor to access specific records in the operating room.
• Context-Sensitive Security: Security must adapt to changing contexts, making mechanisms
more flexible and dynamic. Predicting how security policies should evolve based on context is
a key challenge.
• Security adapts based on context, like restricting data access to specific times or locations,
ensuring data is protected dynamically.
•

23. Role-based Security •Role-Based Security: Permissions are grouped
into Roles assigned to Principals (logins),
allowing for efficient management of user
access.
•User Roles: Users can switch between roles by
logging in with different Principals (e.g., a user
might be both head-Sales and admin-
Standard). Credentials like passwords are
attached to users, allowing them to log in with
the same password regardless of the role.
•Role-Based Access Control (RBAC): RBAC
assigns permissions to roles, and users are
assigned roles based on their job functions,
simplifying permission management and
allowing flexible policy updates as needs
change.
•Policy Neutrality: RBAC doesn’t enforce a
specific security policy but provides a
framework for defining and modifying policies
to meet the organization’s changing needs.

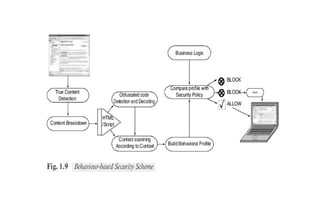

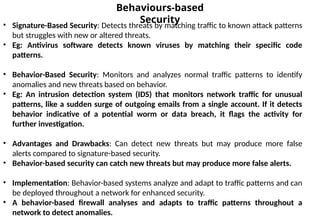

24. Behaviours-based
Security
• Signature-Based Security: Detects threats by matching traffic to known attack patterns
but struggles with new or altered threats.
• Eg: Antivirus software detects known viruses by matching their specific code
patterns.
• Behavior-Based Security: Monitors and analyzes normal traffic patterns to identify
anomalies and new threats based on behavior.
• Eg: An intrusion detection system (IDS) that monitors network traffic for unusual
patterns, like a sudden surge of outgoing emails from a single account. If it detects
behavior indicative of a potential worm or data breach, it flags the activity for
further investigation.
• Advantages and Drawbacks: Can detect new threats but may produce more false
alerts compared to signature-based security.
• Behavior-based security can catch new threats but may produce more false alerts.
• Implementation: Behavior-based systems analyze and adapt to traffic patterns and can
be deployed throughout a network for enhanced security.
• A behavior-based firewall analyses and adapts to traffic patterns throughout a
network to detect anomalies.

26. ISP-based Behavioural Security
ISPs use large-scale security systems to monitor and filter network
traffic for anomalies(Deviating from the normal or expected pattern) .
This approach reroutes and cleans problematic packets before reaching
customer networks, saving bandwidth and resources. It can detect
attacks early due to its broad network view but lacks fine-grained
control for individual users.
Security-Provider-Based Behavioural Security: Security systems are
installed at the edge of a corporate LAN to monitor and analyze
incoming traffic. They detect suspicious behavior, issue alerts, and
filter out malicious packets.
User-Based Security: These systems are installed on individual
computers to protect specific applications. They monitor for anomalies
in application behavior or system changes, blocking suspicious traffic or
requesting user approval before allowing it.

27. Agents-Based Security: This approach uses Mobile Agents (MAs) for
intrusion detection. MAs can move between hosts, monitoring for
unauthorized activities. Unlike traditional IDS, which are centralized and
suited for wired networks, agents-based systems offer flexibility but face
challenges in wireless networks due to their unique properties.
• M-commerce transactions involve business activities conducted via
mobile devices over wireless networks. They differ from traditional
transactions due to three key issues:
• Open Environment: Increased risk of disguised or forged identities.
• Device Vulnerability: Mobile devices can be stolen or misused, making
them unreliable for user authentication.
• Communication Autonomy: Devices often experience connectivity
issues, requiring transaction mechanisms that don't rely on constant
network availability.
Transactions-based
Security

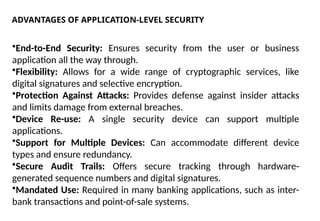

28. ADVANTAGES OF APPLICATION-LEVEL SECURITY
•End-to-End Security: Ensures security from the user or business
application all the way through.
•Flexibility: Allows for a wide range of cryptographic services, like
digital signatures and selective encryption.
•Protection Against Attacks: Provides defense against insider attacks
and limits damage from external breaches.
•Device Re-use: A single security device can support multiple
applications.
•Support for Multiple Devices: Can accommodate different device
types and ensure redundancy.
•Secure Audit Trails: Offers secure tracking through hardware-
generated sequence numbers and digital signatures.
•Mandated Use: Required in many banking applications, such as inter-
bank transactions and point-of-sale systems.

29. DISADVANTAGES OF APPLICATION-LEVEL
SECURITY
•Application Dependence: Changes in applications may require
corresponding updates to the security solution.
•Maintenance Difficulties: Managing security across large organizations
can be challenging, especially for distributing updates.
•Application Security Weaknesses: Interdependence between
applications and security can introduce vulnerabilities.
•Difficult to Retrofit: Adding security after the fact is often complex and
costly due to its tight integration with applications.
