2. Understanding an App You
Didn’t Build
Marykate Gass
Sales Engineer, Intuit QuickBase

3. #EMPOWER2015
Marykate Gass
• Sales Engineer at Intuit QuickBase.
• Marykate previously worked as a Mechanical Engineer designing hardware for Helicopter Jet
Engines. She soon noticed she was a bit more outgoing than the other engineers and
decided she wanted a more customer facing role. She has been working at Intuit QuickBase
for the past year.
• Marykate lives in small town in Northern MA with her husband. They are expecting their first
child this September!
Bio

4. #EMPOWER2015
① Why Adopting an App is a Good Thing
② Understanding the Existing App
③ Assessing the Existing App
④ Documentation/ Going Forward
Agenda

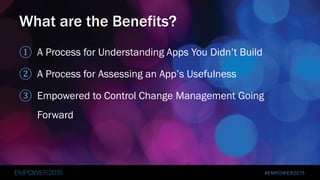

5. #EMPOWER2015
① A Process for Understanding Apps You Didn’t Build
② A Process for Assessing an App’s Usefulness
③ Empowered to Control Change Management Going
Forward
What are the Benefits?

6. 1 Why Adopting an App is a
Good Thing

7. #EMPOWER2015

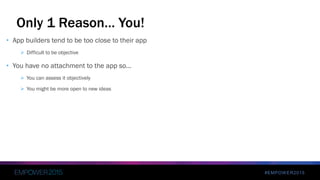

Only 1 Reason… You!
• App builders tend to be too close to their app
 Difficult to be objective
• You have no attachment to the app so…
 You can assess it objectively
 You might be more open to new ideas

8. 2 Understanding the Existing
App

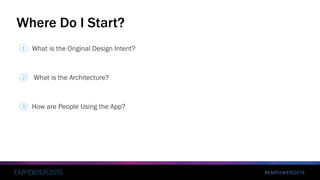

9. #EMPOWER2015
① What is the Original Design Intent?
② What is the Architecture?
③ How are People Using the App?
Where Do I Start?

10. #EMPOWER2015
What is the Original Design Intent?

11. #EMPOWER2015
What Do I Want To Know About Design Intent?
• Design Intent: The definition of how the owner expects the system to perform
• Every App addresses a particular problem
• The Problem Statement
 The original problem statement
 Understand if the problem has evolved

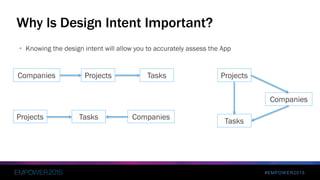

12. #EMPOWER2015
• Knowing the design intent will allow you to accurately assess the App
Why Is Design Intent Important?
Projects TasksCompanies
Projects Tasks Companies
Projects
Tasks
Companies

13. #EMPOWER2015
• Talk, talk, talk!
 The Original App Builder
 Stakeholders
 Users
How To Determine Design Intent?

14. #EMPOWER2015
What is the App Architecture?

15. #EMPOWER2015
Start With the RelDiagram!
• What is RelDiagram?
 Formerly a QB employee ‘super power’
 Will be available after June release
 BUT… You can get access now!
 Aren’t you glad you came to this presentation!
• A Quick way to visualize the tables and
relationships
 Provides broad understanding of app architecture
 Quickly determine potentially key tables
 Quickly see quirks in the architecture
This information is intended to outline our general
product direction, but represents no obligation and
should not be relied on in making a purchasing
decision.

16. #EMPOWER2015

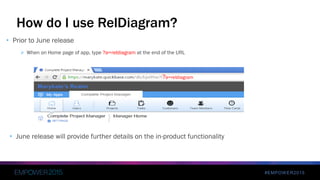

How do I use RelDiagram?
?a=reldiagram
• Prior to June release
 When on Home page of app, type ?a=reldiagram at the end of the URL
• June release will provide further details on the in-product functionality

17. #EMPOWER2015
3 Things to Pay Close Attention To
• 1. Multiple relationships between two tables in the same direction!
• Ask…
 Are these all REAL relationships?
 What information is being passed
over?
 Is this correct or should changes
be made?

18. #EMPOWER2015
Are These All ‘Real’ Relationships?
• How do I check if all relationships are being used?
 Run a report to see if all relationships are being populated
• In this case, only one relationship is being used
 Delete the other 2 relationships for clarity

19. #EMPOWER2015

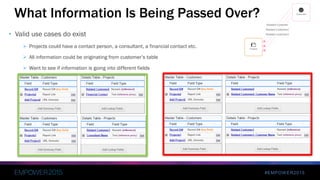

What Information Is Being Passed Over?
• Valid use cases do exist
 Projects could have a contact person, a consultant, a financial contact etc.
 All information could be originating from customer’s table
 Want to see if information is going into different fields

20. #EMPOWER2015

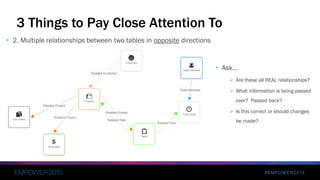

3 Things to Pay Close Attention To
• 2. Multiple relationships between two tables in opposite directions
• Ask…
 Are these all REAL relationships?
 What information is being passed
over? Passed back?
 Is this correct or should changes
be made?

21. #EMPOWER2015

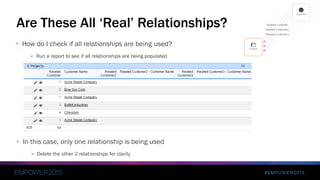

Are These All ‘Real’ Relationships?
• How do I check if all relationships are being used?
 Run a report to see if all relationships are being populated
• In this case, only one relationship (Projects  Tasks) is being used
 Delete the other relationship for clarity

22. #EMPOWER2015
What Information Is Being Passed Over?
• Valid use cases do exist
 Perhaps trying to pass up information on current task

23. #EMPOWER2015

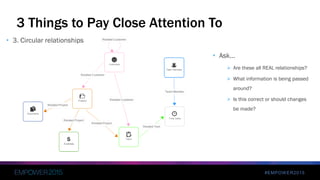

3 Things to Pay Close Attention To
• 3. Circular relationships
• Ask…
 Are these all REAL relationships?
 What information is being passed
around?
 Is this correct or should changes
be made?

24. #EMPOWER2015

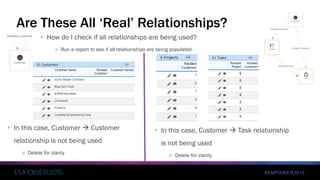

Are These All ‘Real’ Relationships?
• In this case, Customer  Customer
relationship is not being used
 Delete for clarity
• In this case, Customer  Task relationship
is not being used
 Delete for clarity
• How do I check if all relationships are being used?
 Run a report to see if all relationships are being populated

25. #EMPOWER2015
What Information Is Being Passed Over?
 Perhaps customers refer other
customers, and you want to track this
 Perhaps trying to use conditional drop down (pick
a customer and see all projects for that customer)

26. #EMPOWER2015
Going Beyond the RelDiagram
• Why isn’t the RelDiagram enough?
 Cannot determine what information is on what tables
 Cannot determine what information is being moved
between tables
• RelDiagram is the starting point but a full
diagram will be your road map

27. #EMPOWER2015

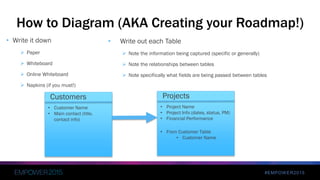

How to Diagram (AKA Creating your Roadmap!)
• Write it down
 Paper
 Whiteboard
 Online Whiteboard
 Napkins (if you must!)
• Write out each Table
 Note the information being captured (specific or generally)
 Note the relationships between tables
 Note specifically what fields are being passed between tables
Customers
• Customer Name
• Main contact (title,
contact info)
Projects
• Project Name
• Project Info (dates, status, PM)
• Financial Performance
• From Customer Table
• Customer Name

28. #EMPOWER2015
An Example Diagram (For Complete Project Manager)
Customers
• Customer Name
• Main contact (title, contact info)
Projects
• Project Name
• Project Info (dates, status, PM)
• Financial Performance
• From Customer Table
• Customer Name
Tasks
• Task Name
• Task Details (assigned to, project phase, priority)
• Time Plan (start date, duration, projected finish)
• Financial Performance
• Status
• From Projects Table
• Project Name
• PC
• Project Manager
• Project Status
Documents
• Document Name
• File
• Document Description
• From Projects Table
• Project Name
Expenses
• Expense Summary
• Expense Date
• Purchased by
• Amount
• From Projects Table
• Project Name
Team Members
• Team Member
• Title
• Contact Info (email, phone)
• Hourly Rate
Time Cards
• Time Card Date
• # of hours
• Time Card Cost
• Notes
• Document Description
• From Tasks Table
• Project Name
• Task Name
• From Team Members Table
• Team Member (user)
• Team Member- Hourly Rate

29. #EMPOWER2015
How To See If A Field Is Being Used
• Check the field usage tab
• Consider adding help text to guide your users

30. #EMPOWER2015
How Are People Using The App?

31. #EMPOWER2015
What Roles Are In Your App?
• Look at the types of roles in your app
 Do the Role Names match your company’s vocabulary?
 Note any restrictions on permissions
• Look at Users table
 Are each of the defined roles being used?
 Note who would be good interview candidates

32. #EMPOWER2015
What Dashboards Are Assigned to the Roles?
• From the Roles page, note the dashboards
 Do some roles share common dashboards?
 Then why are they different roles
• Look at each dashboard to understand
the elements
 Are dashboards New style or Old Style?
 What reports are being displayed?
 Does it look like the dashboard is meant to be a
working space or just a landing page?

33. #EMPOWER2015
Interview the Users
• Talk to at least 1 person from each role
 Have them show you how they use the app
• Potential Interview questions
 How often do you use this app?
 What do you like about this app?
 What do you NOT like about this app?
 What do you wish this app would do?

34. 3 Assessing the Existing App

35. #EMPOWER2015
Assessing the Existing App- Design Intent
• Determine the current problem statement
• Compare to the original problem statement
 Has the problem evolved?
 Did the app miss the mark the first time?
 Was there scope creep?
• Check in with stakeholders and specifically
define the problem statement

36. #EMPOWER2015
Assessing the Existing App- Architecture
• What would be the ideal app structure to meet the CURRENT problem statement
 Diagram out the ideal structure
 Compare to existing structure
 Did the app miss the mark the first time?
 Was there scope creep?

37. #EMPOWER2015
Assessing the Existing App- Decision Point
• Decision step: Does it make more sense to move forward with current app OR start fresh?
• Pros of Keeping Current App
 Users are familiar with it
 Data already in app
• Pros of Creating New App
 Focus app on your problem
 Make the app more user friendly
• Advise you to make this decision with input from stake holders and users

38. 4 Documentation/
Going Forward

39. #EMPOWER2015
Think of Future App Owners!
• You have put a lot of effort into understanding this app
• Be kind to those behind you and document what you know!
 Add a clearly stated design intent in the App description
 Leverage Rich Text or Code pages to document what you know
 Problem definition
 App architecture
 Roles and how they should be using apps

40. #EMPOWER2015

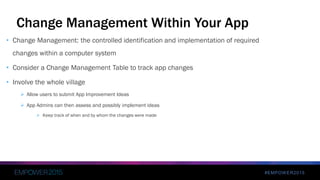

Change Management Within Your App
• Change Management: the controlled identification and implementation of required
changes within a computer system
• Consider a Change Management Table to track app changes
• Involve the whole village
 Allow users to submit App Improvement Ideas
 App Admins can then assess and possibly implement ideas
 Keep track of when and by whom the changes were made

41. Thank You!
