Deploying mobile unified communications and collaboration (UCC) with Microsoft Lync on Aruba Wi-Fi
This document discusses supporting Unified Communications and Collaboration (UCC) applications like Microsoft Lync over wireless networks. It covers the challenges of UCC over wireless, how to optimize wireless networks for Lync through classification and prioritization of Lync traffic, and visualization of UCC performance using Aruba's network management tools. Examples are provided of integrating Lync with Aruba wireless networks for on-premise, hosted, and online Lync deployments. Lessons learned from Aruba Lync deployments and a demonstration of Aruba's UCC visualization capabilities are also summarized.
More Related Content
Similar to Deploying mobile unified communications and collaboration (UCC) with Microsoft Lync on Aruba Wi-Fi
More from Aruba, a Hewlett Packard Enterprise company
Deploying mobile unified communications and collaboration (UCC) with Microsoft Lync on Aruba Wi-Fi
- 1. #ATM15 | UCC onAruba Wi-Fi Balajee Krishnamurthy Ashutosh Dash March, 2013 @ArubaNetworks
- 2. CONFIDENTIAL © Copyright2015. Aruba Networks, Inc. All rights reserved2#ATM15 | Agenda • Trends • UCC Challenges • Aruba Lync Integration • Lessons learned from Aruba Lync roll out • Demo @ArubaNetworks
- 3. 3 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Transition Content Current Trends • Voice as a “standalone application” is going away • SIP, SCCP, SVP, H323, Vocera, NoE • UCC is the “new wave” in IT • Skype, Lync, FaceTime, Jabber, Hangouts etc. • Next “BYOD” problem @ArubaNetworks
- 4. 4 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Why Microsoft Lync? • Integration with AD, Outlook, Office etc. • Unified mobile client for BYOD • On-premise and Cloud based deployment models • Enable collaboration with mobility • Strategic partner and customer of Aruba
- 5. 5#ATM15 | Challenges withUC over Wireless @ArubaNetworks
- 6. 6 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Challenges with UC over Wireless • Diversity of Clients • AV • App incompatibility @ArubaNetworks • AP placement • Channel Capacity • AP Capacity • Tx/Rx Characteristics • Interference • Mobility • QoS on wireless • QoS on wire • Queue overflows/drops • Routing/path changes • WAN • UC server monitoring

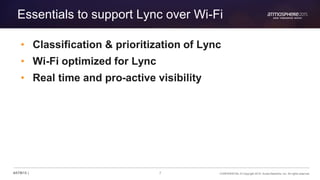

- 7. 7 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Essentials to support Lync over Wi-Fi • Classification & prioritization of Lync • Wi-Fi optimized for Lync • Real time and pro-active visibility
- 8.
- 9. 9 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Types of Lync Deployments • Lync On-Prem • Lync server farm is hosted on premise • Hosted Lync • Lync server farm is hosted on a private cloud • Lync Online • Lync server farm is hosted by Microsoft
- 10. 10 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Lync On-Prem/Hosted Lync Exchange Server QoE Server/ Monitoring Active Directory Lync Federated Partners Reverse Proxy Lync Edge Server Lync FE Server Pool/ Lync SDN API Dialog Listener Lync SDN Manager Internet Wi-Fi Mobility Controller • Benefits from all Lync Server functionalities • Maximum flexibility • Interoperate with other on- premise investments • Works with Exchange and SharePoint
- 11. 11 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Transition Content Lync Online @ArubaNetworks • Uptime Assurance • Using corporate directory • Reduced administration
- 12. 12 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Transition Content Lync Call Type/Flow @ArubaNetworks Call Type Signaling Traffic Media Traffic Peer-to-Peer Session Lync server pool UC endpoint <-> UC endpoint Conference Session UC endpoint <-> Lync server pool PSTN/Mediation session UC endpoint -> (Mediation server)* -> PSTN gateway/IP PBX Content Sharing UC endpoint <-> UC endpoint/Lync server pool
- 13. 13 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Lync Network Bandwidth Requirements Modality Description Max BW Typical BW IM, Presence and signaling Nonmedia elements 2 Kbps 1.6 Kbps Voice RT Audio Wideband 62 Kbps 39 Kbps Conference voice G722 100.6 Kbps 46.1 Kbps Video - small H264 at 320x180 250 Kbps 200 Kbps Video - medium H264 at 640x480 800 Kbps 640 Kbps Video - high H264 at 1280x1080 4 Mbps 3.2 Mbps
- 14. 14#ATM15 | Lync AwareWLAN @ArubaNetworks
- 15. 15 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Lync Classification Methods • Heuristics • SDN API
- 16. 16 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Lync Classification using Heuristics • Leverages DPI to identify & prioritize real time voice and video traffic • Ideal for Lync online deployments • On-Prem deployments without SDN API can leverage heuristics • AirWave aggregates network wide data for visibility Lync
- 17. 17 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Lync Classification using SDN API • Lync server integrates with mobility controller using SDN API • Real time call info is shared with mobility controller • Controller leverages the info to apply QoS • Ideal for On-Prem Lync deployments • AirWave aggregates network wide data for visibility Lync
- 18. 18 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Call Details via SDN API Lync • CALL START • Caller/callee, device, session, BW, time etc. • PERIODIC INTERVALS • Instantaneous Call quality • CALL END • Avg. call quality, time etc.
- 19. 19 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Heuristics Lync API AppRF/Bandwidth Management QoS with Aruba Mobility Controller Lync Tagged DSCP, 802.1P Tagged DSCP, 802.1P WMM Tagged DSCP, 802.1P WMM Lync aware scanning Air time fairness ClientMatch
- 20. 20#ATM15 | Lync onAruba Architecture @ArubaNetworks
- 21. 21 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Lync SDN API for a Centralized Campus Lync SDN API East Campus West Campus
- 22. 22 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Lync SDN API for a Distributed Campus America EMEA APJ Lync LyncLync Lync Cluster Lync Cluster Lync Cluster
- 23. 23 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Lync SDN API for a Branch Lync Store 1 Store 2 Store 3
- 24. 24#ATM15 | UC Visualizationon AirWave @ArubaNetworks
- 25. CONFIDENTIAL © Copyright2015. Aruba Networks, Inc. All rights reserved25#ATM15 | UC Visualization • UCC Dashboard • CDR • Visual RF Integration • Per-User Call Visibility
- 26. 26 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | UCC Dashboard
- 27. 27 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | Call Detail Records(CDR)
- 28. 28 CONFIDENTIAL ©Copyright 2015. Aruba Networks, Inc. All rights reserved#ATM15 | UCC Calls on Visual RF
- 29. 29#ATM15 | Lessons Learnedfrom Aruba Lync Deployment @ArubaNetworks
- 30.
- 31. CONFIDENTIAL © Copyright2015. Aruba Networks, Inc. All rights reserved31#ATM15 | UC Visualization • ASE – Configuration wizards • Aruba Dashboard walkthrough
- 32. THANK YOU 32#ATM15 |@ArubaNetworks
