1. Various applications of international RCC dam
construction
By: Ted Warren USA

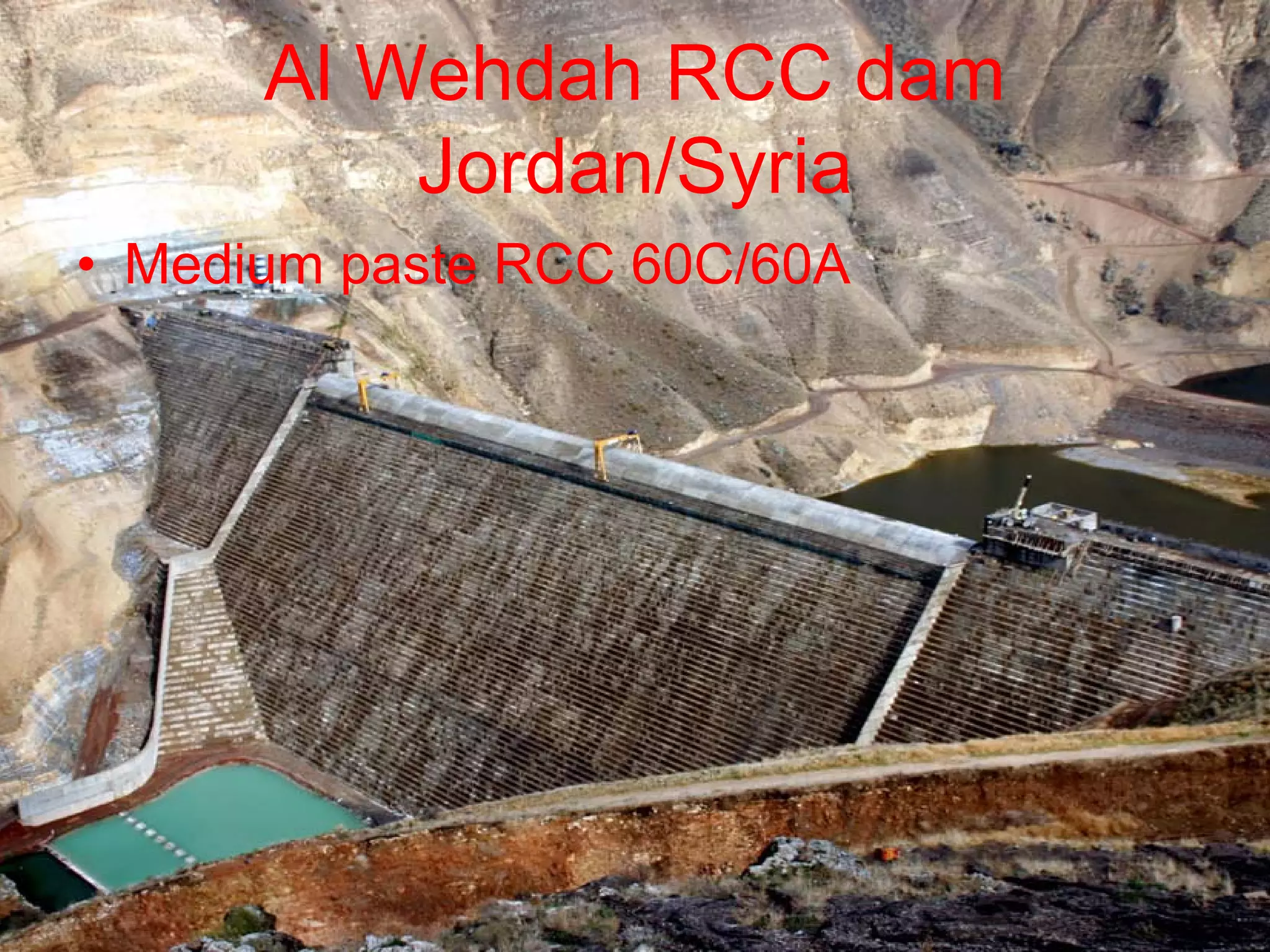

2. Al Wehdah RCC dam
Jordan/Syria
• Medium paste RCC 60C/60A

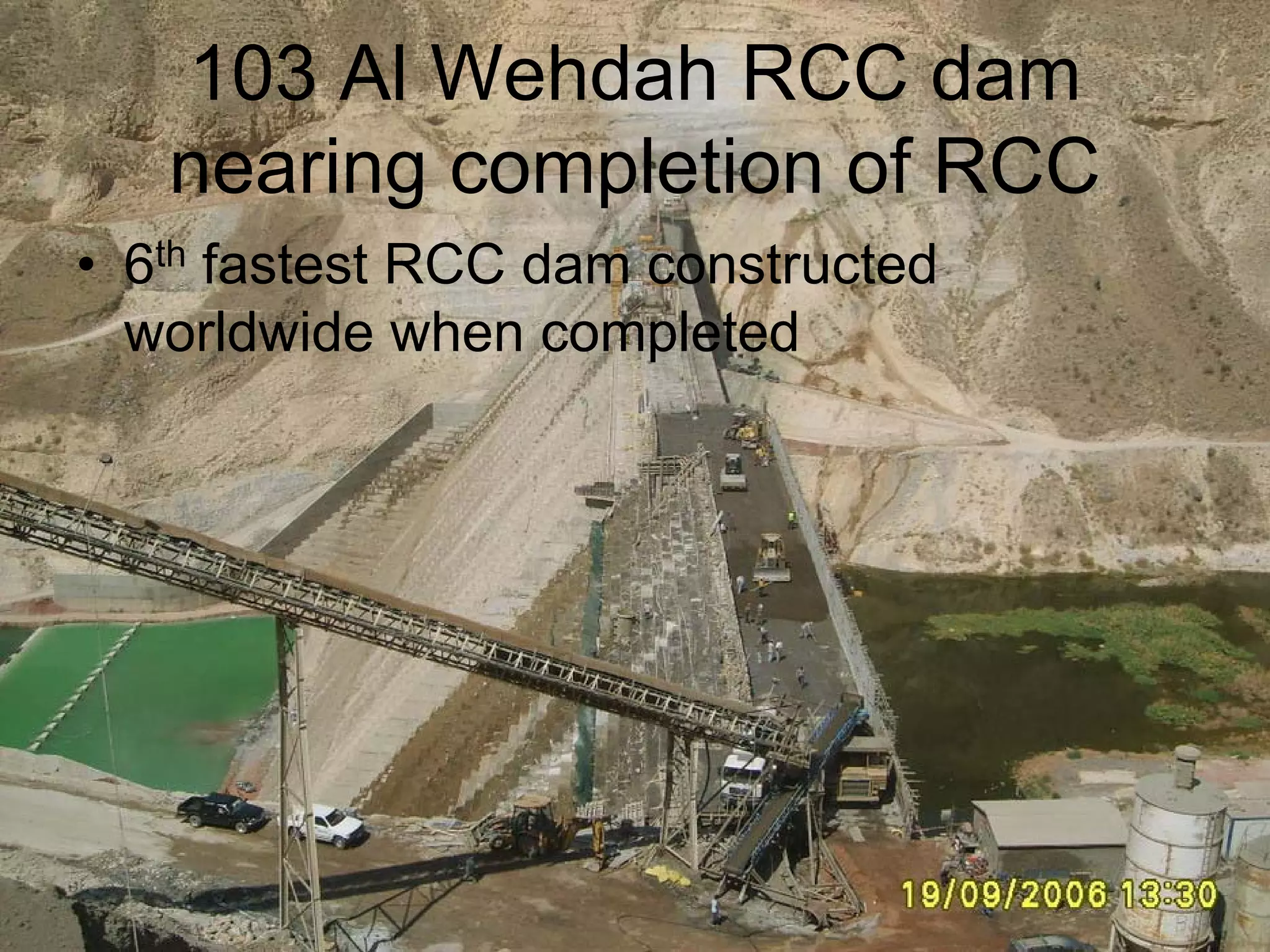

3. 103 Al Wehdah RCC dam
nearing completion of RCC
• 6th fastest RCC dam constructed
worldwide when completed

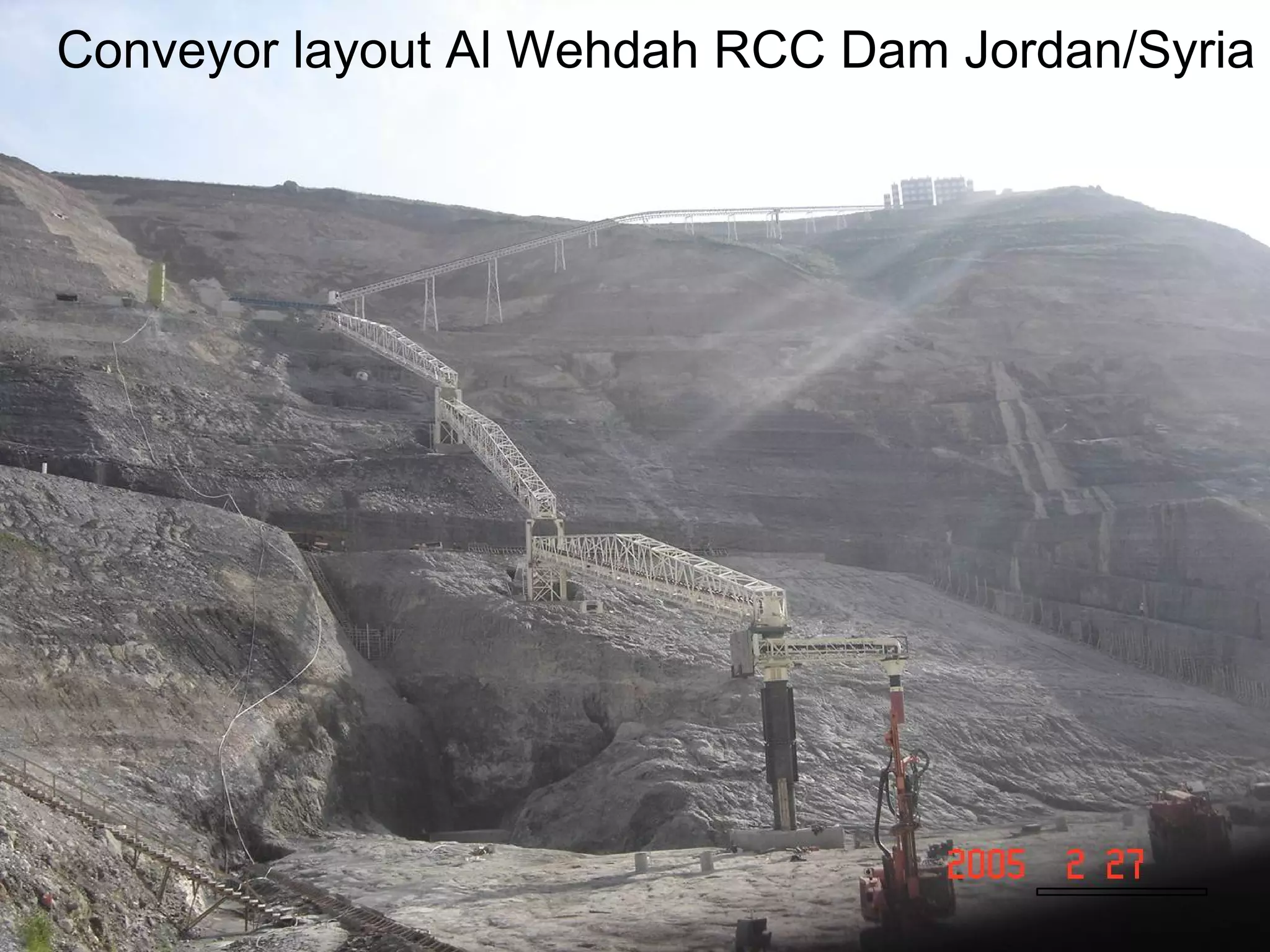

4. Conveyor layout Al Wehdah RCC Dam Jordan/Syria

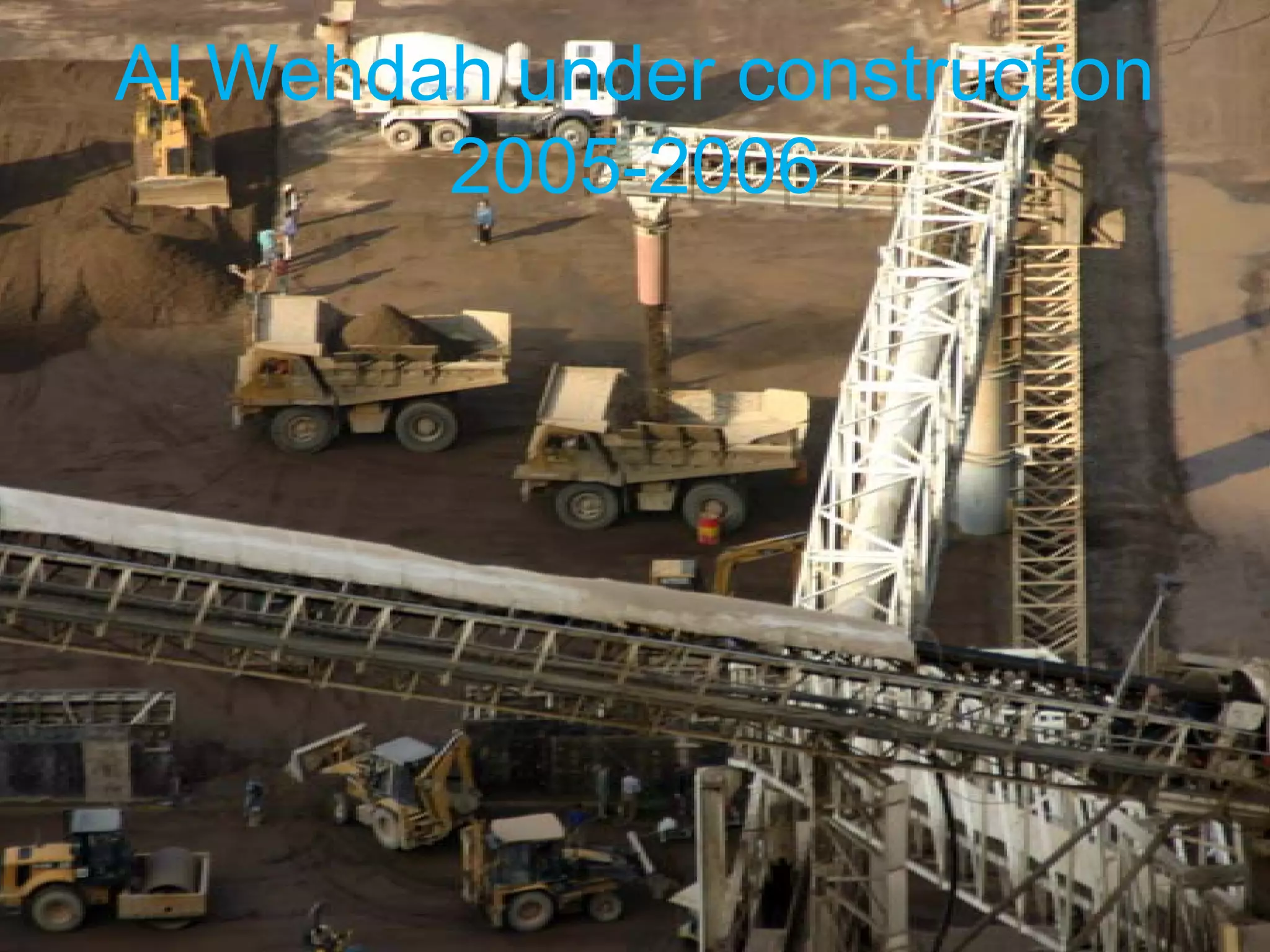

5. Al Wehdah under construction
2005-2006

6. • Simple installation process

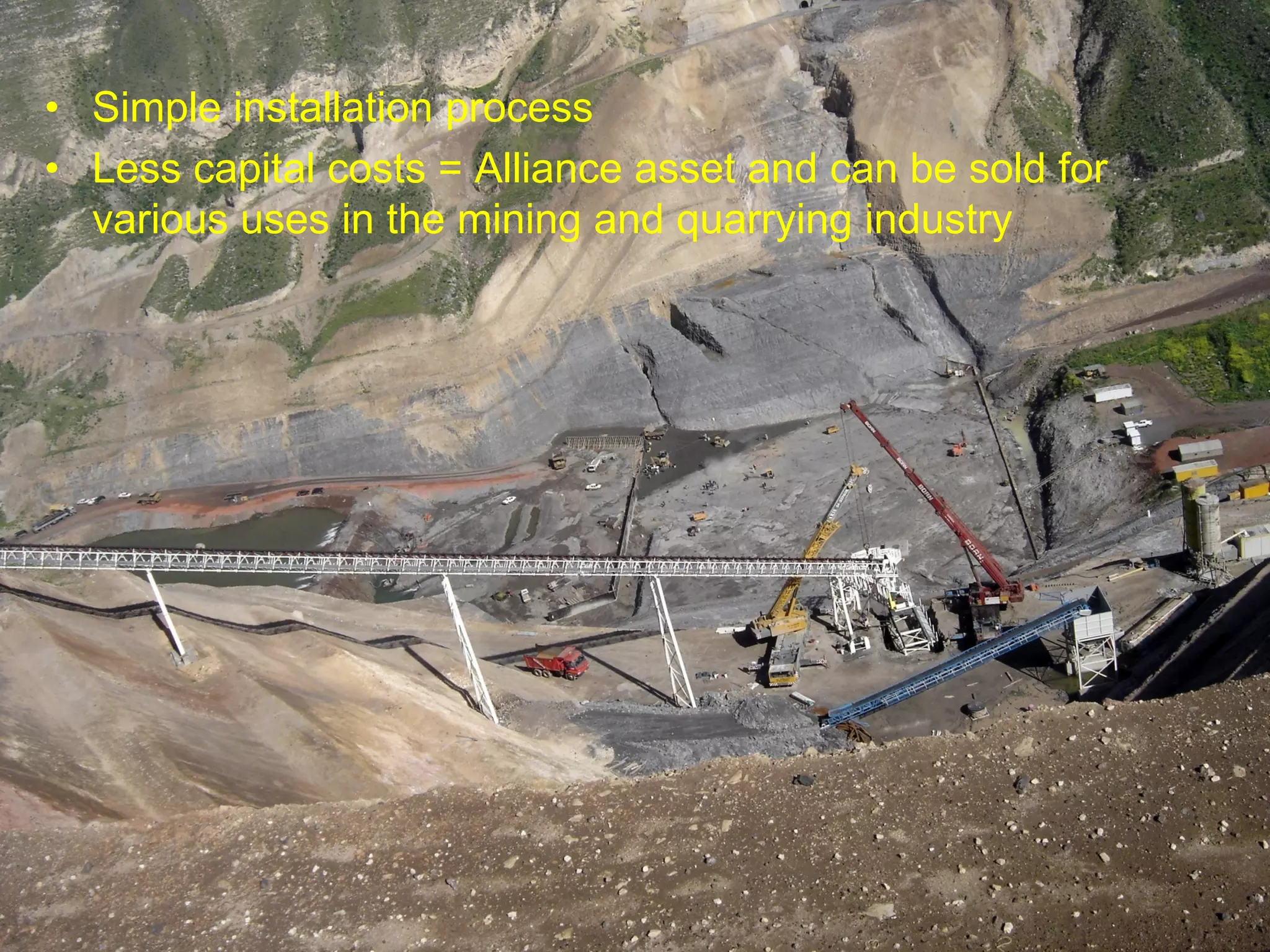

• Less capital costs = Alliance asset and can be sold for
various uses in the mining and quarrying industry

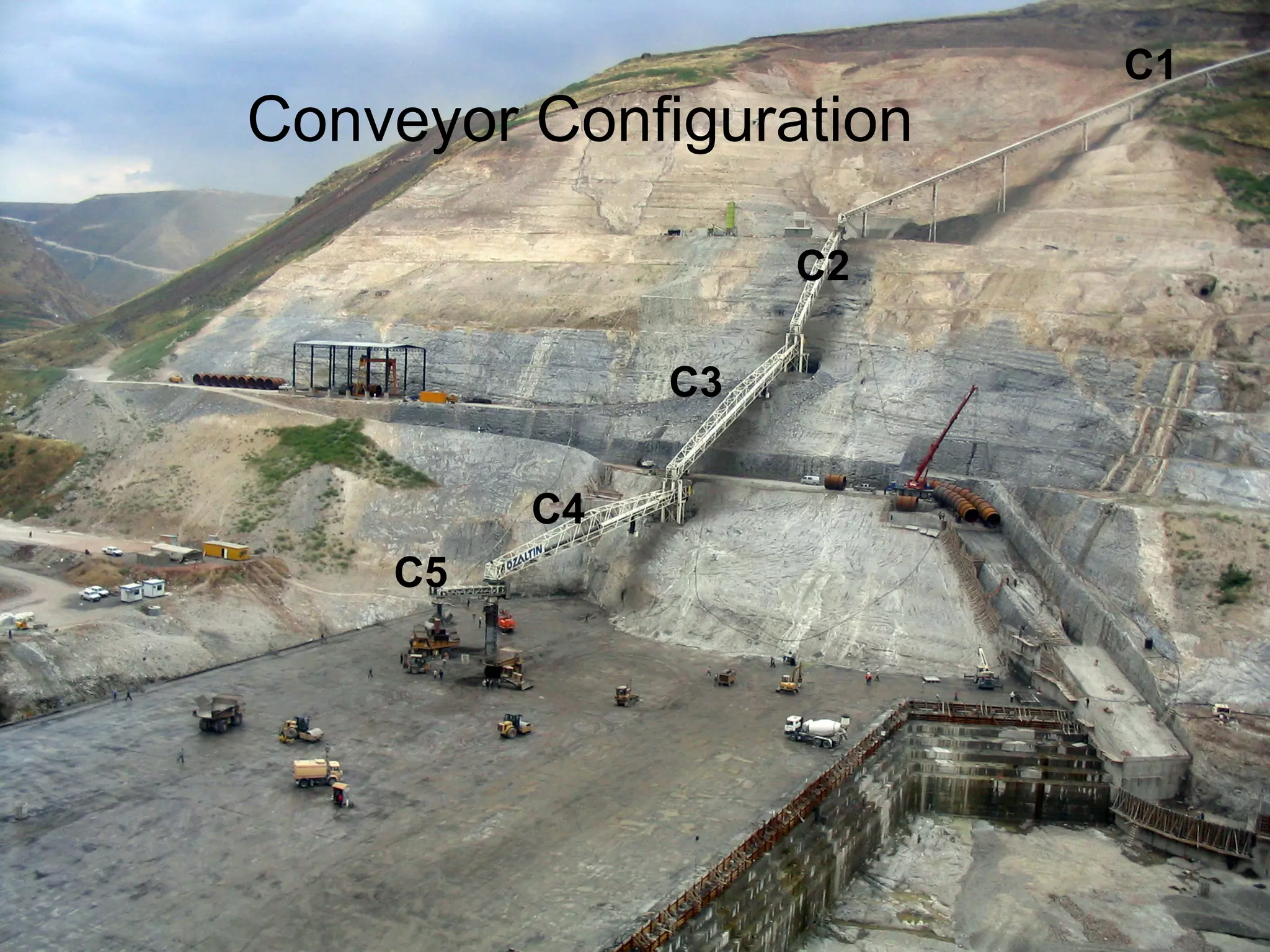

7. C1
Conveyor Configuration
C2
C3
C4
C5

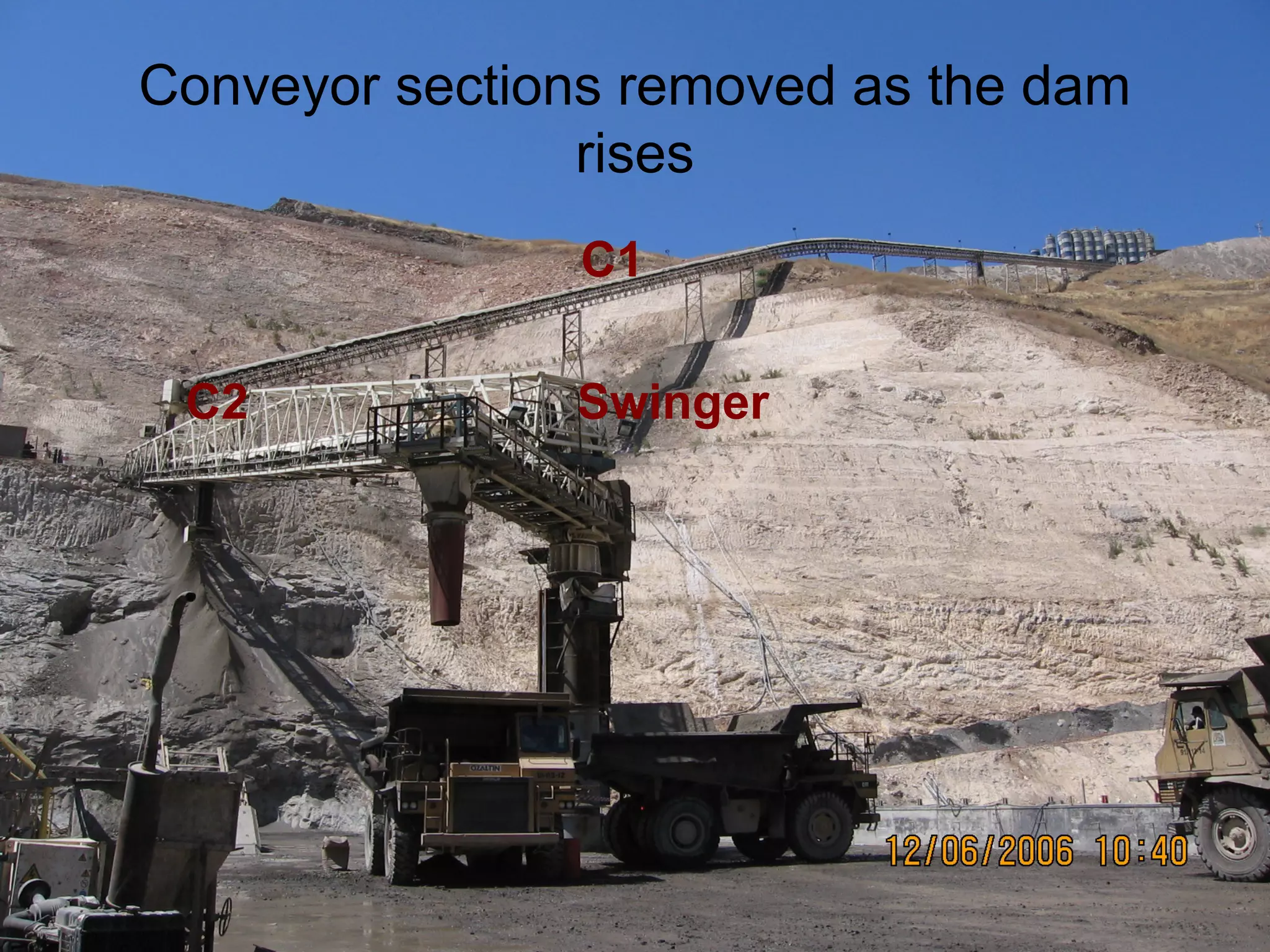

8. Conveyor sections removed as the dam
rises
C1
C2 Swinger

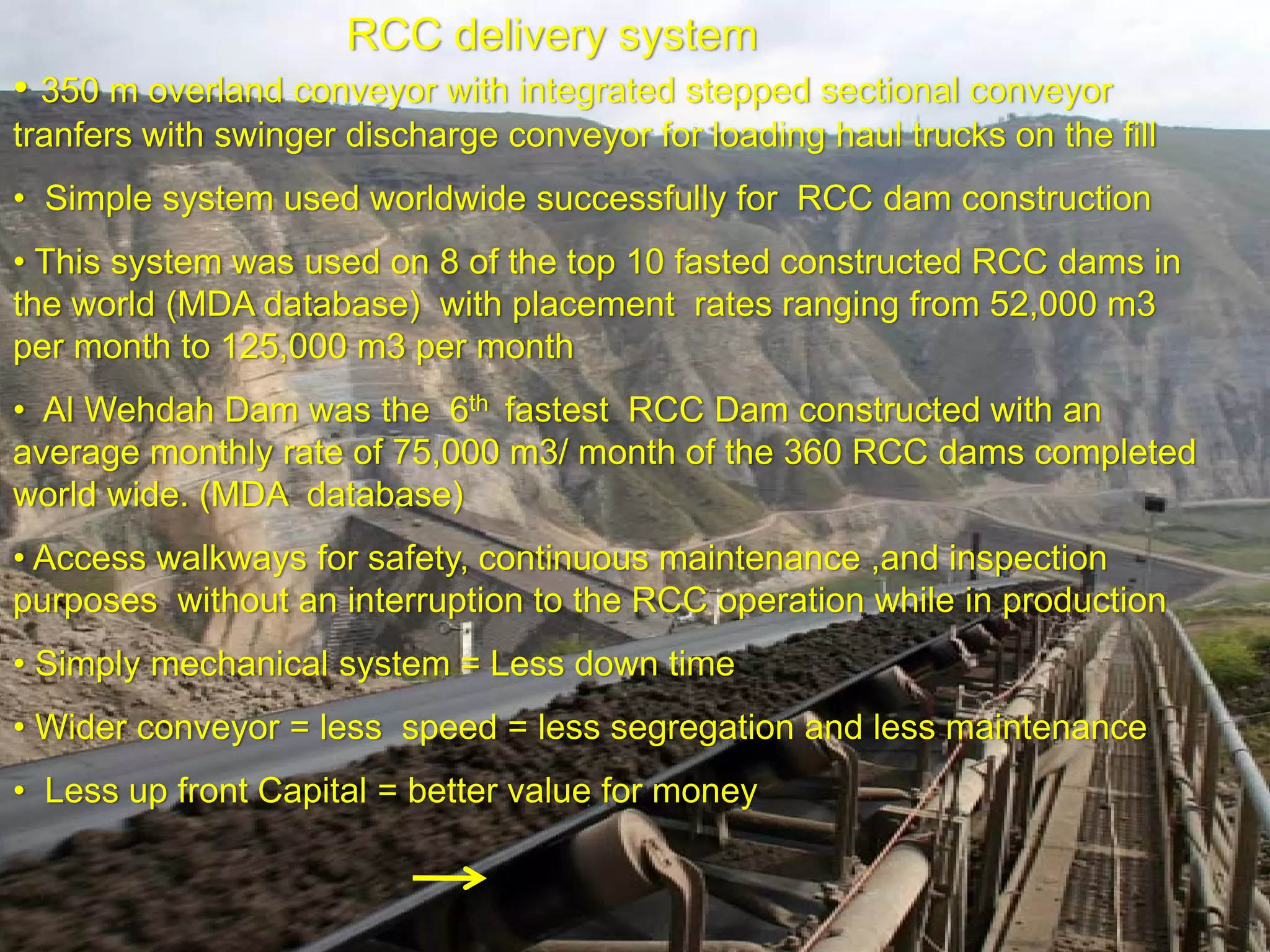

9. RCC delivery system
• 350 m overland conveyor with integrated stepped sectional conveyor
tranfers with swinger discharge conveyor for loading haul trucks on the fill
• Simple system used worldwide successfully for RCC dam construction
• This system was used on 8 of the top 10 fasted constructed RCC dams in
the world (MDA database) with placement rates ranging from 52,000 m3
per month to 125,000 m3 per month
• Al Wehdah Dam was the 6th fastest RCC Dam constructed with an
average monthly rate of 75,000 m3/ month of the 360 RCC dams completed
world wide. (MDA database)
• Access walkways for safety, continuous maintenance ,and inspection
purposes without an interruption to the RCC operation while in production
• Simply mechanical system = Less down time
• Wider conveyor = less speed = less segregation and less maintenance
• Less up front Capital = better value for money

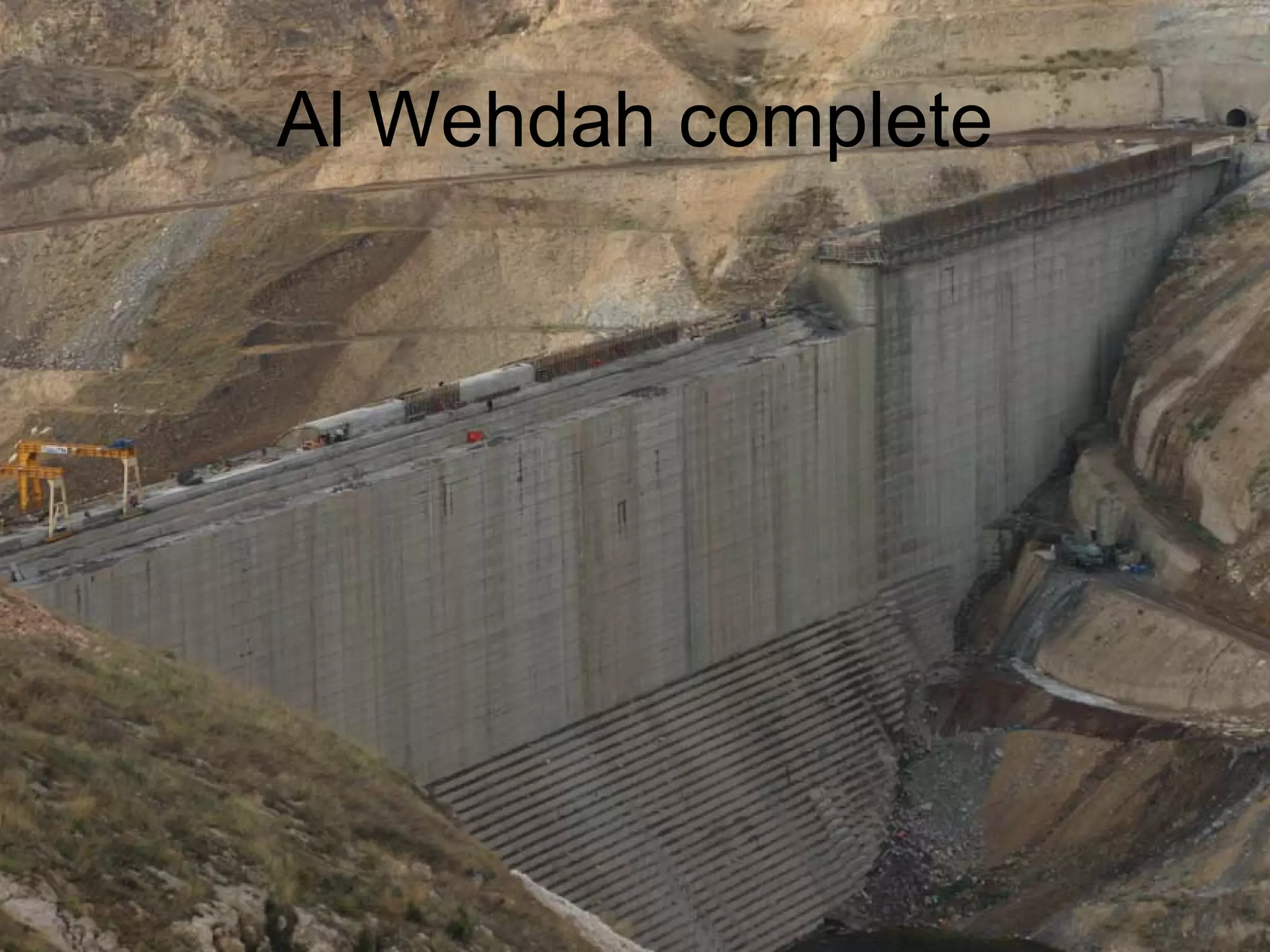

10. Al Wehdah complete

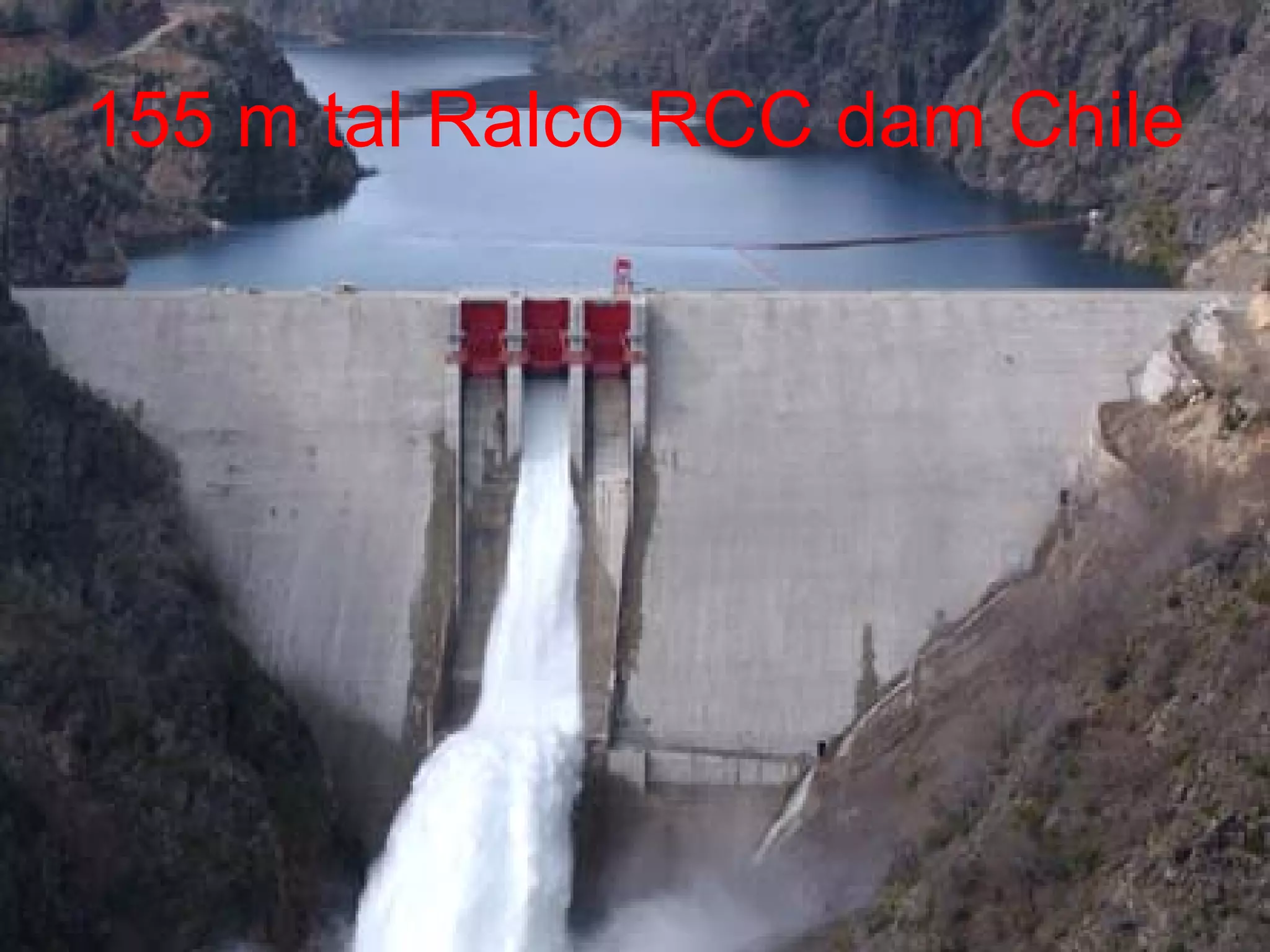

11. 155 m tal Ralco RCC dam Chile

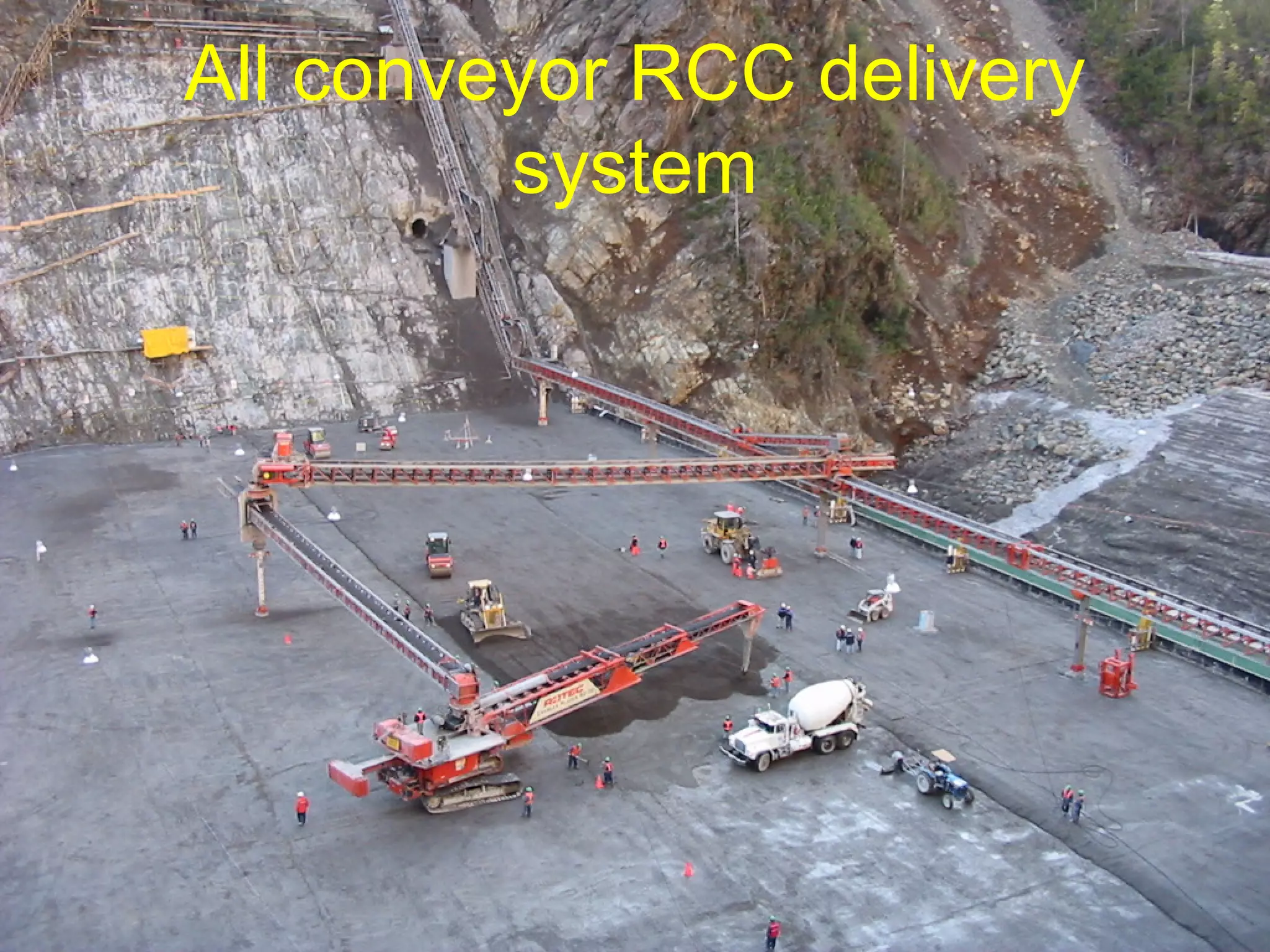

12. All conveyor RCC delivery
system

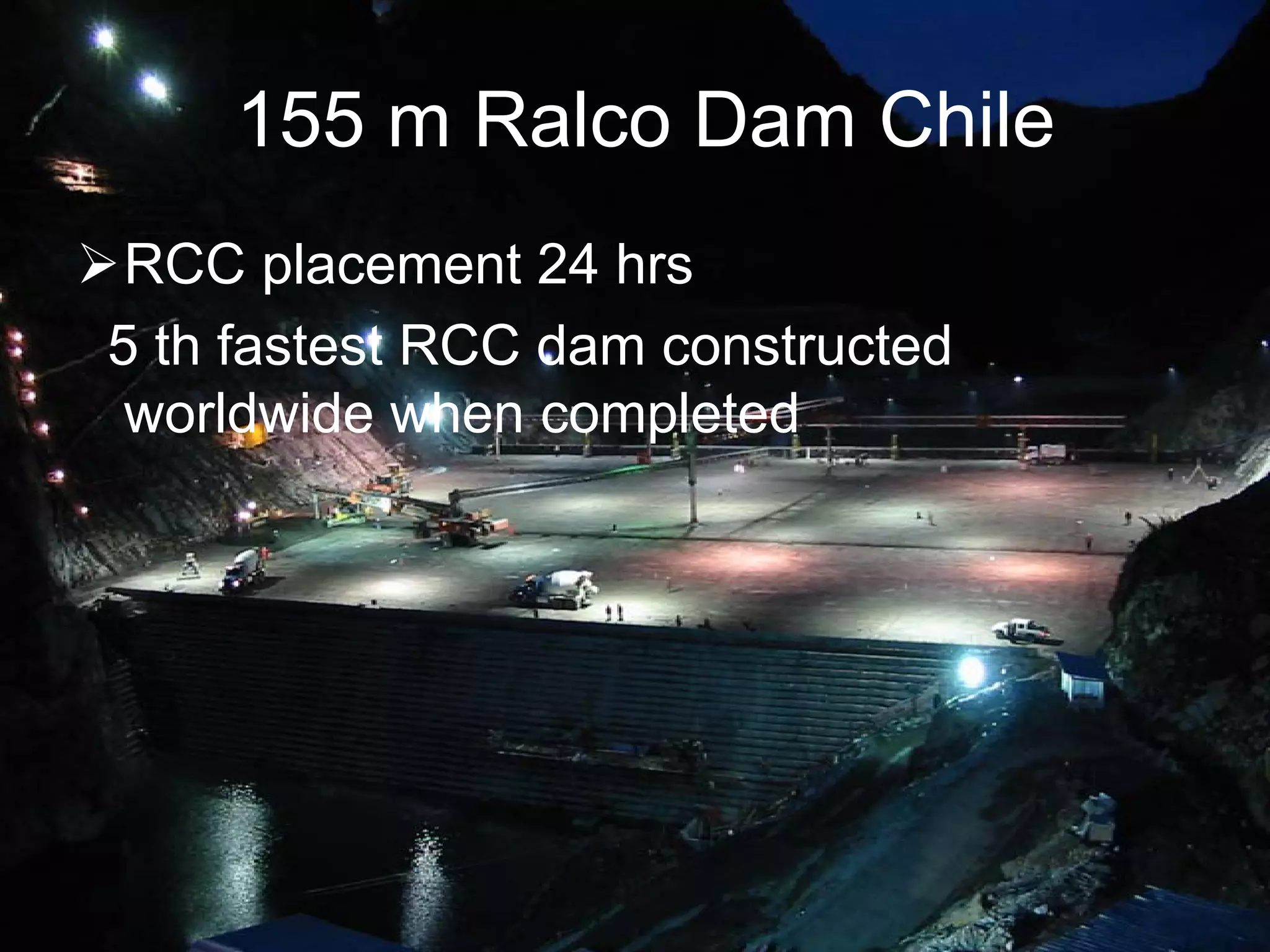

13. 155 m Ralco Dam Chile
RCC placement 24 hrs
5 th fastest RCC dam constructed
worldwide when completed

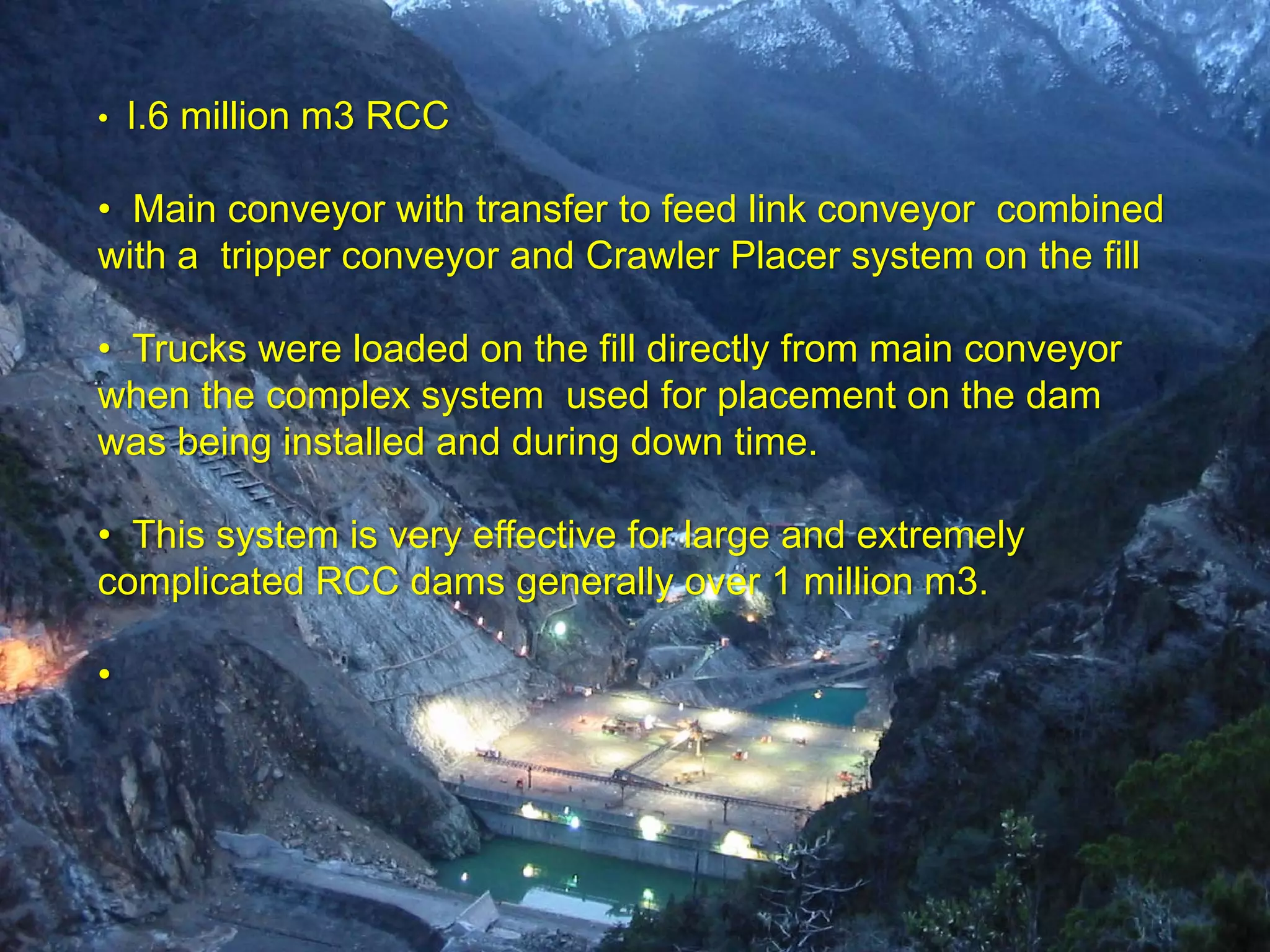

14. • I.6 million m3 RCC
• Main conveyor with transfer to feed link conveyor combined
with a tripper conveyor and Crawler Placer system on the fill
• Trucks were loaded on the fill directly from main conveyor
when the complex system used for placement on the dam
was being installed and during down time.
• This system is very effective for large and extremely
complicated RCC dams generally over 1 million m3.
•

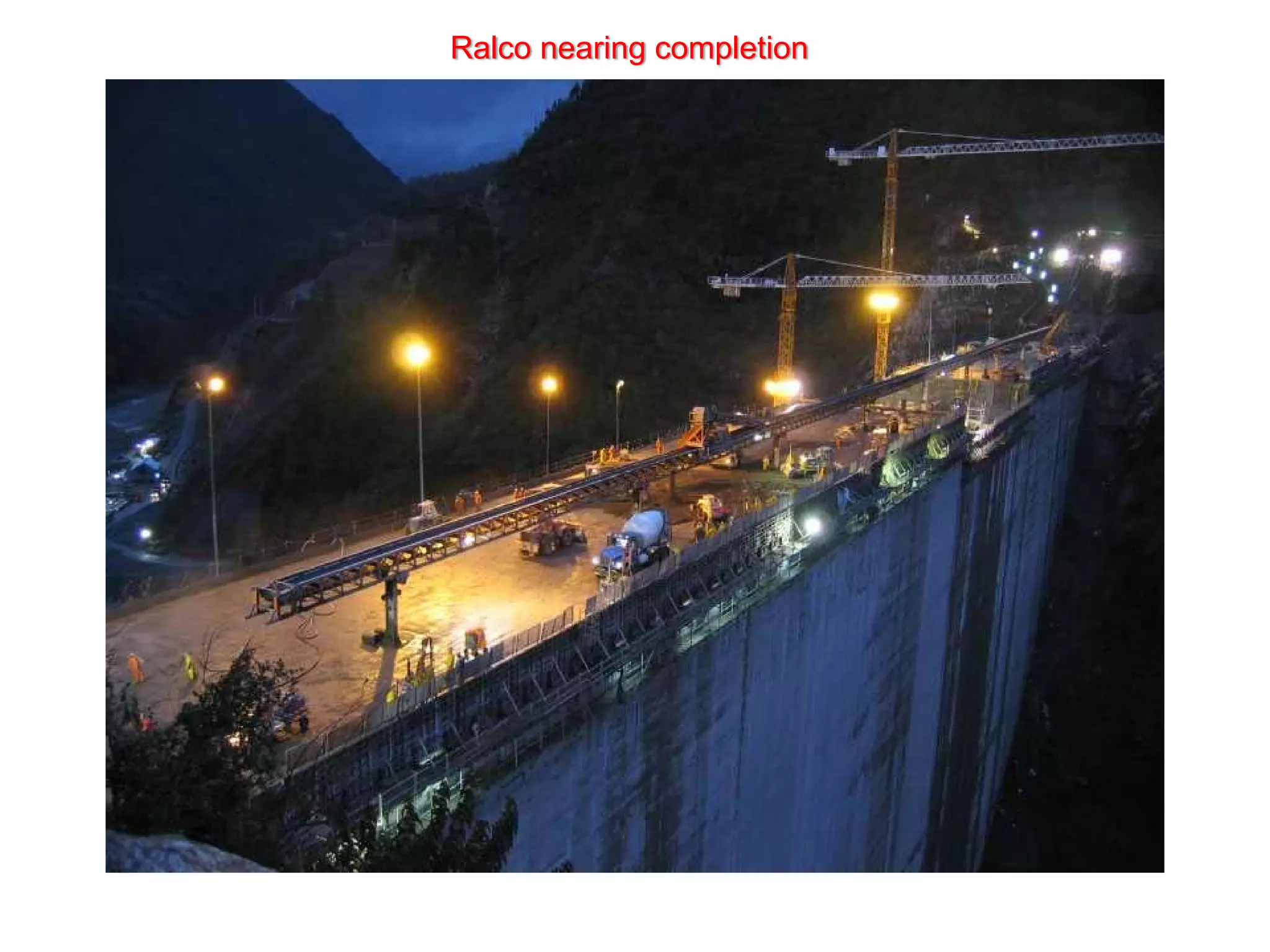

15. Ralco nearing completion

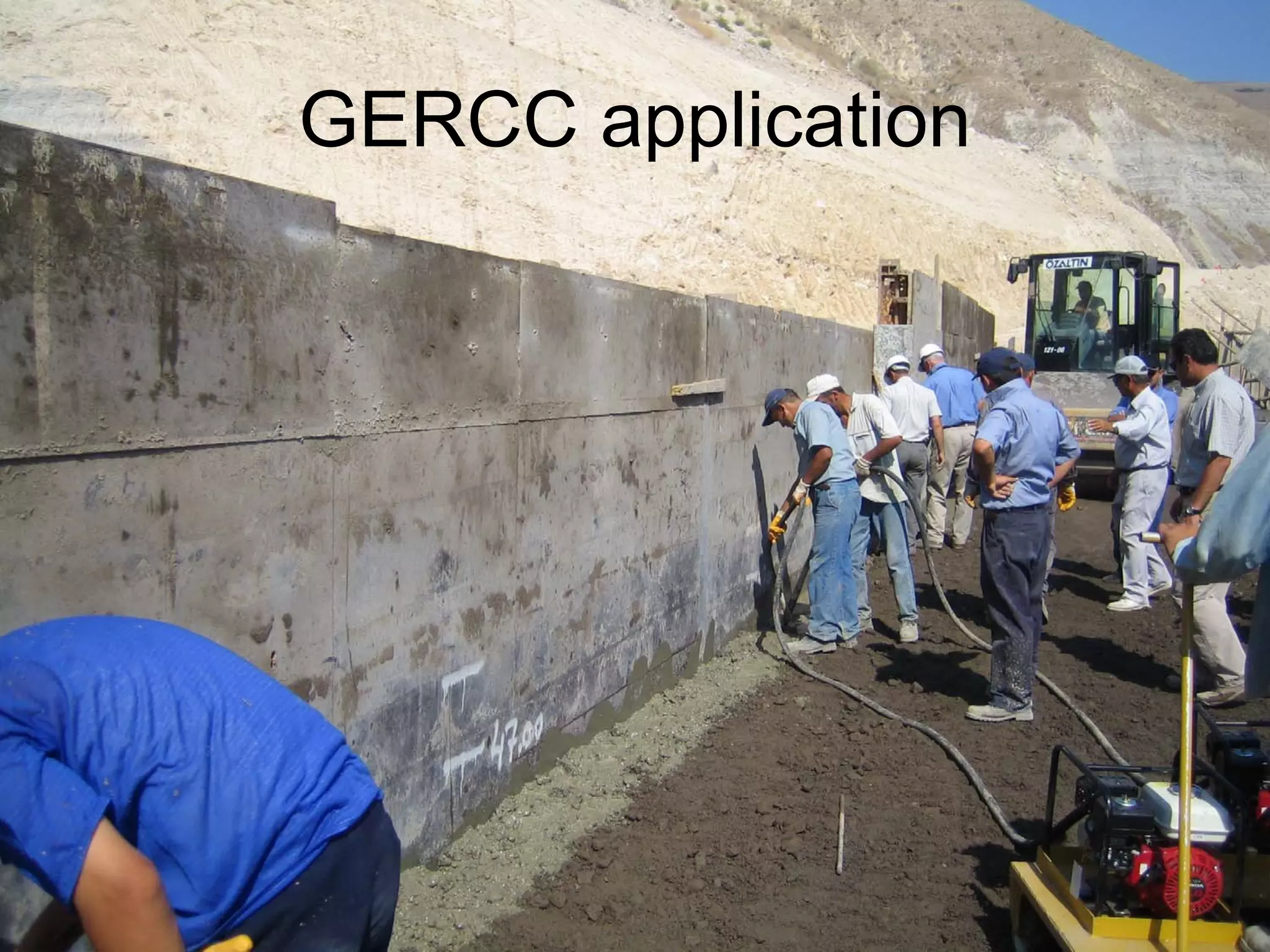

16. GERCC application

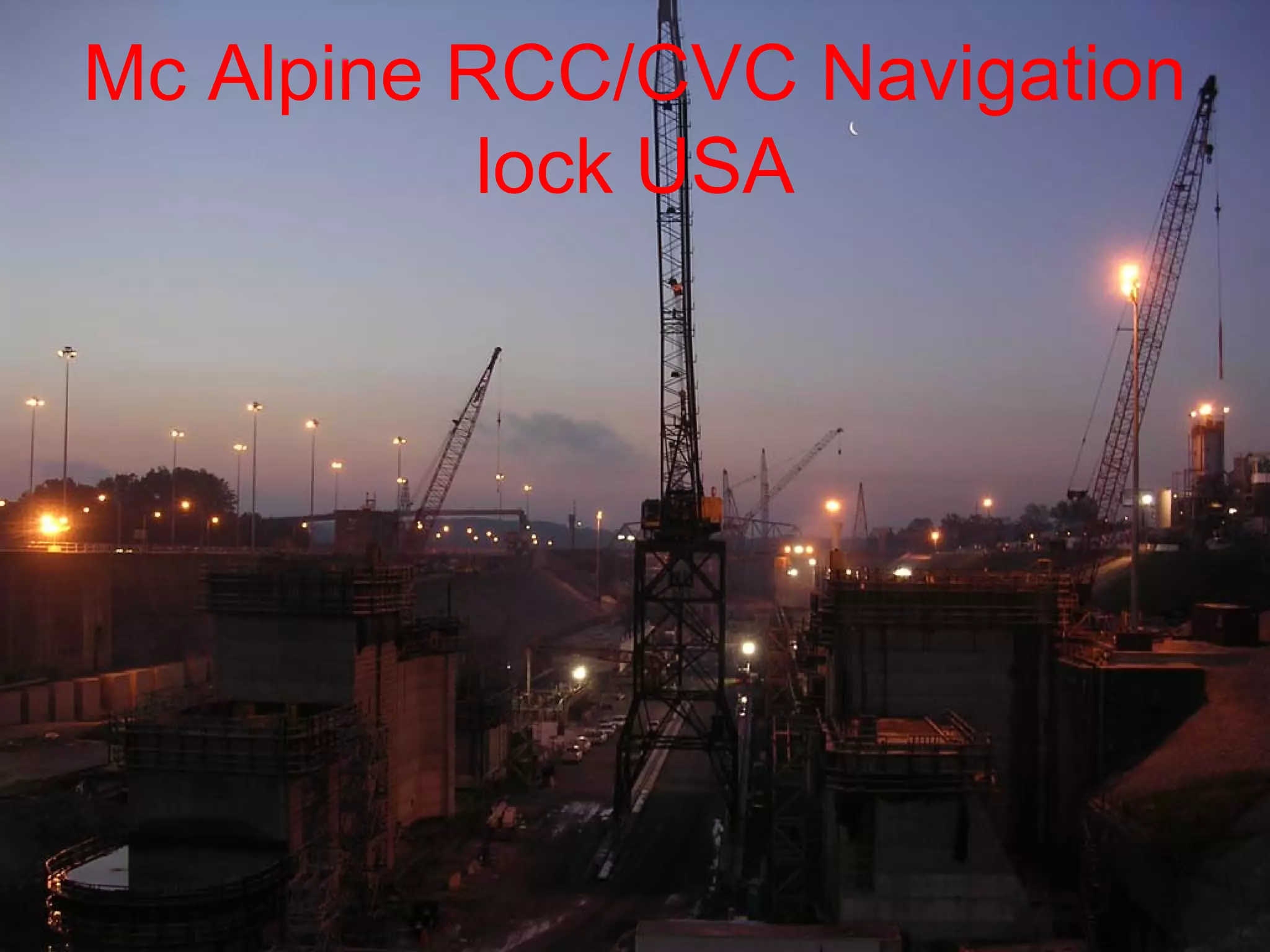

17. Mc Alpine RCC/CVC Navigation
lock USA

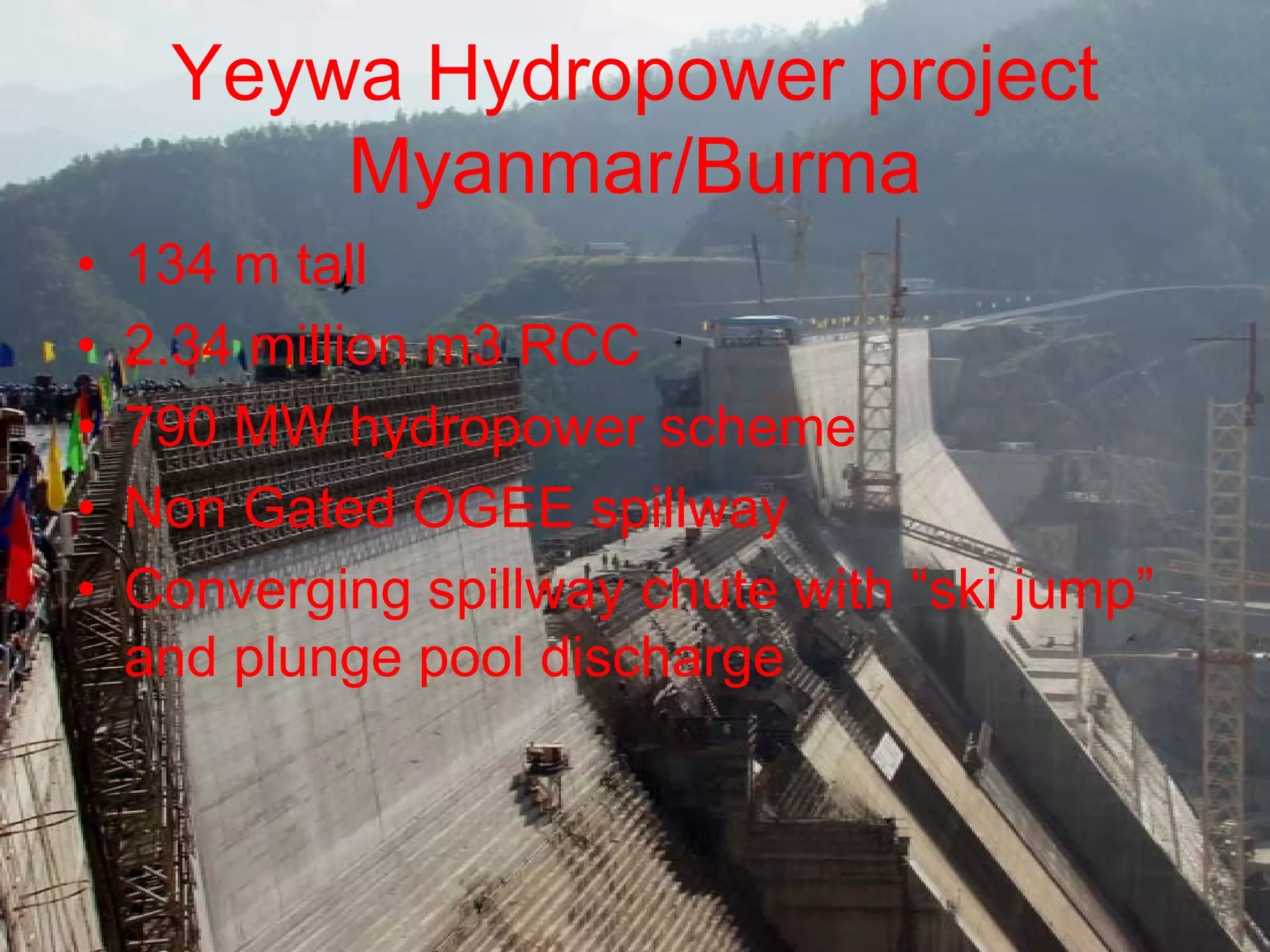

18. Yeywa Hydropower project
Myanmar/Burma
• 134 m tall
• 2.34 million m3 RCC
• 790 MW hydropower scheme
• Non Gated OGEE spillway
• Converging spillway chute with “ski jump”
and plunge pool discharge

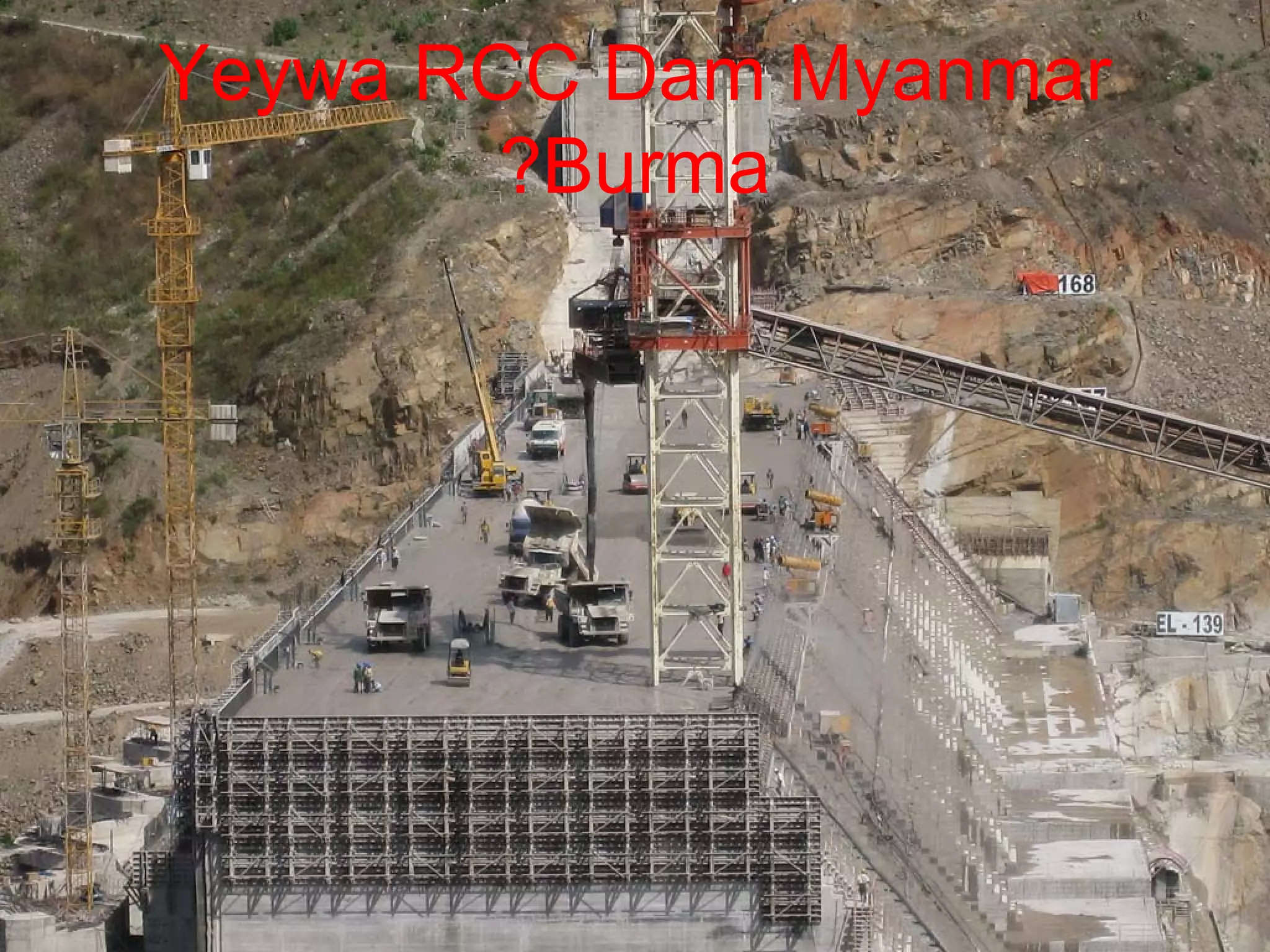

19. Yeywa RCC Dam Myanmar
?Burma

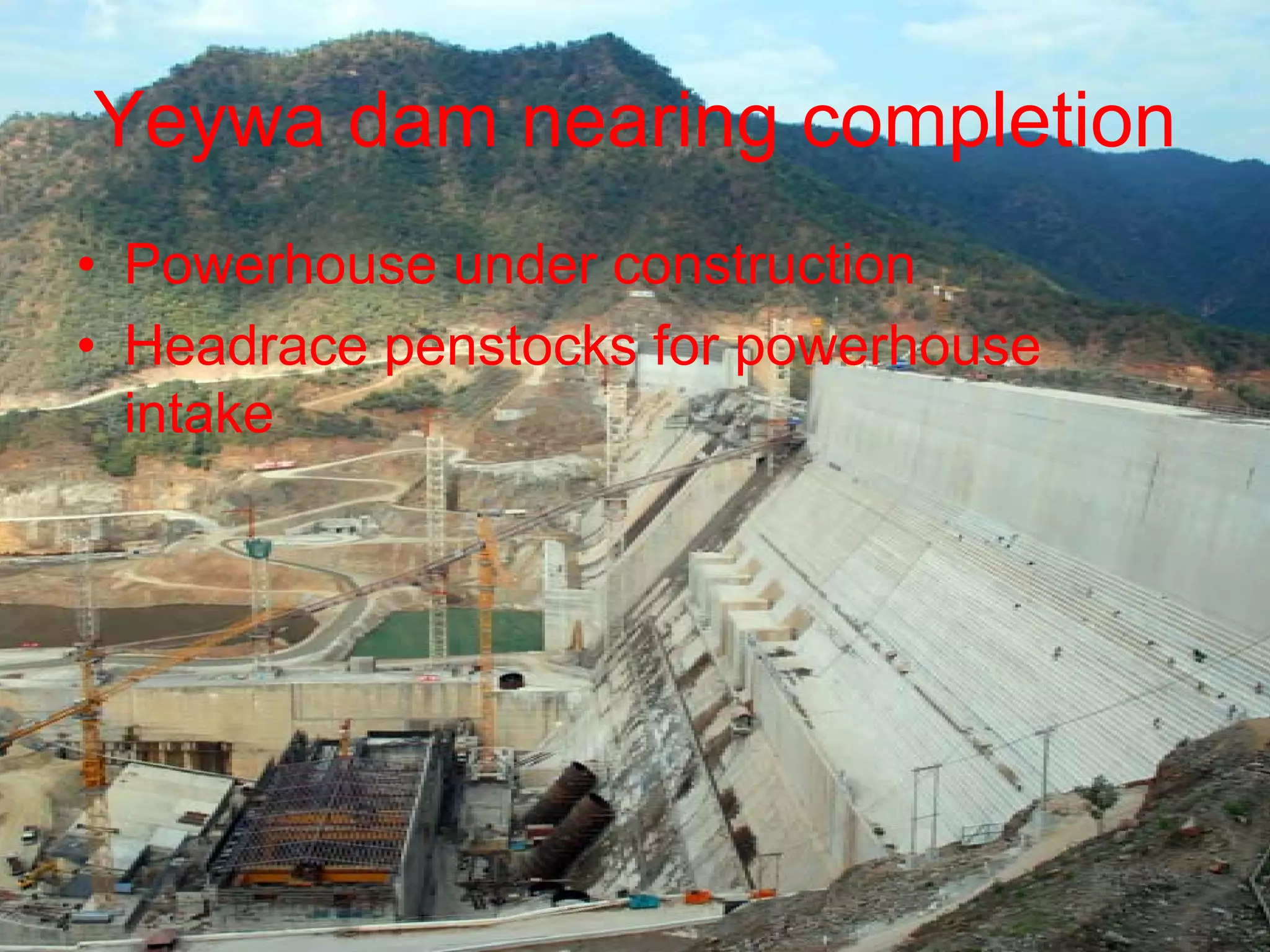

20. Yeywa dam nearing completion
• Powerhouse under construction
• Headrace penstocks for powerhouse
intake

21. Dong Nai 4 Vietnam
• 130 m tall
• Hydropower project
• 1.3 million m3 RCC

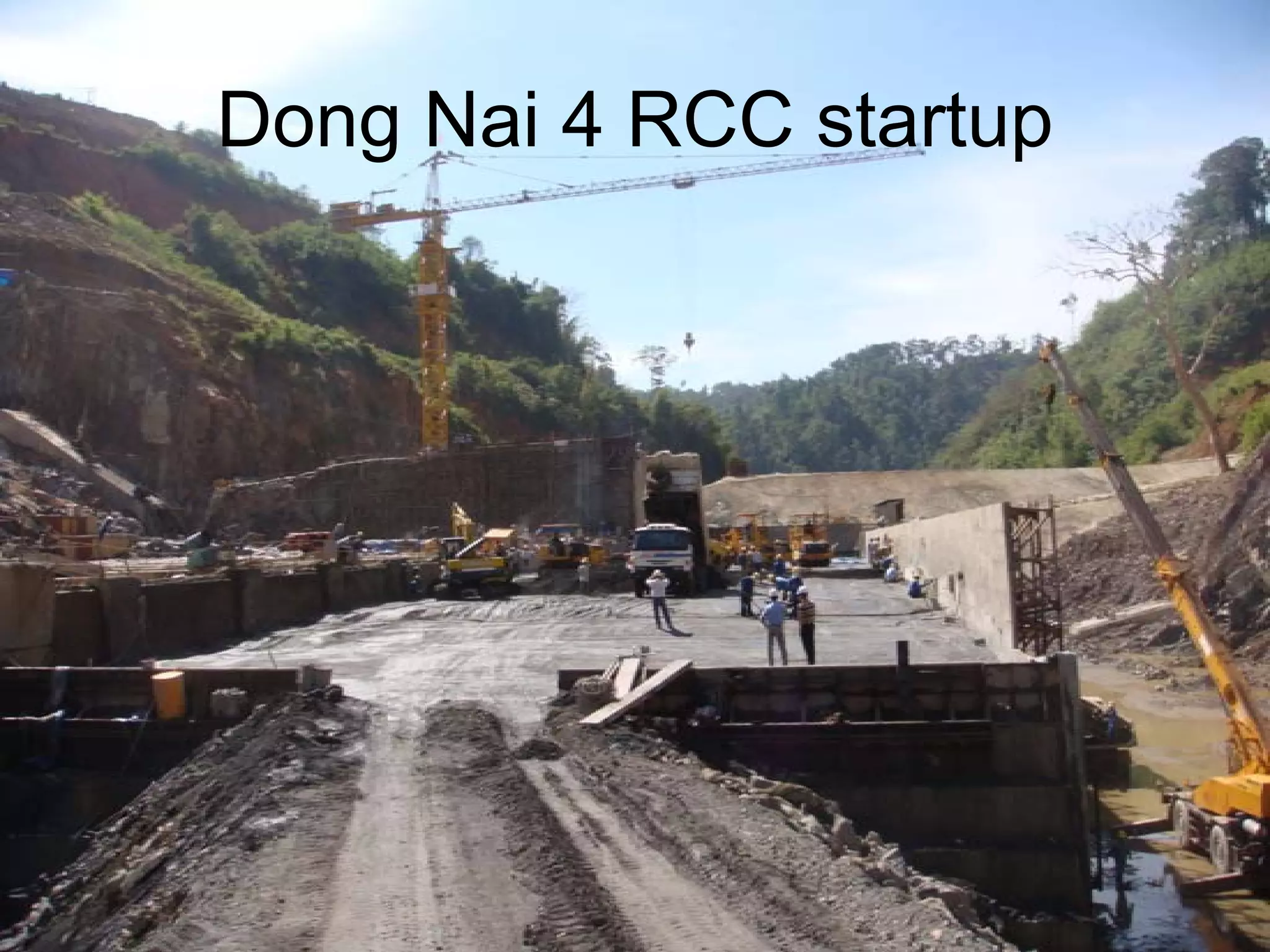

22. Dong Nai 4 RCC startup

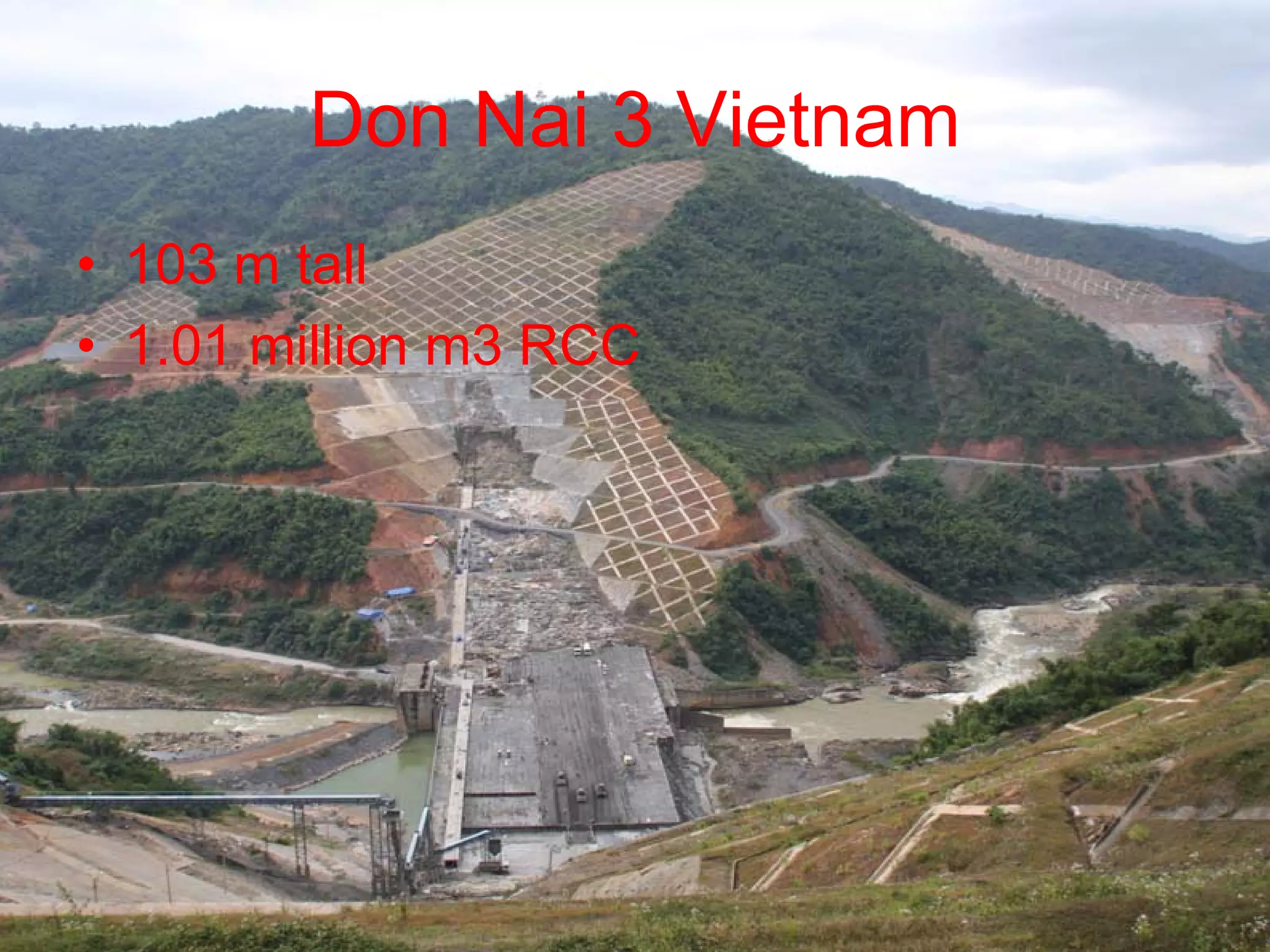

23. Don Nai 3 Vietnam
• 103 m tall
• 1.01 million m3 RCC

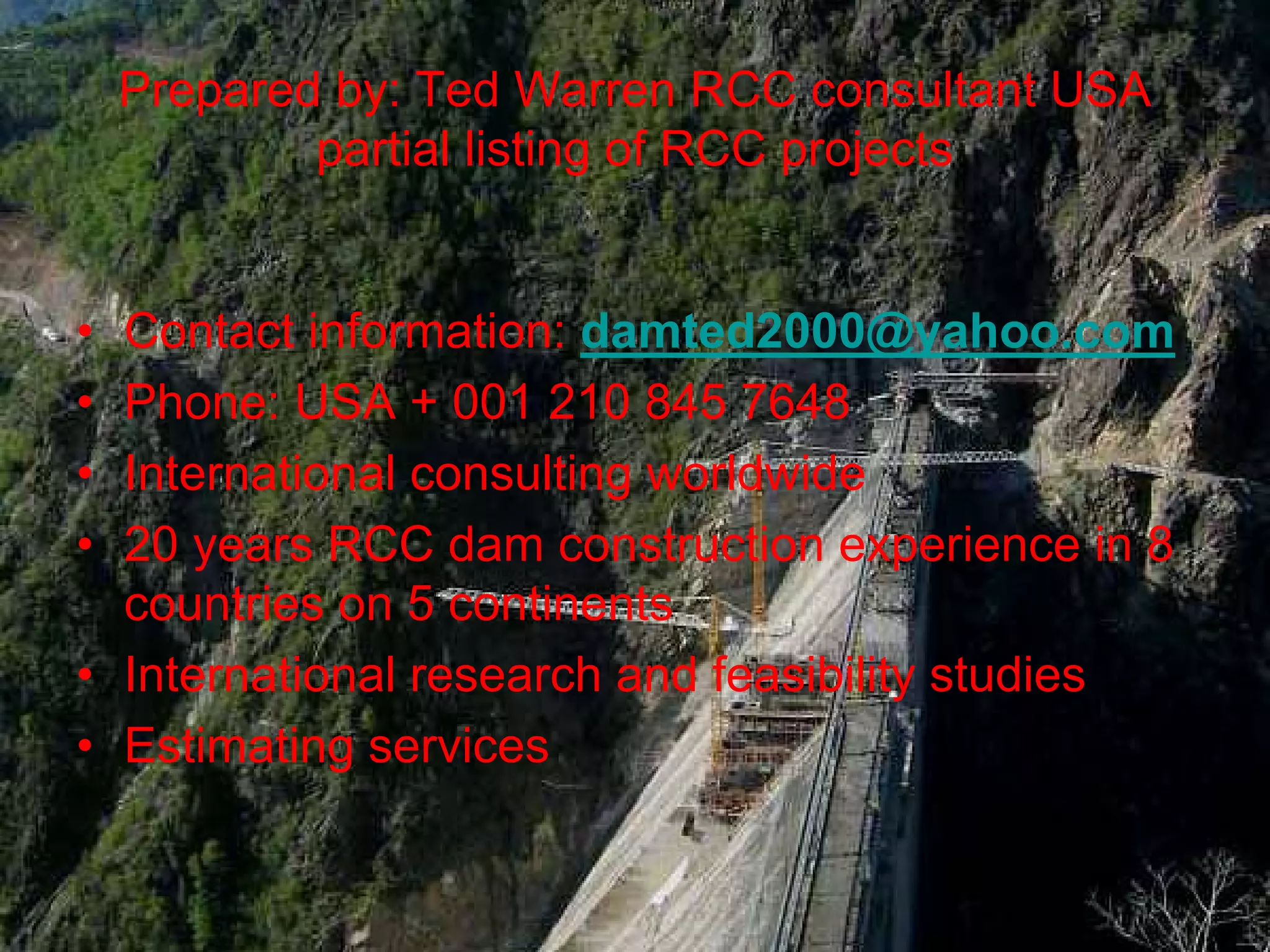

24. Prepared by: Ted Warren RCC consultant USA
partial listing of RCC projects
• Contact information: damted2000@yahoo.com
• Phone: USA + 001 210 845 7648
• International consulting worldwide
• 20 years RCC dam construction experience in 8
countries on 5 continents
• International research and feasibility studies
• Estimating services
