Transline Technology, established in 1982 and based in Anaheim, CA, specializes in manufacturing PCBs with in-house capabilities and a commitment to continuous improvement. The company provides services for various industries, including aerospace, defense, and medical, and is known for its unique fusion bonding process. Recently recognized by Lockheed for quality performance, Transline offers a range of products and services including advanced machining, plating, and testing.

1. Transline TechnologyWorld Class PCB Manufacturer“Your Innovation…Our Solutions”

2. About usTransline Technology (formally known as Circuitry Engineering and Intricate Technology) has been in business since 1982. The TTI name was adopted in 1996. We are located in Anaheim, CATTI is currently owned and operated by Chris Savalia and Larry Padmani. Our Facility is 20,000 square feet with all processes in-houseWe currently have 20 employees; many of which are in their second decade with TTI.

3. Commitment to continuous improvementISO 9001:2008ITAR Registered

4. Industries ServedRF

5. Microwave

6. Aerospace

7. Communication

8. Defense

9. GPS

10. Medical

11. OEM

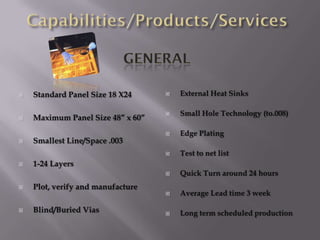

12. And many more…!!!Capabilities/Products/ServicesGeneralStandard Panel Size 18 X24Maximum Panel Size 48” x 60”Smallest Line/Space .0031-24 LayersPlot, verify and manufactureBlind/Buried ViasExternal Heat SinksSmall Hole Technology (to.008)Edge PlatingTest to net listQuick Turn around 24 hoursAverage Lead time 3 weekLong term scheduled production

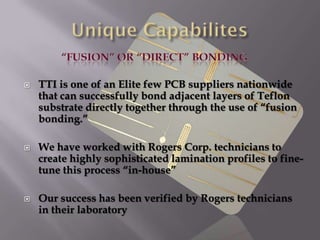

13. Unique Capabilites“Fusion” or “Direct” BondingTTI is one of an Elite few PCB suppliers nationwide that can successfully bond adjacent layers of Teflon substrate directly together through the use of “fusion bonding.”We have worked with Rogers Corp. technicians to create highly sophisticated lamination profiles to fine-tune this process “in-house”Our success has been verified by Rogers technicians in their laboratory

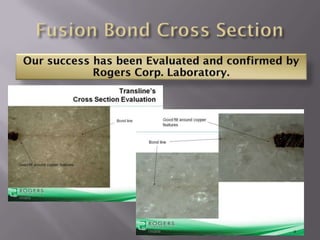

14. Fusion Bond Cross SectionOur success has been Evaluated and confirmed by Rogers Corp. Laboratory.

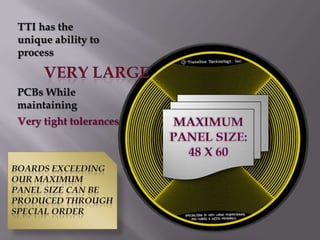

15. TTI has the unique ability to process VERY LARGEPCBs WhilemaintainingVery tight tolerancesMaximum Panel size: 48 X 60Boards exceeding our maximum panel size can be produced through special order

16. Capabilities/Product/ServicesMaterial*FR-4PTFEAluminumTetra-Functional MultifunctionalPolyimideTeflon (RF)DuroidKaptonCeramicCynate Ester*We StocK Rogers, Taconic, Arlon and many other Materials”

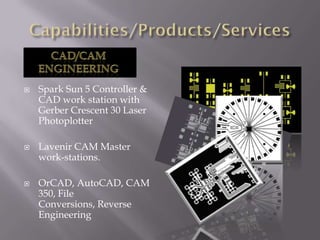

17. Capabilities/Products/ServicesSpark Sun 5 Controller & CAD work station with Gerber Crescent 30 Laser PhotoplotterLavenir CAM Master work-stations.OrCAD, AutoCAD, CAM 350, File Conversions, Reverse EngineeringCAD/CAM Engineering

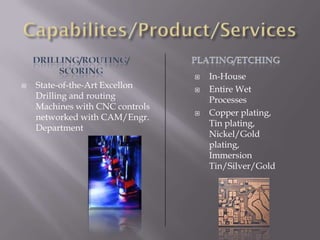

18. Capabilites/Product/ServicesDrilling/Routing/ ScoringPlating/EtchingIn-HouseEntire Wet ProcessesCopper plating, Tin plating, Nickel/Gold plating, Immersion Tin/Silver/GoldState-of-the-Art Excellon Drilling and routing Machines with CNC controls networked with CAM/Engr. Department

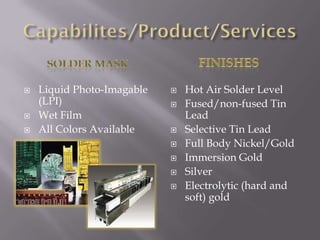

19. Capabilites/Product/ServicesLiquid Photo-Imagable (LPI)Wet FilmAll Colors Available Hot Air Solder LevelFused/non-fused Tin LeadSelective Tin LeadFull Body Nickel/GoldImmersion GoldSilverElectrolytic (hard and soft) goldFinishesSolder Mask

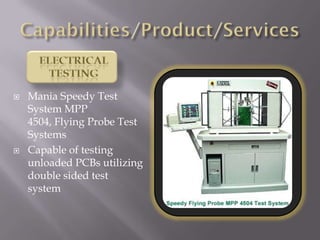

20. Capabilities/Product/ServicesElectrical TestingMania Speedy Test System MPP 4504, Flying Probe Test SystemsCapable of testing unloaded PCBs utilizing double sided test system

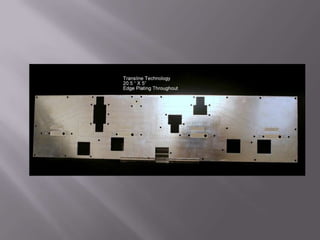

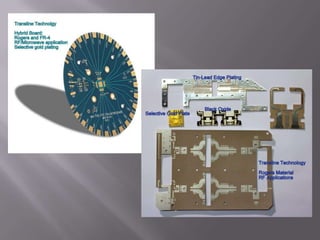

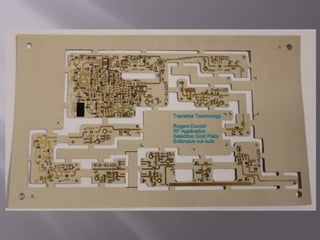

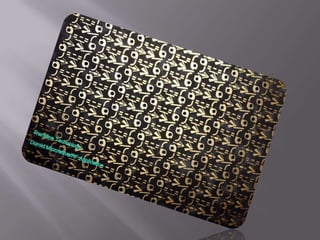

21. Sample Boards
