The document provides specifications for the Cove Light AC HO RGBW, a slim profile AC-powered luminaire with RGBW LEDs. It comes in 3 sizes with 12, 24, or 72 LEDs. Key specifications include a color range of 16.7 million colors, 120 degree beam angle, luminous flux up to 978 lm, efficacy up to 31 lm/W, and an L70 lumen maintenance of 80,000 hours. Photometric data is provided showing illumination levels at various distances. Dimensions, mounting instructions, wiring diagrams, and ordering information is also included.

1. www.traxontechnologies.com
©2015 traxon technologies - AN OSRAM Business. all rights reserved. traxon™, tx connect®, are trademarks of traxon technologies. u.s. patents, e.u. patents,
japan patents, other patents pending. specifications are subject to change without notice.
Product Specification 05/15 V1.4 1 of 6
LED CHARACTERISTICS Because LEDs are semiconductor devices, their performances are subject to inherent variability commonly found in semiconductor industry. To improve consistency in performance across the
same product, LED manufacturers “sort” LEDs into bins according to different preset parameters, such as forward driving voltage, illumination, etc. Whereas binning is a sorting function, it is not a correction process.
Inherent variability in the manufacturing process results always in different binning distributions according to different production lots. Traxon uses automatically binned LEDs on its products, thereby minimizing output
variations within the model range.
As with all electronic devices, LED output degrades over time – a term called lumen depreciation. This also explains why it is nearly impossible to expect photometric performances of two LED products with different
service life spans to be the same. The rate of LED degrade is a complicate function of many factors such as operating efficiency, duration of continuous operation, and more significantly, environmental conditions (ambient
temperature for example). If allowed working under optimal operating temperature range and with good ventilation, LED devices enjoy long service lives over conventional light sources. When using/installing LED devices,
care should be taken to ensure that the devices will operate within the operating conditions specified in respective product literature.
Lumen measurement compiles with LM-79-08 standard.
Lumen maintenance is calculated based on LM-80 compliant measurement.
Date: Quantity:
Company:
Project:

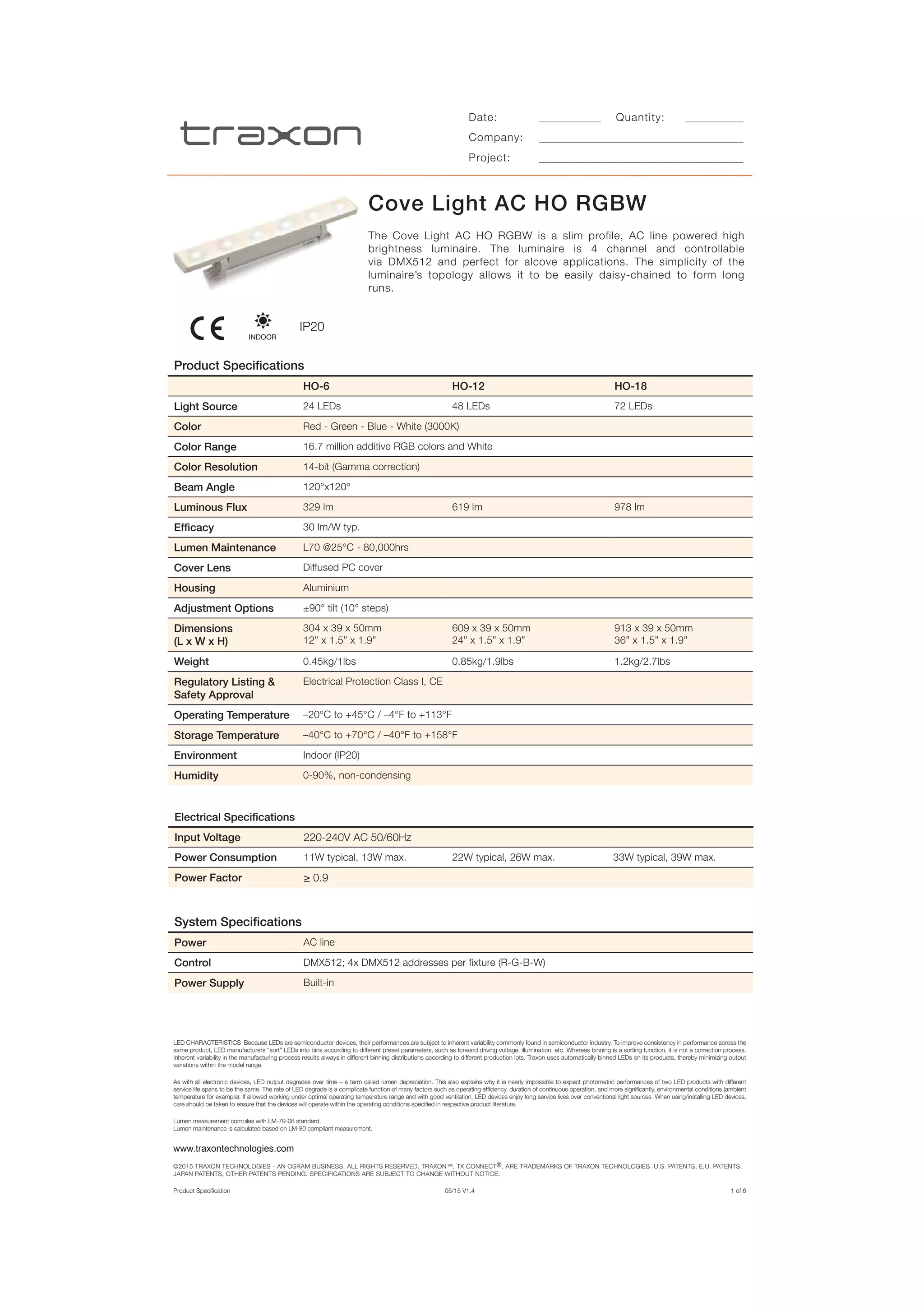

Cove Light AC HO RGBW
The Cove Light AC HO RGBW is a slim profile, AC line powered high
brightness luminaire. The luminaire is 4 channel and controllable
via DMX512 and perfect for alcove applications. The simplicity of the
luminaire’s topology allows it to be easily daisy-chained to form long
runs.
Product Specifications
HO-6 HO-12 HO-18
Light Source 24 LEDs 48 LEDs 72 LEDs
Color Red - Green - Blue - White (3000K)
Color Range 16.7 million additive RGB colors and White
Color Resolution 14-bit (Gamma correction)
Beam Angle 120°x120°
Luminous Flux 329 lm 619 lm 978 lm
Efficacy 30 lm/W typ.
Lumen Maintenance L70 @25°C - 80,000hrs
Cover Lens Diffused PC cover
Housing Aluminium
Adjustment Options ±90° tilt (10° steps)
Dimensions
(L x W x H)
304 x 39 x 50mm
12” x 1.5” x 1.9”
609 x 39 x 50mm
24” x 1.5” x 1.9”
913 x 39 x 50mm
36” x 1.5” x 1.9”
Weight 0.45kg/1lbs 0.85kg/1.9lbs 1.2kg/2.7lbs
Regulatory Listing &
Safety Approval
Electrical Protection Class I, CE
Operating Temperature –20°C to +45°C / –4°F to +113°F
Storage Temperature –40°C to +70°C / –40°F to +158°F
Environment Indoor (IP20)
Humidity 0-90%, non-condensing
Electrical Specifications
Input Voltage 220-240V AC 50/60Hz
Power Consumption 11W typical, 13W max. 22W typical, 26W max. 33W typical, 39W max.
Power Factor ≥ 0.9
System Specifications
Power AC line
Control DMX512; 4x DMX512 addresses per fixture (R-G-B-W)
Power Supply Built-in
INDOOR

2. www.traxontechnologies.com
©2015 traxon technologies - AN OSRAM Business. all rights reserved. traxon™, tx connect®, are trademarks of traxon technologies. u.s. patents, e.u. patents,
japan patents, other patents pending. specifications are subject to change without notice.
Product Specification 05/15 V1.4 2 of 6

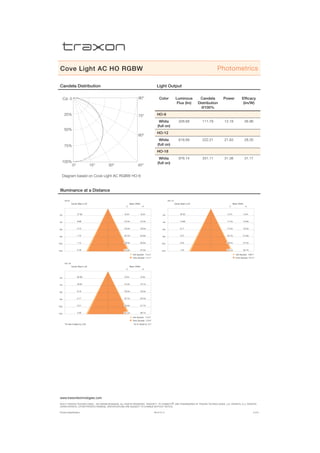

Cove Light AC HO RGBW Photometrics
Illuminance at a Distance
Candela Distribution Light Output
0° 15° 30° 45°
90°
75°
60°
50%
Cd: 0
75%
100%
Diagram based on Cove Light AC RGBW HO-6
25%
Center Beam LUX
HO-6
Beam Width
HV
27.92
6.98
3.10
1.75
1.12
0.78
6.2m
12.3m
18.5m
24.7m
30.9m
37.0m
6.2m
12.3m
18.5m
24.6m
30.8m
37.0m
Vert.Spread: 114.2°
Horiz.Spread: 114.1°
2m
4m
6m
8m
10m
12m
For feet multiply by 3.28 For fc divide by 10.7
Center Beam LUX
HO-12
Beam Width
HV
55.55
13.89
6.17
3.47
2.22
1.54
5.7m
11.4m
17.0m
22.7m
28.4m
34.1m
5.4m
10.9m
16.3m
21.8m
27.2m
32.7m
Vert.Spread: 109.7°
Horiz.Spread: 107.4°
2m
4m
6m
8m
10m
12m
Center Beam LUX
HO-18
Beam Width
HV
82.69
20.67
9.19
5.17
3.31
2.30
6.2m
12.4m
18.5m
24.7m
30.9m
37.1m
6.3m
12.7m
19.0m
25.4m
31.7m
38.1m
Vert.Spread: 114.2°
Horiz.Spread: 115.6°
2m
4m
6m
8m
10m
12m
Color Luminous
Flux (lm)
Candela
Distribution
@100%
Power Efficacy
(lm/W)
HO-6
White
(full on)
328.68 111.79 12.19 26.96
HO-12
White
(full on)
618.89 222.21 21.83 28.35
HO-18
White
(full on)
978.14 331.11 31.38 31.17

3. www.traxontechnologies.com
©2015 traxon technologies - AN OSRAM Business. all rights reserved. traxon™, tx connect®, are trademarks of traxon technologies. u.s. patents, e.u. patents,
japan patents, other patents pending. specifications are subject to change without notice.
Product Specification 05/15 V1.4 3 of 6
Cove Light AC HO RGBW Dimensions
304mm, 609mm, 913mm / 12”, 24”, 36”
209mm, 371mm, 520mm / 8.2”, 14.6”, 20.5”
±90°39mm/1.5”
50mm/2”
223mm, 386mm, 535mm / 8.8”, 15.2”, 21”
12.5mm/0.49”
5.3mm/0.2”
3.3mm/0.13”

4. www.traxontechnologies.com
©2015 traxon technologies - AN OSRAM Business. all rights reserved. traxon™, tx connect®, are trademarks of traxon technologies. u.s. patents, e.u. patents,
japan patents, other patents pending. specifications are subject to change without notice.
Product Specification 05/15 V1.4 4 of 6

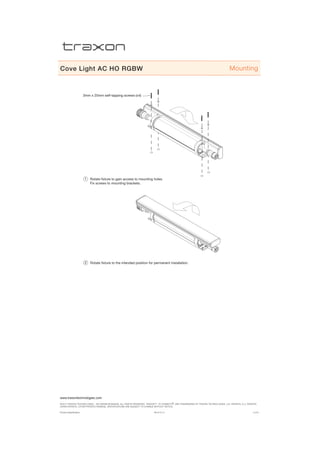

Cove Light AC HO RGBW
3mm x 25mm self-tapping screws (x4)
Rotate fixture to gain access to mounting holes.
Fix screws to mounting brackets.
1
Rotate fixture to the intended position for permanent installation.2
Mounting

5. www.traxontechnologies.com
©2015 traxon technologies - AN OSRAM Business. all rights reserved. traxon™, tx connect®, are trademarks of traxon technologies. u.s. patents, e.u. patents,
japan patents, other patents pending. specifications are subject to change without notice.
Product Specification 05/15 V1.4 5 of 6
Cove Light AC HO RGBW System Diagram
DataInjector
ACIn~
DMXIn
DMXOut
RJ45connection
Femaleconnector
Maleconnector
Useendcapforfinal
fixtureinchain
TOFIXTURE
AC IN DATA IN
DATAOUT

6. ©2015 traxon technologies - AN OSRAM Business. all rights reserved. traxon™, tx connect®, are trademarks of traxon technologies. u.s. patents, e.u. patents,
japan patents, other patents pending. specifications are subject to change without notice.
Product Specification 05/15 V1.4 6 of 6

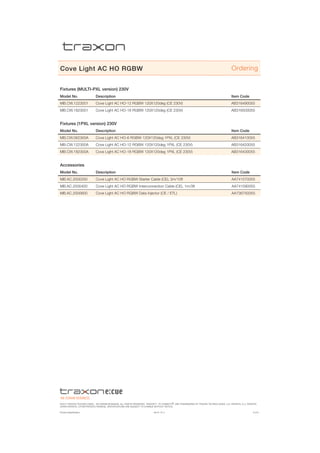

Cove Light AC HO RGBW
Fixtures (MULTI-PXL version) 230V
Model No. Description Item Code
MB.CW.1223001 Cove Light AC HO-12 RGBW 120X120deg (CE 230V) AB316490055
MB.CW.1823001 Cove Light AC HO-18 RGBW 120X120deg (CE 230V) AB316500055
Fixtures (1PXL version) 230V
Model No. Description Item Code
MB.CW.062300A Cove Light AC HO-6 RGBW 120X120deg 1PXL (CE 230V) AB316410055
MB.CW.122300A Cove Light AC HO-12 RGBW 120X120deg 1PXL (CE 230V) AB316420055
MB.CW.182300A Cove Light AC HO-18 RGBW 120X120deg 1PXL (CE 230V) AB316430055
Accessories
Model No. Description Item Code
MB.AC.2000200 Cove Light AC HO RGBW Starter Cable (CE), 3m/10ft AA741570055
MB.AC.2000400 Cove Light AC HO RGBW Interconnection Cable (CE), 1m/3ft AA741590055
MB.AC.2000600 Cove Light AC HO RGBW Data Injector (CE / ETL) AA736750055
Ordering
