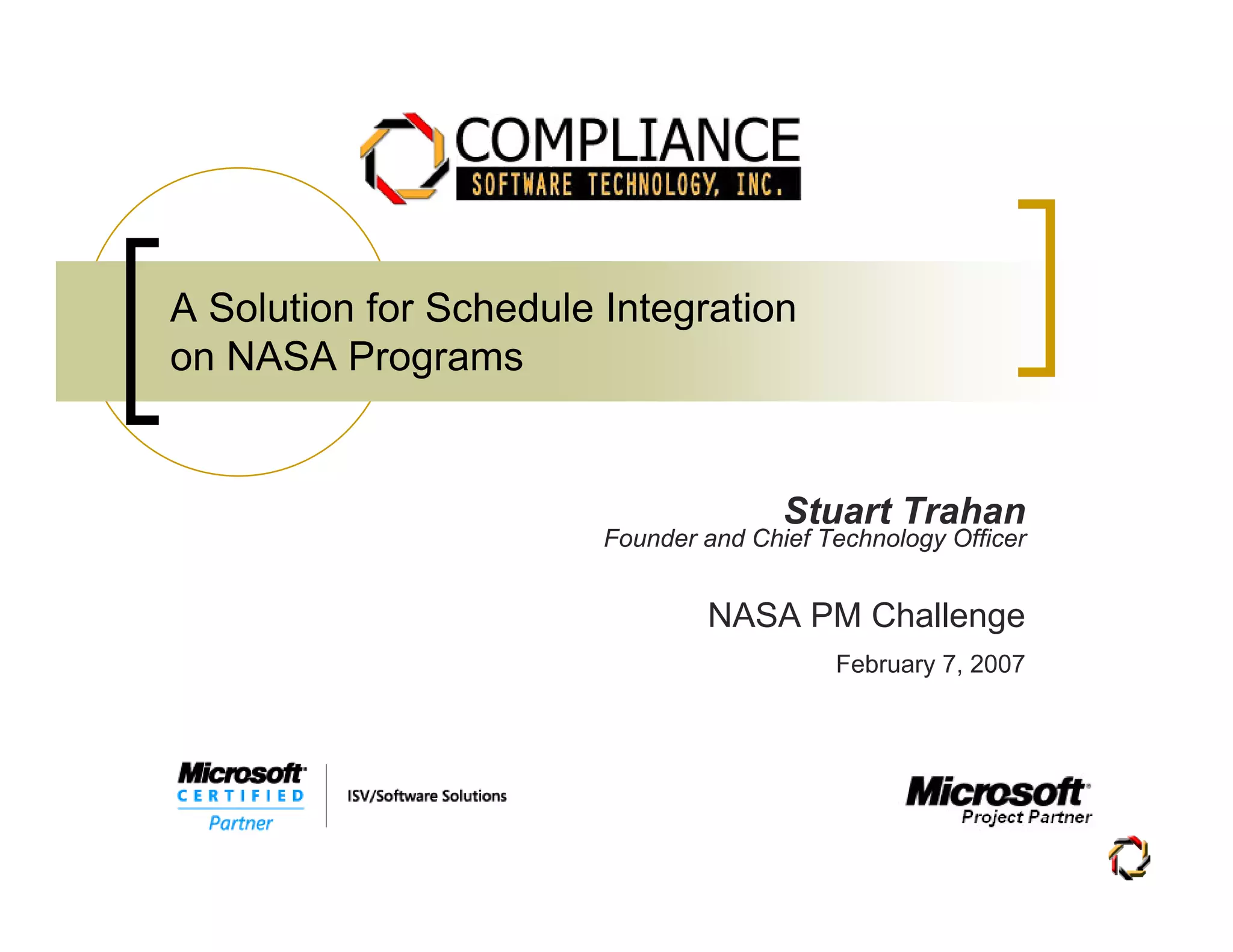

A Solution for Schedule Integration on NASA Programs Stuart Trahan Founder and Chief Technology Officer NASA PM Challenge February 7, 2007

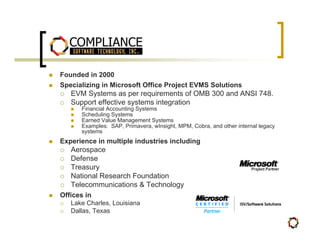

Founded in 2000 Specializing in Microsoft Office Project EVMS Solutions EVM Systems as per requirements of OMB 300 and ANSI 748. Support effective systems integration Financial Accounting Systems Scheduling Systems Earned Value Management Systems Examples: SAP, Primavera, wInsight, MPM, Cobra, and other internal legacy systems Experience in multiple industries including Aerospace Defense Treasury National Research Foundation Telecommunications & Technology Offices in Lake Charles, Louisiana Dallas, Texas

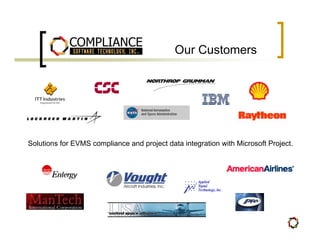

Our Customers Solutions for EVMS compliance and project data integration with Microsoft Project.
A Solution for Schedule Integration on NASA Programs What are your schedule integration issues?
#1 Reported Issue is Data Integration
Our Partner in Integration Pinnacle Management Systems, Inc. Manassas , Virginia www.pinnaclemanagement.com
Pinnacle Background Founded in 1993 Specializing in Enterprise Management Solutions Earned Value Management Project Portfolio Management Enterprise Project/Resource Management Experience in multiple industries including Aerospace & Defense DOE & Public Sector Finance & Insurance Healthcare Engineering & Construction Telecommunications & Technology Offices in Northern Virginia and United Kingdom Primavera Premier Service Partner
Sample Pinnacle Clients
Schedule Integration - Definition In general, integration refers to importing, exporting or updating data from one system to another Schedule integration can be performed a number of ways for different business reasons Primavera has tools to satisfy some schedule integration needs Import/Export .MSP format Read/write/update MS Excel ProjectLink The Primavera API allows for development of more robust integration solutions

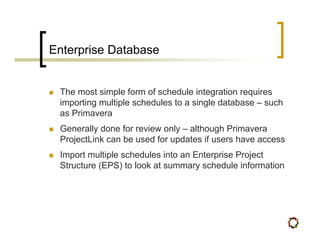

Enterprise Database The most simple form of schedule integration requires importing multiple schedules to a single database – such as Primavera Generally done for review only – although Primavera ProjectLink can be used for updates if users have access Import multiple schedules into an Enterprise Project Structure (EPS) to look at summary schedule information
Enterprise Database - Challenges Schedule data may come from a variety of sources (MS Project, Open Plan, MS Excel) in a myriad of file formats (.xls, .mpp, .xer) Projects must be replaced with each update Inconsistent coding of activities and WBS Different levels of detail in each sub-schedule
Tiered Scheduling Program Program Summary Vertical Integration & Traceability Major Milestones Schedules IPT/ Intermediate (Control Control Account/ Account) Schedules Work Package Plans Detail (Work Package/ Task) Schedules G im b a l G im b a l Detailed Functional G im b a l C a m e ra C a m e ra WESCAM WESCAM C a m e ra C a m e r a S e n sor C a m e r a S e n sor WESCAM C a m e r a S e n sor T u r r e t H o us in g T u r r e t H o us in g T u r r e t H o us in g S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) A /C P o w e r A /C P o w e r A /C P o w e r R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly A ir b o r n e D a t a P a y l o a d S y s te m A ir b o r n e D a t a P a y l o a d S y s te m SEA SEA A ir b o r n e D a t a P a y l o a d S y s te m SEA P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r S e n so r C on tr ol a n d S e n so r C on tr ol a n d S e n so r C on tr ol a n d C o m m S o f tw a r e C o m m S o f tw a r e C o m m S o f tw a r e P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P o w e r D i s tr i b u t i o n D T / O T P o w e r D i s tr i b u t i o n DT / O T P o w e r D i s tr i b u t i o n DT / O T i n to G round i n to G round i n to G round U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t k k - Dis - Dis k - Dis S y s t e m D is p la y S y s t e m D is p la y Only Only S y s t e m D is p la y S y s t e m D is p l a y U n i t S y s t e m D is p l a y U n i t Only S y s t e m D is p l a y U n i t U n it U n it U n it Test Test Test D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e D a t a P r o c e s s i n g U n i t C 4 I I n fr a s tr u c t u r e D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e C a b le/ C 4 I C a b le/ C 4 I C a b le/ C 4 I D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l ARETE D a t a P r o c e s s in g U n i t ARETE D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l D a ta l i n k S u i te D a t a P r o c e s s in g U n i t D a ta l i n k S u i te S ta ti o n S u b s y s te m S t a t io n E l e m e n t s S o ft w a r e S ta ti o n S u b s y s te m S t a t io n E l e m e n t s ARETE D a t a P r o c e s s in g U n i t D a ta l i n k S u i te S o ft w a r e S o ft w a r e S ta ti o n S u b s y s te m S t a t io n E l e m e n t s (G F E ) (G F E ) (G F E ) O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t G im b a l G im b a l G im b a l D a t a C ao r e r a Stm ag e D a t a C ao r e r a Stm ag e WESCAM WESCAM D a t a C ao r e r a Stm ag e C a m e rU nSi e n s o r a D a ta S t o r a g e U n i t C a m e rU nSi e n s o r a D a ta S t o r a g e U n i t WESCAM C a m e rU nSi e n s o r a D a ta S t o r a g e U n i t t T u r r e t H o us in g t T u r r e t H o us in g t T u r r e t H o us in g S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem T u r r e t / G im b a l C O B R A G r o u n d S ta tio n S u b s y s tem N a v S u i t e ( G P S /I N S ) C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e A ir b or n e P a yloa d A ir V e h ic l e A ir b or n e P a yloa d A ir V e h ic l e Functional Working C o n t r o l le r S o f t w a r e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e D a t a li n k S u i t e D a t a li n k S u i t e S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) A /C P o w e r A /C P o w e r A /C P o w e r R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly Work Plans A ir b o r n e D a t a P a y l o a d S y s te m A ir b o r n e D a t a P a y l o a d S y s te m SEA SEA A ir b o r n e D a t a P a y l o a d S y s te m SEA P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r S e n so r C on tr ol a n d S e n so r C on tr ol a n d S e n so r C on tr ol a n d C o m m S o f tw a r e C o m m S o f tw a r e C o m m S o f tw a r e P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P o w e r D i s tr i b u t i o n D T / O T P o w e r D i s tr i b u t i o n DT / O T P o w e r D i s tr i b u t i o n DT / O T i n to G round i n to G round i n to G round U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t k k - Dis - Dis k - Dis S y s t e m D is p la y S y s t e m D is p la y Only Only S y s t e m D is p la y S y s t e m D is p l a y U n i t S y s t e m D is p l a y U n i t Only S y s t e m D is p l a y U n i t U n it U n it U n it Test Test Test D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e D a t a P r o c e s s i n g U n i t C 4 I I n fr a s tr u c t u r e D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e C a b le/ C 4 I C a b le/ C 4 I C a b le/ C 4 I D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l ARETE D a t a P r o c e s s in g U n i t ARETE D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l D a ta l i n k S u i te D a t a P r o c e s s in g U n i t D a ta l i n k S u i te S ta ti o n S u b s y s te m S t a t io n E l e m e n t s S o ft w a r e S ta ti o n S u b s y s te m S t a t io n E l e m e n t s ARETE D a t a P r o c e s s in g U n i t D a ta l i n k S u i te S o ft w a r e S o ft w a r e S ta ti o n S u b s y s te m S t a t io n E l e m e n t s (G F E ) (G F E ) (G F E ) O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t D a t a S to r a g e D a ta S t o r a g e U n i t D a t a S to r a g e D a ta S t o r a g e U n i t D a t a S to r a g e D a ta S t o r a g e U n i t U n it U n it U n it C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem G im b a l G im b a l G im b a l C a m e ra C a m e ra WESCAM WESCAM C a m e ra WESCAM C a m e r a S e n sor T u r r e t H o us in g C a m e r a S e n sor T u r r e t H o us in g C a m e r a S e n sor T u r r e t H o us in g S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) A /C P o w e r A /C P o w e r A /C P o w e r R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly Plans/Schedules A ir b o r n e D a t a P a y l o a d S y s te m A ir b o r n e D a t a P a y l o a d S y s te m SEA SEA A ir b o r n e D a t a P a y l o a d S y s te m SEA P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r S e n so r C on tr ol a n d S e n so r C on tr ol a n d S e n so r C on tr ol a n d C o m m S o f tw a r e C o m m S o f tw a r e C o m m S o f tw a r e P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P o w e r D i s tr i b u t i o n D T / O T P o w e r D i s tr i b u t i o n DT / O T P o w e r D i s tr i b u t i o n DT / O T i n to G round i n to G round i n to G round U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t - Disk - Disk - Disk S y s t e m D is p la y S y s t e m D is p la y Only Only S y s t e m D is p la y S y s t e m D is p l a y U n i t S y s t e m D is p l a y U n i t Only S y s t e m D is p l a y U n i t U n it U n it U n it Test Test Test D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e D a t a P r o c e s s i n g U n i t C 4 I I n fr a s tr u c t u r e D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e D a ta P r o c e s s i n g G r o u n d C o n tr o l C a b le/ C 4 I G r o u n d C o n tr o l D a ta P r o c e s s i n g G r o u n d C o n tr o l C a b le/ C 4 I G r o u n d C o n tr o l G r o u n d C o n tr o l C a b le/ C 4 I ARETE D a t a P r o c e s s in g U n i t ARETE D a ta P r o c e s s i n g G r o u n d C o n tr o l S ta ti o n S u b s y s te m D a ta l i n k S u i te D a t a P r o c e s s in g U n i t S ta ti o n S u b s y s te m D a ta l i n k S u i te S t a t io n E l e m e n t s S t a t io n E l e m e n t s ARETE D a t a P r o c e s s in g U n i t S ta ti o n S u b s y s te m D a ta l i n k S u i te S o ft w a r e S o ft w a r e S o ft w a r e S t a t io n E l e m e n t s (G F E ) (G F E ) (G F E ) O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t D a t a S to r a g e D a ta S t o r a g e U n i t D a t a S to r a g e D a ta S t o r a g e U n i t D a t a S to r a g e D a ta S t o r a g e U n i t U n it U n it U n it C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem Horizontal Integration
Tiered Scheduling - Challenges Each schedule update routine requires different steps to be taken with a variety of software applications – there is no consistency Determining which activities to summarize into each tier can be difficult – especially if the data comes from different sources Manual import routines are laborious, time consuming and can compromise data integrity
Integrated Scheduling – IMP/IMS An Integrated Master Plan (IMP) is used to define major deliverables Each IMP event is represented by one or more activities in an Integrated Master Schedule (IMS) Sub-contractors are required to report impacts to the IMP events from their own sub-contractor schedules Changes to dates for the IMP events may be sent back to sub-contractors to adjust their own schedules and assess impacts

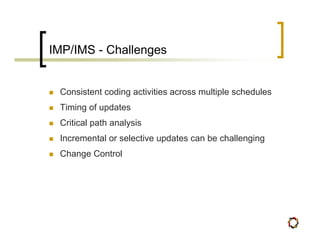

IMP/IMS - Challenges Consistent coding activities across multiple schedules Timing of updates Critical path analysis Incremental or selective updates can be challenging Change Control

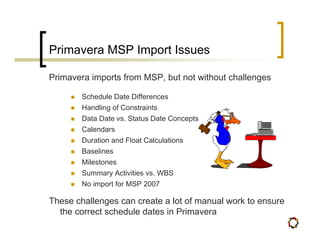

Primavera MSP Import Issues Primavera imports from MSP, but not without challenges Schedule Date Differences Handling of Constraints Data Date vs. Status Date Concepts Calendars Duration and Float Calculations Baselines Milestones Summary Activities vs. WBS No import for MSP 2007 These challenges can create a lot of manual work to ensure the correct schedule dates in Primavera
Other Primavera Integration Challenges Even if we can import from MSP, how do we handle schedules from other systems (Artemis, OpenPlan, Dekker Tracker, etc.)? Change Control How do you selectively import data? Review the impacts of a schedule update before applying? Ensure consistency in WBS and activity coding? Validation – How can you be sure that the destination data matches the source after import? There is currently no commercial software that updates (vs replaces) a Primavera schedule from an external source

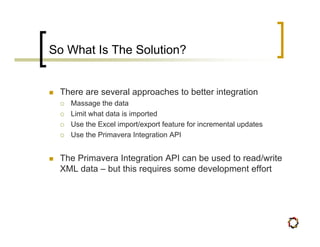

So What Is The Solution? There are several approaches to better integration Massage the data Limit what data is imported Use the Excel import/export feature for incremental updates Use the Primavera Integration API The Primavera Integration API can be used to read/write XML data – but this requires some development effort
The CSTI-Pinnacle Solution Immediate Solution: Use existing tools and processes to solve the problem Use the current CSTI import/export mapping tools Allows diverse inputs from various sources (MSP, CSV, XML) to be mapped to a common data model (MSP) Can export to format compatible with Primavera (CSV, XML) Provide some validations/comparisons during import/export CSTI / Pinnacle develops import modules using the Primavera API in order to selectively update the Primavera schedule. This was initially developed for the ISS program. Can be applied to other programs as well. Near Term Solution: CSTI / Pinnacle developing a full XML-based solution (code name “Tango”)

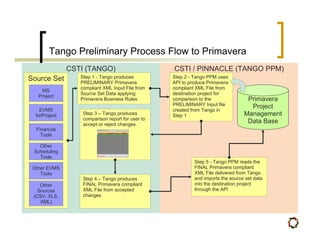

Tango Preliminary Process Flow to Primavera CSTI (TANGO) CSTI / PINNACLE (TANGO PPM) Source Set Step 1 - Tango produces Step 2 - Tango PPM uses PRELIMINARY Primavera API to produce Primavera compliant XML Input File from compliant XML File from MS Source Set Data applying destination project for Project Primavera Business Rules comparison to the Primavera PRELIMINARY Input file Project EVMS created from Tango in forProject Step 3 – Tango produces Step 1 Management comparison report for user to accept or reject changes. Data Base Financial Tools Other Scheduling Tools Step 5 - Tango PPM reads the Other EVMS FINAL Primavera compliant Tools XML File delivered from Tango Step 4 – Tango produces and imports the source set data Other FINAL Primavera compliant into the destination project Sources XML File from accepted through the API (CSV, XLS, changes XML)
Integration Issues Open Discussion Do you have a Primavera integration challenge we could help solve right now?
Thank You! For Further Information: Gary Smith gary.smith@gocsti.com (337) 477-3724 Ext. 102

More Related Content

PDF
Sampietro marco
byNASAPMC

PDF
Vellinga joe
byNASAPMC

PDF
Rackley mike
byNASAPMC

PDF
Wood frank
byNASAPMC

PDF
Rudolphi mike
byNASAPMC

PDF
Osterkamp jeff
byNASAPMC

PDF
Baniszewski john
byNASAPMC

PDF
O'keefe william
byNASAPMC

Sampietro marco
byNASAPMC

Vellinga joe
byNASAPMC

Rackley mike
byNASAPMC

Wood frank
byNASAPMC

Rudolphi mike
byNASAPMC

Osterkamp jeff
byNASAPMC

Baniszewski john
byNASAPMC

O'keefe william
byNASAPMC


Viewers also liked

PDF
Smalley sandra
byNASAPMC

PDF
Mc namara.karen
byNASAPMC

PDF
Roberts karlene
byNASAPMC

PDF
Law.richard
byNASAPMC

PDF
Paradis william
byNASAPMC

PDF
Seftas krage
byNASAPMC

PDF
Yew manson
byNASAPMC

PDF
Snow lee
byNASAPMC

PDF
Stock gahm
byNASAPMC

PDF
Wessen randi (cd)
byNASAPMC

PDF
Wood frank
byNASAPMC

PDF
Humphreys.gary
byNASAPMC

PDF
Muller ralf
byNASAPMC

PDF
Bejmuk bo
byNASAPMC

Smalley sandra
byNASAPMC

Mc namara.karen
byNASAPMC

Roberts karlene
byNASAPMC

Law.richard
byNASAPMC

Paradis william
byNASAPMC

Seftas krage
byNASAPMC

Yew manson
byNASAPMC

Snow lee
byNASAPMC

Stock gahm
byNASAPMC

Wessen randi (cd)
byNASAPMC

Wood frank
byNASAPMC

Humphreys.gary
byNASAPMC

Muller ralf
byNASAPMC

Bejmuk bo
byNASAPMC


Similar to Trahan stuart

PDF
Prepaid Expo in Perspective Infographic
byIIR USA

PPTX
From Silo's to Legos
byCollaborative Health Consortium

PDF
Cyber Solutions Network Infographic
byBooz Allen Hamilton

PDF
120606 Contract Management Skill Checklist & Experience Grid Andrew Ng
byMy own

PDF
Tool Kit: Business Analysis product (artefact) checklist
bydesigner DATA

PDF
Anexo ii zoneamento folha xii
byAylce da Silva

PDF
情報発信・受信の新しいツール
bykey-cc yamaguchiintlab

PDF
Ark 2
byivan

PDF
Ark 2
byivan

PDF
Battelle 2010 Poster Mb Ts Csia
byMatt_Burns

PDF
REST: putting the web back in to web services
byKerry Buckley

PDF
Open Source Search Applications
byLucidworks (Archived)

PDF
User Experience Portfolio
byjngo

PDF
5 steps to healthy data
byKeith Braswell

PDF
2012 French Presidential Election
byingenia_pro

PDF
2012 Presidential French Election
byAleix Cuberes i Diaz

PDF
Calendar Magnet
byPromodesign

PDF
Ugif 04 2011 informix notonlypointofsales-fr-001
byUGIF

PDF
Purple Sage Special edition
bypsage

PPTX
ISO OSI Model
byKrishna Kumar Bohra

Prepaid Expo in Perspective Infographic
byIIR USA

From Silo's to Legos
byCollaborative Health Consortium

Cyber Solutions Network Infographic
byBooz Allen Hamilton

120606 Contract Management Skill Checklist & Experience Grid Andrew Ng
byMy own

Tool Kit: Business Analysis product (artefact) checklist
bydesigner DATA

Anexo ii zoneamento folha xii
byAylce da Silva

情報発信・受信の新しいツール
bykey-cc yamaguchiintlab

Ark 2
byivan

Ark 2
byivan

Battelle 2010 Poster Mb Ts Csia
byMatt_Burns

REST: putting the web back in to web services
byKerry Buckley

Open Source Search Applications
byLucidworks (Archived)

User Experience Portfolio
byjngo

5 steps to healthy data
byKeith Braswell

2012 French Presidential Election
byingenia_pro

2012 Presidential French Election
byAleix Cuberes i Diaz

Calendar Magnet
byPromodesign

Ugif 04 2011 informix notonlypointofsales-fr-001
byUGIF

Purple Sage Special edition
bypsage

ISO OSI Model
byKrishna Kumar Bohra


More from NASAPMC

PDF
Mulenburg jerry
byNASAPMC

PDF
Mitskevich amanda
byNASAPMC

PDF
Martt anne
byNASAPMC

PDF
Manzer fred
byNASAPMC

PDF
Manthos jeff
byNASAPMC

PDF
Lengyel dave
byNASAPMC

PDF
Krahula john
byNASAPMC

PDF
Kroeger lin
byNASAPMC

PDF
Krage jousha
byNASAPMC

PDF
Kotnour tim
byNASAPMC

PDF
King richardson
byNASAPMC

Mulenburg jerry
byNASAPMC

Mitskevich amanda
byNASAPMC

Martt anne
byNASAPMC

Manzer fred
byNASAPMC

Manthos jeff
byNASAPMC

Lengyel dave
byNASAPMC

Krahula john
byNASAPMC

Kroeger lin
byNASAPMC

Krage jousha
byNASAPMC

Kotnour tim
byNASAPMC

King richardson
byNASAPMC


Recently uploaded

PDF
final.pdf
byomarbishtawi04

PPTX
Tech Trends 2026: AI Agents, Quantum Computing, Robotics & Cybersecurity
byridwansassman

PDF
Escape from the Forbidden Zone: Smuggling green and inclusive tech past the g...
byBookNet Canada

PDF
UiPath Modern Automation Playbook -Session 2
bysuhanisingh58689

PDF
The Manifesto for AI-enabled Governance !
byYannis Charalabidis

PDF
Digital Twin in IBM for Accelerated Discovery of Climate & Sustainability, K...
byMichiaki Tatsubori

PDF
The new book “Marketing in the Metaverse” spotlights Scott M. Graffius’ research
byScott M. Graffius

PDF
February 2026 Patch Tuesday hosted by Chris Goettl and Todd Schell
byIvanti

PDF
Transcript: Escape from the Forbidden Zone: Smuggling green and inclusive tec...
byBookNet Canada

PDF
NTG -Company Profile_Software_Vendor_Company_in_MENA
byMustafa Kuğu

PDF
Oracle Cloud Infrastructure 2025 Architect Professional (1Z0-1127-25) Master ...
byExamCert App

PDF
Security-Fails-in-the-Gaps-Between-Systems.pptx.pdf
byOhhproJunction

PDF
From Artificial Intelligence to African Intelligence: Transforming Research &...
byMoses Kemibaro

PDF
Antminer S23Hyd-580_Manual-V1.1-oneminers.pdf
byFranzhLawrenceBataan1

PPTX
Critique Prompting: The Secret to High-Quality AI Outputs
bySemantic SEO BD

PDF
How to Install XRDP on CentOS 10 .pdf
byGreen Webpage

PDF
GTM-and-Sales-Plan for a cyber security product
byAshish Jangir

PDF
Session 1/5: Enhancing Automation with Screenplay & Business Rules
bysuhanisingh58689

PDF
UiPath Automation Developer Associate Training Series 2026 - Session 3
byDianaGray10

PPTX
Do You Control the AI, or Does the AI Control You?
bymedhateltoukhy

final.pdf
byomarbishtawi04

Tech Trends 2026: AI Agents, Quantum Computing, Robotics & Cybersecurity
byridwansassman

Escape from the Forbidden Zone: Smuggling green and inclusive tech past the g...
byBookNet Canada

UiPath Modern Automation Playbook -Session 2
bysuhanisingh58689

The Manifesto for AI-enabled Governance !
byYannis Charalabidis

Digital Twin in IBM for Accelerated Discovery of Climate & Sustainability, K...
byMichiaki Tatsubori

The new book “Marketing in the Metaverse” spotlights Scott M. Graffius’ research
byScott M. Graffius

February 2026 Patch Tuesday hosted by Chris Goettl and Todd Schell
byIvanti

Transcript: Escape from the Forbidden Zone: Smuggling green and inclusive tec...
byBookNet Canada

NTG -Company Profile_Software_Vendor_Company_in_MENA
byMustafa Kuğu

Oracle Cloud Infrastructure 2025 Architect Professional (1Z0-1127-25) Master ...
byExamCert App

Security-Fails-in-the-Gaps-Between-Systems.pptx.pdf
byOhhproJunction

From Artificial Intelligence to African Intelligence: Transforming Research &...
byMoses Kemibaro

Antminer S23Hyd-580_Manual-V1.1-oneminers.pdf
byFranzhLawrenceBataan1

Critique Prompting: The Secret to High-Quality AI Outputs
bySemantic SEO BD

How to Install XRDP on CentOS 10 .pdf
byGreen Webpage

GTM-and-Sales-Plan for a cyber security product
byAshish Jangir

Session 1/5: Enhancing Automation with Screenplay & Business Rules
bysuhanisingh58689

UiPath Automation Developer Associate Training Series 2026 - Session 3
byDianaGray10

Do You Control the AI, or Does the AI Control You?
bymedhateltoukhy


Trahan stuart

  • 1.

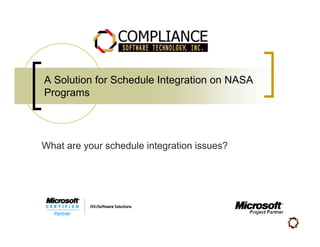

    A Solution forSchedule Integration on NASA Programs Stuart Trahan Founder and Chief Technology Officer NASA PM Challenge February 7, 2007
  • 2.
    Founded in 2000 Specializingin Microsoft Office Project EVMS Solutions EVM Systems as per requirements of OMB 300 and ANSI 748. Support effective systems integration Financial Accounting Systems Scheduling Systems Earned Value Management Systems Examples: SAP, Primavera, wInsight, MPM, Cobra, and other internal legacy systems Experience in multiple industries including Aerospace Defense Treasury National Research Foundation Telecommunications & Technology Offices in Lake Charles, Louisiana Dallas, Texas
  • 3.
    Our Customers Solutions forEVMS compliance and project data integration with Microsoft Project.
  • 4.
    A Solution forSchedule Integration on NASA Programs What are your schedule integration issues?
  • 5.
    #1 Reported Issueis Data Integration
  • 6.
    Our Partner inIntegration Pinnacle Management Systems, Inc. Manassas , Virginia www.pinnaclemanagement.com
  • 7.

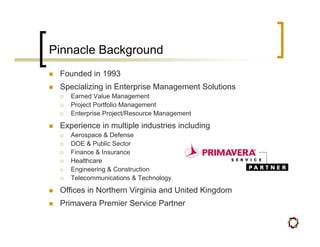

    Pinnacle Background Foundedin 1993 Specializing in Enterprise Management Solutions Earned Value Management Project Portfolio Management Enterprise Project/Resource Management Experience in multiple industries including Aerospace & Defense DOE & Public Sector Finance & Insurance Healthcare Engineering & Construction Telecommunications & Technology Offices in Northern Virginia and United Kingdom Primavera Premier Service Partner
  • 8.
  • 9.
    Schedule Integration -Definition In general, integration refers to importing, exporting or updating data from one system to another Schedule integration can be performed a number of ways for different business reasons Primavera has tools to satisfy some schedule integration needs Import/Export .MSP format Read/write/update MS Excel ProjectLink The Primavera API allows for development of more robust integration solutions
  • 10.
    Enterprise Database Themost simple form of schedule integration requires importing multiple schedules to a single database – such as Primavera Generally done for review only – although Primavera ProjectLink can be used for updates if users have access Import multiple schedules into an Enterprise Project Structure (EPS) to look at summary schedule information
  • 11.

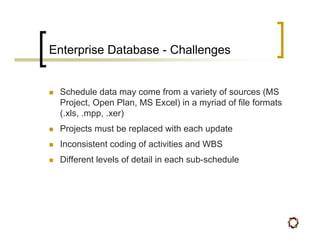

    Enterprise Database -Challenges Schedule data may come from a variety of sources (MS Project, Open Plan, MS Excel) in a myriad of file formats (.xls, .mpp, .xer) Projects must be replaced with each update Inconsistent coding of activities and WBS Different levels of detail in each sub-schedule
  • 12.

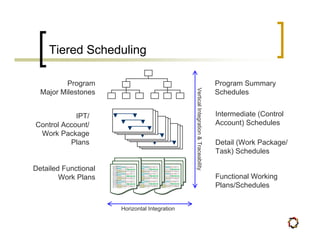

    Tiered Scheduling Program Program Summary Vertical Integration & Traceability Major Milestones Schedules IPT/ Intermediate (Control Control Account/ Account) Schedules Work Package Plans Detail (Work Package/ Task) Schedules G im b a l G im b a l Detailed Functional G im b a l C a m e ra C a m e ra WESCAM WESCAM C a m e ra C a m e r a S e n sor C a m e r a S e n sor WESCAM C a m e r a S e n sor T u r r e t H o us in g T u r r e t H o us in g T u r r e t H o us in g S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) A /C P o w e r A /C P o w e r A /C P o w e r R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly A ir b o r n e D a t a P a y l o a d S y s te m A ir b o r n e D a t a P a y l o a d S y s te m SEA SEA A ir b o r n e D a t a P a y l o a d S y s te m SEA P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r S e n so r C on tr ol a n d S e n so r C on tr ol a n d S e n so r C on tr ol a n d C o m m S o f tw a r e C o m m S o f tw a r e C o m m S o f tw a r e P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P o w e r D i s tr i b u t i o n D T / O T P o w e r D i s tr i b u t i o n DT / O T P o w e r D i s tr i b u t i o n DT / O T i n to G round i n to G round i n to G round U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t k k - Dis - Dis k - Dis S y s t e m D is p la y S y s t e m D is p la y Only Only S y s t e m D is p la y S y s t e m D is p l a y U n i t S y s t e m D is p l a y U n i t Only S y s t e m D is p l a y U n i t U n it U n it U n it Test Test Test D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e D a t a P r o c e s s i n g U n i t C 4 I I n fr a s tr u c t u r e D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e C a b le/ C 4 I C a b le/ C 4 I C a b le/ C 4 I D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l ARETE D a t a P r o c e s s in g U n i t ARETE D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l D a ta l i n k S u i te D a t a P r o c e s s in g U n i t D a ta l i n k S u i te S ta ti o n S u b s y s te m S t a t io n E l e m e n t s S o ft w a r e S ta ti o n S u b s y s te m S t a t io n E l e m e n t s ARETE D a t a P r o c e s s in g U n i t D a ta l i n k S u i te S o ft w a r e S o ft w a r e S ta ti o n S u b s y s te m S t a t io n E l e m e n t s (G F E ) (G F E ) (G F E ) O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t G im b a l G im b a l G im b a l D a t a C ao r e r a Stm ag e D a t a C ao r e r a Stm ag e WESCAM WESCAM D a t a C ao r e r a Stm ag e C a m e rU nSi e n s o r a D a ta S t o r a g e U n i t C a m e rU nSi e n s o r a D a ta S t o r a g e U n i t WESCAM C a m e rU nSi e n s o r a D a ta S t o r a g e U n i t t T u r r e t H o us in g t T u r r e t H o us in g t T u r r e t H o us in g S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem T u r r e t / G im b a l C O B R A G r o u n d S ta tio n S u b s y s tem N a v S u i t e ( G P S /I N S ) C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e A ir b or n e P a yloa d A ir V e h ic l e A ir b or n e P a yloa d A ir V e h ic l e Functional Working C o n t r o l le r S o f t w a r e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e D a t a li n k S u i t e D a t a li n k S u i t e S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) A /C P o w e r A /C P o w e r A /C P o w e r R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly Work Plans A ir b o r n e D a t a P a y l o a d S y s te m A ir b o r n e D a t a P a y l o a d S y s te m SEA SEA A ir b o r n e D a t a P a y l o a d S y s te m SEA P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r S e n so r C on tr ol a n d S e n so r C on tr ol a n d S e n so r C on tr ol a n d C o m m S o f tw a r e C o m m S o f tw a r e C o m m S o f tw a r e P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P o w e r D i s tr i b u t i o n D T / O T P o w e r D i s tr i b u t i o n DT / O T P o w e r D i s tr i b u t i o n DT / O T i n to G round i n to G round i n to G round U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t k k - Dis - Dis k - Dis S y s t e m D is p la y S y s t e m D is p la y Only Only S y s t e m D is p la y S y s t e m D is p l a y U n i t S y s t e m D is p l a y U n i t Only S y s t e m D is p l a y U n i t U n it U n it U n it Test Test Test D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e D a t a P r o c e s s i n g U n i t C 4 I I n fr a s tr u c t u r e D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e C a b le/ C 4 I C a b le/ C 4 I C a b le/ C 4 I D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l ARETE D a t a P r o c e s s in g U n i t ARETE D a ta P r o c e s s i n g G r o u n d C o n tr o l G r o u n d C o n tr o l D a ta l i n k S u i te D a t a P r o c e s s in g U n i t D a ta l i n k S u i te S ta ti o n S u b s y s te m S t a t io n E l e m e n t s S o ft w a r e S ta ti o n S u b s y s te m S t a t io n E l e m e n t s ARETE D a t a P r o c e s s in g U n i t D a ta l i n k S u i te S o ft w a r e S o ft w a r e S ta ti o n S u b s y s te m S t a t io n E l e m e n t s (G F E ) (G F E ) (G F E ) O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t D a t a S to r a g e D a ta S t o r a g e U n i t D a t a S to r a g e D a ta S t o r a g e U n i t D a t a S to r a g e D a ta S t o r a g e U n i t U n it U n it U n it C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem G im b a l G im b a l G im b a l C a m e ra C a m e ra WESCAM WESCAM C a m e ra WESCAM C a m e r a S e n sor T u r r e t H o us in g C a m e r a S e n sor T u r r e t H o us in g C a m e r a S e n sor T u r r e t H o us in g S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r S y s t e m C o n t r o ll e r T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) T u r r e t / G im b a l N a v S u i t e ( G P S /I N S ) C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e C o n t r o l le r S o f t w a r e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e A ir b or n e P a yloa d A ir V e h ic l e D a t a li n k S u i t e S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) S u b s y s te m E le m e n t ( G F E ) A /C P o w e r A /C P o w e r A /C P o w e r R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly R e co r d e r A s s e m b ly Plans/Schedules A ir b o r n e D a t a P a y l o a d S y s te m A ir b o r n e D a t a P a y l o a d S y s te m SEA SEA A ir b o r n e D a t a P a y l o a d S y s te m SEA P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P ro c e s s o r E l e m e n ts A s s e m b l y P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r P a y l o a d C o n t r o l le r S e n so r C on tr ol a n d S e n so r C on tr ol a n d S e n so r C on tr ol a n d C o m m S o f tw a r e C o m m S o f tw a r e C o m m S o f tw a r e P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P ay load I n te g ra ti o n C o n tr a c t o r P o w e r D i s tr i b u t i o n D T / O T P o w e r D i s tr i b u t i o n DT / O T P o w e r D i s tr i b u t i o n DT / O T i n to G round i n to G round i n to G round U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort U n it A ir b o r n e P a y lo a d S u b s y s tem Supp ort A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t A /V S e gm e n t a n d F l ig h t T e s t - Disk - Disk - Disk S y s t e m D is p la y S y s t e m D is p la y Only Only S y s t e m D is p la y S y s t e m D is p l a y U n i t S y s t e m D is p l a y U n i t Only S y s t e m D is p l a y U n i t U n it U n it U n it Test Test Test D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e D a t a P r o c e s s i n g U n i t C 4 I I n fr a s tr u c t u r e D at a P r oc e ssin g U n it C 4 I I n fr a s tr u c t u r e D a ta P r o c e s s i n g G r o u n d C o n tr o l C a b le/ C 4 I G r o u n d C o n tr o l D a ta P r o c e s s i n g G r o u n d C o n tr o l C a b le/ C 4 I G r o u n d C o n tr o l G r o u n d C o n tr o l C a b le/ C 4 I ARETE D a t a P r o c e s s in g U n i t ARETE D a ta P r o c e s s i n g G r o u n d C o n tr o l S ta ti o n S u b s y s te m D a ta l i n k S u i te D a t a P r o c e s s in g U n i t S ta ti o n S u b s y s te m D a ta l i n k S u i te S t a t io n E l e m e n t s S t a t io n E l e m e n t s ARETE D a t a P r o c e s s in g U n i t S ta ti o n S u b s y s te m D a ta l i n k S u i te S o ft w a r e S o ft w a r e S o ft w a r e S t a t io n E l e m e n t s (G F E ) (G F E ) (G F E ) O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t O & C S o f tw a r e S y s t e m D is p l a y U n i t D a t a S to r a g e D a ta S t o r a g e U n i t D a t a S to r a g e D a ta S t o r a g e U n i t D a t a S to r a g e D a ta S t o r a g e U n i t U n it U n it U n it C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem C O B R A G r o u n d S ta tio n S u b s y s tem Horizontal Integration
  • 13.
    Tiered Scheduling -Challenges Each schedule update routine requires different steps to be taken with a variety of software applications – there is no consistency Determining which activities to summarize into each tier can be difficult – especially if the data comes from different sources Manual import routines are laborious, time consuming and can compromise data integrity
  • 14.

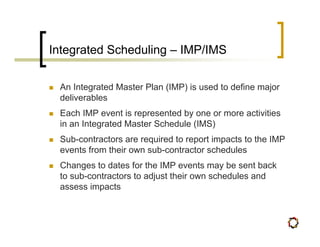

    Integrated Scheduling –IMP/IMS An Integrated Master Plan (IMP) is used to define major deliverables Each IMP event is represented by one or more activities in an Integrated Master Schedule (IMS) Sub-contractors are required to report impacts to the IMP events from their own sub-contractor schedules Changes to dates for the IMP events may be sent back to sub-contractors to adjust their own schedules and assess impacts
  • 15.
    IMP/IMS - Challenges Consistent coding activities across multiple schedules Timing of updates Critical path analysis Incremental or selective updates can be challenging Change Control
  • 16.
    Primavera MSP ImportIssues Primavera imports from MSP, but not without challenges Schedule Date Differences Handling of Constraints Data Date vs. Status Date Concepts Calendars Duration and Float Calculations Baselines Milestones Summary Activities vs. WBS No import for MSP 2007 These challenges can create a lot of manual work to ensure the correct schedule dates in Primavera
  • 17.
    Other Primavera IntegrationChallenges Even if we can import from MSP, how do we handle schedules from other systems (Artemis, OpenPlan, Dekker Tracker, etc.)? Change Control How do you selectively import data? Review the impacts of a schedule update before applying? Ensure consistency in WBS and activity coding? Validation – How can you be sure that the destination data matches the source after import? There is currently no commercial software that updates (vs replaces) a Primavera schedule from an external source
  • 18.
    So What IsThe Solution? There are several approaches to better integration Massage the data Limit what data is imported Use the Excel import/export feature for incremental updates Use the Primavera Integration API The Primavera Integration API can be used to read/write XML data – but this requires some development effort
  • 19.

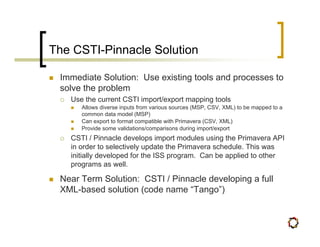

    The CSTI-Pinnacle Solution Immediate Solution: Use existing tools and processes to solve the problem Use the current CSTI import/export mapping tools Allows diverse inputs from various sources (MSP, CSV, XML) to be mapped to a common data model (MSP) Can export to format compatible with Primavera (CSV, XML) Provide some validations/comparisons during import/export CSTI / Pinnacle develops import modules using the Primavera API in order to selectively update the Primavera schedule. This was initially developed for the ISS program. Can be applied to other programs as well. Near Term Solution: CSTI / Pinnacle developing a full XML-based solution (code name “Tango”)
  • 20.
    Tango Preliminary ProcessFlow to Primavera CSTI (TANGO) CSTI / PINNACLE (TANGO PPM) Source Set Step 1 - Tango produces Step 2 - Tango PPM uses PRELIMINARY Primavera API to produce Primavera compliant XML Input File from compliant XML File from MS Source Set Data applying destination project for Project Primavera Business Rules comparison to the Primavera PRELIMINARY Input file Project EVMS created from Tango in forProject Step 3 – Tango produces Step 1 Management comparison report for user to accept or reject changes. Data Base Financial Tools Other Scheduling Tools Step 5 - Tango PPM reads the Other EVMS FINAL Primavera compliant Tools XML File delivered from Tango Step 4 – Tango produces and imports the source set data Other FINAL Primavera compliant into the destination project Sources XML File from accepted through the API (CSV, XLS, changes XML)
  • 21.

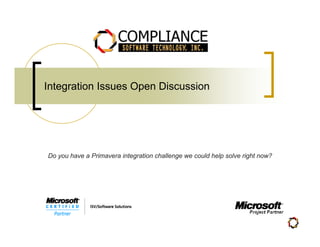

    Integration Issues OpenDiscussion Do you have a Primavera integration challenge we could help solve right now?
  • 22.

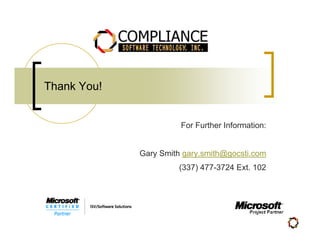

    Thank You! For Further Information: Gary Smith gary.smith@gocsti.com (337) 477-3724 Ext. 102
