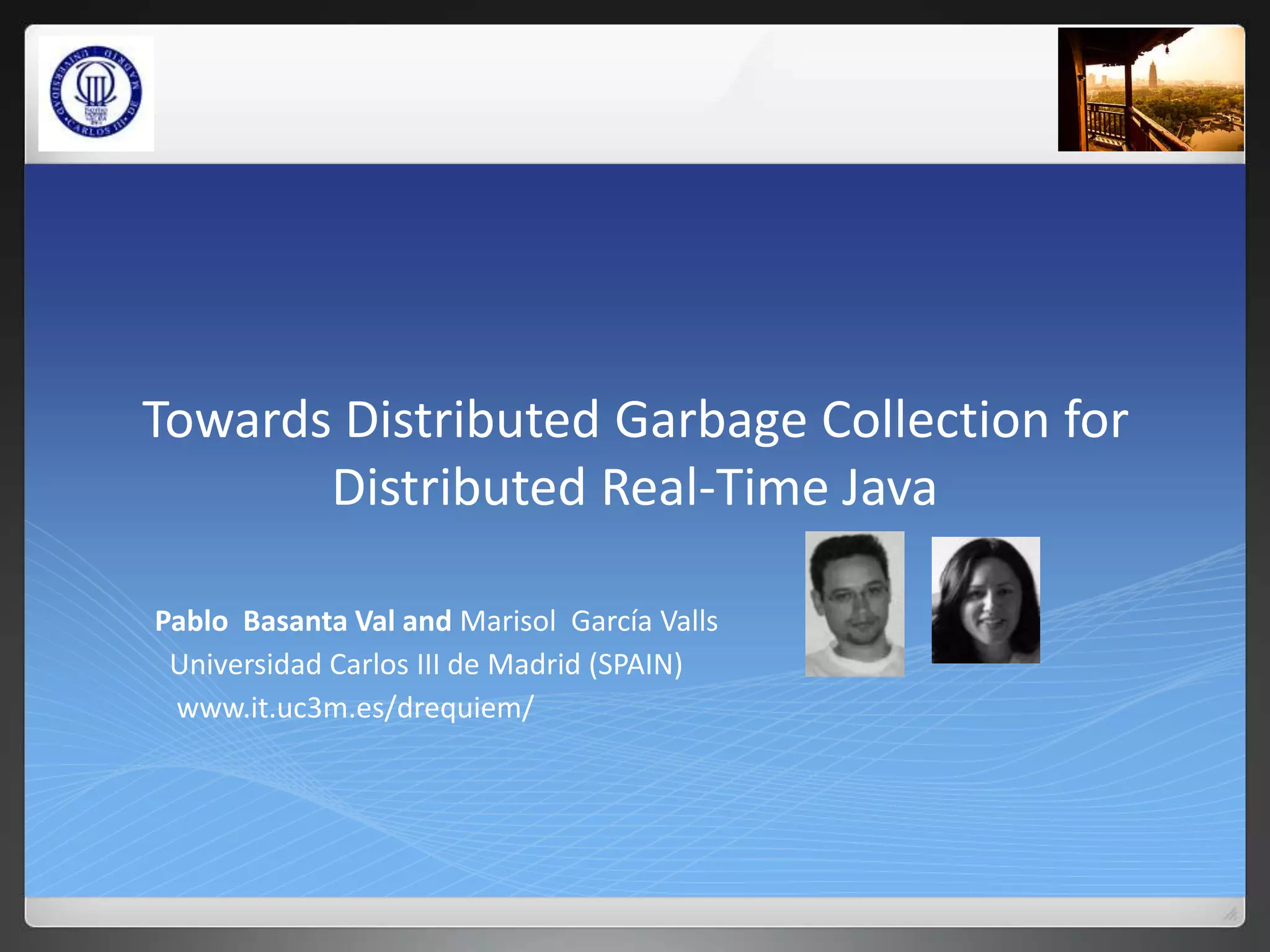

1. Towards Distributed Garbage Collection for
Distributed Real-Time Java
Pablo Basanta Val and Marisol García Valls
Universidad Carlos III de Madrid (SPAIN)
www.it.uc3m.es/drequiem/

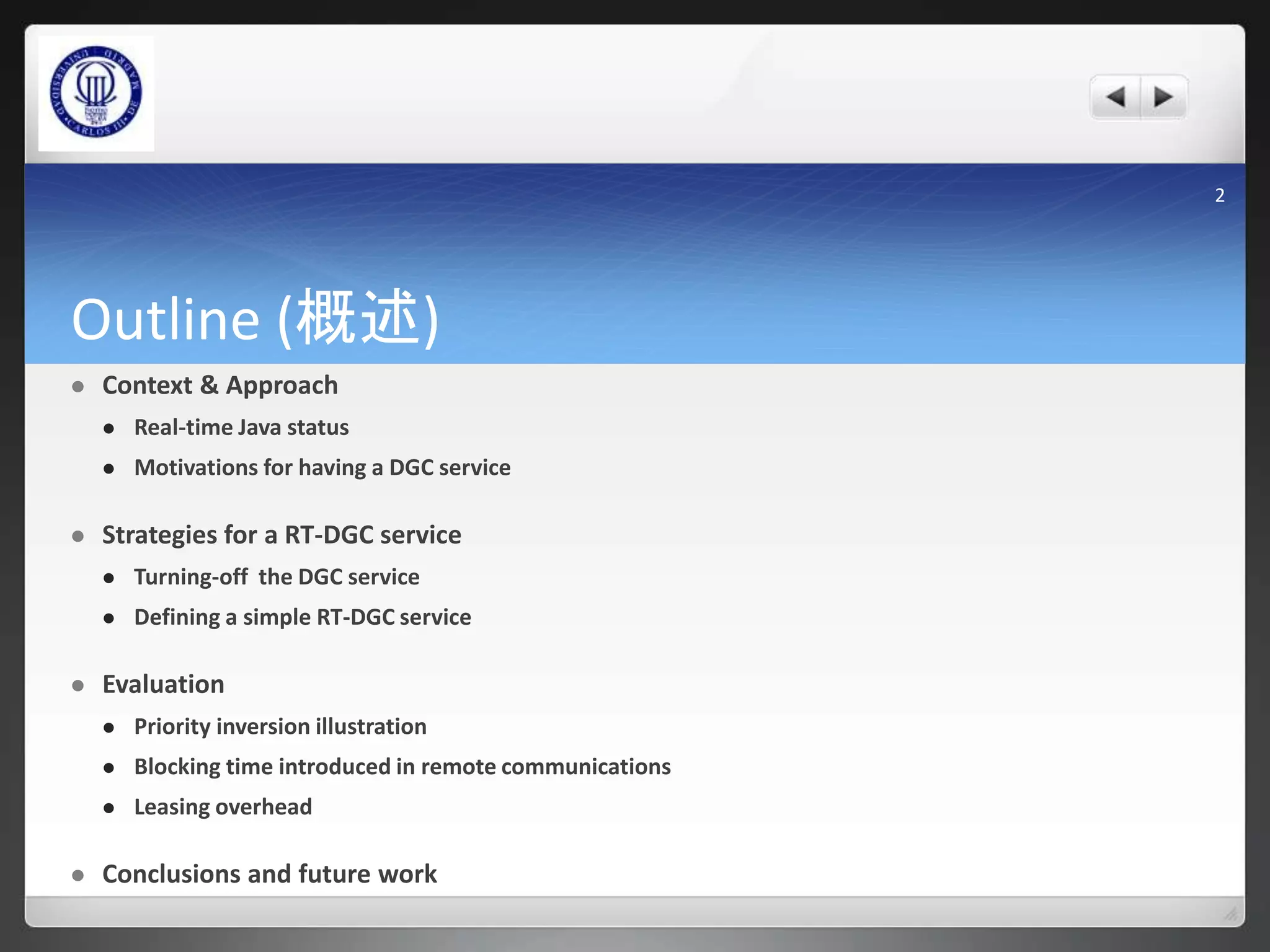

2. Outline (概述)
 Context & Approach
 Real-time Java status
 Motivations for having a DGC service
 Strategies for a RT-DGC service
 Turning-off the DGC service
 Defining a simple RT-DGC service
 Evaluation
 Priority inversion illustration
 Blocking time introduced in remote communications
 Leasing overhead
 Conclusions and future work
2

3. Context
 Next generation real-time systems
 More dynamic & complex
 One approach to address this issue is to use high-level development
languages like real-time Java
 Provide developers with libraries and potentially may reduce the development
cost of applications
 However, Java was not initially designed for real-time systems
 Many features (e.g. garbage collectors collide with real-time performance)
 Research efforts are required to harmonize real-time performance with Java
3

4. State of the Art in Real-time Java
 Centralized systems
 Java VM, Specifications (RTSJ), Running products (Oracle, IBM, Jamaica)
 Currently in refinement in JSR-282
 Safety critical applications
 Ongoing specifications and implementations
 Active in JSR-302
 Distributed real-time Java
 Ongoing specifications (DRTSJ), and partial implementations (based on Java’s RMI)
 Stalled in JSR-50 and relaunched in 2012
4

5. This work contribution
 Improves garbage collection mechanisms included in Java’s RMI with real-
time performance
 Characterization of messages
 Initial performance indicators and clues
 Evaluation of different alternatives
 Benefits for the real-time Java community
 Useful for DRTSJ and other real-time RMI implementations
 Currently they do not provide operative approaches
 Backward compatible with RTSJ (no changes required)
5

6. Distribution real-time Java model
 Based on the DREQUIEMI’s framework for
distributed real-time Java
 It runs directly on RTSJ
 It extends Java’s RMI (Remote Method Invocations)
with predictability
 It offers a predictable garbage collector for RMI
Predictable =
configurable priorities + scheduling
parameterization
6

7. API of the scheduling service
(in DREQUIEI)
package es.uc3m.it.drequiem.rtrmi.server.dgc;
import java.rmi.server.dgc.*;
public interface RTDGCInterface extends java.rmi.Remote{
public void referenced(java.rmi.server.ObjID objid)
throws java.rmi.RemoteException;
public void unreferenced(java.rmi.server.ObjID objid)
throws java.rmi.RemoteException;
}
7

8. Motivation for having a
distributed garbage collector
 Java requires a garbage collector
 50% of all Java methods may allocate objects
 Static allocation is not a practical solution
 A distributed garbage collector is not mandatory in real-time Java
 It is not no so necessary as a local garbage collector (remote objects may be
removed manually like in CORBA)
 However, it may be beneficial in terms of collecting unused remote objects
 RMI uses the model
 To remove unwanted remote objects
8

9. Memory Leaks
avoided in Sun DGC
 DGC in RMI is based on
counting algorithms
 It is not able to remove
remote object cycles (to
avoid problems)
 Acyclic structures may be
collected
 (like the one in the figure)
9

10. Memory Leaks
avoided in Sun DGC
(2)
 Each potential invoation
to remoteObjectLeak
creates a memory leak
 After n invocations, there
are n remote objects that
may be collected
10

11. Relationship between the registry and the
DGC service
 The registry holds references to remote objects !!!
11

12. Sun’s DGC algorithm sketched
-reference list
 Based in leasing and
reference lists
 Based on a algorithm
described by Birrell
previously
 Reference lists prevent
remote object
deallocation
Remote references avoid remote object destruction
12

13. Sun’s DGC algorithm sketched
-Leasing
 Leasing
 To deal with faulty
scenarios
 Basic idea to wait for an
update
 periodically
Periodical renewal associated to a remote reference
13

14. Strategies for a real-time DGC service
 Two approaches
 To turn off DGC
 it requires new API methods to remove remote objects
 To produce a predictable version of DGC
 Requires a clear definition of priorities, periods
(So that it may be schedulable as a real-time task)
14

15. Strategies for a real-time DGC service
Turning DGC off
 Remote objects may removed at the server (with
current API).
00:UnicastRemoteObject
01: static boolean
02: unexportObject
03: (Remote r, bolean force)
04: throws NoSuchObjectException;
 But it could be extended with a method to list all
objects
00: UnicastRealtimeRemoteObject
01: static Vector
02: listExportedRemoteObjects();
Server node
15

16. Strategies for a real-time DGC service
Turning DGC off (2)
 To allow explicit deallocation from a client
00: RealtimeRemote
01: boolean unReference(Remote r)
02: throw NoSuchObjectException;
16

17. Strategies for a real-time DGC service
Turning DGC off
 Remote objects may removed at the server (with
current API).
00:UnicastRemoteObject
01: static boolean
02: unexportObject
03: (Remote r, bolean force)
04: throws NoSuchObjectException;
 But it could be extended with a method to list all
objects
00: UnicastRealtimeRemoteObject
01: static Vector
02: listExportedRemoteObjects();
Server node
17

18. Strategies for a real-time DGC service
real-time DGC
 Based on the redefinition of:
 Reference method
 Unreference method
 Leasing mechanism
18

19. Strategies for a real-time DGC service
real-time DGC- reference
 Reference
 Invoked each time a remote reference abandons a node
 The priority of the transaction is the priority of the thread that carries out that action
19

20. Strategies for a real-time DGC service
real-time DGC- unreference
 Reference
 Invoked each time a remote
reference is invoked
 The priority of the transaction is
the priority of the thread that
carries out that action
20

21. Strategies for a real-time DGC service
real-time DGC- lease
 Lease
 Invoked periodically
 Modeled as periodic real-time invocation (T,D,C, Priority)
21

22. Strategies for a real-time DGC service
real-time DGC- decoupled mechanisms
 To avoid synchronous
reference and unreference
methods
 Able decouple cost from
remote invocations
 The reference and
unreference methods are
modelled as T,D,C
transactions
22

23. Performance evaluation
goals
 To build an scenario that illustrates that illustrates
performance trends of current
 To evaluate the overhead introduced by the
synchronous/asynchronous remote invocations
 To evaluate the overhead introduced by the leasing
mechanism
 Reference software
 796 Mhz machines x 1 real-time router (100 Mbits second)
23

24. Performance evaluation
priority inversion trends
 A scenario that shows
unbounded priority
inversion was build
 Thread in client suffers
priority inversion of al
24

25. Performance evaluation
priority inversion due to DGC
 The real-time garbage collector may handle the priority
properly
100
400
1600
6400
25600
100
1300
2500
3700
4900
6100
7300
8500
9700
10900
12100
WCRT(µs)
T3_WCET (µs)
RT-DGC and DGC impact on Worst Case Response Times
CLIENT (with DGC)
CLIENT (with RT-DGC)
T3 (with DGC & RT-DGC )
25

26. Performance evaluation
deferred vs. synchronous costs
 Defered DGC reduces response times
26

27. Performance evaluation
leasing trends
 Above 1 minute the cost reduces remarkably (RMI default is 5 mins)
27

28. Conclusions (结论)
 Distributed real-time Java applications require to deal with the garbage
collector issue (disabling the DGC)
 Illustrated empirically
 The paper provides mechanisms to reduce the cost of garbage collection in
distributed real-time Java
 Illustrated empirically
28

29. Ongoing work
 Extensive evaluation and formalization
 Benchmarks and formalism for the real-time DGC
 An extension to other real-time infrastructures
 Used to collect real-time SOA
29

30. Thank you (谢谢)
