1. TOTAL SYSTEM EFFICIENCY
Brian Gongol
DJ Gongol & Associates, Inc.
March 22, 2016
Nebraska Rural Water Association Conference
Kearney, Nebraska

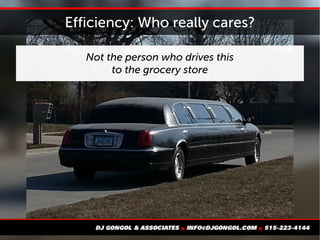

2. Efficiency: Who really cares?
Not the person who drives this
to the grocery store

3. Of course we SHOULD care, right?

4. Resources are finite
Only the state capitol gets a gold dome

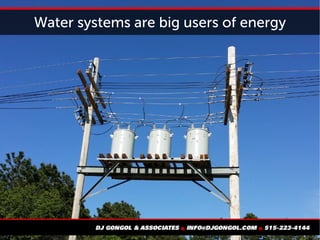

5. Water systems are big users of energy

6. Utilities have a special responsibility
You provide essential services, usually under
a monopoly or near-monopoly condition

7. Rate dollars are after-tax dollars

8. Money saved is a leveraged bonus

9. Substitution effect

10. We can say it's all for the environment

11. But it's really about public health

12. Money wasted displaces other public goods

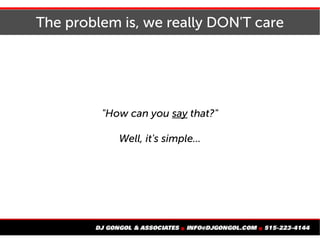

13. The problem is, we really DON'T care
"How can you say that?"
Well, it's simple...

14. Revealed preferences

15. What's your household public works budget?
(...if you even bother to have one)

16. How does it compare to your travel budget?

17. Why we don't really care

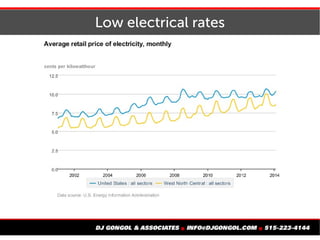

18. Low electrical rates

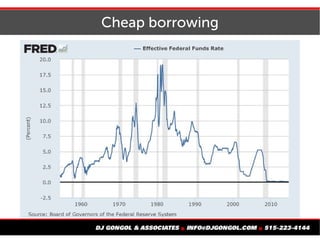

19. Cheap borrowing

20. Low regard for worker time

21. Public disregard for the state of public works

22. The day of reckoning cometh

23. Why we will be forced to care

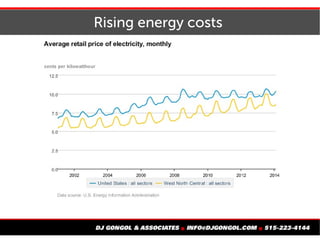

24. Rising energy costs

25. Carbon emission regs and electricity costs

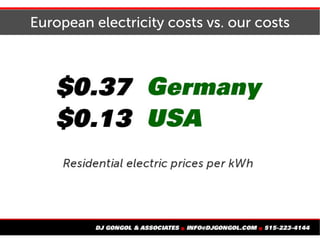

26. European electricity costs vs. our costs

27. Anticipated shortages of fresh water

28. Rising treatment costs pressuring budgets

29. Declining or flat populations

30. Aging infrastructure

31. Higher future interest rates

32. Shrinking water workforce

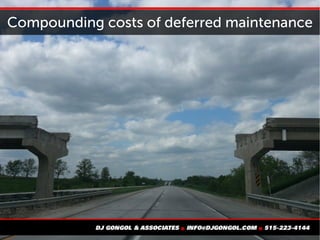

33. Compounding costs of deferred maintenance

34. Costs of catastrophic failure

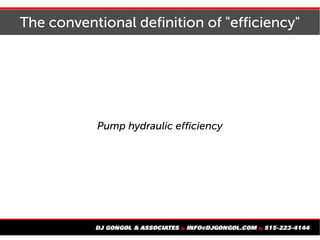

35. The conventional definition of "efficiency"
Pump hydraulic efficiency

36. The second order definition is still too narrow
Maybe include motor efficiency
or throw in a VFD so it looks good?

37. Measure efficiency by total system impact
Think of yourself as a
trustee of public assets.
You serve the public best by
delivering the services they expect
with a minimum of waste.

38. Not everything that counts can be measured
The love of a child,
puppy kisses,
the smell of flowers
after a rain

39. But counting is a good place to start

40. What we might measure to gauge efficiency

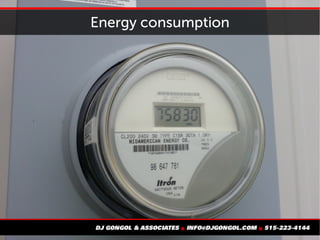

41. Energy consumption

42. Losses (especially unmetered losses)

43. Labor costs (including opportunity costs)

44. Total cost of ownership (TCO)

45. Everything can be converted to dollars

46. Even hidden savings deserve a dollar value

47. Boards don't want to know your specialty

48. Dollars are common currency to every industry

49. Total system efficiency includes:
Hydraulic efficiency
Energy efficiency
Maintenance efficiency
Longevity/durability
Adaptability to future conditions

50. Part 1: Pump hydraulic efficiency

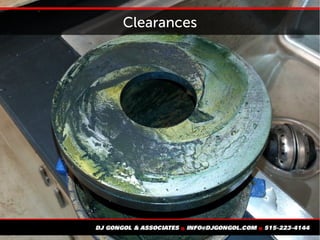

51. Clearances

52. Pump specific speed

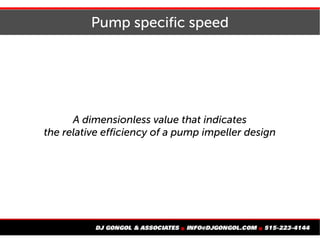

A dimensionless value that indicates
the relative efficiency of a pump impeller design

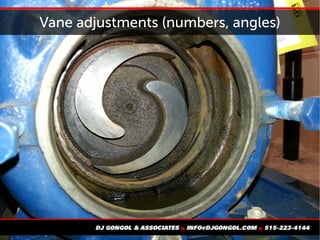

53. Vane adjustments (numbers, angles)

54. Smooth coatings

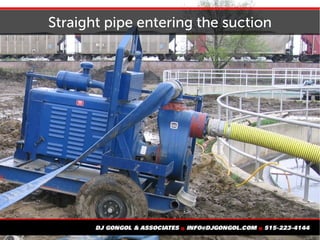

55. Straight pipe entering the suction

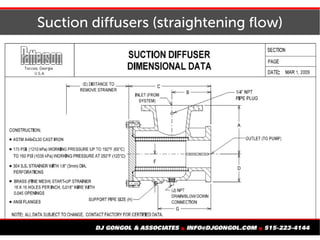

56. Suction diffusers (straightening flow)

57. Part 2: Motor/engine efficiency

58. 110/220/460 volt differences

59. VFDs

60. Soft starters

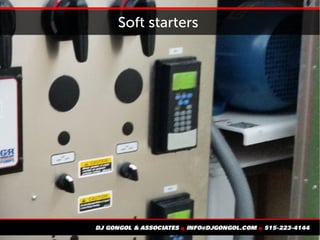

61. Two-speed motors

62. Across-the-line starters

63. High-efficiency/premium-efficiency

64. VFD misapplication: Static head prevails

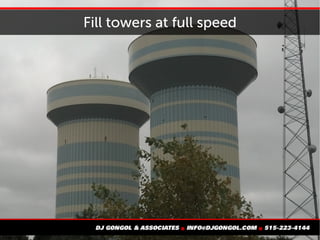

65. Fill towers at full speed

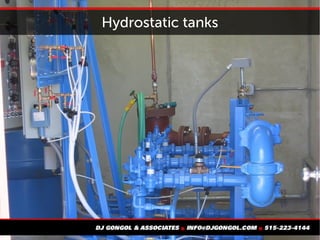

66. Hydrostatic tanks

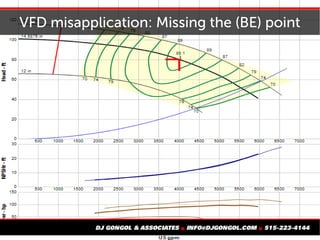

67. VFD misapplication: Missing the (BE) point

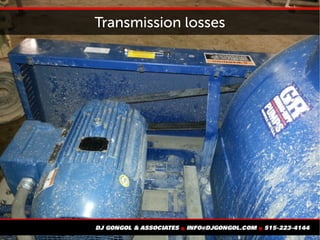

68. Transmission losses

69. Part 3: Valves

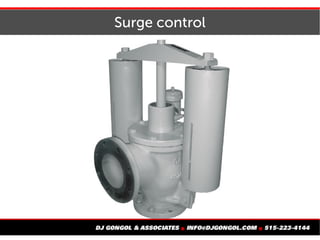

70. Surge control

71. Save on pipe damage
If waves on a beach can erode boulders into sand,
what are surge waves doing inside your pipes?

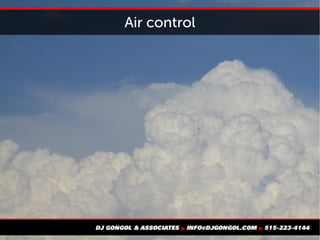

72. Air control

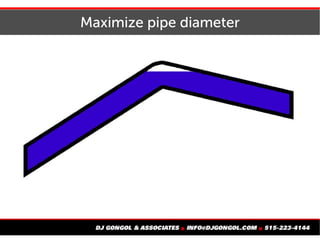

73. Maximize pipe diameter

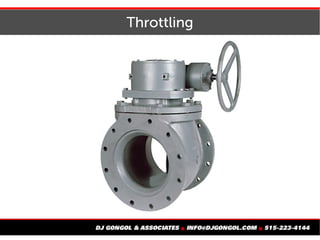

74. Throttling

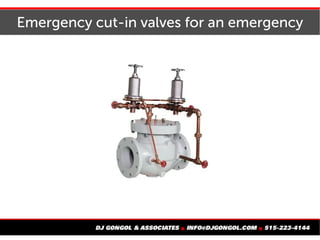

75. Emergency cut-in valves for an emergency

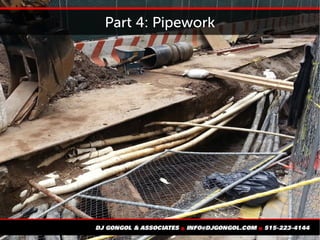

76. Part 4: Pipework

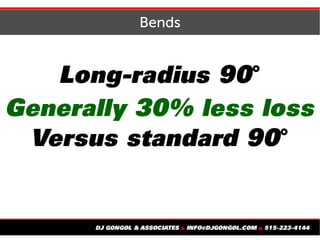

77. Bends

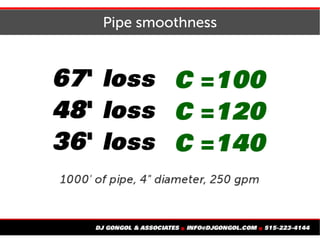

78. Pipe smoothness

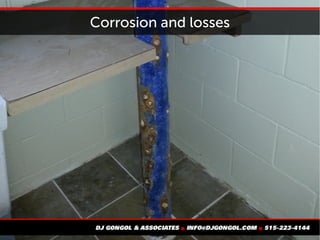

79. Corrosion and losses

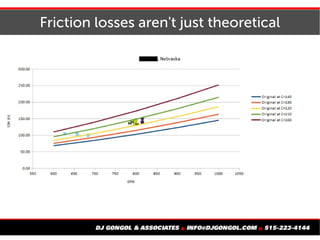

80. Friction losses aren't just theoretical

81. Part 5: Labor and TCO efficiency

82. Preventive/predictive maintenance
Fix-on-failure wouldn't work for an airline,
so why do utilities use it so much?

83. Preventive maintenance and knowledge

84. Labor training and continuous improvement

85. Quantify downtime

86. Part 6: Longevity/durability

87. Major repair work is disruptive and costly

88. Realistically assess how long things will last

89. Is the system robust or fragile?

90. Can it survive periods of neglect?

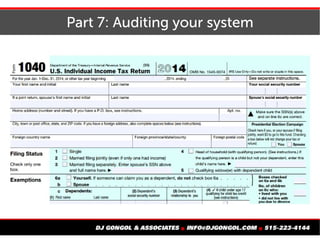

91. Part 7: Auditing your system

92. Total water supplied (own plus imports)

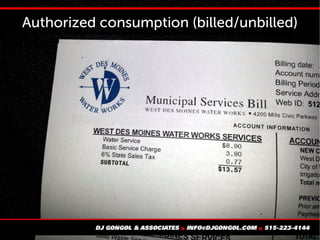

93. Authorized consumption (billed/unbilled)

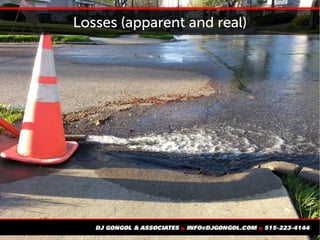

94. Losses (apparent and real)

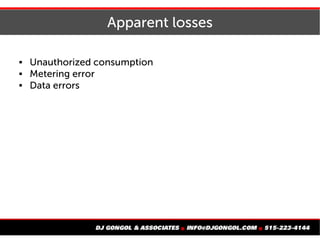

95. Apparent losses
 Unauthorized consumption
 Metering error
 Data errors

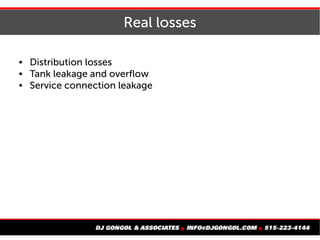

96. Real losses
 Distribution losses
 Tank leakage and overflow
 Service connection leakage

97. Benchmarks and baselines

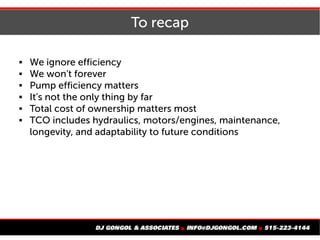

98. To recap
 We ignore efficiency
 We won't forever
 Pump efficiency matters
 It's not the only thing by far
 Total cost of ownership matters most
 TCO includes hydraulics, motors/engines, maintenance,
longevity, and adaptability to future conditions

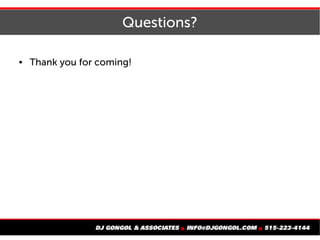

99. Questions?
 Thank you for coming!

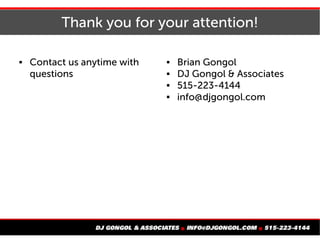

100. Thank you for your attention!
 Contact us anytime with
questions
 Brian Gongol
 DJ Gongol & Associates
 515-223-4144
 info@djgongol.com

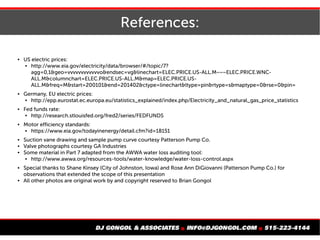

101. References:
