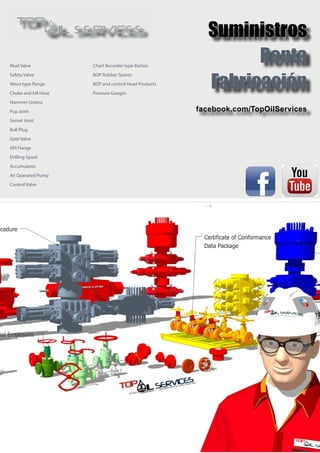

Mud Valve Safety Valve Weco type flange Choke and kill Hose Hammer Unions Pup Joint Swivel Joint Bull Plug Gate Valve API Flange Drilling Spool Accumulator Air Operated Pump Control Valve Chart Recorder type Barton BOP Rubber Spares BOP and control Head Products Pressure Gauges

1. Suministros
Renta
Fabricación
facebook.com/TopOilServices
Chart Recorder type Barton
BOP Rubber Spares
BOP and control Head Products
Pressure Gauges
Mud Valve
Safety Valve
Weco type flange
Choke and kill Hose
Hammer Unions
Pup Joint
Swivel Joint
Bull Plug
Gate Valve
API Flange
Drilling Spool
Accumulator
Air Operated Pump
Control Valve

2. D
onde sea posible, los
Técnicos de Servicio
de TOP, efectúan
diagnósticos sobre
problemáticas y se desarrollan
reparaciones en el lugar cuando
la situación lo permite
facebook.com/TopOilServices
M
odel DM: Sizes: 2 Inch, 3 Inch, 4 Inch, and 5 Inch; Pressures:
5000 psi, 7500 psi; Service Types: Standard, Sour Gas, Cold
Service and High Pressure Temp. Rating: -40 F/C to 250 F / 121
C.;
.
Connections: Threaded, Buttweld and Flanged
New, Re-manufactured, OEM, Similar
O
teco model 72 & Model 66 type Sizes: 2 Inch, 3 Inch, 4 Inch,
and 5 Inch Pressures: 2000 psi, 3000 psi, 5000 psi Service Types:
Standard, Sour Gas, Waterflood Temp. Rating: 400 F / 240 C.
.
Connections: Threaded, Buttweld, Union, Flanged, and OTECO
Connector.
Safety Valve
K
ELLY VALVE:1 piece and 2 piece Kelly valves with working pressure
ratings ranging from 10,000 psi to 15,000 psi. Kelly valves are
durable, strong, compact and easy to handle.
P
LUG VALVE: A wide selection of 5,000 to 15,000 psi plug
valves in 1”, 2”and 3”sizes. Popular Types include 2”Male
LP, 2”1502 Union End w/ Wing Nut, 3.5”I.F. Box x Pin.
Popular H2S Service Types include 2”2202 Union End w/
Wing Nut, 4. 12 4-thd 60° Stub Box x Pin.
A
lso available flanged plug valve: Ring Joint Type Flanges
End Popular Types include 2.25”I.D. Flange Full Open R
24 Ring, 3.25 I.D. Flange Full Open BX 154 Ring, and more
Mud Valve Weco Type Flanges
F
lange Sizes form 1 13/16”to 4 1/16”, and from
5,000 PSI to 15,000 PSI.
Choke and Kill Hose
C
hoke and Kill hose and coflex stlyle choke hoses
are fire resistant and covered in heavy duty
stainless steel armor covering. Choke and Kill
hoses are made in lengths up to 150 and in
pressure ranges from 5,000 psi and up to 10,000 psi w.p
with end connections available suited for h2s service and
each hose comes with certificate package, hydrostatic
test certificates and crated ready for export to your
location.
Hammer Unions
S
izes from 1⁄4”through 8”and pressures range
from 500 PSI to 12,500 PSI.
T
he sealing action of Yale Hammer Unions
is not dependent upon metal-to-metal
contact. An elastomeric O-ring fits in a
precision-machined groove between
the metal mating parts. Forced into sealing position at
very low initial pressure, the O-ring ensures the utmost
safety dependability and economy despite severity of
service conditions..

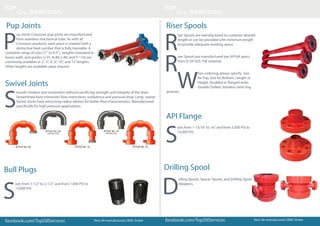

3. Pup Joints
facebook.com/TopOilServices New, Re-manufactured, OEM, Similar
S
mooth rotation and movement without sacrificing strength and integrity of the steel.
Streamlined bore minimizes flow restrictions, turbulence and pressure drop. Long- sweep
Swivel Joints have extra-long radius elbows for better flow characteristics. Manufactured
specifically for high pressure applications.
Swivel Joints
S
izes from 1-1/2”to 2-1/2”, and from 1,000 PSI to
15,000 PSI.
Bull Plugs
Riser Spools
facebook.com/TopOilServices New, Re-manufactured, OEM, Similar
S
izes from 1-13/16”to 16”, and from 5,000 PSI to
15,000 PSI.
API Flange
D
rilling Spools, Spacer Spools, and Drilling Spool
Adapters.
Drilling Spool
P
up Joints Crossover pup joints are manufactured
from seamless mechanical tube. As with all
Crossover products, each piece is marked with a
distinctive heat number that is fully traceable. A
complete range of sizes (1″ to 4.5″), weights (standard or
heavy wall), and grades (J-55, N-80, L-80, and P-110) are
commonly available in 2”, 3”, 4”, 6”, 10”, and 12”lengths.
Other lengths are available upon request
R
iser Spools are manufactured to customer desired
length or can be provided with minimum length
to provide adequate working space.
R
iser Spools are manufactured per API 6A specs
from 4130 H2S 75K material.
W
hen ordering, please specify: Size
for Top, Size for Bottom, Length or
height, Studded or flanged ends,
Double Drilled, Stainless steel ring
grooves

4. Crossover Flange
facebook.com/TopOilServices New, Re-manufactured, OEM, Similar
A
vailable in standard sizes of 1 13/16”, 2 1/16”and
2 9/16”. Larger sizes available upon request.
W
orking pressures of 5,000, 10,000
and 15,000
Companion Flanges
A
vailable in many sizes and working pressures.
S
tandard size vertical runs include 2 1/16”,
2 9/16”, 3 1/8”, 3 1/16”and 4 1/16”, 5-1/8”,
7-1/16”. Working pressures of 5,000,
10,000 and 15,000.
Crosses
D
esigned to adapt from one flange size to
another.
A
vailable in sizes from 1 13/16”to 21-
1/4”. Working pressures of 5,000, 10,000
and 15,000. Special sizes upon request
Valve Type: F, FC, FL, FLS, WKM, M, etc.
Gate Valve
facebook.com/TopOilServices New, Re-manufactured, OEM, Similar
A
wide variety of gate valve parts for different
style valves as well as its own models.
•
Standards sizes of stem, seats, seat seal
rings, retainer plates, bearings, races are
readily available.
Gate Valve Parts
Tree Caps
W
e offers gate valves in both expanding gate
and slab gate styles. Both are compatible
with the current industry standards and
are available in a wide range of trims to
suit the customer. Gate valves are available in sizes 1
13/16”– 7 1/16”and working pressures from 2,000 psi to
15,000 psi. A complete line of Flanged and Threaded end
connections are available
T
op and bottom connections are available in
various sizes.
B
ottom connections are flanged with
EUE 8rd suspension threads. The top
connection is EUE 8rd male. Manufactured
according to API-6A, PSL-1, DD, L-U, PR-1
Tubing Head Adapter
T
ree caps allow (bottom hole test adapters BHTA) allow for
easy transition from the wellhead and tree to wireline or
logging tools. Tree caps provide a quick access to the tubing
bore.
A
vailable in sizes from 2 1/16″ thru 4 1/16″. Working
pressures of 5,000, 10,000 and 15,000.

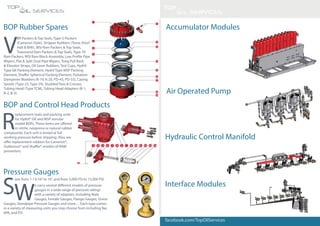

5. V
BR Packers & Top Seals, Type U Packers
(Cameron Style), Stripper Rubbers (Texas Short
Hall & BIW), WSI Ram Packers & Top Seals,
Townsend Ram Packers & Top Seals, Type 70
Ram Packers, WSI Ram Block Assembly, Low Profile Pipe
Wipers, Flat & Split Dual Pipe Wipers, Tong Pull Back
& Elevator Straps, Oil Saver Rubbers, Test Cups, Hydril
Type GK Packing Element, Hydril Type MSP Packing
Element, Shaffer Spherical Packing Element, Pulsation
Dampener Bladders (K-10, K-20, PD-45, PD-55), Casing
Spools (Type 22, Type 29), Studded Tees & Crosses,
Tubing Head (Type TCM), Tubing Head Adapters (B-1,
B-2, B-3).
BOP Rubber Spares
R
eplacement seals and packing units
for Hydril® GK and MSP annular
model BOPs. These items are offered
in nitrile, neoprene or natural rubber
compounds. Each unit is tested at full
working pressure before shipping. Also, we
offer replacement rubbers for Cameron®,
Guiberson® and Shaffer® models of RAM
preventers.
BOP and Control Head Products
S
izes from 1-13/16”to 16”, and from 5,000 PSI to 15,000 PSI.
W
e carry several different models of pressure
gauges in a wide range of pressure ratings
with a variety of adapters, including Male
Gauges, Female Gauges, Flange Gauges, Union
Gauges, Standpipe Pressure Gauges and more… Each type comes
in a variety of measuring units you may choose from including Bar,
kPA, and PSI
Pressure Gauges
Accumulator Modules
facebook.com/TopOilServices
Air Operated Pump
Hydraulic Control Manifold
Interface Modules

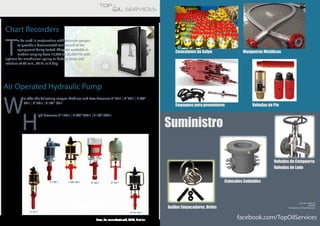

6. Chart Recorders
T
o be used in conjunction with pressure gauges
to provide a documented test record of the
equipment being tested. They are available in
models ranging from 15,000 to 30,000 PSI with
options for mechanical spring or battery drive and
rotation of 96 min., 24 hr. or 8 day.
Air Operated Hydraulic Pump
W
e offer the following ranges: Medium and Low Pressure: 5”30:1 | 6”50:1 | 7 3/8”
60:1 | 8”60:1 | 8 1/2″ 60:1
H
igh Pressure: 6”140:1 | 7 3/8”200:1 | 8 1/2”300:1
New, Re-manufactured, OEM, Similar
Conexiones de Golpe
facebook.com/TopOilServices
Suministro
Mangueras Metálicas
Empaques para preventores Valvulas de Pie
Anillos Empacadores, Birlos
Valvulas de Compuerta
Valvulas de Lodo
Cabezales Soldables
TOP OIL SERVICES
VENTAS
facebook.com/TopOilServices

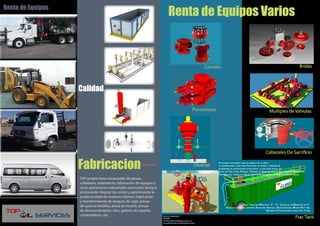

7. Renta de Equipos Varios
Carretes Bridas
Preventores Multiples de Valvulas
Cabezales De Sacrificio
Frac TankTOP OIL SERVICES
VENTAS
claudio.godinez@topoil.com.mx
www.facebook.com/TopOilServices
Diverter Fabricacion
Calidad
TOP proporciona maquinado de piezas,
soldadura, tratamiento, fabricación de equipos y
otras operaciones industriales necesarias siempre
procurando mejorar los costos y optimizando la
productividad de nuestros clientes. Fabricación
y mantenimiento de tanques de viaje, presas
de quema metálica, presa de recorte, presas
de almacenamiento, silos, patines de soporte,
contenedores, etc.
Technical
Renta de Equipos

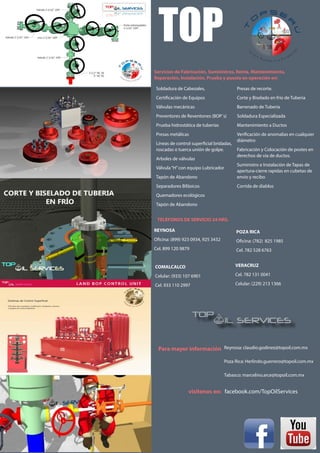

8. TOP
Servicios de Fabricación, Suministros, Renta, Mantenimiento,
Reparación, Instalación, Prueba y puesta en operación en:
facebook.com/TopOilServices
Reynosa: claudio.godinez@topoil.com.mx
Poza Rica: Herlindo.guerrero@topoil.com.mx
Tabasco: marcelino.arce@topoil.com.mx
Presas de recorte.
Corte y Biselado en frío de Tuberia
Barrenado de Tuberia
Soldadura Especializada
Mantenimiento a Ductos
Verificación de anomalias en cualquier
diámetro
Fabricación y Colocación de postes en
derechos de vía de ductos.
Suministro e Instalación de Tapas de
apertura-cierre rapidas en cubetas de
envio y recibo
Corrida de diablos
Soldadura de Cabezales,
Certificación de Equipos
Válvulas mecánicas
Preventores de Reventones (BOP´s)
Prueba hidrostática de tuberías
Presas metálicas
Líneas de control superficial bridadas,
roscadas o tuerca unión de golpe.
Arboles de válvulas
Válvula“H”con equipo Lubricador
Tapón de Abandono
Separadores Bifásicos
Quemadores ecológicos
Tapón de Abandono
TELÉFONOS DE SERVICIO 24 HRS.
REYNOSA
Oficina: (899) 923 0934, 925 3432
Cel. 899 120 9879
POZA RICA
Oficina: (782) 825 1985
Cel. 782 528 6763
COMALCALCO
Celular: (933) 107 6901
Cel. 933 110 2997
VERACRUZ
Cel. 782 131 0041
Celular: (229) 213 1366
Para mayor información
