*TM 9-2800
TECHNICAL MANUAL)
No. 9-2800 f
WAR DEPARTMENT
Washington, 1 Sept. 1943
STANDARD MILITARY MOTOR VEHICLES
Dissemination of restricted matter.-The information contained in
"•""'ri'rfrff flfMililU ^Vf-^iitMfaflfcafcrWirtJM0i^£«<ilMrnj'f**rl'-***"'* of restricted
materiel
Lnited:
art' ctntufMj0qp£fffifr* .t'u'ern turn t iforA*. but nili not be communicated
to : ~"" ^ n«.™.l
i agencies. (See also paragraph
•This manual supersedes TM 9-2800. 6 March 1943.
1

im Y-STANDARD
MILITARY MOTOR VEHICLES
Lr iC CONTENTS
MJ /J/l
J rt{1'J Pog«
Introduction and explanation of terminology 3
Classification 4
SECTION I. Amphibians and landing vehicles 6-15
II. Armored cars 16-23
III. Scout cars 24-25
IV. Cargo and personnel carriers 26-45
V. Self-propelled artillery 46-87
VI. Tanks 88-125
VII. Tank transport and recovery vehicles 126-135
VIII. Trucks
Truck, J4-ton, 4x4 through Truck, 1
4x2 ................ 136-191
Truck, 1 H-ton, 4x4 through Truck,
6x4 ................ 192-237
Truck, 2 H-ton, 6x6 complete ............ 238-277
Truck, 4-ton, 4x4 through Truck, 10-ton,
6x6 ................ 278-313
IX. Truck tractors ............................ 314-333
X. Tractors ................ 334-353
XI. Ambulances .............................. 354-361
XII. Busses ................ 362-371
XIII. Passenger cars ............................ 372-375
XIV. Motorcycles .............................. 376-381
XV. Trailers ................ 382-459
XVI. Semitrailers ............................... 460-527
XVII. Dollies ................ 528-541
- XVIII. Chart of responsibilities and index ........... 542-552

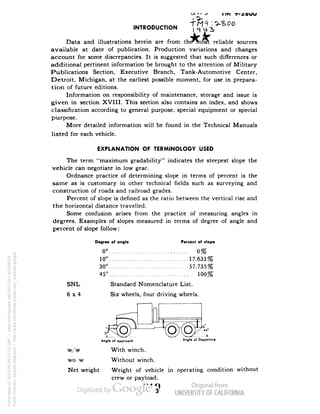

.NTRODUCT.ON
Data and illustrations herein are from thermost reliable sources
available at date of publication. Production variations and changes
account for some discrepancies. It is suggested that such differences or
additional pertinent information be brought to the attention of Military
Publications Section, Executive Branch, Tank-Automotive Center,
Detroit, Michigan, at the earliest possible moment, for use in prepara-tion
of future editions.
Information on responsibility of maintenance, storage and issue is
given in section XVIII. This section also contains an index, and shows
classification according to general purpose, special equipment or special
purpose.
More detailed information will be found in the Technical Manuals
listed for each vehicle.
EXPLANATION OF TERMINOLOGY USED
The term "maximum gradability" indicates the steepest slope the
vehicle can negotiate in low gear.
Ordnance practice of determining slope in terms of percent is the
same as is customary in other technical fields such as surveying and
construction of roads and railroad grades.
Percent of slope is defined as the ratio between the vertical rise and
the horizontal distance travelled.
Some confusion arises from the practice of measuring angles in
degrees. Examples of slopes measured in terms of degree of angle and
percent of slope follow:
Degree of angle Percent of slope
0° 0%
10° 17.633%
30° 57.735%
45° 100%
SNL Standard Nomenclature List.
6x4 Six wheels, four driving wheels.
w/w
wo/w
Net weight
Angle of opproadl An«le "' Departure
With winch.
Without winch.
Weight of vehicle in operating condition without
crew or pay load.

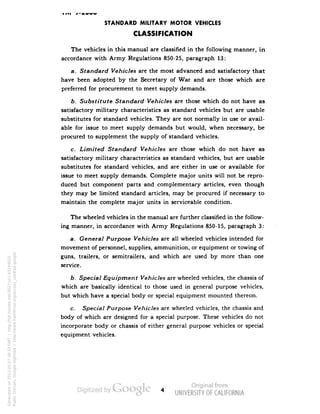

CLASSIFICATION
The vehicles in this manual are classified in the following manner, in
accordance with Army Regulations 850-25, paragraph 13:
a. Standard Vehicles are the most advanced and satisfactory that
have been adopted by the Secretary of War and are those which are
preferred for procurement to meet supply demands.
b. Substitute Standard Vehicles are those which do not have as
satisfactory military characteristics as standard vehicles but are usable
substitutes for standard vehicles. They are not normally in use or avail-able
for issue to meet supply demands but would, when necessary, be
procured to supplement the supply of standard vehicles.
c. Limited Standard Vehicles are those which do not have as
satisfactory military characteristics as standard vehicles, but are usable
substitutes for standard vehicles, and are either in use or available for
issue to meet supply demands. Complete major units will not be repro-duced
but component parts and complementary articles, even though
they may be limited standard articles, may be procured if necessary to
maintain the complete major units in serviceable condition.
The wheeled vehicles in the manual are further classified in the follow-ing
manner, in accordance with Army Regulations 850-15, paragraph 3:
a. General Purpose Vehicles are all wheeled vehicles intended for
movement of personnel, supplies, ammunition, or equipment or towing of
guns, trailers, or semitrailers, and which are used by more than one
service.
b. Special Equipment Vehicles are wheeled vehicles, the chassis of
which are basically identical to those used in general purpose vehicles,
but which have a special body or special equipment mounted thereon.
c. Special Purpose Vehicles are wheeled vehicles, the chassis and
body of which are designed for a special purpose. These vehicles do not
incorporate body or chassis of either general purpose vehicles or special
equipment vehicles.

NOTES

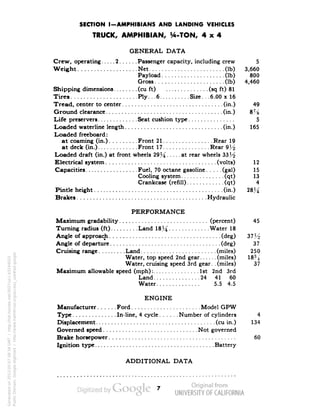

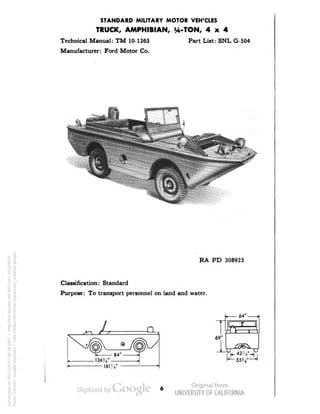

TRUCK, AMPHIBIAN, ^-TON, 4x4
Technical Manual: TM 10-1263 Part List: SNL G-504
Manufacturer: Ford Motor Co.
RA PD 308923
Classification: Standard
Purpose: To transport personnel on land and water.
69'
64'

SECTION I-AMPHIBIANS AND LANDING VEHICLES
TRUCK, AMPHIBIAN, V4-TON, 4x4
GENERAL DATA
Crew, operating 2 Passenger capacity, including crew 5
Weight Net (Ib) 3,660
Payload (Ib) 800
Gross (Ib) 4,460
Shipping dimensions (cu ft) (sq ft) 81
Tires Ply.. .6 Size. . .6.00 x 16
Tread, center to center (in.) 49
Ground clearance (in.) 8%
Life preservers Seat cushion type 5
Loaded waterline length (in.) 165
Loaded freeboard:
at coaming (in.) Front 21 Rear 19
at deck (in.) Front 17 Rear 91A
Loaded draft (in.) at front wheels 29J4 at rear wheels 33 H
Electrical system (volts) 12
Capacities Fuel, 70 octane gasoline (gal) 15
Cooling system (qt) 13
Crankcase (refill) (qt) 4
Pintle height (in.) 28^
Brakes Hydraulic
PERFORMANCE
Maximum gradability (percent) 45
Turning radius (ft) Land 18J4 Water 18
Angle of approach (deg) 37 H
Angle of departure (deg) 37
Cruising range Land (miles) 250
Water, top speed 2nd gear (miles) 18%
Water, cruising speed 3rd gear, .(miles) 37
Maximum allowable speed (mph): 1st 2nd 3rd
Land 24 41 60
Water 5.5 4.5
ENGINE
Manufacturer Ford Model GPW
Type In-line, 4 cycle Number of cylinders 4
Displacement (cu in.) 134
Governed speed Not governed
Brake horsepower 60
Ignition type Battery
ADDITIONAL DATA

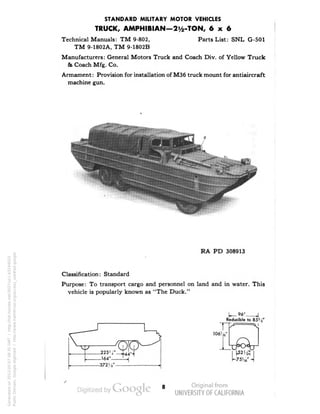

TRUCK, AMPHIBIAN-2y2-TON, 6x6
Technical Manuals: TM 9-802, Parts List: SNL G-501
TM 9-1802A, TM 9-1802B
Manufacturers: General Motors Truck and Coach Div. of Yellow Truck
& Coach Mfg. Co.
Armament: Provision for installation of M36 truck mount for antiaircraft
machine gun.
RA PD 308913
Purpose: To transport cargo and personnel on land and in water. This
vehicle is popularly known as "The Duck."
Reducible to 853 s"

TRUCK, AMPHIBIAN, 2y2-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 19,850
Tires Ply 10 Size 11.00 x 18
Tread, center to center (in.).Front 63% Rear 63%
Ground clearance (in.)
Life preservers Jacket type 5
Life ring 1
Loaded waterline length (in.) 344
Loaded freeboard: at coaming (in.) Front 29 Rear 29
at deck (in.) Front 24 Rear 16
Loaded draft (in.) at front wheels 42 at rear wheels 51
Cargo space (cu ft):
to top of coaming 198 under tarp. bows 385
Capacities Fuel, 70 octane gasoline .... (gal) 40
Pintle height (in.) 48
Brakes Hydraulic (Hydrovac)
PERFORMANCE
Turning radius (ft) Land—Left 36 Right 35
Water—Left 17^ Right 12^
Angle of approach (deg) 38
Cruising range Land (miles) 240
Water Top speed, 2nd gear (miles) 30
Water. . . Cruising speed, 3rd gear (miles) 50
Maximum allowable speed (mph) . . 1st 2nd 3rd 4th 5th
Land 7 11 22 40 50
Water — 6.4 5.4 — —
ENGINE
Manufacturer CMC Model 270
Displacement (cu in.) 269.5
Governed speed (rpm) 2,750
Brake horsepower 104
ADDITIONAL DATA
Winch capacity '. (Ib) 10,000

LANDING VEHICLE, TRACKED, MK I —LVT (1)
TM 9-1784.
Manufacturers: See additional data.
RA PD 45420
Classification:
Purpose: For use in rough terrain, swamp land, and self-propulsion in
exposed waters. Also used for landing on beach through surf.
-2|58"
98"-
118"
10

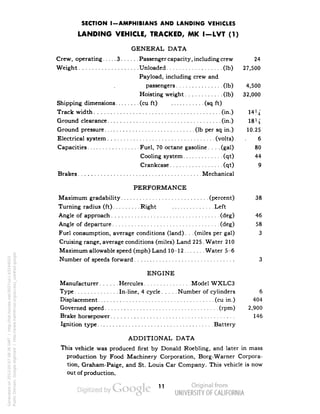

LANDING VEHICLE, TRACKED, MK I-LVT (1)
GENERAL DATA
Weight Unloaded (Ib) 27,500
Payload, including crew and
passengers (Ib) 4,500
Hoisting weight (Ib) 32,000
Shipping dimensions (cu ft) (sq ft)
Track width (in.)
Ground pressure (Ib per sq in.) 10.25
Electrical system (volts) v 6
Capacities Fuel, 70 octane gasoline.... (gal) 80
Crankcase (qt) 9
Brakes Mechanical
PERFORMANCE
Turning radius (ft) Right Left
Fuel consumption, average conditions (Iand). . . (miles per gal) 3
Cruising range, average conditions (miles) Land 225 . Water 210
Maximum allowable speed (mph) Land 10-12 Water 5-6
Number of speeds forward 3
ENGINE
Manufacturer Hercules Model WXLC3
ADDITIONAL DATA
This vehicle was produced first by Donald Roebling, and later in mass
production by Food Machinery Corporation, Borg-Warner Corpora-tion,
Graham-Paige, and St. Louis Car Company. This vehicle is now
out of production.
11

LANDING VEHICLE, TRACKED (UNARMORED),
MK II-LVT (2)
Technical Manuals: Parts List: SNL G-167
Manufacturers: Borg-Warner Corp.; Food Machinery Corp.; Graham-
Paige, and St. Louis Car Co.
Armament: One Gun, machine, cal. .50, HB M2; one to three Guns,
machine, cal. .30, M1919A4 (flexible).
Ammunition: 2,000 rounds, cal. .30; 1,000 rounds, cal. .50.
RA PD 309076
Classification:
311".
T
97"
97'/2"
126"
I
12

TM 9-2800

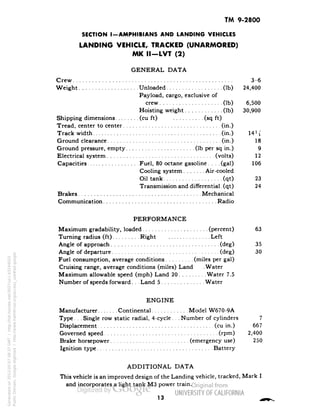

LANDING VEHICLE, TRACKED (UNARMORED)
MK II—LVT (2)
GENERAL DATA
Crew 3-6
Payload, cargo, exclusive of
crew (Ib) 6,500
Tread, center to center (in.)
Track width (in.) 14*4
Ground clearance (in.) 18
Ground pressure, empty (Ib per sq in.) 9
Cooling system Air-cooled
Oil tank (qt) 23
Transmission and differential. (qt) 24
Brakes Mechanical
Communication Radio
PERFORMANCE
Maximum gradability, loaded (percent) 63
Fuel consumption, average conditions (miles per gal)
Cruising range, average conditions (miles) Land .Water
Maximum allowable speed (mph) Land 20 Water 7.5
Number of speeds forward. . Land 5 Water
ENGINE
Manufacturer Continental Model W670-9A
Type. . . Single row static radial, 4-cycle. . . Number of cylinders 7
Brake horsepower (emergency use) 250
ADDITIONAL DATA
This vehicle is an improved design of the Landing vehicle, tracked, Mark I
and incorporates a light tank M3 power train.
13

TM 9-2800

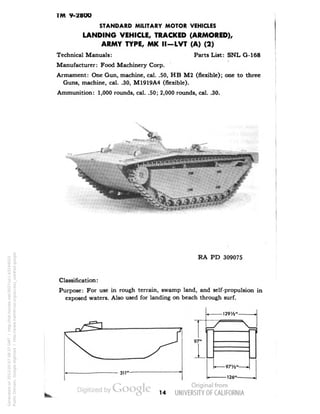

LANDING VEHICLE, TRACKED (ARMORED),
ARMY TYPE, MK II —LVT (A) (2)
i
Manufacturer: Food Machinery Corp.
Armament: One Gun, machine, cal. .50, HB M2 (flexible); one to three
Guns, machine, cal. .30, M1919A4 (flexible).
Ammunition: 1,000 rounds, cal. .50; 2,000 rounds, cal. .30.
RA PD 309075
Classification:
14

TM 9-2800

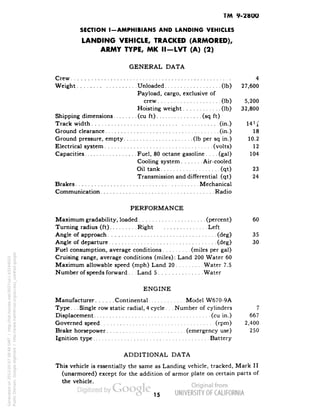

LANDING VEHICLE, TRACKED (ARMORED),
ARMY TYPE, MK II-LVT (A) (2)
GENERAL DATA
Crew 4
Payload, cargo, exclusive of
crew (Ib) 5,200
Track width (in.) 14^
Ground pressure, empty (Ib per sq in.) 10.2
Oil tank (qt) 23
Brakes Mechanical
Communication Radio
PERFORMANCE
Maximum gradability, loaded (percent) 60
Cruising range, average conditions (miles): Land 200 Water 60
Maximum allowable speed (mph) Land 20 Water 7.5
Number of speeds forward. . . Land 5 Water
ENGINE
Type. . . Single row static radial, 4 cycle. . . Number of cylinders 7
Governed speed (rPm) 2,400
Brake horsepower (emergency use) 250
ADDITIONAL DATA
This vehicle is essentially the same as Landing vehicle, tracked, Mark II
(unarmored) except for the addition of armor plate on certain parts of
the vehicle.
15

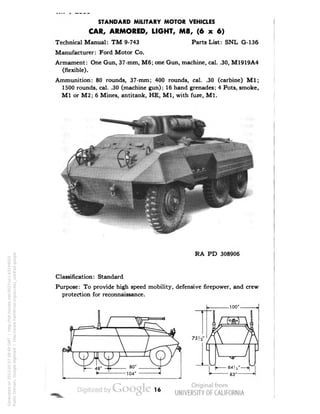

CAR, ARMORED, LIGHT, M8, (6 x 6)
Technical Manual: TM 9-743 Parts List: SNL G-136
Armament: One Gun, 37-mm, M6; one Gun, machine, cal. .30, M1919A4
(flexible).
Ammunition: 80 rounds, 37-mm; 400 rounds, cal. .30 (carbine) Ml;
1500 rounds, cal. .30 (machine gun); 16 hand grenades; 4 Pots, smoke,
M1 or M2; 6 Mines, antitank, HE, M1, with fuze, M1.
RA PD 308906
Purpose: To provide high speed mobility, defensive firepower, and crew
protection for reconnaissance.
16

i in T-SECTION
II -ARMORED CARS

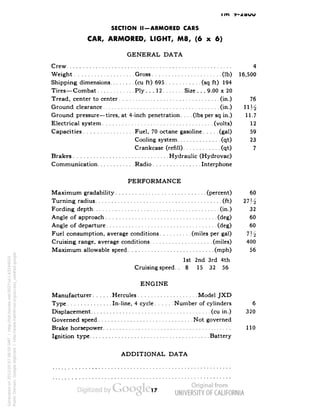

CAR, ARMORED, LIGHT, MS, (6 x 6)
GENERAL DATA
Crew ................................ 4
Weight ................... Gross ...................... (Ib) 16,500
Shipping dimensions ........ (cu ft) 695 ........... (sq ft) 194
Tires— Combat ............ Ply ... 12 ........ Size . . . 9.00 x 20
Tread, center to center ................................ (in.) 76
Ground clearance ..................................... (in.) 1 1 %
Ground pressure — tires, at 4-inch penetration. . . . (Ibs per sq in.) 11.7
Electrical system ................................... (volts) 12
Capacities ................ Fuel, 70 octane gasoline ..... (gal) 59
Cooling system .............. (qt) 23
Crankcase (refill) ............ (qt) 7
Brakes .............................. Hydraulic (Hydrovac)
Communication ............ Radio ............... Interphone
PERFORMANCE
Maximum gradability ............................ (percent) 60
Turning radius ........................................ (ft) 27^
Fording depth ........................................ (in.) 32
Angle of approach ................................... (deg) 60
Angle of departure ................................... (deg) 60
Fuel consumption, average conditions .......... (miles per gal) 7}^
Cruising range, average conditions .................... (miles) 400
Maximum allowable speed ........................... (mph) 56
1st 2nd 3rd 4th
Cruising speed. . 8 15 32 56
ENGINE
Manufacturer ...... Hercules ................... Model JXD
Type .............. In-line, 4 cycle ...... Number of cylinders 6
Displacement ...................................... (cu in.) 320
Governed speed .............................. Not governed
Brake horsepower ......................................... 110
Ignition type ...................................... Battery
ADDITIONAL DATA

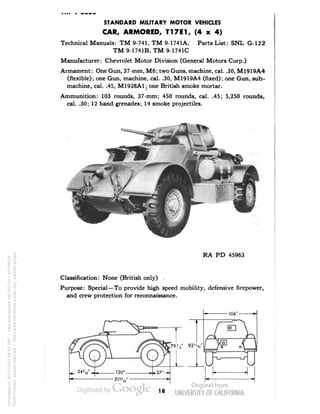

CAR, ARMORED, T17E1, (4 x 4)
Technical Manuals: TM 9-741, TM 9-1741A, Parts List: SNL G-122
TM 9-1741B, TM 9-1741C
Manufacturer: Chevrolet Motor Division (General Motors Corp.)
Armament: One Gun, 37-mm, M6; two Guns, machine, cal. .30, M1919A4
(flexible); one Gun, machine, cal. .30, M1919A4 (fixed); one Gun, sub-machine,
cal. .45, M1928A1; one British smoke mortar.
Ammunition: 103 rounds, 37-mm; 450 rounds, cal. .45; 5,250 rounds,
cal. .30; 12 hand grenades; 14 smoke projectiles.
RA PD 45963
Classification: None (British only) •
Purpose: Special—To provide high speed mobility, defensive firepower,
and crew protection for reconnaissance.
-106"
V® f
L=/i___£==
18

TM 9-2800

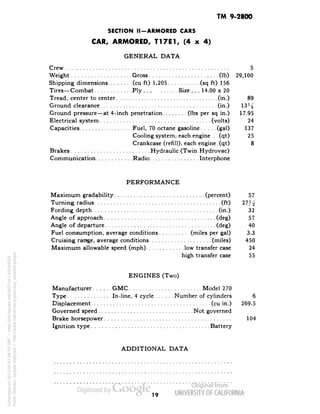

SECTION II-ARMORED CARS
GENERAL DATA
Crew 5
Weight Gross (Ib) 29,100
Shipping dimensions (cu ft) 1,205 (sq ft) 156
Tires—Combat Ply Size . . . 14.00 x 20
Ground clearance (in.) 13V^
Ground pressure—at 4-inch penetration (Ibs per sq in.) 17.95
Cooling system, each engine... (qt) 25
Crankcase (refill), each engine, (qt) 8
Brakes Hydraulic (Twin Hydrovac)
Communication Radio Interphone
PERFORMANCE
Turning radius (ft) 27 J^
Fording depth (in.) 32
Fuel consumption, average conditions (miles per gal) 3.3
Cruising range, average conditions (miles) 450
Maximum allowable speed (mph) low transfer case 24
high transfer case 55
ENGINES (Two)
Manufacturer GMC Model 270
ADDITIONAL DATA
19

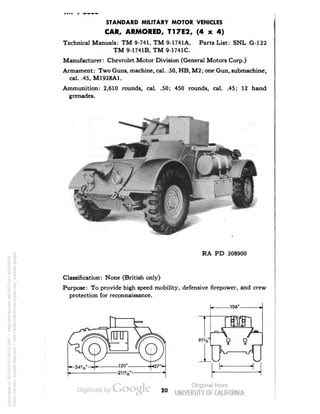

TM 9-1741B, TM 9-1741C.
Armament: Two Guns, machine, cal. .50, HB, M2; one Gun, submachine,
cal. .45, M1928A1.
Ammunition: 2,610 rounds, cal. .50; 450 rounds, cal. .45; 12 hand
grenades.
RA PD 308900
Classification: None (British only)
Purpose: To provide high speed mobility, defensive firepower, and crew
protection for reconnaissance.
106°
9 9
20

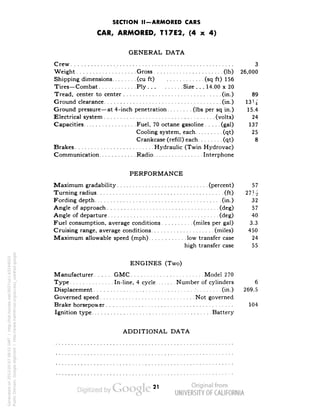

GENERAL DATA
Crew 3
Tires—Combat Ply Size ... 14.00 x 20
Ground clearance (in.) 13J^
Electrical system : (volts) 24
Cooling system, each (qt) 25
Crankcase (refill) each (qt) 8
Brakes Hydraulic (Twin Hydrovac)
PERFORMANCE
Turning radius (ft) 27H
Maximum allowable speed (mph) low transfer case 24
high transfer case 55
ENGINES (Two)
Displacement • (in.) 269.5
Brake horsepow er 104
ADDITIONAL DATA

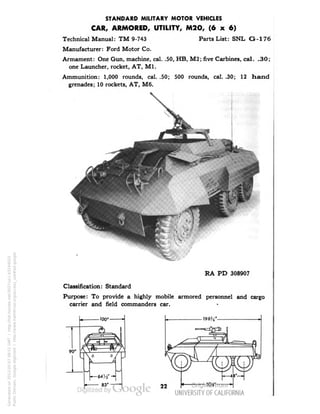

CAR, ARMORED, UTILITY, M2O, (6 x 6)
Armament: One Gun, machine, cal. .50, HB, M2; five Carbines, cal. .30;
one Launcher, rocket, AT, M1.
grenades; 10 rockets, AT, M6.
RA PD 308907
Purpose: To provide a highly mobile armored personnel and cargo
carrier and field commanders car.

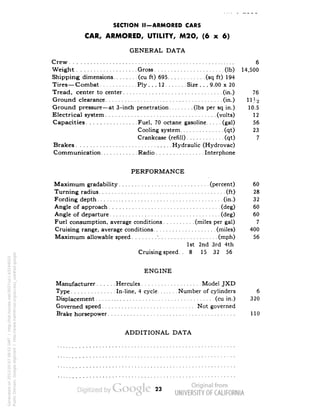

CAR, ARMORED, UTILITY, M2O, (6 x 6)
GENERAL DATA
Crew 6
Shipping dimensions (cu ft) 695 (sq ft) 194
Tires—Combat Ply. . . 12 Size . . . 9.00 x 20
Ground clearance (in.) 11H
PERFORMANCE
Turning radius (ft) 28
Fuel consumption, average conditions (miles per gal) 7
Maximum allowable speed' (mph) 56
1st 2nd 3rd 4th
Cruising speed.. 8 15 32 56
ENGINE
Manufacturer Hercules Model JXD
ADDITIONAL DATA
23

CAR, SCOUT, M3A1, (4 x 4)
Technical Manuals: TM 9-705, TM 9-1705, Parts List: SNL G-67
TM 9-1706, TM 9-1709.
Manufacturer: White Motor Co.
Armament: One Gun, machine, cal. .30, M1919A4, flexible; one Gun,
machine, cal. .50, HB, M2, flexible; one Gun, submachine, cal. .45,
M1928A1.
Ammunition: 8,000 rounds, cal. .30; 750 rounds, cal. .50; 540 rounds,
cal. .45.
RA PD 66367
Purpose: To provide mobility and crew protection for reconnaissance in
combat.
B3H'-
24

IM V-20UU

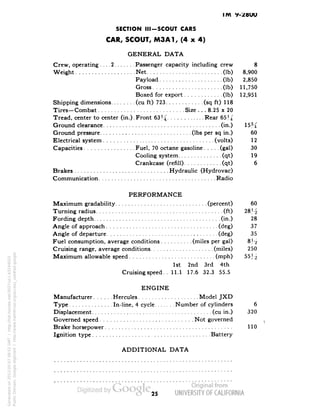

SECTION III-SCOUT CARS
CAR, SCOUT, M3A1, (4 x 4)
GENERAL DATA
Crew, operating ... .2 Passenger capacity including crew 8
Payload (Ib) 2,850
Gross (Ib) 11,750
Boxed for export (Ib) 12,951
Tires—Combat Size . . . 8.25 x 20
Tread, center to center (in.).Front 63% Rear 65J4
Ground pressure (Ibs per sq in.) 60
Communication Radio
PERFORMANCE
Turning radius (ft) 28J^
Fuel consumption, average conditions (miles per gal) 8J/2
Maximum allowable speed (mph) 55Yi
1st 2nd 3rd 4th
Cruising speed. . 11.1 17.6 32.3 55.5
ENGINE
ADDITIONAL DATA
25

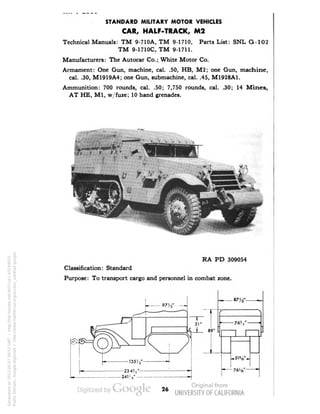

CAR, HALF-TRACK, M2
Technical Manuals: TM 9-710A, TM 9-1710, Parts List: SNL G-102
TM 9-1710C, TM 9-1711.
Manufacturers: The Autocar Co.; White Motor Co.
Armament: One Gun, machine, cal. .50, HB, M2; one Gun, machine,
cal. .30, M1919A4; one Gun, submachine, cal. .45, M1928A1.
Ammunition: 700 rounds, cal. .50; 7,750 rounds, cal. .30; 14 Mines,
AT HE, M1, w/fuze; 10 hand grenades.
RA PD 309054
Purpose: To transport cargo and personnel in combat zone.
-87^'-
• 76V •
8
9'
1 1 1'
•
.51%'-
—
-76HV-
•-
26

im y-zouu
SECTION IV-CARGO AND PERSONNEL CARRIERS

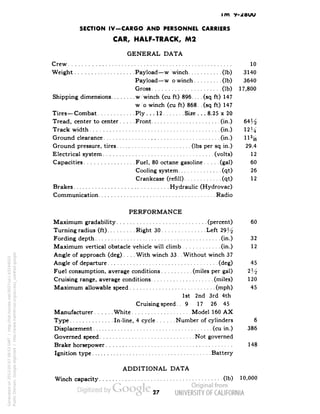

CAR, HALF-TRACK, M2
GENERAL DATA
Crew 10
Weight Payload—w •winch (Ib) 3140
Payload—w o winch (Ib) 3640
Gross : (Ib) 17,800
Shipping dimensions w/winch (cu ft) 896... . (sq ft) 147
w/o winch (cu ft) 868. . (sq ft) 147
Tires—Combat Ply ... 12 Size ... 8.25 x 20
Tread, center to center Front (in.) 64^
Track width (in.) 12 ^
Ground clearance (in.) 1 lsfg
Ground pressure, tires (Ibs per sq in.) 29.4
Communication Radio
PERFORMANCE
Turning radius (ft) Right 30 Left 29%
Maximum vertical obstacle vehicle will climb (in.) 12
Angle of approach (deg) .... With winch 33. .Without winch 37
Fuel consumption, average conditions (miles per gal) 2J^
Maximum allowable speed (mph) 45
1st 2nd 3rd 4th
Cruising speed. . 9 17 26 45
Manufacturer White Model 160 AX
ADDITIONAL DATA
Winch capacity (Ib) 10,000
27

im v-^ouu

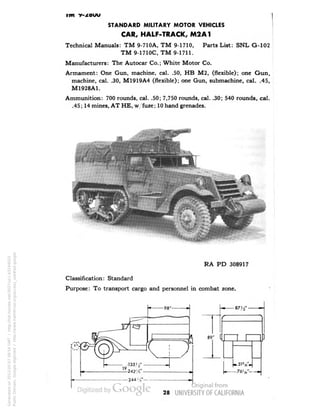

CAR, HALF-TRACK, M2A1
TM 9-1710C, TM 9-1711.
Manufacturers: The Autocar Co.; White Motor Co.
Armament: One Gun, machine, cal. .50, HB M2, (flexible); one Gun,
machine, cal. .30, M1919A4 (flexible); one Gun, submachine, cal. .45,
M1928A1.
Ammunition: 700 rounds, cal. .50; 7,750 rounds, cal. .30; 540 rounds, cal.
.45; 14 mines, AT HE, w fuze; 10 hand grenades.
RA PD 308917
87] •
89" [
-S1V-J
761 I6-_.

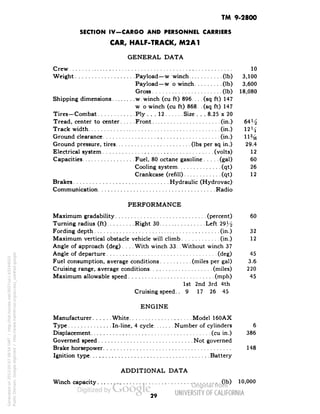

TM 9-2800
GENERAL DATA
Crew 10
Weight Payload—w/winch (Ib) 3,100
Payload—w/o winch (Ib) 3,600
Gross (Ib) 18,080
Shipping dimensions w winch (cu ft) 896. .. . (sq ft) 147
w/o winch (cu ft) 868 . (sq ft) 147
Tires-Combat Ply ... 12 Size . . . 8.25 x 20
Tread, center to center Front (in.) 641/2
Track width (in.)
Communication Radio
PERFORMANCE
Turning radius (ft) Right 30 Left 29J^
Angle of approach (deg) .... With winch 33.. Without winch 37
1st 2nd 3rd 4th
ENGINE
Manufacturer White Model 160AX
ADDITIONAL DATA
29

TM 9-2800

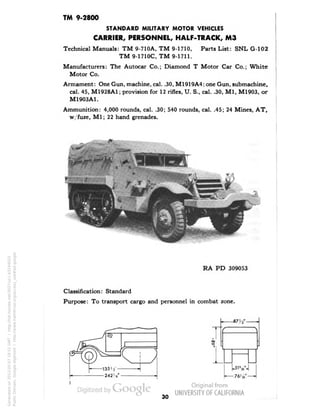

CARRIER, PERSONNEL, HALF-TRACK, M3
TM 9-1710C, TM 9-1711.
Manufacturers: The Autocar Co.; Diamond T Motor Car Co.; White
Motor Co.
Armament: One Gun, machine, cal. .30, M1919A4: one Gun, submachine,
cal. 45, M1928A1; provision for 12 rifles, U. S., cal. .30, M1, M1903, or
M1903A1.
Ammunition: 4,000 rounds, cal. .30; 540 rounds, cal. .45; 24 Mines, AT,
w, fuze, M1; 22 hand grenades.
RA PD 309053
87
~>v.|
k—76?tf—I
30

TM 9-2800

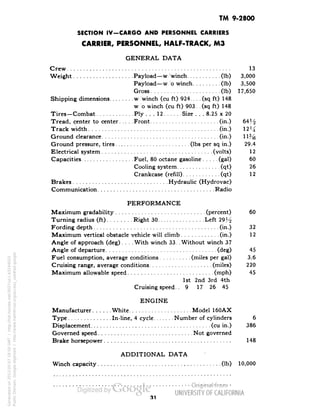

GENERAL DATA
Crew 13
Payload—w/o winch (Ib) 3,500
Gross (Ib) 17,650
Shipping dimensions w/winch (cu ft) 924. . . . (sq ft) 148
w/o winch (cu ft) 903. . (sq ft) 148
Tires—Combat Ply ... 12 Size . . . 8.25 x 20
Tread, center to center Front (in.) 64 ^
Track width (in.) 12 V^
Communication Radio
PERFORMANCE
Turning radius (ft) Right 30 Left 29^
Angle of approach (deg).... With winch 33.. Without winch 37
1st 2nd 3rd 4th
ENGINE
ADDITIONAL DATA

TM 9-2800

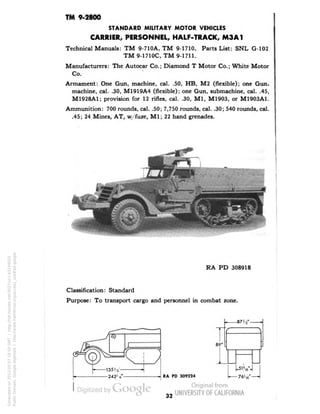

CARRIER, PERSONNEL, HALF-TRACK, M3A1
TM 9-1710C, TM 9-1711.
Manufacturers: The Autocar Co.; Diamond T Motor Co.; White Motor
Co.
Armament: One Gun, machine, cal. .50, HB, M2 (flexible); one Gun,
machine, cal. .30, M1919A4 (flexible); one Gun, submachine, cal. .45,
M1928A1; provision for 12 rifles, cal. .30, M1, M1903, or M1903A1.
Ammunition: 700 rounds, cal. .50; 7,750 rounds, cal. .30; 540 rounds, cal.
.45; 24 Mines, AT, w/fuze, M1; 22 hand grenades.
RA PD 308918
RA PD 309224
87 !f .
^
T
I
1 .
— 76h6"—
32

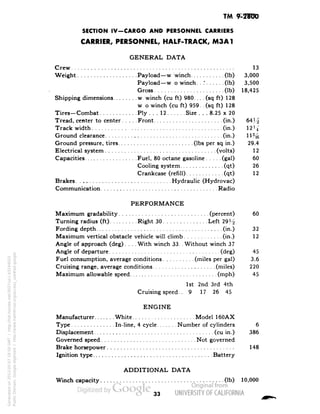

TM 9=2800
GENERAL DATA
Crew 13
Payload—w/o winch. .: (Ib) 3,500
Gross (Ib) 18,425
Shipping dimensions w/winch (cu ft) 980. .. . (sq ft) 128
w/o winch (cu ft) 959. .(sq ft) 128
Tread, center to center Front (in.) 64J^
Track width (in.) 11V±
Communication Radio
PERFORMANCE
Turning radius (ft) Right 30 Left 29%
Angle of approach (deg).... With winch 33.. Without winch 37
1st 2nd 3rd 4th
ENGINE
ADDITIONAL DATA

CARRIER, PERSONNEL, HALF-TRACK, MS
TM 9-1707A, TM 9-1707B.
Manufacturer: International Harvester Co.
Armament: One Gun, machine, cal. .30; one Gun, submachine, cal. .45,
M1928A1; provision for 12 rifles, cal. .30, M1 or M1903.
grenades; 24 Mines, AT w/'fuze, M1.
RA PD 66329
U—67} 2' »|
34

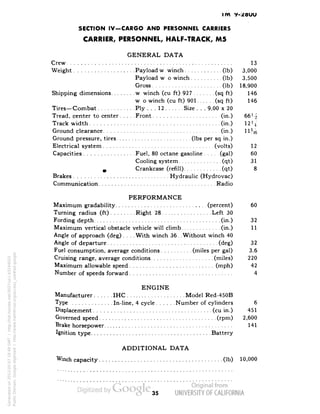

IfW
GENERAL DATA
Crew 13
Weight Payload w/winch (Ib) 3,000
Payload wo winch (Ib) 3,500
Gross (Ib) 18,900
Shipping dimensions w winch (cu ft) 927 (sq ft) 146
w o winch (cu ft) 901 (sq ft) 146
Tread, center to center Front (in.) 66' •>
Track width (in.) 121£
Ground pressure, tires (Ibs per sq in.)
9 Crankcase (refill) (qt) 8
Communication Radio
PERFORMANCE
Turning radius (ft) Right 28 Left 30
Angle of approach (deg) .... With winch 36.. Without winch 40
ENGINE
Manufacturer IHC Model Red-450B
ADDITIONAL DATA
35

Technical Manuals: TM 9-707, TM 9-1707A. Parts List: SNL G-147
Armament: One Gun, machine, cal. .30, M1919A4 (flexible); one Gun,
machine, cal. .50, HB, M2 (flexible); one Gun, submachine, cal. .45,
M1928A1; twelve Rifles, cal. .30, Ml, M1903, or M1903A1.
Ammunition: 7,750 rounds, cal. .30; 700 rounds, cal. .50; 540 rounds, cal.
.45; 22 hand grenades.
RA PD 308922
Purpose: Used to transport cargo and personnel in combat zone.
U—87'-j*—J
91*
Ik-b
36

TM 9-2800

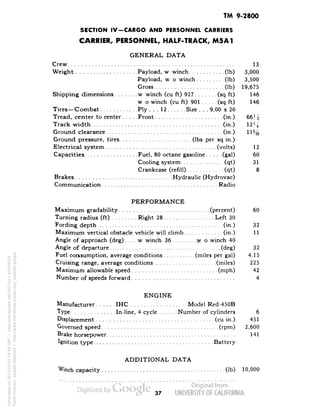

GENERAL DATA
Crew 13
Weight Payload, w/winch (Ib) 3,000
Payload, w/o winch (Ib) 3,500
Gross (Ib) 19,675
Shipping dimensions w/winch (cu ft) 927 (sq ft) 146
w/o winch (cu ft) 901 (sq ft) 146
Tread, center to center Front (in.)
Track width (in.)
Communication Radio
PERFORMANCE
Angle of approach (deg). . . .w/winch 36 wo winch 40
ENGINE
ignition type Battery
ADDITIONAL DATA
37

IM V-/OUU

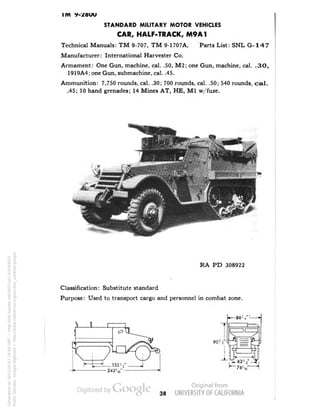

Armament: One Gun, machine, cal. .50, M2; one Gun, machine, cal. .30,
1919A4; one Gun, submachine, cal. .45.
Ammunition: 7,750 rounds, cal. .30; 700 rounds, cal. .50; 540 rounds, ca1.
.45; 10 hand grenades; 14 Mines AT, HE, M1 w/fuze.
RA PD 308922
Classification: Substitute standard
Purpose: Used to transport cargo and personnel in combat zone.
T
90'•v'[
X
JLl
. 621./
•76V
38

TM 9-2800

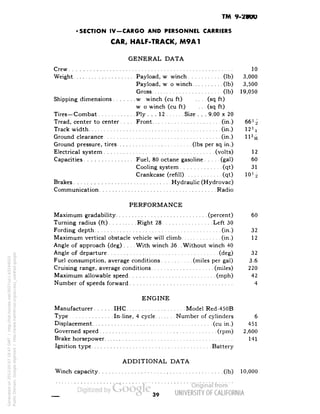

'SECTION IV-CARGO AND PERSONNEL CARRIERS
GENERAL DATA
Crew 10
Weight Payload, w/winch (Ib) 3,000
Payload, w o winch (Ib) 3,500
Gross (Ib) 19,050
Shipping dimensions w/ winch (cu ft) .... (sq ft)
wo winch (cu ft) ... (sq ft)
Tread, center to center Front (in.)
Track width (in.)
Crankcase (refill) (qt) 10Yi
Communication Radio
PERFORMANCE
Angle of approach (deg) . . With winch 36. .Without winch 40
ENGINE
ADDITIONAL DATA
39

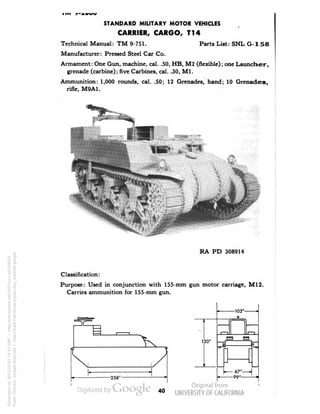

CARRIER, CARGO, T14
Technical Manual: TM 9-751. Parts List: SNL G-158
Manufacturer: Pressed Steel Car Co.
Armament: One Gun, machine, cal. .50, HB, M2 (flexible); one Launcher,
grenade (carbine); five Carbines, cal. .30, M1.
Ammunition: 1,000 rounds, cal. .50; 12 Grenades, hand; 10 Grenades,
rifle, M9A1.
RA PD 308914
Classification:
Purpose: Used in conjunction with 155-mm gun motor carriage, M12.
Carries ammunition for 155-mm gun.
-105'-
o
-238'-
120'
-67
-99'
40

TM 9-2800

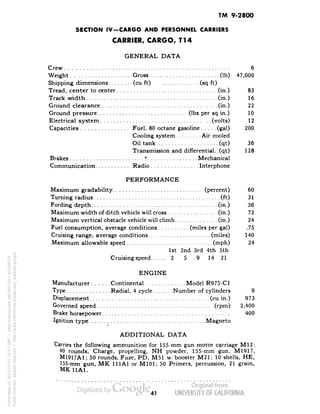

CARRIER, CARGO, Tl4
GENERAL DATA
Crew 6
Track width (in.) 16
Cooling system Air cooled
Oil tank (qt) 36
Transmission and differential., (qt) 128
Brakes r Mechanical
PERFORMANCE
Maximum width of ditch vehicle will cross (in.) 72
Fuel consumption, average conditions (miles per gal) .75
1st 2nd 3rd 4th 5th
Cruising speed 2 5 9 14 21
ENGINE
Manufacturer Continental Model R975-C1
Type Radial, 4 cycle Number of cylinders 9
Ignition type Magneto
ADDITIONAL DATA
Carries the following ammunition for 155-mm gun motor carriage M12:
40 rounds, Charge, propelling, NH powder, 155-mm gun, M1917,
M1917A1; 50 rounds, Fuze, PD, M51 w/booster M21; 10 shells, HE,
155-mm gun, MK 111A1 or M101; 50 Primers, percussion, 21 grain,
MK 11A1.
41

T»Vl 9-2800

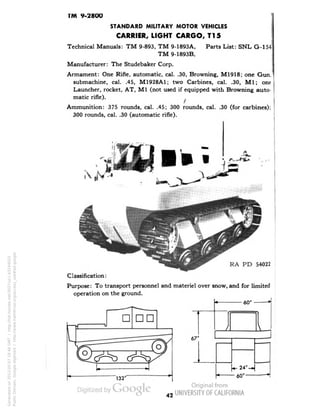

CARRIER, LIGHT CARGO, T15
TM 9-1893B.
Manufacturer: The Studebaker Corp.
Armament: One Rifle, automatic, cal. .30, Browning, M1918; one Gun,
submachine, cal. .45, M1928A1; two Carbines, cal. .30, Ml; one
Launcher, rocket, AT, M1 (not used if equipped with Browning auto-matic
rifle).
Ammunition: 375 rounds, cal. .45; 300 rounds, cal. .30 (for carbines);
300 rounds, cal. .30 (automatic rifle).
RA PD 54022
^
Classification:
Purpose: To transport personnel and materiel over snow, and for limited
operation on the ground.
• 60'
67'
60
42

TM 9-2800

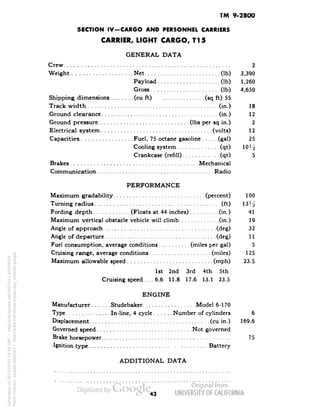

CARRIER, LIGHT CARGO, T15
GENERAL DATA
Crew 2
Payload (Ib) 1,260
Gross (Ib) 4,650
Cooling system (qt) 10J'£
Brakes Mechanical
Communication Radio
PERFORMANCE
Turning radius (ft) 13'/2
Fording depth (Floats at 44 inches) (in.) 41
Maximum allowable speed (mph) 23.5
1st 2nd 3rd 4th 5th
Cruising speed.... 6.6 11.8 17.6 13.1 23.5
ENGINE
Manufacturer Studebaker Model 6-170
Brake horsepower 75
ADDITIONAL DATA
43

TM 9-2800

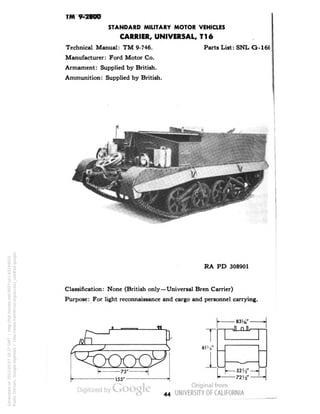

CARRIER, UNIVERSAL, T16
Armament: Supplied by British.
Ammunition: Supplied by British.
RA PD 308901
Classification: None (British only—Universal Bren Carrier)
Purpose: For light reconnaissance and cargo and personnel carrying.
ill nllr

1IVI T*

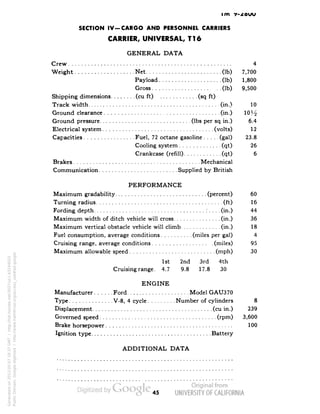

CARRIER, UNIVERSAL, T16
GENERAL DATA
Crew 4
Payload (Ib) 1,800
Gross (Ib) 9,500
Ground pressure (Ibs per sq in.) 6.4
Capacities Fuel, 72 octane gasoline (gal) 23.8
Brakes Mechanical
Communication Supplied by British
PERFORMANCE
Fording depth :. . . . (in.) 44
1st 2nd 3rd 4th
Cruising range. 4.7 9.8 17.8 30
ENGINE
Manufacturer Ford Model GAU370
Type V-8, 4 cycle Number of cylinders 8
ADDITIONAL DATA
45

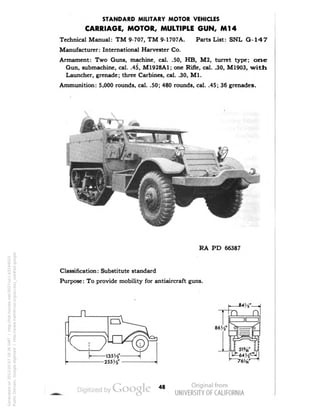

CARRIAGE, MOTOR, MULTIPLE GUN, Ml4
Technical Manual: TM 9-707, TM 9-1707A. Parts List: SNL G-147
Armament: Two Guns, machine, cal. .50, HB, M2, turret type; one
Gun, submachine, cal. .45, M1928A1; one Rifle, cal. .30, M1903, with
Launcher, grenade; three Carbines, cal. .30, M1.
Ammunition: 5,000 rounds, cal. .50; 480 rounds, cal. .45; 36 grenades.
RA PD 66387
Purpose: To provide mobility for antiaircraft guns.
, n
48

TM 9-2800

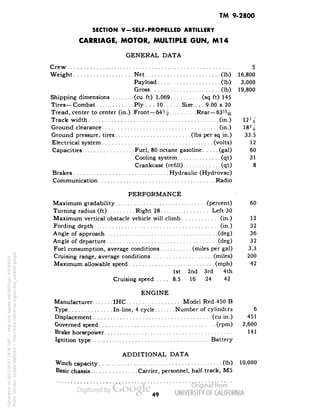

SECTION V-SELF-PROPELLED ARTILLERY
GENERAL DATA
Crew 5
Payload (Ib) 3,000
Gross (Ib) 19,800
Tires—Combat Ply ... 10 Size . . . 9.00 x 20 .
Tread, center to center (in.). Front—64J^ Rear—63'%
Track width (in.)
Communication Radio
PERFORMANCE
1st 2nd 3rd 4th
Cruising speed 8.5 16 24 42
ENGINE
Manufacturer IHC Model Red-450-B
ADDITIONAL DATA
Basic chassis Carrier, personnel, half-track, M5
49

TWl 9-2800
TM9-1710C, TM 9-1711.
Manufacturer: The Autocar Co.
Armament: One Gun, automatic, 37-mm, M1A2; two Guns, machine,
cal. .50, HB, M2.
Ammunition: 240 rounds, 37-mm shell, HE M54 or AP M59; 3,400
rounds, cal. .50.
, }
RA PD 308959
Classification: Limited standard
Purpose: To provide mobility for antiaircraft guns.
104"
-98" ——
50

TM 9-2800

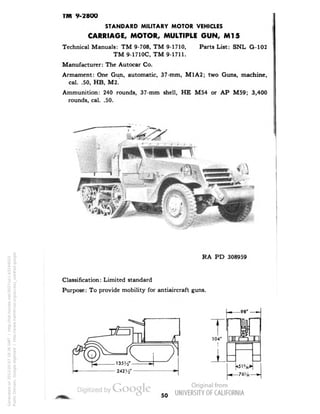

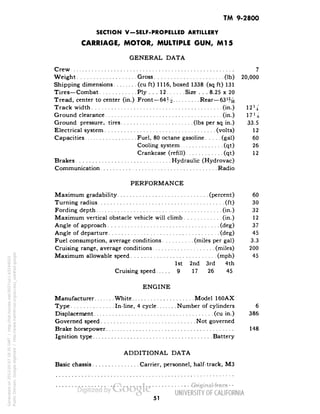

CARRIAGE, MOTOR, MULTIPLE GUN, Ml 5
GENERAL DATA
Crew 7
Shipping dimensions (cu ft) 1116, boxed 1338 (sq ft) 131
Tread, center to center (in.) Front—64H Rear— 63%
Ground clearance (in.) 175-g
Communication Radio
PERFORMANCE
1st 2nd 3rd 4th
Cruising speed 9 17 26 45
ENGINE
ADDITIONAL DATA
51

TM 9-2800

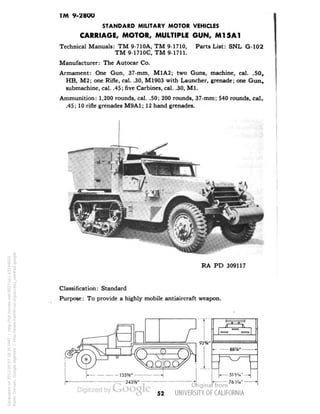

CARRIAGE, MOTOR, MULTIPLE GUN, M15A1
TM 9-1710C, TM 9-1711.
Armament: One Gun, 37-mm, M1A2; two Guns, machine, cal. .50,
HB, M2; one Rifle, cal. .30, M1903 with Launcher, grenade; one Gun,
submachine, cal. .45; five Carbines, cal. .30, M1.
Ammunition: 1,200 rounds, cal. .50; 200 rounds, 37-mm; 540 rounds, cal.
.45; 10 rifle grenades M9A1; 12 hand grenades.
RA PD 309117
Purpose: To provide a highly mobile antiaircraft weapon.
-135W— —
243V4"-
92%•
88'/4"
52

TM 9-2800

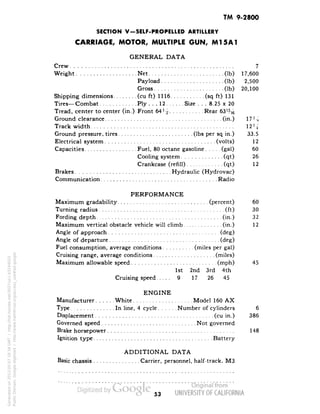

CARRIAGE, MOTOR, MULTIPLE GUN, M15A1
GENERAL DATA
Crew 7
Payload (Ib) 2,500
Gross (Ib) 20,100
Tread, center to center (in.).Front 64H Rear 63%
Ground clearance (in.) 17 H
Track width 12^
Communication Radio
PERFORMANCE
Angle of approach (deg)
Angle of departure (deg)
Cruising range, average conditions (miles)
Maximum allowable speed (rnph) 45
1st 2nd 3rd 4th
ENGINE
Type In line, 4 cycle Number of cylinders 6
ADDITIONAL DATA
53

TM 9-2800

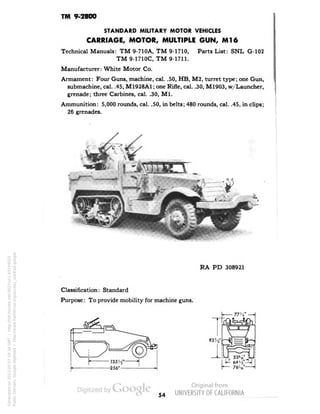

TM9-1710C, TM 9-1711.
Armament: Four Guns, machine, cal. .50, HB, M2, turret type; one Gun,
submachine, cal. .45, M1928A1; one Rifle, cal. .30, M1903, w/Launcher,
grenade; three Carbines, cal. .30, M1.
Ammunition: 5,000 rounds, cal. .50, in belts; 480 rounds, cal. .45, in clips;
26 grenades.
RA PD 308921
Purpose: To provide mobility for machine guns.
92 Ji'
77'i' -H
•5=5
r— 76' ,5'
54

TM 9-2800

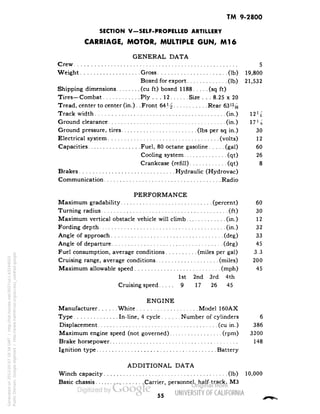

GENERAL DATA
Crew 5
Shipping dimensions (cu ft) boxed 1188 (sq ft)
Tread, center to center (in.). .Front 64^ Rear 63l%
Track width (in.) 12 J4
Ground pressure, tires (Ibs per sq in.) 30
Communication Radio
PERFORMANCE
1st 2nd 3rd 4th
ENGINE
Maximum engine speed (not governed) (rpm) 3200
ADDITIONAL DATA
55

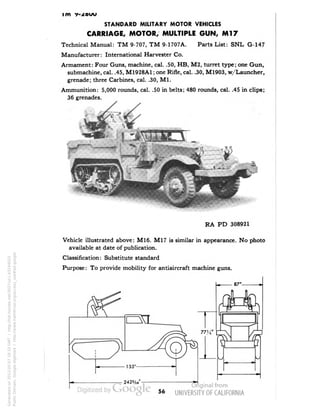

CARRIAGE, MOTOR, MULTIPLE GUN, Ml 7
Technical Manual: TM 9-707, TM 9-1707A. Parts List: SNL G-147
Armament: Four Guns, machine, cal. .50, HB, M2, turret type; one Gun,
submachine, cal. .45, M1928A1 ; one Rifle, cal. .30, M1903, w/Launcher,
grenade; three Carbines, cal. .30, M1.
Ammunition: 5,000 rounds, cal. .50 in belts; 480 rounds, cal. .45 in clips;
36 grenades.
RA PD 308921
Vehicle illustrated above: M16. M17 is similar in appearance. No photo
available at date of publication.
Purpose: To provide mobility for antiaircraft machine guns.

TM 9-2800

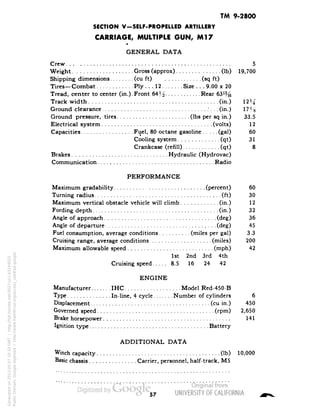

CARRIAGE, MULTIPLE GUN, Ml7
•
GENERAL DATA
Crew 5
Weight Gross (approx) (Ib) 19,700
Tires—Combat Ply... 12 Size .. . 9.00 x 20
Tread, center to center (in.). Front 64^ Rear 63%
Track width (in.) 12%
Ground clearance :. . . (in.) 17 J/g
Communication Radio
PERFORMANCE
Fuel consumption, average conditions (miles per gal) 3-3
1st 2nd 3rd 4th
Cruising speed 8.5 16 24 42
ENGINE
Manufacturer IHC Model Red-450-B
ADDITIONAL DATA
57

TM 9-2800
CARRIAGE, MOTOR, 37-MM GUN, M6
(%-TON, 4x4)
Technical Manual: TM 9-750A, TM 9-1808A. Parts List: SNL G-121
Manufacturer: Dodge Bros. Corp. (Div. of Chrysler Corp.)
Model WC-55.
Armament: One Gun, 37-mm, M3; four Rifles, cal. .30, M1903, with
Launcher, grenade.
Ammunition: 80 rounds 37-mm; 18 grenades.
RA PD 66373
Purpose: To provide mobility for 37-mm antitank gun.
82"
-88"
•48V-I
58

TM 9-2800
(3/4-TON, 4x4)
GENERAL DATA
Crew 4
Payload (Ib) 1,200
Gross (Ib) 7,050
Boxed for export . .(Ib) 8,900
Shipping dimensions (cu ft) 708, boxed 605 . (sq ft) 102
Tread, center to center (in.) 64 H
Ground clearance (in.) 10"'g
Brakes Hydraulic
Communication Radio
PERFORMANCE
Angle of approach (deg) 36 Vi
ENGINE
Manufacturer Dodge Model T-214
Brake horsepower 94
ADDITIONAL DATA
Basic chassis Weapons carrier, ?i-ton, 4x4
59

TM 9-2800

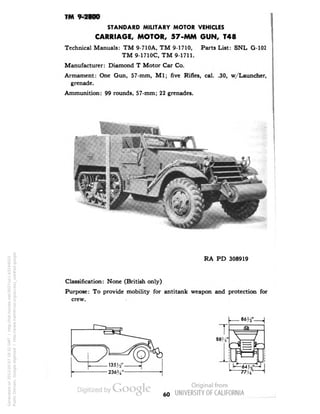

CARRIAGE, MOTOR, 57-MM GUN, T48
TM 9-1710C, TM 9-1711.
Manufacturer: Diamond T Motor Car Co.
Armament: One Gun, 57-mm, M1; five Rifles, cal. .30, w/Launcher,
grenade.
Ammunition: 99 rounds, 57-mm; 22 grenades.
RA PD 308919
Classification: None (British only)
Purpose: To provide mobility for antitank weapon and protection for
crew.
60

TM 9-2800

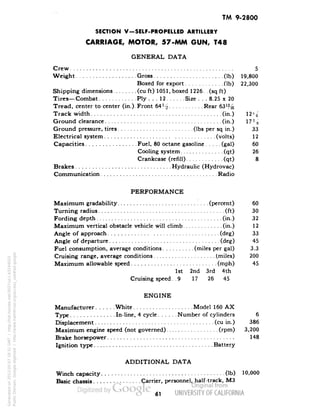

CARRIAGE, MOTOR, 57-MM GUN, T48
GENERAL DATA
Crew 5
Shipping dimensions (cu ft) 1051, boxed 1226 . (sq ft)
Tread, center to center (in.).Front 64J^ Rear 63'^
Track width (in.) 12>i
Ground clearance (in.) 17 J^
Ground pressure, tires :(Ibs per sq in.) 33
Communication Radio
PERFORMANCE
1st 2nd 3rd 4th
ENGINE
Maximum engine speed (not governed) (rpm) 3,200
ADDITIONAL DATA
61

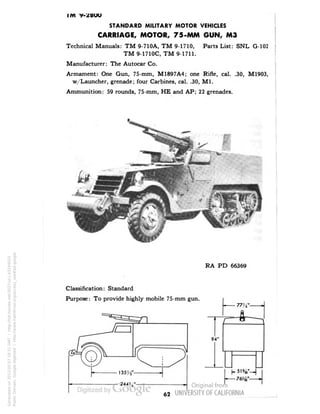

TM 9-1710C, TM 9-1711.
Armament: One Gun, 75-mm, M1897A4; one Rifle, cal. .30, M1903,
w/Launcher, grenade; four Carbines, cal. .30, Ml.
Ammunition: 59 rounds, 75-mm, HE and AP; 22 grenades.
RA PD 66369
Purpose: To provide highly mobile 75-mm gun.
94*

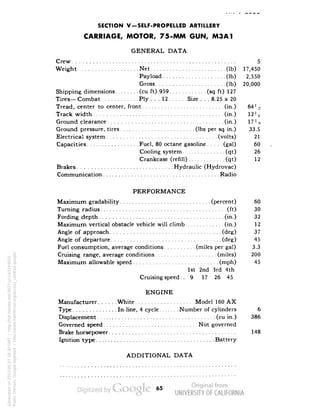

CARRIAGE, MOTOR, 75-MM GUN, M3A1
GENERAL DATA
Crew 5
Payload (Ib) 2,550
Gross (Ib) 20,000
Tread, center to center, front (in.) 64l/i
Track width (in.) 12J4
Ground clearance (in.) 17' s
Communication Radio
PERFORMANCE
1st 2nd 3rd 4th
ENGINE
ADDITIONAL DATA

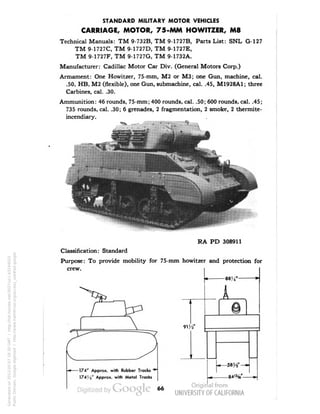

CARRIAGE, MOTOR, 75-MM HOWITZER, M8
Technical Manuals: TM 9-732B, TM 9-1727B, Parts List: SNL G-127
TM 9-1727C, TM 9-1727D, TM 9-1727E,
TM 9-1727F, TM 9-1727G, TM 9-1732A.
Manufacturer: Cadillac Motor Car Div. (General Motors Corp.)
Armament: One Howitzer, 75-mm, M2 or M3; one Gun, machine, cal.
.50, HB, M2 (flexible), one Gun, submachine, cal. .45, M1928A1; three
Carbines, cal. .30.
Ammunition: 46 rounds, 75-mm; 400 rounds, cal. .50; 600 rounds, cal. .45;
735 rounds, cal. .30; 6 grenades, 2 fragmentation, 2 smoke, 2 thermite-incendiary.
RA PD 308911
Purpose: To provide mobility for 75-mm howitzer and protection for
crew.
91 Yi'
-174' Appro*, with Rubber Tracks H
174VS* Approx. with Metal Tracks
I
66

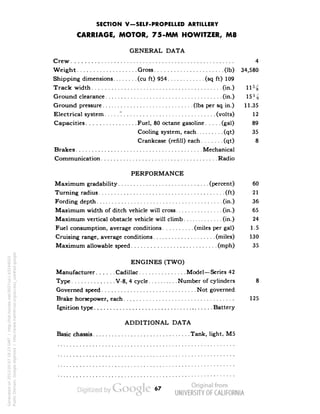

CARRIAGE, MOTOR, 75-MM HOWITZER, M8
GENERAL DATA
Crew 4
Track width (in.) Il5/s
Ground clearance (in.) 15 Vg
Electrical system ~. (volts) 12
Cooling system, each (qt) 35
Brakes Mechanical
Communication Radio
PERFORMANCE
ENGINES (TWO)
Manufacturer Cadillac Model—Series 42
Brake horsepower, each 125
ADDITIONAL DATA
Basic chassis Tank, light, M5
67

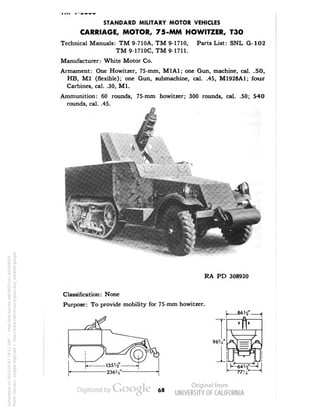

CARRIAGE, MOTOR, 75-MM HOWITZER, T3O
TM9-1710C, TM 9-1711.
Armament: One Howitzer, 75-mm, M1A1; one Gun, machine, cal. .50,
HB, M2 (flexible); one Gun, submachine, cal. .45, M1928A1; four
Carbines, cal. .30, M1.
Ammunition: 60 rounds, 75-mm howitzer; 300 rounds, cal. .50; 540
rounds, cal. .45.
RA PD 308920
Classification: None
Purpose: To provide mobility for 75-mm howitzer.
96%* j«r=
68

TM 9-2800

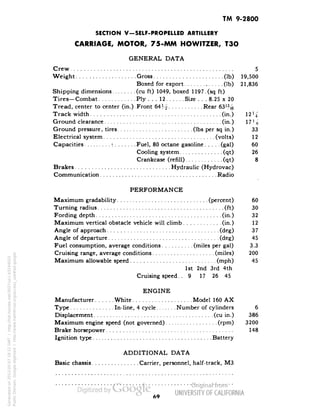

CARRIAGE, MOTOR, 75-MM HOWITZER, T3O
GENERAL DATA
Crew 5
Shipping dimensions (cu ft) 1049, boxed 1197.(sq ft)
Tread, center to center (in.).Front 64>£ Rear 63%
Track width (in.) 12J<
Ground clearance (in.) 1ll/%
Klectrical system (volts) 12
Capacities : Fuel, 80 octane gasoline (gal) 60
Communication Radio
/
PERFORMANCE
Maximum allowable speed (niph) 45
1st 2nd 3rd 4th
ENGINE
Maximum engine speed (not governed) (rpm) 3200
ADDITIONAL DATA

TM 9-2800

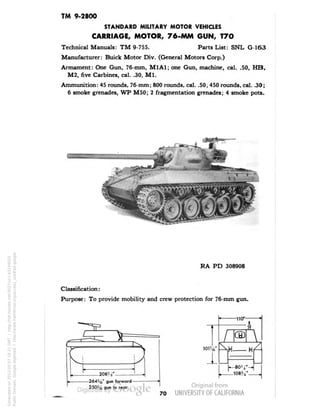

CARRIAGE, MOTOR, 76-MM GUN, T7O
Technical Manuals: TM 9-755. Parts List: SNL G-163
Manufacturer: Buick Motor Div. (General Motors Corp.)
Armament: One Gun, 76-mm, M1A1; one Gun, machine, cal. .50, HB,
M2, five Carbines, cal. .30, M1.
Ammunition: 45 rounds, 76-mm; 800 rounds, cal. .50, 450 rounds, cal. .30;
6 smoke grenades, WP M50; 2 fragmentation grenades; 4 smoke pots.
RA PD 308908
Classification:
Purpose: To provide mobility and crew protection for 76-mm gun.
-2645ie" gun forward-
250:'n, gun to rear
101%"
1
-no*-

108S4"
70

TM 9-2800

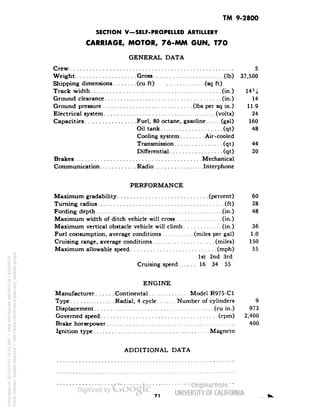

CARRIAGE, MOTOR, 76-MM GUN, T7O
GENERAL DATA
Crew 5
Capacities Fuel, 80 octane, gasoline (gal) 160
Oil tank (qt) 48
Transmission (qt) 44
Differential (qt) 20
Brakes Mechanical
PERFORMANCE
Maximum width of ditch vehicle will cross (in.)
1st 2nd 3rd
Cruising speed. 16 34 55
ENGINE
ADDITIONAL DATA

TM 9-2800

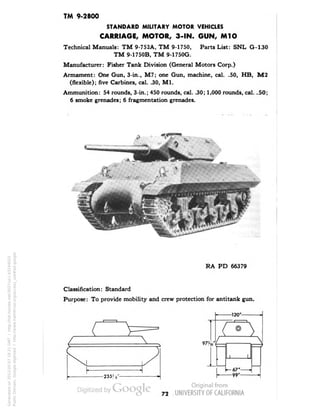

CARRIAGE, MOTOR, 3-IN. GUN, M1O
TM 9-1750B, TM 9-1750G.
Manufacturer: Fisher Tank Division (General Motors Corp.)
Armament: One Gun, 3-in., M7; one Gun, machine, cal. .50, HB, M2
(flexible); five Carbines, cal. .30, M1.
Ammunition: 54 rounds, 3-in.; 450 rounds, cal. .30; 1,000 rounds, cal. .50;
6 smoke grenades; 6 fragmentation grenades.
RA PD 66379
Purpose: To provide mobility and crew protection for antitank gun.
L
975,6'
-235) s•-
1 1
— 67' .
—99'
*
»
72

TM 9-2800
SECTION V- SELF-PROPELLED ARTILLERY

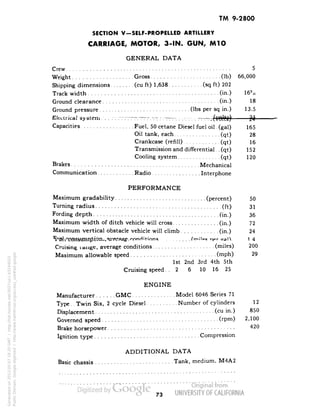

CARRIAGE, MOTOR, 3-IN. GUN, M1O
GENERAL DATA
Crew ................................ 5
Weight ................... Gross ...................... (Ib) 66,000
Shipping dimensions ........ (cu ft) 1,638 ........... (sq ft) 202
Track width ......................................... (in.) 169i'6
Ground clearance ..................................... (in.) 18
Ground pressure ............................. (Ibs per sq in.) 13.5
Efcctrical system -: ................................ (lrO)t9) flj
Capacities ................. Fuel, 50 cetane Diesel fuel oil . (gal) 165
Oil tank, each ............... (qt) 28
Crankcase (refill) ............ (qt) 16
Transmission and differential . . (qt) 152
Cooling system .............. (qt) 120
Brakes ........................................ Mechanical
Communication ............ Radio ................ Interphone
PERFORMANCE
Maximum gradability ............................. (percent) 50
Turning radius ........................... ............. (ft) 31
Fording depth ........................................ (in.) 36
Maximum width of ditch vehicle will cross ............... (in.) 72
Maximum vertical obstacle vehicle will climb ............ (in.) 24
.^. ........ (rrM'oc ryr crplY -_-J-4-
Cruising range, average conditions .................... (miles) 200
Maximum allowable speed ........................... (mph) 29
1st 2nd 3rd 4th 5th
Cruising speed . . 2 6 10 16 25
ENGINE
Manufacturer ...... GMC .............. Model 6046 Series 71
Type . Twin Six, 2 cycle Diesel .......... Number of cylinders 12
Displacement ........... ........................... (cu in.) 850
Governed speed ..................................... (rpm) 2,100
Brake horsepower ........................................
Ignition type ................................. Compression
ADDITIONAL DATA
Basic chassis ........................ Tank, medium, M4A2
73

TM 9-2800

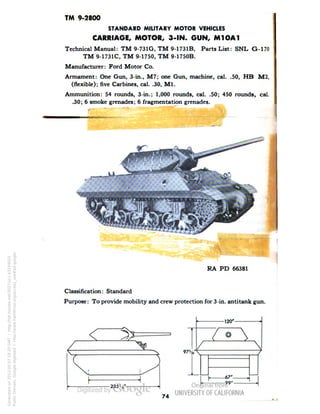

CARRIAGE, MOTOR, 3-IN. GUN, M1OA1
Technical Manual: TM 9-731G, TM 9-1731B, Parts List: SNL Q-170
TM 9-1731C, TM 9-1750, TM 9-1750B.
Armament: One Gun, 3-in., M7; one Gun, machine, cal. .50, HB M2,
(flexible); five Carbines, cal. .30, M1.
Ammunition: 54 rounds, 3-in.; 1,000 rounds, cal. .50; 450 rounds, cal.
.30; 6 smoke grenades; 6 fragmentation grenades.
RA PD 66381
Purpose: To provide mobility and crew protection for 3-in. antitank gun.
97-y
-120"-
-235^"-
-67"-
-99"-
74

TM 9-2800

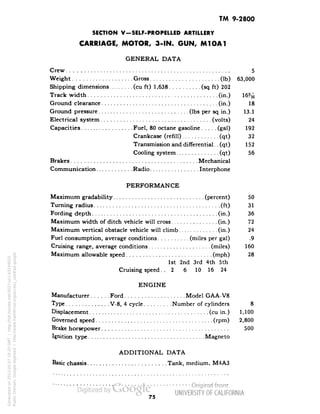

CARRIAGE, MOTOR, 3-IN. GUN, M1OA1
GENERAL DATA
Crew 5
Transmission and differential.. (qt) 152
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
Cruising speed. . 2 6 10 16 24
ENGINE
Manufacturer Ford Model GAA-V8
Displacement (cu in.) 1,100
ADDITIONAL DATA
Basic chassis Tank, medium, M4A3
75

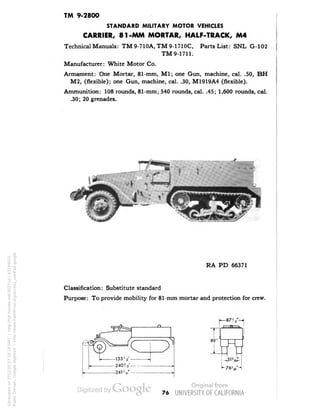

TM 9-2800
CARRIER, 81-MM MORTAR, HALF-TRACK, M4
Technical Manuals: TM9-710A.TM9-1710C, Parts List: SNL G-102
TM 9-1711.
Armament: One Mortar, 81-mm, M1; one Gun, machine, cal. .50, BH
M2, (flexible); one Gun, machine, cal. .30, M1919A4 (flexible).
Ammunition: 108 rounds, 81-mm; 540 rounds, cal. .45; 1,600 rounds, cal.
.30; 20 grenades.
RA PD 66371
Purpose: To provide mobility for 81-mm mortar and protection for crew.
89•
_
76

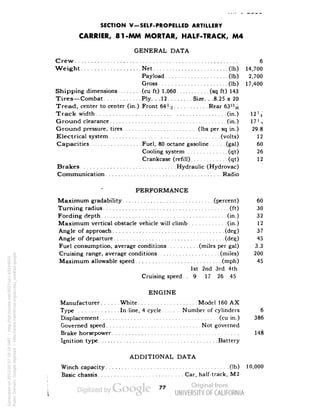

CARRIER, 81-MM MORTAR, HALF-TRACK, M4
GENERAL DATA
Crew 6
Weight Net .(Ib) 14,700
Payload (Ib) 2,700
Gross (Ib) 17,400
Tires—Combat Ply. . .12 Size. . .8.25 x 20
Tread, center to center (in.).Front 64H Rear 63%
Track width (in.) 12 '^
Ground clearance (in.) 17 Vs
Communication Radio
PERFORMANCE
1st 2nd 3rd 4th
ENGINE
ADDITIONAL DATA
Basic chassis Car, half-track, M2
77

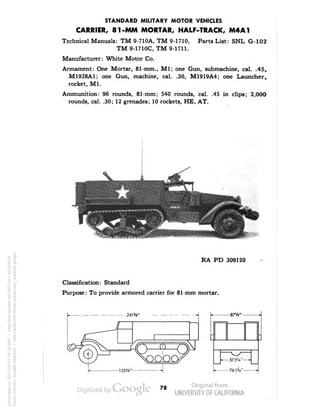

CARRIER, 81-MM MORTAR, HALF-TRACK, M4A1
TM 9-1710C, TM 9-1711.
Armament: One Mortar, 81-mm., M1; one Gun, submachine, cal. .45,
M1928A1; one Gun, machine, cal. .30, M1919A4; one Launcher,
rocket, M1.
Ammunition: 96 rounds, 81-mm; 540 rounds, cal. .45 in clips; 2,000
rounds, cal. .30; 12 grenades; 10 rockets, HE, AT.
RA PD 309120
Purpose: To provide armored carrier for 81-mm mortar.
- 241 H" —
[
r
/, T-. Ov 1
-87%"
135'/s"-
78

CARRIER, 81-MM MORTAR, HALF-TRACK, M4A1
GENERAL DATA
Crew 6
Shipping dimensions (cu ft) 1126, boxed 1074. (sq ft)
Tires—Combat Ply. . .12 Size.. .8.25 x 20
Tread, center to center (in.) Front 64^ Rear 63%
Track width (in.) 12J^
Ground clearance (in.) 17 l/g
-Crankcase (refill) (qt) 8
Communication Radio
PERFORMANCE
1st 2nd 3rd 4th
Cruising speed . 9 17 26 45
ENGINE
ADDITIONAL DATA
Basic chassis Car, half-track, M2
79

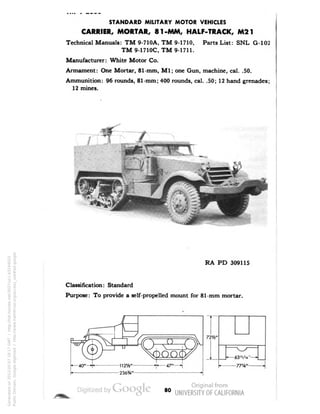

CARRIER, MORTAR, 81-MM, HALF-TRACK, M21
TM 9-1710C, TM 9-1711.
Armament: One Mortar, 81-mm, M1; one Gun, machine, cal. .50.
Ammunition: 96 rounds, 81-mm; 400 rounds, cal. .50; 12 hand grenades;
12 mines.
RA PD 309115
Purpose: To provide a self-propelled mount for 81-mm mortar.
80

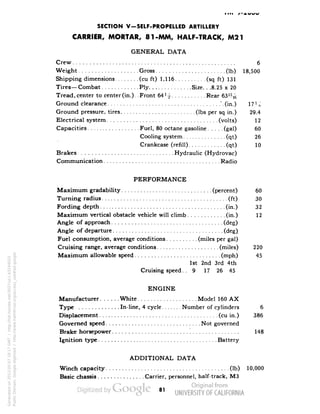

CARRIER, MORTAR, 81-MM, HALF-TRACK, M21
GENERAL DATA
Crew 6
Tires— Combat Ply Size. . .8.25 x 20
Tread, center to center (in.). .Front 64 H Rear 63%
Ground clearance ". (in.) 17l-g
Communication Radio
PERFORMANCE
Angle of departure (deg).
1st 2nd 3rd 4th
ENGINE
ADDITIONAL DATA
81

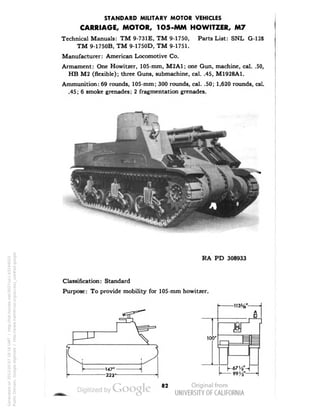

CARRIAGE, MOTOR, 1O5-MM HOWITZER, M7
Technical Manuals: TM 9-731E, TM 9-1750, Parts List: SNL G-128
TM 9-1750B, TM 9-1750D, TM 9-1751.
Manufacturer: American Locomotive Co.
HB M2 (flexible); three Guns, submachine, cal. .45, M1928A1.
.45; 6 smoke grenades; 2 fragmentation grenades.
RA PD 308933
Purpose: To provide mobility for 105-mm howitzer.
-113%"-
100*
99^"-
82

CARRIAGE, MOTOR, 1O5-MM HOWITZER, M7
GENERAL DATA
Crew 7
Oil tank (qt) 36
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
Cruising speed. . 2 4.8 8.3 13.2 20.3
ENGINE
Manufacturer Continental Model R975C1
Governed speed (rpm) 2400
Brake horsepower r 400
ADDITIONAL DATA
Basic chassis originally—Tank, medium, M3; later Tank, medium, M4.
83

CARRIAGE, MOTOR, 1O5-MM HOWITZER, T19
TM 9-1710C, TM 9-1711.
HB, M2 (flexible); one Gun, submachine, cal. .45, M1928A1.
Ammunition: 8 rounds, 105-mm; 200 rounds, cal. .50; 540 rounds, cal.
.45, in clips.
RA PD 12556
Purpose: To provide mobility for 105-mm howitzer and protection for
crew.

TM 9-2800

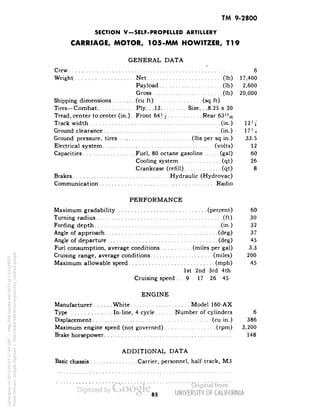

CARRIAGE, MOTOR, 1O5-MM HOWITZER, T19
GENERAL DATA
f
Crew 6
Payload (Ib) 2,600
Gross (Ib) 20,000
Tires—Combat Ply. . .12 Size. . .8.25 x 20
Tread, center to center (in.). .Front 64H Rear 63%
Track width (in.) 12 J^
Ground clearance (in.) 17 %
Communication Radio
PERFORMANCE
1st 2nd 3rd 4th
ENGINE
Manufacturer White Model 160-AX
ADDITIONAL DATA
85

TM 9-2800

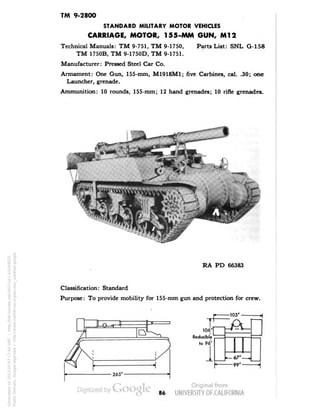

CARRIAGE, MOTOR, 155-MM GUN, Ml 2
TM 1750B, TM 9-1750D, TM 9-1751.
Manufacturer: Pressed Steel Car Co.
Armament: One Gun, 155-mm, M1918M1; five Carbines, cal. .30; one
Launcher, grenade.
Ammunition: 10 rounds, 155-mm; 12 hand grenades; 10 rifle grenades.
RA PD 66383
Purpose: To provide mobility for 155-mm gun and protection for crew.
-105'
106'
Reducible
to 96*
1
-67'-
-99'-
86

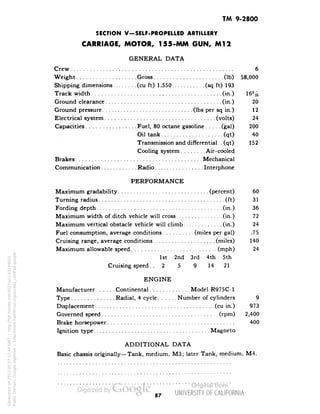

TM 9-2800
CARRIAGE, MOTOR, 155-MM GUN, Ml2
GENERAL DATA
Crew 6
Capacities Fuel, 80 octane gasoline..... (gal) 200
Oil tank (qt) 40
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
Cruising speed.. 2 5 9 14 21
ENGINE
Manufacturer Continental Model R975C-1
ADDITIONAL DATA
Basic chassis originally—Tank, medium, M3; later Tank, medium, M4.
87

TM 9-2800

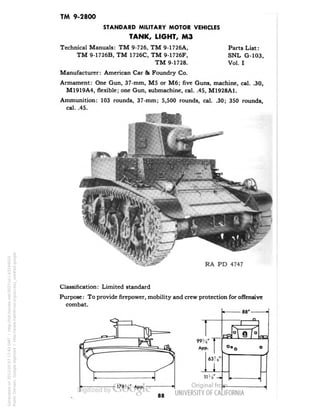

TANK, LIGHT, M3
Technical Manuals: TM 9-726, TM 9-1726A, Parts List:
TM 9-1726B, TM 1726C, TM 9-1726F, SNL G-103,
TM 9-1728. Vol. I
Manufacturer: American Car & Foundry Co.
Armament: One Gun, 37-mm, M5 or M6; five Guns, machine, cal. .30,
M1919A4, flexible; one Gun, submachine, cal. .45, M1928A1.
Ammunition: 103 rounds, 37-mm; 5,500 rounds, cal. .30; 350 rounds,
cal. .45.
RA PD 4747
Purpose: To provide firepower, mobility and crew protection for offensive
combat.
88'
-n-
99-s
App
«'
PP-
63 J8'
11 ?6'-»
1
Q

TM 9-2800

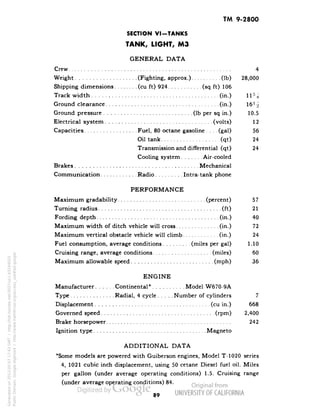

SECTION VI-TANKS
TANK, LIGHT, M3
GENERAL DATA
Crew 4
Weight (Fighting, approx.) (Ib) 28,000
Track width (in.) H5i
Ground clearance (in.) 16V^
Oil tank (qt) 24
Brakes Mechanical
Communication Radio Intra-tank phone
PERFORMANCE
ENGINE
Manufacturer Continental* Model W670-9A
ADDITIONAL DATA
*Some models are powered with Guiberson engines, Model T-1020 series
4, 1021 cubic inch displacement, using 50 cetane Diesel fuel oil. Miles
per gallon (under average operating conditions) 1.5. Cruising range
(under average operating conditions) 84.
89

TM 9-2800

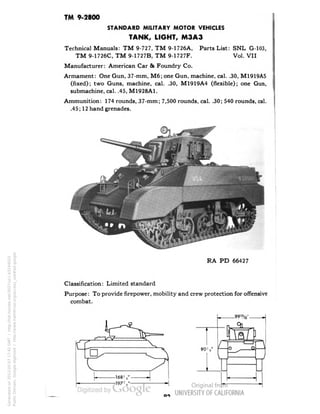

TANK, LIGHT, M3A3
Technical Manuals: TM 9-727, TM 9-1726A, Parts List: SNL G-103,
TM 9-1726C, TM 9-1727B, TM 9-1727F. Vol. VII
Manufacturer: American Car & Foundry Co.
(fixed); two Guns, machine, cal. .30, M1919A4 (flexible); one Gun,
submachine, cal. .45, M1928A1.
Ammunition: 174 rounds, 37-mm; 7,500 rounds, cal. .30; 540 rounds, cal.
RA PD 66427
combat.

SECTION VI-TANKS

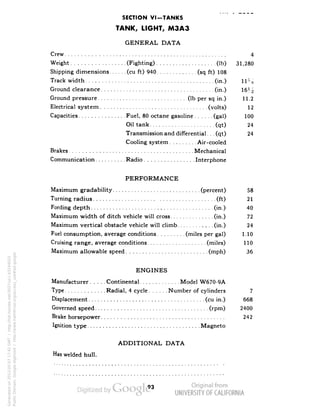

TANK, LIGHT, M3A3
GENERAL DATA
Crew 4
Weight (Fighting) (Ib) 31,280
Track width (in.) ll-vg
Oil tank (qt) 24
Transmission and differential. . . (qt) 24
Brakes Mechanical
PERFORMANCE
ENGINES
ADDITIONAL DATA
Has welded hull.
93

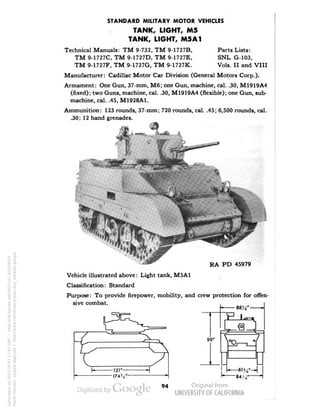

Parts Lists:
SNL G-103,
Vols. II and VIII
TANK, LIGHT, M5
TANK, LIGHT, M5A1
Technical Manuals: TM 9-732, TM 9-1727B,
TM 9-1727C, TM 9-1727D, TM 9-1727E,
TM 9-1727F, TM 9-1727G, TM 9-1727K.
Manufacturer: Cadillac Motor Car Division (General Motors Corp.).
(fixed); two Guns, machine, cal. .30, M1919A4 (flexible); one Gun, sub-machine,
cal. .45, M1928A1.
RA PD 45979
Vehicle illustrated above: Light tank, M5A1
Purpose: To provide firepower, mobility, and crew protection for offen-sive
combat.
94

m v-
SECTION VI-TANKS
TANK, LIGHT, M5
TANK, LIGHT, M5A1
GENERAL DATA
Crew 4
Track width (in.)
Differential and transmission. . .(Qt) 32
Transfer case (each) (qt) 15
Cooling system (each) (qt) 35
Brakes Mechanical
Communications Radio Intra-tank phone
PERFORMANCE
Maximum allowable speed (mPn) 40
ENGINES (TWO)
Manufacturer Cadillac Model—series 42
Type V8, 4 cycle Number of cylinders 8
Brake horsepower (each) 125
ADDITIONAL DATA
Light tanks M5 and M5A1 are alike except for a slight bulge in the turret
of the M5A1 to accommodate the radio.
95

im V-/BUU

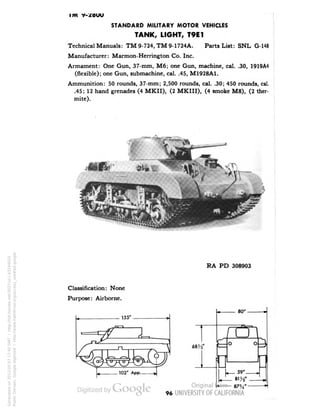

TANK, LIGHT, T9E1
Technical Manuals: TM 9-724, TM9-1724A. Parts List: SNL G-148
Manufacturer: Marmon-Herrington Co. Inc.
Armament: One Gun, 37-mm, M6; one Gun, machine, cal. .30, 1919A4
(flexible); one Gun, submachine, cal. .45, M1928A1.
.45; 12 hand grenades (4 MKII), (2 MKIII), (4 smoke M8), (2 ther-mite).
RA PD 308903
Purpose: Airborne.
80'
LJ
o o
L— 59*
96

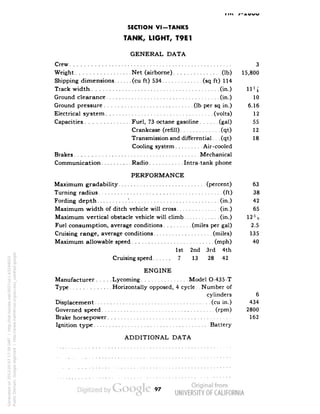

SECTION VI-TANKS
TANK, LIGHT, T9E1
GENERAL DATA
Crew 3
Weight Net (airborne) (Ib) 15,800
Track width (in.) llj£
Brakes Mechanical
PERFORMANCE
Fording depth •. (in.) 42
Maximum vertical obstacle vehicle will climb (in.) 12%
1st 2nd 3rd 4th
ENGINE
Manufacturer Lycoming Model O-435-T
Type Horizontally opposed, 4 cycle. . Number of
cylinders 6
ADDITIONAL DATA
97

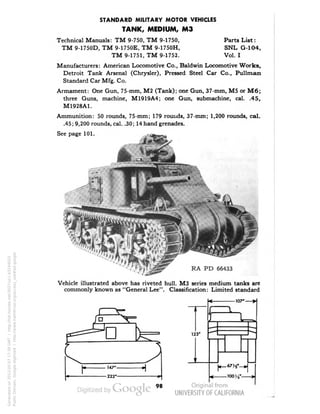

TANK, MEDIUM, M3
Technical Manuals: TM 9-750, TM 9-1750, Parts List:
TM 9-1750D, TM 9-1750E, TM 9-1750H, SNL G-104,
TM 9-1751, TM 9-1752. Vol. I
Manufacturers: American Locomotive Co., Baldwin Locomotive Works,
Detroit Tank Arsenal (Chrysler), Pressed Steel Car Co., Pullman
Standard Car Mfg. Co.
Armament: One Gun, 75-mm, M2 (Tank); one Gun, 37-mm, M5 or M6;
three Guns, machine, M1919A4; one Gun, submachine, cal. .45,
M1928A1.
Ammunition: 50 rounds, 75-mm; 179 rounds, 37-mm; 1,200 rounds, cal.
.45; 9,200 rounds, cal. .30; 14 hand grenades.
See page 101.
RA PD 66433
Vehicle illustrated above has riveted hull. M3 series medium tanks are
commonly known as "General Lee". Classification: Limited standard
123'
10014*

TM 9-2800

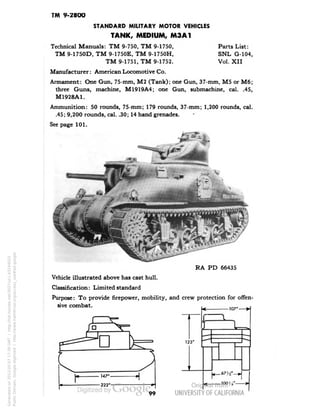

TANK, MEDIUM, M3A1
Technical Manuals: TM 9-750, TM 9-1750,
TM 9-1750D, TM 9-1750E, TM 9-1750H,
TM 9-1751, TM 9-1752.
Manufacturer: American Locomotive Co.
Parts List:
SNL G-104,
Vol. XII
Armament: One Gun, 75-mm, M2 (Tank); one Gun, 37-mm, MS or M6;
M1928A1.
See page 101.
RA PD 66435
Vehicle illustrated above has cast hull.
Purpose: To provide firepower, mobility, and crew protection for offen
sive combat.
123*
-107*
100 J

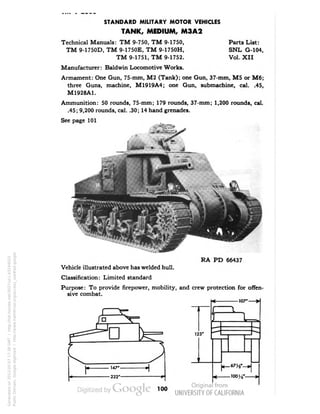

TANK, MEDIUM, M3A2
Technical Manuals: TM 9-750, TM 9-1750, Parts List:
TM 9-1750D, TM 9-1750E, TM 9-1750H, SNL G-104,
TM 9-1751, TM 9-1752. Vol. XII
Manufacturer: Baldwin Locomotive Works.
Armament: One Gun, 75-mm, M2 (Tank); one Gun, 37-mm, M5 or M6;
M1928A1.
See page 101
RA PD 66437
Vehicle illustrated above has welded hull.
Purpose: To provide firepower, mobility, and crew protection for offen
sive combat.
K 107'—
123'
100 yt:
100

TM 9-2800
SECTION VI-TANKS

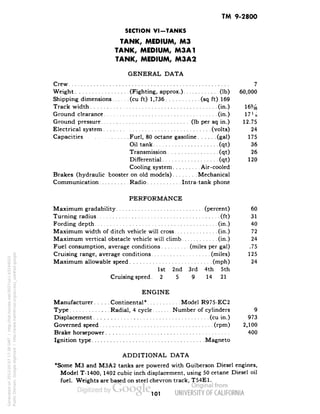

TANK, MEDIUM, M3
TANK, MEDIUM, M3A1
TANK, MEDIUM, M3A2
GENERAL DATA
Crew 7
Weight (Fighting, approx.) (Ib) 60,000
Ground clearance (in.) 17.Mi
Capacities. .' Fuel, 80 octane gasoline (gal) 175
Oil tank (qt) 36
Brakes (hydraulic booster on old models) Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
Cruising speed. 2 5 9 14 21
ENGINE
Manufacturer Continental* Model R975-EC2
ADDITIONAL DATA
*Some M3 and M3A2 tanks are powered with Guiberson Diesel engines,
Model T-1400, 1402 cubic inch displacement, using 50 cetane Diesel oil
fuel. Weights are based on steel chevron track, T54E1.
101

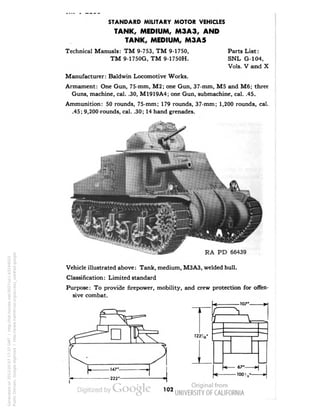

TANK, MEDIUM, M3A3, AND
TANK, MEDIUM, M3A5
Technical Manuals: TM 9-753, TM 9-1750,
TM 9-1750G, TM 9-1750H.
Parts List:
SNL G-104,
Vols. V and X
Armament: One Gun, 75-mm, M2; one Gun, 37-mm, M5 and M6; three
Guns, machine, cal. .30, M1919A4; one Gun, submachine, cal. .45.
RA PD 66439
Vehicle illustrated above: Tank, medium, M3A3, welded hull.
combat.
< 107'
102

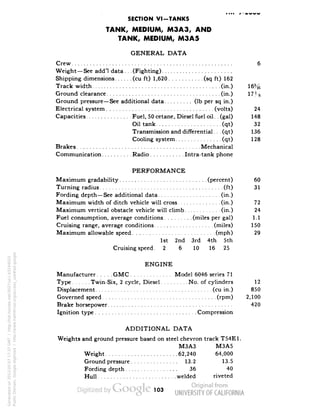

SECTION VI-TANKS
TANK, MEDIUM, M3A3, AND
TANK, MEDIUM, M3A5
GENERAL DATA
Crew 6
Weight—See add'l data. . . (Fighting)
Ground clearance (in.) 17 Y%
Ground pressure—See additional data (Ib per sq in.)
Capacities Fuel, 50 cetane, Diesel fuel oil. . (gal) 148
Oil tank (qt) 32
Transmission and differential. . (qt) 136
Brakes Mechanical
PERFORMANCE
Fording depth—See additional data (in.)
1st 2nd 3rd 4th 5th
ENGINE
Manufacturer GMC Model 6046 series 71
Type Twin-Six, 2 cycle, Diesel No. of cylinders 12
Ignition type Compression
ADDITIONAL DATA
Weights and ground pressure based on steel chevron track T54E1.
M3A3 M3A5
Weight 62,240 64,000
Ground pressure 13.2 13.5
Fording depth 36 40
Hull welded riveted
103

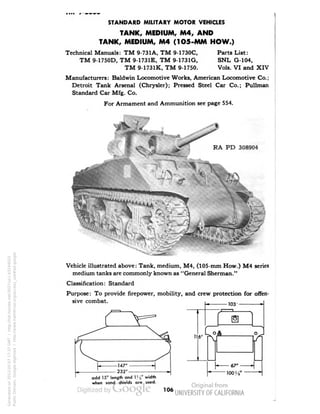

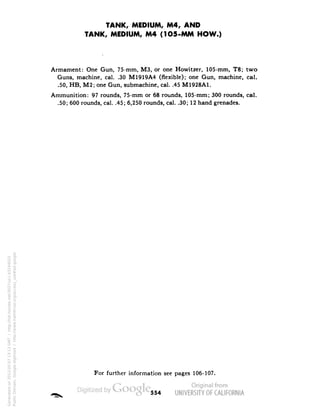

TANK, MEDIUM, M4, AND
TANK, MEDIUM, M4 (1O5-MM HOW.)
Technical Manuals: TM 9-731 A, TM 9-1730C, Parts List:
TM 9-1750D, TM 9-1731E, TM 9-1731G, SNL G-104,
TM 9-1731K, TM 9-1750. Vols. VI and XIV
Manufacturers: Baldwin Locomotive Works, American Locomotive Co.;
Detroit Tank Arsenal (Chrysler); Pressed Steel Car Co.; Pullman
Standard Car Mfg. Co.
For Armament and Ammunition see page 554.
RA PD 308904
Vehicle illustrated above: Tank, medium, M4, (105-mm How.) M4 series
medium tanks are commonly known as "General Sherman."
combat.
odd 15' length and 1' s° width
when sand shields are used.
106

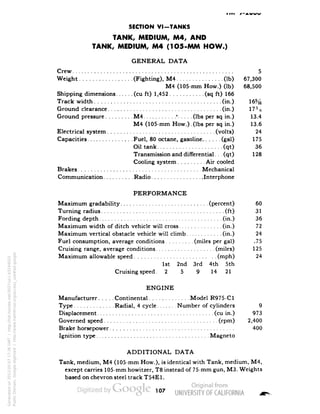

SECTION VI-TANKS
GENERAL DATA
Crew 5
Weight (Fighting), M4 (Ib) 67,300
M4 (105-mm How.) (Ib) 68,500
Track width (in.)
Ground pressure M4 '(Ibs per sq in.) 13.4
M4 (105-mm How.). (Ibs per sq in.) 13.6
Oil tank (qt) 36
Transmission and differential.. .(qt) 128
Brakes Mechanical
PERFORMANCE
Maximum vertical obstacle vehicle will climb .(in.) 24
1st 2nd 3rd 4th 5th
ENGINE
Displacement i (cu in.) 973
ADDITIONAL DATA
Tank, medium, M4 (105-mm How.), is identical with Tank, medium, M4,
except carries 105-mm howitzer, T8 instead of 75-mm gun, M3. Weights
based on chevron steel track T54E1.
107

iivi y-zouu

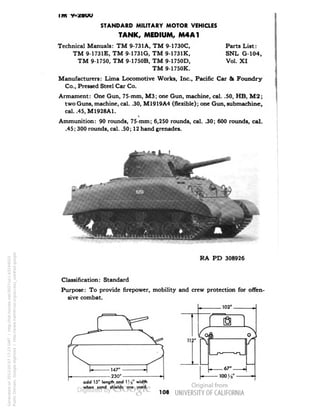

TANK, MEDIUM, M4A1
Technical Manuals: TM 9-731A, TM 9-1730C,
TM 9-1731E, TM 9-1731G, TM 9-1731K,
TM 9-1750, TM 9-1750B, TM 9-1750D,
TM 9-1750K.
Parts List:
SNL G-104,
Vol. XI
Manufacturers: Lima Locomotive Works, Inc., Pacific Car & Foundry
Co., Pressed Steel Car Co.
Armament: One Gun, 75-mm, M3; one Gun, machine, cal. .50, HB, M2;
two Guns, machine, cal. .30, M1919A4 (flexible); one Gun, submachine,
cal. .45, M1928A1.
.45; 300 rounds, cal. .50; 12 hand grenades.
RA PD 308926
Purpose: To provide firepower, mobility and crew protection for offen-sive
combat.
102'
112*
add 15' length and 1)8' width
— 67'
100!,.
108

TM 9-2800
SECTION VI-TANKS

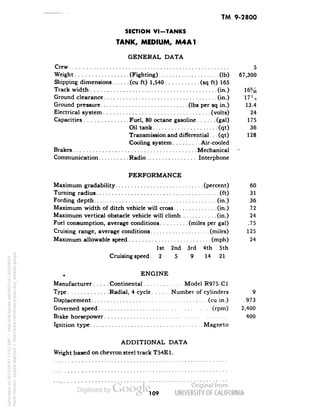

TANK, MEDIUM, M4A1
GENERAL DATA
Crew 5
Track width (in.)
Oil tank (qt) 36
Transmission and differential.. . (qt) 128
Brakes Mechanical
PERFORMANCE

1st 2nd 3rd 4th 5th
ENGINE
ADDITIONAL DATA
Weight based on chevron steel track T54E1.
109

TM 9-2800

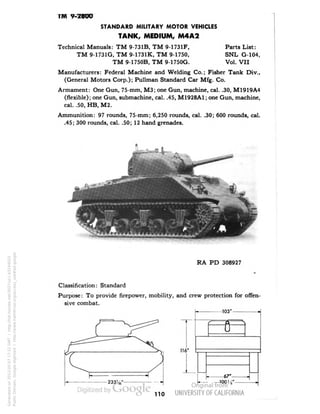

TANK, MEDIUM, M4A2
Technical Manuals: TM 9-731B, TM 9-1731F, Parts List:
TM 9-1731G, TM 9-1731K, TM 9-1750, SNL G-104,
TM 9-1750B, TM 9-1750G. Vol. VII
Manufacturers: Federal Machine and Welding Co.; Fisher Tank Div.,
(General Motors Corp.); Pullman Standard Car Mfg. Co.
(flexible); one Gun, submachine, cal. .45, M1928A1; one Gun, machine,
cal. .50, HB, M2.
RA PD 308927
combat.
103'-
110

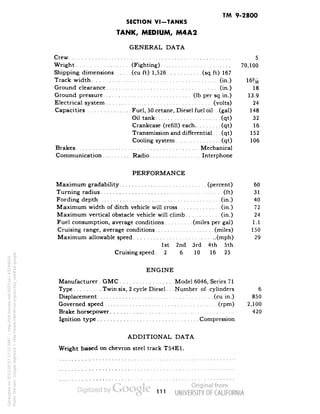

TM 9-2800
SECTION VI-TANKS
TANK, MEDIUM, M4A2
GENERAL DATA
Crew 5
Weight (Fighting) 70,100
Capacities Fuel, 50 cetane, Diesel fuel oil.. (gal) 148
Oil tank (qt) 32
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
ENGINE
Manufacturer . GMC Model 6046, Series 71
Type Twin six, 2 cycle Diesel. . . Number of cylinders 6
ADDITIONAL DATA
Ill

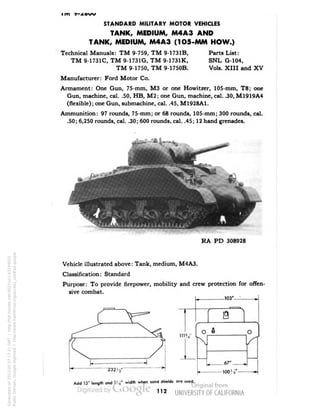

TANK, MEDIUM, M4A3 AND
TANK, MEDIUM, M4A3 (1O5-MM HOW.)
Technical Manuals: TM 9-759, TM 9-1731B, Parts List:
TM 9-1731C, TM 9-1731G, TM 9-1731K, SNL G-104,
TM 9-1750, TM 9-1750B. Vols. XIII and XV
Armament: One Gun, 75-mm, M3 or one Howitzer, 105-mm, T8; one
Gun, machine, cal. .50, HB, M2; one Gun, machine, cal. .30, M1919A4
(flexible); one Gun, submachine, cal. .45, M1928A1.
Ammunition: 97 rounds, 75-mm; or 68 rounds, 105-mm; 300 rounds, cal.
.50; 6,250 rounds, cal. .30; 600 rounds, cal. .45; 12 hand grenades.
RA PD 308928
Vehicle illustrated above: Tank, medium, M4A3.
Purpose: To provide firepower, mobility and crew protection for offen-sive
combat.
-103'-
"232,4*
Add 15• length and !> s" width when sand shields are used.
112

IM y-zouu
SECTION VI-TANKS

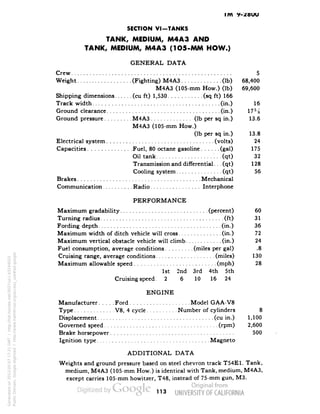

TANK, MEDIUM, M4A3 AND
TANK, MEDIUM, M4A3 (1O5-MM HOW.)
GENERAL DATA
Crew 5
Weight (Fighting) M4A3 (Ib) 68,400
M4A3 (105-mm How.) (Ib) 69,600
Ground clearance (in.) 17^
Ground pressure M4A3 (Ib per sq in.) 13.6
M4A3 (105-mm How.)
(Ib per sq in.) 13.8
Oil tank . .(qt) 32
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
ENGINE
Manufacturer Ford Model GAA-V8
Type V8, 4 cycle Number of cylinders 8
ADDITIONAL DATA
Weights and ground pressure based on steel chevron track T54E1. Tank,
medium, M4A3 (105-mm How.) is identical with Tank, medium, M4A3,
except carries 105-mm howitzer, T48, instead of 75-mm gun, M3.
113

IM V-2BUU
TANK, MEDIUM, M4A4
Technical Manuals: TM 9-754, TM 9-1731E, Parts List:
TM 9-1731G, TM 9-1731K, TM 9-1750, SNL G-104,
TM 9-1750F, TM 9-1750J. Vol. IX
Manufacturer: Detroit Tank Arsenal (Chrysler).
one Gun, machine, cal. .30, M1919A4 (flexible); one Gun, submachine,
cal. .45, M1928A1.
RA PD 308909
combat.
112
.103'
L
- 67'
add 15' length and 1) s' width
•1001
114

TM 9-2800
SECTION VI-TANKS

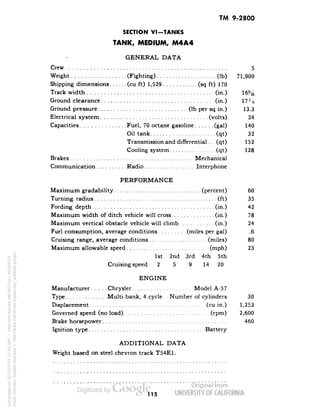

TANK, MEDIUM, M4A4
GENERAL DATA
Crew 5
Ground clearance (in.) 171/%
Oil tank (qt) 32
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
ENGINE
Manufacturer Chrysler Model A-57
Type Multi-bank, 4 cycle. . Number of cylinders 30
Governed speed (no load) (rpm) 2,600
ADDITIONAL DATA
Weight based on steel chevron track T54E1.
115

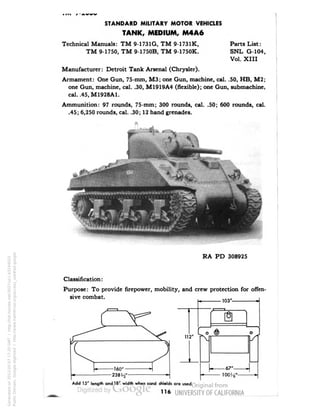

TANK, MEDIUM, M4A6
Technical Manuals: TM 9-1731G, TM 9-1731K, Parts List:
TM 9-1750, TM 9-1750B, TM 9-1750K. SNL G-104,
Vol. XIII
Manufacturer: Detroit Tank Arsenal (Chrysler).
one Gun, machine, cal. .30, M1919A4 (flexible); one Gun, submachine,
cal. .45, M1928A1.
Ammunition: 97 rounds, 75-mm; 300 rounds, cal. .50; 600 rounds, cal.
RA PD 308925
Classification:
combat.
a
_ o
<§>
o
112"
67"—
100^"-
Add 15" length and 18" width when sand shields are used.
116

TM 9-2800
SECTION VI-TANKS

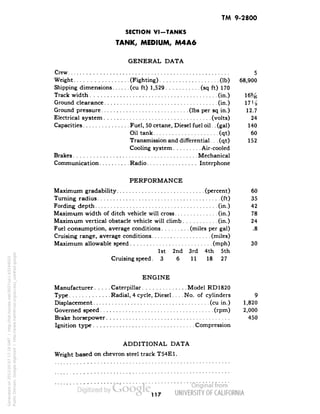

TANK, MEDIUM, M4A6
GENERAL DATA
Crew 5
Ground clearance (in.) 171/&
Capacities Fuel, 50 cetane, Diesel fuel oil.. (gal) 140
Oil tank (qt) 60
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
ENGINE
Manufacturer Caterpillar Model RD1820
Type Radial, 4 cycle, Diesel.... No. of cylinders 9
ADDITIONAL DATA
117

im v-^ouu

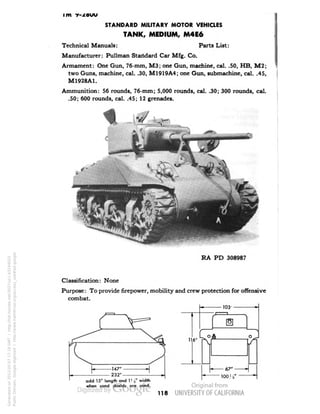

TANK, MEDIUM, M4E6
Technical Manuals: Parts List:
Manufacturer: Pullman Standard Car Mfg. Co.
two Guns, machine, cal. .30, M1919A4; one Gun, submachine, cal. .45,
M1928A1.
.50; 600 rounds, cal. .45; 12 grenades.
RA PD 308987
combat.
103
add 15" length and I1 s" width
118

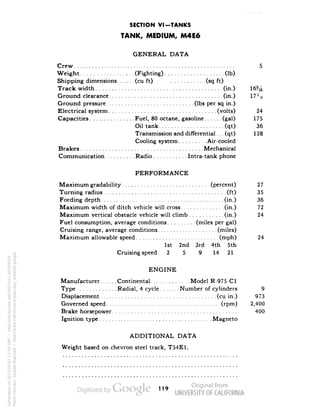

SECTION VI-TANKS
TANK, MEDIUM, M4E6
GENERAL DATA
Crew 5
Weight (Fighting) (Ib)
Ground pressure (Ibs per sq in.)
Oil tank (qt) 36
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
ENGINE
Manufacturer Continental Model R-975-C1
ADDITIONAL DATA
Weight based on chevron steel track, T54E1.
119

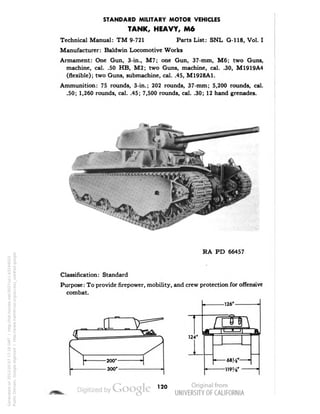

TANK, HEAVY, M6
Technical Manual: TM 9-721 Parts List: SNL G-118, Vol. I
Manufacturer: Baldwin Locomotive Works
Armament: One Gun, 3-in., M7; one Gun, 37-mm, M6; two Guns,
machine, cal. .50 HB, M2; two Guns, machine, cal. .30, M1919A4
(flexible); two Guns, submachine, cal. .45, M1928A1.
Ammunition: 75 rounds, 3-in.; 202 rounds, 37-mm; 5,200 rounds, cal.
.50; 1,260 rounds, cal. .45; 7,500 rounds, cal. .30; 12 hand grenades.
RA PD 66457
Purpose: To provide firepower, mobility, and crew protection for offensive
combat.
120

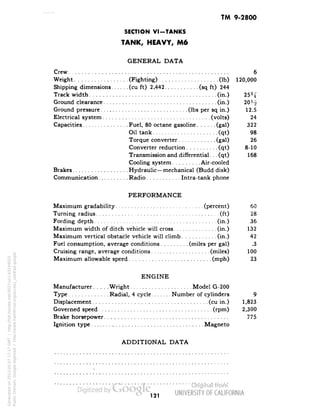

TM 9-2800
SECTION VI-TANKS
TANK, HEAVY, M6
GENERAL DATA
Crew 6
Track width (in.)
Oil tank (qt) 98
Torque converter (gal) 26
Converter reduction (qt) 8-10
Brakes Hydraulic—mechanical (Budd disk)
PERFORMANCE
ENGINE
Manufacturer Wright Model G-200
ADDITIONAL DATA
121

TIW 9-28OO
TANK, HEAVY, T1E1
Technical Manuals: Parts List: SNL G-118, Vol. Ill
Manufacturer: Baldwin Locomotive Works
Armament: One Gun, 3-in., M7; one Gun, 37-mm, M6; two Guns,
machine, cal. .50 HB, M2; two Guns, machine, cal. .30, M1919A4
(flexible); two Guns, submachine, cal. .45, M1928A1.
Ammunition: 75 rounds, 3-in.; 202 rounds, 37-mm; 5,200 rounds, cal.
.50; 1,260-rounds^cal. .4.5; .7,500 rounds, cal. .30; 12 hand grenades.
* |
Electrical system ................ (volts) 24
Capacities . . ........... Fuel, 80 octane gasoline . (gal) 334
Oil tank .......... ~. "".". '. ..... (qt) 98
Transmission and differential . . . (qt) 168
Torque converter ............ (gal) 26
Converter reduction .......... (qt) 8-10
Cooling system ......... Air-cooled
Brakes .................. Hydraulic— mechanical (Budd Disk)
Communication .......... Radio ........... Intra-tank phone
I
PERFORMANCE
Maximum gradability ............................ (percent) 60,
Turning radius ................ '. (ft) 2»
Fording depth ................ (in.) 36
Maximum width of ditch vehicle will cross .............. (in.) 132
Maximum vertical obstacle vehicle will climb ........... (in.) 4t
Fuel consumption, average conditions ......... (miles per gal) .3
Cruising range, average conditions ..... ... ^. ......... (miles) 1(
Maximum allgyable speed ....... .. ._.^ . . . ,V7. .- ...... (mph)
RA PD 309125
Classification:
Purpose : To provide firepower, mobility, and crew protection for offensive
combat.
124

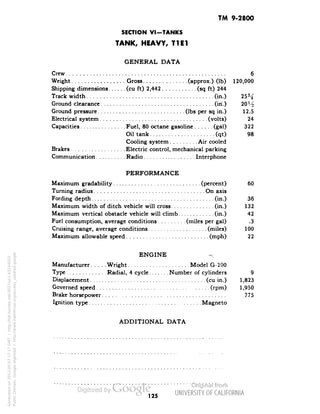

TM 9-2800
SECTION VI-TANKS
TANK, HEAVY, T1E1
GENERAL DATA
Crew 6
Weight Gross (approx.) (Ib) 120,000
Ground clearance (in.) 20V£
Oil tank (qt) 98
Brakes Electric control, mechanical parking
PERFORMANCE
Turning radius . On axis
ENGINE ->
Manufacturer Wright Model G-200
ADDITIONAL DATA
125

T/V 9-28OO

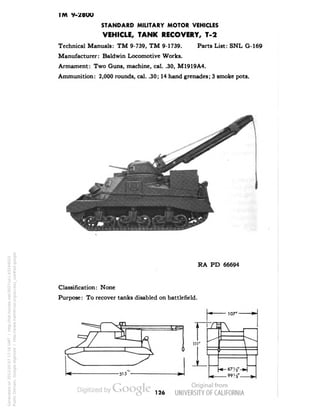

VEHICLE, TANK RECOVERY, T-2
Technical Manuals: TM 9-739, TM 9-1739. Parts List: SNL G-169
Armament: Two Guns, machine, cal. .30, M1919A4.
Ammunition: 2,000 rounds, cal. .30; 14 hand grenades; 3 smoke pots.
w
RA PD 66694
Purpose: To recover tanks disabled on battlefield.
107"-
o
A
I
^^
"•-^^
r
:
i —

•* —
_ 99 4" _
126

TM 9-2800

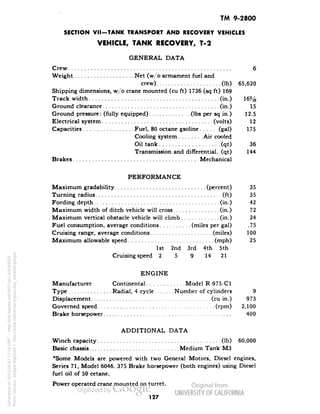

SECTION VII-TANK TRANSPORT AND RECOVERY VEHICLES
VEHICLE, TANK RECOVERY, T-2
GENERAL DATA
Crew 6
Weight Net (w/o armament fuel and
crew) (Ib) 65,620
Shipping dimensions, w/o crane mounted (cu ft) 1736 (sq ft) 169
Ground pressure: (fully equipped) (Ibs per sq in.) 12.5
Capacities Fuel, 80 octane gsoline (gal) 175
Oil tank (qt) 36
Brakes Mechanical
PERFORMANCE
1st 2nd 3rd 4th 5th
Cruising speed 2 5 9 14 21
ENGINE
Manufacturer Continental Model R-975-C1
ADDITIONAL DATA
Basic chassis Medium Tank M3
*Some Models are powered with two General Motors, Diesel engines,
Series 71, Model 6046. 375 Brake horsepower (both engines) using Diesel
fuel oil of 50 cetane.
Power operated crane mounted on turret.
127

TM 9-2800

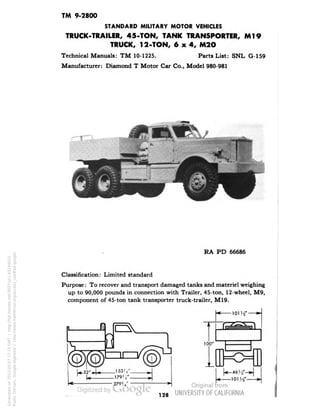

TRUCK-TRAILER, 45-TON, TANK TRANSPORTER, Ml9
TRUCK, 12-TON, 6x4, M2O
Manufacturer: Diamond T Motor Car Co., Model 980-981
RA PD 66686
Purpose: To recover and transport damaged tanks and materiel weighing
up to 90,000 pounds in connection with Trailer, 45-ton, 12-wheel, M9,
component of 45-ton tank transporter truck-trailer, M19.
128

IM y-

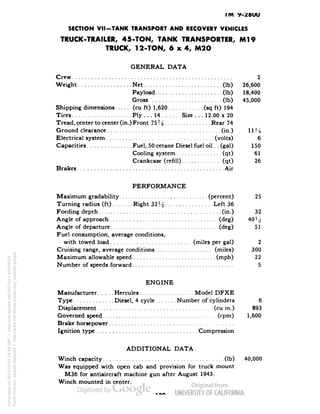

TRUCK-TRAILER, 45-TON, TANK TRANSPORTER, Ml 9
TRUCK, 12-TON, 6x4, M2O
GENERAL DATA
Crew 2
Payload (Ib) 18,400
Gross (Ib) 45,000
Tires Ply ... 14 Size . . . 12.00 x 20
Tread, center to center (in.) Front 75% Rear 74
Ground clearance (in.) 11J/g
Capacities Fuel, 50 cetane Diesel fuel oil. . (gal) 150
Brakes Air
PERFORMANCE
Turning radius (ft) Right 32H Left 36
Fuel consumption, average conditions,
with towed load (miles per gal) 2
ENGINE
Manufacturer Hercules Model DFXE
Type Diesel, 4 cycle Number of cylinders 6
Brake horsepower
ADDITIONAL DATA
Was equipped with open cab and provision for truck mount
M36 for antiaircraft machine gun after August 1943.
Winch mounted in center.

TM 9-Z8OO

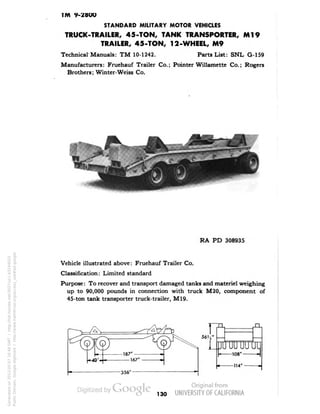

TRAILER, 45-TON, 12-WHEEL, M9
Manufacturers: Fruehauf Trailer Co.; Pointer Willamette Co.; Rogers
Brothers; Winter-Weiss Co.
RA PD 308935
Vehicle illustrated above: Fruehauf Trailer Co.
up to 90,000 pounds in connection with truck M20, component of
45-ton tank transporter truck-trailer, M19.
130

TM 9-2800

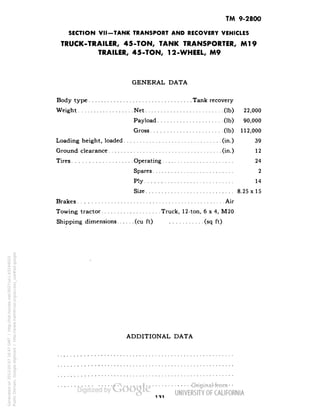

TRAILER, 45-TON, 12-WHEEL, M9
GENERAL DATA
Body type Tank recovery
Payload (Ib) 90,000
Gross (Ib) 112,000
Loading height, loaded (in.) 39
Tires Operating 24
Spares 2
Ply 14
Size 8.25x15
Brakes Air
Towing tractor Truck, 12-ton, 6x4, M20
ADDITIONAL DATA
111

TM 9-2800

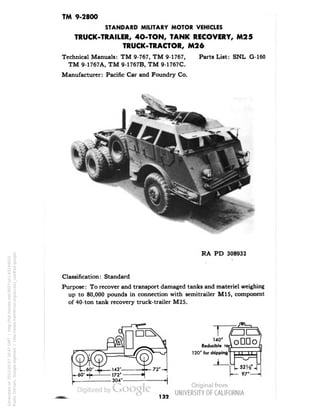

TRUCK-TRAILER, 4O-TON, TANK RECOVERY, M25
TRUCK-TRACTOR, M26
TM 9-1767A, TM 9-1767B, TM 9-1767C.
Manufacturer: Pacific Car and Foundry Co.
RA PD 308932
up to 80,000 pounds in connection with semitrailer M15, component
of 40-ton tank recovery truck-trailer M25.
120" for shipping
132

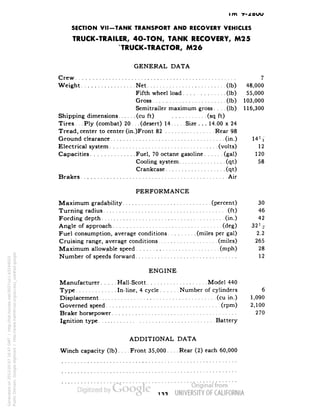

im •y-
* TRUCK-TRACTOR, M26
GENERAL DATA
Crew 7
Fifth wheel load (Ib) 55,000
Gross (Ib) 103,000
Semitrailer maximum gross. . . .(Ib) 116,300
Tires .Ply (combat) 20. . .(desert) 14 Size . . . 14.00 x 24
Tread, center to center (in.)Front 82 Rear 98
Ground clearance (in.) 14'4
Crankcase (qt)
Brakes Air
PERFORMANCE
Angle of approach (deg) 32 Y2
ENGINE
Manufacturer Hall-Scott Model 440
ADDITIONAL DATA
Winch capacity (Ib) Front 35,000 Rear (2) each 60,000

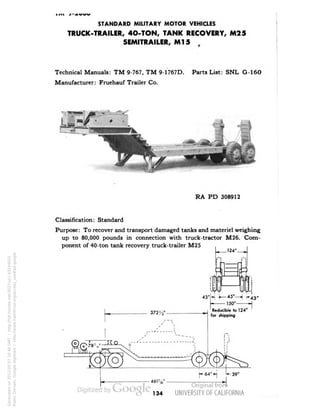

SEMITRAILER, Ml 5
Technical Manuals: TM 9-767, TM 9-1767D. Parts List: SNL G-16O
Manufacturer: Fruehauf Trailer Co.
RA PD 308912
up to 80,000 pounds in connection with truck-tractor M26. Com-ponent
of 40-ton tank recovery truck-trailer M25
.124*
fti
43"k f— 45"—H r43.
k 150" -,
Reducible to 124"
for shipping

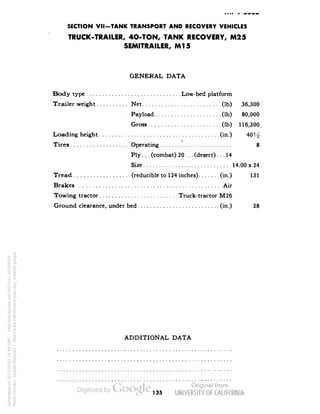

TRUCK-TRAILER, 40-TON, TANK RECOVERY, M25
SEMITRAILER, Ml 5
GENERAL DATA
Body type Low-bed platform
Trailer weight Net (Ib) 36,300
Payload (Ib) 80,000
Gross (Ib) 116,300
Loading height (in.) 40 H
Tires Operating 8
Ply.. . (combat) 20... (desert)... 14
Size 14.00x24
Tread (reducible to 124 inches) (in.) 131
Brakes Air
Towing tractor Truck-tractor M26
Ground clearance, under bed (in.) 28
ADDITIONAL DATA
135

im v-zouu

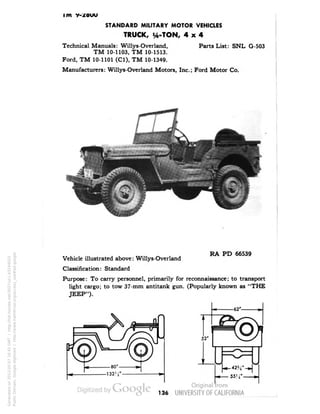

TRUCK, %-TON, 4x4
Technical Manuals: Willys-Overland, Parts List: SNL G-503
TM 10-1103, TM 10-1513.
Ford, TM 10-1101 (Cl), TM 10-1349.
Manufacturers: Willys-Overland Motors, Inc.; Ford Motor Co.
Vehicle illustrated above: Willys-Overland
RA PD 66539
Purpose: To carry personnel, primarily for reconnaissance; to transport
light cargo; to tow 37-mm antitank gun. (Popularly known as "THE
JEEP").
136

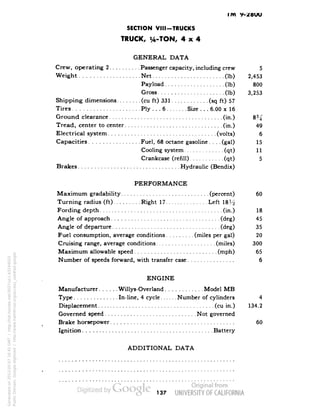

SECTION VIII-TRUCKS
im
TRUCK, i/4-TON, 4x4
GENERAL DATA
Payload (Ib) 800
Gross (Ib) 3,253
Tires Ply ... 6 Size ... 6.00 x 16
Capacities Fuel, 68 octane gasoline. . . .(gal) 15
Brakes Hydraulic (Bendix)
PERFORMANCE
Number of speeds forward, with transfer case 6
ENGINE
Manufacturer Willys-Overland Model MB
Brake horsepower 60
Ignition Battery
ADDITIONAL DATA
137

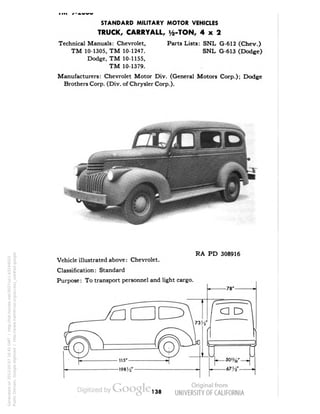

TRUCK, CARRYALL, i/2-TON, 4x2
Technical Manuals: Chevrolet, Parts Lists: SNL G-612 (Chev.)
TM 10-1305, TM 10-1247. SNL G-613 (Dodge)
Dodge, TM 10-1155,
TM 10-1379.
Manufacturers: Chevrolet Motor Div. (General Motors Corp.); Dodge
Brothers Corp. (Div. of Chrysler Corp.).
Vehicle illustrated above: Chevrolet.
Purpose: To transport personnel and light cargo.
RA PD 308916
138

SECTION VIII-TRUCKS
TRUCK, CARRYALL, y2-TON, 4x2
Tread, center to center (in.) Front 56% Rear 59'i
GENERAL DATA
Crew 2
Payload (Ib) 1,000
Gross (Ib) 4,625
Tires Ply ... 6 Size .. . 7.50 x 15
Cooling system (qt)
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) Right 19^ Left 20
Fording depth (in.)
Maximum allowable speed (mph)
ENGINE
Manufacturer Chevrolet Model 1942
Governed speed (rpm)
Brake horsepower
ADDITIONAL DATA
139

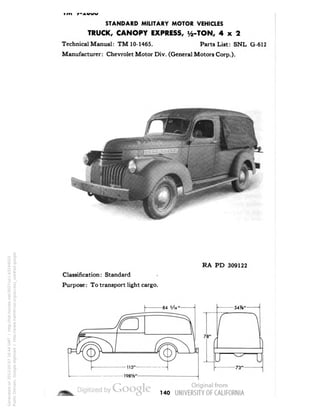

TRUCK, CANOPY EXPRESS, 1/2-TON, 4x2
Manufacturer: Chevrolet Motor Div. (General Motors Corp.).
RA PD 309122
Purpose: To transport light cargo.
140

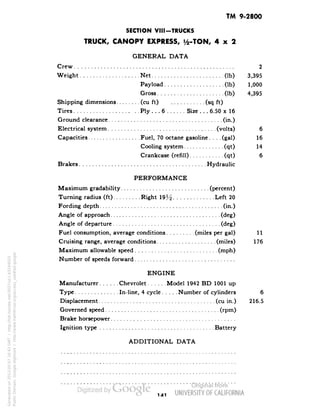

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CANOPY EXPRESS, Vfe-TON, 4x2
GENERAL DATA
Crew 2
Payload (Ib) 1,000
Gross (Ib) 4,395
Tires . .Ply ... 6 Size ... 6.50 x 16
Brakes Hydraulic
PERFORMANCE
Maximum gradability (percent)
Turning radius (ft) Right 19M Left 20
Fording depth (in.)
Number of speeds forward
ENGINE
Manufacturer Chevrolet Model 1942 BD 1001 up
Brake horsepower
ADDITIONAL DATA

TM 9-2800

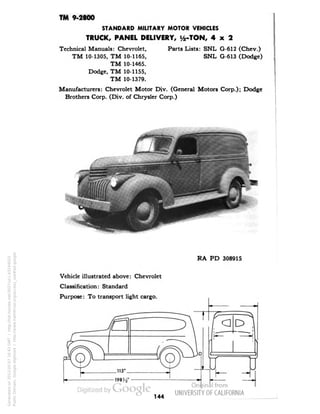

TRUCK, PANEL DELIVERY, y2-TON, 4x2
Parts Lists: SNL G-612 (Chev.)
SNL G-613 (Dodge)
Technical Manuals: Chevrolet,
TM 10-1305, TM 10-1165,
TM 10-1465.
Dodge, TM 10-1155,
TM 10-1379.
Brothers Corp. (Div. of Chrysler Corp.)
RA PD 308915
Vehicle illustrated above: Chevrolet
c
D
144

TM 9-2800
SECTION VIII-TRUCKS

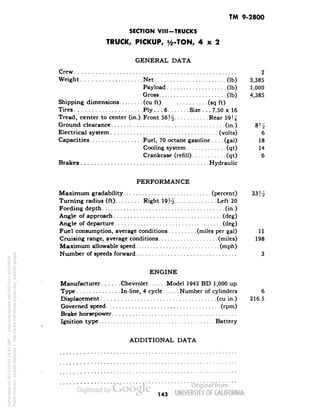

TRUCK, PICKUP, i/2-TON, 4x2
GENERAL DATA
Crew 2
Payload (Ib) 1,000
Gross (Ib) 4,385
Tires Ply. . .6 Size . . . 7.50 x 16
Tread, center to center (in.) Front 56H Rear 59%
Brakes Hydraulic
PERFORMANCE
Maximum gradability (percent) 33J^
Turning radius (ft) Right 191A Left 20
Fording depth (in.)
Maximum allowable speed (rnph)
ENGINE
Manufacturer Chevrolet Model 1942 BD 1,000 up
Brake horsepower
ADDITIONAL DATA
143

TM 9-2800

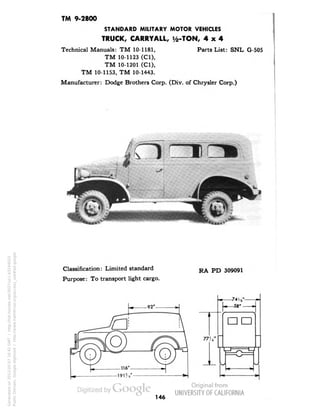

TRUCK, CARRYALL, V&-TON, 4x4
TM 10-1123 (Cl),
TM 10-1201 (Cl),
TM 10-1153, TM 10-1443.
Manufacturer: Dodge Brothers Corp. (Div. of Chrysler Corp.)
... •
RA PD 309091
77] 4'
-74 !,
——58*
146

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CARRYALL, i/2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 1,000
Gross (Ib) 4,595
Tires Ply ... 8 Size ... 7.50 x 16
Tread, center to center (in.) . Front 59% Rear 61%
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
Angle of departure (deg) 31 V-j
ENGINE
Governed speed (rpm) 1,200-1,900
Brake horsepower
ADDITIONAL DATA

TM 9-28OO

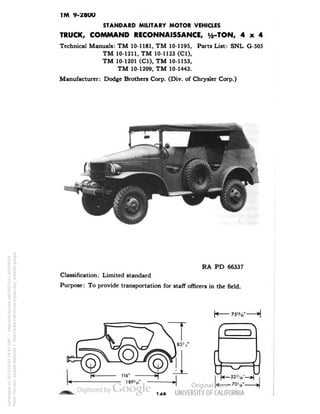

TRUCK, COMMAND RECONNAISSANCE, i/2-TON, 4x4
TM 10-1211, TM 10-1123 (Cl),
TM 10-1201 (C1), TM 10-1153,
TM 10-1209, TM 10-1443.
RA PD 66337
Purpose: To provide transportation for staff officers in the field.
75%"

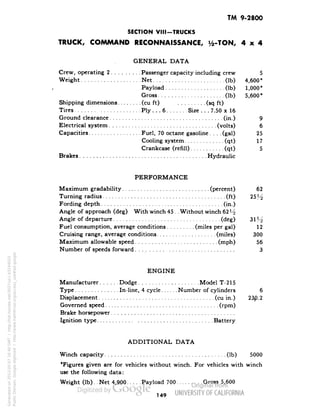

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, COMMAND RECONNAISSANCE, V2-TON, 4x4
, GENERAL DATA
Crew, operating 2 Passenger capacity including crew 5
Weight Net (Ib) 4,600*
, Payload (Ib) 1,000*
Gross (Ib) 5,600*
Tires Ply... 6 Size ... 7.50 x 16
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 25^
Fording depth (in.)
Angle of approach (deg) With winch 45. . Without winch 62 V<i
Angle of departure (deg) 31H
ENGINE
Displacement (cu in.) 23p.2
Brake horsepower
ADDITIONAL DATA
Winch capacity (Ib) 5000
'Figures given are for vehicles without winch. For vehicles with winch
use the following data:
Weight (Ib). .Net 4,900 Payload 700 Gross 5,600
149

TM 9-2800
TRUCK, EMERGENCY REPAIR, y2-TON, 4x4
RA PD 66541
Purpose: To provide mobile facilities for emergency ordnance repair.
81'i6•
89V-
150

TM 9-2800
SECTION VIII-TRUCKS

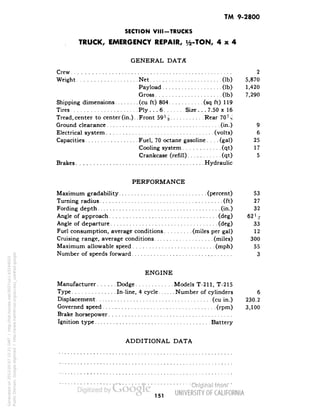

TRUCK, EMERGENCY REPAIR, y2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 1,420
Gross (Ib) 7,290
Tires Ply. . .6 Size ... 7.50 x 16
Tread, center to center (in.). .Front 59% Rear 7074
Brakes Hydraulic
PERFORMANCE
Angle of approach (deg) 62 V£
ENGINE
Manufacturer Dodge Models T-211, T-215
Brake horsepower
ADDITIONAL DATA
151

IIYI V-/BUU

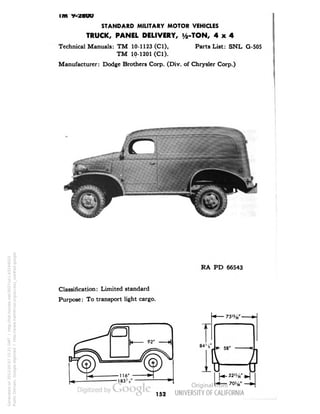

TRUCK, PANEL DELIVERY, y2-TON, 4x4
Technical Manuals: TM 10-1123 (Cl), Parts List: SNL G-505
TM 10-1201 (Cl).
RA PD 66543
84's'
152

TM 9-2800
SECTION VIII-TRUCKS

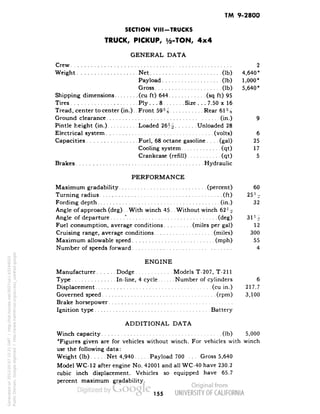

TRUCK, PICKUP, i/2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 1,000*
Gross (Ib) 5,640*
Tires Ply ... 8 Size . . . 7.50 x 16
Tread, center to center (in.). Front 59?/g Rear 61 %
Pintle height (in.) Loaded 26H Unloaded 28
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 25l/'
Angle of approach (deg). .With winch 45 . .Without winch 62]/2
Angle of departure' (deg) 31 Yi
ENGINE
Brake horsepower
ADDITIONAL DATA
'Figures given are for vehicles without winch. For vehicles with winch
Weight (Ib) Net 4,940 Payload 700 Gross 5,640
Model WC-12 after engine No. 42001 and all WC-40 have 230.2
cubic inch displacement. Vehicles so equipped have 65.7
percent maximum gradability.
155

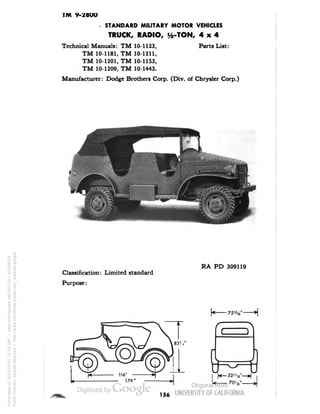

TM 9-28OO
- STANDARD MILITARY MOTOR VEHICLES
TRUCK, RADIO, y2-TON, 4x4
Technical Manuals: TM 10-1123, Parts List:
TM 10-1181, TM 10-1211,
TM 10-1201, TM 10-1153,
TM 10-1209, TM 10-1443.
Purpose:
RA PD 309119
156

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, RADIO, y2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 1,000
Gross (Ib) 6,070
Tires Ply... 8 Size ... 7.50 x 16
Tread, center to center (in.). .Front 59% Rear 61%
Brakes Hydraulic
PERFORMANCE
Fording depth. ." (in.) 32
ENGINE
Brake horsepower
ADDITIONAL DATA
157

TM 9-2800

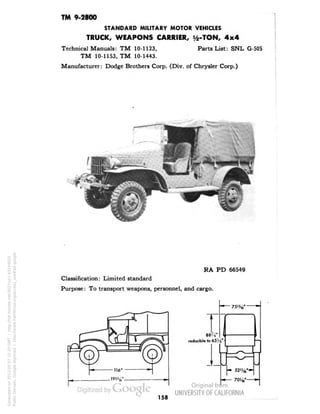

TRUCK, WEAPONS CARRIER, V2-TON, 4x4
TM 10-1153, TM 10-1443.
RA PD 66549
Purpose: To transport weapons, personnel, and cargo.
884'
reducible to 65 %
158

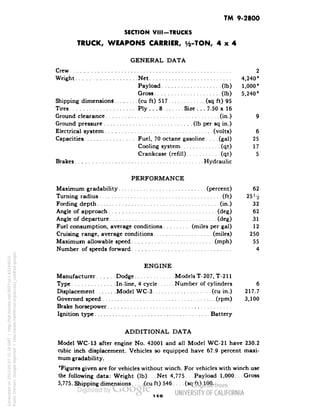

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, WEAPONS CARRIER, V2-TON, 4x4
GENERAL DATA
Crew 2
Weight Net 4,240*
Payload (Ib) 1,000*
Gross (Ib) 5,240*
Tires Ply ... 8 Size . .. 7.50 x 16
Ground pressure (Ib per sq in.)
Brakes Hydraulic
PERFORMANCE
ENGINE
Manufacturer Dodge Models T-207.T-211
Displacement Model WC-3 (cu in.) 217.7
Governed speed (n'm) 3,100
Brake horsepower
ADDITIONAL DATA
Model WC-13 after engine No. 42001 and all Model WC-21 have 230.2
cubic inch displacement. Vehicles so equipped have 67.9 percent maxi-mum
gradability. .
'Figures given are for vehicles without winch. For vehicles with winch use
the following data: Weight (Ib). . .Net 4,775. . .Payload 1,000.. .Gross
5,775. Shipping dimensions (cu ft) 546.... (sq ft) 100.
ico

TM 9-2800

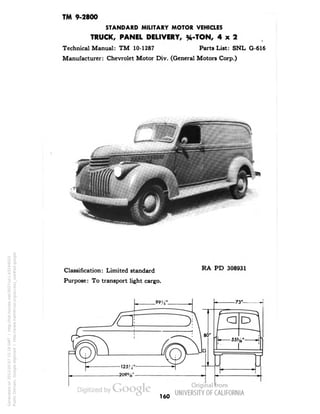

TRUCK, PANEL DELIVERY, %-TON, 4x2
Manufacturer: Chevrolet Motor Div. (General Motors Corp.)
RA PD 308931
160

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, PANEL DELIVERY, %-TON, 4x2
GENERAL DATA
Crew 2
Payload (Ib) 1,650
Gross (Ib) 5,250
Tires Ply ... 8... Size . . . Comm. 15 in.
Tread, center to center (in.) 603 g
Brakes Hydraulic
PERFORMANCE
Maximum gradability .- (percent)
Turning radius (ft) 21 ±
Fording depth . . .(in.)
ENGINE
Manufacturer Chevrolet Model 1942 ABF
Brake horsepower 90
ADDITIONAL DATA
161

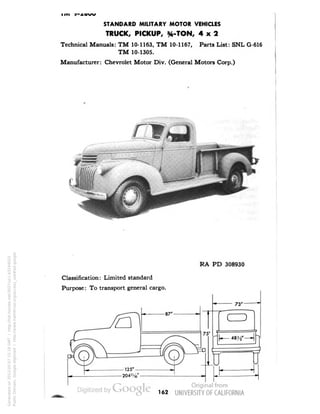

TRUCK, PICKUP, %-TON, 4x2
TM 10-1305.
RA PD 308930
Purpose: To transport general cargo.
162

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, PICKUP, 3/4-TON, 4x2
GENERAL DATA
Crew 2
Payload, includes 160 Ib driver. . (Ib) 1,660
Gross (Ib) 5,035
Tires Ply ... 6 Size . . . Comm. 15 in.
Tread, center to center (in.) 603 $
Electrical system. .'. (volts) 6
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 21 i
Fording depth (in.)
Number of speeds forward '3
ENGINE
Manufacturer Chevrolet Model ABF
Brake horsepower 90
ADDITIONAL DATA
163

TM 9-2800

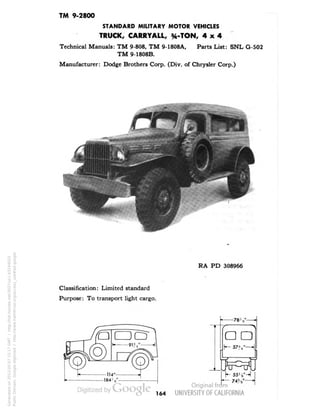

TRUCK, CARRYALL, %-TON, 4x4
TM 9-1808B.
RA PD 308966
-78 V
ao
74* a*-
164

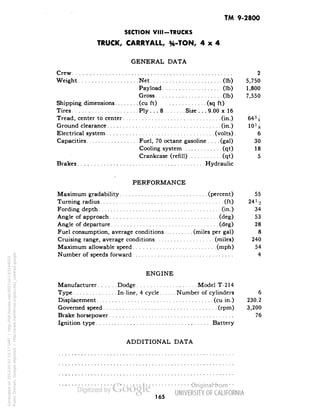

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CARRYALL, %-TON, 4x4
GENERAL DATA
Crew 2
Weight Net :(IB) 5,750
Payload (Ib) 1,800
Gross (Ib) 7,550
Tires Ply ... 8 Size . . . 9.00 x 16
Tread, center to center (in.) 64%
Ground clearance (in.) 10?/g
Electrical system (volts). 6
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 24^2
ENGINE
Brake horsepower 76
ADDITIONAL DATA
165

TM 9-2800

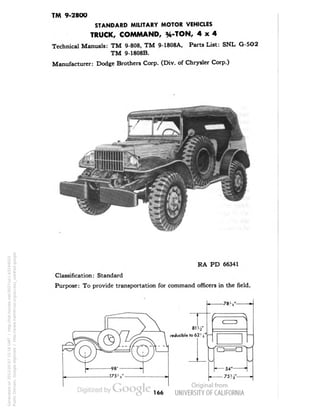

TRUCK, COMMAND, %-TON, 4x4
Technical Manuals: TM 9-808, TM 9-1808A, Parts List: SNL G-5O2
TM 9-1808B.
RA PD 66341
Purpose: To provide transportation for command officers in the field.
81J i"
reducible to 62' ^r—
-78'
-54"
75} a
166

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, COMMAND, %-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 1,500*
Gross (Ib) 6,875*
Shipping dimensions (cu ft) 442* (sq ft) 85*
Tires Ply ... 8 Size . . . 9.00 x 16
Ground clearance (in.) 105/g
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 21%
Angle of approach (deg) w/winch 36Hi w/o winch 53^
ENGINE
Brake horsepower 76
ADDITIONAL DATA
*Figures given are for vehicles without winch. For vehicles with
winch use the following data:
Weight (Ib)... .Net 5,675. ... .Payload 1,500 Gross 7,175
167

im
TRUCK, EMERGENCY REPAIR, %-TON, 4x4
TM 9-1808B.
RA PD 309020
Purpose: To provide mobile facilities for emergency repair.
168

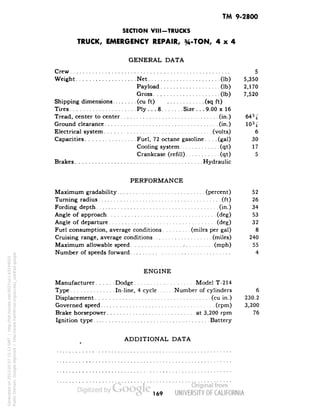

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, EMERGENCY REPAIR, %-TON, 4x4
GENERAL DATA
Crew 5
Payload (Ib) 2,170
Gross (Ib) 7,520
Tires Ply. . .8 Size. ..9.00 x 16
Brakes Hydraulic
PERFORMANCE
Turning radius' (ft) 26
Maximum allowable speed .- (mph) 55
ENGINE
Brake horsepower at 3,200 rpm 76
ADDITIONAL DATA
169

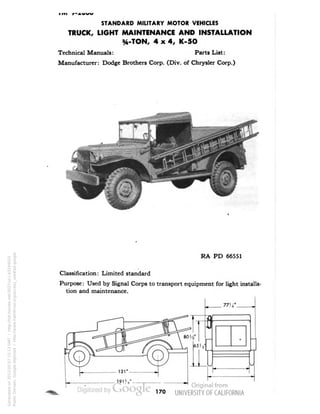

TRUCK, LIGHT MAINTENANCE AND INSTALLATION
3,4-TON, 4x4, K-5O
RA PD 66551
Purpose: Used by Signal Corps to transport equipment for light installa-tion
and maintenance.
170

TM 9-2800
SECTION VIII-TRUCKS

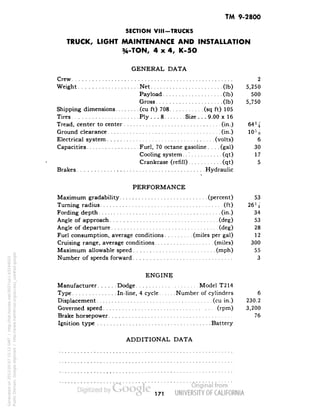

TRUCK, LIGHT MAINTENANCE AND INSTALLATION
34-TON, 4x4, K-5O
GENERAL DATA
Crew 2
Payload (Ib) 500
Gross (Ib) 5,750
Tires Ply ... 8 Size ... 9.00 x 16
Tread, center to center (in.)
Cooling system. .* (qt) 17
Brakes Hydraulic
•
PERFORMANCE
Turning radius (ft) 26 %
ENGINE
Manufacturer Dodge Model T214
Brake horsepower 76
ADDITIONAL DATA
171

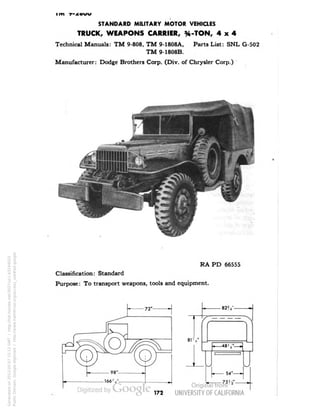

TRUCK, WEAPONS CARRIER, %-TON, 4x4
TM 9-1808B.
RA PD 66555
Purpose: To transport weapons, tools and equipment.
-8234'
81V
48V—•
54"

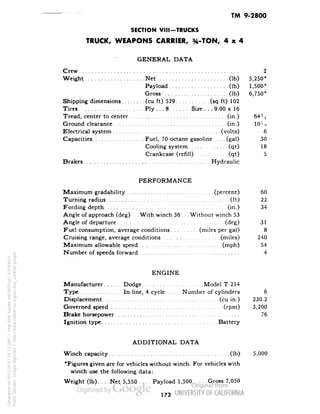

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, WEAPONS CARRIER, %-TON, 4x4
GENERAL DATA
Crew ". 2
Payload (Ib) 1,500*
Gross (Ib) 6,750*
Tires Ply... 8 Size . .. 9.00 x 16
Ground clearance (in.) 10ri v,
Brakes Hydraulic
PERFORMANCE
Angle of approach (deg). . . With winch 36... Without winch 53
Number of speeds forward '. ... . 4
ENGINE
Brake horsepower .•. . 76
ADDITIONAL DATA
*Figures given are for vehicles without winch. For vehicles with
winch use the following data:
Weight (Ib) Net 5,550 Payload 1,500 Gross 7,050
173

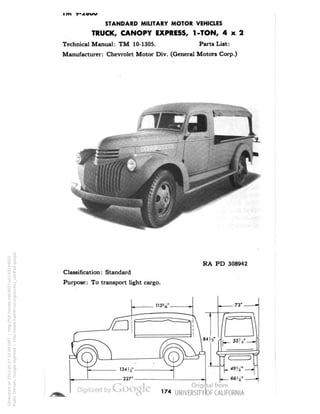

TRUCK, CANOPY EXPRESS, 1-TON, 4x2
Technical Manual: TM 10-1305. Parts List:
RA PD 308942

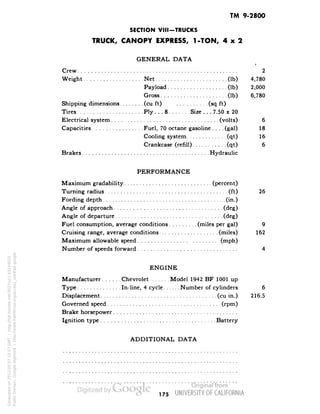

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CANOPY EXPRESS, 1 -TON, 4x2
GENERAL DATA
I
Crew 2
Payload (Ib) 2,000
Gross (Ib) 6,780
Shipping dimensions (cu ft) .' (sq ft)
Tires Ply. . . 8 Size . . . 7.50 x 20
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
Angle of departure • (deg)
ENGINE
Manufacturer Chevrolet Model 1942 BF 1001 up
Brake horsepower '.
ADDITIONAL DATA
175

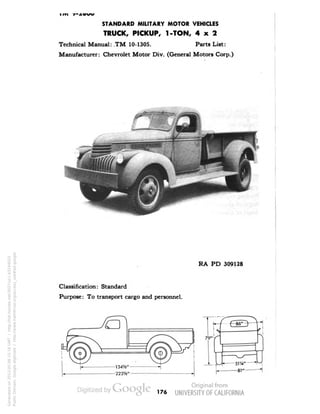

TRUCK, PICKUP, 1-TON, 4x2
RA PD 309128
Purpose: To transport cargo and personnel.
176

TM 9-2800
SECTION VIII-TRUCKS

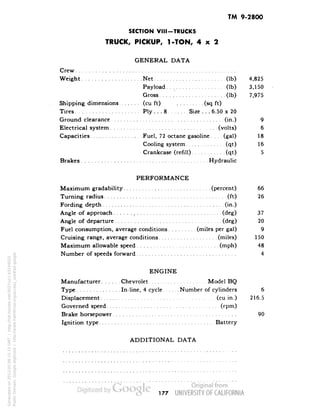

TRUCK, PICKUP, 1-TON, 4x2
GENERAL DATA
Crew
Payload (Ib) 3,150
Gross (Ib) 7,975
Tires Ply ... 8 Size . . . 6.50 x 20
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
ENGINE
Manufacturer Chevrolet Model BQ
Brake horsepower 90
ADDITIONAL DATA
177

im y-zevu

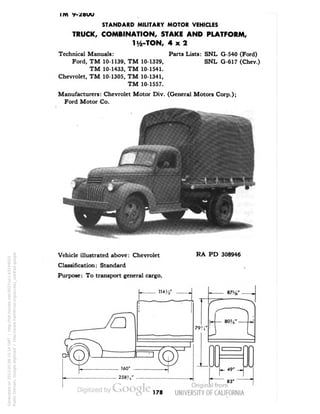

TRUCK, COMBINATION, STAKE AND PLATFORM,
li/2-TON, 4x2
Technical Manuals: Parts Lists: SNL G-540 (Ford)
Ford, TM 10-1139, TM 10-1329, SNL G-617 (Chev.)
TM 10-1433, TM 10-1541.
Chevrolet, TM 10-1305, TM 10-1341,
TM 10-1557.
Manufacturers: Chevrolet Motor Div. (General Motors Corp.);
Ford Motor Co.
RA PD 308946
178

TM 9-2800
SECTION VIII-TRUCKS

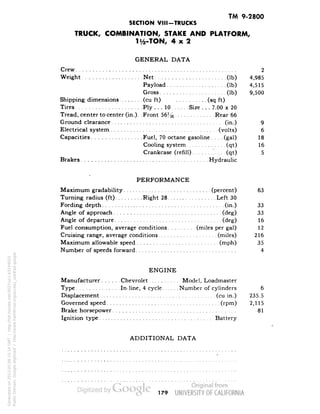

TRUCK, COMBINATION, STAKE AND PLATFORM,
114-TON, 4x2
GENERAL DATA
Crew 2
Payload (Ib) 4,515
Gross (Ib) 9,500
Tires Ply ... 10 Size . . . 7.00 x 20
Tread, center to center (in.). .Front 56j/f6 Rear 66
Capacities Fuel, 70 octane gasoline . . . .(gal) 18
Crankcase (refill) "(qt) 5
Brakes Hydraulic
PERFORMANCE
Maximum allowable speed (mph.) 35
ENGINE
Manufacturer Chevrolet Model, Loadmaster
Brake horsepower 81
ADDITIONAL DATA
179

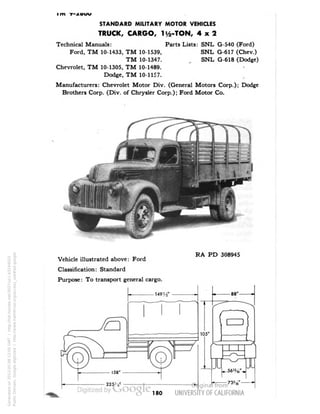

TRUCK, CARGO, U2-TON, 4x2
Technical Manuals: Parts Lists: SNL G-540 (Ford)
SNL G-617 (Chev.)
SNL G-618 (Dodge)
Ford, TM 10-1433, TM 10-1539,
TM 10-1347.
Chevrolet, TM 10-1305, TM 10-1489.
Dodge, TM 10-1157.
Brothers Corp. (Div. of Chrysler Corp.); Ford Motor Co.
Vehicle illustrated above: Ford
RA PD 308945

TM 9-2800

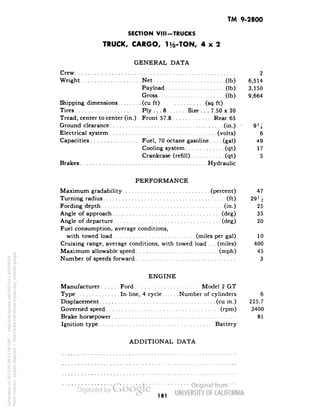

SECTION VIII-TRUCKS
TRUCK, CARGO, H/2-TON, 4x2
GENERAL DATA
Crew 2
Payload (Ib) 3,150
Gross .(Ib) 9,664
Tires Ply ... 8 Size ... 7.50 x 20
Tread, center to center (in.). Front 57.8 Rear 65
Ground clearance (in.) • 9%
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 29 V-j
Cruising range, average conditions, with towed load . . . (miles) 400
Maximum allowable speed. (mph) 45
ENGINE
Manufacturer Ford Model 2 GT
Brake horsepower 81
ADDITIONAL DATA
181

TM 9-2800

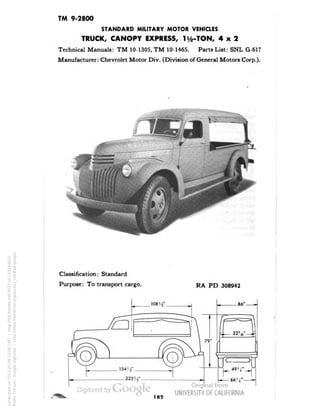

TRUCK, CANOPY EXPRESS, H/2-TON, 4x2
Manufacturer: Chevrolet Motor Div. (Division of General Motors Corp.).
Purpose: To transport cargo.
RA PD 308942
182

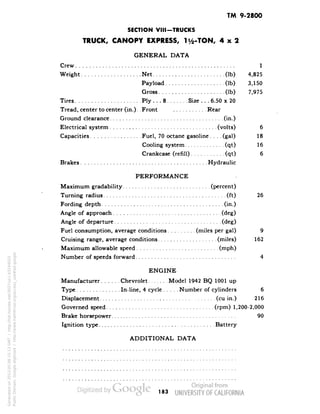

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CANOPY EXPRESS, ly2-TON, 4x2
GENERAL DATA
Crew 1
Payload (Ib) 3,150
Gross (Ib) 7,975
Tires Ply... 8 Size ... 6.50 x 20
Tread, center to center (in.).. Front Rear
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
ENGINE
Manufacturer Chevrolet Model 1942 BQ 1001 up
Governed speed (rpm) 1,200-2,000
Brake horsepower 90
ADDITIONAL DATA
183

TM 9-2800
TRUCK, DUMP, T/2-TON, 4x2
Technical Manuals: Chevrolet, Parts Lists: SNL G-620 (CMC)
TM 10-1305, TM 10-1329. SNL G-540 (Ford)
Ford, TM 10-1139, SNL G-617 (Chev.)
TM 10-1329.
Manufacturers: Chevrolet Motor Div. (General Motors Corp.); Ford
Motor Co.
RA PD 308950
Purpose: To transport and dump stone, sand, gravel, etc., and to trans-port
general cargo.
184

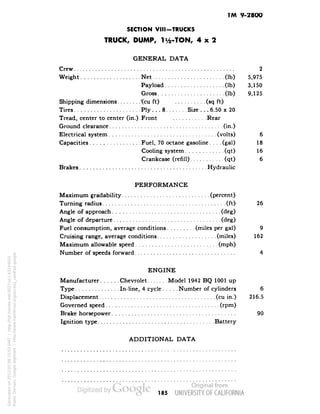

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, DUMP, 1 i/2-TON, 4x2
GENERAL DATA
Crew 2
Payload (Ib) 3,150
Gross (Ib) 9,125
Shipping dimensions Xcu ft) (sq ft)
Tires Ply... 8 Size . . .6.50 x 20
Tread, center to center (in.).Front Rear
Ground clearance , (in.)
Brakes Hydraulic
PERFORMANCE
ENGINE
Manufacturer Chevrolet Model 1942 BQ 1001 up
Brake horsepower 90
ADDITIONAL DATA
185

TM 9-2800

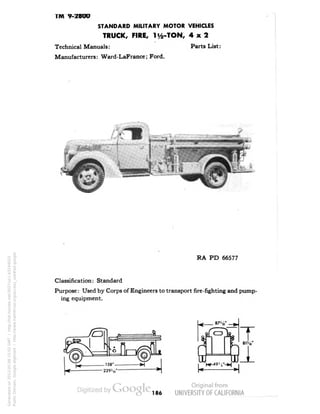

TRUCK, FIRE, 1^-TON, 4x2
Manufacturers: Ward-LaFrance; Ford.
RA PD 66577
Purpose: Used by Corps of Engineers to transport fire-fighting and pump-ing
equipment.
186

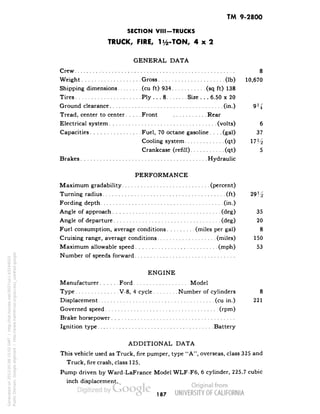

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, FIRE, iVfe-TON, 4x2
GENERAL DATA
Crew • 8
Tires Ply ... 8 Size . .. 6.50 x 20
Ground clearance (in.) 9j<i
Tread, center to center Front Rear
Cooling system (qt) 17M
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
ENGINE
Manufacturer Ford '. Model
Brake horsepower
ADDITIONAL DATA
This vehicle used as Truck, fire pumper, type "A", overseas, class 325 and
Truck, fire crash, class 125.
Pump driven by Ward-LaFrance Model WLF-F6, 6 cylinder, 225.7 cubic
inch displacement.
187

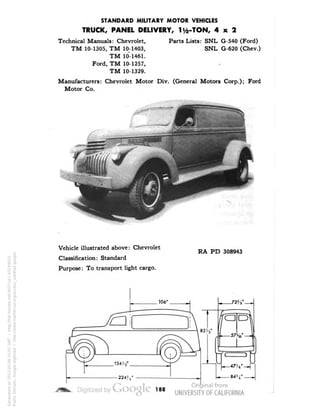

TRUCK, PANEL DELIVERY, ly2-TON, 4x2
Technical Manuals: Chevrolet, Parts Lists: SNL G-540 (Ford)
TM 10-1305, TM 10-1403, SNL G-620 (Chev.)
TM 10-1461.
Ford, TM 10-1257,
TM 10-1329.
Motor Co.
RA PD 308943
188

TM 9-2800
SECTION VIII-TRUCKS

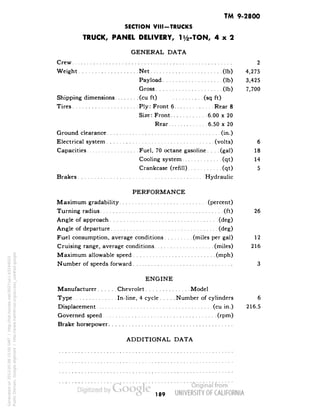

TRUCK, PANEL DELIVERY, 1 y2-TON, 4x2
GENERAL DATA
Crew 2
Weight Net. .- (Ib) 4,275
Payload (Ib) 3,425
Gross (Ib) 7,700
Tires Ply: Front 6 Rear 8
Size: Front 6.00 x 20
Rear 6.50 x 20
Brakes Hydraulic
PERFORMANCE
Turning radius . (ft) 26
ENGINE
Manufacturer Chevrolet Model
Governed speed (rPm)
Brake horsepower,
ADDITIONAL DATA
189

i m f-

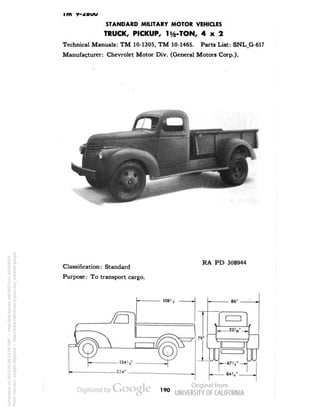

TRUCK, PICKUP, li/2-TON, 4x2
Technical Manuals: TM 10-1305, TM 10-1465. Parts List: SNL_G-617
Purpose: To transport cargo.
RA PD 308944
190

TM 9-2800
SECTION VIII—TRUCKS

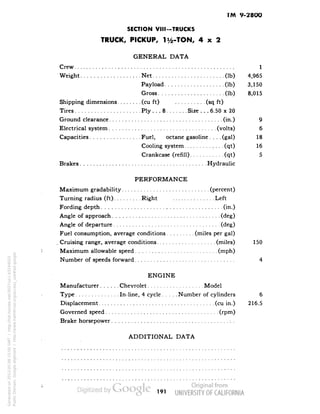

TRUCK, PICKUP, li/2-TON, 4x2
GENERAL DATA
Crew 1
Payload (Ib) 3,150
Gross (Ib) 8,015
Tires Ply... 8 Size ... 6.50 x 20
Capacities Fuel, octane gasoline. . . .(gal) 18
Crankcase (refill) (qt) . 5
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
. Cruising range, average conditions (miles) 150
ENGINE
Manufacturer Chevrolet Model
Brake horsepower
ADDITIONAL DATA
191

I/W V-/BUU

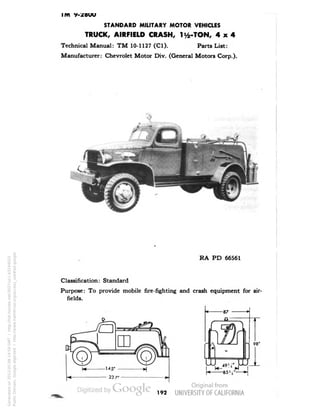

TRUCK, AIRFIELD CRASH, ly2-TON, 4x4
Technical Manual: TM 10-1127 (Cl). Parts List:
•
RA PD 66561
Purpose: To provide mobile fire-fighting and crash equipment for air-fields.
-87
Q
LU
98"
192

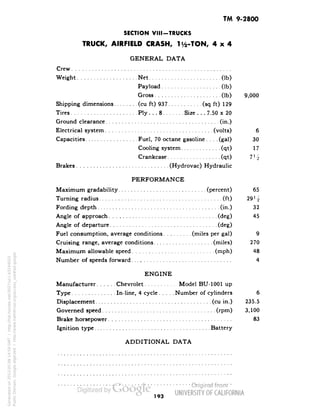

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, AIRFIELD CRASH, 1^-TON, 4x4
GENERAL DATA
Crew
Weight Net (Ib)
Payload (Ib)
Gross (Ib) 9,000
Tires Ply. . . 8 Size . . . 7.50 x 20
Ground clearance ' (in.)
Crankcase (qt) 1%
Brakes (Hydrovac) Hydraulic
PERFORMANCE
Turning radius (ft) 291A
ENGINE
Manufacturer Chevrolet Model BU-1001 up
Governed speed (rprn) 3,100
Brake horsepower 83
ADDITIONAL DATA
193

TM 9-2800

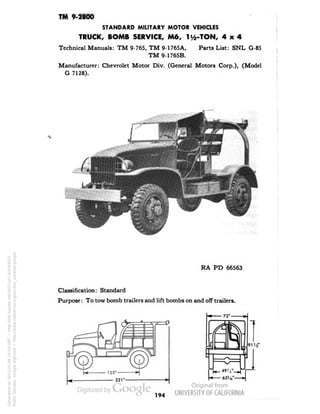

TRUCK, BOMB SERVICE, M6, li/2-TON, 4x4
TM 9-1765B.
Manufacturer: Chevrolet Motor Div. (General Motors Corp.), (Model
G 7128).
RA PD 66563
Purpose: To tow bomb trailers and lift bombs on and off trailers.
72' —
194

TM 9-2800
SECTION VIII-TRUCKS

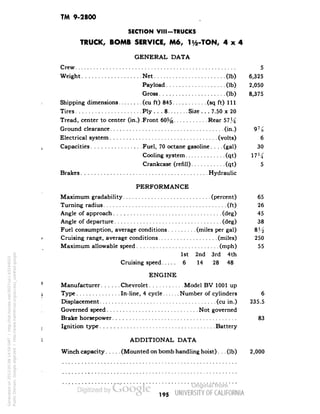

TRUCK, BOMB SERVICE, M6, li/fe-TON, 4x4
GENERAL DATA
Crew 5
Payload (Ib) 2,050
Gross (Ib) 8,375
Tires Ply ... 8 Size ... 7.50 x 20
Tread, center to center (in.).Front 60% Rear 57^
Ground clearance (in.) 9 J^
Cooling system (qt) 17%
Brakes Hydraulic
PERFORMANCE
Fuel consumption, average conditions (miles per gal) 8J/2
1st 2nd 3rd 4th
ENGINE
Manufacturer Chevrolet Model BV 1001 up
Brake horsepower 83
ADDITIONAL DATA
Winch capacity (Mounted on bomb handling hoist). . . (Ib) 2,000
195

TM 9-2800

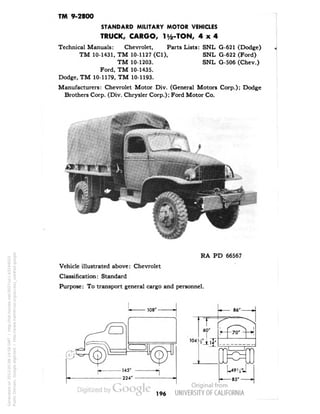

TRUCK, CARGO, 1V2-TON, 4x4
Technical Manuals: Chevrolet, Parts Lists: SNL G-621 (Dodge)
TM 10-1431, TM 10-1127 (Cl), SNL G-622 (Ford)
TM 10-1203. SNL G-506 (Chev.)
Ford, TM 10-1435.
Dodge, TM 10-1179, TM 10-1193.
Brothers Corp. (Div. Chrysler Corp.); Ford Motor Co.
RA PD 66567
Purpose: To transport general cargo and personnel.
196

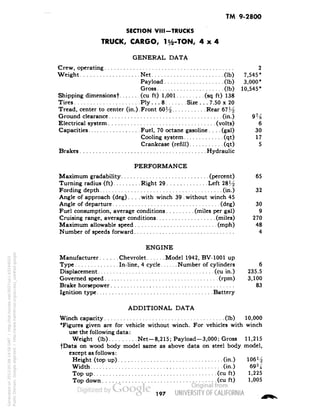

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CARGO, 1^-TON, 4x4
GENERAL DATA
Crew, operating 2
Payload (Ib) 3,000*
Gross (Ib) 10,545*
Shipping dimensions! (cu ft) 1,001 (sq ft) 138
Tires Ply.. .8 Size ... 7.50 x 20
Tread, center to center (in.).Front 60 ^ Rear 67J^
Ground clearance (in.) 9j/g
Brakes Hydraulic
PERFORMANCE
Angle of approach (deg).... with winch 39 . without winch 45
ENGINE
Manufacturer Chevrolet Model 1942, BV-1001 up
Brake horsepower 83
ADDITIONAL DATA
*Figures given are for vehicle without winch. For vehicles with winch
Weight (Ib) Net—8,215; Payload—3,000; Gross 11,215
fData on wood body model same as above data on steel body model,
except as follows:
Height (top up) (in.) 106H
Width (in.) 6934
Top up (cu ft) 1,225
Top down (cu ft) 1,005
197

TM 9-2800
TRUCK, COMBINATION STAKE AND PLATFORM,
15 FT, li/2-TON, 4x4
TM 10-1559.
RA PD 66569
108"
-96"-
-89'.
LJ
-85V-
42"
198

TM 9-2800
SECTION VIII-TRUCKS

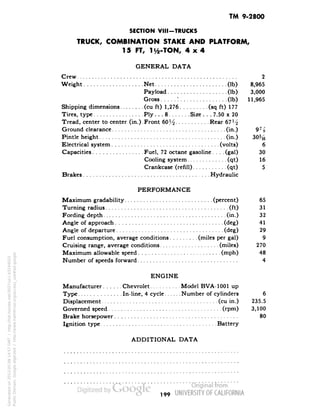

TRUCK, COMBINATION STAKE AND PLATFORM,
15 FT, li/2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross: (Ib) 11,965
Tires, type Ply... 8 Size . . . 7.50 x 20
Tread, center to center (in.).Front 60 H Rear 67H
Ground clearance (in.) 97/s
Pintle height (in.) 30%
Brakes Hydraulic
PERFORMANCE
ENGINE
Manufacturer Chevrolet Model BVA-1001 up
Brake horsepower 80
ADDITIONAL DATA
199

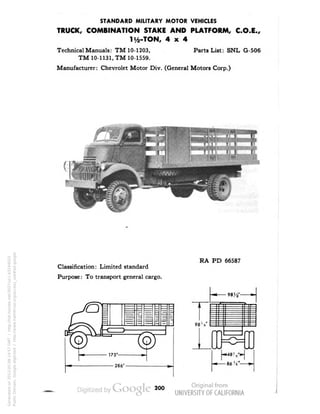

TRUCK, COMBINATION STAKE AND PLATFORM, C.O.E.,
Hi-TON, 4x4
TM 10-1131, TM 10-1559.
RA PD 66587
98 V
-• 487/*
86 'i"-
200

TM 9-2800

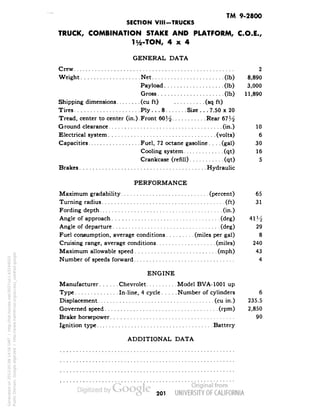

SECTION VIII-TRUCKS
li/2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross (Ib) 11,890
Tires Ply... 8 Size ... 7.50 x 20
Tread, center to center (in.).Front 60 H Rear 67H
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
Angle of approach (deg) 41 %
ENGINE
Brake horsepower 90
ADDITIONAL DATA
201

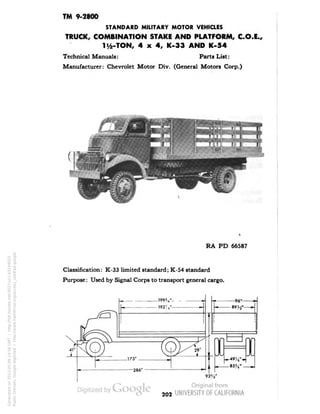

TM 9-2800
li/2-TON, 4x4, K-33 AND K-54
RA PD 66587
Classification: K-33 limited standard; K-54 standard
Purpose: Used by Signal Corps to transport general cargo.
202

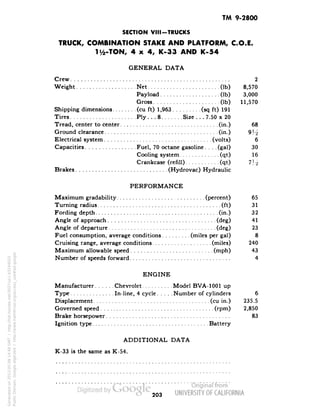

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, COMBINATION STAKE AND PLATFORM, C.O.E.
li/2-TON, 4x4, K-33 AND K-54
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross (Ib) 11,570
Tires Ply.. .8 Size ... 7.50 x 20
Crankcase (refill) (qt) 7K
PERFORMANCE
ENGINE
Brake horsepower 83
ADDITIONAL DATA
K-33 is the same as K-54.
203

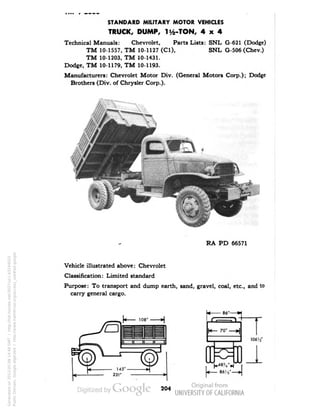

TRUCK, DUMP, 1 i^-TON, 4x4
Technical Manuals: Chevrolet, Parts Lists: SNL G-621 (Dodge)
TM 10-1557, TM 10-1127 (C1), SNL G-506 (Chev.)
TM 10-1203, TM 10-1431.
Dodge, TM 10-1179, TM 10-1193.
Brothers (Div. of Chrysler Corp.).
RA PD 66571
Purpose: To transport and dump earth, sand, gravel, coal, etc., and to
carry general cargo.
8<S"
70"
OE
861;
106'j'
204

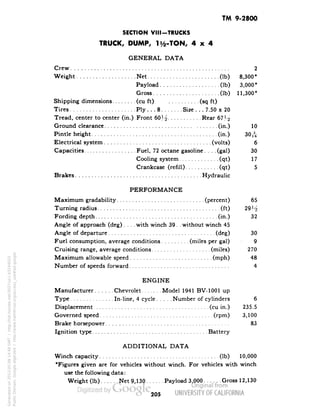

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, DUMP, li/2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 3,000*
Gross (Ib) 11,300*
Tires Ply ... 8 Size . . . 7.50 x 20
Tread, center to center (in.).Front 60^ Rear 67^
Pintle height (in.) 30^
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 2 9 .Hi
Angle of approach (deg) .... with winch 39. . without winch 45
Fuel consumption, average conditions (miles per gal) • 9
ENGINE
Manufacturer Chevrolet Model 1941 BV-1001 up
Brake horsepower 83
ADDITIONAL DATA
*Figures given are for vehicles without winch. For vehicles with winch
205

i m

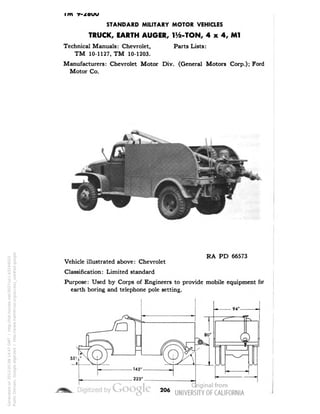

TRUCK, EARTH AUGER, 1V&-TON, 4 x 4, Ml
Technical Manuals: Chevrolet, Parts Lists:
TM 10-1127, TM 10-1203.
Motor Co.
RA PD 66573
Purpose: Used by Corps of Engineers to provide mobile equipment for
earth boring and telephone pole setting.
206

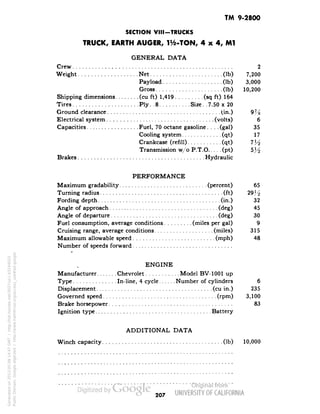

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, EARTH AUGER, 1^-TON, 4 x 4, Ml
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross (Ib) 10,200
Tires Ply. .8 Size. .7.50 x 20
Crankcase (refill) (qt)
Transmission w/o P.T.O (pt)
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 29 H
^
ENGINE
Manufacturer Chevrolet Model BV-1001 up
Brake horsepower 83
ADDITIONAL DATA
207

TM 9-2800

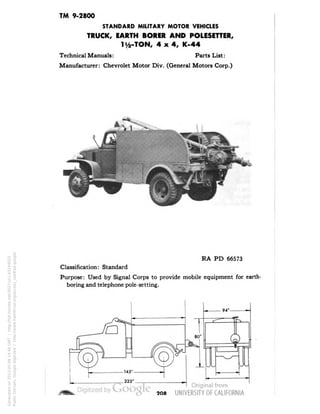

TRUCK, EARTH BORER AND POLESETTER,
li/2-TON, 4x4, K-44
RA PD 66573
Purpose: Used by Signal Corps to provide mobile equipment for earth-boring
and telephone pole-setting.
208

TM 9-2800
SECTION VIII-TRUCKS

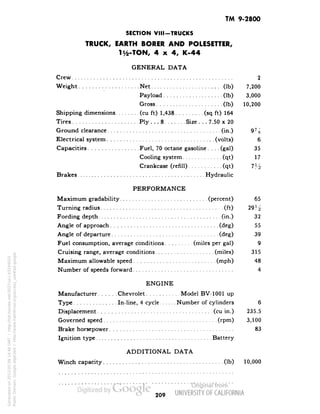

TRUCK, EARTH BORER AND POLESETTER,
li/2-TON, 4x4, K-44
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross (Ib) 10,200
Tires Ply ... 8 Size ... 7.50 x 20
Ground clearance (in.) 9j-g
Crankcase (refill) (qt) 7Yi
Brakes Hydraulic
PERFORMANCE
ENGINE
Brake horsepower 83
ADDITIONAL DATA
209

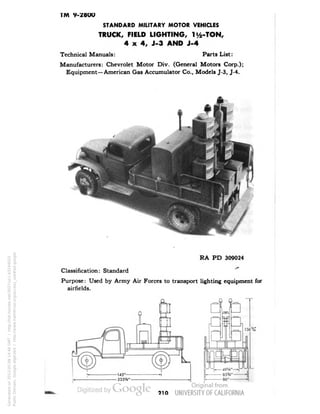

TM 7-28OO
TRUCK, FIELD LIGHTING, 1^-TON,
4x4, J-3 AND J-4
Equipment—American Gas Accumulator Co., Models J-3, J-4.
RA PD 309024
Purpose: Used by Army Air Forces to transport lighting equipment for
airfields.
O Q
210

TM 9-2800
SECTION VIM-TRUCKS

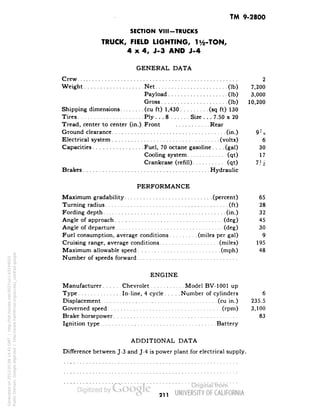

TRUCK, FIELD LIGHTING, iVfe-TON,
4x4, J-3 AND J-4
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross (Ib) 10,200
Tires Ply ... 8 Size . . . 7.50 x 20
Ground clearance (in.) 9 J-g
Crankcase (refill) (qt) 7%
Brakes Hydraulic
PERFORMANCE
ENGINE
Brake horsepower 83
ADDITIONAL DATA
Difference between J-3 and J-4 is power plant for electrical supply.
211

TM 9-2800

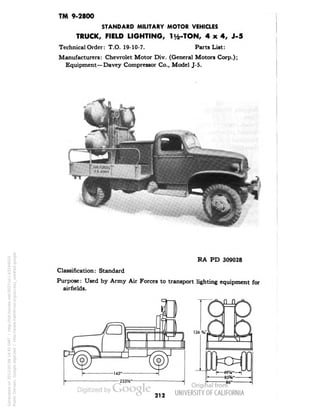

TRUCK, FIELD LIGHTING, iVfe-TON, 4x4, J-5
Technical Order: T.O. 19-10-7. Parts List:
Equipment—Davey Compressor Co., Model J-5.
RA PD 309028
Purpose: Used by Army Air Forces to transport lighting equipment for
airfields.
212

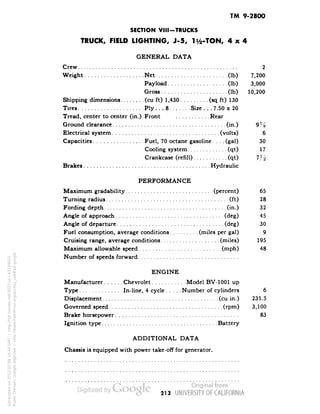

TM 9-2800
SECTION VJII-TRUCKS
TRUCK, FIELD LIGHTING, J-5, 1^-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross (Ib) 10,200
Tires Ply ... 8. ..... .Size ... 7.50 x 20
Tread, center to center (in.) Front Rear
Crankcase (refill) (qt) 71A
Brakes Hydraulic
PERFORMANCE
ENGINE
Brake horsepower 83
ADDITIONAL DATA
Chassis is equipped with power take-off for generator.
213

TM 9-2800
TRUCK, PANEL DELIVERY, 1 i/2-TON, 4x4
TM 10-1127 (Cl), TM 10-1431.
RA PD 309098
214

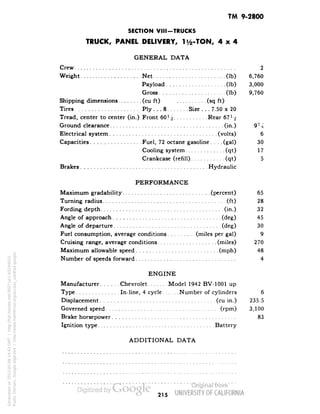

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, PANEL DELIVERY, 1 y2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross (Ib) 9,760
Tires Ply... 8 Size ... 7.50 x 20
Tread, center to center (in.).Front 60J^ Rear 67^
Ground clearance (in.) 9?^
Brakes Hydraulic
PERFORMANCE
ENGINE
Manufacturer Chevrolet Model 1942 BV-1001 up
Brake horsepower 83
ADDITIONAL DATA
215

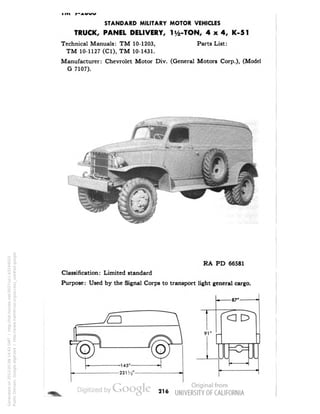

TRUCK, PANEL DELIVERY, 112-TON, 4x4, K-51
Technical Manuals: TM 10-1203, Parts List:
TM 10-1127 (Cl), TM 10-1431.
Manufacturer: Chevrolet Motor Div. (General Motors Corp.), (Model
G 7107).
RA PD 66581
Purpose: Used by the Signal Corps to transport light general cargo.
87"
91"
216

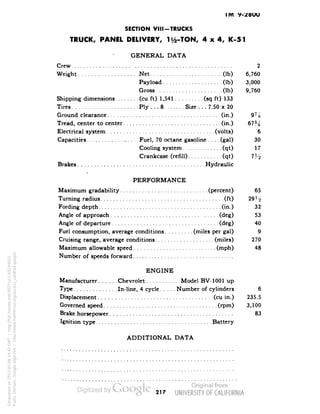

i/vi y-
SECTION VIII-TRUCKS
TRUCK, PANEL DELIVERY, ly2-TON, 4x4, K-51
GENERAL DATA
Crew 2
Payload (Ib) 3,000
Gross (Ib) 9,760
Tires Ply ... 8 Size ... 7.50 x 20
Crankcase (refill) (qt) 1Y2
Brakes Hydraulic
•
PERFORMANCE
Turning radius (ft) 29 i
ENGINE
Brake horsepower 83
ADDITIONAL DATA
217

TM 9-2800

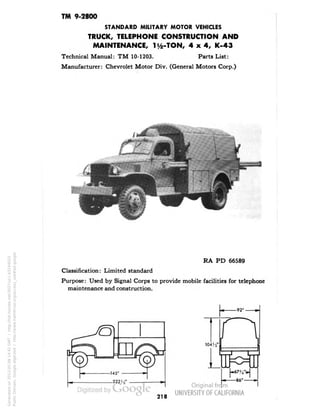

TRUCK, TELEPHONE CONSTRUCTION AND
MAINTENANCE, iy2-TON, 4x4, K-43
RA PD 66589
Purpose: Used by Signal Corps to provide mobile facilities for telephone
maintenance and construction.
218

TM 9-2800
SECTION VIII-TRUCKS

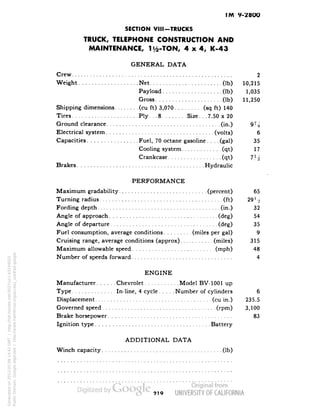

TRUCK, TELEPHONE CONSTRUCTION AND
MAINTENANCE, li/2-TON, 4x4, K-43
GENERAL DATA
Crew 2
Payload (Ib) 1,035
Gross (Ib) 11,250
Tires Ply. . .8 Size. . .7.50 x 20
Crankcase (qt) 7 Yi
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 29 V,
Cruising range, average conditions (approx) (miles) 315
ENGINE
Brake horsepower 83
ADDITIONAL DATA
Winch capacity (Ib)
919

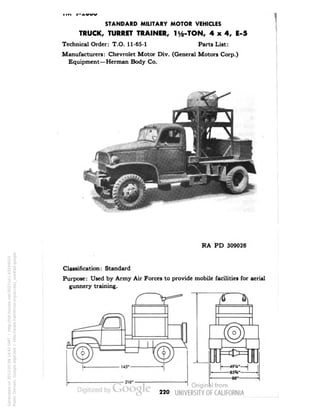

TRUCK, TURRET TRAINER, ly2-TON, 4x4, 1-5
Technical Order: T.O. 11-65-1 Parts List:
Manufacturers: Chevrolet Motor Div. (General Motors Corp.)
Equipment—Herman Body Co.
RA PD 309026
Purpose: Used by Army Air Forces to provide mobile facilities for aerial
gunnery training.
220

TM 9-2800
SECTION VIII-TRUCKS

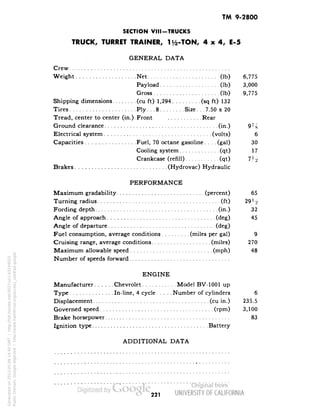

TRUCK, TURRET TRAINER, 1^-TON, 4x4, E-5
GENERAL DATA
Crew
Payload (Ib) 3,000
Gross (Ib) 9,775
Tires Ply. . .8 Size. . .7.50 x 20
Crankcase (refill) (qt) 7H
PERFORMANCE
ENGINE
Brake horsepower 83
ADDITIONAL DATA
221

IIVI V-/BUU

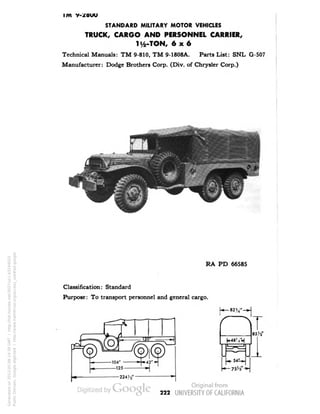

TRUCK, CARGO AND PERSONNEL CARRIER,
li/2-TON, 6x6
RA PD 66585
Purpose: To transport personnel and general cargo.
85 W
222

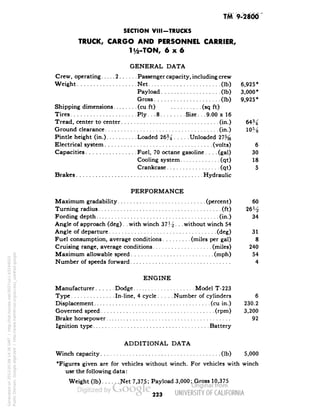

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CARGO AND PERSONNEL CARRIER,
1 i/2-TONA 6x6
GENERAL DATA
Crew, operating 2 Passenger capacity, including crew
Payload (Ib) 3,000*
Gross (Ib) 9,925*
Tires Ply... 8 Size. . . 9.00 x 16
Ground clearance (in.) 1O^j
Pintle height (in.) Loaded 26% Unloaded 27%
Crankcase (qt) 5
Brakes Hydraulic
PERFORMANCE
Angle of approach (deg). . with winch 37H • • • without winch 54
Cruising range, average conditions. (miles) 240
ENGINE
Brake horsepower 92
ADDITIONAL DATA
Weight (Ib) Net 7,375; Payload 3,000; Gross 10,375
223

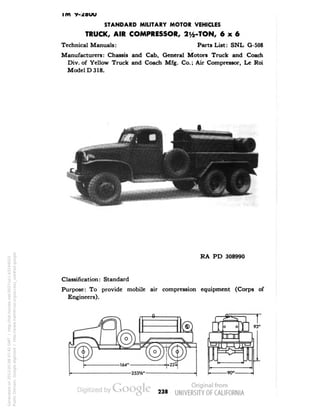

im
TRUCK, AIR COMPRESSOR, 2y2-TON, 6x6
Manufacturers: Chassis and Cab, General Motors Truck and Coach
Div. of Yellow Truck and Coach Mfg. Co.; Air Compressor, Le Roi
Model D 318.
RA PD 308990
Purpose: To provide mobile air compression equipment (Corps of
Engineers).
238

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, AIR COMPRESSOR, 2y2-TON, 6x6
GENERAL DATA
Crew 2
Tires Ply. . .8 Size. . .7.50 x 20
PERFORMANCE
Fording depth (in.)
Fuel consumption, average conditions.., (miles per gal) 7.5
ENGINE
ADDITIONAL DATA
Motorized air compressor, Le Roi model 105 GA; powered by Le Roi
model D318 (318 cu in.) engine equipped with 50 gallon gasoline tank.
These vehicles built with open cab after July, 1943.
239

TM 9-2800

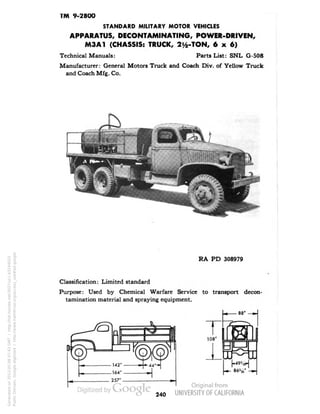

APPARATUS, DECONTAMINATING, POWER-DRIVEN,
M3A1 (CHASSIS: TRUCK, 2^-TON, 6x6)
Manufacturer: General Motors Truck and Coach Div. of Yellow Truck
and Coach Mfg. Co.
RA PD 308979
Purpose: Used by Chemical Warfare Service to transport decon-tamination
material and spraying equipment.
240

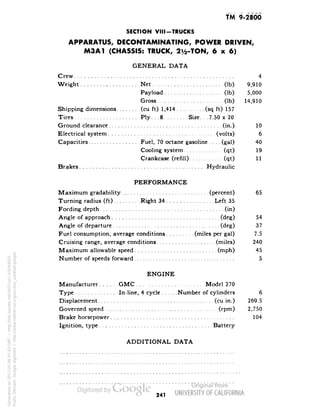

TM 9-2800
SECTION VIII-TRUCKS
APPARATUS, DECONTAMINATING, POWER DRIVEN,
M3A1 (CHASSIS: TRUCK, 2y2-TON, 6x6)
GENERAL DATA
Crew 4
Payload (Ib) 5,000
Gross (Ib) 14,910
Tires Ply... 8 Size... 7.50 x 20
Brakes Hydraulic
PERFORMANCE
Fording depth (in)
ENGINE
Ignition, type Battery
ADDITIONAL DATA
241

FM 9-28OO
TRUCK, CARGO, L.W.B., 2V2-TON, 6x6
Technical Manuals: Parts Lists: SNL G-508 (CMC)
GMC, TM 9-801. SNL G-651 (IHC)
IHC, TM 10-1505. SNL G-630 (Stud.)
Studebaker, TM 10-1385 (Cl),
TM 10-1503, TM 10-1565,
TM 10-1387.
Manufacturers: General Motors Truck and Coach Division of Yellow
Truck and Coach Mfg. Co.; International Harvester Co.; The Stude-baker
Corp.
RA PD 308983
Vehicle illustrated above: GMC
242

TM 9-2800
SECTION VIII-TRUCKS

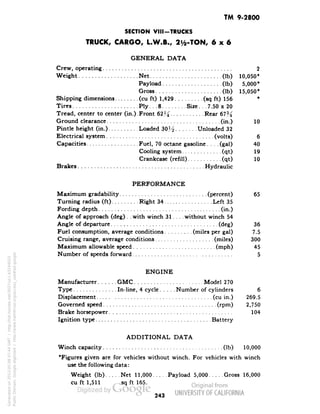

TRUCK, CARGO, L.W.B., 2^-TON, 6x6
GENERAL DATA
Crew, operating 2
Payload (Ib) 5,000*
Gross (Ib) 15,050*
Shipping dimensions (cu ft) 1,429 (sq ft) 156 *
Tires Ply. . .8 Size. . .7.50 x 20
Pintle height (in.) Loaded 30^ Unloaded 32
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
Angle of approach (deg) . .with winch 31... .without winch 54
ENGINE
ADDITIONAL DATA
cu ft 1,511 sq ft 165.
243

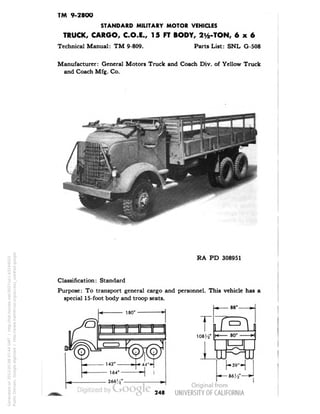

TM 9-2800
TRUCK, CARGO, C.O.E., 1 5 FT BODY, 2^-TON, 6x6
and Coach Mfg. Co.
RA PD 308951
Purpose: To transport general cargo and personnel. This vehicle has a
special 15-foot body and troop seats.
88"
108^"
248

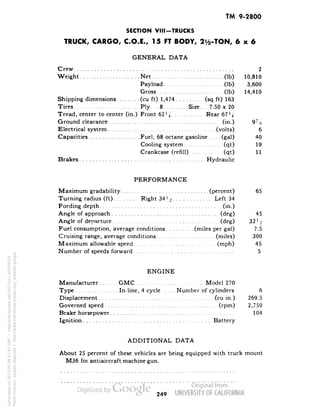

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CARGO, C.O.E., 15 FT BODY, 2^-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 3,600
Gross (Ib) 14,410
Tires Ply... 8 Size. . . 7.50 x 20
Tread, center to center (in.) Front 62}4 Rear 67%
Ground clearance (in.) 9J j?
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
Angle of departure (deg) 32! 2
ENGINE
Ignition Battery
ADDITIONAL DATA
About 25 percent of these vehicles are being equipped with truck mount
M36 for antiaircraft machine gun.
249

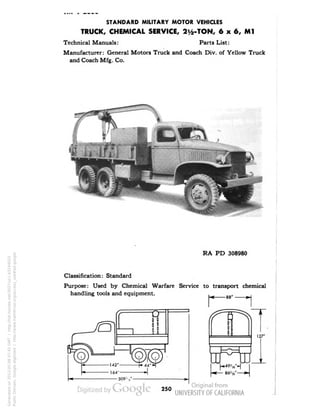

TRUCK, CHEMICAL SERVICE, 2y2-TON, 6 x 6, Ml
and Coach Mfg. Co.
RA PD 308980
Purpose: Used by Chemical Warfare Service to transport chemical
handling tools and equipment.
250

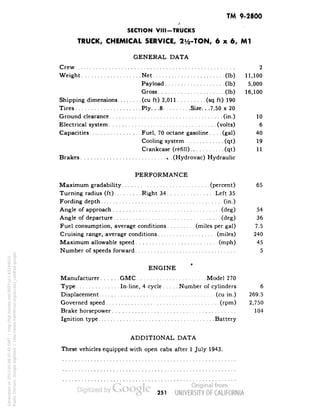

TM 9-2500
/
SECTION VIII-TRUCKS
TRUCK, CHEMICAL SERVICE, 2y2-TON, 6 x 6, Ml
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 16,100
Tires Ply.. .8 Size.. .7.50 x 20
Brakes » . (Hydrovac) Hydraulic
PERFORMANCE
Fording depth (in.)
ENGINE
ADDITIONAL DATA
These vehicles equipped with open cabs after 1 July 1943.
251

TM 9-2800

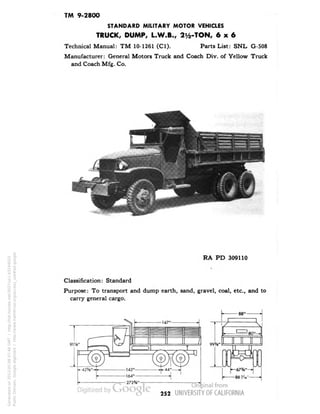

TRUCK, DUMP, L.W.B., 2^-TON, 6x6
Technical Manual: TM 10-1261 (Cl). Parts List: SNL G-508
and Coach Mfg. Co.
RA PD 309110
252

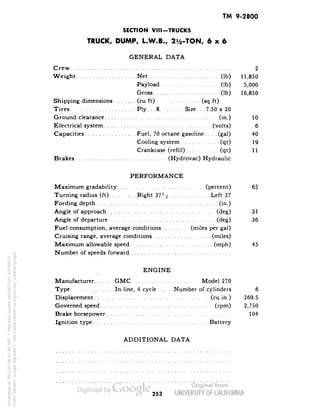

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, DUMP, L.W.B., 2^-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 16,850
Tires Ply... 8 Size. .. 7.50 x 20
PERFORMANCE
Turning radius (ft) Right 37 H Left 37
Fording depth (in.)
ENGINE
ADDITIONAL DATA
253

TWl 9-2800

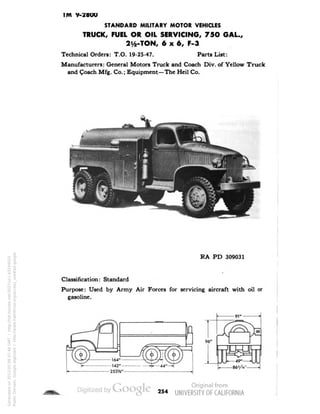

TRUCK, FUEL OR OIL SERVICING, 75O GAL.,
2V&-TON, 6x6, F-3
Technical Orders: T.O. 19-25-47. Parts List:
and Coach Mfg. Co.; Equipment—The Heil Co.
RA PD 309031
Purpose: Used by Army Air Forces for servicing aircraft with oil or
gasoline.
254

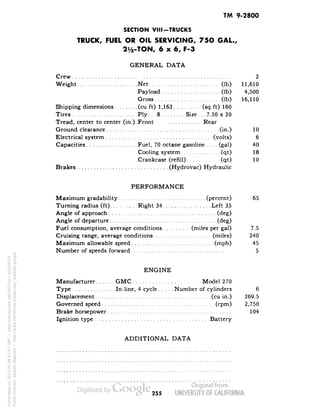

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, FUEL OR OIL SERVICING, 75O GAL.,
21/2-TON, 6x6, F-3
GENERAL DATA
Crew 2
Payload (Ib) 4,500
Gross (Ib) 16,110
PERFORMANCE
ENGINE
ADDITIONAL DATA
255

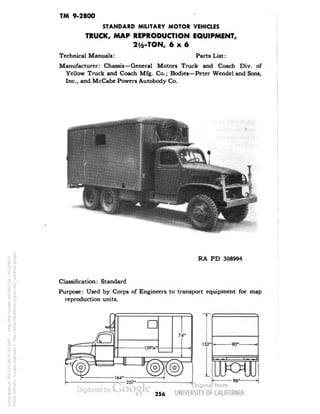

TM 9-2800
TRUCK, MAP REPRODUCTION EQUIPMENT,
21/2-TON, 6x6
Manufacturer: Chassis—General Motors Truck and Coach Div. of
Yellow Truck and Coach Mfg. Co.; Bodies—Peter Wendel and Sons,
Inc., and McCabe Powers Autobody Co.
RA PD 308994
Purpose: Used by Corps of Engineers to transport equipment for map
reproduction units.
T
-90"-
-96"
256

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, MAP REPRODUCTION EQUIPMENT,
2i/2-TON, 6x6
GENERAL DATA
Crew
Weight Gross (Ib) 14,200 to 16,500
Tires Ply Size. .. .
Brakes
PERFORMANCE
Angle of departure (deg) 33 J/£
ENGINE
Ignition type
ADDITIONAL DATA
^
The same basic vehicle with different equipment is used as: Laboratory
section, Map layout section, Photographic section, Plate grainer sec-tion,
Plate process section, Camera section, and Press section. Weight
varies with equipment.
257

TM 9-2800

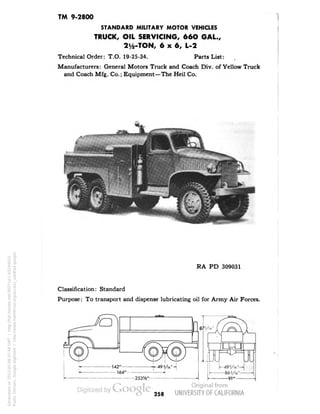

TRUCK, OIL SERVICING, 66O GAL.,
21/2-TON, 6x6, L-2
Technical Order: T.O. 19-25-34. Parts List:
and Coach Mfg. Co.; Equipment—The Heil Co.
RA PD 309031
Purpose: To transport and dispense lubricating oil for Army Air Forces.
258

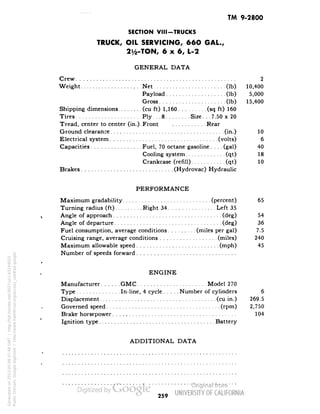

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, OIL SERVICING, 66O GAL.,
2^-TON, 6x6, L-2
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 15,400
Tires Ply. . .8 Size. . .7.50 x 20
PERFORMANCE
ENGINE
ADDITIONAL DATA
259

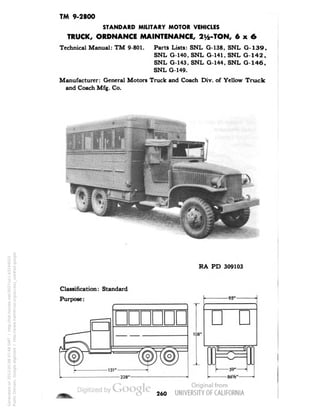

TM 9-2800
TRUCK, ORDNANCE MAINTENANCE, 2^-TON, 6x6
Technical Manual: TM 9-801. Parts Lists: SNL G-138, SNL G-139,
SNL G-140, SNL G-141, SNL G-142,
SNL G-143, SNL G-144, SNL G-146,
SNL G-149.
and Coach Mfg. Co.
RA PD 309103
Purpose:
108"
-95"
D
260

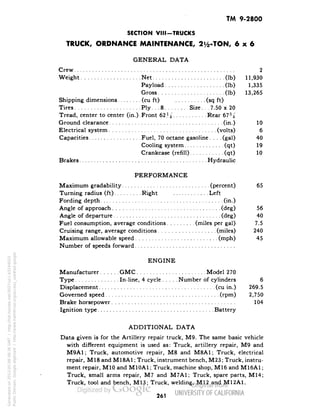

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, ORDNANCE MAINTENANCE, 2^-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 1,335
Gross (Ib) 13,265
Tires Ply... 8 Size. . . 7:50 x 20
Tread, center to center (in.) Front 62% Rear 67%
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
ENGINE
ADDITIONAL DATA
Data given is for the Artillery repair truck, M9. The same basic vehicle
with different equipment is used as: Truck, artillery repair, M9 and
M9A1; Truck, automotive repair, M8 and M8A1; Truck, electrical
repair, M18 and M18A1; Truck, instrument bench, M23; Truck, instru-ment
repair, M10 and M10A1; Truck, machine shop, M16 and M16A1;
Truck, small arms repair, M7 and M7A1; Truck, spare parts, M14;
Truck, tool and bench, M13; Truck, welding, M12 and M12A1.
261

TM 9-2800

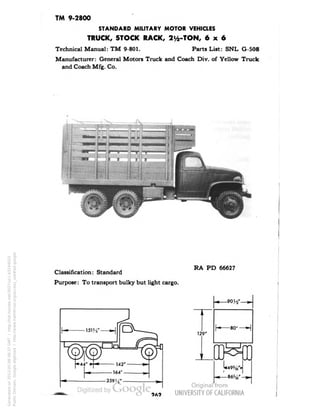

TRUCK, STOCK RACK, 2i/2-TON, 6x6
and Coach Mfg. Co.
Purpose: To transport bulky but light cargo.
RA PD 66627
-9014"
129"
-80"
OMB

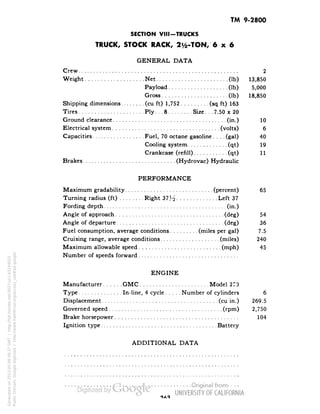

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, STOCK RACK, 2^-TON, 6 x 6
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 18,850
Tires Ply. . .8 Size. . .7.50 x 20
PERFORMANCE
Fording depth (in.)
ENGINE
ADDITIONAL DATA

TM 9-2800

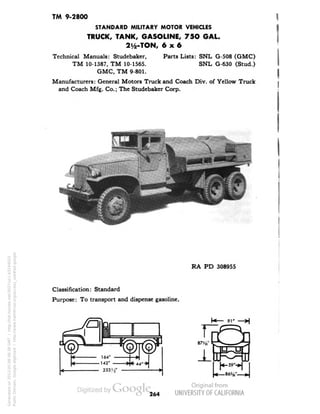

TRUCK, TANK, GASOLINE, 75O GAL.
21/2-TON, 6x6
Technical Manuals: Studebaker, Parts Lists: SNL G-508 (GMC)
TM 10-1387, TM 10-1565. SNL G-630 (Stud.)
CMC, TM 9-801.
and Coach Mfg. Co.; The Studebaker Corp.
RA PD 308955
Purpose: To transport and dispense gasoline.
264

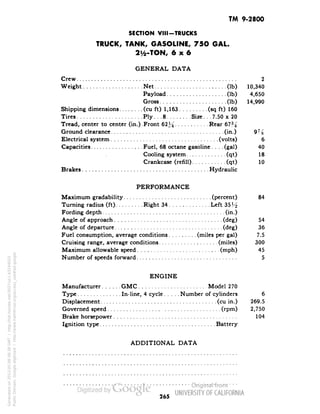

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, TANK, GASOLINE, 75O GAL.
21/2-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 4,650
Gross (Ib) 14,990
Tires Ply... 8 Size. . . 7.50 x 20
Tread, center to center (in.) Front 62J4 Rear 67%
Ground clearance (in.) 9 J-g
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
ENGINE
ADDITIONAL DATA
265

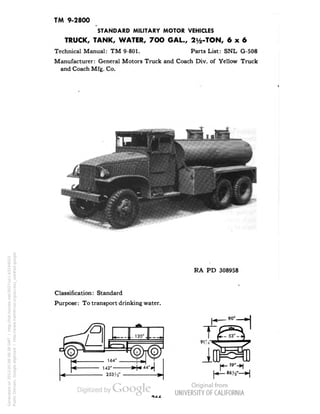

TM 9-2800
TRUCK, TANK, WATER, 7OO GAL., 2^-TON, 6x6
and Coach Mfg. Co.
RA PD 308958
Purpose: To transport drinking water.

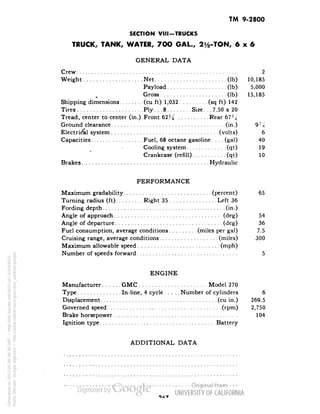

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, TANK, WATER, 7OO GAL., 2y2-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 15,185
Tires Ply. . .8 Size. . .7.50 x 20
Tread, center to center (in.).Front 62]^ Rear 6734
Electridal system (volts) 6
Brakes Hydraulic
PERFORMANCE
Fording depth (in.)
ENGINE
ADDITIONAL DATA

TM 9-2800

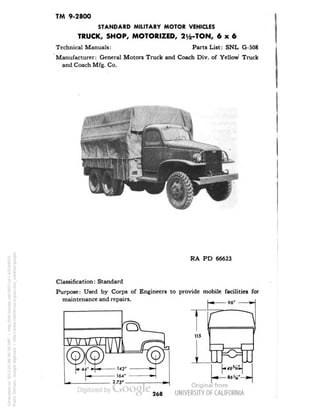

TRUCK, SHOP, MOTORIZED, 2y2-TON, 6x6
and Coach Mfg. Co.
RA PD 66623
Purpose: Used by Corps of Engineers to provide mobile facilities for
maintenance and repairs.
268

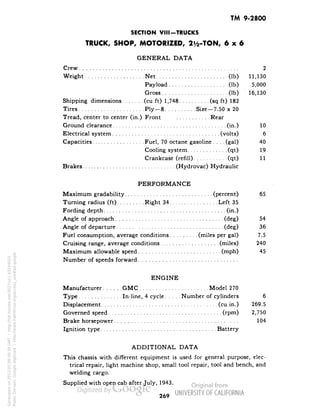

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, SHOP, MOTORIZED, 21/2-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 16,130
Tires Ply—8 Size—7.50 x 20
PERFORMANCE
Fording depth (in.)
ENGINE
ADDITIONAL DATA
This chassis with different equipment is used for general purpose, elec-trical
repair, light machine shop, small tool repair, tool and bench, and
welding cargo.
Supplied with open cab after July, 1943.
269

TM 9-2800

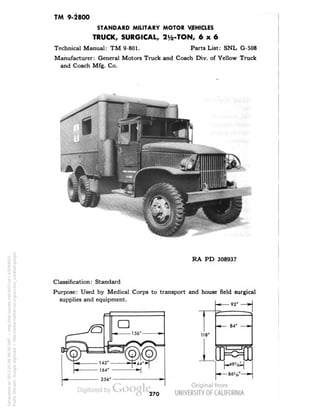

TRUCK, SURGICAL, 21/2-TON, 6x6
and Coach Mfg. Co.
RA PD 308937
Purpose: Used by Medical Corps to transport and house field surgical
supplies and equipment.
92
118"
84"
CO
-49'
270

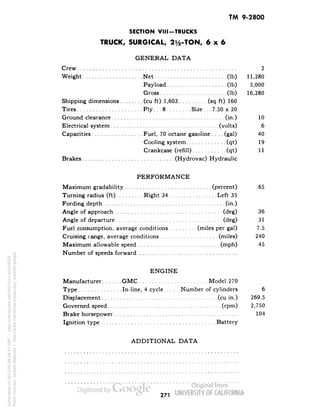

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, SURGICAL, 2^-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 16,280
Tires Ply. . .8 Size. . .7.50 x 20
Cooling system. (qt) 19
PERFORMANCE
Fording depth (in.)
ENGINE
ADDITIONAL DATA
271

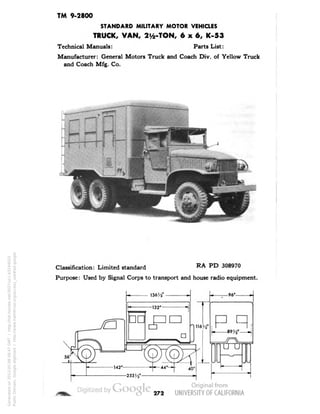

TM 9-2800
TRUCK, VAN, 21/2-TON, 6x6, K-53
and Coach Mfg. Co.
Classification: Limited standard RA PD 308970
Purpose: Used by Signal Corps to transport and house radio equipment.
272

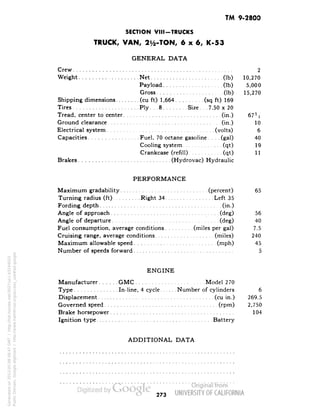

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, VAN, 21/2-TON, 6x6, K-53
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 15,270
Tires Ply... 8 Size. . . 7.50 x 20
Tread, center to center (in.) 673 ,'
PERFORMANCE
Fording depth (in.)
ENGINE
ADDITIONAL DATA
273

TM 9-2800

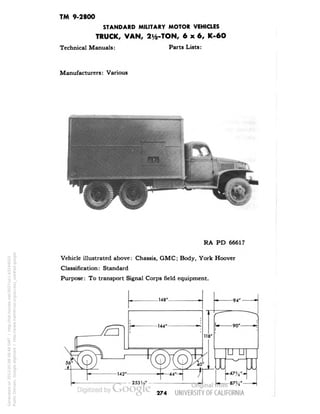

TRUCK, VAN, 2^-TON, 6x6, K-6O
Technical Manuals: Parts Lists:
Manufacturers: Various
RA PD 66617
Vehicle illustrated above: Chassis, GMC; Body, York Hoover
Purpose: To transport Signal Corps field equipment.
274

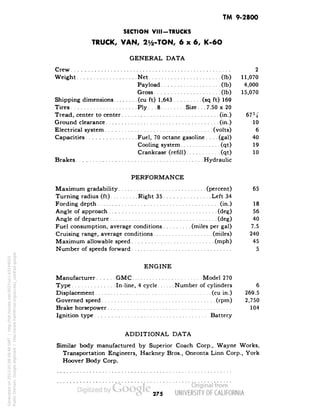

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, VAN, 21/2-TON, 6x6, K-6O
GENERAL DATA
Crew 2
Payload (Ib) 4,000
Gross (Ib) 15,070
Brakes Hydraulic
PERFORMANCE
Cruising range, average conditions. (miles) 240
ENGINE
ADDITIONAL DATA
Similar body manufactured by Superior Coach Corp., Wayne Works,
Transportation Engineers, Hackney Bros., Oneonta Linn Corp., York
Hoovei1 Body Corp.
275

TM 9-2800

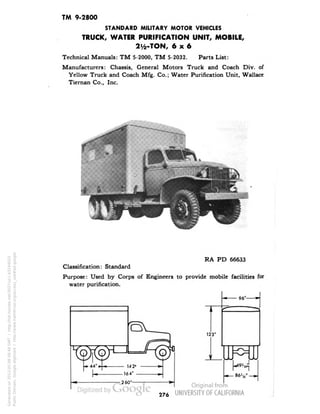

TRUCK, WATER PURIFICATION UNIT, MOBILE,
2y2-TON, 6x6
Technical Manuals: TM 5-2000, TM 5-2032. Parts List:
Manufacturers: Chassis, General Motors Truck and Coach Div. of
Yellow Truck and Coach Mfg. Co.; Water Purification Unit, Wallace
Tiernan Co., Inc.
RA PD 66633
water purification.
96"-
123'
opo
|*Wii^
276

TM 9-2800
SECTION VIII-TRUCKS

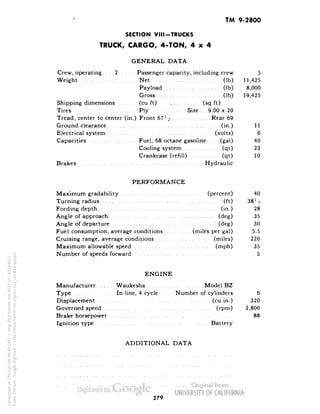

TRUCK, CARGO, 4-TON, 4x4
GENERAL DATA
Crew, operating.... 2 Passenger capacity, including crew 5
Payload (Ib) 8,000
Gross (Ib) 19,425
Tires Ply Size. . . 9.00 x 20
Tread, center to center (in.) Front 67>-j Rear 69
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 381 -•'
Angle of departure '. (deg) 30
ENGINE
Manufacturer Waukesha Model BZ
Brake horsepower 88
ADDITIONAL DATA
279

TM 9-2800

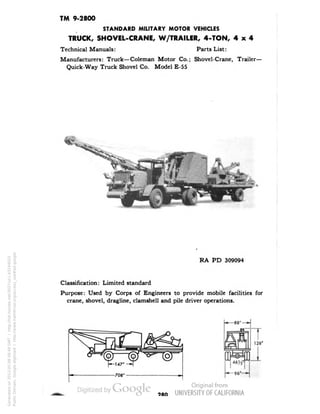

TRUCK, SHOVEL-CRANE, W/TRAILER, 4-TON, 4x4
Manufacturers: Truck—Coleman Motor Co.; Shovel-Crane, Trailer-
Quick-Way Truck Shovel Co. Model E-55
. -
RA PD 309094
crane, shovel, dragline, clamshell and pile driver operations.
CD
T
128"
96"-*
980

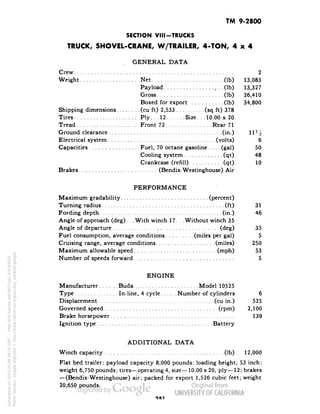

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, SHOVEL-CRANE, W/TRAILER, 4-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 13,327
Gross (Ib) 26,410
Tires Ply. . .12 Size. . .10.00 x 20
Tread Front 72 Rear 71
Ground clearance (in.) 111/2
Brakes (Bendix-Westinghouse) Air
PERFORMANCE
Angle of approach (deg). . . With winch 17 ... Without winch 35
ENGINE
Manufacturer Buda Model 10525
ADDITIONAL DATA
Flat bed trailer: payload capacity 8,000 pounds; loading height, 53 inch;
weight 6,750 pounds; tires—operating 4, size—10.00 x 20, ply—12; brakes
— (Bendix-Westinghouse) air; packed for export 1,526 cubic feet; weight
20,650 pounds.
Ofll

TM 9-2800 f.

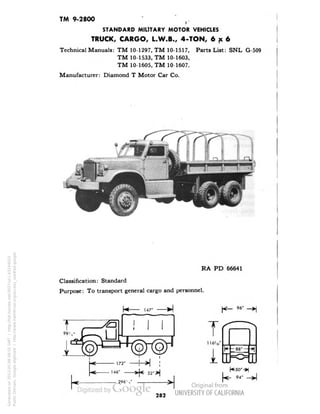

TRUCK, CARGO, L.W.B., 4-TON, 6x6
TM 10-1533, TM 10-1603,
TM 10-1605, TM 10-1607.
RA PD 66641
282

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, CARGO, S.W.B., 4-TON, 6x6
GENERAL DATA
Crew, operating 2 Passenger capacity, including crew
Payload (Ib) 8,000
Gross (Ib) 26,400
Tires Ply .10 Size. . .9.00 x 20
Tread, center to center (in.) Front 7334' Rear 72
Pintle height (in.) Loaded 40 Unloaded 41 kt
Brakes Air
PERFORMANCE
Turning radius (ft) Right 38!/2 Left 37
ENGINE
Manufacturer Hercules Model RXC
ADDITIONAL DATA
Body contains troop seats and backs.
M36 for antiaircraft machine gun.
285

TM 9-2800

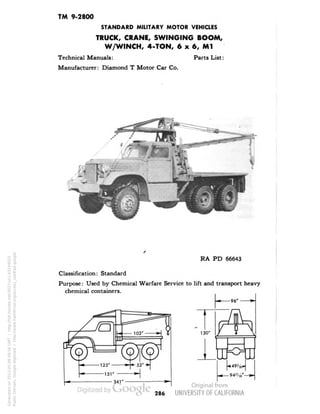

TRUCK, CRANE, SWINGING BOOM,
W/WINCH, 4-TON, 6 x 6, Ml
RA PD 66643
Purpose: Used by Chemical Warfare Service to lift and transport heavy
chemical containers.
286

TM 9-2800
SECTION VIII-TRUCKS

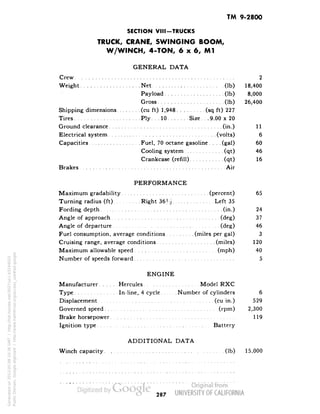

TRUCK, CRANE, SWINGING BOOM,
W/WINCH, 4-TON, 6 x 6, Ml
GENERAL DATA
Crew 2
Payload (Ib) 8,000
Gross (Ib) 26,400
Tires Ply... 10 Size. . . 9.00 x 20
Brakes Air
PERFORMANCE
Turning radius (ft) Right 361A Left 35
ENGINE
ADDITIONAL DATA
Winch capacity (Ib) 15.000
287

TM 9-2800
TRUCK, DISTRIBUTOR, WATER, 1OOO GAL.
4-TON, 6x6
Manufacturers: Chassis and cab, Diamond T Motor Car Co.; Tank and
equipment, Littleford Bros.
RA PD 308996
Purpose: Used by Corps of Engineers as water-distributing unit.
288

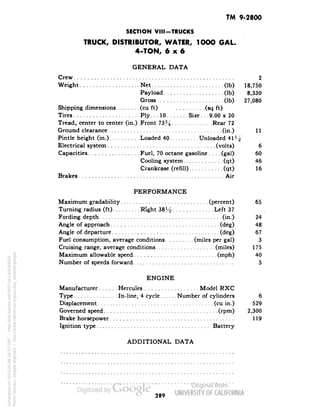

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, DISTRIBUTOR, WATER, 1OOO GAL.
4-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 8,330
Gross (Ib) 27,080
Tires Ply... 10 Size. . . 9.00 x 20
Pintle height (in.) Loaded 40 Unloaded 41H
Brakes Air
PERFORMANCE
ENGINE
ADDITIONAL DATA
289

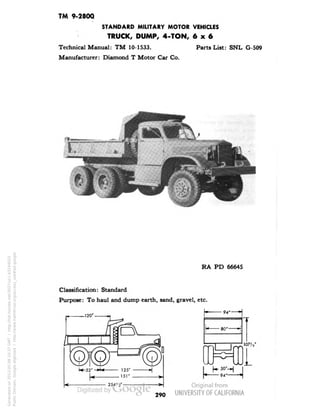

TM 9-2800
TRUCK, DUMP, 4-TON, 6x6
RA PD 66645
Purpose: To haul and dump earth, sand, gravel, etc.
-120'
94'
•80"-
94
107?,
290

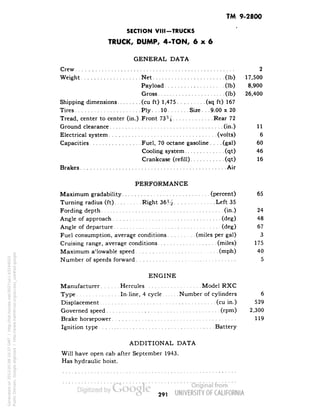

TM 9-2800
SECTION VIII-TRUCKS
GENERAL DATA
Crew 2
Payload (Ib) 8,900
Gross (Ib) 26,400
Tires Ply... 10 Size. . . 9.00 x 20
Brakes Air
PERFORMANCE
Maximum a'lowable speed (mph) 40
ENGINE
ADDITIONAL DATA
Will have open cab after September 1943.
Has hydraulic hoist.
291

TRUCK, MAP REPRODUCTION EQUIPMENT
4-TON, 6x6
Manufacturers: Chassis and cab, Diamond T Motor Car Co.; Body,
McCabe-Powers Autobody Co.
RA PD 308992
Purpose: Used by Corps of Engineers to transport equipment for map
reproduction units.
292

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, MAP REPRODUCTION EQUIPMENT
4-TON, 6x6
GENERAL DATA
Crew
Tires Ply. . .10 Size. . .9.00 x 20
Tread, center to center (in.).Front 73% Rear 72
Crankcase (qt) 16
Brakes Air
PERFORMANCE
ENGINE
ADDITIONAL DATA
Equipped with winch.
The same basic vehicle with different equipment is used as:
Camera section, Press section 20 inch x 22^£ inch, and Press section
22 inch x 29 inch. Weight varies with equipment.
293

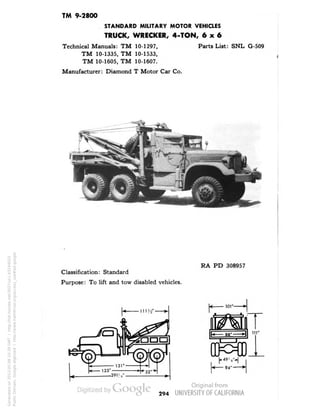

TM 9-2800
TRUCK, WRECKER, 4-TON, 6x6
TM 10-1335, TM 10-1533,
TM 10-1605, TM 10-1607.
Purpose: To lift and tow disabled vehicles.
RA PD 308957
OKXD
294

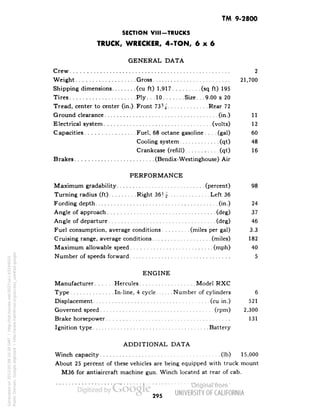

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, WRECKER, 4-TON, 6x6
GENERAL DATA
Crew 2
Weight Gross 21,700
Tires Ply. . .10 Size.. .9.00 x 20
PERFORMANCE
Angle of approach :.. . (deg) 37
ENGINE
ADDITIONAL DATA
M36 for antiaircraft machine gun. Winch located at rear of cab.
295

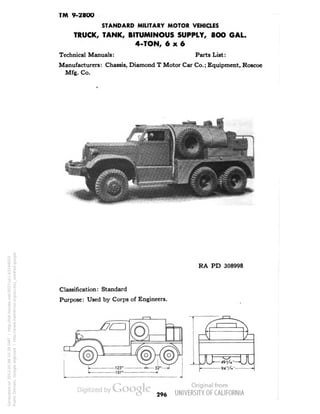

TM 9-2800
TRUCK, TANK, BITUMINOUS SUPPLY, 8OO GAL.
4-TON, 6x6
Manufacturers: Chassis, Diamond T Motor Car Co.; Equipment, Roscoe
Mfg. Co.
RA PD 308998
Purpose: Used by Corps of Engineers.
296

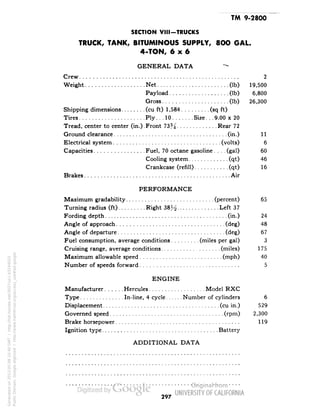

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, TANK, BITUMINOUS SUPPLY, 8OO GAL.
4-TON, 6x6
GENERAL DATA ,-
Crew 2
Payload (Ib) 6,800
Gross (Ib) 26,300
Shipping dimensions (cu ft) 1,584 (sq ft)
Tires Ply.. .10 Size. . .9.00 x 20
Brakes Air
PERFORMANCE
ENGINE
ADDITIONAL DATA
297

TM 9-2800

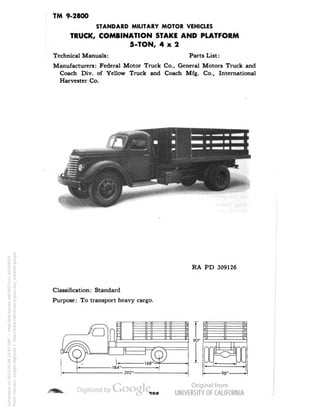

TRUCK, COMBINATION STAKE AND PLATFORM
5-TON, 4x2
Manufacturers: Federal Motor Truck Co., General Motors Truck and
Coach Div. of Yellow Truck and Coach Mfg. Co., International
Harvester Co.
RA PD 309126
Purpose: To transport heavy cargo.
90"

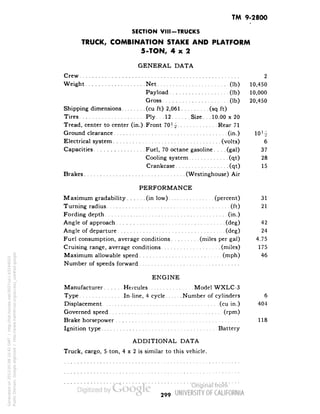

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, COMBINATION STAKE AND PLATFORM
5-TON, 4 x 2
GENERAL DATA
Crew 2
Payload (Ib) 10,000
Gross (Ib) 20,450
Tires Ply. . .12 Size. . .10.00 x 20
Tread, center to center (in.) Front 70^ Rear 71
Ground clearance (in.) 10J/^
Crankcase (qt) 15
Brakes (Westinghouse) Air
PERFORMANCE
Maximum gradability (in low) (percent) 31
Fording depth (in.)
ENGINE
Manufacturer Hercules Model WXLC-3
Governed speed (rprn)
ADDITIONAL DATA
Truck, cargo, 5-ton, 4 x 2 is similar to this vehicle.
299

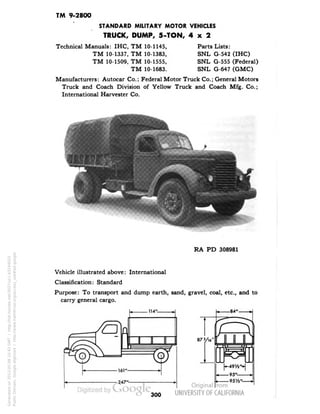

TM 9-2800
Technical Manuals: IHC, TM 10-1145, Parts Lists:
TM 10-1337, TM 10-1383, SNL G-542 (IHC)
TM 10-1509, TM 10-1555, SNL G-555 (Federal)
TM 10-1683. SNL G-647 (GMC)
Manufacturers: Autocar Co.; Federal Motor Truck Co.; General Motors
Truck and Coach Division of Yellow Truck and Coach Mfg. Co.;
International Harvester Co.
RA PD 308981
Vehicle illustrated above: International
87Vi6"
300

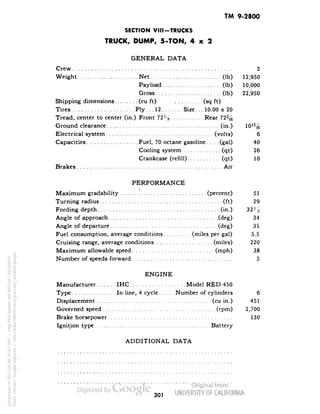

TM 9-2800
SECTION VIII-TRUCKS
GENERAL DATA
Crew i 2
Payload (Ib) 10,000
Gross (Ib) 22,950
Tires Ply... 12 Size. . . 10.00 x 20
Tread, center to center (in.) Front 72% Rear 72%
Ground clearance (in.) lO'Jjg
Brakes Air
PERFORMANCE
Fording depth (in.) 32^
ENGINE
Manufacturer IHC Model RED-450
ADDITIONAL DATA
301

TM 9-2800

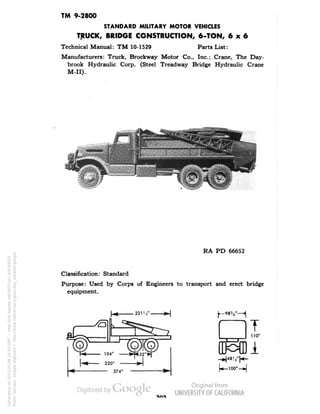

TRUCK, BRIDGE CONSTRUCTION, 6-TON, 6x6
Technical Manual: TM 10-1529 Parts List:
Manufacturers: Truck, Brockway Motor Co., Inc.; Crane, The Day-brook
Hydraulic Corp. (Steel Treadway Bridge Hydraulic Crane
M-II).
RA PD 66652
Purpose: Used by Corps of Engineers to transport and erect bridge
equipment.
T
110•
i

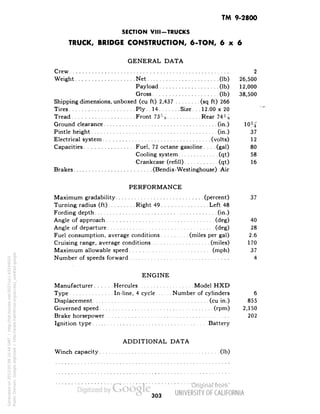

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, BRIDGE CONSTRUCTION, 6-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 12,000
Gross (Ib) 38,500
Shipping dimensions, unboxed (cu ft) 2,437 (sq ft) 266
Tires Ply. .14 Size. . .12.00 x 20
Tread Front 73% Rear 74^
PERFORMANCE
Turning, radius (ft) Right 49 Left 48
Fording depth (in.)
ENGINE
Manufacturer Hercules Model HXD
ADDITIONAL DATA
Winch capacity (Ib)
303

TM 9-2800

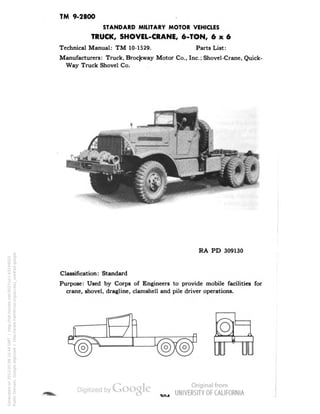

TRUCK, SHOVEL-CRANE, 6-TON, 6x6
Manufacturers: Truck, Brocjcway Motor Co., Inc.; Shovel-Crane, Quick -
Way Truck Shovel Co.
RA PD 309130
crane, shovel, dragline, clamshell and pile driver operations.

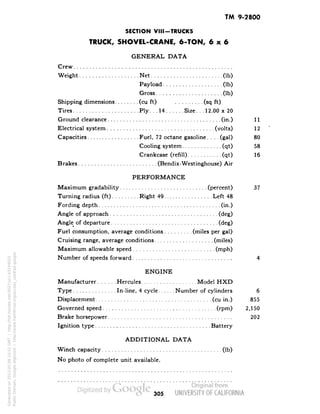

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, SHOVEL-CRANE, 6-TON, 6x6
GENERAL DATA
Crew
Weight Net (Ib)
Payload (Ib)
Gross (Ib)
Tires Ply. . .14 Size. . .12.00 x 20
PERFORMANCE
Fording depth (in.)
Cruising range, average conditions .(miles)
ENGINE
ADDITIONAL DATA
Winch capacity (Ib)
No photo of complete unit available.
305

TM 9-2800

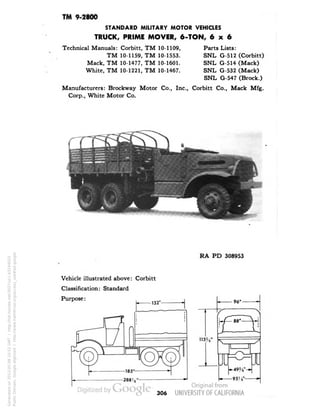

TRUCK, PRIME MOVER, 6-TON, 6x6
Technical Manuals: Corbitt, TM 10-1109, Parts Lists:
TM 10-1159, TM 10-1553. SNL G-512 (Corbitt)
Mack, TM 10-1477, TM 10-1601. SNL G-514 (Mack)
White, TM 10-1221, TM 10-1467. SNL G-532 (Mack)
SNL G-547 (Brock.)
Manufacturers: Brockway Motor Co., Inc., Corbitt Co., Mack Mfg.
Corp., White Motor Co.
RA PD 308953
Vehicle illustrated above: Corbitt
Purpose:
306

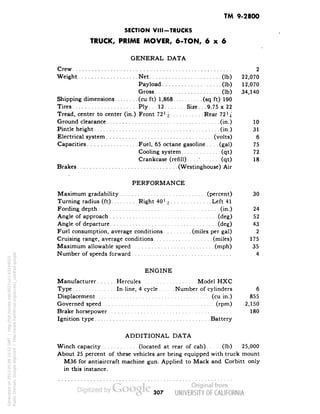

TM 9-2800
SECTION VIM-TRUCKS
TRUCK, PRIME MOVER, 6-TON, 6x6
-
GENERAL DATA
Crew 2
Payload (Ib) 12,070
Gross (Ib) 34,140
Tires Ply. . .12 Size. . .9.75 x 22
Tread, center to center (in.) Front 72 H Rear 72]4
Crankcase (refill). ...' (qt) 18
PERFORMANCE
ENGINE
Manufacturer Hercules Model HXC
ADDITIONAL DATA
Winch capacity (Iocated at rear of cab) (Ib) 25,000
M36 for antiaircraft machine gun. Applied to Mack and Corbitt only
in this instance.
307

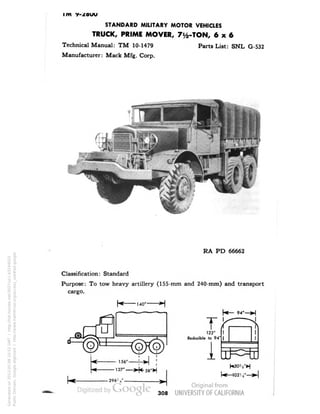

im y-zouu
TRUCK, PRIME MOVER, 7i/2-TON, 6x6
Manufacturer: Mack Mfg. Corp.
RA PD 66662
Purpose: To tow heavy artillery (155-mm and 240-mm) and transport
cargo.
122"
Reducible to 94"
308

TM 9-2800
SECTION VIII- TRUCKS

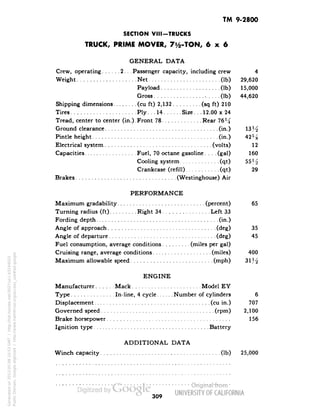

TRUCK, PRIME MOVER, 7^-TON, 6x6
GENERAL DATA
Crew, operating ...... 2 ... Passenger capacity, including crew 4
Weight ................... Net ....................... (Ib) 29,620
Payload ................... (Ib) 15,000
Gross ................ - ..... (Ib) 44,620
Shipping dimensions ........ (cu ft) 2,132 ......... (sq ft) 210
Tires ..................... Ply. . . 14 ...... Size. . .12.00 x 24
Tread, center to center (in.) Front 78 ............. Rear 76%
Ground clearance .................................... (in.) 13 Yi
Pintle height ........................................ (in.) 42^
Electrical system .................................. (volts) 12
Capacities ................. Fuel, 70 octane gasoline .... (gal) 160
Cooling system ............. (qt) 55 H
Crankcase (refill) ........... (qt) 29
Brakes ................................ (Westinghouse) Air
PERFORMANCE
Maximum gradability ............................ (percent) 65
Turning radius (ft) ......... Right 34 ............... Left 33
Fording depth ....................................... (in.)
Angle of approach .................................. (deg) 35
Angle of departure .................................. (deg) 45
Fuel consumption, average conditions ......... (miles per gal)
Cruising range, average conditions ................... (miles) 400
Maximum allowable speed .......................... (mph) 31 Yi
ENGINE
Manufacturer ...... Mack ...................... Model EY
Type .............. In-line, 4 cycle ...... Number of cylinders 6
Displacement ..................................... (cu in.) 707
Governed speed .................................... (rpm) 2,100
Brake horsepower ....................................... 156
Ignition type ..................................... Battery
ADDITIONAL DATA
Winch capacity ...................... • ................ (Ib) 25,000
309

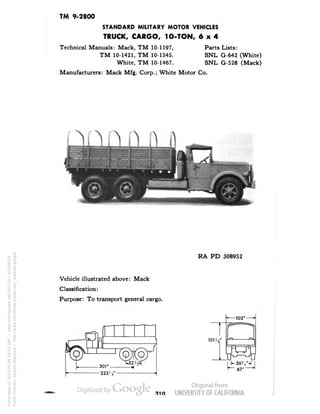

TM 9-2800
TRUCK, CARGO, 1O-TON, 6x4
Technical Manuals: Mack, TM 10-1197, Parts Lists:
TM 10-1421, TM 10-1545. SNL G-642 (White)
White, TM 10-1467. SNL G-528 (Mack)
Manufacturers: Mack Mfg. Corp.; White Motor Co.
RA PD 308952
Vehicle illustrated above: Mack
Classification:
.110

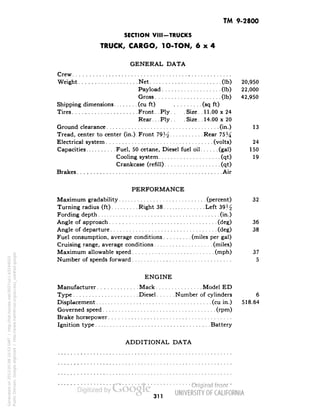

TM 9-2800
SECTION VIII-TRUCKS
TRUCK, CARGO, 1O-TON, 6x4
GENERAL DATA
Crew
Payload (Ib) 22,000
Gross (Ib) 42,950
Tires. Front. .Ply. . .Size. .11.00 x 24
Rear... Ply.. .Size. 14.00 x 20
Tread, center to center (in.).Front 79Yi Rear 75%
Capacities Fuel, 50 cetane, Diesel fuel oil (gal) 150
Brakes Air
PERFORMANCE
Turning radius (ft) Right 38 Left 39V£
Fording depth (in.)
ENGINE
Manufacturer Mack Model ED
Type Diesel Number of cylinders 6
Brake horsepower
ADDITIONAL DATA
311

TM 9-2800

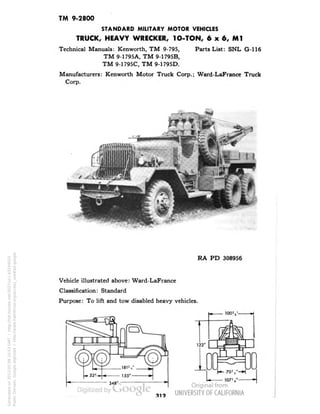

TRUCK, HEAVY WRECKER, 1O-TON, 6x6, Ml
Technical Manuals: Kenworth, TM 9-795, Parts List: SNL G-116
TM 9-1795A, TM 9-1795B,
TM 9-1795C, TM 9-1795D.
Manufacturers: Kenworth Motor Truck Corp.; Ward-LaFrance Truck
Corp.
RA PD 308956
Vehicle illustrated above: Ward-LaFrance
Purpose: To lift and tow disabled heavy vehicles.
ioov
312

TM 9-2800
SECTION VIII-TRUCKS

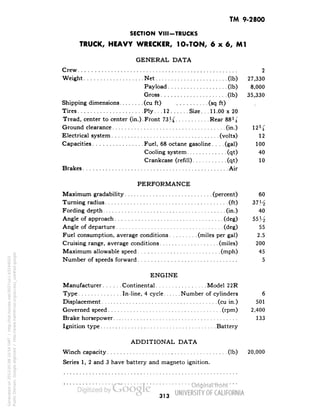

TRUCK, HEAVY WRECKER, 1O-TON, 6 x 6, Ml
GENERAL DATA
Crew 2
Payload (Ib) 8,000
Gross (Ib) 35,330
Tires Ply. ..12 Size. . .11.00 x 20
Tread, center to center (in.).Front 73J4 Rear 88 3 4
Brakes Air
PERFORMANCE
Angle of approach (deg) 55^
ENGINE
Manufacturer Continental Model 22R
ADDITIONAL DATA
Series 1, 2 and 3 have battery and magneto ignition.
313

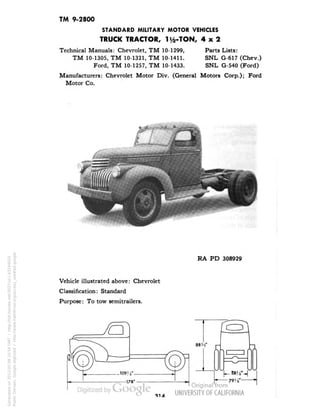

TM 9-2800
TRUCK TRACTOR, 1 i/2-TON, 4x2
Technical Manuals: Chevrolet, TM 10-1299, Parts Lists:
TM 10-1305, TM 10-1321, TM 10-1411. SNL G-617 (Chev.)
Ford, TM 10-1257, TM 10-1433. SNL G-540 (Ford)
Motor Co.
RA PD 308929
Purpose: To tow semitrailers.

TM 9-2800
SECTION IX-TRUCK TRACTORS
TRUCK TRACTOR, 1^-TON, 4x2
GENERAL DATA
Crew 2
Payload (Ib) 4,500
Gross (Ib) 9,725
Tires Ply... 8 Size ... 7.50 x 20
Tread, center to center (in.) Front 56J/f6 Rear 68? jj
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) Right 20 Left 20 4
Fording depth (in.)
ENGINE
Manufacturer Chevrolet Model 1942 BLA 1001 up
Brake horsepower 83
ADDITIONAL DATA
31 *

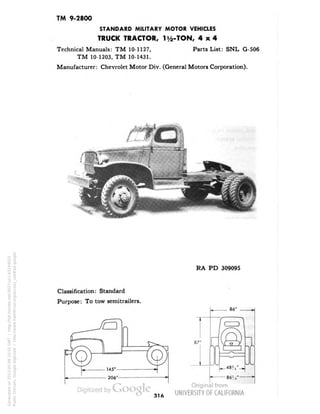

TM 9-2800
TM 10-1203, TM 10-1431.
Manufacturer: Chevrolet Motor Div. (General Motors Corporation).
RA PD 309095
86"
316

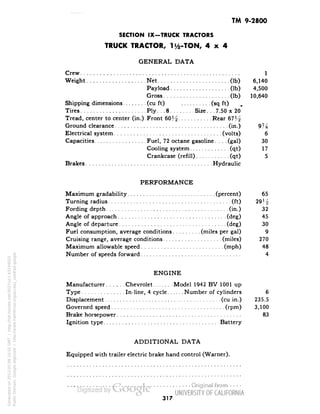

TM 9-2800
GENERAL DATA
Crew 1
Payload (Ib) 4,500
Gross (Ib) 10,640
Tires Ply. ..8 Size. . .7.50 x 20
Tread, center to center (in.) Front 60 H Rear 67^
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) 29]4
ENGINE
Manufacturer Chevrolet Model 1942 BV 1001 up
Brake horsepower 83
ADDITIONAL DATA
Equipped with trailer electric brake hand control (Warner).
317

TM 9-2800
TRUCK TRACTOR, 2i/2-TON, 4x2
Technical Manual: TM 10-1261 (Cl). Parts List: SNL G-627
Manufacturer: General Motors Truck & Coach Div. of Yellow Coach &
Truck Mfg. Co.
RA PD 309100
318

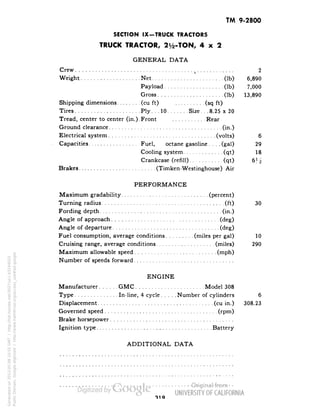

TM 9-2800
TRUCK TRACTOR, 2i2-TON, 4x2
GENERAL DATA
Crew t 2
Payload (Ib) 7,000
Gross (Ib) 13,890
Tires Ply. . .10 Size. . .8.25 x 20
Capacities Fuel, octane gasoline .... (gal) 29
Crankcase (refill) (qt) 6H
Brakes (Timken-Westinghouse) Air
PERFORMANCE
Fording depth (in.)
ENGINE
Brake horsepower
ADDITIONAL DATA
•no

TM 9-2800
TRUCK TRACTOR, C.O.E., 2i/2-TON, 4x4
TM 10-1396.
RA PD 66668

TM 9-2800

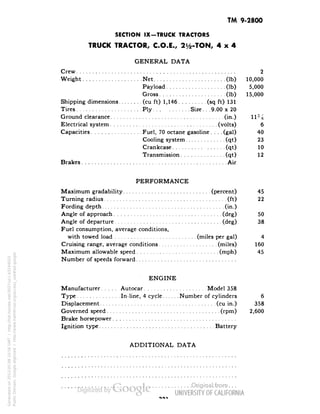

TRUCK TRACTOR, C.O.E., 2y2-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 5,000
Gross (Ib) 15,000
Tires Ply Size... 9.00 x 20
Crankcase (qt) 10
Brakes Air
PERFORMANCE
Fording depth (in.)
ENGINE
Manufacturer Autocar Model 358
Brake horsepower
ADDITIONAL DATA

TM 9-2800
TRUCK TRACTOR, 2y2-TON, 6x4
Parts List: SNL G-630
Technical Manuals: TM 10-1385,
TM 10-1565.
Manufacturer: The Studebaker Corp.
RA PD 309097
322

TM 9-2800

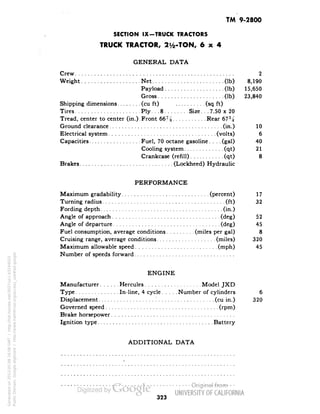

TRUCK TRACTOR, 2y2-TON, 6x4
GENERAL DATA
Crew 2
Payload (Ib) 15,650
Gross (Ib) 23,840
Tires Ply...8 Size... 7.50 x 20
Brakes (Lockheed) Hydraulic
PERFORMANCE
Fording depth (in.)
ENGINE
Displacement .' (cu in.) 320
Brake horsepower
ADDITIONAL DATA
323

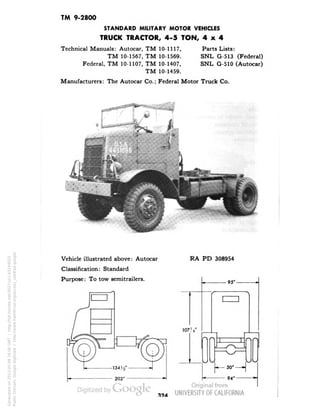

TM 9-2800
TRUCK TRACTOR, 4-5 TON, 4x4
Technical Manuals: Autocar, TM 10-1117, Parts Lists:
TM 10-1567, TM 10-1569. SNL G-513 (Federal)
Federal, TM 10-1107, TM 10-1407, SNL G-510 (Autocar)
TM 10-1459.
Manufacturers: The Autocar Co.; Federal Motor Truck Co.
Vehicle illustrated above: Autocar
RA PD 308954
95'-
107V
50*
94'
394

TM 9-2800

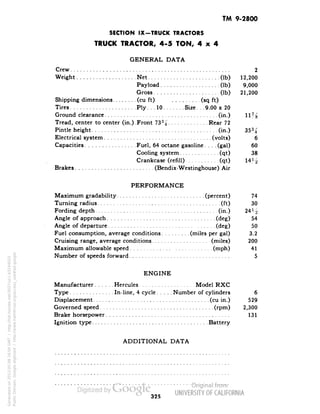

TRUCK TRACTOR, 4-5 TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 9,000
Gross (Ib) 21,200
Tires Ply. . .10 Size. . .9.00 x 20
Ground clearance (in.) Hj^
Pintle height (in.) 35%
Crankcase (refill) (qt) 14^
PERFORMANCE
Fording depth (in.) 24H
ENGINE
ADDITIONAL DATA
325

TM 9-2800

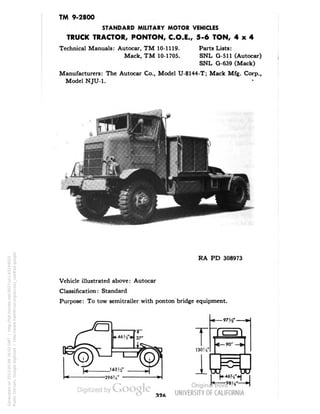

TRUCK TRACTOR, PONTON, C.O.E., 5-6 TON, 4x4
Technical Manuals: Autocar, TM 10-1119. Parts Lists:
Mack, TM 10-1705. SNL G-511 (Autocar)
SNL G-639 (Mack)
Manufacturers: The Autocar Co., Model U-8144-T; Mack Mfg. Corp.,
Model NJU-1.
RA PD 308973
Vehicle illustrated above: Autocar
Purpose: To tow semitrailer with ponton bridge equipment.
-296?.4'
r
1304•
1
97 W
90*
9eys'-

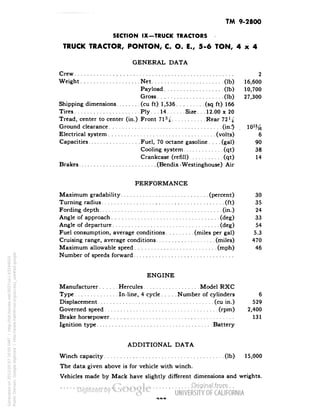

TM 9-2800
TRUCK TRACTOR, PONTON, C. O. E., 5-6 TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 10,700
Gross (Ib) 27,300
Tires Ply... 14 Size. . . 12.00 x 20
Tread, center to center (in.) Front 71% Rear 72 %
Ground clearance (in/) 10%
Brakes (Bendix -Westinghouse) Air
PERFORMANCE
ENGINE
ADDITIONAL DATA
The data given above is for vehicle with winch.
Vehicles made by Mack have slightly different dimensions and weights.

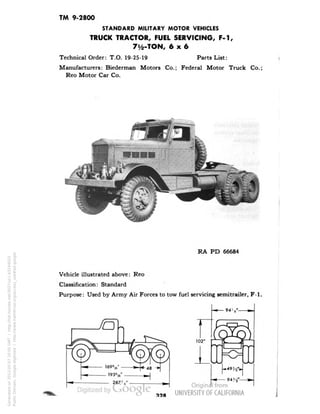

TM 9-2800
TRUCK TRACTOR, FUEL SERVICING, F-l,
7i/2-TON, 6x6
Technical Order: T.O. 19-25-19 Parts List:
Manufacturers: Biederman Motors Co.; Federal Motor Truck Co.;
Reo Motor Car Co.
RA PD 66684
Vehicle illustrated above: Reo
Purpose: Used by Army Air Forces to tow fuel servicing semitrailer, F-1.
T9S

TM 9-2800
TRUCK TRACTOR, FUEL SERVICING, F-l,
71/2-TON, 6x6
GENERAL DATA
Crew 2
Payload (Ib) 15,000
Gross (Ib) 33,960
Tires Ply. .12 Size. . .10.00 x 22
Tread, center to center (in.) Front Rear
Brakes Air
PERFORMANCE
Fording depth (in.)
ENGINE
Governed speed (rpm) 2,IOC
Brake horsepower
ADDITIONAL DATA
329

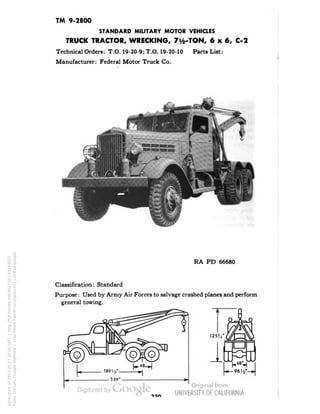

TM 9-2800
TRUCK TRACTOR, WRECKING, 7y2-TON, 6x6, C-2
Technical Orders: T.O. 19-20-9; T.O. 19-20-10 Parts List:
Manufacturer: Federal Motor Truck Co.
RA PD 66680
Purpose: Used by Army Air Forces to salvage crashed planes and perform
general towing.

TM 9-2800

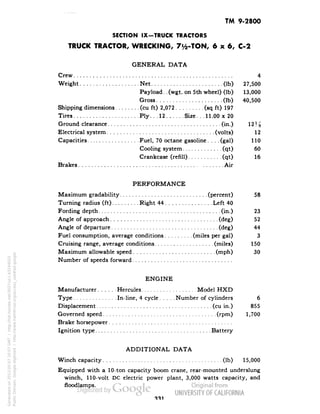

TRUCK TRACTOR, WRECKING, 7i/2-TON, 6x6, C-2
GENERAL DATA
Crew 4
Payload.. (wgt. on 5th wheel) (Ib) 13,000
Gross (Ib) 40,500
Tires Ply.. .12 Size. .. 11.00 x 20
Ground clearance (in.) 121/$
Brakes Air
PERFORMANCE
ENGINE
Brake horsepower
ADDITIONAL DATA
Equipped with a 10-ton capacity boom crane, rear-mounted underslung
winch, 110-volt DC electric power plant, 3,000 watts capacity, and
floodlamps.
991

TM 9-2800
TRUCK TRACTOR, 8-TON, 6x4
Manufacturers: Corbitt Co.; General Motors Truck & Coach Div. of
Yellow Truck & Coach Mfg. Co.
RA PD 308947
Vehicle illustrated above: Corbitt

TM 9-2800

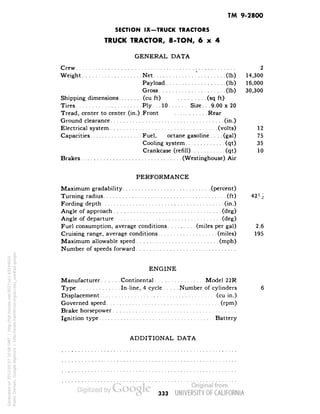

TRUCK TRACTOR, 8-TON, 6x4
GENERAL DATA
Crew 2
Weight Net "(Ib) 14,300
Payload (Ib) 16,000
Gross . (Ib) 30,300
Tires Ply... 10 Size. . . 9.00 x 20
Capacities Fuel, octane gasoline.... (gal) 75
PERFORMANCE
Turning radius (ft) 42>^
Fording depth (in.)
ENGINE
Manufacturer Continental Model 22R
Displacement (cu in.)
Brake horsepower
ADDITIONAL DATA
333

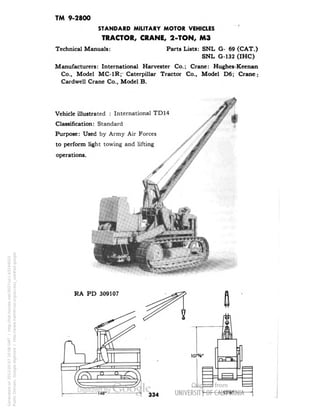

TM 9-2800
TRACTOR, CRANE, 2-TON, M3
Technical Manuals: Parts Lists: SNL G- 69 (CAT.)
SNL G-132 (IHC)
Manufacturers: International Harvester Co.; Crane: Hughes-Keenan
Co., Model MC-1R; Caterpillar Tractor Co., Model D6; Crane:
Cardwell Crane Co., Model B.
Vehicle illustrated : International TD14
Purpose: Used by Army Air Forces
to perform light towing and lifting
operations.
RA PD 309107
107V
-92%"
334

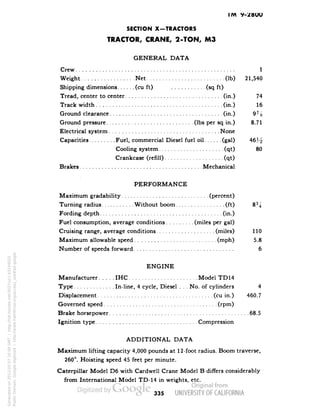

IM V-2BUU
SECTION X-TRACTORS
GENERAL DATA
Crew 1
Ground clearance (in.) 91/s
Electrical system None
Capacities Fuel, commercial Diesel fuel oil (gal) 46 H
Crankcase (refill). (qt)
Brakes Mechanical
PERFORMANCE
Turning radius Without boom (ft) 8%
Fording depth (in.)
ENGINE
Manufacturer IHC Model TD14
Type In-line, 4 cycle, Diesel . . . No. of cylinders 4
Brake horsepower 68.5
ADDITIONAL DATA
Maximum lifting capacity 4,000 pounds at 12-foot radius. Boom traverse,
260°. Hoisting speed 45 feet per minute.
Caterpillar Model D6 with Cardwell Crane Model B differs considerably
from International Model TD-14 in weights, etc.
335

TM 9-2800

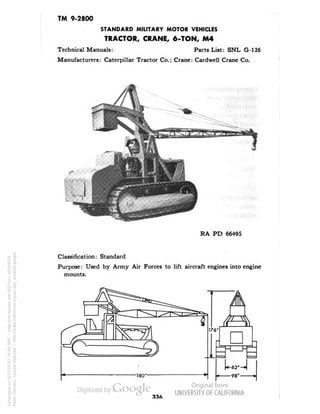

Manufacturers: Caterpillar Tractor Co.; Crane: Cardwell Crane Co.
RA PD 66495
Purpose: Used by Army Air Forces to lift aircraft engines into engine
mounts.
336

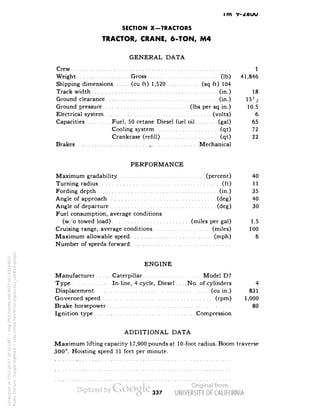

im v-
SECTION X-TRACTORS
GENERAL DATA
Crew 1
Ground clearance (in.) 15 Vi
Capacities Fuel, 50 cetane Diesel fuel oil (gal) 65
Brakes Mechanical
PERFORMANCE
Fuel consumption, average conditions
(w/o towed load) (miles per gal) 1.5
ENGINE
Manufacturer Caterpillar Model D7
Type In-line, 4 cycle, Diesel. . . .No. of cylinders 4
Brake horsepower ' 80
ADDITIONAL DATA
Maximum lifting capacity 17,900 pounds at 10-foot radius. Boom traverse
337

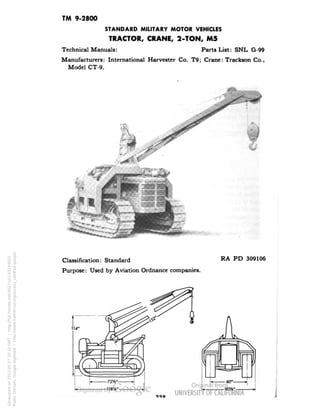

TM 9-2800
Manufacturers: International Harvester Co. T9; Crane: Trackson Co.,
Model CT-9.
Purpose: Used by Aviation Ordnance companies.
RA PD 309106

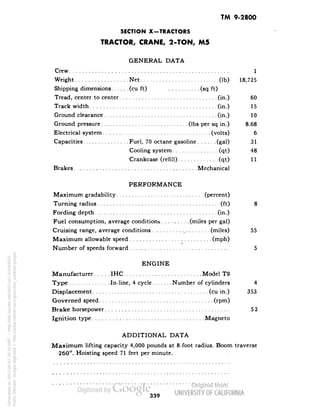

TM 9-2800
SECTION X-TRACTORS
TRACTOR, CRANE, 2-TON, MS
GENERAL DATA
Crew 1
Shipping dimensions (cu ft) . . (sq ft)
Brakes Mechanical
PERFORMANCE
Fording depth (in.)
ENGINE
Manufacturer IHC Model T9
Brake horsepower 52
ADDITIONAL DATA
Maximum lifting capacity 4,000 pounds at 8-foot radius. Boom traverse
339

TM 9-2800

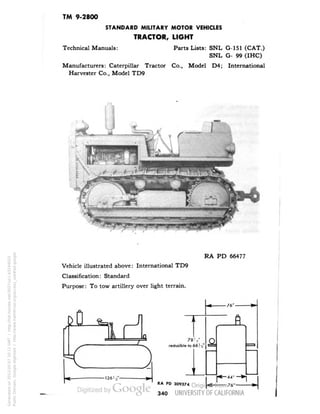

TRACTOR, LIGHT
Technical Manuals: Parts Lists: SNL G-151 (CAT.)
SNL G- 99 (IHC)
Manufacturers: Caterpillar Tractor Co., Model D4; International
Harvester Co., Model TD9
RA PD 66477
Vehicle illustrated above: International TD9
Purpose: To tow artillery over light terrain.
'
•
78V
reducible to 66',2'
RA PD 309374
r-""*i
-76"
340

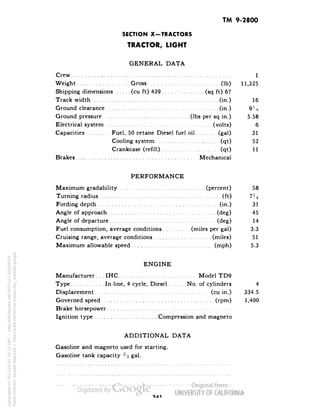

TM 9-2800
SECTION X-TRACTORS
TRACTOR, LIGHT
GENERAL DATA
Crew 1
Shipping dimensions (cu ft) 439 T (sq ft) 67
Ground clearance (in.) 95 s
Capacities Fuel, 50 cetane Diesel fuel oil (gal) 31
Brakes Mechanical
PERFORMANCE
ENGINE
Manufacturer. . .IHC Model TD9
Type In-line, 4 cycle, Diesel No. of cylinders 4
Brake horsepower
Ignition type Compression and magneto
ADDITIONAL DATA
Gasoline and magneto used for starting.
Gasoline tank capacity % gal.

TM 9-2800

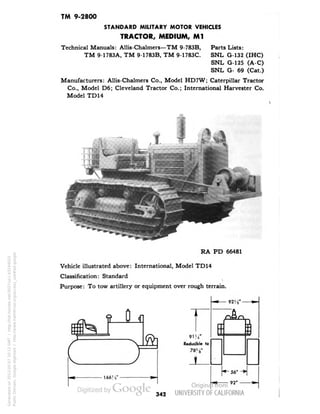

TRACTOR, MEDIUM, Ml
Technical Manuals: Allis-Chalmers—TM 9-783B,
TM 9-1783A, TM 9-1783B, TM 9-1783C.
Parts Lists:
SNL G-132 (IHC)
SNL G-125 (A-C)
SNL G- 69 (Cat.)
Manufacturers: Allis-Chalmers Co., Model HD7W; Caterpillar Tractor
Co., Model D6; Cleveland Tractor Co.; International Harvester Co.
Model TD14
RA PD 66481
Vehicle illustrated above: International, Model TD14
Purpose: To tow artillery or equipment over rough terrain.
91W
Reducible to
78* 3'
J_
92!'s'
-56'
92'
342

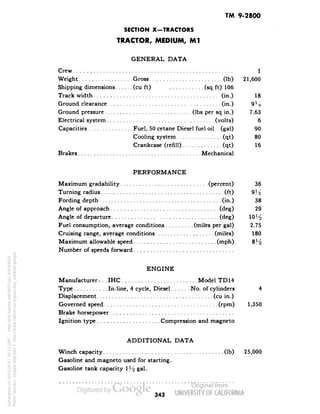

TM 9-2800
SECTION X-TRACTORS
TRACTOR, MEDIUM, Ml
GENERAL DATA
Crew 1
Capacities Fuel, 50 cetane Diesel fuel oil. . (gal) 90
Brakes Mechanical
PERFORMANCE
Turning radius (ft) 9M
Angle of departure (deg) 10H
Maximum allowable speed (mph) 8H
ENGINE
Manufacturer -. . . IHC Model TD14
Type In-line, 4 cycle, Diesel No. of cylinders 4
Displacement (cu in.)
Brake horsepower
Ignition type Compression and magneto
ADDITIONAL DATA
Gasoline and magneto used for starting.
Gasoline tank capacity 1j^ gal.
343

TM 9-2800

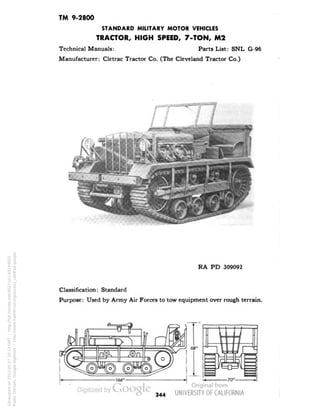

TRACTOR, HIGH SPEED, 7-TON, M2
Manufacturer: Cletrac Tractor Co. (The Cleveland Tractor Co.)
RA PD 309092
Purpose: Used by Army Air Forces to tow equipment over rough terrain.
68"
344

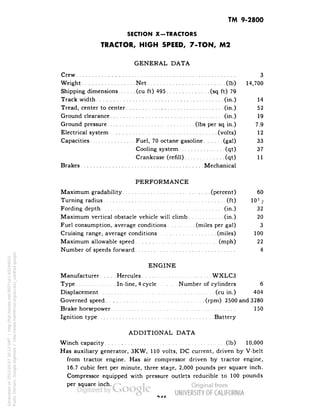

TM 9-2800
SECTION X-TRACTORS
GENERAL DATA
Crew 3
Brakes Mechanical
PERFORMANCE
ENGINE
Manufacturer Hercules WXLC3
Governed speed (rpm) 2500 and 3280
ADDITIONAL DATA
Has auxiliary generator, 3KW, 110 volts, DC current, driven by V-belt
from tractor engine. Has air compressor driven by tractor engine,
16.7 cubic feet per minute, three stage, 2,000 pounds per square inch.
Compressor equipped with pressure outlets reducible to 100 pounds
per square inch.

TM 9-2800
Manufacturer: Allis-Chalmers Co.
Armament: One Gun, machine, cal. .50, HB, M2 (flexible).
Ammunition: 54 rounds, 3-in., when towing 3-in. AA gun; 54 rounds,
90-mm, when towing 90-mm AA gun; 30 rounds, 155-mm, when tow-ing
155-mm gun; 20 rounds, 8-in., when towing 8-in. howitzer; 12
rounds, 240-mm, when towing 240-mm howitzer; 500 rounds, cal. .50.
RA PD 66483
Purpose: To tow heavy artillery over rough terrain.
- 203"—Class A-
206"—Class B
99"
64"
97*
346

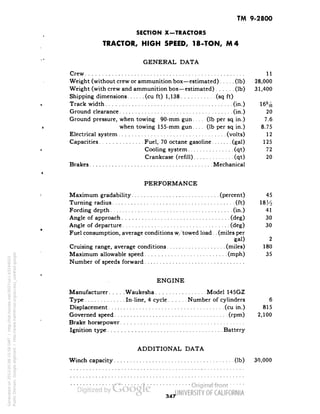

TM 9-2800
SECTION X-TRACTORS
GENERAL DATA
Crew 11
Weight (without crew or ammunition box—estimated) (Ib) 28,000
Weight (with crew and ammunition box—estimated) (Ib) 31,400
Track width (in.) 16?^
Ground pressure, when towing 90-mm gun. . . . (Ib per sq in.) 7.6
when towing 155-mm gun.... (Ib per sq in.) 8.75
Brakes Mechanical
PERFORMANCE
Fuel consumption, average conditions w/towed load. . (miles per
gal) 2
ENGINE
Manufacturer Waukesha Model 145GZ
Brake horsepower
ADDITIONAL DATA
347

TM 9-2800
TRACTOR, HIGH SPEED, 13-TON, MS
Ammunition: Carries 56 rounds, 105-mm; or 24 rounds, 155-mm; or
38 rounds, 4.5 in.
RA PD 309101
Purpose: To tow artillery over rough terrain.
0 11 Ml D 1
104"
i 1
•100"-
348

TM 9-2800

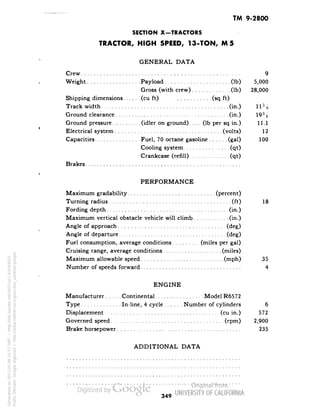

SECTION X-TRACTORS
GENERAL DATA
Crew 9
Weight Payload (Ib) 5,000
Gross (with crew) (Ib) 28,000
Ground clearance (in.) 19?<t
Ground pressure (idler on ground).... (Ib per sq in.) 11.1
Cooling system (qt)
Brakes
PERFORMANCE
Fording depth (in.)
Maximum vertical obstacle vehicle will climb (in.)
ENGINE
Manufacturer Continental Model R6572
ADDITIONAL DATA
349

IM V-2BUU

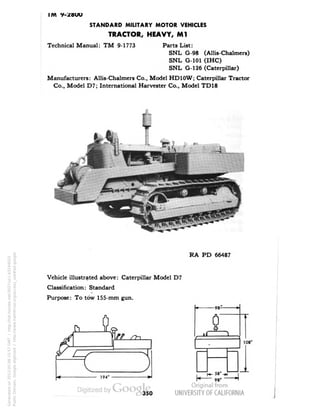

TRACTOR, HEAVY, Ml
SNL G-98 (Allis-Chalmers)
SNL G-101 (IHC)
SNL G-126 (Caterpillar)
Manufacturers: Allis-Chalmers Co., Model HD10W; Caterpillar Tractor
Co., Model D7; International Harvester Co., Model TD18
RA PD 66487
Vehicle illustrated above: Caterpillar Model D7
Purpose: To tow 155-mm gun.
n-
194'
-98-
58"
98'
108'
350

TM 9-2800
SECTION X-TRACTORS

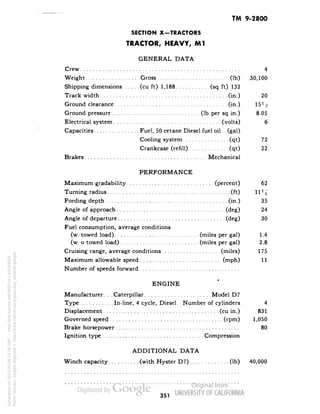

TRACTOR, HEAVY, Ml
GENERAL DATA
Crew 4
Capacities Fuel, 50 cetane Diesel fuel oil. (gal)
Brakes Mechanical
PERFORMANCE
Turning radius (ft) 11M
Fuel consumption, average conditions
(w/towed load) (miles per gal) 1.4
(w/o towed load) (miles per gal) 2.8
ENGINE
Manufacturer. . . Caterpillar Model D7
Type In-line, 4 cycle, Diesel Number of cylinders 4
Brake horsepower 80
ADDITIONAL DATA
Winch capacity (with Hyster D7) (Ib) 40,000
351

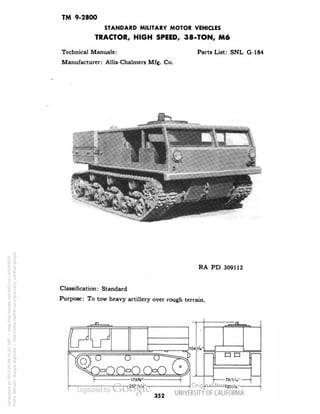

TM 9-2800
Technical Manuals:
Manufacturer: Allis-Chalmers Mfg. Co.
RA PD 309112
Purpose: To tow heavy artillery over rough terrain.
ooooo
-176V
-257 "A
104/6"
u n
-76"A" •
352

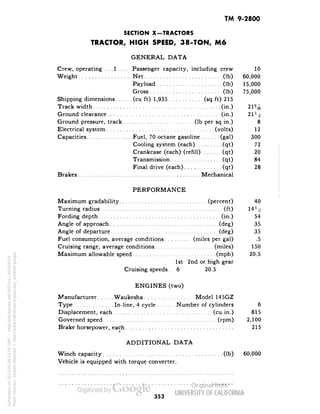

TM 9-2800
SECTION X-TRACTORS
GENERAL DATA
Crew, operating . . .1 Passenger capacity, including crew 10
. Payload (Ib) 15,000
Gross (Ib) 75,000
Ground pressure, track (Ib per sq in.) 8
Cooling system (each) (qt) 72
Crankcase (each) (refill) (qt) 20
Final drive (each) (qt) 28
Brakes Mechanical
PERFORMANCE
Turning radius (ft) 14 l/z
1st 2nd or high gear
Cruising speeds. . 6 20.5
ENGINES (two)
Manufacturer Waukesha Model 145GZ
Displacement, each (cu in.) 815
Brake horsepower, each 215
ADDITIONAL DATA
Vehicle is equipped with torque converter.
353

TM 9-2800

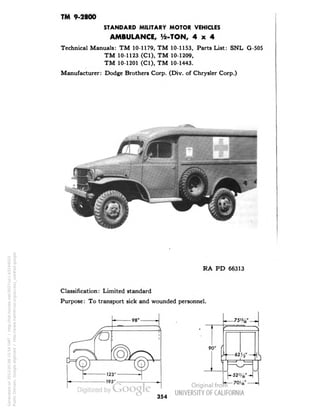

AMBULANCE, Vz-TON, 4x4
Technical Manuals: TM 10-1179, TM 10-1153, Parts List: SNL G-50S
TM 10-1123 (Cl), TM 10-1209,
TM 10-1201 (Cl), TM 10-1443.
RA PD 66313
Purpose: To transport sick and wounded personnel.
90"
354

TM 9-2800
SECTION XI-AMBULANCES
AMBULANCE, 1/2-TON, 4x4
GENERAL DATA
Crew 2
Weight Net (Ib) 5640
Payload (Ib) 1000
Gross (Ib) 6640
Tread, center to center (in.).Front 59^8 Rear 61%
Brakes Hydraulic
PERFORMANCE
ENGINE
Manufacturer Dodge Models T207, T211, T215
Brake horsepower
ADDITIONAL DATA
355

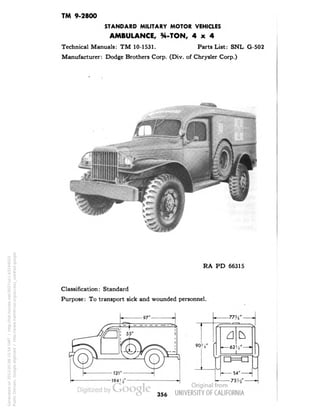

TM 9-2800
AMBULANCE, %-TON, 4x4
RA PD 66315
. 77 Ji"
*
90
?8*
—62
1
54"
356

TM 9-2800

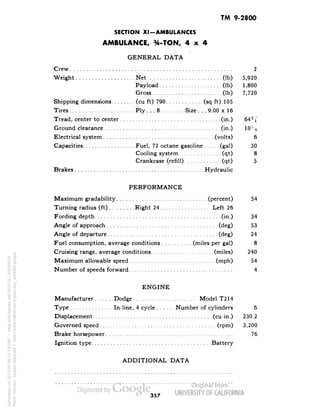

AMBULANCE, %-TON, 4x4
GENERAL DATA
Crew 2
Payload (Ib) 1,800
Gross (Ib) 7,720
Tires Ply. . .8 Size. . .9.00 x 16
Ground clearance (in.) 10"' g
Brakes Hydraulic
PERFORMANCE
ENGINE
Manufacturer Dodge Model T214
Brake horsepower 76
ADDITIONAL DATA
357

im y-

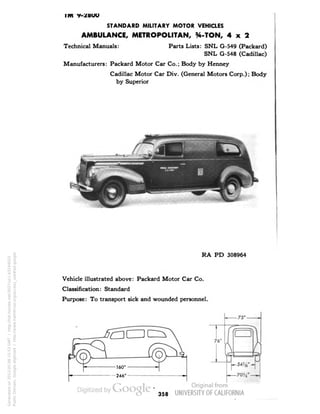

AMBULANCE, METROPOLITAN, %-TON, 4x2
Technical Manuals: Parts Lists: SNL G-549 (Packard)
SNL G-548 (Cadillac)
Manufacturers: Packard Motor Car Co.; Body by Henney
Cadillac Motor Car Div. (General Motors Corp.); Body
by Superior
RA PD 308964
Vehicle illustrated above: Packard Motor Car Co.
358

TM 9-2800

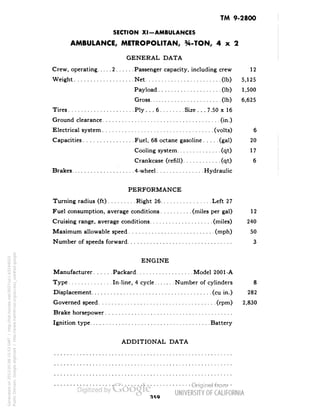

AMBULANCE, METROPOLITAN, %-TON, 4x2
GENERAL DATA
Payload (Ib) 1,500
Gross (Ib) 6,625
Tires Ply.. .6 Size ... 7.50 x 16
Cooling system. (qt) 17
Brakes 4-wheel Hydraulic
PERFORMANCE
ENGINE
Manufacturer Packard Model 2001-A
Brake horsepower
ADDITIONAL DATA

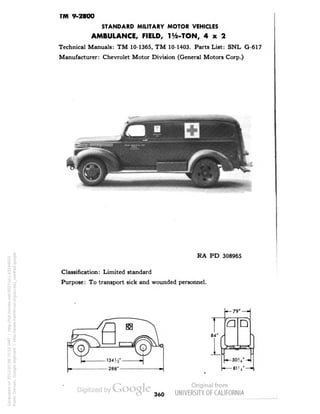

TM 9-2800
AMBULANCE, FIELD, Ite-TON, 4x2
RA PD 308965
— 79" —
1
'a
•
If
[—*>?,- -F
360

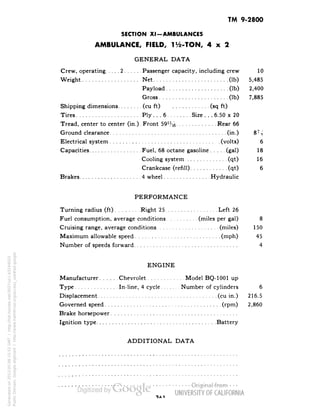

TM 9-2800
AMBULANCE, FIELD, iV2-TON, 4x2
GENERAL DATA
Payload (Ib) 2,400
Gross (Ib) 7,885
Tires Ply.. . 6 Size ... 6.50 x 20
Ground clearance (in.) 87/x
Brakes 4 wheel Hydraulic
PERFORMANCE
Turning radius (ft) .Right 25 Left 26
ENGINE
Manufacturer Chevrolet Model BQ-1001 up
Brake horsepower
ADDITIONAL DATA

TM 9-2800

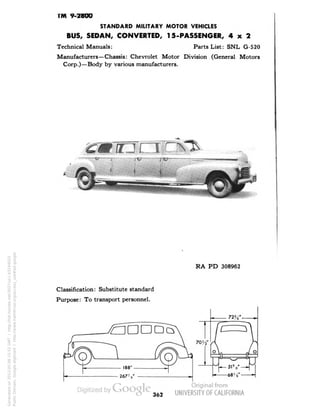

BUS, SEDAN, CONVERTED, 15-PASSENGER, 4x2
Manufacturers—Chassis: Chevrolet Motor Division (General Motors
Corp.)—Body by various manufacturers.
RA PD 308962
Purpose: To transport personnel.
362

TM 9-2800
SECTION XII-BUSSES

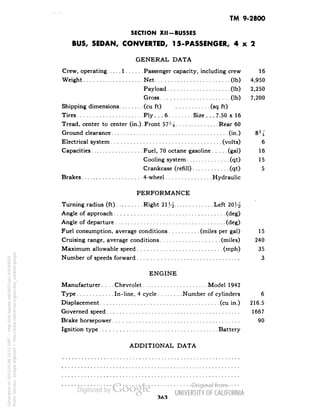

BUS, SEDAN, CONVERTED, 15-PASSENGER, 4x2
GENERAL DATA
Payload (Ib) 2,250
Gross (Ib) 7,200
Tread, center to center (in.). Front 57% Rear 60
PERFORMANCE
Turning radius (ft) Right 21Y^ Left 20^
ENGINE
Manufacturer.... Chevrolet Model 1942
Governed speed 1667
Brake horsepower 90
ADDITIONAL DATA

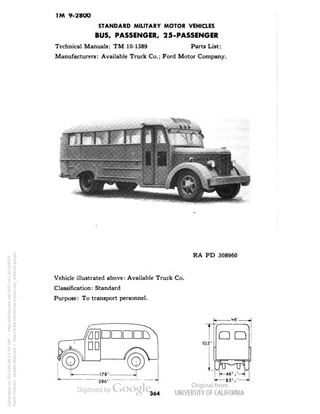

TM 9-2800
BUS, PASSENGER, 25-PASSENGER
Technical Manuals: TM 10-1389 Parts List:
Manufacturers: Available Truck Co.; Ford Motor Company.
RA PD 308960
Vehicle illustrated above: Available Truck Co.
286
105"
a a
83:V
364

TM 9-2800

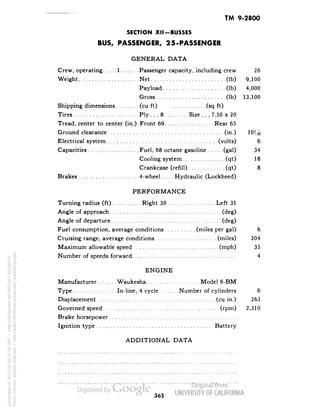

SECTION XII-BUSSES
BUS, PASSENGER, 2 5-PASSENGER
GENERAL DATA
Payload (Ib) 4,000
Gross (Ib) 13,100
Tires Ply ... 8 Size . . . 7.50 x 20
Tread, center to center (in.).Front 69 Rear 65
Ground clearance (in.) 101- jg
Brakes. . .• 4-wheel Hydraulic (Lockheed)
PERFORMANCE
ENGINE
Manufacturer Waukesha Model 6-BM
Brake horsepower
ADDITIONAL DATA
365

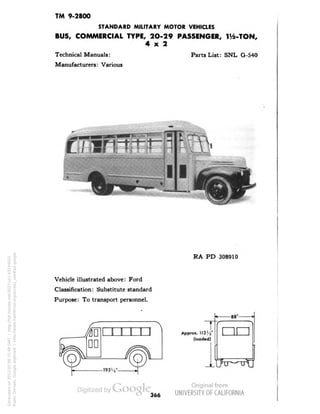

TM 9-2800
BUS, COMMERCIAL TYPE, 2O-29 PASSENGER, 1^-TON,
4x2
Technical Manuals:
RA PD 308910
Vehicle illustrated above: Ford
Approx.
(loaded)
-88"
nn
366

TM 9-2800
SECTION XII -BUSSES

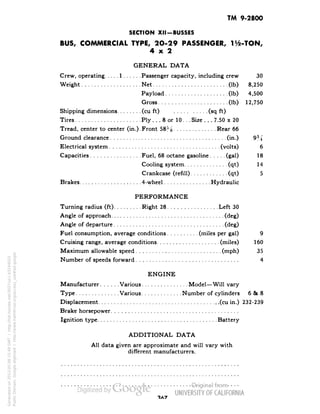

BUS, COMMERCIAL TYPE, 2O-29 PASSENGER, H/a-TON,
4x2
GENERAL DATA
Payload (Ib) 4,500
Gross (Ib) 12,750
Tires Ply... 8 or 10... Size . .. 7.50 x 20
Tread, center to center (in.). Front 58% Rear 66
Crankcase (refill) : (qt) 5
PERFORMANCE
ENGINE
Manufacturer Various Model—Will vary
Type Various Number of cylinders 6 SB 8
Displacement (cu in.) 232-239
Brake horsepower
ADDITIONAL DATA
All data given are approximate and will vary with
different manufacturers.

TM 9-2800

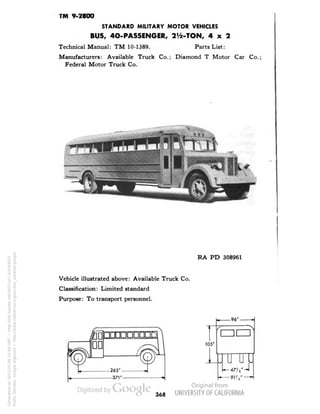

BUS, 40-PASSENGER, 2>/2-TON, 4x2
Manufacturers: Available Truck Co.; Diamond T Motor Car Co.;
Federal Motor Truck Co.
>
RA PD 308961
Vehicle illustrated above: Available Truck Co.
368

TM 9-2800
SECTION XII-BUSSES
BUS, 40-PASSENGER, 21/2-TON/ 4x2
GENERAL DATA
Payload (Ib) 6,000
Gross (Ib) 19,260
Tires Ply... 10 Size . . . 9.00 x 20
Tread, center to center (in.). Front 69 Rear 69:i.{
Ground clearance (in.) 10'%
Brakes Timken-Westinghouse Air
PERFORMANCE
ENGINE
Manufacturer Waukesha Model 6-BZ
Brake horsepower
ADDITIONAL DATA
3A9

TM 9-2800

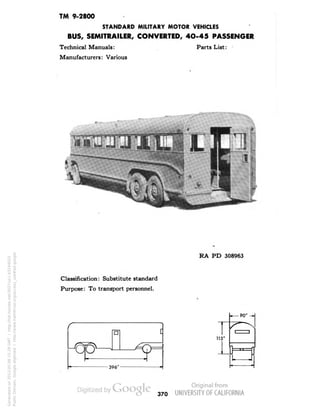

BUS, SEMITRAILER, CONVERTED, 4O-45 PASSENGER
RA PD 308963
115'
370

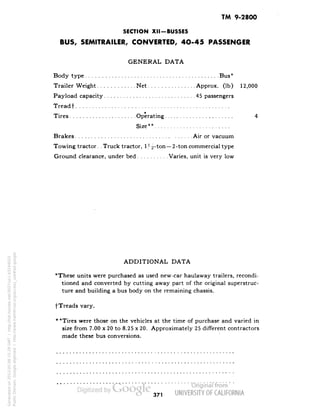

TM 9-2800
SECTION XII -BUSSES
BUS, SEMITRAILER, CONVERTED, 4O-45 PASSENGER
GENERAL DATA
Body type Bus*
Trailer Weight Net Approx. (Ib) 12,000
Pay load capacity 45 passengers
Treadf
Tires Operating 4
Size**
Brakes Air or vacuum
Towing tractor. .Truck tractor, 1^-ton—2-ton commercial type
Ground clearance, under bed Varies, unit is very low
ADDITIONAL DATA
*These units were purchased as used new-car haulaway trailers, recondi-tioned
and converted by cutting away part of the original superstruc-ture
and building a bus body on the remaining chassis.
fTreads vary.
* *Tires were those on the vehicles at the time of purchase and varied in
size from 7.00 x 20 to 8.25 x 20. Approximately 25 different contractors
made these bus conversions.
371

TM 9-2800

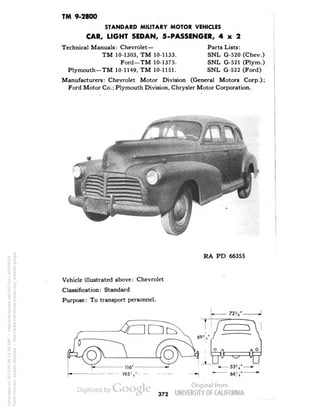

CAR, LIGHT SEDAN, 5-PASSENGER, 4x2
Technical Manuals: Chevrolet—
TM 10-1303, TM 10-1133.
Ford—TM 10-1375.
Plymouth—TM 10-1149, TM 10-1151.
Manufacturers: Chevrolet Motor Division (General Motors Corp.);
Ford Motor Co.; Plymouth Division, Chrysler Motor Corporation.
Parts Lists:
SNL G-520 (Chev.)
SNL G-521 (Plym.)
SNL G-522 (Ford)
RA PD 66355
372

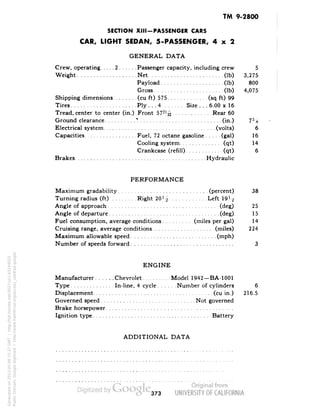

TM 9-2800
SECTION XIII -PASSENGER CARS
CAR, LIGHT SEDAN, 5-PASSENGER, 4x2
GENERAL DATA
Payload (Ib) 800
Gross (Ib) 4,075
Tires Ply ... 4 Size . . . 6.00 x 16
Ground clearance * (in.) 7%
Brakes Hydraulic
PERFORMANCE
Turning radius (ft) Right 20>-£ Left 19%
ENGINE
Manufacturer Chevrolet Model 1942—BA-1001
Brake horsepower
ADDITIONAL DATA
373

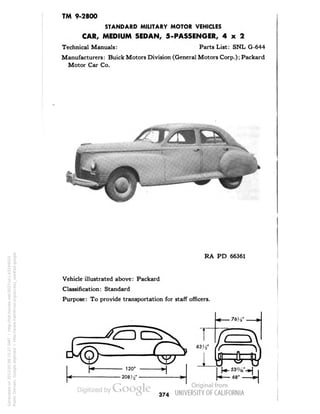

TM 9-2800
CAR, MEDIUM SEDAN, 5-PASSENGER, 4x2
Manufacturers: Buick Motors Division (General Motors Corp.); Packard
Motor Car Co.
RA PD 66361
Vehicle illustrated above: Packard
Purpose: To provide transportation for staff officers.
374

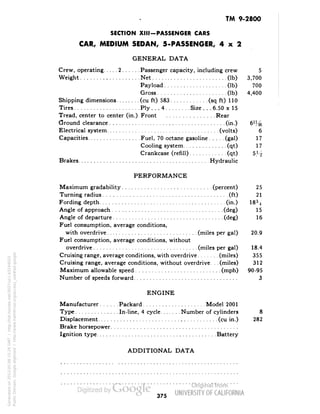

TM 9-2800
SECTION XIII-PASSENGER CARS
CAR, MEDIUM SEDAN, 5-PASSENGER, 4x2
GENERAL DATA
Payload (Ib) 700
Gross (Ib) 4,400
Tires Ply ... 4 Size . . . 6.50 x 15
Tread, center to center (in.). Front Rear
Ground clearance (in.) G'He
Crankcase (refill) (qt) S%
Brakes Hydraulic
PERFORMANCE
with overdrive (miles per gal) 20.9
Fuel consumption, average conditions, without
overdrive (miles per gal) 18.4
Cruising range, average conditions, with overdrive (miles) 355
Cruising range, average conditions, without overdrive. . (miles) 312
Maximum allowable speed (mph) 90-95
ENGINE
Manufacturer Packard Model 2001
Brake horsepower
Ignition type , Battery
ADDITIONAL DATA
375

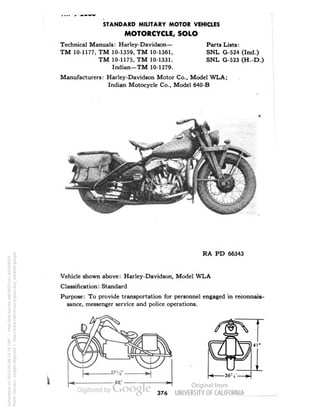

MOTORCYCLE, SOLO
Technical Manuals: Harley-Davidson— Parts Lists:
TM 10-1177, TM 10-1359, TM 10-1361, SNL G-524 (Ind.)
TM 10-1175, TM 10-1331. SNL G-523 (H.-D.)
Indian—TM 10-1279.
Manufacturers: Harley-Davidson Motor Co., Model WLA;
Indian Motocycle Co., Model 640-B
RA PD 66343
Vehicle shown above: Harley-Davidson, Model WLA
Purpose: To provide transportation for personnel engaged in reconnais-sance,
messenger service and police operations.
376

TM 9-2800
SECTION XIV-MOTORCYCLES
MOTORCYCLE, SOLO
GENERAL DATA
Indian H.-D.
640B WLA
Weight Net (Ib) 537 535
Payload (Ib) 200 200
Gross (Ib) 737 735
Shipping dimensions '. (sq ft) 20 - 16
(cu ft) 78 54
Tires Size 4.00 x 18 4.00 x 18
Ply 4 4
Ground clearance (in.) 5 4
Electrical system (volts) 6 6
Capacities Fuel, 70 octane gasoline.. (gal) 3J^
Transmission (pt) 1 %
PERFORMANCE
Maximum gradability (percent) 60 60
Turning radius Left (ft) 7%
Right (ft) 7J4
Fording depth (in.) 11 18
Fuel consumption, average conditions . (miles per gal) 42 37
Cruising range, average conditions (miles) 147 120
Maximum speed—not less than (mph) 60 60
Number of speeds forward 3 3
ENGINE
Manufacturer. . Indian Model 640B
Harley-Davidson Model WLA
Type .• 42° "VEE", 4 cycle. No. of cylinders 2 2
Displacement (cu in.) 45.44 45.12
Bore (in.) 2% 2*{
Stroke (in.) 3H 3%
ADDITIONAL DATA
.177

TM 9-2800

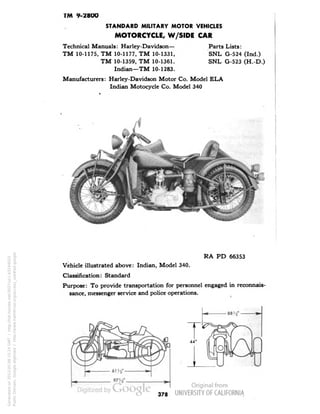

MOTORCYCLE, W/SIDE CAR
Technical Manuals: Harley-Davidson— Parts Lists:
TM 10-1175, TM 10-1177, TM 10-1331, SNL G-524 (Ind.)
TM 10-1359, TM 10-1361. SNL G-523 (H.-D.)
Indian—TM 10-1283.
Manufacturers: Harley-Davidson Motor Co. Model EL A
Indian Motocycle Co. Model 340
RA PD 66353
Vehicle illustrated above: Indian, Model 340.
Purpose: To provide transportation for personnel engaged in reconnais-sance,
messenger service and police operations.
378

TM 9-2800
ADDITIONAL DATA
SECTION XIV-MOTORCYLES

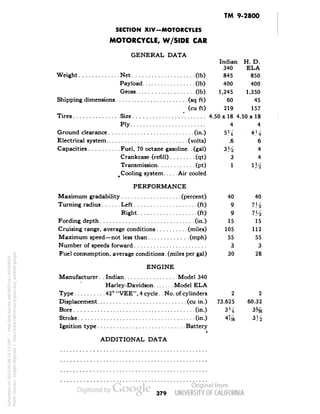

MOTORCYCLE, W/SIDE CAR
GENERAL DATA
Indian H. D.
340 ELA
Weight ............. Net .................... (Ib) 845 850
Payload ................. (Ib) 400 400
Gross ................... (Ib) 1,245 1,250
Shipping dimensions ....................... (sq ft) 60 45
(cu ft) 219 157
Tires ............... Size ................ • ....... 4.50x18 4.50 x 18
Ply ........................ 4 4
Ground clearance ........................... (in.) 5H 4J-^
Electrical system .......................... (volts) ,6 6
Capacities .......... Fuel, 70 octane gasoline. . (gal) 3}/2 4
Crankcase (refill) ........ (qt) 3 4
Transmission ............ (pt) 1 !J/£
m Cooling system ..... Air cooled
PERFORMANCE
Maximum gradability ................... (percent) 40 40
Turning radius ...... Left .................... (ft) 9
Right ................... (ft) 9
Fording depth .............................. (in.) 15 15
Cruising range, average conditions .......... (miles) 105 112
Maximum speed— not less than ............. (mph) 55 55
Number of speeds forward ....................... 3 3
Fuel consumption, average conditions . (miles per gal) 30 28
ENGINE
Manufacturer. . Indian ................. Model 340
Harley -Davidson ....... Model ELA
Type .......... 42° "VEE", 4 cycle. .No. of cylinders 2 2
Displacement ............................ (cu in.) 73.625 60.32
Bore ...................................... (in.) 3M
Stroke ..................................... (in.) 4%
Ignition type ............................ Battery
379

im y-zouu

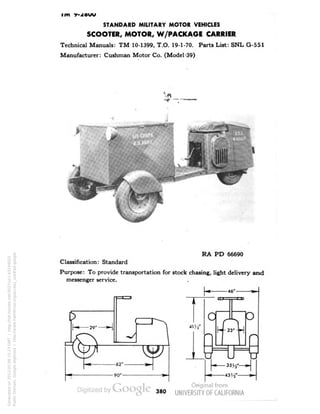

SCOOTER, MOTOR, W/PACKAGE CARRIER
Technical Manuals: TM 10-1399, T.O. 19-1-70. Parts List: SNL G-551
Manufacturer: Cushman Motor Co. (Model '39)
RA PD 66690
Purpose: To provide transportation for stock chasing, light delivery and
messenger service.
380

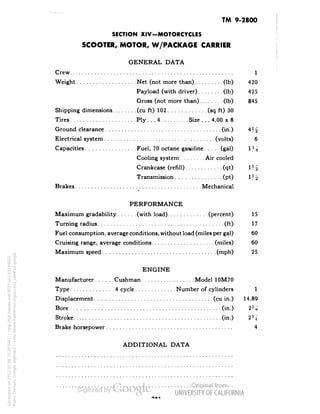

TM 9-2800
SECTION XIV-MOTORCYCLES
SCOOTER, MOTOR, W/PACKAGE CARRIER
GENERAL DATA
Crew 1
Weight Net (not more than) . . (Ib) 420
Pay load (with driver) (Ib) 425
Gross (not more than) (Ib) 845
Tires Ply. . .4 .Size.. .4.00 x 8
Capacities Fuel, 70 octane gasoline (gal) 1J^
Transmission (pt)
Brakes Mechanical
PERFORMANCE
Maximum gradability (with load) (percent) 15
Fuel consumption, average conditions, without load (miles per gal) 60
Maximum speed (mph) 25
ENGINE
Manufacturer..... .Cushman Model 10M70
Type 4 cycle Number of cylinders 1
Bore (in.)
Stroke (in.)
Brake horsepower 4
ADDITIONAL DATA

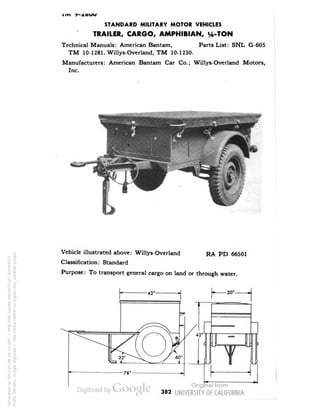

TRAILER, CARGO, AMPHIBIAN, Vi-TON
Technical Manuals: American Bantam, Parts List: SNL G-605
TM 10-1281. Willys-Overland, TM 10-1230.
Manufacturers: American Bantam Car Co.; Willys-Overland Motors,
Inc.
Vehicle illustrated above: Willys-Overland RA PD 66501
Purpose: To transport general cargo on land or through water.
382

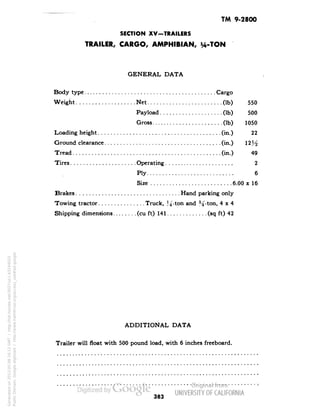

TM 9-2800
SECTION XV-TRAILERS
TRAILER, CARGO, AMPHIBIAN, i/4-TON
GENERAL DATA
Body type Cargo
Weight Net (Ib) 550
Payload (Ib) 500
Gross (Ib) 1050
Loading height (in.) 22
Tread (in.) 49
Tires Operating 2
Ply 6
Size 6.00 x 16
Brakes Hand parking only
Towing tractor Truck, J^-ton and %-ton, 4x4
ADDITIONAL DATA
Trailer will float with 500 pound load, with 6 inches freeboard.
383

TM 9-28OO

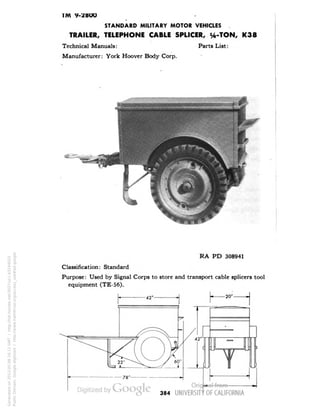

TRAILER, TELEPHONE CABLE SPLICER, H-TON, K38
Manufacturer: York Hoover Body Corp.
RA PD 308941
Purpose: Used by Signal Corps to store and transport cable splicers tool
equipment (TE-56).
384

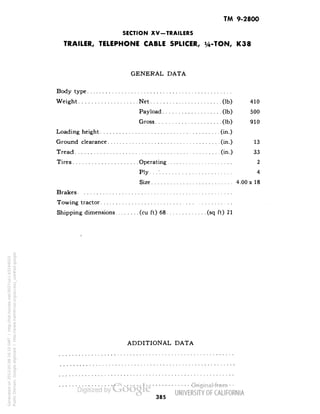

TM 9-2800
SECTION XV-TRAILERS
TRAILER, TELEPHONE CABLE SPLICER, y4-TON, K38
GENERAL DATA
Body type
Weight Net (Ib) 410
Payload (Ib) 500
Gross (Ib) 910
Loading height (in.)
Tread (in.) 33
Tires Operating 2
Ply...'. 4
Size 4.00 x 18
Brakes.
Towing tractor
ADDITIONAL DATA
385

TM 9-2800

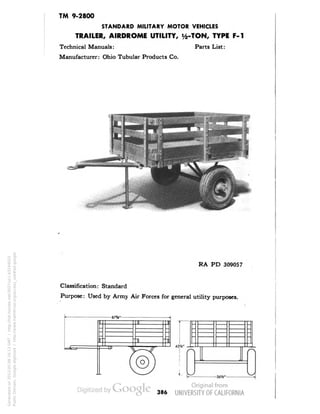

TRAILER, AIRDROME UTILITY, i/2-TON, TYPE F-l
Manufacturer: Ohio Tubular Products Co.
RA PD 309057
Purpose: Used by Army Air Forces for general utility purposes.
-S6W-
386

TM 9-2800
SECTION XV-TRAILERS
TRAILER, AIRDROME UTILITY, 2^-TON, TYPE F-2
GENERAL DATA
Body type Cargo
Payload (Ib) 5,000
Gross (Ib) 6,000
Ground clearance
Tread
Tires Operating 4
Ply 8
Size 6.00 x 9
Brakes None
Towing tractor Airdrome tractors and truck, 6-ton, 4x4
Shipping dimensions (cu ft) 80 (sq ft)
Weight, packed for export (Ib) 1,500
ADDITIONAL DATA
41.1

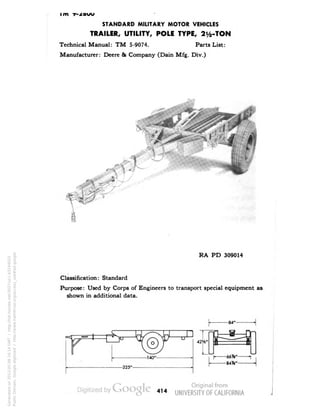

i m •y-
TRAILER, UTILITY, POLE TYPE, 2y2-TON
Manufacturer: Deere & Company (Dain Mfg. Div.)
RA PD 309014
Purpose: Used by Corps of Engineers to transport special equipment as
shown in additional data.
414

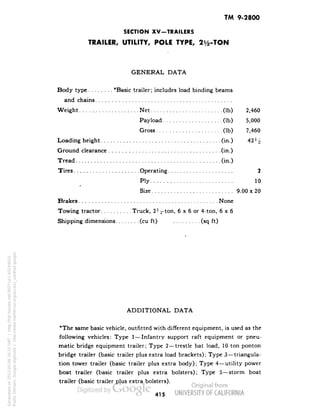

TM 9-2800
SECTION XV-TRAILERS
TRAILER, UTILITY, POLE TYPE, 2y2-TON
GENERAL DATA
Body type *Basic trailer; includes load binding beams
and chains
Payload (Ib) 5,000
Gross (Ib) 7,460
Loading height (in.) 42]/2
Tread (in.)
Tires Operating 2
Ply 10
•
Size 9.00 x 20
Brakes None
Towing tractor Truck, 2 H-ton, 6 x 6 or 4-ton, 6x6
ADDITIONAL DATA
*The same basic vehicle, outfitted with different equipment, is used as the
following vehicles: Type 1 —Infantry support raft equipment or pneu-matic
bridge equipment trailer; Type 2—trestle bat load, 10-ton ponton
bridge trailer (basic trailer plus extra load brackets); Type 3—triangula-tion
tower trailer (basic trailer plus extra body); Type 4—utility power
boat trailer (basic trailer plus extra bolsters); Type 5—storm boat
trailer (basic trailer plus extra bolsters).
415

I ITI "7-XOUU

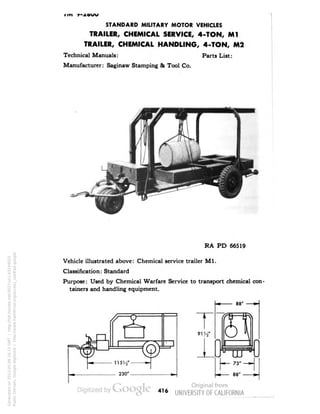

TRAILER, CHEMICAL SERVICE, 4-TON, Ml
TRAILER, CHEMICAL HANDLING, 4-TON, M2
Manufacturer: Saginaw Stamping & Tool Co.
RA PD 66519
Vehicle illustrated above: Chemical service trailer M1.
Purpose: Used by Chemical Warfare Service to transport chemical con •
tainers and handling equipment.
88" —
416

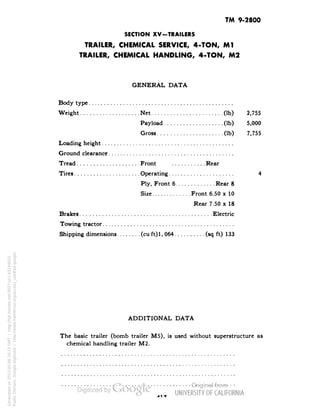

TM 9-2800
SECTION XV-TRAILERS
TRAILER, CHEMICAL SERVICE, 4-TON, Ml
TRAILER, CHEMICAL HANDLING, 4-TON, M2
GENERAL DATA
Body type
Payload (Ib) 5,000
Gross (Ib) 7,755
Loading height
Ground clearance
Tread Front Rear
Tires Operating 4
Ply, Front 6 Rear 8
Size Front 6.50 x 10
Rear 7.50 x 18
Brakes Electric
Towing tractor
Shipping dimensions (cu ft)l, 064 (sq ft) 133
ADDITIONAL DATA
The basic trailer (bomb trailer M5), is used without superstructure as
chemical handling trailer M2.

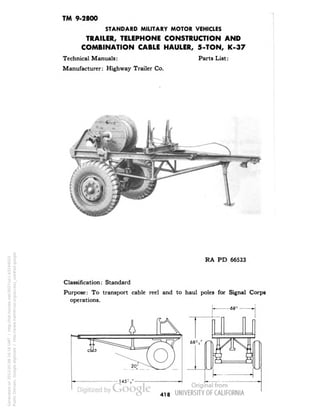

TM 9-2800
TRAILER, TELEPHONE CONSTRUCTION AND
COMBINATION CABLE HAULER, 5-TON, K-37
Manufacturer: Highway Trailer Co.
RA PD 66523
Purpose: To transport cable reel and to haul poles for Signal Corps
operations.
418

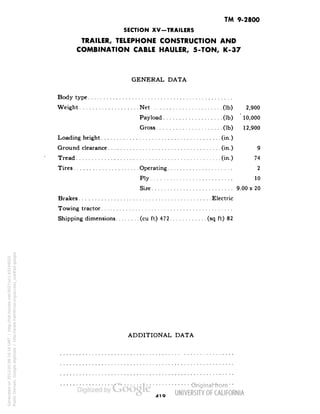

TM 9-2800
SECTION XV-TRAILERS
TRAILER, TELEPHONE CONSTRUCTION AND
COMBINATION CABLE HAULER, 5-TON, K-37
GENERAL DATA
Body type
Payload (Ib) '10,000
Gross (Ib) 12,900
Tread (in.) 74
Tires Operating 2
Ply 10
Size 9.00 x 20
Brakes Electric
Towing tractor
ADDITIONAL DATA
410

TM 9-2800

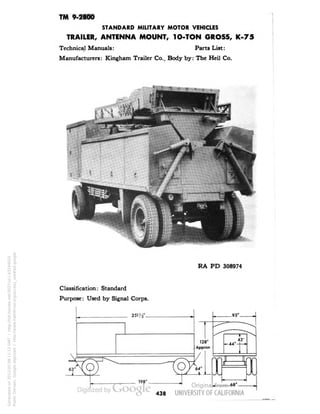

TRAILER, ANTENNA MOUNT, 1O-TON GROSS, K-75
Manufacturers: Kingham Trailer Co., Body by: The Heil Co.
RA PD 308974
Purpose: Used by Signal Corps.
.95'
00
-68'-
438

TM 9-2800
SECTION XV-TRAILERS

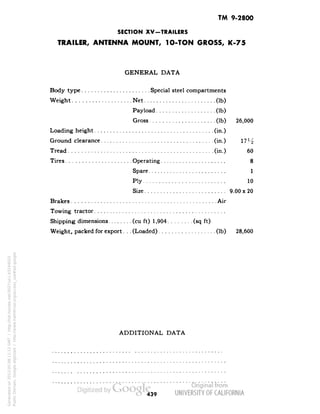

TRAILER, ANTENNA MOUNT, 10-TON GROSS, K-75
GENERAL DATA
Body type Special steel compartments
Weight Net (Ib)
Payload (Ib)
Gross (Ib) 26,000
Ground clearance (in.) 1?H
Tread (in.) 60
Tires Operating 8
Spare 1
Ply 10
Size 9.00 x 20
Brakes Air
Towing tractor
Weight, packed for export. . . (Loaded) (Ib) 28,600
ADDITIONAL DATA
439

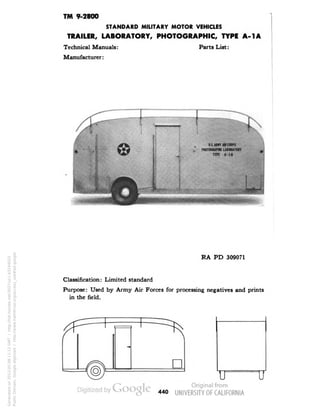

TM 9-2800
TRAILER, LABORATORY, PHOTOGRAPHIC, TYPE A-1A
Manufacturer:
RA PD 309071
Purpose: Used by Army Air Forces for processing negatives and prints
in the field.
IT
440

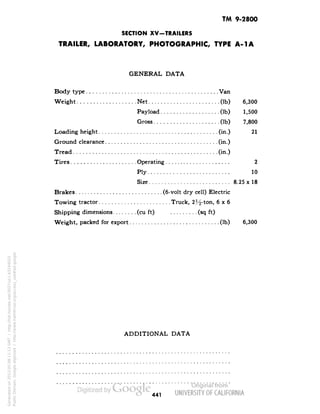

TM 9-2800
SECTION XV-TRAILERS
TRAILER, LABORATORY, PHOTOGRAPHIC, TYPE A-1A
GENERAL DATA
Body type Van
Payload (Ib) 1,500
Gross (Ib) 7,800
Tread (in.)
Tires Operating 2
Ply 10
Size 8.25 x 18
Brakes (6-volt dry cell) Electric
Towing tractor Truck, 2^-ton, 6x6
ADDITIONAL DATA
441

TRAILER, LABORATORY, PHOTOGRAPHIC, TYPE A-2
Manufacturer: Oneida Ltd.
RA PD 309069
Purpose: Used by Army Air Forces for the processing of negatives and
prints in the field.
103W
442

TM 9-2800
SECTION XV-TRAILERS

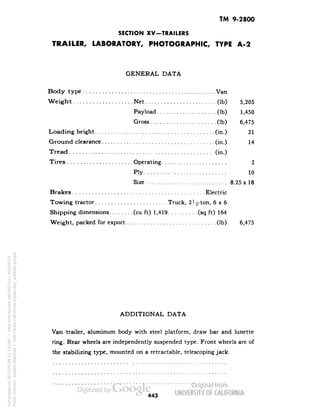

TRAILER, LABORATORY, PHOTOGRAPHIC, TYPE A-2
GENERAL DATA
Body type - Van
Payload (Ib) 1,450
Gross (Ib) 6,475
Tread (in.)
Tires Operating 2
Ply 10
Size 8.25x18
Brakes Electric
Towing tractor Truck, 2H-ton, 6x6
ADDITIONAL DATA
Van trailer, aluminum body with steel platform, draw bar and lunette
ring. Rear wheels are independently suspended type. Front wheels are of
the stabilizing type, mounted on a retractable, telescoping jack.
443

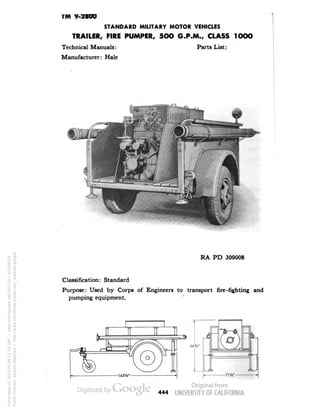

TM 9-2800
TRAILER, FIRE PUMPER, 5OO G.P.M., CLASS 1OOO
Manufacturer: Hale
RA PD 309008
Purpose: Used by Corps of Engineers to transport fire-fighting and
pumping equipment.

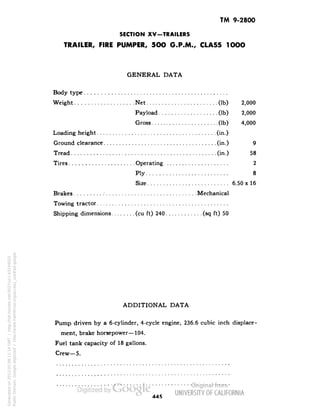

TM 9-2800
SECTION XV-TRAILERS
TRAILER, FIRE PUMPER, 5OO G.P.M., CLASS 1OOO
GENERAL DATA
Body type
Payload (Ib) 2,000
Gross (Ib) 4,000
Tread (in.) 58
Tires Operating 2
Ply 8
Size 6.50 x 16
Brakes Mechanical
Towing tractor
ADDITIONAL DATA
Pump driven by a 6-cylinder, 4-cycle engine, 236.6 cubic inch displace-ment,
brake horsepower—104.
Fuel tank capacity of 18 gallons.
Crew—5.
445

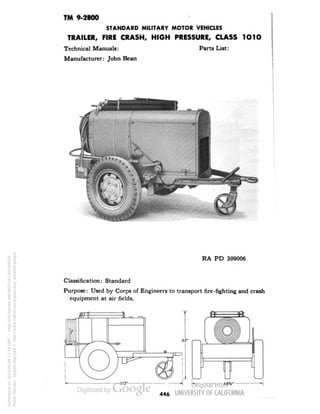

TM 9-2800
TRAILER, FIRE CRASH, HIGH PRESSURE, CLASS 1O1O
Manufacturer: John Bean
RA PD 309006
Purpose: Used by Corps of Engineers to transport fire-fighting and crash
equipment at air fields.
446

TM 9-2800
SECTION XV-TRAILERS

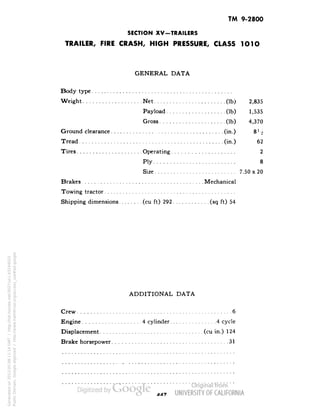

TRAILER, FIRE CRASH, HIGH PRESSURE, CLASS 1O1O
GENERAL DATA
Body type
Payload (Ib) 1,535
Gross (Ib) 4,370
Ground clearance (in.) 8J£
Tread (in.) 62
Tires Operating 2
Ply 8
Size 7.50 x 20
Brakes Mechanical
Towing tractor
ADDITIONAL DATA
Crew 6
Engine 4 cylinder 4 cycle
Brake horsepower 31

TM 9-2800

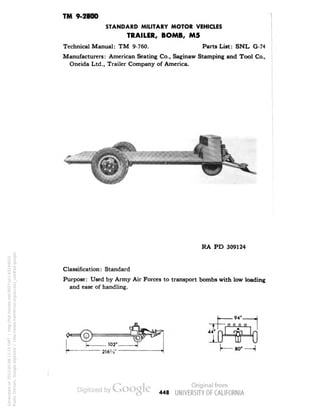

TRAILER, BOMB, M5
Manufacturers: American Seating Co., Saginaw Stamping and Tool Co.,
Oneida Ltd., Trailer Company of America.
RA PD 309124
Purpose: Used by Army Air Forces to transport bombs with low loading
and ease of handling.
448

TM 9-2800

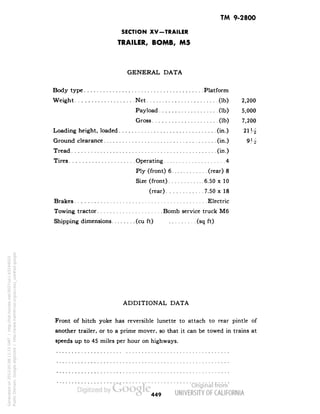

SECTION XV-TRAILER
TRAILER, BOMB, M5
GENERAL DATA
Body type Platform
Payload (Ib) 5,000
Gross (Ib) 7,200
Loading height, loaded (in.)
Tread (in.)
Tires Operating 4
Ply (front) 6 (rear) 8
Size (front) 6.50 x 10
(rear) 7.50 x 18
Brakes Electric
Towing tractor Bomb service truck M6
ADDITIONAL DATA
Front of hitch yoke has reversible lunette to attach to rear pintle of
another trailer, or to a prime mover, so that it can be towed in trains at
speeds up to 45 miles per hour on highways.
449

TM 9-2800

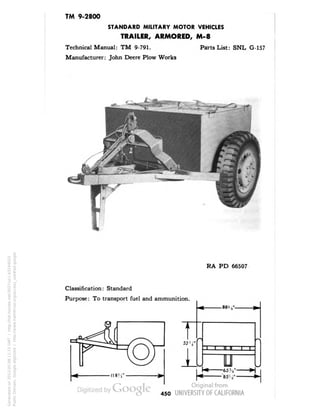

TRAILER, ARMORED, M-8
Manufacturer: John Deere Plow Works
RA PD 66507
Purpose: To transport fuel and ammunition.
* 88V ,
t
52 '4"
1
-ii n ii i |
U
• 85''
450

TM 9-2800
SECTION XV-TRAILERS

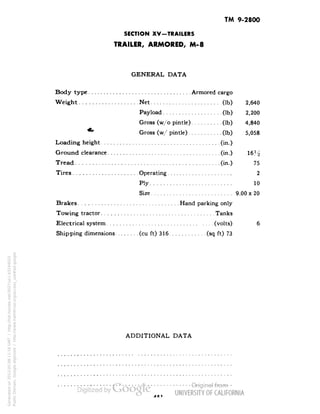

TRAILER, ARMORED, M-8
GENERAL DATA
Body type Armored cargo
Payload (Ib) 2,200
Gross (w/o pintle) (Ib) 4,840
*• Gross (w/ pintle) (Ib) 5,058
Tread (in.) 75
Tires Operating 2
Ply 10
Size 9.00 x 20
Brakes Hand parking only
Towing tractor Tanks
ADDITIONAL DATA

TM 9-2800

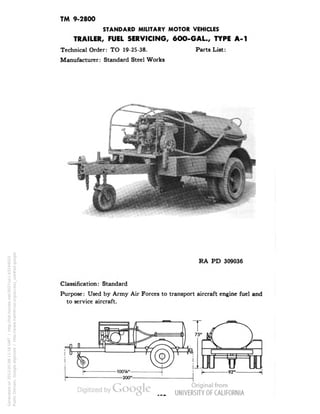

TRAILER, FUEL SERVICING, 6OO-GAL, TYPE A-l
Technical Order: TO 19-25-38. Parts List:
Manufacturer: Standard Steel Works
RA PD 309036
Purpose: Used by Army Air Forces to transport aircraft engine fuel and
to service aircraft.

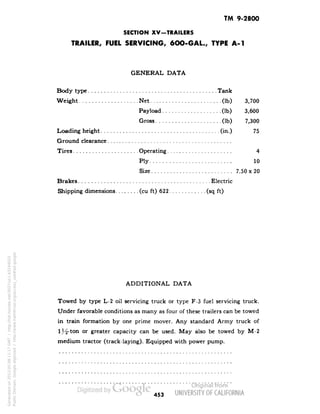

TM 9-2800
SECTION XV-TRAILERS
TRAILER, FUEL SERVICING, 6OO-GAL., TYPE A-l
GENERAL DATA
Body type Tank
Payload (Ib) 3,600
Gross (Ib) 7,300
Ground clearance
Tires Operating 4
Ply 10
Size 7.50x20
Brakes Electric
ADDITIONAL DATA
Towed by type L-2 oil servicing truck or type F-3 fuel servicing truck.
Under favorable conditions as many as four of these trailers can be towed
in train formation by one prime mover. Any standard Army truck of
Ij^-ton or greater capacity can be used. May also be towed by M-2
medium tractor (track-laying). Equipped with power pump.
453

TM 9-2800

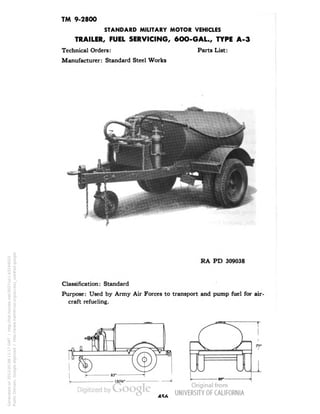

TRAILER, FUEL SERVICING, 6OO-GAL., TYPE A-3
Technical Orders: Parts List:
Manufacturer: Standard Steel Works
RA PD 309038
Purpose: Used by Army Air Forces to transport and pump fuel for air-craft
refueling.
45A

TM 9-2800
SECTION XV-TRAILERS

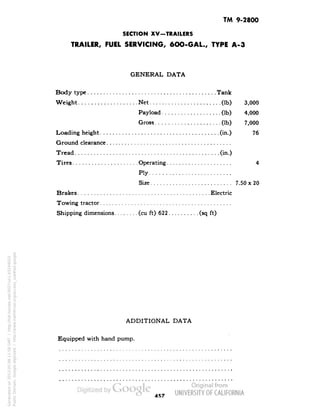

TRAILER, FUEL SERVICING, 6OO-GAL., TYPE A-3
GENERAL DATA
Body type Tank
Payload (Ib) 4,000
Gross (Ib) 7,000
Ground clearance
Tread (in.)
Tires Operating 4
Ply
Size 7.50 x 20
Brakes Electric
Towing tractor
ADDITIONAL DATA
Equipped with hand pump.
457

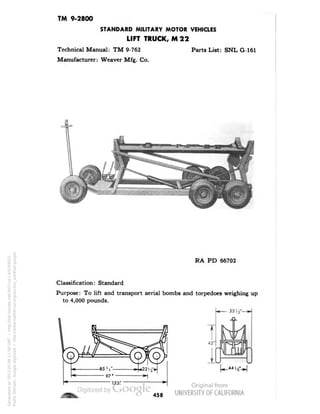

TM 9-2800
LIFT TRUCK, M 22
Manufacturer: Weaver Mfg. Co.
RA PD 66702
Purpose: To lift and transport aerial bombs and torpedoes weighing up
to 4,000 pounds.
T
42"
55 i ,
458

TM 9-2800
SECTION XV-TRAILERS

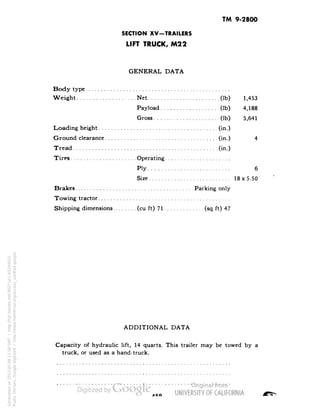

LIFT TRUCK, M22
GENERAL DATA
Body type
Payload (Ib) 4,188
Gross (Ib) 5,641
Tread (in.)
Tires Operating
Ply 6
Size 18x5.50
Brakes Parking only
Towing tractor
ADDITIONAL DATA
Capacity of hydraulic lift, 14 quarts. This trailer may be towed by a
truck, or used as a hand-truck.
AKO

TM 9-2800

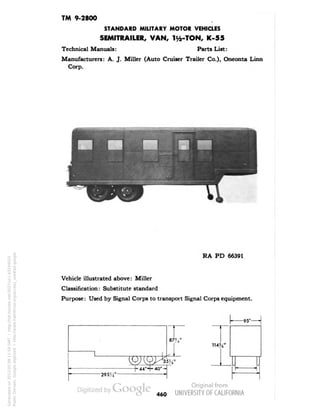

SEMITRAILER, VAN, 1^-TON, K-55
Manufacturers: A. J. Miller (Auto Cruiser Trailer Co.), Oneonta Linn
Corp.
RA PD 66391
Vehicle illustrated above: Miller
Purpose: Used by Signal Corps to transport Signal Corps equipment.
-95"
460

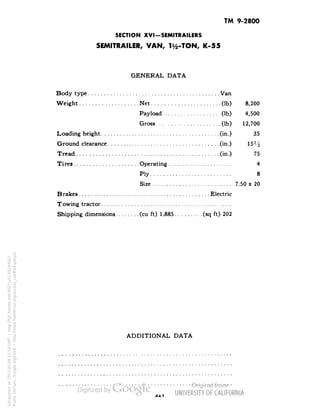

TM 9-2800
SECTION XVI-SEMITRAILERS
SEMITRAILER, VAN, li/2-TON, K-55
GENERAL DATA
Body type Van
Payload (Ib) 4,500
Gross (Ib) 12,700
Tread (in.) 75
Tires Operating 4
Ply 8
Size 7.50 x 20
Brakes Electric
Towing tractor
ADDITIONAL DATA

TM 9-2800

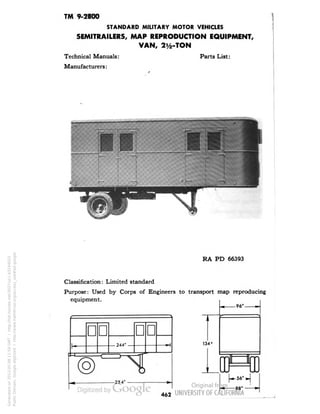

SEMITRAILERS, MAP REPRODUCTION EQUIPMENT,
VAN, 2y2-TON
Manufacturers:
•
I i
RA PD 66393
Purpose: Used by Corps of Engineers to transport map reproducing
equipment.
134*
-96'-
88'
462

TM 9-2800
SEMITRAILERS, MAP REPRODUCTION EQUIPMENT,
VAN, 2y2-TON
GENERAL DATA
i
Body type. . . Van
Tread (in.)
Tires Operating
Ply
Size
Brakes
Towing tractor
Shipping dimensions (cu ft) 2000. . . (sq ft) 176
ADDITIONAL DATA
The same basic vehicle outfitted with different equipment is used as:
camera section, 24- x 24-inch, and press section, 17- x 19-inch.
Gross weight on outfitted vehicles varies from 13,500 to 14,500 pounds,
because of different loads.
463

TM 9-2800

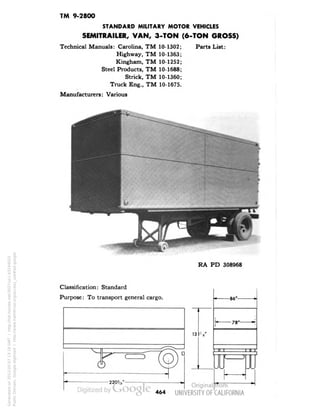

SEMITRAILER, VAN, 3-TON (6-TON GROSS)
Technical Manuals: Carolina, TM 10-1302; Parts List:
Highway, TM 10-1363;
Kingham, TM 10-1252;
Steel Products, TM 10-1688;
Strick, TM 10-1360;
Truck Eng., TM 10-1675.
RA PD 308968
13 V
464

TM 9-2800

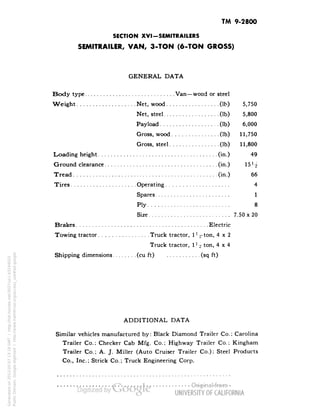

SEMITRAILER, VAN, 3-TON (6-TON GROSS)
GENERAL DATA
Body type Van—wood or steel
Weight Net, wood (Ib) 5,750
Net, steel (Ib) 5,800
Payload (Ib) 6,000
Gross, wood (Ib) 11,750
Gross, steel (Ib) 11,800
Tread (in.) 66
Tires Operating 4
Spares 1
Ply 8
Size 7.50x 20
Brakes Electric
Towing tractor Truck tractor, IJ^-ton, 4x2
Truck tractor, 1}/i ton, 4x4
ADDITIONAL DATA
Similar vehicles manufactured by: Black Diamond Trailer Co.; Carolina
Trailer Co.; Checker Cab Mfg. Co.; Highway Trailer Co.; Kingham
Trailer Co.; A. J. Miller (Auto Cruiser Trailer Co.); Steel Products
Co., Inc.; Strick Co.; Truck Engineering Corp.

TM 9-2800

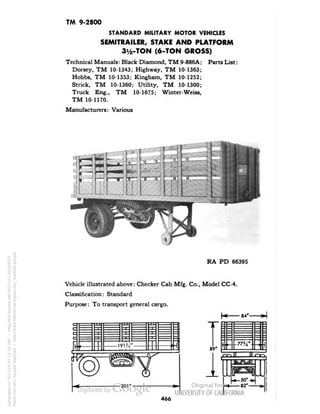

SEMITRAILER, STAKE AND PLATFORM
3^-TON (6-TON GROSS)
Technical Manuals: Black Diamond, TM 9-886A; Parts List:
Dorsey, TM 10-1343; Highway, TM 10-1363;
Hobbs, TM 10-1353; Kingham, TM 10-1252;
Strick, TM 10-1360; Utility, TM 10-1300;
Truck Eng., TM 10-1675; Winter-Weiss,
TM 10-1170.
RA PD 66395
Vehicle illustrated above: Checker Cab Mfg. Co., Model CC-4.
T
89*
84"-
-82'-
466

TM 9-2800

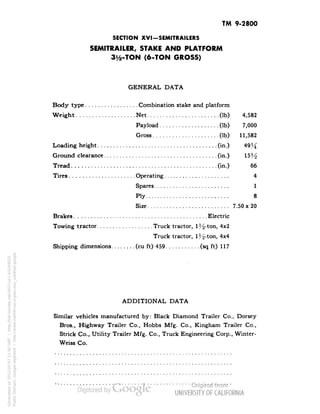

SEMITRAILER, STAKE AND PLATFORM
31/2-TON (6-TON GROSS)
GENERAL DATA
Body type Combination stake and platform
Payload (Ib) 7,000
Gross (Ib) 11,582
Loading height (in'.)
Tread (in.) 66
Tires Operating 4
Spares 1
Ply 8
Size 7.50x20
Brakes Electric
Towing tractor Truck tractor, lJ^-ton, 4x2
Truck tractor, l^-ton, 4x4
ADDITIONAL DATA
Similar vehicles manufactured by: Black Diamond Trailer Co., Dorsey
Bros., Highway Trailer Co., Hobbs Mfg. Co., Kingham Trailer Co.,
Strick Co., Utility Trailer Mfg. Co., Truck Engineering Corp., Winter-
Weiss Co.

TM 9-2800

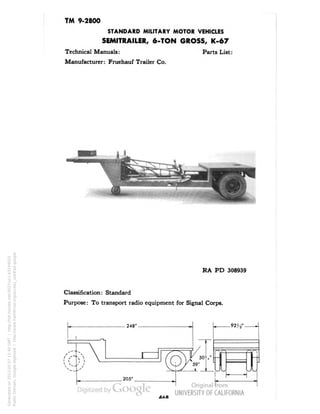

SEMITRAILER, 6-TON GROSS, K-67
RA PD 308939
Purpose: To transport radio equipment for Signal Corps.

TM 9-2800

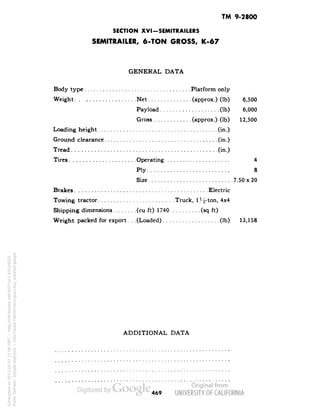

GENERAL DATA
Body type Platform only
Weight Net (approx.) (Ib) 6,500
Payload (Ib) 6,000
Gross (approx.) (Ib) 12,500
Tread (in.)
Tires Operating 4
Ply 8
Size 7.50x20
Brakes Electric
Towing tractor Truck, 1 H-ton, 4x4
Weight packed for export. . . (Loaded) (Ib) 13,158
ADDITIONAL DATA
469

TM 9-2800

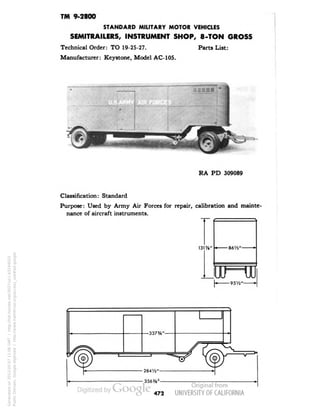

SEMITRAILERS, INSTRUMENT SHOP, 8-TON GROSS
Technical Order: TO 19-25-27. Parts List:
Manufacturer: Keystone, Model AC-105.
RA PD 309089
Purpose: Used by Army Air Forces for repair, calibration and mainte-nance
of aircraft instruments.
131%"
-86'/2"-
-95W
472

TM 9-2800
SEMITRAILERS, INSTRUMENT SHOP, 8-TON GROSS
GENERAL DATA
Body type
Payload (test equipment).. . .(lb) 4,214
Gross (Ib) 16,884
Tires Operating 4
Ply 12
Size 9.00 x 20
Kingpin to center of axle (in.) 284 J 2
Brakes Air
Towing tractor
ADDITIONAL DATA

im y-zouu

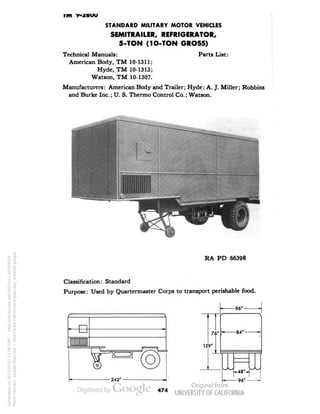

SEMITRAILER, REFRIGERATOR,
5-TON (1O-TON GROSS)
American Body, TM 10-1311;
Hyde, TM 10-1313;
Watson, TM 10-1307.
Manufacturers: American Body and Trailer; Hyde; A. J. Miller; Robbins
and Burke Inc.; U. S. Thermo Control Co.; Watson.
RA PD 66398
Purpose: Used by Quartermaster Corps to transport perishable food.
— 96"-
76"
129"|
-84"
96"
474

TM 9-2800

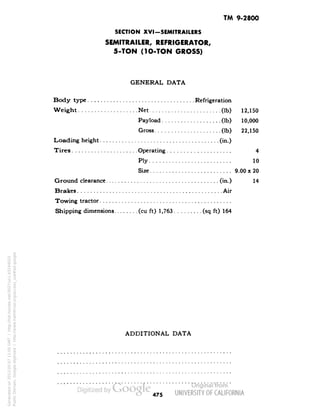

SEMITRAILER, REFRIGERATOR,
5-TON (10-TON GROSS)
GENERAL DATA
Body type Refrigeration
Payload (Ib) 10,000
Gross (Ib) 22,150
Tires Operating 4
Ply 10
Size 9.00x20
Brakes Air
Towing tractor
ADDITIONAL DATA
475

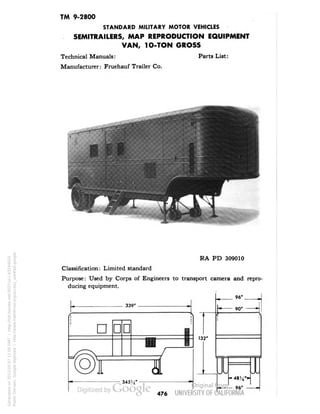

TM 9-2800
SEMITRAILERS, MAP REPRODUCTION EQUIPMENT
VAN, 1O-TON GROSS
RA PD 309010
Purpose: Used by Corps of Engineers to transport camera and repro-ducing
equipment.
476

TM 9-2800

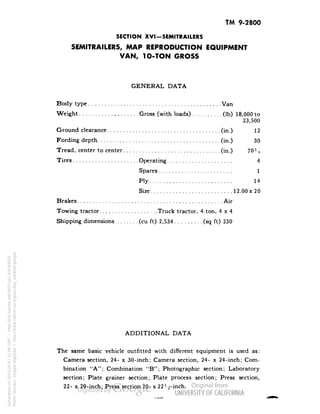

SEMITRAILERS, MAP REPRODUCTION EQUIPMENT
VAN, 1O-TON GROSS
GENERAL DATA
Body type Van
Weight Gross (with loads) (Ib) 18,000 to
23,500
Tread, center to center (in.) 70?^
Tires Operating 4
Spares 1
Ply 14
Size 12.00x 20
Brakes Air
Towing tractor Truck tractor, 4-ton, 4x4
ADDITIONAL DATA
The same basic vehicle outfitted with different equipment is used as:
Camera section, 24- x 30-inch; Camera section, 24- x 24-inch; Com-bination
"A"; Combination "B"; Photographic section; Laboratory
section; Plate grainer section; Plate process section; Press section,
22- x 29-inch; Press section 20- x 22l/2-inch.

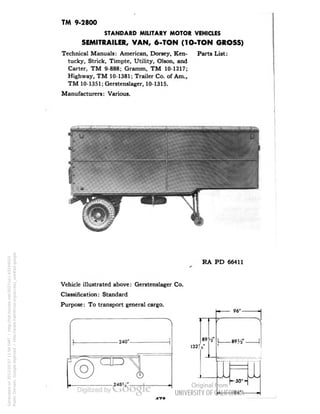

TM 9-2800
SEMITRAILER, VAN, 6-TON (1O-TON GROSS)
Technical Manuals: American, Dorsey, Ken- Parts List:
tucky, Strick, Timpte, Utility, Olson, and
Carter, TM 9-888; Gramm, TM 10-1217;
Highway, TM 10-1381; Trailer Co. of Am.,
TM 10-1351; Gerstenslager, 10-1315.
Manufacturers: Various.
RA PD 66411
Vehicle illustrated above: Gerstenslager Co.
-240'-
o
- 248a4'-
I327

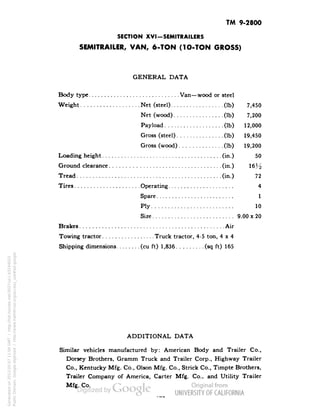

TM 9-2800
SEMITRAILER, VAN, 6-TON (1O-TON GROSS)
GENERAL DATA
Body type Van—wood or steel
Weight Net (steel) (Ib) 7,450
Net (wood) (Ib) 7,200
Payload (Ib) 12,000
Gross (steel) (Ib) 19,450
Gross (wood) (Ib) 19,200
Tread (in.) 72
Tires Operating 4
Spare 1
Ply 10
Size 9.00 x 20
Brakes Air
Towing tractor Truck tractor, 4-5 ton, 4x4
ADDITIONAL DATA
Similar vehicles manufactured by: American Body and Trailer Co.,
Dorsey Brothers, Gramm Truck and Trailer Corp., Highway Trailer
Co., Kentucky Mfg. Co., Olson Mfg. Co., Strick Co., Timpte Brothers,
Trailer Company of America, Carter Mfg. Co., and Utility Trailer
Mfg. Co.

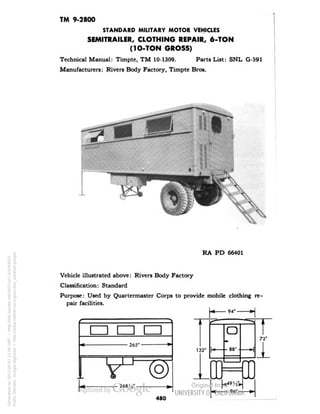

TM 9-2800
SEMITRAILER, CLOTHING REPAIR, 6-TON
(1O-TON GROSS)
Technical Manual: Timpte, TM 10-1309. Parts List: SNL G-591
Manufacturers: Rivers Body Factory, Timpte Bros.
RA PD 66401
Vehicle illustrated above: Rivers Body Factory
Purpose: Used by Quartermaster Corps to provide mobile clothing re-pair
facilities.
94"-
en en
265"-
-»
O
88*
268 H"-
132"
94"
72"

TM 9-2800

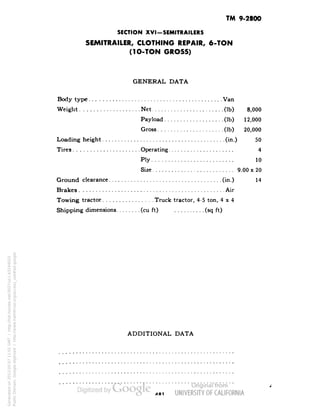

SEMITRAILER, CLOTHING REPAIR, 6-TON
(1O-TON GROSS)
GENERAL DATA
Body type Van
Payload (Ib) 12,000
Gross (Ib) 20,000
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes Air
ADDITIONAL DATA

TM 9-2800

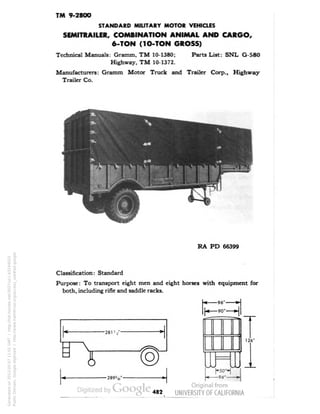

SEMITRAILER, COMBINATION ANIMAL AND CARGO,
6-TON (10-TON GROSS)
Technical Manuals: Gramm, TM 10-1380; Parts List: SNL G 580
Highway, TM 10-1372.
Manufacturers: Gramm Motor Truck and Trailer Corp., Highway
Trailer Co.
RA PD 66399
Purpose: To transport eight men and eight horses with equipment for
both, including rifle and saddle racks.
|CI9960--^1
-281'
&

ft
-94'-
126
482

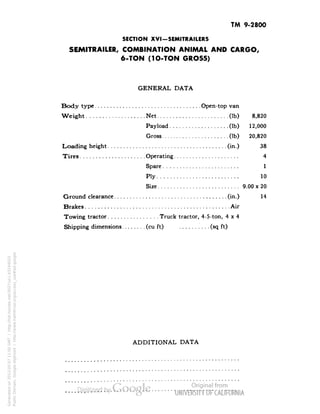

TM 9-2800
SEMITRAILER, COMBINATION ANIMAL AND CARGO,
GENERAL DATA
Body type Open-top van
Payload (Ib) 12,000
Gross (Ib) 20,820
Tires Operating 4
Spare 1
Ply 10
Size 9.00 x 20
Brakes Air
Towing tractor Truck tractor, 4-5-ton, 4x4
ADDITIONAL DATA

TM 9-2800

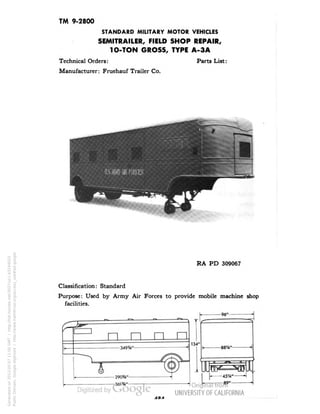

SEMITRAILER, FIELD SHOP REPAIR,
1O-TON GROSS, TYPE A-3A
RA PD 309067
Purpose: Used by Army Air Forces to provide mobile machine shop
facilities.
n n n n
-290*4"-
-361%"-
134•
-96"
-88'A"
AOA

TM 9-2800

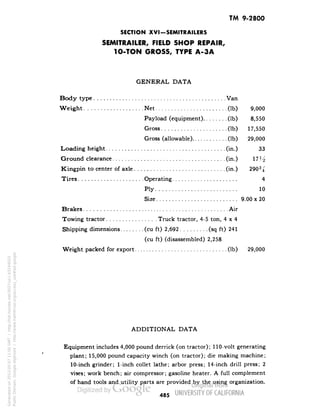

SEMITRAILER, FIELD SHOP REPAIR,
10-TON GROSS, TYPE A-3A
GENERAL DATA
Body type Van
Payload (equipment) (Ib) 8,550
Gross (Ib) 17,550
Gross (allowable) (Ib) 29,000
Ground clearance (in.) 1?H
Kingpin to center of axle (in.) 29034
Tires Operating 4
Ply 10
Size 9.00x20
Brakes Air
(cu ft) (disassembled) 2,258
Weight packed for export (Ib) 29,000
ADDITIONAL DATA
Equipment includes 4,000 pound derrick (on tractor); 110-volt generating
plant; 15,000 pound capacity winch (on tractor); die making machine;
10-inch grinder; 1-inch collet lathe; arbor press; 14-inch drill press; 2
vises; work bench; air compressor; gasoline heater. A full complement
of hand tools and utility parts are provided by the using organization.
485

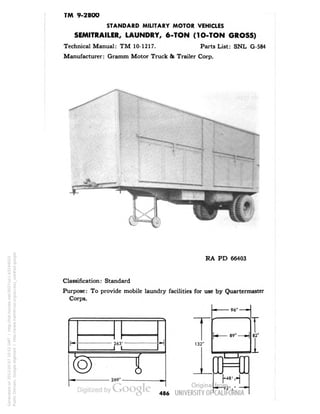

TM 9-2800
SEMITRAILER, LAUNDRY, 6-TON (1O-TON GROSS)
Manufacturer: Gramm Motor Truck & Trailer Corp.
-
RA PD 66403
Purpose: To provide mobile laundry facilities for use by Quartermaster
Corps.
I
269"
96" — •
i
k 89" — H
82'
132
I
I IP
•48' ,»
92V'
— ^
486

TM 9-2800
SEMITRAILER, LAUNDRY, 6-TON (1O-TON GROSS)
GENERAL DATA
Body type Van laundry
Payload (Ib) 12,000
Gross (Ib) 20,000
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes Air
Towing tractor
ADDITIONAL DATA
487

TM 9-2800
SEMITRAILER, MOBILE RECORDS,
Manufacturer: Watson Automotive Equipment Co.
RA PD 308967
Purpose: To provide mobility for electric accounting machines used in
the field.
-189'-
-270'-
139'
488

TM 9-2800

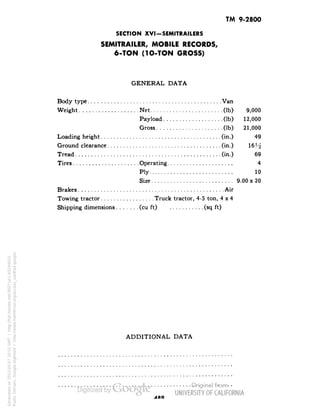

SEMITRAILER, MOBILE RECORDS,
GENERAL DATA
Body type Van
Payload (Ib) 12,000
Gross (Ib) 21,000
Tread (in.) 69
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes Air
ADDITIONAL DATA

TM 9-2800
SEMITRAILER, LABORATORY, PHOTOGRAPHIC
1O-TON GROSS, TYPE N-l, N-2, N-3
RA PD 309065
Purpose: Used by Army Air Forces to process photographic negatives and
print photographs.
D
134"
-88'/4"
-96"
490

TM 9-2800
SEMITRAILER, LABORATORY, PHOTOGRAPHIC
1O-TON GROSS, TYPE N-l, N-2, N-3
GENERAL DATA
Body type Van
Weight *Net (with equipment) (Ib) 10,730
Payload (Ib) 18,270
Gross (Ib) 29,000
King pin to center of axle (in.) 290?^
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes Air
ADDITIONAL DATA
Contains complete equipment necessary to develop and print photo-graphs,
air conditioner, gasoline heater, 110-volt generator driven by a
4-cylinder, air-cooled engine. K
"Equipment installed in vehicle weighs approximately 1,730 pounds.
491

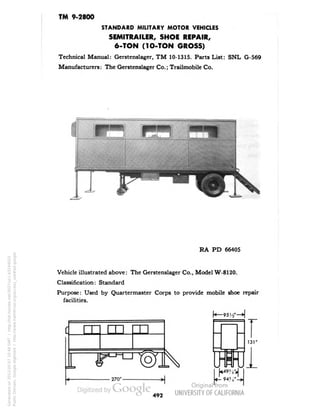

TM 9-2800
SEMITRAILER, SHOE REPAIR,
Technical Manual: Gerstenslager, TM 10-1315. Parts List: SNL G-569
Manufacturers: The Gerstenslager Co.; Trailmobile Co.
RA PD 66405
Vehicle illustrated above: The Gerstenslager Co., Model W-8120.
Purpose: Used by Quartermaster Corps to provide mobile shoe repair
facilities.
•270"
94?;
13T
492

TM 9-2800

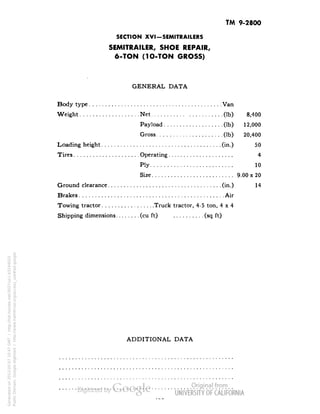

SEMITRAILER, SHOE REPAIR,
GENERAL DATA
Body type Van
Payload (Ib) 12,000
Gross (Ib) 20,400
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes Air
ADDITIONAL DATA

TM 9-2800

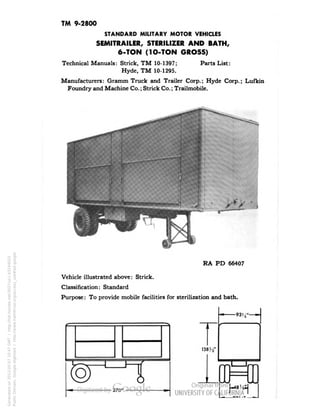

SEMITRAILER, STERILIZER AND BATH,
Technical Manuals: Strick, TM 10-1397; Parts List:
Hyde, TM 10-1295.
Manufacturers: Gramm Truck and Trailer Corp.; Hyde Corp.; Lufkin
Foundry and Machine Co.; Strick Co.; Trailmobile.
RA PD 66407
Vehicle illustrated above: Strick.
Purpose: To provide mobile facilities for sterilization and bath.
(SJ
270'
138'i'
I I
op
-48:,..

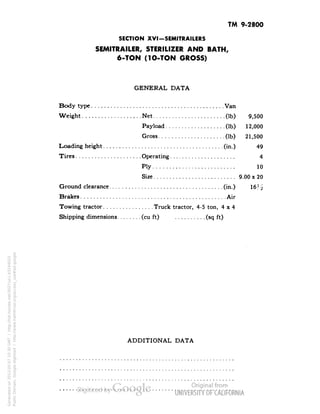

TM 9-2800
SEMITRAILER, STERILIZER AND BATH,
GENERAL DATA
Body type Van
Payload (Ib) 12,000
Gross (Ib) 21,500
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes Air
ADDITIONAL DATA

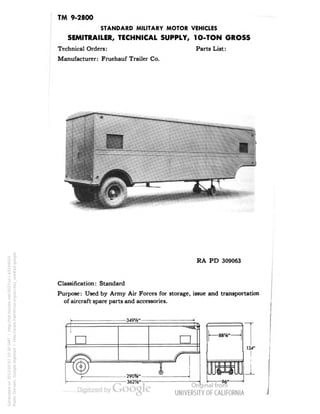

TM 9-2800
SEMITRAILER, TECHNICAL SUPPLY, 1O-TON GROSS
RA PD 309063
Purpose: Used by Army Air Forces for storage, issue and transportation
of aircraft spare parts and accessories.
-3491A"-
290%"
-362%"
[• 88V j
134"
-96"

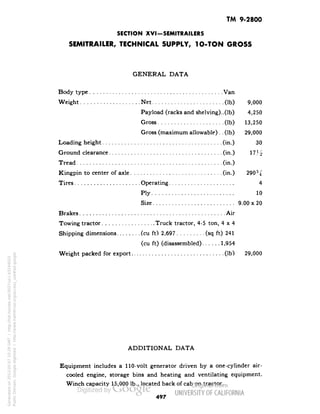

TM 9-2800
SEMITRAILER, TECHNICAL SUPPLY, 1O-TON GROSS
GENERAL DATA
Body type Van
Payload (racks and shelving)..(Ib) 4,250
Gross (Ib) 13,250
Gross (maximum allowable). . (Ib) 29,000
Tread (in.)
Kingpin to center of axle (in.)
Tires Operating 4
Ply 10
Size 9.00x20
Brakes Air
Shipping dimensions (cu ft) 2.697 (sq ft) 241
ADDITIONAL DATA
Equipment includes a 110-volt generator driven by a one-cylinder air-cooled
engine, storage bins and heating and ventilating equipment.
Winch capacity 15,000 Ib., located back of cab on tractor.
497

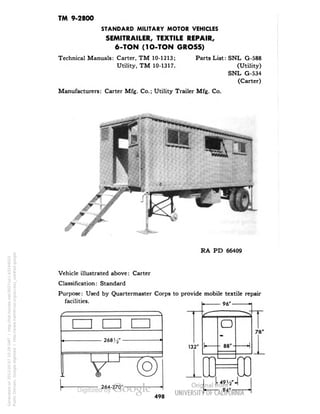

TM 9-2800
SEMITRAILER, TEXTILE REPAIR,
Technical Manuals: Carter, TM 10-1213; Parts List: SNL G-588
Utility, TM 10-1317. (Utility)
SNL G-534
(Carter)
Manufacturers: Carter Mfg. Co.; Utility Trailer Mfg. Co.
RA PD 66409
Vehicle illustrated above: Carter
Purpose: Used by Quartermaster Corps to provide mobile textile repair
facilities.
268'.
96'-
o
88'
264-270'
132'
94'
78"
498

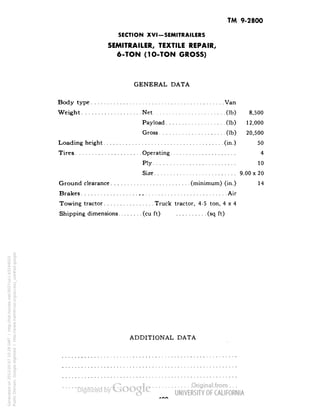

TM 9-2800
SEMITRAILER, TEXTILE REPAIR,
GENERAL DATA
Body type Van
Payload (Ib) 12,000
Gross (Ib) 20,500
Tires Operating 4
Ply 10
Size 9.00x20
Ground clearance (minimum) (in.) 14
Brakes Air
ADDITIONAL DATA

TM 9-2800

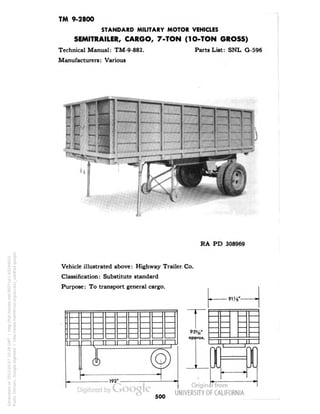

SEMITRAILER, CARGO, 7-TON (1O-TON GROSS)
Technical Manual: TM-9-882. Parts List: SNL G-596
RA PD 308969
Vehicle illustrated above: Highway Trailer. Co.
I
192•
appro*.
J L
500

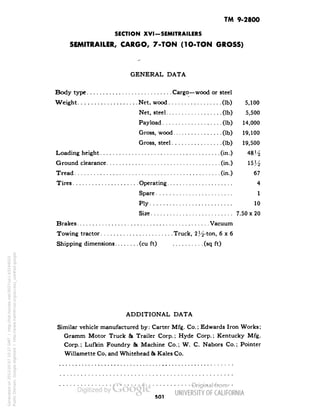

TM 9-2800
SEMITRAILER, CARGO, 7-TON (10-TON GROSS)
—
GENERAL DATA
Body type Cargo—wood or steel
Weight Net, wood (Ib) 5,100
Net, steel (Ib) 5,500
Payload (Ib) 14,000
Gross, wood (Ib) 19,100
Gross, steel (Ib) 19,500
Loading height (in.) 48J^
Ground clearance (in.) 15^£
Tread (in.) 67
Tires Operating 4
Spare 1
Ply 10
Size 7.50 x 20
Brakes Vacuum
Towing tractor Truck, 2%-ton, 6x6
ADDITIONAL DATA
Similar vehicle manufactured by: Carter Mfg. Co.; Edwards Iron Works;
Gramm Motor Truck & Trailer Corp.; Hyde Corp.; Kentucky Mfg.
Corp.; Lufkin Foundry & Machine Co.; W. C. Nabors Co.; Pointer
Willamette Co, and Whitehead & Kales Co.
501

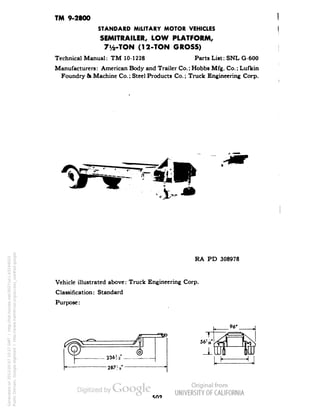

TM 9-2800
SEMITRAILER, LOW PLATFORM,
7y2-TON (12-TON GROSS)
Manufacturers: American Body and Trailer Co.; Hobbs Mfg. Co.; Lufkin
Foundry & Machine Co.; Steel Products Co.; Truck Engineering Corp.
RA PD 308978
Vehicle illustrated above: Truck Engineering Corp.
Purpose:
330

TM 9-2800

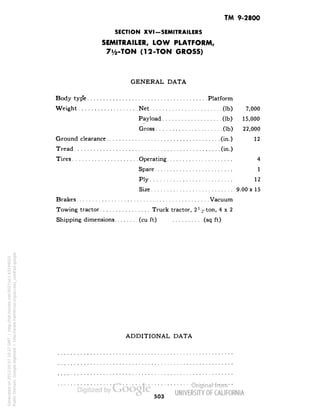

SEMITRAILER, LOW PLATFORM,
7i/2-TON (12-TON GROSS)
GENERAL DATA
Body type Platform
Payload (Ib) 15,000
Gross (Ib) 22,000
Tread (in.)
Tires Operating 4
Spare 1
Ply 12
Size • 9.00x15
Brakes Vacuum
Towing tractor Truck tractor, 2]/2-ton, 4x2
ADDITIONAL DATA
503

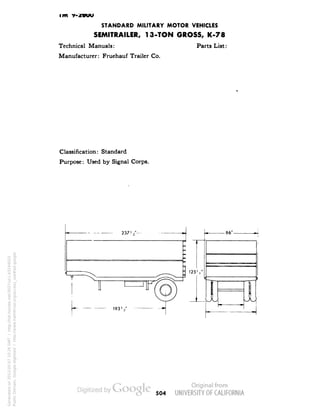

Purpose: Used by Signal Corps.
504

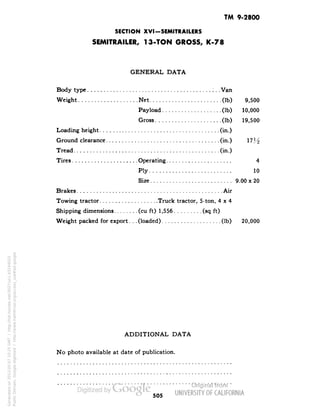

TM 9-2800
GENERAL DATA
Body type 7. . Van
Payload (Ib) 10,000
Gross (Ib) 19,500
Loading height , (in.)
Tread (in.)
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes Air
Towing tractor Truck tractor, 5-ton, 4x4
Weight packed for export. . . (Ioaded) (Ib) 20,000
ADDITIONAL DATA
No photo available at date of publication.
505

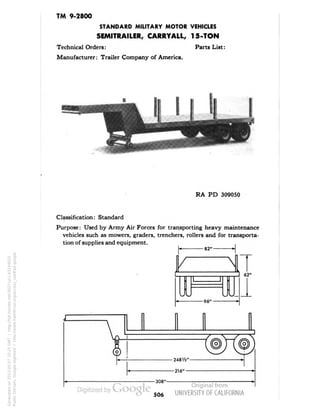

TM 9-2800
SEMITRAILER, CARRYALL, 15-TON
Manufacturer: Trailer Company of America.
RA PD 309050
Purpose: Used by Army Air Forces for transporting heavy maintenance
vehicles such as mowers, graders, trenchers, rollers and for transporta-tion
of supplies and equipment.
-82"
V
62"
-96"-
506

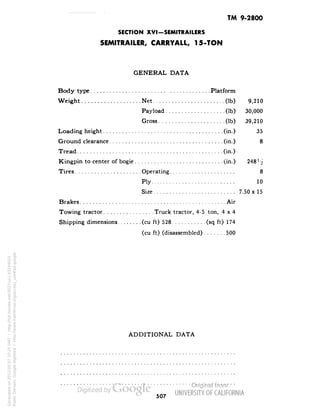

TM 9-2800
SEMITRAILER, CARRYALL, 15-TON
GENERAL DATA
Body type Platform
Payload (Ib) 30,000
Gross (Ib) 39,210
Tread (in.)
Kingpin to center of bogie (in.) 248! 2
Tires Operating 8
Ply 10
Size 7.50 x 15
Brakes Air
(cu ft) (disassembled) 500
ADDITIONAL DATA
507

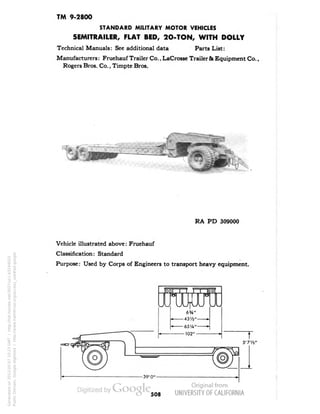

TM 9-2800
SEMITRAILER, FLAT BED, 2O-TON, WITH DOLLY
Technical Manuals: See additional data Parts List:
Manufacturers: Fruehauf Trailer Co., LaCrosse Trailer & Equipment Co.,
Rogers Bros. Co., Timpte Bros.
RA PD 309000
Vehicle illustrated above: Fruehauf
Purpose: Used by Corps of Engineers to transport heavy equipment.
508

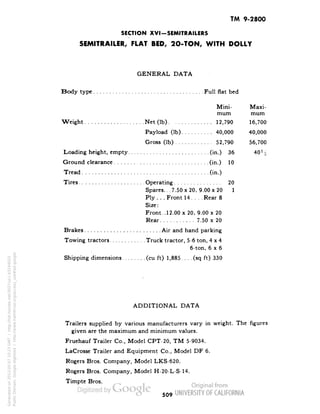

TM 9-2800
SEMITRAILER, FLAT BED, 2O-TON, WITH DOLLY
GENERAL DATA
Body type Full flat bed
Mini- Maxi-mum
mum
Weight Net (Ib) 12,790 16,700
Payload (Ib) 40,000 40,000
Gross (Ib) 52,790 56,700
Loading height, empty (in.) 36 40H
Tread (in.)
Tires Operating 20
Spares... 7.50x20, 9.00x20 1
Ply . . . Front 14 .... Rear 8
Size:
Front.. 12.00x20, 9.00x20
Rear 7.50 x 20
Brakes Air and hand parking
Towing tractors Truck tractor, 5-6 ton, 4x4
6-ton, 6x6
ADDITIONAL DATA
Trailers supplied by various manufacturers vary in weight. The figures
given are the maximum and minimum values.
Fruehauf Trailer Co., Model CPT-20, TM 5-9034.
LaCrosse Trailer and Equipment Co., Model DF 6.
Rogers Bros. Company, Model LKS-620.
Rogers Bros. Company, Model H-20-L-S-14.
Timpte Bros.
509

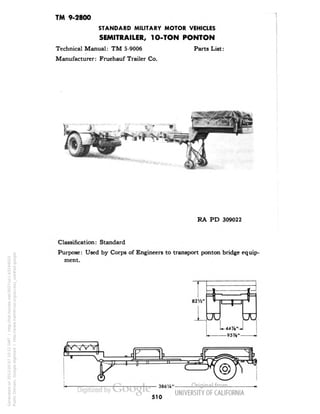

TM 9-2800
SEMITRAILER, 1O-TON PONTON
RA PD 309022
Purpose: Used by Corps of Engineers to transport ponton bridge equip-ment.
82 W
J
JU
95%"
510

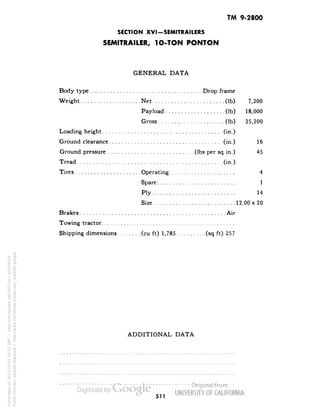

TM 9-2800
SEMITRAILER, 1O-TON PONTON
GENERAL DATA
Body type Drop frame
Payload (Ib) 18,000
Gross (Ib) 25,200
Tread (in.)
Tires Operating 4
Spare 1
Ply 14
Size 12.00 x 20
Brakes Air
Towing tractor
ADDITIONAL DATA
511

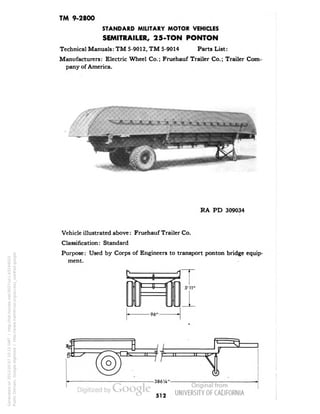

TM 9-2800
SEMITRAILER, 25-TON PONTON
Technical Manuals: TM 5-9012, TM 5-9014 Parts List:
Manufacturers: Electric Wheel Co.; Fruehauf Trailer Co.; Trailer Com-pany
of America.
RA PD 309034
Vehicle illustrated above: Fruehauf Trailer Co.
Purpose: Used by Corps of Engineers to transport ponton bridge equip-ment.

TM 9-2800

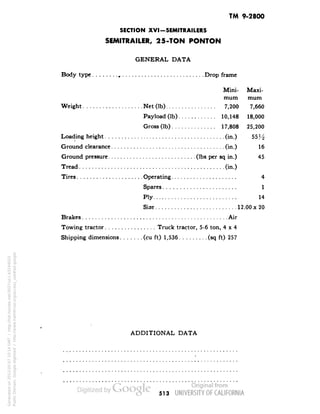

SEMITRAILER, 25-TON PONTON
GENERAL DATA
Body type , Drop frame
Mini- Maxi-mum
mum
Weight Net(Ib) 7,200 7,660
Payload (Ib) 10,148 18,000
Gross (Ib) 17,808 25,200
Loading height (in.) 55 H
Tread (in.)
Tires Operating 4
Spares 1
Ply 14
Size 12.00x20
Brakes Air
ADDITIONAL DATA
513

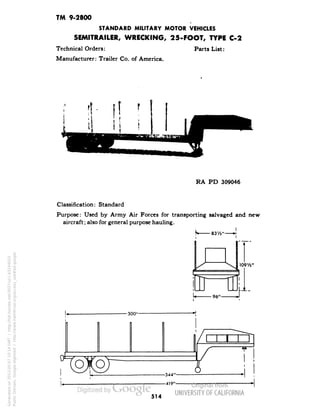

TM 9-2800
SEMITRAILER, WRECKING, 25-FOOT, TYPE C-2
Manufacturer: Trailer Co. of America.
RA PD 309046
Purpose: Used by Army Air Forces for transporting salvaged and new
aircraft; also for general purpose hauling.
-96"
-300-
oYo
-344"-
-419"-
I I II I I
514

TM 9-2800

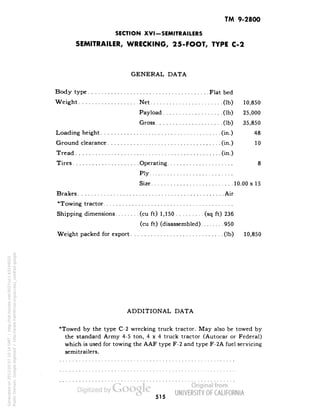

SEMITRAILER, WRECKING, 25-FOOT, TYPE C-2
GENERAL DATA
Body type Flat bed
Payload (Ib) 25,000
Gross (Ib) 35,850
Tread (in.)
Tires Operating 8
Ply
Size 10.00x15
Brakes Air
"Towing tractor
(cu ft) (disassembled) 950
ADDITIONAL DATA
*Towed by the type C-2 wrecking truck tractor. May also be towed by
the standard Army 4-5 ton, 4x4 truck tractor (Autocar or Federal)
which is used for towing the AAF type F-2 and type F-2A fuel servicing
semitrailers.
515

TM 9-2800

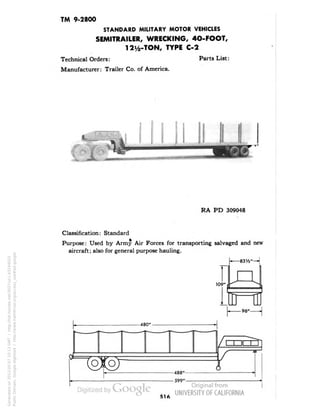

SEMITRAILER, WRECKING, 4O-FOOT,
12Vfe-TON, TYPE C-2
Manufacturer: Trailer Co. of America.
RA PD 309048
• A-Purpose:
Used by Army Air Forces for transporting salvaged and new
aircraft; also for general purpose hauling.
r
-83 54"
109"
-480"
-488"
- 599"
516

TM 9-2800

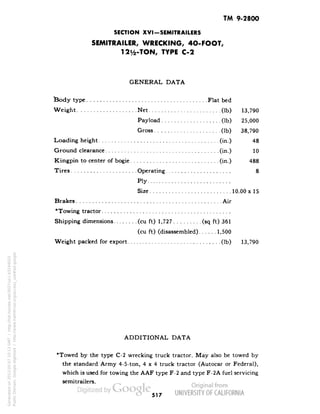

SEMITRAILER, WRECKING, 4O-FOOT,
TYPE C-2
GENERAL DATA
Body type Flat bed
Payload (Ib) 25,000
Gross (Ib) 38,790
Kingpin to center of bogie (in.) 488
Tires Operating 8
Ply
Size 10.00x15
Brakes Air
*Towing tractor
ADDITIONAL DATA
*Towed by the type C-2 wrecking truck tractor. May also be towed by
the standard Army 4-5-ton, 4x4 truck tractor (Autocar or Federal),
which is used for towing the AAF type F-2 and type F-2A fuel servicing
semitrailers.
517

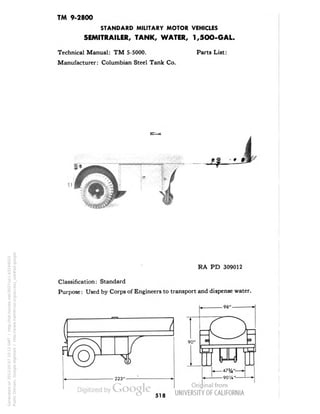

TM 9-2800
SEMITRAILER, TANK, WATER, 1,5OO-GAL.
Technical Manual: TM 5-5000.
Manufacturer: Columbian Steel Tank Co.
Parts List:
RA PD 309012
Purpose: Used by Corps of Engineers to transport and dispense water.
518

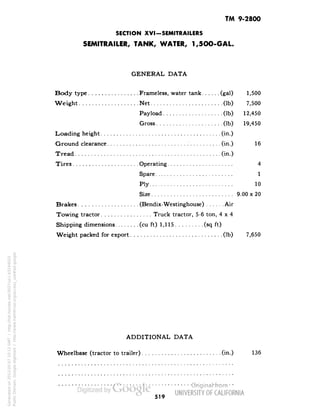

TM 9-2800
SEMITRAILER, TANK, WATER, 1,5OO-GAL.
GENERAL DATA
Body type Frameless, water tank (gal) 1,500
Payload (Ib) 12,450
Gross (Ib) 19,450
Ground clearance '(in.) 16
Tread (in.)
Tires Operating 4
Spare 1
Ply 10
Size 9.00x 20
ADDITIONAL DATA
WheeIbase (tractor to trailer) (in.) 136
519

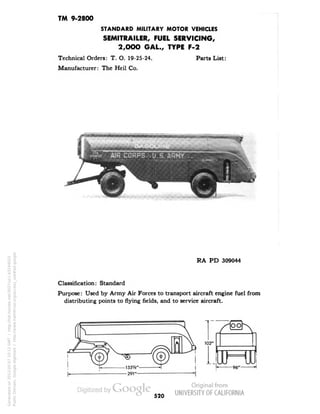

TM 9-2800
SEMITRAILER, FUEL SERVICING,
2,000 GAL., TYPE F-2
Technical Orders: T. O. 19-25-24. Parts List:
Manufacturer: The Heil Co.
RA PD 309044
Purpose: Used by Army Air Forces to transport aircraft engine fuel from
distributing points to flying fields, and to service aircraft.
520

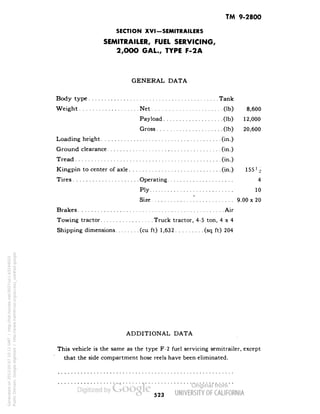

TM 9-2800
SEMITRAILER, FUEL SERVICING,
2,000 GAL., TYPE F-2A
GENERAL DATA
Body type Tank
Payload (Ib) 12,000
Gross (Ib) 20,600
Tread (in.)
Kingpin to center of axle (in.) 155 J•>
Tires Operating 4
Ply 10
Size ! 9.00 x 20
Brakes Air
ADDITIONAL DATA
This vehicle is the same as the type F-2 fuel servicing semitrailer, except
that the side compartment hose reels have been eliminated.
523

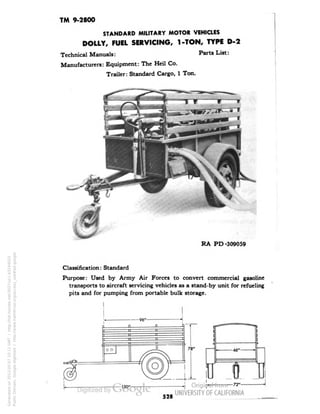

TM 9-2800
DOLLY, FUEL SERVICING, 1-TON, TYPE D-2
Manufacturers: Equipment: The Heil Co.
Trailer: Standard Cargo, 1 Ton.
RA PD-309059
Purpose: Used by Army Air Forces to convert commercial gasoline
transports to aircraft servicing vehicles as a stand-by unit for refueling
pits and for pumping from portable bulk storage.

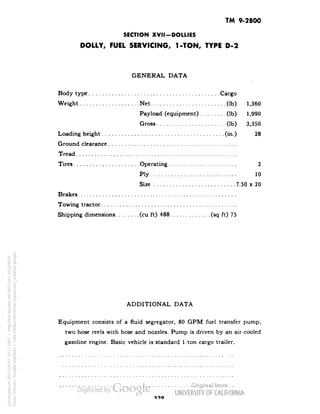

TM 9-2800
SECTION XVII-DOLLIES
DOLLY, FUEL SERVICING, 1-TON, TYPE D-2
GENERAL DATA
Body type Cargo
Payload (equipment) (Ib) 1,990
Gross (Ib) 3,350
Ground clearance
Tread
Tires Operating 2
Ply 10
Size 7.50 x 20
Brakes
Towing tractor
ADDITIONAL DATA
Equipment consists of a fluid segregator, 80 GPM fuel transfer pump,
two hose reels with hose and nozzles. Pump is driven by an air-cooled
gasoline engine. Basic vehicle is standard 1-ton cargo trailer.

TM 9-2800
DOLLY, TRAILER CONVERTER, FUEL SERVICING,
TYPE F-l OR F-1A
Manufacturer: Standard Steel Works.
RA PD 309087
Purpose: Used by the Army Air Forces to convert F-1 and F-l A fuel
servicing semitrailer to full trailer so it can be towed by any Army prime
mover.

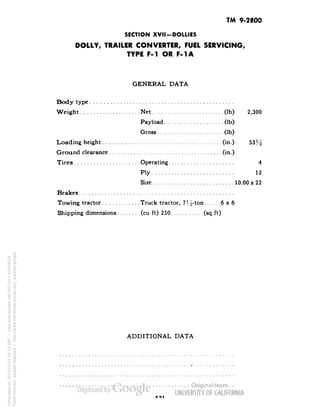

TM 9-2800
TYPE F-l OR F-1A
GENERAL DATA
Body type
Payload (Ib)
Gross (Ib)
Loading height (in.) 53J/-J
Tires Operating 4
Ply 12
Size 10.00 x 22
Brakes
Towing tractor Truck tractor, 7%-ton 6x6
ADDITIONAL DATA

TM 9-2800

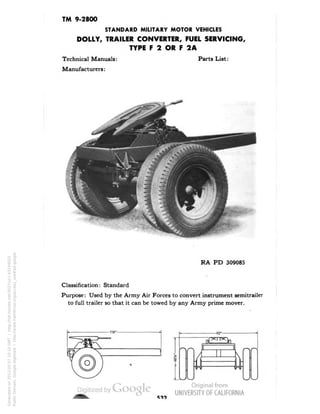

TYPE F 2 OR F 2A
Manufacturers:
RA PD 309085
Purpose: Used by the Army Air Forces to convert instrument semitrailer
to full trailer so that it can be towed by any Army prime mover.

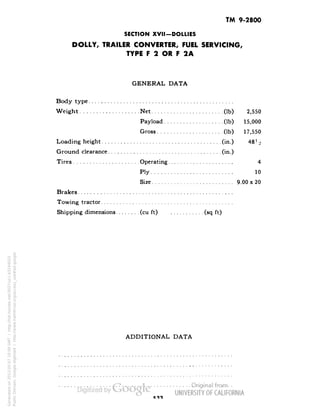

TM 9-2800
TYPE F 2 OR F 2A
GENERAL DATA
Body type
Payload (Ib) 15,000
Gross (Ib) 17,550
Loading height (in.) 48)i
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes
Towing tractor
ADDITIONAL DATA

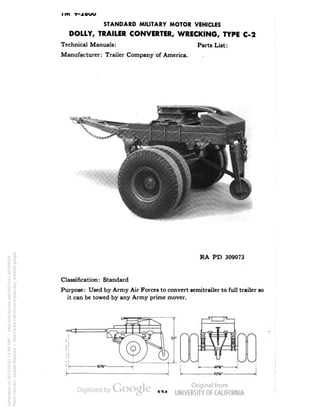

i m
DOLLY, TRAILER CONVERTER, WRECKING, TYPE C-2
Manufacturer: Trailer Company of America.
RA PD 309073
Purpose: Used by Army Air Forces to convert semitrailer to full trailer so
it can be towed by any Army prime mover.

TM 9-2800

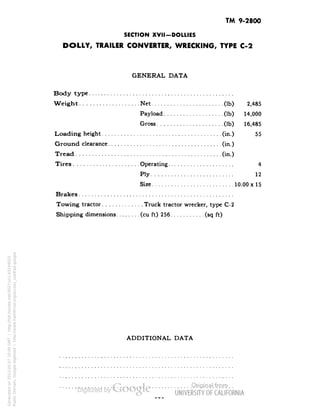

DOLLY, TRAILER CONVERTER, WRECKING, TYPE C-2
GENERAL DATA
Body type
Payload (Ib) 14,000
Gross (Ib) 16,485
Tread (in.)
Tires Operating 4
Ply 12
Size 10.00x15
Brakes
Towing tractor Truck tractor wrecker, type C-2
ADDITIONAL DATA

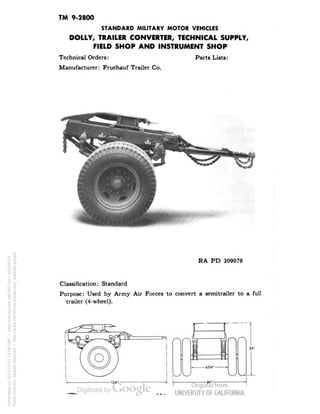

TM 9-2800
DOLLY, TRAILER CONVERTER, TECHNICAL SUPPLY,
FIELD SHOP AND INSTRUMENT SHOP
Technical Orders: Parts Lists:
RA PD 309079
Purpose: Used by Army Air Forces to convert a semitrailer to a full
trailer (4-wheel).

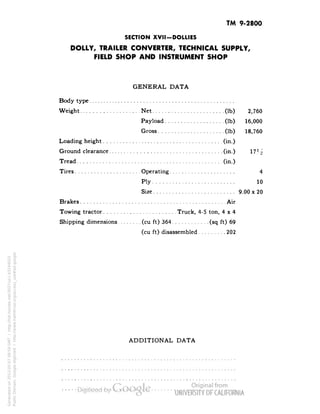

TM 9-2800
DOLLY, TRAILER CONVERTER, TECHNICAL SUPPLY,
FIELD SHOP AND INSTRUMENT SHOP
GENERAL DATA
Body type
Payload (Ib) 16,000
Gross (Ib) 18,760
Ground clearance i (in.) 17^
Tread (in.)
Tires Operating 4
Ply 10
Size 9.00 x 20
Brakes Air
Towing tractor Truck, 4-5 ton, 4x4
(cu ft) disassembled 202
ADDITIONAL DATA

TM 9-2800

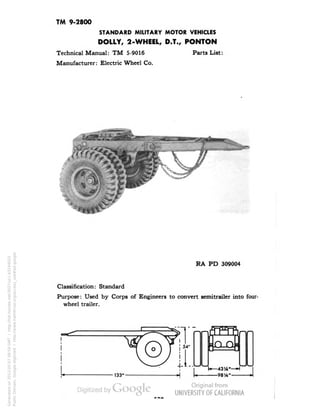

DOLLY, 2-WHEEL, D.T., PONTON
Manufacturer: Electric Wheel Co.
i^at'^i
RA PD 309004
Purpose: Used by Corps of Engineers to convert semitrailer into four-wheel
trailer.
! 54"
4.1.
TFTh
sQ_Q =
•— 43W— H
98 'A"

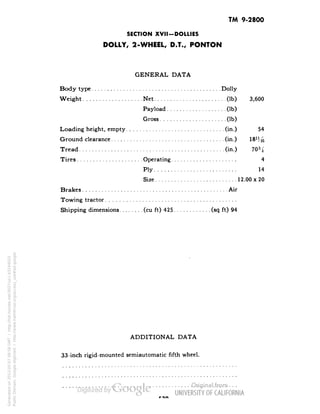

TM 9-2800
DOLLY, 2-WHEEL, D.T., PONTON
GENERAL DATA
Body type Dolly
Payload (Ib)
Gross (Ib)
Loading height, empty (in.) 54
Tread (in.)
Tires Operating 4
Ply 14
Size 12.00x20
Brakes Air
Towing tractor
ADDITIONAL DATA
33-inch rigid-mounted semiautomatic fifth wheel.

TM 9-2800

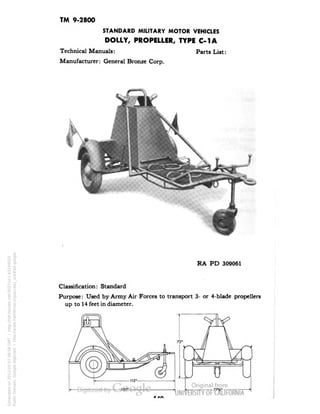

DOLLY, PROPELLER, TYPE C-1A
Manufacturer: General Bronze Corp.
RA PD 309061
Purpose: Used by Army Air Forces to transport 3- or 4-blade propellers
up to 14 feet in diameter.

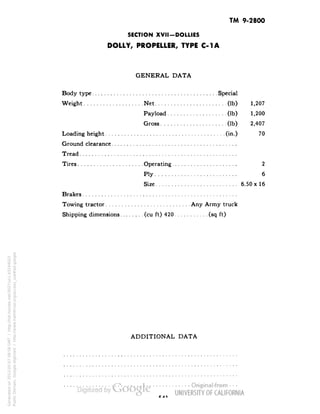

TM 9-2800
DOLLY, PROPELLER, TYPE C-1A
GENERAL DATA
Body type Special
Payload (Ib) 1,200
Gross (Ib) 2,407
Ground clearance
Tread
Tires Operating 2
Ply 6
Size 6.50 x 16
Brakes
Towing tractor Any Army truck
ADDITIONAL DATA

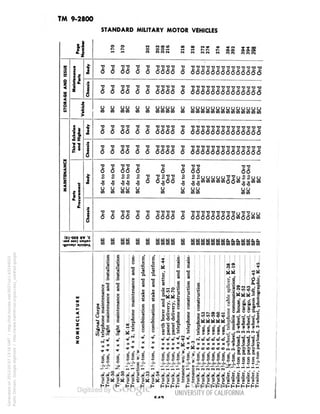

TM 9-2800
<N N OOIO 00
O O O « 1-1
I
ll
i666 6
III511MB225555I
) O O O O O O O O O O O O 6
*O ^ ^ "O "O "O *O "O "O -O
6 66 6 6 6666 6
-O-O-O-O -O 73 T3-O -O-O T3-O T3 T3
666666666666o5
CO CO COCO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO OT CO CO CO CO CO
o o oo o o oooo o
-O T3 -O -O -O -O Tl T3 -O T3 T3 T3 T3 T3
66666666666656
o o
3-O-O -O "O 73-O-p "O T3 T3 -O-O 73 -O T3 T3 T3
>66 6 66666666666656
•S 'S 'E'E -E
o o oo o
22222
O W V V V
T3 "O T3 73 T3
U U OU U
CO CO COCO CO
•a
i
5
o
'SS'S'S 2
•o
y
B
^ ^ ^ ^
56 66
2 2 <_> u u u u "S "S u 2 2 u u
u uCOCOCOCOCOOOM u -CO CO
-O -O -OT3
OU
coco
uu
coco
6 66 6 6 6666 6
666666655M66OTOT
(si-oti av c
jod aai) UO||D>
8
U
z
w
X
o
:« •! i
: C « «
: *'
I
I
a
00 JJ
r* ti
.M".
»CM
tx
o a
; a. I a
••%:?
CO CO
: o :t>

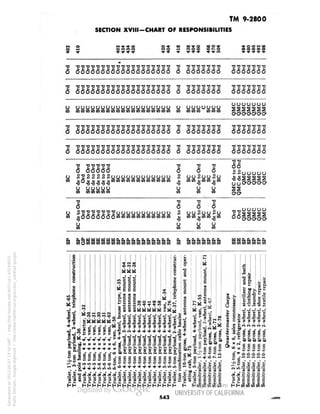

TM 9-2800
SECTION XVIII-CHART OF RESPONSIBILITIES
O •* 00 00 •
«o ^ m<
* * f •* •
^- O 1o cs 00
O) 00 00 O1 Ch
-O •« *o ta TI "o -O -O
^CuCCbuCuu^uuuuCkC. C E EC £ EEE
(OOOOOOOOOOOOOOOOO O OOOOOOO
•o 'O "O 73 "O 73 -O
6666666
"O
6
>66666666666666666 6 6666666
•o 'O 73 'O 'O T3 "O
6666666
uuuuuuuuuuuuuuuuuuu
•••••••••••••••••••
OUOUUOO
CO COCO CO CO CO
uuuuuuo
OO'OO'O'O'O
I
'S'E'S'E'S'S'S'S'SS'S'S'S'E'S'S'E
ooooooooooooooooo
-E-E-E-E-E-E-E
ooooooo
-O T3 T3 -O -O -O -O
6666666
1
-E-E -E ISS2SSJ
)OOOOOOOOOO O OOOOOOO
-E-E-E-E-E-E-E
ooooooo
2
6
6 66666 6 6
u 2]»22222uuuuuuuuu(juu 2 uu2uuiiu
CO on tl u u II uCOM COCQCO CO CO CO CO CO CO CO u CO CO u CO CO o CO
•ow -o 'O 'O -O 'O 'O -O 73
O U
CO CO
O OUOUU
CO CO CO CO COO
T
SC
22
oo
-O T3 i . .
CjCjO'O'O'O'O1
ii
ocy
O 8'
CO u(
•o
S
'Suuuuuuuuuuu
OOTcococococowcocowco
Oud
"2
6
coco ucoco
•o
U
CO
uca
-O
U
CO

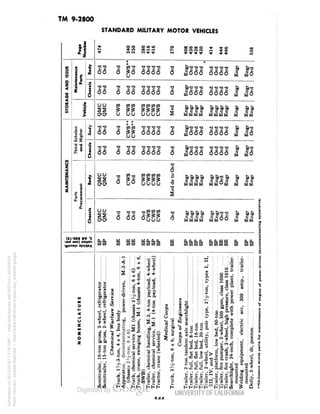

TM 9-2800
•O f> 1O
00 •— —<
OB
m
00
co-o
OOO<
2
o
U(
-S -E-E-S-S
O OOOO
6 66 6666 6
•p M-O-O-O -O-O T3 "O u u
i CJtii ir ir ir £ e e
oooo (§ (§
OO w
22 g
00 OOOO
-E
s
cccc
UUUU
cccc
UdldlU
oc
e
U
ex ^
cc
UU
II
£i
11
"O*O T3 CO CO "O "O *O *O
66 6 ££ 6666
-OT3-O-O
6666
-O-O
66
-E -E-E -E•S-E•S
o oo oooo
0fl*O "0*0
"O "G *
6 u666 6666 a u6
uu
ss
<yo>
_, CO _j COCOCOCO
i ^ i- ^5 S?
° O° OOOO
"8
G£ Gi &C CJ D£ U}*u b£ U) 0A ctf
cccc s aJe a c cc
UUUU UU°U U UU
uu
22
0iOi
-O -O-
6 6<
•n ;ir z* r*
6^^^
°uuu
M 0 1 EX UO M I
cccc cc-t-t
UUUU UU°°
C
U

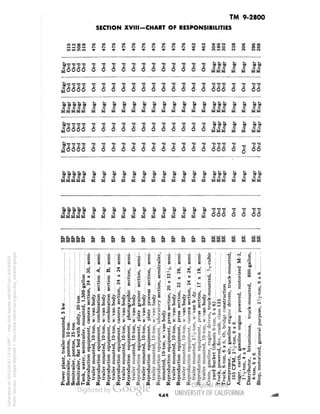

TM 9-2800
O CN 00 00
•-H « O •-«
S
<o
IO
«2
«s
IO
S
IO
r-
IO
s
<N
SO CS
00 O
eo
IO
£i 00
t-.
r--
0
O
Oi 10
•p
•o
O
•p
•o
•o
•o
2
2
2
2
o
2
s
1- U. u
La
kl
00
u u
01 01
C C
|oo66
6
6
6
a
a
a
a
a
a
01 01 01
CCC
01
WWW
W
W
au
WO *O *O "0
•o
•p
T3
•p
a

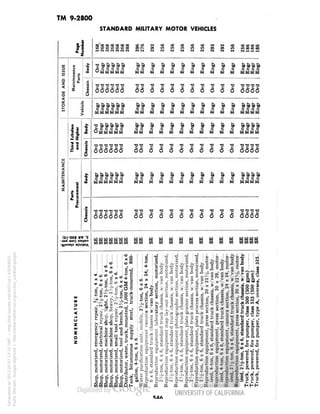

TM 9-2800
• 1
co'oo w oo to oo oo
1O 10
IO ^O
»
«
<o
t>l tM
<o
*c«o
1O 1O 1O 1O 1O 1O 00
Ol
m m
m
m
o1 o
m oo oo oo
••z
^* CN W CM W CM CM
CM (M
« e
s
w
C*
CM
CM C«l
CM
X
-O 00 00 00 00 00
u u u u u
u
00 CuD
00
00
00 00
i
u u u u
IAJ
.t c c c c c
00 00 OC Ofi
-)
S :d
C C
c
c c
c
r:
C
c c
c
CCCC
m
trt
g t
wu
W
(I] [I]
W
U
U
a a
U
MUUM
0
i «•
< 1 8
£ •" •=
•o -o

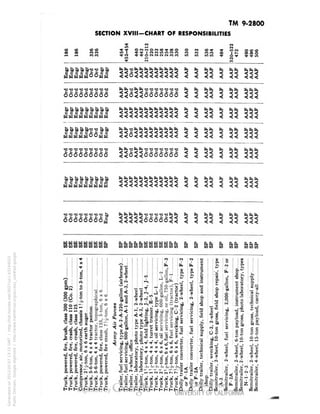

TM 9-2800
1O IO
00 00
3
10 *
ro fO
m m
O 1O IO
O1 Ol O
•
oil M oi & M-O-O M y
1
3
3
bb
'S'S'S'S'S'S'S
ooooooo
cccccccce
N-4 HH
3 S
bbb
U M M M OJIT! T) at oi
ccccciricc
< < « <
3
bd.
33 S
bb
uuuuuuuuu «]<«*< urfrfuuuuuuu <£ <!*
ooooooooo <<o<<ooooooo < -
b bb b bb bbb
^ ^ ^1 4l ^ ^ 4!
*? .j ^j 7j ^j Jj ""*j
ccccccccxi
UUUHHUUUH
bbbbbbbbbbbb b b bb b bb bbb
12 "5 "S "S "S "Z *•
66606666,5
b bl
b bb bbb
8l?B88898fii
0, 0, 04 0, 0. U W W U W 0. 0, 0, PL, 0.0.
CO CO O T CO W CO O T O T M CO CO CO CO CO COCO
O.CL, 0.0.0.
COCO MCOCO
If
» :s
O :O
2 c10
"2 c
5WS*;
iiijli;JI
iSfa'cSi!i:-s£
o .— u
* " "ij ^ ••*• Tf" *
9 9 9 r* V l»
C E E B N H H E C
""etc
ftMlsBSl
irtrh^pss?;!:
Q. M
aa
:d,:
,I-
:d
3-d -c-c -'"7 M~ a «.
£
b
a

TM 9-2800
10 1O t *
I — rt *
»t in m ro
*o
1o *o t^ f es r- S. iTobm
CO f) fO 1o CO PO IO « PO fi
< 1
i
OOOOO
EEKKECEEEEEEtlCEtitltit:
OOOOOOOOOOOOOOOOOOO
I
, d, b hi d< U,
133 33 3
6666666666666666666
U.U.U.U, U. U, U,
6666666666666666660
S?
fa ta Ujfe
3333
6666666666666666666
!rf5^ 566 6666666666666666666
133 s s s
2
6666666666666666666
(SI-OSS IIV '(.
•JDd ••!) UO|4D>
-Kit top 3|>!H»A
i
&&T5 :|
£?^S. .o
U
Z
a IN «
• h i I >S
gUO1*
: &
E.. «
&2 2-fi
Bllf
§-6 ui
*«x
&??l
2ll|
2^1
111*
:<? :ff :«
I
S S *
444;
S
6
I
u
1
1
^ :ft
; •: c
• ' • h S
:[*
&g.o
S I
1H
• • S
1
: C Ol ,
Bl <M o
'

TM 9-2800
o oo
-r ro
1o oo o CH ^- ^- 1o o
« o oo * • *• oo o *• ^ 10 o oo ^ *•
oo oo t-» oo es oo Ol •-« c* o^ o 01 o — <
*O *O T3 *O *O "O ^3 __________
66o66oo666<5oo66o6o666ooo666666oo66o66o66
•V-V-V-V-a-O-O-a-V-9T}-O-V-O-V-O-V-V-a-V-V-V-V-V-V-O-V-V-O-O-O-VVVVainn3-V
6o666oo6oo6666666<56666666666o666o6666666
66666t5o666o666o6oo66o66666o66o6o6o6ooo66
6666666666060666666666666666666666066666
UUUUI«UUUUUUUUUUUUUUUUUWUUUUUUUUUUUUUUUUU
oooooooooooooooooooooooooooooooooooooooo
6665666666666666666666666666666666666666
.,,,... - ---'S'o'S'S'S'S'S'S'S'S'E'S'S'S'S'S'u'S'S
6666666666666666666666666666066606660000
j!
^ •!
• • : . :C
:
,
* ^ ^
;^: : ; • I
:8 S
§ :: -0
08 a
i
1 :l?
: ^
-J* ^
T
5
S
o
•g-S :Sc
•a u a a 3
J h
JI
£8d*l.l=-s
a
X
Su ** » u '^
TJ o a 'O a-3
_"O
9- "a a
>. a
•88
10
1-1
'X:
•5 :SBli •»
•l*:
8'a'i
X X X X X X X
§§§
§§
, X X
': * *
f e" e •
XKXXKKXX
(N C
M
X X
* *
5 6
O u
"u O
.S-o u

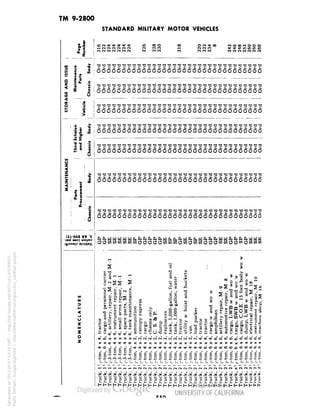

TM 9-2800
•
£
„„.„„. ,j. „.
IO 00 O
00 O C4 *
01
J
e
<-i <
•* CM CM CM C*l CM
C M CM CO
s.
* W CM W O* CM
C M 0* CM
fO fO fO CM
s
•
u
•*
66666666666666666666606
8
C
0
t
c
CM cs w IN CN CN
^ "O'O'O'O'O'O'O'O'O'O'O'O'O- _ _ _ _ _ _ _ __ __ _______ _
• 666666666600606666606666666666666
NCE
666666666666666656666666666666666
)-a-o-a-o-a-o-o-on-ava-o-o-o-vo-o-on-awo-owovo
J666666666666666666666666665666
Chas
6
6666<5
<566666666666666666do6o
is i-oss av 'c
jod MI) U0||0>
NOMENCLATUR
§" c 2 2 2 2 2 c c c c c c c c c c c c e c c c c c c c c e c c c c
*J2fomforo<J)°2222222222222S2S222°2£2S°

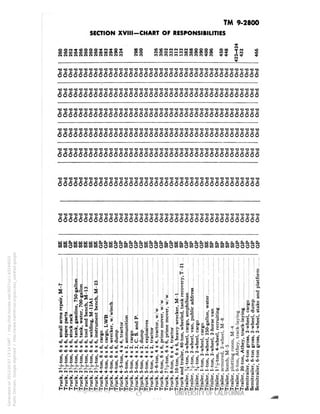

TM 9-2800
SECTION XVIII -CHART OF RESPONSIBILITIES
00
Ch
*O lO CM C M C1
O O
CJiO1
O 00 *
u-i *+ 1 f
• -
Ut-Cu.UhUUUV.t-UUtiUUUUUUUUUUt4UUt-UUUUUUUUUV.UU
oooooooooooooooooooooooooooooooooooooooo
^3 "O ^ "O ^3 ^ ^ ^ ^ ^ "O "O "O "O ^ *O "O ^ T3 *O "O ^ *O *O ^ ^0 *O *B "O ^ "O "O "O ^ *O ^ "O "O "O T3
6666666666666666666666666666666666666666
6666666666666666666666666666666666666666
6666666666666666666666666666666666666666
0000000
_-----_-----_-----_--- J 73 -O T3 T3-O T3-O T3-O "O T3 Tl "O-O 73 T3-O
6666666666666666666666666666666666666666
6666o66oo6
00000000000
w wui
3
i
C:
O «
a
s
--
K
B ;|-pi
°h
i.* s ;2 •£:§•§ :§; o |«
M a 3 2
-•o IS c «.S ».S f"
u QJ c0 3' O ^ 4_i u fc. r, r. r
?":u-5 T3:Sub= 11 £ . A j a i B T w-rSJJ
J.-S.t. ;; 2; ocuj *£9t.9*§L9wv.• ~7.M"5-C*r
t! .iie B :> . iJCS. ^"ûCUMÔu2 ^jûSSS
tj CO i« • .^r
x x X X X x x
^J P £ E SicO P -§ u 2 £ 'C *^ ai c" 0^ . . 8 w «•jfTl SI 1 fi *t . .
|J -IStjJfi .i rfl^* fllTf-B^JJ '*! >:« s 8
-.-..... . . .'On CNCMtNe'^^tJ)*^ OOO
§ccccccc^^Ôc^^'^^^-^-c^cO '~**r**c te1^ _r*j*>*^
r 2 S S 2 S S 2 c c c- e-1 C c c c c c - c 2 e §"t 11 £ § g § f ° 11 § 2 " " *

M 9-2800
vo oo o t-v?
*)• irv if •
rg *4 O
o 1 *
• irt oo co
666006666606066
666666666666666
3
666666666666666
•5 »
ill Z
21
*' I
! u
666666666666666
CC*&C££fi££££££££
ooooooooooooooo
CCECCCCC.UGCCCC
oooooooooooooo<
66666666666666
(si -oss av 'c
JDd 001) UO||D>
NOMENCLATURE
E s
s °s
;
„
v
>
u
-o
•
ca&iififfiiir
i- SPc ** ^ — Jli
J3 (J— CX'U'y'u
«.h>:v:h&&&
PIse'i'i'EgnoofflSoo

TM 9-2800
[(A. G. 300.7—(9 July 4
(O. O. 461/43922 misc.
43))
(12 July 42))
BY ORDER OF THE SECRETARY OF WAR:
G. C. MARSHALL,
Chief of Staff.
OFFICIAL:
J. A. ULIO,
Major General,
The Adjutant General.
DISTRIBUTION: C & H (1)

Armament: One Gun, 75-mm, M3, or one Howitzer, 105-mm, T8; two
Guns, machine, cal. .30 M1919A4 (flexible); one Gun, machine, cal.
.50, HB, M2; one Gun, submachine, cal. .45 M1928A1.
Ammunition: 97 rounds, 75-mm or 68 rounds, 105-mm; 300 rounds, cal.
.50; 600 rounds, cal. .45; 6,250 rounds, cal. .30; 12 hand grenades.
For further information see pages 106-107.
554

TM 9-2800. 1943

More Related Content

Viewers also liked

Similar to TM 9-2800. 1943

More from blancaisabelcig

Recently uploaded

TM 9-2800. 1943
