Smart Helmet System

1. TITLE
SMART HELMET USING ARDUINO

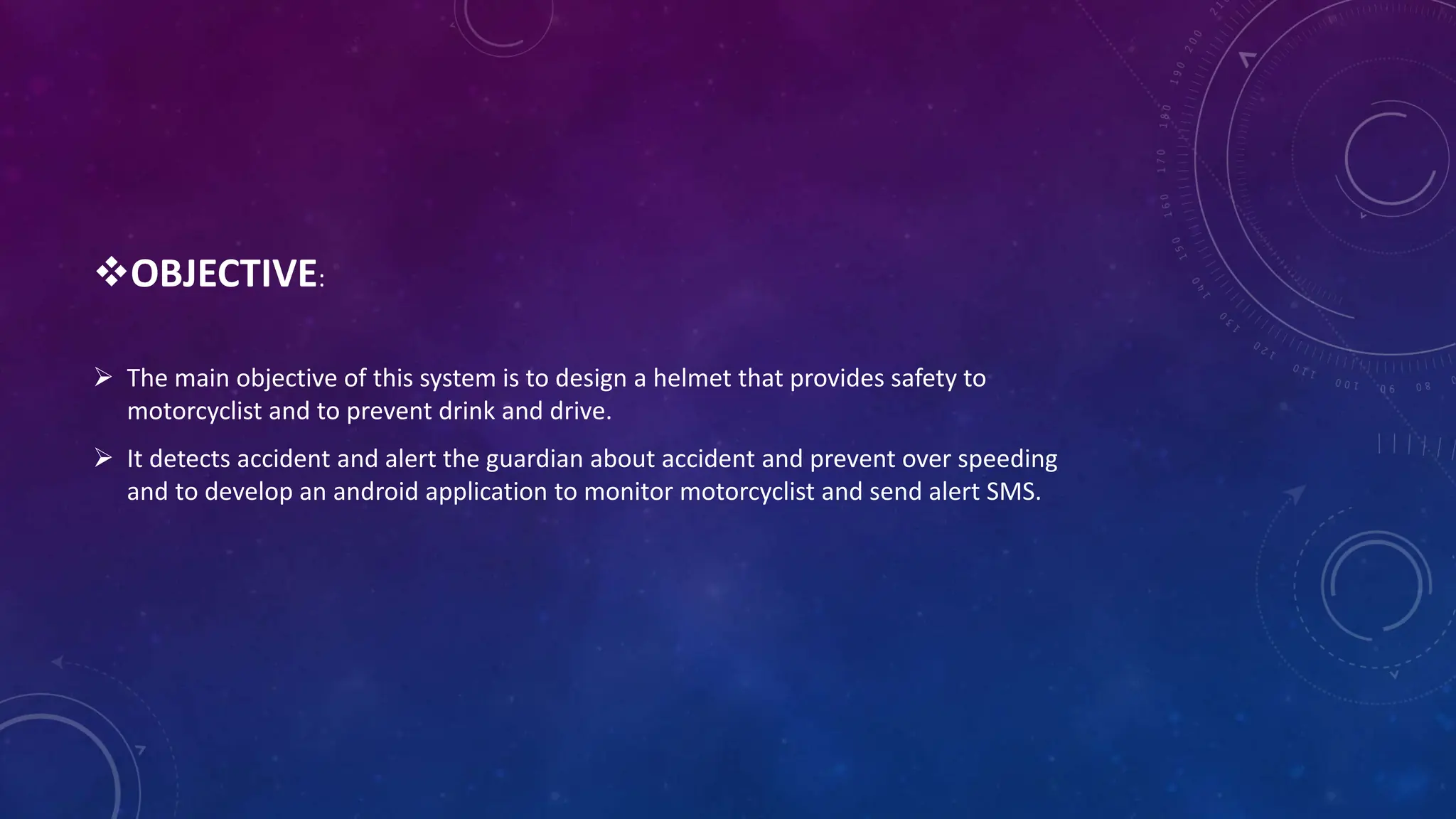

2. OBJECTIVE:
 The main objective of this system is to design a helmet that provides safety to
motorcyclist and to prevent drink and drive.
 It detects accident and alert the guardian about accident and prevent over speeding
and to develop an android application to monitor motorcyclist and send alert SMS.

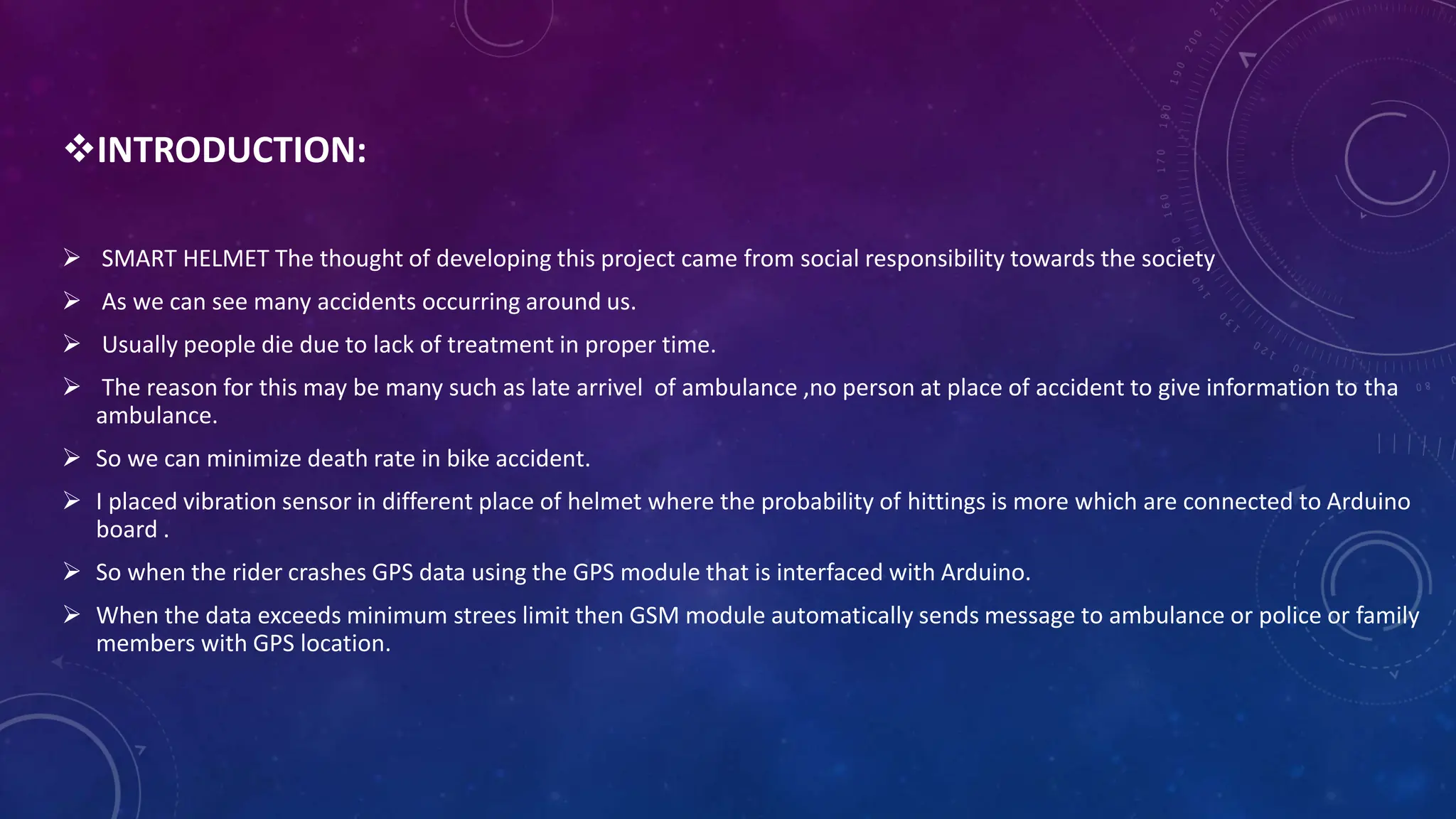

3. INTRODUCTION:
 SMART HELMET The thought of developing this project came from social responsibility towards the society
 As we can see many accidents occurring around us.
 Usually people die due to lack of treatment in proper time.
 The reason for this may be many such as late arrivel of ambulance ,no person at place of accident to give information to tha
ambulance.
 So we can minimize death rate in bike accident.
 I placed vibration sensor in different place of helmet where the probability of hittings is more which are connected to Arduino
board .
 So when the rider crashes GPS data using the GPS module that is interfaced with Arduino.
 When the data exceeds minimum strees limit then GSM module automatically sends message to ambulance or police or family
members with GPS location.

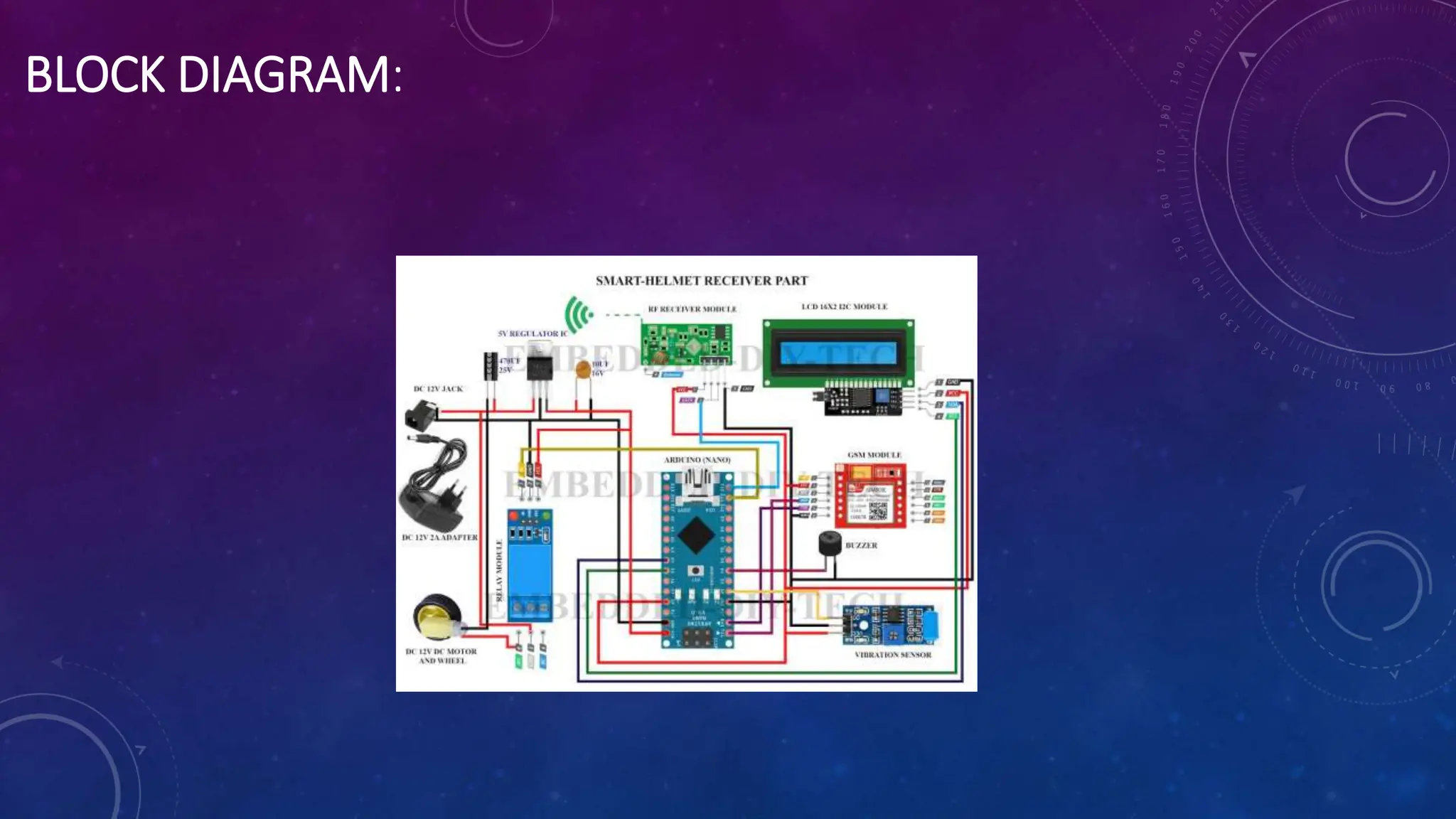

4. BLOCK DIAGRAM:

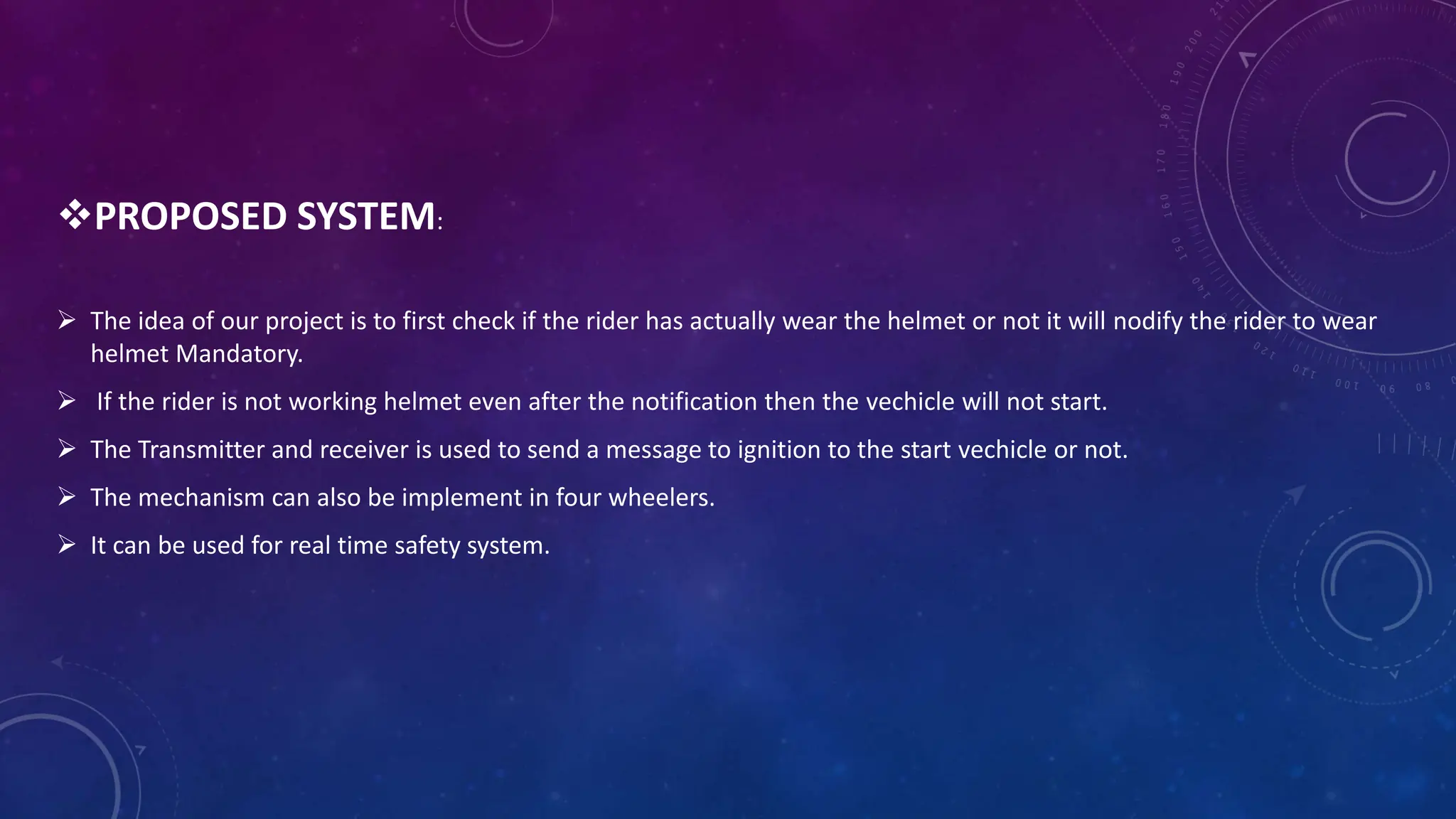

5. PROPOSED SYSTEM:
 The idea of our project is to first check if the rider has actually wear the helmet or not it will nodify the rider to wear
helmet Mandatory.
 If the rider is not working helmet even after the notification then the vechicle will not start.
 The Transmitter and receiver is used to send a message to ignition to the start vechicle or not.
 The mechanism can also be implement in four wheelers.
 It can be used for real time safety system.

6. ADVANTAGE OF PROPOSED SYSTEM:
 It is used to notify the rider to wear the helmet .
 If the rider is not wear helmet the vehicle will not start.
 It is used to prevent accident and save the life .
 It is cost efficient .

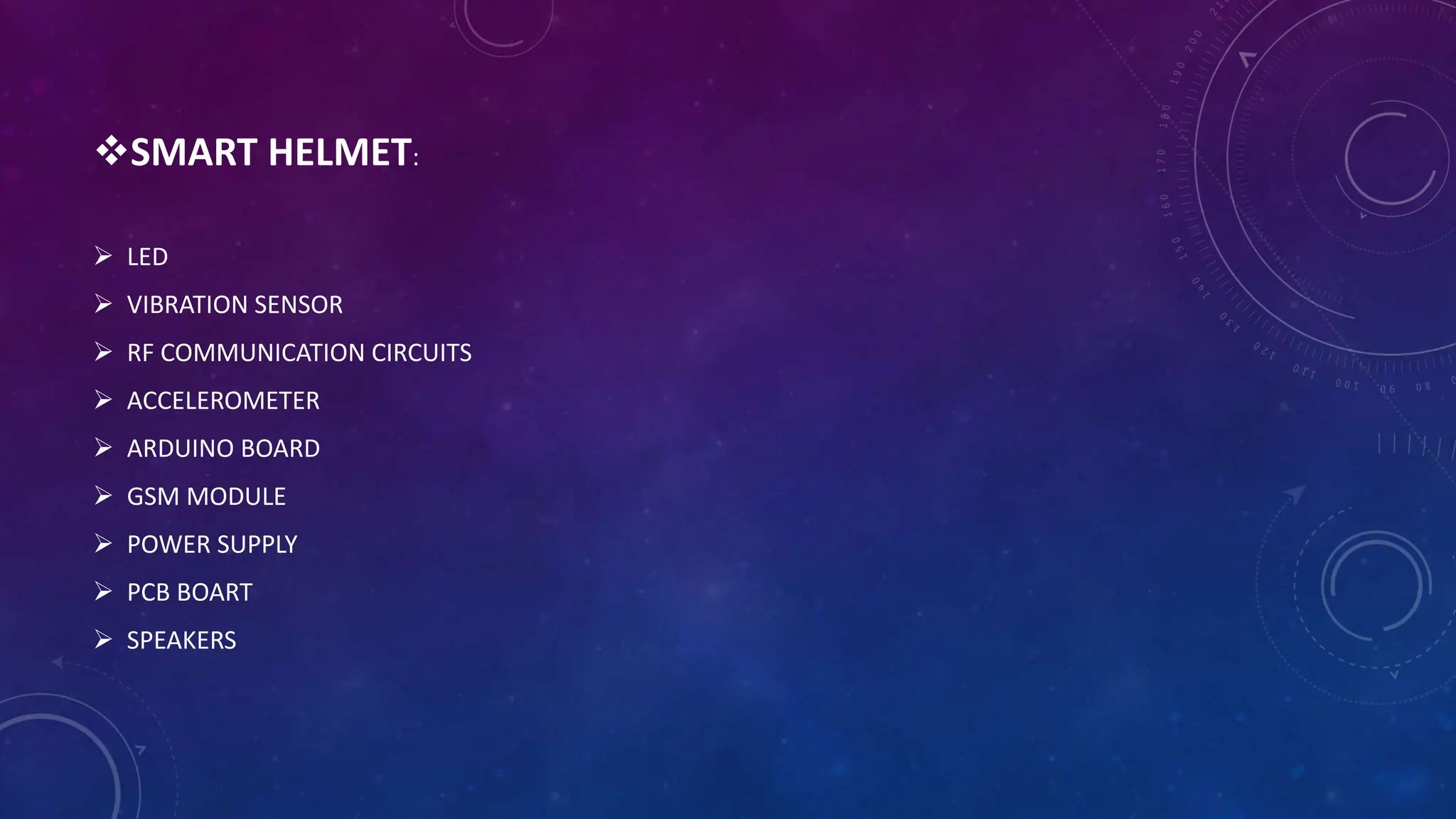

7. SMART HELMET:
 LED
 VIBRATION SENSOR
 RF COMMUNICATION CIRCUITS
 ACCELEROMETER
 ARDUINO BOARD
 GSM MODULE
 POWER SUPPLY
 PCB BOART
 SPEAKERS

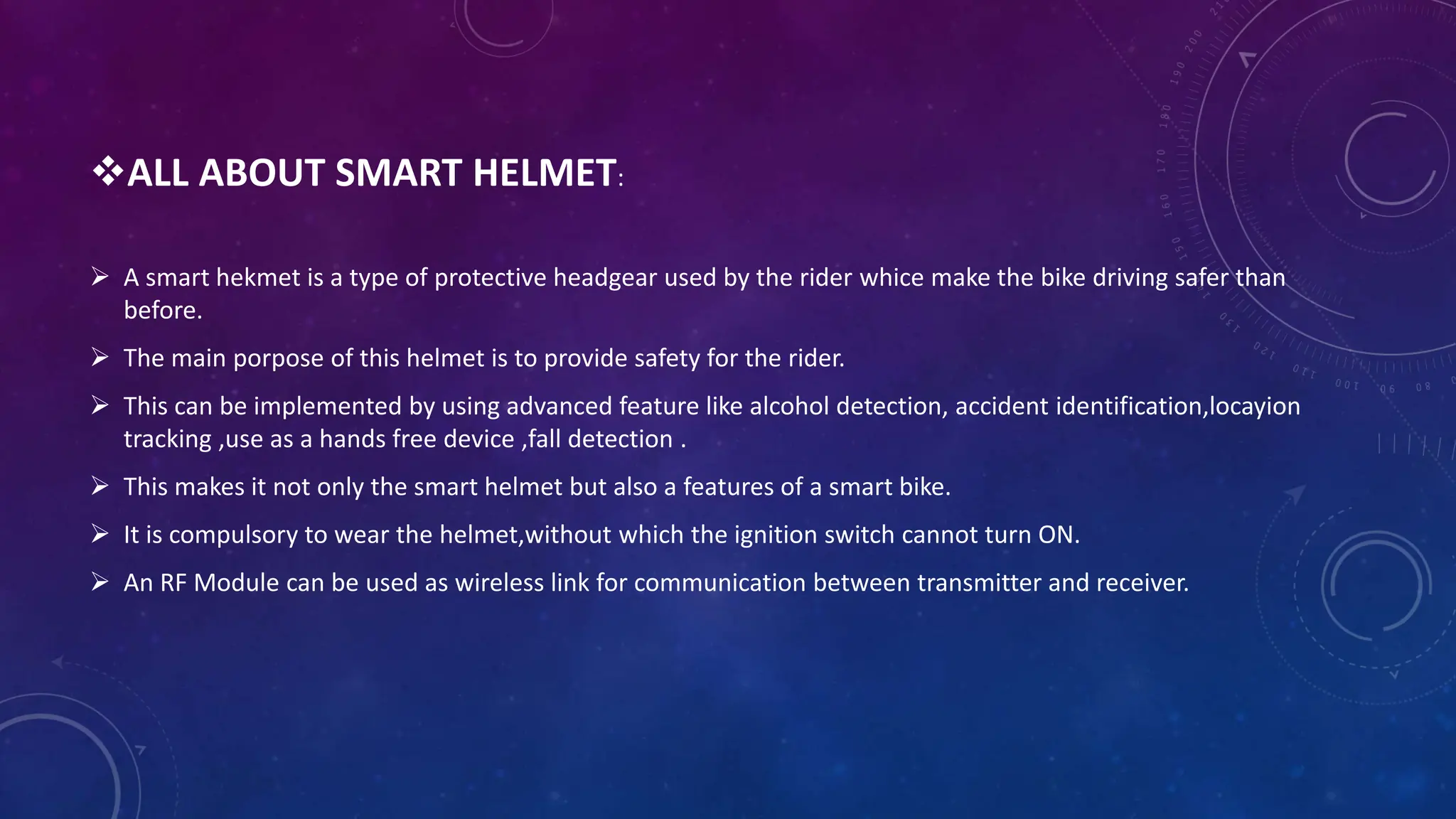

8. ALL ABOUT SMART HELMET:
 A smart hekmet is a type of protective headgear used by the rider whice make the bike driving safer than
before.
 The main porpose of this helmet is to provide safety for the rider.
 This can be implemented by using advanced feature like alcohol detection, accident identification,locayion
tracking ,use as a hands free device ,fall detection .
 This makes it not only the smart helmet but also a features of a smart bike.
 It is compulsory to wear the helmet,without which the ignition switch cannot turn ON.
 An RF Module can be used as wireless link for communication between transmitter and receiver.

9. THANK YOU
