Case Study: Using Terraform and Packer to deploy go applications to AWS

Case Study:
Using Terraform and
Packer to deploy go
applications to AWS
Patrick Bolduan
April 2017

Presenter CV
Patrick Bolduan
Digital Technology Department, Global Digital Division
ASICS Corporation
20 years building web applications (product/app dev/ops)
12 years involved platform operations (MTV/ASICS)
16 years in Japan
よろしく

ASICS Corporation
Global Headquarters: Kobe
Global presence: Over 240 countries
Digital Presence: Over 50 countries
Global Brands
ASICS, Onitsuka Tiger, ASICS Tiger, Haglöfs, Runkeeper

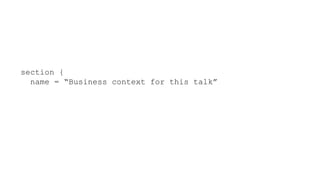

section {
name = “Business context for this talk”

Digital platform operations for
ASICS Corporation

ASICS Corporation global footprint
Global presence: Over 240 countries
Digital Presence: Over 50 countries
Over 120 websites
Around 8 global web
application platforms
More than 5 data centers
with a mix of bare metal
and cloud

ASICS Corporation ops team
(all outsourced)
(to multiple vendors)

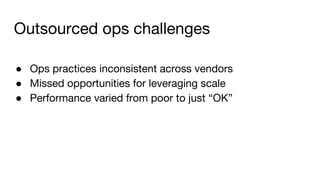

Outsourced ops challenges
● Ops practices inconsistent across vendors
● Missed opportunities for leveraging scale
● Performance varied from poor to just “OK”

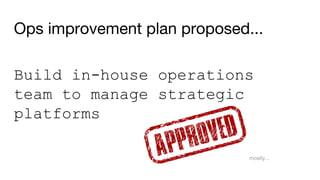

Ops improvement plan proposed...
Build in-house operations
team to manage strategic
platforms
mostly...

Modern ops team building research
PaaS PaaS
Search internet Attend conferences

What is a PaaS?
Platform as a service (PaaS) or application platform as a service (aPaaS) is a category of
cloud computing services that provides a platform allowing customers to develop, run, and
manage applications without the complexity of building and maintaining the infrastructure
typically associated with developing and launching an app.
https://en.wikipedia.org/wiki/Platform_as_a_service
IaaS
PaaS
SaaS Software as a Service
Platform as a Service
Infrastructure as a ServiceXaaS Pyramid

Ops is automated to the point
where all engineers are
focused on delivering value to
your product
PaaS goals =

What is a full blown PaaS good for?
Environments with many different apps with variable stack
requirements

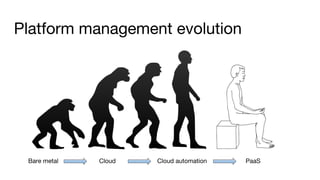

Platform management evolution
Bare metal Cloud Cloud automation PaaS

Example providers and tools
Cloud Cloud automation PaaS

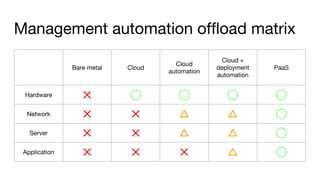

Management automation offload matrix
Bare metal Cloud
Cloud
automation
Cloud +
deployment
automation
PaaS
Hardware ✕ ◯ ◯ ◯ ◯
Network ✕ ✕ △ △ ◯
Server ✕ ✕ △ △ ◯
Application ✕ ✕ ✕ △ ◯

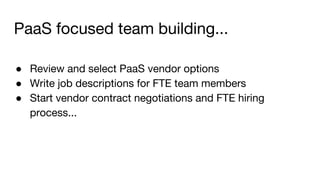

PaaS focused team building...
● Review and select PaaS vendor options
● Write job descriptions for FTE team members
● Start vendor contract negotiations and FTE hiring
process...

Already has in-house ops team
acquires

This is good news for ASICS ops
(but team planning needs to be reset)

We need a PaaS RIGHT NOW!!!
Hold on, how about we try some
automation first?
Platform strategy reset negotiations...
ok

}
section {
name = “Case study: automation with Terraform and Packer”

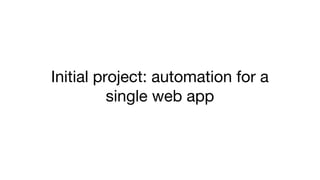

Initial project: automation for a
single web app

Initial project: app stack
● Cloud infrastructure: AWS
● Infrastructure automation: Terraform
● Deploy automation: Packer
● The app: QOR – golang CMS
Project: https://getqor.com
Github: https://github.com/qor/qor

Initial project: target end state
Project: https://getqor.com
Github: https://github.com/qor/qor
● Automated infrastructure management
● Manually triggered consistent app deploys
● Ability to create ad hoc full copies of production

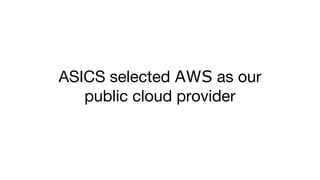

ASICS selected AWS as our
public cloud provider

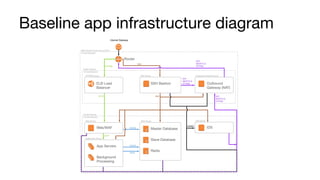

Baseline app infrastructure diagram

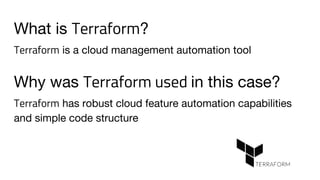

What is Terraform?
Terraform is a cloud management automation tool
Why was Terraform used in this case?
Terraform has robust cloud feature automation capabilities
and simple code structure

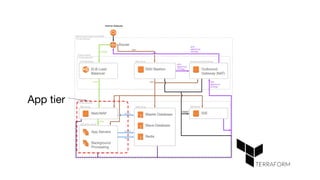

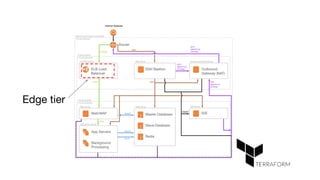

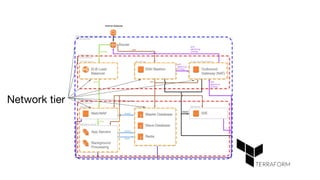

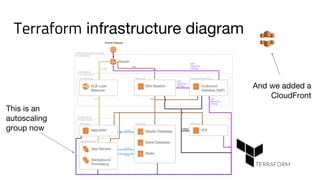

Terraform infrastructure diagram
This is an
autoscaling
group now
And we added a
CloudFront

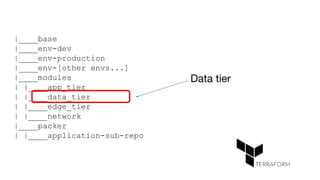

Terraform defined infrastructure

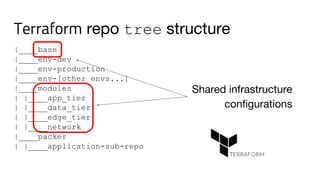

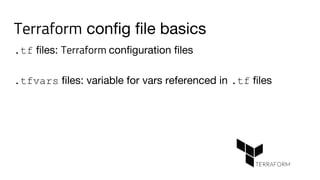

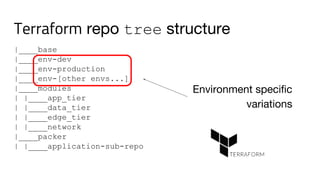

Terraform config file basics
.tf files: Terraform configuration files
.tfvars files: variable for vars referenced in .tf files

We will be looking at .tf files today

module "vpc" {
...
}
resource "aws_subnet" "db" {
...
}
resource "aws_route_table_association" "db" {
...
}
resource "aws_security_group" "bastion_security_group" {
...
}
resource "aws_security_group_rule" "bastion_vpc_ingress" {
...
}
resource "aws_security_group_rule" "bastion_ssh_ingress" {
...
}
resource "aws_security_group_rule" "bastion_all_egress" {
type = "egress"

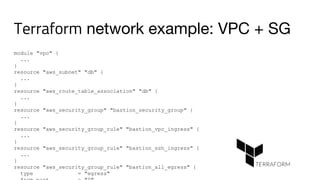

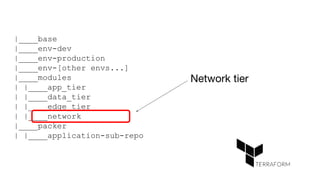

Terraform network example: VPC + SG

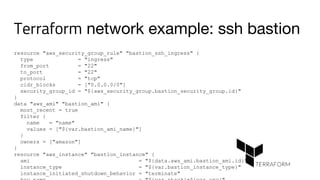

Terraform network example: ssh bastion
resource "aws_security_group_rule" "bastion_ssh_ingress" {
type = "ingress"
from_port = "22"
to_port = "22"
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
security_group_id = "${aws_security_group.bastion_security_group.id}"
}
data "aws_ami" "bastion_ami" {
most_recent = true
filter {
name = "name"
values = ["${var.bastion_ami_name}"]
}
owners = ["amazon"]
}
resource "aws_instance" "bastion_instance" {
ami = "${data.aws_ami.bastion_ami.id}"
instance_type = "${var.bastion_instance_type}"
instance_initiated_shutdown_behavior = "terminate"

Terraform edge example: ALB
resource "aws_alb" "application" {
name = "tf-lb-app-${var.stack}-${var.env}"
internal = false
security_groups = ["${aws_security_group.lb_app_security_group.id}"]
subnets = ["${var.lb_subnets}"]
idle_timeout = "${var.idle_timeout}"
access_logs {
bucket = "${var.log_bucket}"
prefix = "logs/alb"
}
tags {
Name = "tf-lb-app-${var.stack}-${var.env}"
}
depends_on = ["aws_s3_bucket_policy.log_bucket_policy"]
}

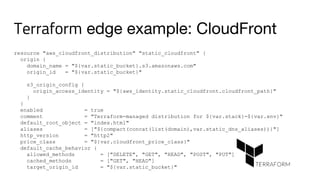

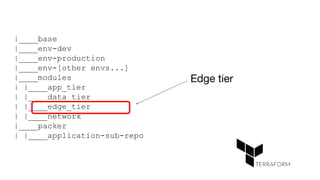

Terraform edge example: CloudFront
resource "aws_cloudfront_distribution" "static_cloudfront" {
origin {
domain_name = "${var.static_bucket}.s3.amazonaws.com"
origin_id = "${var.static_bucket}"
s3_origin_config {
origin_access_identity = "${aws_identity.static_cloudfront.cloudfront_path}"
}
}
enabled = true
comment = "Terraform-managed distribution for ${var.stack}-${var.env}"
default_root_object = "index.html"
aliases = ["${compact(concat(list(domain),var.static_dns_aliases))}"]
http_version = "http2"
price_class = "${var.cloudfront_price_class}"
default_cache_behavior {
allowed_methods = ["DELETE", "GET", "HEAD", "POST", "PUT"]
cached_methods = ["GET", "HEAD"]
target_origin_id = "${var.static_bucket}"

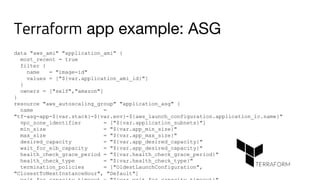

Terraform app example: ASG
data "aws_ami" "application_ami" {
most_recent = true
filter {
name = "image-id"
values = ["${var.application_ami_id}"]
}
owners = ["self","amazon"]
}
resource "aws_autoscaling_group" "application_asg" {
name =
"tf-asg-app-${var.stack}-${var.env}-${aws_launch_configuration.application_lc.name}"
vpc_zone_identifier = ["${var.application_subnets}"]
min_size = "${var.app_min_size}"
max_size = "${var.app_max_size}"
desired_capacity = "${var.app_desired_capacity}"
wait_for_elb_capacity = "${var.app_desired_capacity}"
health_check_grace_period = "${var.health_check_grace_period}"
health_check_type = "${var.health_check_type}"
termination_policies = ["OldestLaunchConfiguration",
"ClosestToNextInstanceHour", "Default"]

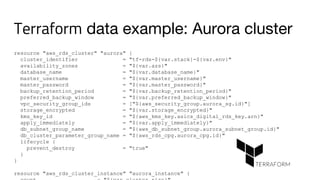

Terraform data example: Aurora cluster
resource "aws_rds_cluster" "aurora" {
cluster_identifier = "tf-rds-${var.stack}-${var.env}"
availability_zones = "${var.azs}"
database_name = "${var.database_name}"
master_username = "${var.master_username}"
master_password = "${var.master_password}"
backup_retention_period = "${var.backup_retention_period}"
preferred_backup_window = "${var.preferred_backup_window}"
vpc_security_group_ids = ["${aws_security_group.aurora_sg.id}"]
storage_encrypted = "${var.storage_encrypted}"
kms_key_id = "${aws_kms_key.asics_digital_rds_key.arn}"
apply_immediately = "${var.apply_immediately}"
db_subnet_group_name = "${aws_db_subnet_group.aurora_subnet_group.id}"
db_cluster_parameter_group_name = "${aws_rds_cpg.aurora_cpg.id}"
lifecycle {
prevent_destroy = "true"
}
}
resource "aws_rds_cluster_instance" "aurora_instance" {

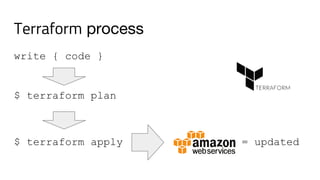

Terraform process
write { code }
$ terraform plan
$ terraform apply = updated

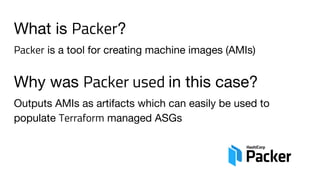

What is Packer?
Packer is a tool for creating machine images (AMIs)
Why was Packer used in this case?
Outputs AMIs as artifacts which can easily be used to
populate Terraform managed ASGs

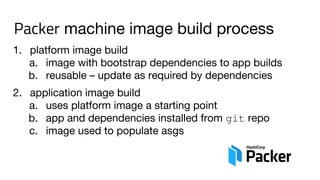

Packer machine image build process
1. platform image build
a. image with bootstrap dependencies to app builds
b. reusable – update as required by dependencies
2. application image build
a. uses platform image a starting point
b. app and dependencies installed from git repo
c. image used to populate asgs

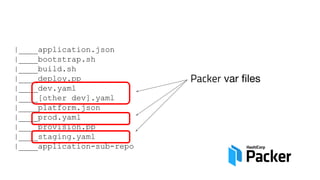

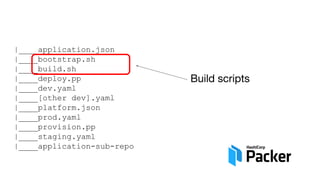

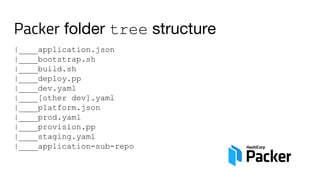

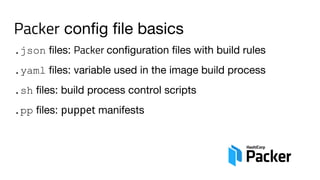

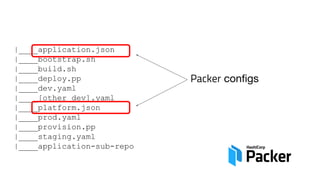

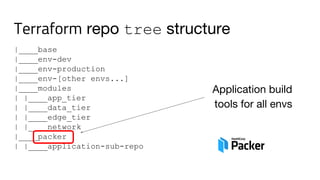

Packer config file basics
.json files: Packer configuration files with build rules
.yaml files: variable used in the image build process
.sh files: build process control scripts
.pp files: puppet manifests

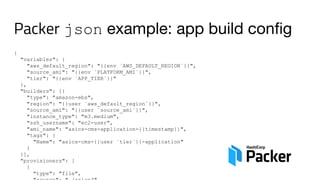

Packer json example: app build config
{
"variables": {
"aws_default_region": "{{env ÀWS_DEFAULT_REGION`}}",
"source_ami": "{{env `PLATFORM_AMI`}}",
"tier": "{{env ÀPP_TIER`}}"
},
"builders": [{
"type": "amazon-ebs",
"region": "{{user àws_default_region`}}",
"source_ami": "{{user `source_ami`}}",
"instance_type": "m3.medium",
"ssh_username": "ec2-user",
"ami_name": "asics-cms-application-{{timestamp}}",
"tags": {
"Name": "asics-cms-{{user `tier`}}-application"
}
}],
"provisioners": [
{
"type": "file",

Packer yaml example: app build vars
app_config:
ASICS3_DB_NAME: "asics3"
ASICS3_DB_USER: "******"
ASICS3_DB_PASSWORD: "******"
ASICS3_DB_HOST: "[RDS cluster details].rds.amazonaws.com"
ASICS3_ENV: "dev"
QOR_AWS_REGION: "us-west-2"
QOR_AWS_ACCESS_KEY_ID: ""
QOR_AWS_SECRET_ACCESS_KEY: ""
S3Bucket: "[S3 bucket name]"
ASICS3_HTTP_ADDR: ":8000"
GOPATH: "/go"
QOR_AWS_CLOUD_FRONT_DOMAIN: "https://[cloudfront host].asics.digital"

Packer sh example: app build script
#!/bin/bash
set +e
echo "*** Configuring golang..."
source /etc/profile.d/golang.sh
echo "*** Sourcing env vars..."
source /go/.envrc
echo "*** Changing to source directory..."
cd /go/src/github.com/[repo root]/asics3
echo "*** Installing glide..."
go get github.com/Masterminds/glide
echo "*** Workaround for go4.org TLS issue..."
mkdir -p "/root/.glide/cache/src" &&
git clone https://github.com/camlistore/go4
/root/.glide/cache/src/https-go4.org

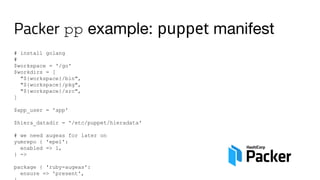

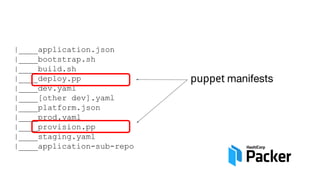

Packer pp example: puppet manifest
# install golang
#
$workspace = '/go'
$workdirs = [
"${workspace}/bin",
"${workspace}/pkg",
"${workspace}/src",
]
$app_user = 'app'
$hiera_datadir = '/etc/puppet/hieradata'
# we need augeas for later on
yumrepo { 'epel':
enabled => 1,
} ->
package { 'ruby-augeas':
ensure => 'present',

Packer and Terraform deploy process
update { app asg ami }
$ terraform plan
$ terraform apply
$ packer build
Code deployed!
get ami

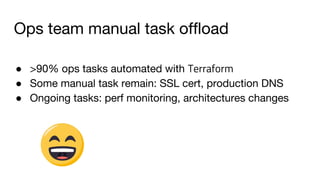

Ops team manual task offload
● >90% ops tasks automated with Terraform
● Some manual task remain: SSL cert, production DNS
● Ongoing tasks: perf monitoring, architectures changes

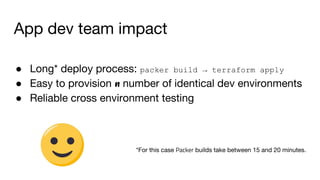

App dev team impact
● Long* deploy process: packer build → terraform apply
● Easy to provision number of identical dev environments
● Reliable cross environment testing
*For this case Packer builds take between 15 and 20 minutes.

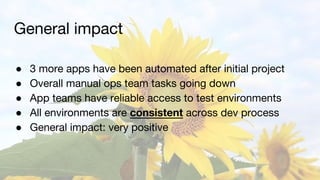

General impact
● 3 more apps have been automated after initial project
● Overall manual ops team tasks going down
● App teams have reliable access to test environments
● All environments are consistent across dev process
● General impact: very positive

Steve Huff
Runkeeper SRE
github.com/hakamadare

Frank Yue
SA and Devops at The Plant
github.com/frankyue

}
section {
name = “Next steps and takeaways”

Next steps for ASICS ops
● Automate deploy process with Jenkins and Ansible
● Trigger app deploys with git commits
● Apply learnings to other app environments
● Iterate and improve capabilities towards PaaS

Takeaways
● PaaS still relatively new as a concept
● Lots of opportunities to reduce burden of ops tasks
● “Ideal ops state” will depend on your needs

Honorable mention
● Have a plan for managing keys and secrets

Questions?
Twitter: @ahq_p
Keybase: asicspatrick
Github: asicspatrick

Case Study: Using Terraform and Packer to deploy go applications to AWS

More Related Content

What's hot

Similar to Case Study: Using Terraform and Packer to deploy go applications to AWS

Recently uploaded

Case Study: Using Terraform and Packer to deploy go applications to AWS
