ThousandEyes at Network Field Day 12
- ThousandEyes delivers network intelligence into every network through cloud, enterprise, and endpoint agents that provide visibility. - It tackles challenges in hybrid network environments and provides end-to-end visibility through these different agent types located throughout the network. - The solution also detects internet outages through analyzing aggregated anonymous traffic and routing data from across its global customer base to identify outage events, their scope and likely root causes.
More Related Content
Similar to ThousandEyes at Network Field Day 12
ThousandEyes at Network Field Day 12
- 1. 0 Network Intelligence Without Borders MohitLad CEO and Co-founder
- 2. 1 About ThousandEyes Founded bynetwork experts; strong investor backing Relied on for critical operations by leading enterprises Recognized as an innovative new approach ThousandEyes delivers network intelligence into every network. 30 Fortune 500 5 top 5 SaaS Companies 4 top 6 US Banks

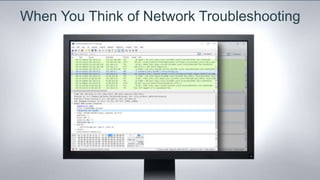

- 3. 2 When You Thinkof Network Troubleshooting

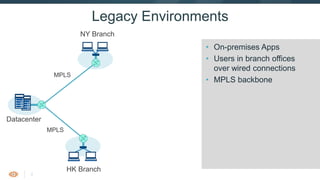

- 4. 3 Legacy Environments NY Branch HKBranch Datacenter • On-premises Apps • Users in branch offices over wired connections • MPLS backbone MPLS MPLS
- 5. 4 Internet Centric Environment •Adoption of Cloud Applications • Split-tunnel from branch offices • Direct Internet Connectivity between branch offices • Wireless becoming primary connectivity at branch offices • Remote Users accessing cloud applications directly NY Branch HK Branch Datacenter 0365 Internet

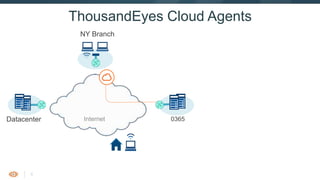

- 6. 5 ThousandEyes Cloud Agents NYBranch Datacenter 0365Internet
- 7. 6 ThousandEyes Enterprise Agents NYBranch Datacenter 0365Internet
- 8. 7 ThousandEyes Endpoint Agents NYBranch Datacenter 0365Internet

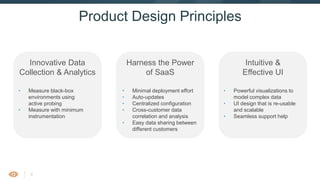

- 9. 8 Product Design Principles Intuitive& Effective UI Harness the Power of SaaS Innovative Data Collection & Analytics • Powerful visualizations to model complex data • UI design that is re-usable and scalable • Seamless support help • Minimal deployment effort • Auto-updates • Centralized configuration • Cross-customer data correlation and analysis • Easy data sharing between different customers • Measure black-box environments using active probing • Measure with minimum instrumentation
- 10. 9 • Tackling HybridNetwork Environments with Enterprise Agents – Nick Kephart • End to End Visibility with Endpoint Agent – Scott Cressman, Martin Dam • Internet Outage Detection – Ricardo Oliveira Rest of the Day
- 11. 10 Tackling Hybrid NetworkEnvironments with Enterprise Agents Nick Kephart

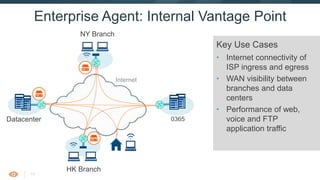

- 12. 11 Enterprise Agent: InternalVantage Point Key Use Cases • Internet connectivity of ISP ingress and egress • WAN visibility between branches and data centers • Performance of web, voice and FTP application traffic NY Branch HK Branch Datacenter 0365 Internet

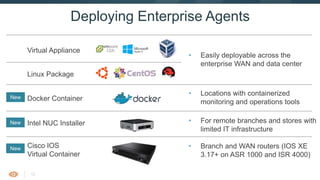

- 13. 12 Deploying Enterprise Agents •Locations with containerized monitoring and operations tools • For remote branches and stores with limited IT infrastructure • Branch and WAN routers (IOS XE 3.17+ on ASR 1000 and ISR 4000) New New New Virtual Appliance Docker Container Linux Package Intel NUC Installer Cisco IOS Virtual Container • Easily deployable across the enterprise WAN and data center

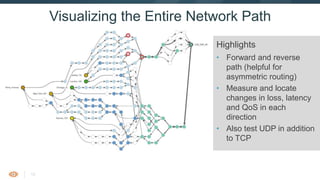

- 14. 13 Visualizing the EntireNetwork Path Highlights • Forward and reverse path (helpful for asymmetric routing) • Measure and locate changes in loss, latency and QoS in each direction • Also test UDP in addition to TCP
- 15. 14 End-to-End Visibility with EndpointAgent Scott Cressman Martin Dam

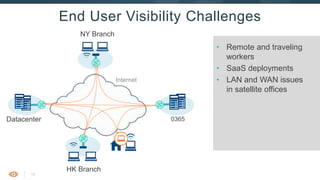

- 16. 15 End User VisibilityChallenges • Remote and traveling workers • SaaS deployments • LAN and WAN issues in satellite offices NY Branch HK Branch Datacenter 0365 Internet

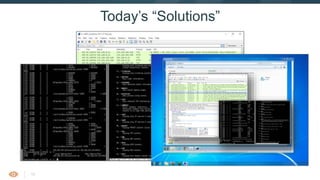

- 17.

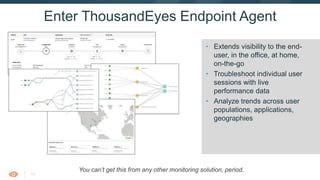

- 18. 17 Enter ThousandEyes EndpointAgent You can’t get this from any other monitoring solution, period. • Extends visibility to the end- user, in the office, at home, on-the-go • Troubleshoot individual user sessions with live performance data • Analyze trends across user populations, applications, geographies

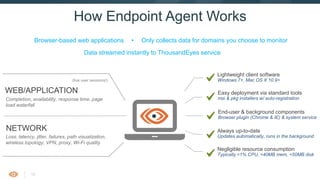

- 19. 18 How Endpoint AgentWorks Lightweight client software Windows 7+, Mac OS X 10.9+ Negligible resource consumption Typically <1% CPU, <40MB mem, <50MB disk Easy deployment via standard tools msi & pkg installers w/ auto-registration End-user & background components Browser plugin (Chrome & IE) & system service Always up-to-date Updates automatically, runs in the background WEB/APPLICATION Completion, availability, response time, page load waterfall NETWORK Loss, latency, jitter, failures, path visualization, wireless topology, VPN, proxy, Wi-Fi quality (live user sessions!) Browser-based web applications • Only collects data for domains you choose to monitor Data streamed instantly to ThousandEyes service

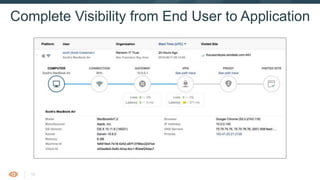

- 20. 19 Complete Visibility fromEnd User to Application
- 21. Internet Outage Detection RicardoOliveira CTO and Co-founder

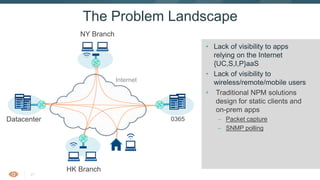

- 22. 21 The Problem Landscape •Lack of visibility to apps relying on the Internet {UC,S,I,P}aaS • Lack of visibility to wireless/remote/mobile users • Traditional NPM solutions design for static clients and on-prem apps – Packet capture – SNMP polling NY Branch HK Branch Datacenter 0365 Internet

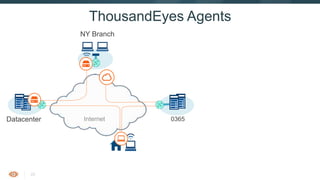

- 23. 22 ThousandEyes Agents NY Branch Datacenter0365Internet
- 24. 23 • Internet isa shared network – same event impacts multiple customers • Harness data from multiple customers for more accurate inference of problem • Drive more value to customers with knowledge of depth and breadth of problem Drive for Internet Outage Detection

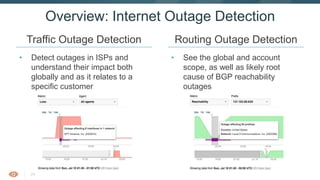

- 25. 24 • Detect outagesin ISPs and understand their impact both globally and as it relates to a specific customer Overview: Internet Outage Detection • See the global and account scope, as well as likely root cause of BGP reachability outages Traffic Outage Detection Routing Outage Detection

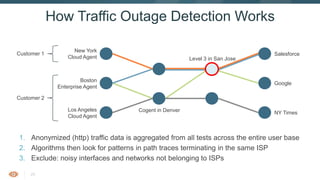

- 26. 25 1. Anonymized (http)traffic data is aggregated from all tests across the entire user base 2. Algorithms then look for patterns in path traces terminating in the same ISP 3. Exclude: noisy interfaces and networks not belonging to ISPs How Traffic Outage Detection Works New York Cloud Agent Boston Enterprise Agent Los Angeles Cloud Agent Level 3 in San Jose Cogent in Denver Salesforce Google NY Times Customer 2 Customer 1

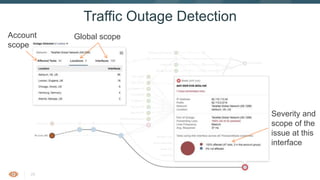

- 27. 26 Traffic Outage Detection Account scope Globalscope Severity and scope of the issue at this interface
- 28. 27 • ~ 170affected interfaces / hour Traffic Outages All the Time

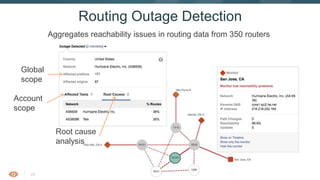

- 29. 28 Routing Outage Detection Aggregatesreachability issues in routing data from 350 routers Global scope Account scope Root cause analysis

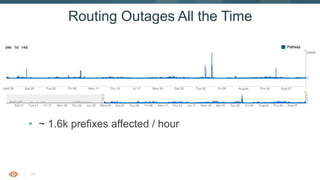

- 30. 29 • ~ 1.6kprefixes affected / hour Routing Outages All the Time

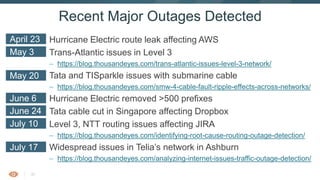

- 31. 30 Hurricane Electric routeleak affecting AWS Trans-Atlantic issues in Level 3 – https://blog.thousandeyes.com/trans-atlantic-issues-level-3-network/ Tata and TISparkle issues with submarine cable – https://blog.thousandeyes.com/smw-4-cable-fault-ripple-effects-across-networks/ Hurricane Electric removed >500 prefixes Tata cable cut in Singapore affecting Dropbox Level 3, NTT routing issues affecting JIRA – https://blog.thousandeyes.com/identifying-root-cause-routing-outage-detection/ Widespread issues in Telia’s network in Ashburn – https://blog.thousandeyes.com/analyzing-internet-issues-traffic-outage-detection/ Recent Major Outages Detected April 23 May 3 May 20 June 6 June 24 July 10 July 17
- 32. 31 Examples of NotableOutages

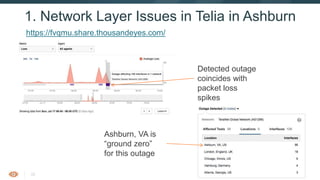

- 33. 32 1. Network LayerIssues in Telia in Ashburn Detected outage coincides with packet loss spikes Ashburn, VA is “ground zero” for this outage https://fvqmu.share.thousandeyes.com/

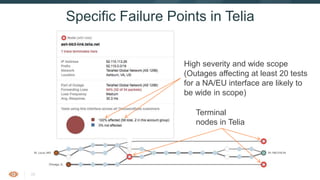

- 34. 33 Specific Failure Pointsin Telia High severity and wide scope (Outages affecting at least 20 tests for a NA/EU interface are likely to be wide in scope) Terminal nodes in Telia

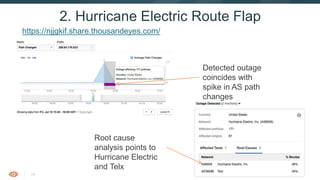

- 35. 34 2. Hurricane ElectricRoute Flap Detected outage coincides with spike in AS path changes Root cause analysis points to Hurricane Electric and Telx https://njjgkif.share.thousandeyes.com/
- 36. 35 Route Flap byHurricane Electric Hurricane Electric Routes flap from using HE to NTT, then back to HE

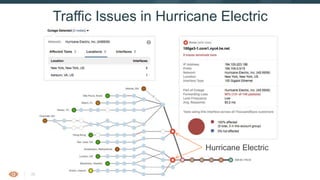

- 37. 36 Traffic Issues inHurricane Electric Hurricane Electric

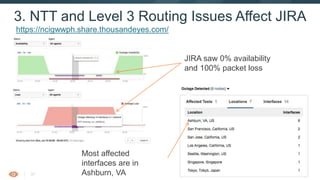

- 38. 37 3. NTT andLevel 3 Routing Issues Affect JIRA JIRA saw 0% availability and 100% packet loss Most affected interfaces are in Ashburn, VA https://ncigwwph.share.thousandeyes.com/

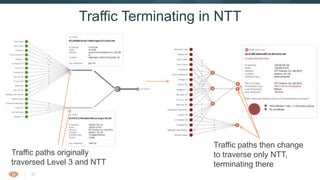

- 39. 38 Traffic Terminating inNTT Traffic paths originally traversed Level 3 and NTT Traffic paths then change to traverse only NTT, terminating there

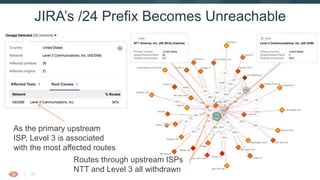

- 40. 39 JIRA’s /24 PrefixBecomes Unreachable As the primary upstream ISP, Level 3 is associated with the most affected routes Routes through upstream ISPs NTT and Level 3 all withdrawn

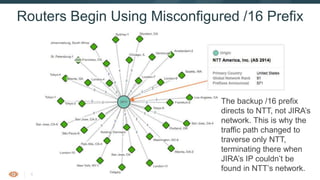

- 41. 40 Routers Begin UsingMisconfigured /16 Prefix The backup /16 prefix directs to NTT, not JIRA’s network. This is why the traffic path changed to traverse only NTT, terminating there when JIRA’s IP couldn’t be found in NTT’s network.

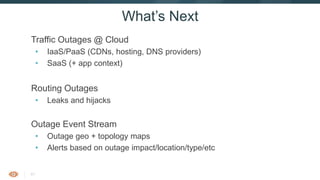

- 42. 41 Traffic Outages @Cloud • IaaS/PaaS (CDNs, hosting, DNS providers) • SaaS (+ app context) Routing Outages • Leaks and hijacks Outage Event Stream • Outage geo + topology maps • Alerts based on outage impact/location/type/etc What’s Next

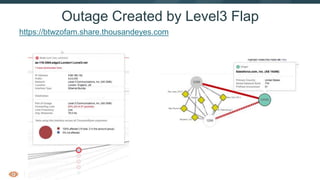

- 43. 42 Outage Created byLevel3 Flap https://btwzofam.share.thousandeyes.com

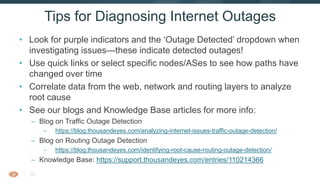

- 44. 43 • Look forpurple indicators and the ‘Outage Detected’ dropdown when investigating issues—these indicate detected outages! • Use quick links or select specific nodes/ASes to see how paths have changed over time • Correlate data from the web, network and routing layers to analyze root cause • See our blogs and Knowledge Base articles for more info: – Blog on Traffic Outage Detection – https://blog.thousandeyes.com/analyzing-internet-issues-traffic-outage-detection/ – Blog on Routing Outage Detection – https://blog.thousandeyes.com/identifying-root-cause-routing-outage-detection/ – Knowledge Base: https://support.thousandeyes.com/entries/110214366 Tips for Diagnosing Internet Outages
- 45.
