The document discusses Building Information Modeling (BIM) and its relevance for quantity surveyors and project managers. It provides an overview of BIM, including Level 2 Commercial Suite standards, Employers Information Requirements, and BIM protocols. It also discusses measurement standards like NRM 1-3. The document notes that effective communication is important when quantity surveyors extract cost information from BIM models, as design software and model structure may not directly align with measurement needs. It suggests gaining understanding of how designers approach projects and being aware of any data lost during file exports.

1. Rachael Park
Mace Group

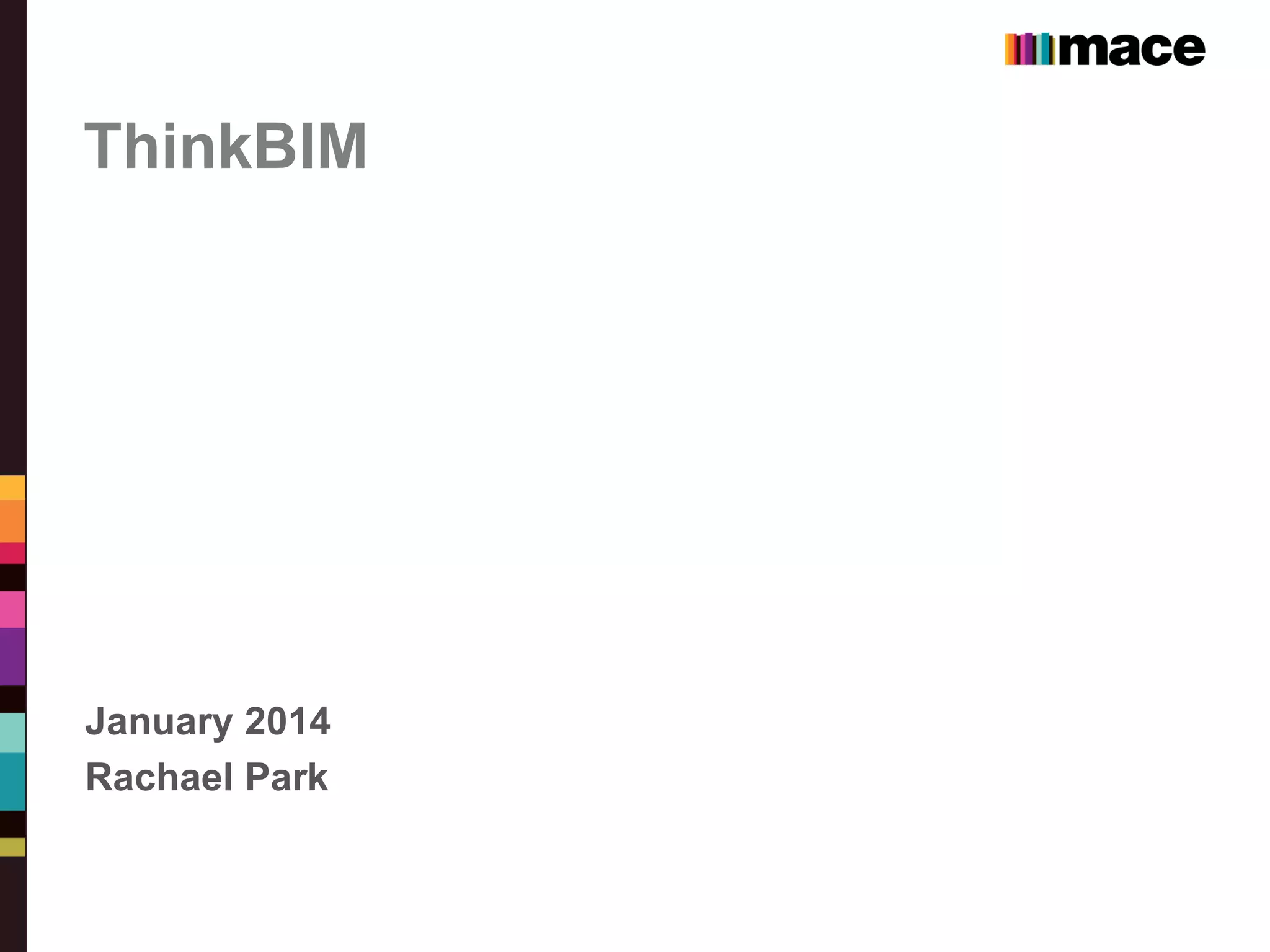

2. ThinkBIM
January 2014
Rachael Park

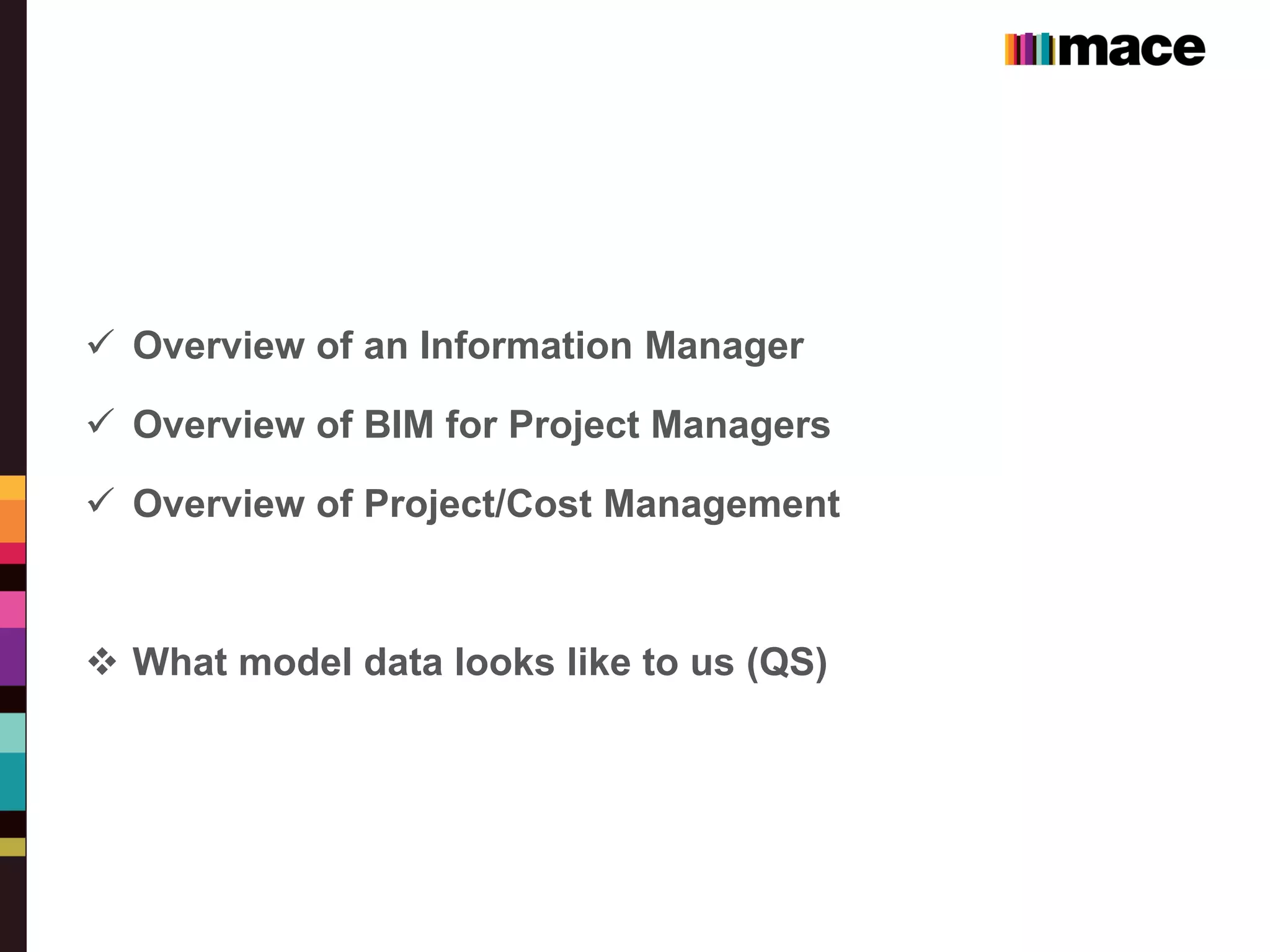

3.  Overview of an Information Manager
 Overview of BIM for Project Managers
 Overview of Project/Cost Management
 What model data looks like to us (QS)

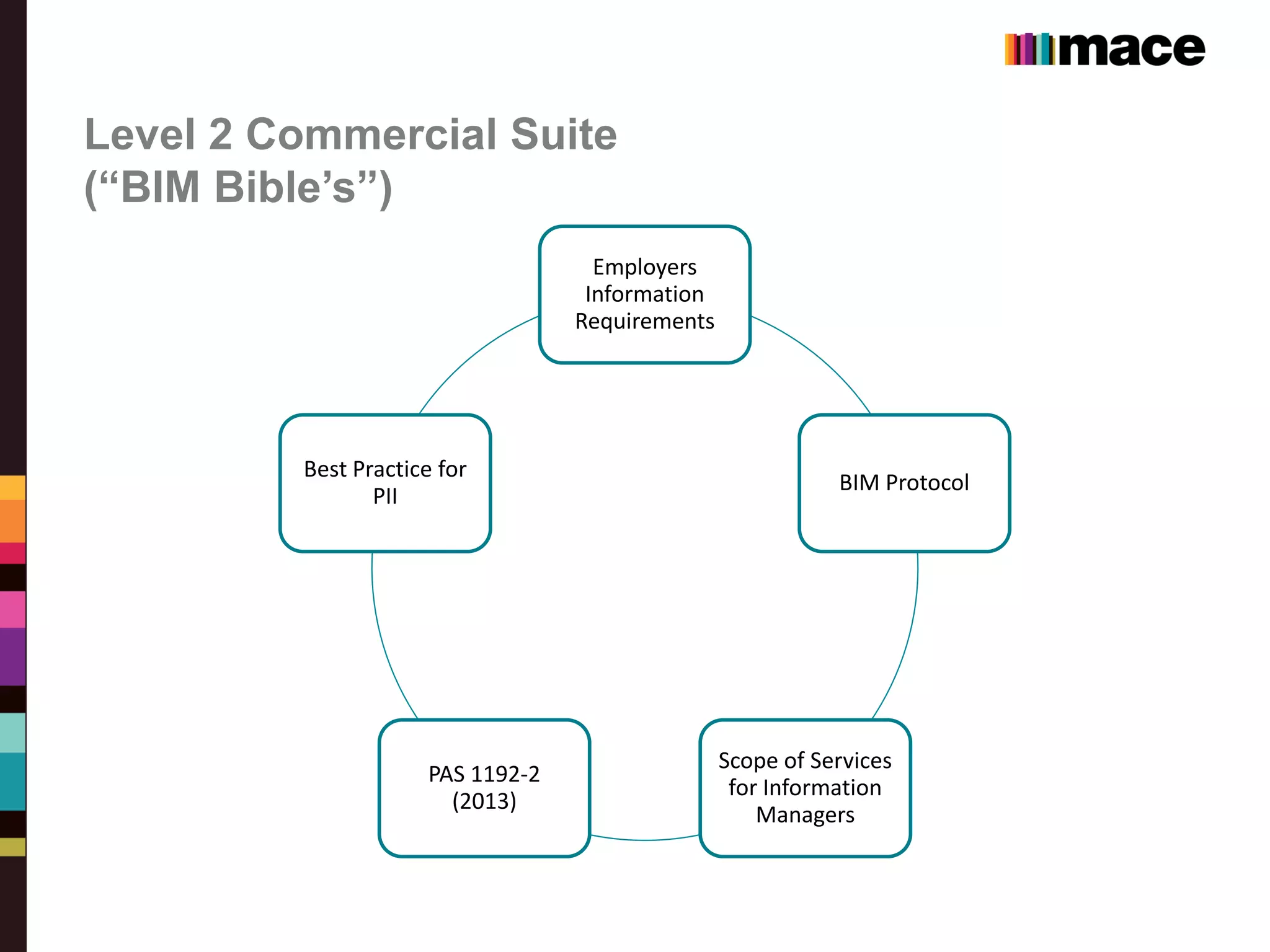

4. Level 2 Commercial Suite
(“BIM Bible’s”)
Employers
Information
Requirements
BIM Protocol
Scope of Services
for Information
Managers
PAS 1192-2
(2013)
Best Practice for
PII

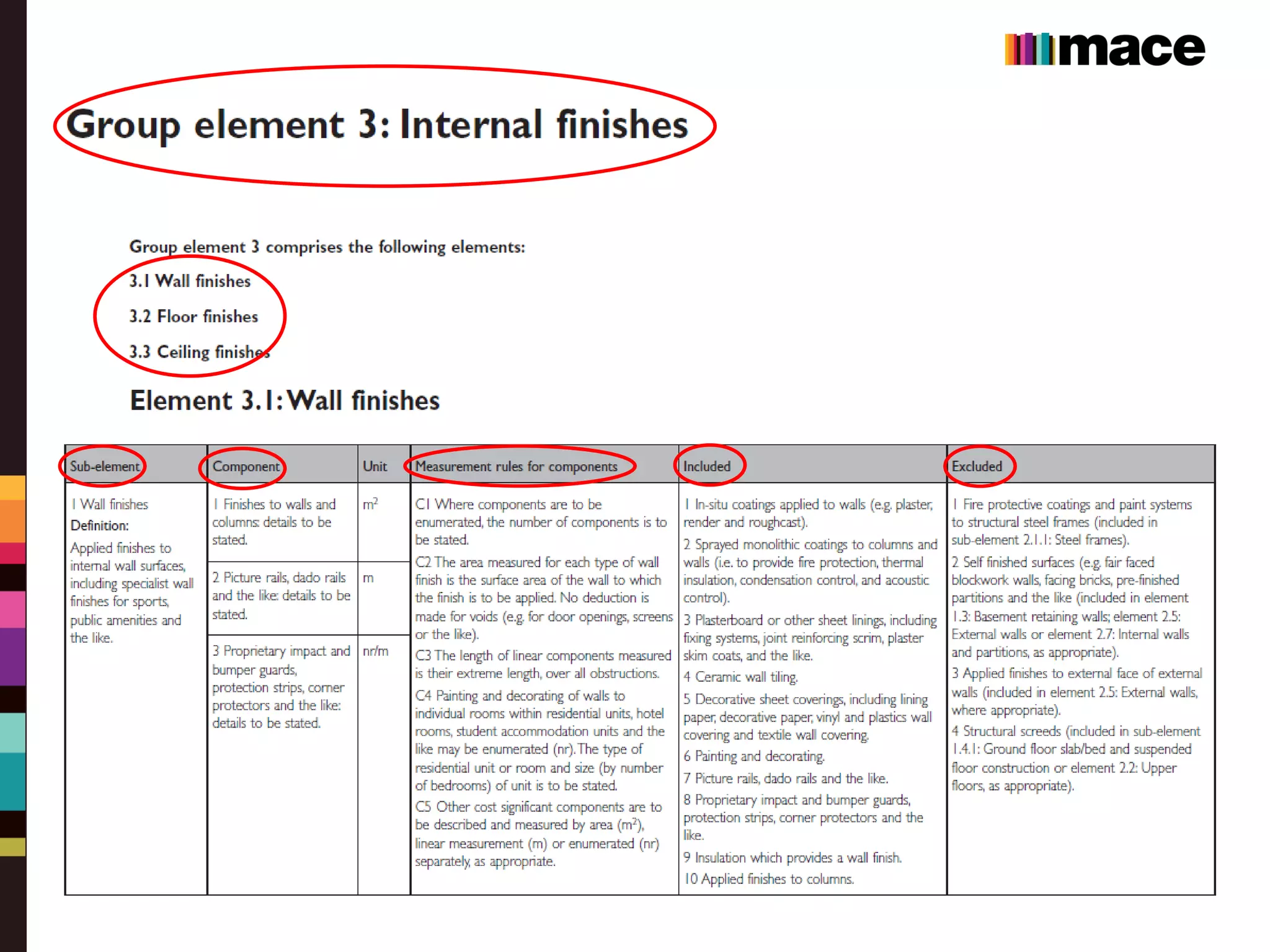

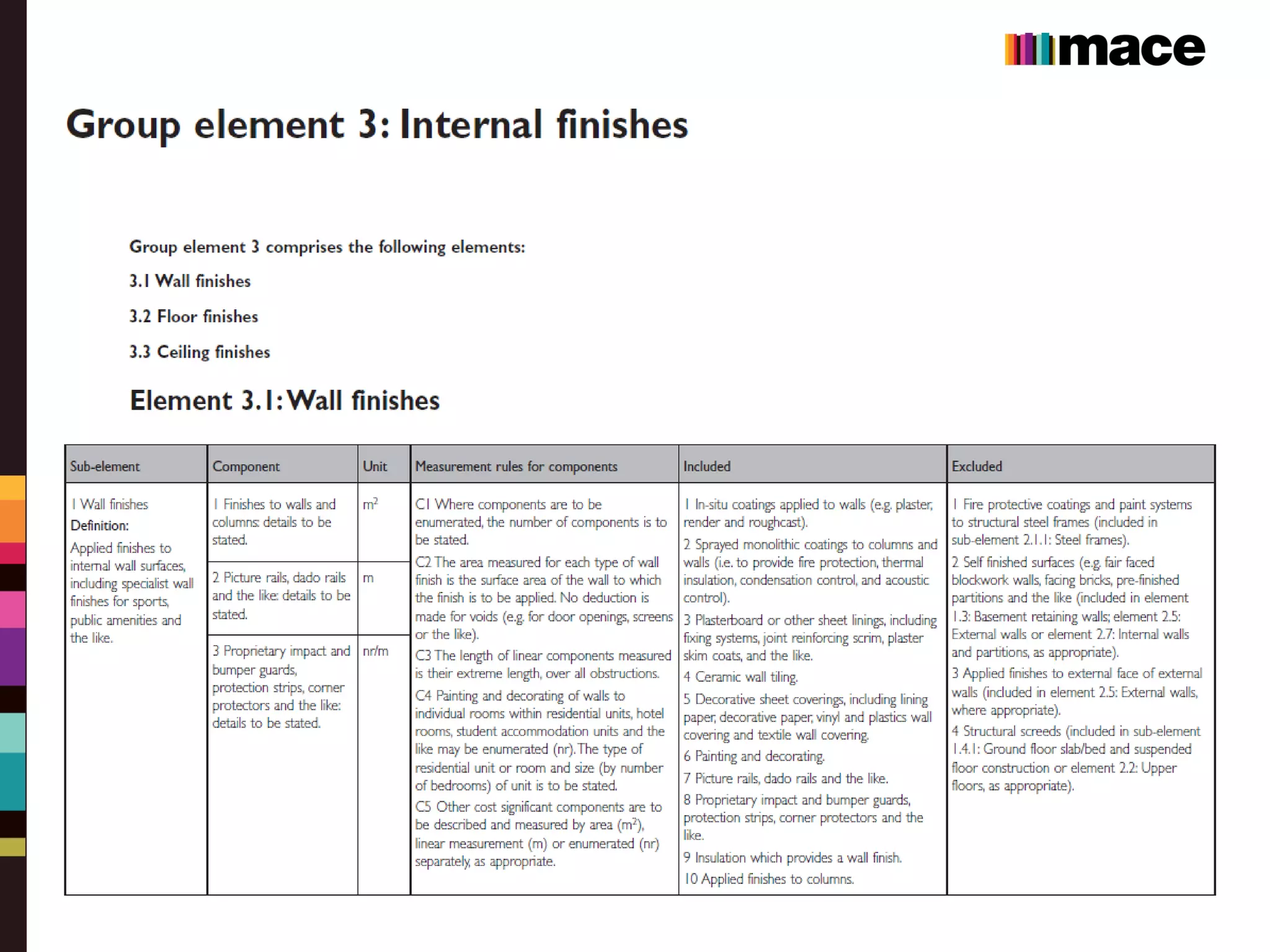

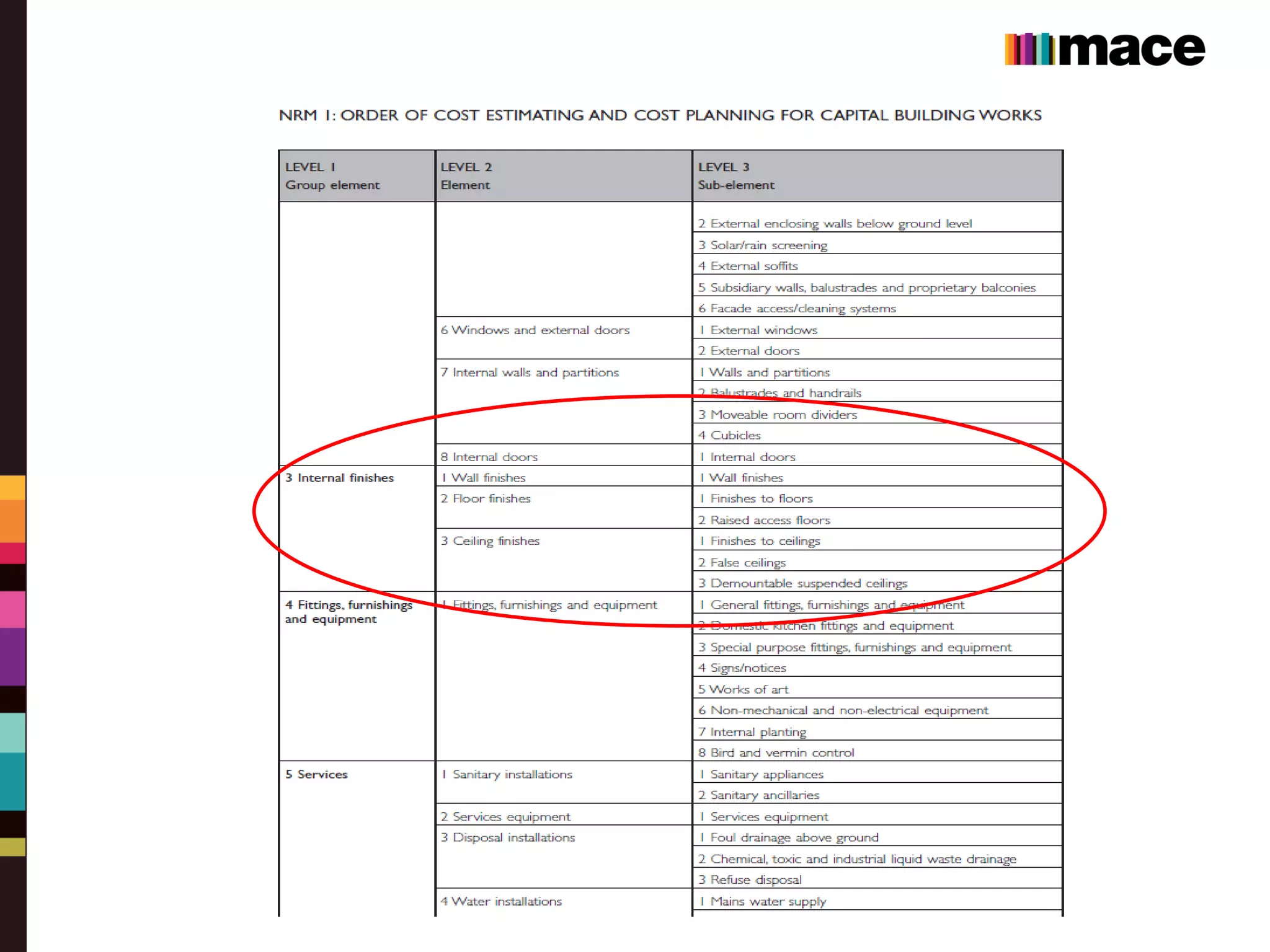

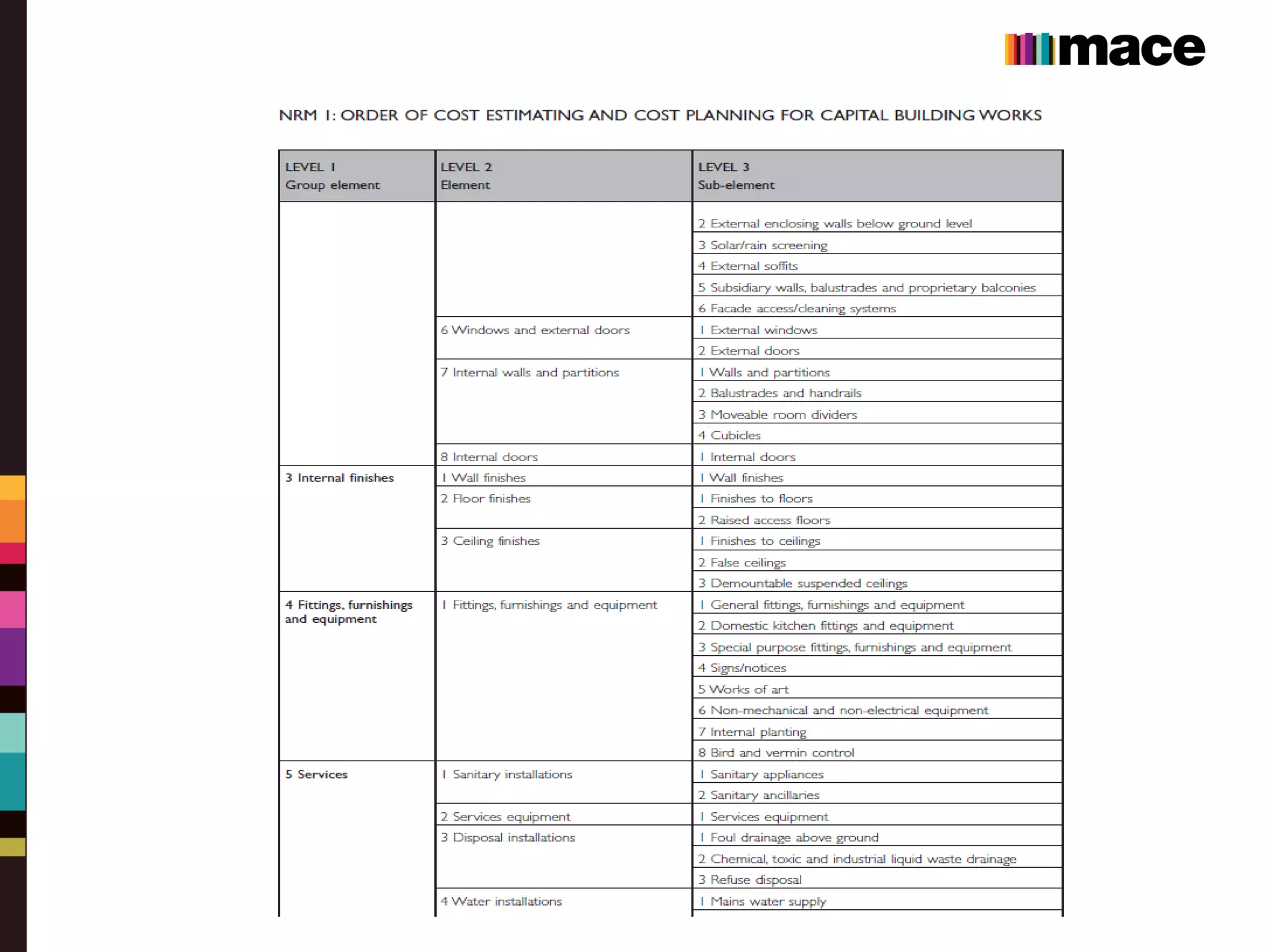

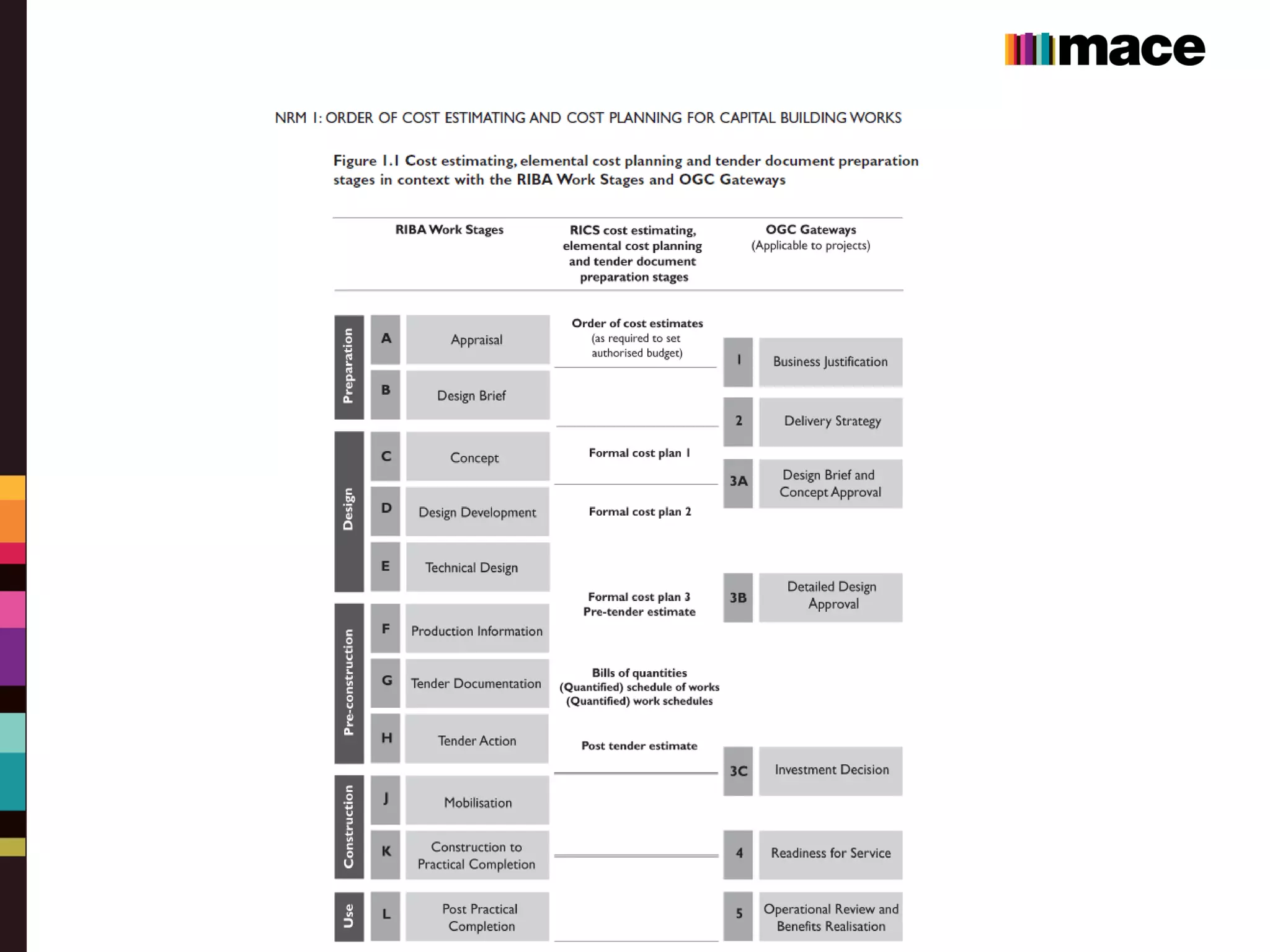

5. Rules of Measurement
(“The QS Bible’s”)
• Capital Cost
• Cost Estimates
• Cost Planning
NRM 1
• Detailed
Measurements
• Construction Costs
• Capital Replacement
Costs
NRM 2/2a • Through life costs
• Maintenance Cost
Estimates
• Maintenance Cost
Plans
NRM 3

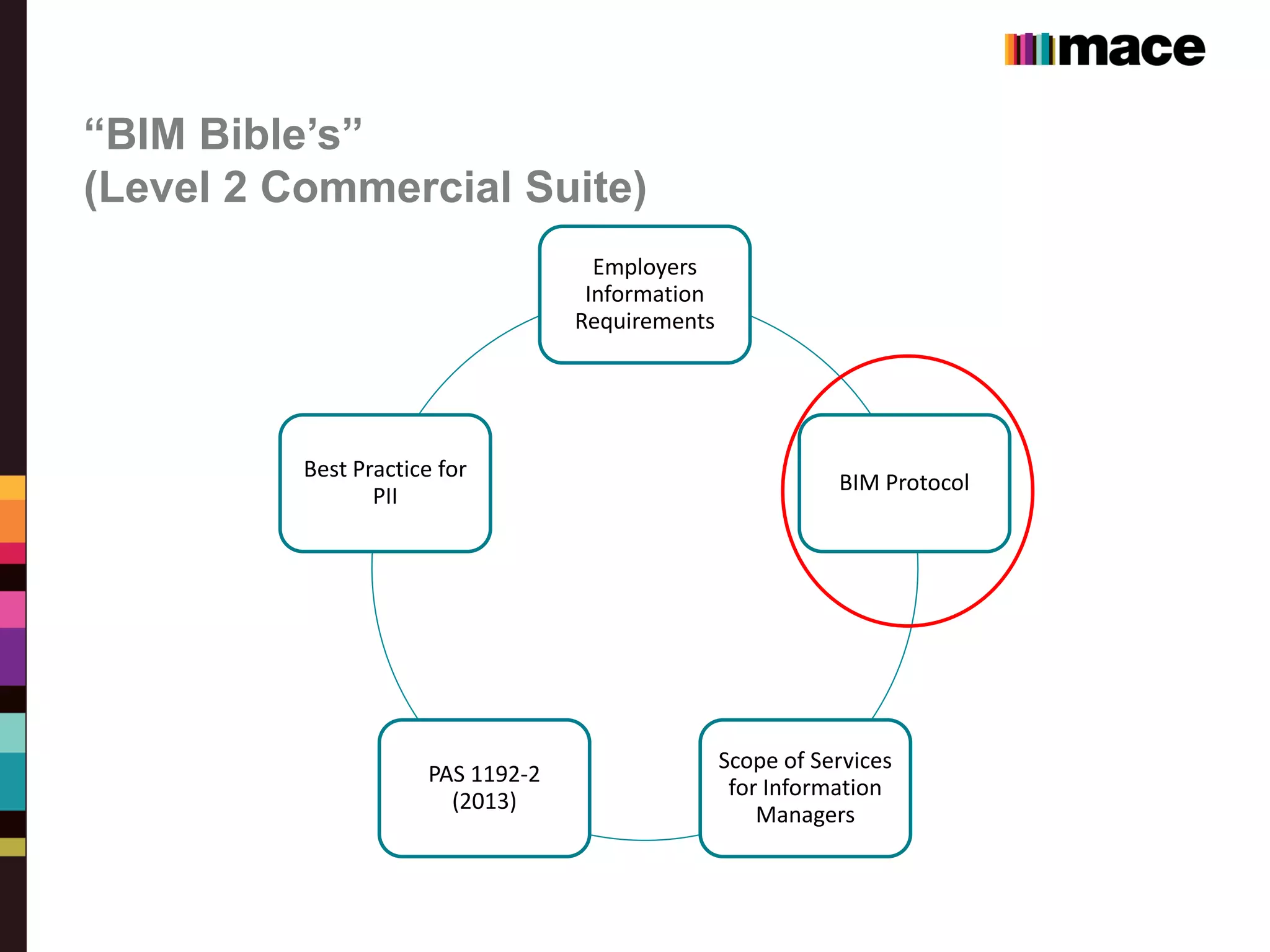

11. “BIM Bible’s”
(Level 2 Commercial Suite)
Employers
Information
Requirements
BIM Protocol
Scope of Services
for Information
Managers
PAS 1192-2
(2013)
Best Practice for
PII

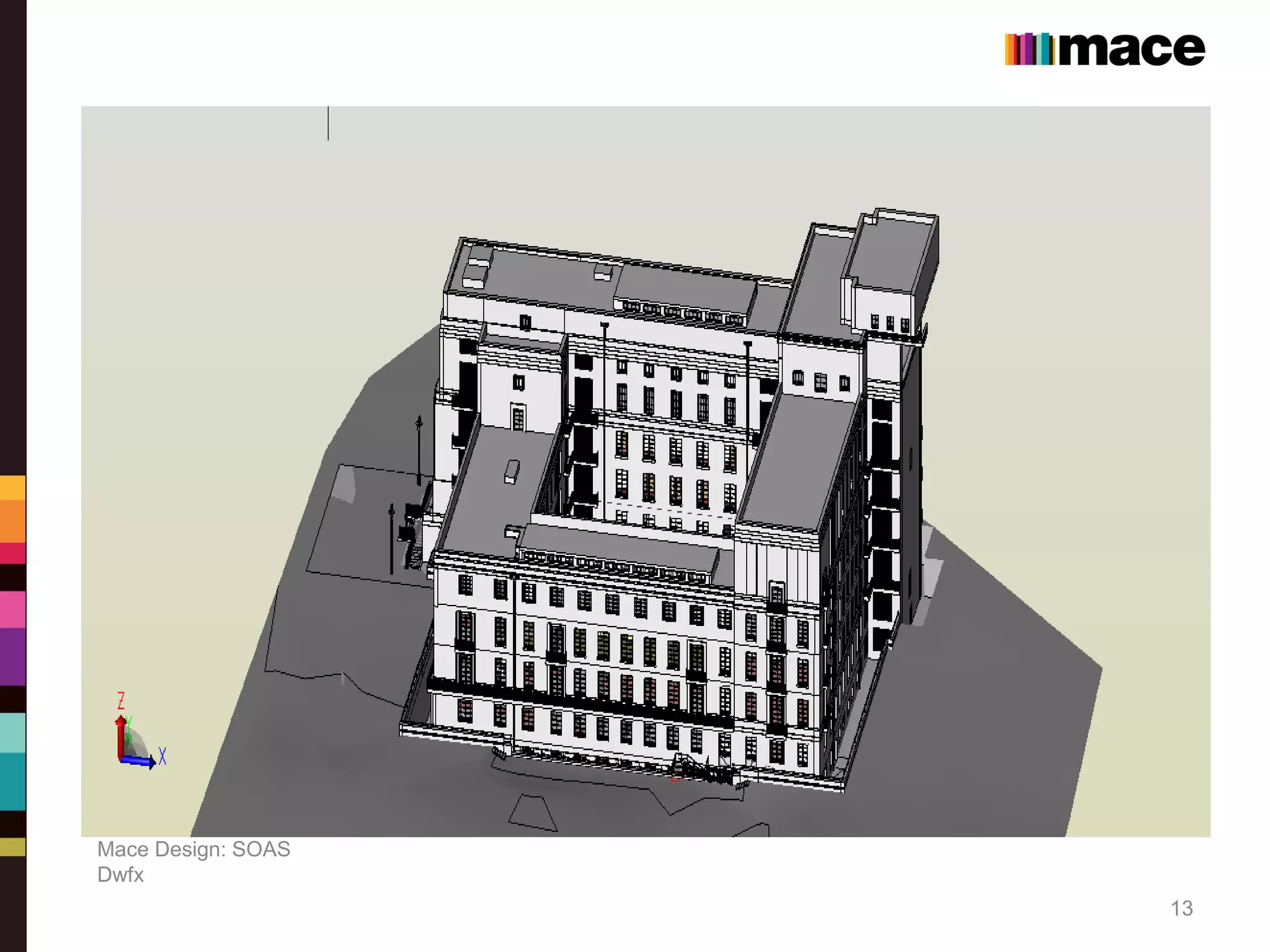

13. Mace Design: SOAS
Dwfx
13

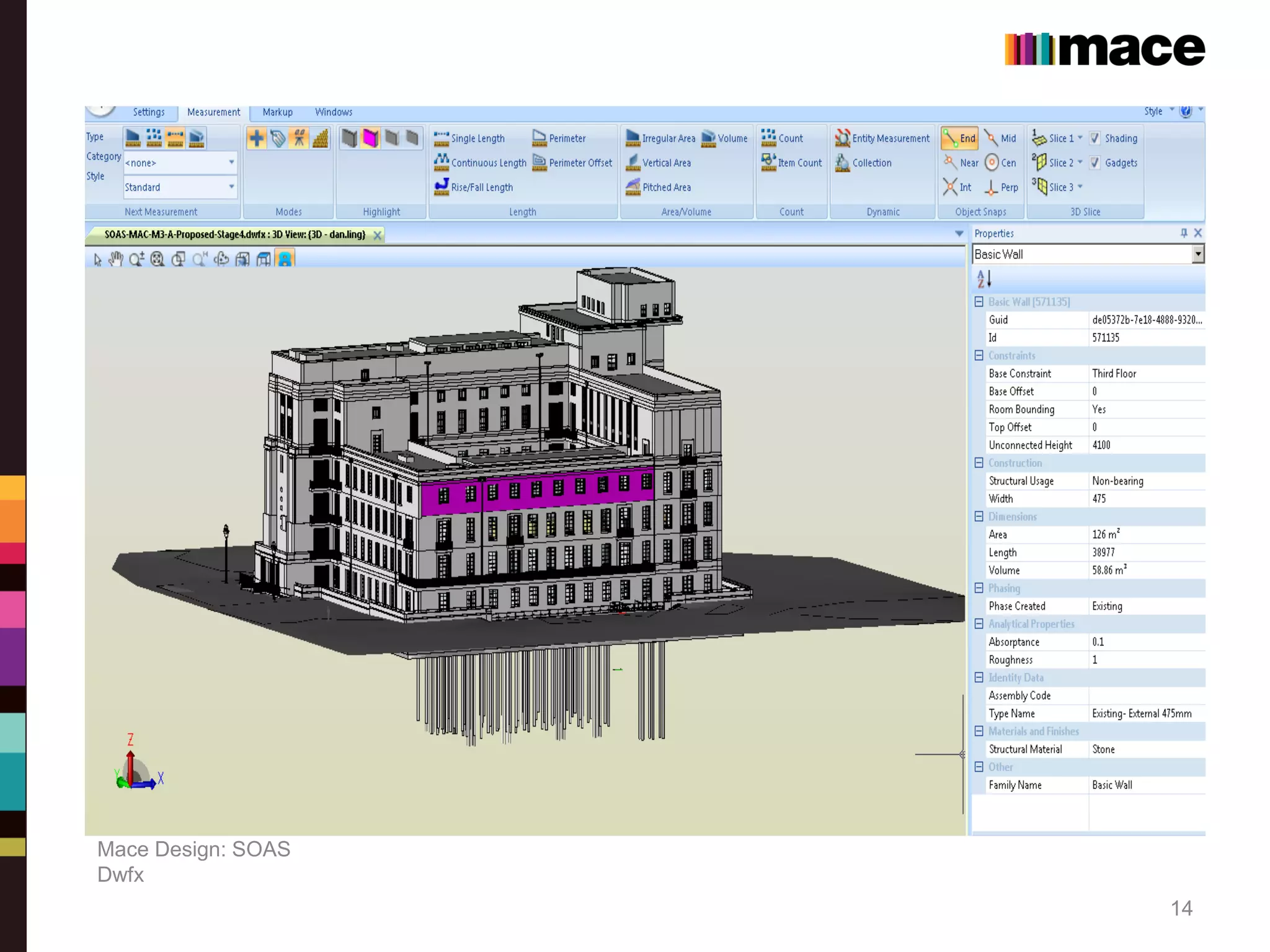

14. Mace Design: SOAS
Dwfx
14

15. Mace Design: SOAS
Dwfx
15

16. Mace Design: SOAS
Dwfx
16

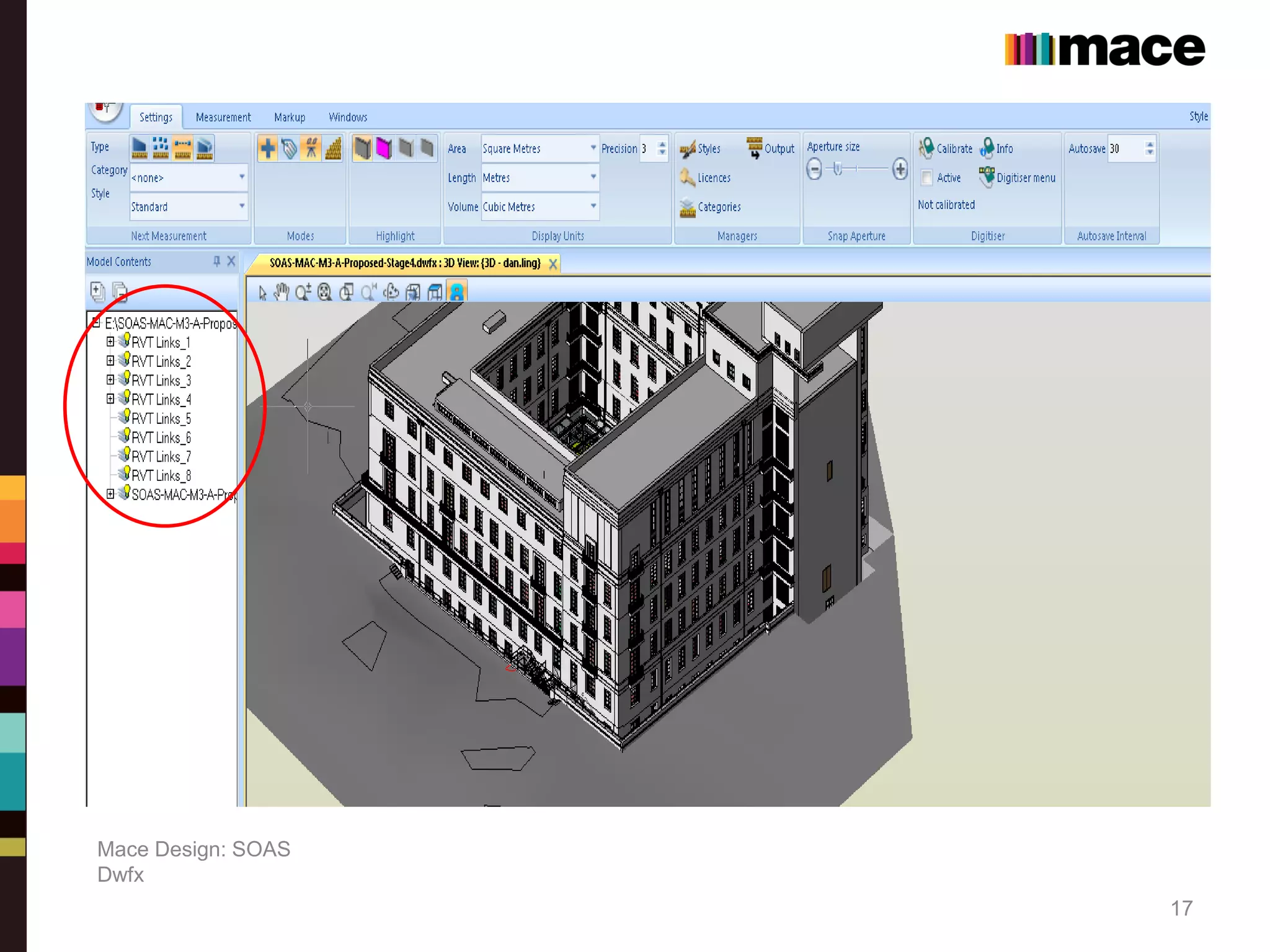

17. Mace Design: SOAS
Dwfx
17

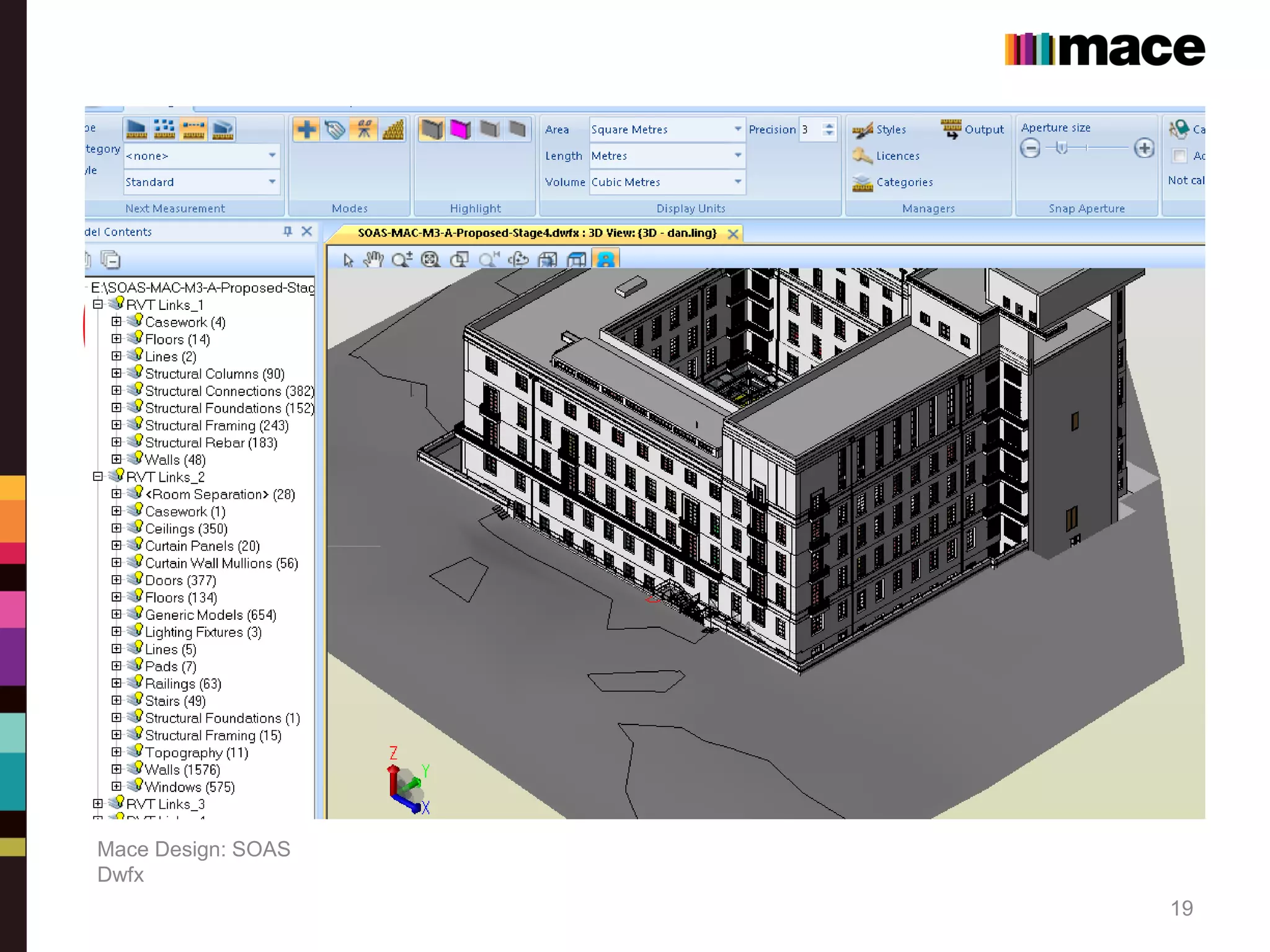

19. Mace Design: SOAS
Dwfx
19

20. Mace Design: SOAS
Dwfx
20

21. “BIM Bible’s”
(Level 2 Commercial Suite)
Employers
Information
Requirements
BIM Protocol
Scope of Services
for Information
Managers
PAS 1192-2
(2013)
Best Practice for
PII

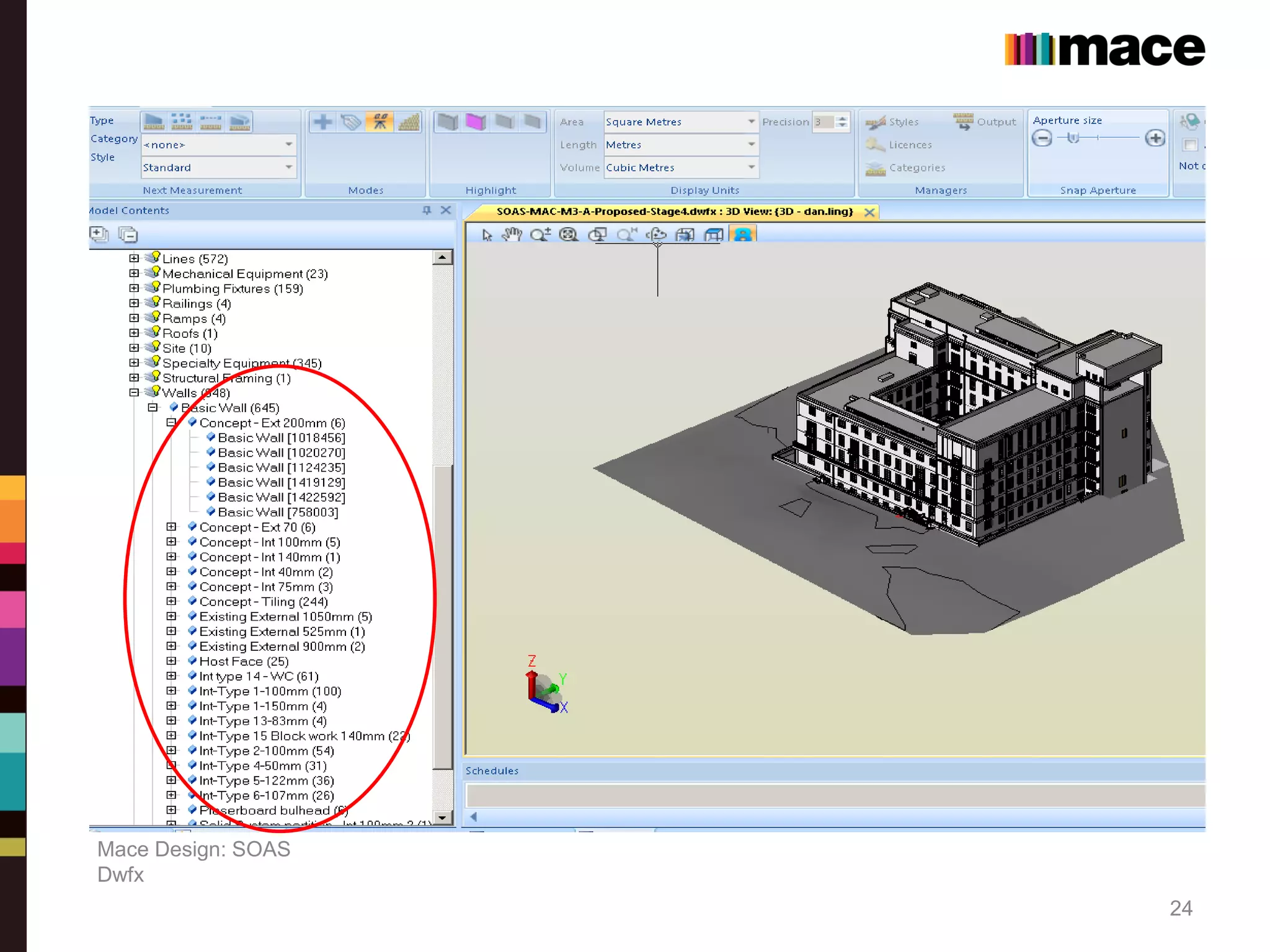

23. Mace Design: SOAS
Dwfx
23

24. Mace Design: SOAS
Dwfx
24

25. Mace Design: SOAS
Dwfx
25

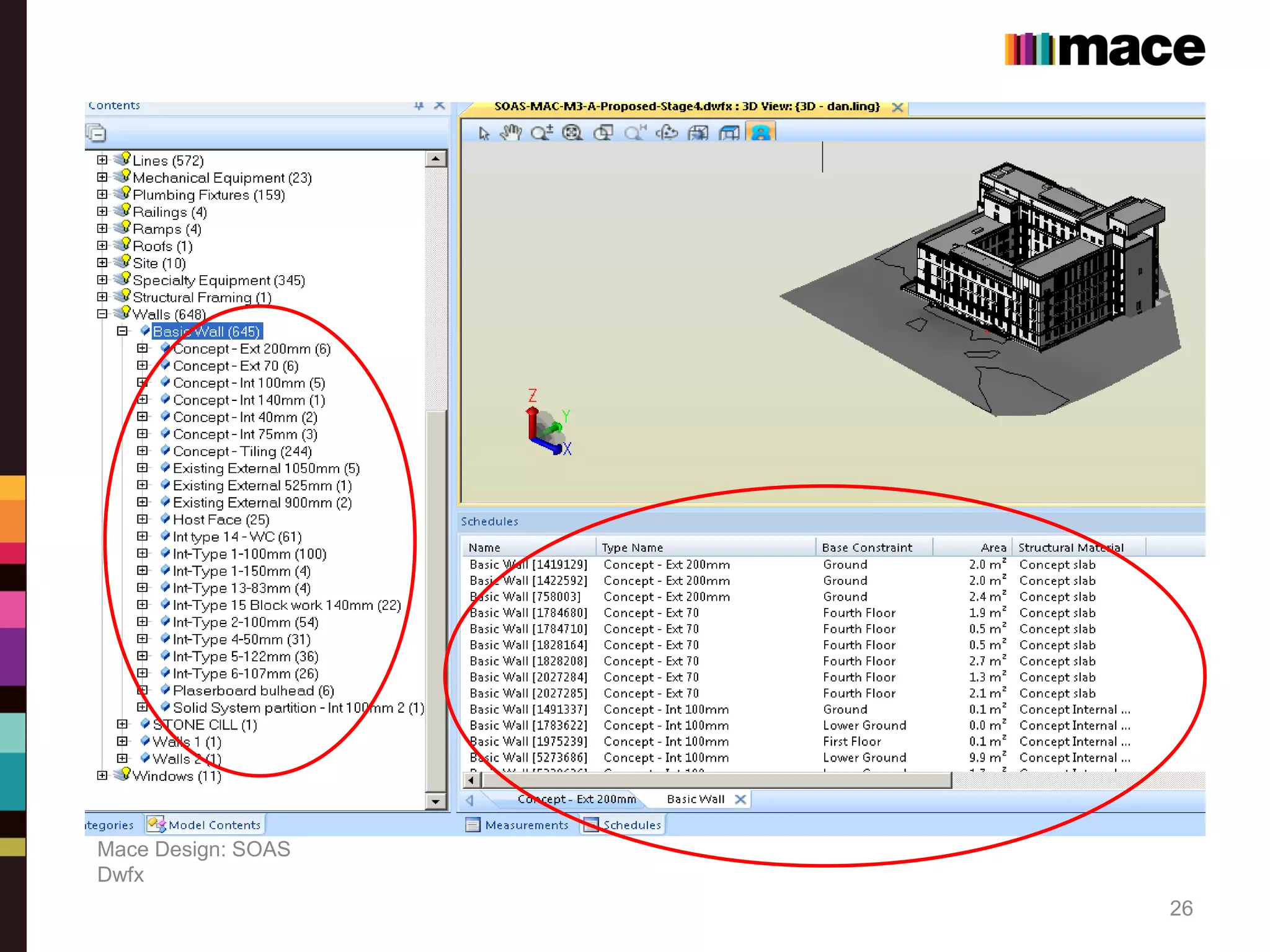

26. Mace Design: SOAS
Dwfx
26

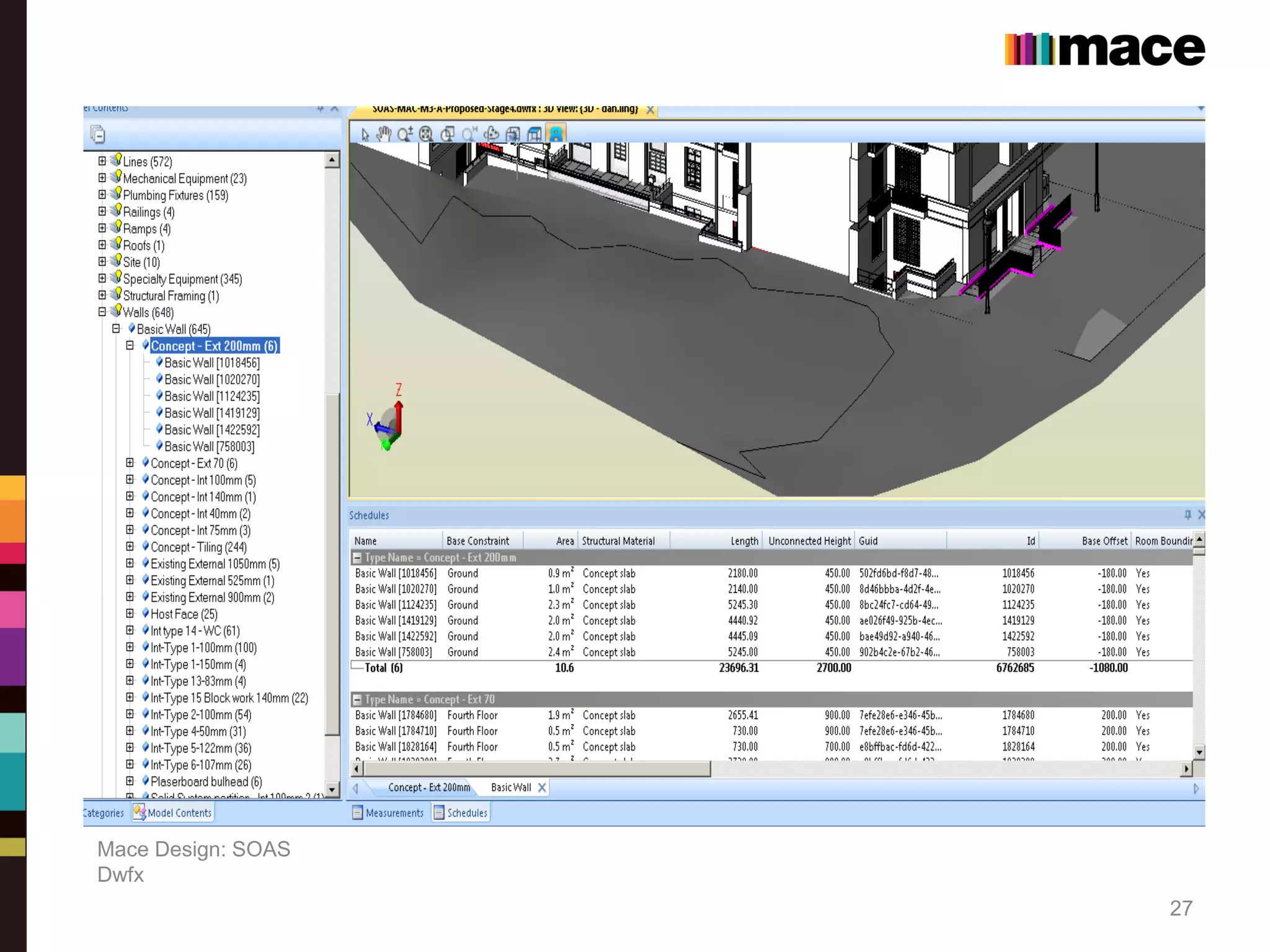

27. Mace Design: SOAS
Dwfx
27

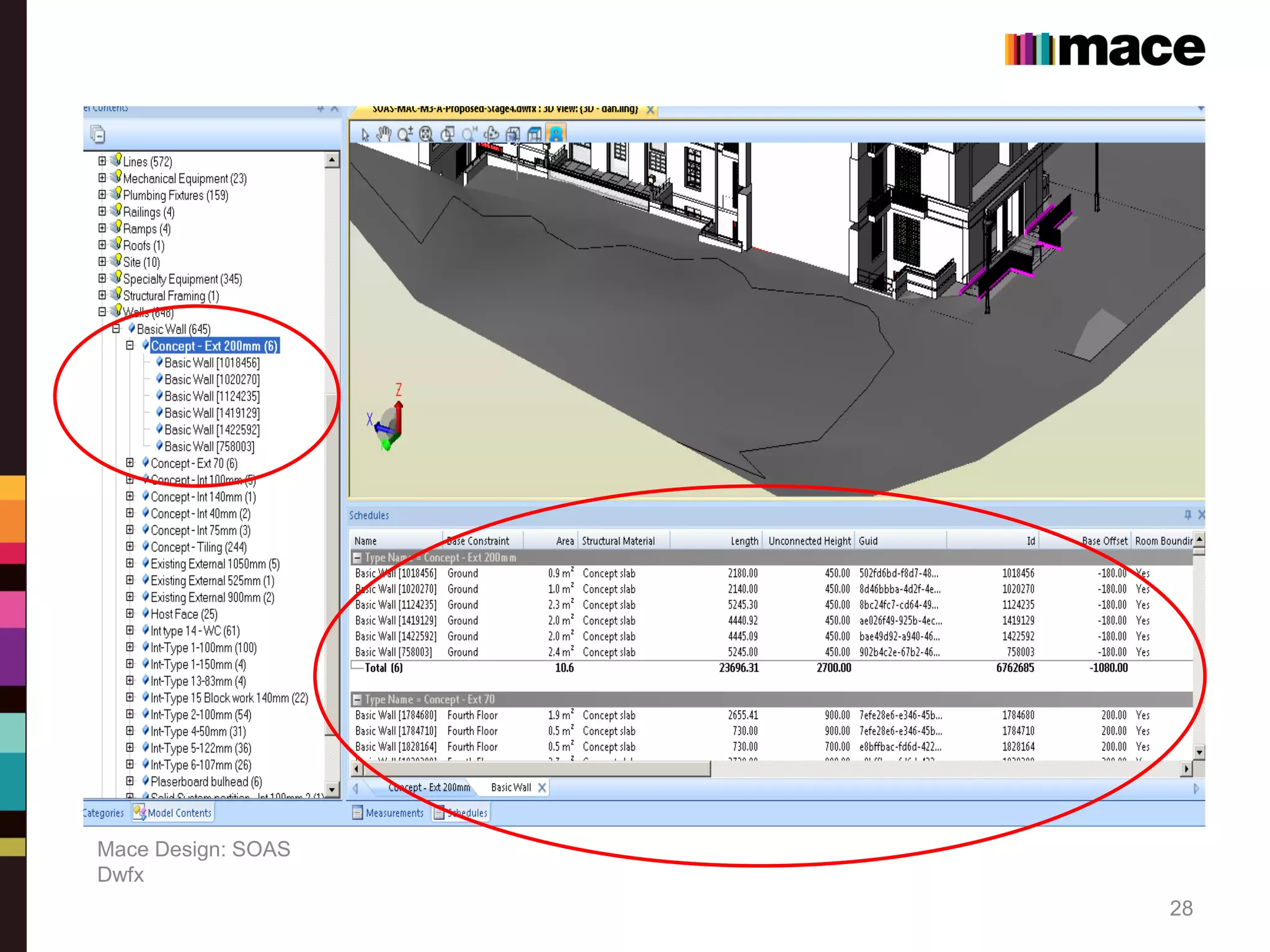

28. Mace Design: SOAS
Dwfx
28

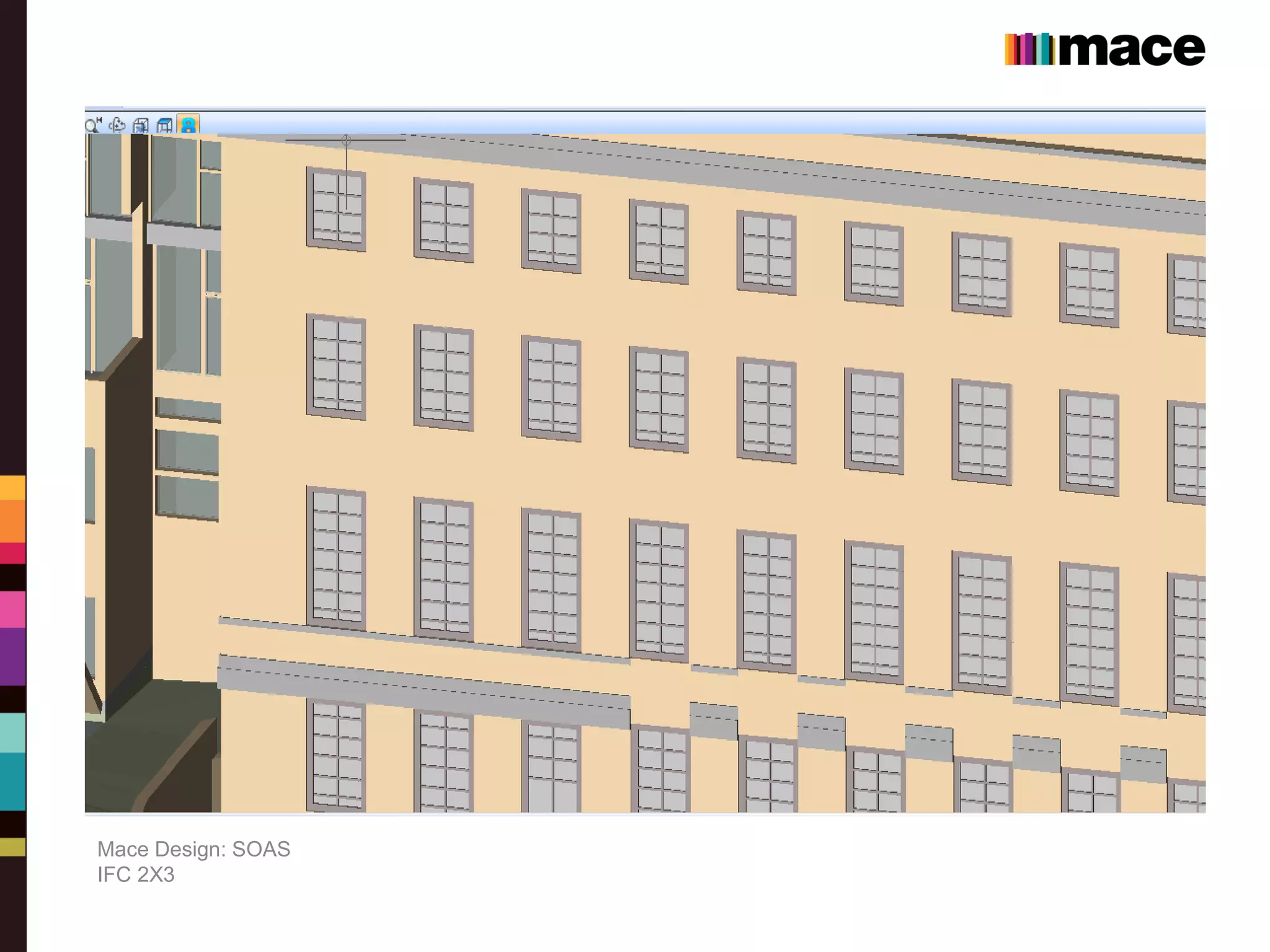

30. Mace Design: SOAS
IFC 2X3

31. Mace Design: SOAS
Ifc 2X3
Mace Design: SOAS
Dwfx

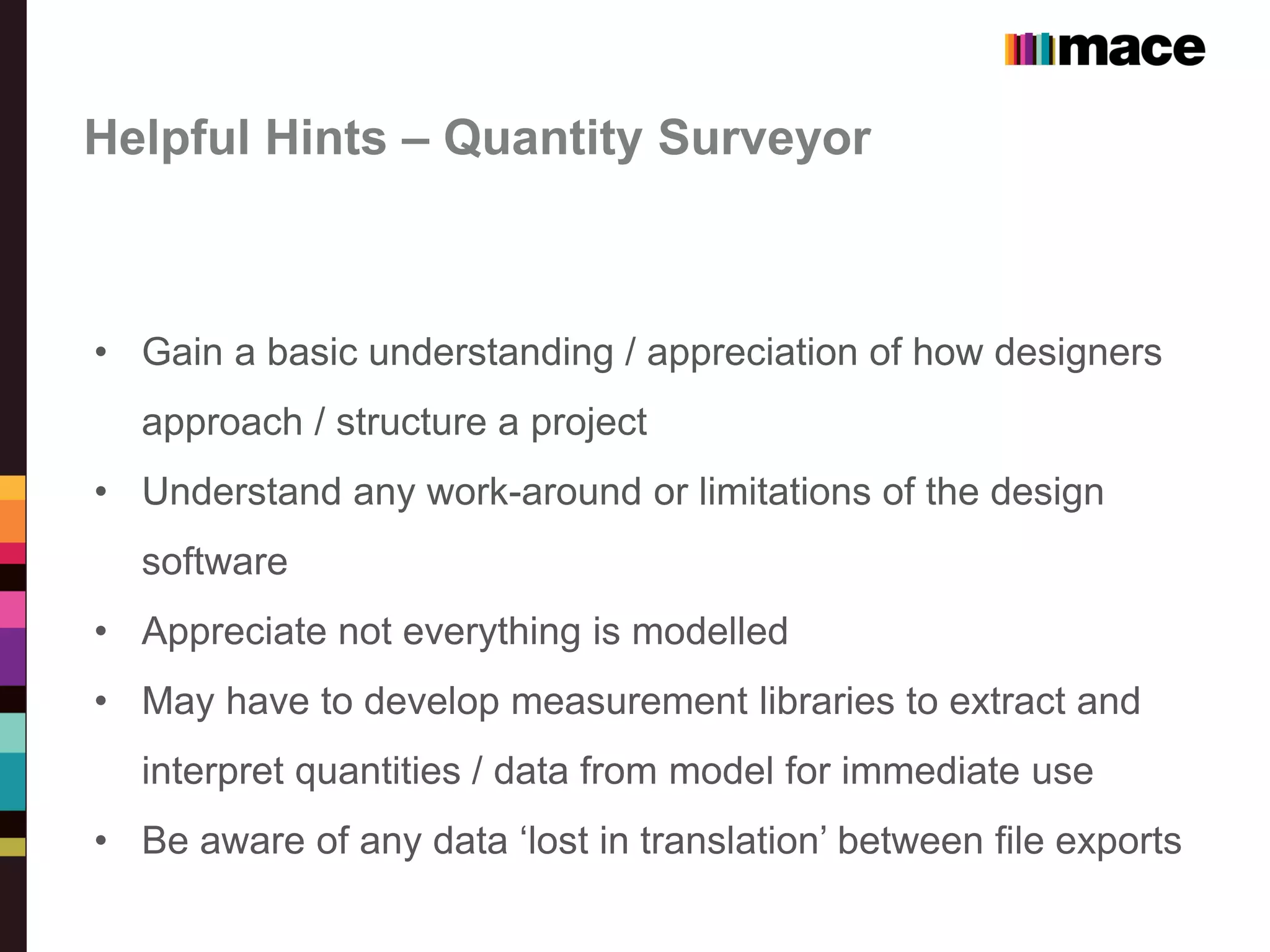

32. Helpful Hints – Quantity Surveyor
• Gain a basic understanding / appreciation of how designers
approach / structure a project
• Understand any work-around or limitations of the design
software
• Appreciate not everything is modelled
• May have to develop measurement libraries to extract and
interpret quantities / data from model for immediate use
• Be aware of any data ‘lost in translation’ between file exports

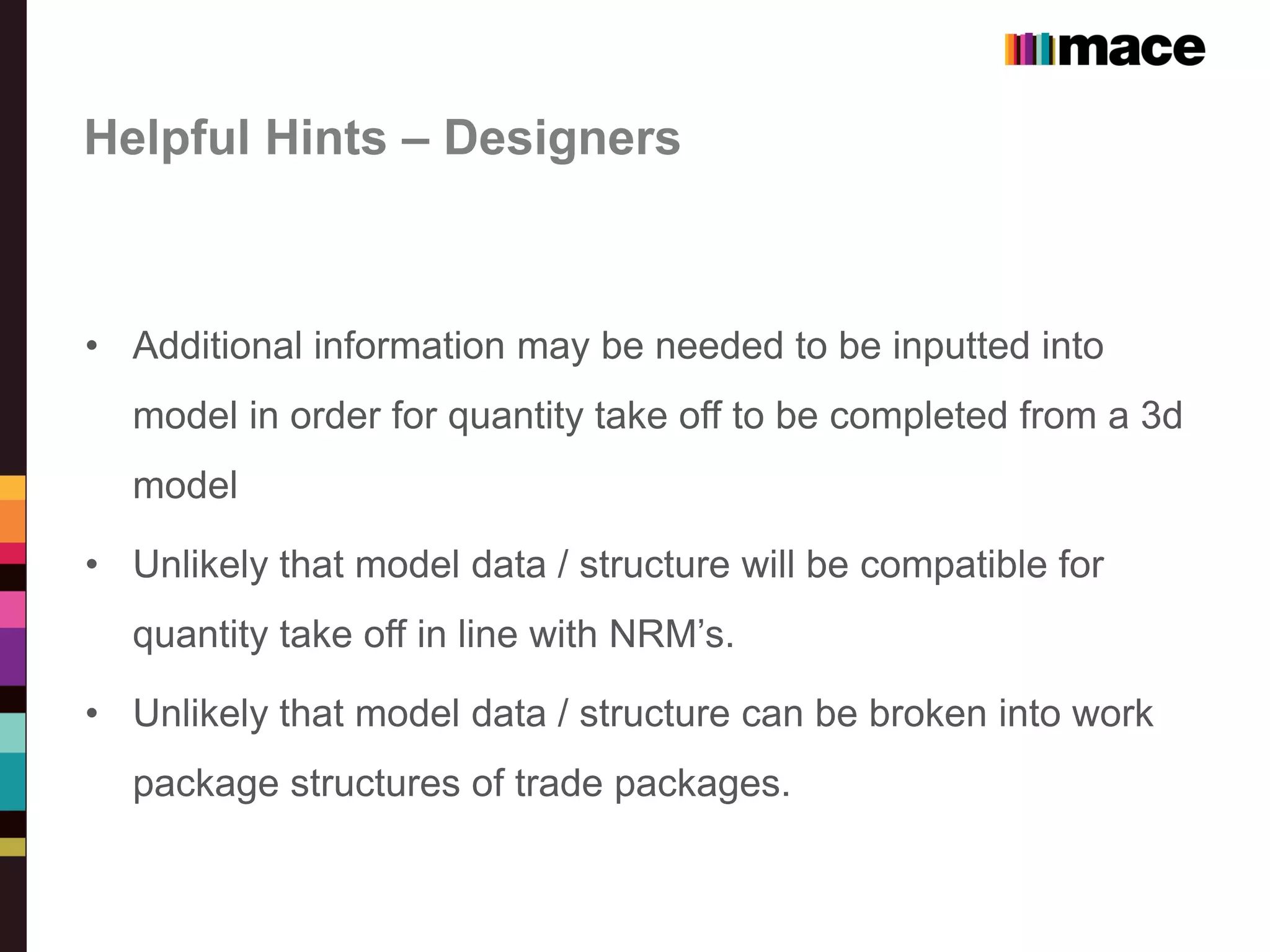

33. Helpful Hints – Designers
• Additional information may be needed to be inputted into
model in order for quantity take off to be completed from a 3d
model
• Unlikely that model data / structure will be compatible for
quantity take off in line with NRM’s.
• Unlikely that model data / structure can be broken into work
package structures of trade packages.

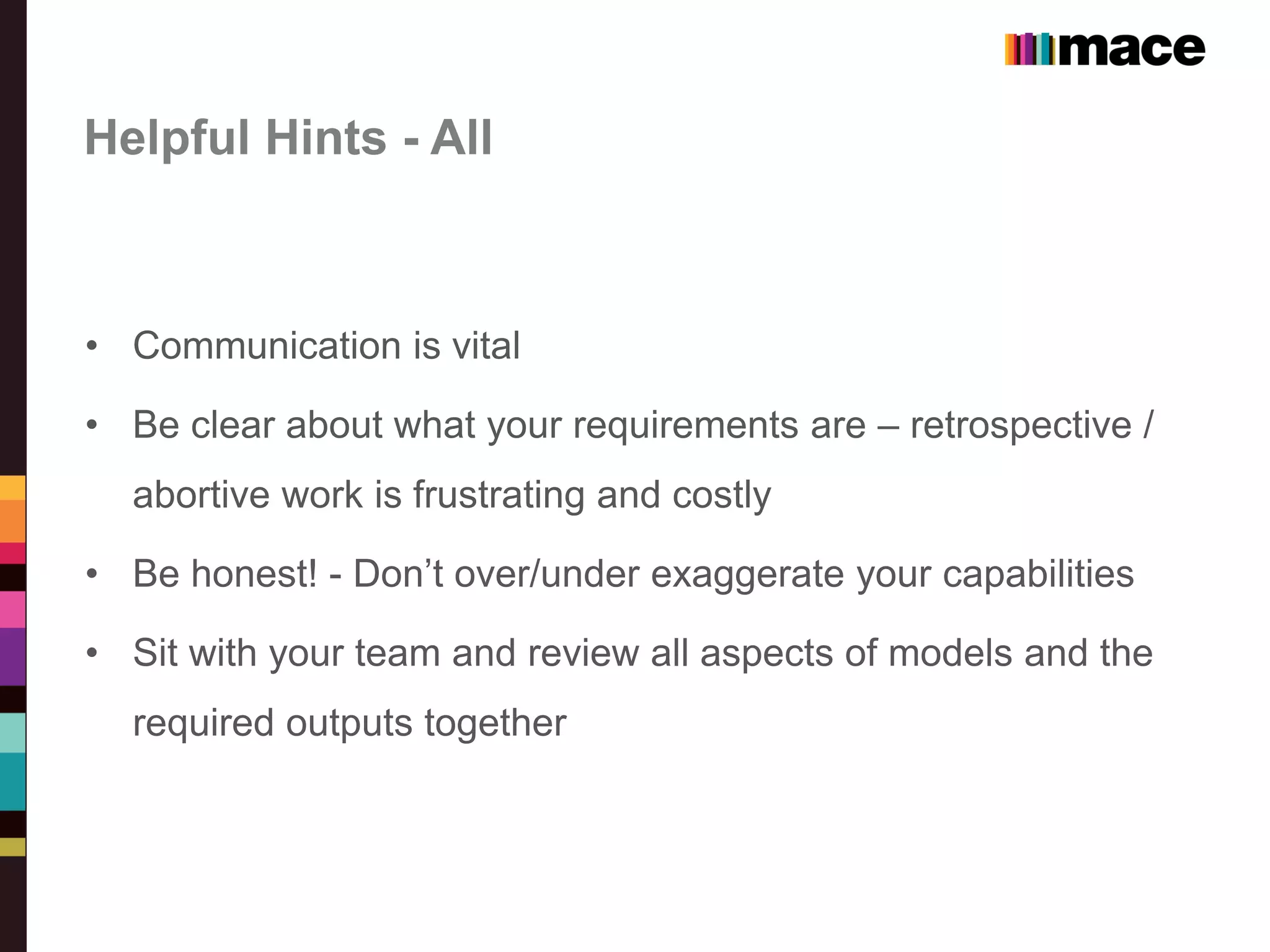

34. Helpful Hints - All
• Communication is vital
• Be clear about what your requirements are – retrospective /
abortive work is frustrating and costly
• Be honest! - Don’t over/under exaggerate your capabilities
• Sit with your team and review all aspects of models and the
required outputs together
