This document provides load, shear, and moment diagrams for a girder with floor beams. The diagrams show how loads are distributed and the internal forces - shear and bending moment - acting at different points along the girder and floor beams. In a few diagrams, the key information about load distribution and internal forces is presented.

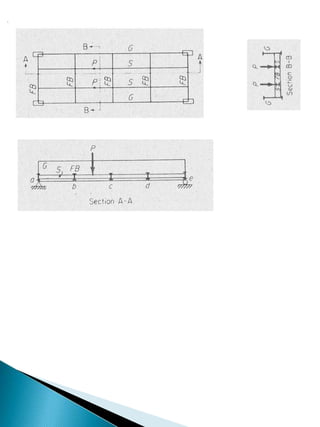

1. For Girder with Floor Beams

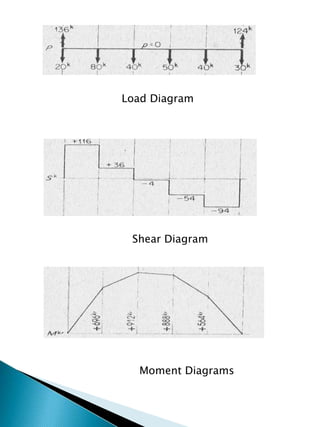

4. Load Diagram
Shear Diagram
Moment Diagrams
