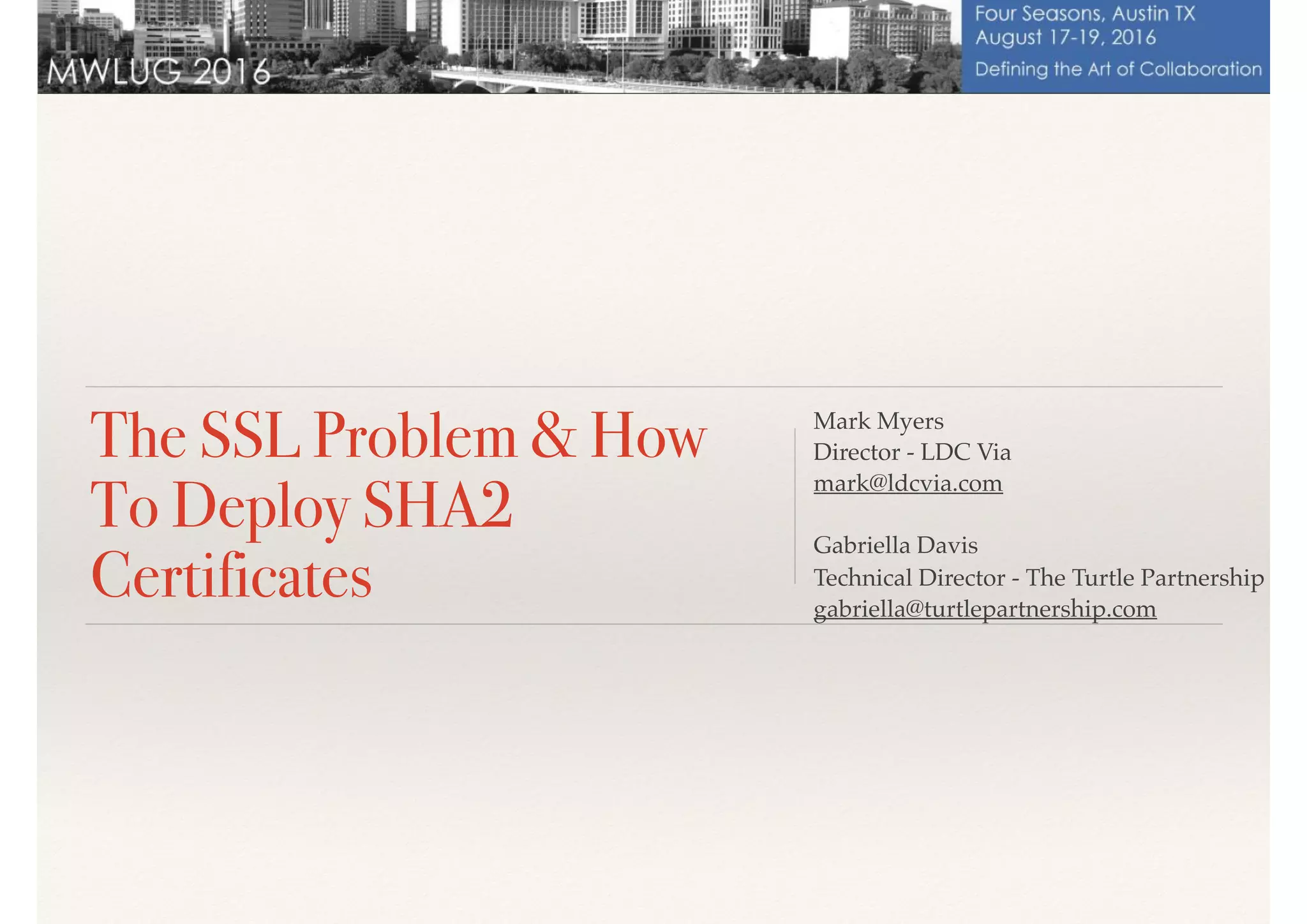

Two years ago enabling your site with SSL was a simple affair, buy a certificate or create your own, install it, then just remember to renew it every couple of years. Then, suddenly security holes are being found in SSL virtually every month , popular browsers stop connecting to your site to protect themselves, and you’re continually being told your users data is at risk. In this session we will discuss how it all went wrong and can go wrong again, then go through each step of requesting, generating and deploying a 4096 SHA-2 certificate to use in a keyfile by Domino, IBM Connections, IBM Sametime and other WebSphere products. If you work with these IBM products and need to secure them with confidence this session will show you how!

1. The SSL Problem & How
To Deploy SHA2
Certificates
Mark Myers
Director - LDC Via
mark@ldcvia.com
Gabriella Davis
Technical Director - The Turtle Partnership
gabriella@turtlepartnership.com

2. Who Are We?
❖ Admin of all things and especially
quite complicated things where the
fun is
❖ Working with security , healthchecks,
single sign on, design and deployment
of Domino, ST, Connec>ons and things
that they talk to
❖ Stubborn and relentless problem
solver
❖ Lives in London about half of the >me
❖ gabriella@turtlepartnership.com
❖ twiDer: gabturtle

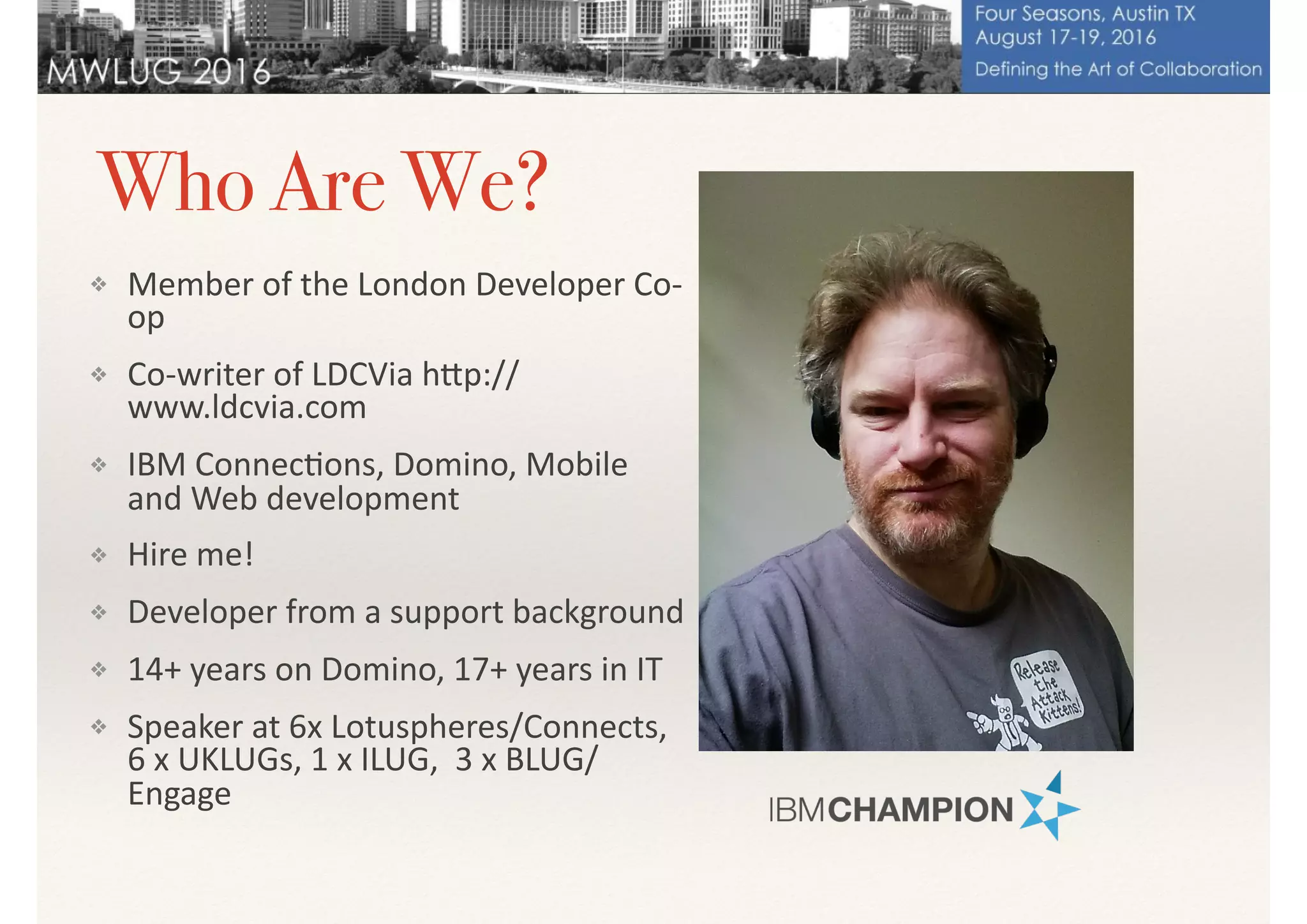

3. Who Are We?
❖ Member of the London Developer Co-
op
❖ Co-writer of LDCVia hDp://
www.ldcvia.com
❖ IBM Connec>ons, Domino, Mobile
and Web development
❖ Hire me!
❖ Developer from a support background
❖ 14+ years on Domino, 17+ years in IT
❖ Speaker at 6x Lotuspheres/Connects,
6 x UKLUGs, 1 x ILUG, 3 x BLUG/
Engage

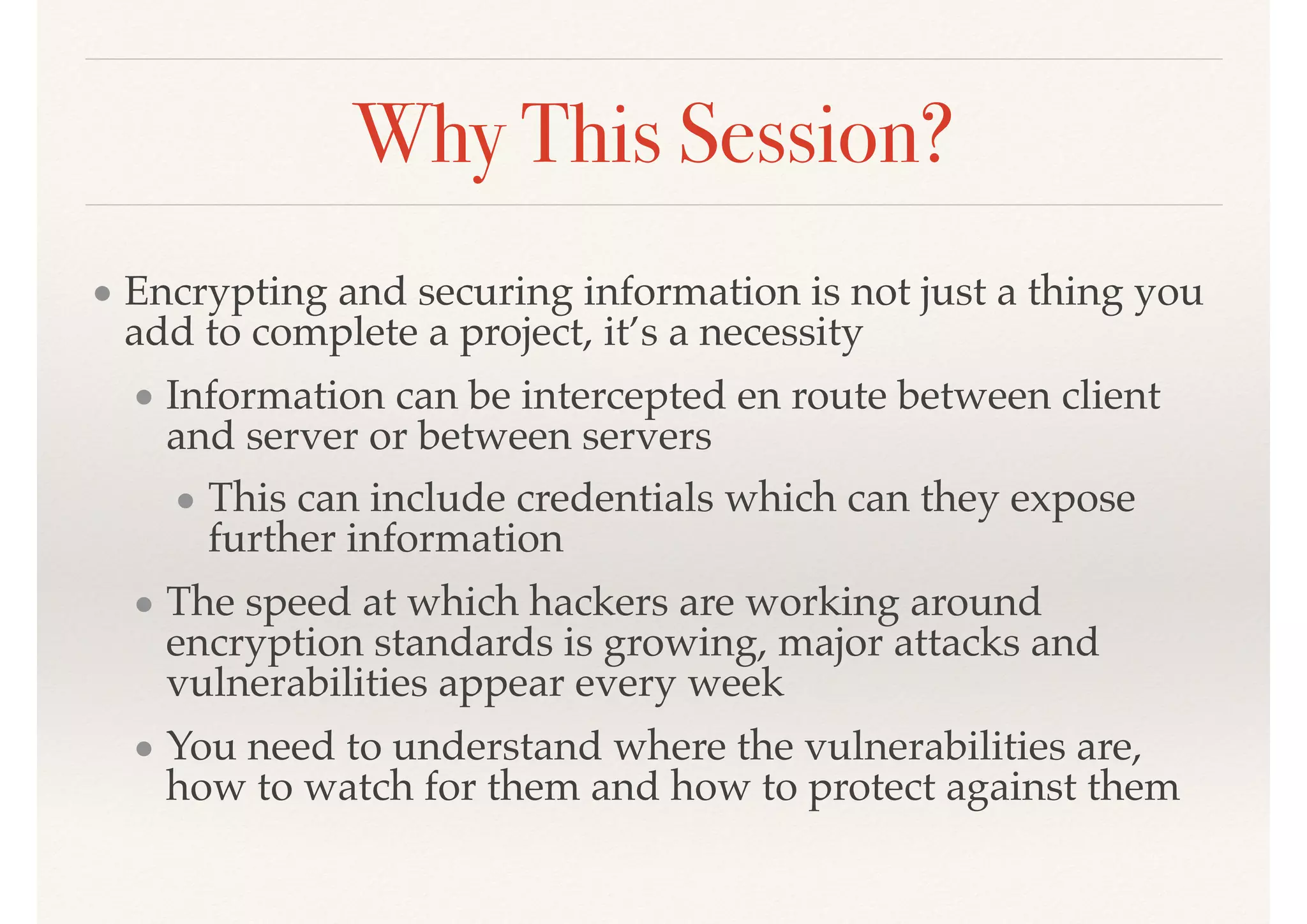

4. Why This Session?
• Encrypting and securing information is not just a thing you
add to complete a project, it’s a necessity
• Information can be intercepted en route between client
and server or between servers
• This can include credentials which can they expose
further information
• The speed at which hackers are working around
encryption standards is growing, major attacks and
vulnerabilities appear every week
• You need to understand where the vulnerabilities are,
how to watch for them and how to protect against them

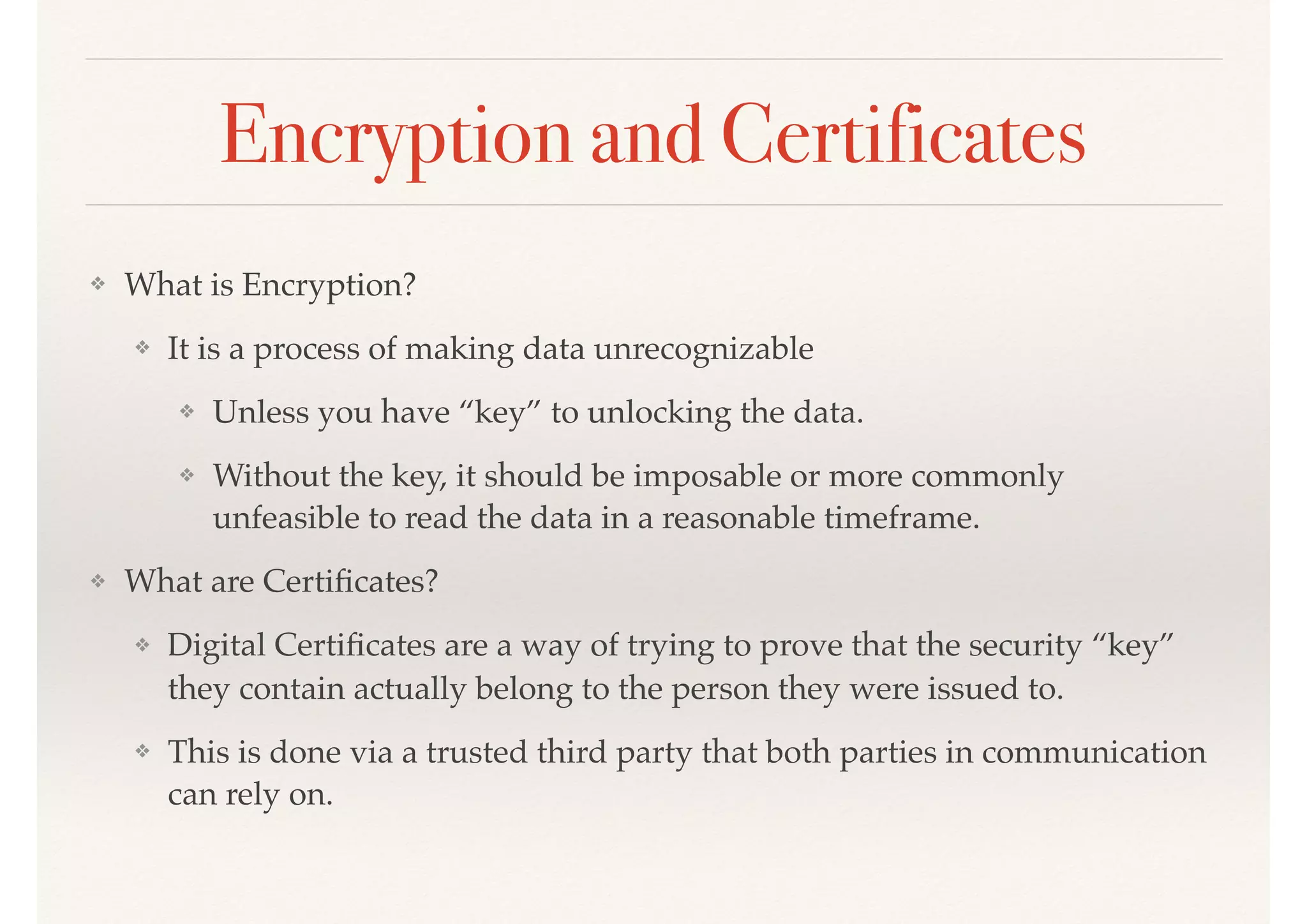

5. Encryption and Certificates
❖ What is Encryption?
❖ It is a process of making data unrecognizable
❖ Unless you have “key” to unlocking the data.
❖ Without the key, it should be imposable or more commonly
unfeasible to read the data in a reasonable timeframe.
❖ What are Certificates?
❖ Digital Certificates are a way of trying to prove that the security “key”
they contain actually belong to the person they were issued to.
❖ This is done via a trusted third party that both parties in communication
can rely on.

6. Let’s Talk Acronyms

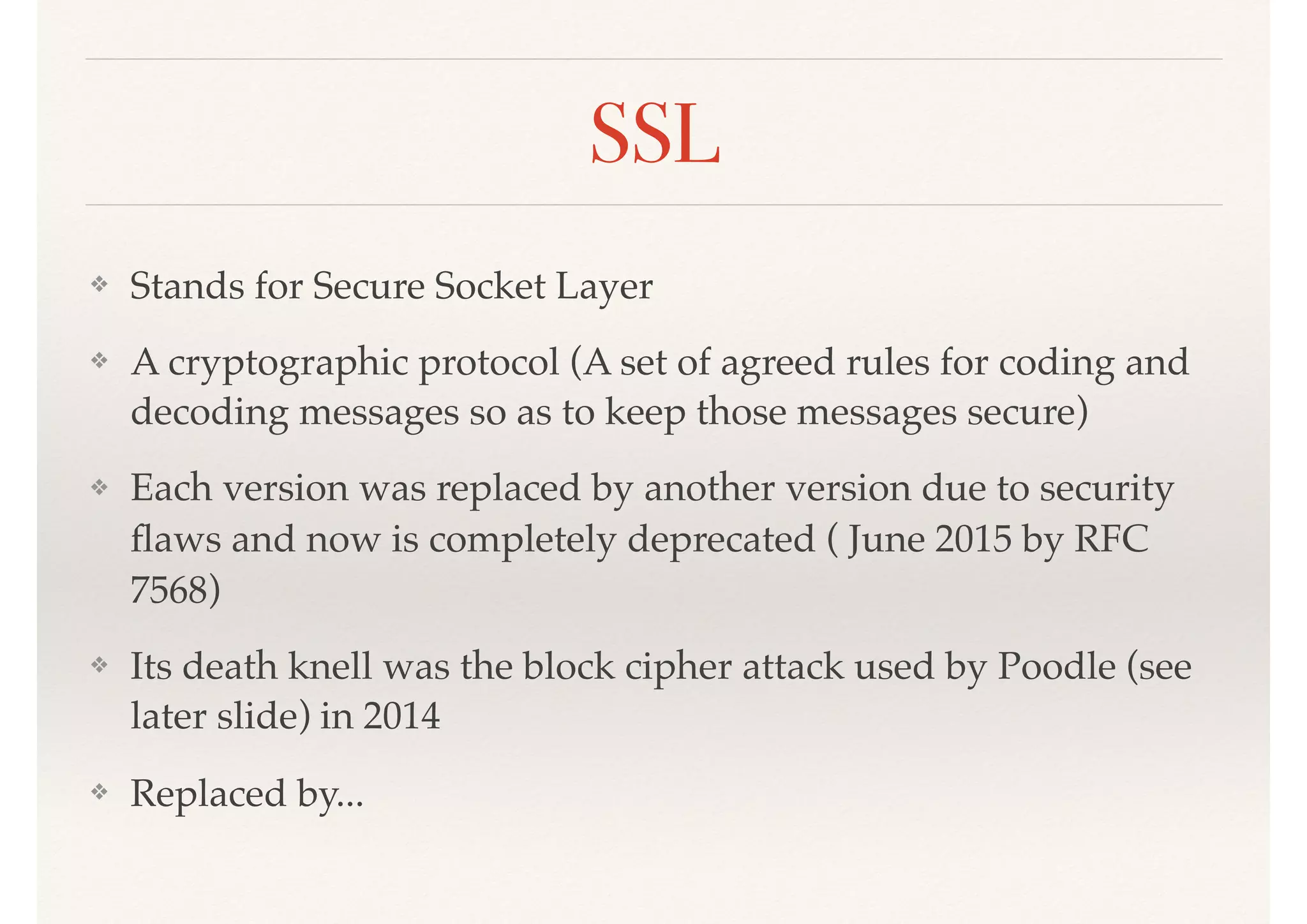

7. SSL
❖ Stands for Secure Socket Layer
❖ A cryptographic protocol (A set of agreed rules for coding and
decoding messages so as to keep those messages secure)
❖ Each version was replaced by another version due to security
flaws and now is completely deprecated ( June 2015 by RFC
7568)
❖ Its death knell was the block cipher attack used by Poodle (see
later slide) in 2014
❖ Replaced by...

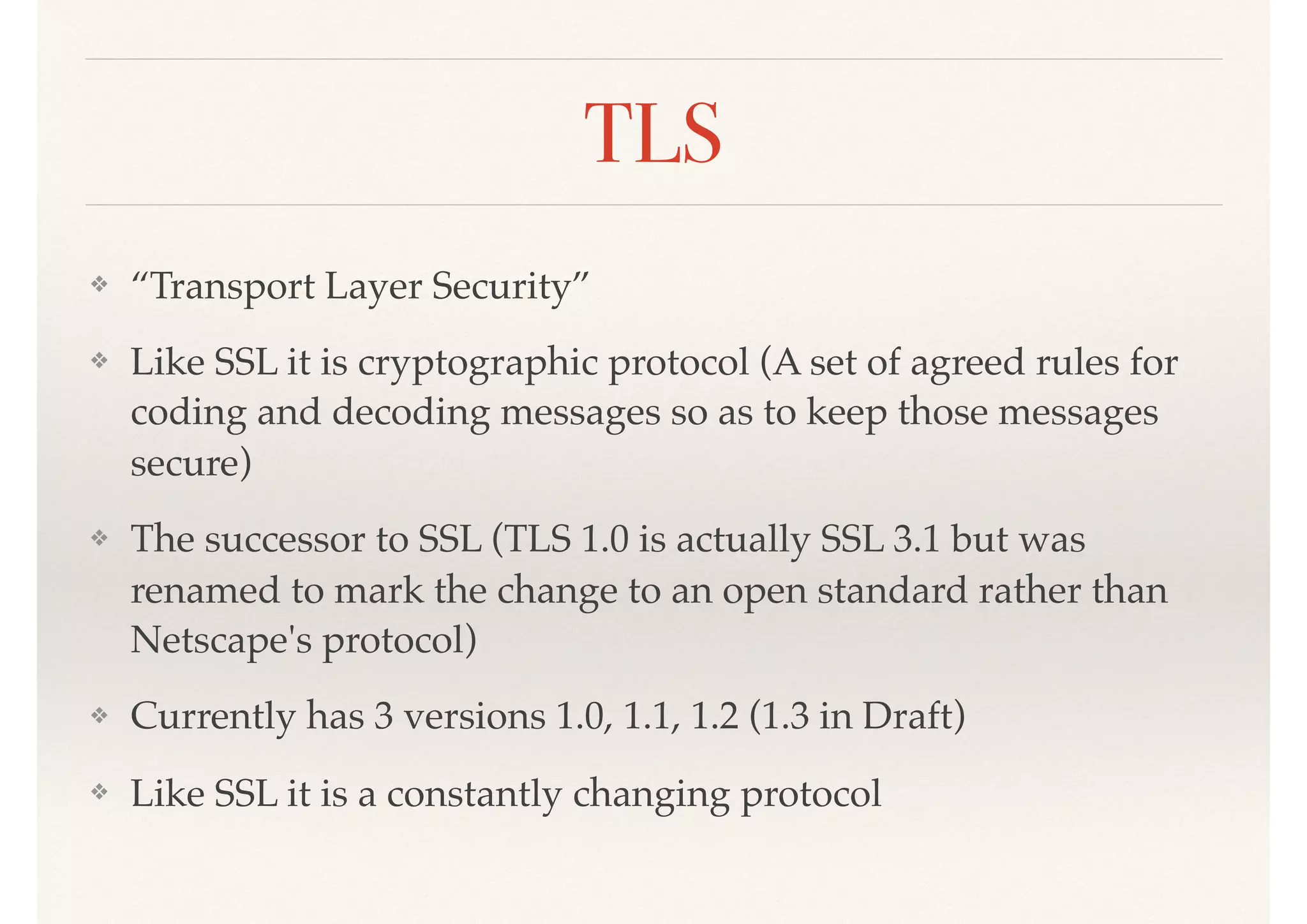

8. TLS
❖ “Transport Layer Security”
❖ Like SSL it is cryptographic protocol (A set of agreed rules for
coding and decoding messages so as to keep those messages
secure)
❖ The successor to SSL (TLS 1.0 is actually SSL 3.1 but was
renamed to mark the change to an open standard rather than
Netscape's protocol)
❖ Currently has 3 versions 1.0, 1.1, 1.2 (1.3 in Draft)
❖ Like SSL it is a constantly changing protocol

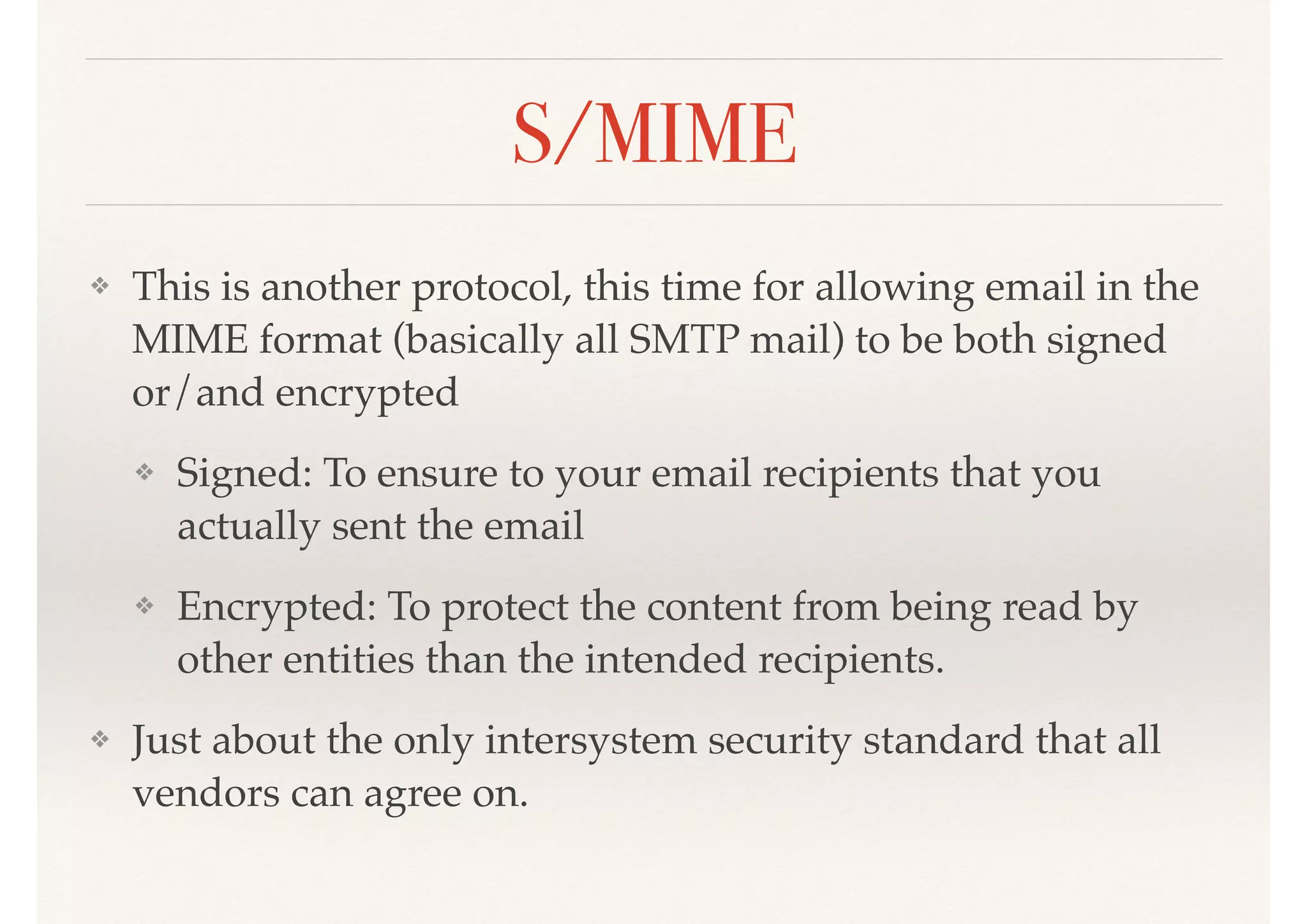

9. S/MIME
❖ This is another protocol, this time for allowing email in the
MIME format (basically all SMTP mail) to be both signed
or/and encrypted
❖ Signed: To ensure to your email recipients that you
actually sent the email
❖ Encrypted: To protect the content from being read by
other entities than the intended recipients.
❖ Just about the only intersystem security standard that all
vendors can agree on.

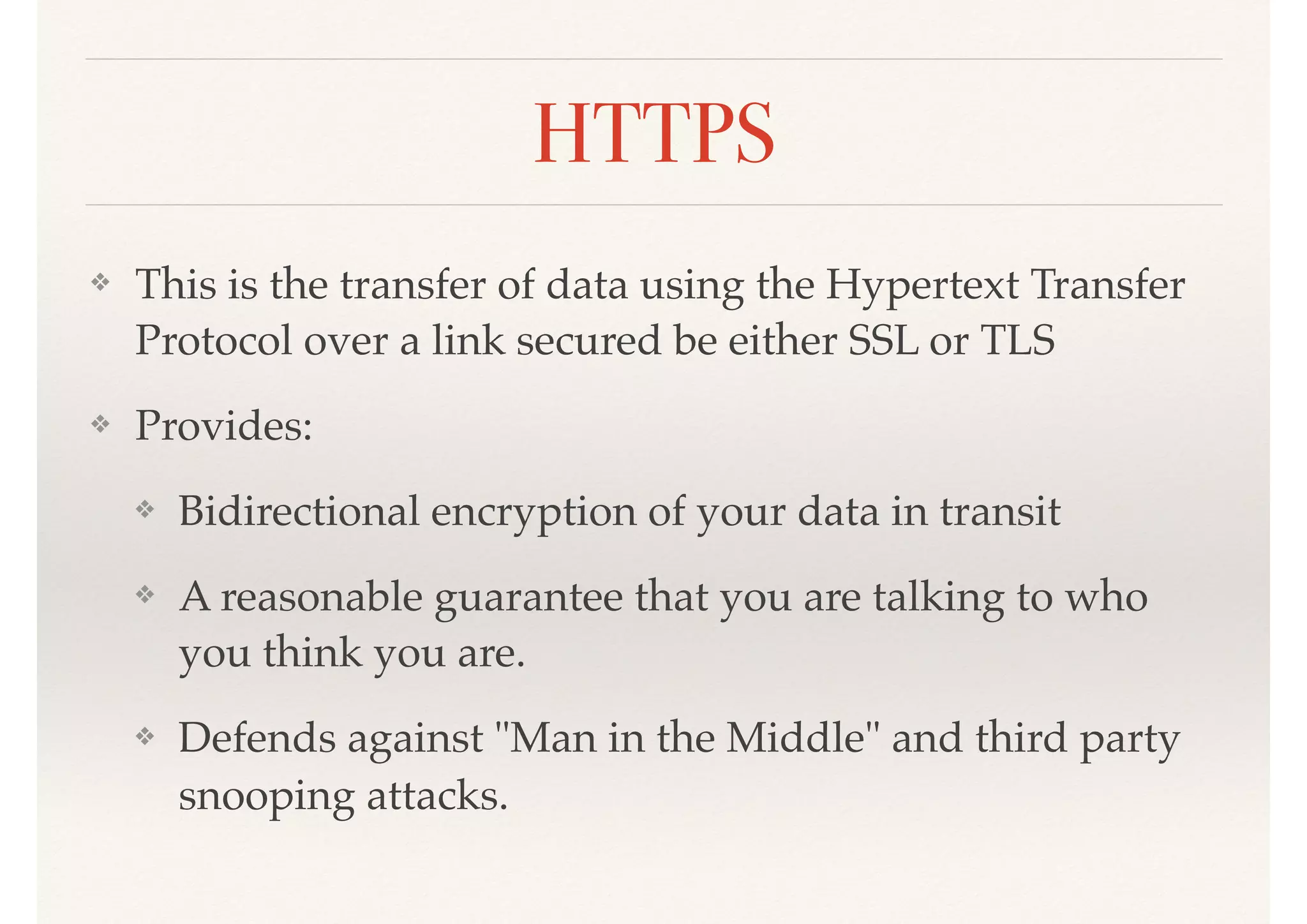

10. HTTPS
❖ This is the transfer of data using the Hypertext Transfer
Protocol over a link secured be either SSL or TLS
❖ Provides:
❖ Bidirectional encryption of your data in transit
❖ A reasonable guarantee that you are talking to who
you think you are.
❖ Defends against "Man in the Middle" and third party
snooping attacks.

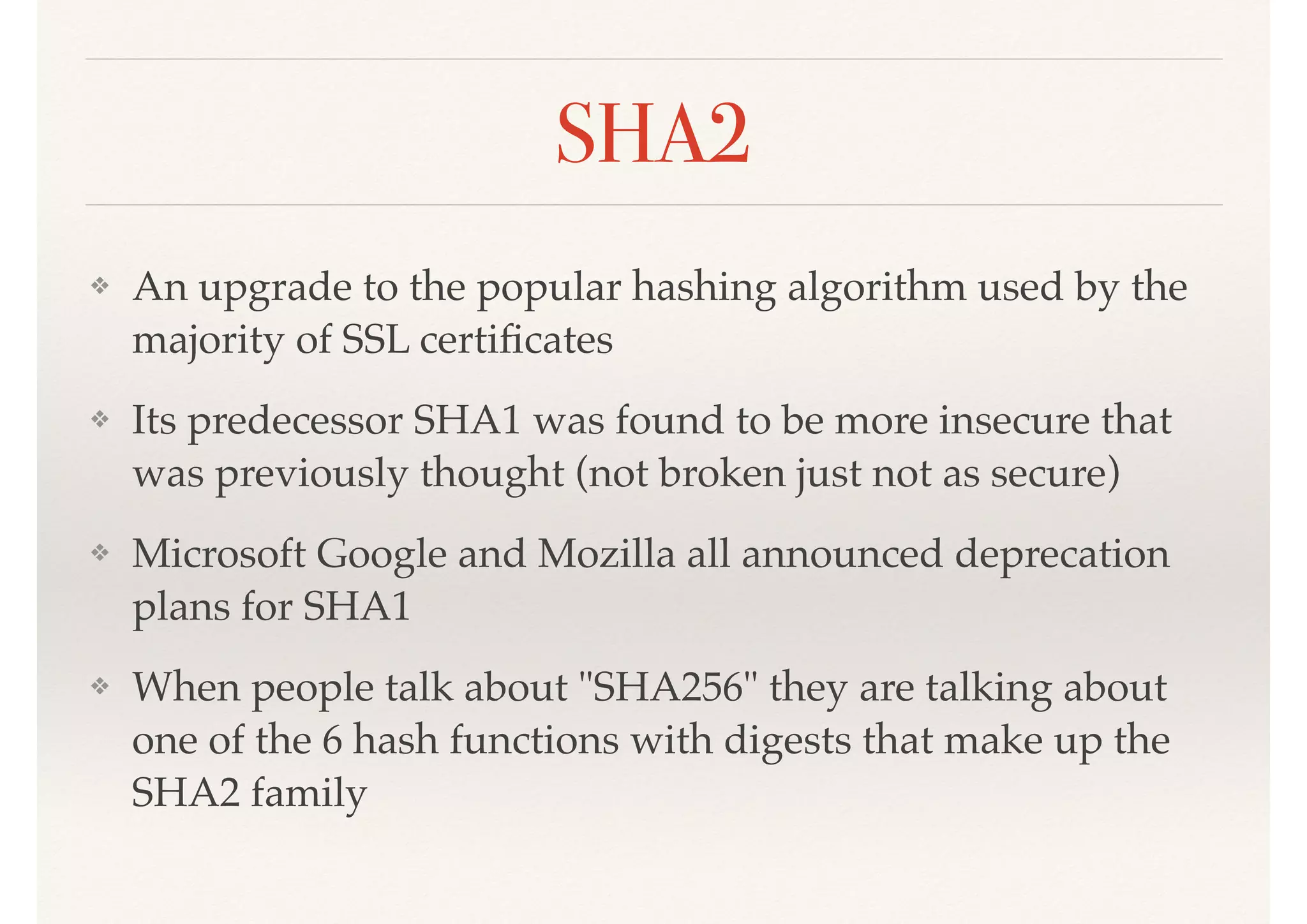

11. SHA2
❖ An upgrade to the popular hashing algorithm used by the
majority of SSL certificates
❖ Its predecessor SHA1 was found to be more insecure that
was previously thought (not broken just not as secure)
❖ Microsoft Google and Mozilla all announced deprecation
plans for SHA1
❖ When people talk about "SHA256" they are talking about
one of the 6 hash functions with digests that make up the
SHA2 family

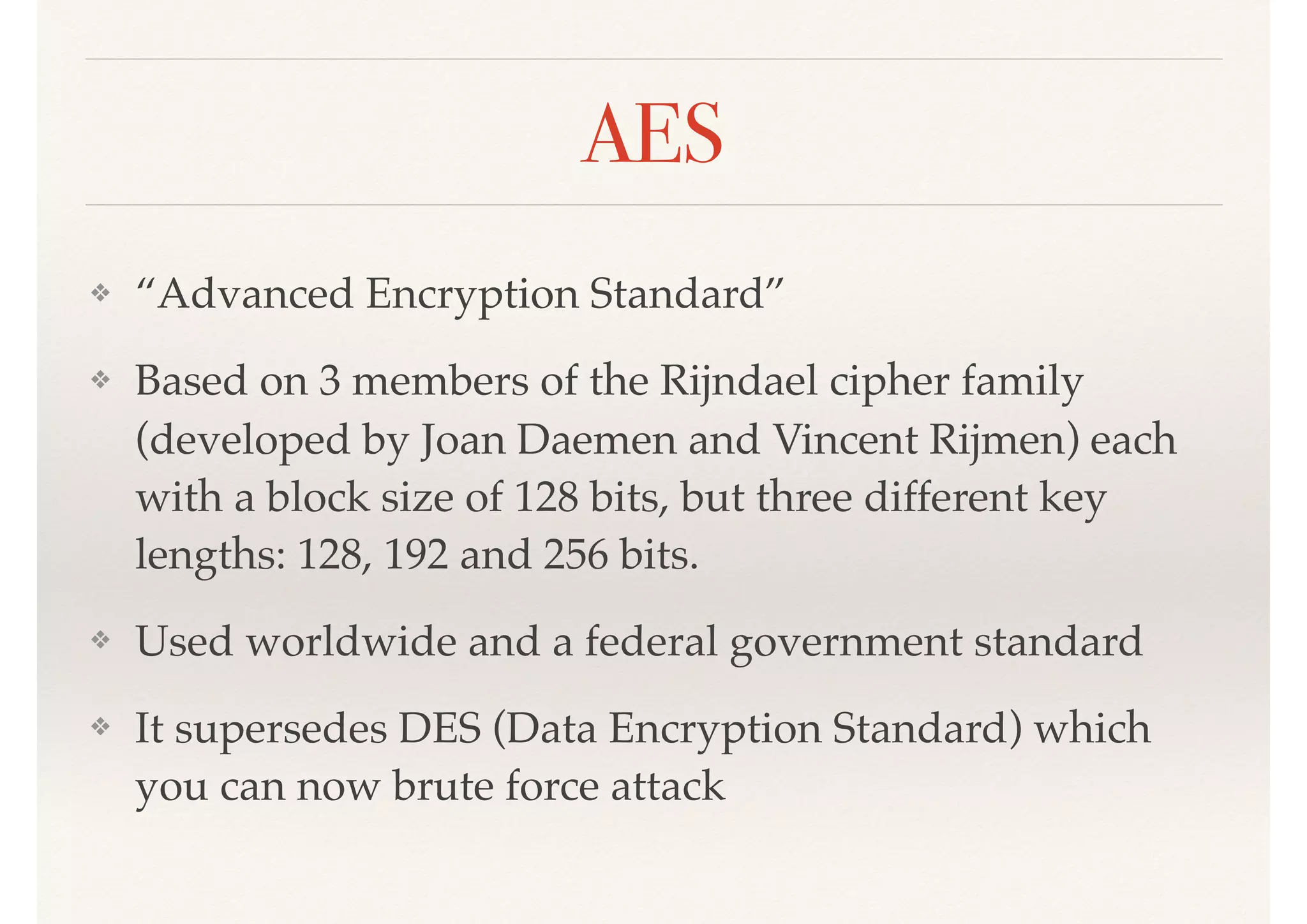

12. AES
❖ “Advanced Encryption Standard”
❖ Based on 3 members of the Rijndael cipher family
(developed by Joan Daemen and Vincent Rijmen) each
with a block size of 128 bits, but three different key
lengths: 128, 192 and 256 bits.
❖ Used worldwide and a federal government standard
❖ It supersedes DES (Data Encryption Standard) which
you can now brute force attack

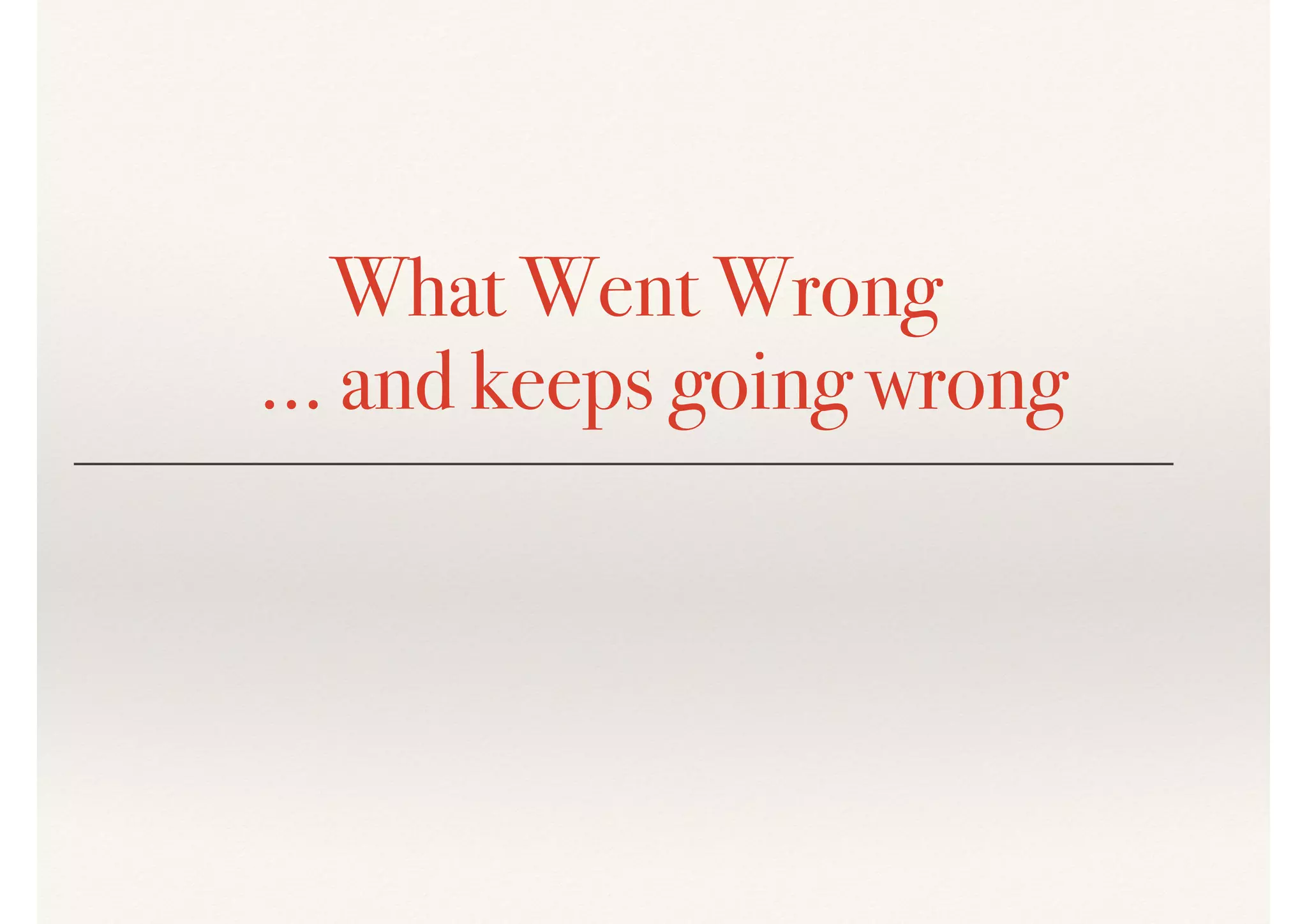

13. What Went Wrong
… and keeps going wrong

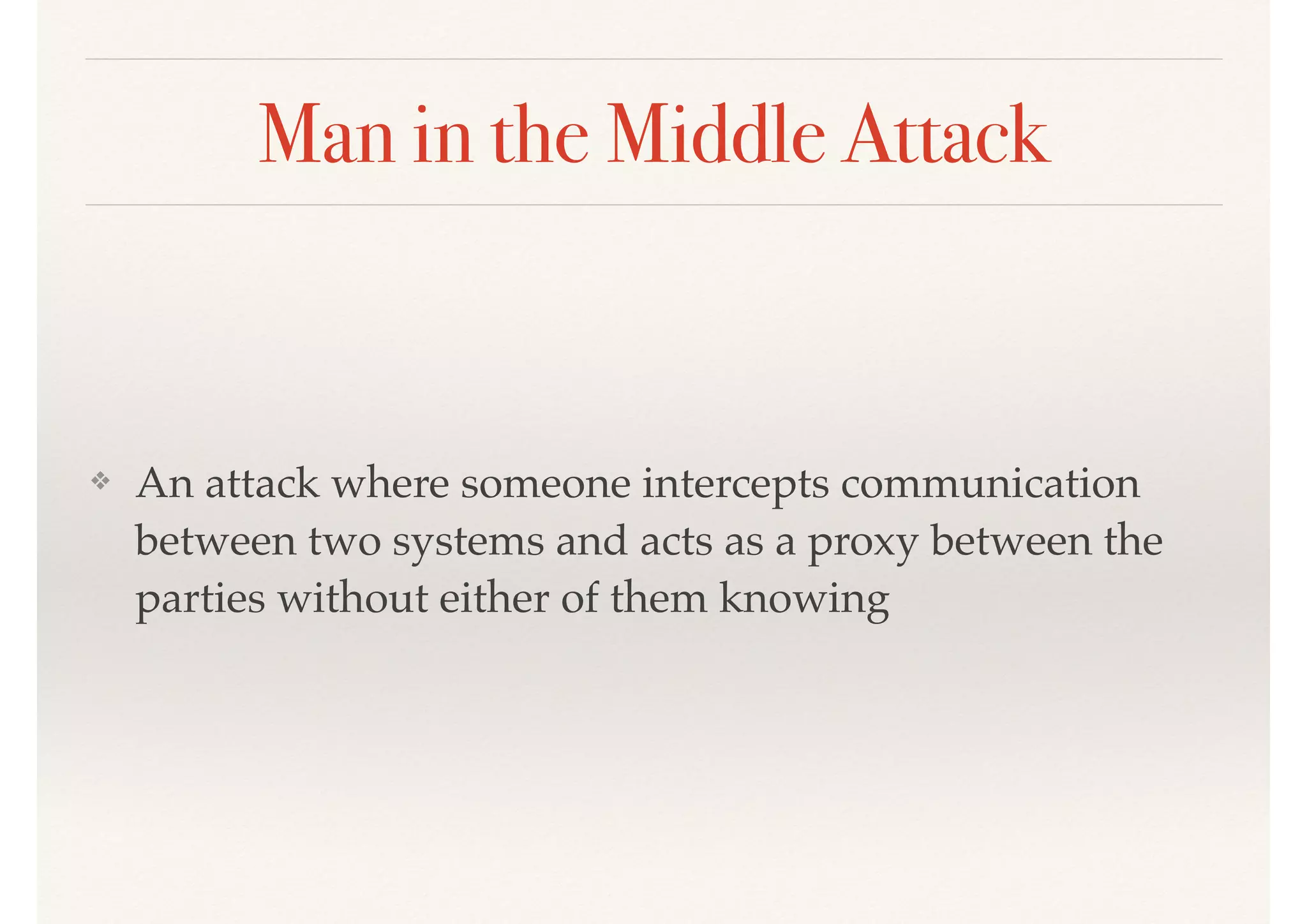

14. Man in the Middle Attack
❖ An attack where someone intercepts communication
between two systems and acts as a proxy between the
parties without either of them knowing

15. Betty knows the internet is scary.
She always clicks the link
She likes to shop and bank online
This is Betty
Betty gets emails telling her to click on a
link and give her password

16. Hank knows Betty will click on the link
.. and that it will be his fault if her
money goes missing
This is Hank
Hank owns a bank
He needs to keep
Betty’s money safe.

17. Jazz is cool
Jazz has to keep corporate data secure whilst
keeping access simple & staying ahead of
hackers
Jazz is a system
administrator
Jazz doesn’t sleep much
This is Jazz

18. Harry is a jerk
with no
morals
He only cares about getting
money and causing disruption
This is Harry

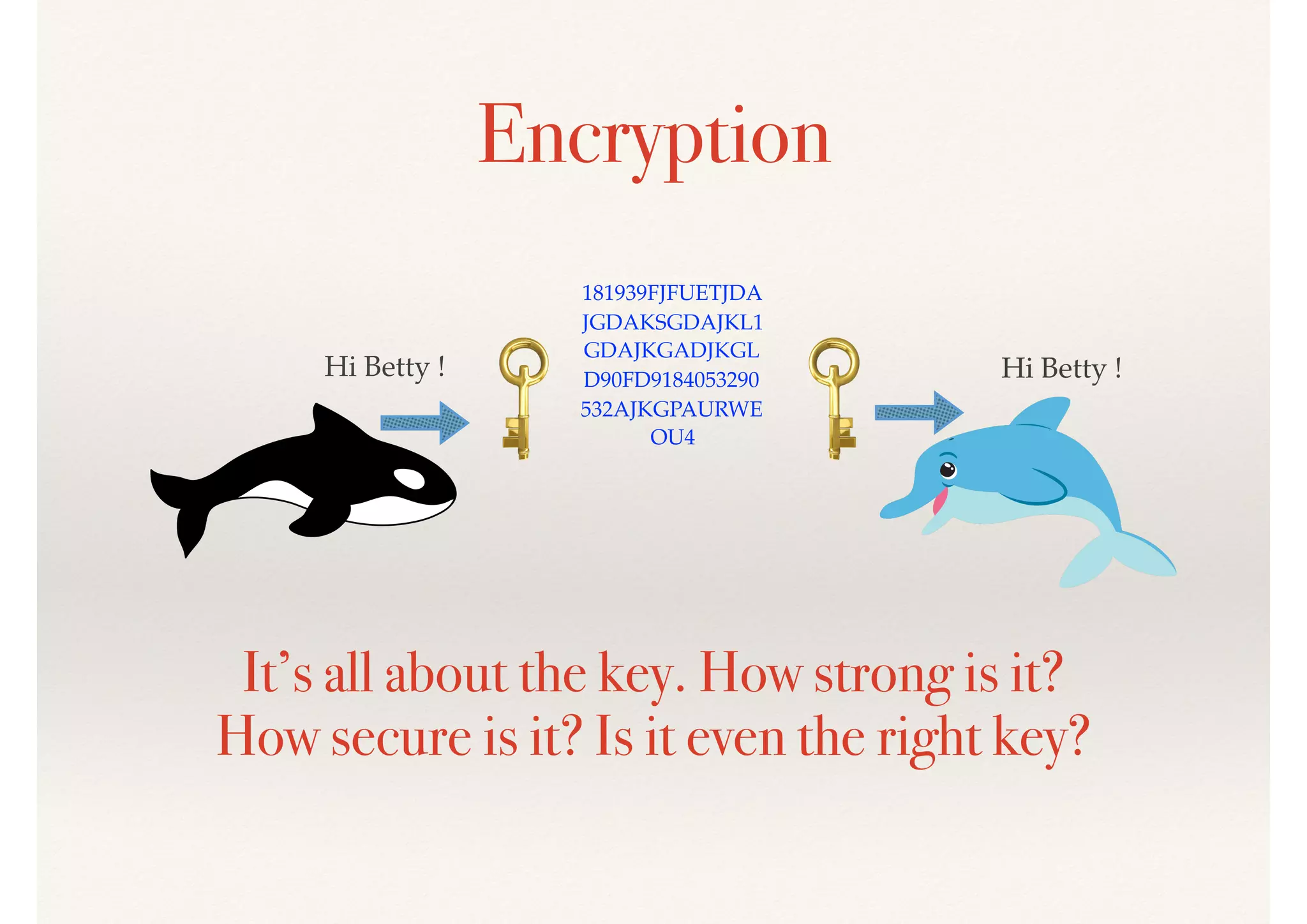

19. Hi Betty ! Hi Betty !
181939FJFUETJDA
JGDAKSGDAJKL1
GDAJKGADJKGL
D90FD9184053290
532AJKGPAURWE
OU4
It’s all about the key. How strong is it?
How secure is it? Is it even the right key?
Encryption

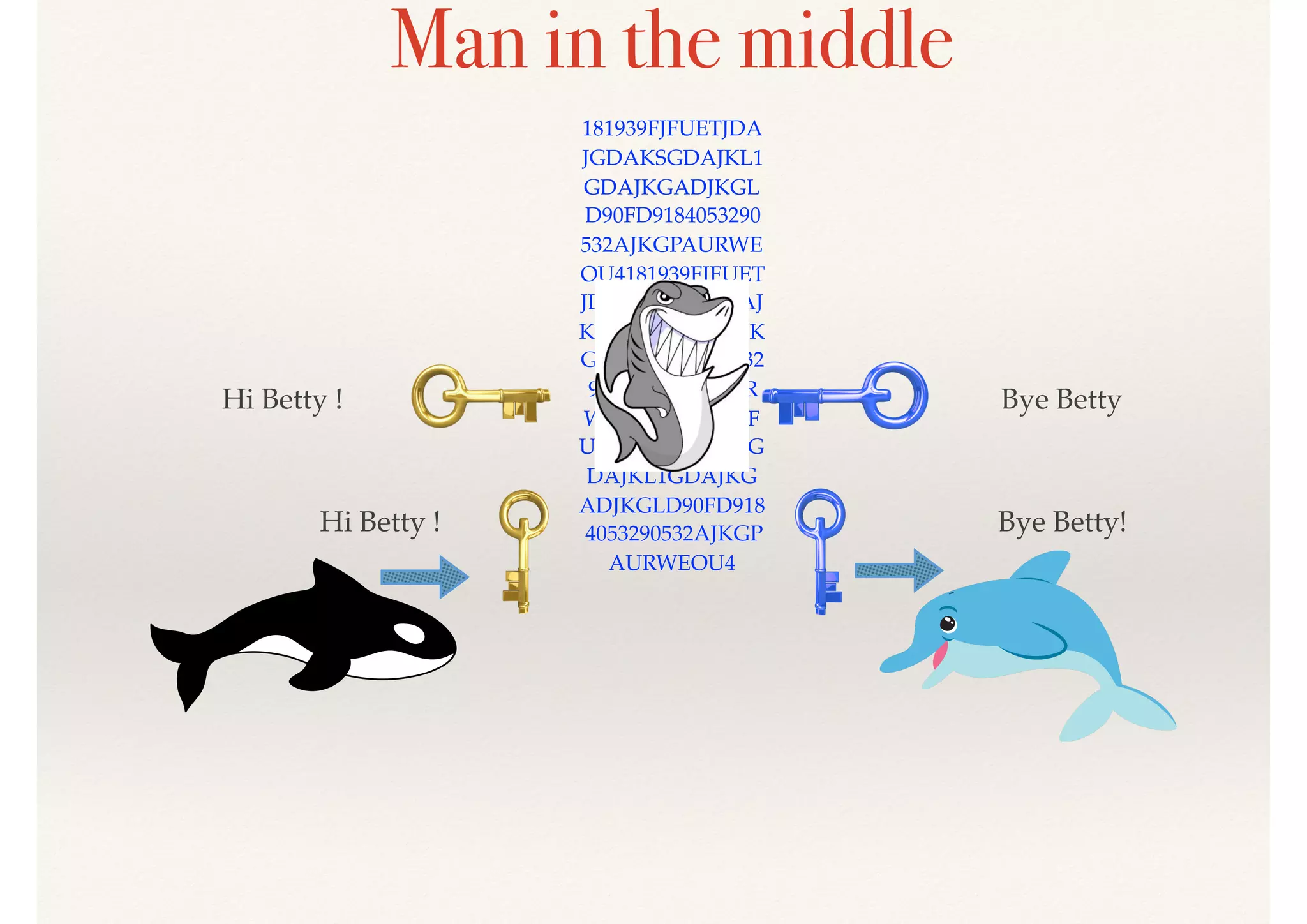

20. Man in the middle
Hi Betty ! Bye Betty!
181939FJFUETJDA
JGDAKSGDAJKL1
GDAJKGADJKGL
D90FD9184053290
532AJKGPAURWE
OU4181939FJFUET
JDAJGDAKSGDAJ
KL1GDAJKGADJK
GLD90FD91840532
90532AJKGPAUR
WEOU4181939FJF
UETJDAJGDAKSG
DAJKL1GDAJKG
ADJKGLD90FD918
4053290532AJKGP
AURWEOU4
Bye BettyHi Betty !

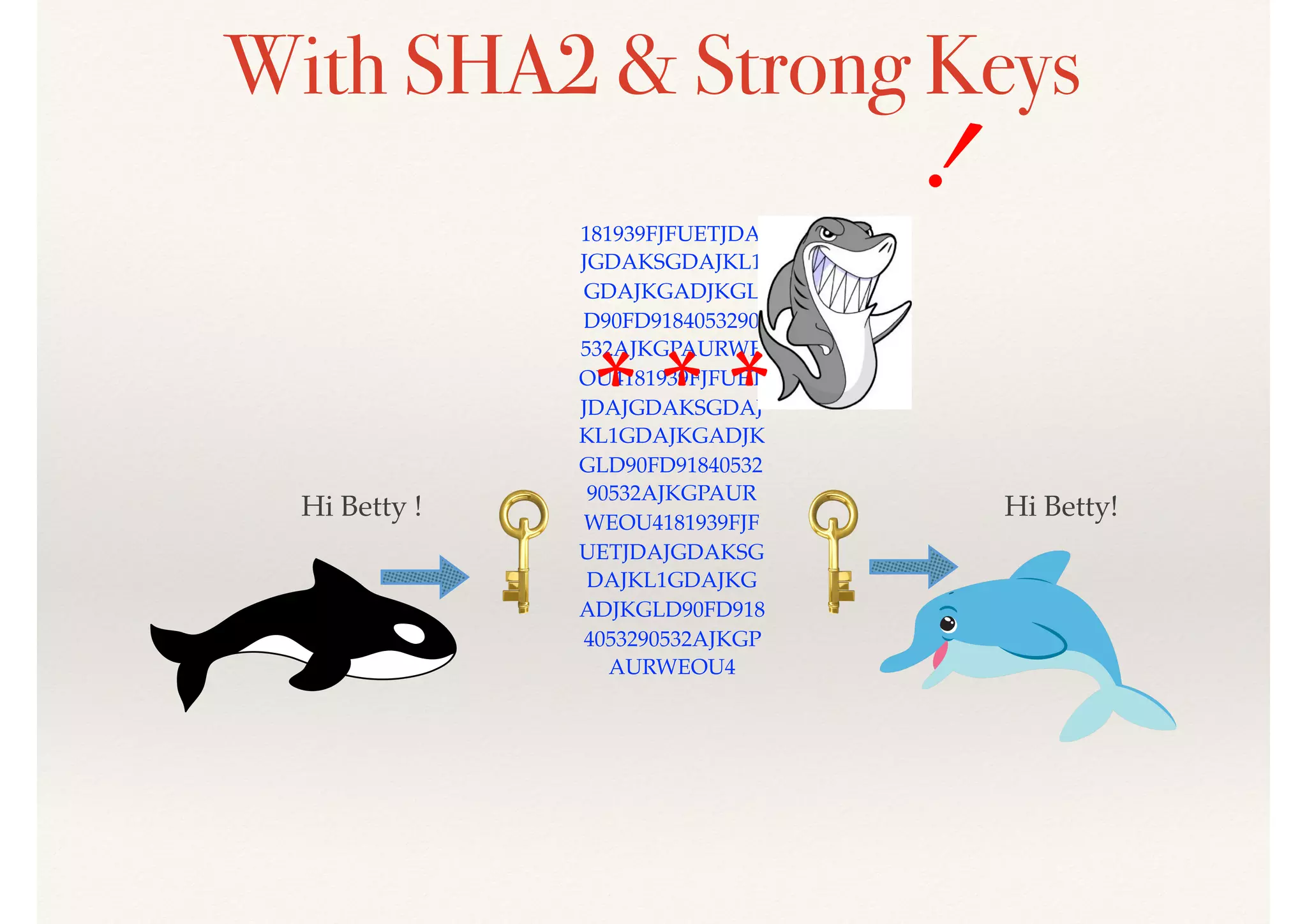

21. With SHA2 & Strong Keys
Hi Betty ! Hi Betty!
181939FJFUETJDA
JGDAKSGDAJKL1
GDAJKGADJKGL
D90FD9184053290
532AJKGPAURWE
OU4181939FJFUET
JDAJGDAKSGDAJ
KL1GDAJKGADJK
GLD90FD91840532
90532AJKGPAUR
WEOU4181939FJF
UETJDAJGDAKSG
DAJKL1GDAJKG
ADJKGLD90FD918
4053290532AJKGP
AURWEOU4
!
***

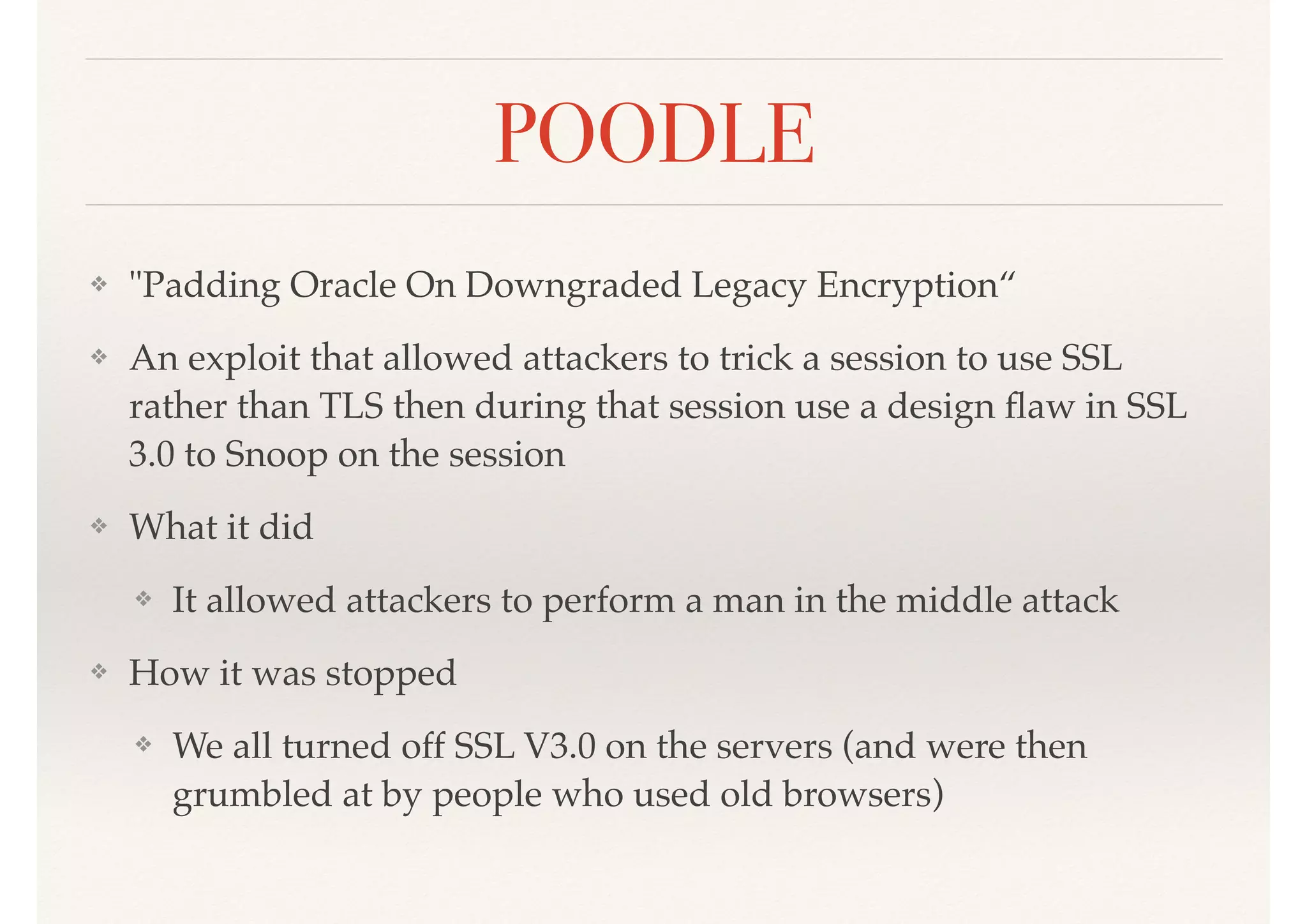

22. POODLE
❖ "Padding Oracle On Downgraded Legacy Encryption“
❖ An exploit that allowed attackers to trick a session to use SSL
rather than TLS then during that session use a design flaw in SSL
3.0 to Snoop on the session
❖ What it did
❖ It allowed attackers to perform a man in the middle attack
❖ How it was stopped
❖ We all turned off SSL V3.0 on the servers (and were then
grumbled at by people who used old browsers)

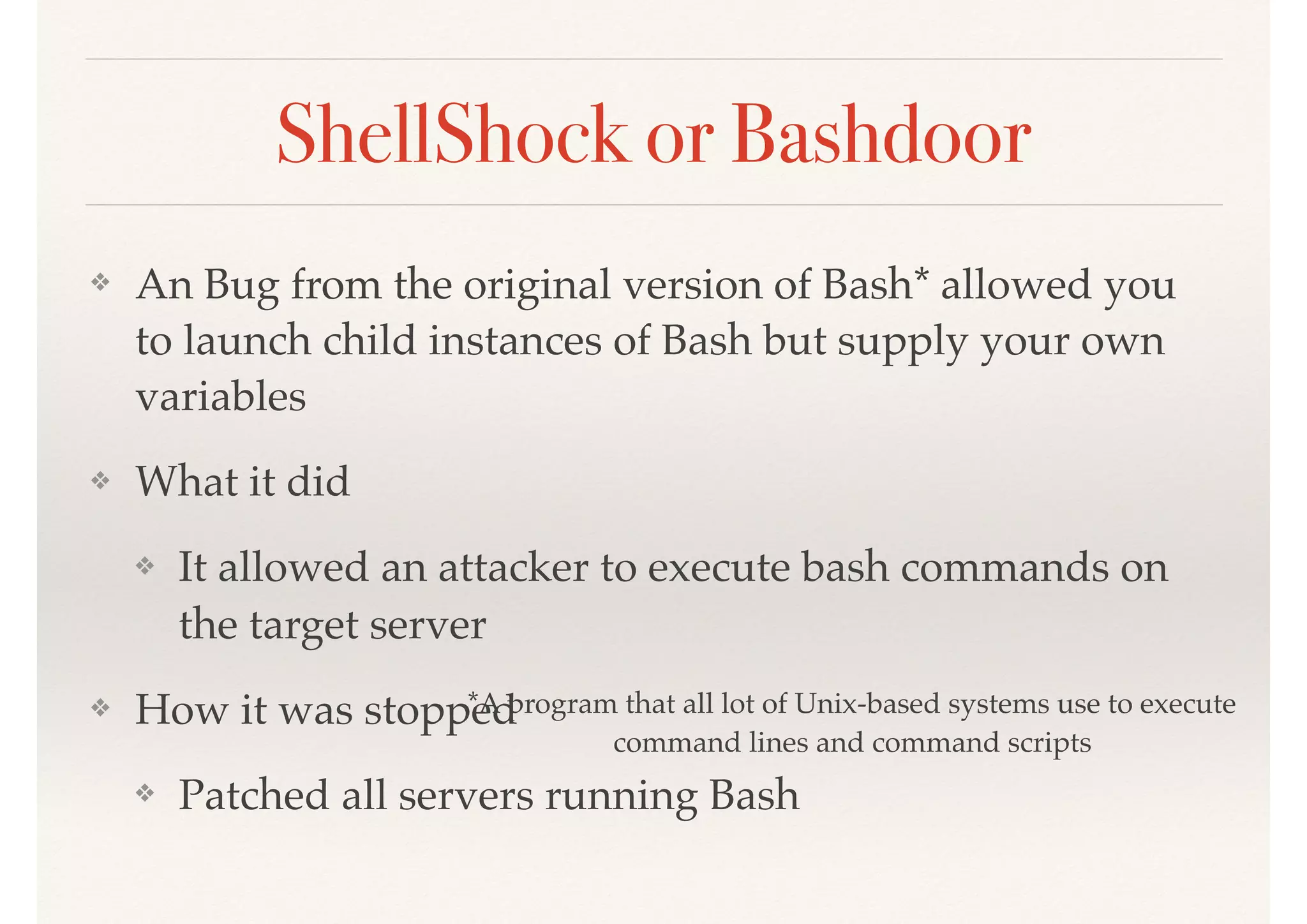

23. ShellShock or Bashdoor
❖ An Bug from the original version of Bash* allowed you
to launch child instances of Bash but supply your own
variables
❖ What it did
❖ It allowed an attacker to execute bash commands on
the target server
❖ How it was stopped
❖ Patched all servers running Bash
*A program that all lot of Unix-based systems use to execute
command lines and command scripts

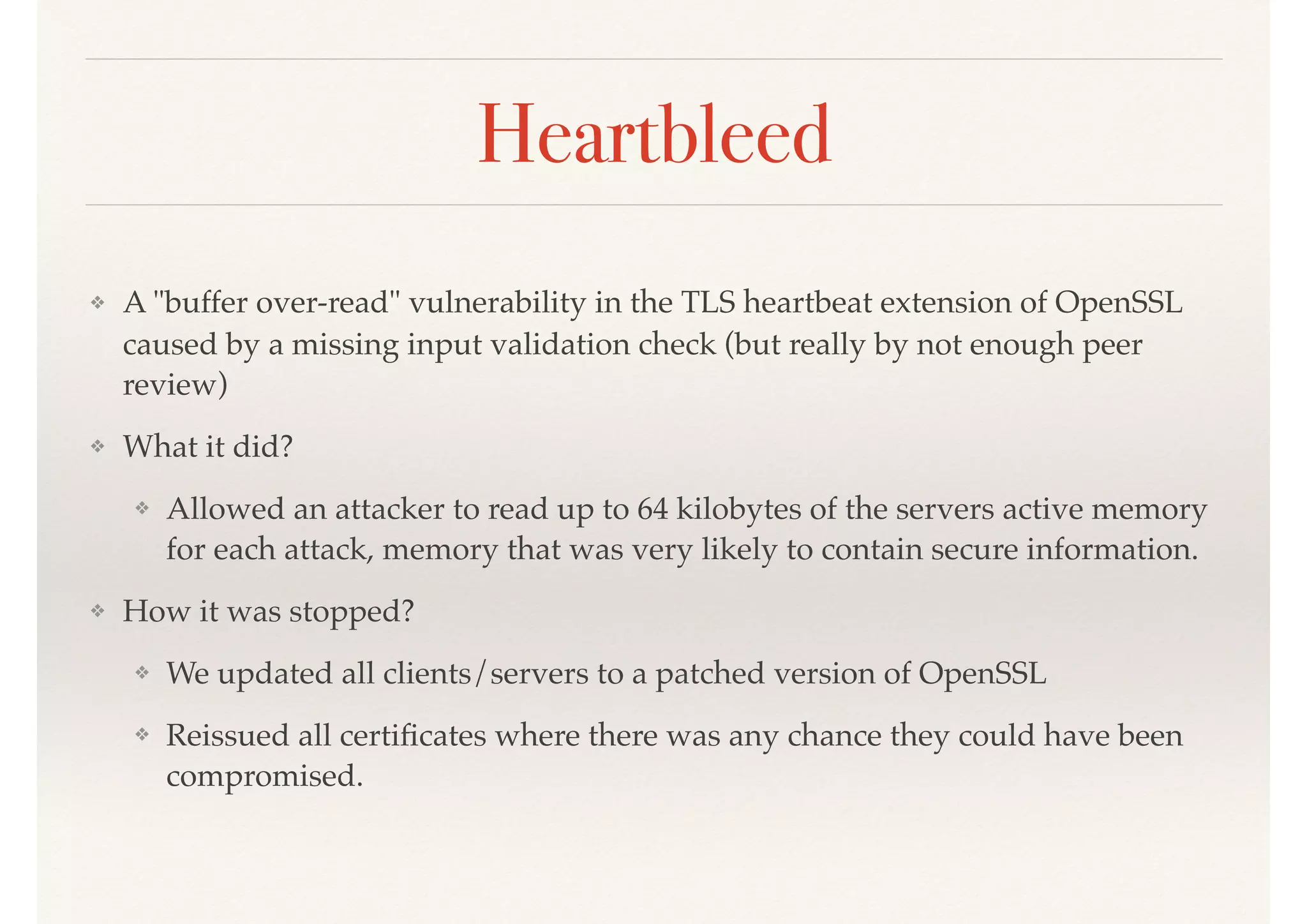

24. Heartbleed
❖ A "buffer over-read" vulnerability in the TLS heartbeat extension of OpenSSL
caused by a missing input validation check (but really by not enough peer
review)
❖ What it did?
❖ Allowed an attacker to read up to 64 kilobytes of the servers active memory
for each attack, memory that was very likely to contain secure information.
❖ How it was stopped?
❖ We updated all clients/servers to a patched version of OpenSSL
❖ Reissued all certificates where there was any chance they could have been
compromised.

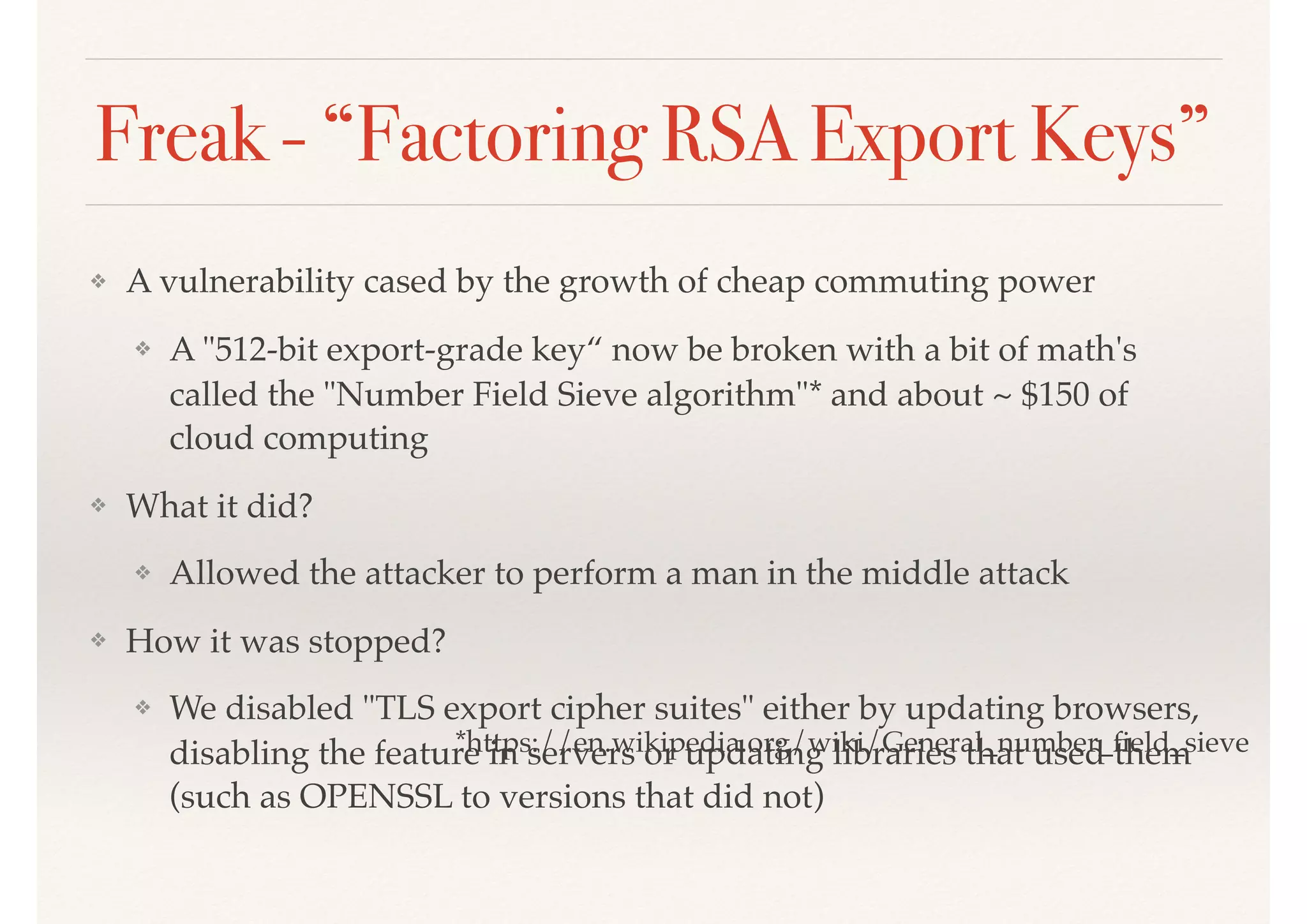

25. Freak - “Factoring RSA Export Keys”
❖ A vulnerability cased by the growth of cheap commuting power
❖ A "512-bit export-grade key“ now be broken with a bit of math's
called the "Number Field Sieve algorithm"* and about ~ $150 of
cloud computing
❖ What it did?
❖ Allowed the attacker to perform a man in the middle attack
❖ How it was stopped?
❖ We disabled "TLS export cipher suites" either by updating browsers,
disabling the feature in servers or updating libraries that used them
(such as OPENSSL to versions that did not)
*https://en.wikipedia.org/wiki/General_number_field_sieve

26. Why Is This A Growing Problem?

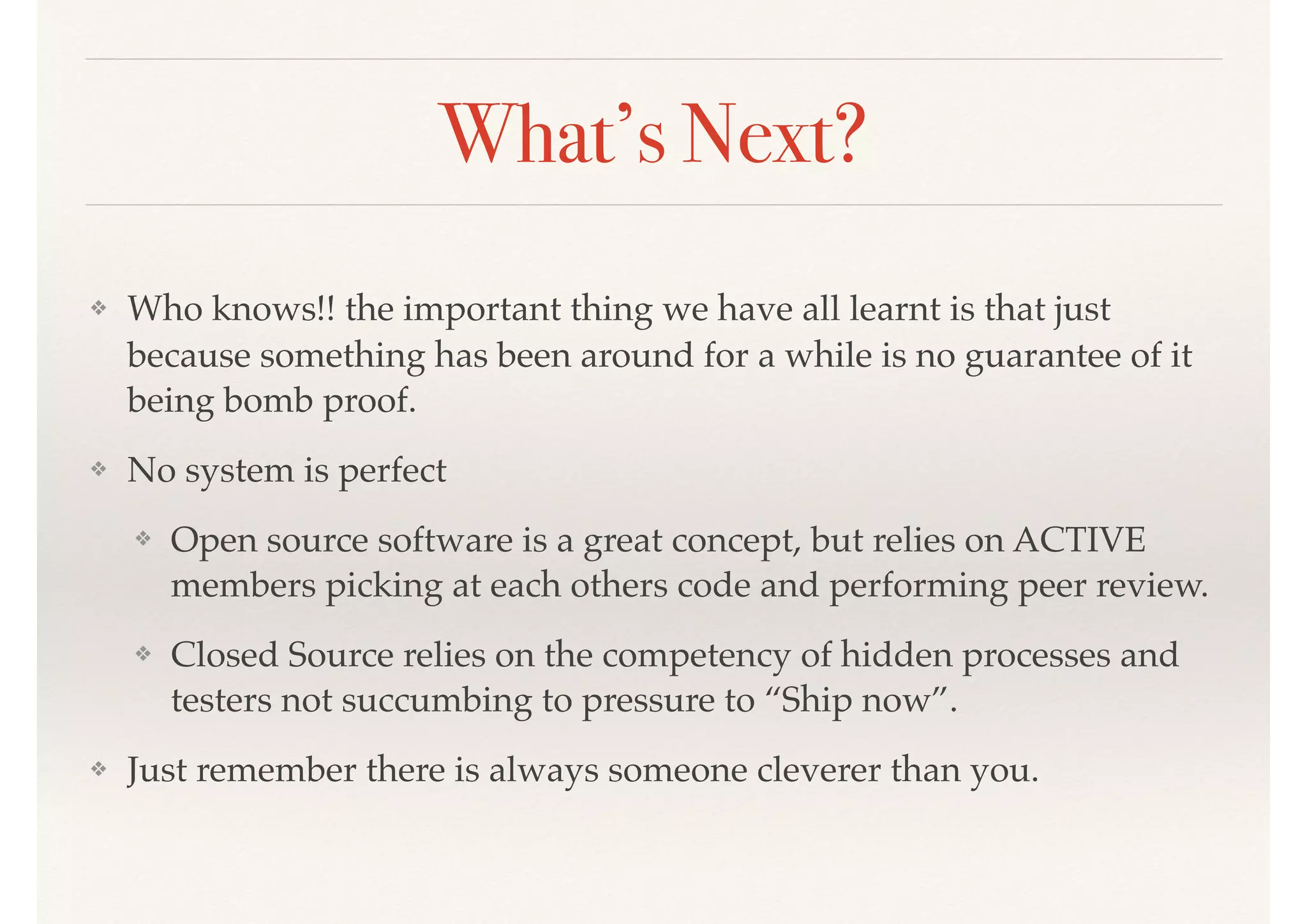

27. What’s Next?
❖ Who knows!! the important thing we have all learnt is that just
because something has been around for a while is no guarantee of it
being bomb proof.
❖ No system is perfect
❖ Open source software is a great concept, but relies on ACTIVE
members picking at each others code and performing peer review.
❖ Closed Source relies on the competency of hidden processes and
testers not succumbing to pressure to “Ship now”.
❖ Just remember there is always someone cleverer than you.

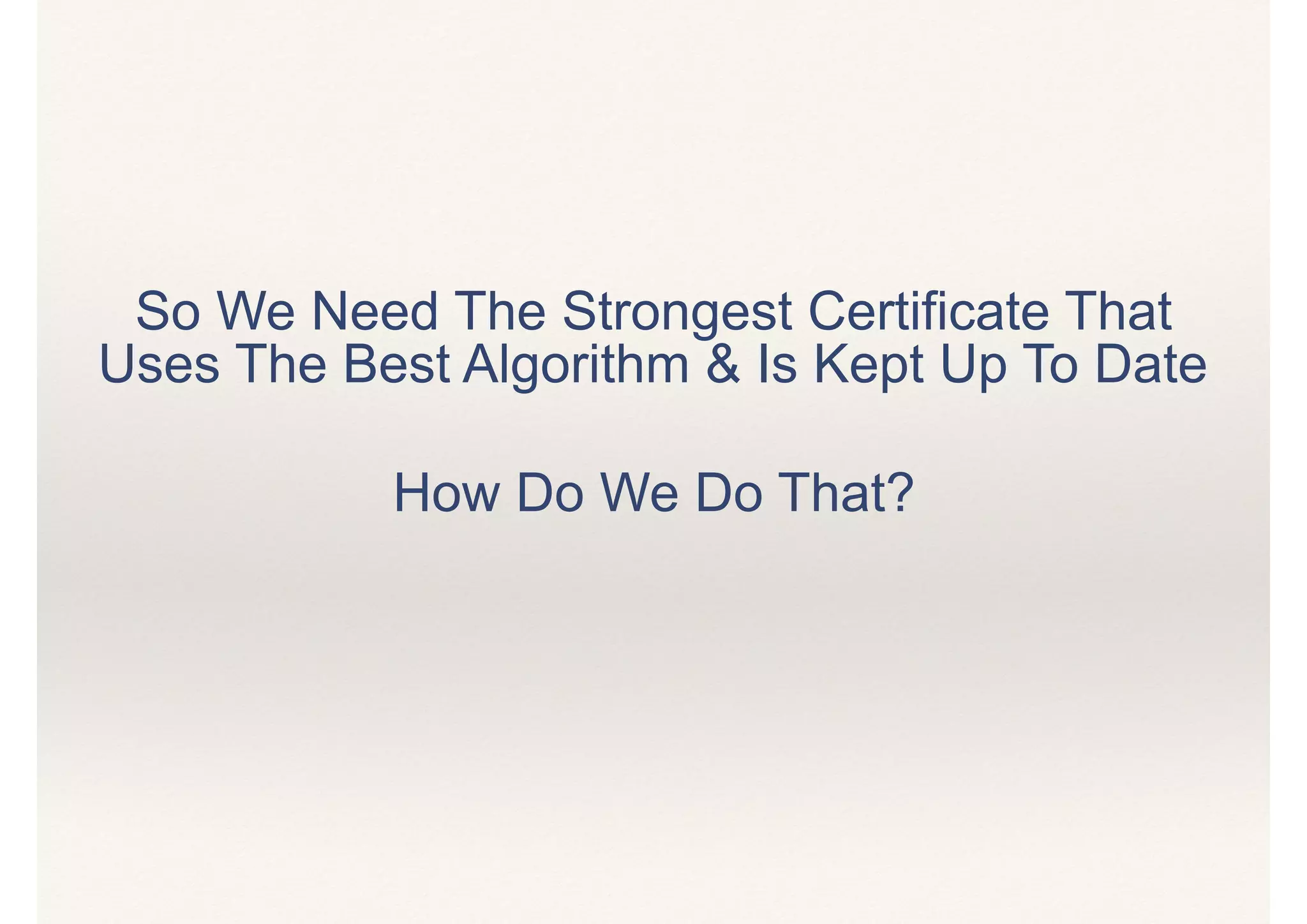

28. So We Need The Strongest Certificate That
Uses The Best Algorithm & Is Kept Up To Date
How Do We Do That?

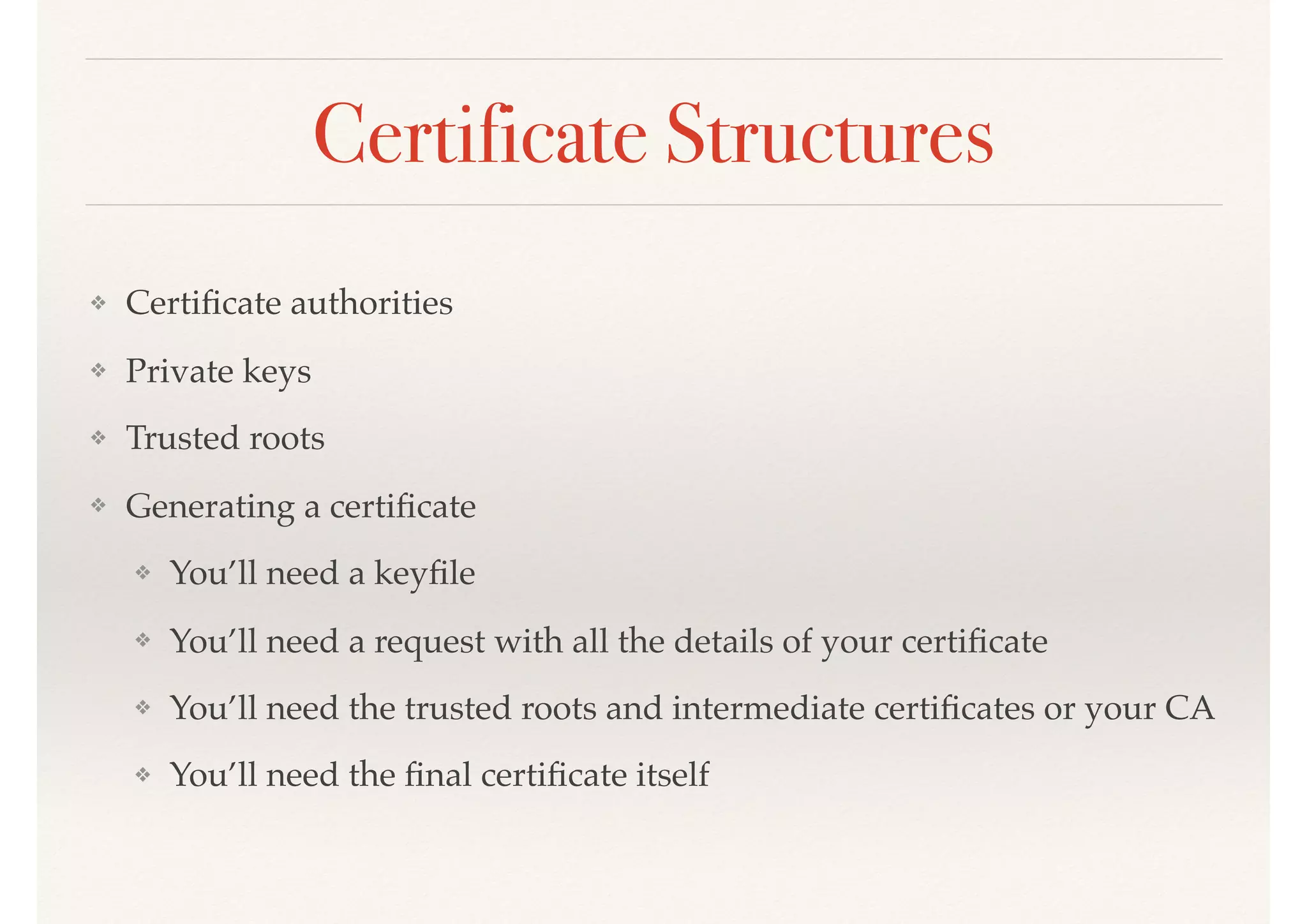

29. Certificate Structures
❖ Certificate authorities
❖ Private keys
❖ Trusted roots
❖ Generating a certificate
❖ You’ll need a keyfile
❖ You’ll need a request with all the details of your certificate
❖ You’ll need the trusted roots and intermediate certificates or your CA
❖ You’ll need the final certificate itself

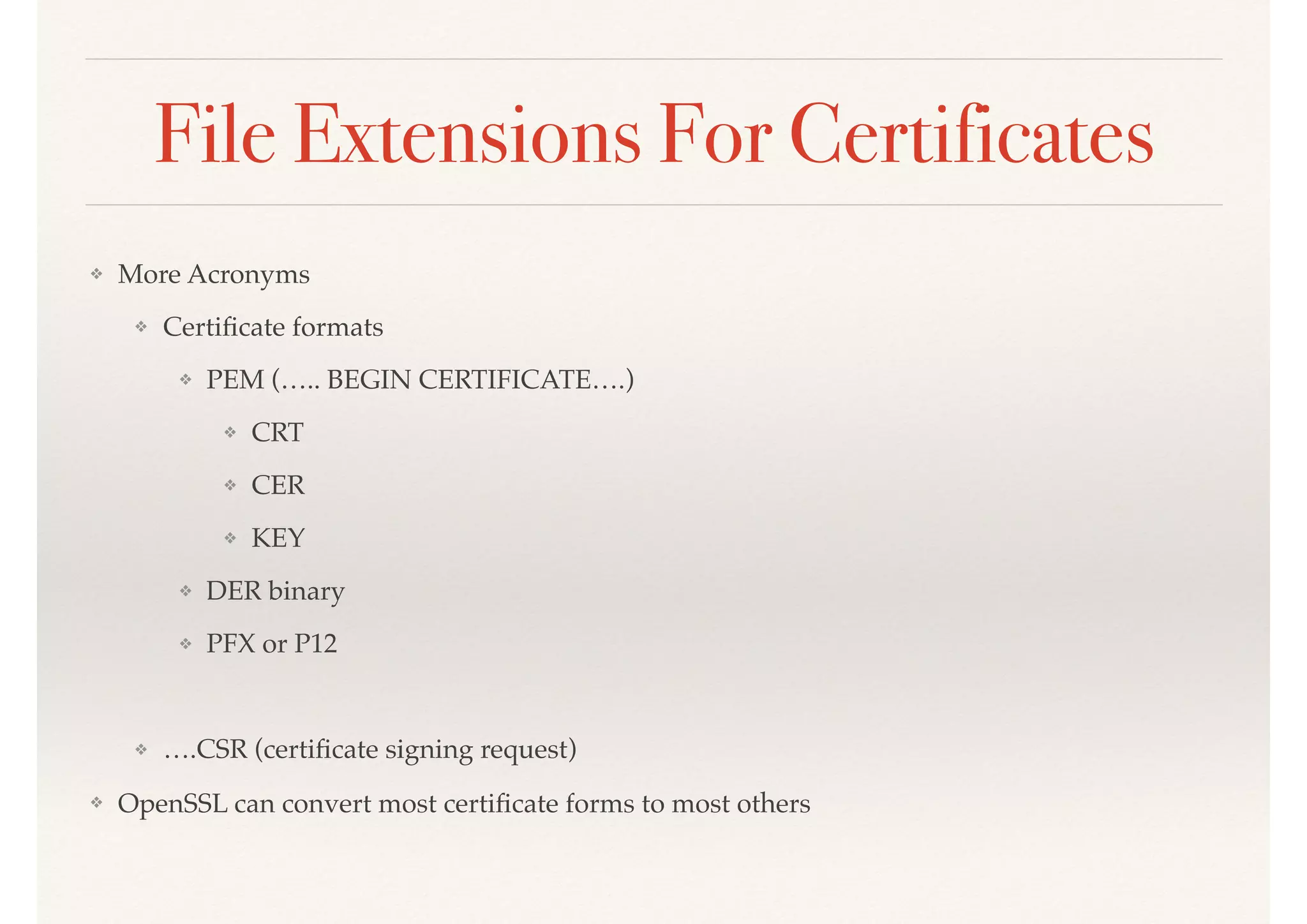

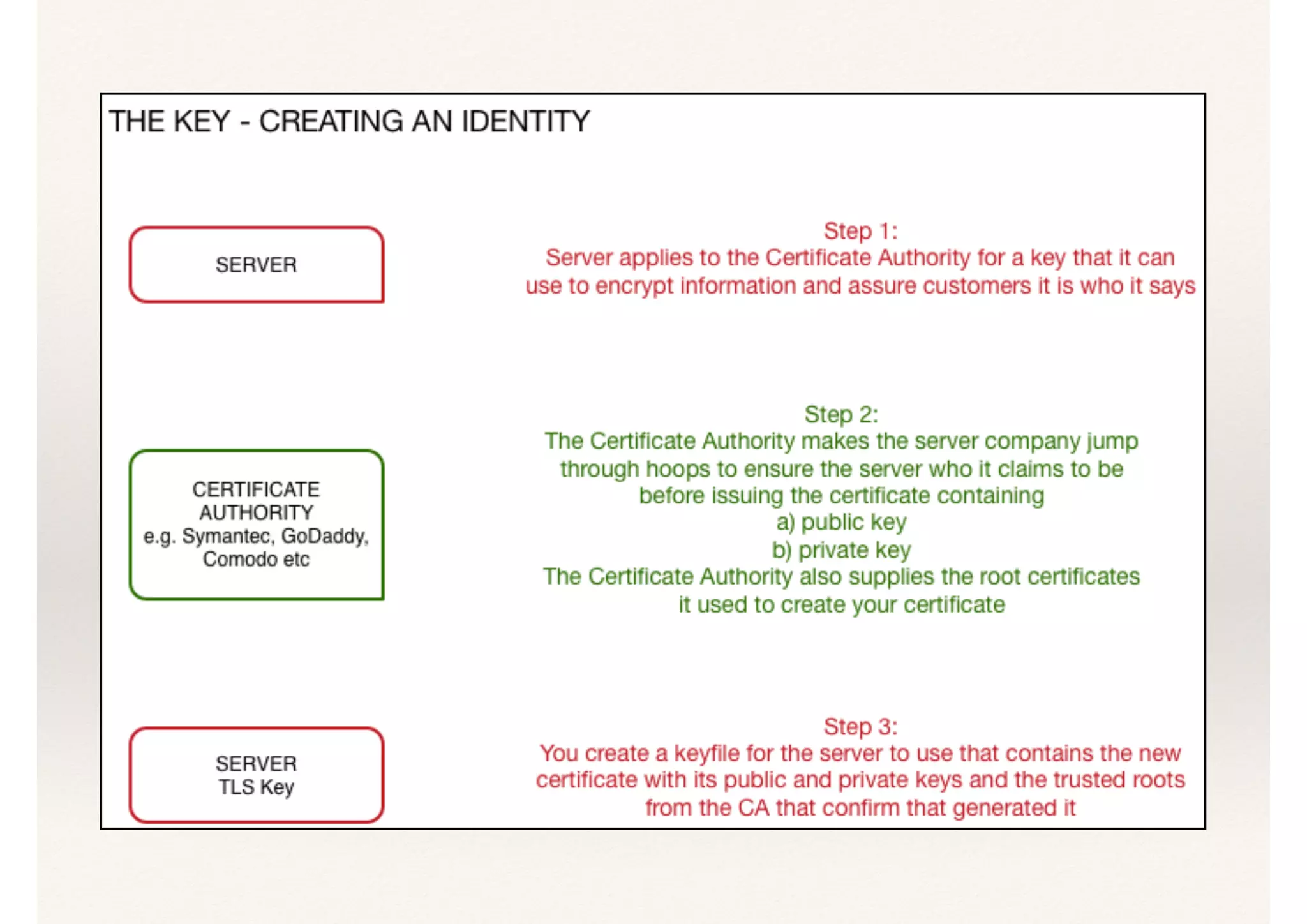

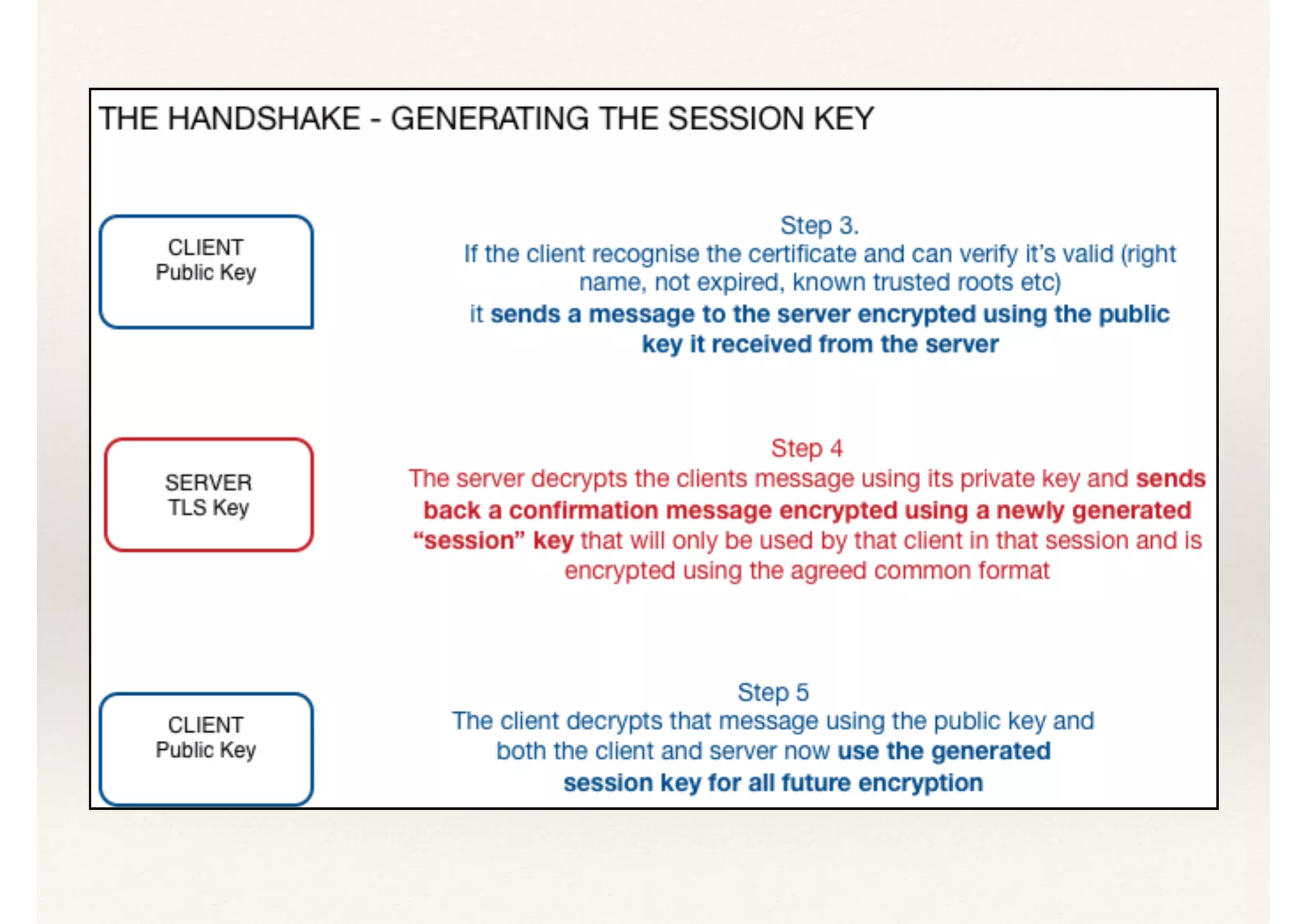

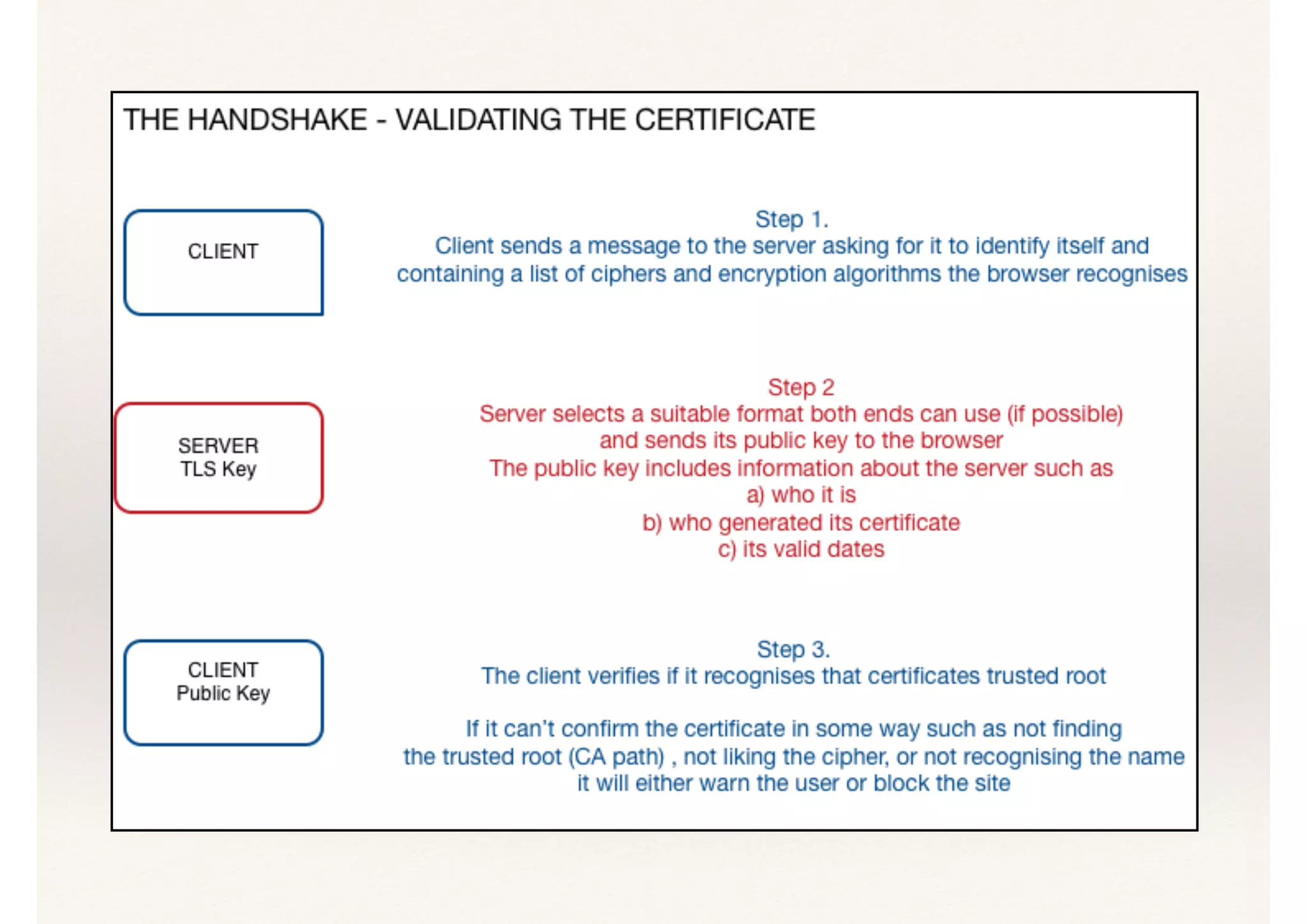

33. File Extensions For Certificates
❖ More Acronyms
❖ Certificate formats
❖ PEM (….. BEGIN CERTIFICATE….)
❖ CRT
❖ CER
❖ KEY
❖ DER binary
❖ PFX or P12
❖ ….CSR (certificate signing request)
❖ OpenSSL can convert most certificate forms to most others

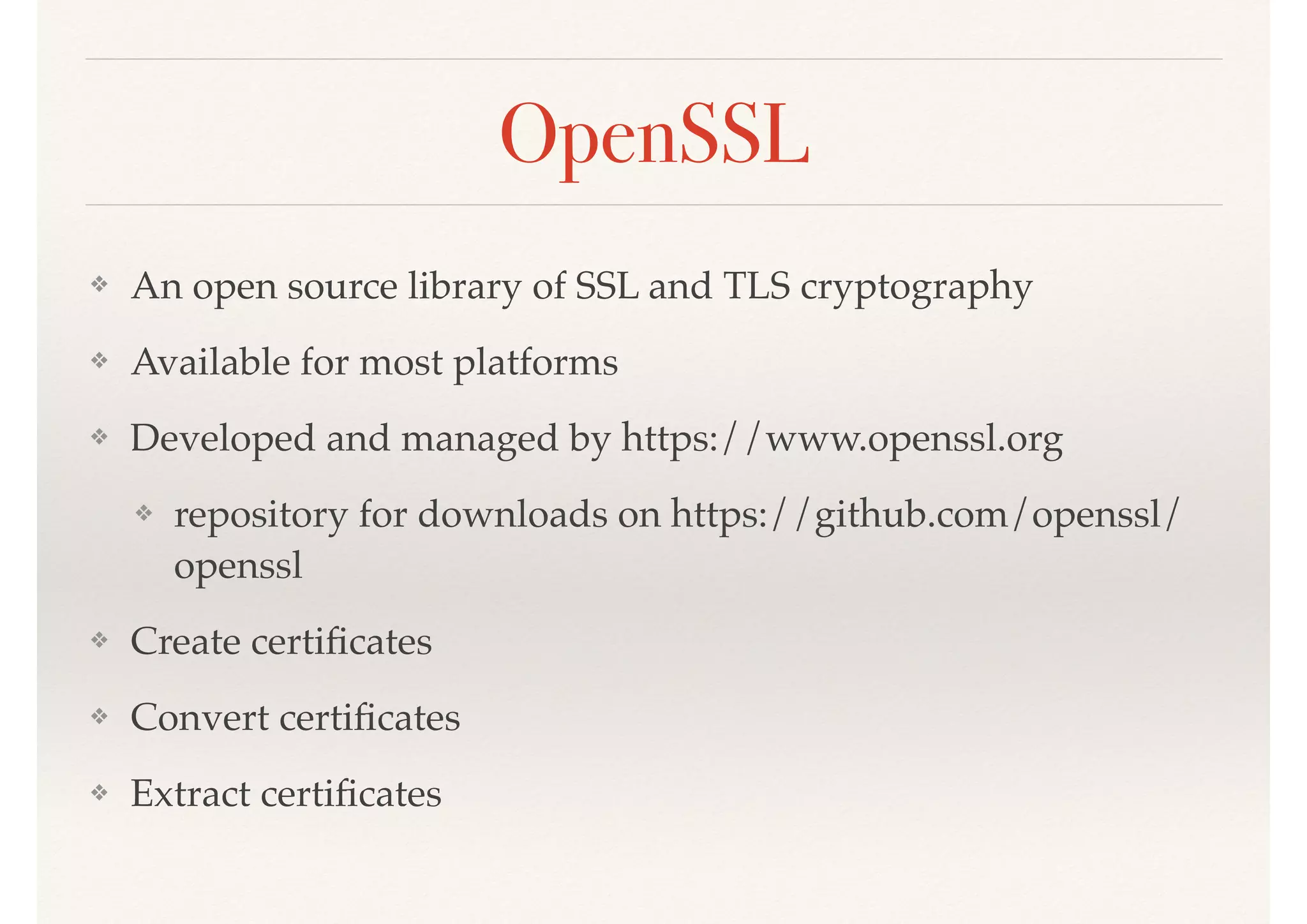

34. OpenSSL
❖ An open source library of SSL and TLS cryptography
❖ Available for most platforms
❖ Developed and managed by https://www.openssl.org
❖ repository for downloads on https://github.com/openssl/
openssl
❖ Create certificates
❖ Convert certificates
❖ Extract certificates

35. HERE BE TIGERS

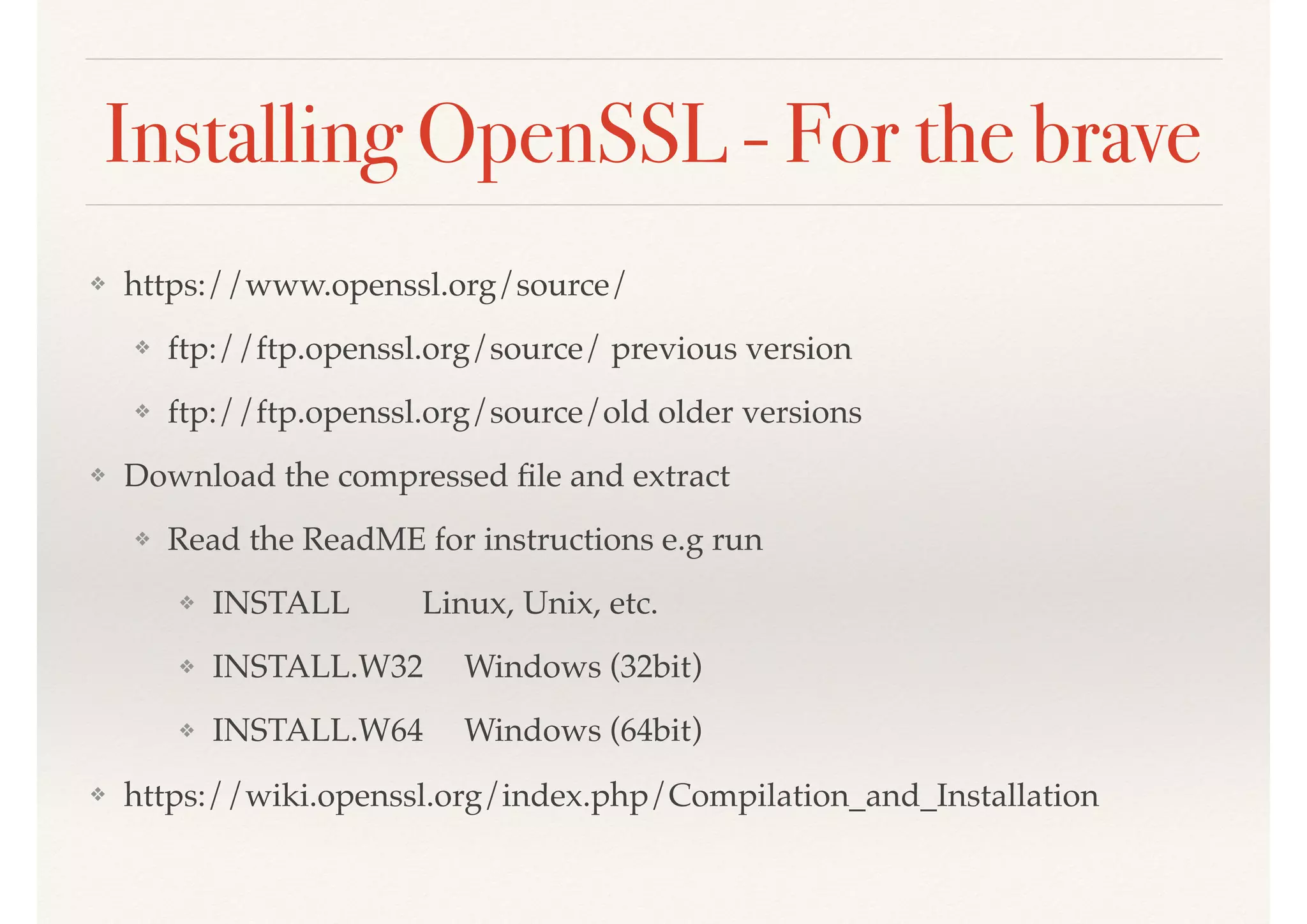

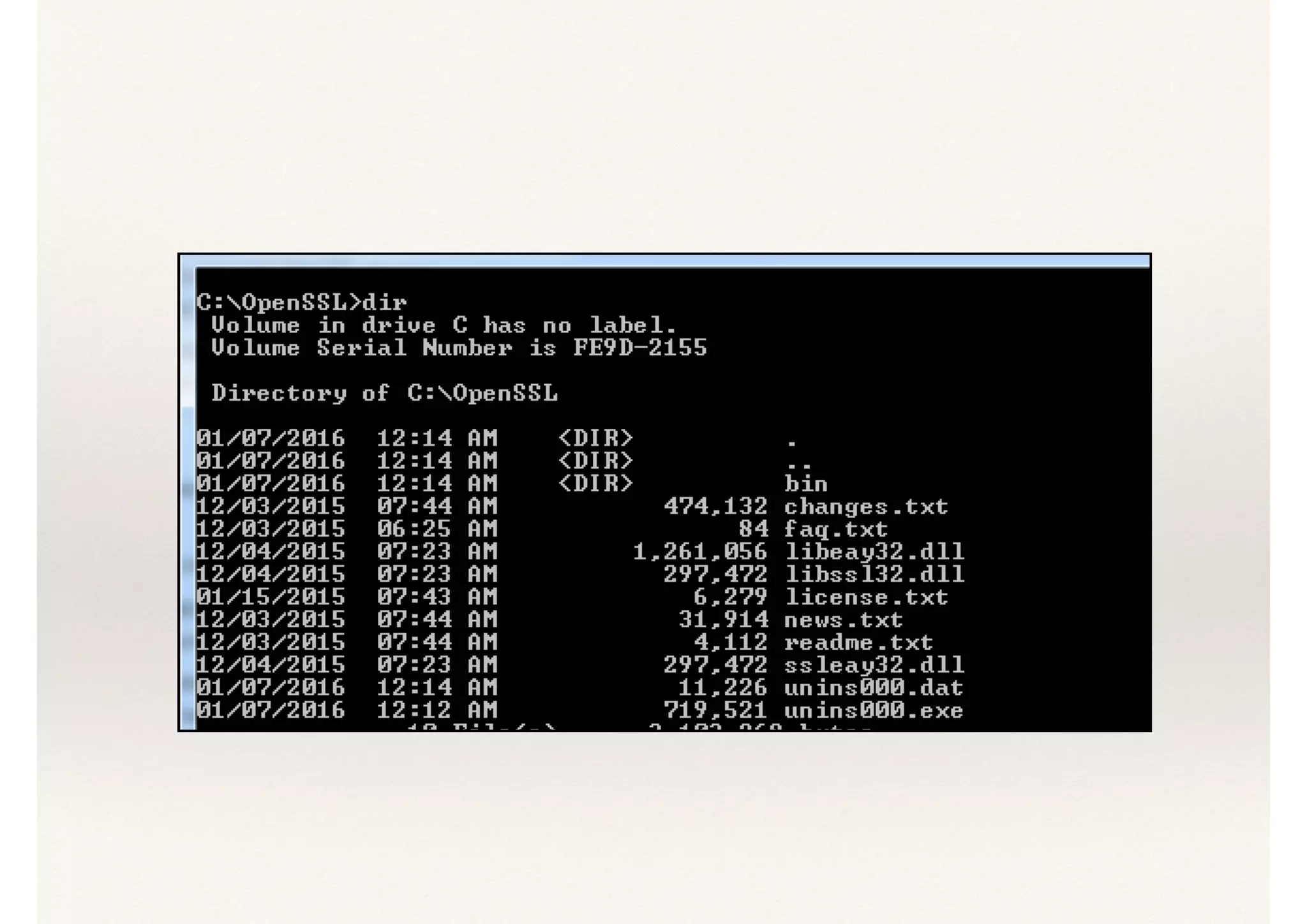

36. Installing OpenSSL - For the brave
❖ https://www.openssl.org/source/
❖ ftp://ftp.openssl.org/source/ previous version
❖ ftp://ftp.openssl.org/source/old older versions
❖ Download the compressed file and extract
❖ Read the ReadME for instructions e.g run
❖ INSTALL Linux, Unix, etc.
❖ INSTALL.W32 Windows (32bit)
❖ INSTALL.W64 Windows (64bit)
❖ https://wiki.openssl.org/index.php/Compilation_and_Installation

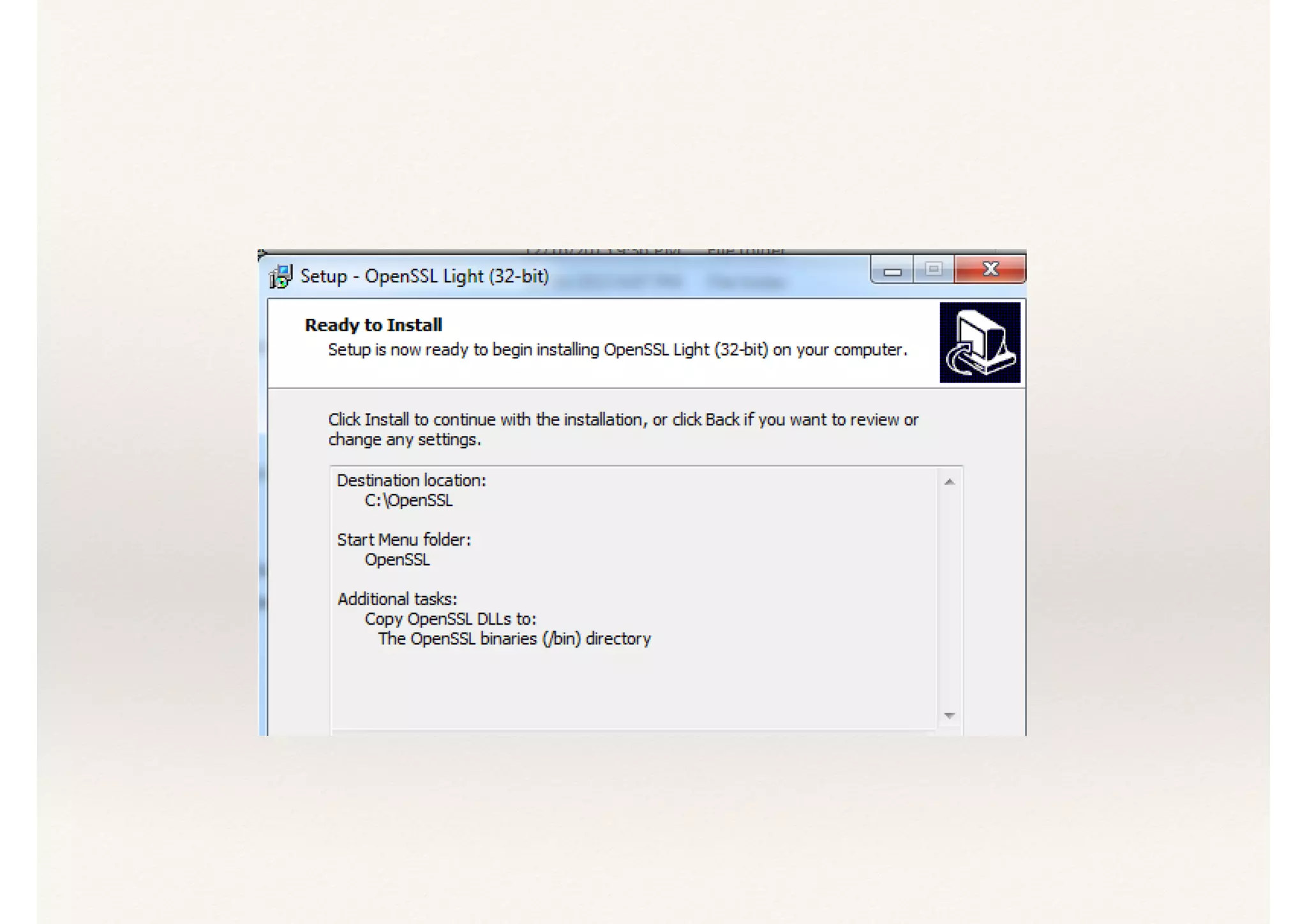

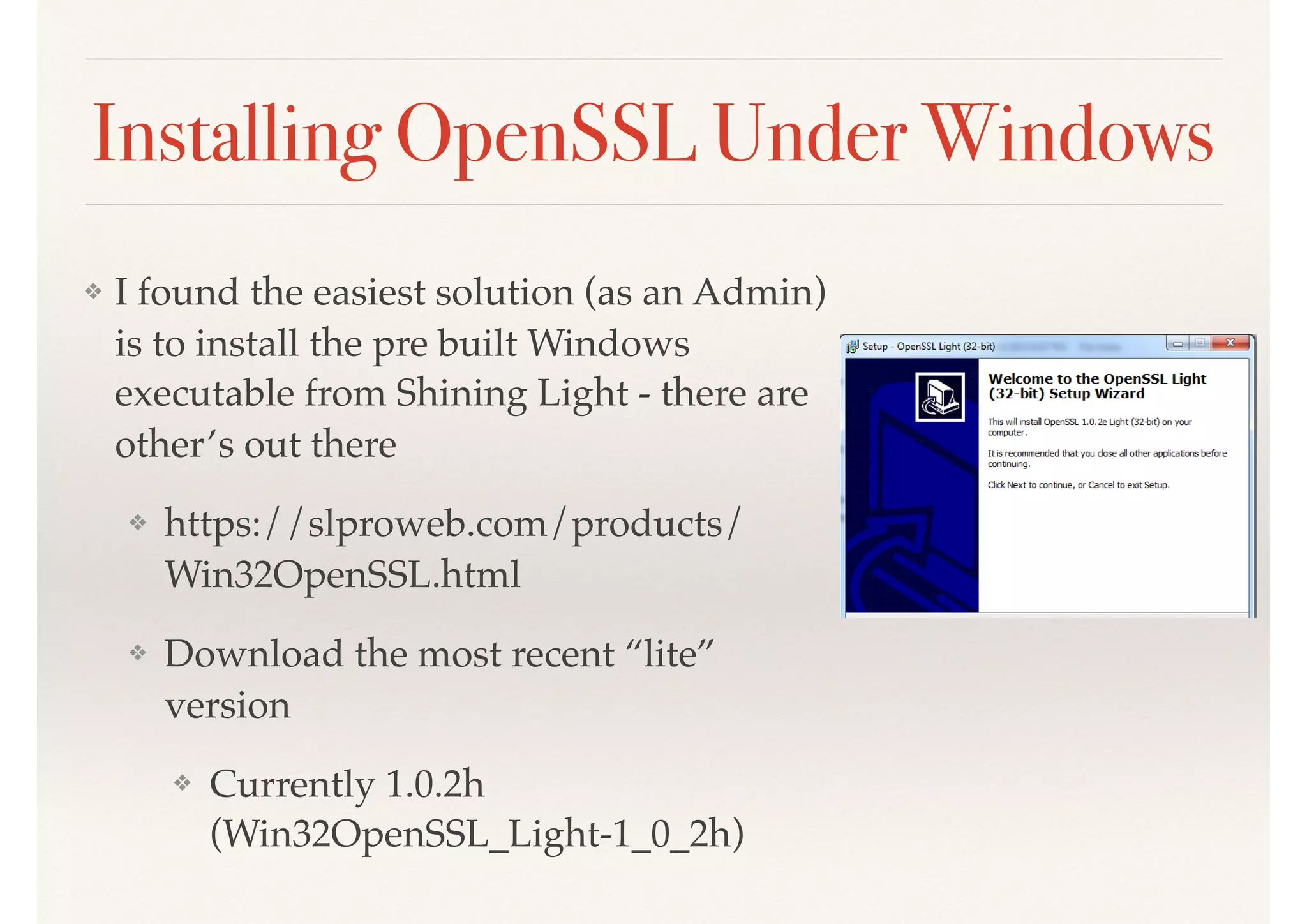

37. Installing OpenSSL Under Windows
❖ I found the easiest solution (as an Admin)
is to install the pre built Windows
executable from Shining Light - there are
other’s out there
❖ https://slproweb.com/products/
Win32OpenSSL.html
❖ Download the most recent “lite”
version
❖ Currently 1.0.2h
(Win32OpenSSL_Light-1_0_2h)

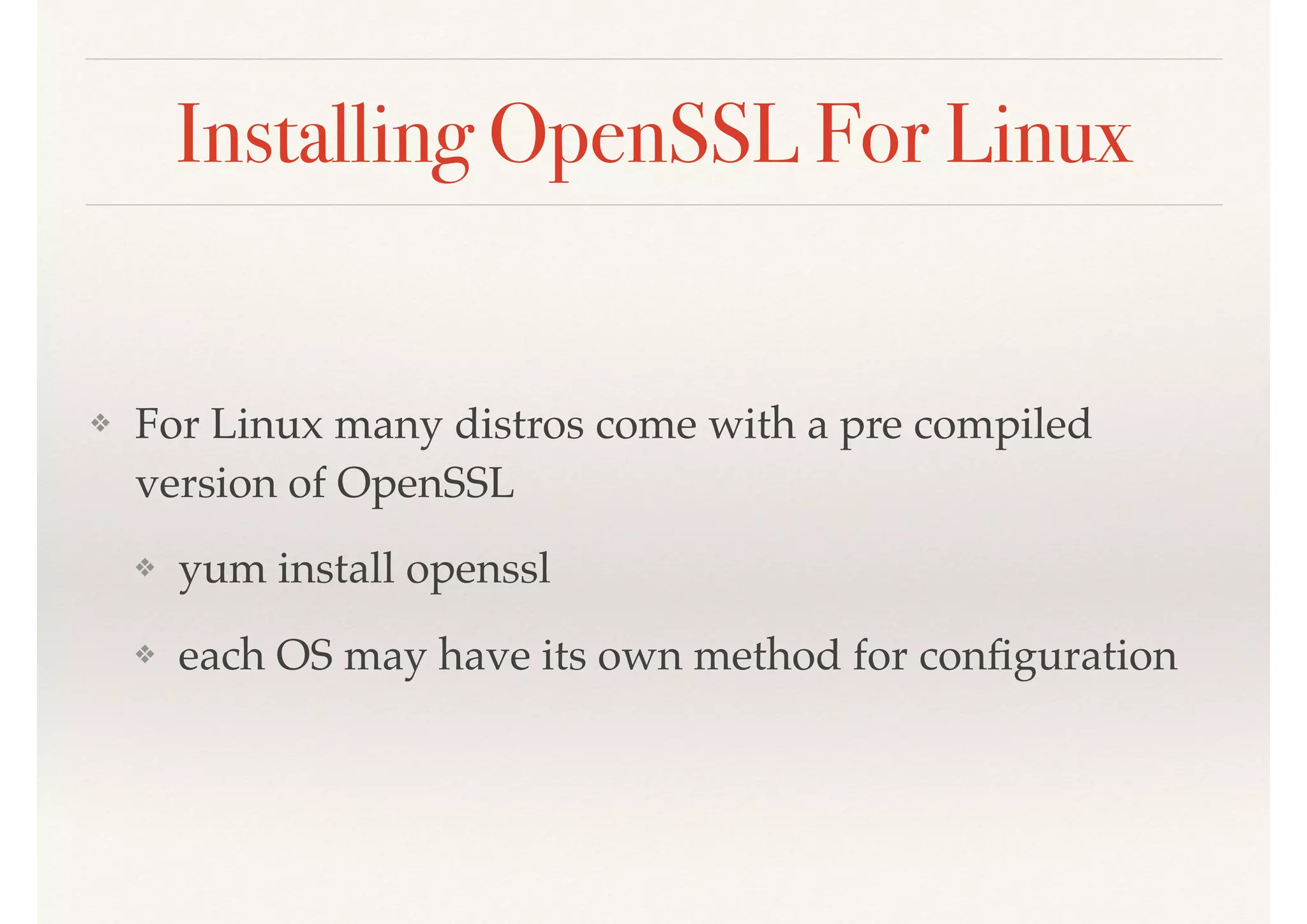

40. Installing OpenSSL For Linux
❖ For Linux many distros come with a pre compiled
version of OpenSSL
❖ yum install openssl
❖ each OS may have its own method for configuration

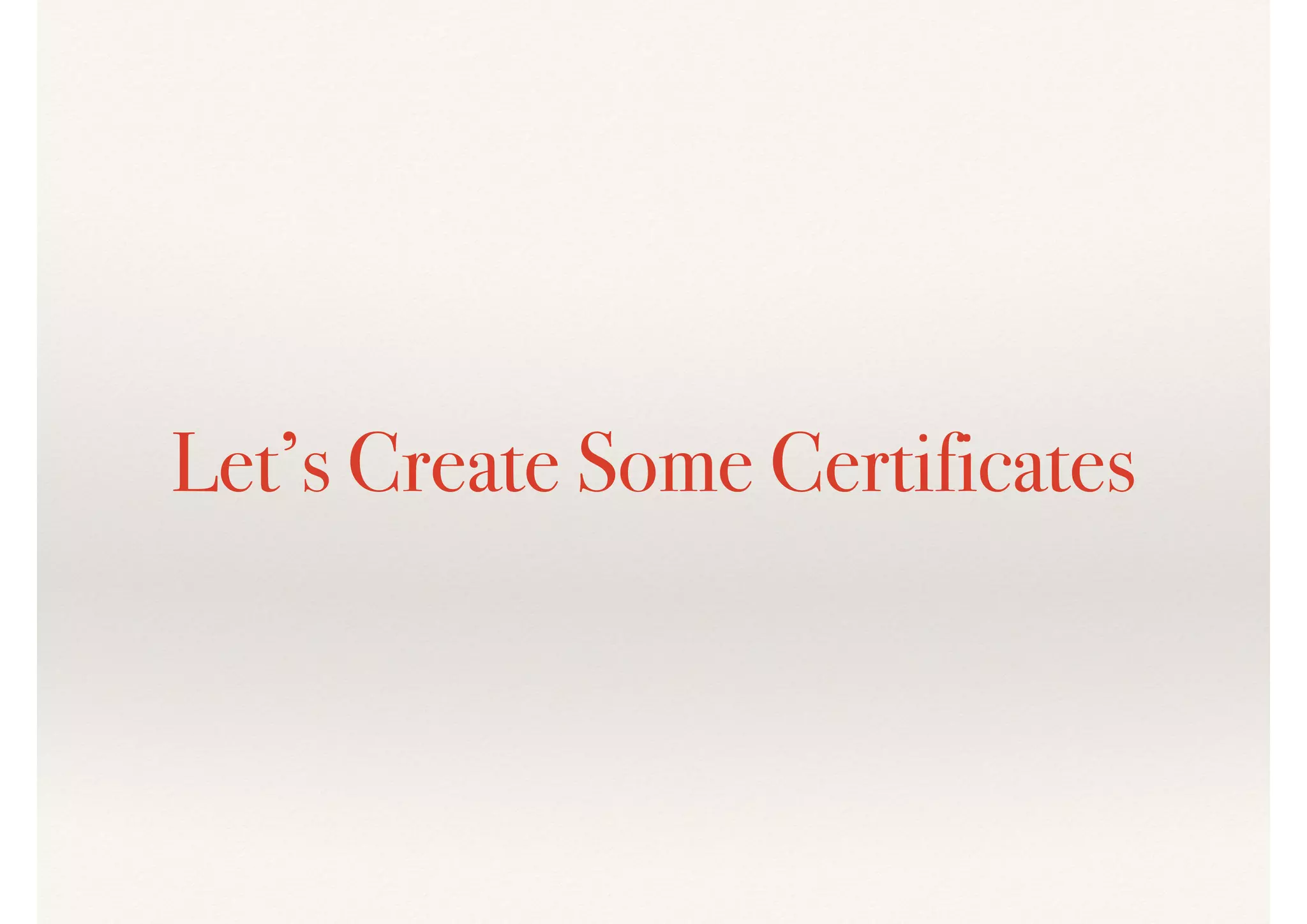

41. Let’s Create Some Certificates

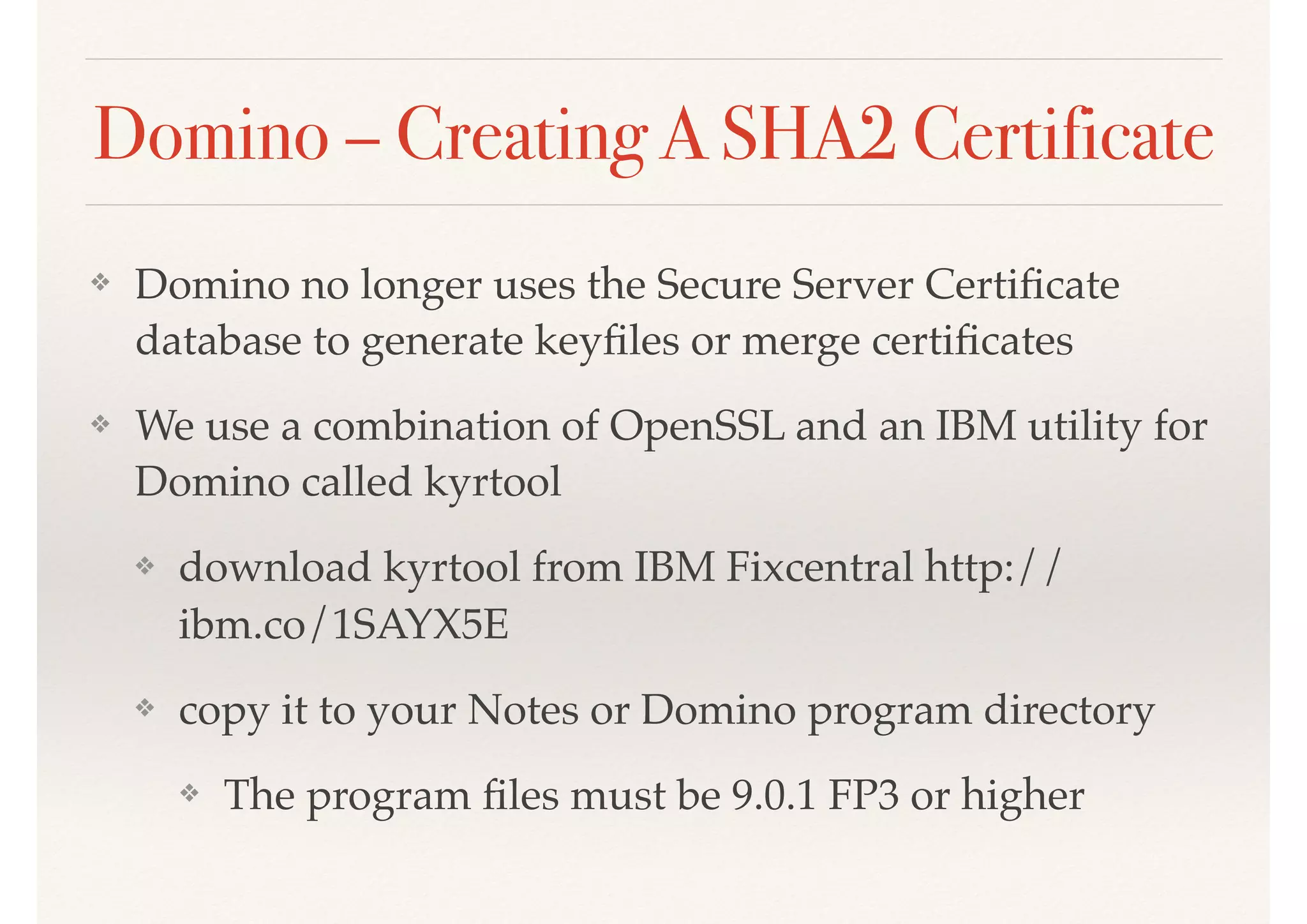

42. Domino – Creating A SHA2 Certificate
❖ Domino no longer uses the Secure Server Certificate
database to generate keyfiles or merge certificates
❖ We use a combination of OpenSSL and an IBM utility for
Domino called kyrtool
❖ download kyrtool from IBM Fixcentral http://
ibm.co/1SAYX5E
❖ copy it to your Notes or Domino program directory
❖ The program files must be 9.0.1 FP3 or higher

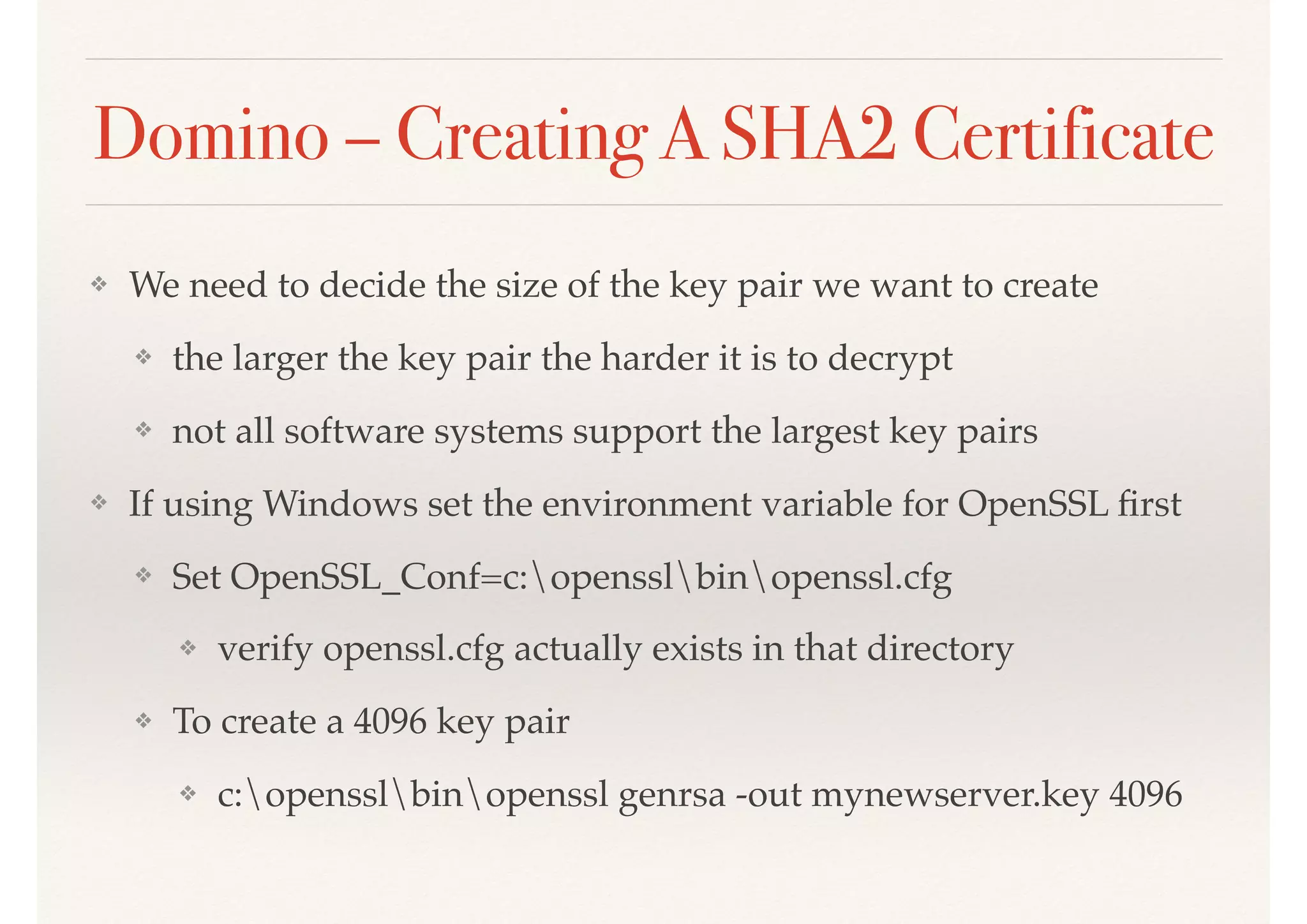

43. Domino – Creating A SHA2 Certificate
❖ We need to decide the size of the key pair we want to create
❖ the larger the key pair the harder it is to decrypt
❖ not all software systems support the largest key pairs
❖ If using Windows set the environment variable for OpenSSL first
❖ Set OpenSSL_Conf=c:opensslbinopenssl.cfg
❖ verify openssl.cfg actually exists in that directory
❖ To create a 4096 key pair
❖ c:opensslbinopenssl genrsa -out mynewserver.key 4096

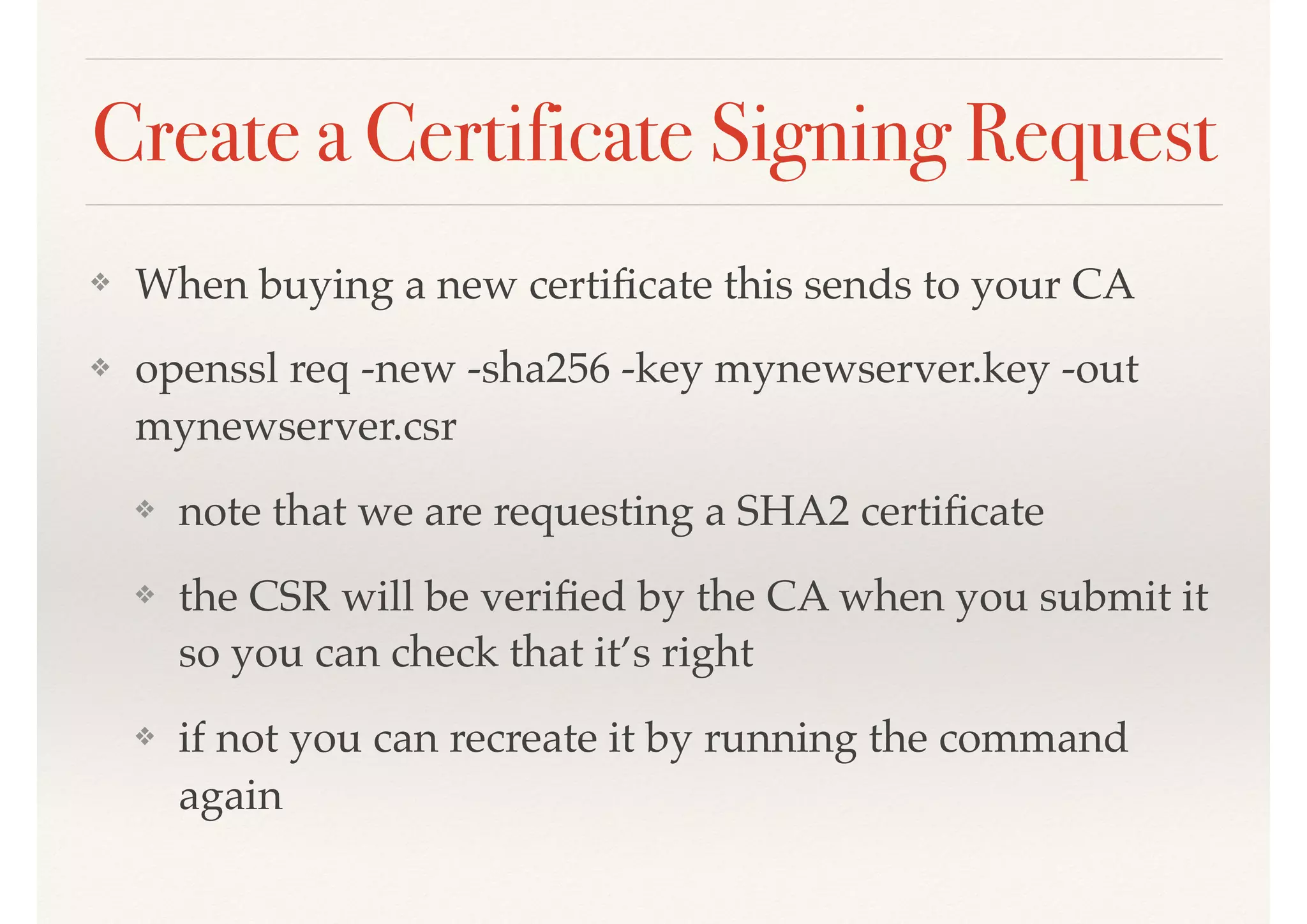

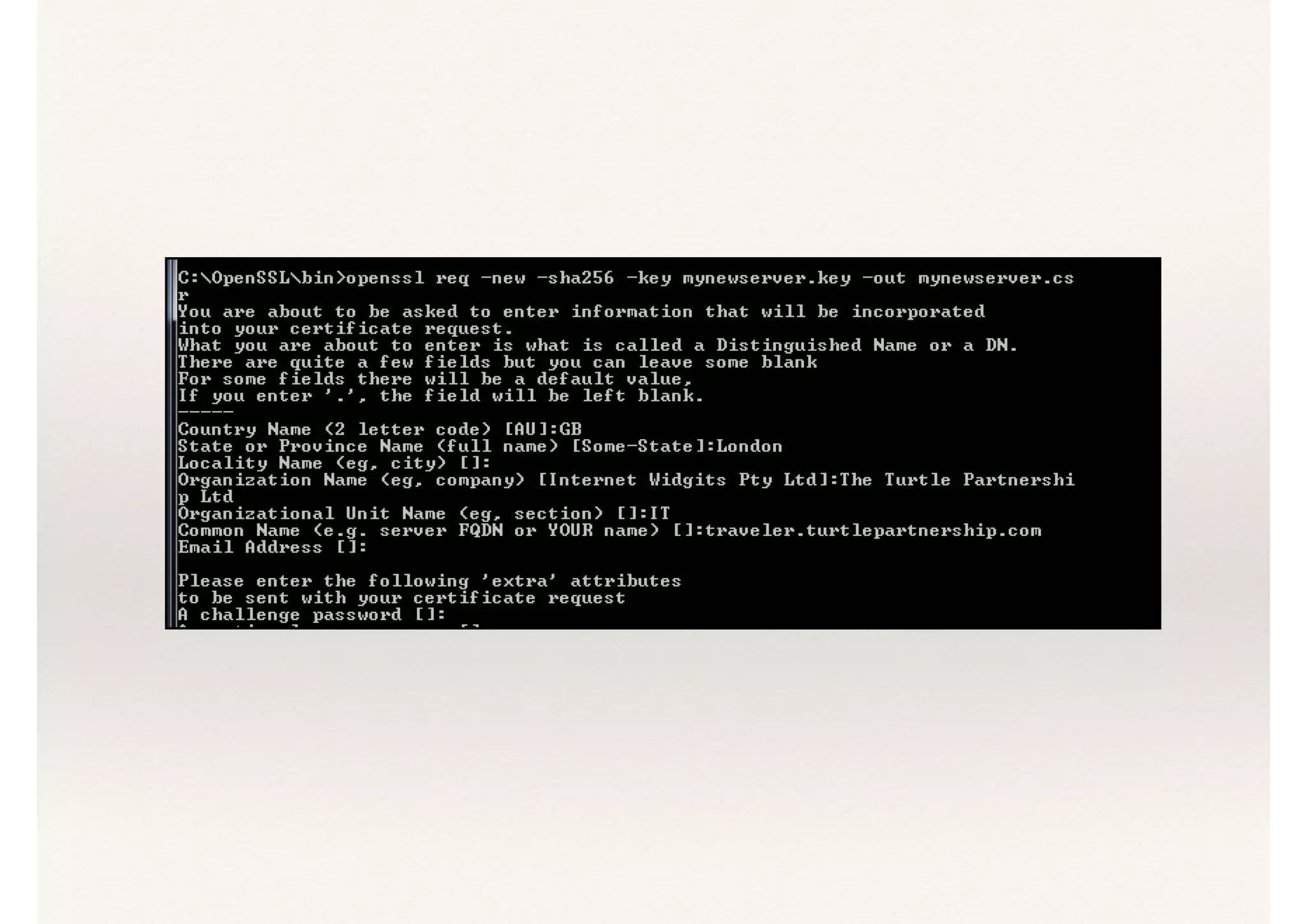

44. Create a Certificate Signing Request
❖ When buying a new certificate this sends to your CA
❖ openssl req -new -sha256 -key mynewserver.key -out
mynewserver.csr
❖ note that we are requesting a SHA2 certificate
❖ the CSR will be verified by the CA when you submit it
so you can check that it’s right
❖ if not you can recreate it by running the command
again

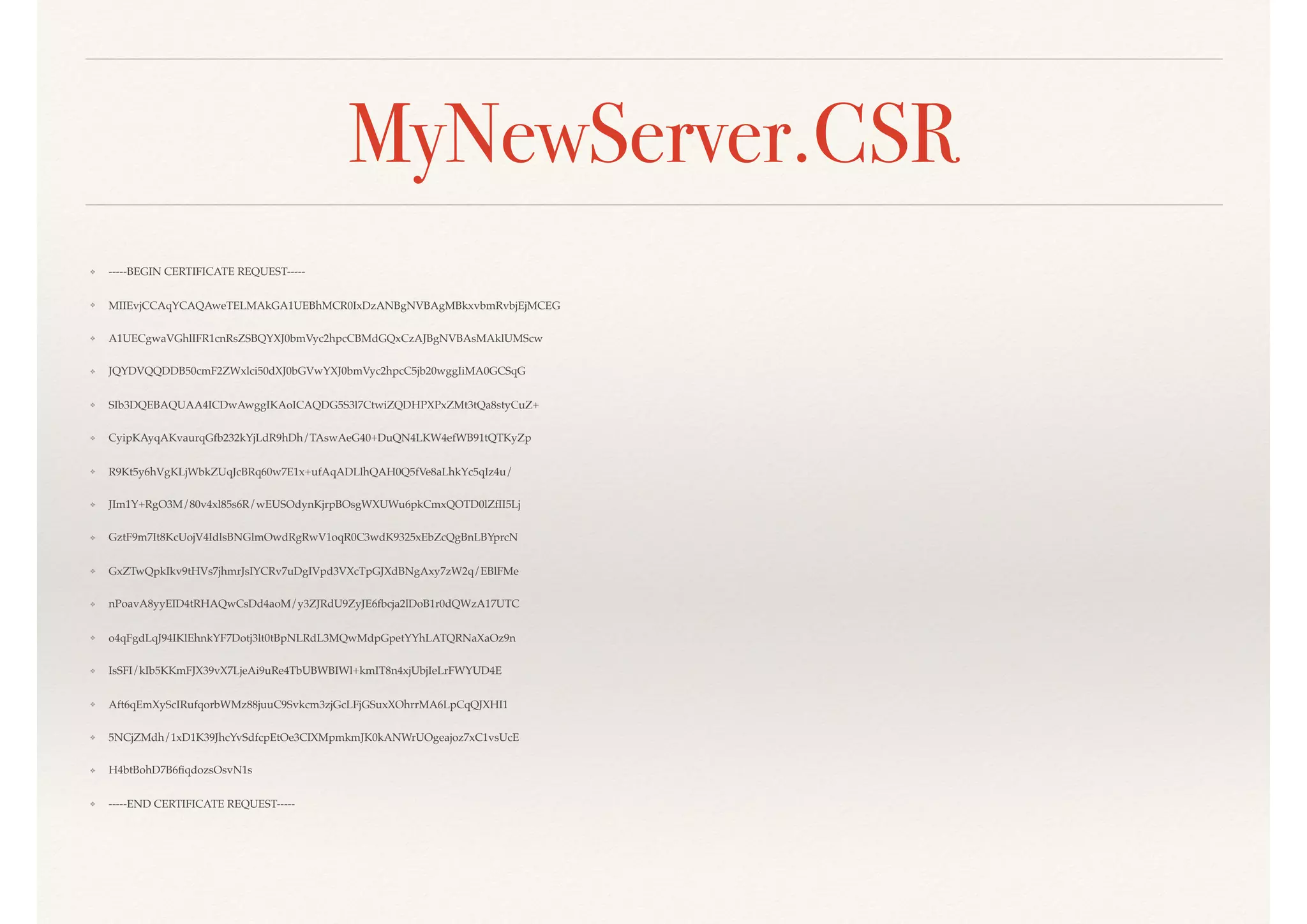

46. MyNewServer.CSR
❖ -----BEGIN CERTIFICATE REQUEST-----
❖ MIIEvjCCAqYCAQAweTELMAkGA1UEBhMCR0IxDzANBgNVBAgMBkxvbmRvbjEjMCEG
❖ A1UECgwaVGhlIFR1cnRsZSBQYXJ0bmVyc2hpcCBMdGQxCzAJBgNVBAsMAklUMScw
❖ JQYDVQQDDB50cmF2ZWxlci50dXJ0bGVwYXJ0bmVyc2hpcC5jb20wggIiMA0GCSqG
❖ SIb3DQEBAQUAA4ICDwAwggIKAoICAQDG5S3l7CtwiZQDHPXPxZMt3tQa8styCuZ+
❖ CyipKAyqAKvaurqGfb232kYjLdR9hDh/TAswAeG40+DuQN4LKW4efWB91tQTKyZp
❖ R9Kt5y6hVgKLjWbkZUqJcBRq60w7E1x+ufAqADLlhQAH0Q5fVe8aLhkYc5qIz4u/
❖ JIm1Y+RgO3M/80v4xl85s6R/wEUSOdynKjrpBOsgWXUWu6pkCmxQOTD0lZfII5Lj
❖ GztF9m7It8KcUojV4IdlsBNGlmOwdRgRwV1oqR0C3wdK9325xEbZcQgBnLBYprcN
❖ GxZTwQpkIkv9tHVs7jhmrJsIYCRv7uDgIVpd3VXcTpGJXdBNgAxy7zW2q/EBlFMe
❖ nPoavA8yyEID4tRHAQwCsDd4aoM/y3ZJRdU9ZyJE6fbcja2lDoB1r0dQWzA17UTC
❖ o4qFgdLqJ94IKlEhnkYF7Dotj3lt0tBpNLRdL3MQwMdpGpetYYhLATQRNaXaOz9n
❖ IsSFI/kIb5KKmFJX39vX7LjeAi9uRe4TbUBWBIWl+kmIT8n4xjUbjIeLrFWYUD4E
❖ Aft6qEmXyScIRufqorbWMz88juuC9Svkcm3zjGcLFjGSuxXOhrrMA6LpCqQJXHI1
❖ 5NCjZMdh/1xD1K39JhcYvSdfcpEtOe3CIXMpmkmJK0kANWrUOgeajoz7xC1vsUcE
❖ H4btBohD7B6fiqdozsOsvN1s
❖ -----END CERTIFICATE REQUEST-----

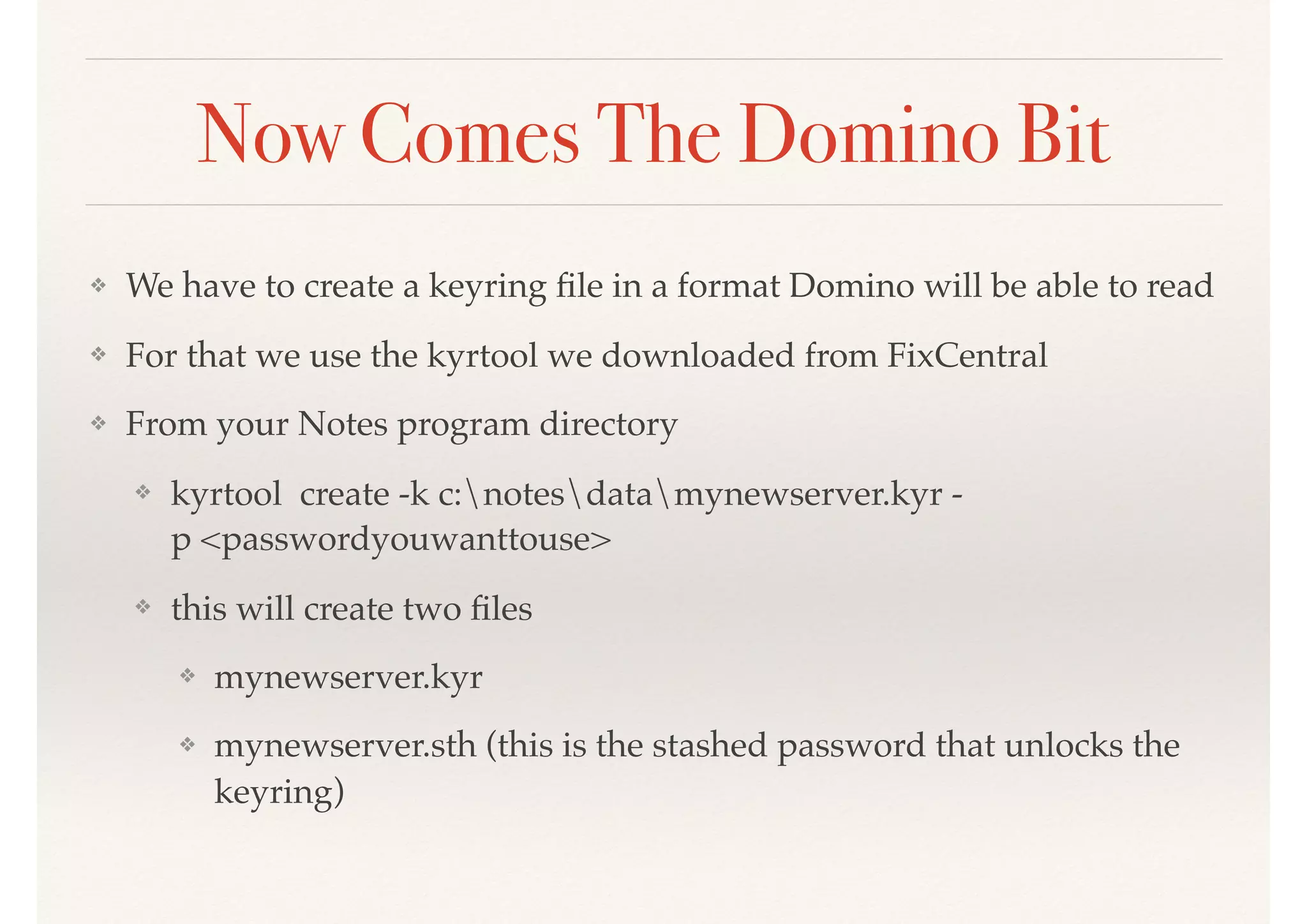

47. Now Comes The Domino Bit
❖ We have to create a keyring file in a format Domino will be able to read
❖ For that we use the kyrtool we downloaded from FixCentral
❖ From your Notes program directory
❖ kyrtool create -k c:notesdatamynewserver.kyr -
p <passwordyouwanttouse>
❖ this will create two files
❖ mynewserver.kyr
❖ mynewserver.sth (this is the stashed password that unlocks the
keyring)

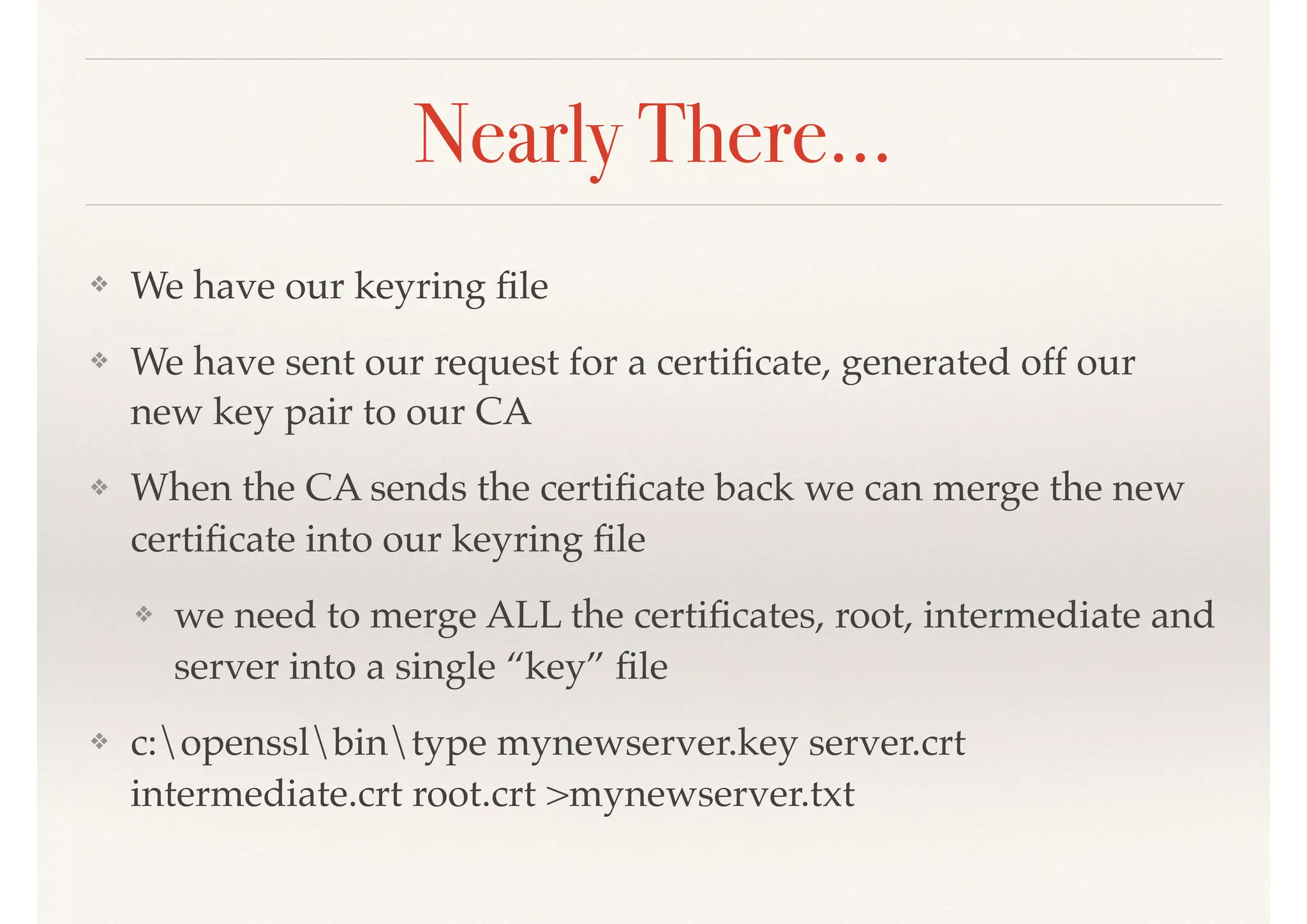

48. Nearly There…
❖ We have our keyring file
❖ We have sent our request for a certificate, generated off our
new key pair to our CA
❖ When the CA sends the certificate back we can merge the new
certificate into our keyring file
❖ we need to merge ALL the certificates, root, intermediate and
server into a single “key” file
❖ c:opensslbintype mynewserver.key server.crt
intermediate.crt root.crt >mynewserver.txt

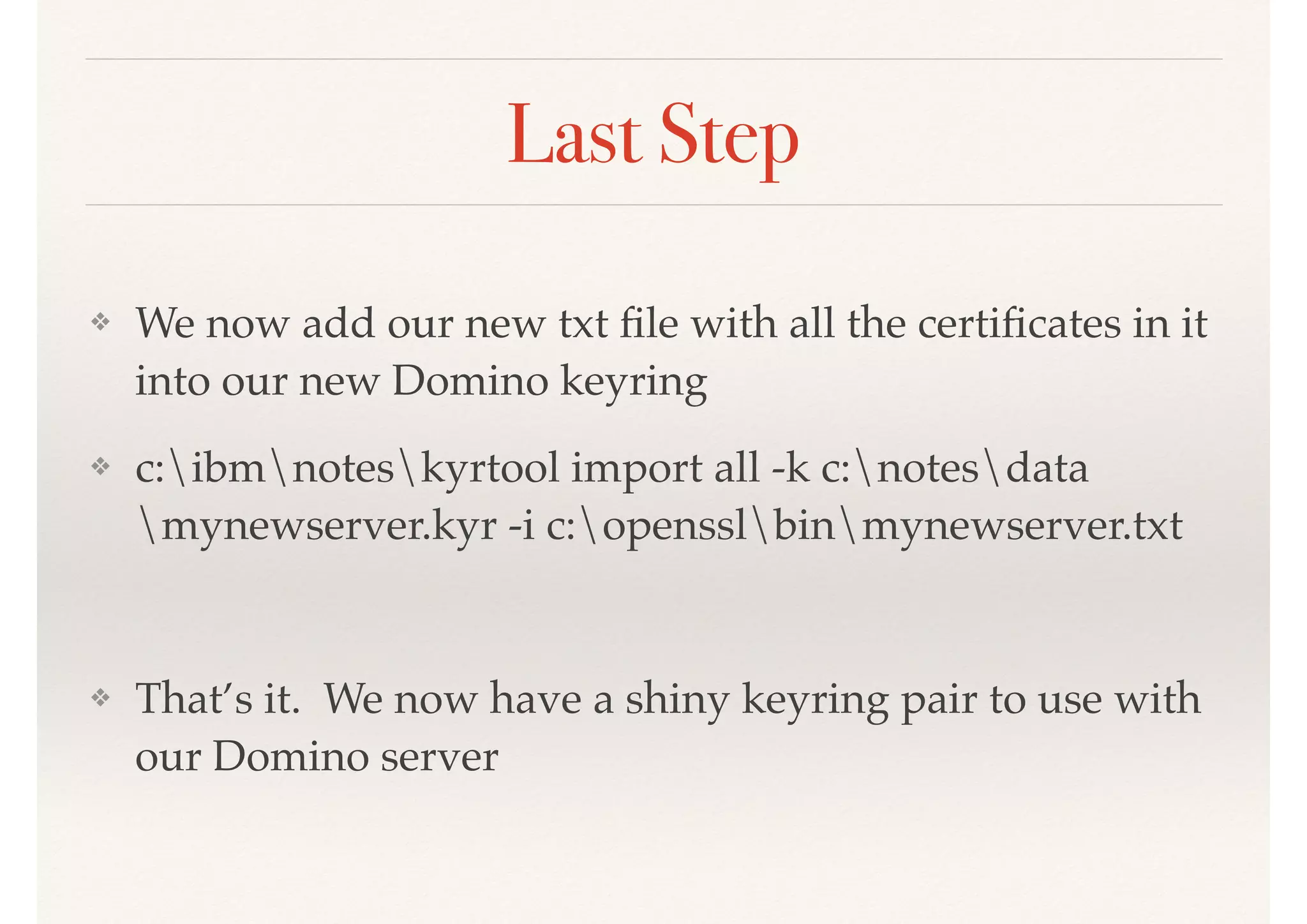

49. Last Step
❖ We now add our new txt file with all the certificates in it
into our new Domino keyring
❖ c:ibmnoteskyrtool import all -k c:notesdata
mynewserver.kyr -i c:opensslbinmynewserver.txt
❖ That’s it. We now have a shiny keyring pair to use with
our Domino server

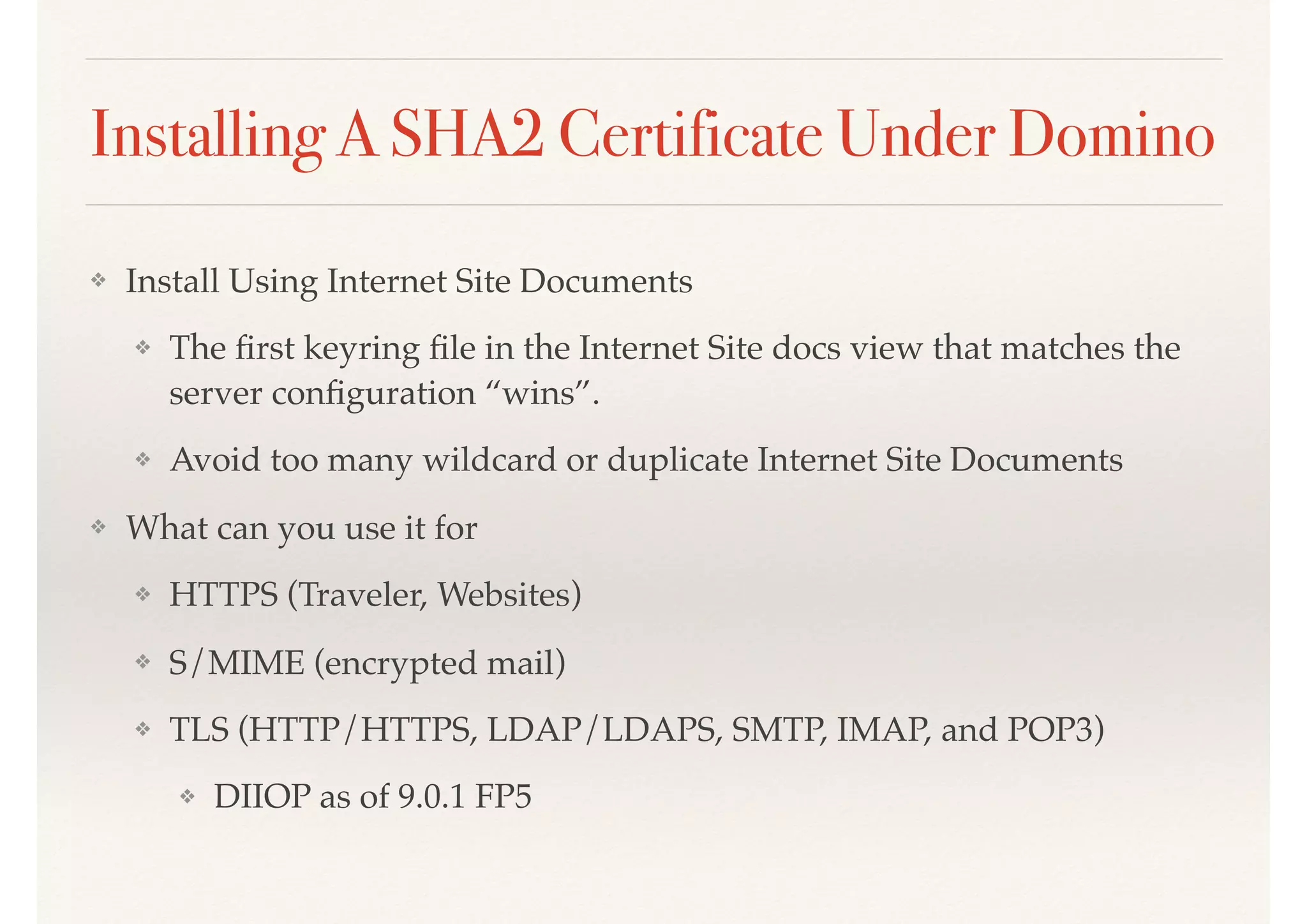

50. Installing A SHA2 Certificate Under Domino
❖ Install Using Internet Site Documents
❖ The first keyring file in the Internet Site docs view that matches the
server configuration “wins”.
❖ Avoid too many wildcard or duplicate Internet Site Documents
❖ What can you use it for
❖ HTTPS (Traveler, Websites)
❖ S/MIME (encrypted mail)
❖ TLS (HTTP/HTTPS, LDAP/LDAPS, SMTP, IMAP, and POP3)
❖ DIIOP as of 9.0.1 FP5

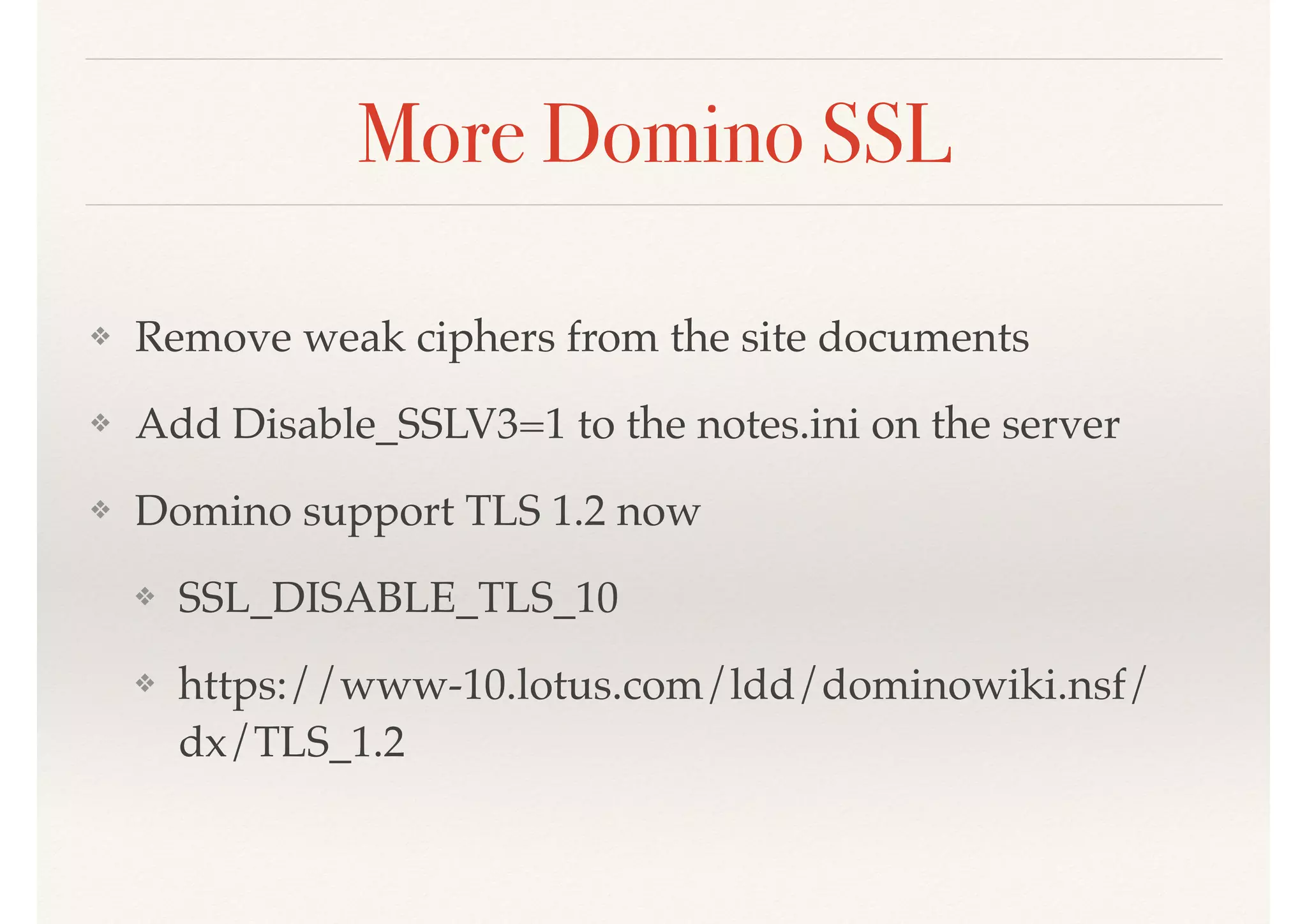

51. More Domino SSL
❖ Remove weak ciphers from the site documents
❖ Add Disable_SSLV3=1 to the notes.ini on the server
❖ Domino support TLS 1.2 now
❖ SSL_DISABLE_TLS_10
❖ https://www-10.lotus.com/ldd/dominowiki.nsf/
dx/TLS_1.2

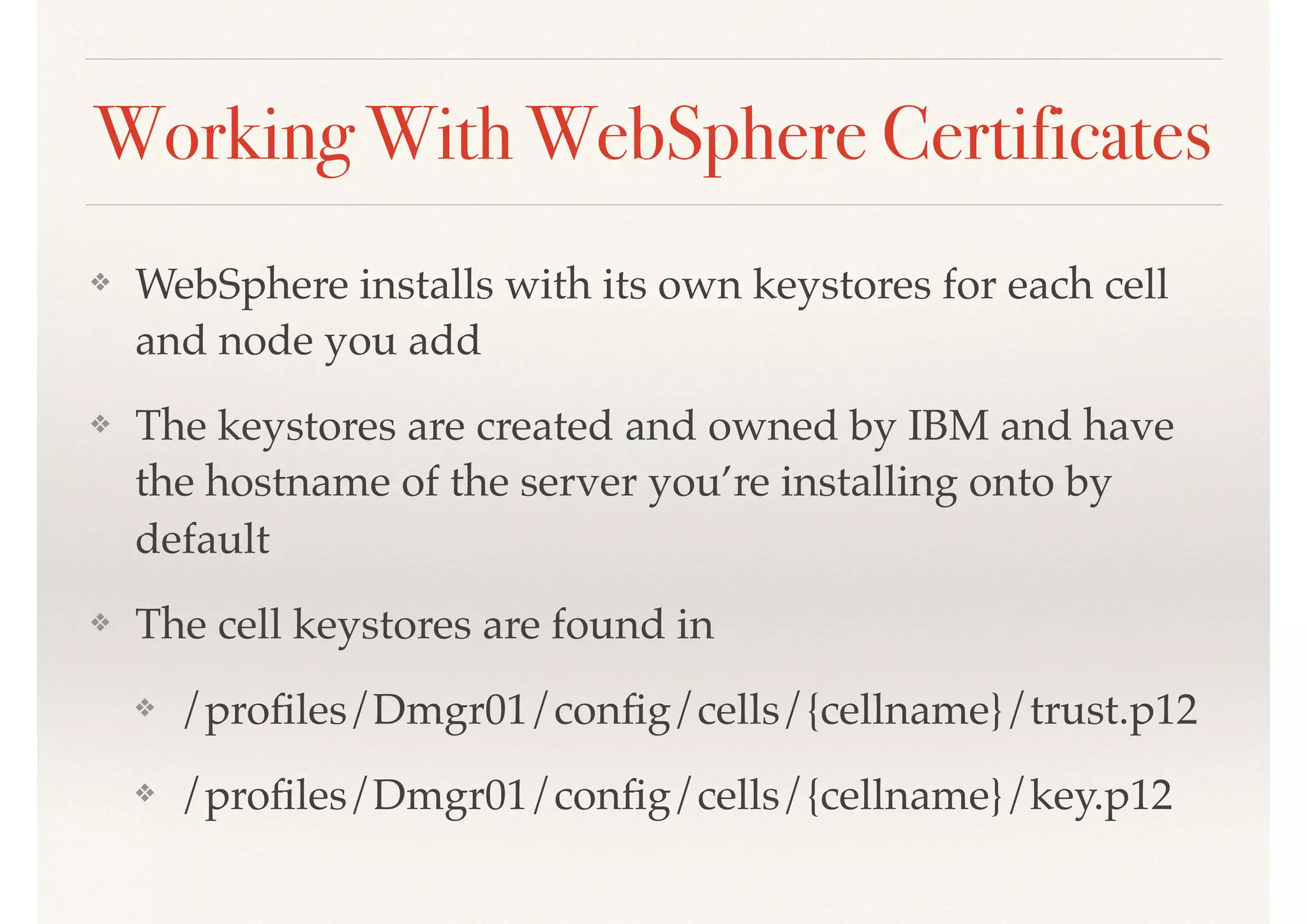

52. Working With WebSphere Certificates
❖ WebSphere installs with its own keystores for each cell
and node you add
❖ The keystores are created and owned by IBM and have
the hostname of the server you’re installing onto by
default
❖ The cell keystores are found in
❖ /profiles/Dmgr01/config/cells/{cellname}/trust.p12
❖ /profiles/Dmgr01/config/cells/{cellname}/key.p12

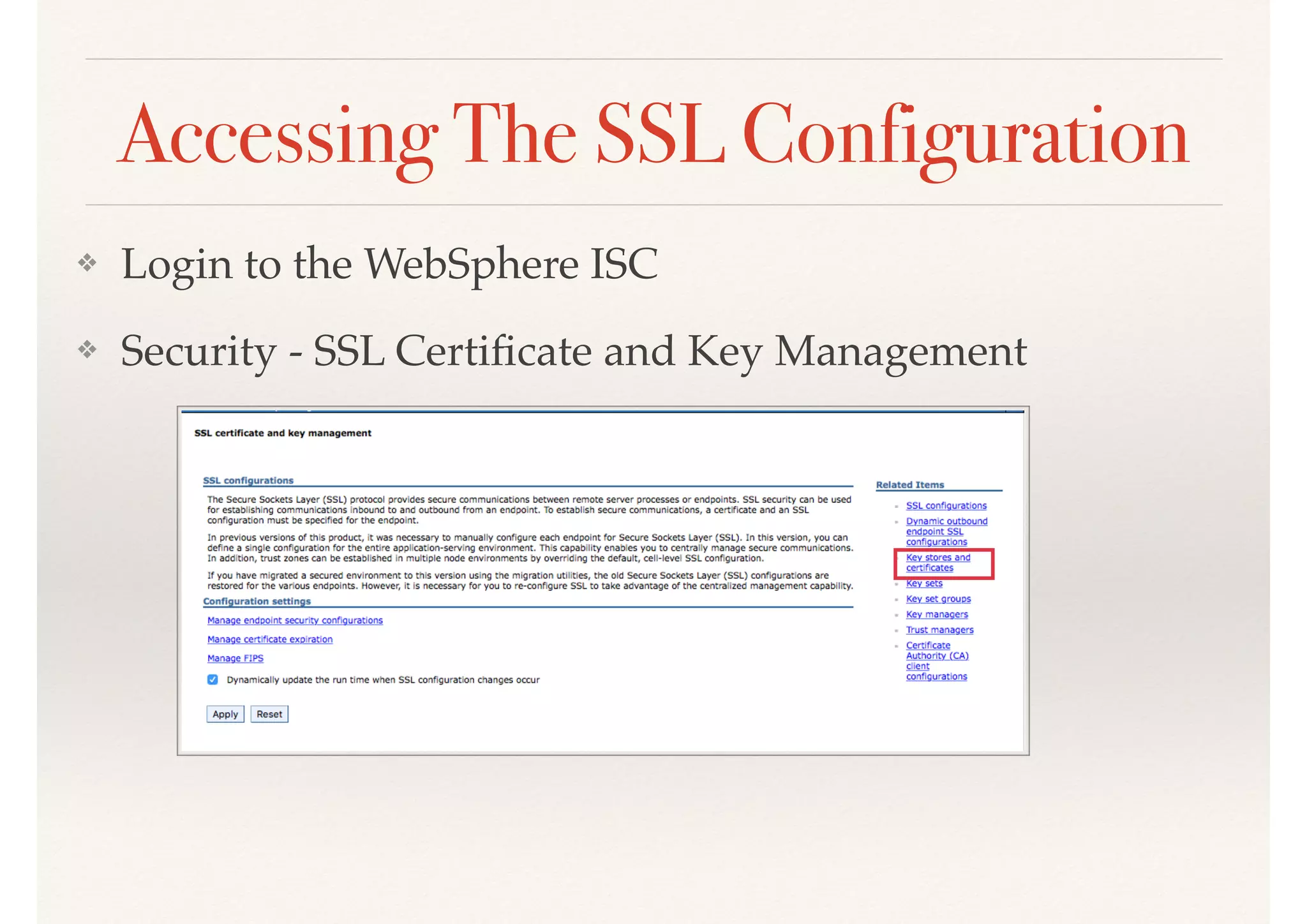

53. Accessing The SSL Configuration
❖ Login to the WebSphere ISC
❖ Security - SSL Certificate and Key Management

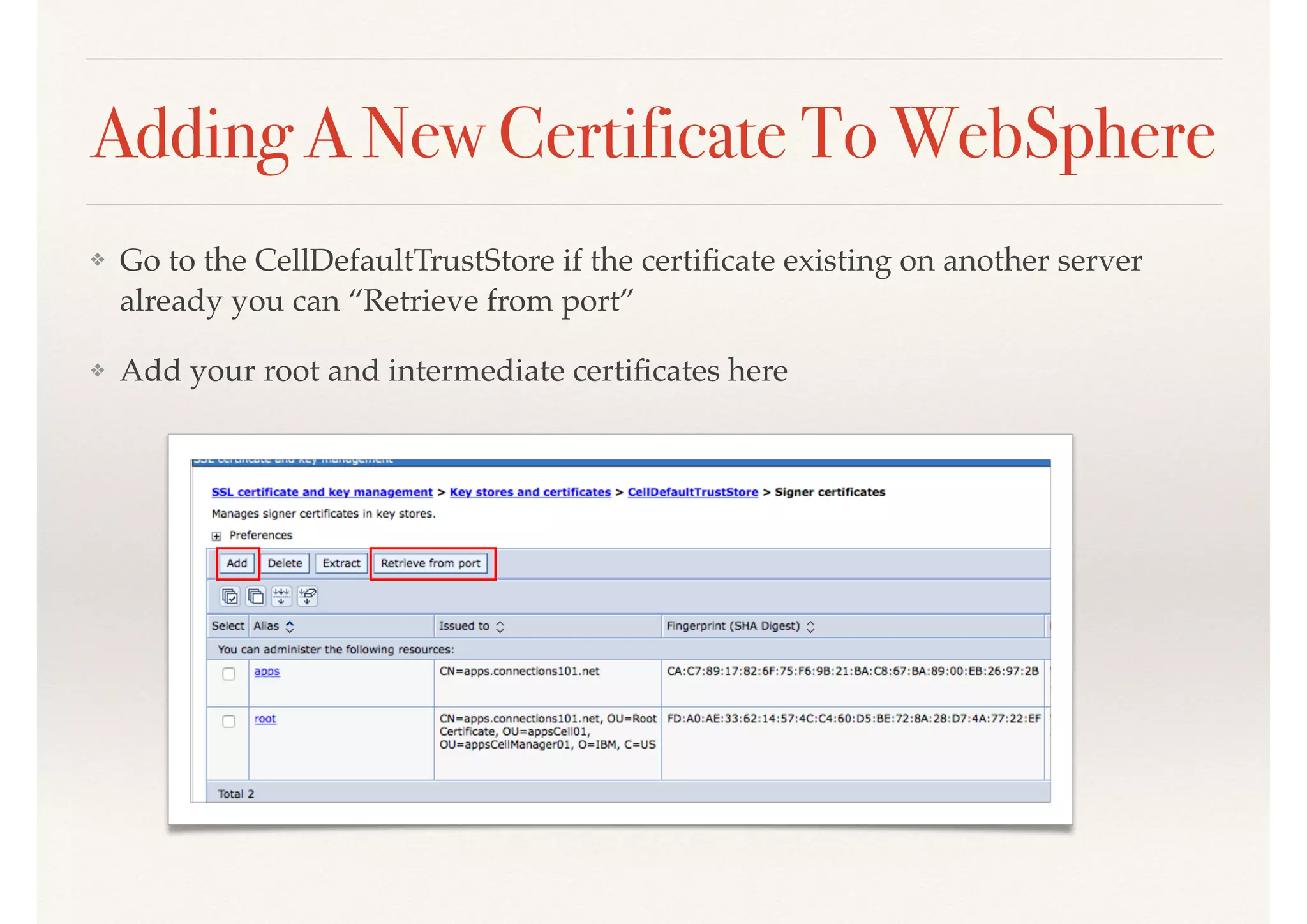

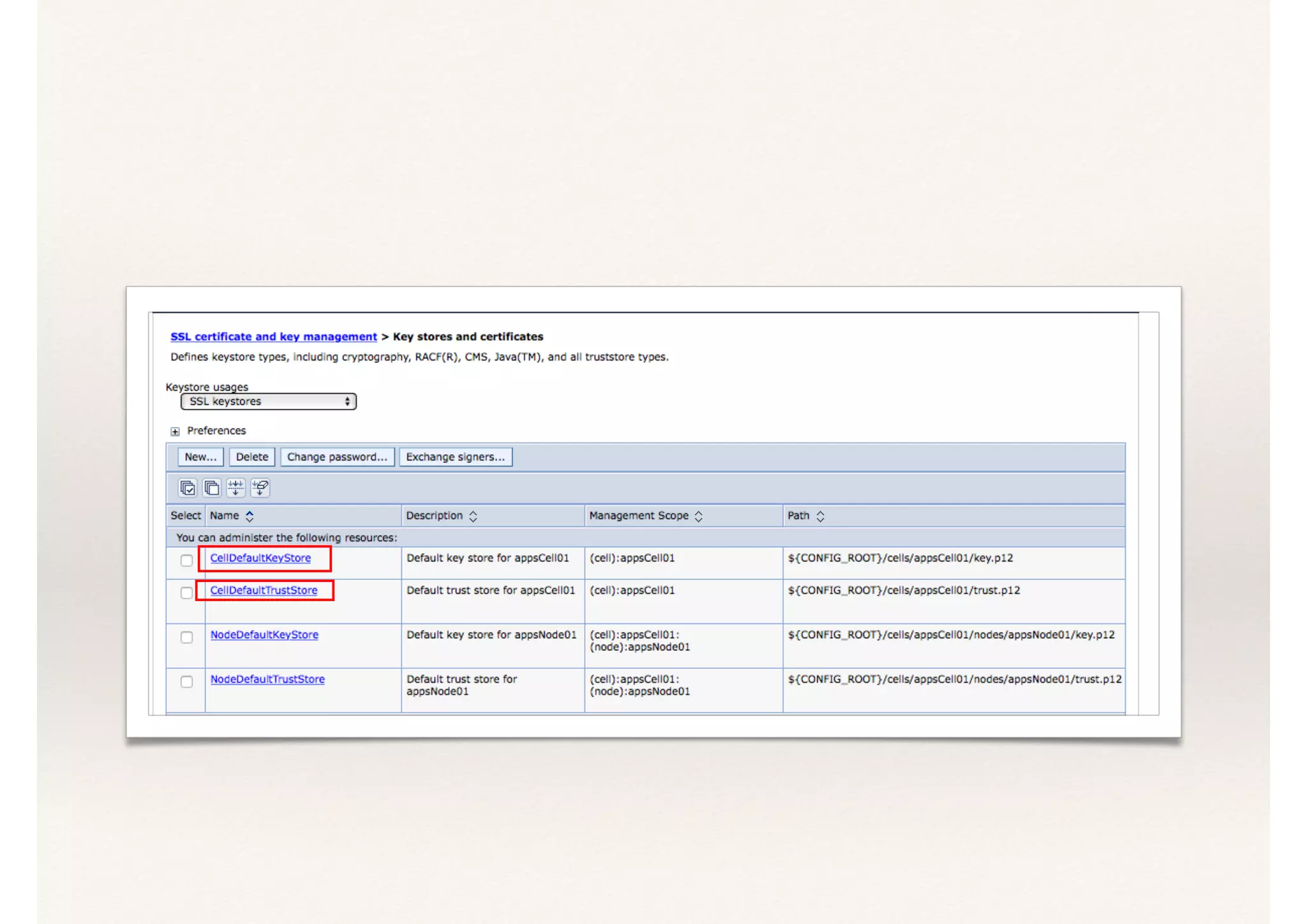

55. Adding A New Certificate To WebSphere
❖ Go to the CellDefaultTrustStore if the certificate existing on another server
already you can “Retrieve from port”
❖ Add your root and intermediate certificates here

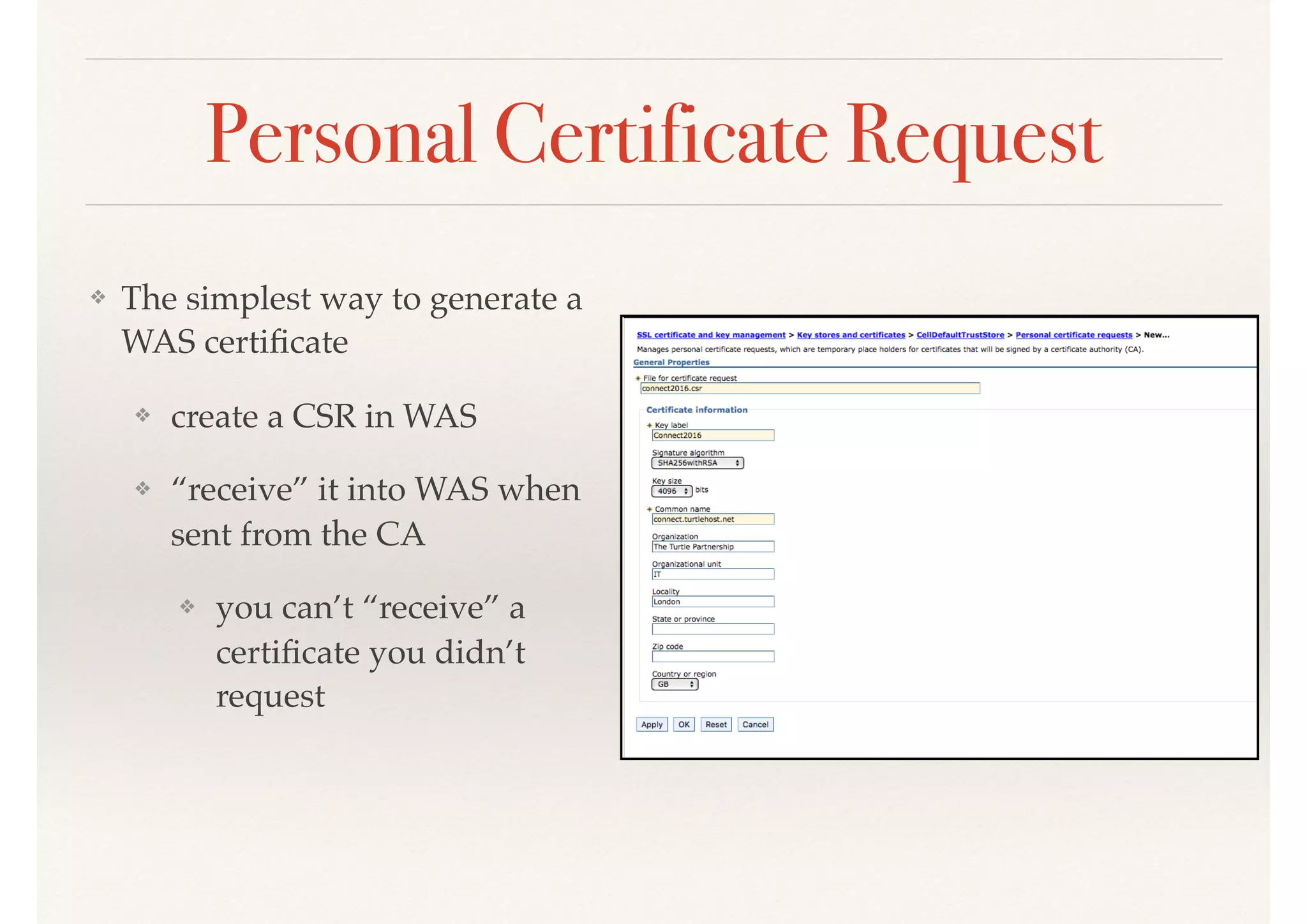

56. Personal Certificate Request
❖ The simplest way to generate a
WAS certificate
❖ create a CSR in WAS
❖ “receive” it into WAS when
sent from the CA
❖ you can’t “receive” a
certificate you didn’t
request

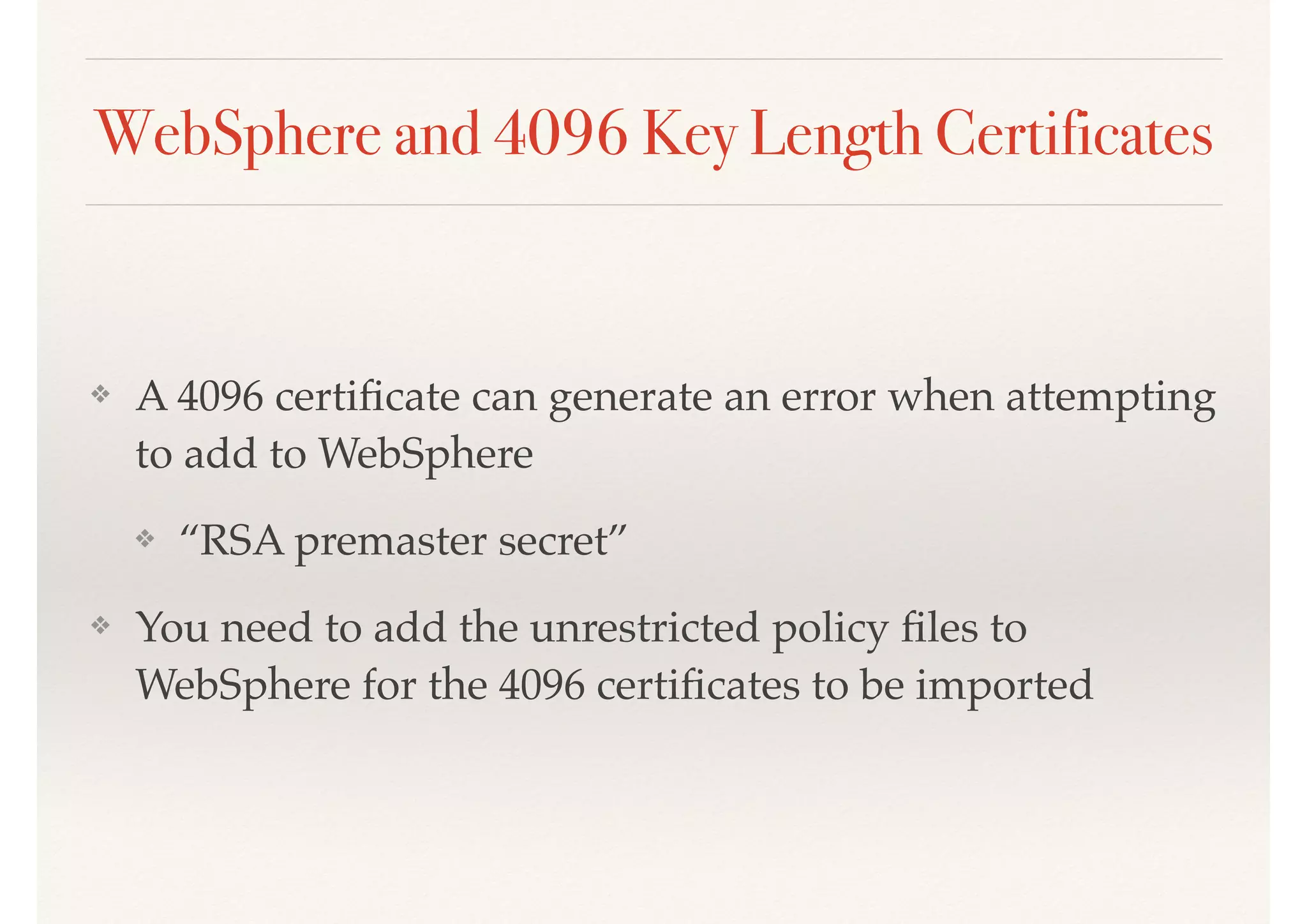

57. WebSphere and 4096 Key Length Certificates
❖ A 4096 certificate can generate an error when attempting
to add to WebSphere
❖ “RSA premaster secret”
❖ You need to add the unrestricted policy files to
WebSphere for the 4096 certificates to be imported

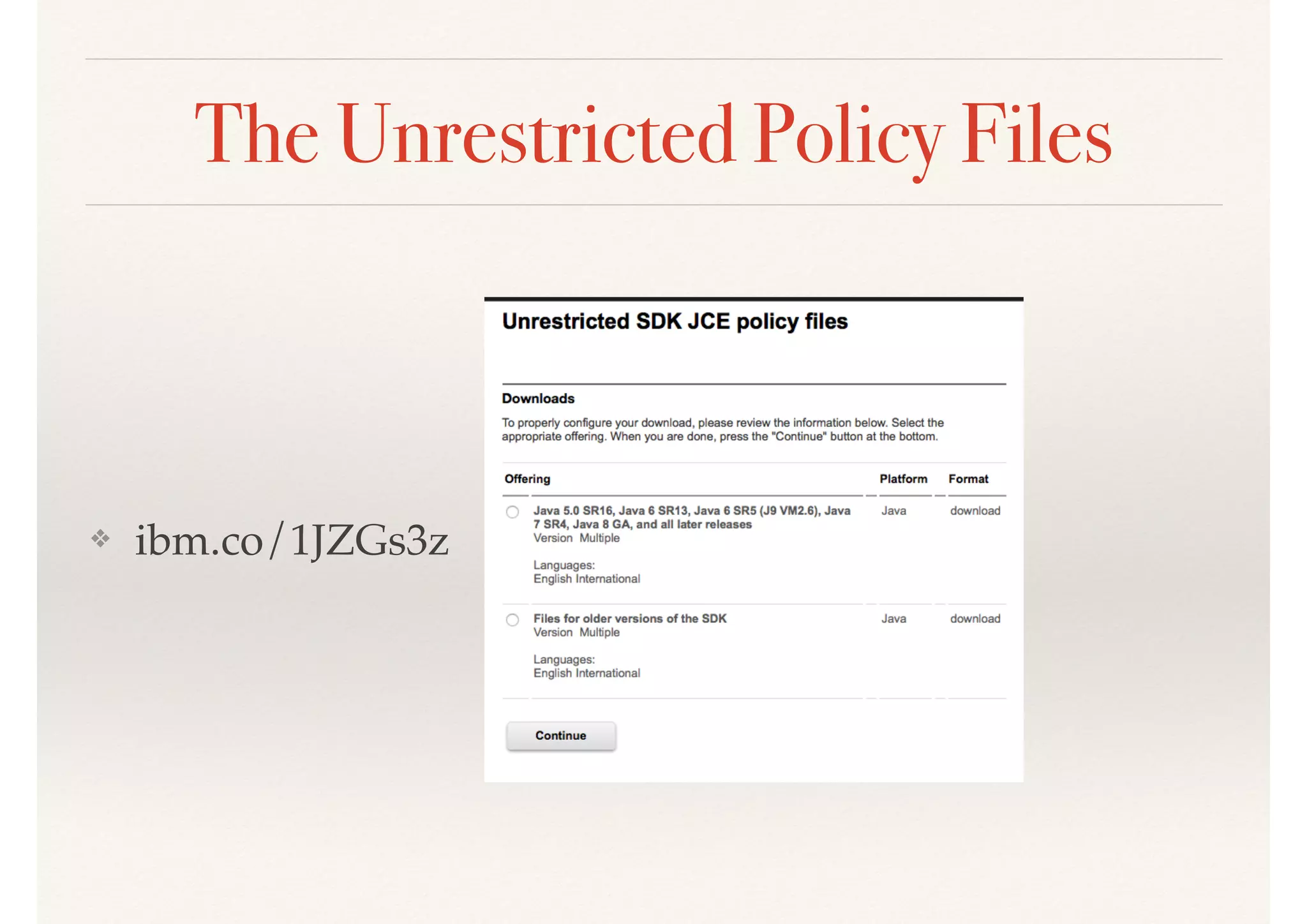

58. The Unrestricted Policy Files
❖ ibm.co/1JZGs3z

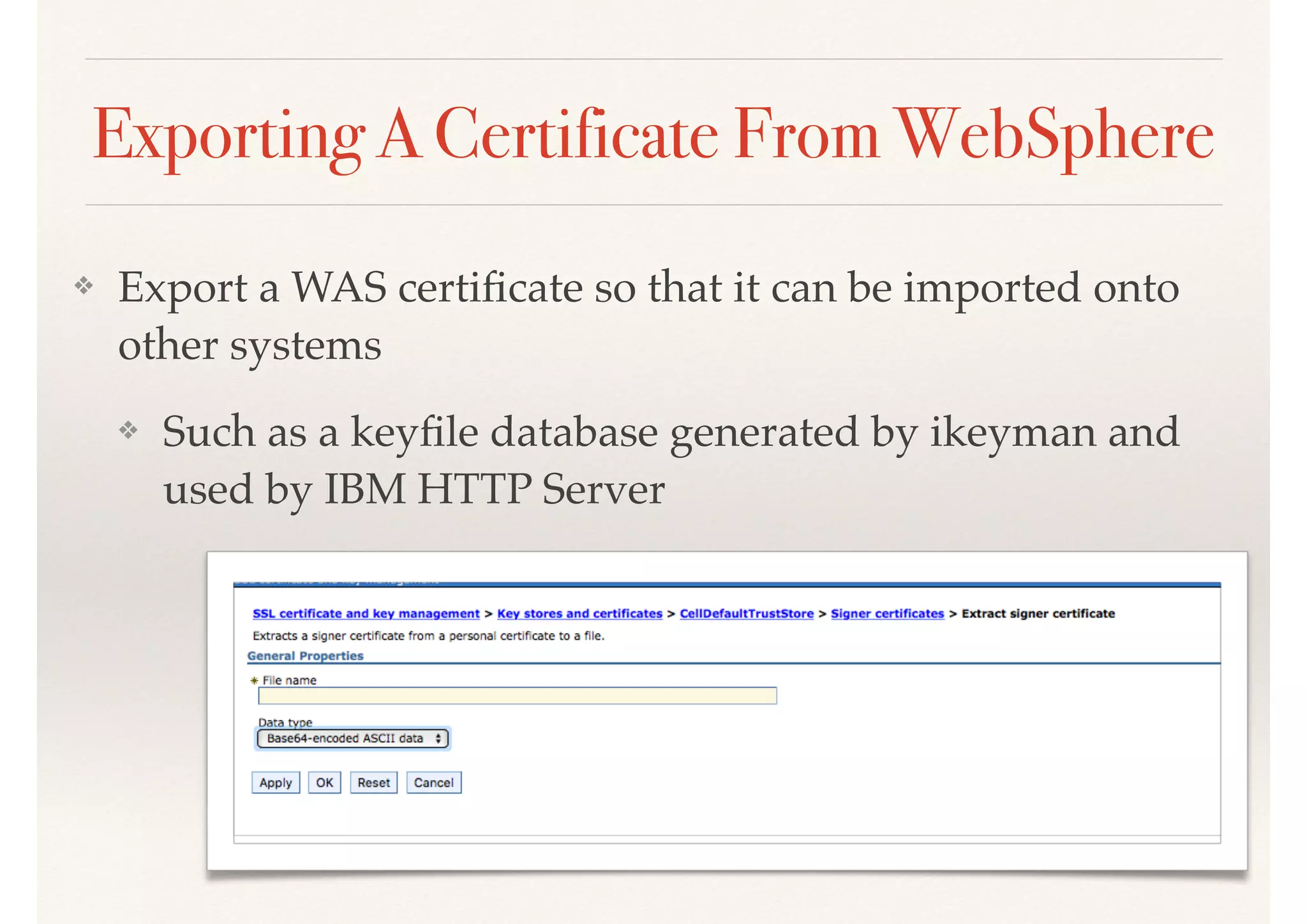

59. Exporting A Certificate From WebSphere
❖ Export a WAS certificate so that it can be imported onto
other systems
❖ Such as a keyfile database generated by ikeyman and
used by IBM HTTP Server

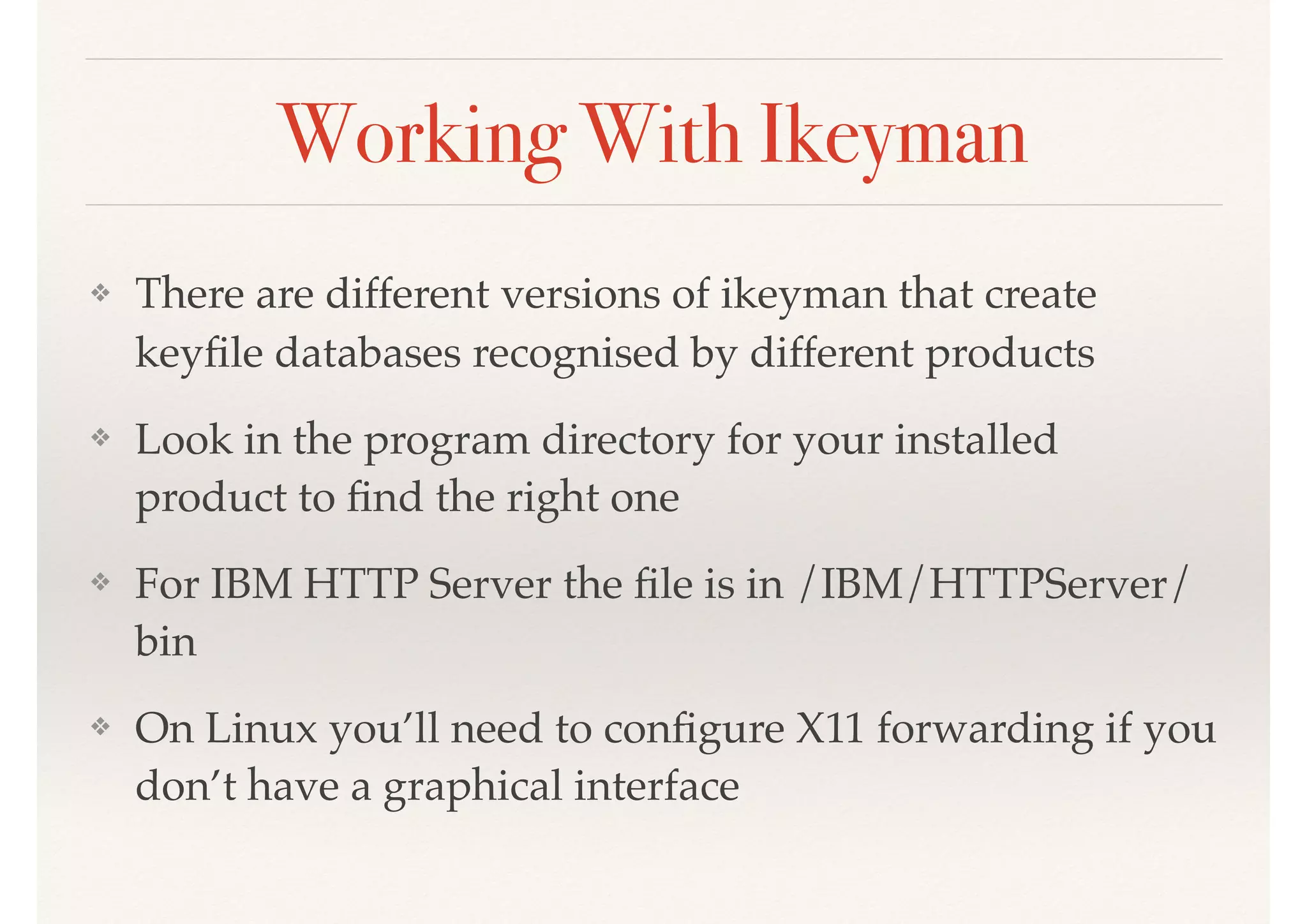

60. Working With Ikeyman
❖ There are different versions of ikeyman that create
keyfile databases recognised by different products
❖ Look in the program directory for your installed
product to find the right one
❖ For IBM HTTP Server the file is in /IBM/HTTPServer/
bin
❖ On Linux you’ll need to configure X11 forwarding if you
don’t have a graphical interface

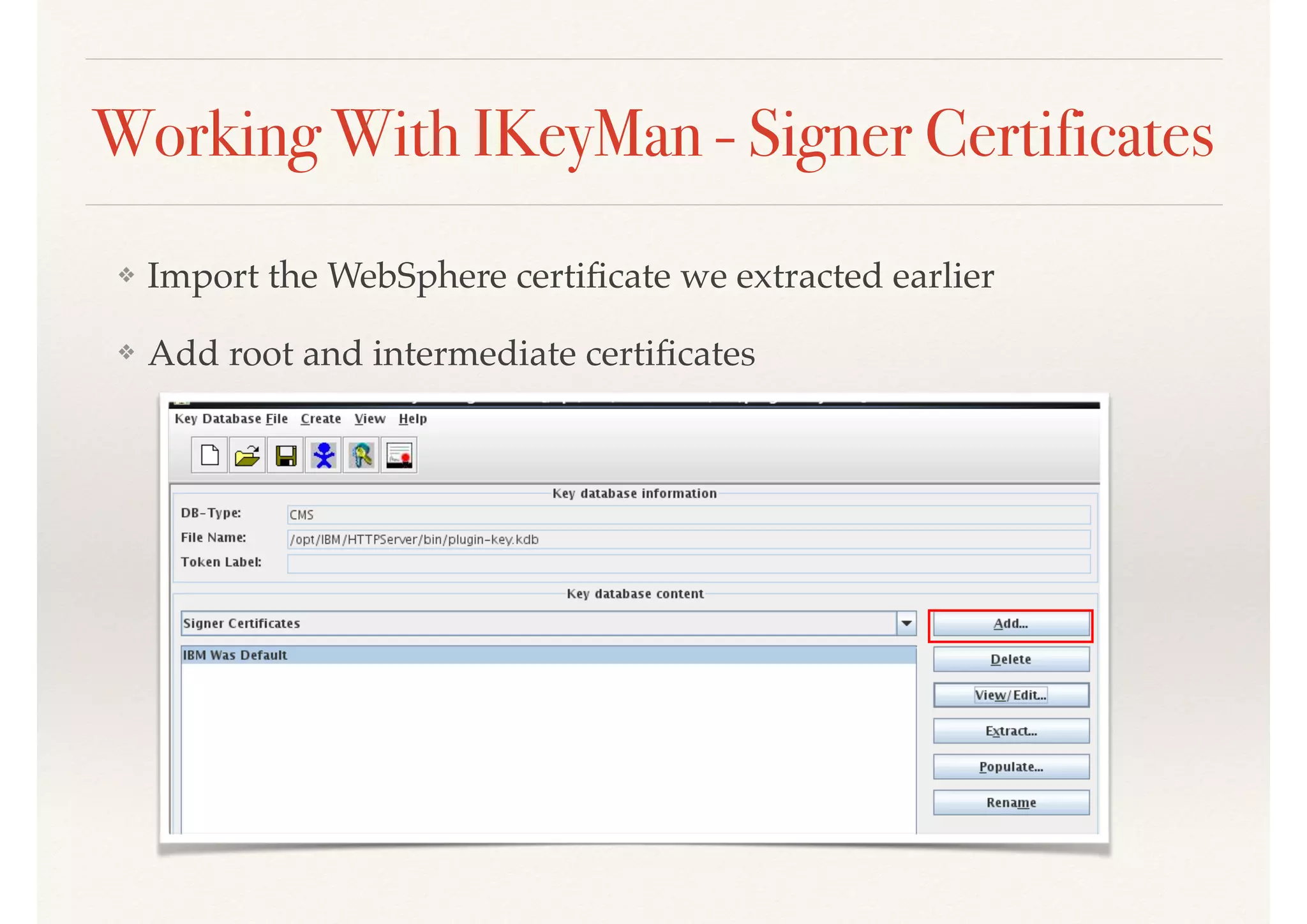

61. Working With IKeyMan - Signer Certificates
❖ Import the WebSphere certificate we extracted earlier
❖ Add root and intermediate certificates

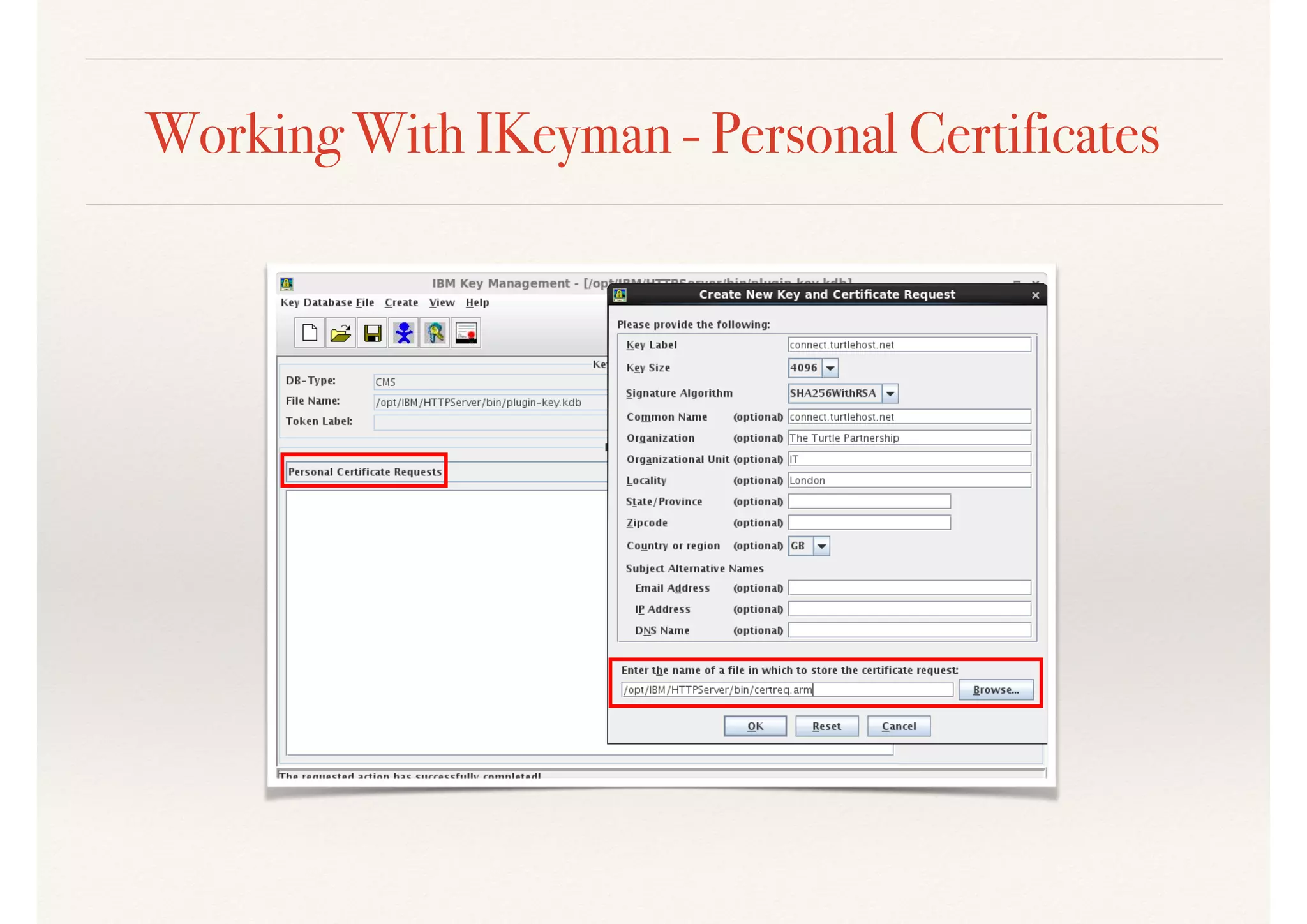

62. Working With IKeyman - Personal Certificates

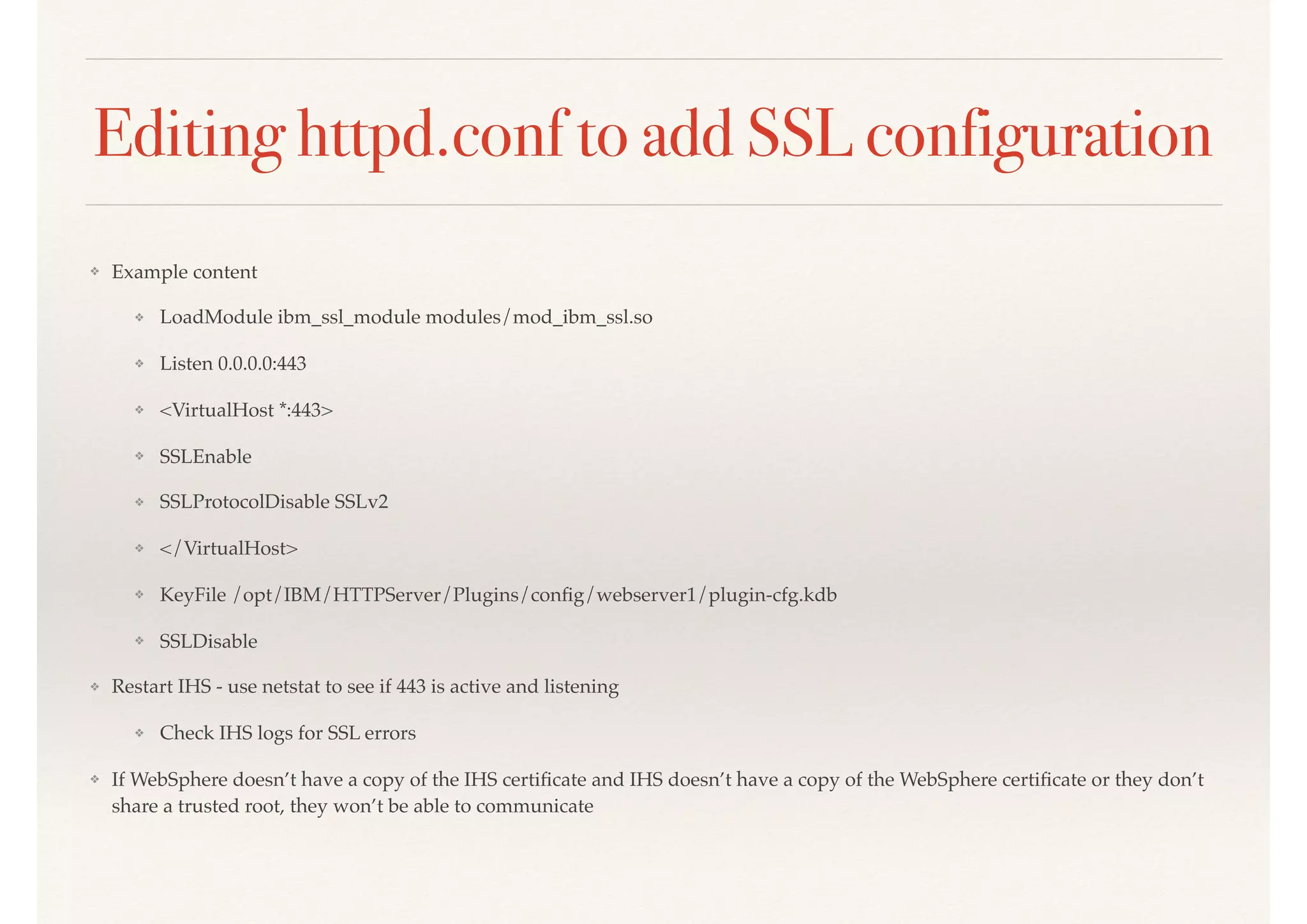

63. Editing httpd.conf to add SSL configuration
❖ Example content
❖ LoadModule ibm_ssl_module modules/mod_ibm_ssl.so
❖ Listen 0.0.0.0:443
❖ <VirtualHost *:443>
❖ SSLEnable
❖ SSLProtocolDisable SSLv2
❖ </VirtualHost>
❖ KeyFile /opt/IBM/HTTPServer/Plugins/config/webserver1/plugin-cfg.kdb
❖ SSLDisable
❖ Restart IHS - use netstat to see if 443 is active and listening
❖ Check IHS logs for SSL errors
❖ If WebSphere doesn’t have a copy of the IHS certificate and IHS doesn’t have a copy of the WebSphere certificate or they don’t
share a trusted root, they won’t be able to communicate

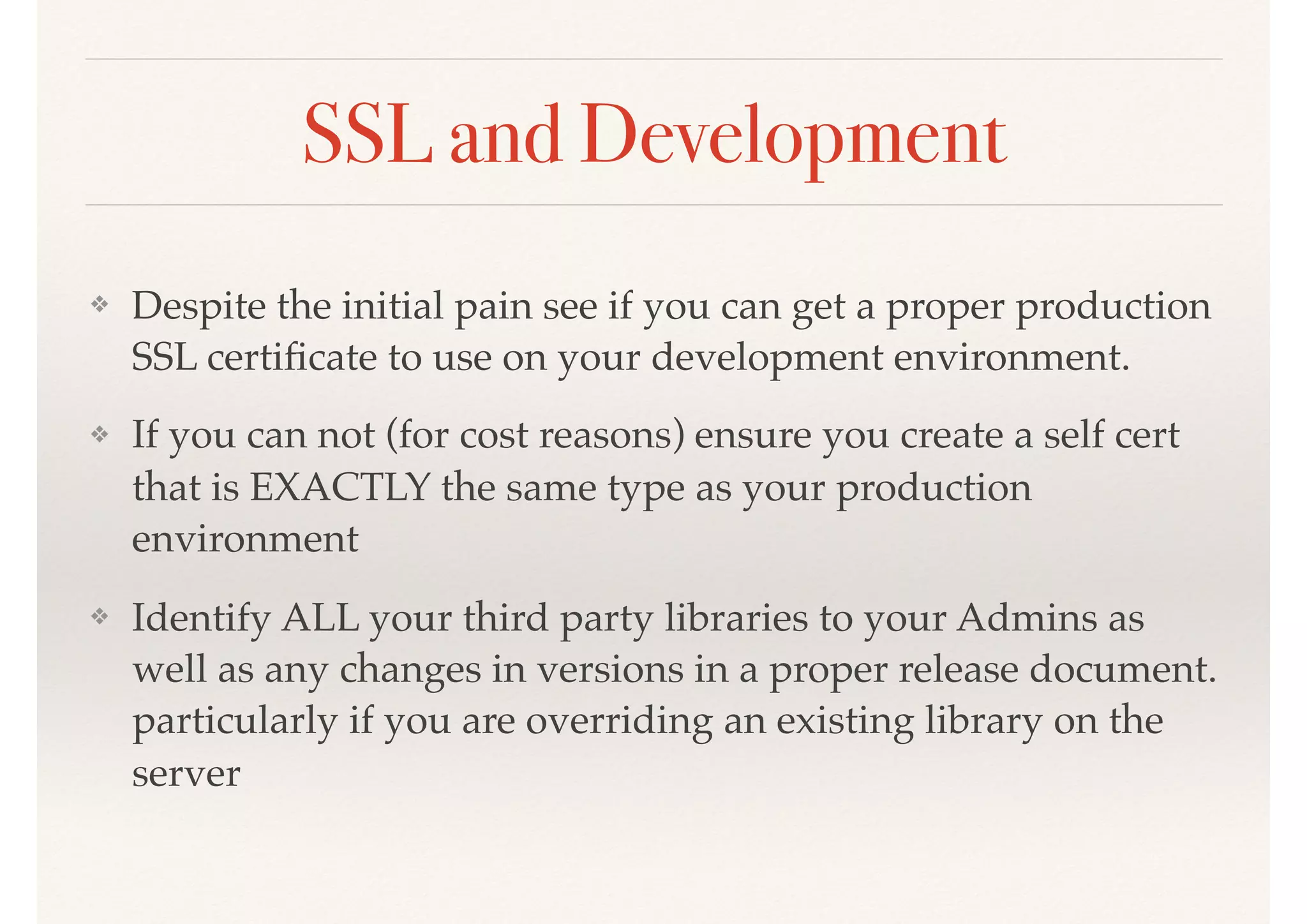

64. SSL and Development
❖ Despite the initial pain see if you can get a proper production
SSL certificate to use on your development environment.
❖ If you can not (for cost reasons) ensure you create a self cert
that is EXACTLY the same type as your production
environment
❖ Identify ALL your third party libraries to your Admins as
well as any changes in versions in a proper release document.
particularly if you are overriding an existing library on the
server

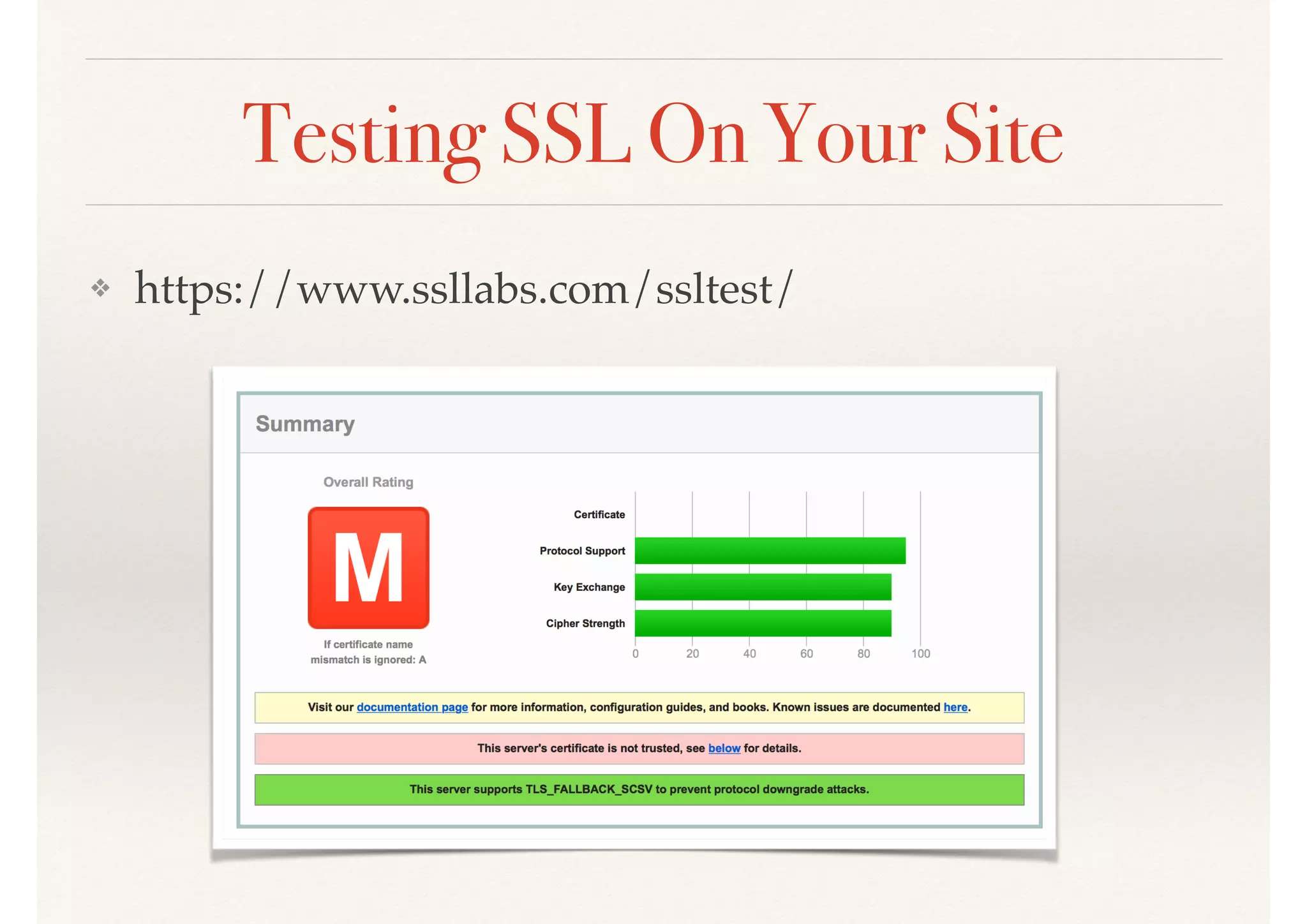

65. Testing SSL On Your Site
❖ https://www.ssllabs.com/ssltest/

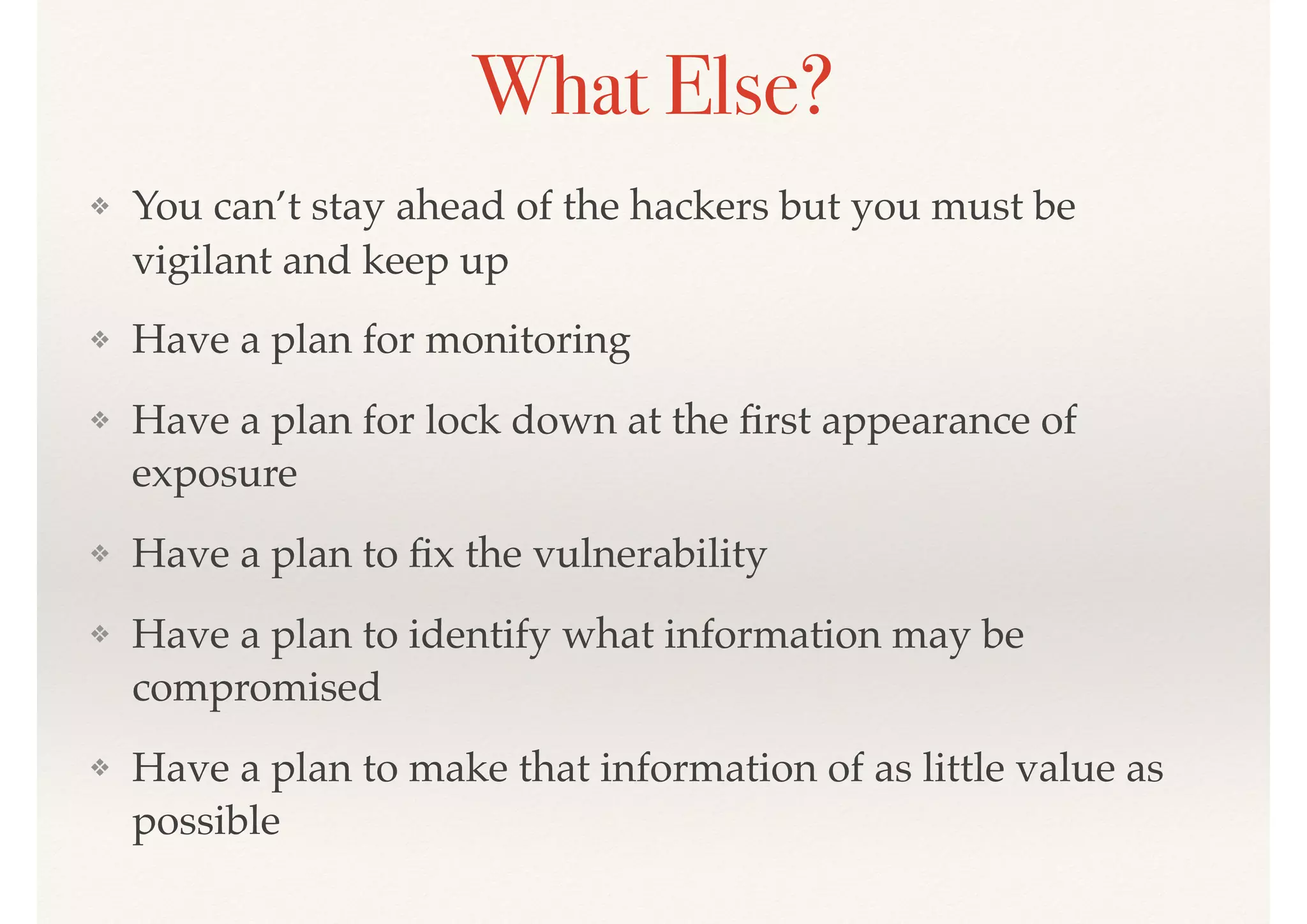

66. ❖ You can’t stay ahead of the hackers but you must be
vigilant and keep up
❖ Have a plan for monitoring
❖ Have a plan for lock down at the first appearance of
exposure
❖ Have a plan to fix the vulnerability
❖ Have a plan to identify what information may be
compromised
❖ Have a plan to make that information of as little value as
possible
What Else?

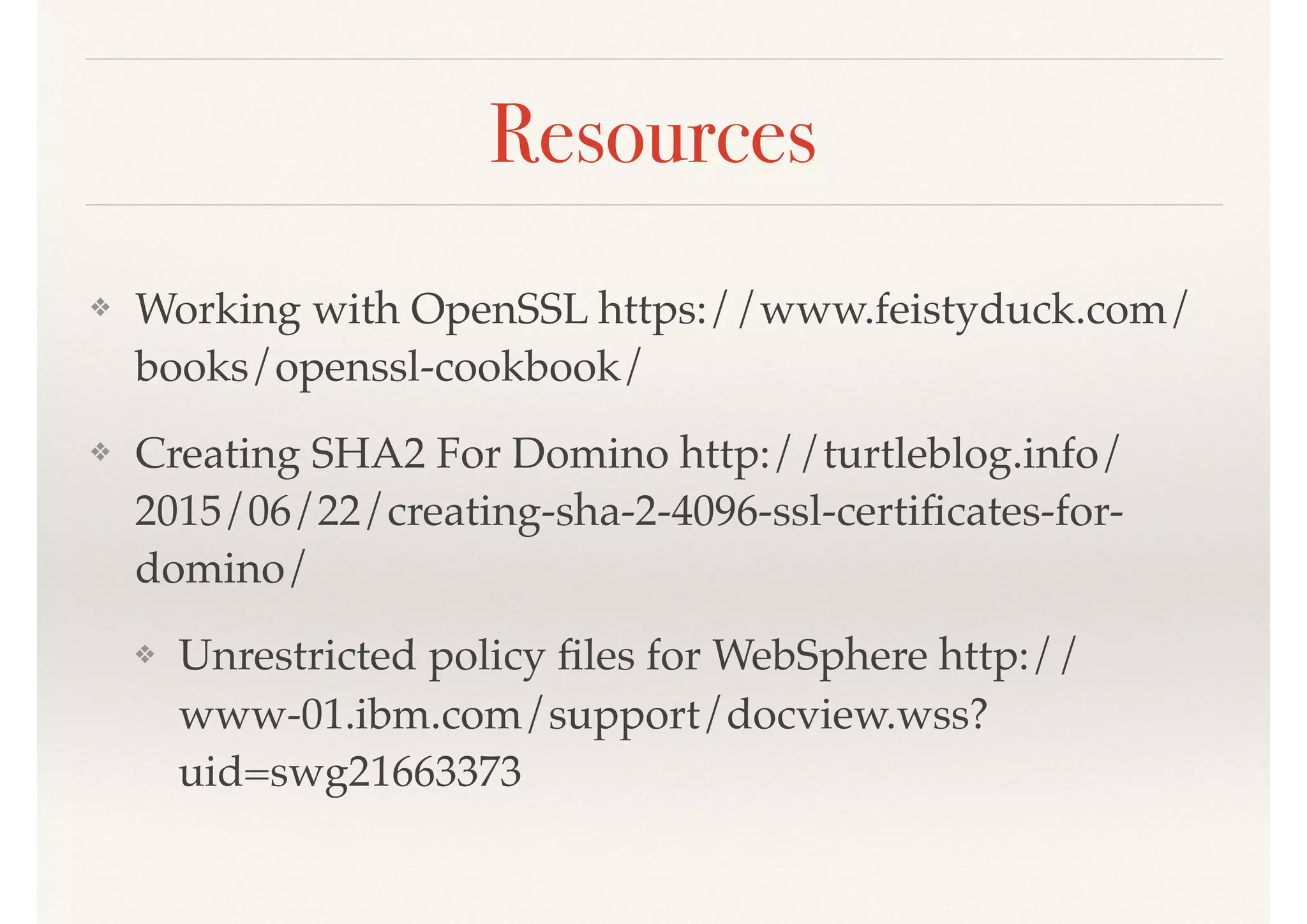

67. Resources
❖ Working with OpenSSL https://www.feistyduck.com/
books/openssl-cookbook/
❖ Creating SHA2 For Domino http://turtleblog.info/
2015/06/22/creating-sha-2-4096-ssl-certificates-for-
domino/
❖ Unrestricted policy files for WebSphere http://
www-01.ibm.com/support/docview.wss?
uid=swg21663373
