1) Rxjs provides a paradigm for dealing with asynchronous operations in a synchronous way using observables. Observables allow representing push-based data streams and provide operators to compose and transform these streams. 2) Operators like map, filter, and switchMap allow manipulating observable streams and their values in various ways. Common patterns include cascading asynchronous calls, parallelizing multiple requests, and retrying or error handling of streams. 3) Schedulers allow bending time and virtual clocks, enabling testing asynchronous code by controlling when asynchronous operations complete. Marble testing uses descriptive patterns to visually test observable streams and operator behavior.

1. Rxjs
everything is a stream
Christoffer Noring
Google Developer Expert
@chris_noring

2. Why Rxjs?
We want to deal with async in a “synchronous looking way”
We want something better than promises
We want one paradigm for async to rule them all

3. nce upon a time in async land
There were callbacks
Callbacks turned into callback hell

4. Promises to the rescue
service
.getData()
.then(getMoreData)
.then(getEvenMore)
.then(andSomeMore)
Looks great right?

5. But promises were flawed
No cancellation
eal with other async concepts like mouse positions, clicks, use
No rich composition
And brexit happened
Cumbersome to retry
Only returns one value

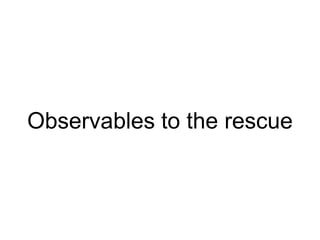

6. Observables to the rescue

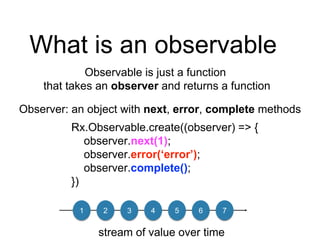

7. What is an observable
Observable is just a function
that takes an observer and returns a function
Observer: an object with next, error, complete methods
Rx.Observable.create((observer) => {
observer.next(1);
observer.error(‘error’);
observer.complete();
})
1 2 3 4 5 6 7
stream of value over time

8. Promise
vs Array
vs Observable
list
.map( x = > x.prop )
.filter( x => x > 2 )
.take( 2 )
Array
list
.map( x = > x.prop )
.filter( x => x > 2 )
.take( 2 )
.subscribe(
x => console.log(x),
err => console.log(err) )
Observable
Promise
service.get()
.then( x => console.log(x) )
.catch( err => console.log(err) ) but can also
- Cancelled
- Retried
Array like,
handles async

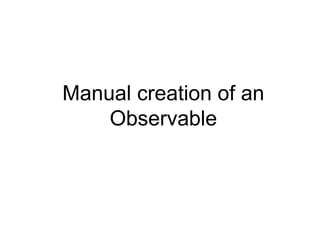

9. Manual creation of an
Observable

10. var stream$ = Rx.Observable.create((observer) =>{
})})
Emits
stream
.subscribe(
(data) => { console.log( data ); }
)
1
next()
observer.next(1);
2
next()
observer.next(2);
3
next()
observer.next(3);

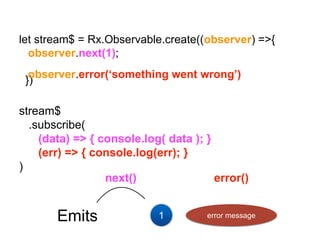

11. let stream$ = Rx.Observable.create((observer) =>{
})
stream$
.subscribe(
(data) => { console.log( data ); }
(err) => { console.log(err); }
)
Emits 1
next()
observer.next(1);
error message
error()
observer.error(‘something went wrong’)

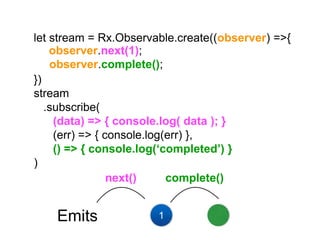

12. let stream = Rx.Observable.create((observer) =>{
})})
stream
.subscribe(
(data) => { console.log( data ); }
(err) => { console.log(err) },
() => { console.log(‘completed’) }
)
Emits 1
next()
observer.next(1);
complete()
observer.complete();

13. Subscribe to an Observable

14. let subscription =
stream$.subscribe(
fnValue,,
fnError,,
fnCompleted
)

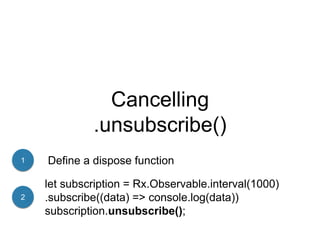

15. Cancelling
.unsubscribe()
let subscription = Rx.Observable.interval(1000)
.subscribe((data) => console.log(data))
subscription.unsubscribe();
Define a dispose function1
2

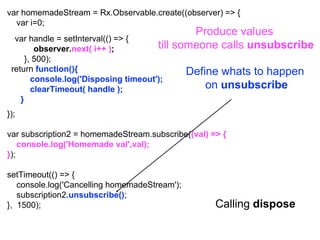

16. var homemadeStream = Rx.Observable.create((observer) => {
var i=0;
});
var subscription2 = homemadeStream.subscribe((val) => {
console.log('Homemade val',val);
});
setTimeout(() => {
console.log('Cancelling homemadeStream');
subscription2.unsubscribe();
}, 1500); Calling dispose
Produce values
till someone calls unsubscribe
var handle = setInterval(() => {
observer.next( i++ );
}, 500);
Define whats to happen
on unsubscribe
return function(){
console.log('Disposing timeout');
clearTimeout( handle );
}

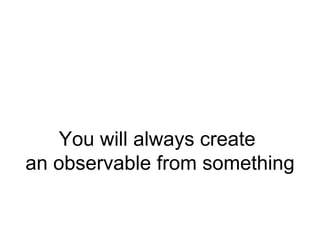

17. You will always create
an observable from something

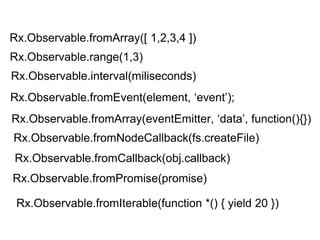

18. Rx.Observable.fromArray([ 1,2,3,4 ])
Rx.Observable.fromEvent(element, ‘event’);
Rx.Observable.fromArray(eventEmitter, ‘data’, function(){})
Rx.Observable.fromNodeCallback(fs.createFile)
Rx.Observable.fromCallback(obj.callback)
Rx.Observable.fromPromise(promise)
Rx.Observable.fromIterable(function *() { yield 20 })
Rx.Observable.range(1,3)
Rx.Observable.interval(miliseconds)

19. Wrap an observable
next()
error()
complete()

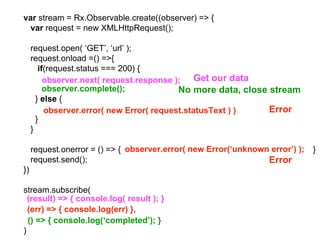

20. var stream = Rx.Observable.create((observer) => {
var request = new XMLHttpRequest();
request.open( ‘GET’, ‘url’ );
request.onload =() =>{
if(request.status === 200) {
} else {
}
}
request.onerror = () => { }
request.send();
})
stream.subscribe(
)
observer.next( request.response );
(result) => { console.log( result ); }
Get our data
observer.complete();
() => { console.log(‘completed’); }
No more data, close stream
observer.error( new Error( request.statusText ) )
(err) => { console.log(err) },
observer.error( new Error(‘unknown error’) );
Error
Error

21. Hot vs Cold Observable

22. Cold Observable
recorded tv show
Hot observable
Live streaming
eg World Cup Final

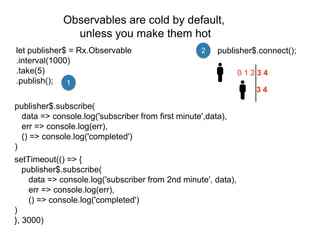

23. Observables are cold by default,
unless you make them hot
0 1 2 3 4
3 4
publisher$.connect();let publisher$ = Rx.Observable
.interval(1000)
.take(5)
.publish();
publisher$.subscribe(
data => console.log('subscriber from first minute',data),
err => console.log(err),
() => console.log('completed')
)
setTimeout(() => {
publisher$.subscribe(
data => console.log('subscriber from 2nd minute', data),
err => console.log(err),
() => console.log('completed')
)
}, 3000)
1
2

24. Warm Observables
waiting for someone to subscribe
let obs = Rx.Observable.interval(1000).take(3).publish().refCount();
setTimeout(() => {
obs.subscribe(data => console.log('sub1', data));
},1000)
setTimeout(() => {
obs.subscribe(data => console.log('sub2', data));
},2000)
Values begin emitting here
Receives values based on
where producer
is at, i.e hot

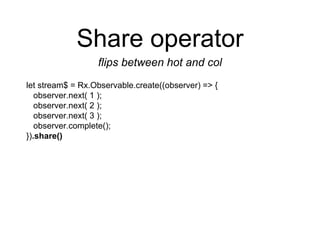

25. Share operator
flips between hot and col
let stream$ = Rx.Observable.create((observer) => {
observer.next( 1 );
observer.next( 2 );
observer.next( 3 );
observer.complete();
}).share()

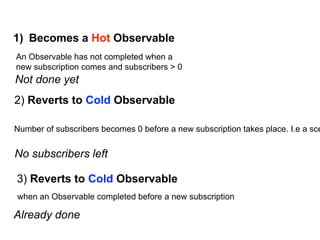

26. 1) Becomes a Hot Observable
An Observable has not completed when a
new subscription comes and subscribers > 0
2) Reverts to Cold Observable
Number of subscribers becomes 0 before a new subscription takes place. I.e a sce
No subscribers left
Not done yet
3) Reverts to Cold Observable
when an Observable completed before a new subscription
Already done

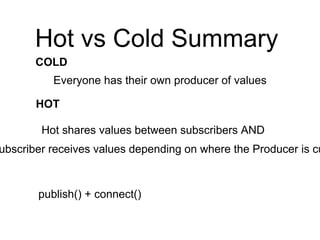

27. Hot vs Cold Summary
Hot shares values between subscribers AND
ubscriber receives values depending on where the Producer is cu
HOT
COLD
Everyone has their own producer of values
publish() + connect()

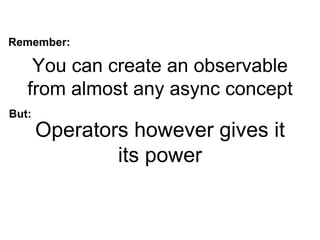

28. You can create an observable
from almost any async concept
Operators however gives it
its power
Remember:
But:

29. Operators
makes your code look like linq

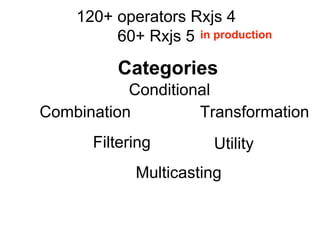

30. 120+ operators Rxjs 4
60+ Rxjs 5
Combination
Conditional
Multicasting
Filtering
Transformation
Utility
Categories
in production

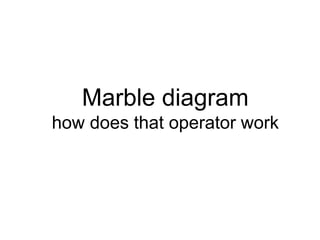

31. Marble diagram
how does that operator work

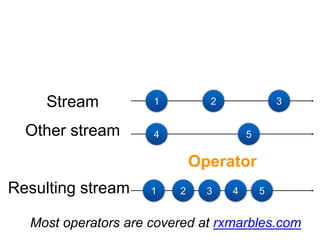

32. Operator
Most operators are covered at rxmarbles.com
Stream 1 2 3
Other stream 4 5
Resulting stream 1 2 3 4 5

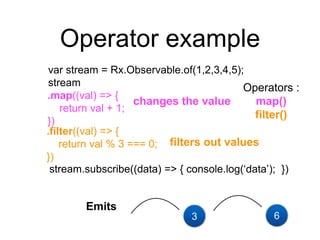

33. Operator example
var stream = Rx.Observable.of(1,2,3,4,5);
stream
stream.subscribe((data) => { console.log(‘data’); })
Operators :
map()
filter()
3
Emits
6
.map((val) => {
return val + 1;
})
changes the value
.filter((val) => {
return val % 3 === 0;
})
filters out values

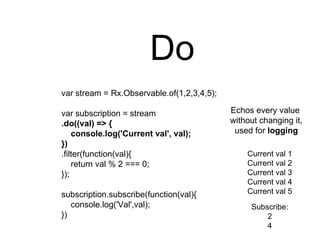

34. Do
var stream = Rx.Observable.of(1,2,3,4,5);
var subscription = stream
.filter(function(val){
return val % 2 === 0;
});
subscription.subscribe(function(val){
console.log('Val',val);
})
Echos every value
without changing it,
used for logging
.do((val) => {
console.log('Current val', val);
})
Current val 1
Current val 2
Current val 3
Current val 4
Current val 5
Subscribe:
2
4

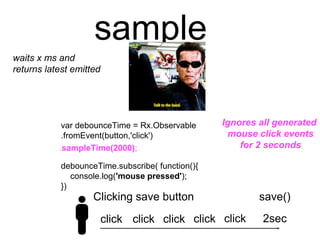

35. sample
var debounceTime = Rx.Observable
.fromEvent(button,'click')
debounceTime.subscribe( function(){
console.log('mouse pressed');
})
waits x ms and
returns latest emitted
Ignores all generated
mouse click events
for 2 seconds.sampleTime(2000);
Clicking save button
2secclick click click click click
save()

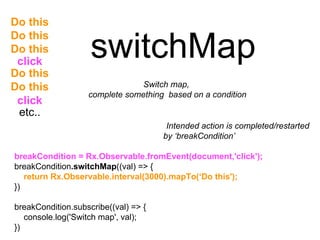

36. switchMap
Switch map,
complete something based on a condition
breakCondition = Rx.Observable.fromEvent(document,'click');
breakCondition.switchMap((val) => {
return Rx.Observable.interval(3000).mapTo(‘Do this');
})
breakCondition.subscribe((val) => {
console.log('Switch map', val);
})
Intended action is completed/restarted
by ‘breakCondition’
etc..
Do this
Do this
Do this
Do this
Do this
click
click

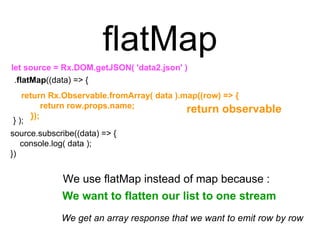

37. source.subscribe((data) => {
console.log( data );
})
flatMap
let source = Rx.DOM.getJSON( 'data2.json' )
return Rx.Observable.fromArray( data ).map((row) => {
return row.props.name;
});
return observable
.flatMap((data) => {
} );
We get an array response that we want to emit row by row
We use flatMap instead of map because :
We want to flatten our list to one stream

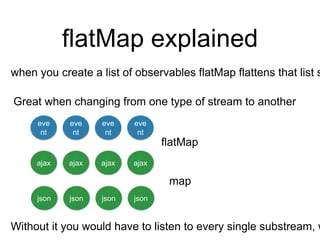

38. flatMap explained
when you create a list of observables flatMap flattens that list s
Great when changing from one type of stream to another
Without it you would have to listen to every single substream, w
eve
nt
eve
nt
eve
nt
eve
nt
ajax ajax ajax ajax
json json json json
flatMap
map

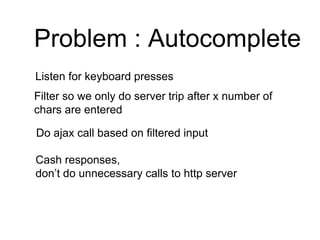

39. Problem : Autocomplete
Listen for keyboard presses
Filter so we only do server trip after x number of
chars are entered
Do ajax call based on filtered input
Cash responses,
don’t do unnecessary calls to http server

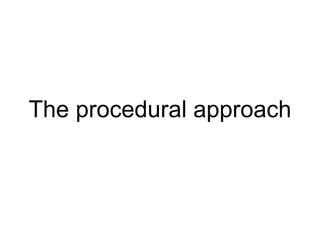

40. The procedural approach

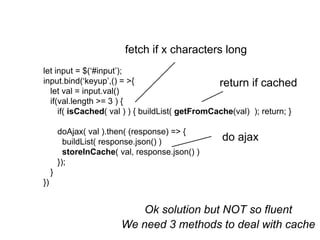

41. let input = $(‘#input’);
input.bind(‘keyup’,() = >{
let val = input.val()
if(val.length >= 3 ) {
if( isCached( val ) ) { buildList( getFromCache(val) ); return; }
doAjax( val ).then( (response) => {
buildList( response.json() )
storeInCache( val, response.json() )
});
}
})
fetch if x characters long
return if cached
do ajax
Ok solution but NOT so fluent
We need 3 methods to deal with cache

42. The observable approach

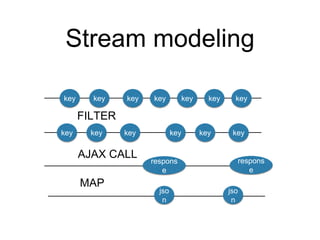

43. Stream modeling
key key key key key key
FILTER
AJAX CALL
jso
n
jso
n
MAP
key key key key key key key
respons
e
respons
e

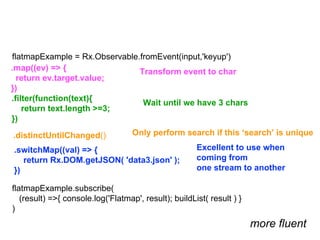

44. flatmapExample = Rx.Observable.fromEvent(input,'keyup')
flatmapExample.subscribe(
(result) =>{ console.log('Flatmap', result); buildList( result ) }
)
more fluent
Transform event to char.map((ev) => {
return ev.target.value;
})
Wait until we have 3 chars
.filter(function(text){
return text.length >=3;
})
Only perform search if this ‘search’ is unique.distinctUntilChanged()
Excellent to use when
coming from
one stream to another
.switchMap((val) => {
return Rx.DOM.getJSON( 'data3.json' );
})

45. Error handling
when streams fail

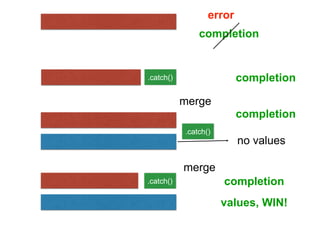

46. error
completion
.catch() completion
completion
no values
completion
values, WIN!
.catch()
merge
.catch()
merge

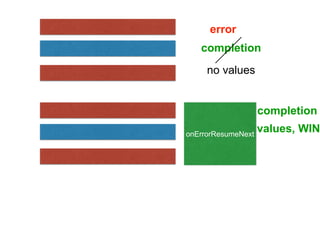

47. onErrorResumeNext
completion
values, WIN
error
completion
no values

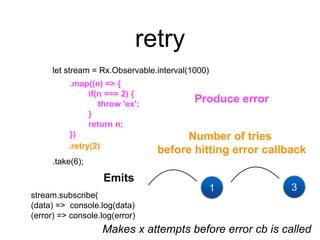

48. retry
let stream = Rx.Observable.interval(1000)
.take(6);
.map((n) => {
if(n === 2) {
throw 'ex';
}
return n;
})
Produce error
.retry(2)
Number of tries
before hitting error callback
stream.subscribe(
(data) => console.log(data)
(error) => console.log(error)
1
Emits
3
Makes x attempts before error cb is called

49. retryWhen
delay between attempts
let stream = Rx.Observable.interval(1000)
.take(6);
delay, 200 ms.retryWhen((errors) => {
return errors.delay(200);
})
.map((n) => {
if(n === 2) {
throw 'ex';
}
return n;
})
produce an error when
= 2
stream.subscribe(
(data) => console.log(data)
(error) => console.log(error) for those shaky connections

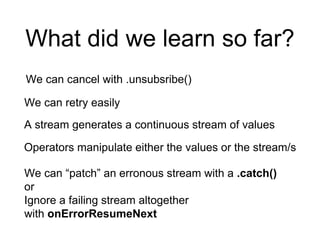

50. What did we learn so far?
We can cancel with .unsubsribe()
We can retry easily
A stream generates a continuous stream of values
Operators manipulate either the values or the stream/s
We can “patch” an erronous stream with a .catch()
or
Ignore a failing stream altogether
with onErrorResumeNext

51. Schedulers
bending time

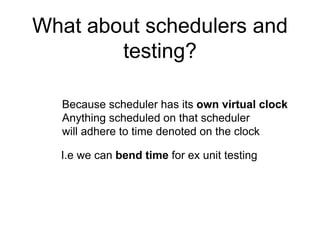

52. What about schedulers and
testing?
Because scheduler has its own virtual clock
Anything scheduled on that scheduler
will adhere to time denoted on the clock
I.e we can bend time for ex unit testing

53. Marble testing
Yes it has to do with marbles,
essentially its visual comparison

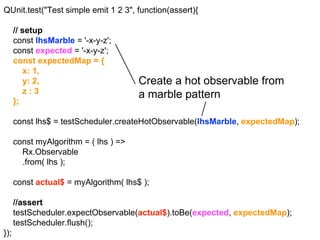

54. QUnit.test("Test simple emit 1 2 3", function(assert){
// setup
const lhsMarble = '-x-y-z';
const expected = '-x-y-z';
const expectedMap = {
x: 1,
y: 2,
z : 3
};
const lhs$ = testScheduler.createHotObservable(lhsMarble, expectedMap);
const myAlgorithm = ( lhs ) =>
Rx.Observable
.from( lhs );
const actual$ = myAlgorithm( lhs$ );
//assert
testScheduler.expectObservable(actual$).toBe(expected, expectedMap);
testScheduler.flush();
});
Create a hot observable from
a marble pattern

55. QUnit.test("Test filter", function(assert){
const lhsMarble = '-x-y-z';
const expected = '---y-';
const expectedMap = {
x: 1,
y: 2,
z : 3
};
const lhs$ = testScheduler.createHotObservable(lhsMarble,expectedMap);
const myAlgorithm = ( lhs ) =>
Rx.Observable
.from( lhs )
.filter(x => x % 2 === 0 );
const actual$ = myAlgorithm( lhs$ );
//assert
testScheduler.expectObservable(actual$).toBe(expected, expectedMap);
testScheduler.flush();
});
An extra hyphen,
to make time match

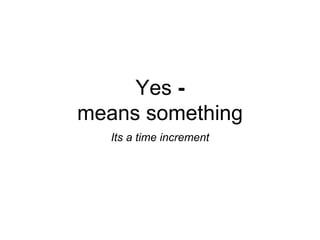

56. Yes -
means something
Its a time increment

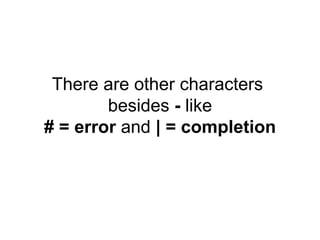

57. There are other characters
besides - like
# = error and | = completion

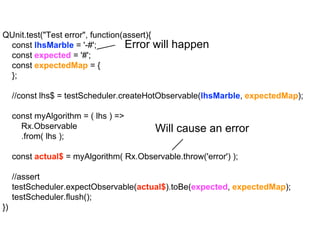

58. QUnit.test("Test error", function(assert){
const lhsMarble = '-#';
const expected = '#';
const expectedMap = {
};
//const lhs$ = testScheduler.createHotObservable(lhsMarble, expectedMap);
const myAlgorithm = ( lhs ) =>
Rx.Observable
.from( lhs );
const actual$ = myAlgorithm( Rx.Observable.throw('error') );
//assert
testScheduler.expectObservable(actual$).toBe(expected, expectedMap);
testScheduler.flush();
})
Will cause an error
Error will happen

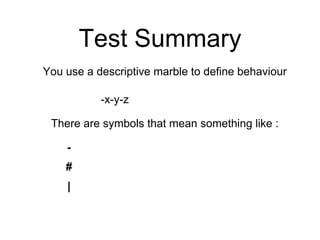

59. Test Summary
You use a descriptive marble to define behaviour
-x-y-z
There are symbols that mean something like :
-
#
|

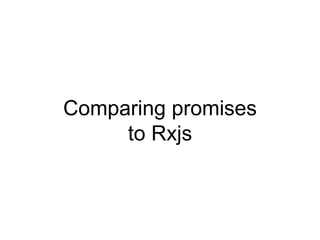

60. Comparing promises
to Rxjs

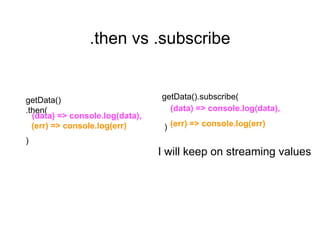

61. .then vs .subscribe
getData()
.then(
)
getData().subscribe(
)
I will keep on streaming values
(data) => console.log(data),
(data) => console.log(data),
(err) => console.log(err) (err) => console.log(err)

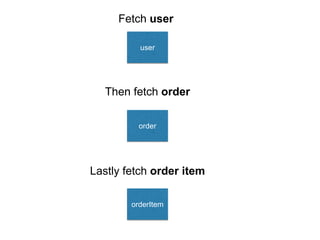

62. user
order
orderItem
Fetch user
Then fetch order
Lastly fetch order item

63. Cascading calls
Response:
//getUser
stream
.subscribe((orderItem) => {
console.log('OrderItem',orderItem.id);
})
{ id: 11, userId : 1 }.then(getOrderByUser)
.switchMap((user) => {
//getOrder
return Rx.Observable.of({ id : 11, userId : user.id }).delay(3000)
})
{ id: 123, orderId : 11 }.then(getOrderItemByOrder)
.switchMap((order) => {
//getOrderItem
return Rx.Observable.of({ id: 114, orderId: order.id })
})
{ id: 1 }getUser()
var stream = Rx.Observable.of({ id : 1 });
So we can see the
first user observable
being dropped when
user 2 is emitted

64. Short word on switchMap
is to ensure we throw away the other calls when a new user is em
We don’t want
getUser
getOrderByUser
getOrderItemByOrder
to complete if a new user is emitted
1 2 3
2 4 5
Not continued
Replaces above
stream

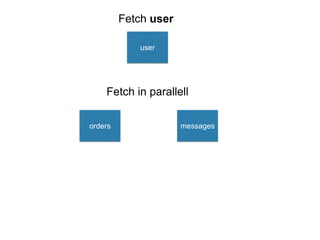

65. user
orders messages
Fetch user
Fetch in parallell

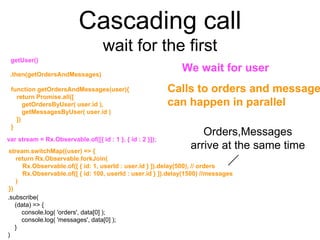

66. Cascading call
wait for the first
.subscribe(
(data) => {
console.log( 'orders', data[0] );
console.log( 'messages', data[0] );
}
)
var stream = Rx.Observable.of([{ id : 1 }, { id : 2 }]);
getUser()
We wait for user
function getOrdersAndMessages(user){
return Promise.all([
getOrdersByUser( user.id ),
getMessagesByUser( user.id )
])
}
.then(getOrdersAndMessages)
stream.switchMap((user) => {
return Rx.Observable.forkJoin(
Rx.Observable.of([ { id: 1, userId : user.id } ]).delay(500), // orders
Rx.Observable.of([ { id: 100, userId : user.id } ]).delay(1500) //messages
)
})
Calls to orders and message
can happen in parallel
Orders,Messages
arrive at the same time

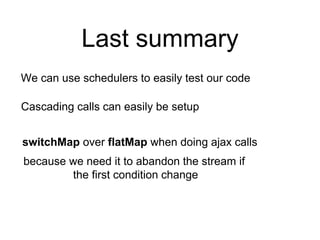

67. Last summary
We can use schedulers to easily test our code
Cascading calls can easily be setup
switchMap over flatMap when doing ajax calls
because we need it to abandon the stream if
the first condition change

68. Further Reading
angular.io/resources Rxjs Ultimate
https://github.com/ReactiveX/rxjs
Free book
Official docs

69. Thank you
