The Ring programming language version 1.5.2 book - Part 67 of 181

1. Ring Documentation, Release 1.5.2

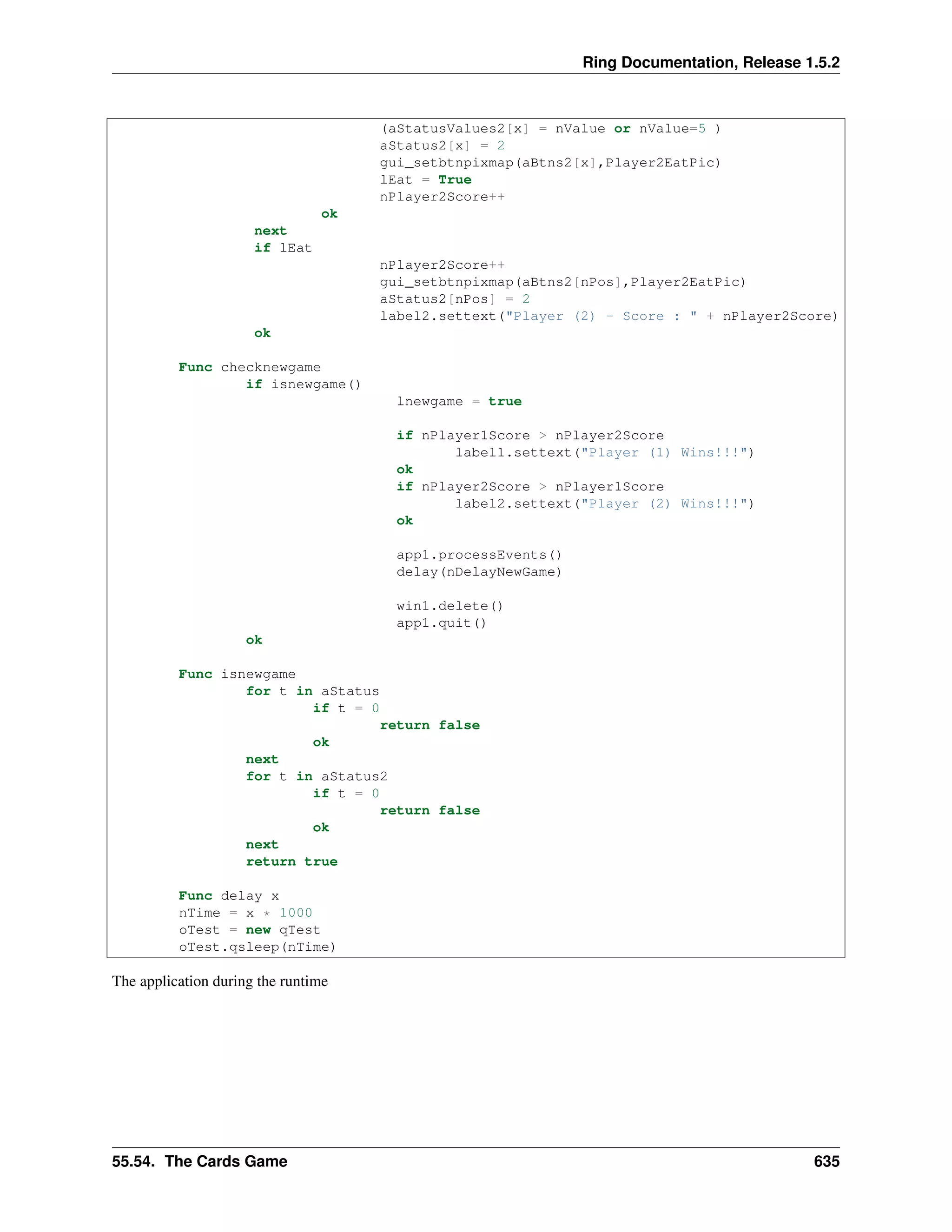

(aStatusValues2[x] = nValue or nValue=5 )
aStatus2[x] = 2
gui_setbtnpixmap(aBtns2[x],Player2EatPic)
lEat = True
nPlayer2Score++
ok
next
if lEat
nPlayer2Score++
gui_setbtnpixmap(aBtns2[nPos],Player2EatPic)
aStatus2[nPos] = 2
label2.settext("Player (2) - Score : " + nPlayer2Score)
ok
Func checknewgame
if isnewgame()
lnewgame = true
if nPlayer1Score > nPlayer2Score
label1.settext("Player (1) Wins!!!")
ok
if nPlayer2Score > nPlayer1Score
label2.settext("Player (2) Wins!!!")
ok
app1.processEvents()
delay(nDelayNewGame)
win1.delete()
app1.quit()
ok
Func isnewgame
for t in aStatus
if t = 0
return false
ok
next
for t in aStatus2
if t = 0
return false
ok
next
return true
Func delay x
nTime = x * 1000
oTest = new qTest
oTest.qsleep(nTime)
The application during the runtime
55.54. The Cards Game 635

2. Ring Documentation, Release 1.5.2

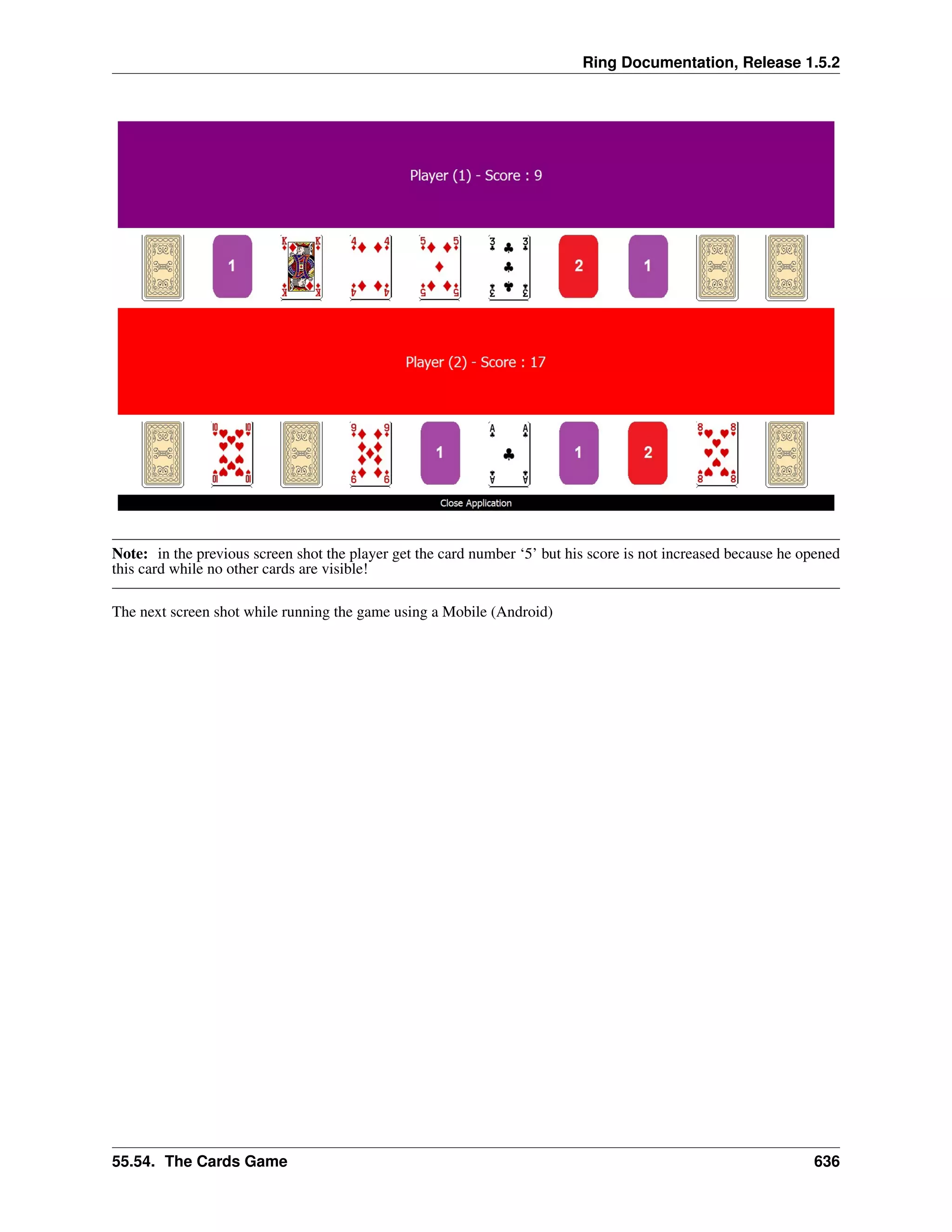

Note: in the previous screen shot the player get the card number ‘5’ but his score is not increased because he opened
this card while no other cards are visible!
The next screen shot while running the game using a Mobile (Android)
55.54. The Cards Game 636

3. Ring Documentation, Release 1.5.2
Note: using Qt we can run the same application on other Mobile systems
55.55 Classes and their Methods to use the default events
The next table present the class name and the methods that we have to use the default events.
Class Name Methods to use the default Events
QPushButton SetClickEvent()
QAction SetClickEvent()
QLineEdit SetTextChangedEvent()
SetCursorPositionChangedEvent()
SetEditingFinishedEvent()
SetReturnPressedEvent()
SetSelectionChangedEvent()
SetTextEditedEvent()
QTextEdit SetCopyAvailableEvent()
SetCurrentCharFormatChangedEvent()
SetCursorPositionChangedEvent()
SetRedoAvailableEvent()
Continued on next page
55.55. Classes and their Methods to use the default events 637

4. Ring Documentation, Release 1.5.2
Table 55.1 – continued from previous page
Class Name Methods to use the default Events
SetSelectionChangedEvent()
SetTextChangedEvent()
SetUndoAvailableEvent()
QListWidget SetCurrentItemChangedEvent()
SetCurrentRowChangedEvent()
SetCurrentTextChangedEvent()
SetItemActivatedEvent()
SetItemChangedEvent()
SetItemClickedEvent()
SetItemDoubleClickedEvent()
SetItemEnteredEvent()
SetItemPressedEvent()
SetItemSelectionChangedEvent()
QTreeView SetCollapseEvent()
SetExpandedEvent()
SetActivatedEvent()
SetClickedEvent()
SetDoubleClickedEvent()
SetEnteredEvent()
SetPressedEvent()
SetViewportEnteredEvent()
QTreeWidget SetCollapsedEvent()
SetExpandedEvent()
SetActivatedEvent()
SetClickedEvent()
SetDoubleClickedEvent()
SetEnteredEvent()
SetPressedEvent()
SetViewportEnteredEvent()
SetCurrentItemChangedEvent()
SetItemActivatedEvent()
SetItemChangedEvent()
SetItemClickedEvent()
SetItemCollapsedEvent()
SetItemDoubleClickedEvent()
SetItemEnteredEvent()
SetItemExpandedEvent()
SetItemPressedEvent()
SetItemSelectionChangedEvent()
QComboBox SetActivatedEvent()
SetCurrentIndexChangedEvent()
SetEditTextChangedEvent()
SetHighlightedEvent()
QTabWidget SetCurrentChangedEvent()
SetTabCloseRequestedEvent()
QTableWidget SetCellActivatedEvent()
SetCellChangedEvent()
SetCellClickedEvent()
SetCellDoubleClickedEvent()
Continued on next page
55.55. Classes and their Methods to use the default events 638

5. Ring Documentation, Release 1.5.2
Table 55.1 – continued from previous page
Class Name Methods to use the default Events
SetCellEnteredEvent()
SetCellPressedEvent()
SetCurrentCellChangedEvent()
SetCurrentItemChangedEvent()
SetItemActivatedEvent()
SetItemChangedEvent()
SetItemClickedEvent()
SetItemDoubleClickedEvent()
SetItemEnteredEvent()
SetItemPressedEvent()
SetItemSelectionChangedEvent()
QProgressBar SetValueChangedEvent()
QSpinBox SetValueChangedEvent()
QSlider SetActionTriggeredEvent()
SetRangeChangedEvent()
SetSliderMovedEvent()
SetSliderPressedEvent()
SetSliderReleasedEvent()
SetValueChangedEvent()
QDial SetActionTriggeredEvent()
SetRangeChangedEvent()
SetSliderMovedEvent()
SetSliderPressedEvent()
SetSliderReleasedEvent()
SetValueChangedEvent()
QWebView SetLoadFinishedEvent()
SetLoadProgressEvent()
SetLoadStartedEvent()
SetSelectionChangedEvent()
SetTitleChangedEvent()
SetUrlChangedEvent()
QCheckBox SetStateChangedEvent()
SetClickedEvent()
SetPressedEvent()
SetReleasedEvent()
SetToggledEvent()
QRadioButton SetClickedEvent()
SetPressedEvent()
SetReleasedEvent()
SetToggledEvent()
QButtonGroup SetButtonClickedEvent()
SetButtonPressedEvent()
SetButtonReleasedEvent()
QVideoWidget SetBrightnessChangedEvent()
SetContrastChangedEvent()
SetFullScreenChangedEvent()
SetHueChangedEvent()
SetSaturationChangedEvent()
QTimer SetTimeoutEvent()
Continued on next page
55.55. Classes and their Methods to use the default events 639

6. Ring Documentation, Release 1.5.2
Table 55.1 – continued from previous page
Class Name Methods to use the default Events
QTcpServer SetAcceptErrorEvent()
SetNewConnectionEvent()
QIODevice SetAboutToCloseEvent()
SetBytesWrittenEvent()
SetReadChannelFinishedEvent()
SetReadyReadEvent()
QAbstractSocket SetConnectedEvent()
SetDisconnectedEvent()
SetErrorEvent()
SetHostFoundEvent()
SetProxyAuthenticationRequiredEvent()
SetStateChangedEvent()
QTcpSocket SetConnectedEvent()
SetDisconnectedEvent()
SetErrorEvent()
SetHostFoundEvent()
SetProxyAuthenticationRequiredEvent()
SetStateChangedEvent()
SetAboutToCloseEvent()
SetBytesWrittenEvent()
SetReadChannelFinishedEvent()
SetReadyReadEvent()
QColorDialog SetColorSelectedEvent()
SetCurrentColorChangedEvent()
QNetworkAccessManager SetFinishedEvent()
QThread SetStartedEvent()
SetFinishedEvent()
55.56 Methods to use Events with Events Filter
RingQt define a new class called QAllEvents that help you in using Events Filter
The next table presents the methods that we have
Methods to get parameters Class Name
getKeyCode() –> Number QAllEvents
getx() –> Number
gety() –> Number
getglobalx() –> Number
getglobaly() –> Number
getbutton() –> Number
getbuttons() –> Number
The next table presents the methods that we have to use events.
55.56. Methods to use Events with Events Filter 640

7. Ring Documentation, Release 1.5.2
Method Name Class Name
setKeyPressEvent(cEvent) QAllEvents
setMouseButtonPressEvent(cEvent)
setMouseButtonReleaseEvent(cEvent)
setMouseButtonDblClickEvent(cEvent)
setMouseMoveEvent(cEvent)
setCloseEvent(cEvent)
setContextMenuEvent(cEvent)
setDragEnterEvent(cEvent)
setDragLeaveEvent(cEvent)
setDragMoveEvent(cEvent)
setDropEvent(cEvent)
setEnterEvent(cEvent)
setFocusInEvent(cEvent)
setFocusOutEvent(cEvent)
setKeyReleaseEvent(cEvent)
setLeaveEvent(cEvent)
setNonClientAreaMouseButtonDblClickEvent(cEvent)
setNonClientAreaMouseButtonPressEvent(cEvent)
setNonClientAreaMouseButtonReleaseEvent(cEvent)
setNonClientAreaMouseMoveEvent(cEvent)
setMoveEvent(cEvent)
setResizeEvent(cEvent)
setWindowActivateEvent(cEvent)
setWindowBlockedEvent(cEvent)
setWindowDeactivateEvent(cEvent)
setWindowStateChangeEvent(cEvent)
setWindowUnblockedEvent(cEvent)
55.57 The Difference between Qt and RingQt
1. RingQt use simple methods to set the code that will be executed for events.
Syntax:
Set<Event_Name>Event(cEventCode)
2. RingQt change the name of some methods to avoid conflict with Ring Keywords.
The next table present these little changes
55.57. The Difference between Qt and RingQt 641

8. Ring Documentation, Release 1.5.2
Class Name Qt Method Name RingQt Method Name
QWebView load loadpage
QMediaPlaylist load loadfile
QMediaPlaylist next movenext
QPainter end endpaint
QPicture load loadfile
QLineEdit end endtext
QDialog done donedialog
QTextDocument end enddoc
QTextBlock next nextblock
QSqlQuery next movenext
QImage load loadimage
QNetworkAccessManager get getvalue
QNetworkAccessManager put putvalue
QThread exit exitfromthread
QRegularExpressionMatchIterator next nextitem
QCamera load loadcamera
55.58 RingQt Classes and their Qt Documentation
Qt Documentation : http://doc.qt.io/qt-5/classes.html
See the “RingQt Classes and Methods Reference” chapter for supported classes and methods.
55.59 New Classes names - Index Start from 1
We added new classes to RingQt - another version of classes where the class names doesn’t start with the “q” letter
Also updated methods so the index start from 1 when we deal with the GUI controls like
• ComboBox
• ListWidget
• TableWidget
• TreeWidget
These classes are inside guilib.ring under the package name : System.GUI
To use it
load "guilib.ring"
import System.GUI
This doesn’t have any effect on our previous code, It’s just another choice for better code that is consistent with Ring
rules.
Also the form designer is updated to provide us the choice between using classes where (index start from 0) or (index
start from 1)
Example (Uses the Form Designer)
1. https://github.com/ring-lang/ring/blob/master/applications/formdesigner/tests/indexstart/indexstartView.ring
2. https://github.com/ring-lang/ring/blob/master/applications/formdesigner/tests/indexstart/indexstartController.ring
55.58. RingQt Classes and their Qt Documentation 642

9. Ring Documentation, Release 1.5.2
55.60 Creating Reports using the WebLib and the GUILib
The WebLib comes with a class called HtmlPage
Using this class we can create reports quickly using WebLib & GUILib together
Example:
load "stdlib.ring"
load "weblib.ring"
load "guilib.ring"
import System.Web
import System.GUI
new qApp {
open_window(:CustomersReportController)
exec()
}
class CustomersReportController
oView = new CustomersReportView
func Start
CreateReport()
func CreateReport
mypage = new HtmlPage {
h1 { text("Customers Report") }
Table
{
style = stylewidth("100%") + stylegradient(4)
TR
{
TD { WIDTH="10%"
text("Customers Count : " ) }
TD { text (100) }
}
}
Table
{
style = stylewidth("100%") + stylegradient(26)
TR
{
style = stylewidth("100%") +
stylegradient(24)
TD { text("Name " ) }
TD { text("Age" ) }
TD { text("Country" ) }
TD { text("Job" ) }
TD { text("Company" ) }
}
for x = 1 to 100
TR
{
TD { text("Test" ) }
TD { text("30" ) }
TD { text("Egypt" ) }
55.60. Creating Reports using the WebLib and the GUILib 643

10. Ring Documentation, Release 1.5.2
TD { text("Sales" ) }
TD { text("Future" ) }
}
next
}
}
write("report.html",mypage.output())
func PrintEvent
printer1 = new qPrinter(0) {
setoutputformat(1)
setoutputfilename("report.pdf")
}
oView {
web.print(printer1)
web.show()
}
system ("report.pdf")
class CustomersReportView
win = new window() {
setwindowtitle("Report Window")
setgeometry(100,100,500,500)
web = new webview(win) {
setgeometry(100,100,1000,500)
loadpage(new qurl("file:///"+
currentdir()+"/report.html"))
}
new pushbutton(win) {
setGeometry(100,20,100,30)
settext("Print")
setclickevent(Method(:PrintEvent))
}
showMaximized()
}
Screen Shot:
55.60. Creating Reports using the WebLib and the GUILib 644
