The How and Why of
Container Vulnerability
Management
OpenShift Commons
#whoami – Tim Mackey
Current roles: Senior Technical Evangelist; Occasional coder
• Former XenServer Community Manager in Citrix Open Source Business Office
Cool things I’ve done
• Designed laser communication systems
• Early designer of retail self-checkout machines
• Embedded special relativity algorithms into industrial control system
Find me
• Twitter: @TimInTech ( https://twitter.com/TimInTech )
• SlideShare: slideshare.net/TimMackey
• LinkedIn: www.linkedin.com/in/mackeytim
Understanding the
Attacker Model
Vulnerability Management Implies Data Breach Management
 89% of data breaches had a
financial or espionage motive
 Legal costs and forensics dominate
remediation expenses
Source: Verizon 2016 Data Breach Report

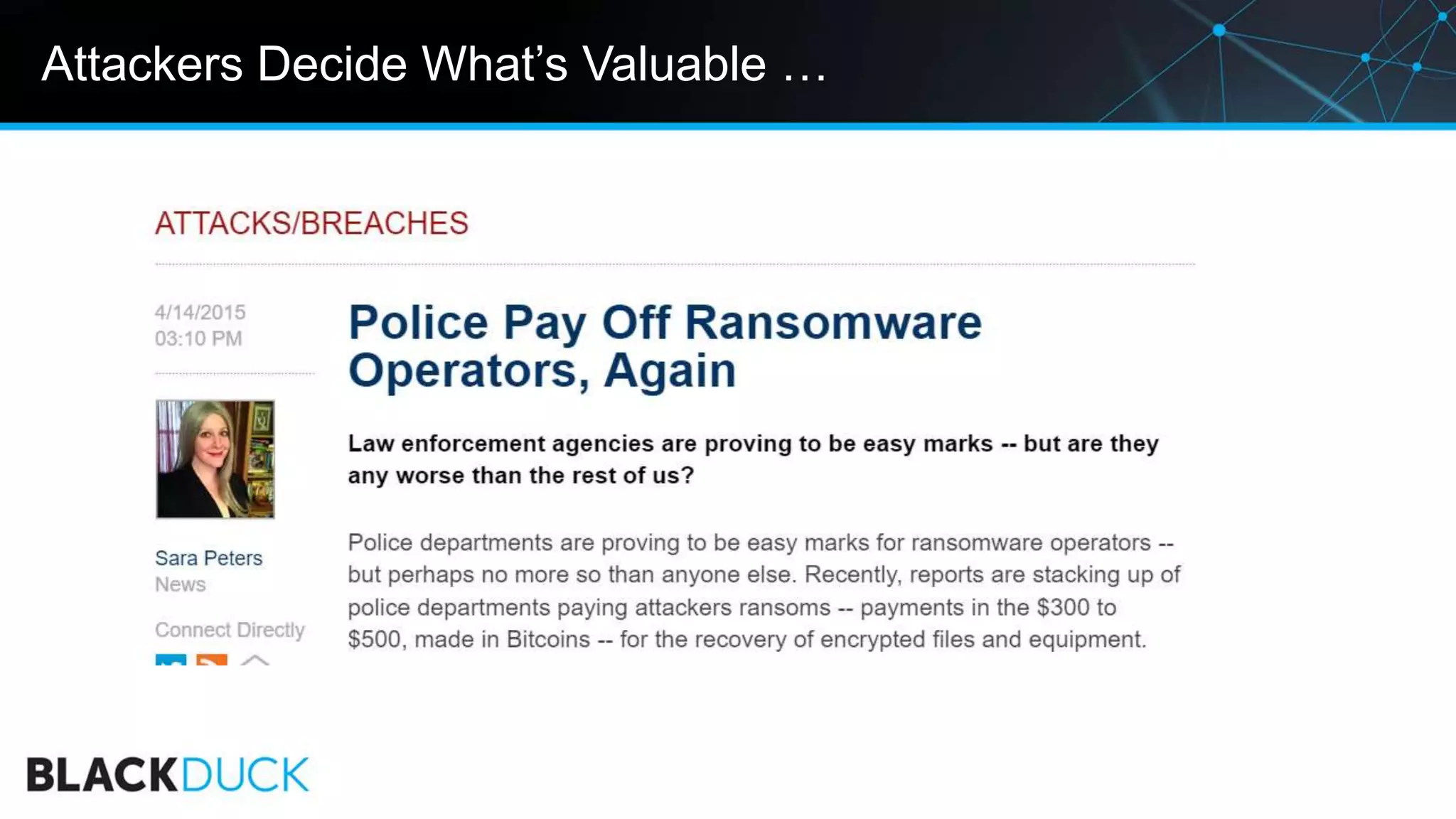

Attackers Decide What’s Valuable …
But security investment is often not aligned with actual risks

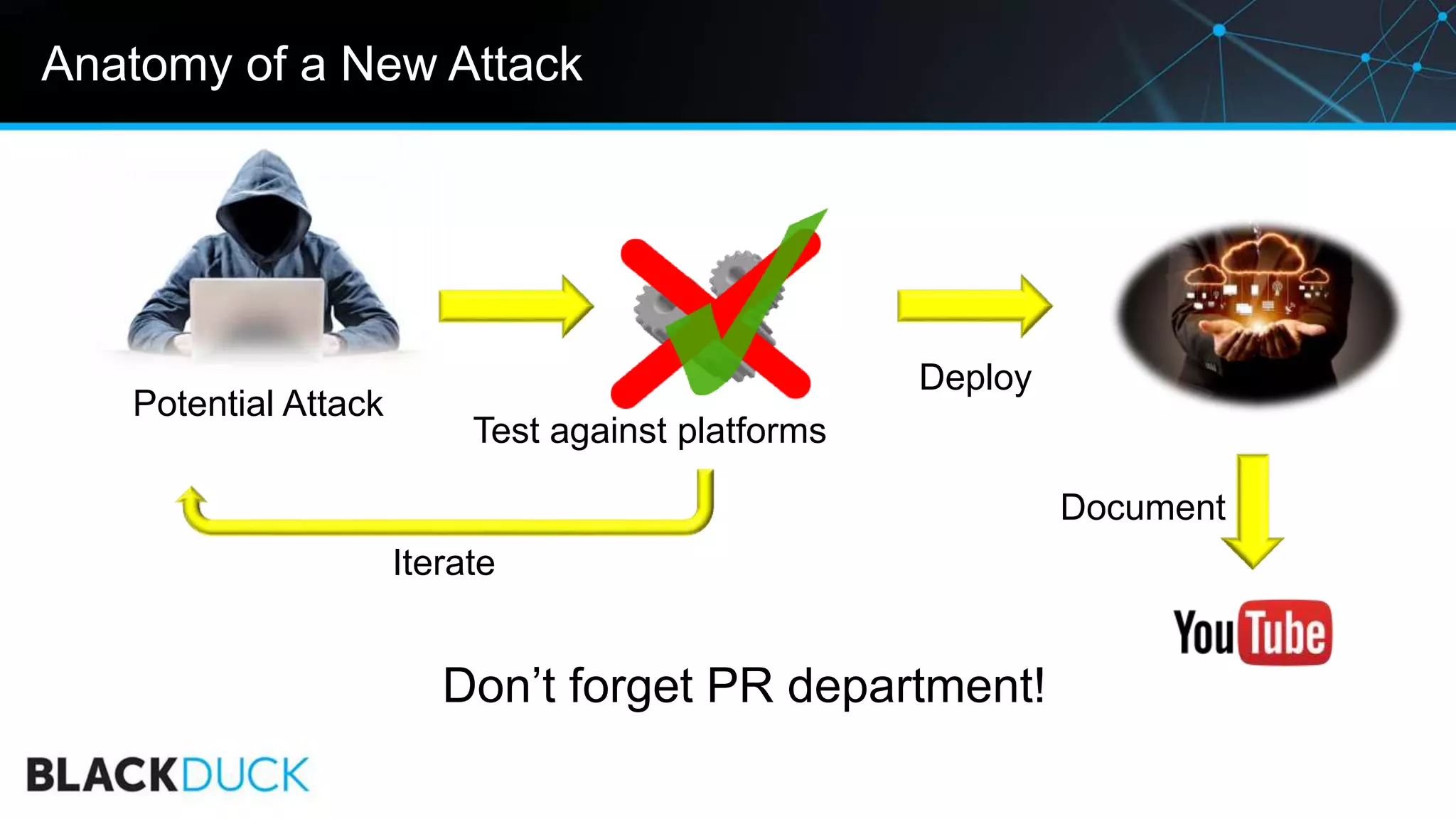

Anatomy of a New Attack
Potential Attack
Iterate
Test against platforms
Document
Don’t forget PR department!
Deploy
Control
Domain
NetworkingCompute Storage
Hypervisor
Container
VM
Minimal OS

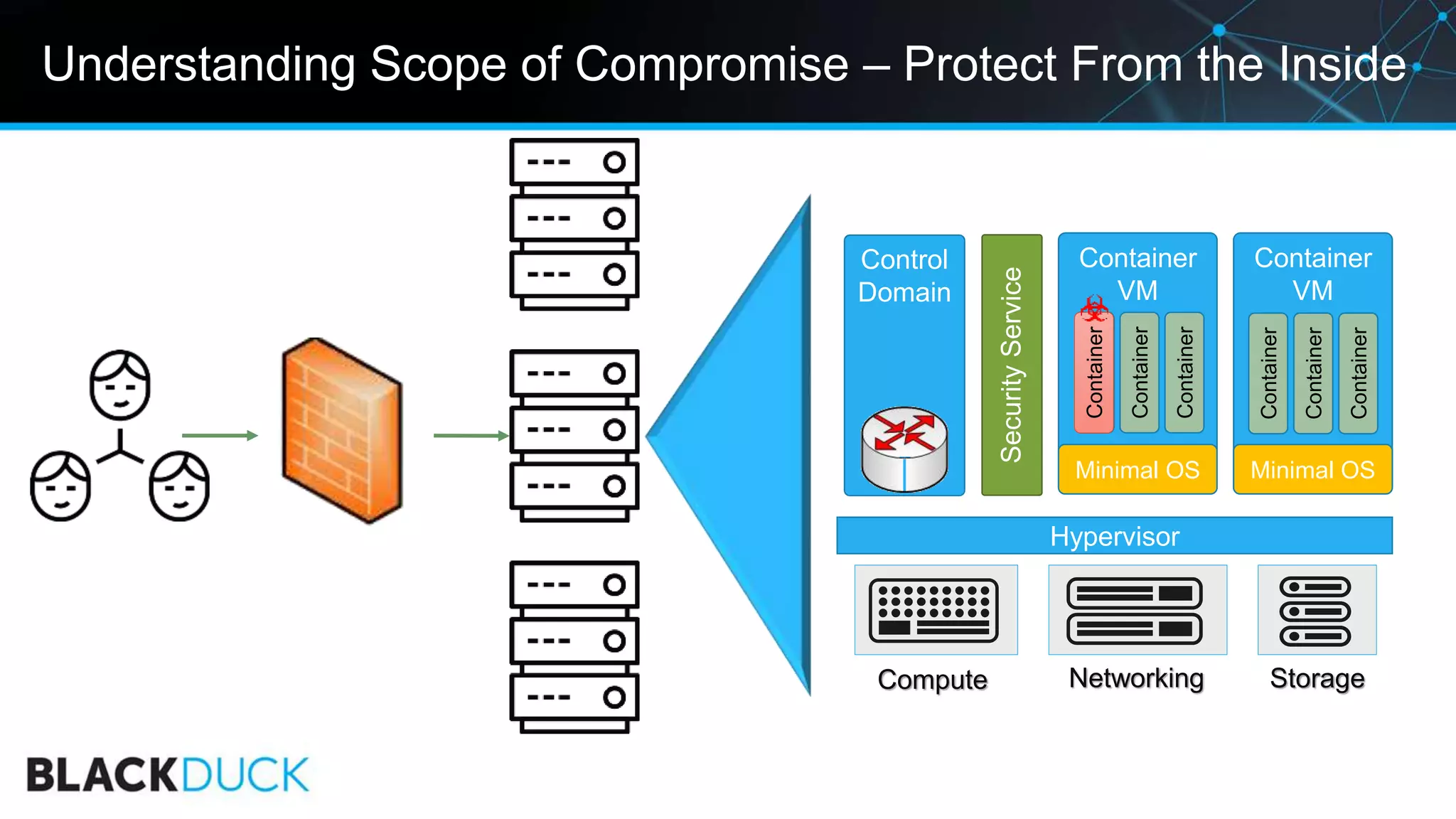

Understanding Scope of Compromise – Protect From the Inside
Container
Container
Container
Container
VM
Minimal OS
Container
Container
Container
SecurityService
Container
Exploiting a
Vulnerability
CLOSED SOURCE COMMERCIAL CODE
• DEDICATED SECURITY RESEARCHERS
• ALERTING AND NOTIFICATION INFRASTRUCTURE
• REGULAR PATCH UPDATES
• DEDICATED SUPPORT TEAM WITH SLA
OPEN SOURCE CODE
• “COMMUNITY”-BASED CODE ANALYSIS
• MONITOR NEWSFEEDS YOURSELF
• NO STANDARD PATCHING MECHANISM
• ULTIMATELY, YOU ARE RESPONSIBLE

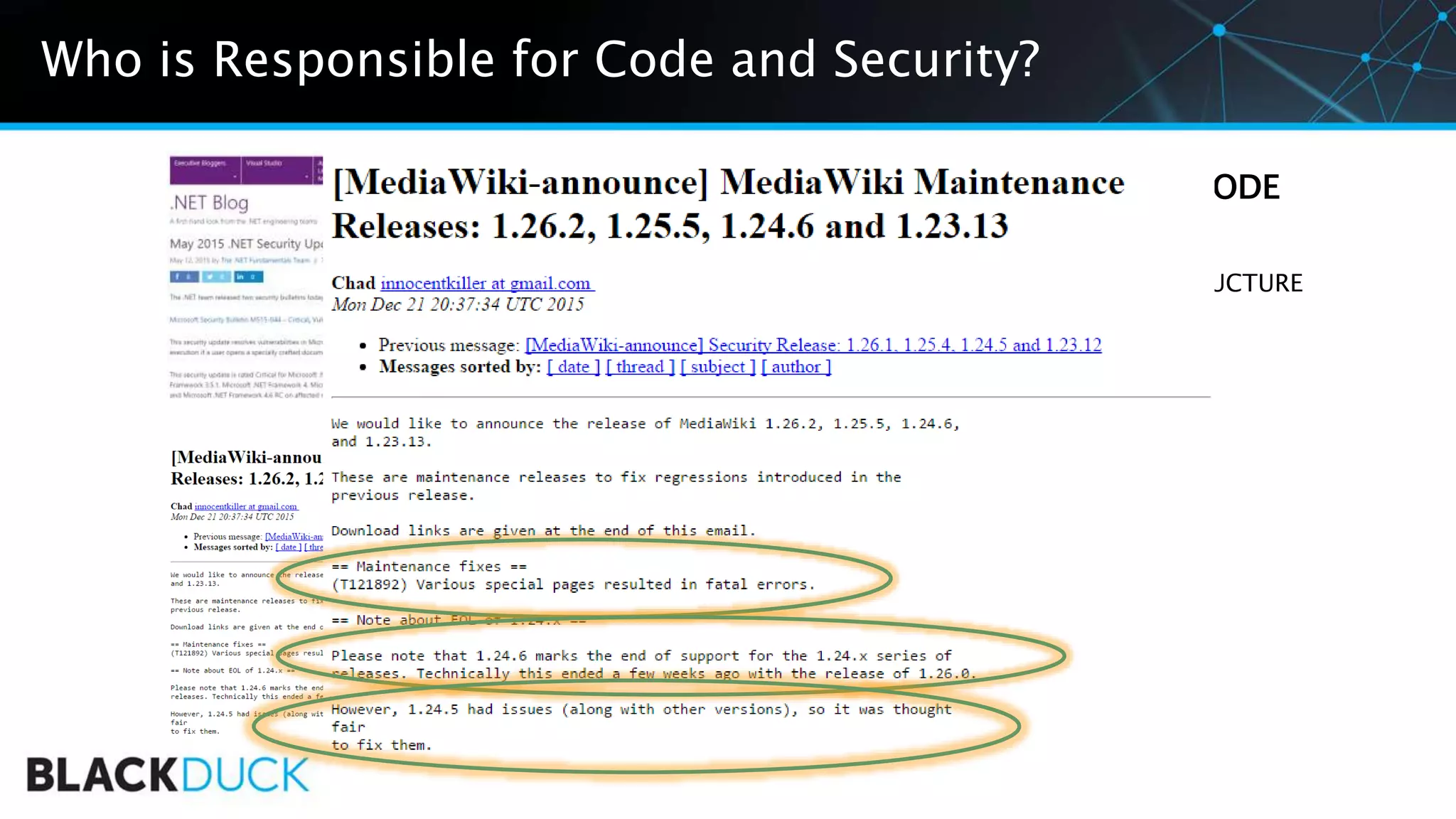

Who is Responsible for Code and Security?

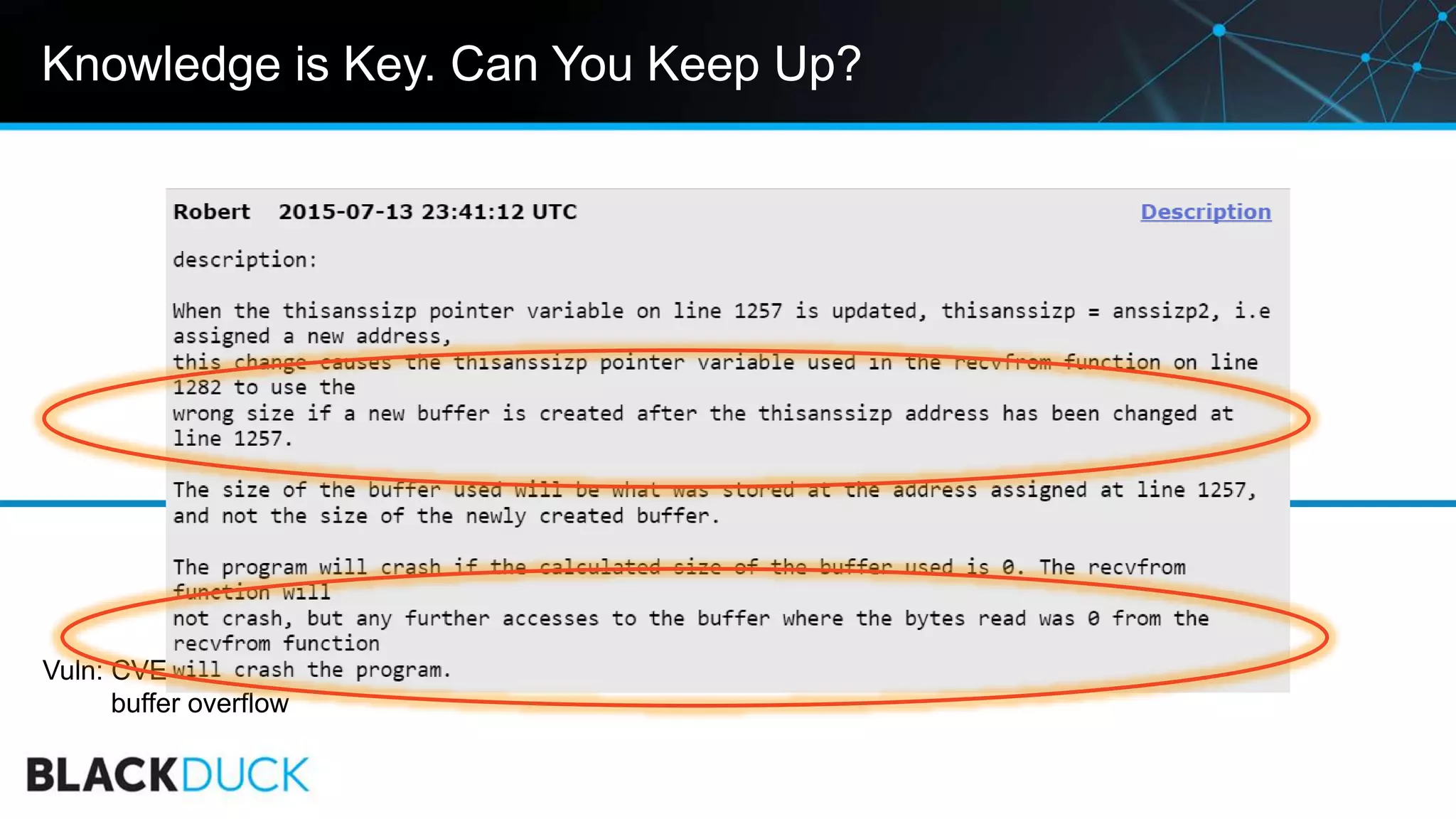

Knowledge is Key. Can You Keep Up?
glibc
Bug
Reported
July 2015
Vuln: CVE-2015-7547: glibc getaddrinfo stack-based
buffer overflow

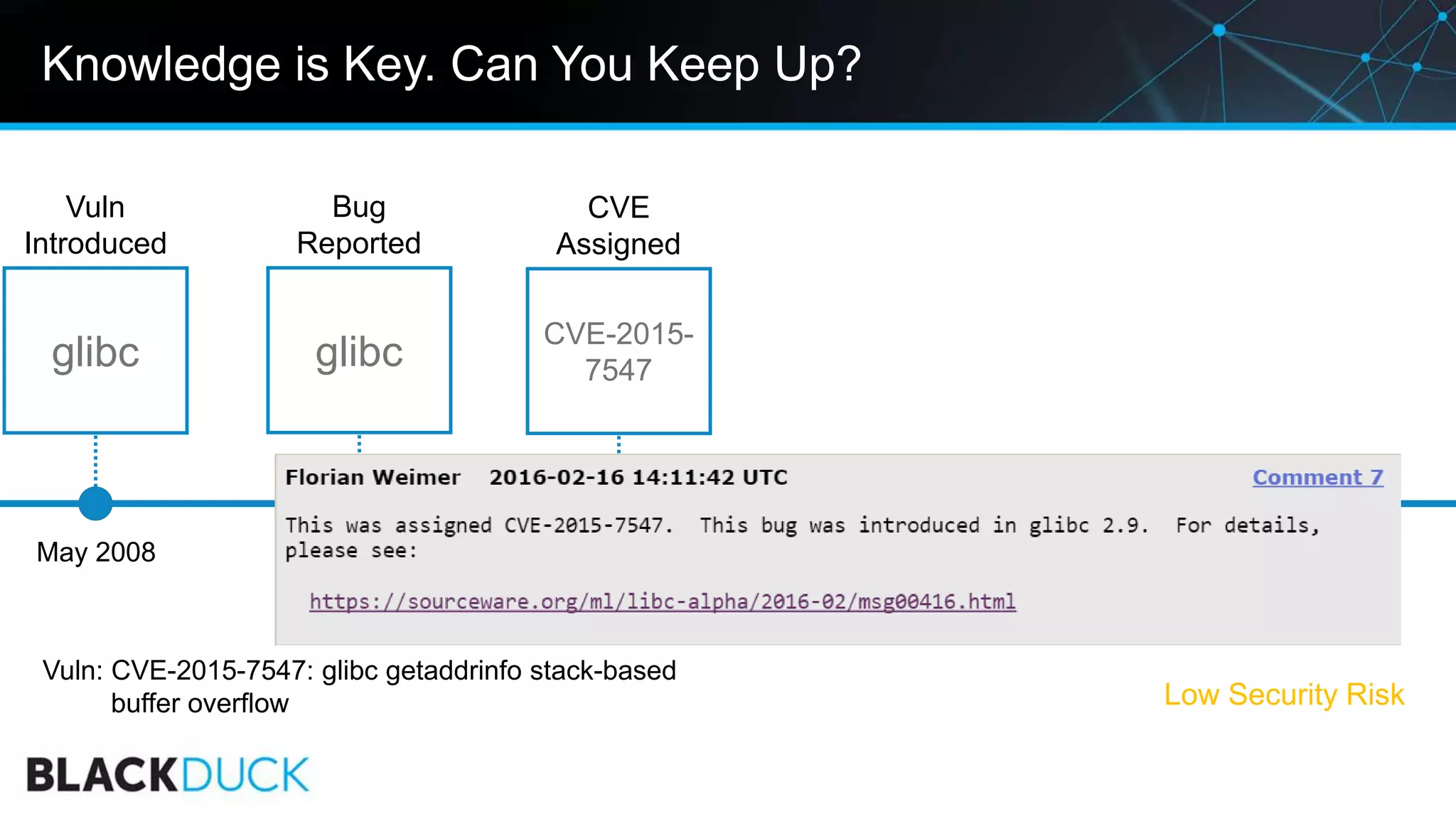

Knowledge is Key. Can You Keep Up?
glibc
Vuln
Introduced
May 2008
glibc
Bug
Reported
July 2015
CVE-2015-
7547
CVE
Assigned
Feb 16-2016
Low Security Risk
Vuln: CVE-2015-7547: glibc getaddrinfo stack-based
buffer overflow

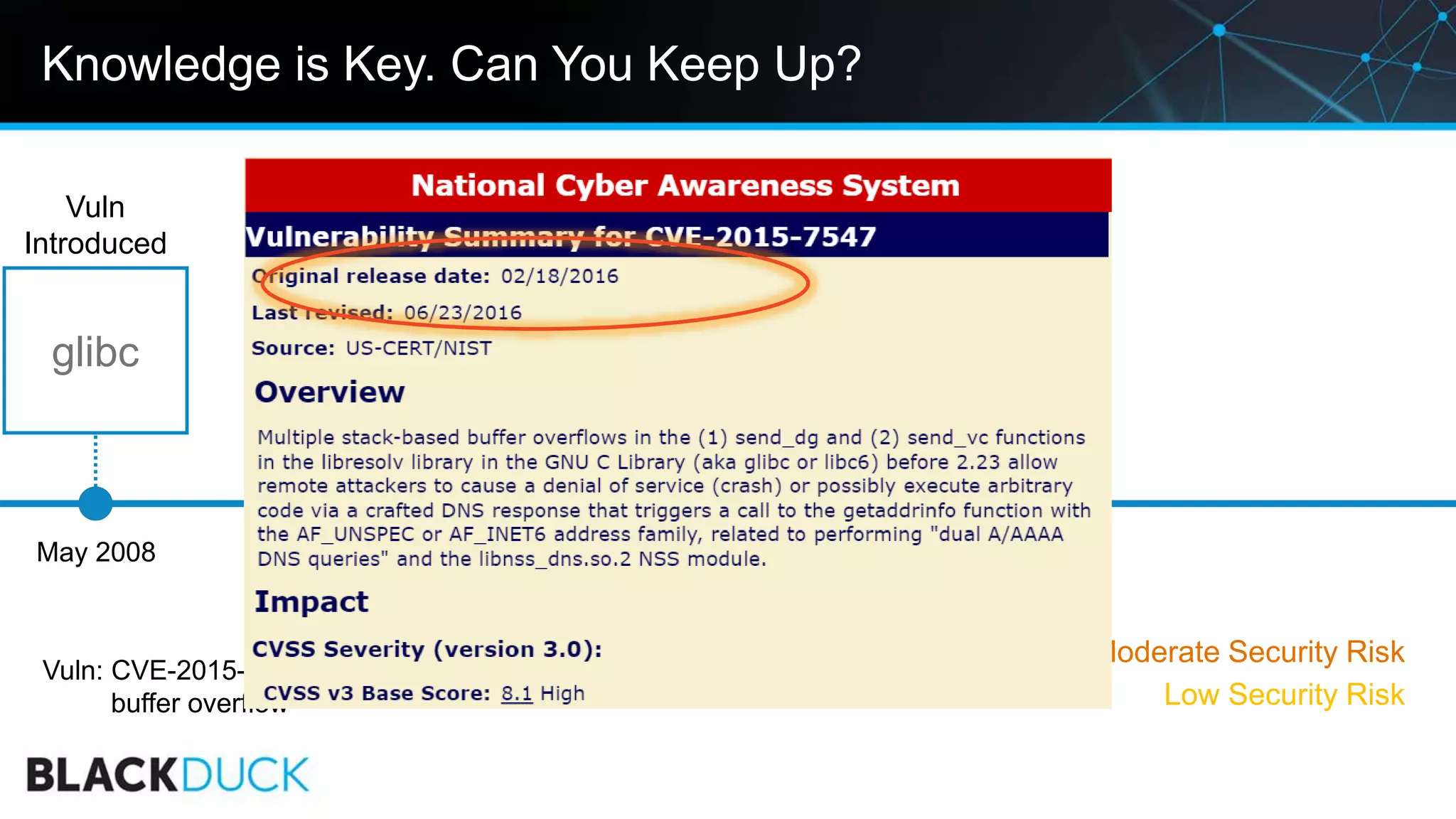

Knowledge is Key. Can You Keep Up?
glibc
Vuln
Introduced
May 2008
CVE-2015-
7547
CVE
Assigned
Feb 16-2016
glibc
Bug
Reported
July 2015
National
Vulnerability
Database
Vuln
Published
Feb 18-2016
Moderate Security Risk
Low Security Risk
Vuln: CVE-2015-7547: glibc getaddrinfo stack-based
buffer overflow

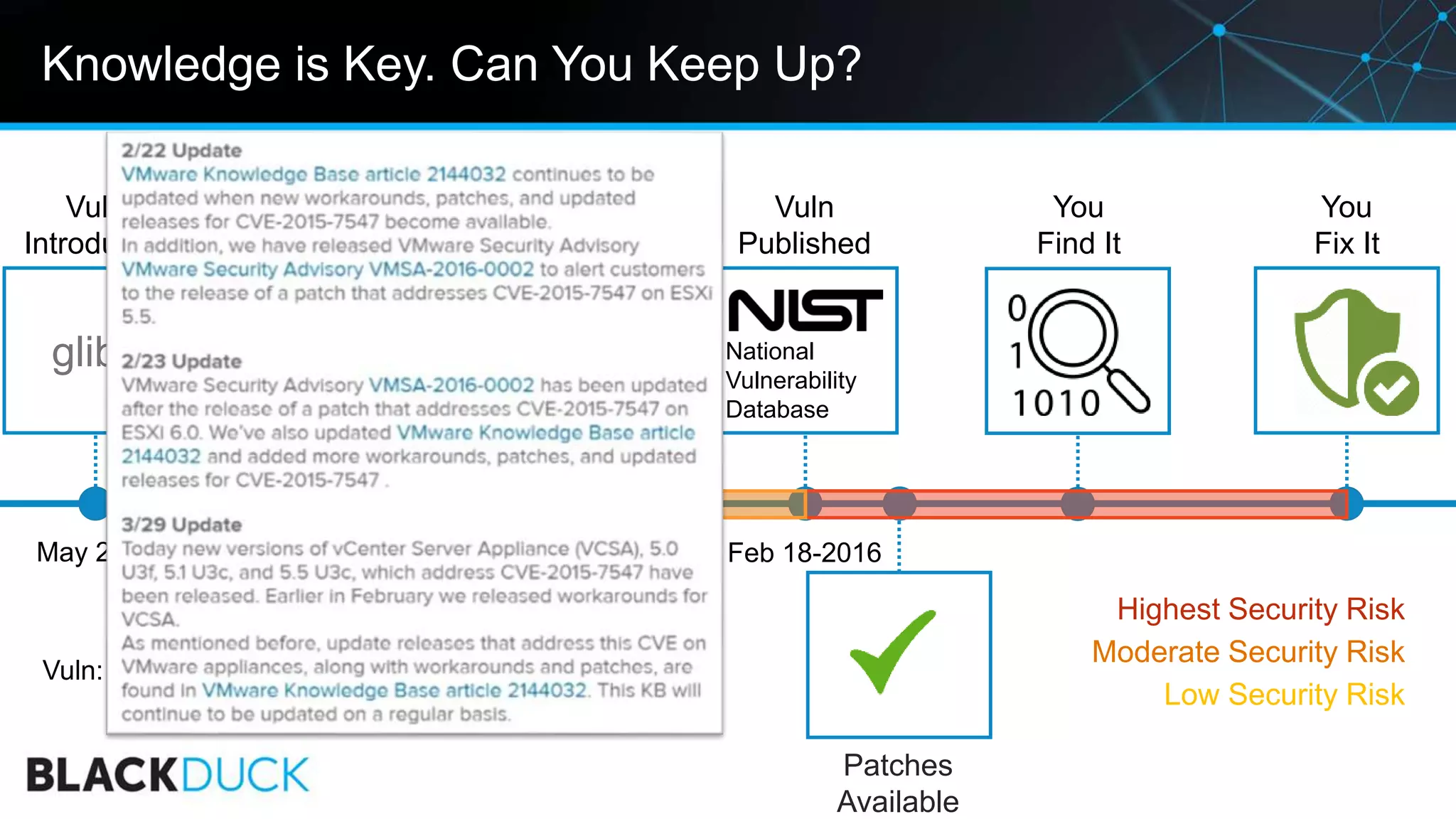

Knowledge is Key. Can You Keep Up?
glibc
Vuln
Introduced
National
Vulnerability
Database
Vuln
Published
You
Find It
May 2008
CVE-2015-
7547
CVE
Assigned
Feb 16-2016 Feb 18-2016
glibc
Bug
Reported
July 2015
Patches
Available
You
Fix It
Highest Security Risk
Moderate Security Risk
Low Security Risk
Vuln: CVE-2015-7547: glibc getaddrinfo stack-based
buffer overflow

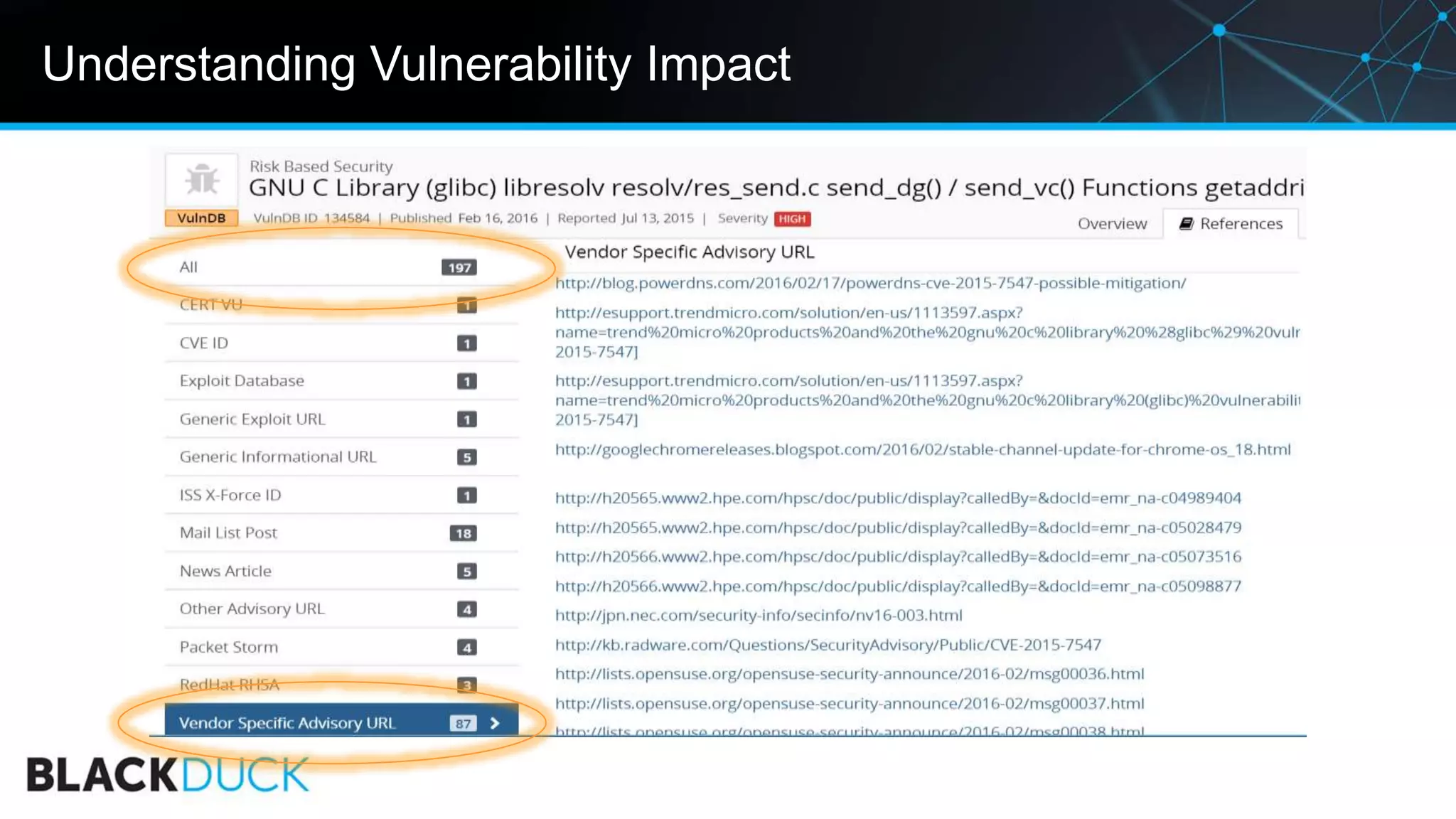

Understanding Vulnerability Impact
0
500
1000
1500
2000
2500
3000
3500
1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015

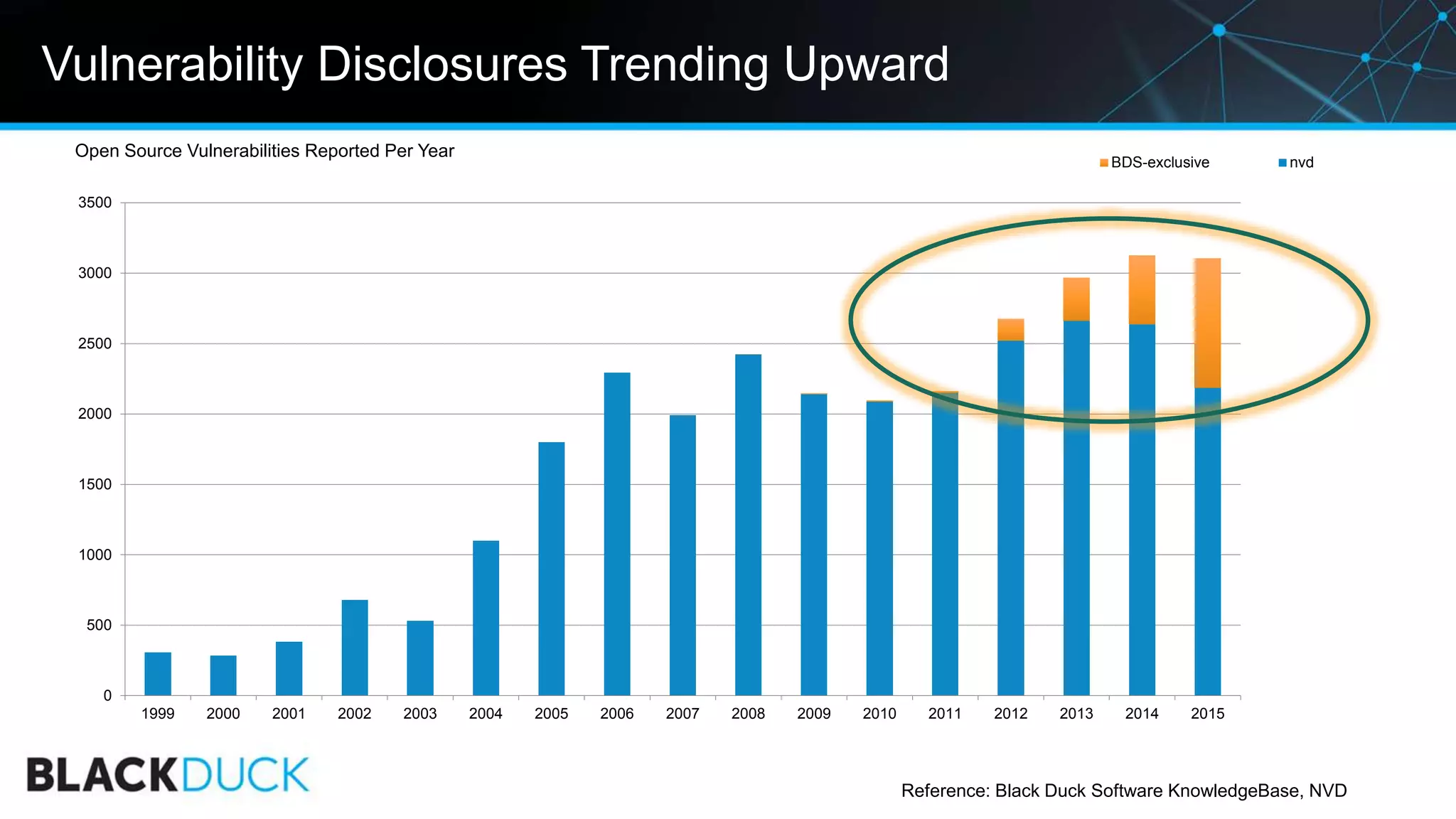

Open Source Vulnerabilities Reported Per Year
BDS-exclusive nvd
Reference: Black Duck Software KnowledgeBase, NVD
Vulnerability Disclosures Trending Upward

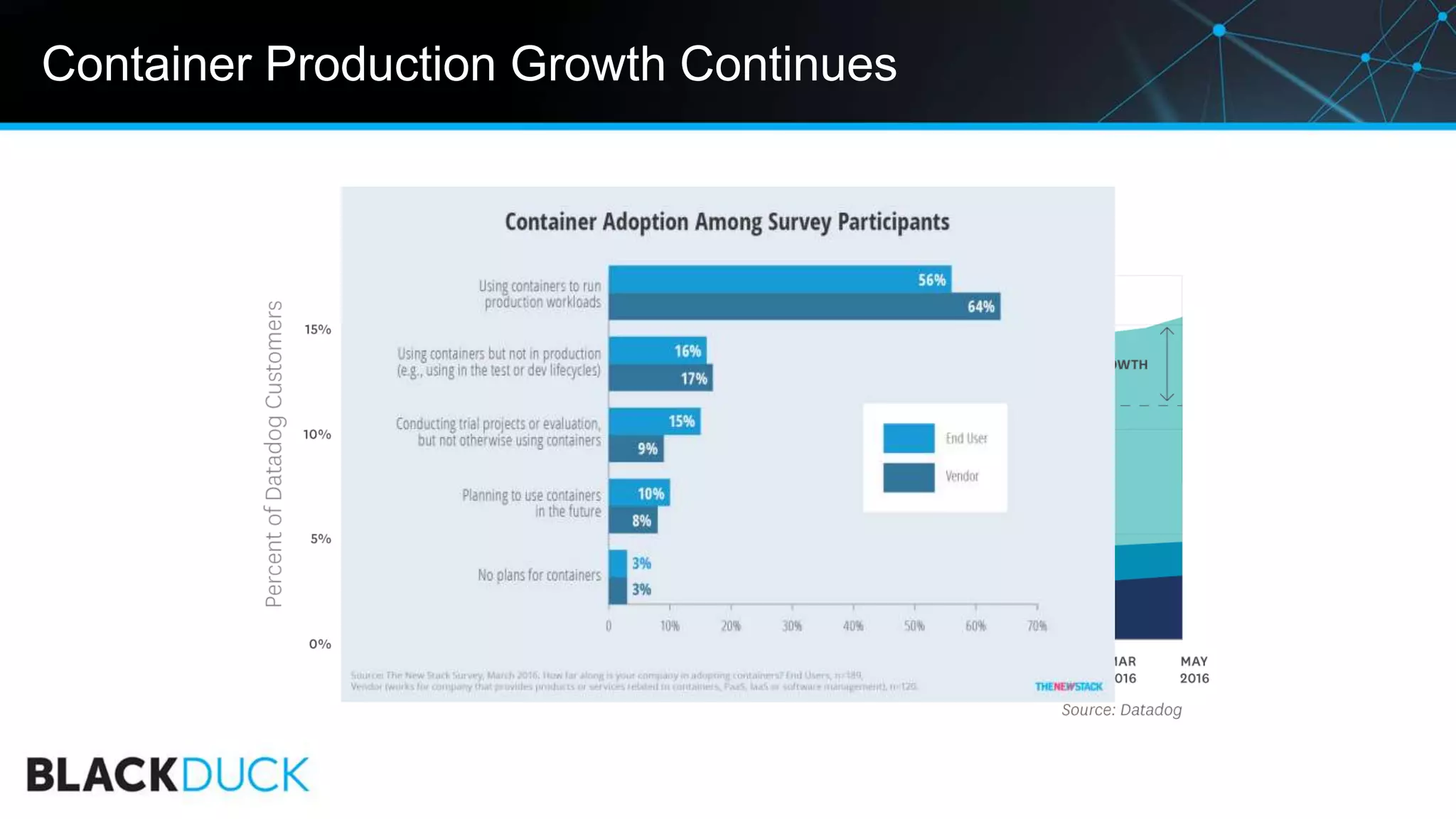

Container Production Growth Continues
Securing the
Container
Contents and
Environment

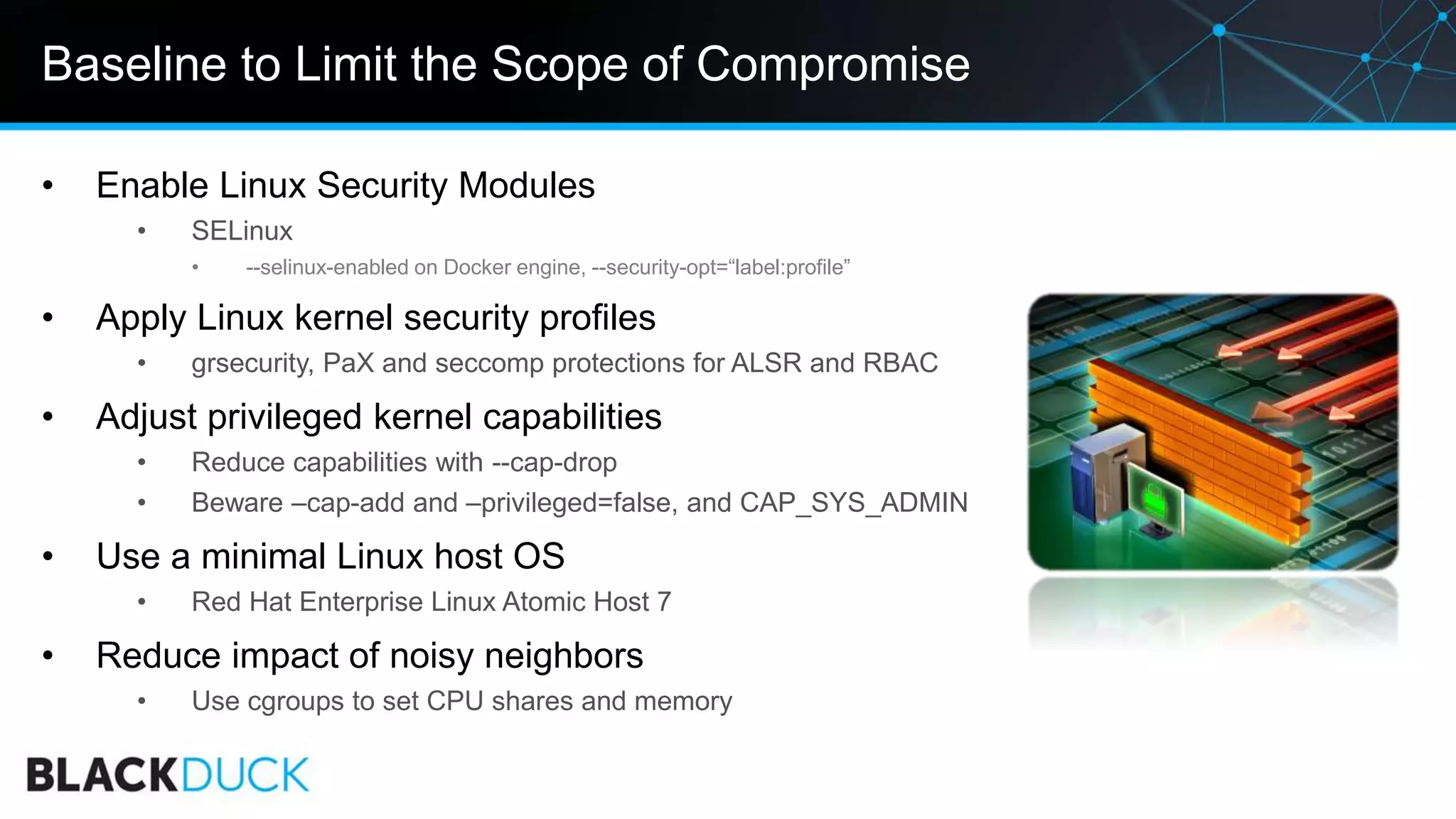

Baseline to Limit the Scope of Compromise
• Enable Linux Security Modules
• SELinux
• --selinux-enabled on Docker engine, --security-opt=“label:profile”
• Apply Linux kernel security profiles
• grsecurity, PaX and seccomp protections for ALSR and RBAC
• Adjust privileged kernel capabilities
• Reduce capabilities with --cap-drop
• Beware –cap-add and –privileged=false, and CAP_SYS_ADMIN
• Use a minimal Linux host OS
• Red Hat Enterprise Linux Atomic Host 7
• Reduce impact of noisy neighbors
• Use cgroups to set CPU shares and memory

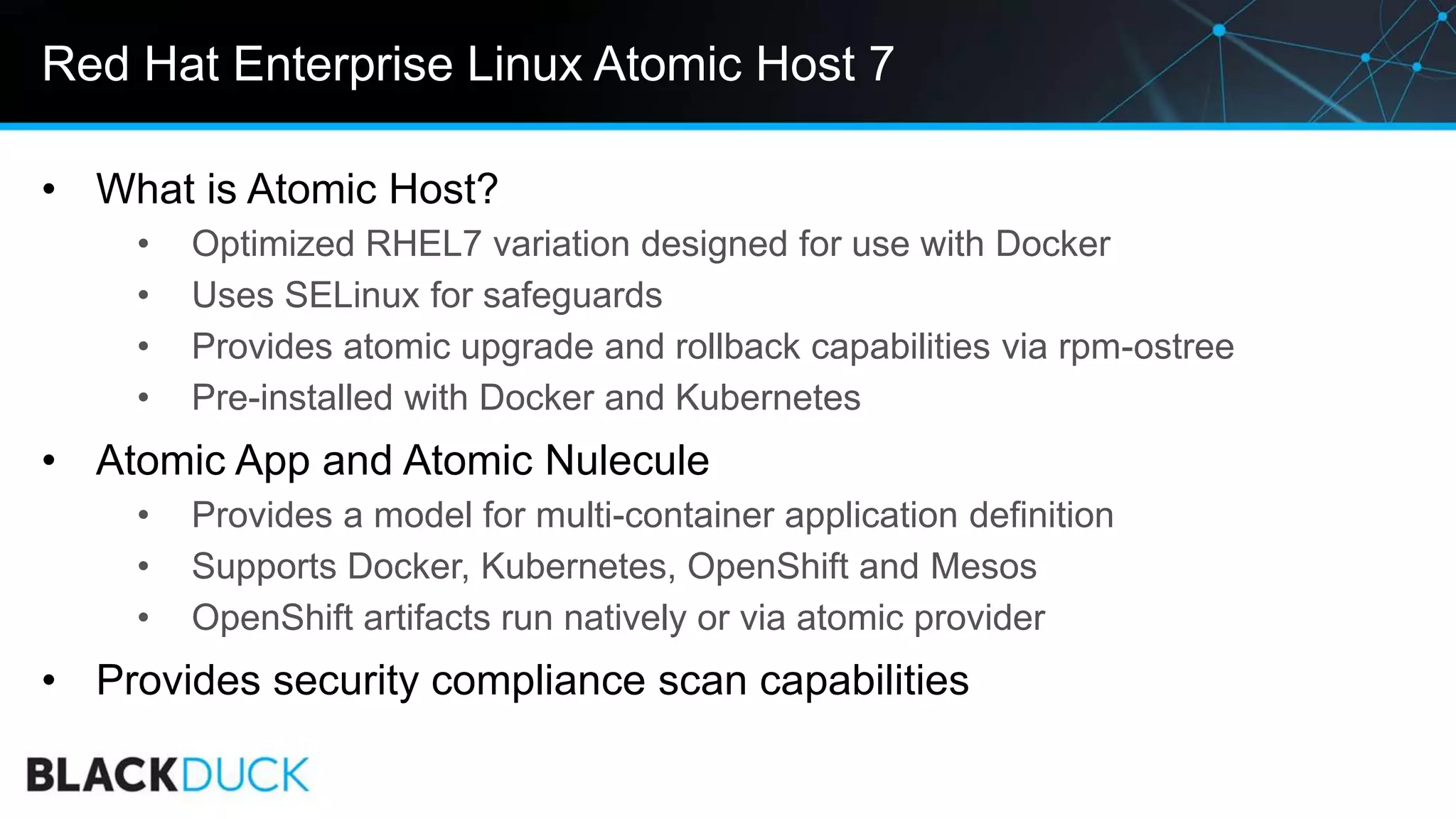

Red Hat Enterprise Linux Atomic Host 7
• What is Atomic Host?
• Optimized RHEL7 variation designed for use with Docker
• Uses SELinux for safeguards
• Provides atomic upgrade and rollback capabilities via rpm-ostree
• Pre-installed with Docker and Kubernetes
• Atomic App and Atomic Nulecule
• Provides a model for multi-container application definition
• Supports Docker, Kubernetes, OpenShift and Mesos
• OpenShift artifacts run natively or via atomic provider
• Provides security compliance scan capabilities

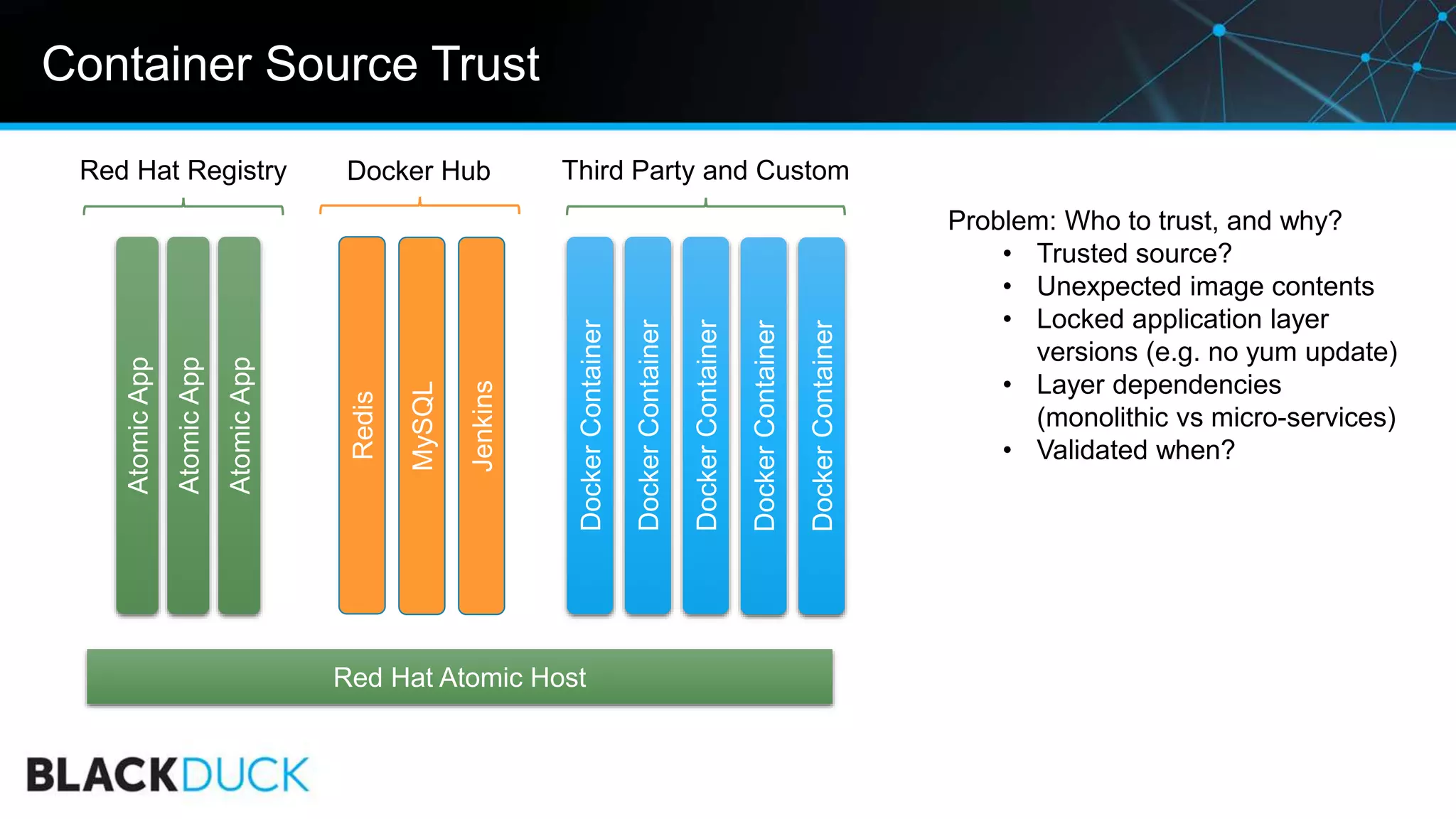

Container Source Trust
Red Hat Atomic Host
AtomicApp
AtomicApp
AtomicApp
Red Hat Registry
MySQL
Redis
Jenkins
Docker Hub
DockerContainer
DockerContainer
DockerContainer
DockerContainer
DockerContainer
Third Party and Custom
Problem: Who to trust, and why?
• Trusted source?
• Unexpected image contents
• Locked application layer
versions (e.g. no yum update)
• Layer dependencies
(monolithic vs micro-services)
• Validated when?

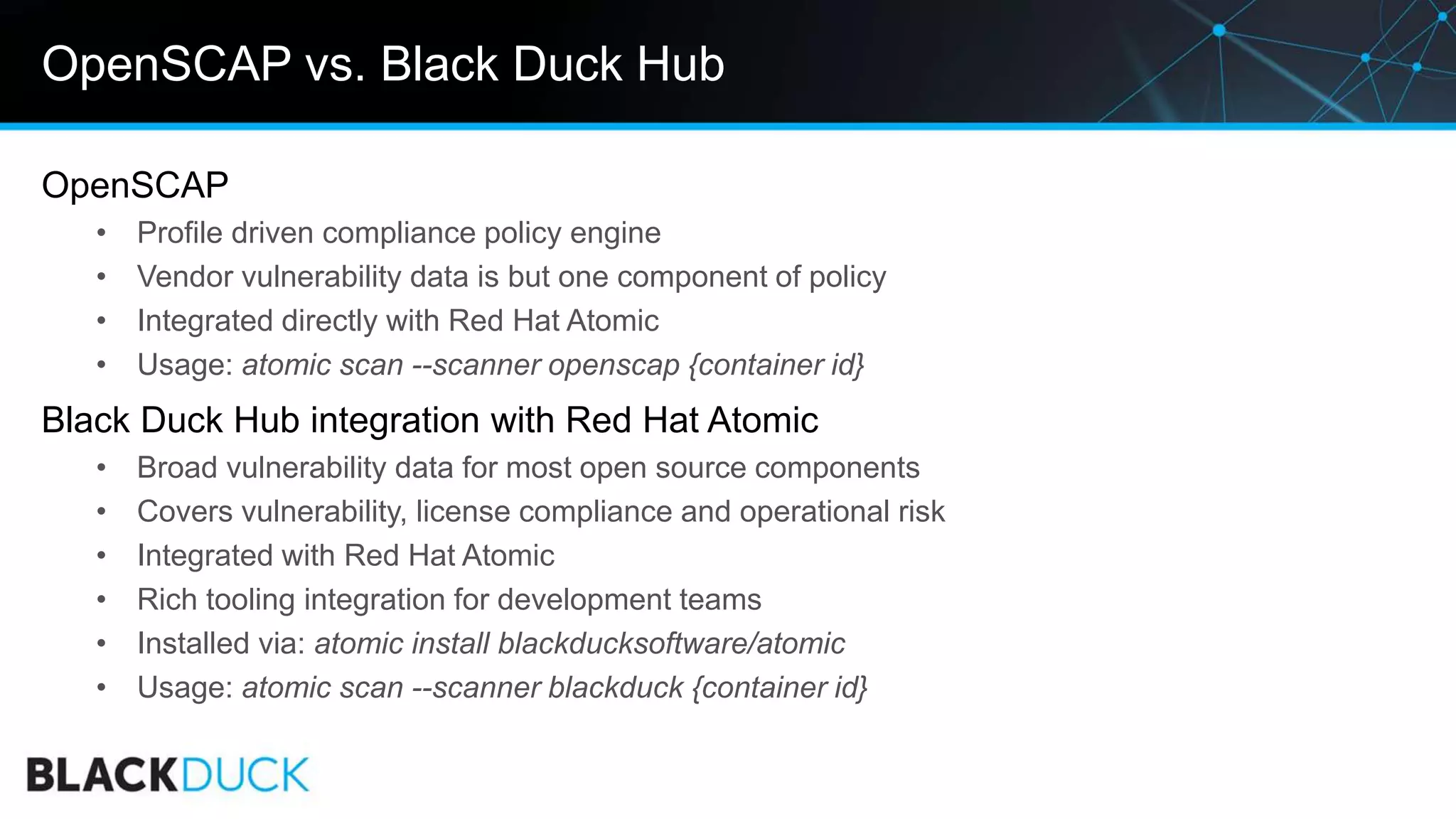

OpenSCAP vs. Black Duck Hub
OpenSCAP
• Profile driven compliance policy engine
• Vendor vulnerability data is but one component of policy
• Integrated directly with Red Hat Atomic
• Usage: atomic scan --scanner openscap {container id}
Black Duck Hub integration with Red Hat Atomic
• Broad vulnerability data for most open source components
• Covers vulnerability, license compliance and operational risk
• Integrated with Red Hat Atomic
• Rich tooling integration for development teams
• Installed via: atomic install blackducksoftware/atomic
• Usage: atomic scan --scanner blackduck {container id}
A DONATION HAPPILY GIVEN
TO THE DEMO GODS

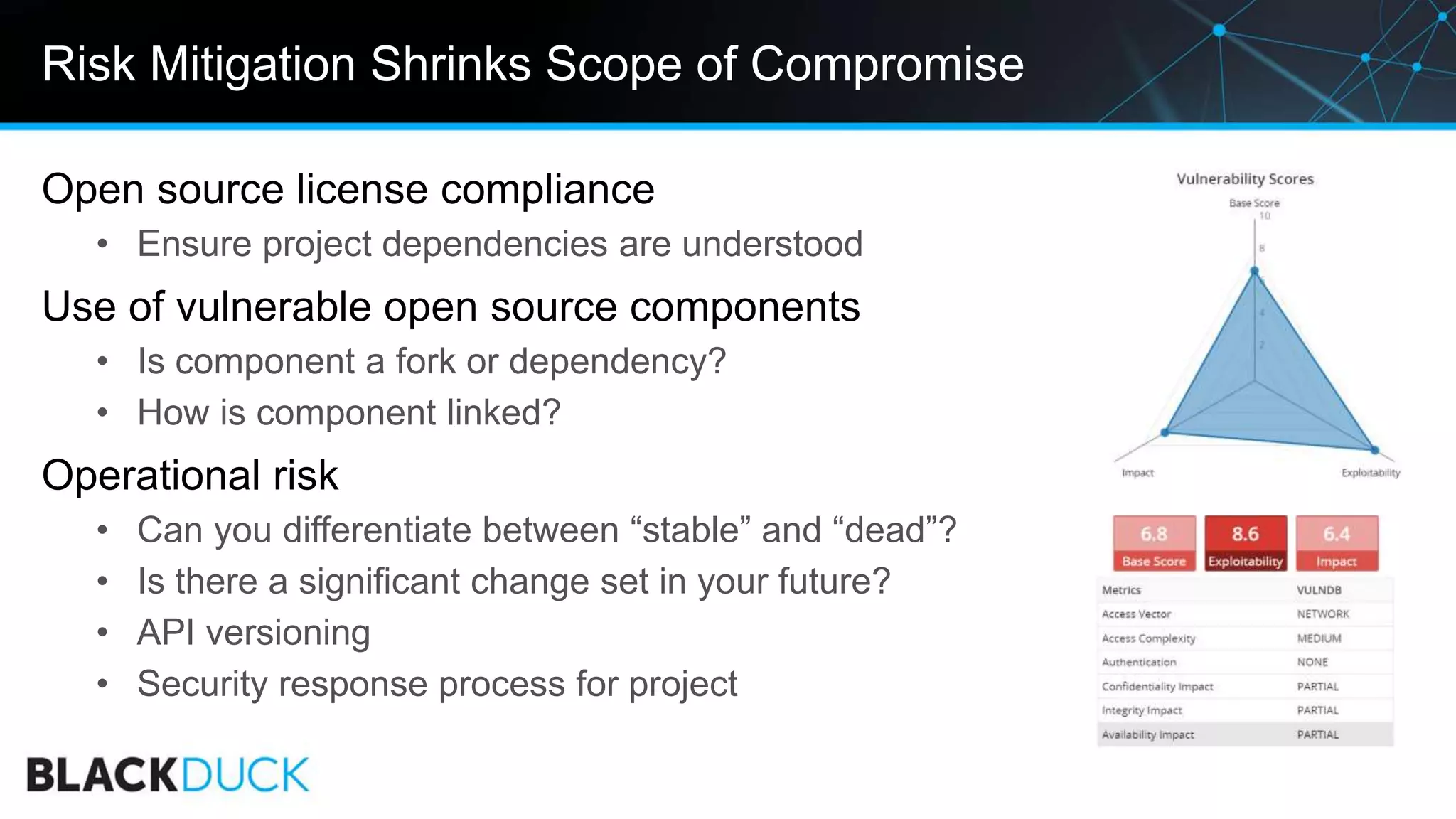

Risk Mitigation Shrinks Scope of Compromise
Open source license compliance
• Ensure project dependencies are understood
Use of vulnerable open source components
• Is component a fork or dependency?
• How is component linked?
Operational risk
• Can you differentiate between “stable” and “dead”?
• Is there a significant change set in your future?
• API versioning
• Security response process for project
7 of the top 10
Software Companies
(44 of the top 100)
6 of the top 8
Mobile Handset Vendors
6 of the top 10
Investment Banks
24
Countries
250+
Employees
1,800Customers
Who is Black Duck Software?
27Founded
2002

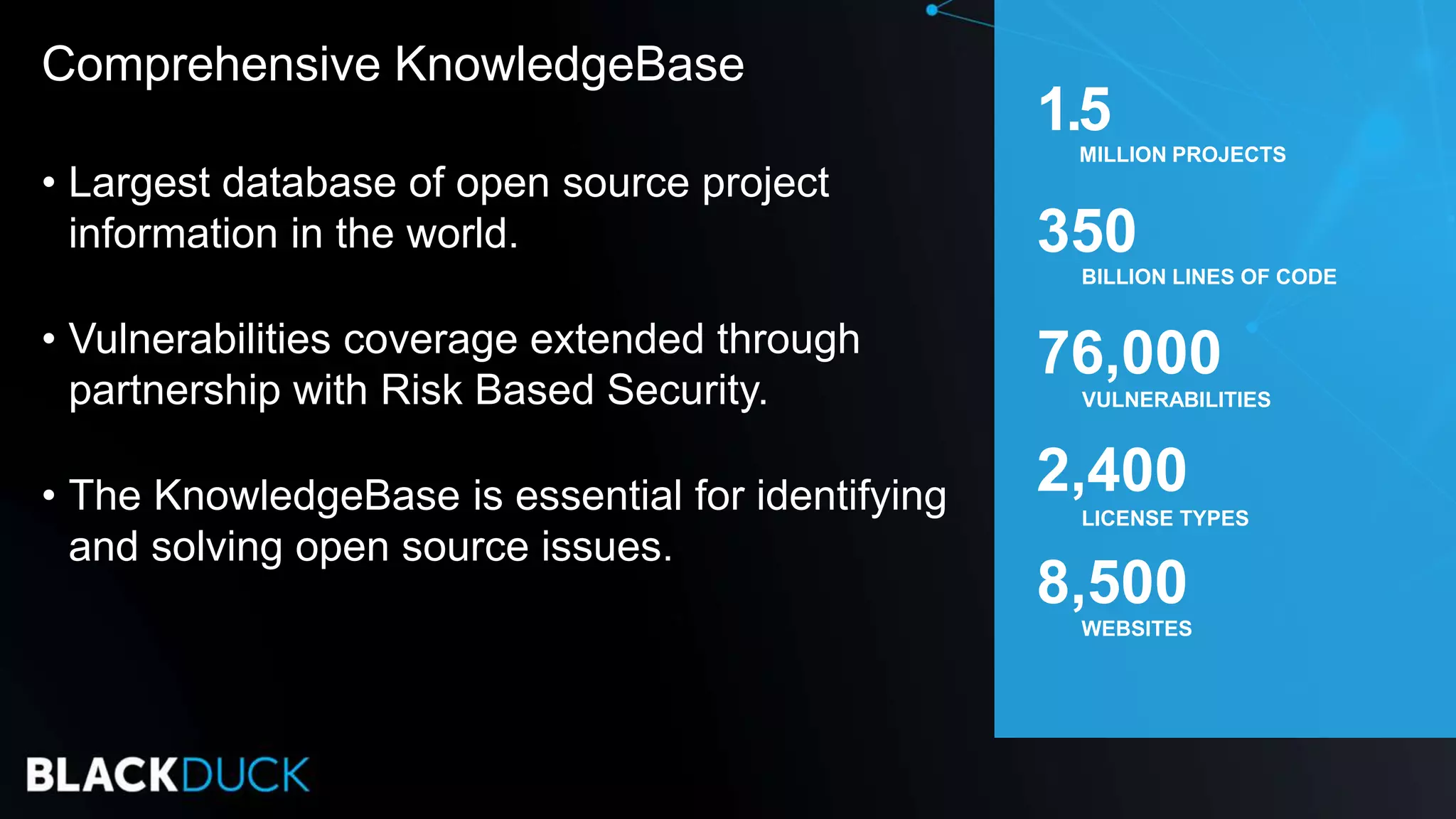

8,500
WEBSITES
350
BILLION LINES OF CODE
2,400
LICENSE TYPES
1.5
MILLION PROJECTS
76,000
VULNERABILITIES
• Largest database of open source project
information in the world.
• Vulnerabilities coverage extended through
partnership with Risk Based Security.
• The KnowledgeBase is essential for identifying
and solving open source issues.
Comprehensive KnowledgeBase

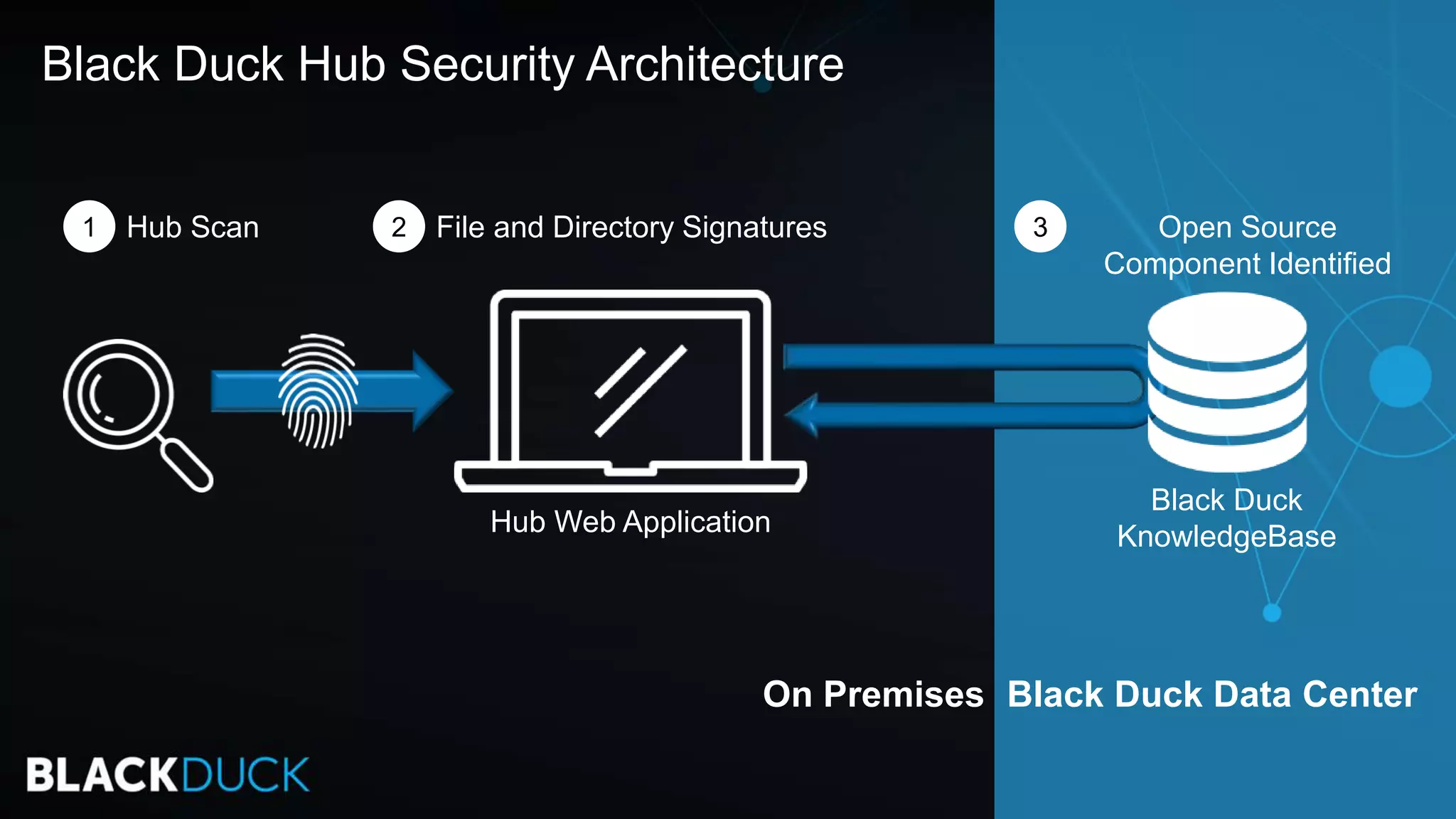

Black Duck Hub Security Architecture
Hub Scan1 File and Directory Signatures2 Open Source
Component Identified
3
Hub Web Application
Black Duck
KnowledgeBase
On Premises Black Duck Data Center
We Need Your Help
Knowledge is power
• Know what’s running and why
• Define proactive vulnerability response process
• Don’t let technology hype cycle dictate security
Invest in defense in depth models
• Don’t rely on perimeter security to do heavy lifting
• Do look at hypervisor & container trends in security
• Make developers and ops teams part of the solution
• Focus attention on vulnerability remediation
Together we can build a more secure data center

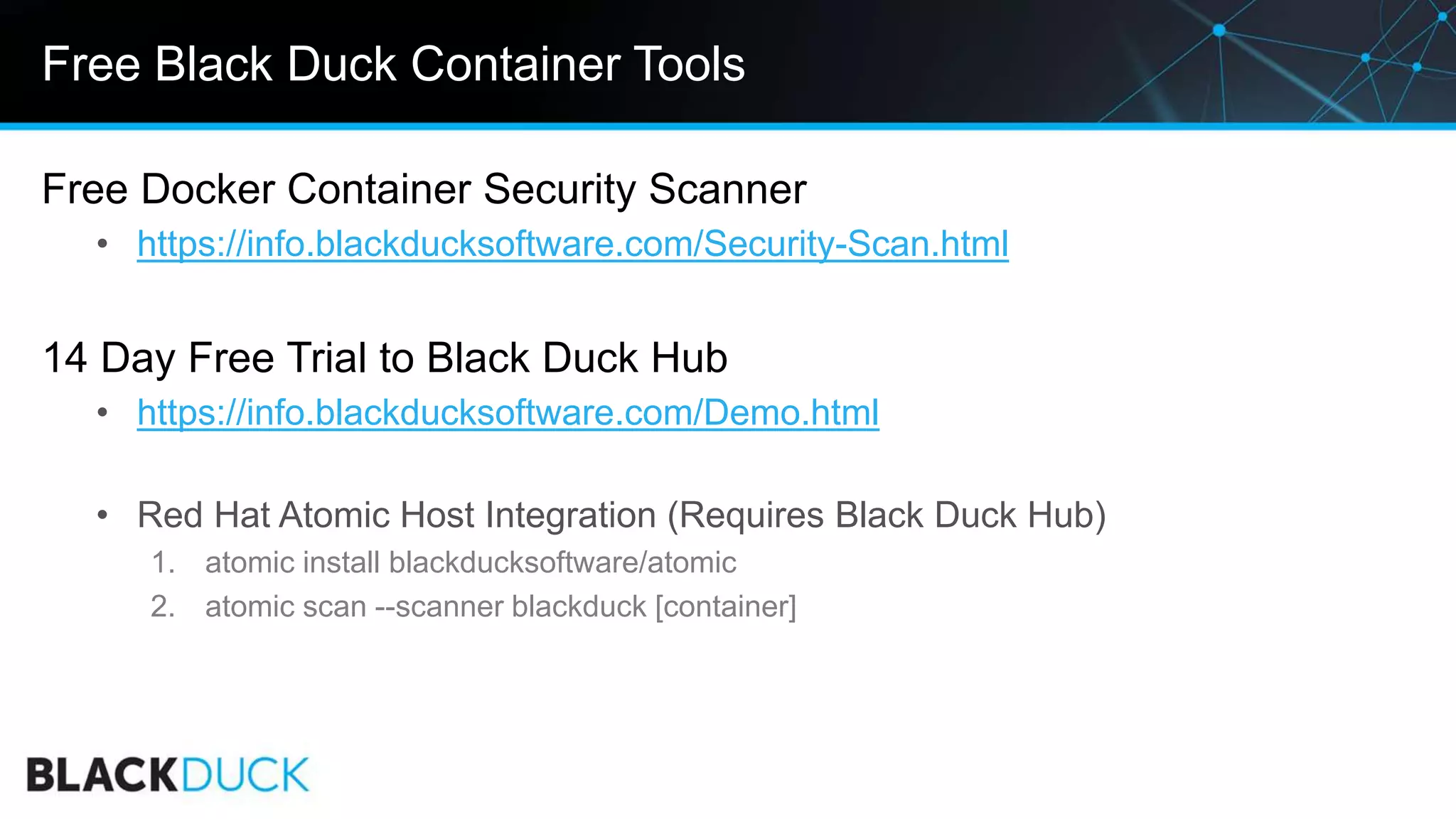

Free Black Duck Container Tools
Free Docker Container Security Scanner
• https://info.blackducksoftware.com/Security-Scan.html
14 Day Free Trial to Black Duck Hub
• https://info.blackducksoftware.com/Demo.html
• Red Hat Atomic Host Integration (Requires Black Duck Hub)
1. atomic install blackducksoftware/atomic
2. atomic scan --scanner blackduck [container]
Know Your Code®
