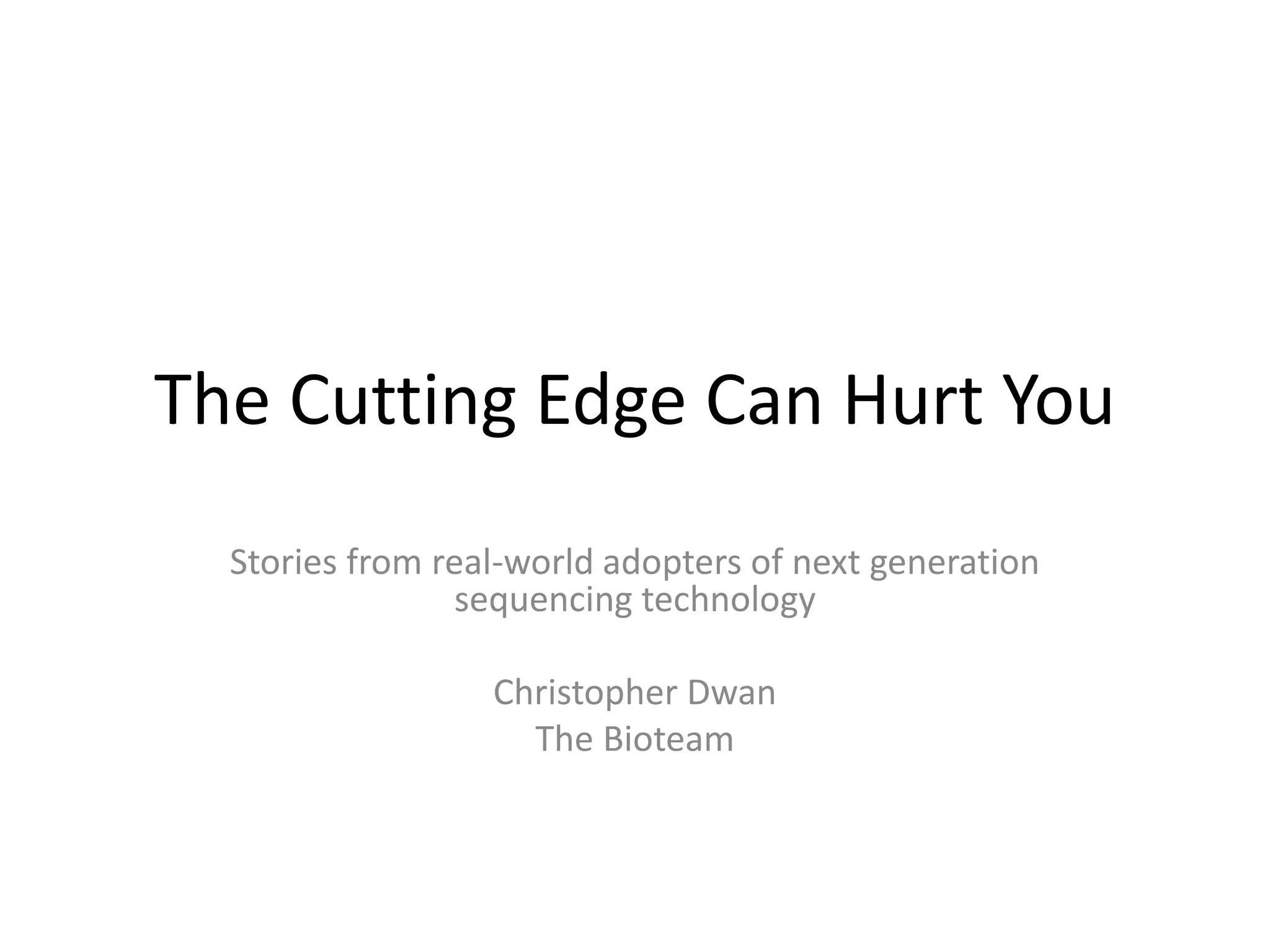

- 1. The Cutting EdgeCan Hurt You Stories from real-world adopters of next generation sequencing technology Christopher Dwan The Bioteam
- 2. Bioteam • Consultancy, witha software business • Vendor Neutral, Technology Agnostic • “Bridge the gap” between high performance computing and life sciences • Founded 2003 Shameless Plugs: • We’re in Booth 113 • Next Generation Sequencing Workshop (yesterday, plus next year) • http://bioteam.net • We’re hiring.

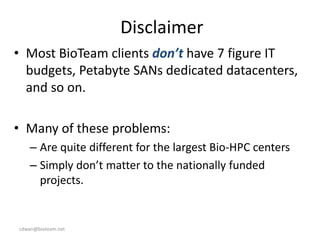

- 3. cdwan@bioteam.net Disclaimer • Most BioTeamclients don’t have 7 figure IT budgets, Petabyte SANs dedicated datacenters, and so on. • Many of these problems: – Are quite different for the largest Bio-HPC centers – Simply don’t matter to the nationally funded projects.

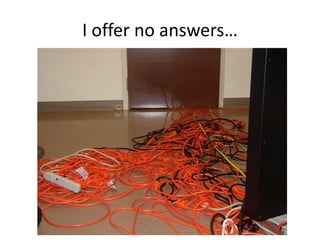

- 4. I offer noanswers… cdwan@bioteam.net

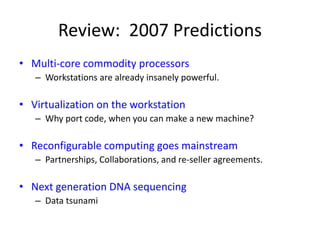

- 5. Review: 2007 Predictions •Multi-core commodity processors – Workstations are already insanely powerful. • Virtualization on the workstation – Why port code, when you can make a new machine? • Reconfigurable computing goes mainstream – Partnerships, Collaborations, and re-seller agreements. • Next generation DNA sequencing – Data tsunami

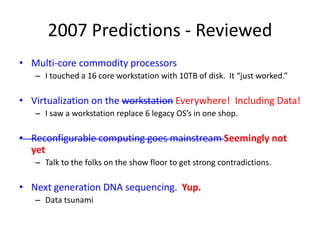

- 6. 2007 Predictions -Reviewed • Multi-core commodity processors – I touched a 16 core workstation with 10TB of disk. It “just worked.” • Virtualization on the workstation Everywhere! Including Data! – I saw a workstation replace 6 legacy OS’s in one shop. • Reconfigurable computing goes mainstream Seemingly not yet – Talk to the folks on the show floor to get strong contradictions. • Next generation DNA sequencing. Yup. – Data tsunami
- 7.

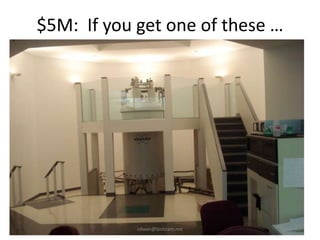

- 8. $5M: If youget one of these … cdwan@bioteam.net

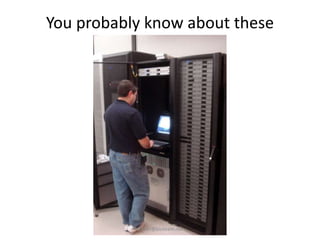

- 9. You probably knowabout these cdwan@bioteam.net

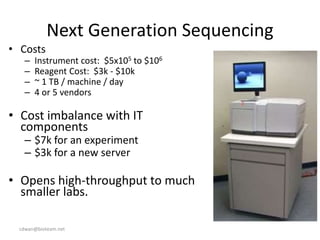

- 10. cdwan@bioteam.net Next Generation Sequencing •Costs – Instrument cost: $5x105 to $106 – Reagent Cost: $3k - $10k – ~ 1 TB / machine / day – 4 or 5 vendors • Cost imbalance with IT components – $7k for an experiment – $3k for a new server • Opens high-throughput to much smaller labs.

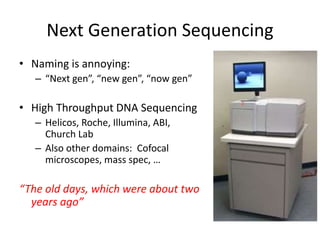

- 11. Next Generation Sequencing •Naming is annoying: – “Next gen”, “new gen”, “now gen” • High Throughput DNA Sequencing – Helicos, Roche, Illumina, ABI, Church Lab – Also other domains: Cofocal microscopes, mass spec, … “The old days, which were about two years ago”
- 12. Fundamentals • Standard facilitiesquestsion: – Heat / Power / Floor capacity, just as much as ever • Network: – Moving 1TB of data from instrument to the next room, much less to a collaborator – Still with the sneakernet. • Security • Data • Lab information management
- 13.
- 14. Information Management • Day0 – Simply catching the data and not dropping it is a challenge. • 3 months – Postdocs carrying data around on firewire disks – Data management with post-it notes. • 6 months – Instrument vendor updates their software. – Re-analysis? • 1 year – New machine from a different vendor.

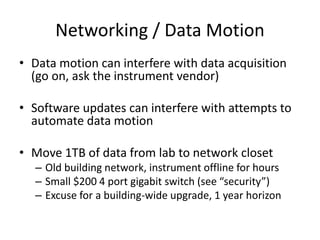

- 15. Networking / DataMotion • Data motion can interfere with data acquisition (go on, ask the instrument vendor) • Software updates can interfere with attempts to automate data motion • Move 1TB of data from lab to network closet – Old building network, instrument offline for hours – Small $200 4 port gigabit switch (see “security”) – Excuse for a building-wide upgrade, 1 year horizon

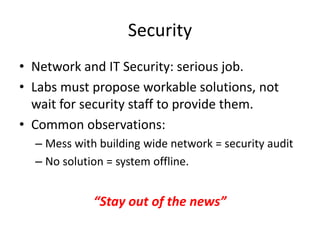

- 16. Security • Network andIT Security: serious job. • Labs must propose workable solutions, not wait for security staff to provide them. • Common observations: – Mess with building wide network = security audit – No solution = system offline. “Stay out of the news”

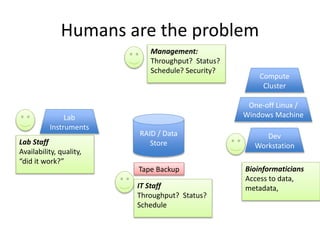

- 17. Humans are theproblem Lab Instruments Tape Backup Compute Cluster One-off Linux / Windows Machine RAID / Data Store Dev Workstation Management: Throughput? Status? Schedule? Security? Lab Staff Availability, quality, “did it work?” IT Staff Throughput? Status? Schedule Bioinformaticians Access to data, metadata,

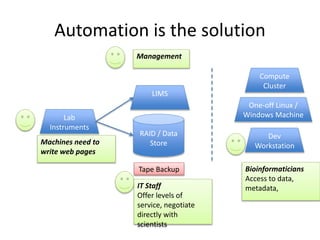

- 18. Automation is thesolution Lab Instruments Tape Backup Compute Cluster One-off Linux / Windows Machine RAID / Data Store Dev Workstation Management Machines need to write web pages IT Staff Offer levels of service, negotiate directly with scientists Bioinformaticians Access to data, metadata, LIMS
- 19.
- 20.

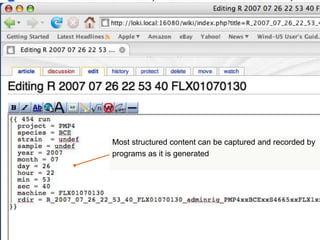

- 21. cdwan@bioteam.net Automatic data capture- Ra Most structured content can be captured and recorded by programs as it is generated

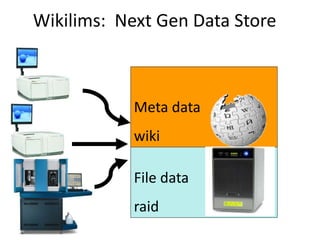

- 22. cdwan@bioteam.net File data raid Meta data wiki Wikilims:Next Gen Data Store
- 23.

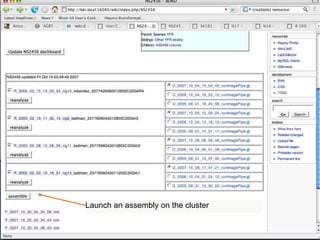

- 24. cdwan@bioteam.net Launch an assembly Launchan assembly on the cluster

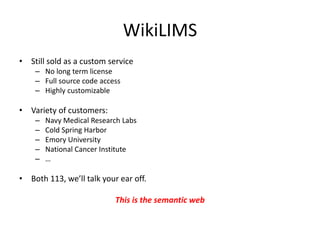

- 25. WikiLIMS • Still soldas a custom service – No long term license – Full source code access – Highly customizable • Variety of customers: – Navy Medical Research Labs – Cold Spring Harbor – Emory University – National Cancer Institute – … • Both 113, we’ll talk your ear off. This is the semantic web

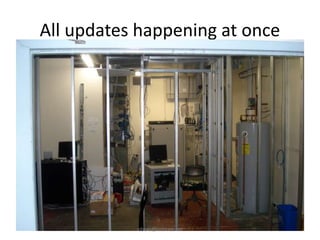

- 26. All updates happeningat once cdwan@bioteam.net
- 27. STORAGE AND BACKUPS “Ontheir way to becoming a sick joke”

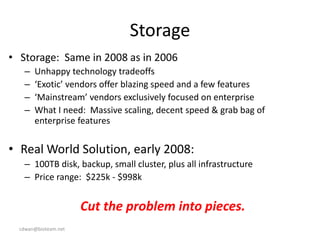

- 28. cdwan@bioteam.net Storage • Storage: Samein 2008 as in 2006 – Unhappy technology tradeoffs – ‘Exotic’ vendors offer blazing speed and a few features – ‘Mainstream’ vendors exclusively focused on enterprise – What I need: Massive scaling, decent speed & grab bag of enterprise features • Real World Solution, early 2008: – 100TB disk, backup, small cluster, plus all infrastructure – Price range: $225k - $998k Cut the problem into pieces.

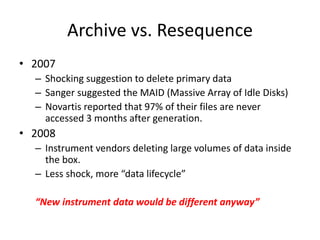

- 29. Archive vs. Resequence •2007 – Shocking suggestion to delete primary data – Sanger suggested the MAID (Massive Array of Idle Disks) – Novartis reported that 97% of their files are never accessed 3 months after generation. • 2008 – Instrument vendors deleting large volumes of data inside the box. – Less shock, more “data lifecycle” “New instrument data would be different anyway”

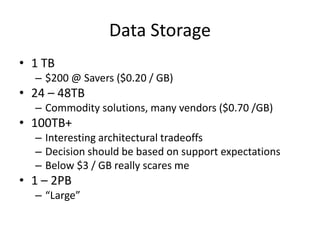

- 30. Data Storage • 1TB – $200 @ Savers ($0.20 / GB) • 24 – 48TB – Commodity solutions, many vendors ($0.70 /GB) • 100TB+ – Interesting architectural tradeoffs – Decision should be based on support expectations – Below $3 / GB really scares me • 1 – 2PB – “Large”

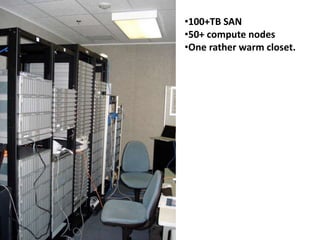

- 31. cdwan@bioteam.net •100+TB SAN •50+ computenodes •One rather warm closet.

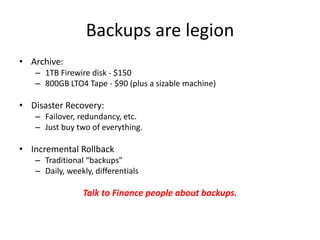

- 32. Backups are legion •Archive: – 1TB Firewire disk - $150 – 800GB LTO4 Tape - $90 (plus a sizable machine) • Disaster Recovery: – Failover, redundancy, etc. – Just buy two of everything. • Incremental Rollback – Traditional “backups” – Daily, weekly, differentials Talk to Finance people about backups.

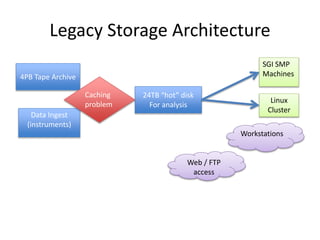

- 35. Data Ingest (instruments) Legacy StorageArchitecture 4PB Tape Archive 24TB “hot” disk For analysis SGI SMP Machines Linux Cluster Caching problem Workstations Web / FTP access

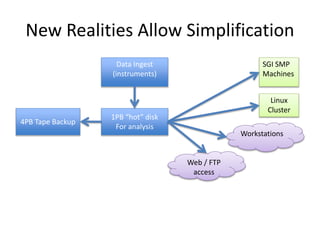

- 36. Data Ingest (instruments) New RealitiesAllow Simplification 4PB Tape Backup 1PB “hot” disk For analysis SGI SMP Machines Linux Cluster Workstations Web / FTP access
- 37.
- 38. cdwan@bioteam.net Amazon Web Services •EC2 for virtualized computing – The economics are compelling • One month of serious experimentation: – $9.00 USD billed to credit card – Various money making approaches • Flexible pricing allows reselling & revenue sharing • Create a EC2 image and add my own fees on top to cover development and support costs – As a developer, I don’t need your credit card • Amazon handles all transactions & billing
- 39. Bioteam and AmazonEC2 • This is the grid: – Every Bioteam consultant independently deployed an EC2 solution in 2008. • Inquiry – Since 2004 - “bioinformatics on a cluster” – Apple, Microsoft CCS, Linux, etc. – May 1, 2008: Inquiry on Amazon EC2 – CPU Cost to customer: $10 / node day • Data service: 500GB, constantly updated: – $1400 yr: downloads, maintenance, and storage – $17 yr / cost to Bioteam to support a customer

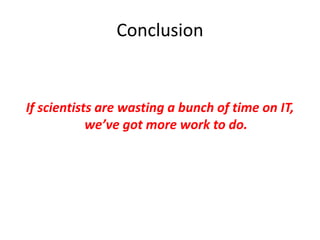

- 40. Conclusion If scientists arewasting a bunch of time on IT, we’ve got more work to do.
- 41. Disturbing Observation I seemto have presented both a functional “grid” and an instance of a “semantic web” in the same talk.

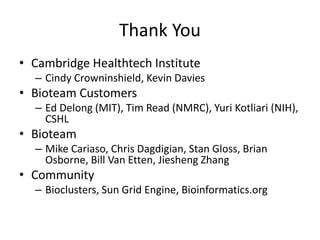

- 42. Thank You • CambridgeHealthtech Institute – Cindy Crowninshield, Kevin Davies • Bioteam Customers – Ed Delong (MIT), Tim Read (NMRC), Yuri Kotliari (NIH), CSHL • Bioteam – Mike Cariaso, Chris Dagdigian, Stan Gloss, Brian Osborne, Bill Van Etten, Jiesheng Zhang • Community – Bioclusters, Sun Grid Engine, Bioinformatics.org
