1. Textile Designing
Mr.S.RAJESH KUMAR
DEPARTMENT OF TEXTILE TECHNOLOGY
PSG COLLEGE OF TECHNOLOGY

2. Discussion Topics
•
•
•
•
•
•
Designing Tools
Image Types & Difference
Types of Design Files
Design Development
Types of Repeats
Reproduction of Designs

4. Designing Tools
•
•
•
•
•
•
Creativity
Shapes
Colours
Design References
Design Creating Media
File saving Formats

5. Image Types
• Pixel (or) Raster images - Russell Kirsch(Inventor)
* Pixel is a contraction of the words Picture & Element
* Raster is a term for all images that fit inside this model
• Vector images - Ivan Sutherland (Inventor)
* First vector drawing program was called Sketchpad

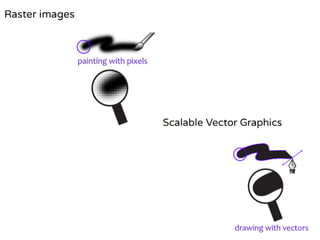

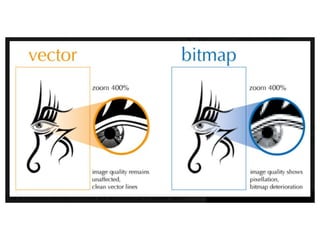

6. Raster Images
Vector images
Raster graphic supports a wide range
of color, good for photography
Vector images are better for graphic
designing for its scalability
It uses dot matrix data structure
[rectangular grids of cells (or) pixels]
These are all equal in size.
It uses X and Y coordinates. It’s a
geometrical primitives such as lines,
points, shapes, or curves
Resolutions are Value dependent
Independent of image resolution
File size is high
File Size is too low
Each pixel individually corresponds to a Vector graphics are composed of
particular hue, saturation, brightness,
paths.
opacity and position that.
Image Dimension changing makes
graphics pixilated (damaged).
Stretching and squeezing will not
damage the Image

7. Image Difference

10. Types of Design Files

11. Design Development

12. Fabric Formation
Concept of woven fabric
Woven fabric is formed by interlacing of
two(or)more mutually perpendicular sets of yarns

13. Design Construction patterns from a weave
×
×
×
×
×
×
×
×
• Warp ups are indicated like: ■
• Weft ups are indicated like: □
The patterns are constructed as following
steps:
1) Determine the weave, warp colour sequence and weft
colour sequence, and calculate the pattern repeat.
2) Draw the weave, warp and weft colour sequence as per their
weave location, and fill the weave on colour pattern location.
2) Now the Fabric is ready.

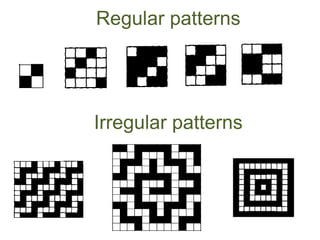

14. Regular patterns
Irregular patterns

15. Weave Development in Photoshop

16. Striped Fabric Development

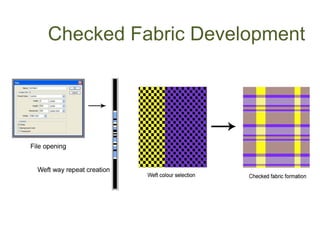

17. Checked Fabric Development

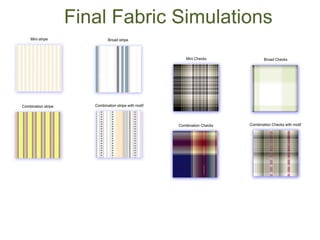

18. Final Fabric Simulations

19. Repeat
Development

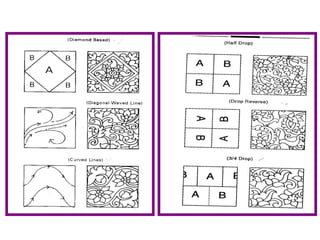

20. Types of Repeats
•
•
•
•
Straight
Cross
Half drop
¾ drop
•
•
•
•
Brick
Mirror
Diamond
Ogee etc…,

22. Reproduction of Designs

23. Scanning & Editing of Image

25. Design inspirations

26. UNIQUE SAREE
108 Different
Kolam Saree

27. Ahimsa Silk Wall Hanging
National Award winning Design
2009

28. Web References
