Matt Bishop discusses the development of an extensible hypermedia API for commerce at Elastic Path, focusing on event-driven architecture and the concepts of command-query responsibility segregation (CQRS). He explains how commands produce events that are immutable records of change and introduces the notion of backends for frontends (BFFs) as a solution to API client complexities, specifically referencing Netflix's API challenges and the creation of Falcor for handling shared queries. The talk emphasizes the integration of hypermedia navigation with state handling in API design for improved client experience.

1. Matt Bishop
Principal Architect, Elastic Path
● Built extensible hypermedia API for commerce (“Cortex”)
● Run R&D team creating an event-driven commerce architecture
@MattBishopL3

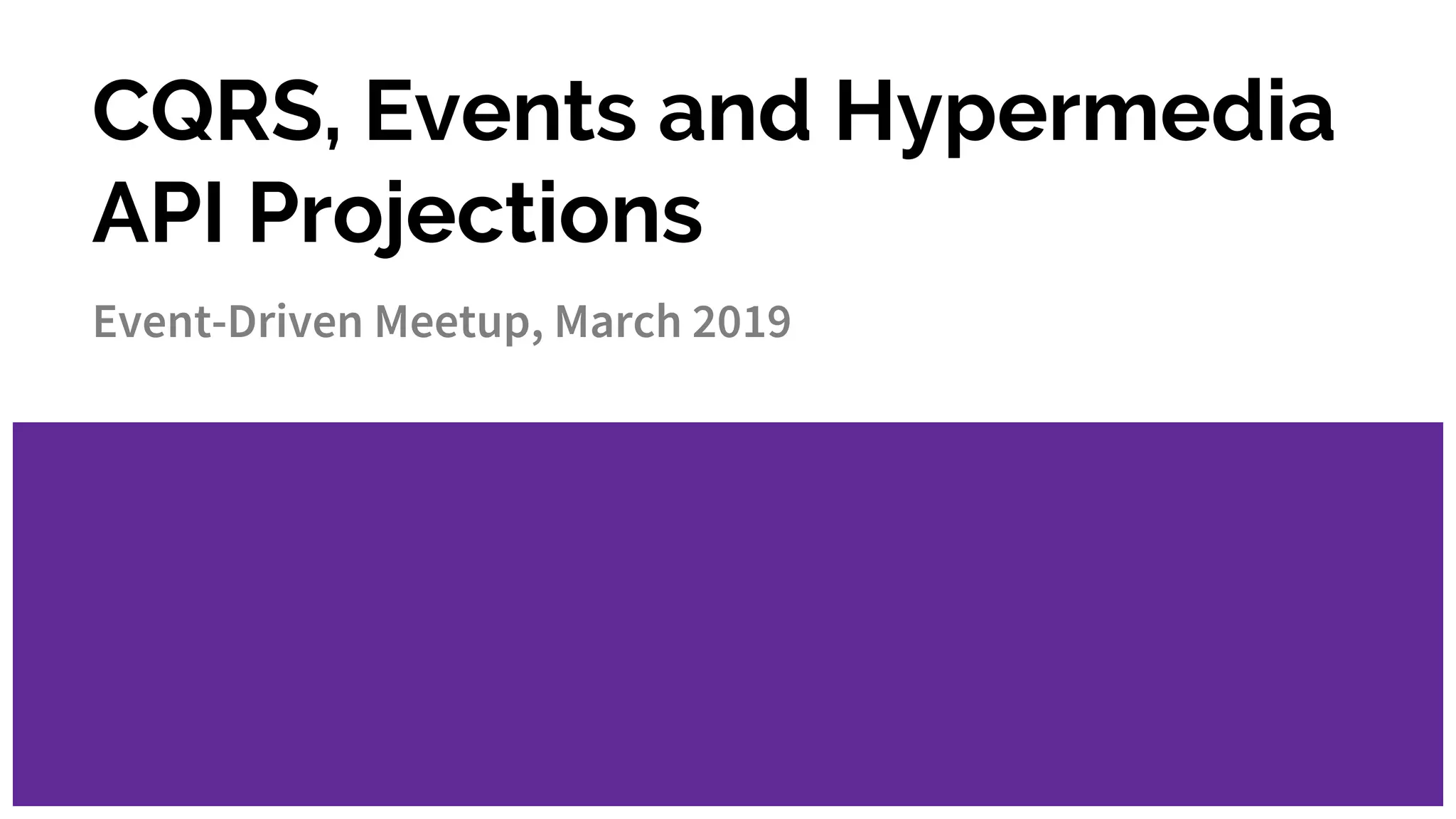

4. CQRS, Events and Hypermedia
API Projections
Event-Driven Meetup, March 2019

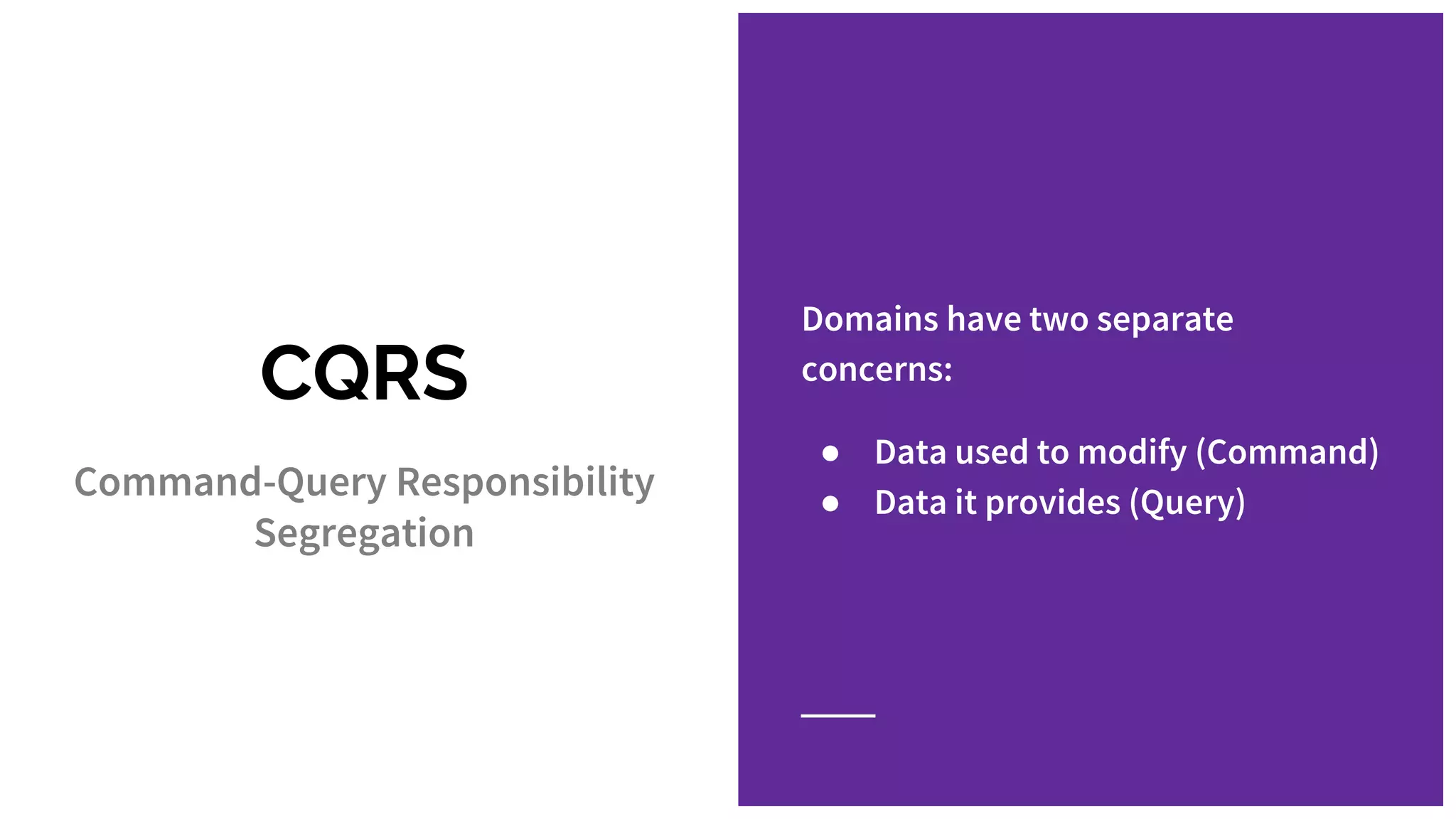

5. CQRS
Command-Query Responsibility
Segregation
Domains have two separate
concerns:
● Data used to modify (Command)
● Data it provides (Query)

6. Automobile Domain Object
changeGear(Gear.3rd)
applyBrakes(FootPressure.HARD)
pressGasPedal(FootPressure.HARD)
readSpeedometer()
refuel(40, “litres”)
readFuelGauge()

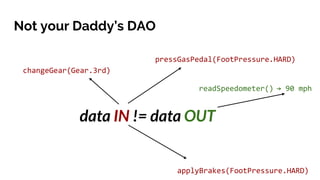

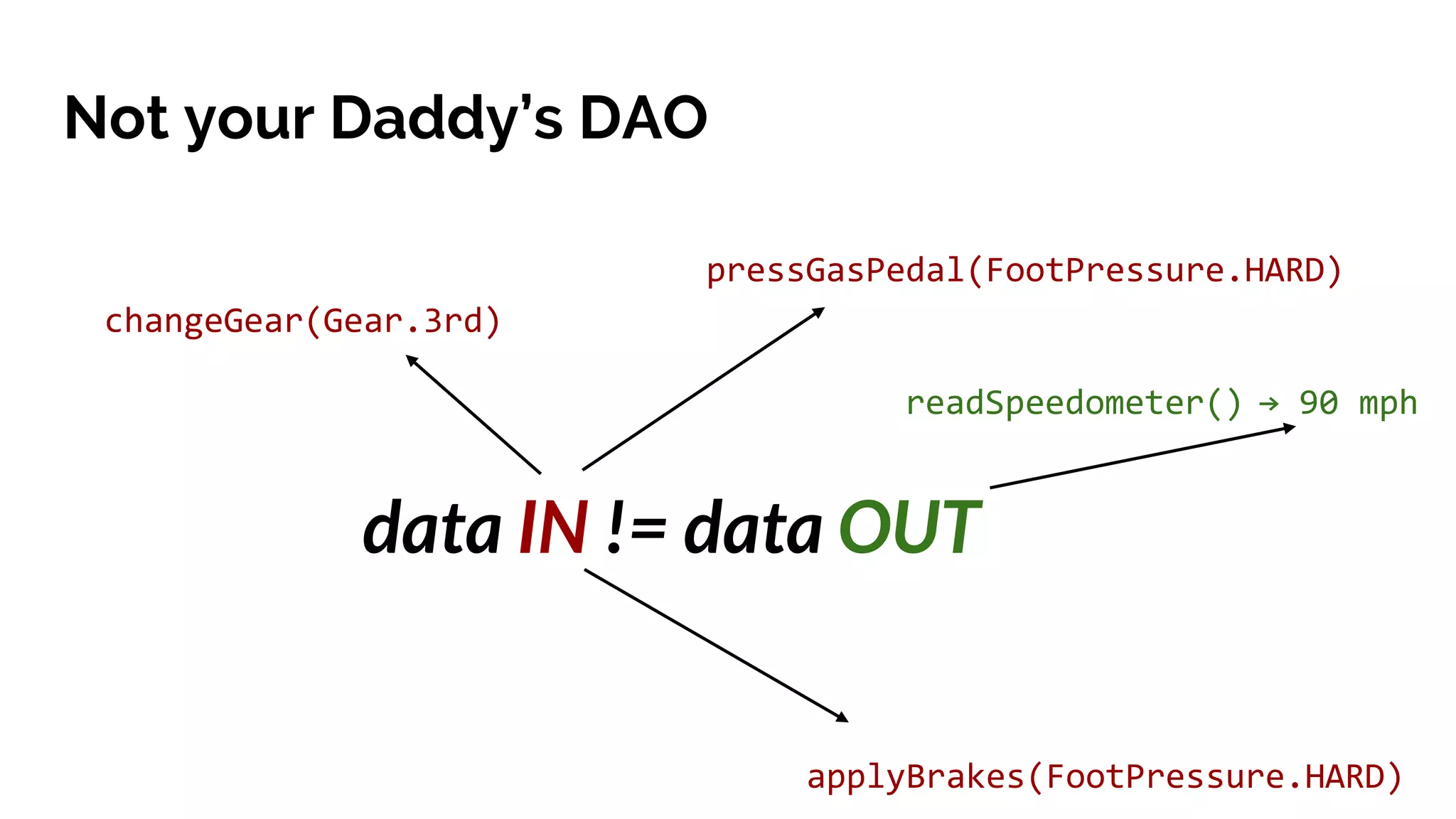

7. Not your Daddy’s DAO
changeGear(Gear.3rd)
applyBrakes(FootPressure.HARD)
pressGasPedal(FootPressure.HARD)
readSpeedometer()
data IN != data OUT
→ 90 mph

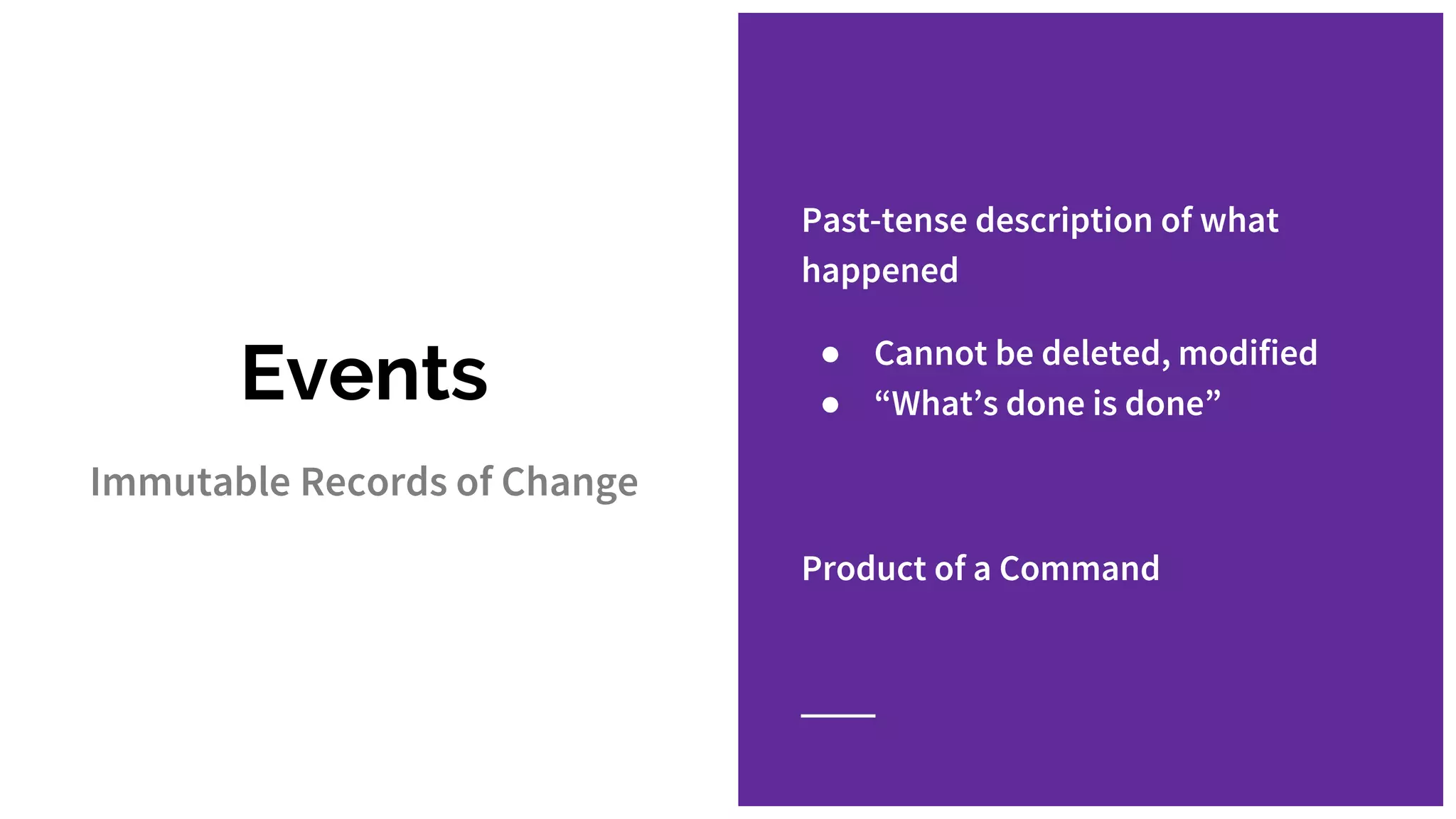

8. Events
Immutable Records of Change
Past-tense description of what
happened
● Cannot be deleted, modified
● “What’s done is done”
Product of a Command

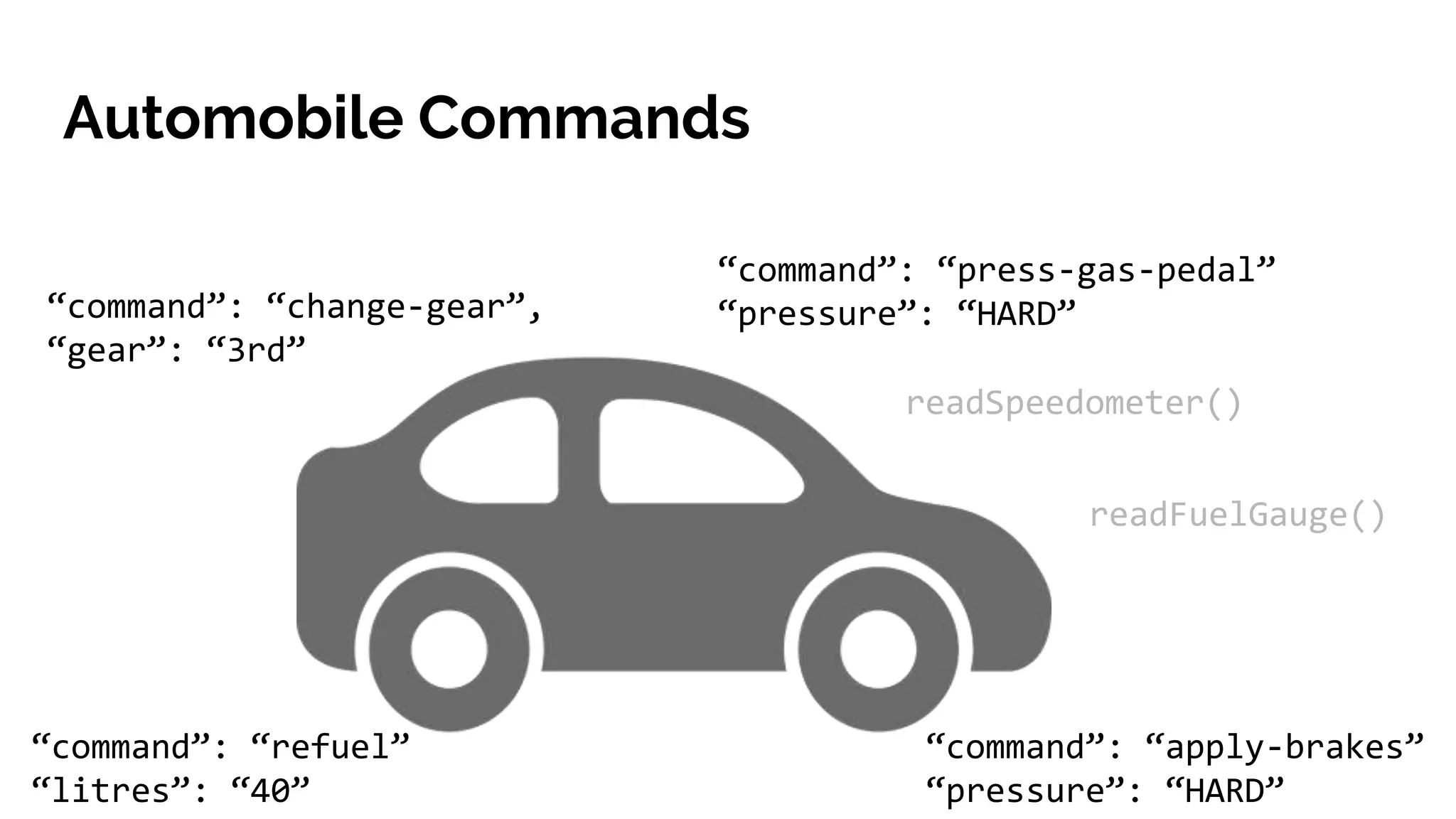

9. Automobile Commands
“command”: “change-gear”,
“gear”: “3rd”
readSpeedometer()
readFuelGauge()
“command”: “refuel”
“litres”: “40”
“command”: “apply-brakes”
“pressure”: “HARD”
“command”: “press-gas-pedal”
“pressure”: “HARD”

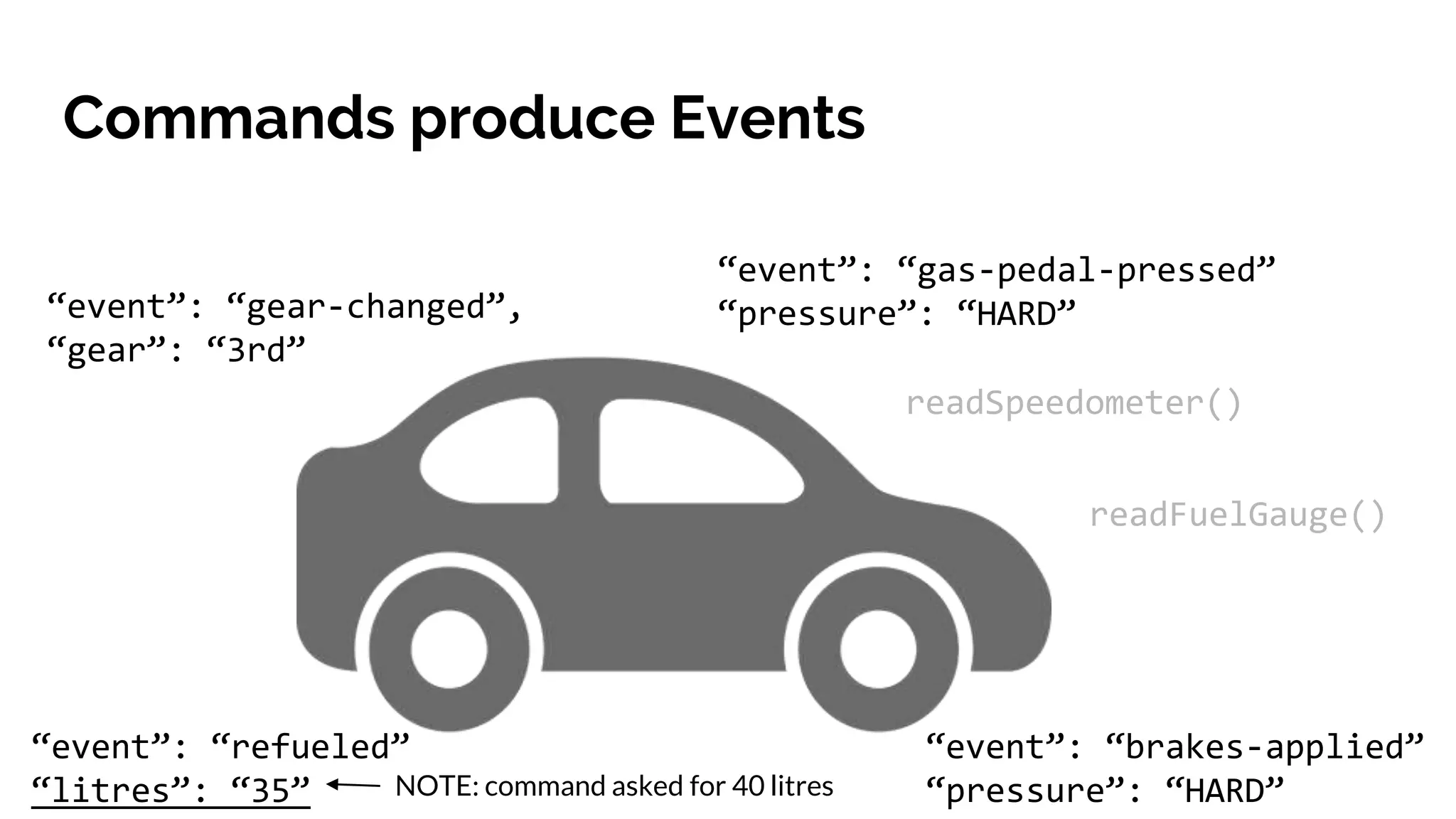

10. Commands produce Events
“event”: “gear-changed”,
“gear”: “3rd”
readSpeedometer()
readFuelGauge()
“event”: “refueled”
“litres”: “35”
“event”: “brakes-applied”
“pressure”: “HARD”
“event”: “gas-pedal-pressed”
“pressure”: “HARD”
NOTE: command asked for 40 litres

11. Projections
Interpretive Renderings of Events
Perspective → end consumer of state
Projections how clients “Query” the
state of the system

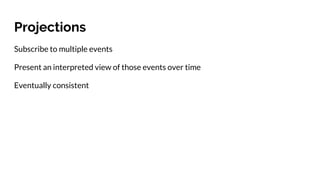

12. Projections
Subscribe to multiple events
Present an interpreted view of those events over time
Eventually consistent

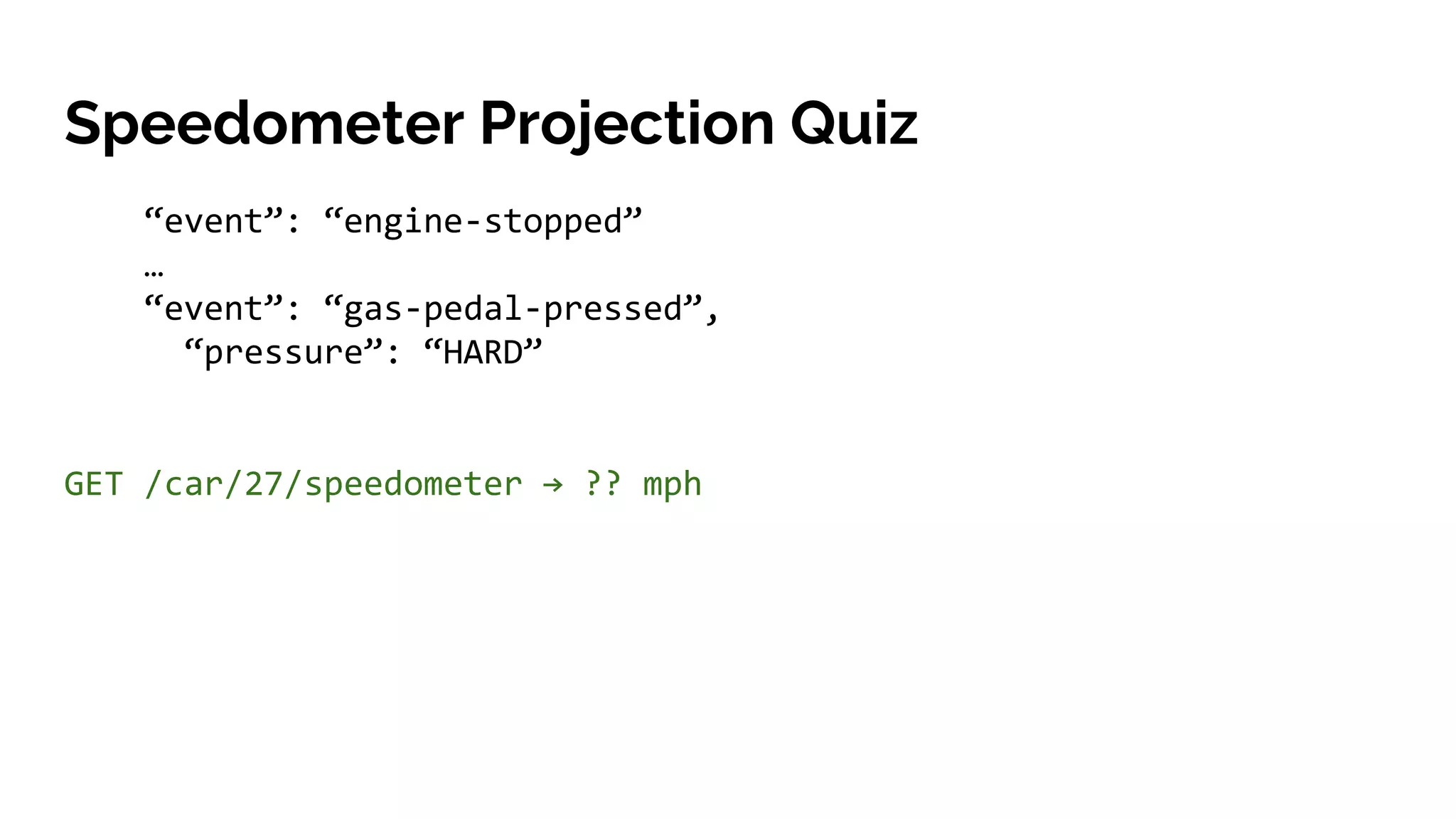

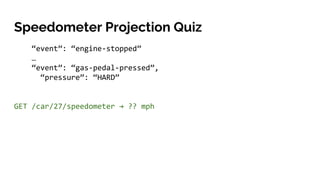

13. Speedometer Projection Quiz
“event”: “engine-stopped”
…
“event”: “gas-pedal-pressed”,
“pressure”: “HARD”
GET /car/27/speedometer → ?? mph

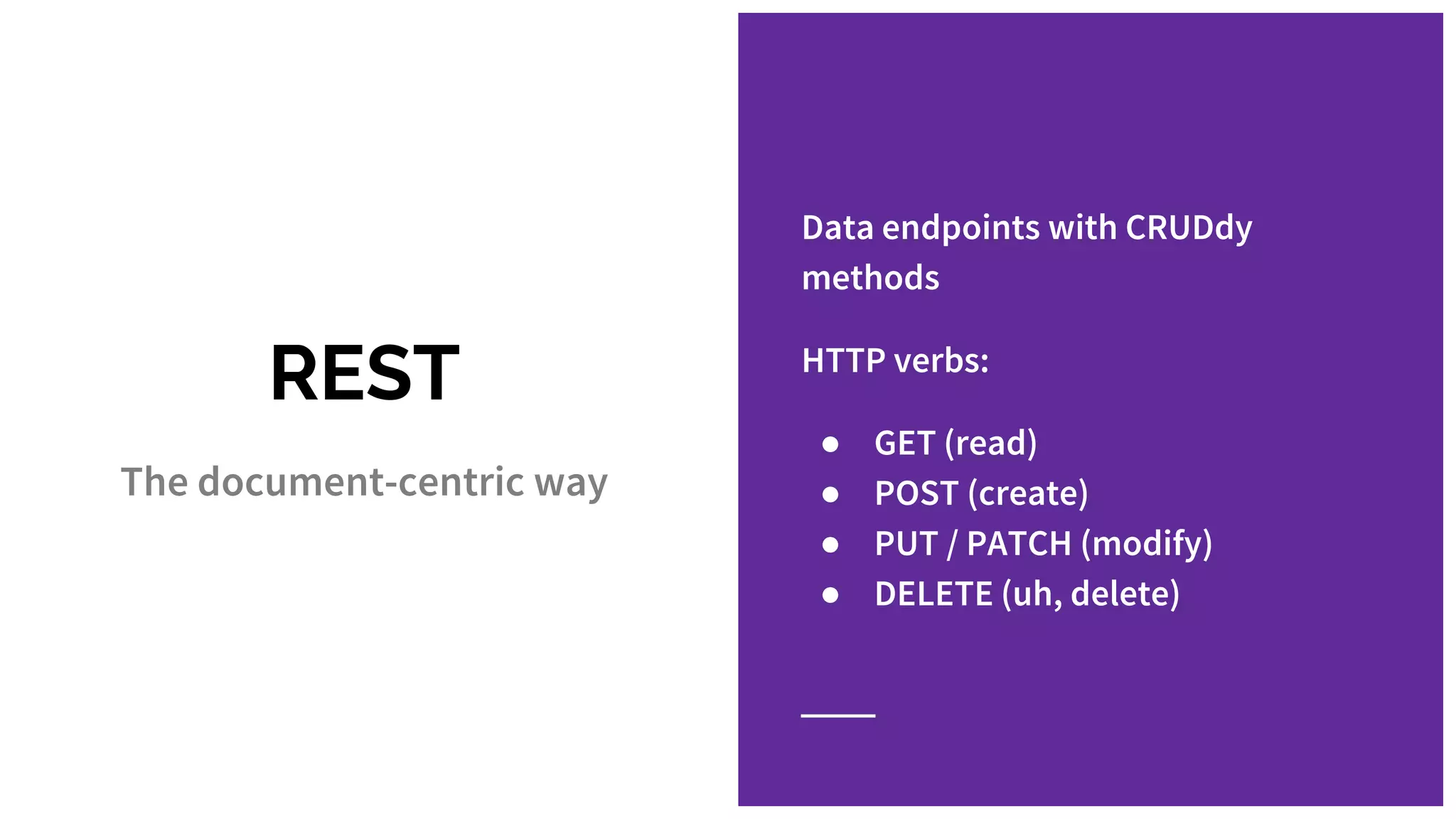

14. REST
The document-centric way
Data endpoints with CRUDdy
methods
HTTP verbs:
● GET (read)
● POST (create)
● PUT / PATCH (modify)
● DELETE (uh, delete)

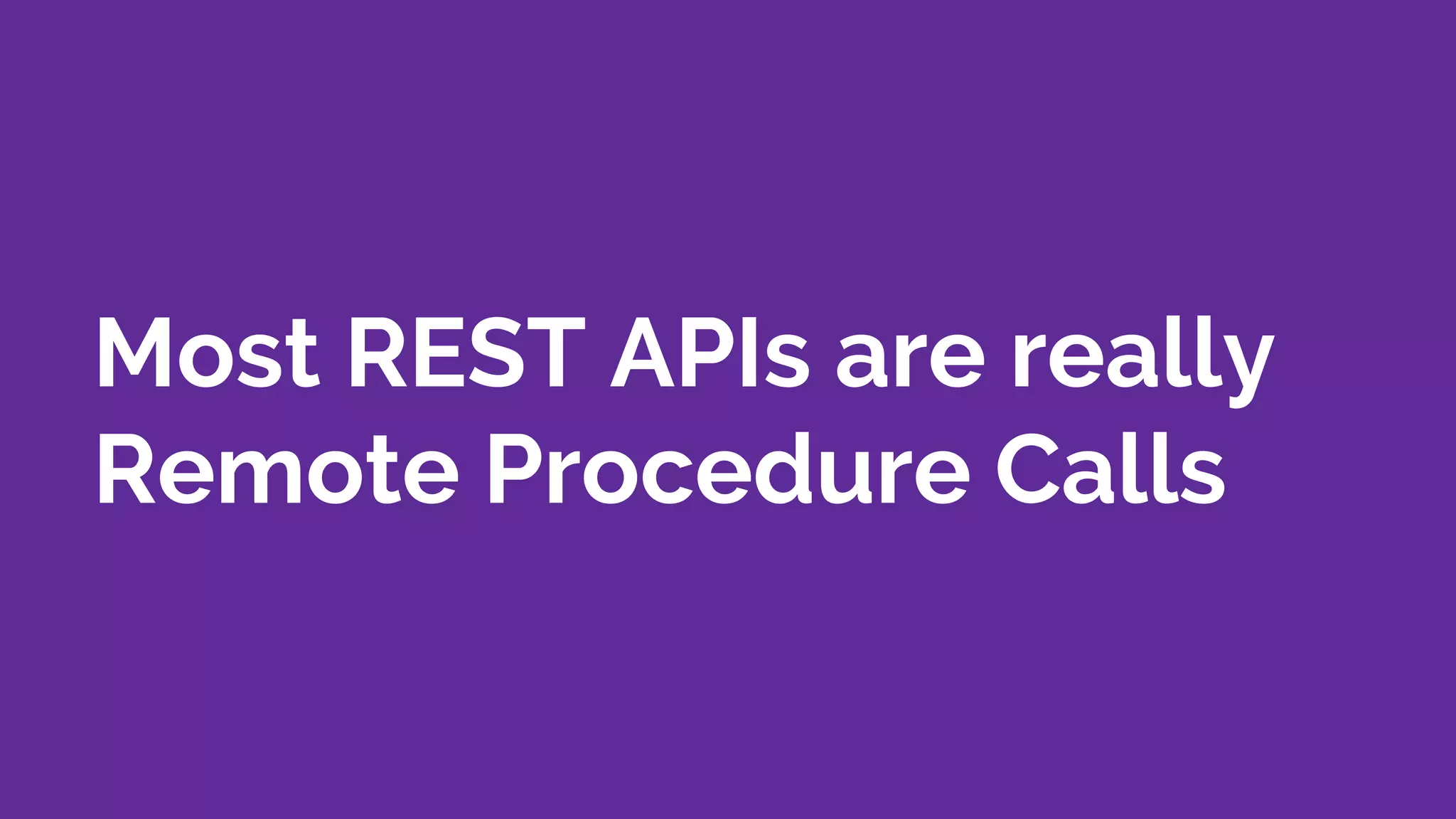

15. Most REST APIs are really
Remote Procedure Calls

16. Netflix’s REST Problem
A Cross-Cultural Misunderstanding

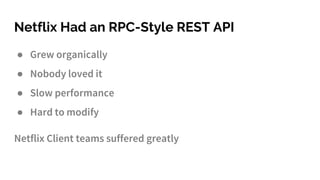

17. Netflix Had an RPC-Style REST API
● Grew organically
● Nobody loved it
● Slow performance
● Hard to modify
Netflix Client teams suffered greatly

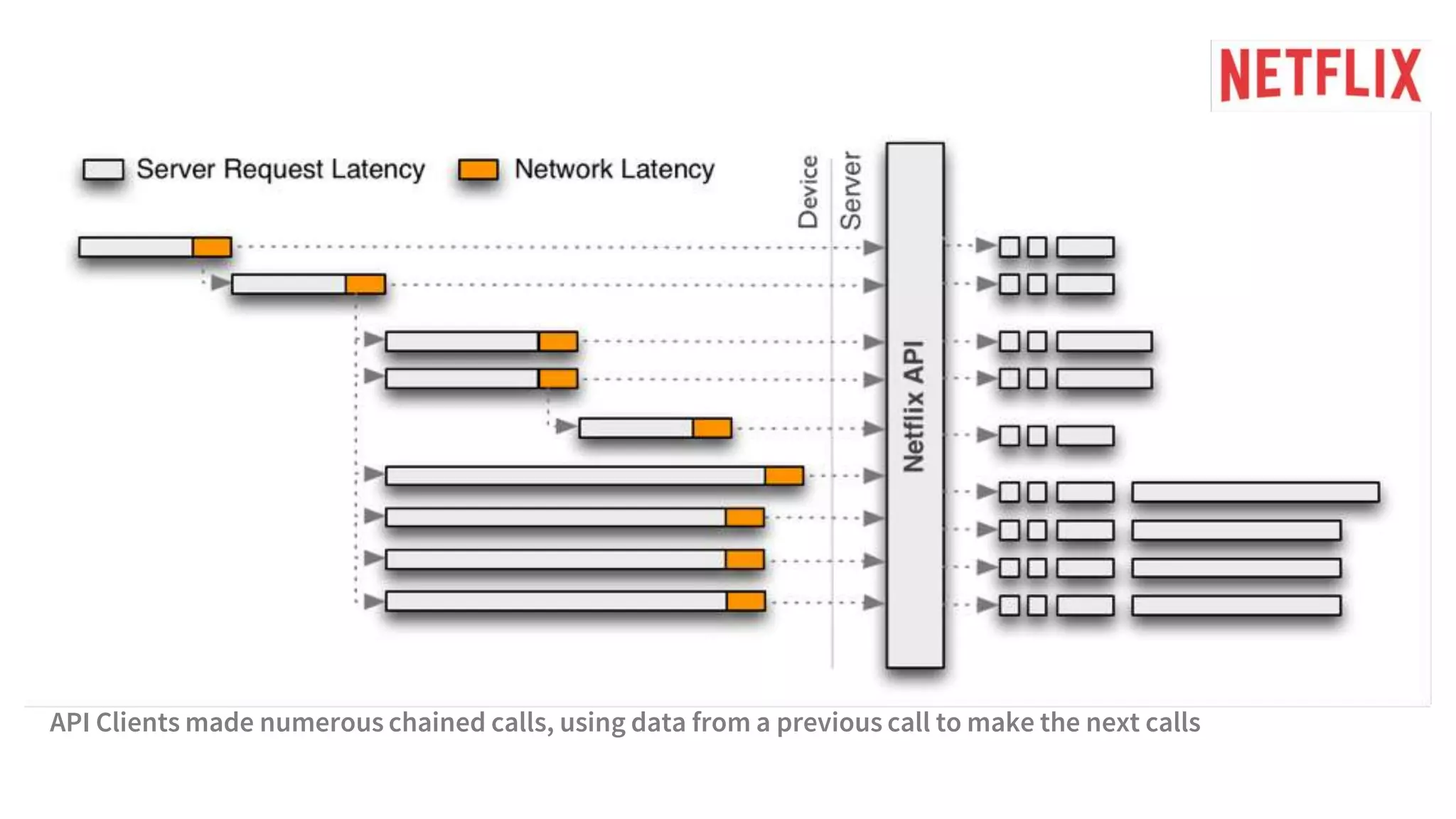

18. API Clients made numerous chained calls, using data from a previous call to make the next calls

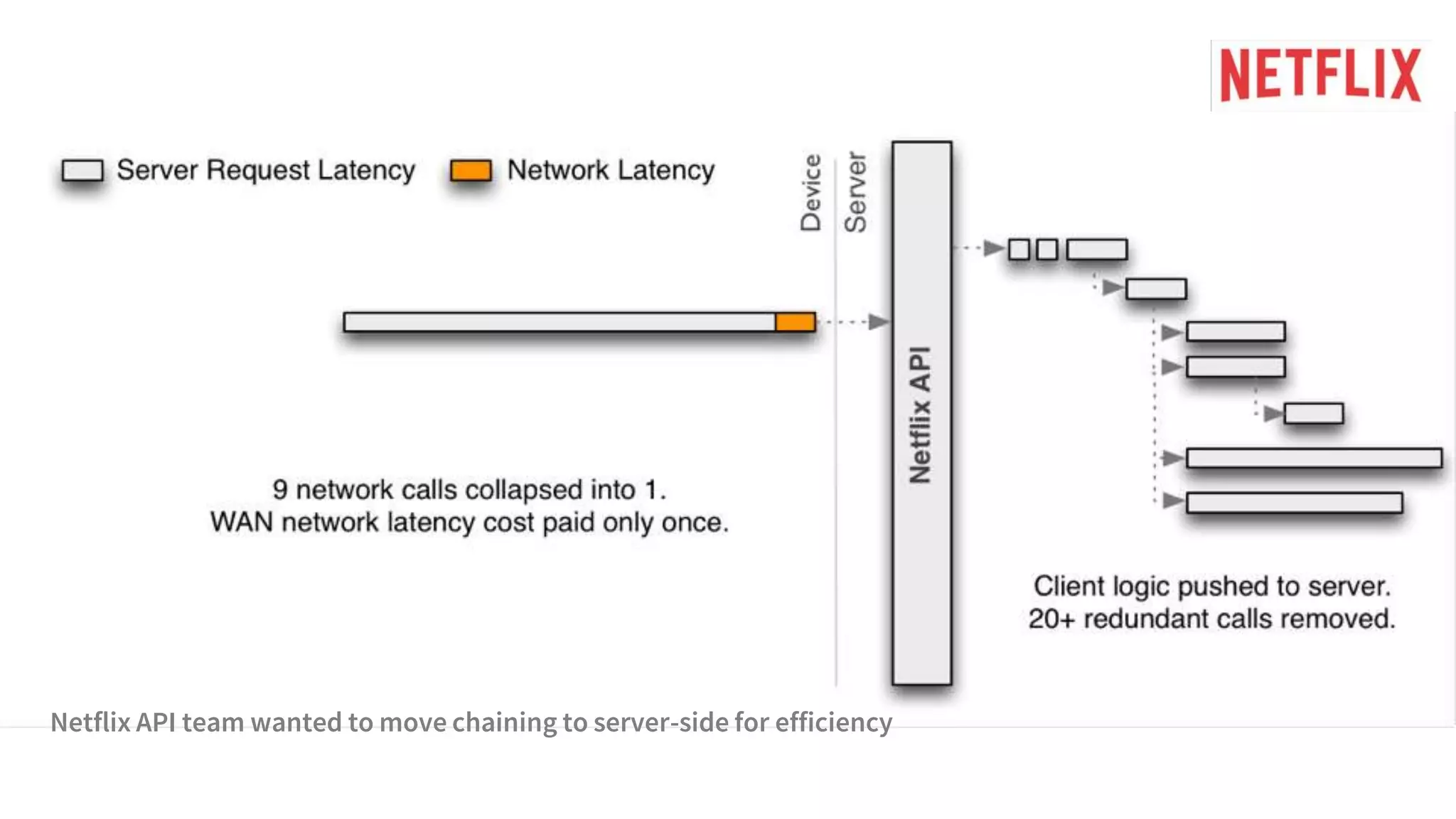

19. Netflix API team wanted to move chaining to server-side for efficiency

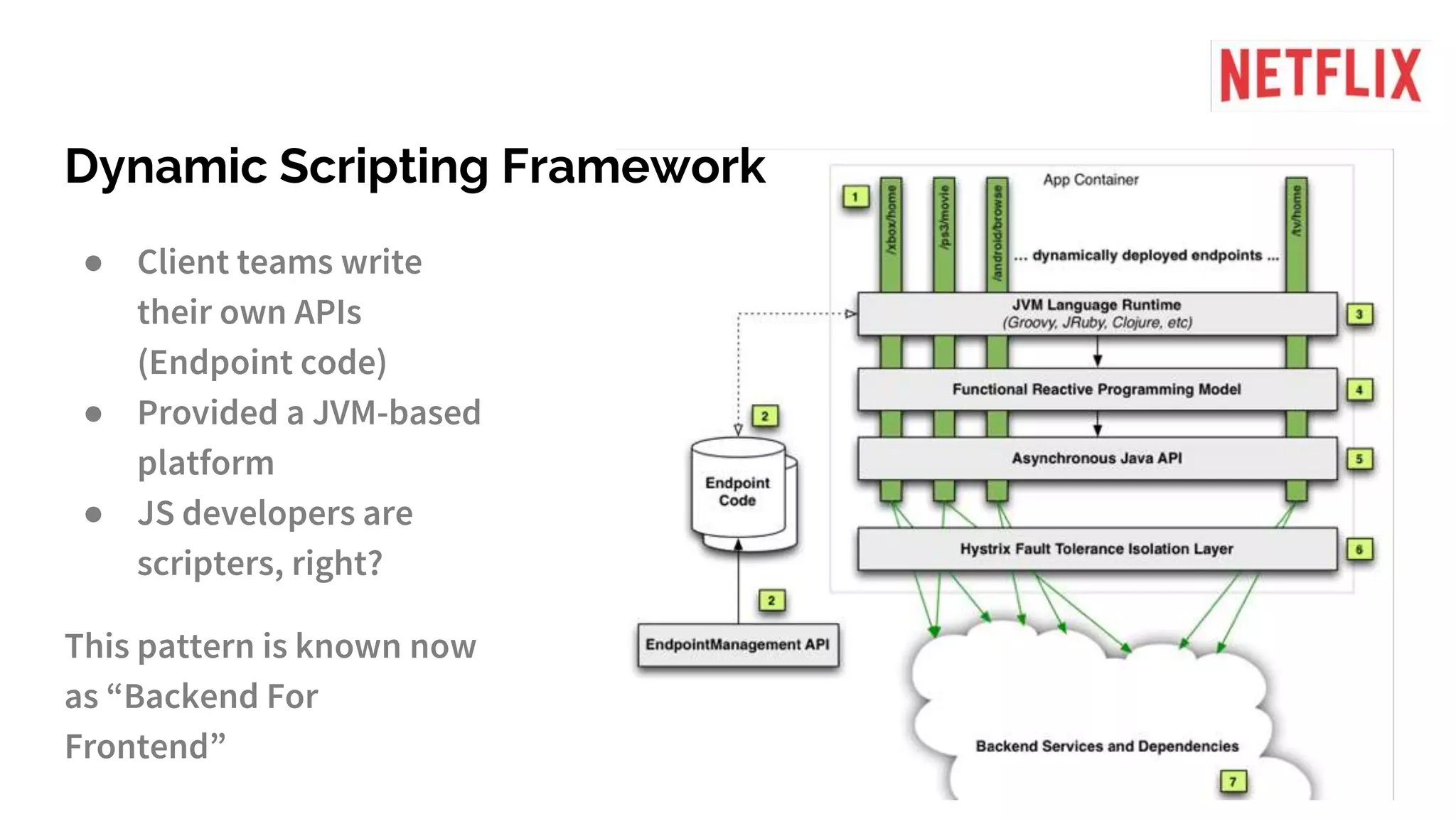

20. Dynamic Scripting Framework
● Client teams write
their own APIs
(Endpoint code)
● Provided a JVM-based
platform
● JS developers are
scripters, right?
This pattern is known now
as “Backend For
Frontend”

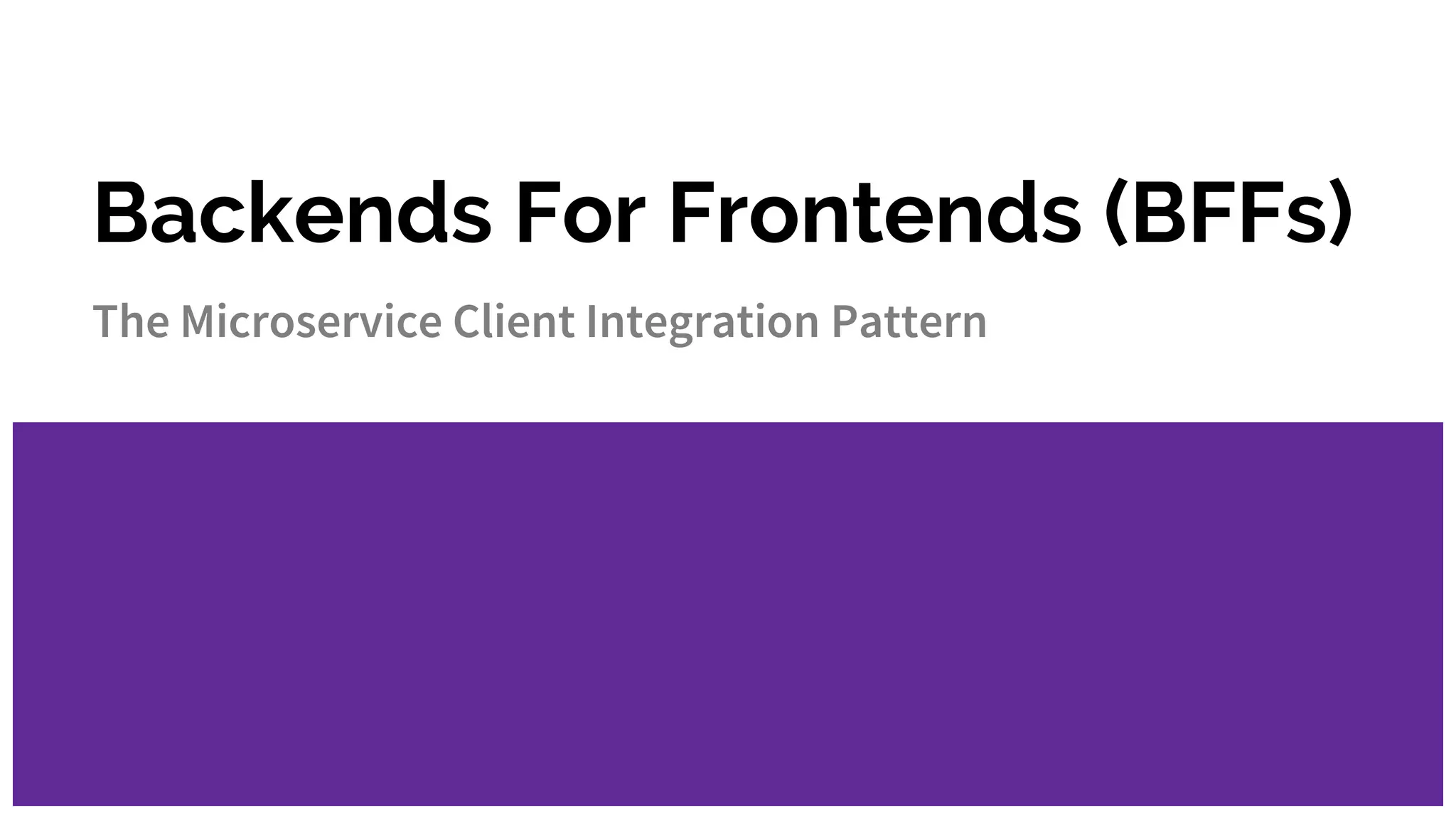

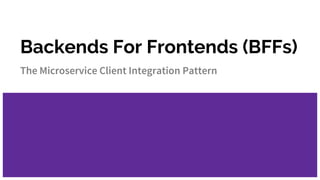

21. Backends For Frontends (BFFs)
The Microservice Client Integration Pattern

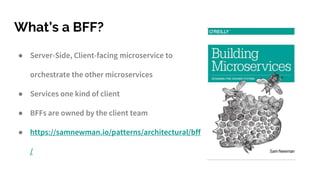

22. What’s a BFF?
● Server-Side, Client-facing microservice to
orchestrate the other microservices
● Services one kind of client
● BFFs are owned by the client team
● https://samnewman.io/patterns/architectural/bff
/

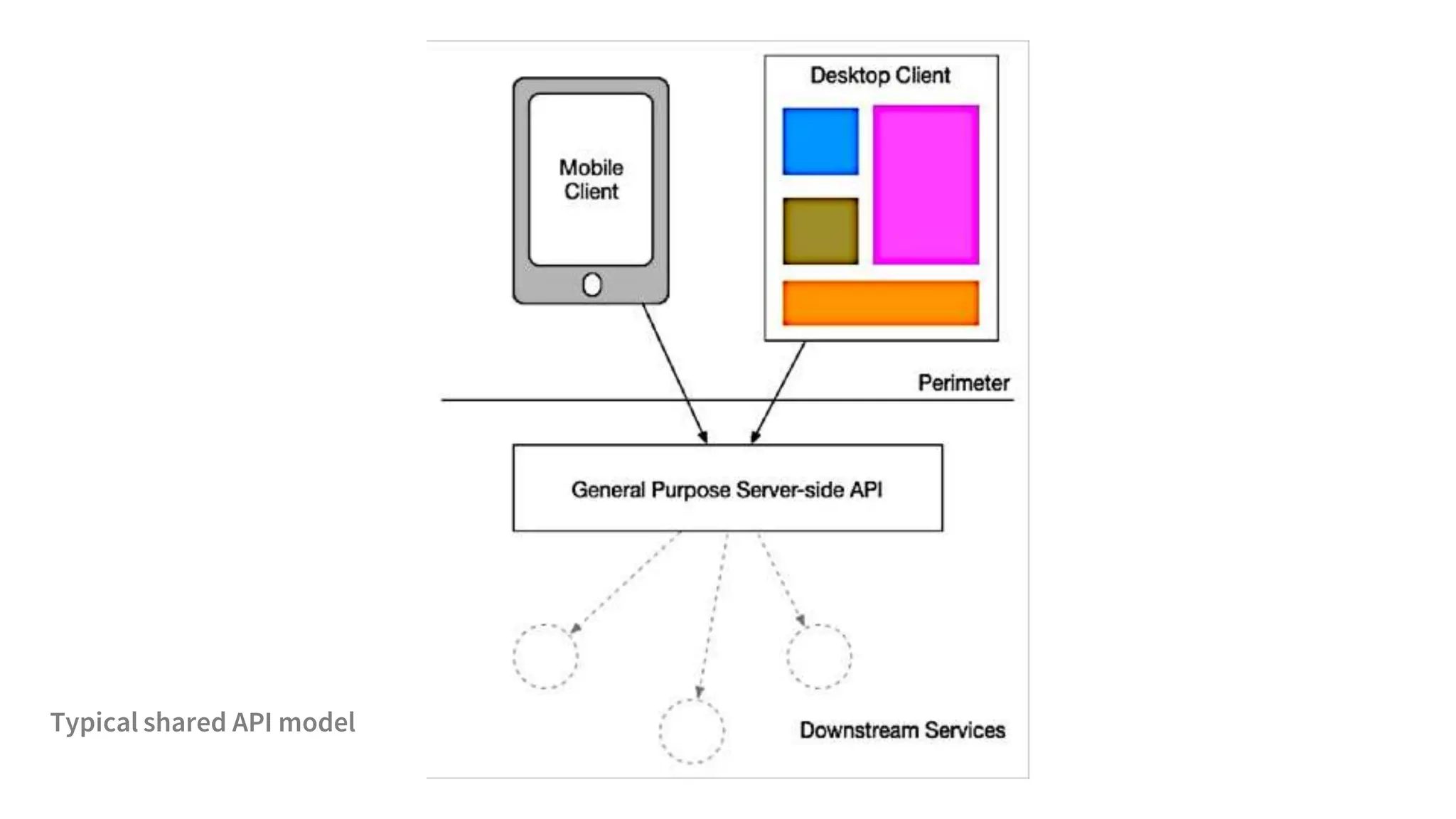

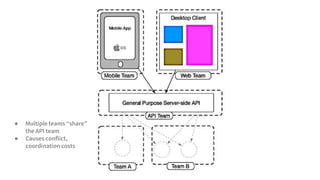

23. Typical shared API model

24. ● Multiple teams “share”
the API team
● Causes conflict,
coordination costs

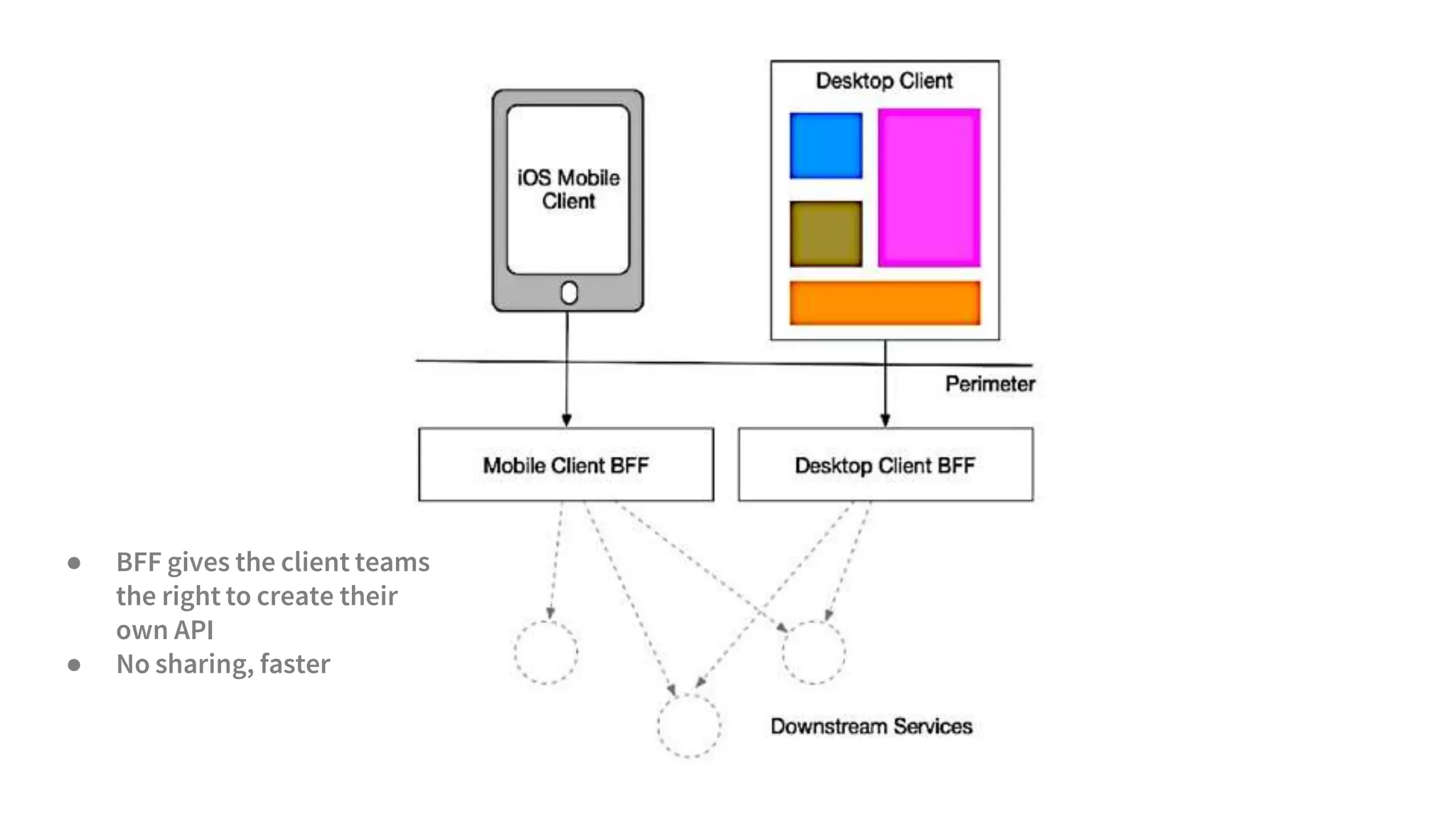

25. ● BFF gives the client teams
the right to create their
own API
● No sharing, faster

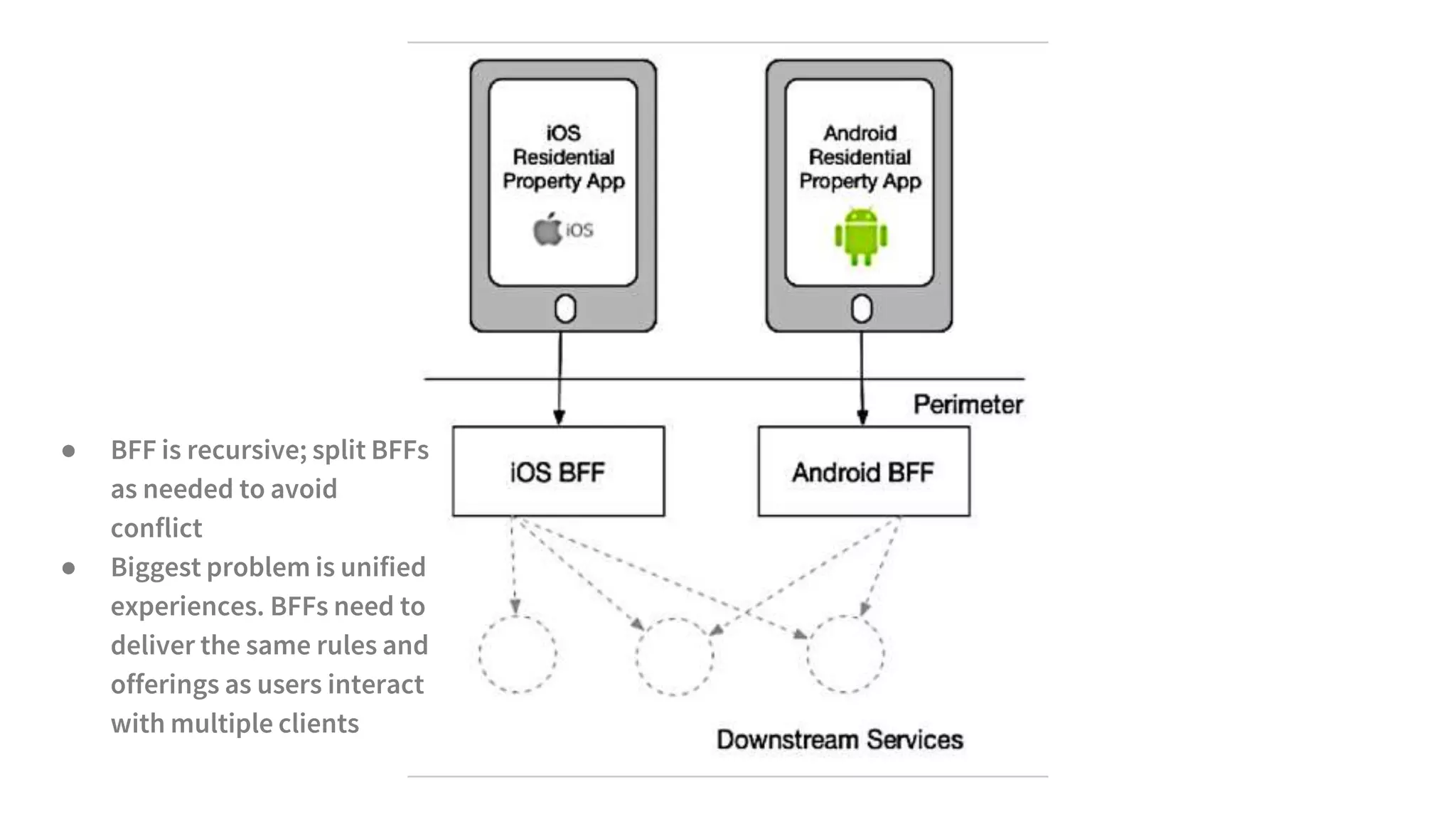

26. ● BFF is recursive; split BFFs
as needed to avoid
conflict
● Biggest problem is unified
experiences. BFFs need to
deliver the same rules and
offerings as users interact
with multiple clients

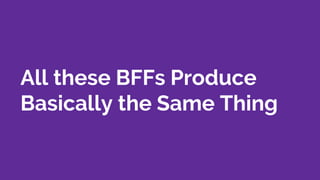

27. All these BFFs Produce
Basically the Same Thing

28. The Netflix Client Team Revolt
https://netflix.github.io/falcor/

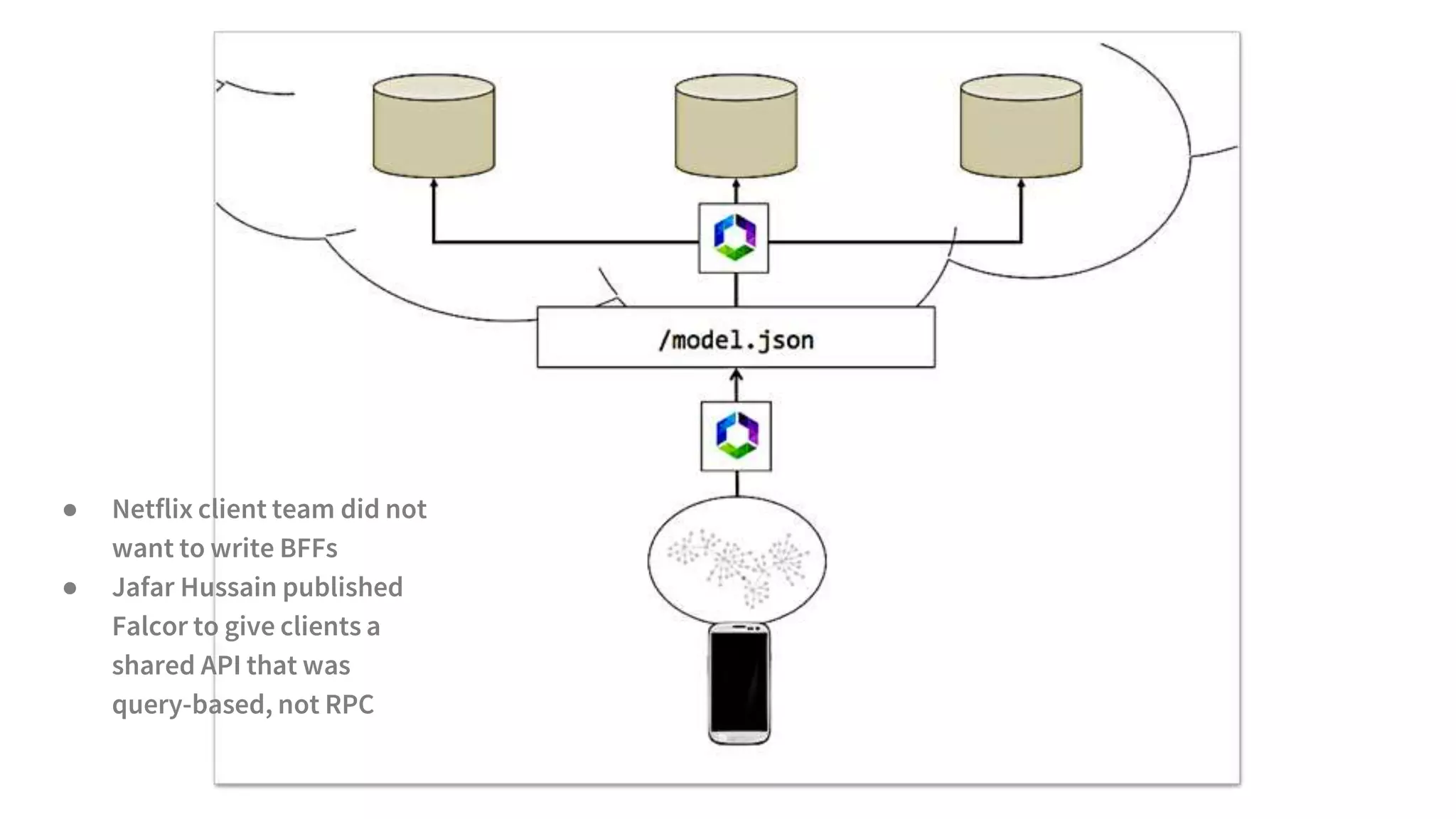

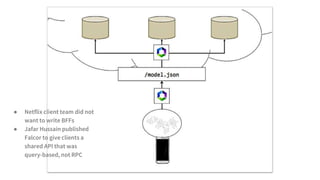

29. ● Netflix client team did not
want to write BFFs
● Jafar Hussain published
Falcor to give clients a
shared API that was
query-based, not RPC

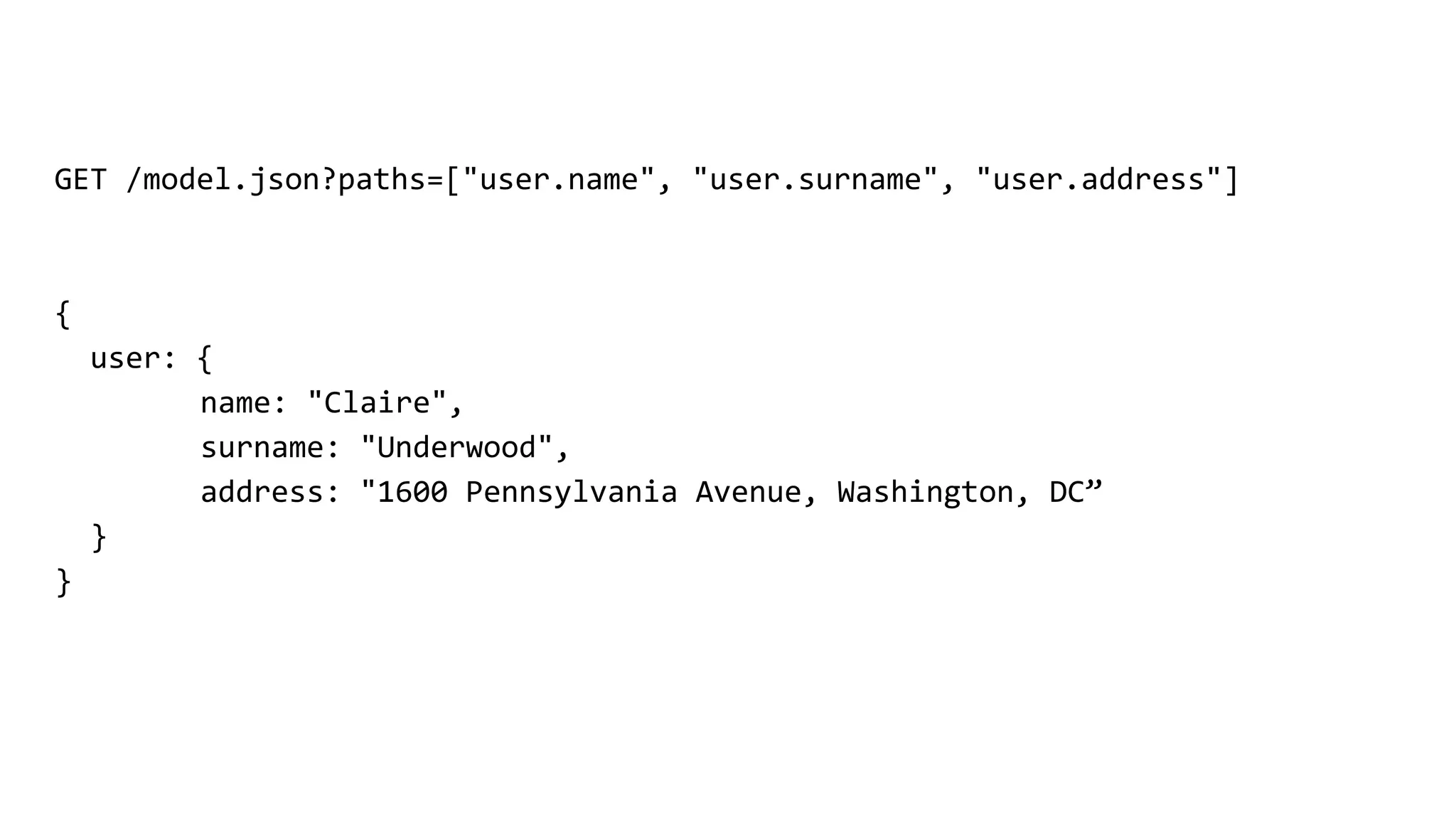

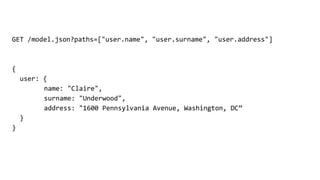

30. GET /model.json?paths=["user.name", "user.surname", "user.address"]
{
user: {
name: "Claire",
surname: "Underwood",
address: "1600 Pennsylvania Avenue, Washington, DC”
}
}

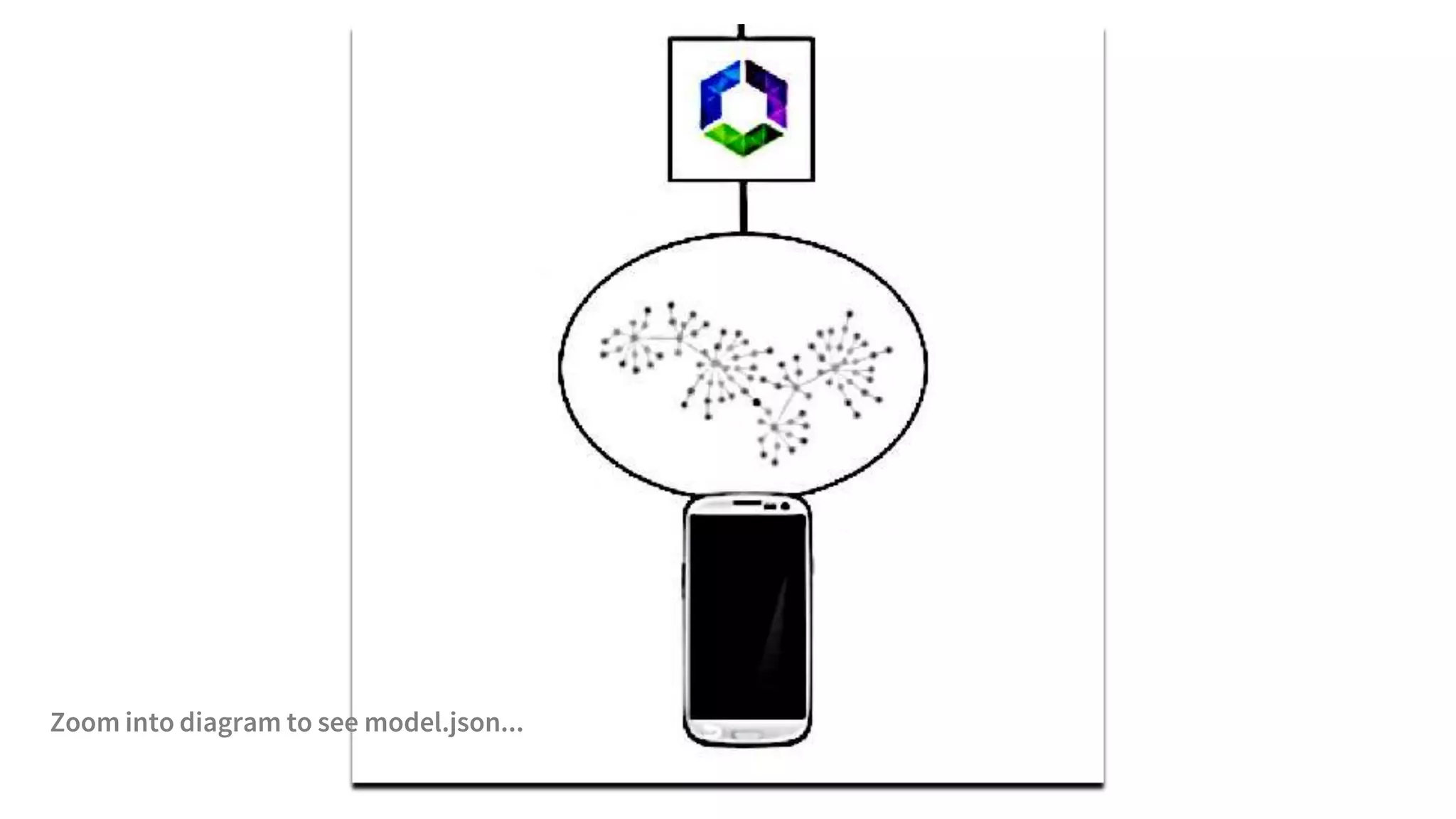

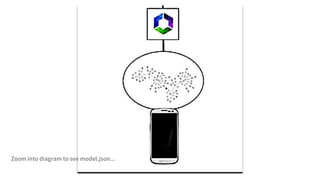

31. Zoom into diagram to see model.json...

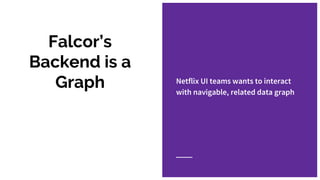

32. Falcor’s
Backend is a
Graph Netflix UI teams wants to interact
with navigable, related data graph

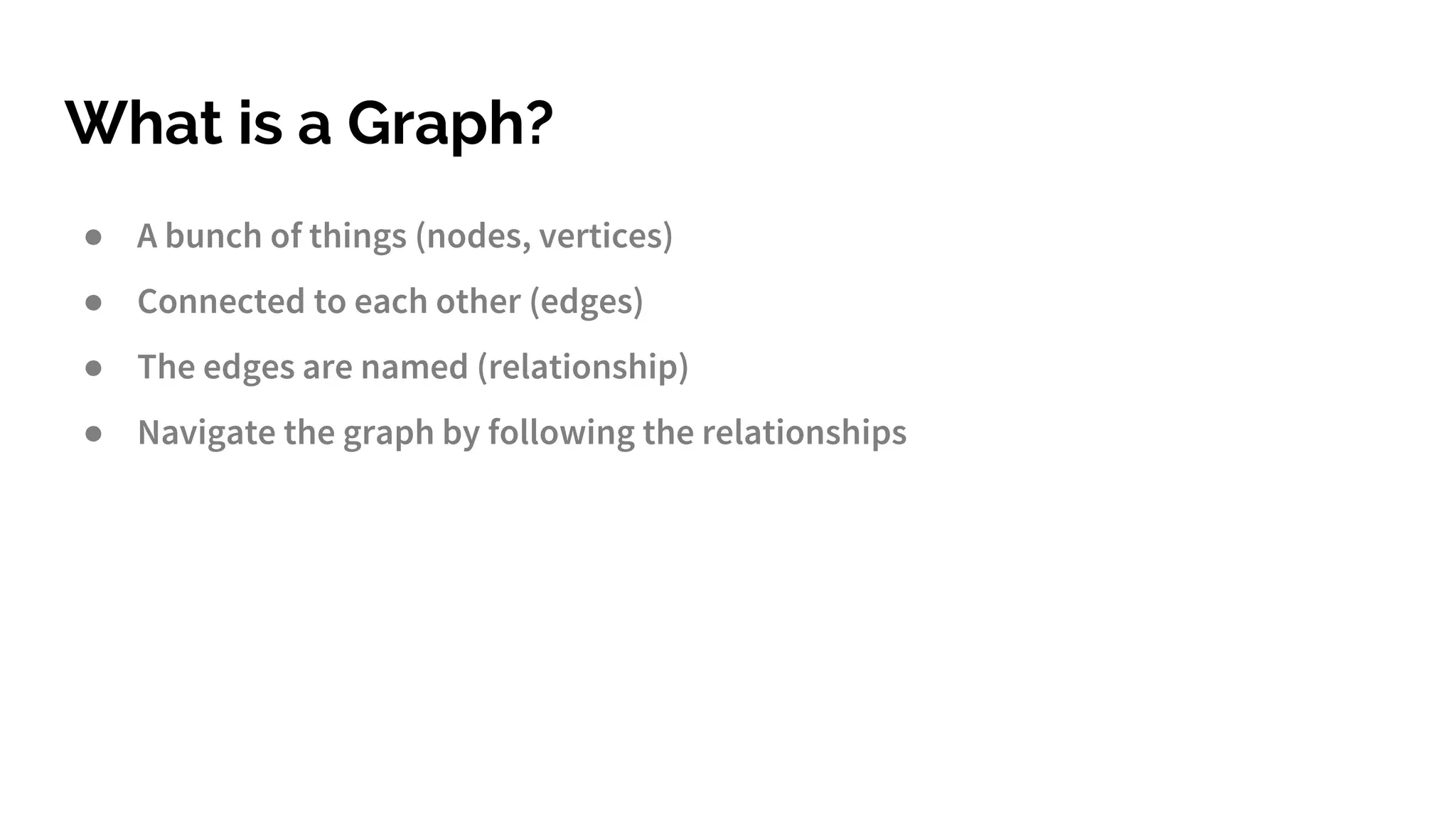

33. What is a Graph?
● A bunch of things (nodes, vertices)
● Connected to each other (edges)
● The edges are named (relationship)
● Navigate the graph by following the relationships

34. Another Client-Centric Graph Technology

35. Graphs are the Information
Modeling Paradigm for
Humans

40. Graph Queries
are Good, but...
What about Commands?
Falcor is query-only
GraphQL has Mutations, but no
context for when they can be used
They are just a list of Actions
GraphQL is missing State

41. State is More Than Data
GraphQL and Falcor are
data graphs, not state
graphs
State is data +
contextual affordances
Clients need to know
when they can use an
affordance

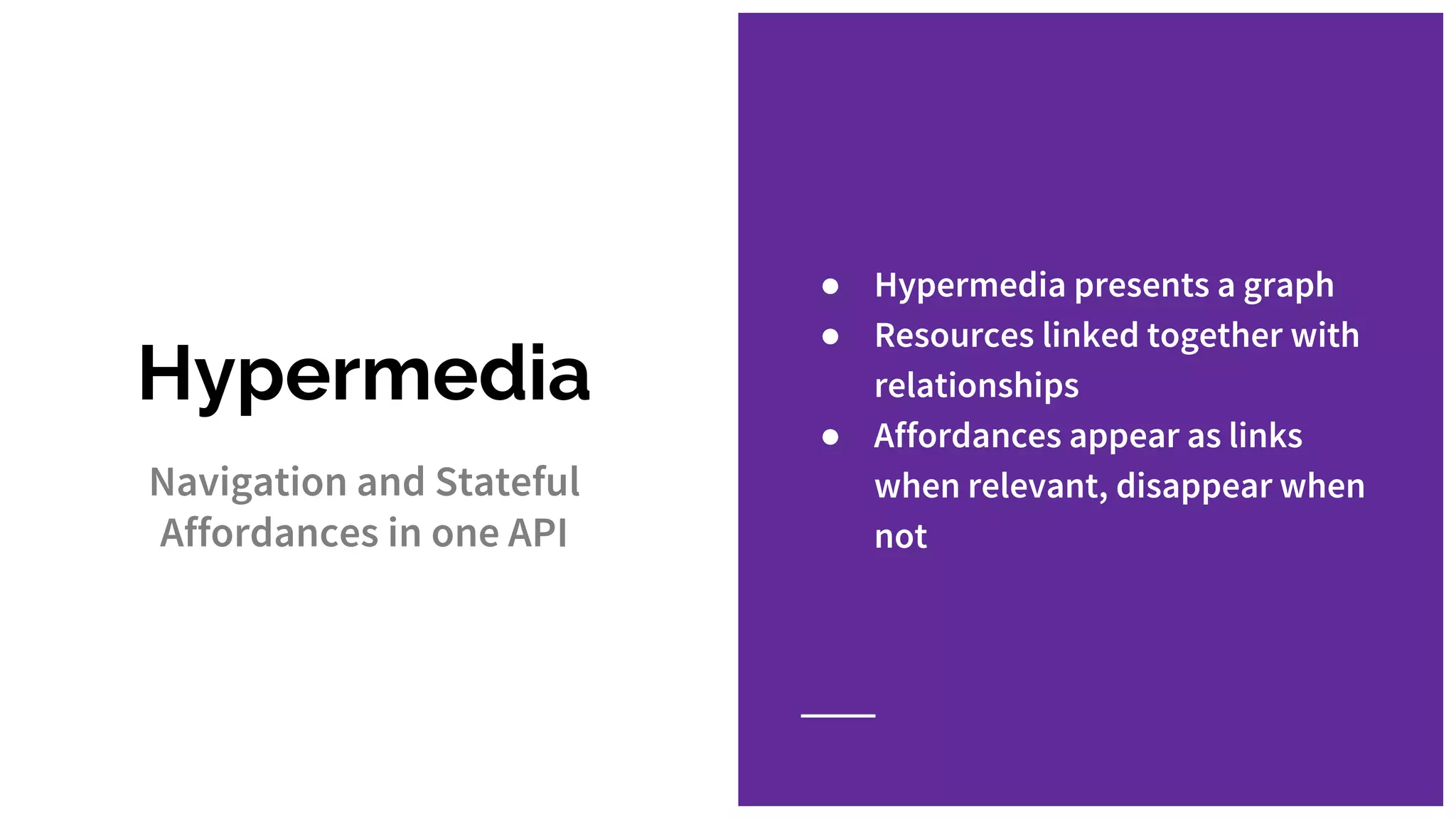

42. Hypermedia
Navigation and Stateful
Affordances in one API
● Hypermedia presents a graph
● Resources linked together with
relationships
● Affordances appear as links
when relevant, disappear when
not

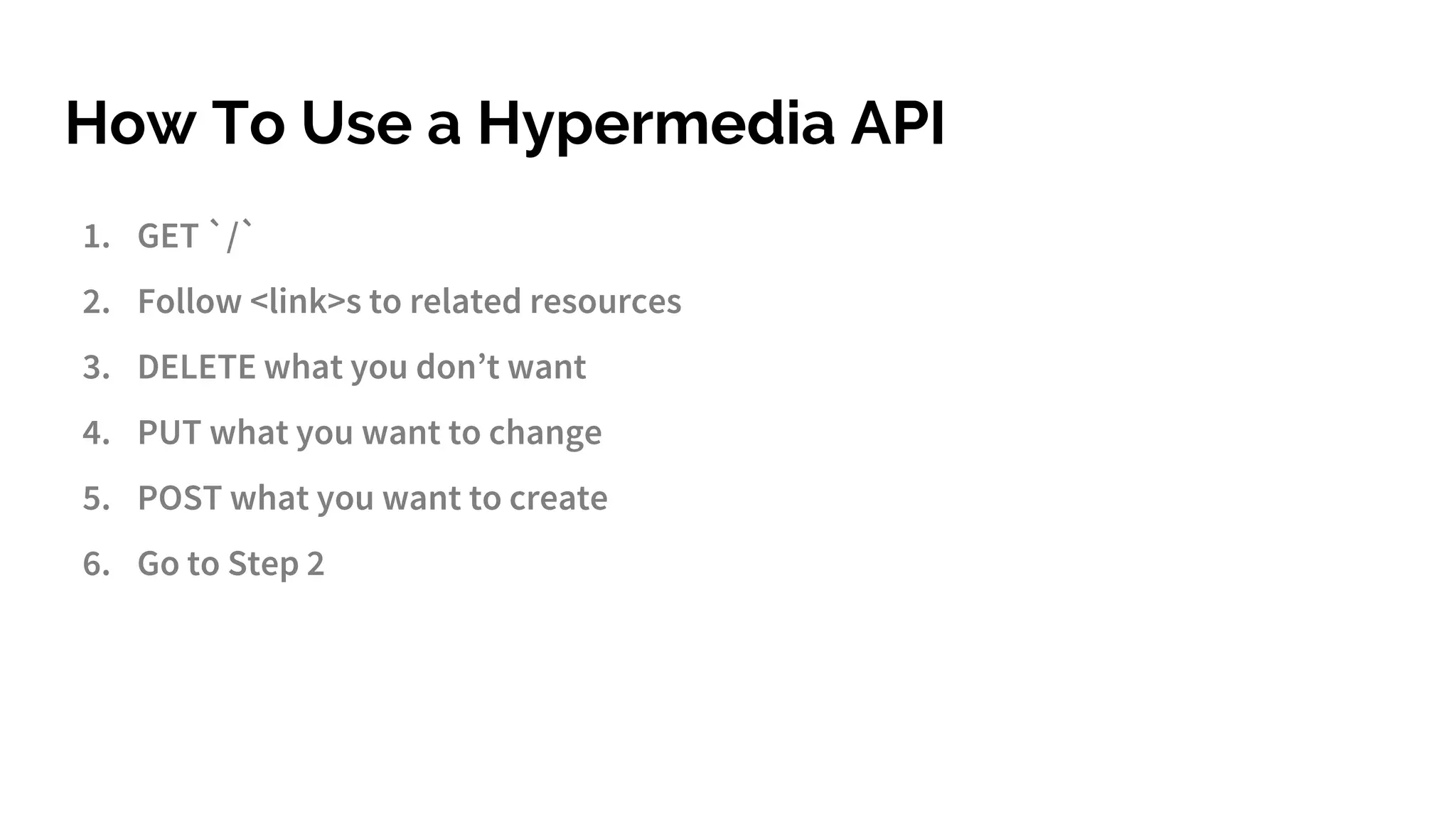

43. How To Use a Hypermedia API
1. GET `/`
2. Follow <link>s to related resources
3. DELETE what you don’t want
4. PUT what you want to change
5. POST what you want to create
6. Go to Step 2

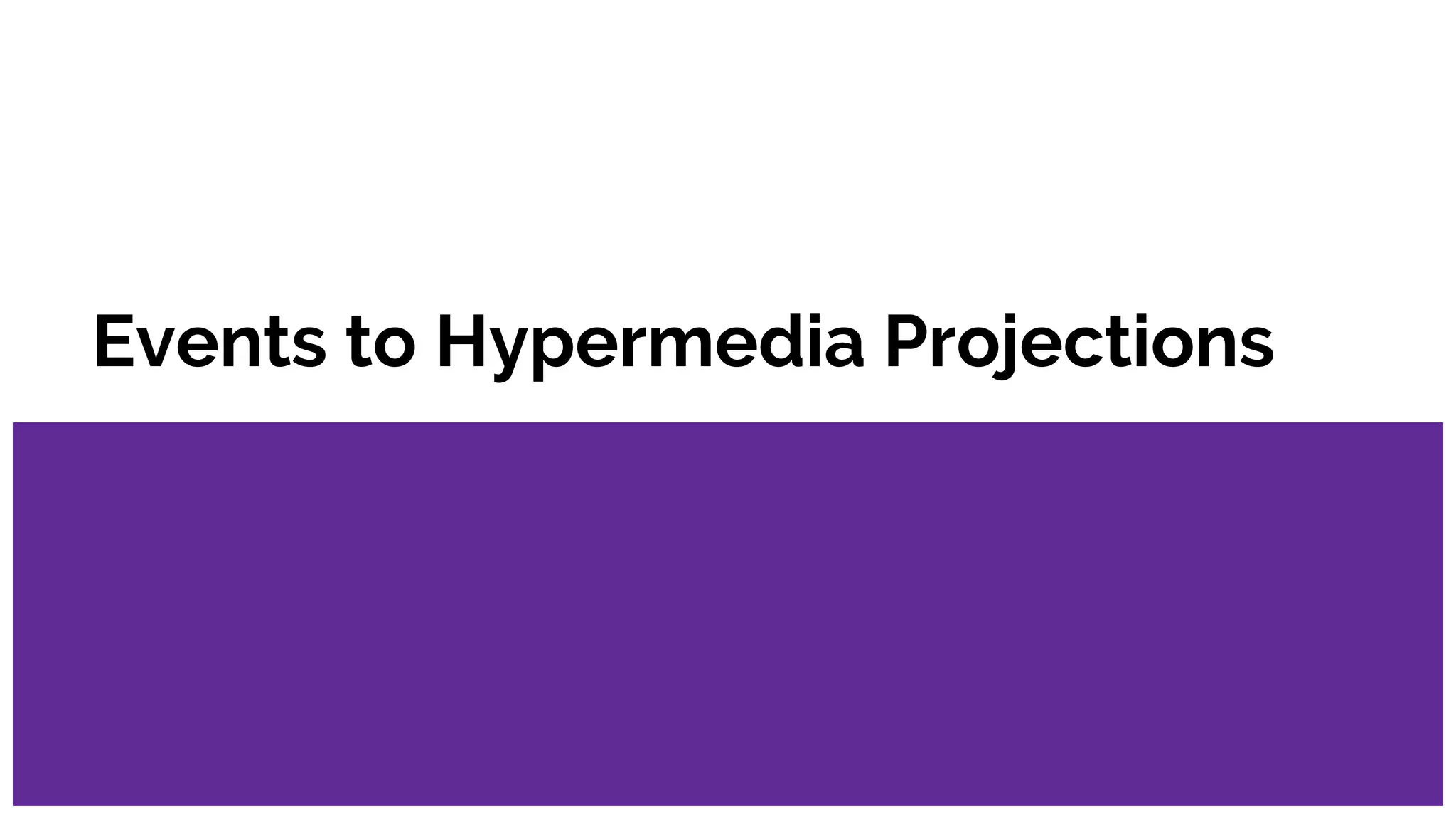

44. Events to Hypermedia Projections

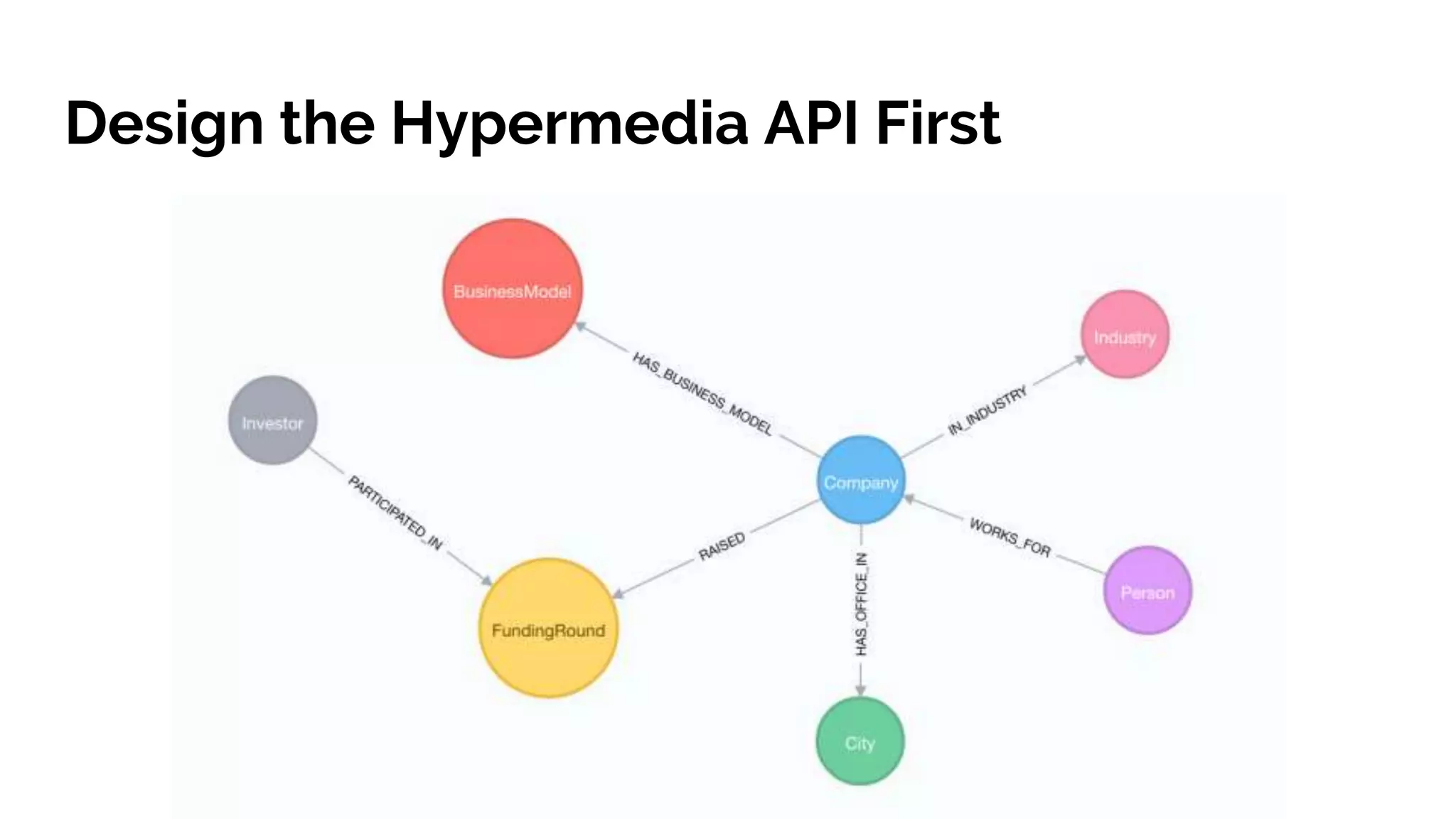

45. Design the Hypermedia API First

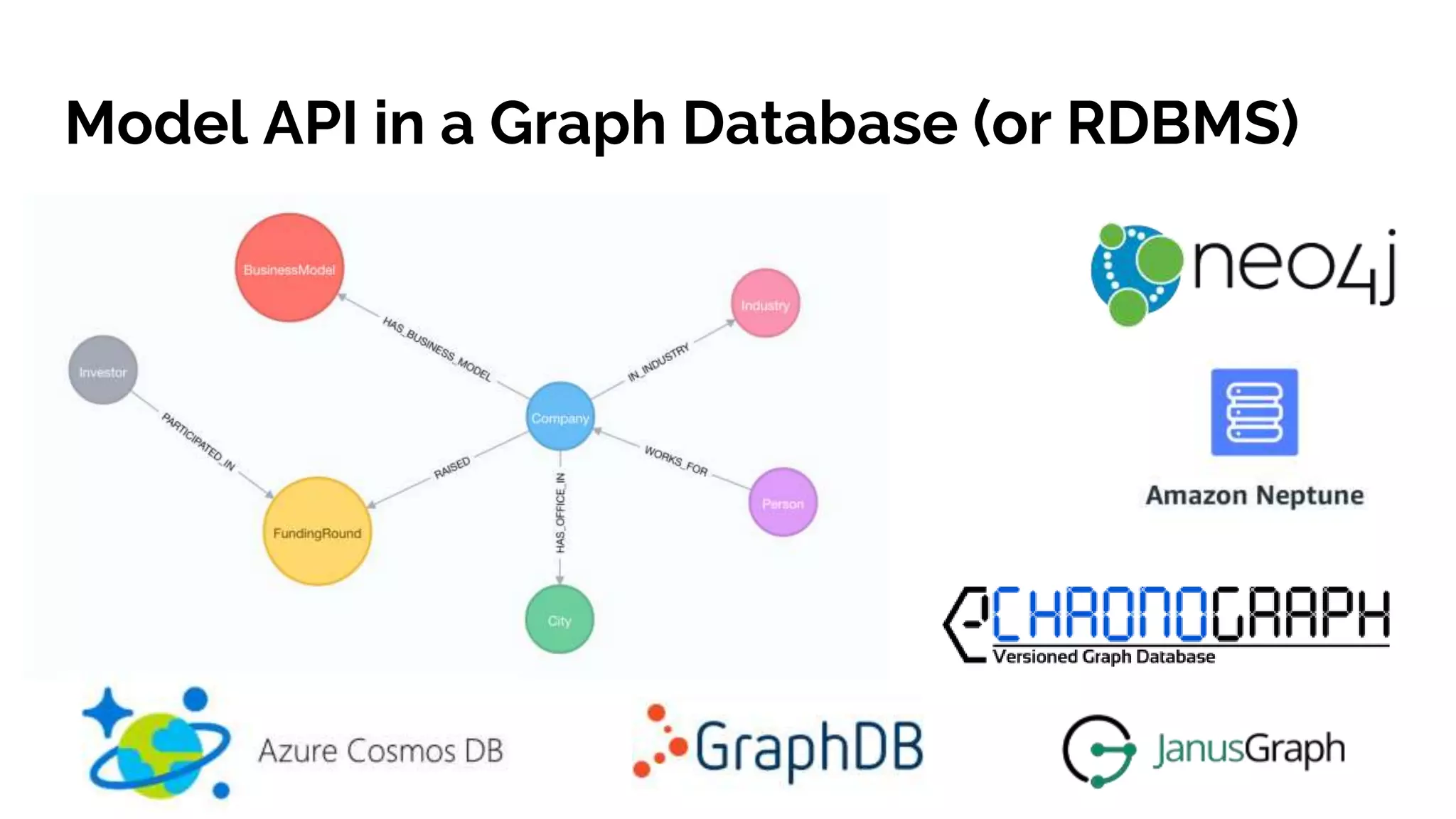

46. Model API in a Graph Database (or RDBMS)

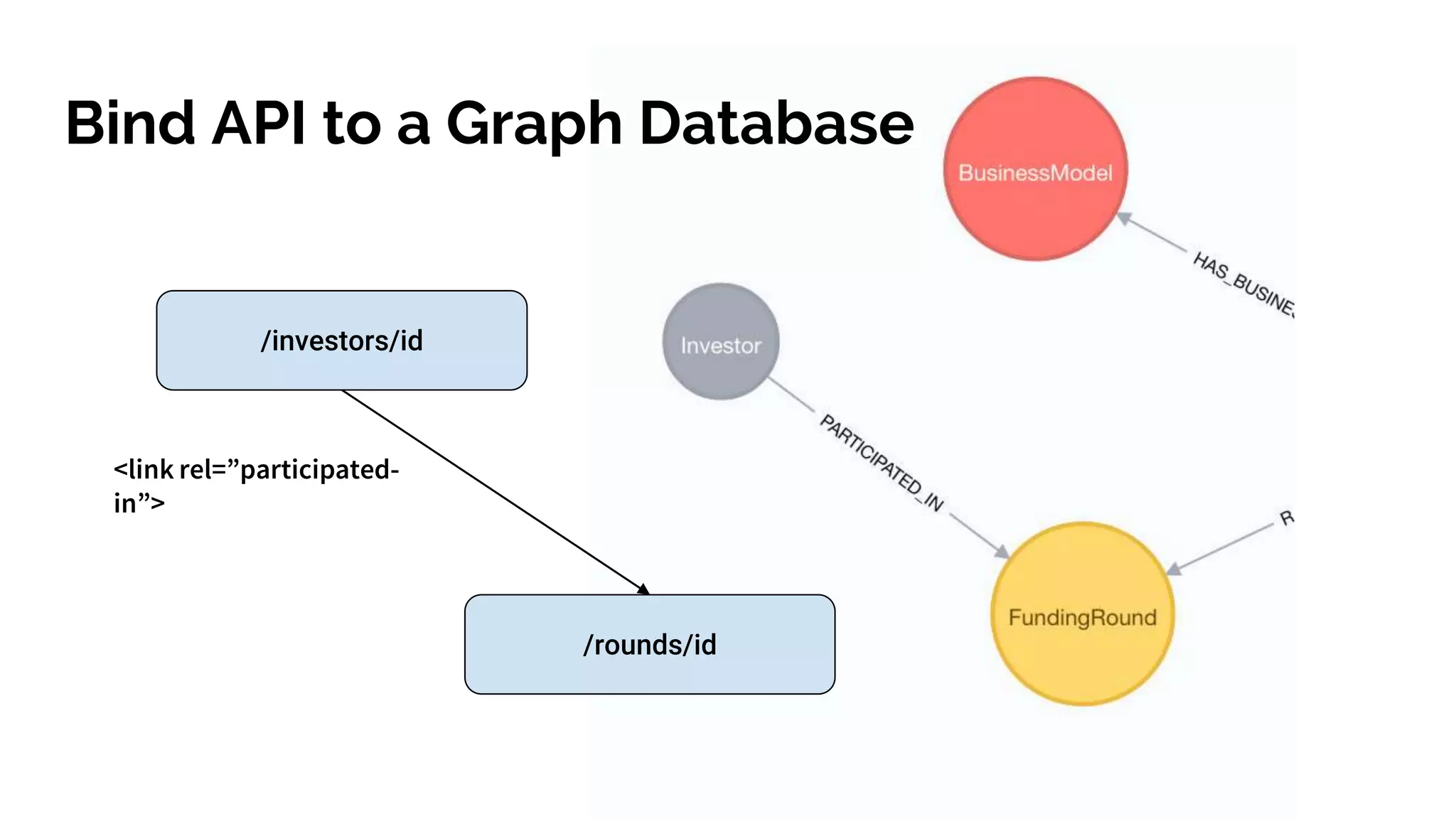

47. Bind API to a Graph Database
/investors/id
/rounds/id
<link rel=”participated-
in”>

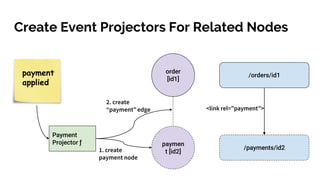

48. Create Event Projectors For Related Nodes
payment
applied
/orders/id1
/payments/id2
order
[id1]
paymen
t [id2]
Payment
Projector ƒ
1. create
payment node
2. create
“payment” edge <link rel=”payment”>

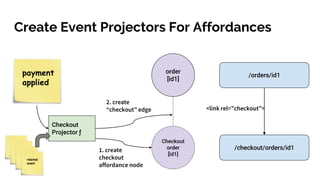

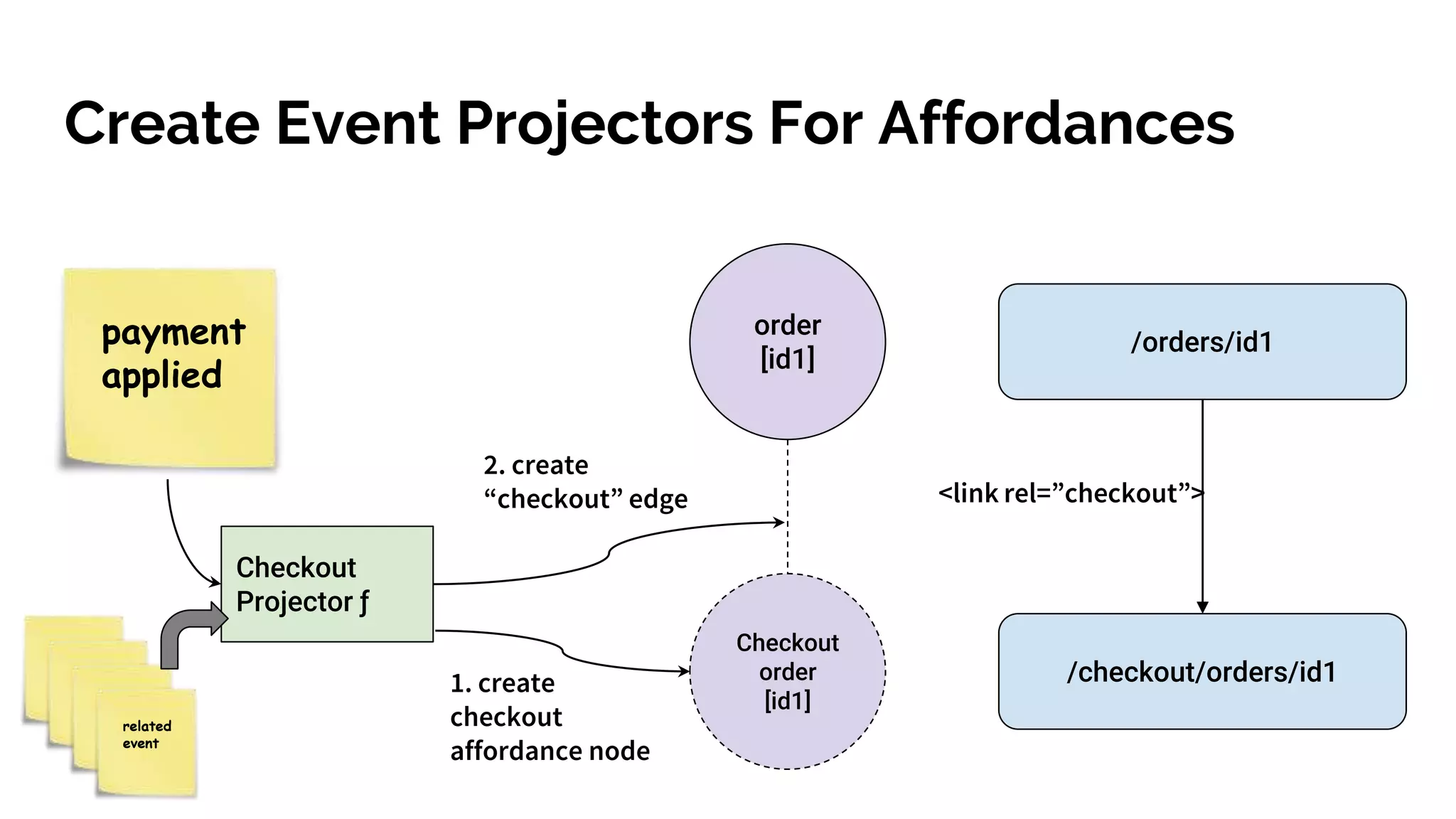

49. Create Event Projectors For Affordances
payment
applied
/orders/id1
/checkout/orders/id1
order
[id1]
Checkout
Projector ƒ
2. create
“checkout” edge <link rel=”checkout”>
Checkout
order
[id1]
1. create
checkout
affordance node
related
event
related
event
related
event
related
event

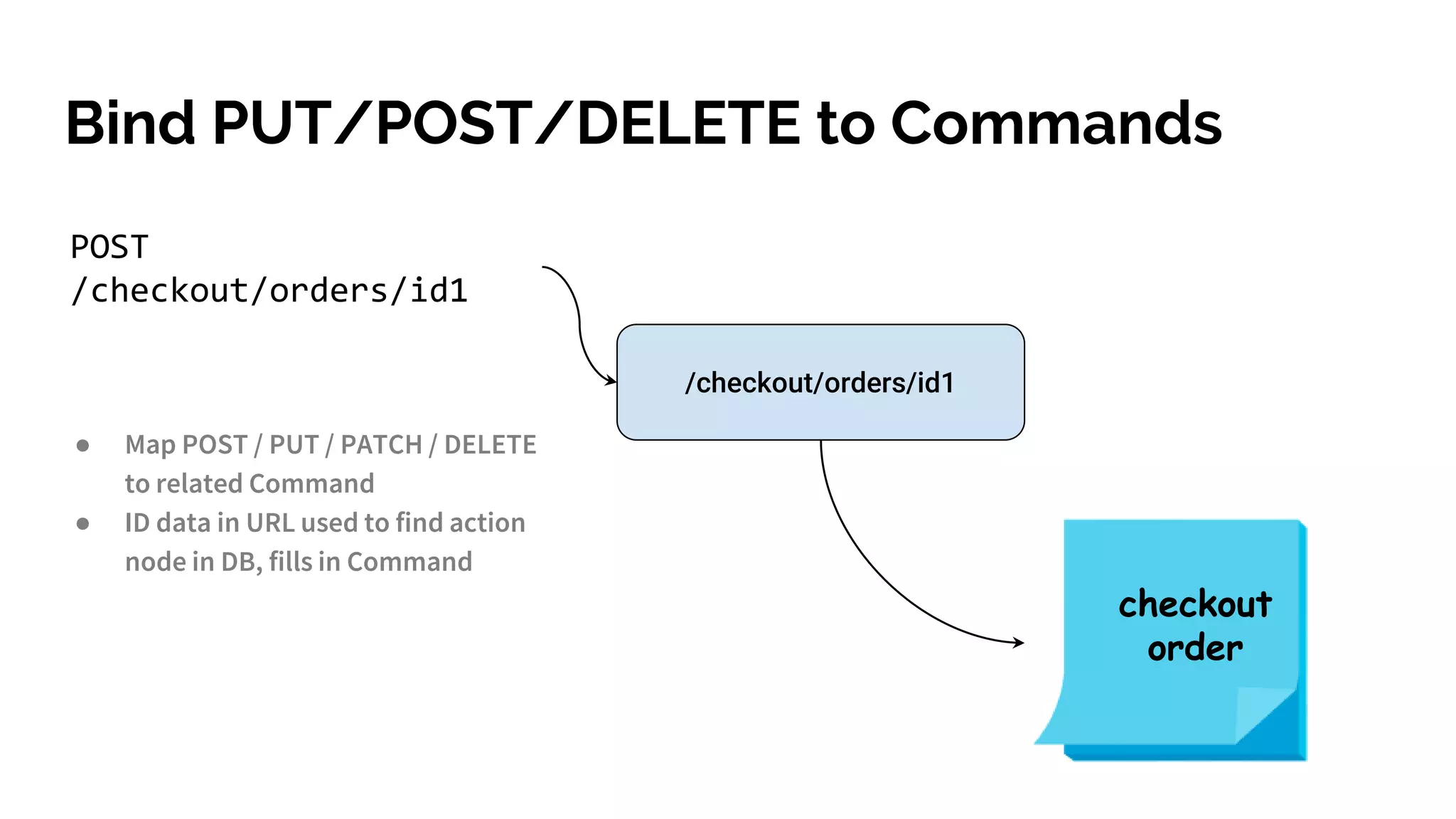

50. Bind PUT/POST/DELETE to Commands
POST
/checkout/orders/id1
/checkout/orders/id1
checkout
order
● Map POST / PUT / PATCH / DELETE
to related Command
● ID data in URL used to find action
node in DB, fills in Command

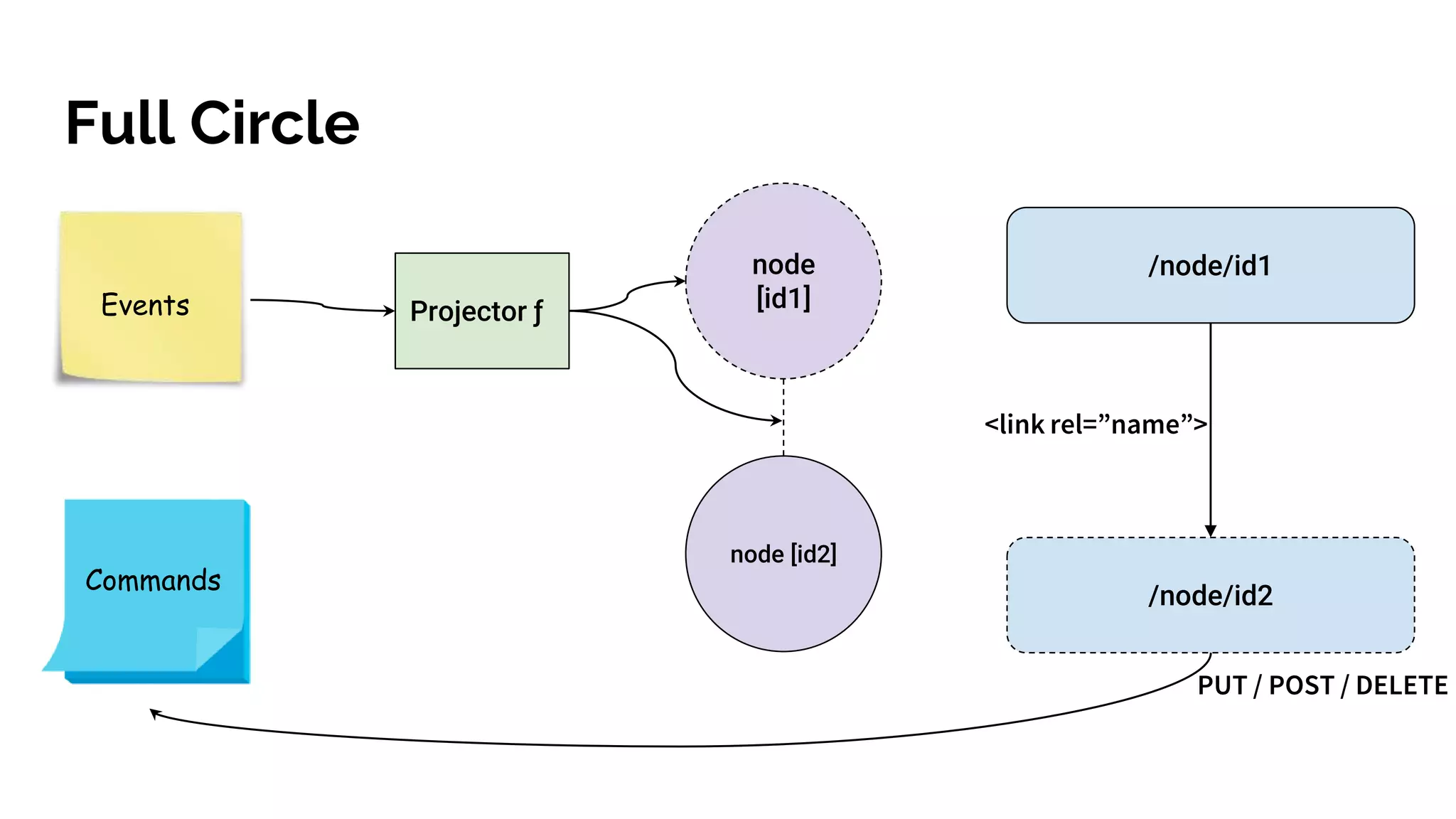

51. Projector ƒ
node
[id1]
node [id2]
/node/id1
/node/id2
<link rel=”name”>
PUT / POST / DELETE
Full Circle
Events
Commands

52. Thank You!
@MattBishopL3
