1. Sonata Project
AdminBundle

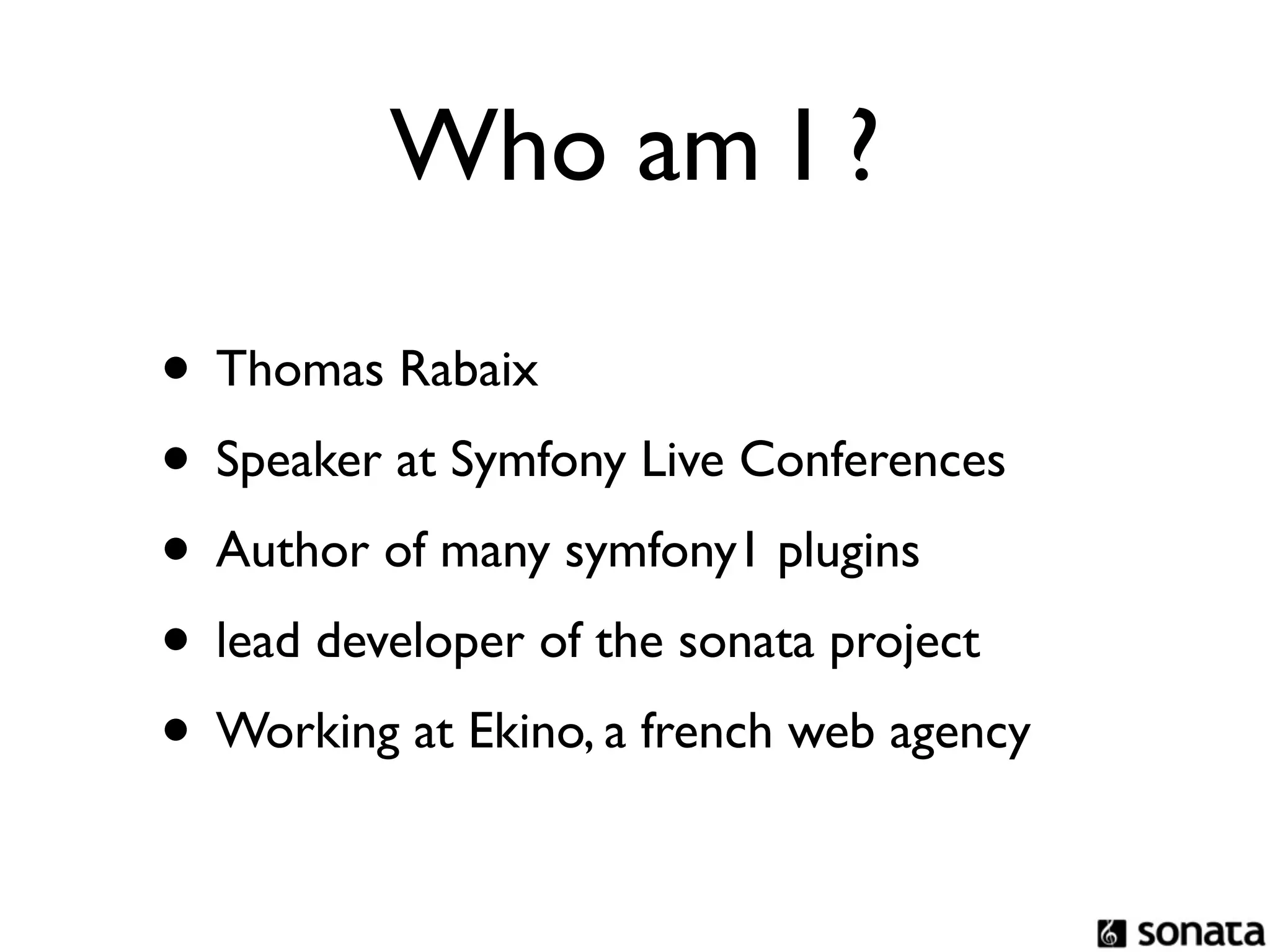

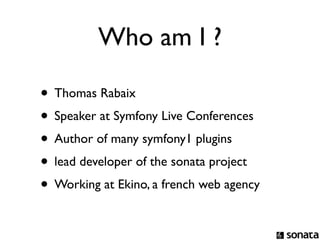

2. Who am I ?
• Thomas Rabaix
• Speaker at Symfony Live Conferences
• Author of many symfony1 plugins
• lead developer of the sonata project
• Working at Ekino, a french web agency

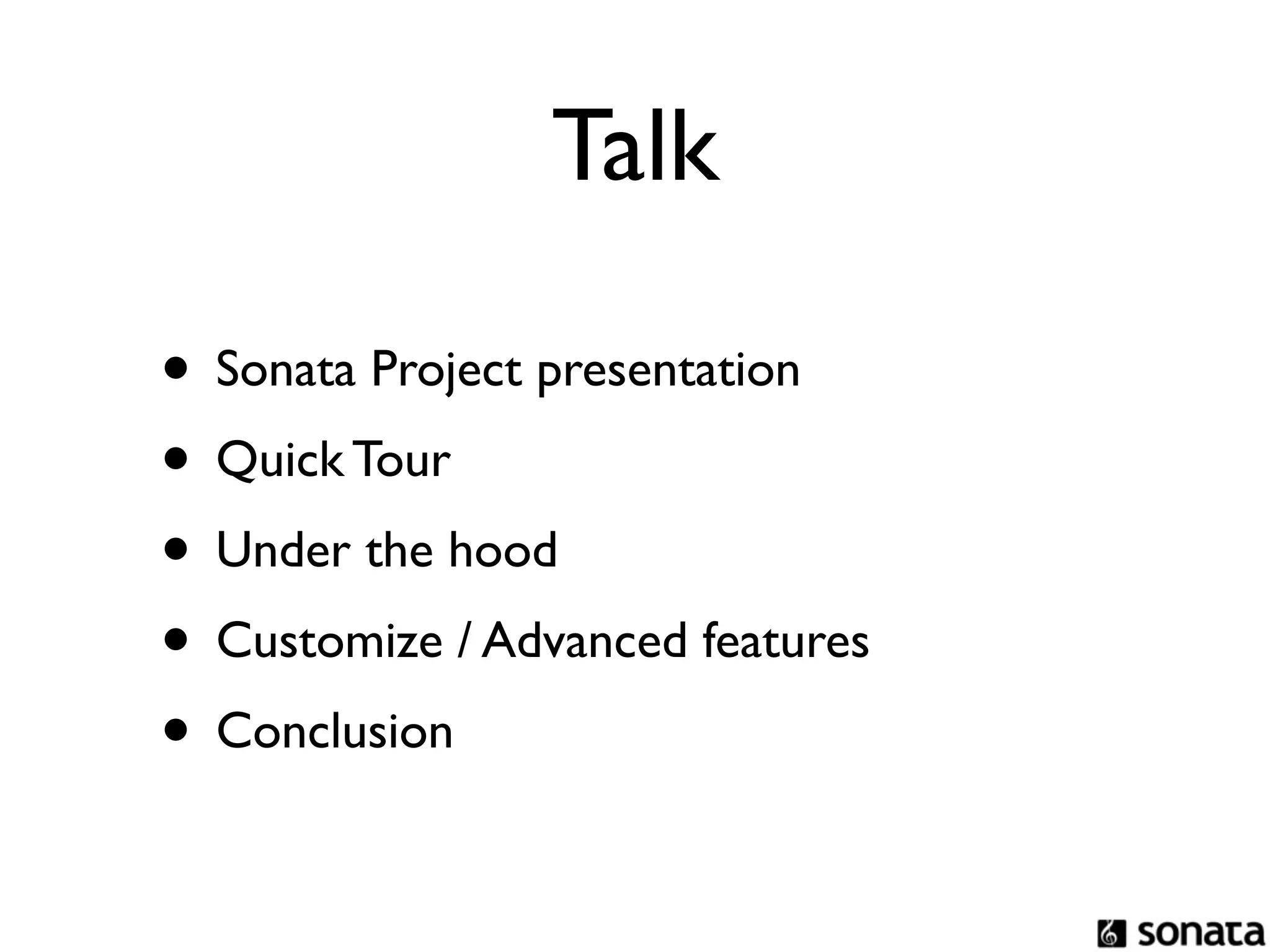

3. Talk
• Sonata Project presentation
• Quick Tour
• Under the hood
• Customize / Advanced features
• Conclusion

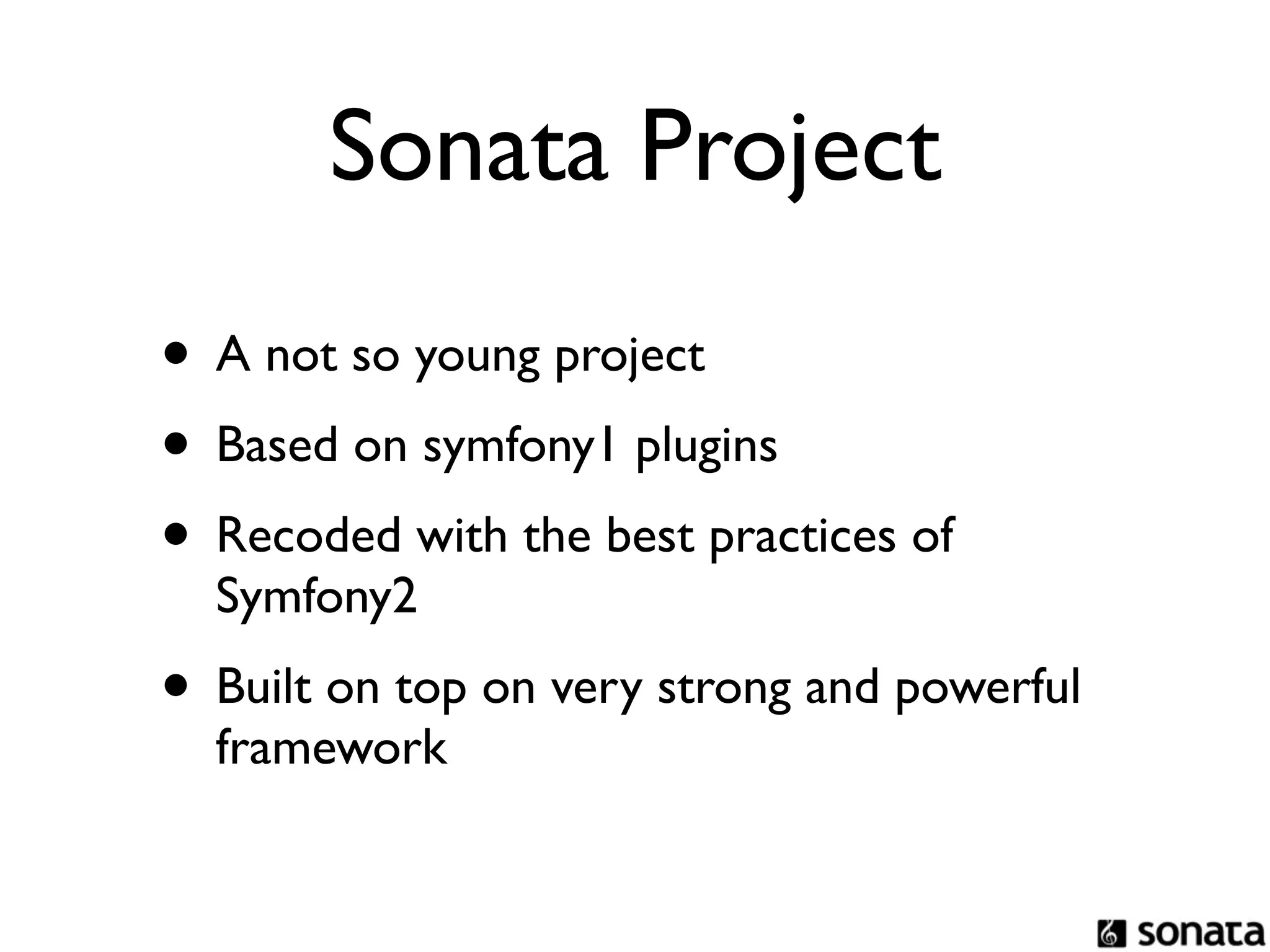

4. Sonata Project
• A not so young project
• Based on symfony1 plugins
• Recoded with the best practices of
Symfony2
• Built on top on very strong and powerful
framework

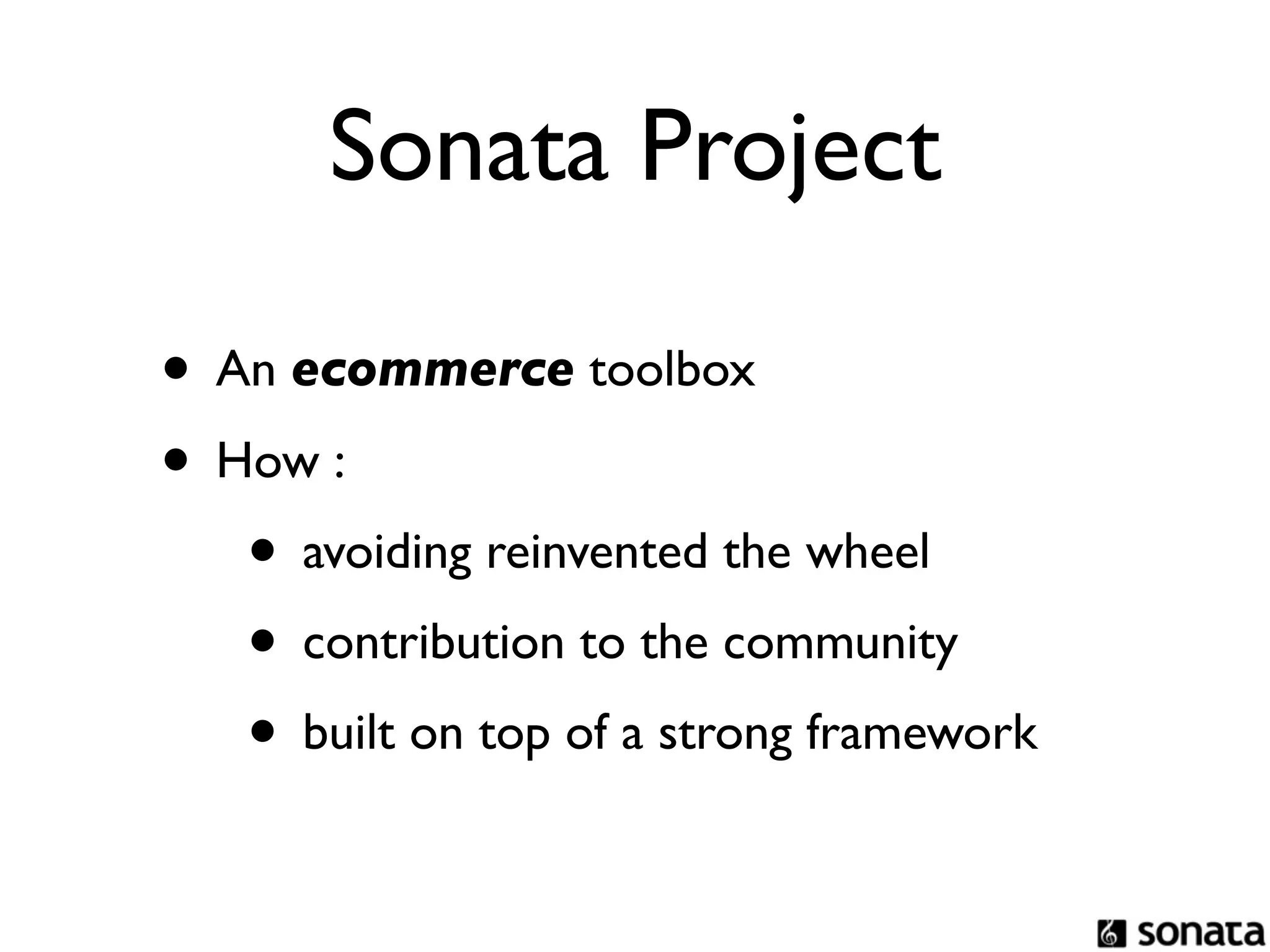

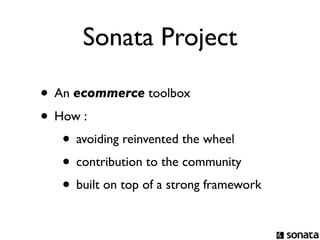

5. Sonata Project
• An ecommerce toolbox
• How :
• avoiding reinvented the wheel
• contribution to the community
• built on top of a strong framework

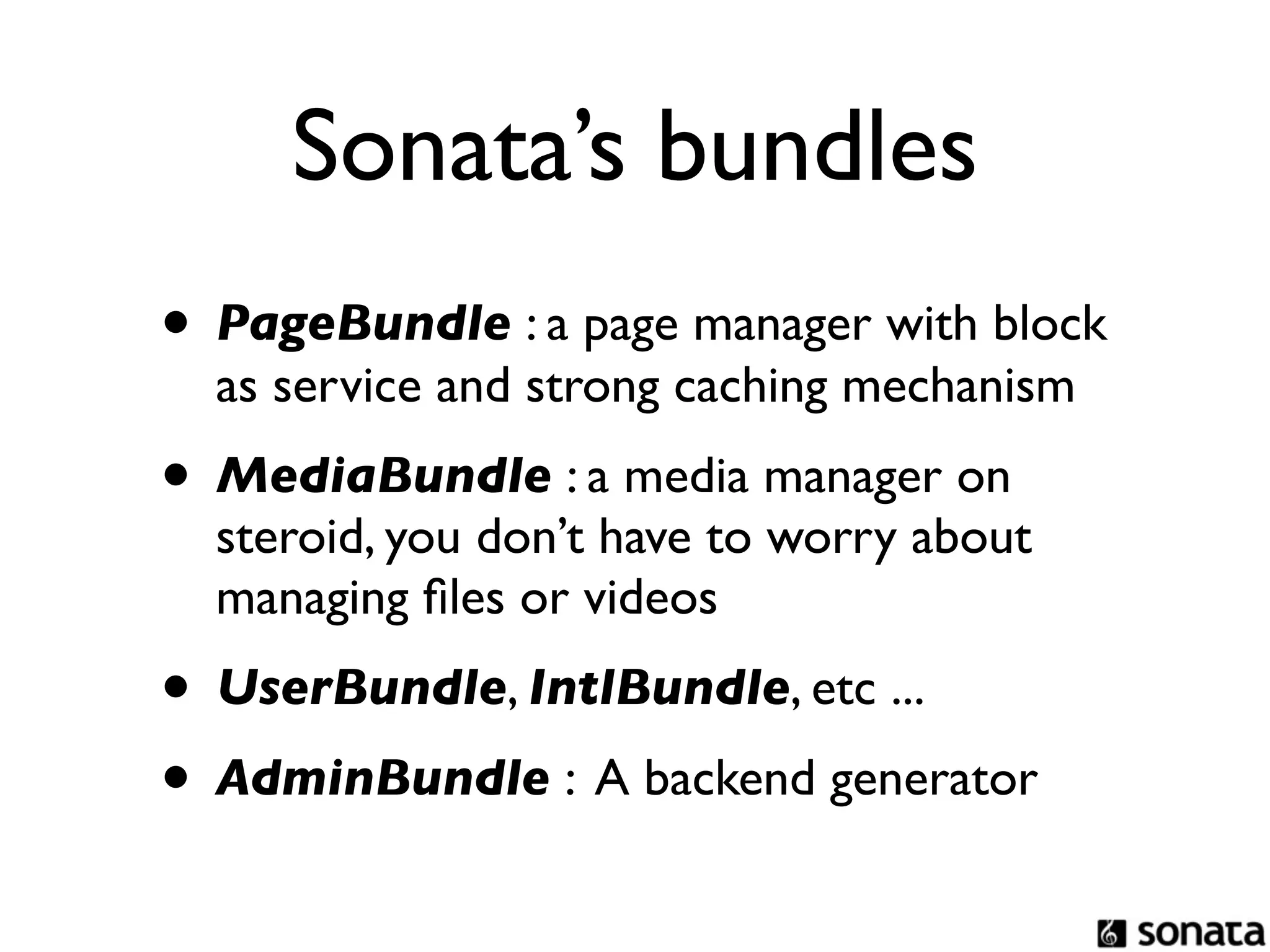

6. Sonata’s bundles
• PageBundle : a page manager with block
as service and strong caching mechanism
• MediaBundle : a media manager on
steroid, you don’t have to worry about
managing files or videos
• UserBundle, IntlBundle, etc ...
• AdminBundle : A backend generator

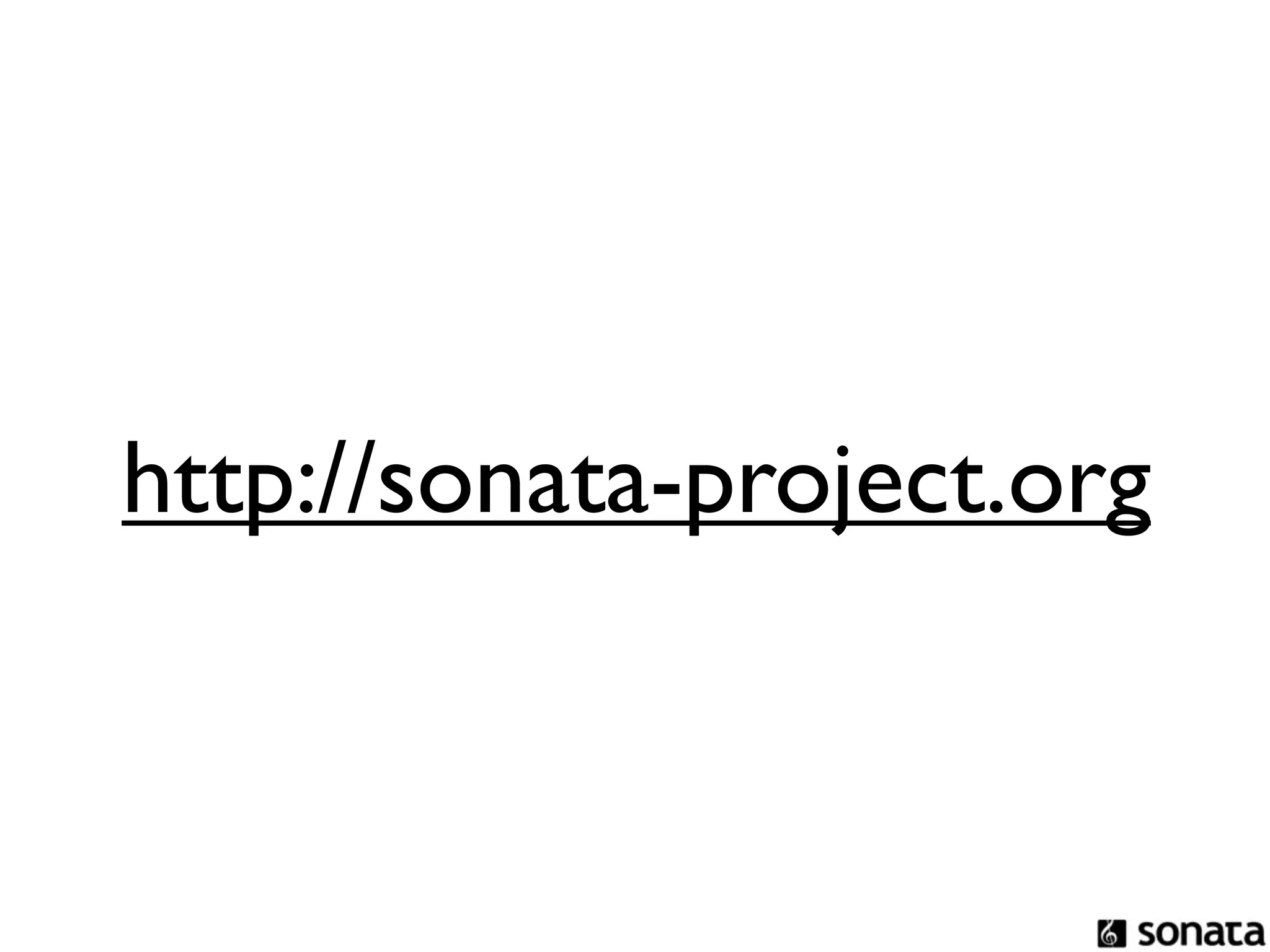

7. http://sonata-project.org

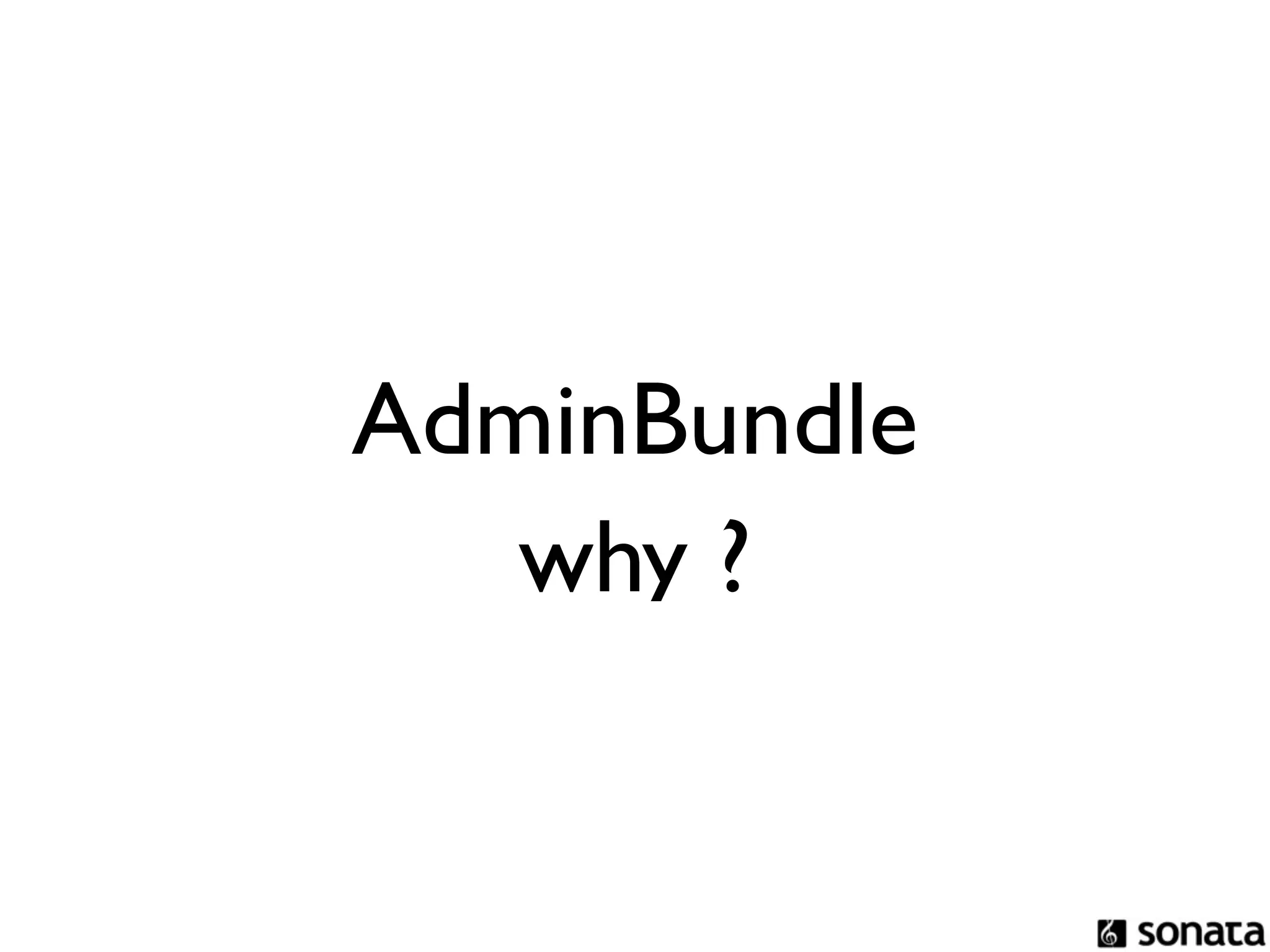

8. AdminBundle
why ?

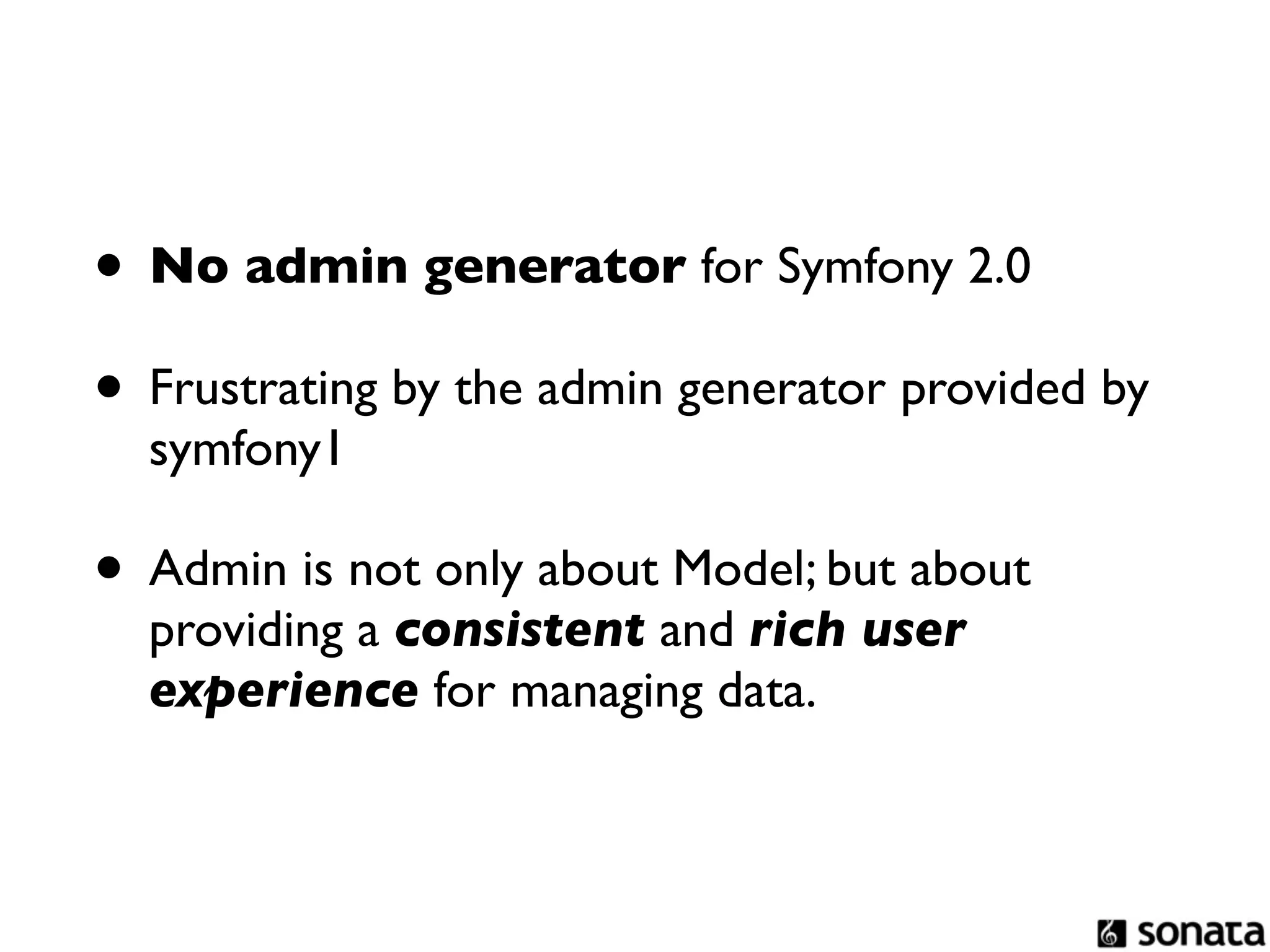

9. • No admin generator for Symfony 2.0
• Frustrating by the admin generator provided by
symfony1
• Admin is not only about Model; but about
providing a consistent and rich user
experience for managing data.

10. Quick Tour
http://www.flickr.com/photos/38104873@N03/4559985343/

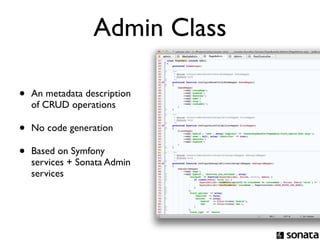

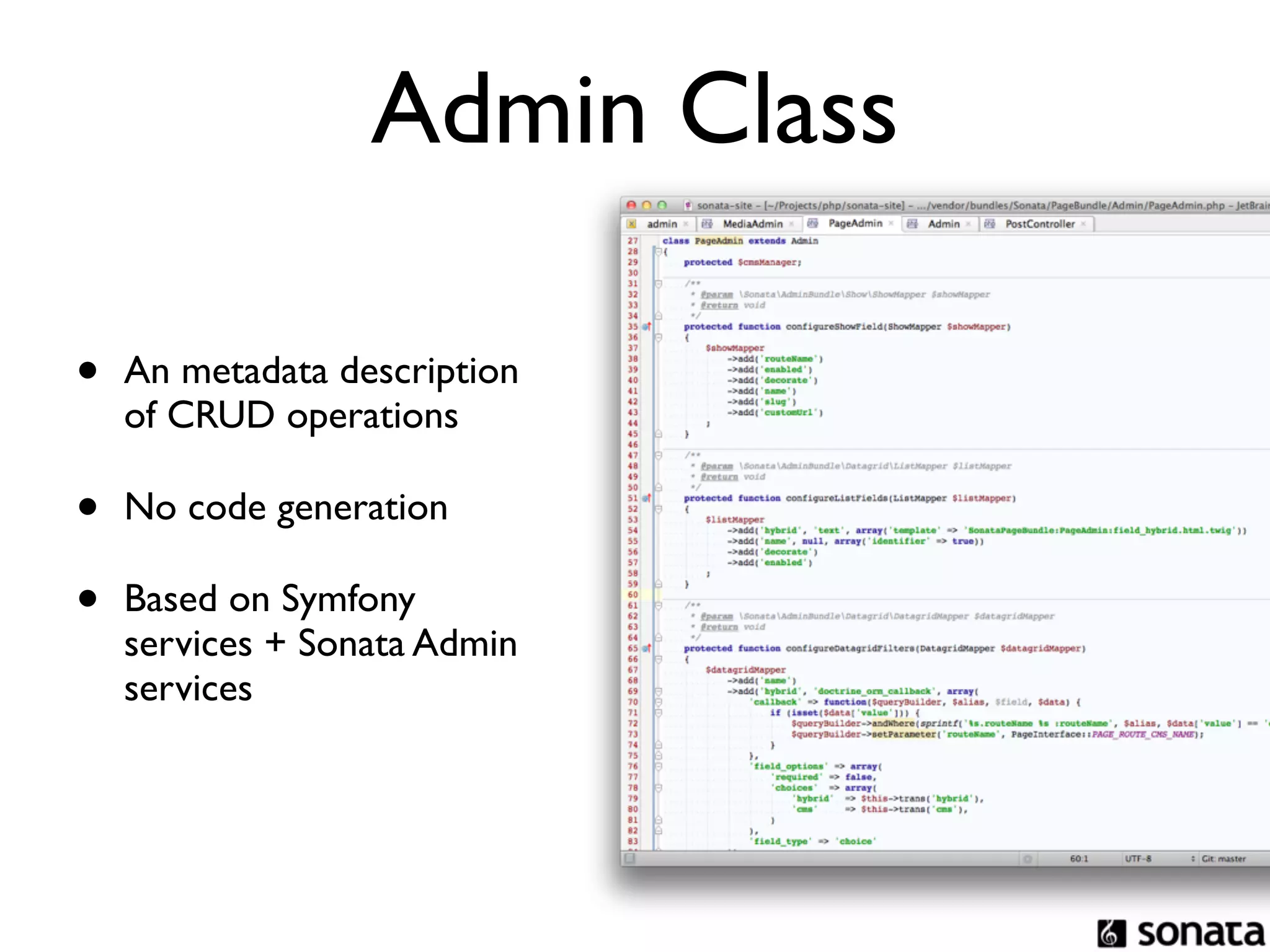

11. Admin Class
• An metadata description
of CRUD operations
• No code generation
• Based on Symfony
services + Sonata Admin
services

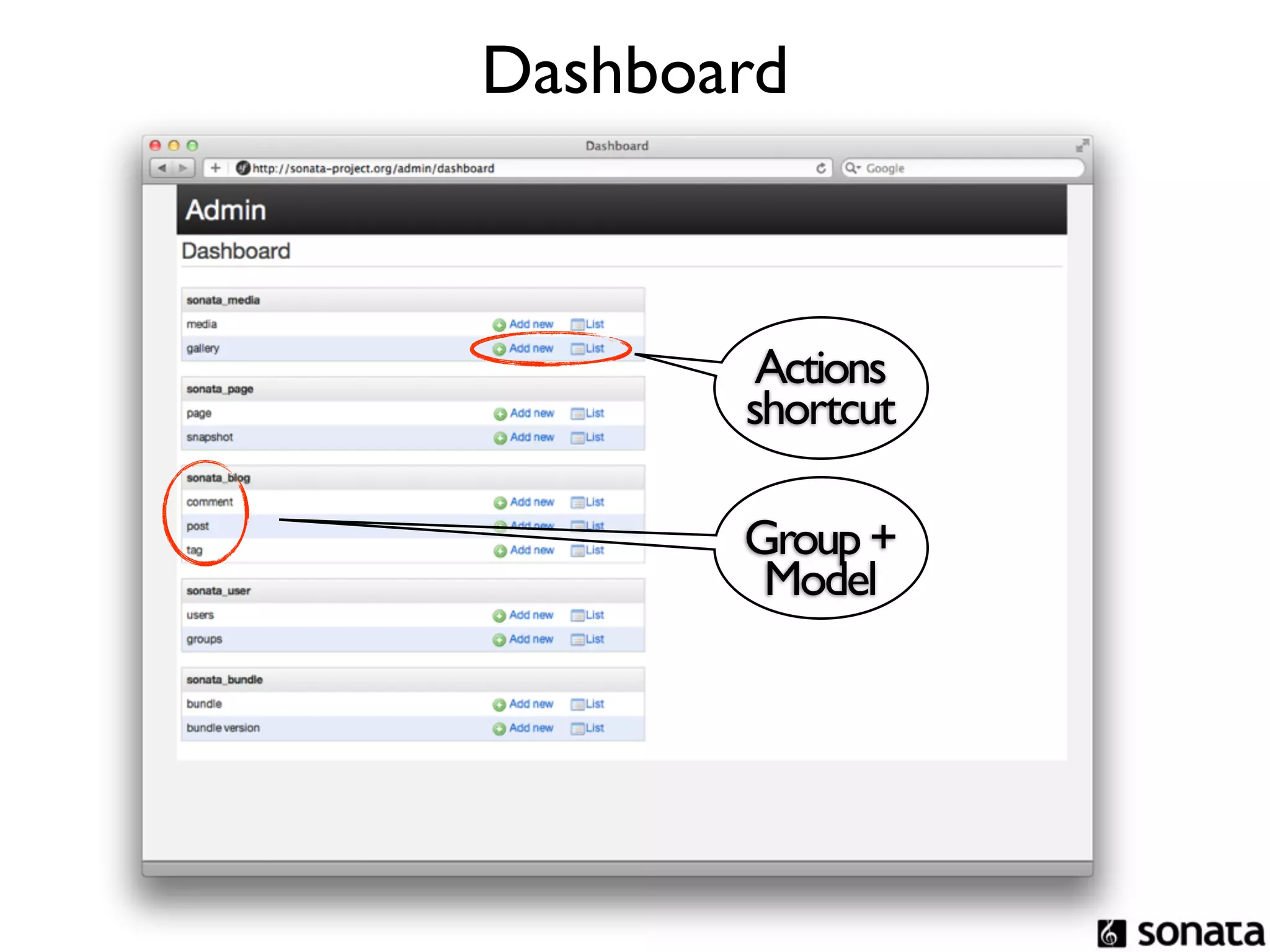

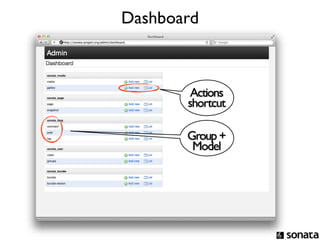

12. Dashboard
Actions
shortcut
Group +
Model

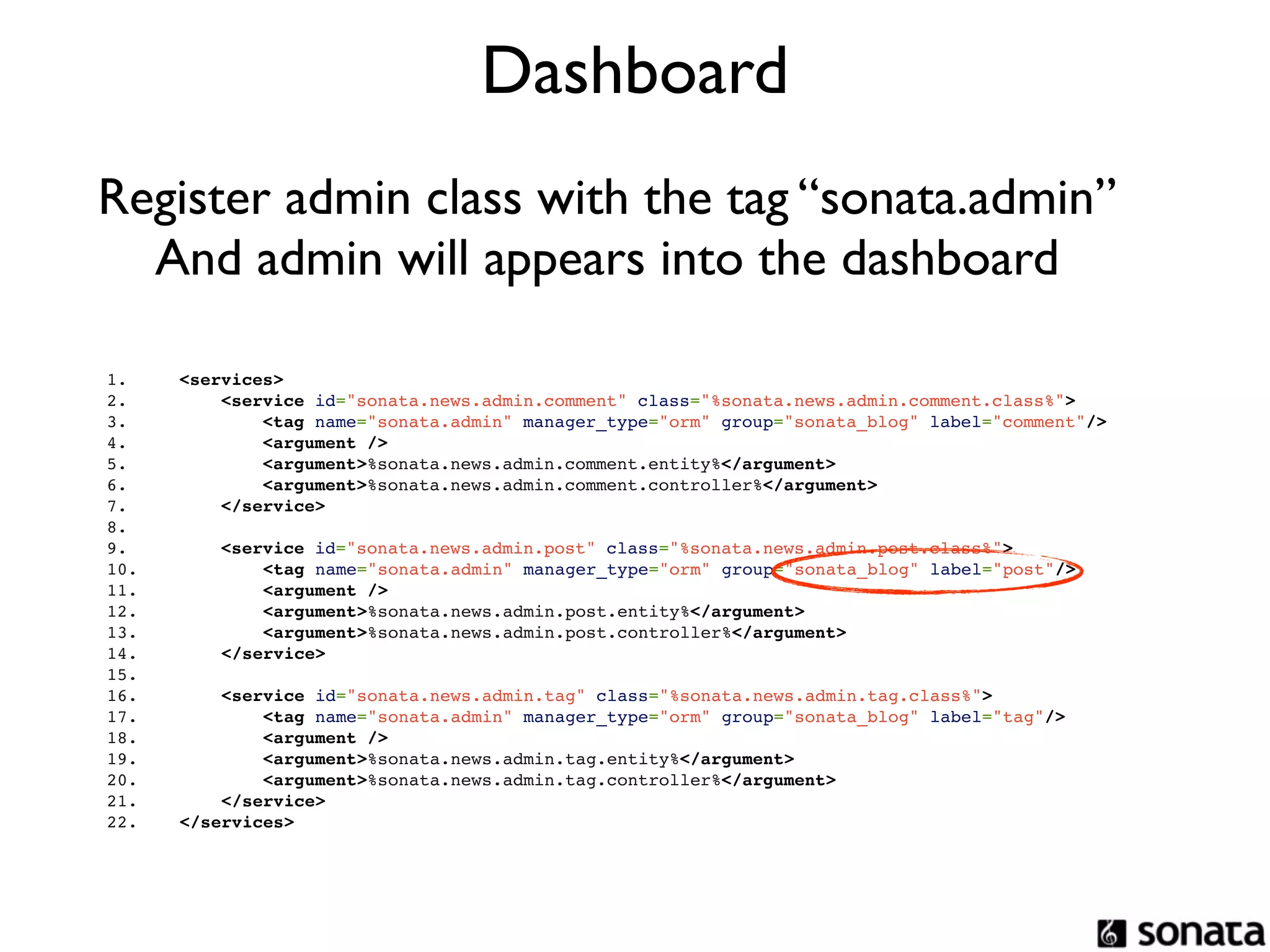

13. Dashboard
Register admin class with the tag “sonata.admin”
And admin will appears into the dashboard
1. <services>
2. <service id="sonata.news.admin.comment" class="%sonata.news.admin.comment.class%">
3. <tag name="sonata.admin" manager_type="orm" group="sonata_blog" label="comment"/>
4. <argument />
5. <argument>%sonata.news.admin.comment.entity%</argument>
6. <argument>%sonata.news.admin.comment.controller%</argument>
7. </service>
8.
9. <service id="sonata.news.admin.post" class="%sonata.news.admin.post.class%">
10. <tag name="sonata.admin" manager_type="orm" group="sonata_blog" label="post"/>
11. <argument />
12. <argument>%sonata.news.admin.post.entity%</argument>
13. <argument>%sonata.news.admin.post.controller%</argument>
14. </service>
15.
16. <service id="sonata.news.admin.tag" class="%sonata.news.admin.tag.class%">
17. <tag name="sonata.admin" manager_type="orm" group="sonata_blog" label="tag"/>
18. <argument />
19. <argument>%sonata.news.admin.tag.entity%</argument>
20. <argument>%sonata.news.admin.tag.controller%</argument>
21. </service>
22. </services>

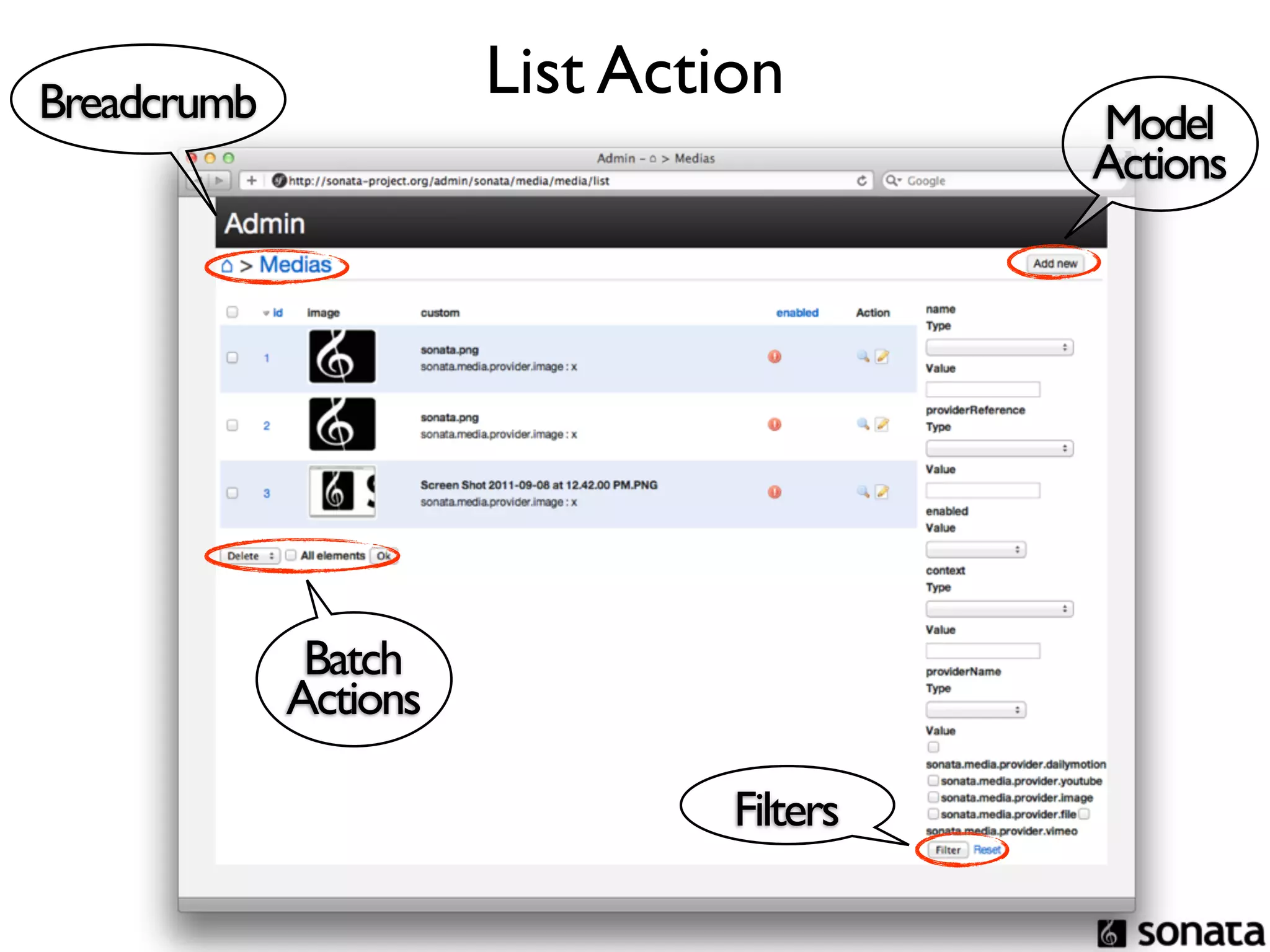

14. Breadcrumb List Action
Model
Actions
Batch
Actions
Filters

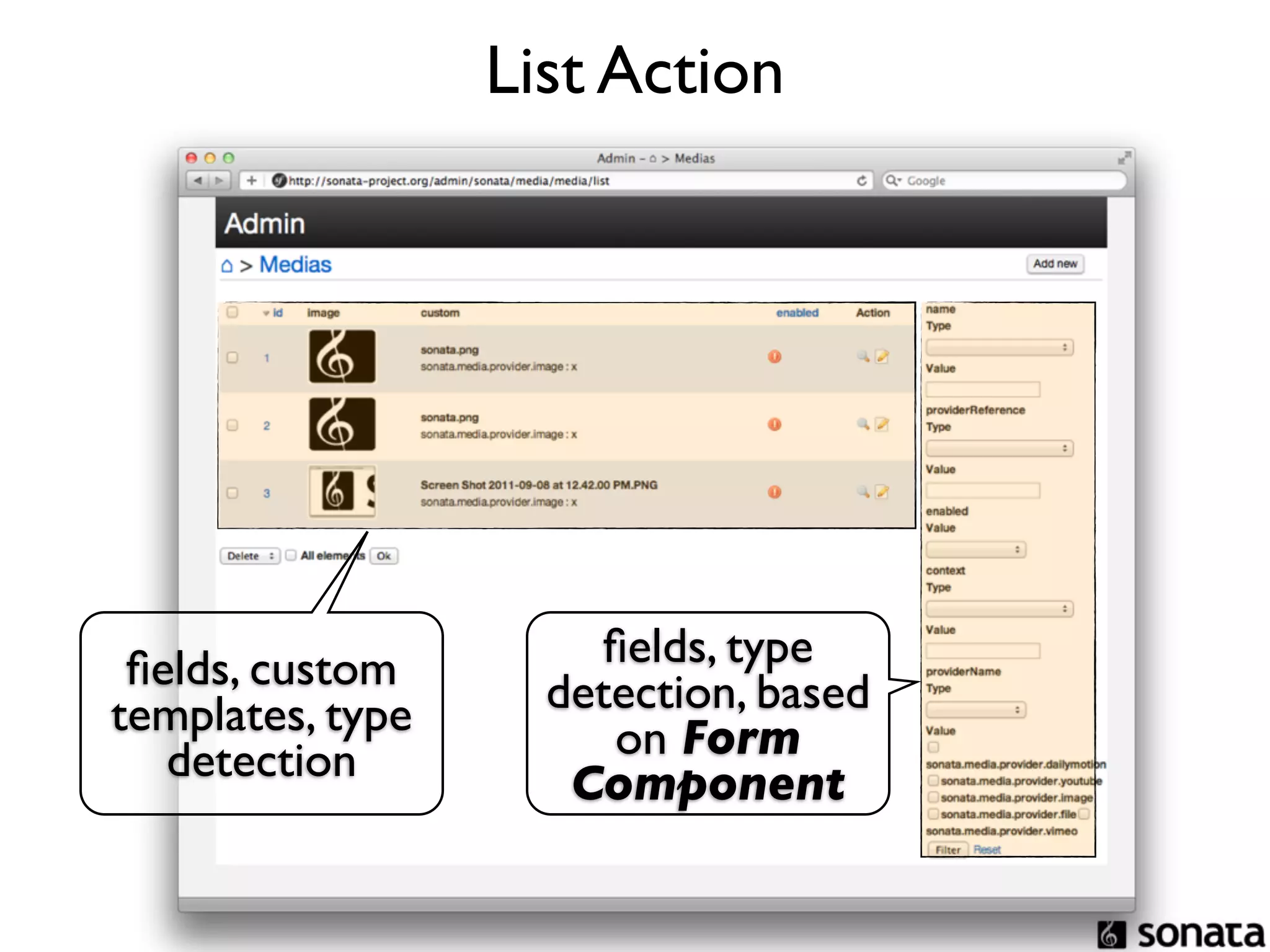

15. List Action
fields, custom fields, type
templates, type detection, based
detection on Form
Component

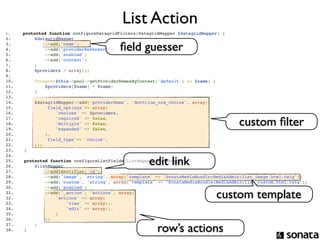

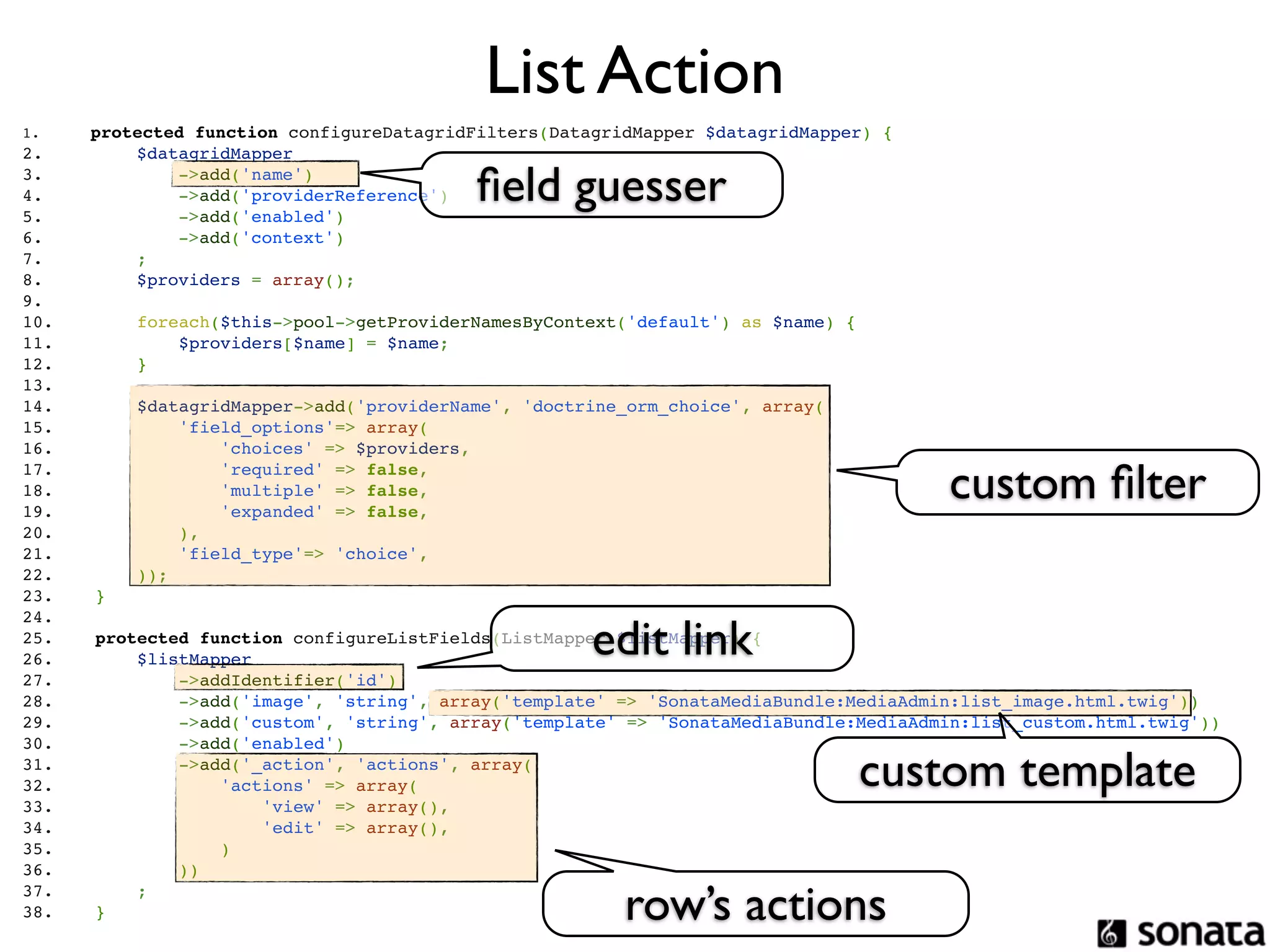

16. List Action
1. protected function configureDatagridFilters(DatagridMapper $datagridMapper) {
2. $datagridMapper
3.
4.
5.
->add('name')
->add('providerReference')
->add('enabled')
field guesser
6. ->add('context')
7. ;
8. $providers = array();
9.
10. foreach($this->pool->getProviderNamesByContext('default') as $name) {
11. $providers[$name] = $name;
12. }
13.
14. $datagridMapper->add('providerName', 'doctrine_orm_choice', array(
15. 'field_options'=> array(
16. 'choices' => $providers,
17.
18.
19.
'required' => false,
'multiple' => false,
'expanded' => false,
custom filter
20. ),
21. 'field_type'=> 'choice',
22. ));
23. }
edit link
24.
25. protected function configureListFields(ListMapper $listMapper) {
26. $listMapper
27. ->addIdentifier('id')
28. ->add('image', 'string', array('template' => 'SonataMediaBundle:MediaAdmin:list_image.html.twig'))
29. ->add('custom', 'string', array('template' => 'SonataMediaBundle:MediaAdmin:list_custom.html.twig'))
30. ->add('enabled')
31.
32.
->add('_action', 'actions', array(
'actions' => array( custom template
33. 'view' => array(),
34. 'edit' => array(),
35. )
36. ))
37.
38.
;
} row’s actions

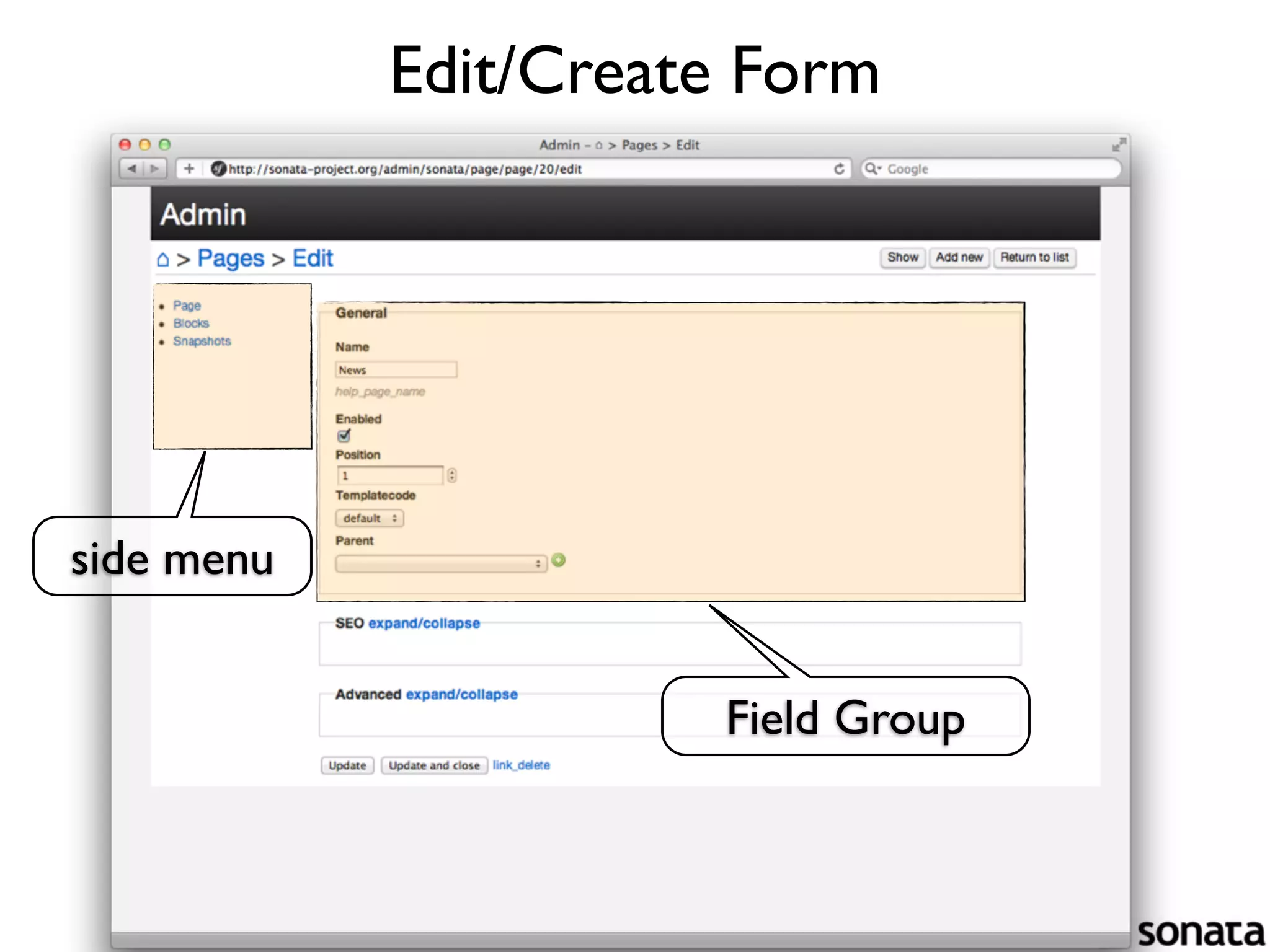

17. Edit/Create Form
side menu
Field Group

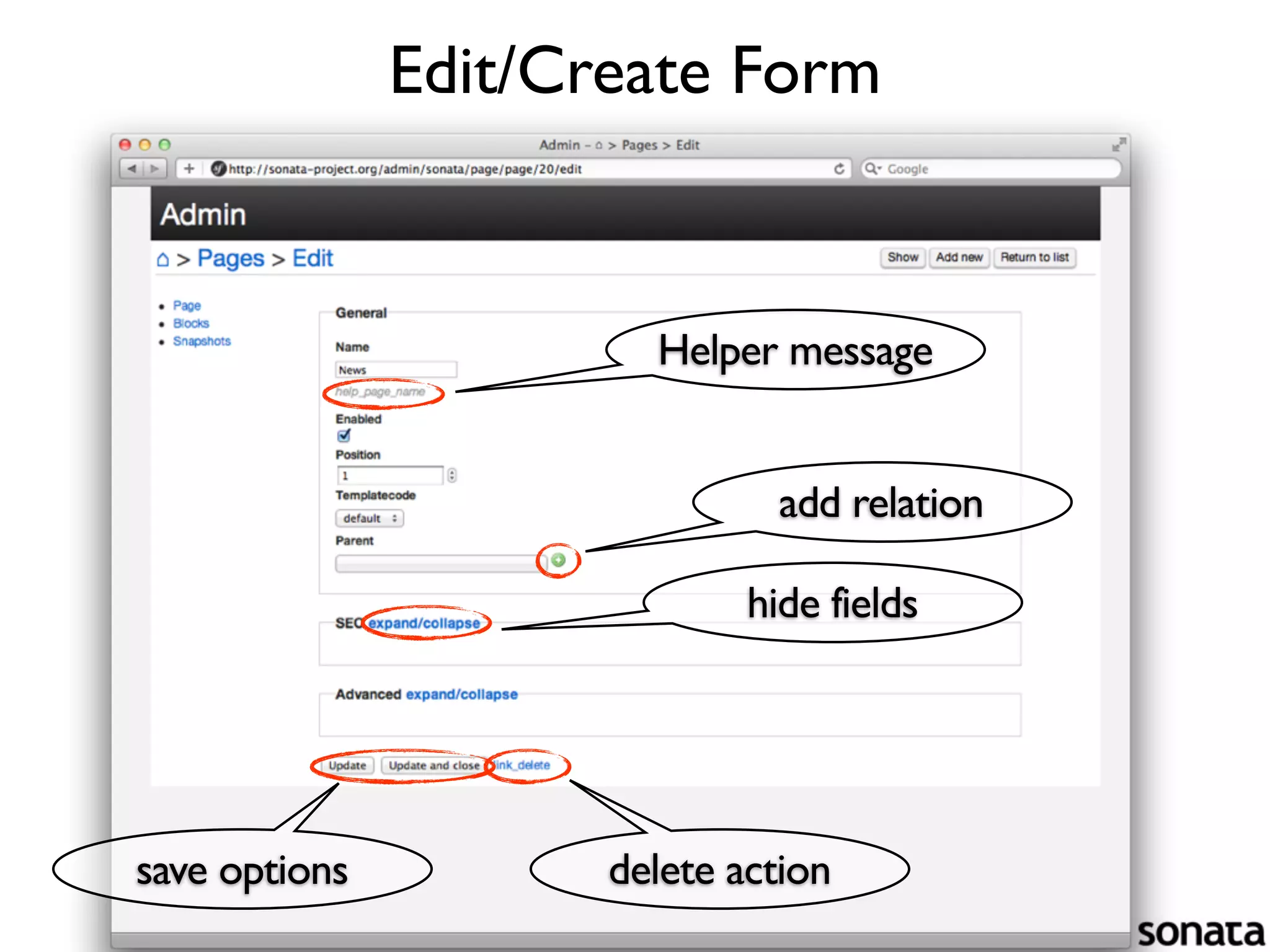

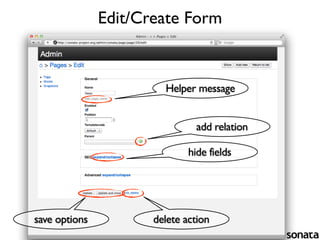

18. Edit/Create Form
Helper message
add relation
hide fields
save options delete action

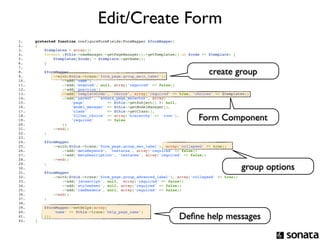

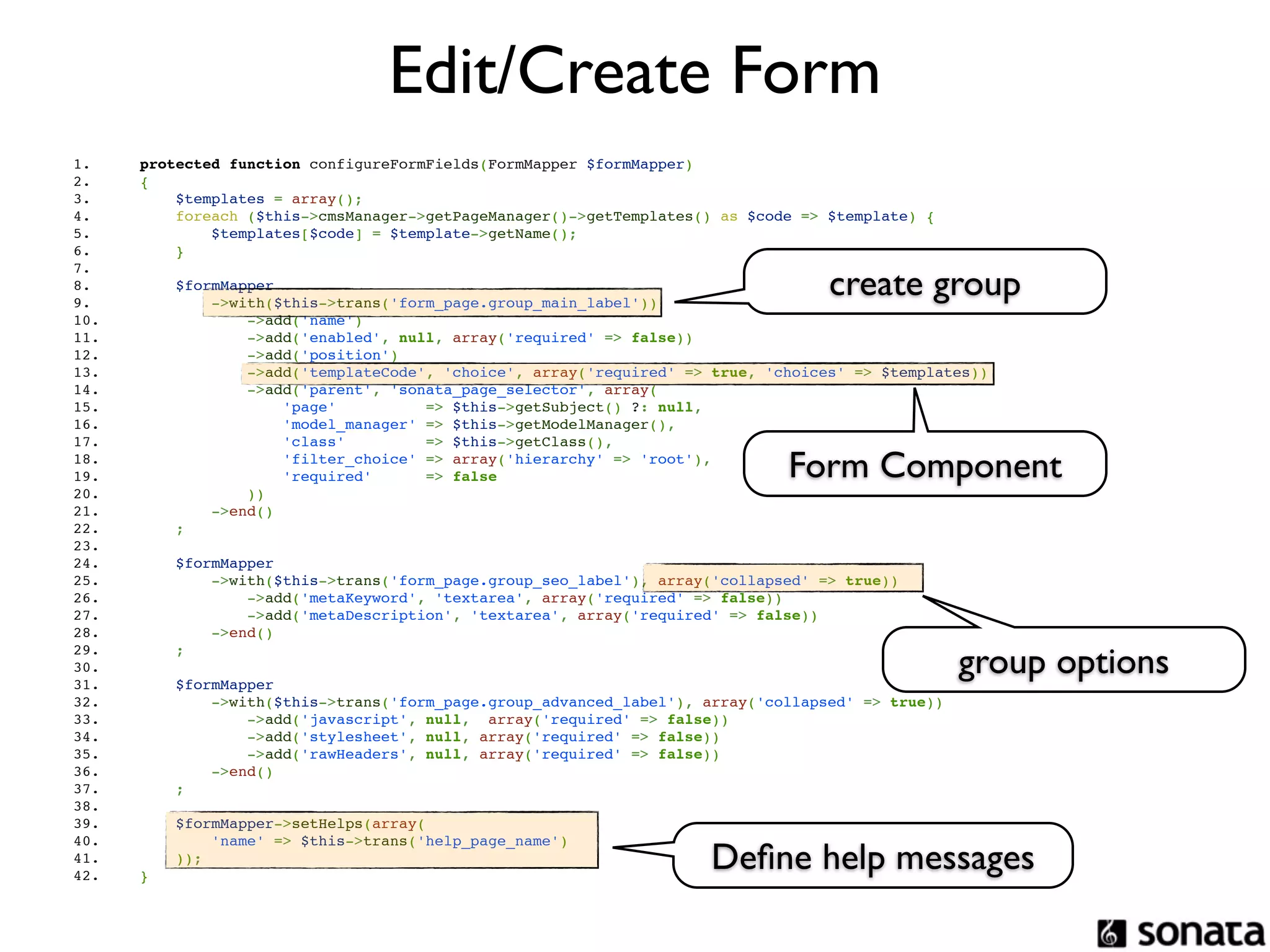

19. Edit/Create Form
1. protected function configureFormFields(FormMapper $formMapper)
2. {
3. $templates = array();
4. foreach ($this->cmsManager->getPageManager()->getTemplates() as $code => $template) {
5. $templates[$code] = $template->getName();
6. }
create group
7.
8. $formMapper
9. ->with($this->trans('form_page.group_main_label'))
10. ->add('name')
11. ->add('enabled', null, array('required' => false))
12. ->add('position')
13. ->add('templateCode', 'choice', array('required' => true, 'choices' => $templates))
14. ->add('parent', 'sonata_page_selector', array(
15. 'page' => $this->getSubject() ?: null,
16. 'model_manager' => $this->getModelManager(),
17. 'class' => $this->getClass(),
18.
19.
'filter_choice' => array('hierarchy' => 'root'),
'required' => false Form Component
20. ))
21. ->end()
22. ;
23.
24. $formMapper
25. ->with($this->trans('form_page.group_seo_label'), array('collapsed' => true))
26. ->add('metaKeyword', 'textarea', array('required' => false))
27. ->add('metaDescription', 'textarea', array('required' => false))
28. ->end()
group options
29. ;
30.
31. $formMapper
32. ->with($this->trans('form_page.group_advanced_label'), array('collapsed' => true))
33. ->add('javascript', null, array('required' => false))
34. ->add('stylesheet', null, array('required' => false))
35. ->add('rawHeaders', null, array('required' => false))
36. ->end()
37. ;
38.
39. $formMapper->setHelps(array(
40. 'name' => $this->trans('help_page_name')
41.
42.
));
}
Define help messages

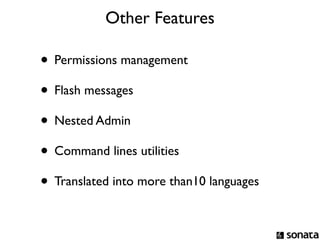

20. Other Features
• Permissions management
• Flash messages

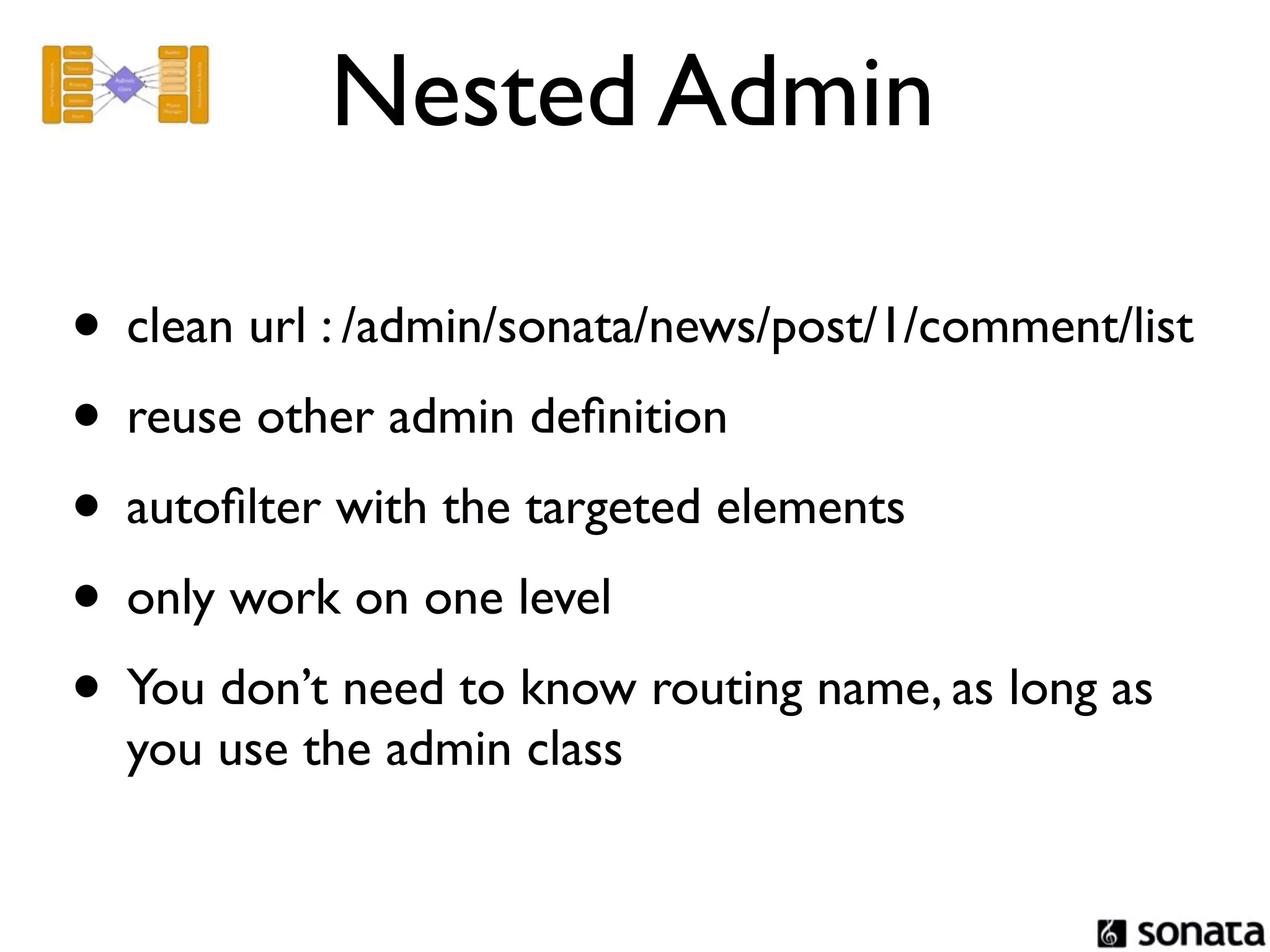

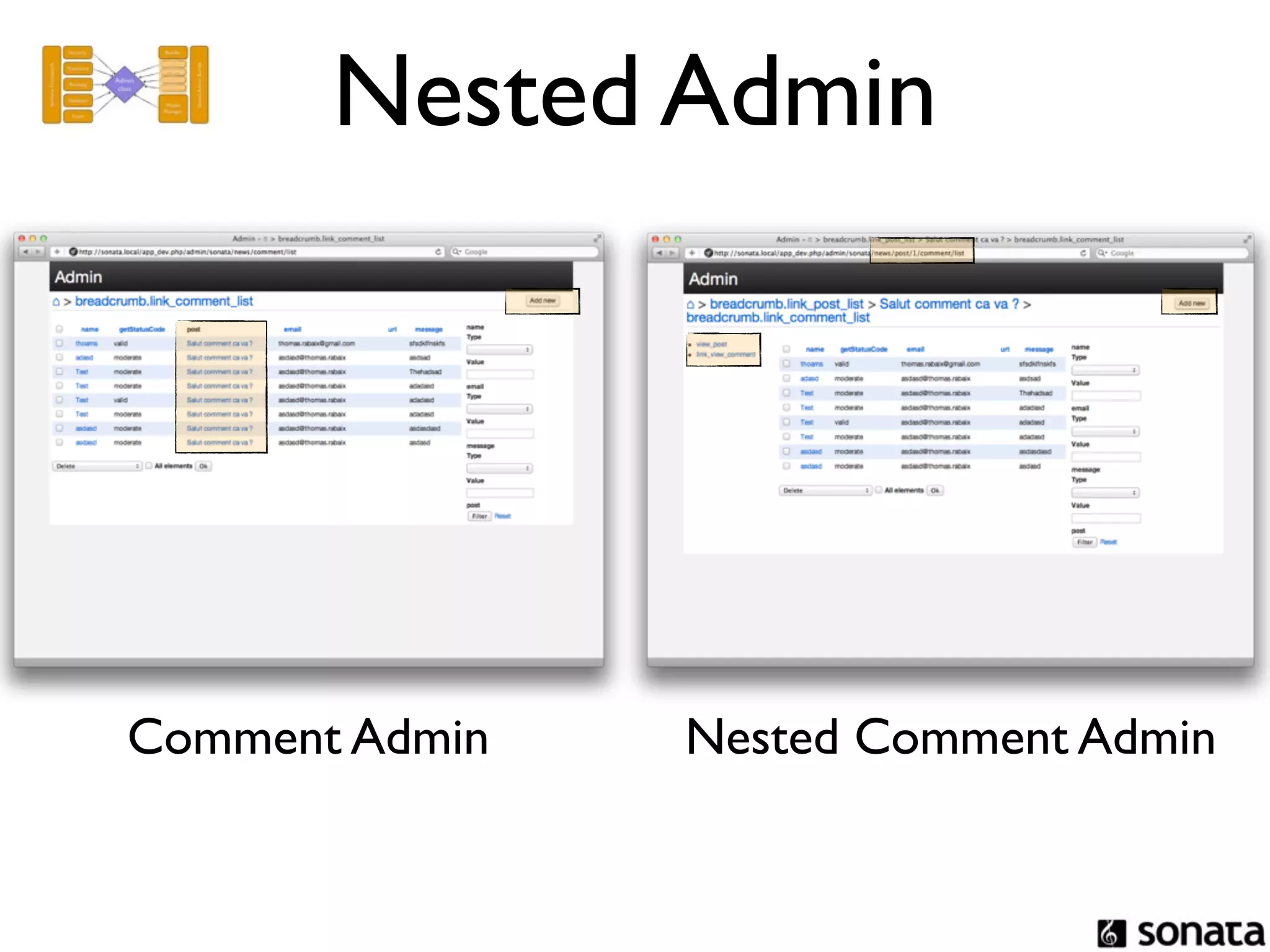

• Nested Admin
• Command lines utilities
• Translated into more than10 languages

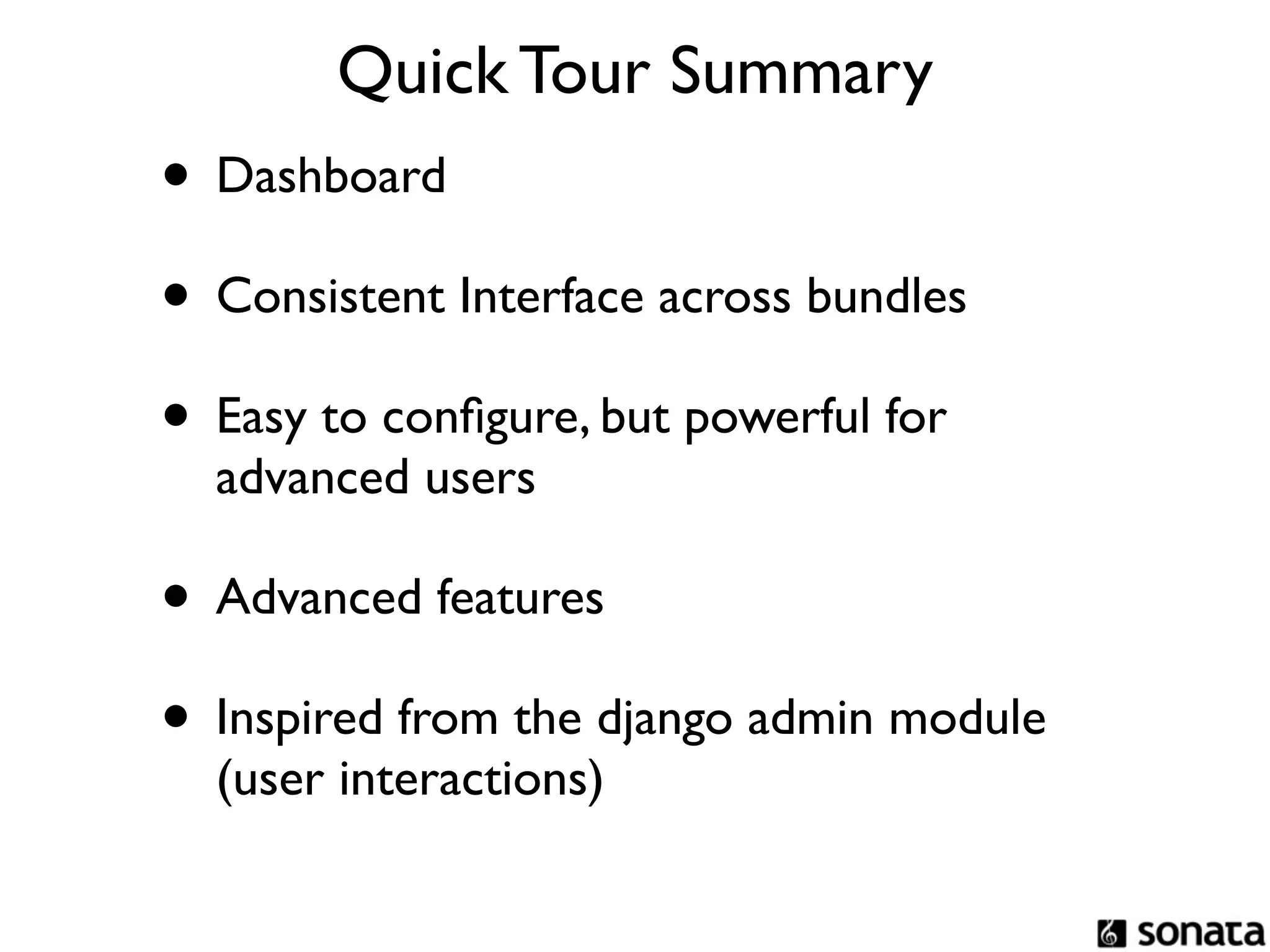

21. Quick Tour Summary
• Dashboard
• Consistent Interface across bundles
• Easy to configure, but powerful for
advanced users
• Advanced features
• Inspired from the django admin module
(user interactions)

22. Under the hood
http://www.flickr.com/photos/52251564@N08/5937620090

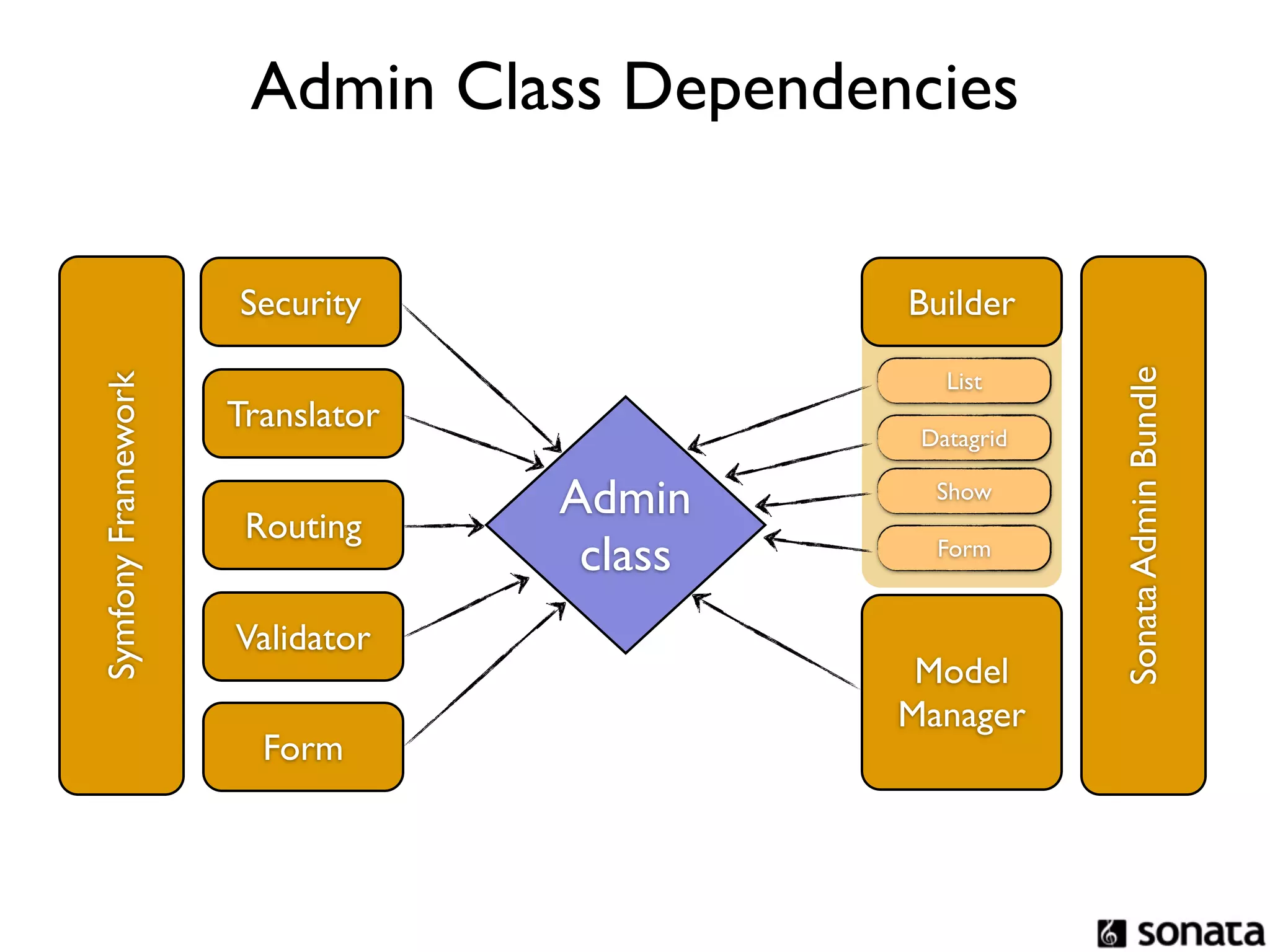

23. Admin Class Dependencies
Security Builder
Sonata Admin Bundle
List
Symfony Framework
Translator
Datagrid
Admin Show
Routing
class Form
Validator
Model
Manager
Form

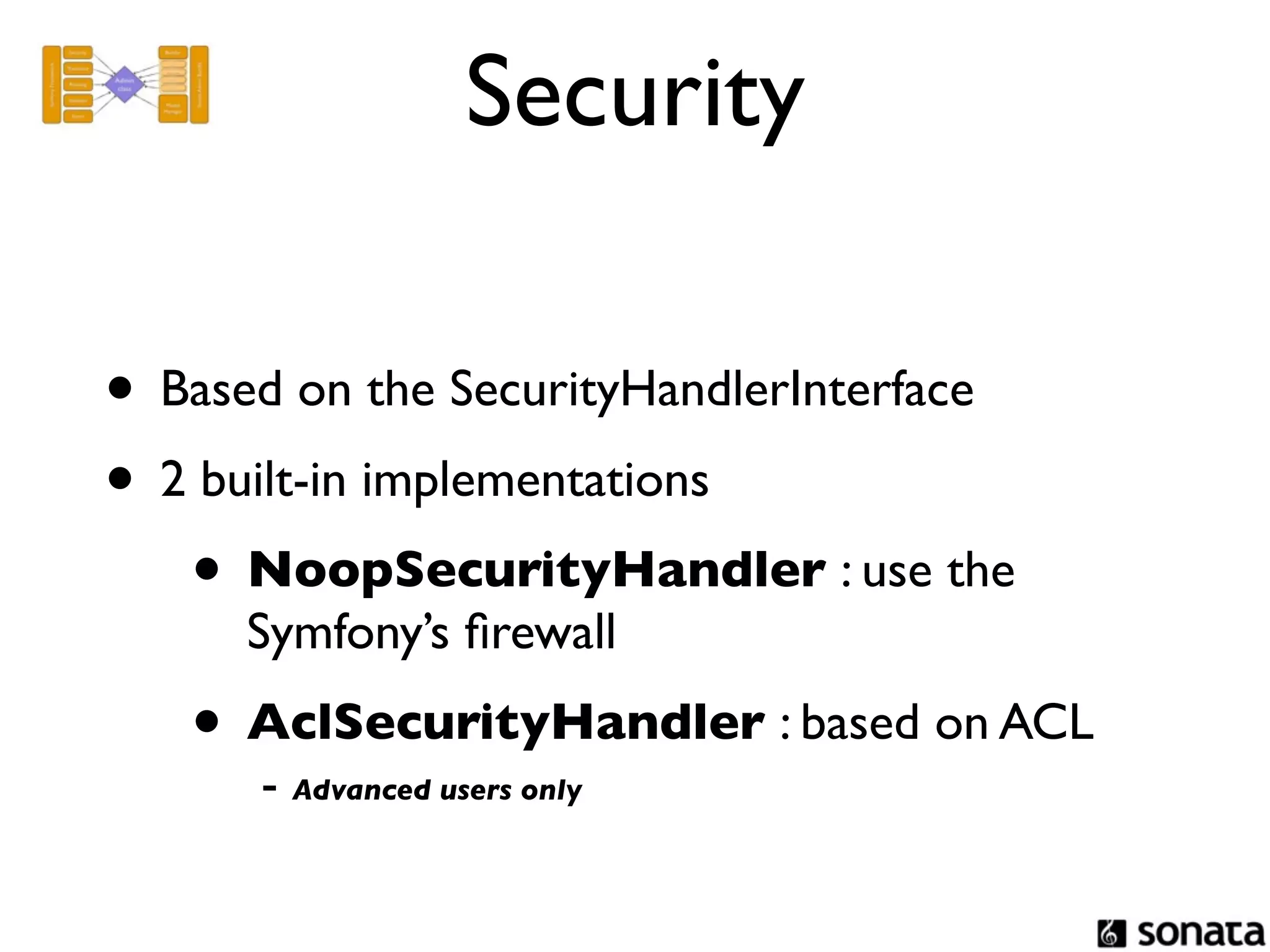

24. Security
• Based on the SecurityHandlerInterface
• 2 built-in implementations
• NoopSecurityHandler : use the
Symfony’s firewall
• AclSecurityHandler : based on ACL
- Advanced users only

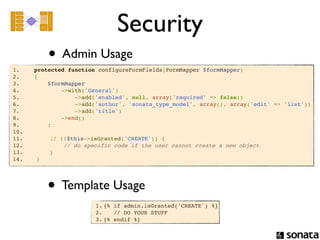

25. Security
• Admin Usage
1. protected function configureFormFields(FormMapper $formMapper)
2. {
3. $formMapper
4. ->with('General')
5. ->add('enabled', null, array('required' => false))
6. ->add('author', 'sonata_type_model', array(), array('edit' => 'list'))
7. ->add('title')
8. ->end()
9. ;
10.
11. if (!$this->isGranted('CREATE')) {
12. // do specific code if the user cannot create a new object
13. }
14. }
• Template Usage
1. {% if admin.isGranted('CREATE') %}
2. // DO YOUR STUFF
3. {% endif %}

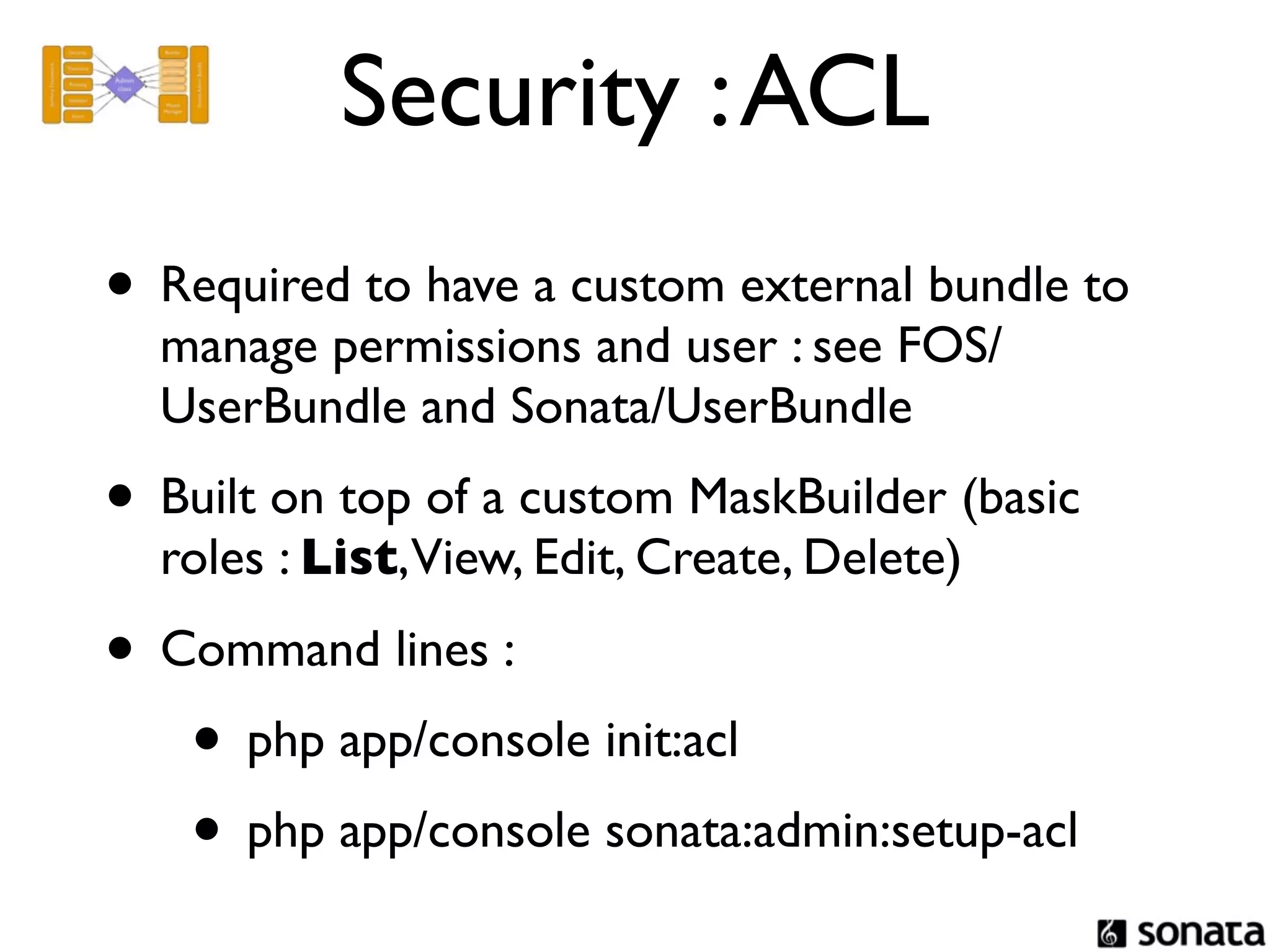

26. Security : ACL
• Required to have a custom external bundle to
manage permissions and user : see FOS/
UserBundle and Sonata/UserBundle
• Built on top of a custom MaskBuilder (basic
roles : List,View, Edit, Create, Delete)
• Command lines :
• php app/console init:acl
• php app/console sonata:admin:setup-acl

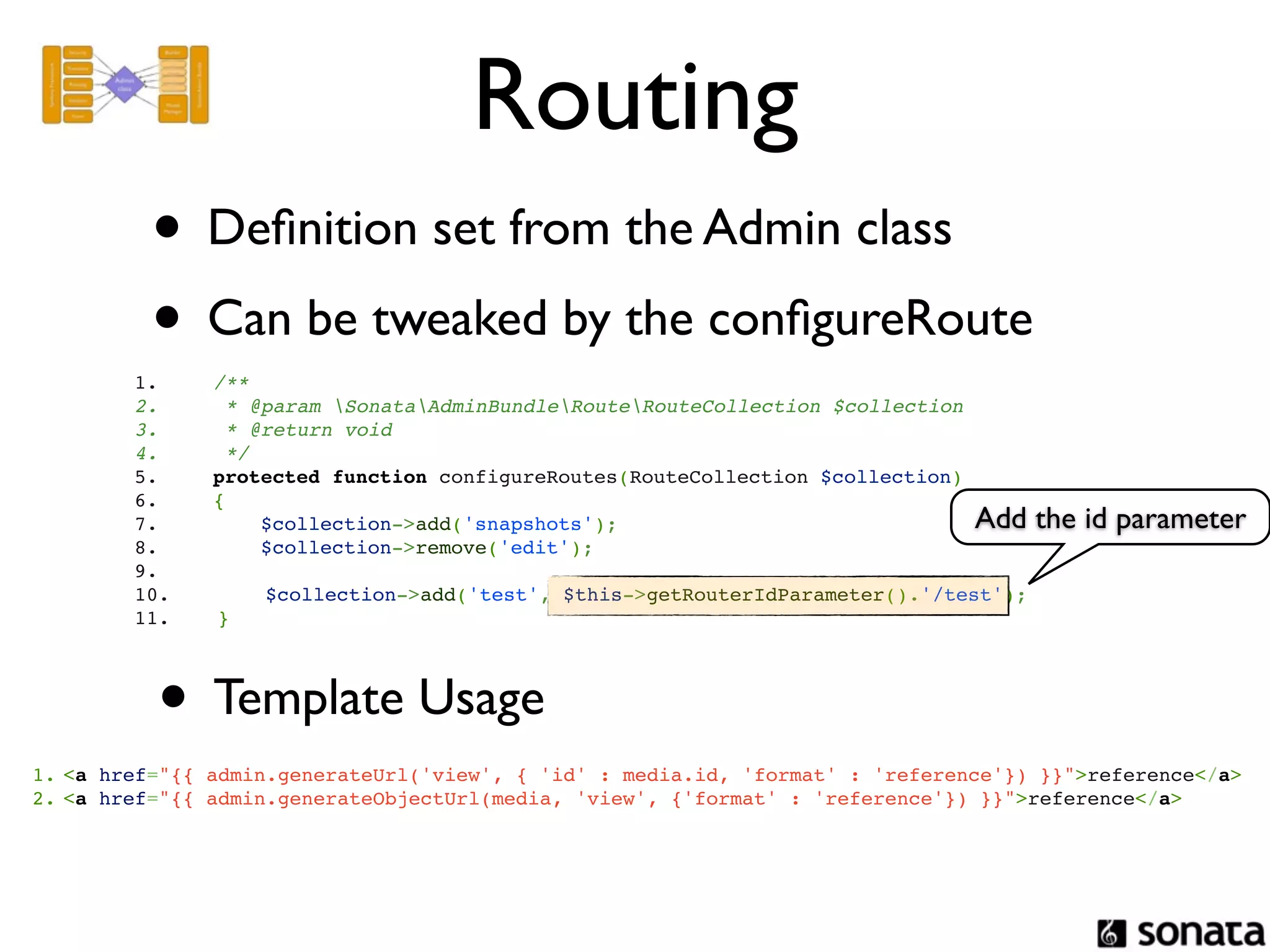

27. Routing
• Definition set from the Admin class
• Can be tweaked by the configureRoute
1. /**
2. * @param SonataAdminBundleRouteRouteCollection $collection
3. * @return void
4. */
5. protected function configureRoutes(RouteCollection $collection)
6. {
7. $collection->add('snapshots'); Add the id parameter
8. $collection->remove('edit');
9.
10. $collection->add('test', $this->getRouterIdParameter().'/test');
11. }
• Template Usage
1. <a href="{{ admin.generateUrl('view', { 'id' : media.id, 'format' : 'reference'}) }}">reference</a>
2. <a href="{{ admin.generateObjectUrl(media, 'view', {'format' : 'reference'}) }}">reference</a>

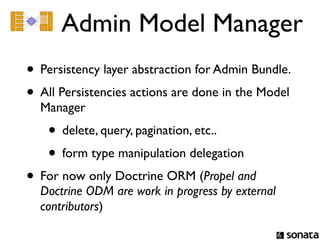

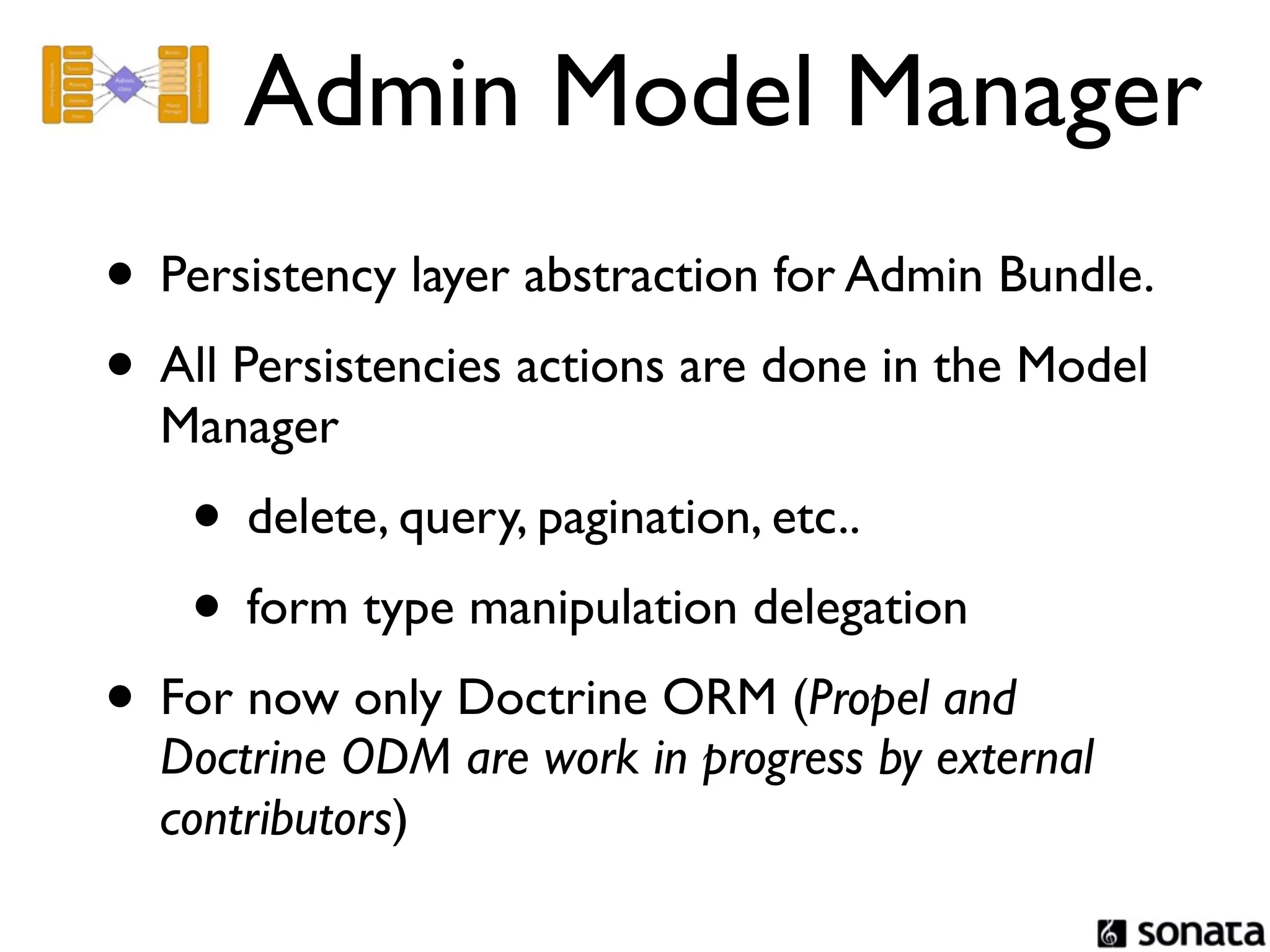

28. Admin Model Manager
• Persistency layer abstraction for Admin Bundle.
• All Persistencies actions are done in the Model
Manager
• delete, query, pagination, etc..
• form type manipulation delegation
• For now only Doctrine ORM (Propel and
Doctrine ODM are work in progress by external
contributors)

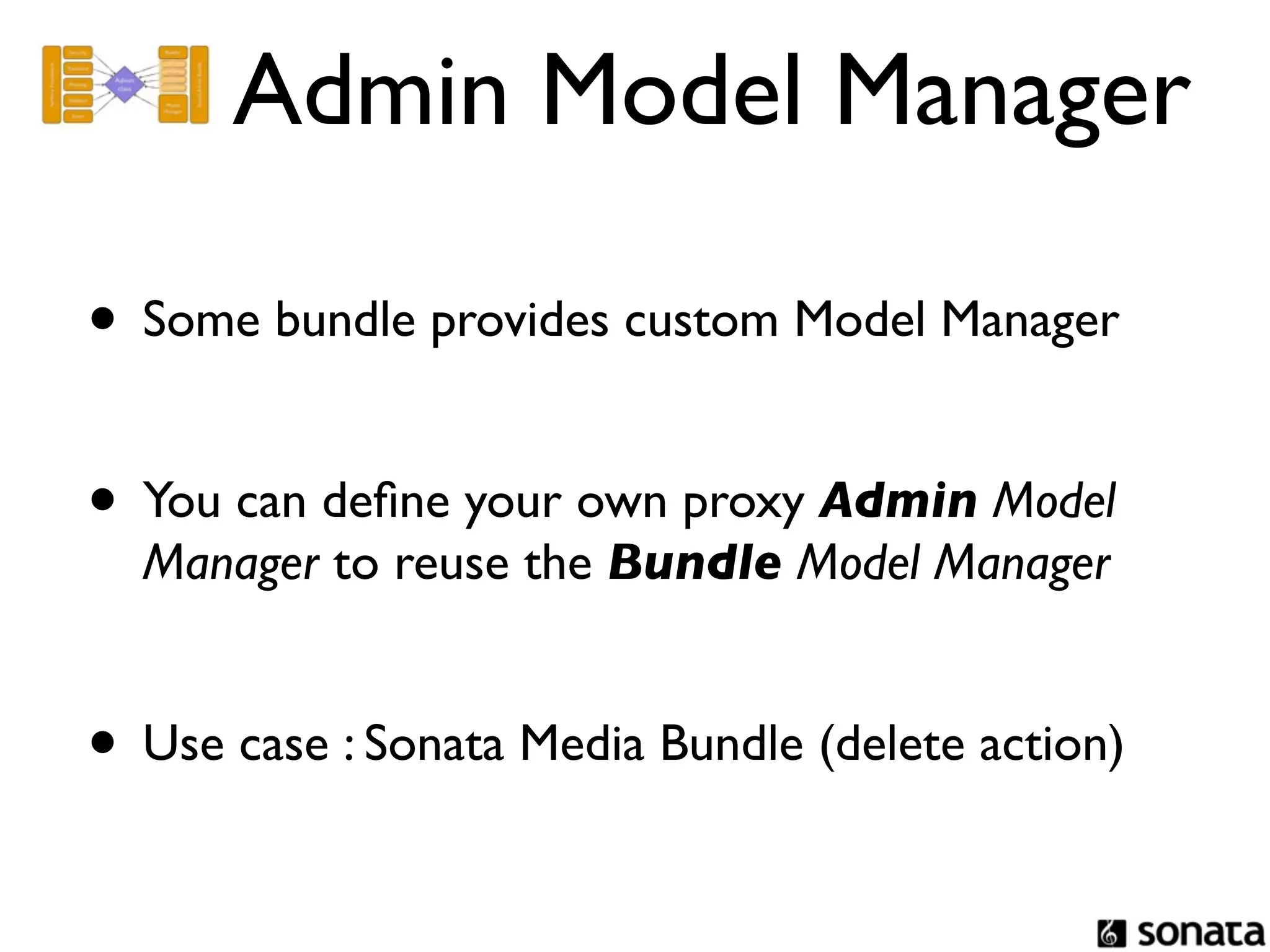

29. Admin Model Manager
• Some bundle provides custom Model Manager
• You can define your own proxy Admin Model
Manager to reuse the Bundle Model Manager
• Use case : Sonata Media Bundle (delete action)

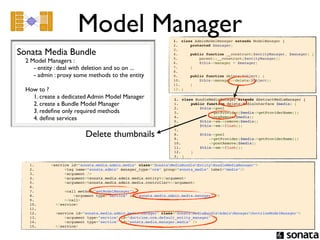

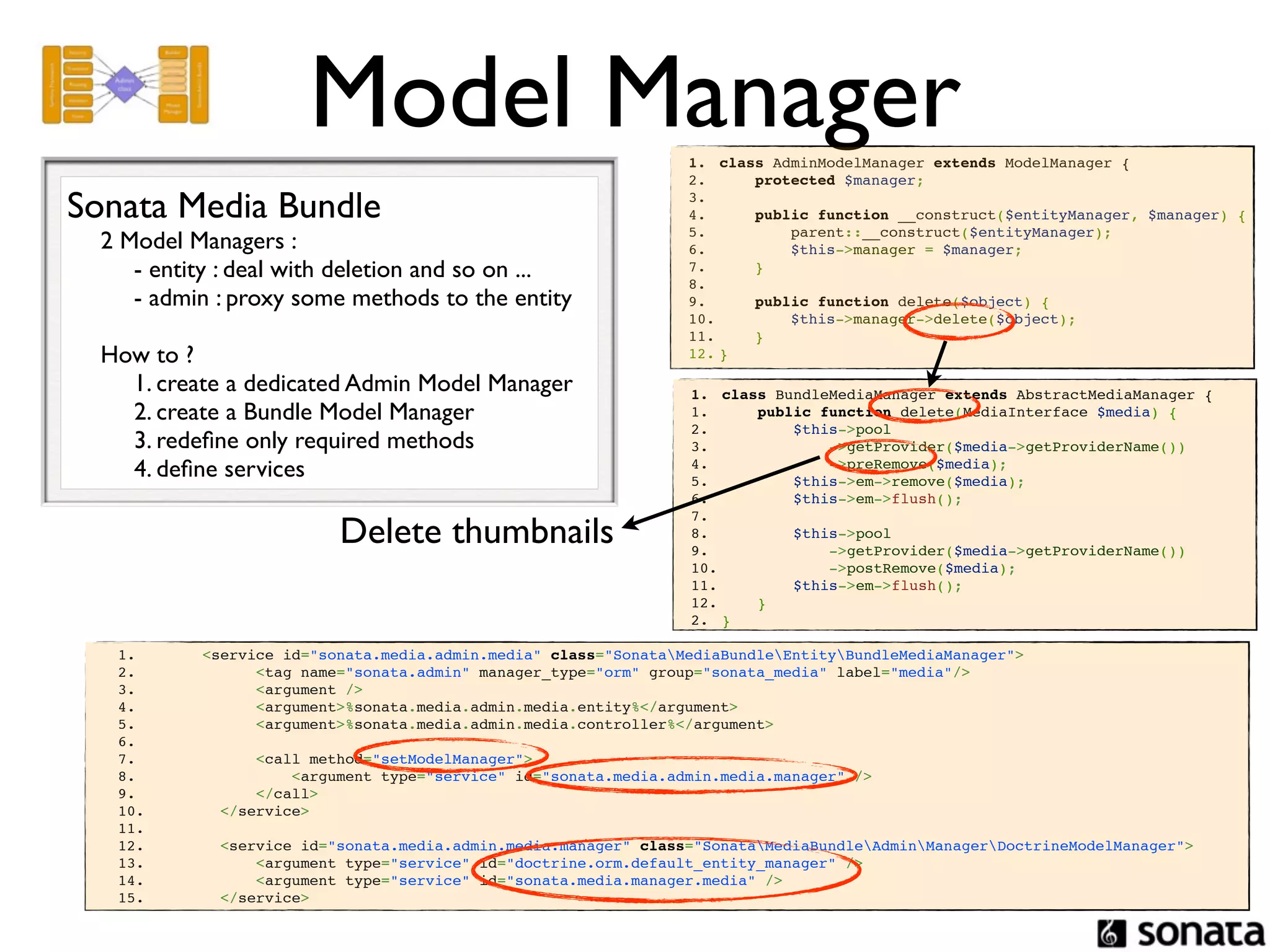

30. Model Manager 1. class AdminModelManager extends ModelManager {
2. protected $manager;
Sonata Media Bundle 3.
4. public function __construct($entityManager, $manager) {
5. parent::__construct($entityManager);
2 Model Managers : 6. $this->manager = $manager;
- entity : deal with deletion and so on ... 7. }
8.
- admin : proxy some methods to the entity 9. public function delete($object) {
10. $this->manager->delete($object);
11. }
How to ? 12. }
1. create a dedicated Admin Model Manager 1. class BundleMediaManager extends AbstractMediaManager {
2. create a Bundle Model Manager 1. public function delete(MediaInterface $media) {
2. $this->pool
3. redefine only required methods 3. ->getProvider($media->getProviderName())
4. define services 4. ->preRemove($media);
5. $this->em->remove($media);
6. $this->em->flush();
Delete thumbnails
7.
8. $this->pool
9. ->getProvider($media->getProviderName())
10. ->postRemove($media);
11. $this->em->flush();
12. }
2. }
1. <service id="sonata.media.admin.media" class="SonataMediaBundleEntityBundleMediaManager">
2. <tag name="sonata.admin" manager_type="orm" group="sonata_media" label="media"/>
3. <argument />
4. <argument>%sonata.media.admin.media.entity%</argument>
5. <argument>%sonata.media.admin.media.controller%</argument>
6.
7. <call method="setModelManager">
8. <argument type="service" id="sonata.media.admin.media.manager" />
9. </call>
10. </service>
11.
12. <service id="sonata.media.admin.media.manager" class="SonataMediaBundleAdminManagerDoctrineModelManager">
13. <argument type="service" id="doctrine.orm.default_entity_manager" />
14. <argument type="service" id="sonata.media.manager.media" />
15. </service>

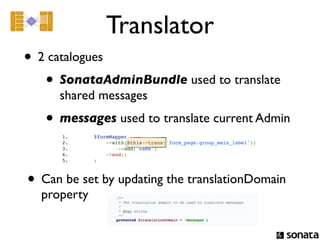

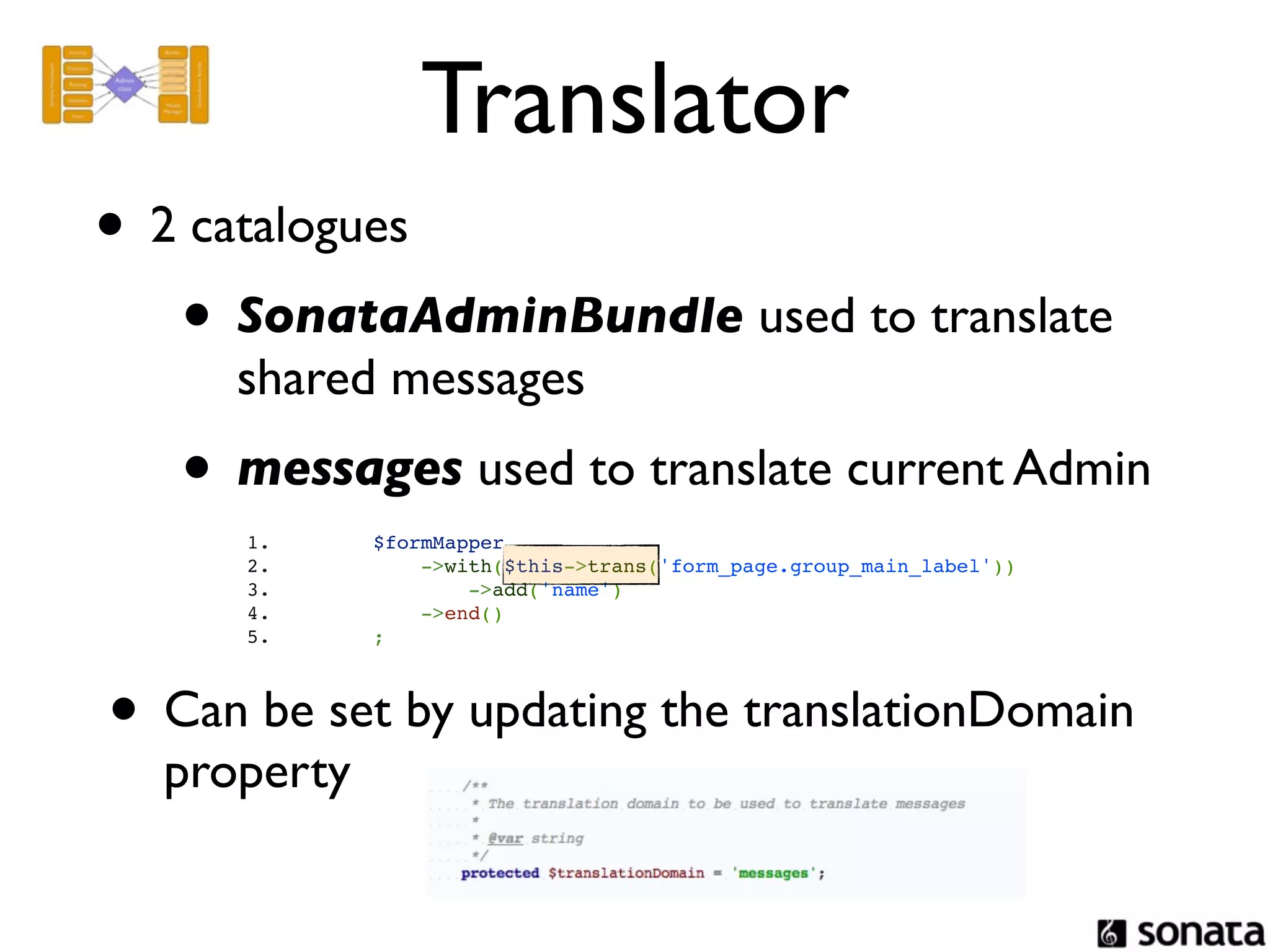

31. Translator
• 2 catalogues
• SonataAdminBundle used to translate
shared messages
• messages used to translate current Admin
1. $formMapper
2. ->with($this->trans('form_page.group_main_label'))
3. ->add('name')
4. ->end()
5. ;
• Can be set by updating the translationDomain
property

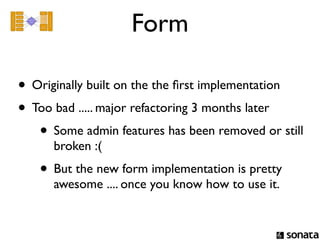

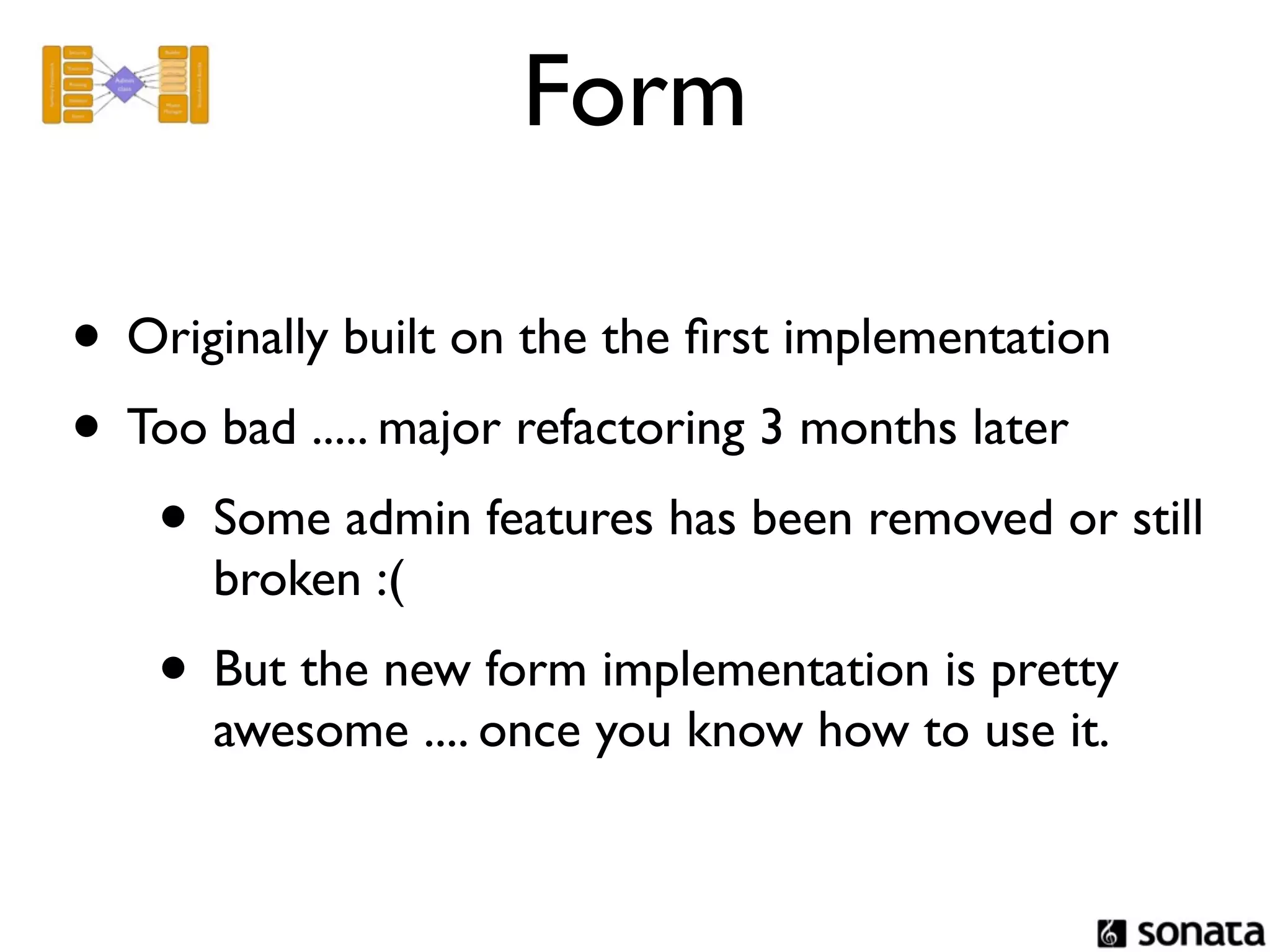

32. Form
• Originally built on the the first implementation
• Too bad ..... major refactoring 3 months later
• Some admin features has been removed or still
broken :(
• But the new form implementation is pretty
awesome .... once you know how to use it.

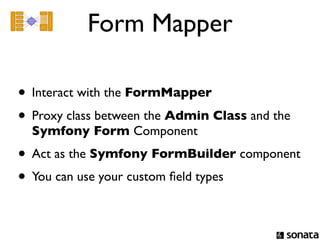

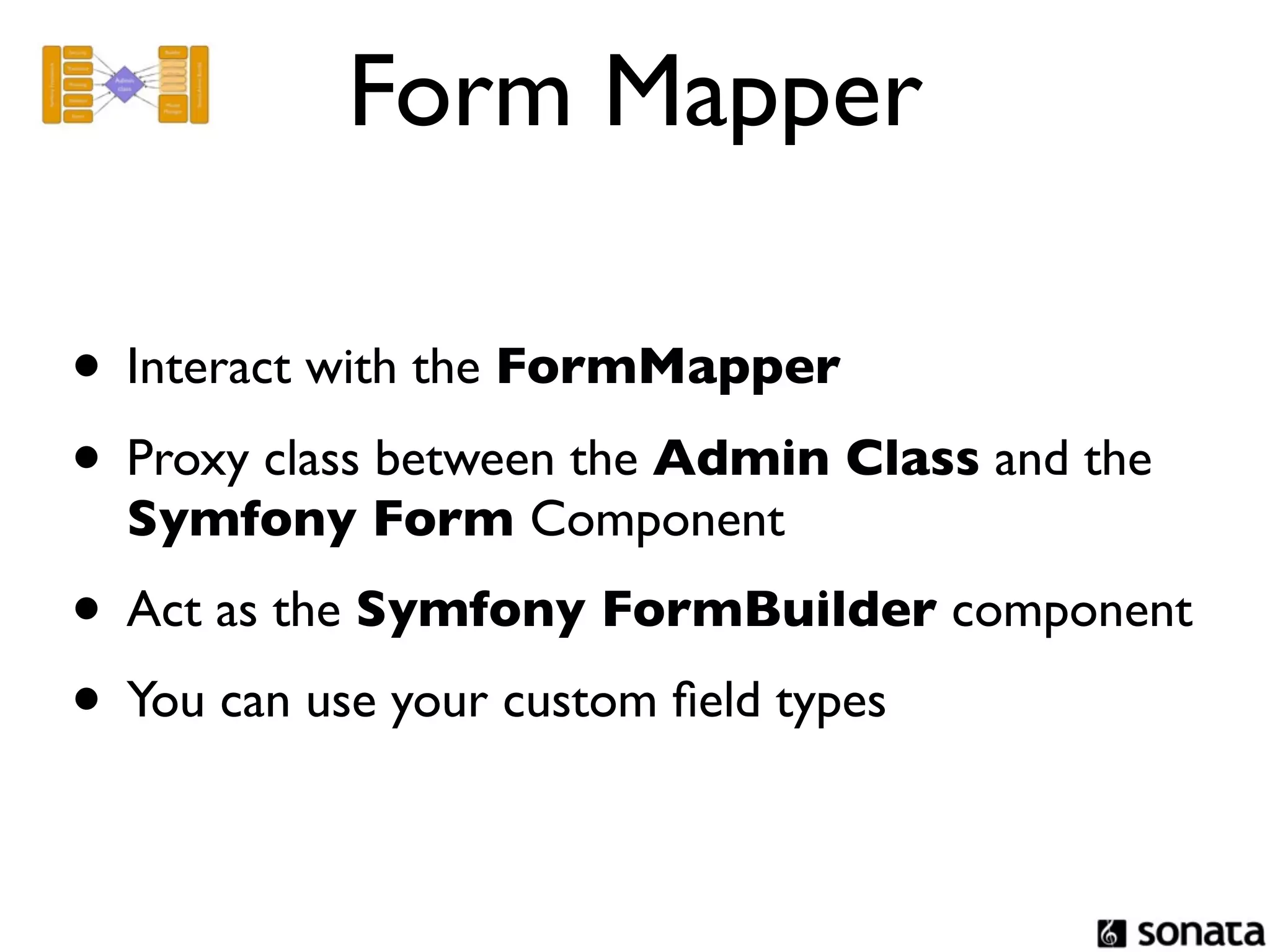

33. Form Mapper
• Interact with the FormMapper
• Proxy class between the Admin Class and the
Symfony Form Component
• Act as the Symfony FormBuilder component
• You can use your custom field types

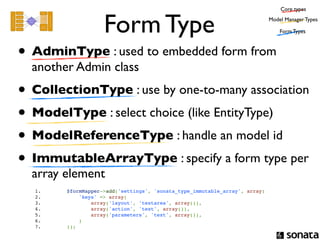

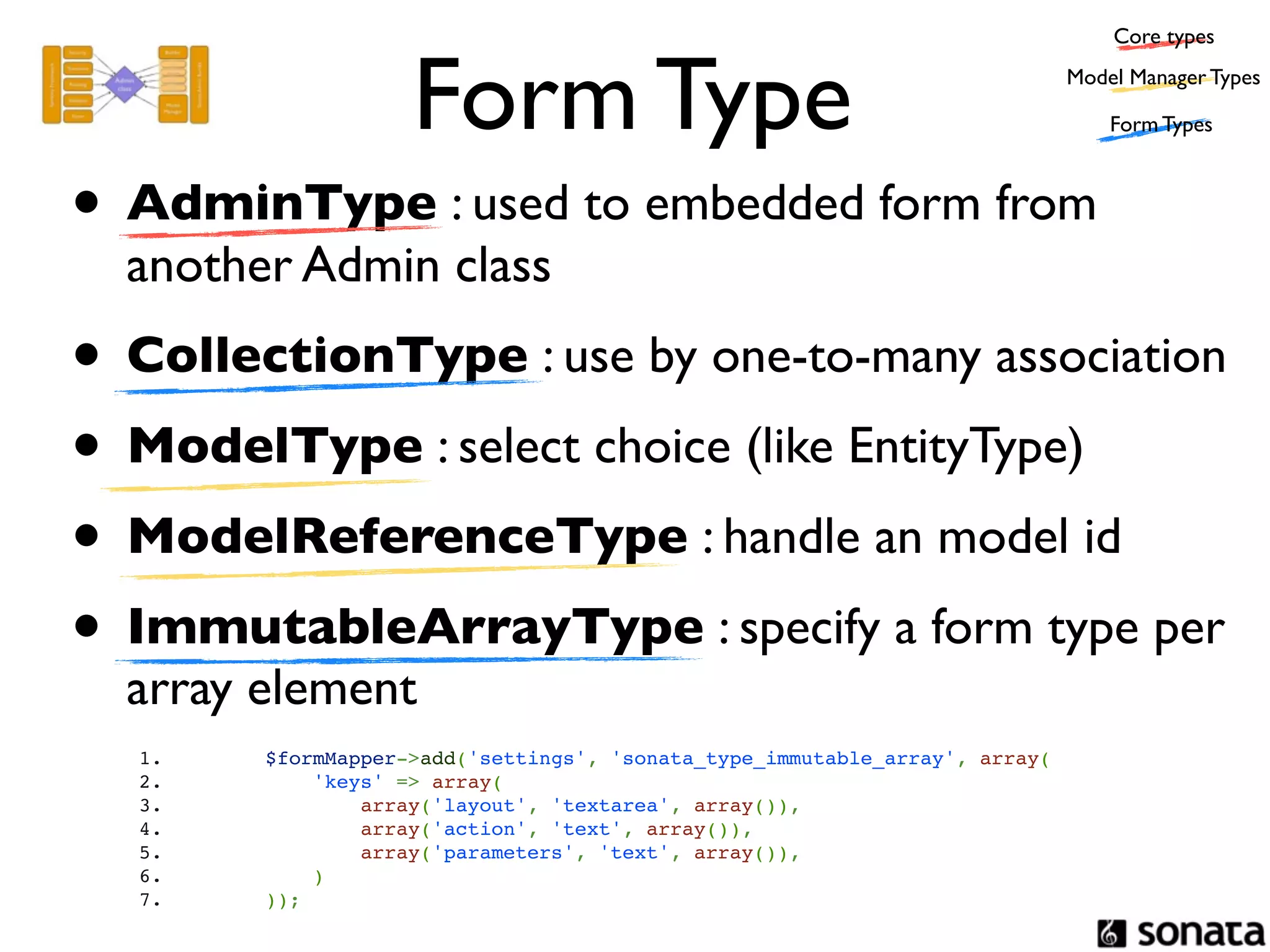

34. Core types
Form Type Model Manager Types
Form Types
• AdminType : used to embedded form from
another Admin class
• CollectionType : use by one-to-many association
• ModelType : select choice (like EntityType)
• ModelReferenceType : handle an model id
• ImmutableArrayType : specify a form type per
array element
1. $formMapper->add('settings', 'sonata_type_immutable_array', array(
2. 'keys' => array(
3. array('layout', 'textarea', array()),
4. array('action', 'text', array()),
5. array('parameters', 'text', array()),
6. )
7. ));

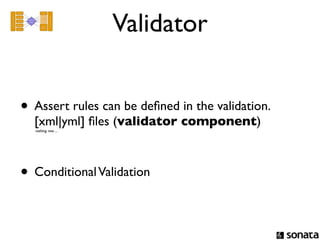

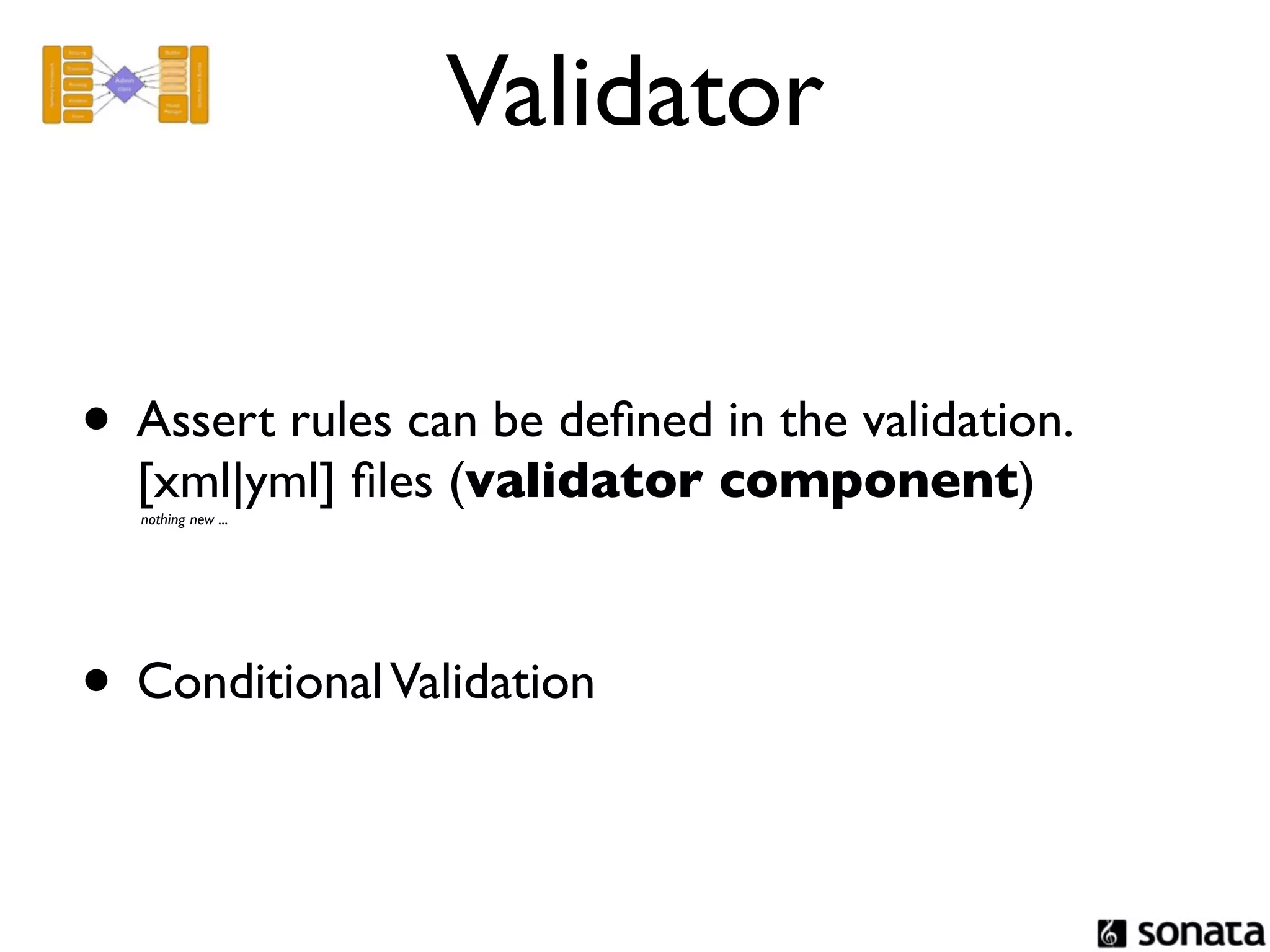

35. Validator
• Assert rules can be defined in the validation.
[xml|yml] files (validator component)
nothing new ...
• Conditional Validation

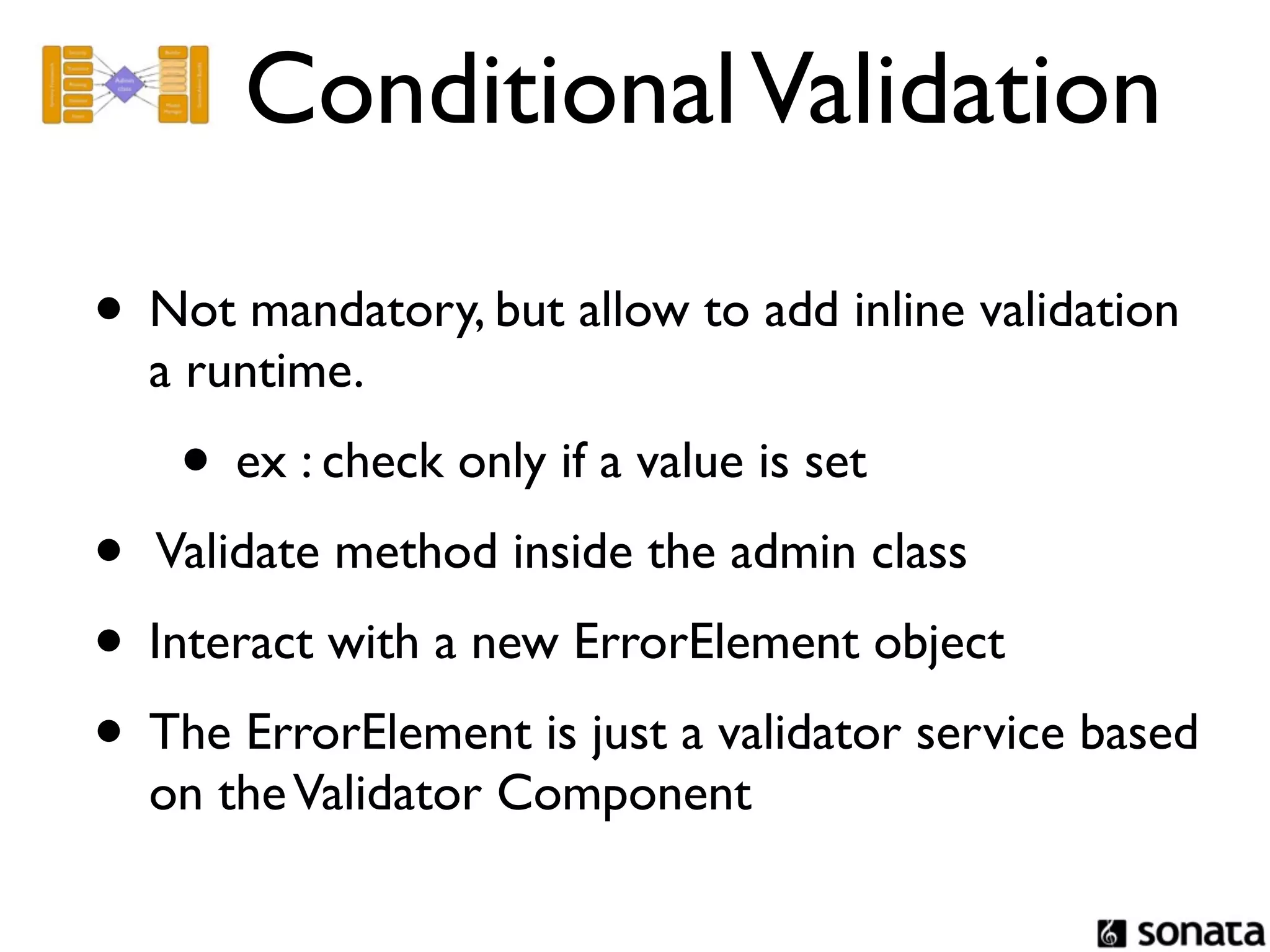

36. Conditional Validation
• Not mandatory, but allow to add inline validation
a runtime.
• ex : check only if a value is set
• Validate method inside the admin class
• Interact with a new ErrorElement object
• The ErrorElement is just a validator service based
on the Validator Component

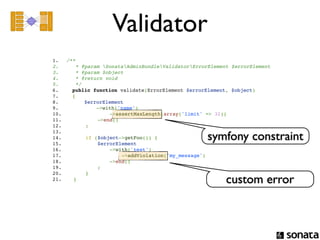

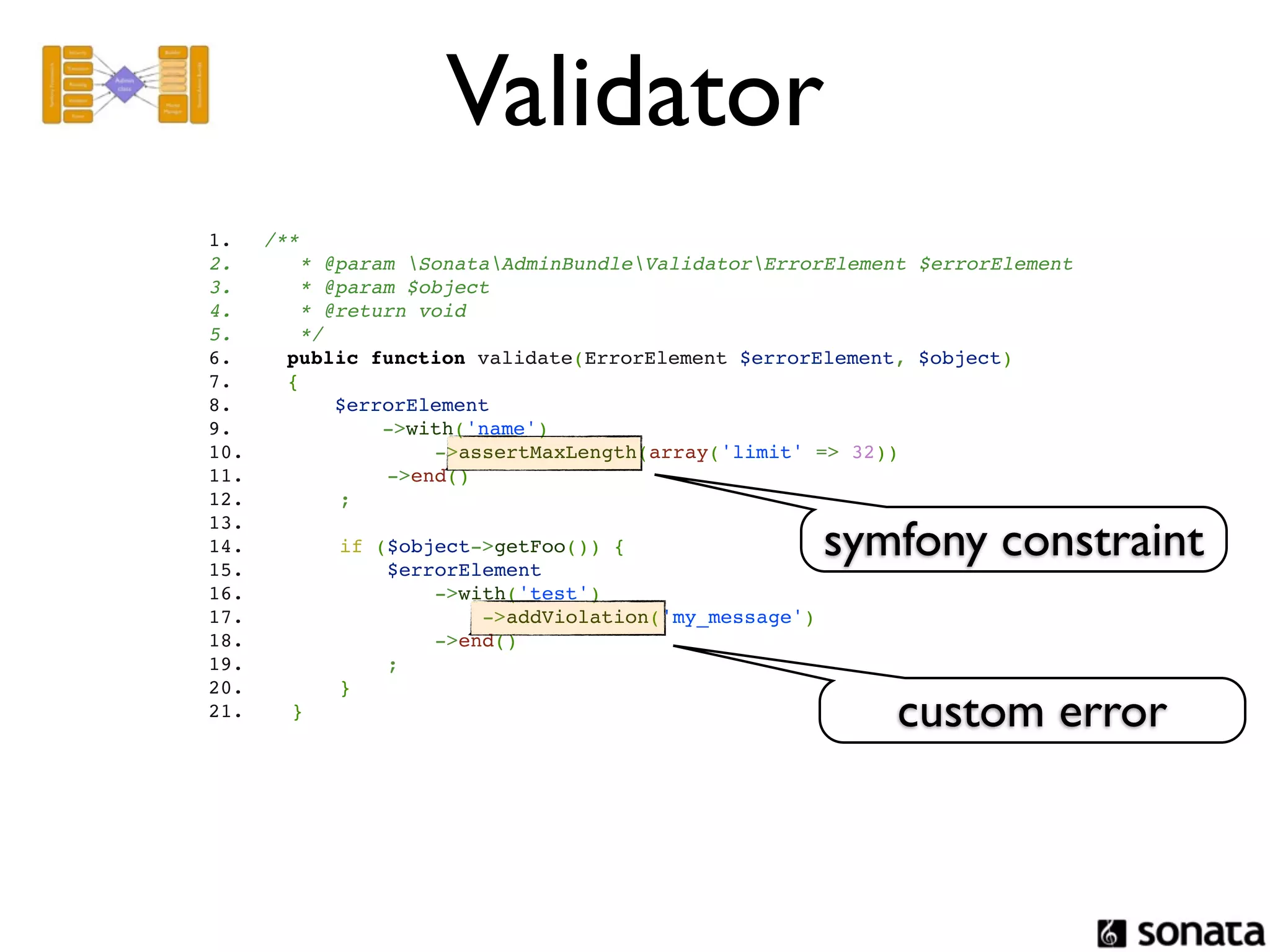

37. Validator
1. /**
2. * @param SonataAdminBundleValidatorErrorElement $errorElement
3. * @param $object
4. * @return void
5. */
6. public function validate(ErrorElement $errorElement, $object)
7. {
8. $errorElement
9. ->with('name')
10. ->assertMaxLength(array('limit' => 32))
11. ->end()
12. ;
symfony constraint
13.
14. if ($object->getFoo()) {
15. $errorElement
16. ->with('test')
17. ->addViolation('my_message')
18. ->end()
19. ;
20. }
21. } custom error

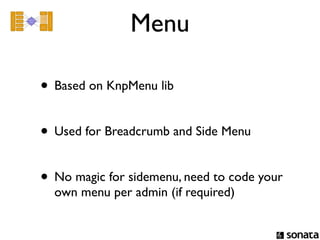

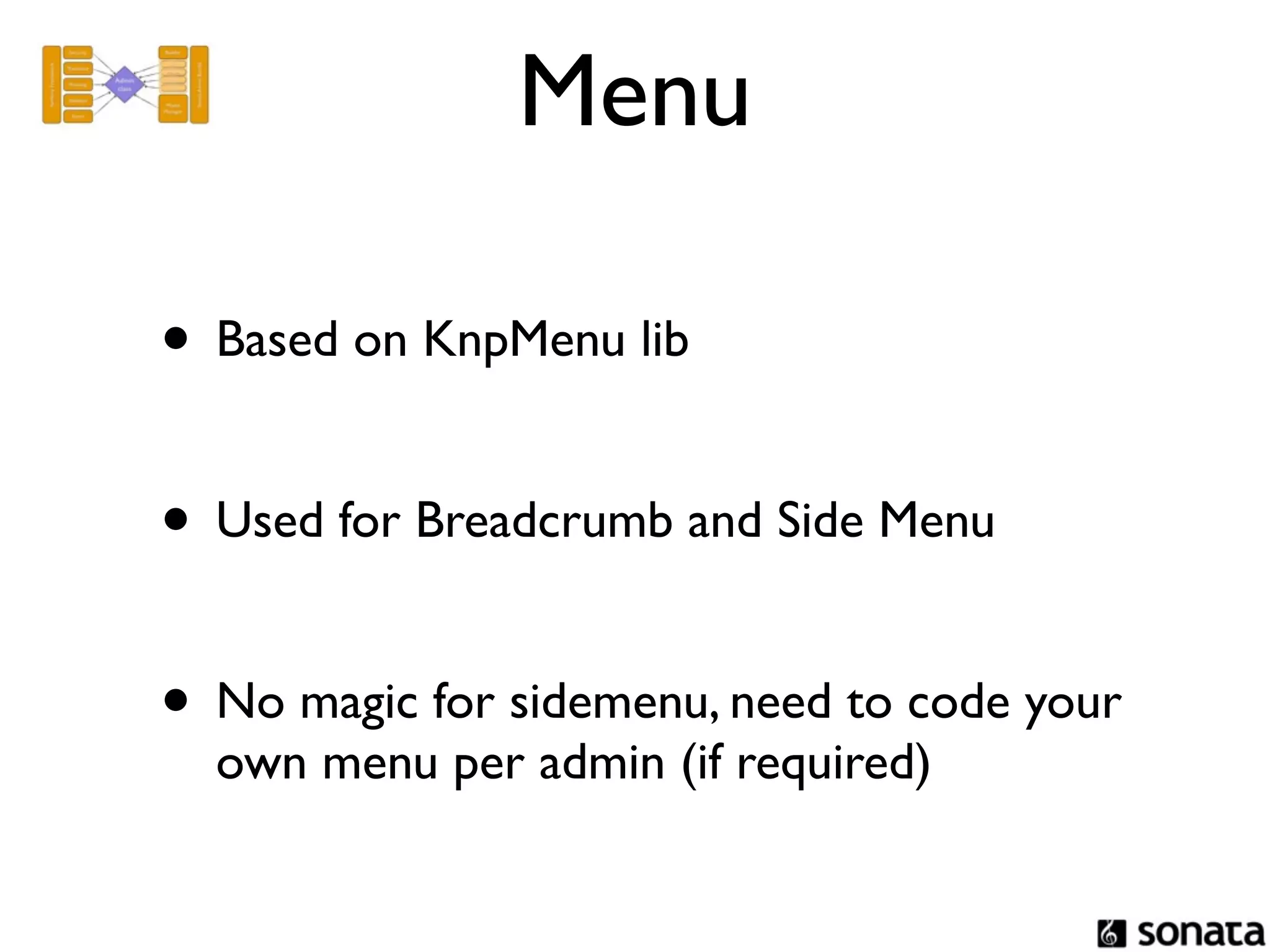

38. Menu
• Based on KnpMenu lib
• Used for Breadcrumb and Side Menu
• No magic for sidemenu, need to code your
own menu per admin (if required)

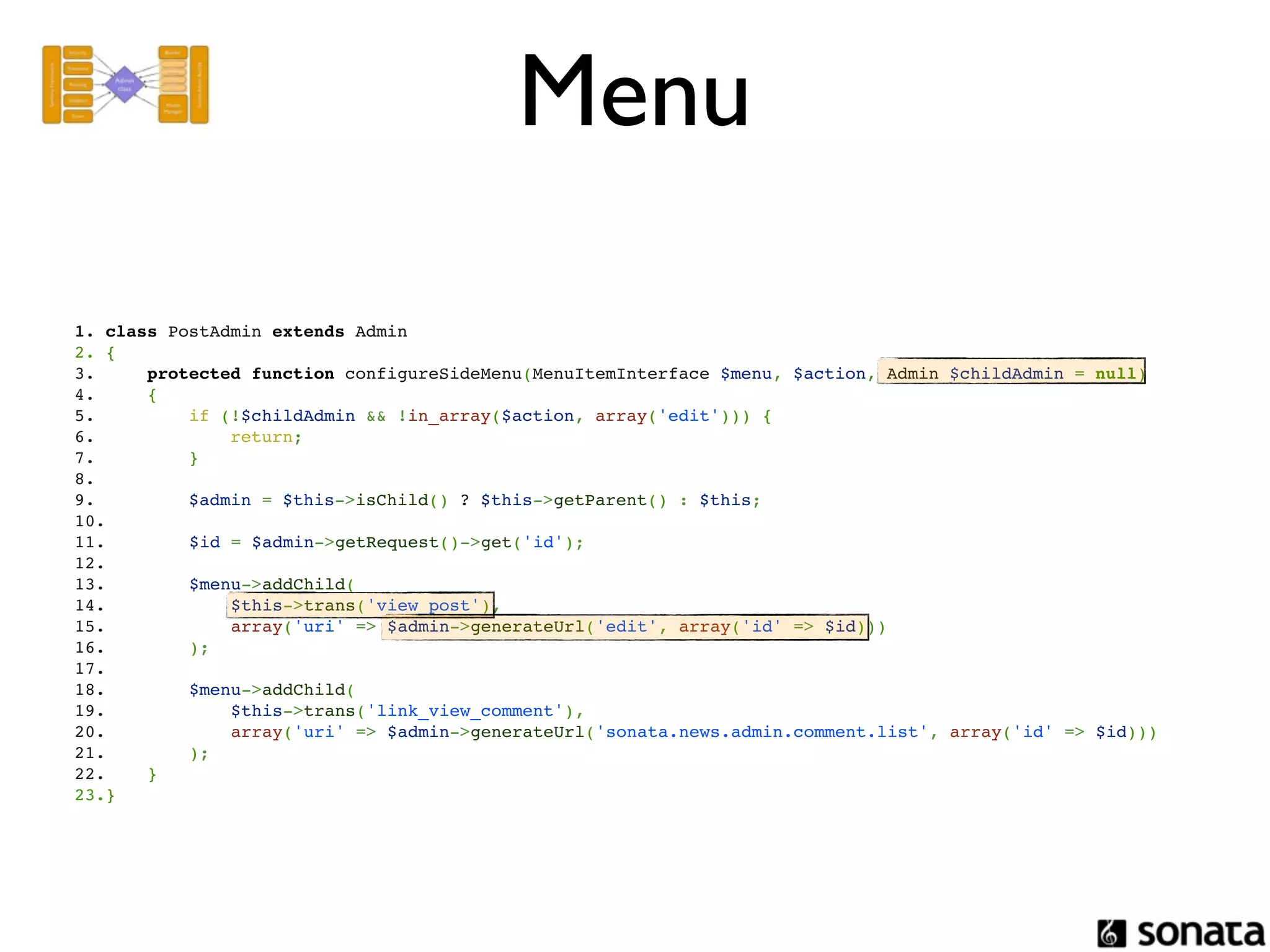

39. Menu
1. class PostAdmin extends Admin
2. {
3. protected function configureSideMenu(MenuItemInterface $menu, $action, Admin $childAdmin = null)
4. {
5. if (!$childAdmin && !in_array($action, array('edit'))) {
6. return;
7. }
8.
9. $admin = $this->isChild() ? $this->getParent() : $this;
10.
11. $id = $admin->getRequest()->get('id');
12.
13. $menu->addChild(
14. $this->trans('view_post'),
15. array('uri' => $admin->generateUrl('edit', array('id' => $id)))
16. );
17.
18. $menu->addChild(
19. $this->trans('link_view_comment'),
20. array('uri' => $admin->generateUrl('sonata.news.admin.comment.list', array('id' => $id)))
21. );
22. }
23.}

40. customize
http://www.flickr.com/photos/7552532@N07/449769140/

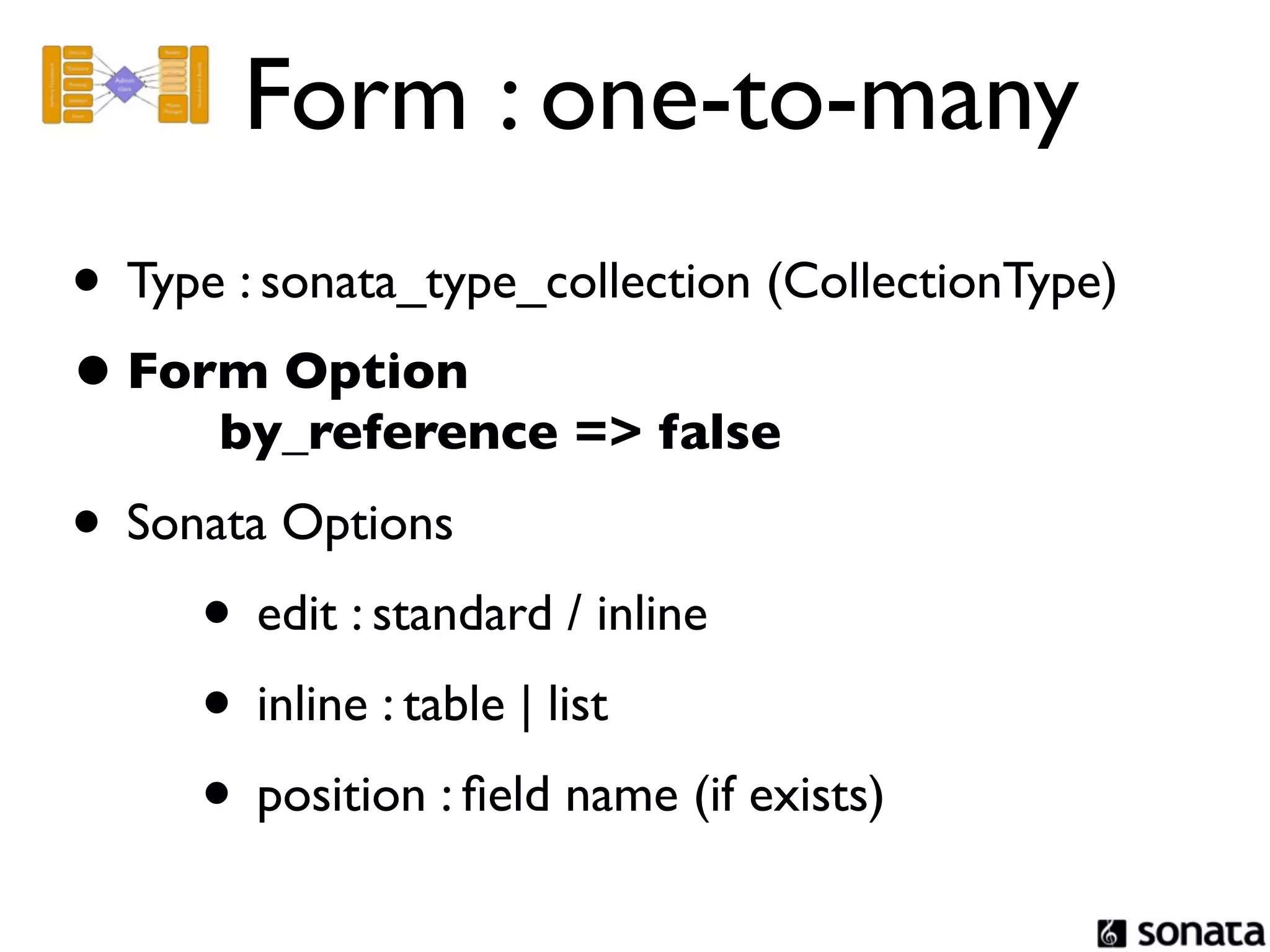

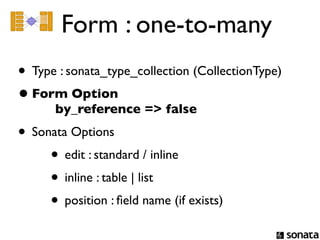

41. Form : one-to-many
• Type : sonata_type_collection (CollectionType)
• Form Option
by_reference => false
• Sonata Options
• edit : standard / inline
• inline : table | list
• position : field name (if exists)

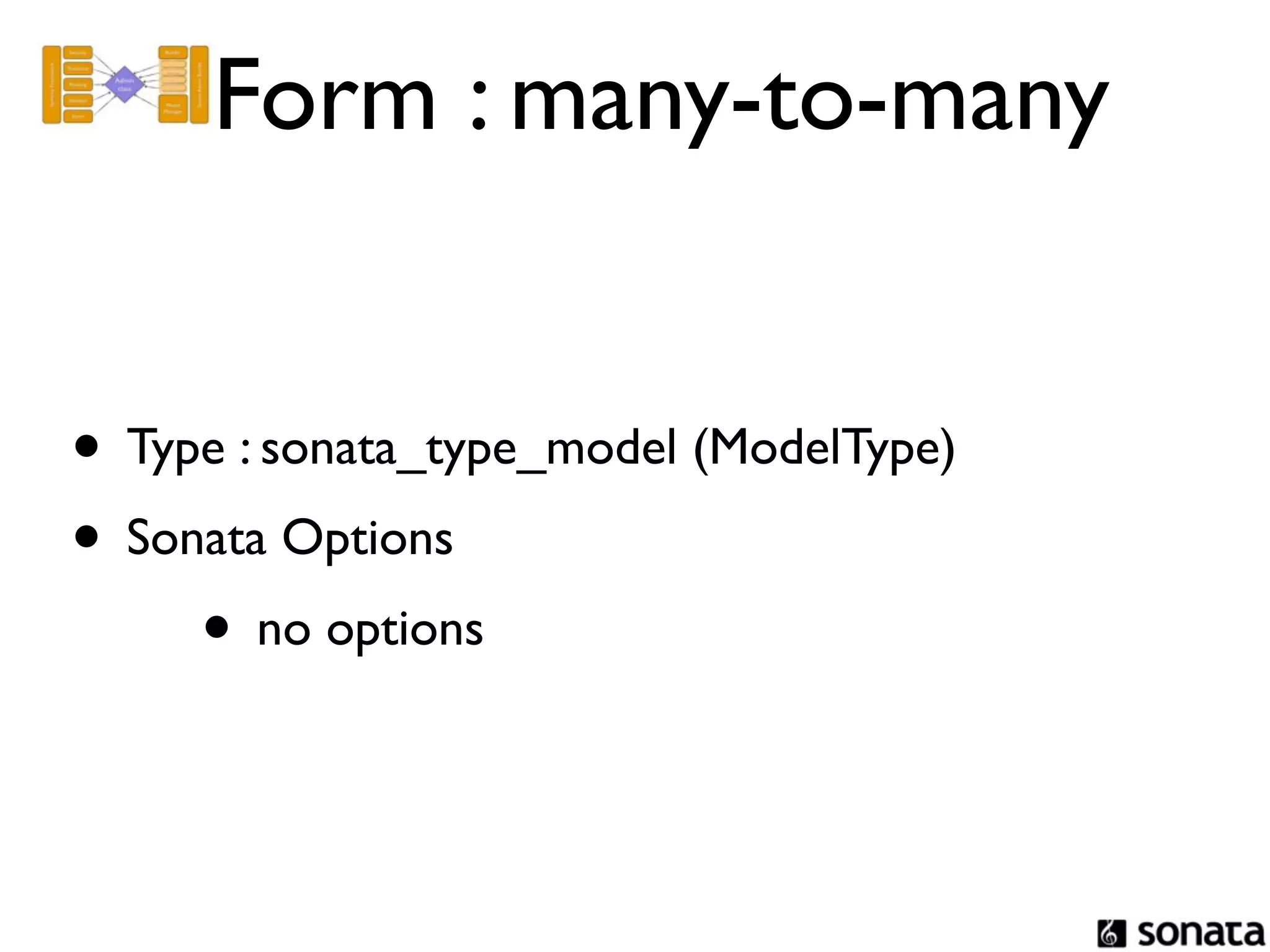

42. Form : many-to-many
• Type : sonata_type_model (ModelType)
• Sonata Options
• no options

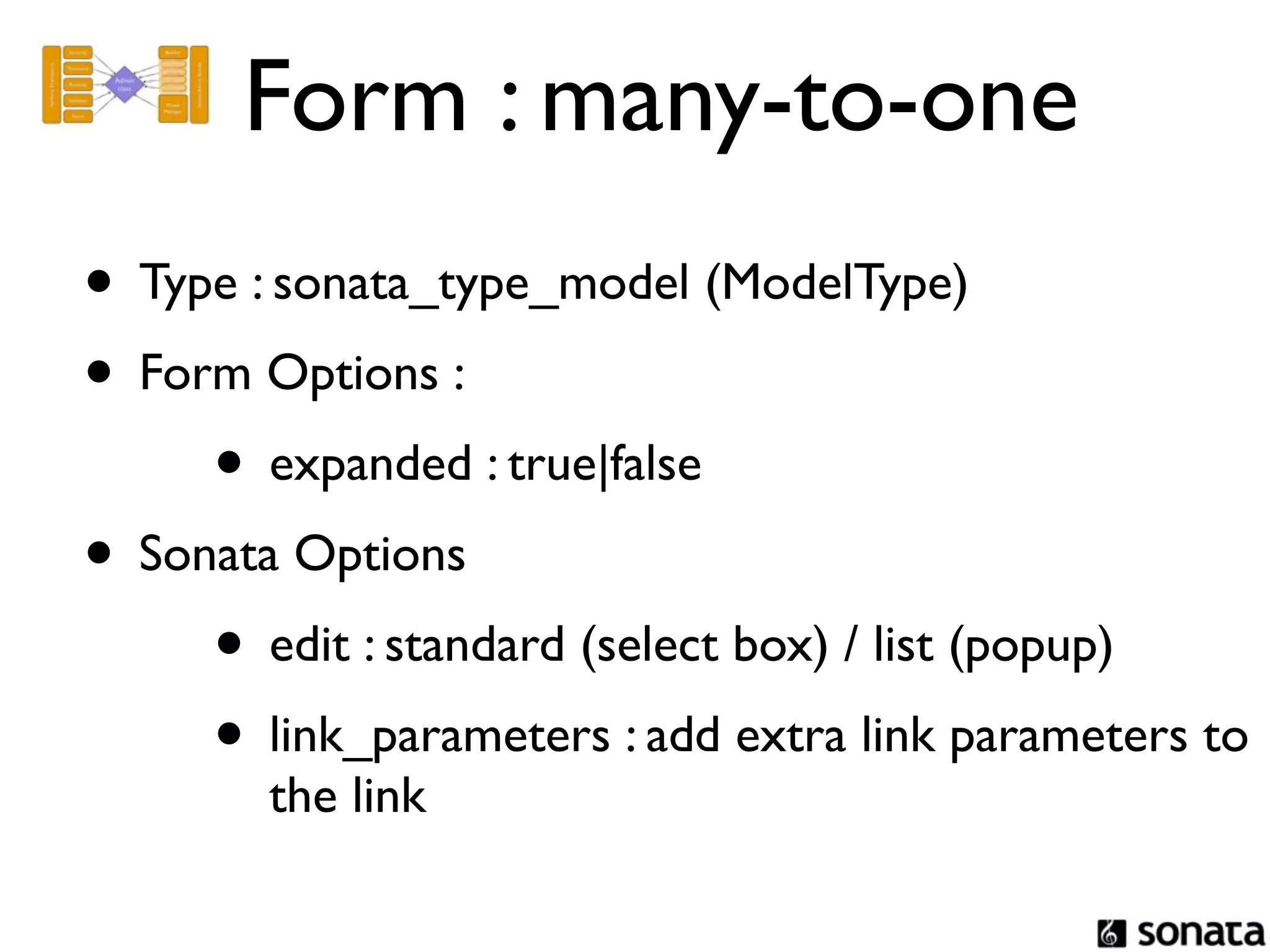

43. Form : many-to-one
• Type : sonata_type_model (ModelType)
• Form Options :
• expanded : true|false
• Sonata Options
• edit : standard (select box) / list (popup)
• link_parameters : add extra link parameters to
the link

44. Form : many-to-one
• Type : sonata_type_admin (AdminType)
• Embed an admin form for an entity into the current
admin
• Sonata Options
• no option!

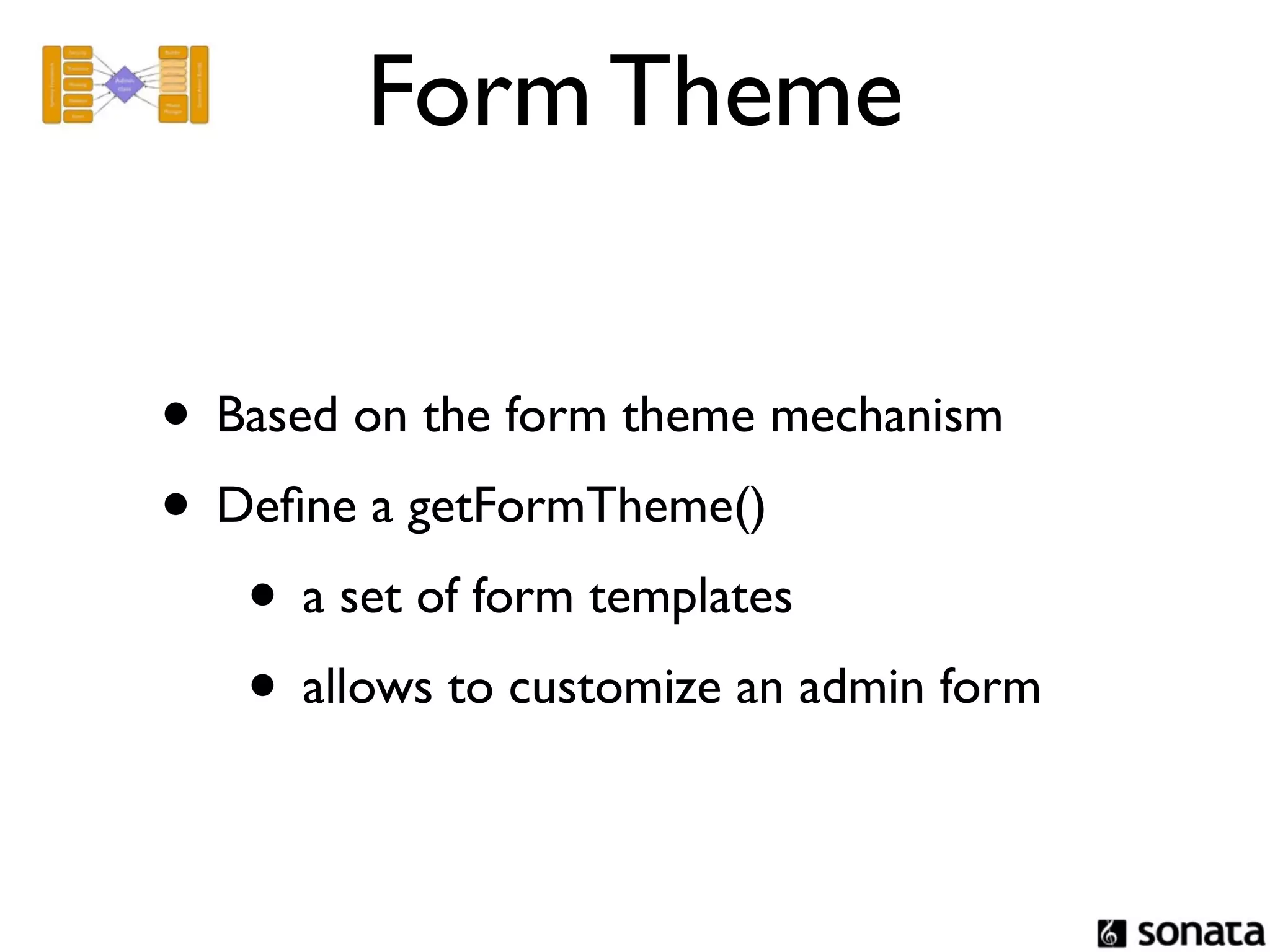

45. Form Theme
• Based on the form theme mechanism
• Define a getFormTheme()
• a set of form templates
• allows to customize an admin form

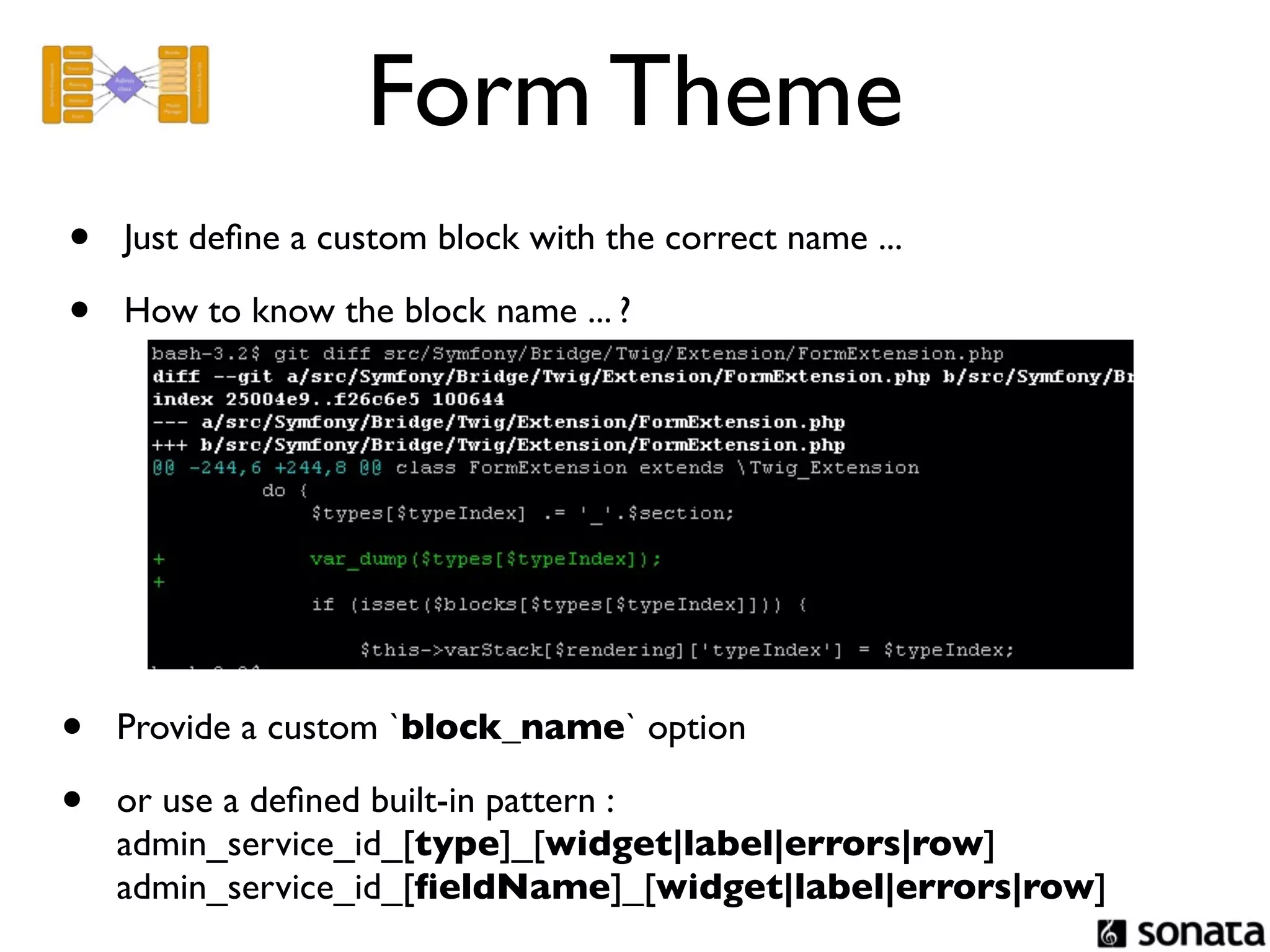

46. Form Theme
• Just define a custom block with the correct name ...
• How to know the block name ... ?
• Provide a custom `block_name` option
• or use a defined built-in pattern :
admin_service_id_[type]_[widget|label|errors|row]
admin_service_id_[fieldName]_[widget|label|errors|row]

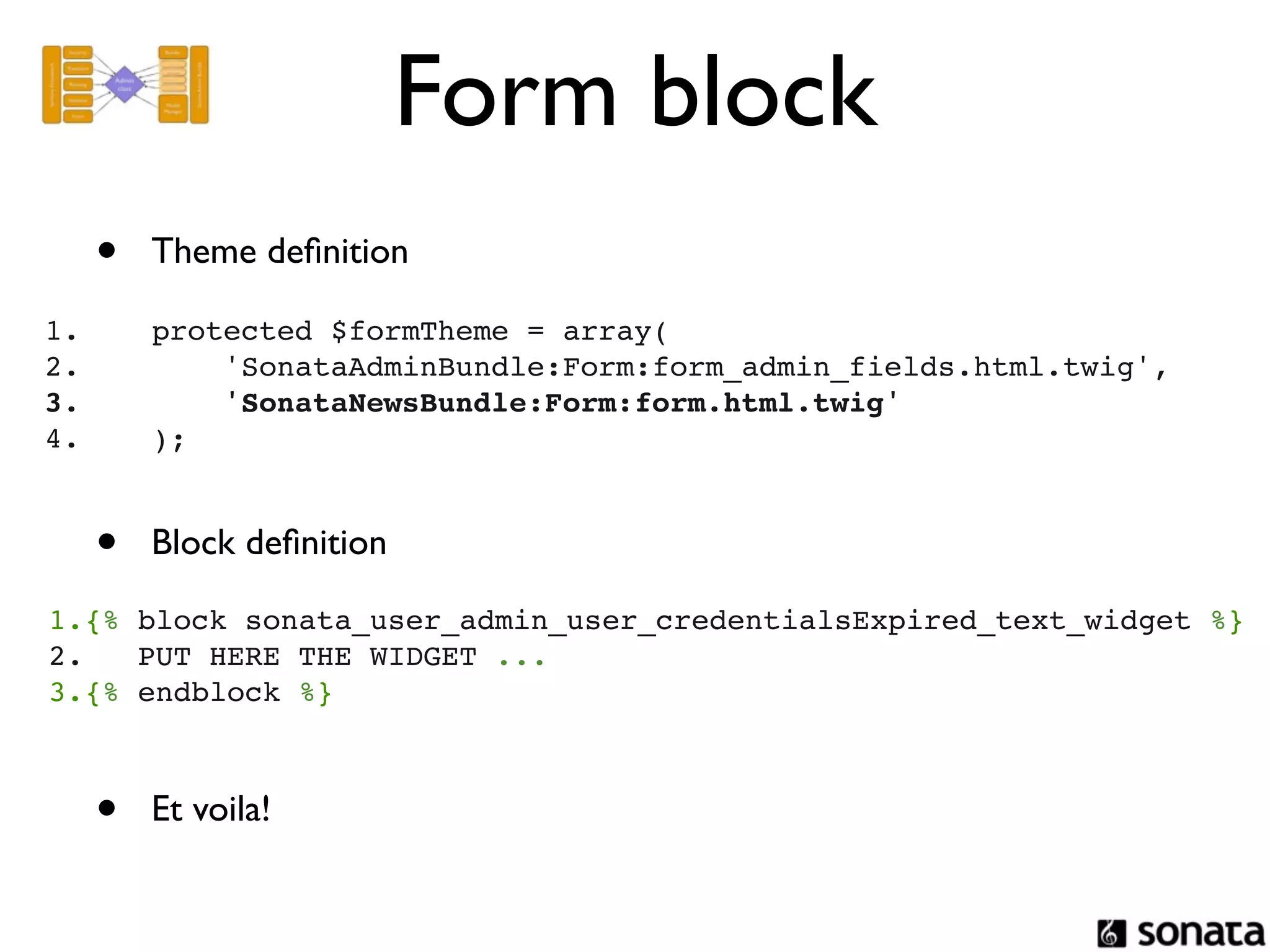

47. Form block
• Theme definition
1. protected $formTheme = array(
2. 'SonataAdminBundle:Form:form_admin_fields.html.twig',
3. 'SonataNewsBundle:Form:form.html.twig'
4. );
• Block definition
1.{% block sonata_user_admin_user_credentialsExpired_text_widget %}
2. PUT HERE THE WIDGET ...
3.{% endblock %}
• Et voila!

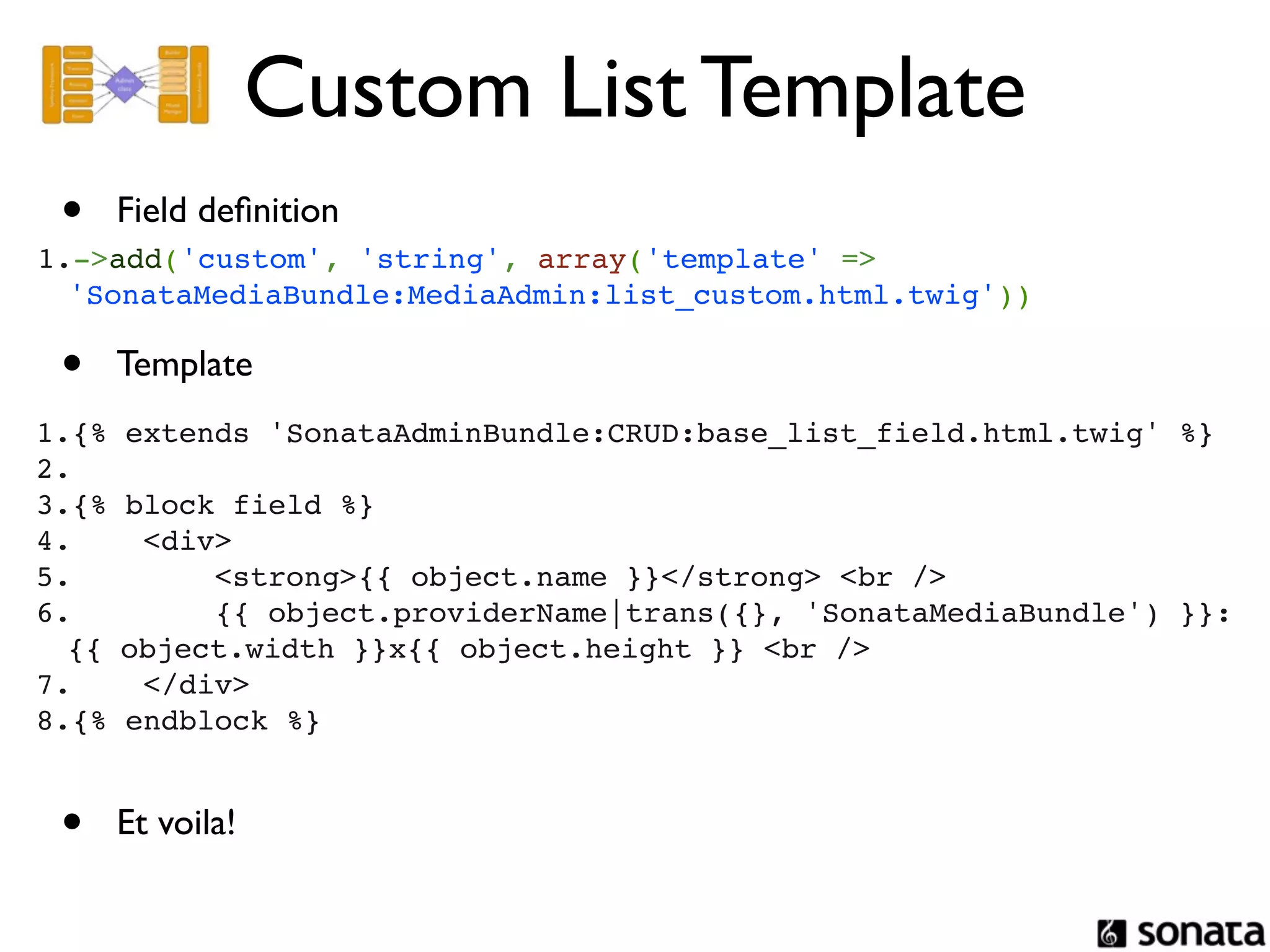

48. Custom List Template
• Field definition
1.->add('custom', 'string', array('template' =>
'SonataMediaBundle:MediaAdmin:list_custom.html.twig'))
• Template
1.{% extends 'SonataAdminBundle:CRUD:base_list_field.html.twig' %}
2.
3.{% block field %}
4. <div>
5. <strong>{{ object.name }}</strong> <br />
6. {{ object.providerName|trans({}, 'SonataMediaBundle') }}:
{{ object.width }}x{{ object.height }} <br />
7. </div>
8.{% endblock %}
• Et voila!

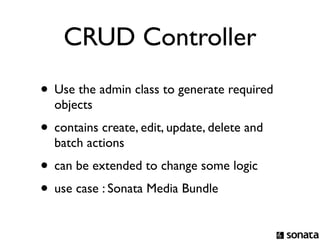

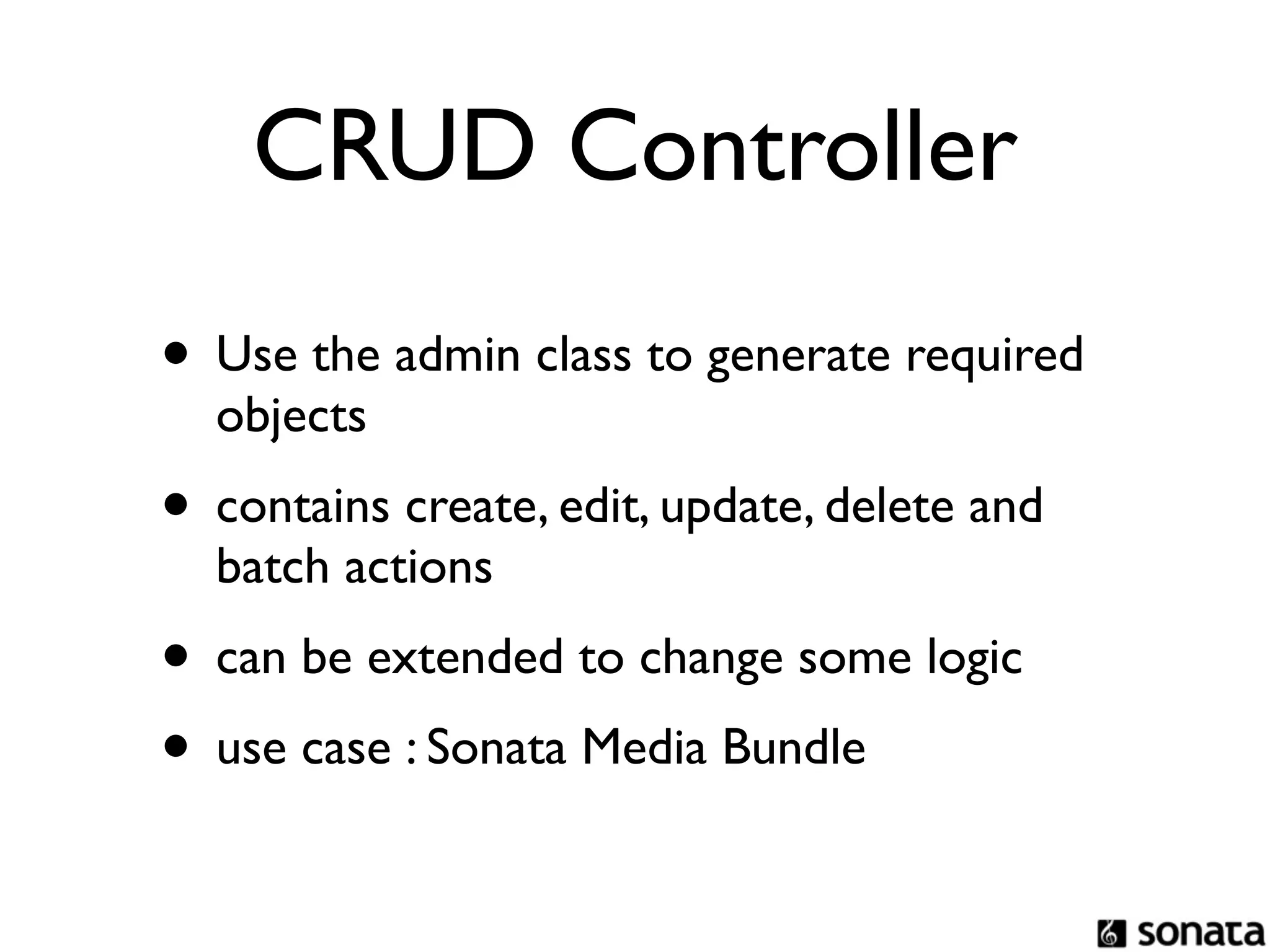

49. CRUD Controller
• Use the admin class to generate required
objects
• contains create, edit, update, delete and
batch actions
• can be extended to change some logic
• use case : Sonata Media Bundle

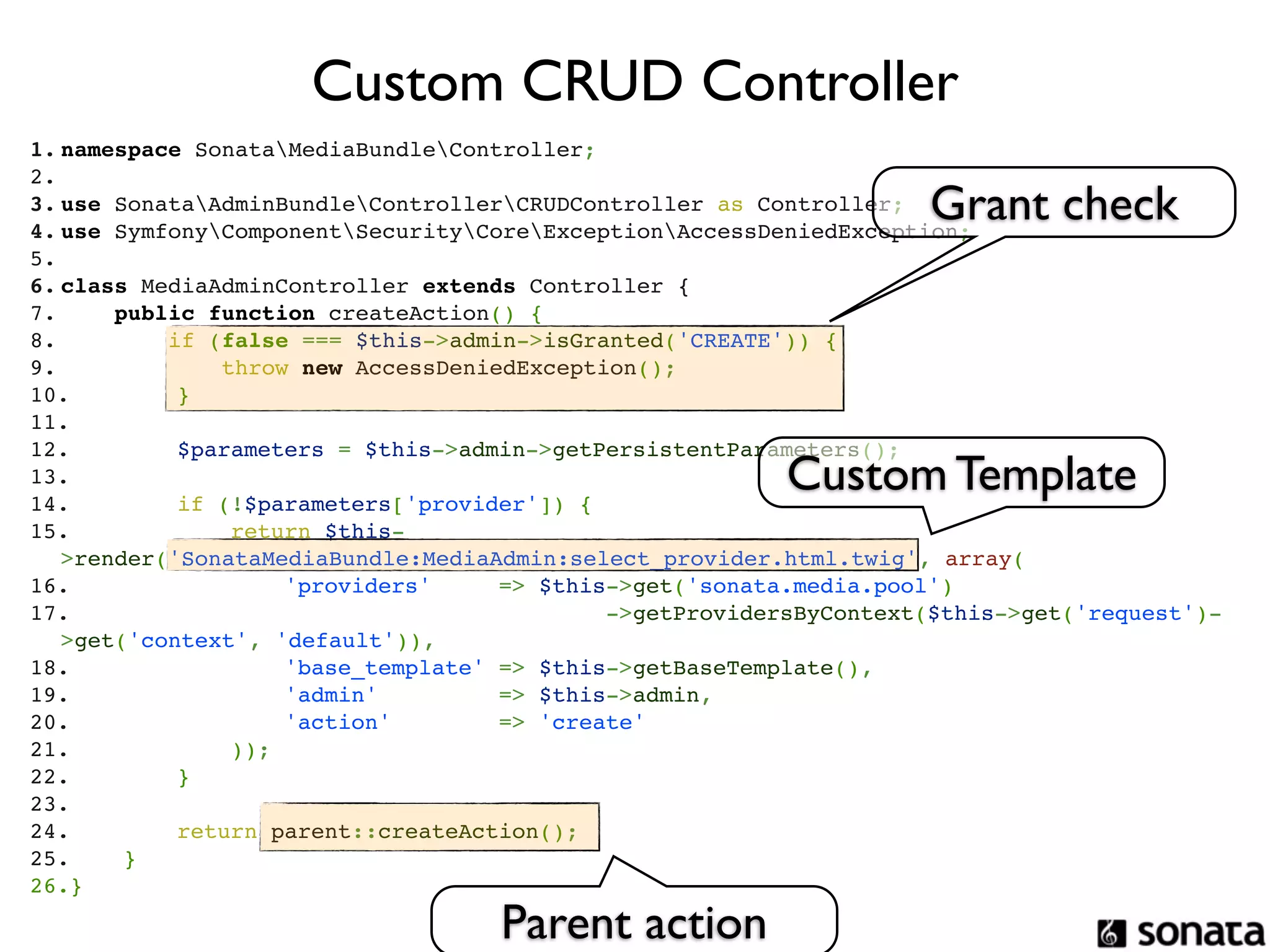

50. Custom CRUD Controller
1. namespace SonataMediaBundleController;
2.
3. use SonataAdminBundleControllerCRUDController as Controller; Grant check
4. use SymfonyComponentSecurityCoreExceptionAccessDeniedException;
5.
6. class MediaAdminController extends Controller {
7. public function createAction() {
8. if (false === $this->admin->isGranted('CREATE')) {
9. throw new AccessDeniedException();
10. }
11.
12. $parameters = $this->admin->getPersistentParameters();
13.
14. if (!$parameters['provider']) {
Custom Template
15. return $this-
>render('SonataMediaBundle:MediaAdmin:select_provider.html.twig', array(
16. 'providers' => $this->get('sonata.media.pool')
17. ->getProvidersByContext($this->get('request')-
>get('context', 'default')),
18. 'base_template' => $this->getBaseTemplate(),
19. 'admin' => $this->admin,
20. 'action' => 'create'
21. ));
22. }
23.
24. return parent::createAction();
25. }
26.}
Parent action

51. Nested Admin
• clean url : /admin/sonata/news/post/1/comment/list
• reuse other admin definition
• autofilter with the targeted elements
• only work on one level
• You don’t need to know routing name, as long as
you use the admin class

52. Nested Admin
1. class CommentAdmin extends Admin
2. {
3. protected $parentAssociationMapping = 'post';
4.
5. protected function configureFormFields(FormMapper $formMapper)
6. {
7. if(!$this->isChild()) {
8. $formMapper->add('post', 'sonata_type_model', array(), array('edit' => 'list'));
9. }
10.
11. $formMapper
12. ->add('name')
13. ->add('email')
14. ->add('url', null, array('required' => false))
15. ->add('message')
16. ->add('status', 'choice', array('choices' => Comment::getStatusList(), 'expanded' => true, 'multiple' => false))
17. ;
18. } Display custom
field if the
19.
20. protected function configureListFields(ListMapper $listMapper)
21. {
22. $listMapper
23. ->addIdentifier('name') current admin is
nested or not
24. ->add('getStatusCode', 'text', array('label' => 'status_code', 'sortable' => 'status'))
25. ;
26.
27. if (!$this->isChild()) {
28. $listMapper->add('post');
29. }
30.
31. $listMapper
32. ->add('email')
33. ->add('url')
34. ->add('message');
35. }
36. }

53. Nested Admin
Comment Admin Nested Comment Admin

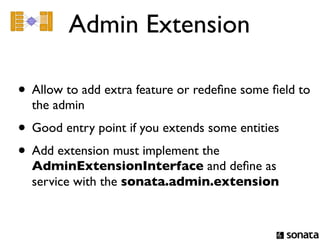

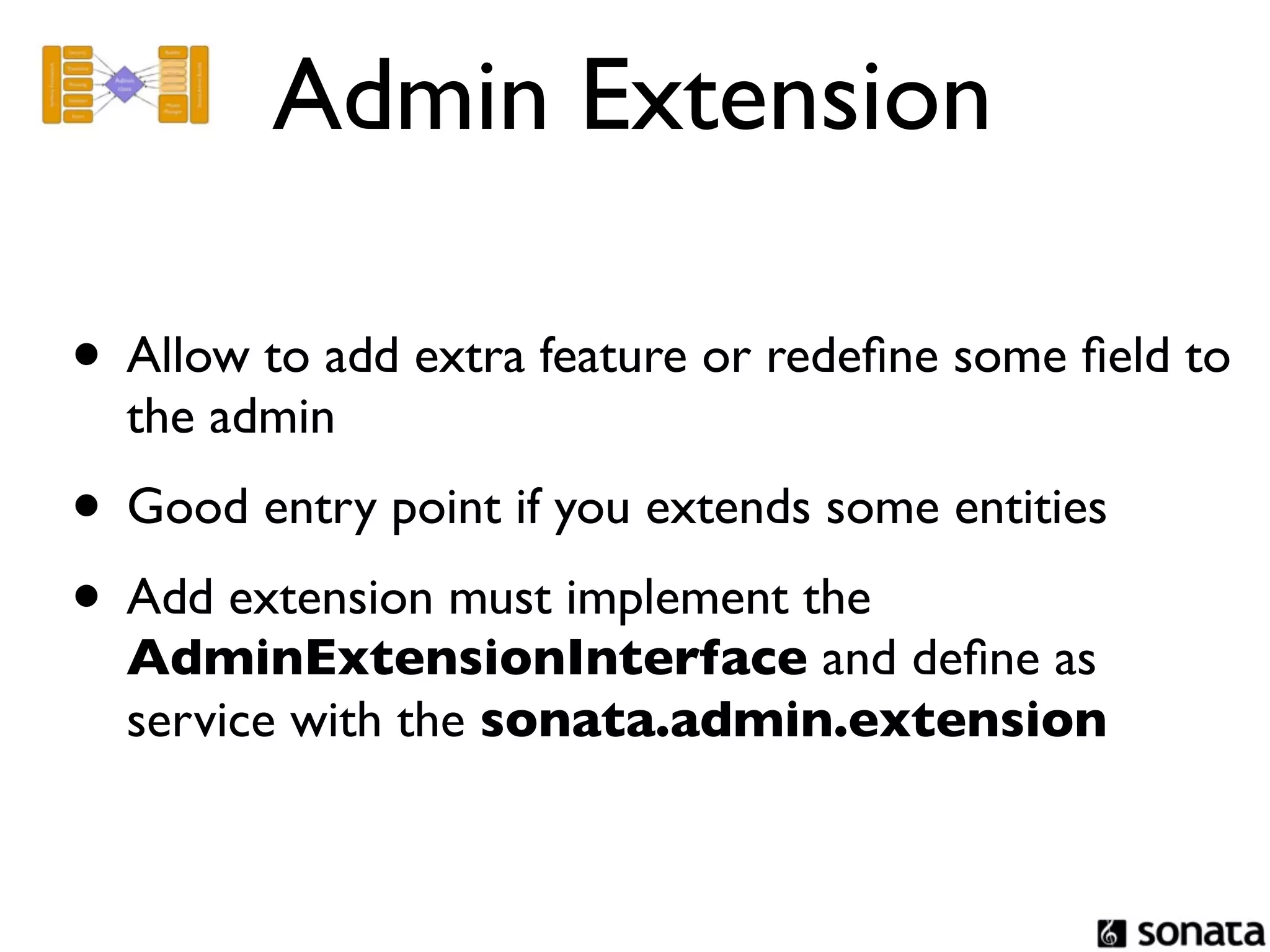

54. Admin Extension
• Allow to add extra feature or redefine some field to
the admin
• Good entry point if you extends some entities
• Add extension must implement the
AdminExtensionInterface and define as
service with the sonata.admin.extension

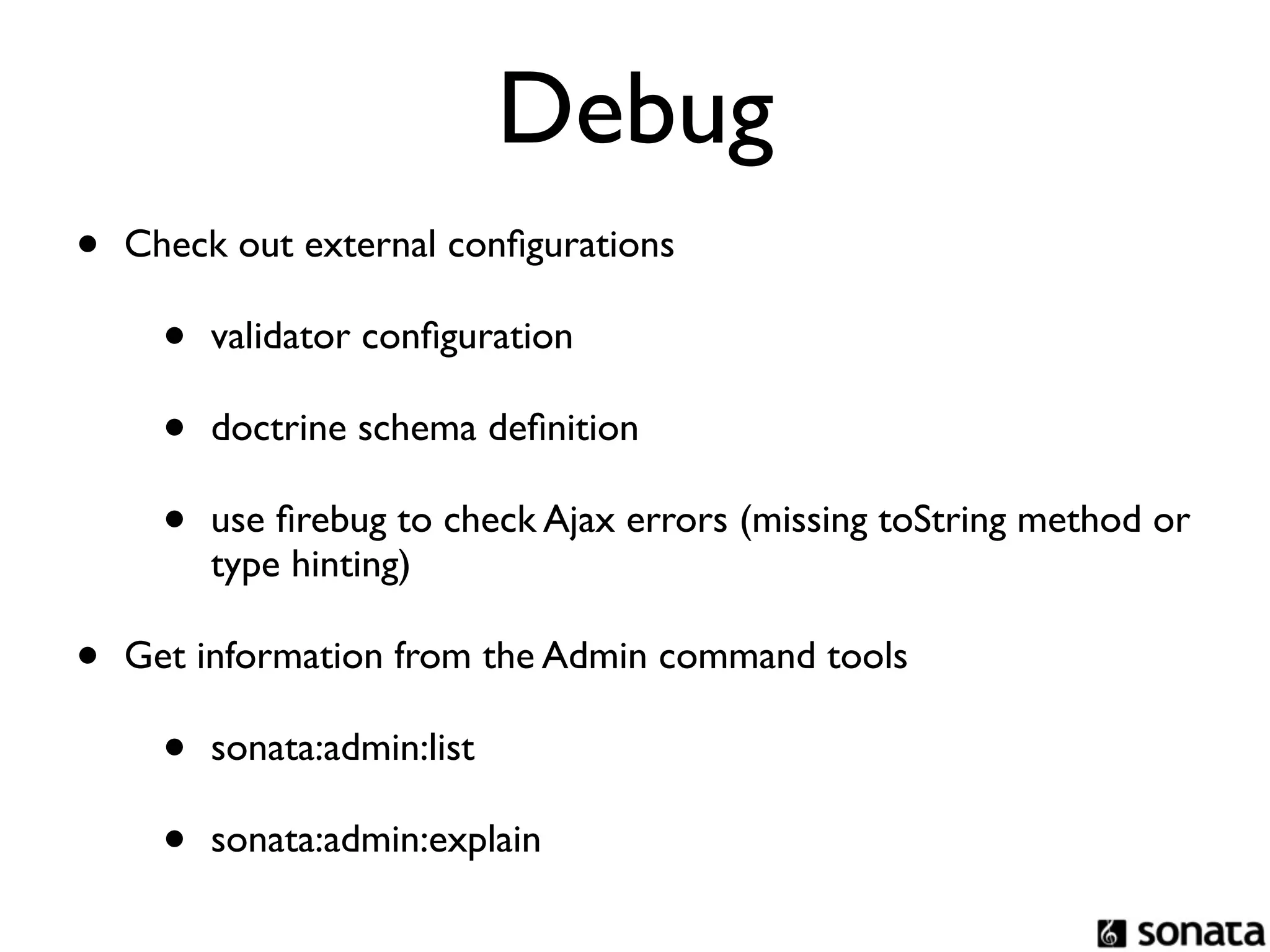

55. Debug
• Check out external configurations
• validator configuration
• doctrine schema definition
• use firebug to check Ajax errors (missing toString method or
type hinting)
• Get information from the Admin command tools
• sonata:admin:list
• sonata:admin:explain

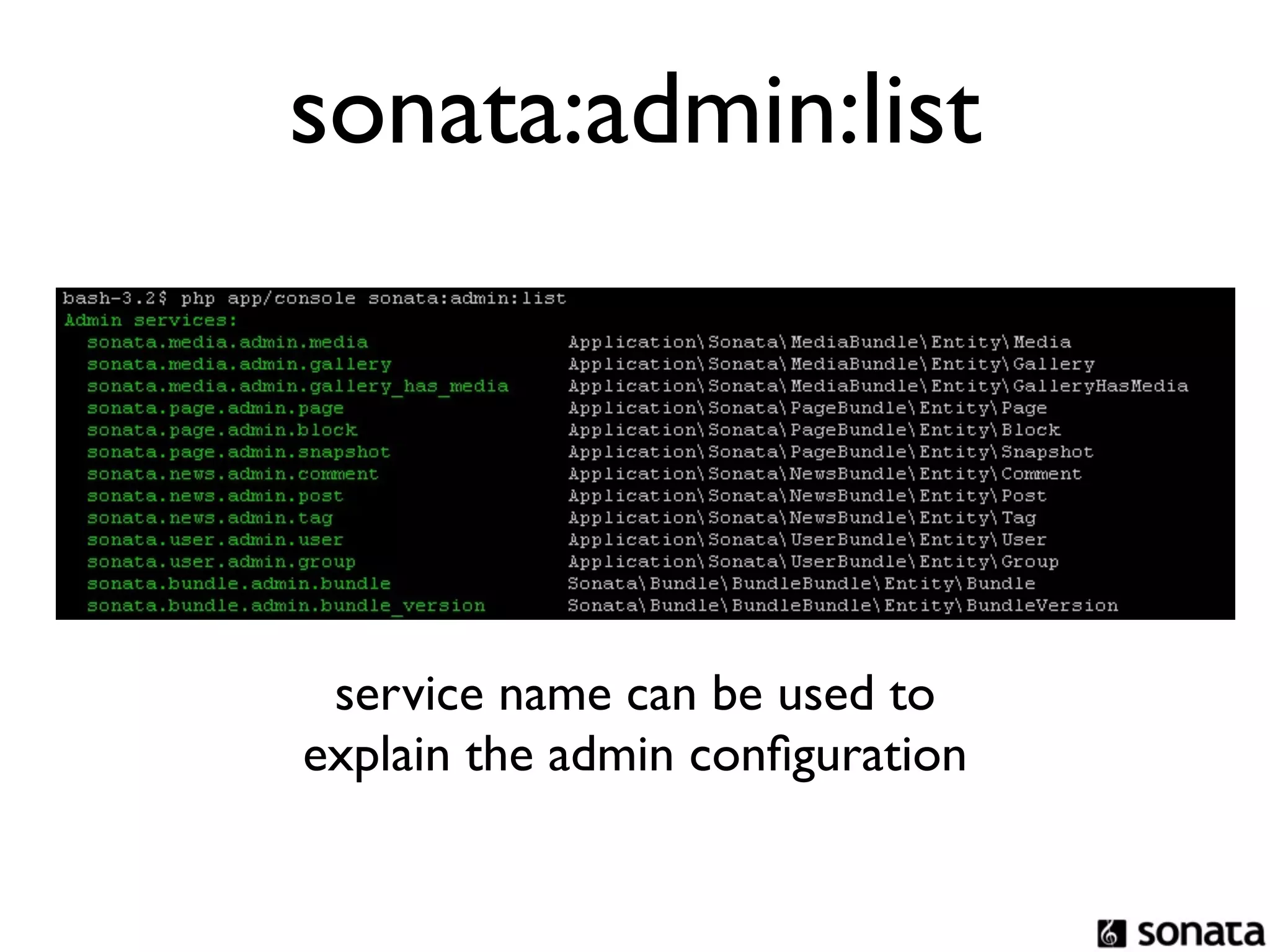

56. sonata:admin:list
service name can be used to
explain the admin configuration

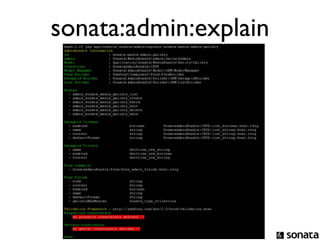

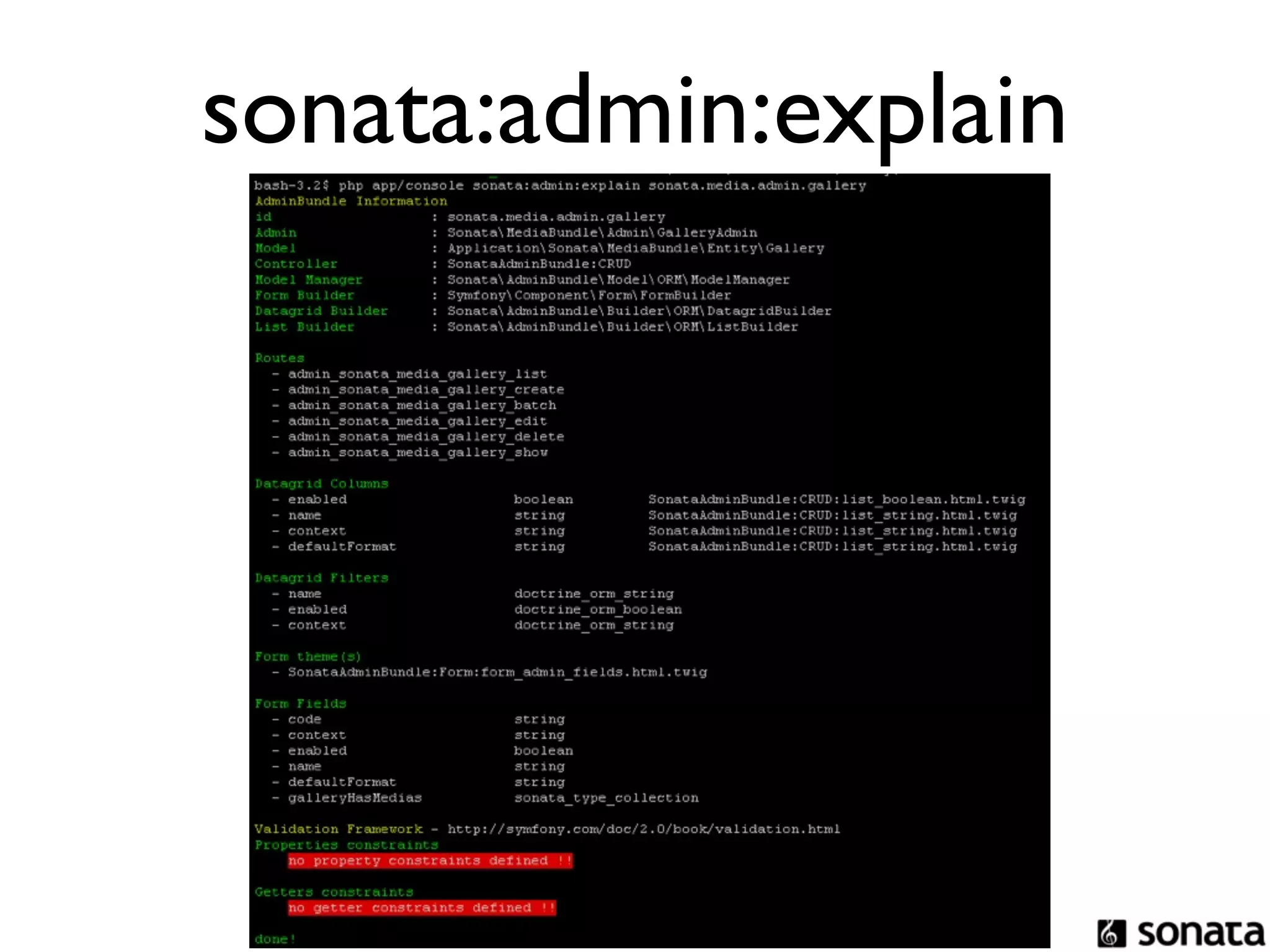

57. sonata:admin:explain

58. conclusion
http://www.flickr.com/photos/rv-bordeaux/5909437215/

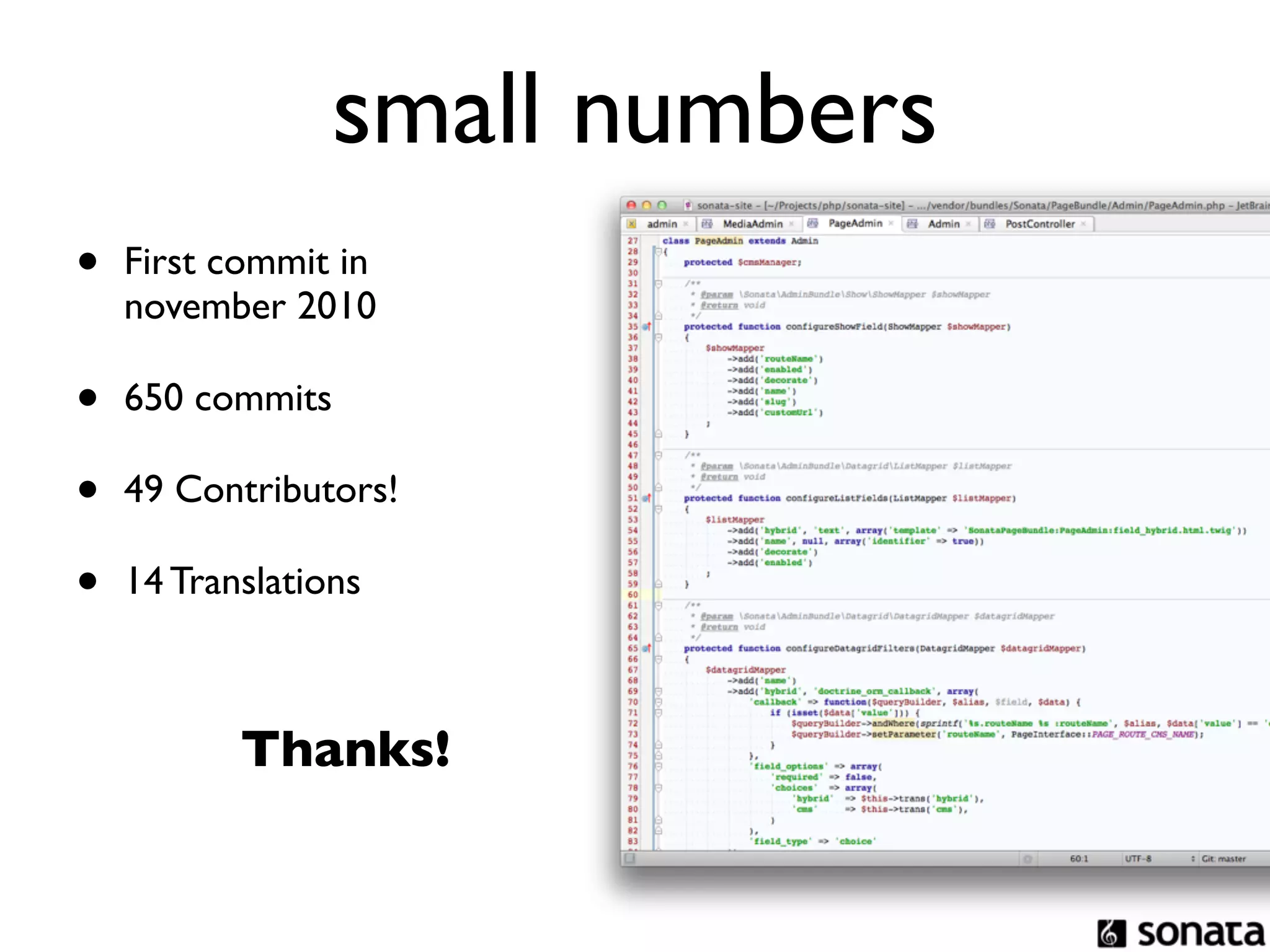

59. small numbers
• First commit in
november 2010
• 650 commits
• 49 Contributors!
• 14 Translations
Thanks!

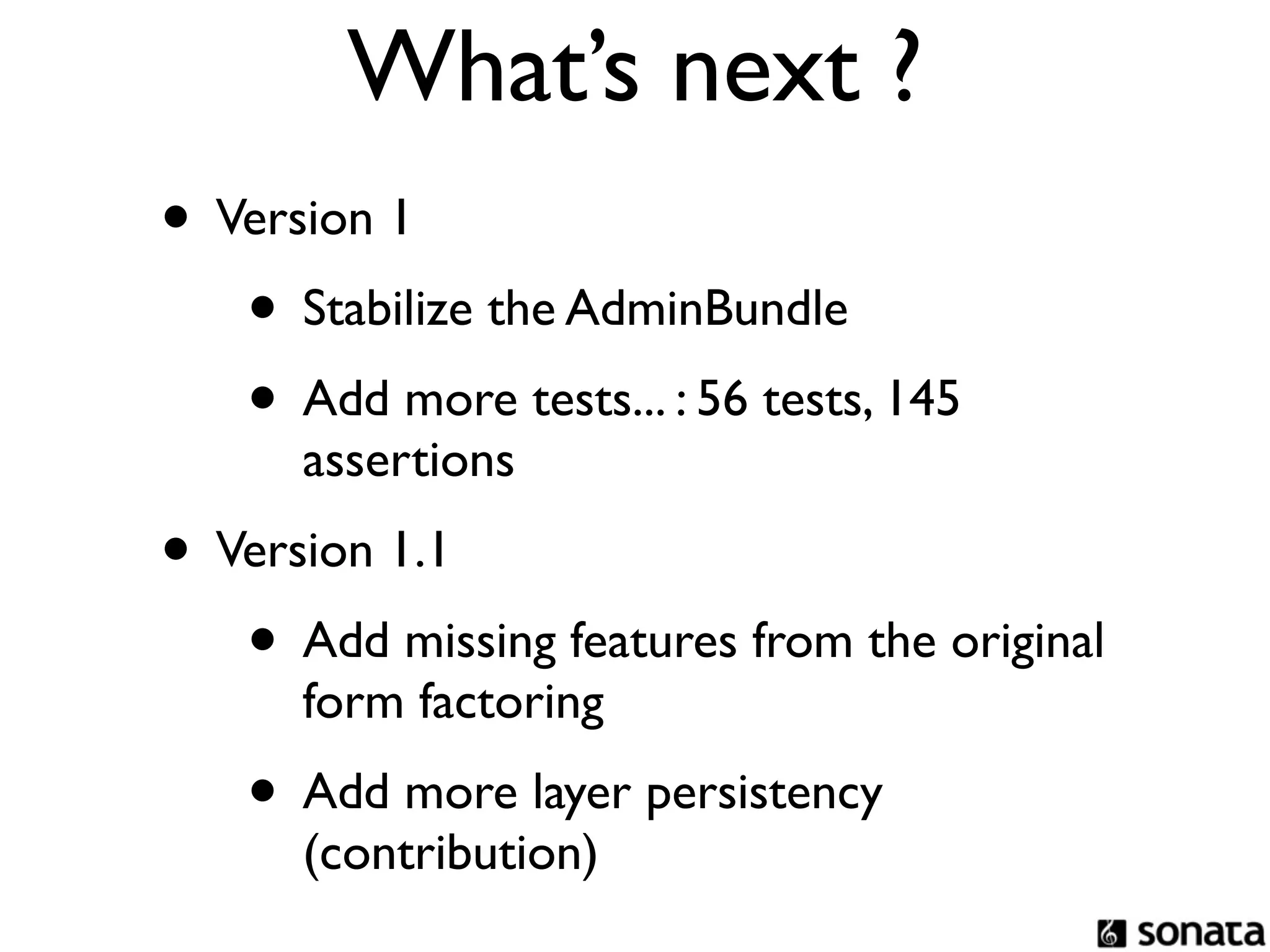

60. What’s next ?
• Version 1
• Stabilize the AdminBundle
• Add more tests... : 56 tests, 145
assertions
• Version 1.1
• Add missing features from the original
form factoring
• Add more layer persistency
(contribution)

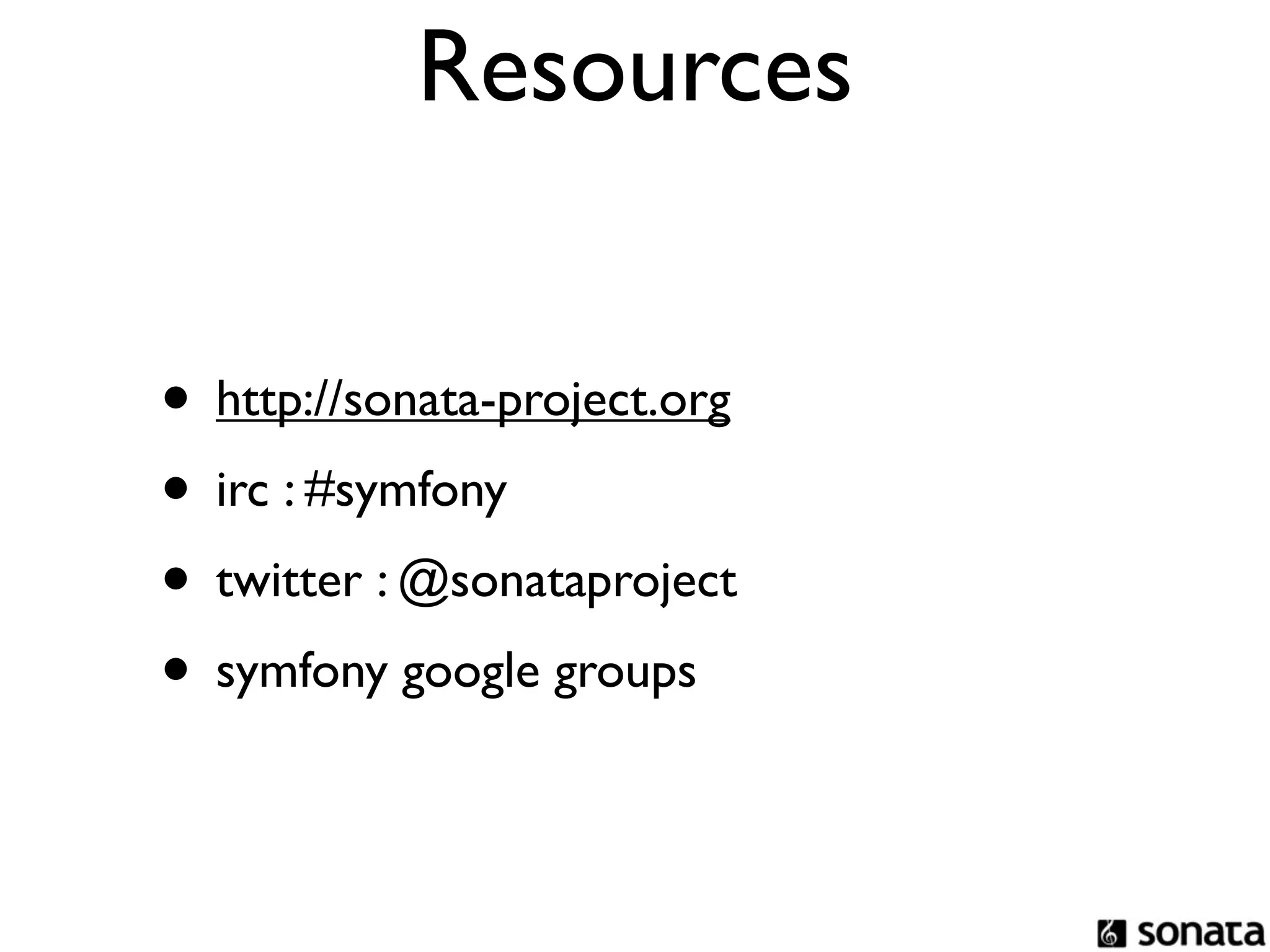

61. Resources
• http://sonata-project.org
• irc : #symfony
• twitter : @sonataproject
• symfony google groups

62. Questions
http://www.flickr.com/photos/colinkinner/2200500024/
