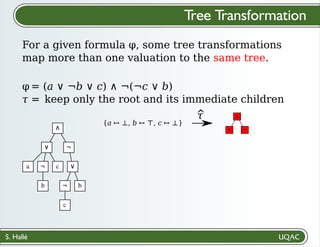

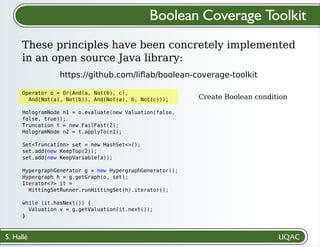

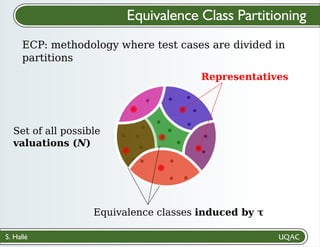

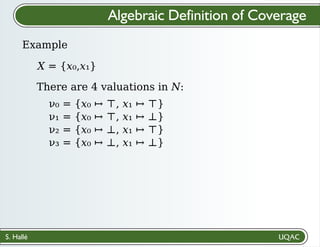

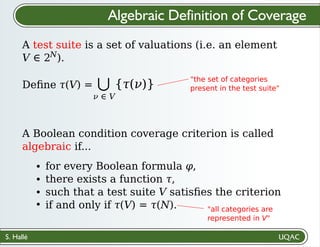

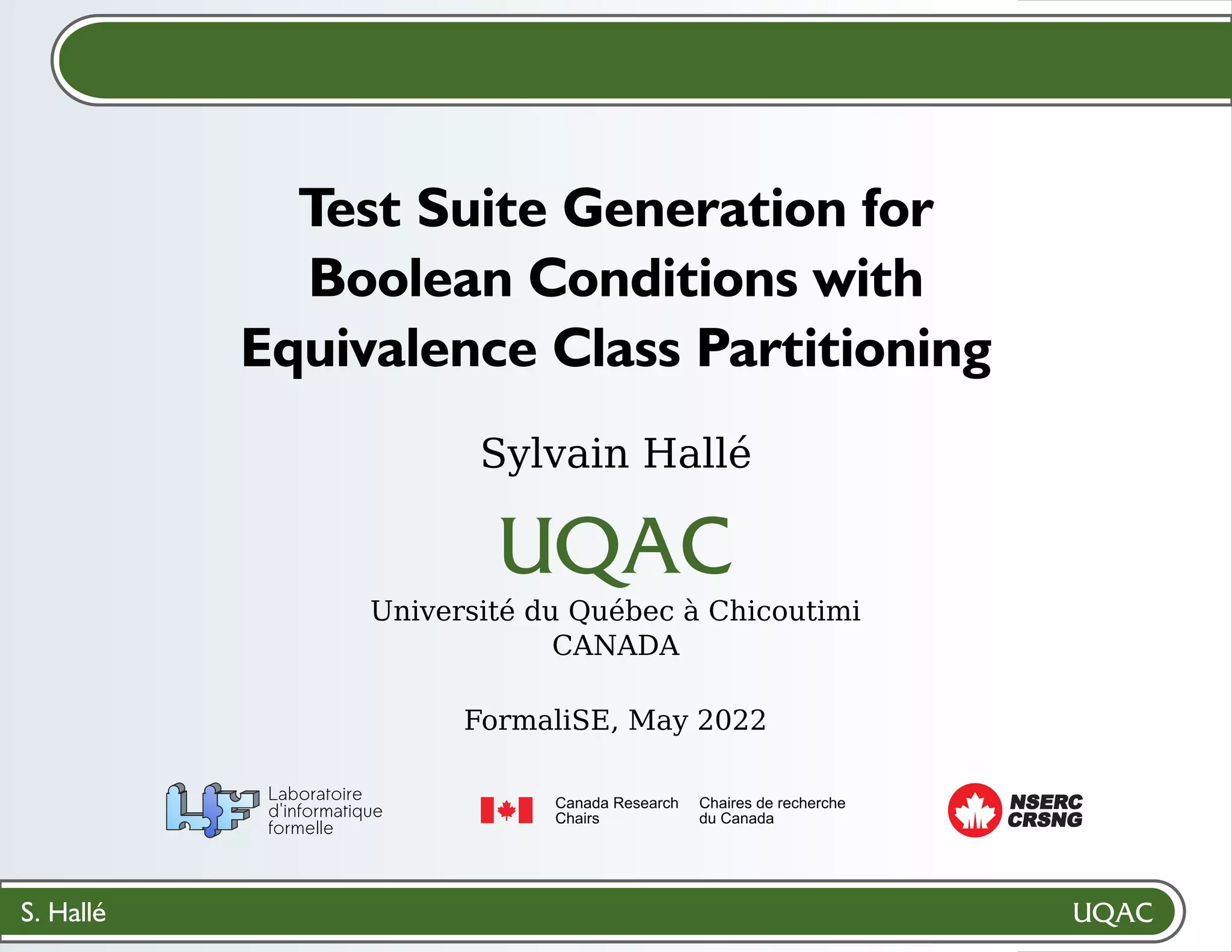

Test Suite Generation for Boolean Conditions with Equivalence Class Partitioning
1. S. Hallé
Sylvain Hallé
Université du Québec à Chicoutimi
CANADA
Test Suite Generation for
Boolean Conditions with
Equivalence Class Partitioning
CRSNG
NSERC
FormaliSE, May 2022
2. S. Hallé
Boolean Conditions

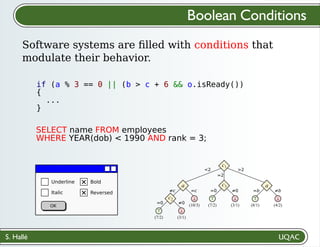

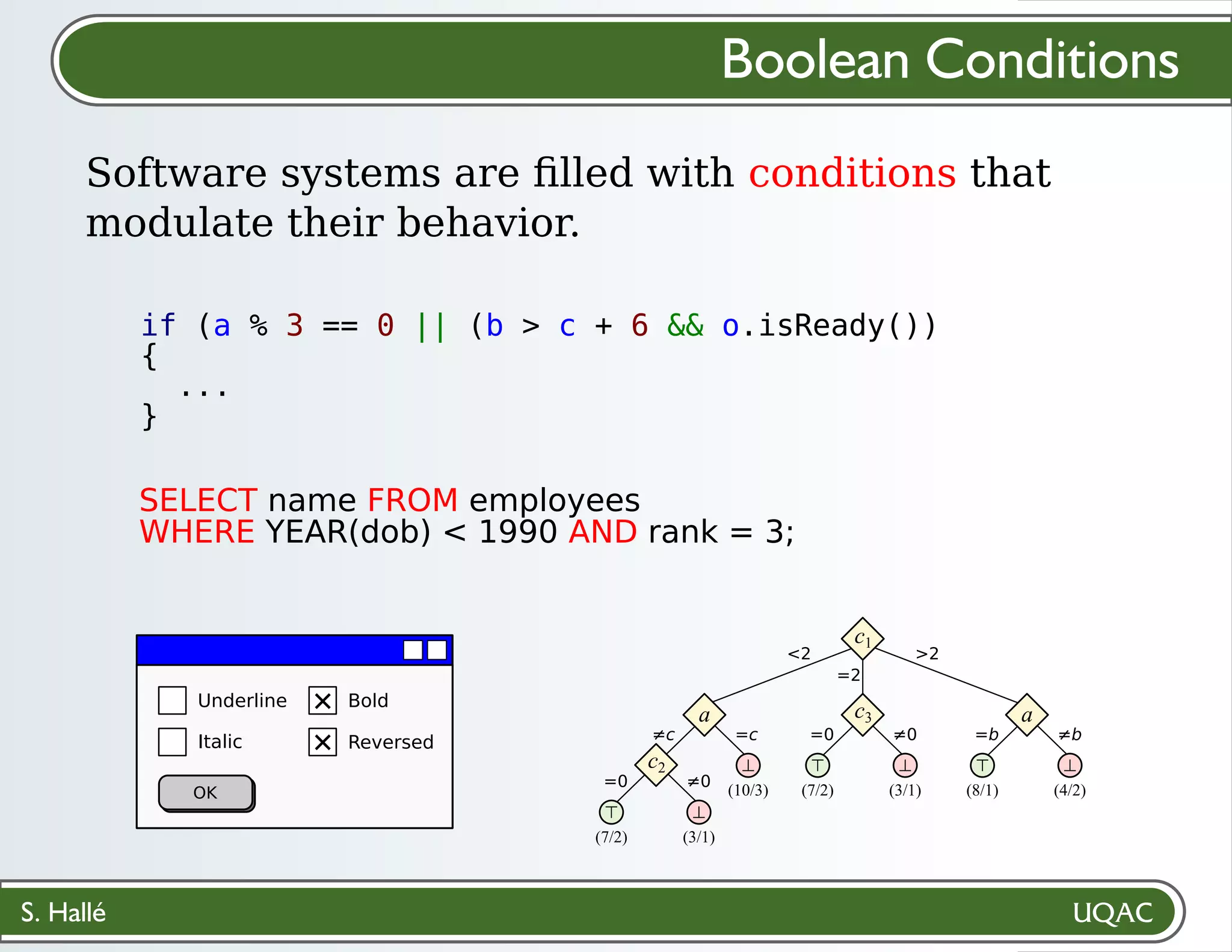

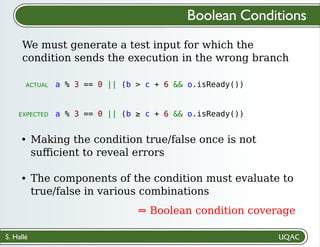

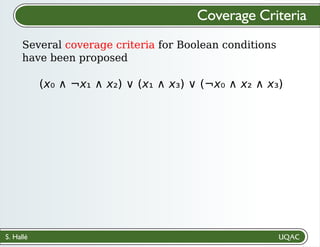

Software systems are filled with conditions that
modulate their behavior.
SELECT name FROM employees
WHERE YEAR(dob) < 1990 AND rank = 3;
if (a % 3 == 0 || (b > c + 6 && o.isReady())
{
...
}
Italic
Bold
+
Underline
OK
Reversed
+
c1
a
(8/1)
=b ≠b
(4/2)
<2 >2
⊤
⊤
=2
c3
(7/2)
=0 ≠0
(3/1)
⊤
⊤
a
≠c =c
(10/3)
⊤
(7/2)
=0 ≠0
(3/1)
⊤
⊤
c2
3. S. Hallé
Boolean Conditions

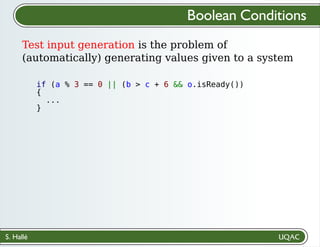

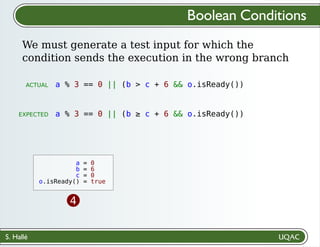

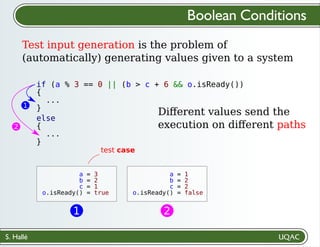

Test input generation is the problem of
(automatically) generating values given to a system
if (a % 3 == 0 || (b > c + 6 && o.isReady())
{
...
}
4. S. Hallé
Boolean Conditions
Test input generation is the problem of
(automatically) generating values given to a system
if (a % 3 == 0 || (b > c + 6 && o.isReady())
{
...
}
a = 3
b = 2
c = 1
o.isReady() = true
test case

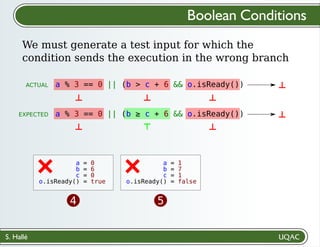

5. S. Hallé
Boolean Conditions
Test input generation is the problem of
(automatically) generating values given to a system
if (a % 3 == 0 || (b > c + 6 && o.isReady())
{
...
}
a = 3
b = 2
c = 1
o.isReady() = true
test case
1
1
6. S. Hallé
Boolean Conditions
Test input generation is the problem of
(automatically) generating values given to a system
if (a % 3 == 0 || (b > c + 6 && o.isReady())
{
...
}
a = 3
b = 2
c = 1
o.isReady() = true
test case
else
{
...
}
2
a = 1
b = 2
c = 2
o.isReady() = false
2
Different values send the
execution on different paths
1
1
7. S. Hallé
...but what if the condition
is incorrect?
Boolean Conditions
Test input generation is the problem of
(automatically) generating values given to a system
if (a % 3 == 0 || (b > c + 6 && o.isReady())
{
...
}
a = 3
b = 2
c = 1
o.isReady() = true
test case
else
{
...
}
2
a = 1
b = 2
c = 2
o.isReady() = false
2
Different values send the
execution on different paths
1
1
8. S. Hallé
We must generate a test input for which the
condition sends the execution in the wrong branch
Boolean Conditions
a % 3 == 0 || (b > c + 6 && o.isReady())
a % 3 == 0 || (b ≥ c + 6 && o.isReady())
ACTUAL
EXPECTED
9. S. Hallé
a = 0
b = 6
c = 0
o.isReady() = true
4

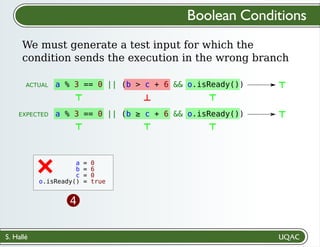

We must generate a test input for which the
condition sends the execution in the wrong branch
Boolean Conditions
a % 3 == 0 || (b > c + 6 && o.isReady())
a % 3 == 0 || (b ≥ c + 6 && o.isReady())
ACTUAL
EXPECTED
10. S. Hallé
a = 0
b = 6
c = 0
o.isReady() = true
4
⊤ ⊥ ⊤
⊤ ⊤ ⊤
⊤
⊤
+
We must generate a test input for which the
condition sends the execution in the wrong branch
Boolean Conditions
a % 3 == 0 || (b > c + 6 && o.isReady())
a % 3 == 0 || (b ≥ c + 6 && o.isReady())
ACTUAL
EXPECTED
11. S. Hallé
a = 0
b = 6
c = 0
o.isReady() = true
a = 1
b = 7
c = 1
o.isReady() = false
+
4 5
We must generate a test input for which the
condition sends the execution in the wrong branch
Boolean Conditions
a % 3 == 0 || (b > c + 6 && o.isReady())
a % 3 == 0 || (b ≥ c + 6 && o.isReady())
ACTUAL
EXPECTED
12. S. Hallé
a = 0
b = 6
c = 0
o.isReady() = true
a = 1
b = 7
c = 1
o.isReady() = false
+
4 5
⊥ ⊥ ⊥
⊥ ⊤ ⊥
⊥
⊥
+
We must generate a test input for which the
condition sends the execution in the wrong branch
Boolean Conditions
a % 3 == 0 || (b > c + 6 && o.isReady())
a % 3 == 0 || (b ≥ c + 6 && o.isReady())
ACTUAL
EXPECTED
13. S. Hallé
a = 0
b = 6
c = 0
o.isReady() = true
a = 1
b = 7
c = 1
o.isReady() = false
+
+
a = 1
b = 7
c = 1
o.isReady() = true
4 5 6
We must generate a test input for which the
condition sends the execution in the wrong branch
Boolean Conditions
a % 3 == 0 || (b > c + 6 && o.isReady())
a % 3 == 0 || (b ≥ c + 6 && o.isReady())
ACTUAL
EXPECTED
14. S. Hallé
a = 0
b = 6
c = 0
o.isReady() = true
a = 1
b = 7
c = 1
o.isReady() = false
+
+
a = 1
b = 7
c = 1
o.isReady() = true
4 5 6
⊥ ⊥ ⊤
⊥ ⊤ ⊤
⊥
⊤
✓
We must generate a test input for which the
condition sends the execution in the wrong branch
Boolean Conditions
a % 3 == 0 || (b > c + 6 && o.isReady())
a % 3 == 0 || (b ≥ c + 6 && o.isReady())
ACTUAL
EXPECTED
15. S. Hallé

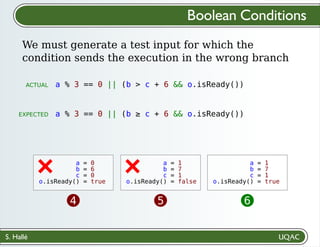

Making the condition true/false once is not
sufficient to reveal errors
The components of the condition must evaluate to
true/false in various combinations
⇒ Boolean condition coverage

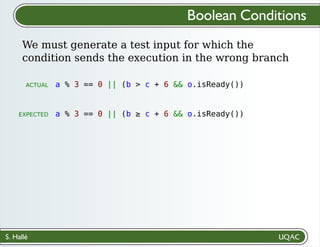

We must generate a test input for which the
condition sends the execution in the wrong branch
Boolean Conditions
a % 3 == 0 || (b > c + 6 && o.isReady())
a % 3 == 0 || (b ≥ c + 6 && o.isReady())
ACTUAL
EXPECTED
16. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)
17. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)

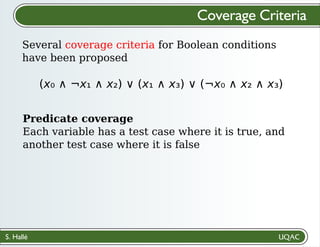

Predicate coverage
Each variable has a test case where it is true, and
another test case where it is false
18. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)

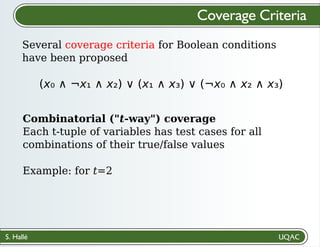

Combinatorial ("t-way") coverage
Each t-tuple of variables has test cases for all
combinations of their true/false values
Example: for t=2
19. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)

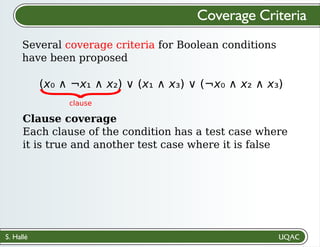

Clause coverage
Each clause of the condition has a test case where
it is true and another test case where it is false
{
clause
20. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)

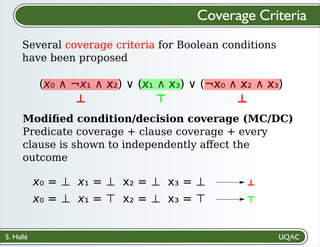

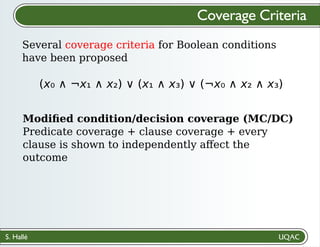

Modified condition/decision coverage (MC/DC)
Predicate coverage + clause coverage + every
clause is shown to independently affect the
outcome
21. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)

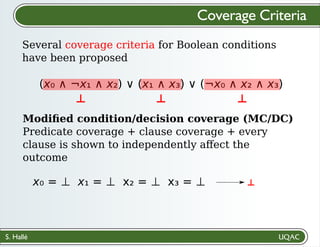

Modified condition/decision coverage (MC/DC)
Predicate coverage + clause coverage + every
clause is shown to independently affect the
outcome
⊥
⊥ ⊥ ⊥
x₀ = ⊥ x₁ = ⊥ x₂ = ⊥ x₃ = ⊥
23. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)

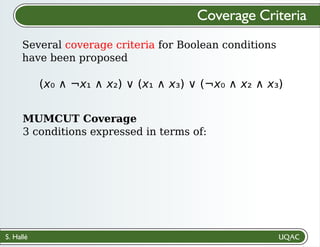

MUMCUT Coverage
3 conditions expressed in terms of:
24. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)
MUMCUT Coverage
3 conditions expressed in terms of:

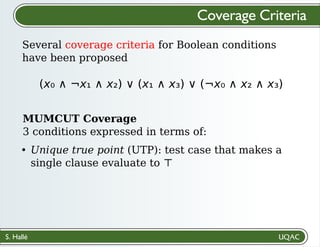

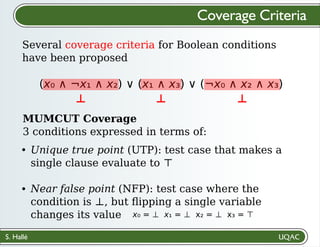

Unique true point (UTP): test case that makes a
single clause evaluate to ⊤

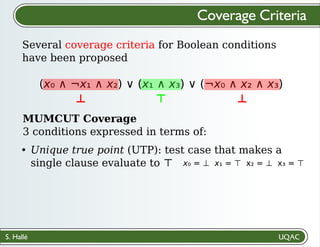

25. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)
MUMCUT Coverage
3 conditions expressed in terms of:
Unique true point (UTP): test case that makes a
single clause evaluate to ⊤ x₀ = ⊥ x₁ = ⊤ x₂ = ⊥ x₃ = ⊤
⊥ ⊤ ⊥
26. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)
MUMCUT Coverage
3 conditions expressed in terms of:
Unique true point (UTP): test case that makes a
single clause evaluate to ⊤
Near false point (NFP): test case where the
condition is ⊥, but flipping a single variable
changes its value
27. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)
MUMCUT Coverage
3 conditions expressed in terms of:
Unique true point (UTP): test case that makes a
single clause evaluate to ⊤
Near false point (NFP): test case where the
condition is ⊥, but flipping a single variable
changes its value
⊥ ⊥ ⊥
x₀ = ⊥ x₁ = ⊥ x₂ = ⊥ x₃ = ⊤
28. S. Hallé
Several coverage criteria for Boolean conditions
have been proposed
Coverage Criteria
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)

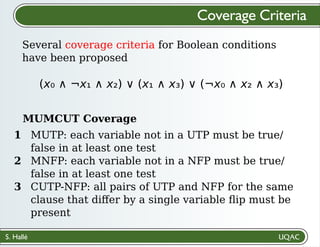

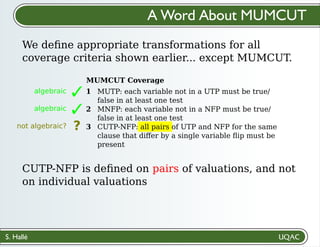

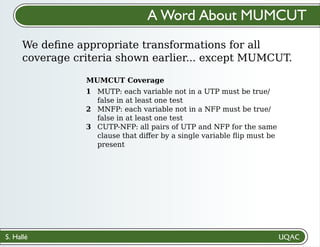

MUTP: each variable not in a UTP must be true/
false in at least one test
MNFP: each variable not in a NFP must be true/
false in at least one test
CUTP-NFP: all pairs of UTP and NFP for the same
clause that differ by a single variable flip must be
present
MUMCUT Coverage
1
2
3
29. S. Hallé
Each coverage criterion is expressed informally;
no uniform formal notation to define them all
Each criterion comes with its own algorithm to
generate test cases; the correctness/optimality of
these algorithms is often not demonstrated
Concrete implementations of these algorithms are
not easy to find (research papers); switching
criteria means switching programs
Must restart from scratch if developing a new
coverage criterion
In the current state of things...
Coverage Criteria
30. S. Hallé
Foundations based on concepts of algebra
Existing criteria become particular cases of this
model
Provides a test generation algorithm that works of
any criterion
Comes with a concrete and freely available
implementation

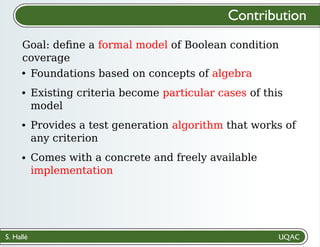

Goal: define a formal model of Boolean condition
coverage
Contribution
31. S. Hallé
Algebraic Definition of Coverage

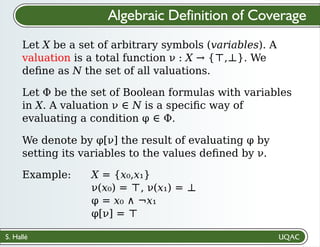

Let X be a set of arbitrary symbols (variables). A
valuation is a total function ν : X → {⊤,⊥}. We
define as N the set of all valuations.
We denote by φ[ν] the result of evaluating φ by
setting its variables to the values defined by ν.
Let Φ be the set of Boolean formulas with variables
in X. A valuation ν ∈ N is a specific way of
evaluating a condition φ ∈ Φ.
Example: X = {x₀,x₁}
ν(x₀) = ⊤, ν(x₁) = ⊥
φ = x₀ ∧ ¬x₁
φ[ν] = ⊤
32. S. Hallé
Algebraic Definition of Coverage

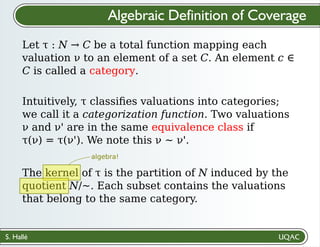

Let τ : N → C be a total function mapping each
valuation ν to an element of a set C. An element c ∈
C is called a category.
Intuitively, τ classifies valuations into categories;
we call it a categorization function. Two valuations
ν and ν' are in the same equivalence class if
τ(ν) = τ(ν'). We note this ν ~ ν'.
The kernel of τ is the partition of N induced by the
quotient N/~. Each subset contains the valuations
that belong to the same category.
algebra!
33. S. Hallé
Algebraic Definition of Coverage
Example
X = {x₀,x₁}
There are 4 valuations in N:
ν₀ = {x₀ ↦ ⊤, x₁ ↦ ⊤}
ν₁ = {x₀ ↦ ⊤, x₁ ↦ ⊥}
ν₂ = {x₀ ↦ ⊥, x₁ ↦ ⊤}
ν₃ = {x₀ ↦ ⊥, x₁ ↦ ⊥}

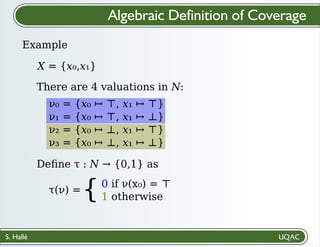

34. S. Hallé
Define τ : N → {0,1} as
τ(ν) ={0 if ν(x₀) = ⊤
1 otherwise
Algebraic Definition of Coverage
Example
X = {x₀,x₁}
There are 4 valuations in N:
ν₀ = {x₀ ↦ ⊤, x₁ ↦ ⊤}
ν₁ = {x₀ ↦ ⊤, x₁ ↦ ⊥}
ν₂ = {x₀ ↦ ⊥, x₁ ↦ ⊤}
ν₃ = {x₀ ↦ ⊥, x₁ ↦ ⊥}

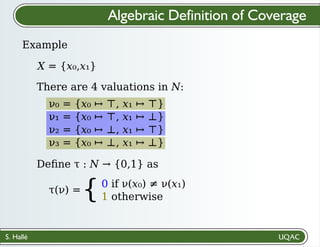

35. S. Hallé
Define τ : N → {0,1} as
τ(ν) ={0 if ν(x₀) ≠ ν(x₁)
1 otherwise
Algebraic Definition of Coverage
Example
X = {x₀,x₁}
There are 4 valuations in N:
ν₀ = {x₀ ↦ ⊤, x₁ ↦ ⊤}
ν₁ = {x₀ ↦ ⊤, x₁ ↦ ⊥}
ν₂ = {x₀ ↦ ⊥, x₁ ↦ ⊤}
ν₃ = {x₀ ↦ ⊥, x₁ ↦ ⊥}
36. S. Hallé
Define τ : N → {0,1} as
τ(ν) = the number of true variables in ν
2
1
0
Algebraic Definition of Coverage
Example
X = {x₀,x₁}
There are 4 valuations in N:
ν₀ = {x₀ ↦ ⊤, x₁ ↦ ⊤}
ν₁ = {x₀ ↦ ⊤, x₁ ↦ ⊥}
ν₂ = {x₀ ↦ ⊥, x₁ ↦ ⊤}
ν₃ = {x₀ ↦ ⊥, x₁ ↦ ⊥}
38. S. Hallé
Set of all possible
test cases

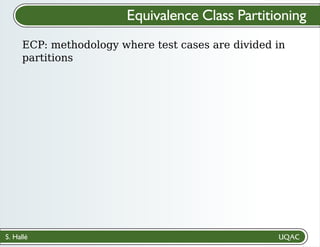

ECP: methodology where test cases are divided in
partitions
Equivalence Class Partitioning
39. S. Hallé

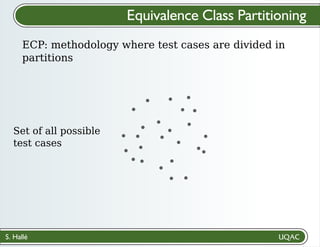

Set of all possible
test cases

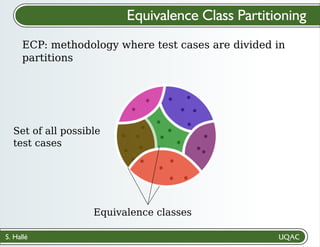

Equivalence classes
ECP: methodology where test cases are divided in
partitions
Equivalence Class Partitioning
40. S. Hallé
Set of all possible
test cases
Equivalence classes
ECP: methodology where test cases are divided in
partitions
Equivalence Class Partitioning
Chosen test cases
41. S. Hallé
ECP: methodology where test cases are divided in
partitions
Equivalence Class Partitioning
Set of all possible
valuations (N)
Equivalence classes induced by τ
Representatives
42. S. Hallé
Algebraic Definition of Coverage
A test suite is a set of valuations (i.e. an element
V ∈ 2 ).
N
Define 𝜏(V) = ⋃
𝜈 ∈ V
{𝜏(𝜈)}
"the set of categories
present in the test suite"
A Boolean condition coverage criterion is called
algebraic if...
for every Boolean formula 𝜑,
there exists a function 𝜏,
such that a test suite V satisfies the criterion
if and only if 𝜏(V) = 𝜏(N). "all categories are
represented in V"
43. S. Hallé
𝜌(V) ∈ [0,1], and full coverage means 𝜌(V) = 1.

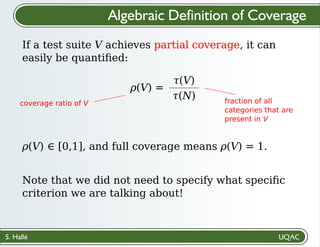

Algebraic Definition of Coverage
If a test suite V achieves partial coverage, it can
easily be quantified:
𝜌(V) =
𝜏(V)
𝜏(N)
coverage ratio of V fraction of all
categories that are
present in V
Note that we did not need to specify what specific
criterion we are talking about!
44. S. Hallé
Evaluation Trees
∧
∨ ¬
a ¬ c
b
∨
¬ b
c
φ = (a ∨ ¬b ∨ c) ∧ ¬(¬c ∨ b)

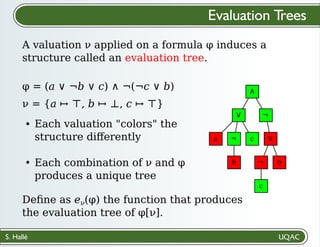

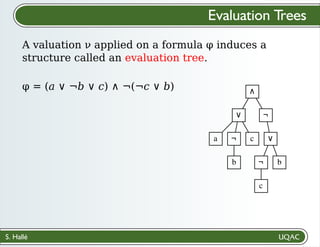

A valuation ν applied on a formula φ induces a
structure called an evaluation tree.
45. S. Hallé
ν = {a ↦ ⊤, b ↦ ⊥, c ↦ ⊤}
Each valuation "colors" the
structure differently
Each combination of ν and φ
produces a unique tree
Define as eν(φ) the function that produces
the evaluation tree of φ[ν].
Evaluation Trees
∧
∨ ¬
a ¬ c
b
∨
¬ b
c
φ = (a ∨ ¬b ∨ c) ∧ ¬(¬c ∨ b)
A valuation ν applied on a formula φ induces a
structure called an evaluation tree.
46. S. Hallé
Tree Transformation

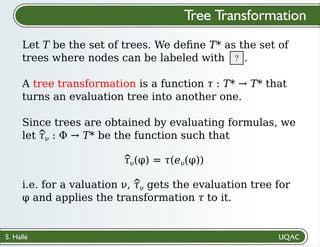

Let T be the set of trees. We define T* as the set of
trees where nodes can be labeled with .
A tree transformation is a function 𝜏 : T* → T* that
turns an evaluation tree into another one.
Since trees are obtained by evaluating formulas, we
let 𝜏ν : Φ → T* be the function such that
?
^
𝜏ν(φ) = 𝜏(eν(φ))
^
i.e. for a valuation ν, 𝜏ν gets the evaluation tree for
φ and applies the transformation 𝜏 to it.
^
48. S. Hallé
Tree Transformation

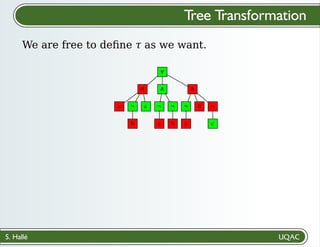

We are free to define 𝜏 as we want.
∨
∧ ∧ ∧
a ¬ c
b
¬ ¬
a b
¬ b ¬
a c
∨
∧

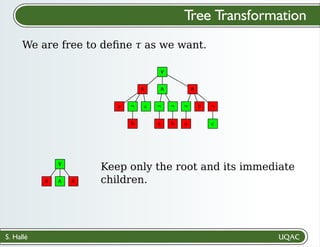

Keep only the root and its immediate
children.
∧ ∧
49. S. Hallé
Tree Transformation
We are free to define 𝜏 as we want.
∨
∧ ∧ ∧
a ¬ c
b
¬ ¬
a b
¬ b ¬
a c
∨
? ∧ ?
Turn every child of the root, except
the second, into , and trim the
descendants of the second node.
?
50. S. Hallé
Tree Transformation
We are free to define 𝜏 as we want.
∨
∧ ∧ ∧
a ¬ c
b
¬ ¬
a b
¬ b ¬
a c

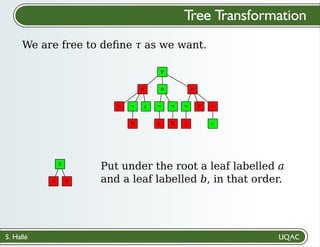

Put under the root a leaf labelled a
and a leaf labelled b, in that order.
∨
a b
51. S. Hallé
Tree Transformation
We are free to define 𝜏 as we want.
∨
∧ ∧ ∧
a ¬ c
b
¬ ¬
a b
¬ b ¬
a c

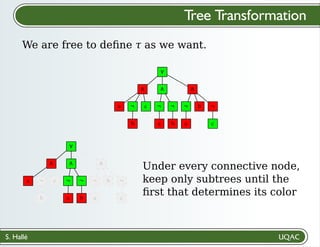

Under every connective node,
keep only subtrees until the
first that determines its color
∨
∧ ∧ ∧
a ¬ c
b
¬ ¬
a b
¬ b ¬
a c
52. S. Hallé
Tree Transformation

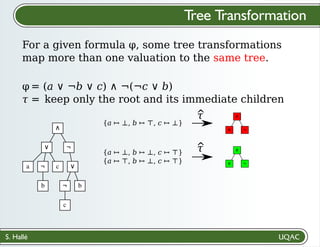

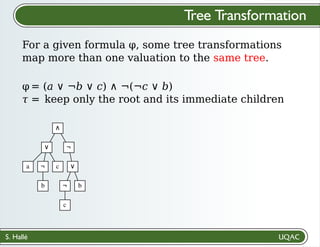

For a given formula φ, some tree transformations
map more than one valuation to the same tree.
∧
∨ ¬
a ¬ c
b
∨
¬ b
c
φ
𝜏 = keep only the root and its immediate children
= (a ∨ ¬b ∨ c) ∧ ¬(¬c ∨ b)
53. S. Hallé
Tree Transformation
For a given formula φ, some tree transformations
map more than one valuation to the same tree.
∧
∨ ¬
a ¬ c
b
∨
¬ b
c
φ
𝜏 = keep only the root and its immediate children
= (a ∨ ¬b ∨ c) ∧ ¬(¬c ∨ b)
∧
∨ ¬
{a ↦ ⊥, b ↦ ⊤, c ↦ ⊥}
^
𝜏
54. S. Hallé
Tree Transformation
For a given formula φ, some tree transformations
map more than one valuation to the same tree.
∧
∨ ¬
a ¬ c
b
∨
¬ b
c
φ
𝜏 = keep only the root and its immediate children
= (a ∨ ¬b ∨ c) ∧ ¬(¬c ∨ b)
∧
∨ ¬
{a ↦ ⊥, b ↦ ⊤, c ↦ ⊥}
^
𝜏
{a ↦ ⊥, b ↦ ⊥, c ↦ ⊤}
{a ↦ ⊤, b ↦ ⊥, c ↦ ⊤}
∧
∨ ¬
^
𝜏
55. S. Hallé
Tree Transformation

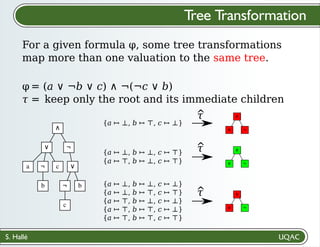

For a given formula φ, some tree transformations
map more than one valuation to the same tree.
∧
∨ ¬
a ¬ c
b
∨
¬ b
c
φ
𝜏 = keep only the root and its immediate children
= (a ∨ ¬b ∨ c) ∧ ¬(¬c ∨ b)
∧
∨ ¬
{a ↦ ⊥, b ↦ ⊤, c ↦ ⊥}
^
𝜏
{a ↦ ⊥, b ↦ ⊥, c ↦ ⊤}
{a ↦ ⊤, b ↦ ⊥, c ↦ ⊤}
∧
∨ ¬
^
𝜏
∧
∨ ¬
^
𝜏
{a ↦ ⊥, b ↦ ⊥, c ↦ ⊥}
{a ↦ ⊥, b ↦ ⊤, c ↦ ⊤}
{a ↦ ⊤, b ↦ ⊥, c ↦ ⊥}
{a ↦ ⊤, b ↦ ⊤, c ↦ ⊥}
{a ↦ ⊤, b ↦ ⊤, c ↦ ⊤}
56. S. Hallé
Tree Transformation

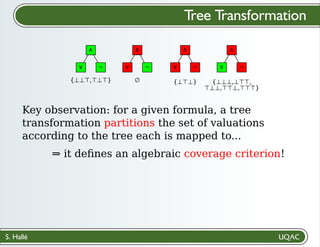

Key observation: for a given formula, a tree
transformation partitions the set of valuations
according to the tree each is mapped to...
∧
∨ ¬
∧
∨ ¬
{⊥⊥⊤,⊤⊥⊤} ∅
∧
∨ ¬
∧
∨ ¬
{⊥⊥⊥,⊥⊤⊤,
⊤⊥⊥,⊤⊤⊥,⊤⊤⊤}
{⊥⊤⊥}
⇒ it defines an algebraic coverage criterion!
57. S. Hallé

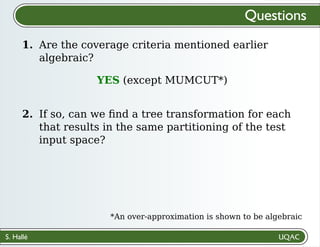

1.
Questions
Are the coverage criteria mentioned earlier
algebraic?
2. If so, can we find a tree transformation for each
that results in the same partitioning of the test
input space?
58. S. Hallé
1.
Questions
Are the coverage criteria mentioned earlier
algebraic?
2. If so, can we find a tree transformation for each
that results in the same partitioning of the test
input space?

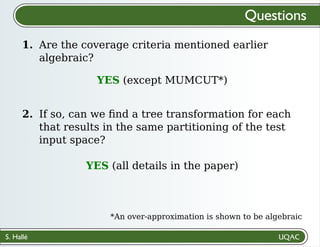

YES (except MUMCUT*)
*An over-approximation is shown to be algebraic
59. S. Hallé
1.
Questions
Are the coverage criteria mentioned earlier
algebraic?
2. If so, can we find a tree transformation for each
that results in the same partitioning of the test
input space?
YES (except MUMCUT*)
*An over-approximation is shown to be algebraic
YES (all details in the paper)
60. S. Hallé

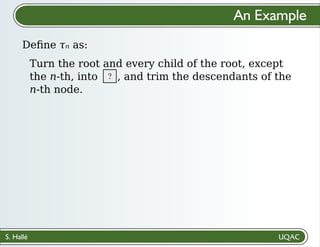

Define 𝜏ₙ as:
An Example
Turn the root and every child of the root, except
the n-th, into , and trim the descendants of the
n-th node.
?
61. S. Hallé

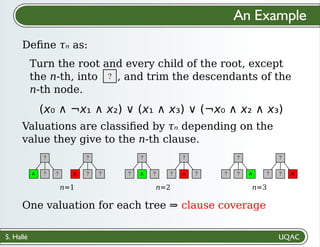

Define 𝜏ₙ as:
An Example
Turn the root and every child of the root, except
the n-th, into , and trim the descendants of the
n-th node.
?

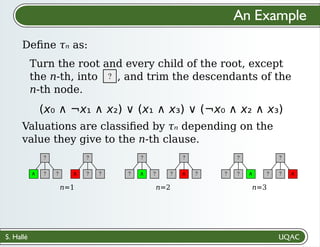

(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)
Valuations are classified by 𝜏ₙ depending on the
value they give to the n-th clause.
n=2
? ∧ ? ? ∧ ?
? ?
?
∧ ? ?
∧ ?
? ?
n=1
? ∧
? ? ∧
?
? ?
n=3
62. S. Hallé
Define 𝜏ₙ as:
An Example
Turn the root and every child of the root, except
the n-th, into , and trim the descendants of the
n-th node.
?
(x₀ ∧ ¬x₁ ∧ x₂) ∨ (x₁ ∧ x₃) ∨ (¬x₀ ∧ x₂ ∧ x₃)
Valuations are classified by 𝜏ₙ depending on the
value they give to the n-th clause.
n=2
? ∧ ? ? ∧ ?
? ?
?
∧ ? ?
∧ ?
? ?
n=1
? ∧
? ? ∧
?
? ?
n=3
One valuation for each tree ⇒ clause coverage
63. S. Hallé
We define appropriate transformations for all
coverage criteria shown earlier... except MUMCUT.
A Word About MUMCUT
MUTP: each variable not in a UTP must be true/
false in at least one test
MNFP: each variable not in a NFP must be true/
false in at least one test
CUTP-NFP: all pairs of UTP and NFP for the same
clause that differ by a single variable flip must be
present
MUMCUT Coverage
1
2
3
64. S. Hallé
✓
algebraic
✓
algebraic
not algebraic? ?
We define appropriate transformations for all
coverage criteria shown earlier... except MUMCUT.
A Word About MUMCUT
MUTP: each variable not in a UTP must be true/
false in at least one test
MNFP: each variable not in a NFP must be true/
false in at least one test
CUTP-NFP: all pairs of UTP and NFP for the same
clause that differ by a single variable flip must be
present
MUMCUT Coverage
1
2
3
65. S. Hallé
✓
algebraic
✓
algebraic
not algebraic? ?
CUTP-NFP is defined on pairs of valuations, and not
on individual valuations
We define appropriate transformations for all
coverage criteria shown earlier... except MUMCUT.
A Word About MUMCUT
MUTP: each variable not in a UTP must be true/
false in at least one test
MNFP: each variable not in a NFP must be true/
false in at least one test
CUTP-NFP: all pairs of UTP and NFP for the same
clause that differ by a single variable flip must be
present
MUMCUT Coverage
1
2
3
66. S. Hallé

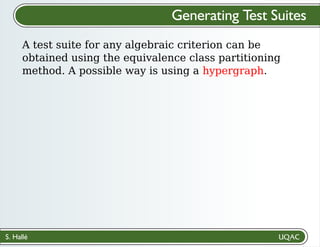

Generating Test Suites
A test suite for any algebraic criterion can be
obtained using the equivalence class partitioning
method. A possible way is using a hypergraph.
67. S. Hallé
Generating Test Suites
A test suite for any algebraic criterion can be
obtained using the equivalence class partitioning
method. A possible way is using a hypergraph.
⊥⊥⊤
⊥⊥⊥
⊥⊤⊤
⊤⊥⊥
⊤⊤⊥
⊤⊤⊤
⊥⊤⊥
⊤⊥⊤

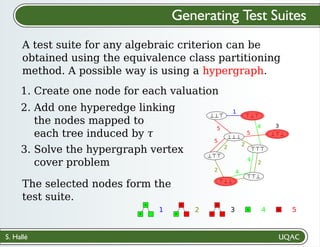

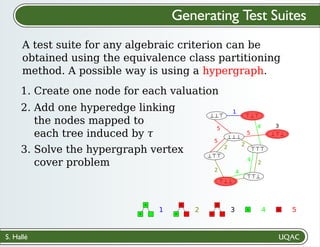

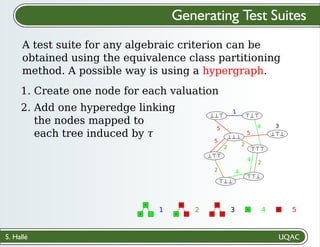

1. Create one node for each valuation
68. S. Hallé
Generating Test Suites
A test suite for any algebraic criterion can be
obtained using the equivalence class partitioning
method. A possible way is using a hypergraph.
∧
∨
1
∧
∨
2
∧
∨
3 a 4 a 5
3
4
4
4
5
5
5
1
2
2
2
2
2. Add one hyperedge linking
the nodes mapped to
each tree induced by 𝜏
⊥⊥⊤
⊥⊥⊥
⊥⊤⊤
⊤⊥⊥
⊤⊤⊥
⊤⊤⊤
⊥⊤⊥
⊤⊥⊤
1. Create one node for each valuation
69. S. Hallé
Generating Test Suites
A test suite for any algebraic criterion can be
obtained using the equivalence class partitioning
method. A possible way is using a hypergraph.
∧
∨
1
∧
∨
2
∧
∨
3 a 4 a 5
3
4
4
4
5
5
5
1
2
2
2
2
2. Add one hyperedge linking
the nodes mapped to
each tree induced by 𝜏
⊥⊥⊤
⊥⊥⊥
⊥⊤⊤
⊤⊥⊥
⊤⊤⊥
⊤⊤⊤
⊥⊤⊥
⊤⊥⊤
1. Create one node for each valuation
3. Solve the hypergraph vertex
cover problem
70. S. Hallé
Generating Test Suites
A test suite for any algebraic criterion can be
obtained using the equivalence class partitioning
method. A possible way is using a hypergraph.
∧
∨
1
∧
∨
2
∧
∨
3 a 4 a 5
3
4
4
4
5
5
5
1
2
2
2
2
2. Add one hyperedge linking
the nodes mapped to
each tree induced by 𝜏
⊥⊥⊤
⊥⊥⊥
⊥⊤⊤
⊤⊥⊥
⊤⊤⊥
⊤⊤⊤
⊥⊤⊥
⊤⊥⊤
1. Create one node for each valuation
3. Solve the hypergraph vertex
cover problem
The selected nodes form the
test suite.
71. S. Hallé
Generating Test Suites

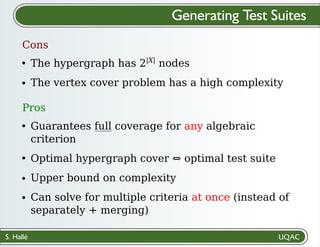

Cons
The hypergraph has 2|X|
nodes
The vertex cover problem has a high complexity
Pros
Guarantees full coverage for any algebraic
criterion
Optimal hypergraph cover ⇔ optimal test suite
Upper bound on complexity
Can solve for multiple criteria at once (instead of
separately + merging)
72. S. Hallé
Boolean Coverage Toolkit
These principles have been concretely implemented
in an open source Java library:
https://github.com/liflab/boolean-coverage-toolkit
Operator o = Or(And(a, Not(b), c),
And(Not(a), Not(b)), And(Not(a), b, Not(c)));
HologramNode n1 = o.evaluate(new Valuation(false,
false, true));
Truncation t = new FailFast(2);
HologramNode n2 = t.applyTo(n1);
Set<Truncation> set = new HashSet<>();
set.add(new KeepTop(2));
set.add(new KeepVariable(a));
HypergraphGenerator g = new HypergraphGenerator();
Hypergraph h = g.getGraph(o, set);
Iterator<?> it =
HittingSetRunner.runHittingSet(h).iterator();
while (it.hasNext()) {
Valuation v = g.getValuation(it.next());
}
73. S. Hallé

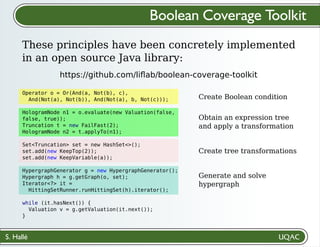

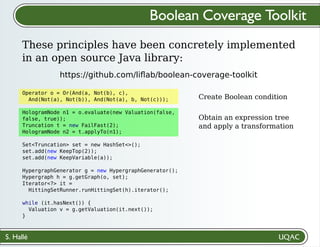

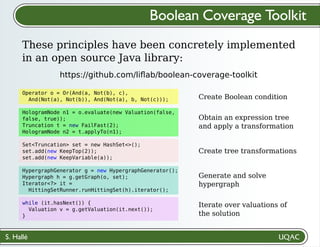

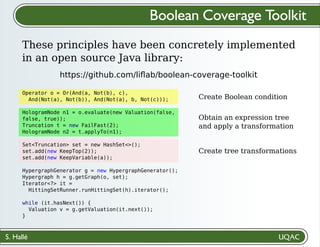

Create Boolean condition
Boolean Coverage Toolkit
These principles have been concretely implemented
in an open source Java library:
https://github.com/liflab/boolean-coverage-toolkit
Operator o = Or(And(a, Not(b), c),
And(Not(a), Not(b)), And(Not(a), b, Not(c)));
HologramNode n1 = o.evaluate(new Valuation(false,
false, true));
Truncation t = new FailFast(2);
HologramNode n2 = t.applyTo(n1);
Set<Truncation> set = new HashSet<>();
set.add(new KeepTop(2));
set.add(new KeepVariable(a));
HypergraphGenerator g = new HypergraphGenerator();
Hypergraph h = g.getGraph(o, set);
Iterator<?> it =
HittingSetRunner.runHittingSet(h).iterator();
while (it.hasNext()) {
Valuation v = g.getValuation(it.next());
}
74. S. Hallé
Create Boolean condition
Obtain an expression tree
and apply a transformation
Boolean Coverage Toolkit
These principles have been concretely implemented
in an open source Java library:
https://github.com/liflab/boolean-coverage-toolkit
Operator o = Or(And(a, Not(b), c),
And(Not(a), Not(b)), And(Not(a), b, Not(c)));
HologramNode n1 = o.evaluate(new Valuation(false,
false, true));
Truncation t = new FailFast(2);
HologramNode n2 = t.applyTo(n1);
Set<Truncation> set = new HashSet<>();
set.add(new KeepTop(2));
set.add(new KeepVariable(a));
HypergraphGenerator g = new HypergraphGenerator();
Hypergraph h = g.getGraph(o, set);
Iterator<?> it =
HittingSetRunner.runHittingSet(h).iterator();
while (it.hasNext()) {
Valuation v = g.getValuation(it.next());
}
75. S. Hallé
Create Boolean condition
Obtain an expression tree
and apply a transformation
Create tree transformations
Boolean Coverage Toolkit
These principles have been concretely implemented
in an open source Java library:
https://github.com/liflab/boolean-coverage-toolkit
Operator o = Or(And(a, Not(b), c),
And(Not(a), Not(b)), And(Not(a), b, Not(c)));
HologramNode n1 = o.evaluate(new Valuation(false,
false, true));
Truncation t = new FailFast(2);
HologramNode n2 = t.applyTo(n1);
Set<Truncation> set = new HashSet<>();
set.add(new KeepTop(2));
set.add(new KeepVariable(a));
HypergraphGenerator g = new HypergraphGenerator();
Hypergraph h = g.getGraph(o, set);
Iterator<?> it =
HittingSetRunner.runHittingSet(h).iterator();
while (it.hasNext()) {
Valuation v = g.getValuation(it.next());
}
76. S. Hallé
Create Boolean condition
Obtain an expression tree
and apply a transformation
Create tree transformations
Generate and solve
hypergraph
Boolean Coverage Toolkit
These principles have been concretely implemented
in an open source Java library:
https://github.com/liflab/boolean-coverage-toolkit
Operator o = Or(And(a, Not(b), c),
And(Not(a), Not(b)), And(Not(a), b, Not(c)));
HologramNode n1 = o.evaluate(new Valuation(false,
false, true));
Truncation t = new FailFast(2);
HologramNode n2 = t.applyTo(n1);
Set<Truncation> set = new HashSet<>();
set.add(new KeepTop(2));
set.add(new KeepVariable(a));
HypergraphGenerator g = new HypergraphGenerator();
Hypergraph h = g.getGraph(o, set);
Iterator<?> it =
HittingSetRunner.runHittingSet(h).iterator();
while (it.hasNext()) {
Valuation v = g.getValuation(it.next());
}
77. S. Hallé
Create Boolean condition
Obtain an expression tree
and apply a transformation
Create tree transformations
Generate and solve
hypergraph
Iterate over valuations of
the solution
Boolean Coverage Toolkit
These principles have been concretely implemented
in an open source Java library:
https://github.com/liflab/boolean-coverage-toolkit
Operator o = Or(And(a, Not(b), c),
And(Not(a), Not(b)), And(Not(a), b, Not(c)));
HologramNode n1 = o.evaluate(new Valuation(false,
false, true));
Truncation t = new FailFast(2);
HologramNode n2 = t.applyTo(n1);
Set<Truncation> set = new HashSet<>();
set.add(new KeepTop(2));
set.add(new KeepVariable(a));
HypergraphGenerator g = new HypergraphGenerator();
Hypergraph h = g.getGraph(o, set);
Iterator<?> it =
HittingSetRunner.runHittingSet(h).iterator();
while (it.hasNext()) {
Valuation v = g.getValuation(it.next());
}
78. S. Hallé
Experiments
We can compare the hypergraph-based approach
with existing tools and techniques:
Random selection
ACTS (combinatorial coverage)
mcdc (MC/DC coverage)
and results published in past papers
(implementation unavailable).
79. S. Hallé

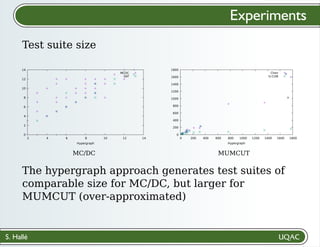

Experiments
Test suite size
0
2
4
6
8
10
12
14
2 4 6 8 10 12 14
Hypergraph
MCDC
SAT
0
200
400
600
800
1000
1200
1400
1600
1800
0 200 400 600 800 1000 1200 1400 1600 1800
Hypergraph
Chen
G-CUN
MC/DC MUMCUT
The hypergraph approach generates test suites of
comparable size for MC/DC, but larger for
MUMCUT (over-approximated)
80. S. Hallé

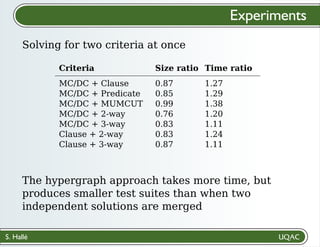

Experiments
Solving for two criteria at once
Criteria Size ratio Time ratio
MC/DC + Clause
MC/DC + Predicate
MC/DC + MUMCUT
MC/DC + 2-way
MC/DC + 3-way
Clause + 2-way
Clause + 3-way
0.87
0.85
0.99
0.76
0.83
0.83
0.87
1.27
1.29
1.38
1.20
1.11
1.24
1.11
The hypergraph approach takes more time, but
produces smaller test suites than when two
independent solutions are merged
81. S. Hallé

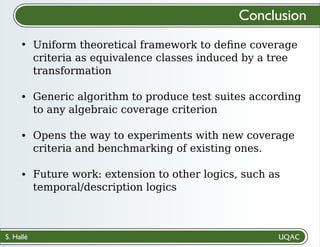

Conclusion
Uniform theoretical framework to define coverage
criteria as equivalence classes induced by a tree
transformation
Generic algorithm to produce test suites according
to any algebraic coverage criterion
Opens the way to experiments with new coverage
criteria and benchmarking of existing ones.
Future work: extension to other logics, such as
temporal/description logics
