1. Test-Driving QMLArtem MarchenkoMarch 15, 2011

2. Artem MarchenkoProduct Manager, Researcher, CoachProduct Manager shipping multi-hundred MEur productsScrum Master, Practitioner, Product Owner and CoachThree times Forum Nokia ChampionPrivate entrepreneurAvailable for hirehttp://fi.linkedin.com/in/artemmarchenko

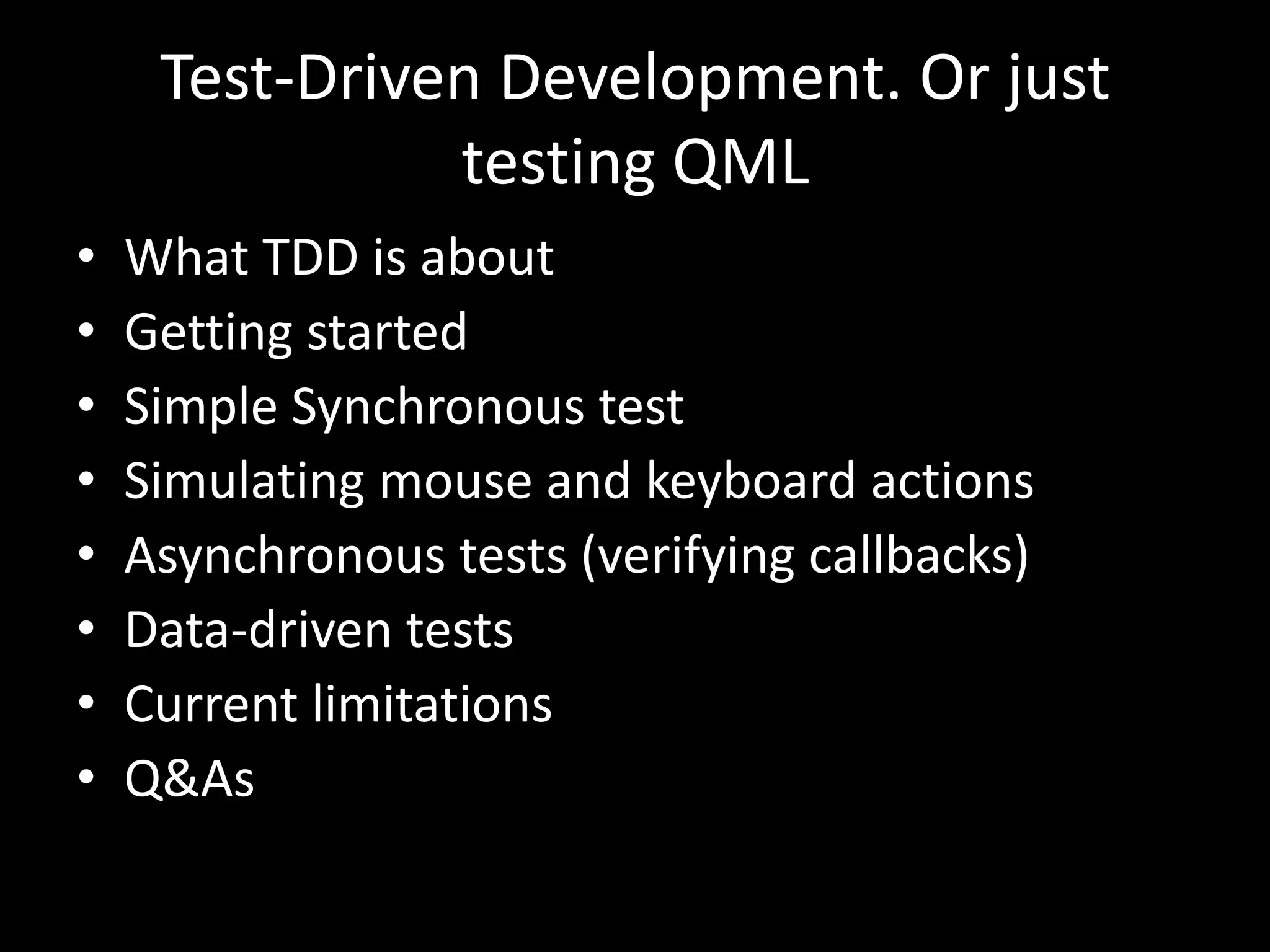

3. Test-Driven Development. Or just testing QMLWhat TDD is aboutGetting startedSimple Synchronous testSimulating mouse and keyboard actionsAsynchronous tests (verifying callbacks)Data-driven testsCurrent limitationsQ&As

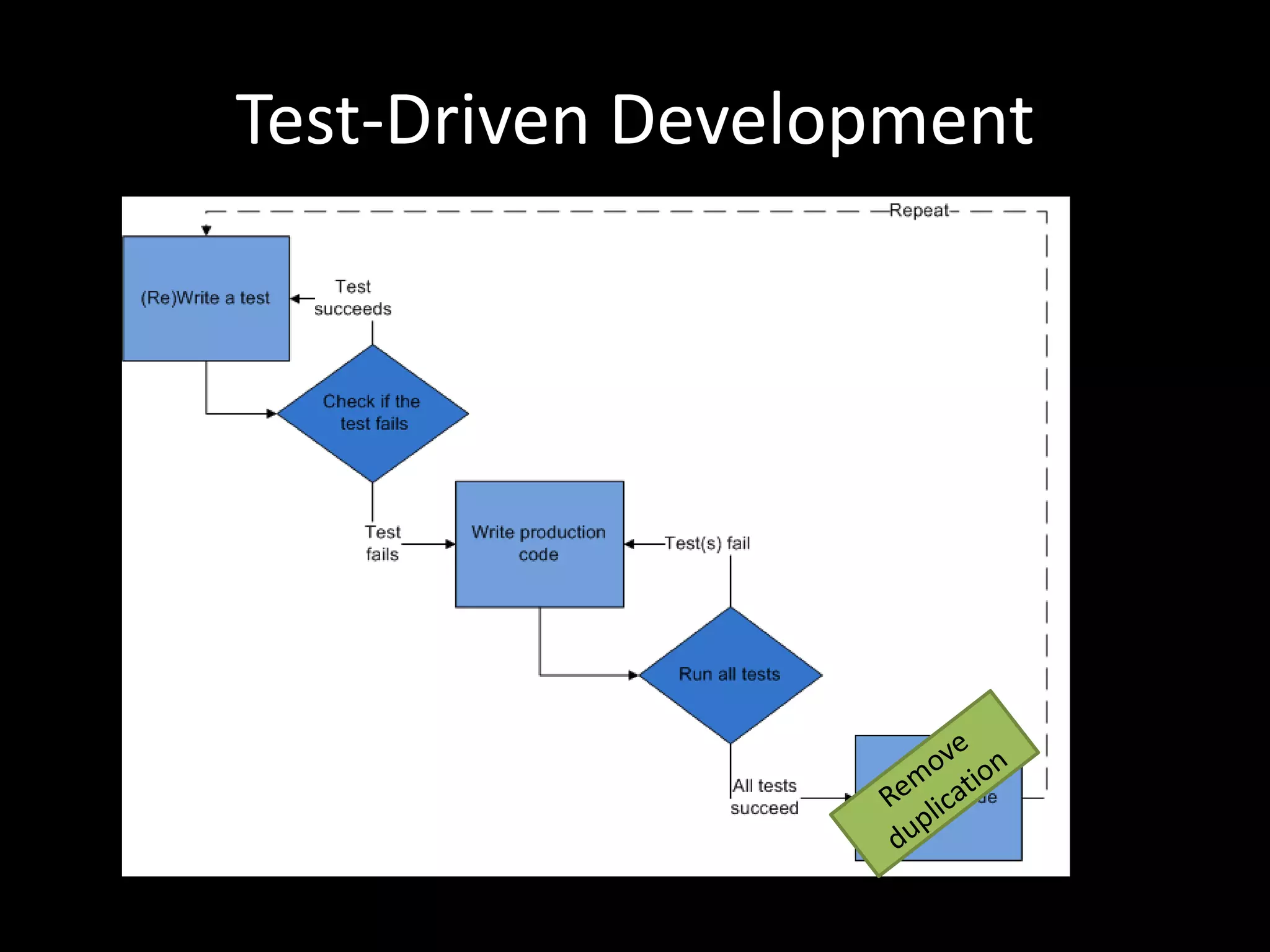

4. Test-Driven DevelopmentRemove duplication

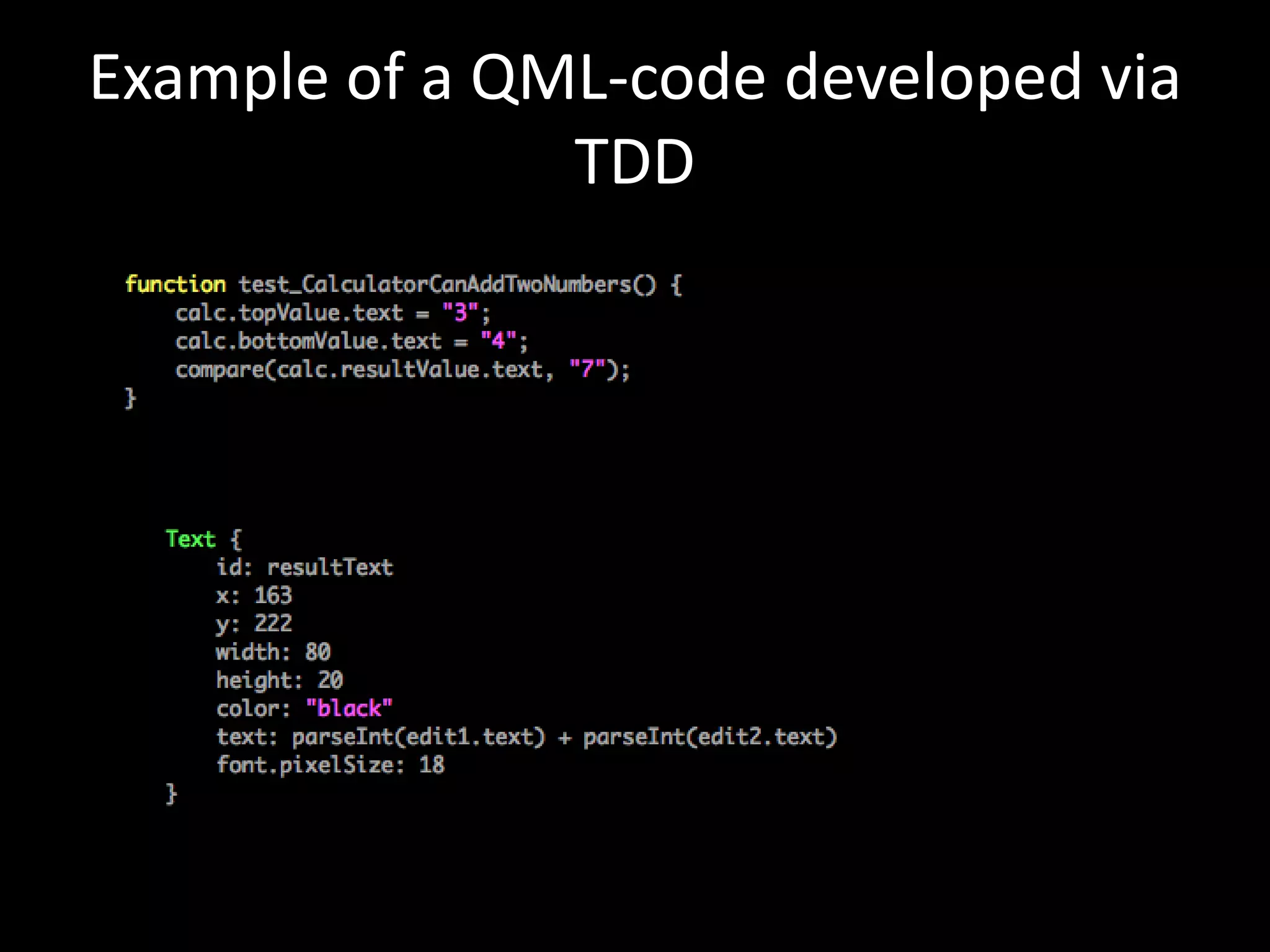

5. Example of a QML-code developed via TDD

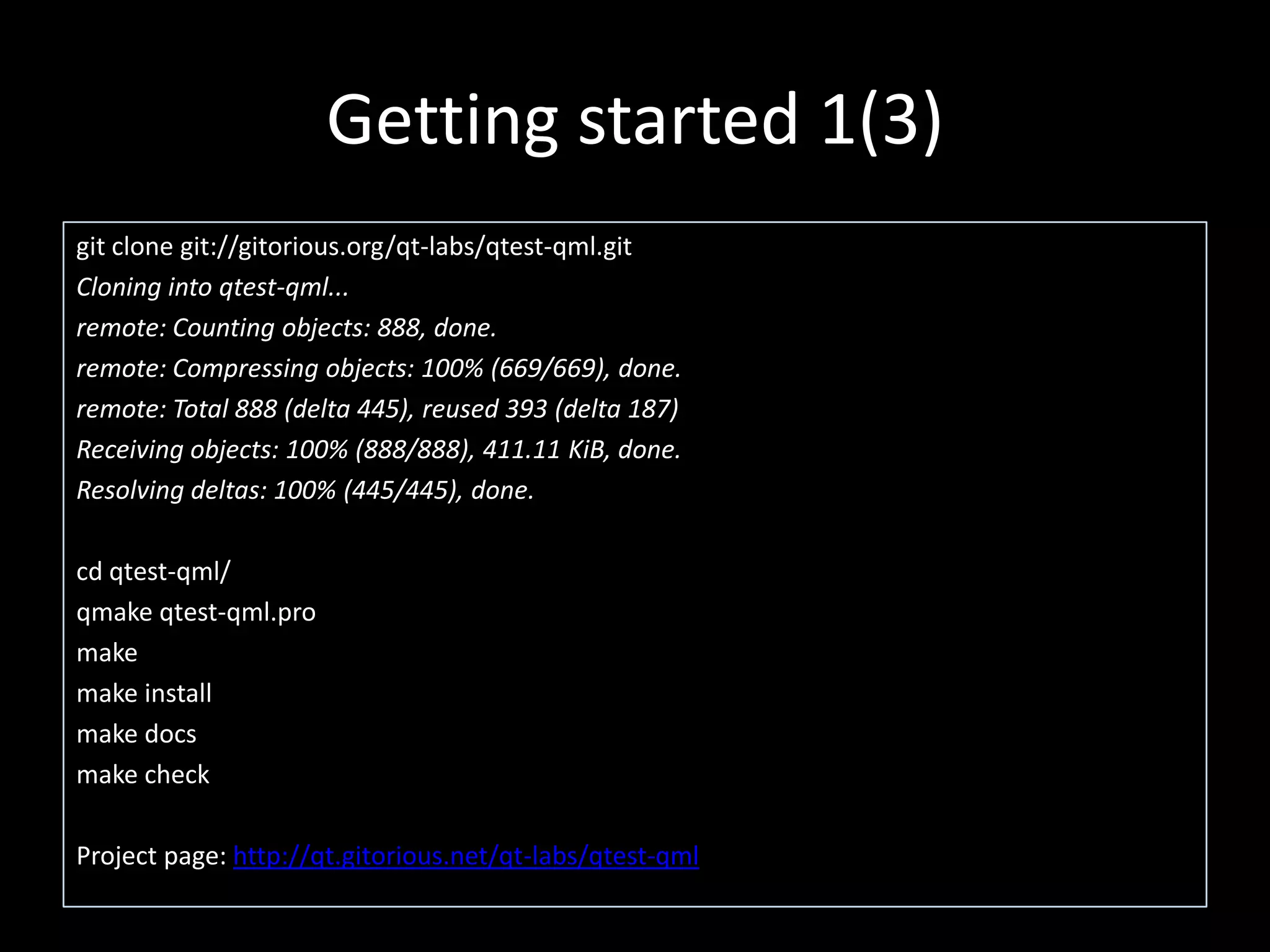

6. Getting started 1(3)git clone git://gitorious.org/qt-labs/qtest-qml.gitCloning into qtest-qml...remote: Counting objects: 888, done.remote: Compressing objects: 100% (669/669), done.remote: Total 888 (delta 445), reused 393 (delta 187)Receiving objects: 100% (888/888), 411.11 KiB, done.Resolving deltas: 100% (445/445), done.cd qtest-qml/qmakeqtest-qml.promakemake installmake docsmake checkProject page: http://qt.gitorious.net/qt-labs/qtest-qml

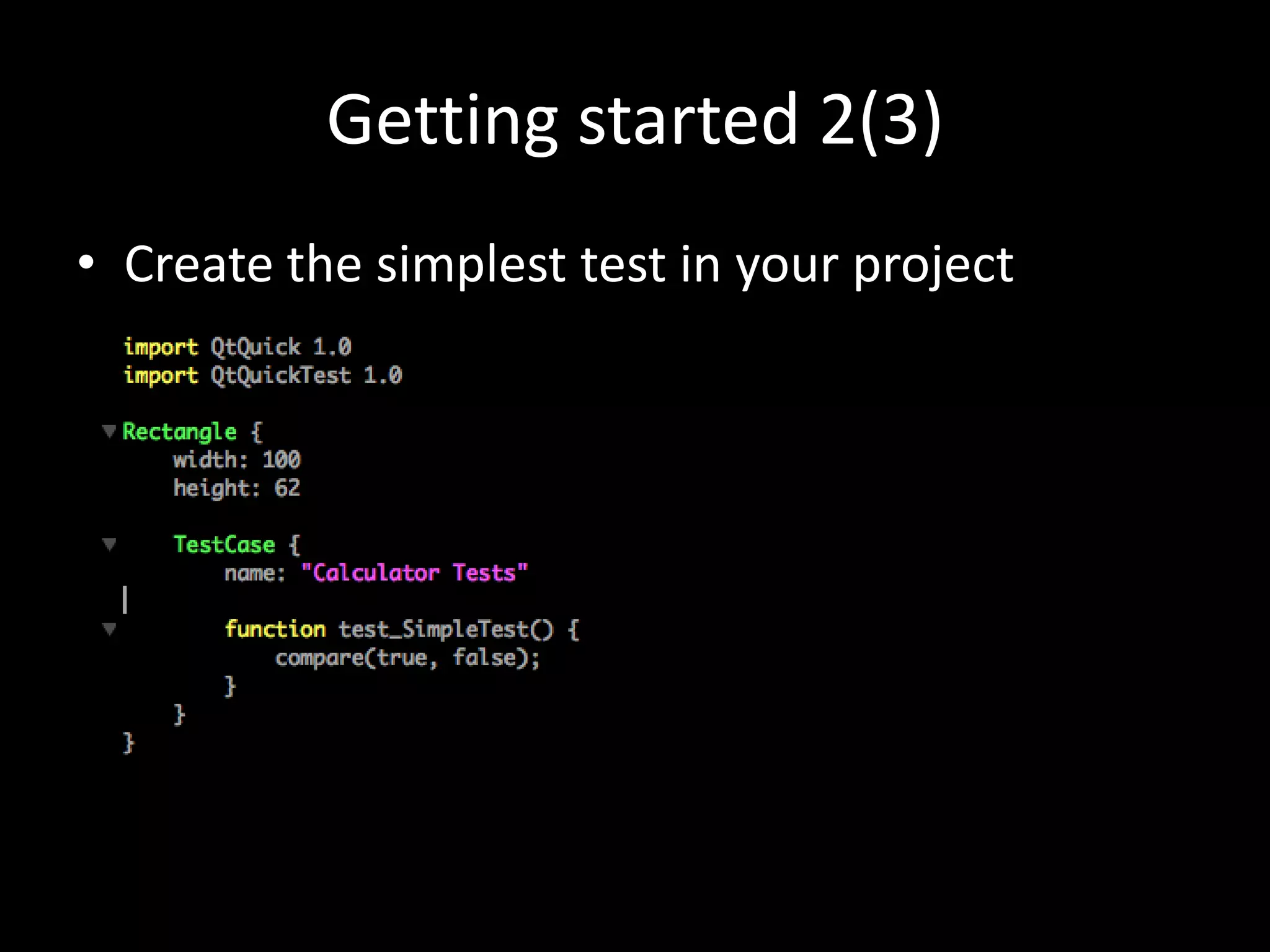

7. Getting started 2(3)Create the simplest test in your project

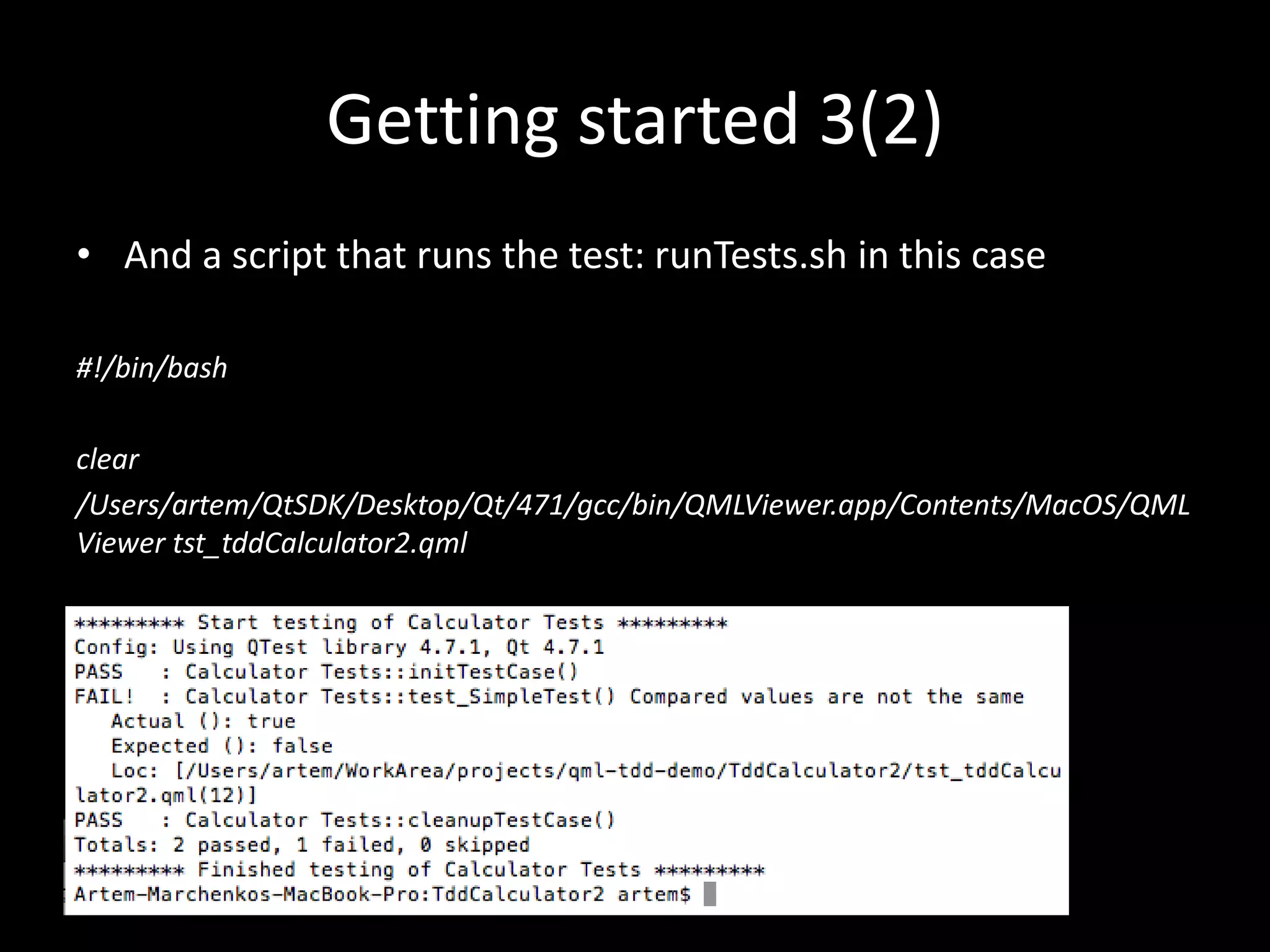

8. Getting started 3(2)And a script that runs the test: runTests.sh in this case#!/bin/bashclear/Users/artem/QtSDK/Desktop/Qt/471/gcc/bin/QMLViewer.app/Contents/MacOS/QMLViewer tst_tddCalculator2.qml

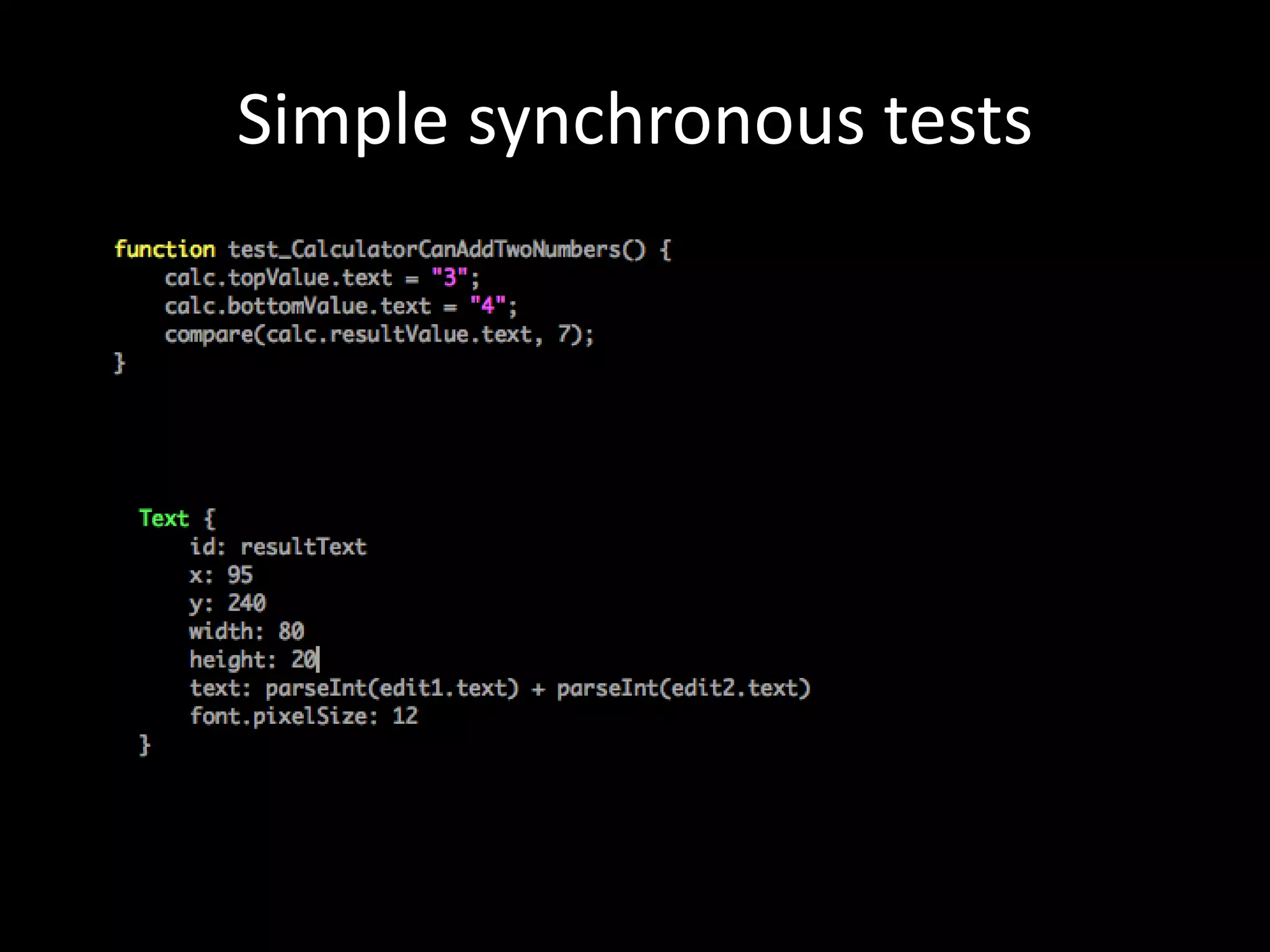

9. Simple synchronous tests

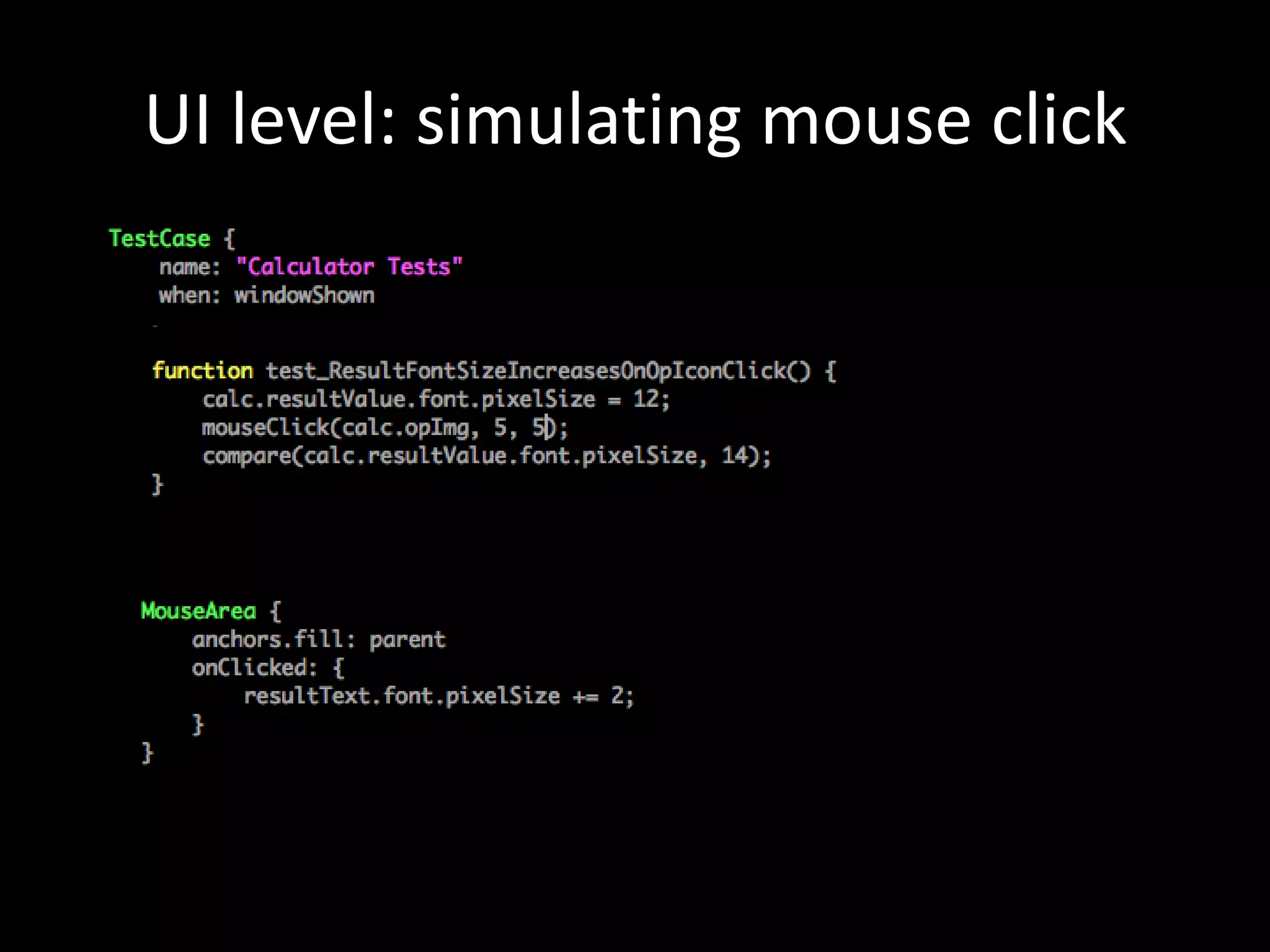

10. UI level: simulating mouse click

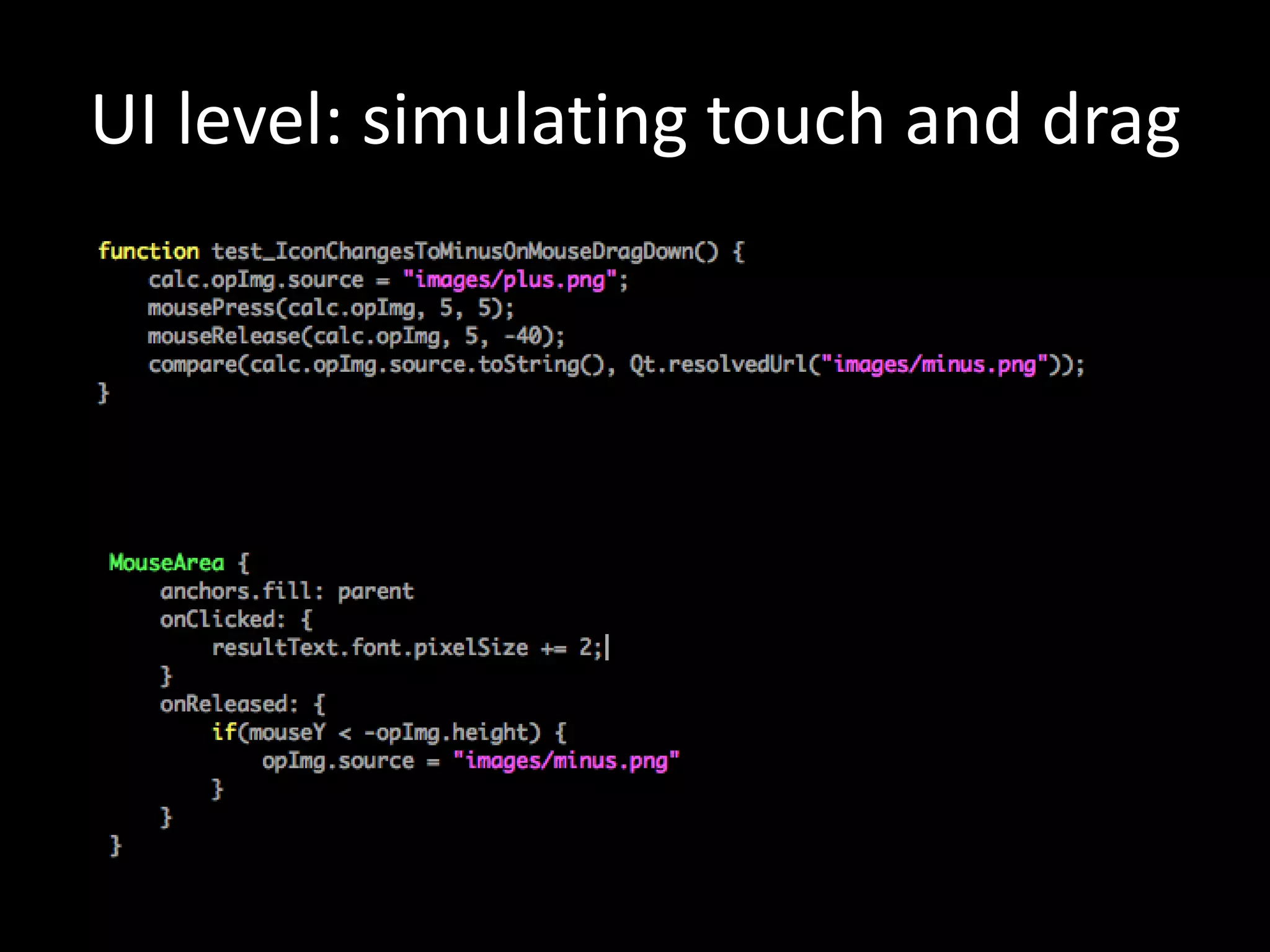

11. UI level: simulating touch and drag

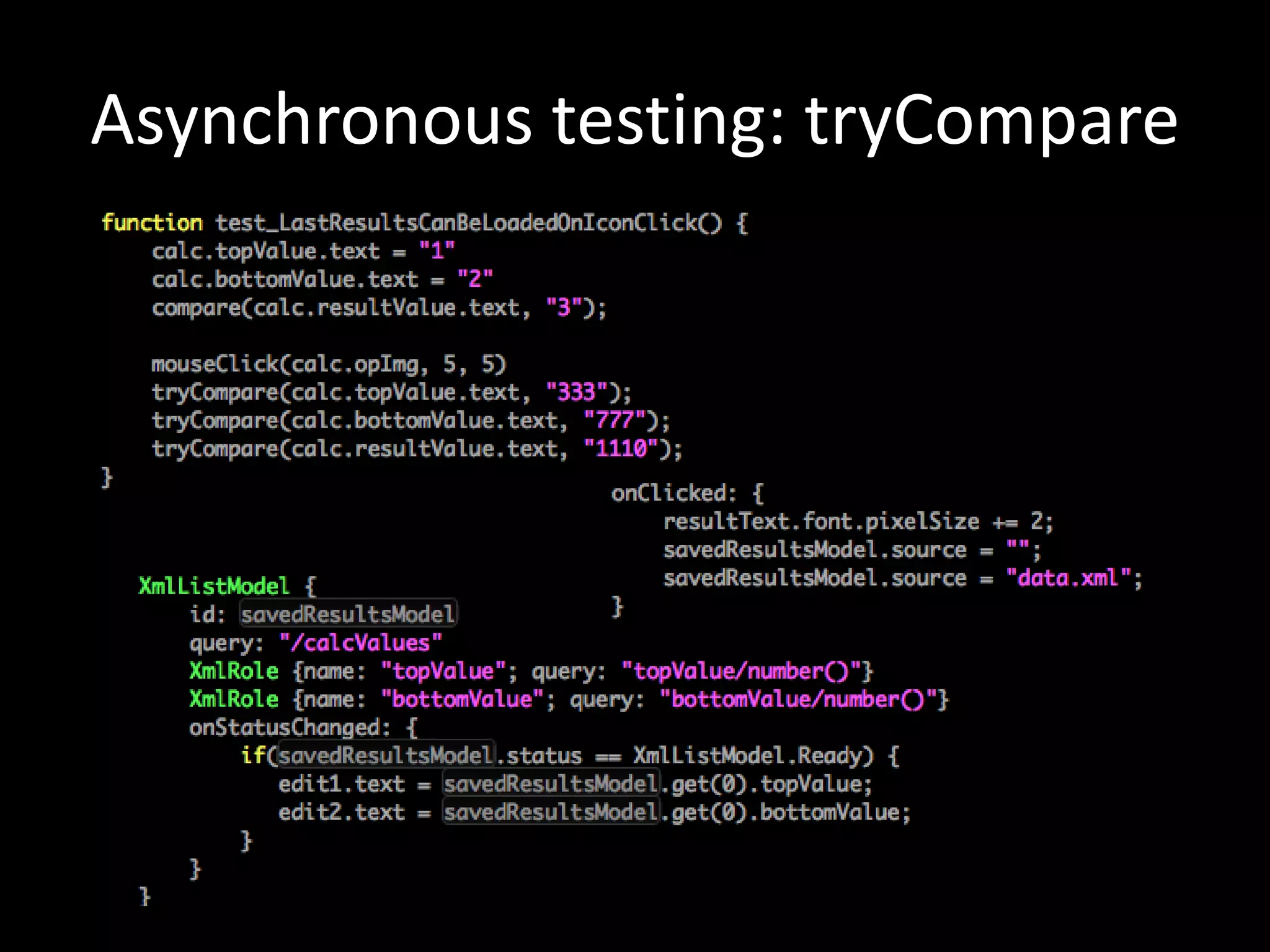

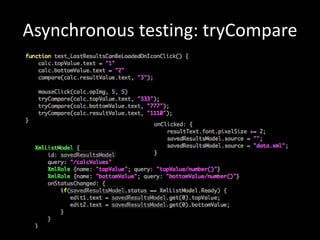

12. Asynchronous testing: tryCompare

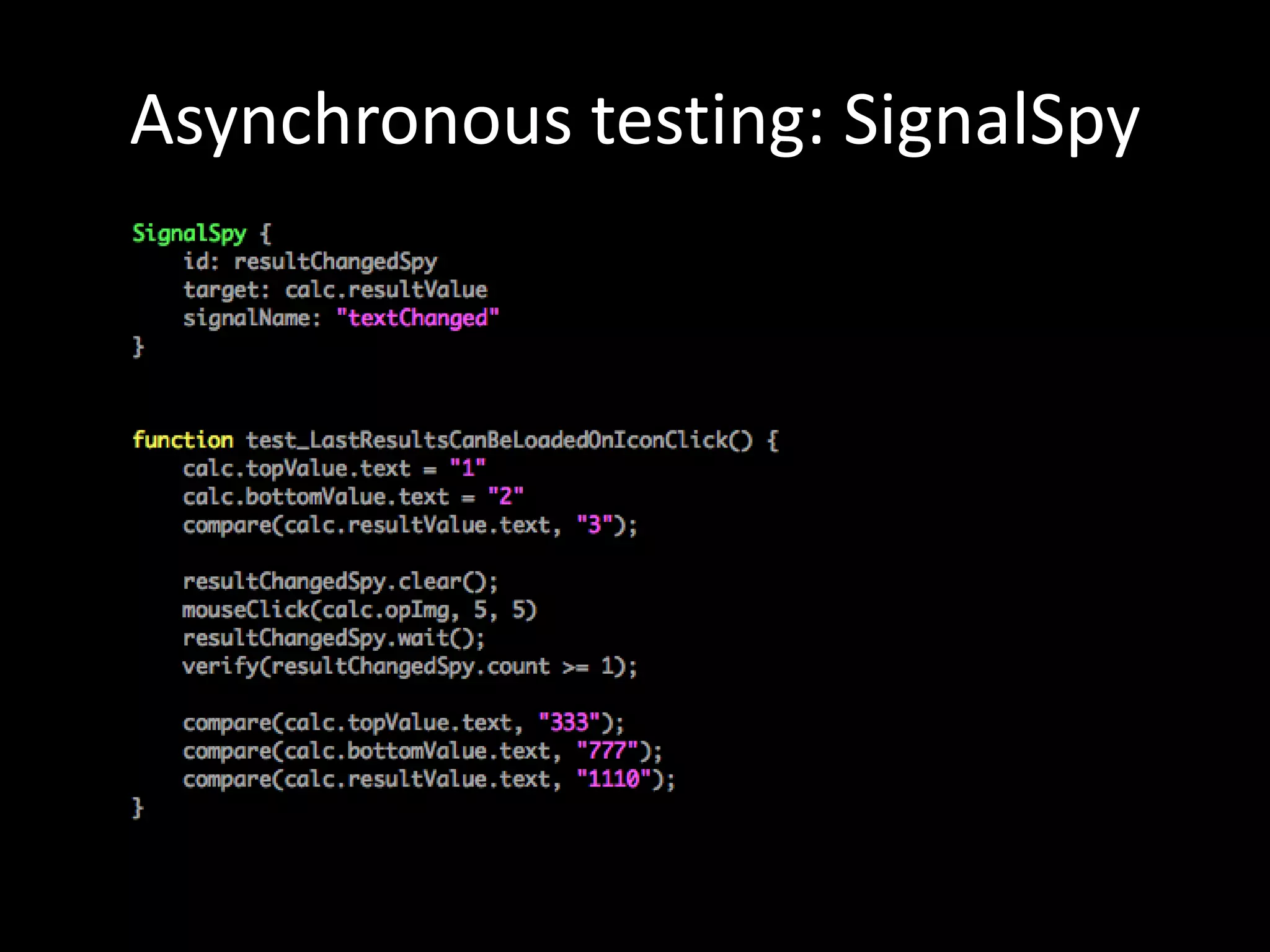

13. Asynchronous testing: SignalSpy

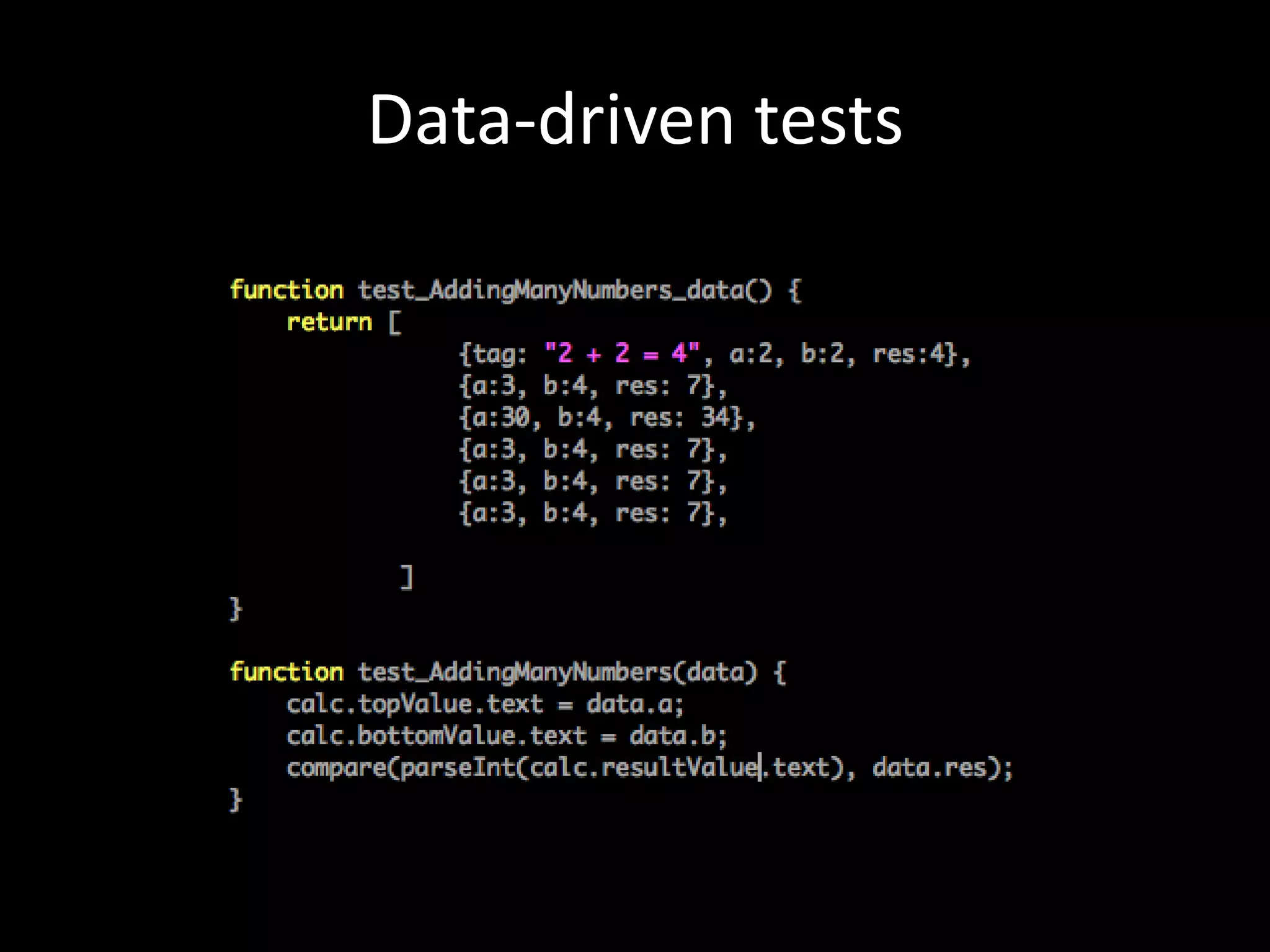

14. Data-driven tests

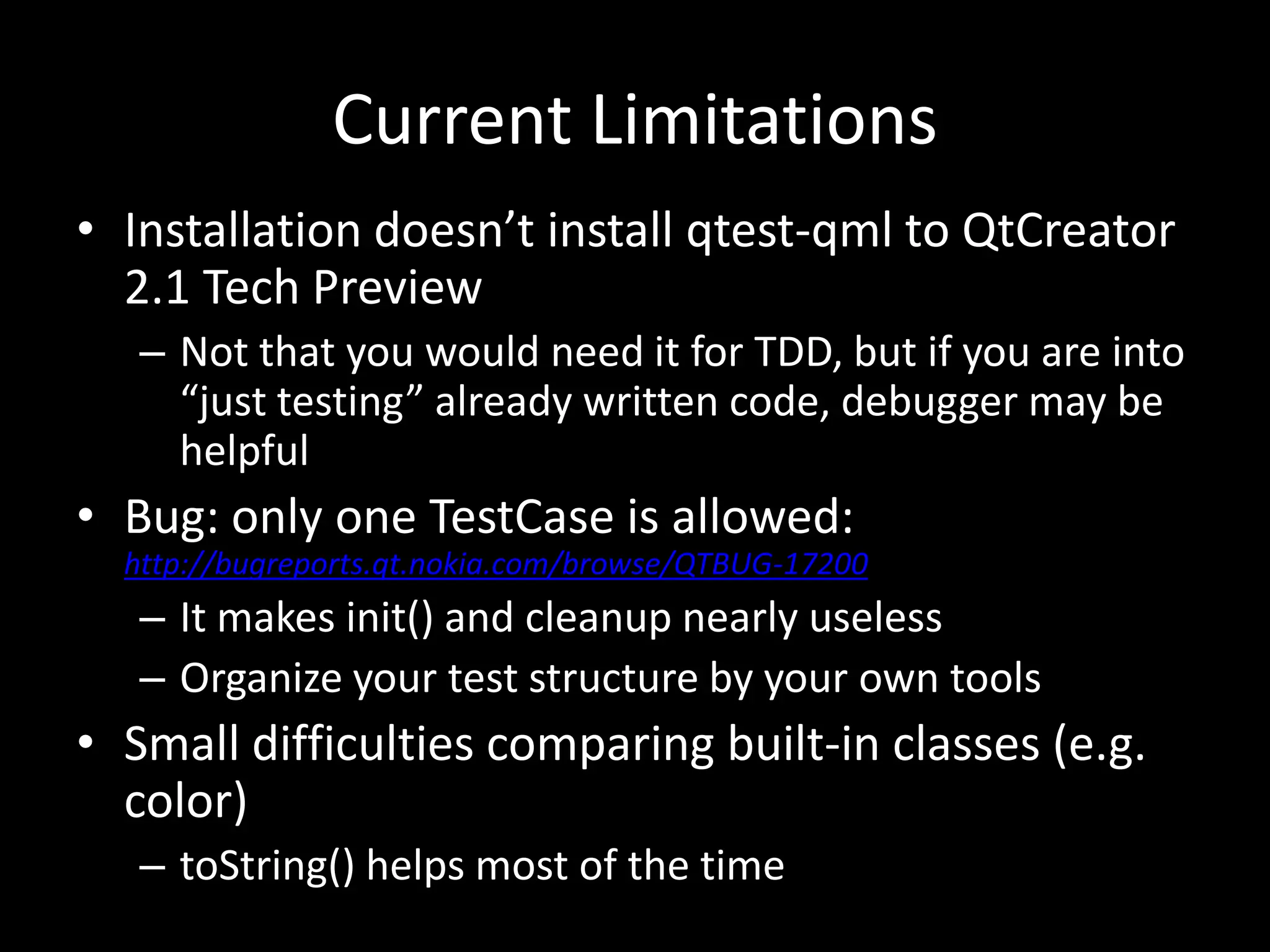

15. Current LimitationsInstallation doesn’t install qtest-qml to QtCreator 2.1 Tech PreviewNot that you would need it for TDD, but if you are into “just testing” already written code, debugger may be helpfulBug: only one TestCase is allowed: http://bugreports.qt.nokia.com/browse/QTBUG-17200It makes init() and cleanup nearly uselessOrganize your test structure by your own toolsSmall difficulties comparing built-in classes (e.g. color)toString() helps most of the time

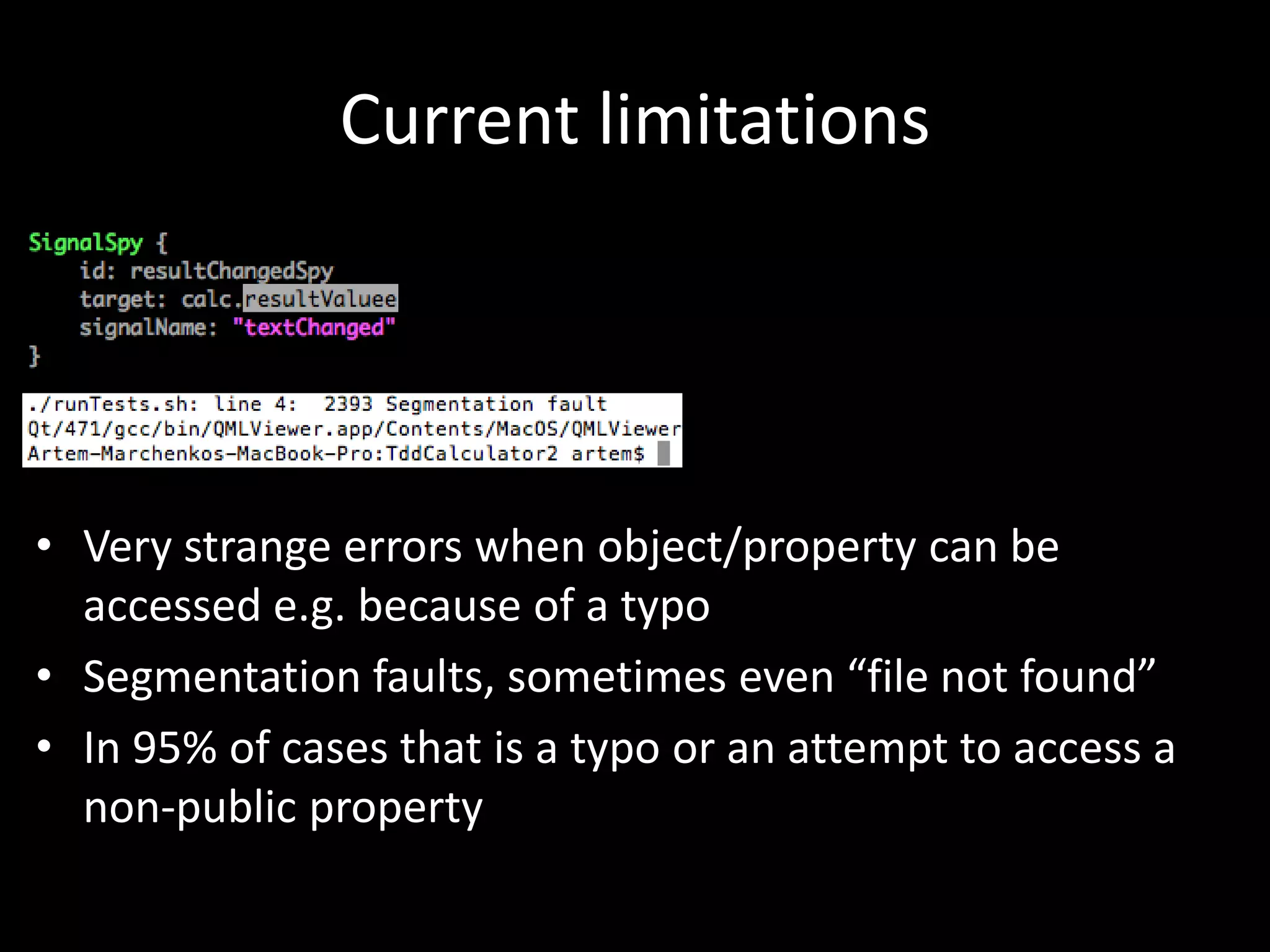

16. Current limitationsVery strange errors when object/property can be accessed e.g. because of a typoSegmentation faults, sometimes even “file not found”In 95% of cases that is a typo or an attempt to access a non-public property

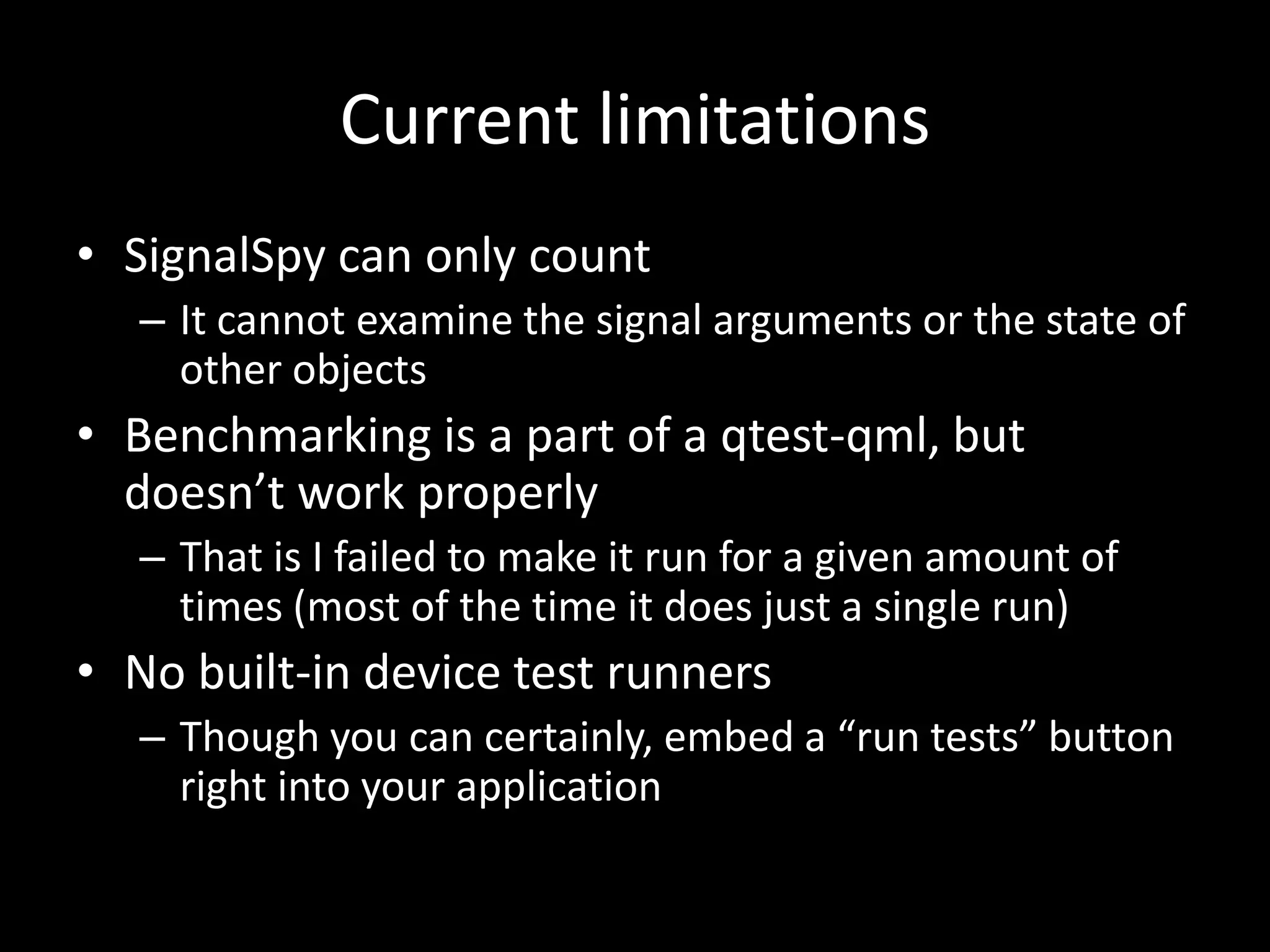

17. Current limitationsSignalSpy can only count It cannot examine the signal arguments or the state of other objectsBenchmarking is a part of a qtest-qml, but doesn’t work properlyThat is I failed to make it run for a given amount of times (most of the time it does just a single run)No built-in device test runnersThough you can certainly, embed a “run tests” button right into your application

18. Thank youQ&As timeYou can find these slides at http://agilesoftwaredevelopment.com/tags/tdd
