The document discusses different approaches to automating testing of user interfaces (UI), including record and replay, coding tests, and using the Jemmy library. It recommends designing a test library that uses higher-level abstractions like the domain model to minimize changes needed when the UI changes, improving test maintenance effectiveness.

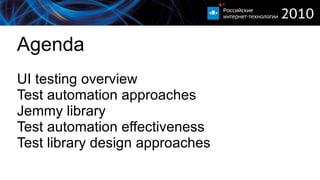

1. Testing JavaFX UI Tips from JavaFX quality team Alexandre (Shura) Iline Java and JavaFX quality architect Oracle

3. Test automation approaches

4. Jemmy library

5. Test automation effectiveness

6. Test library design approaches

7. UI testing … by Wikipedia «GUI software testing is the process of testing a product that uses a graphical user interface, to ensure it meets its written specifications.»

8. UI testing … most often ... «Checking whether usage of a product UI leads to results expected by the the person who performs testing »

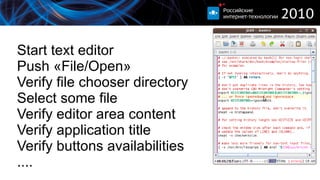

10. Push «File/Open»

11. Verify file chooser directory

12. Select some file

13. Verify editor area content

14. Verify application title

15. Verify buttons availabilities

16. ....

17. UI Testing Manual Automated Initial step Design test specification. Create tests. Establish regular runs. Ongoing Click, click, click Analize results File bugs Change the specification Change the tests Qualification High, low for test executors High Effectiveness Low High Other Inexpensive to start Continuous quality monitoring , inexpensive to reuse Fun Bo-o-o-ring Much like programming

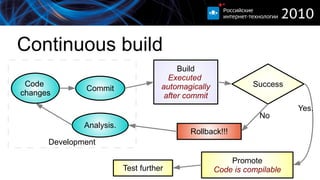

18. Continuous build No Yes. Development Success

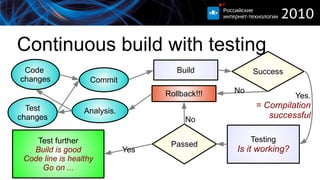

19. Continuous build with testing No No Yes Yes. = Compilation successful Success Passed

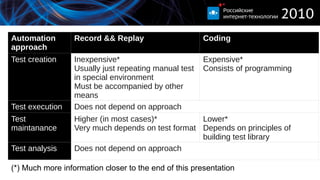

20. Automation approach Record && Replay Coding Test creation Inexpensive* Usually just repeating manual test in special environment Must be accompanied by other means Expensive* Consists of programming Test execution Does not depend on approach Test maintanance Higher (in most cases)* Very much depends on test format Lower* Depends on principles of building test library Test analysis Does not depend on approach (*) Much more information closer to the end of this presentation

21. Jemmy

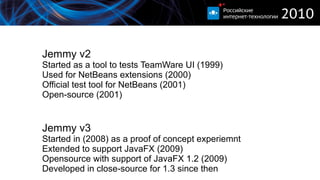

22. Jemmy v2 Started as a tool to tests TeamWare UI (1999) Used for NetBeans extensions (2000) Official test tool for NetBeans (2001) Open-source (2001) Jemmy v3 Started in (2008) as a proof of concept experiemnt Extended to support JavaFX (2009) Opensource with support of JavaFX 1.2 (2009) Developed in close-source for 1.3 since then

26. Demo... Finally!

27. Jemmy v3 Covered in this presentation JavaFX AWT/Swing SWT Scenegraph LCDUI JemmyCore Interfaces AWT robot FX robot Hierarchy Input Scene, node containers Scroller, slider, list, text, ... Generic interfaces

28. UI test Find Do Verify Pass Pass Pass Fail Fail Fail Failure analysis Find next control To perform operation On in Verify that expected State reached Perform necessary actions

34. Button with text «browse»

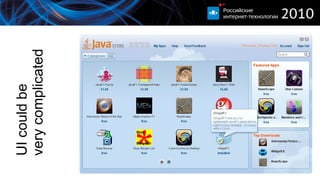

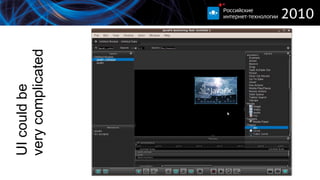

35. UI could be very complicated

36. UI could be very complicated

37. UI could be very complicated

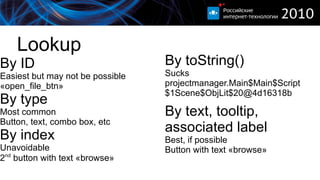

38. Lookup demo

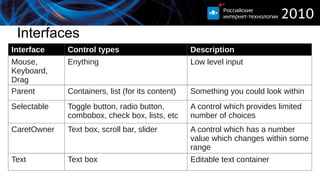

39. Interfaces Interface Control types Description Mouse, Keyboard, Drag Enything Low level input Parent Containers, list (for its content) Something you could look within Selectable Toggle button, radio button, combobox, check box, lists, etc A control which provides limited number of choices CaretOwner Text box, scroll bar, slider A control which has a number value which changes within some range Text Text box Editable text container

40. Interfaces demo

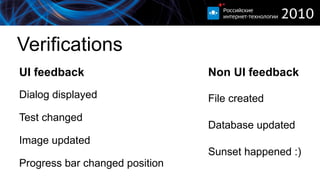

41. Verifications UI feedback Non UI feedback Dialog displayed Test changed Image updated Progress bar changed position File created Database updated Sunset happened :)

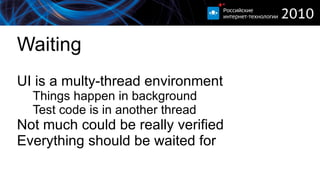

43. Everything should be waited for

44. Verification demo

45. Test automation effectiveness

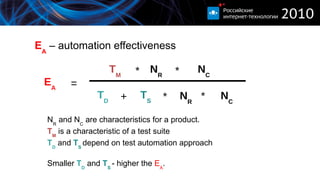

46. E A – automation effectiveness N R and N C are characteristics for a product. T M is a characteristic of a test suite T D and T S depend on test automation approach Smaller T D and T S - higher the E A . T D + * T S N R T M * N R N C * E A = N C *

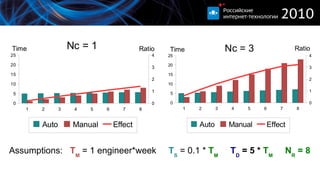

47. Assumptions: T M = 1 engineer*week T S = 0.1 * T M T D = 5 * T M N R = 8

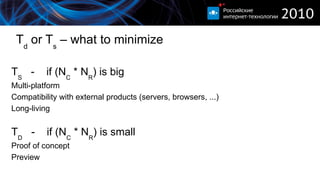

48. T d or T s – what to minimize T S - if (N C * N R ) is big Multi-platform Compatibility with external products (servers, browsers, ...) Long-living T D - if (N C * N R ) is small Proof of concept Preview

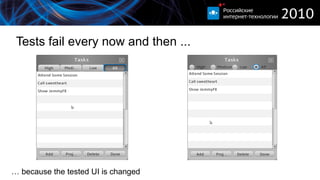

49. Tests fail every now and then ... … because the tested UI is changed

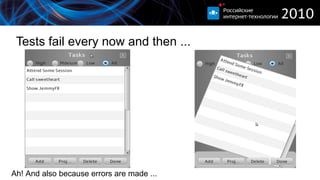

50. Tests fail every now and then ... Ah! And also because errors are made ...

51. End2End demo

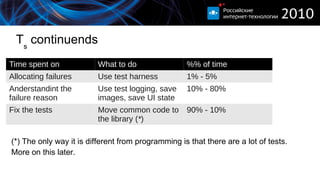

52. T s continuends Time spent on What to do %% of time Allocating failures Use test harness 1% - 5% Anderstandint the failure reason Use test logging, save images, save UI state 10% - 80% Fix the tests Move common code to the library ( * ) 90% - 10% (*) The only way it is different from programming is that there are a lot of tests. More on this later.

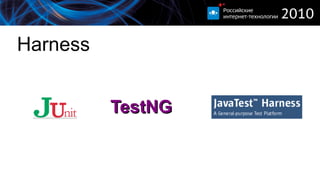

53. Harness TestNG

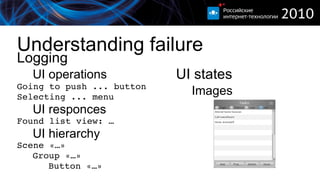

54. Understanding failure Logging UI operations Going to push ... button Selecting ... menu UI responces Found list view: … UI hierarchy Scene «…» Group «…» Button «…» UI states Images

55. Demo Jemmy logging functionality

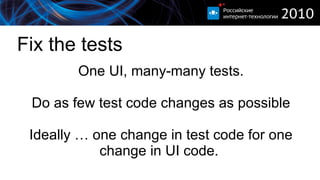

56. Fix the tests One UI, many-many tests. Do as few test code changes as possible Ideally … one change in test code for one change in UI code.

58. Demo Refining test.

59. Library design approaches

60. Remember the formula? T D + * T S N R T M * N R N C * E A = N C * E A – automation effectiveness To be used for every particular product. N R and N C are unique for a product. T M is a characteristic of a test suite. Smaller T D and T S - higher the E A . Coefficient depend on the way you write your tests

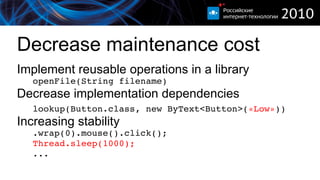

61. T S mainly consists of time for test modification. When product changes, tests need to be changed accordingly. Many tests! Hundreds. “ Less changes of test code per a change in the product UI.” Ideally ... no more than one. But ... how? You are the coders – you know: Move code to test library.

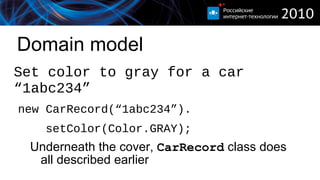

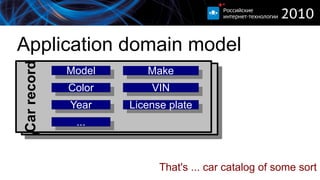

62. Application domain model That's ... car catalog of some sort

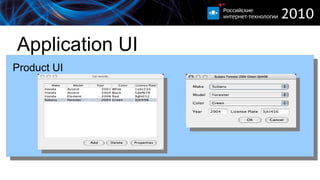

63. Application UI

65. click(215,122) //hits “Properties”

66. sleep(5) //sleeps to let dialog be painted

67. click(64,182) //expands color combo

68. click(235,182) //selects Gray

69. click(235,212) //hit OK T d ~= 1.1 * T m , T s ~= 1 * T m Never tried, but ...

71. Find table

72. Select “1abc234” cell

73. Push “Properties” button

74. Wait for “1abc234” dialog

75. Select “Gray” color in combo box

76. Push “OK”

77. Widgets or coordinates T D ~= 3 * T M , T S ~= .5 * T M

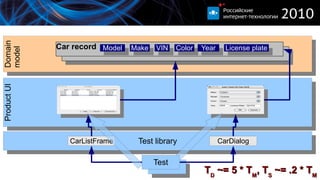

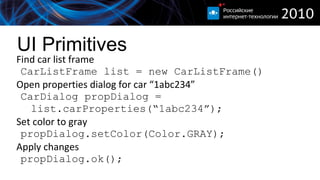

79. T D ~= 5 * T M , T S ~= .2 * T M

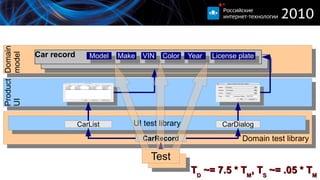

81. T D ~= 7.5 * T M , T S ~= .05 * T M

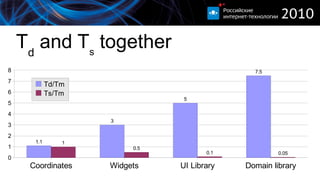

82. T d and T s together

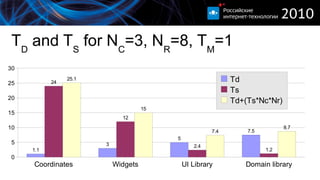

83. T D and T S for N C =3, N R =8, T M =1

84. E A for N C =3, N R =8

85. Testing JavaFX UI Tips from JavaFX quality team Alexandre (Shura) Iline Java and JavaFX quality architect Oracle
