Teams and monoliths - Matthew Skelton - Velocity EU 2016

How to break apart a
monolithic system safely
without destroying your team
Matthew Skelton, Skelton Thatcher Consulting
@matthewpskelton
07 November 2016, Amsterdam, NL - #velocityconf

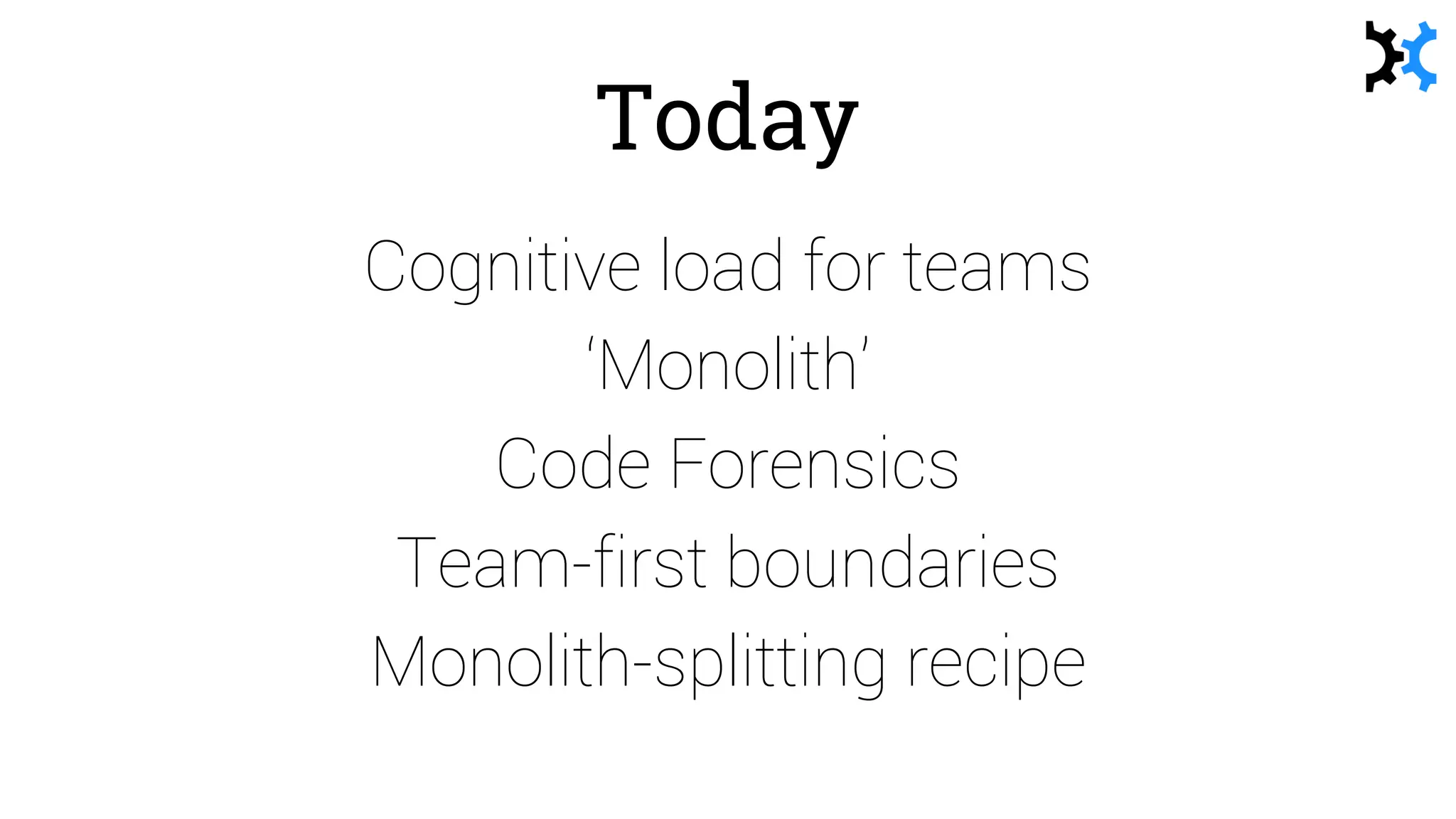

Today
Cognitive load for teams
‘Monolith’
Code Forensics
Team-first boundaries
Monolith-splitting recipe

For now, let’s forget:
Microservices
CQRS / Event Sourcing
Queues
(Architectural changes)

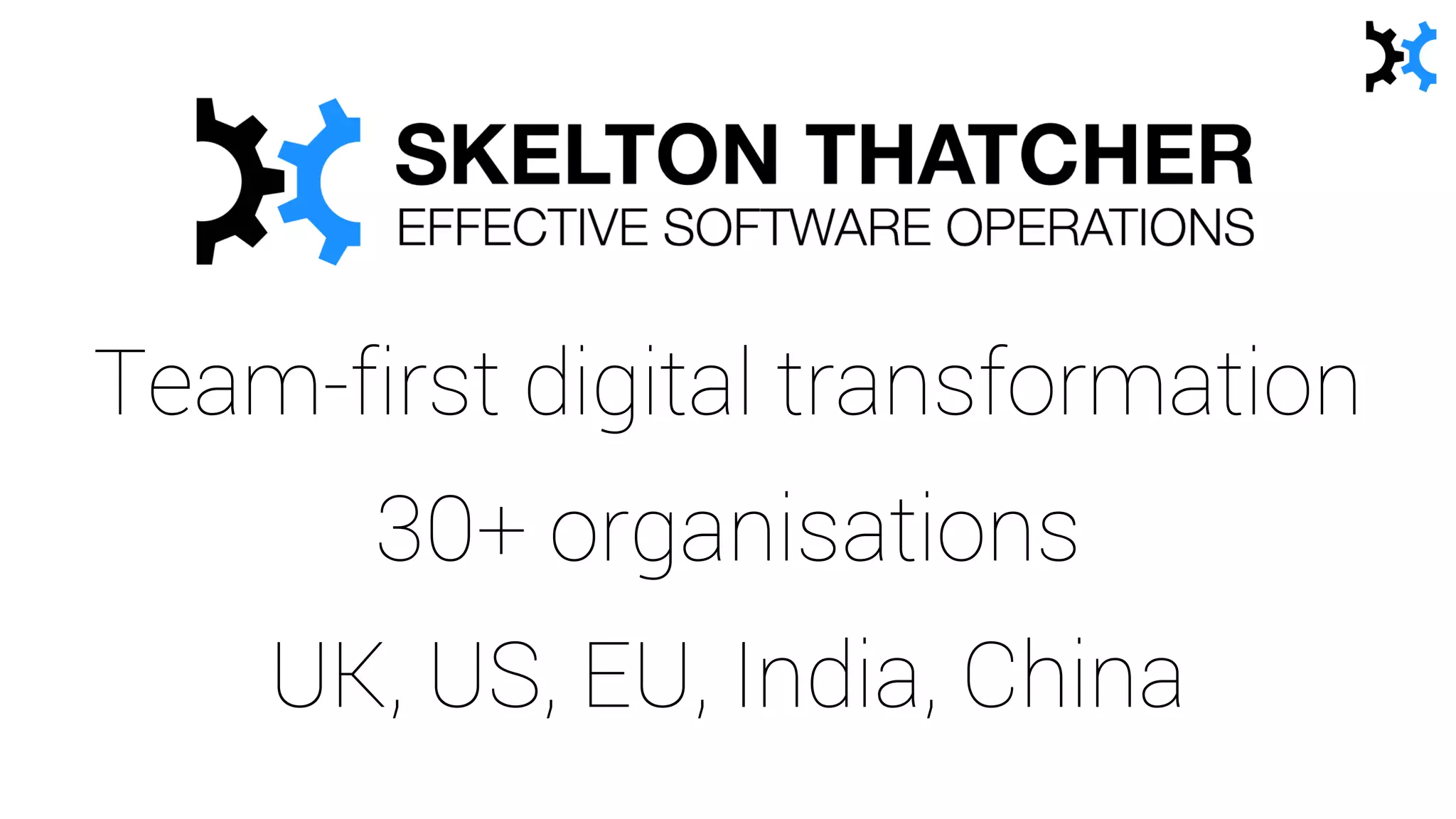

Team-first digital transformation
30+ organisations
UK, US, EU, India, China

without destroying your
team

Safer, more rapid changes
to software systems
(Business Agility)

A ‘team-first’ approach to
software subsystem
boundaries

TEAM
capabilities
appetite & aptitude
understanding
responsibilities

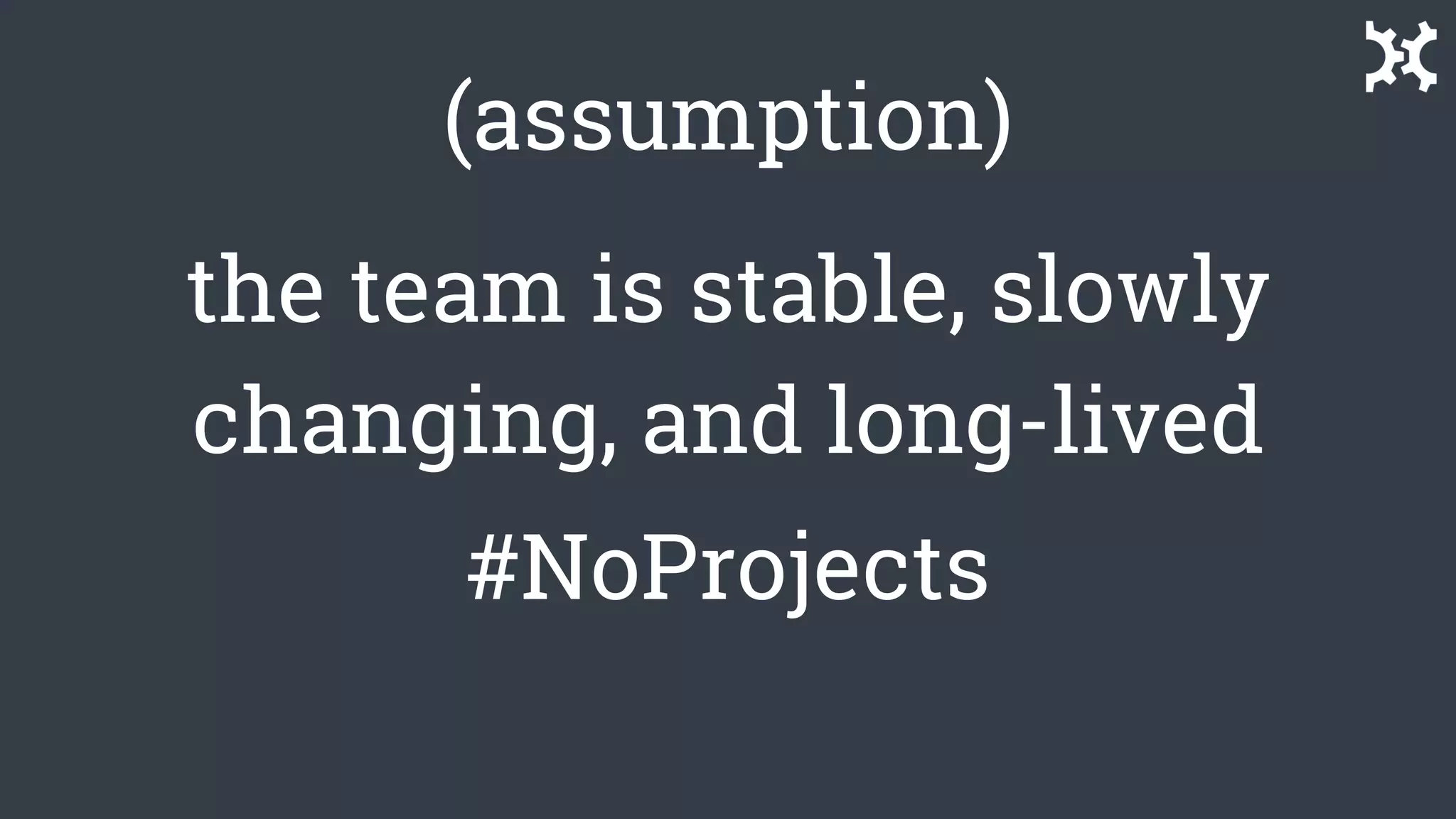

(assumption)
the team is stable, slowly
changing, and long-lived
#NoProjects

“organizations which design
systems ... are constrained to
produce designs which are copies
of the communication structures of
these organizations”
– Mel Conway, 1968
http://www.melconway.com/Home/Conways_Law.html

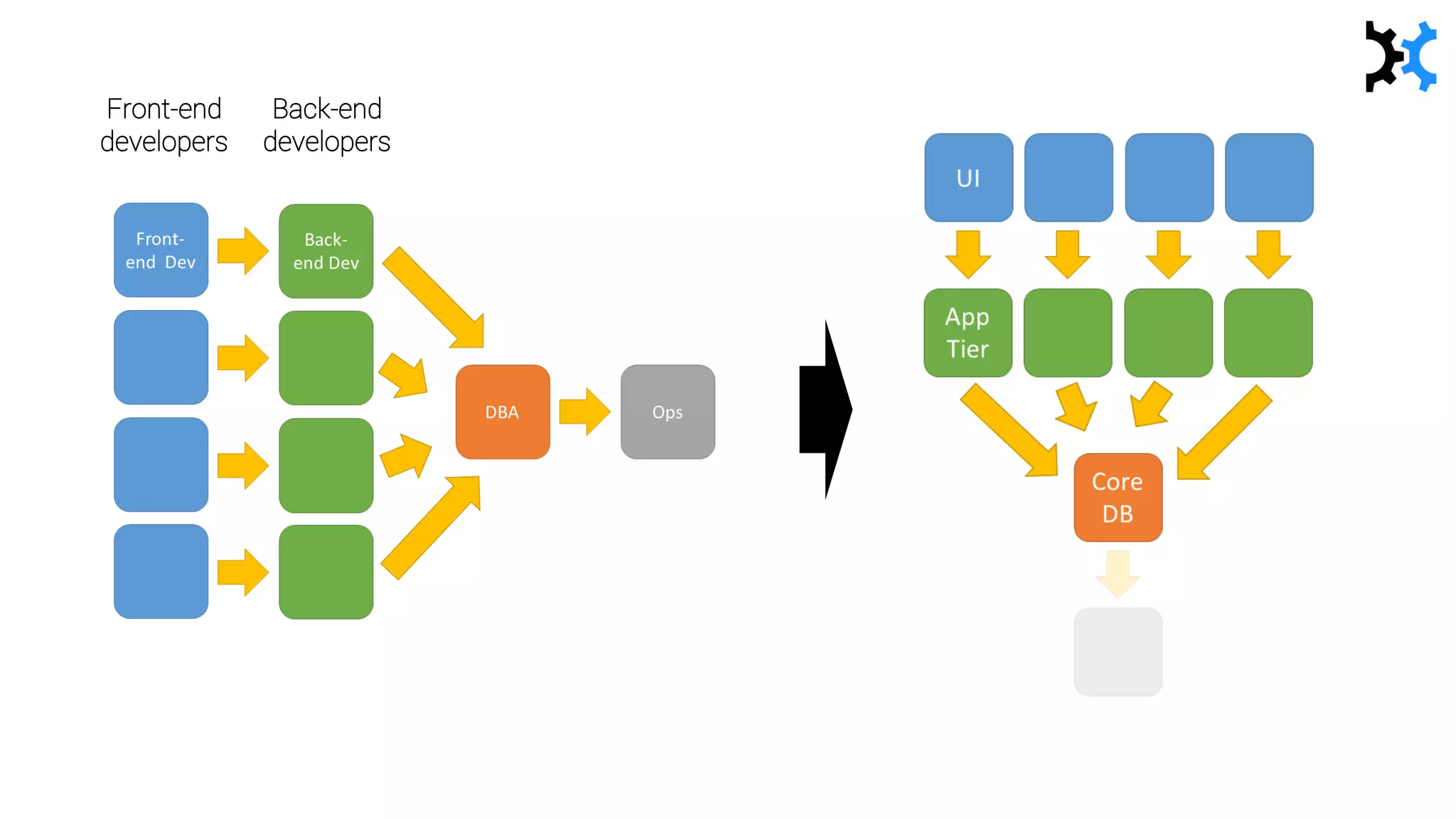

Front-end
developers
Back-end
developers

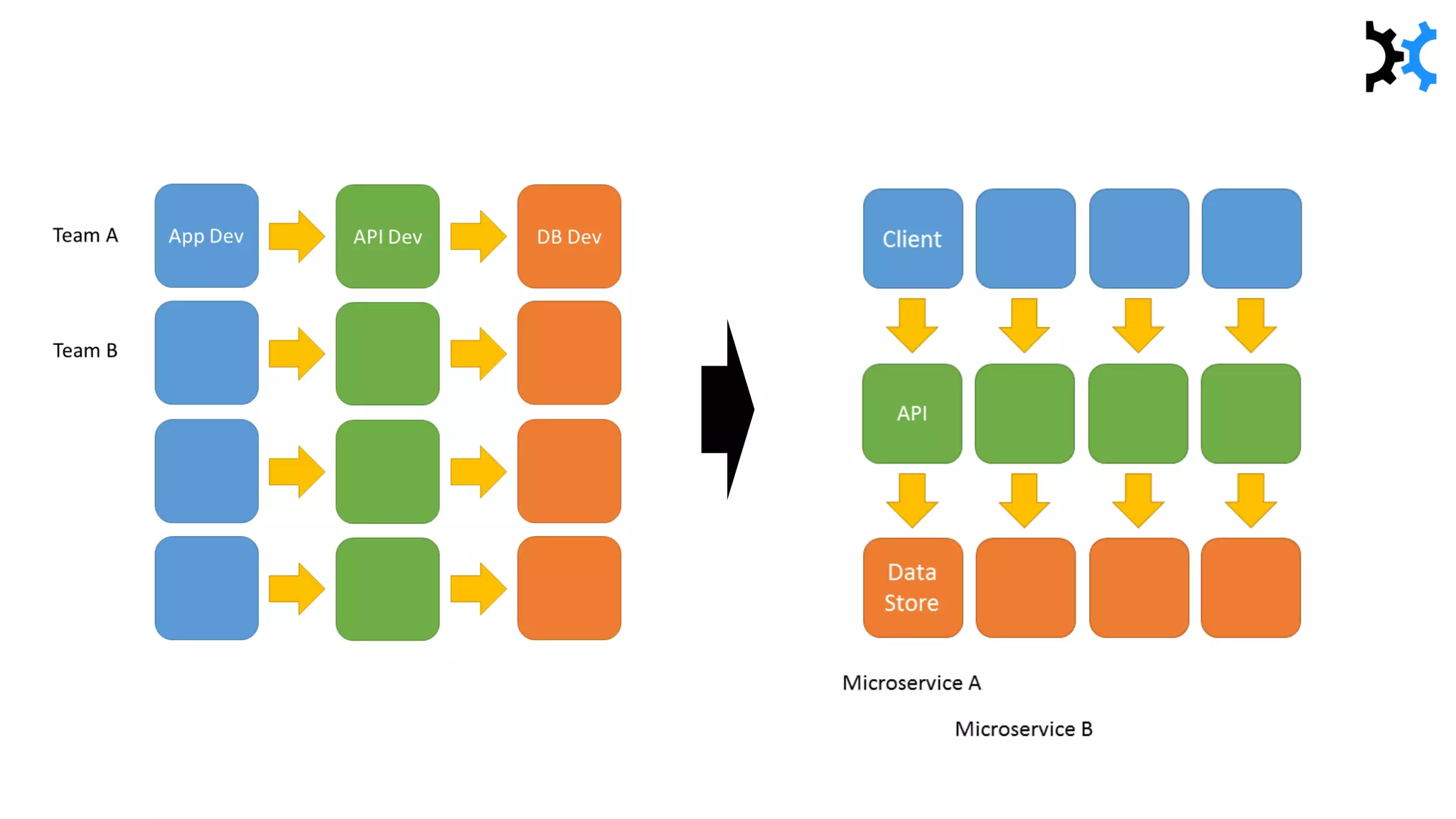

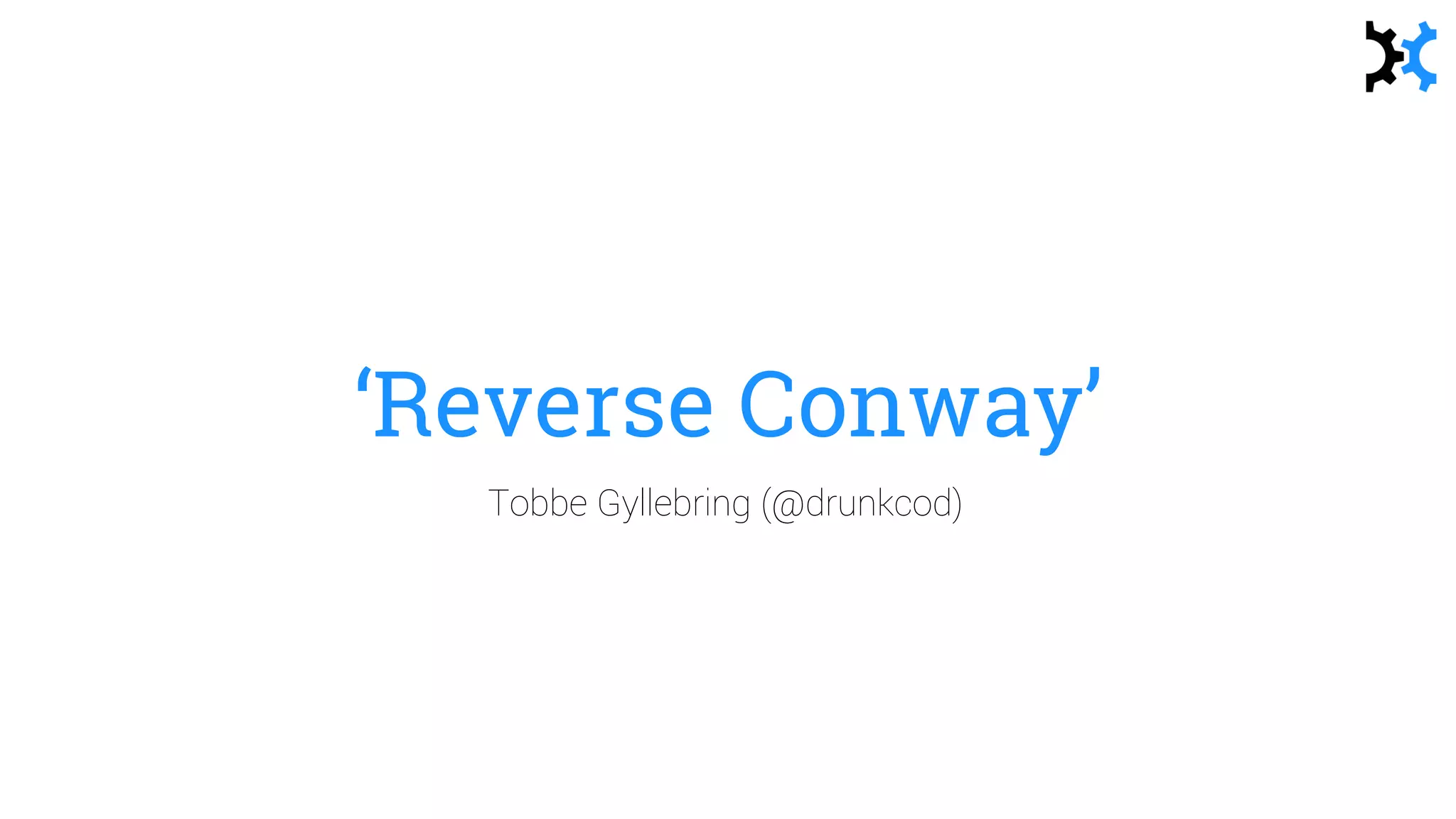

‘Reverse Conway’
Tobbe Gyllebring (@drunkcod)

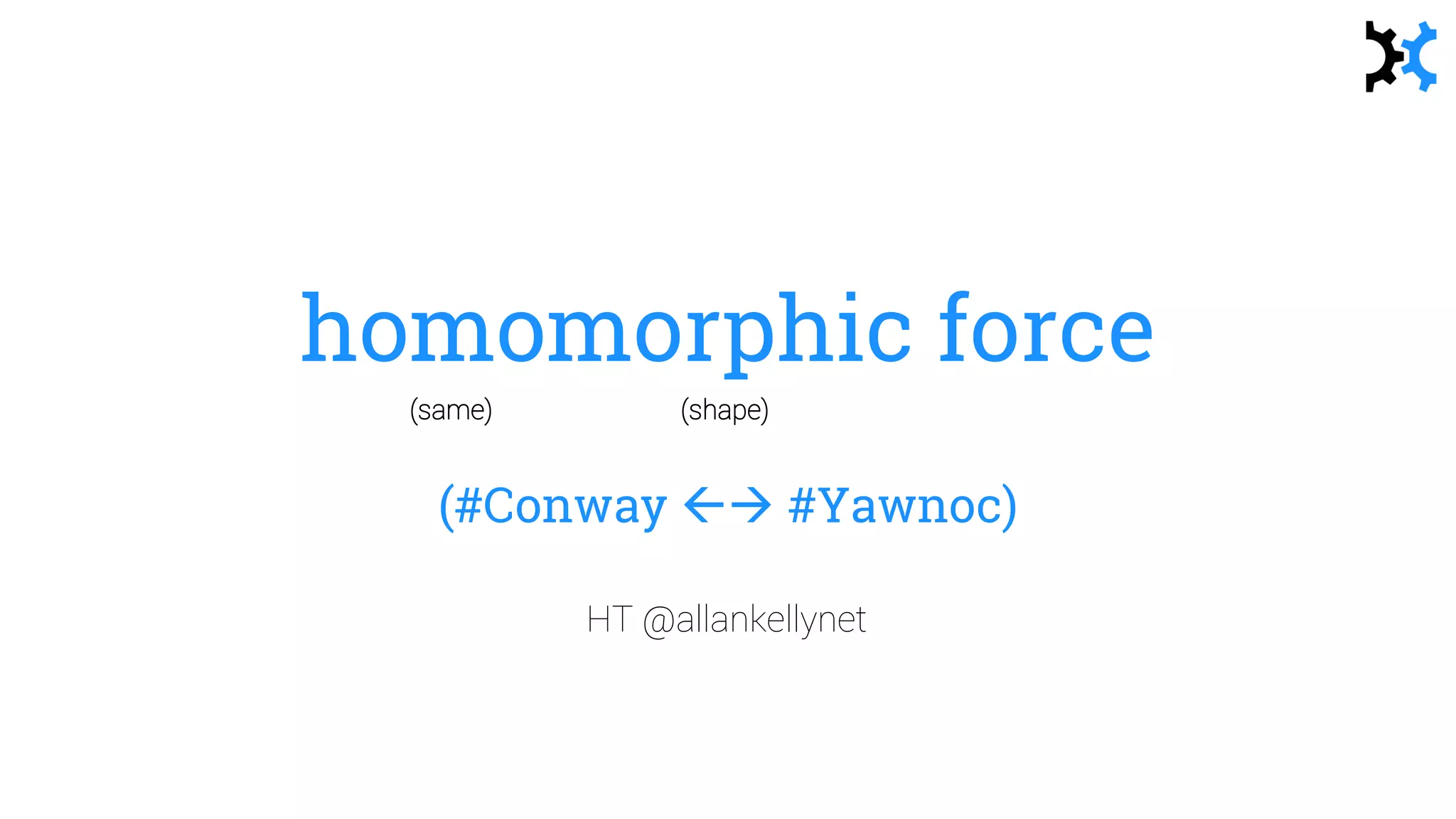

homomorphic force
(#Conway  #Yawnoc)
HT @allankellynet
(same) (shape)

Cognitive load
the total amount of
mental effort being used in
the working memory
(see Sweller, 1988)

Cognitive load
Intrinsic
Extraneous (Irrelevant )
Germane (Relevant)

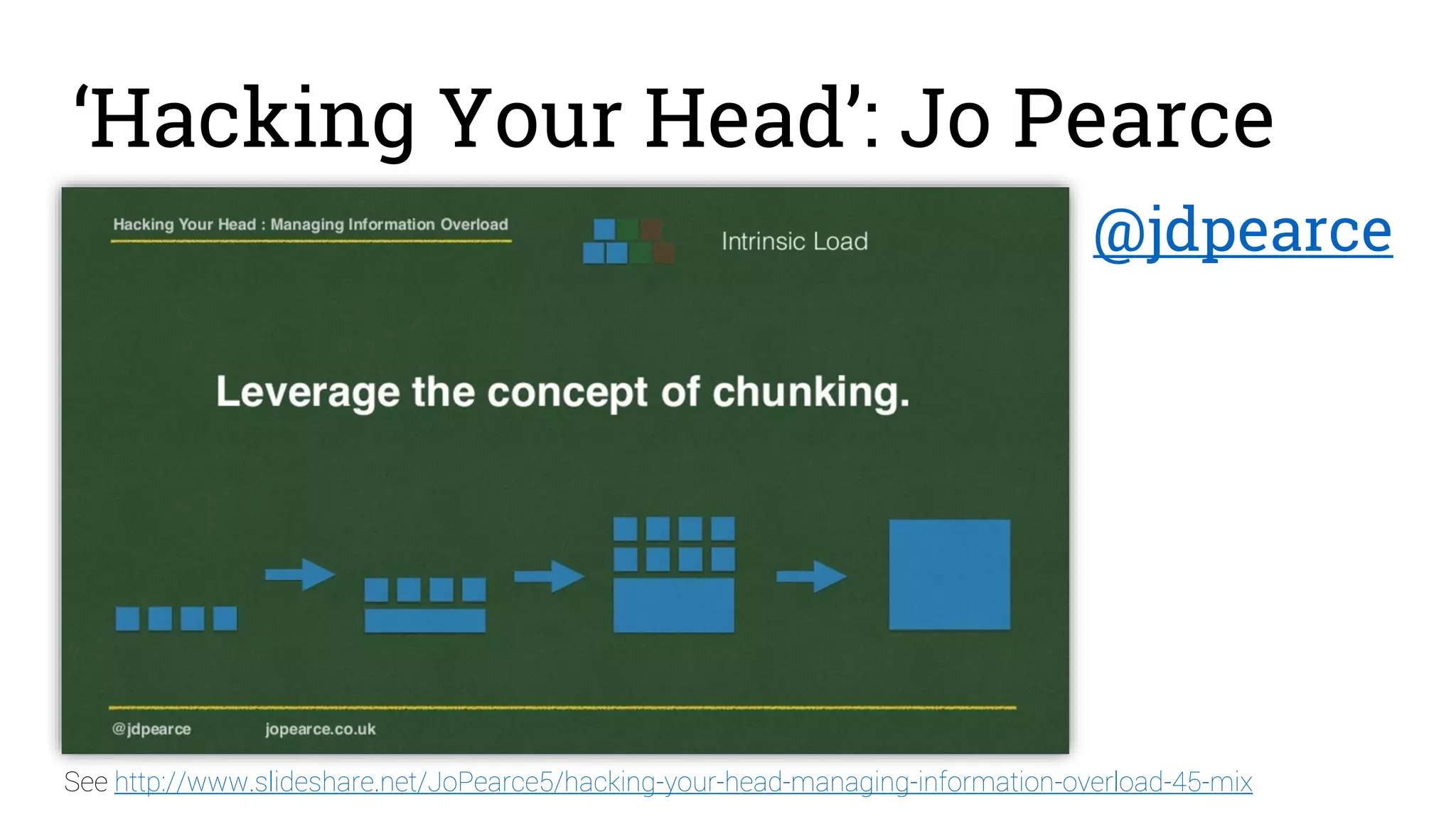

‘Hacking Your Head’: Jo Pearce
See http://www.slideshare.net/JoPearce5/hacking-your-head-managing-information-overload-45-mix
@jdpearce

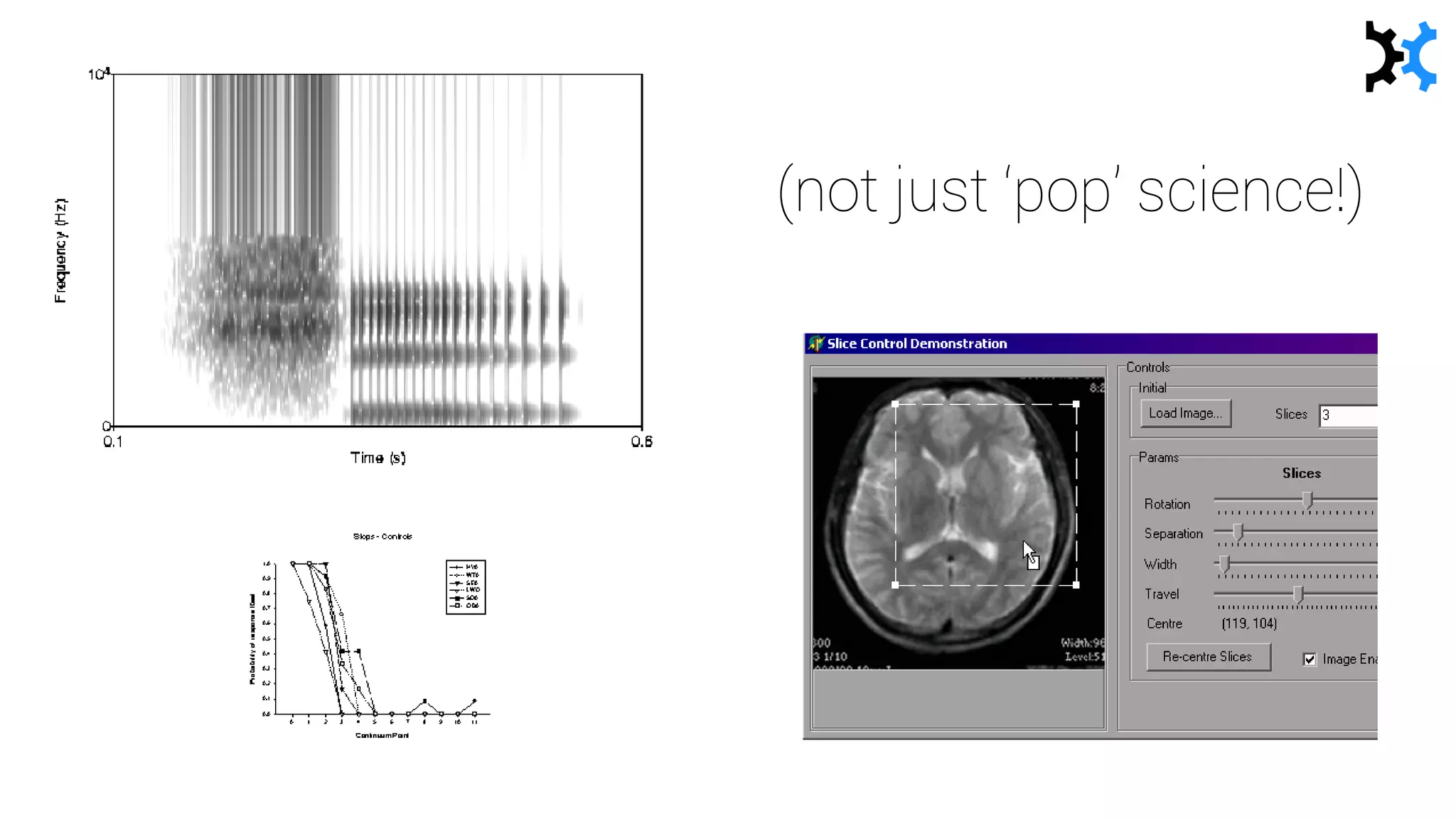

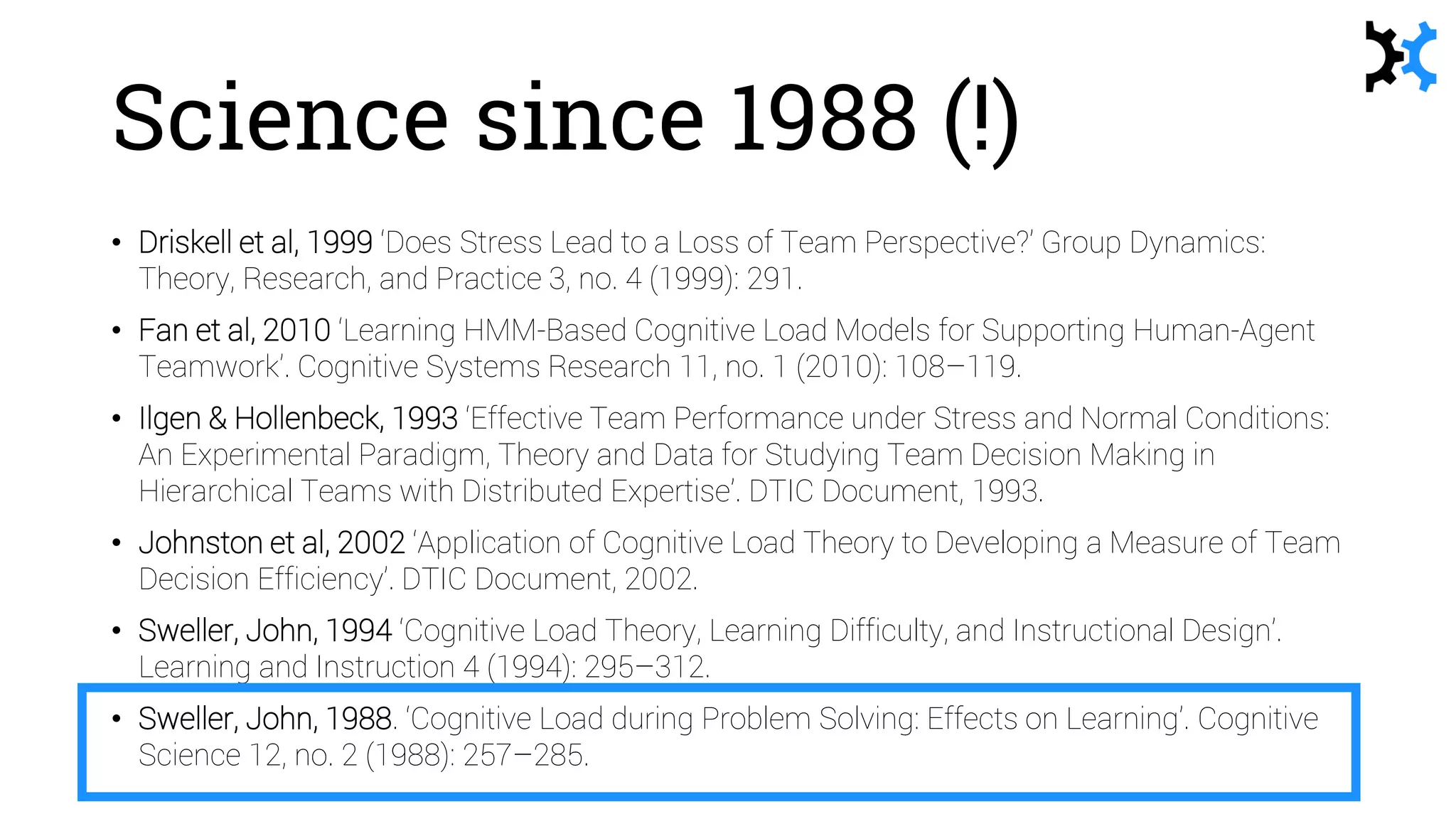

Science since 1988 (!)
• Driskell et al, 1999 ‘Does Stress Lead to a Loss of Team Perspective?’ Group Dynamics:
Theory, Research, and Practice 3, no. 4 (1999): 291.
• Fan et al, 2010 ‘Learning HMM-Based Cognitive Load Models for Supporting Human-Agent
Teamwork’. Cognitive Systems Research 11, no. 1 (2010): 108–119.
• Ilgen & Hollenbeck, 1993 ‘Effective Team Performance under Stress and Normal Conditions:
An Experimental Paradigm, Theory and Data for Studying Team Decision Making in
Hierarchical Teams with Distributed Expertise’. DTIC Document, 1993.
• Johnston et al, 2002 ‘Application of Cognitive Load Theory to Developing a Measure of Team
Decision Efficiency’. DTIC Document, 2002.
• Sweller, John, 1994 ‘Cognitive Load Theory, Learning Difficulty, and Instructional Design’.
Learning and Instruction 4 (1994): 295–312.
• Sweller, John, 1988. ‘Cognitive Load during Problem Solving: Effects on Learning’. Cognitive
Science 12, no. 2 (1988): 257–285.

“stress impacts team
performance … by narrowing
or weakening the team-level
perspective required for
effective team behavior.”
– Driskell et al, 1999
Group Dynamics: Theory, Research, and Practice 1999, Vol. 3, No. 4,291-302

monolith
μόνο λίθος
“single stone”
Reiner Flassig - CC BY-SA 2.0 de - Wikipedia

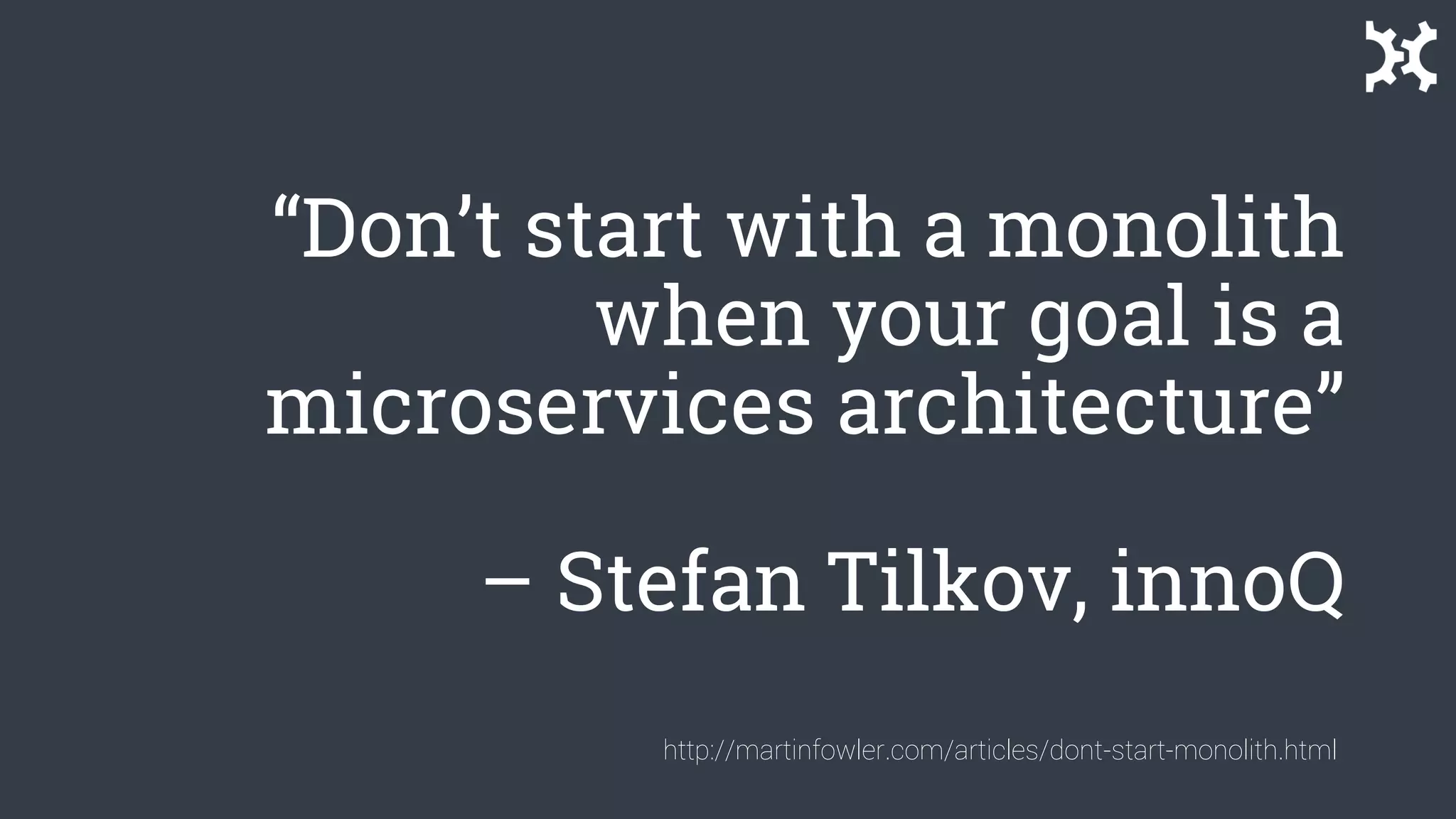

“Don’t start with a monolith
when your goal is a
microservices architecture”
– Stefan Tilkov, innoQ
http://martinfowler.com/articles/dont-start-monolith.html

“Start monolithic and extract”
– Tammer Saleh, Pivotal
https://www.infoq.com/presentations/cloud-anti-patterns

Types of software monoliths
•Application monolith
•Joined at the DB
•Monolithic build (rebuild everything)
•Monolithic releases (coupled)
•Monolithic thinking (standardisation)

Application
monolith
Single block of code
Deployed as a unit

Joined at
the DB
Difficult to change
separately (but not
impossible)
Risk is (probably)
elevated
Chris Collyer, http://www.stone-circles.org.uk/stone/pentreifan.htm

Monolithic
builds
One gigantic CI build
just to get a new
version of any
component

Monolithic
releases
Smaller components
bundled together into a
‘release’

Monolithic
thinking
‘One-size-fits-all’ for
teams
Assumption that
minimising variation is
A Good Thing

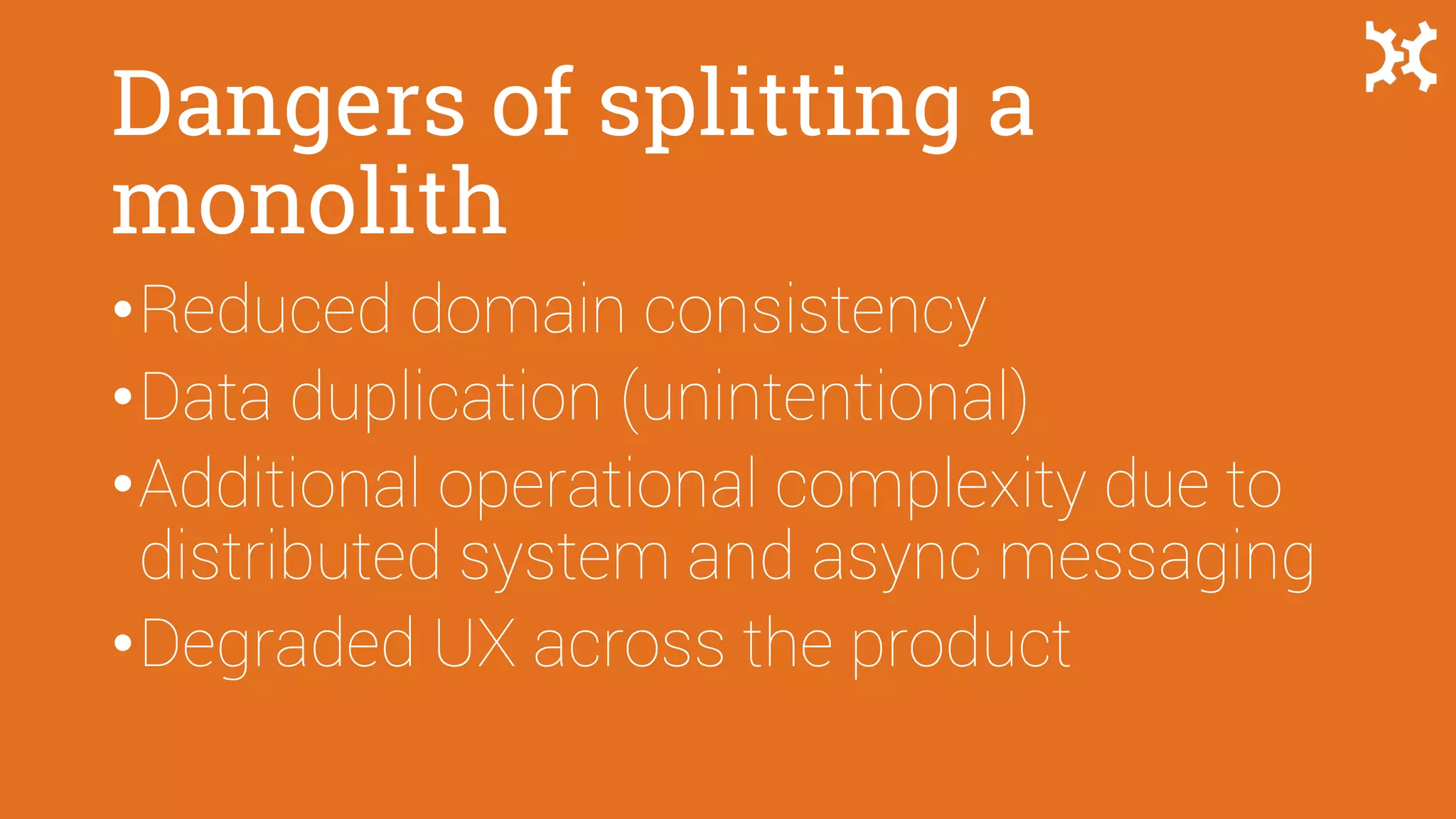

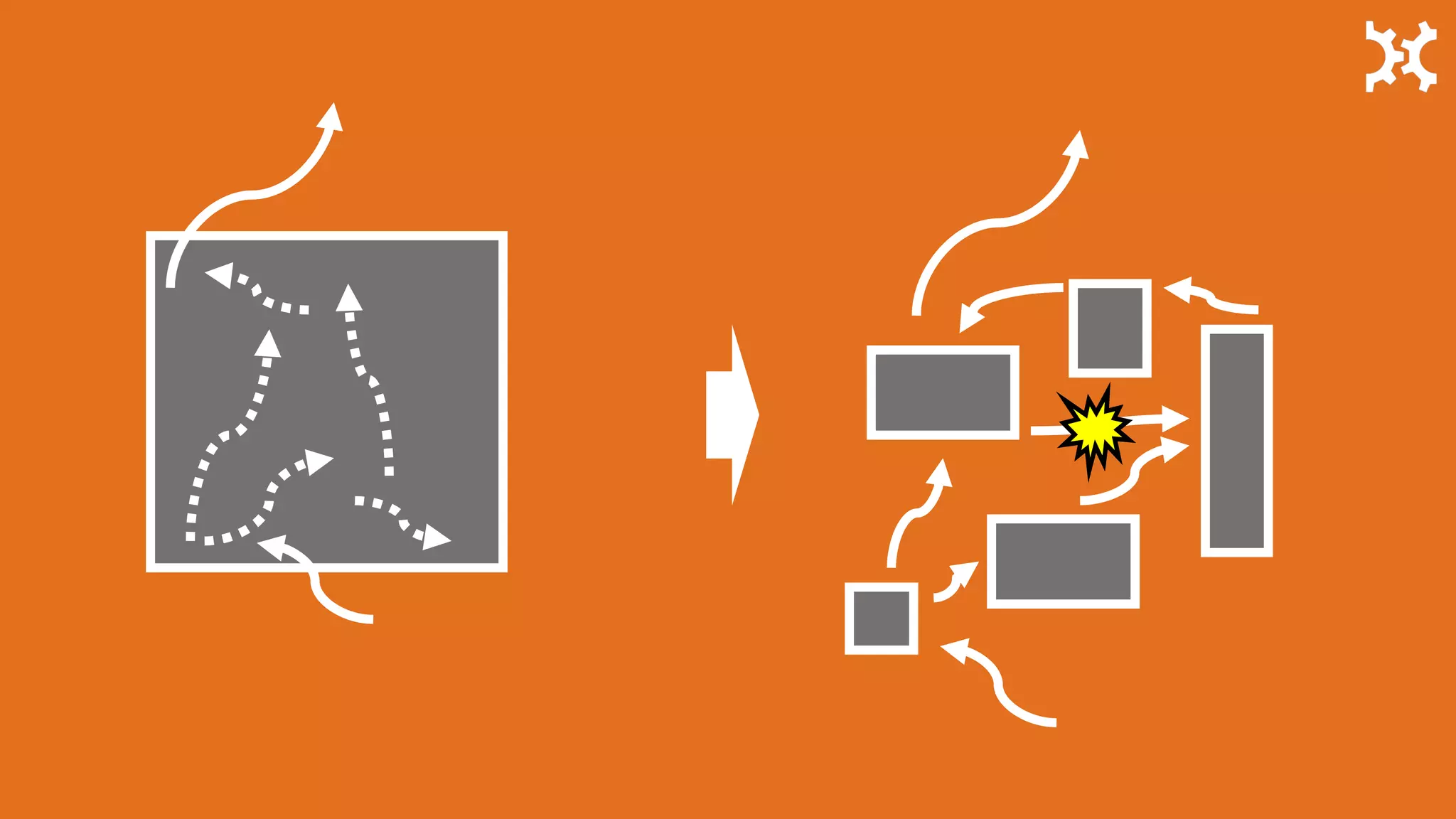

Dangers of splitting a
monolith
•Reduced domain consistency
•Data duplication (unintentional)
•Additional operational complexity due to
distributed system and async messaging
•Degraded UX across the product

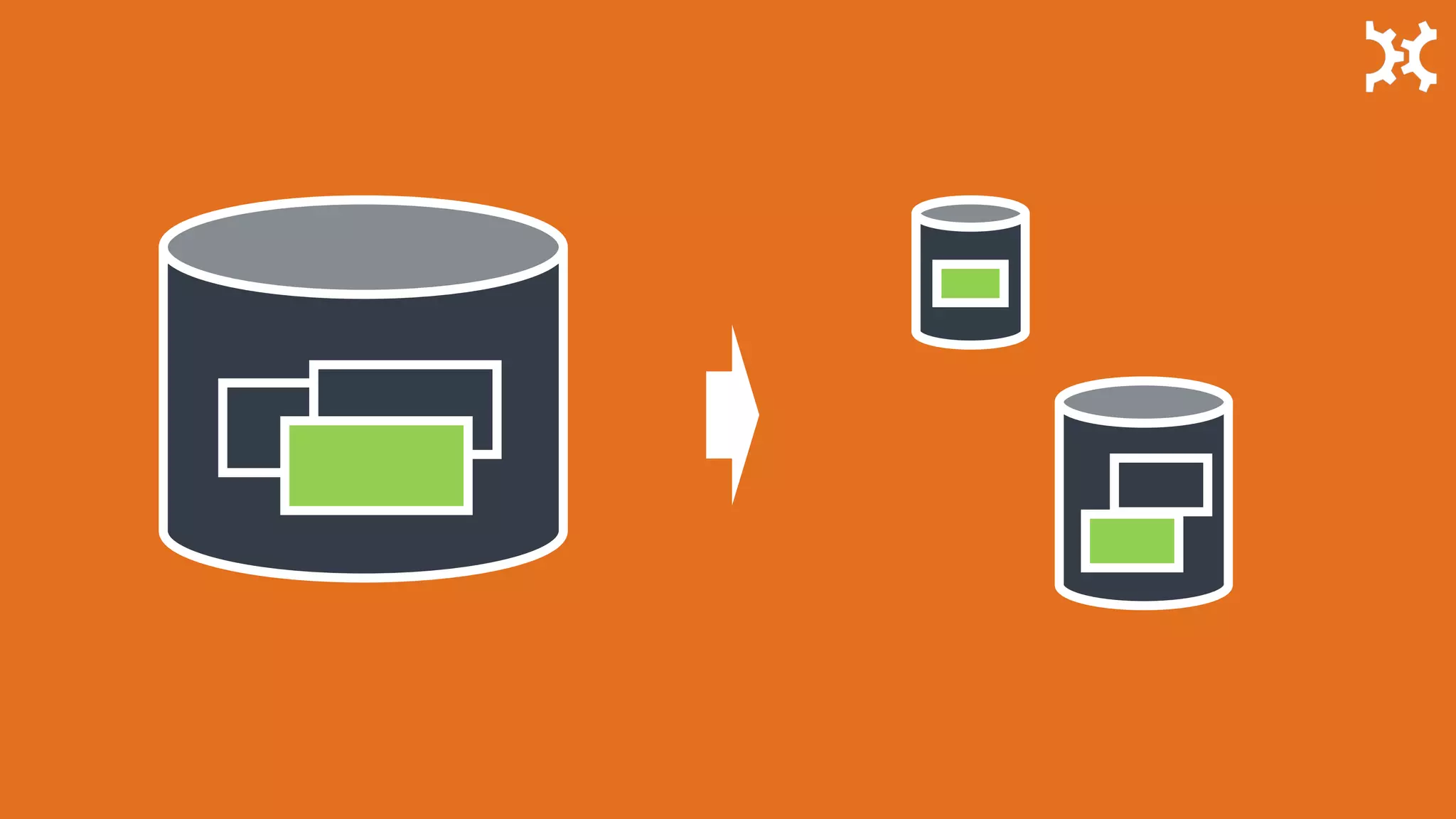

Splitting a
monolith
Reiner Flassig - CC BY-SA 2.0 de - Wikipedia
Choose the right
technique for splitting
Understand the nature
of the monolith

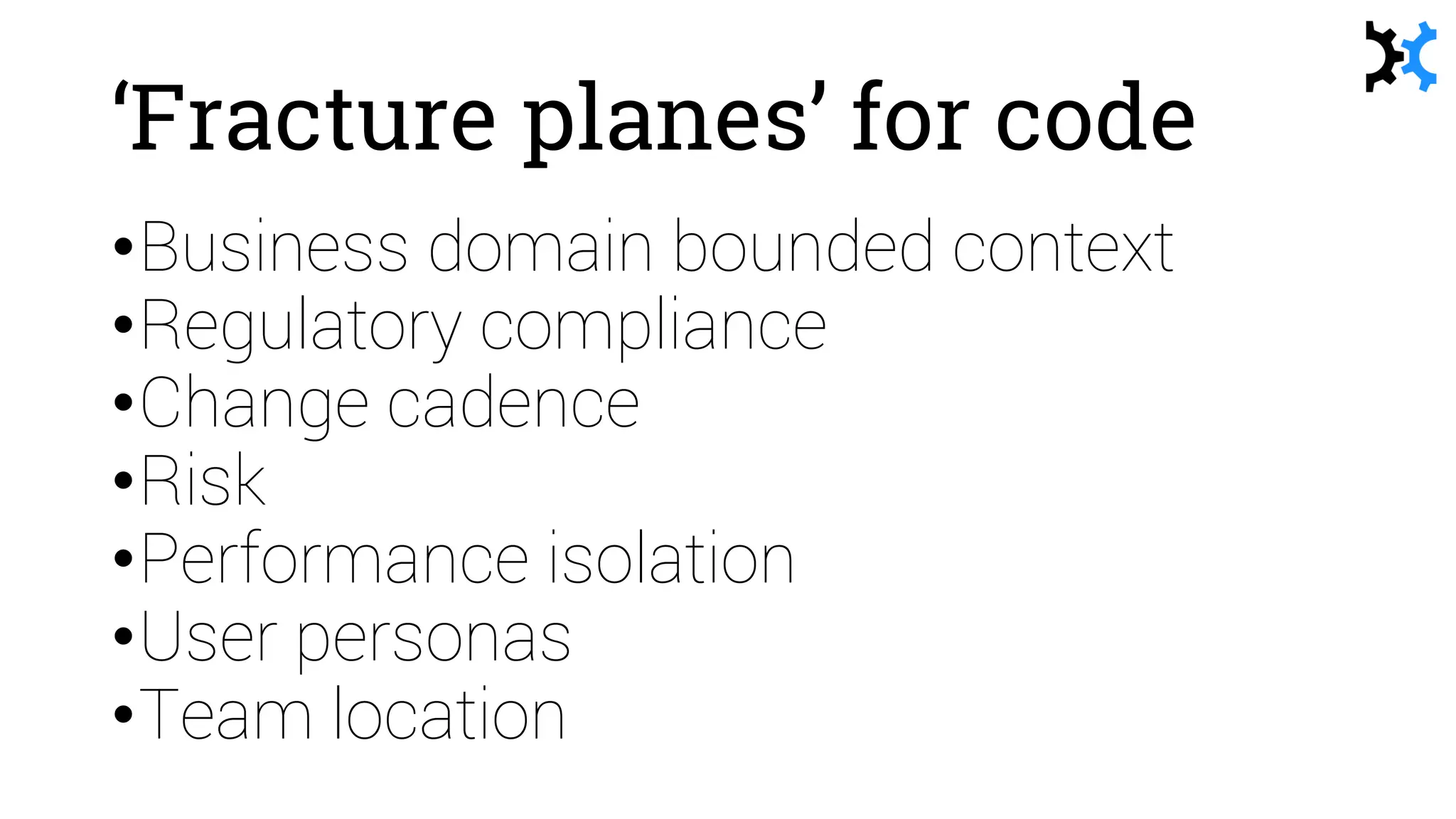

‘Fracture planes’ for code
•Business domain bounded context
•Regulatory compliance
•Change cadence
•Risk
•Performance isolation
•User personas
•Team location

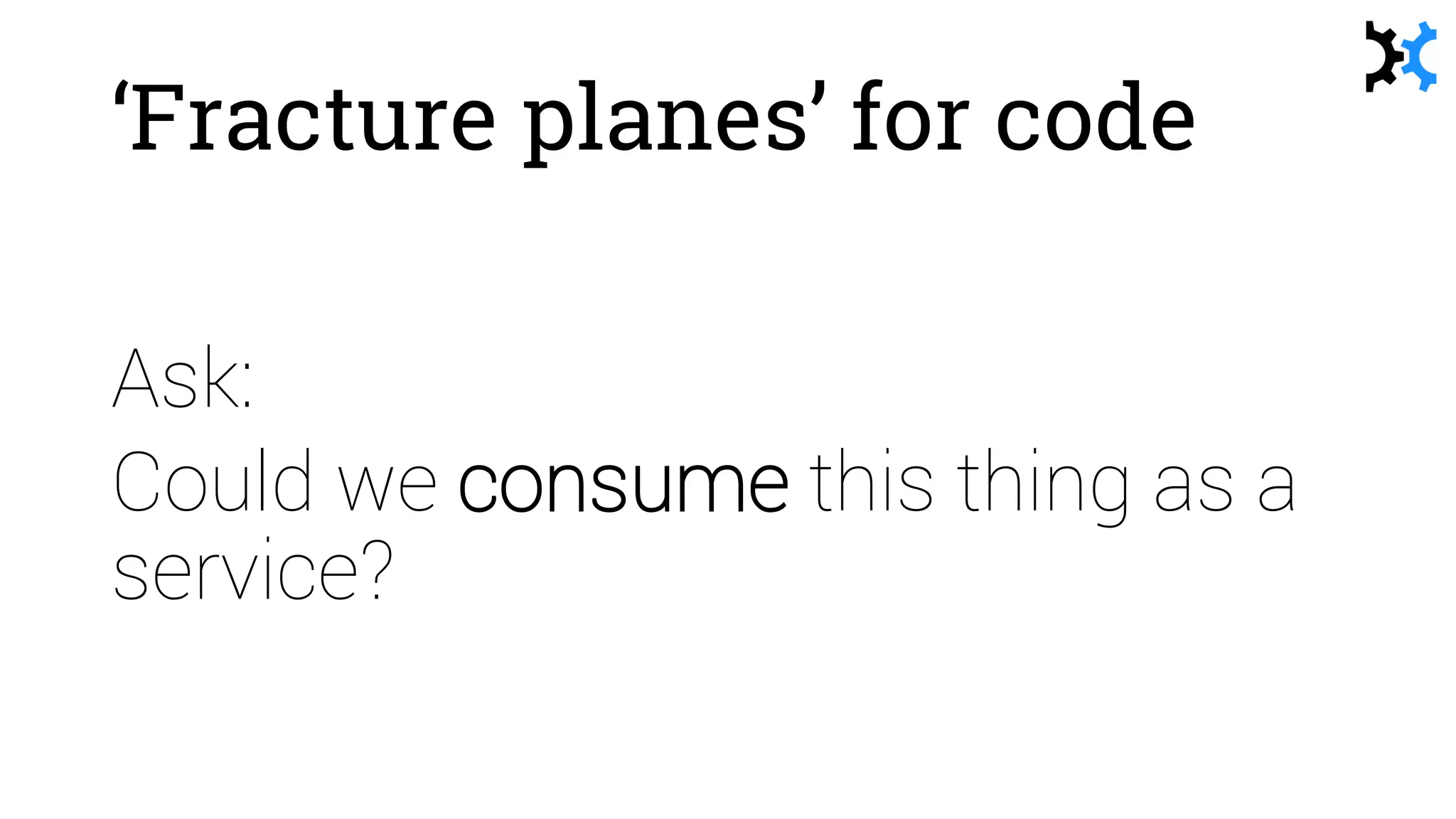

Ask:
Could we consume this thing as a
service?

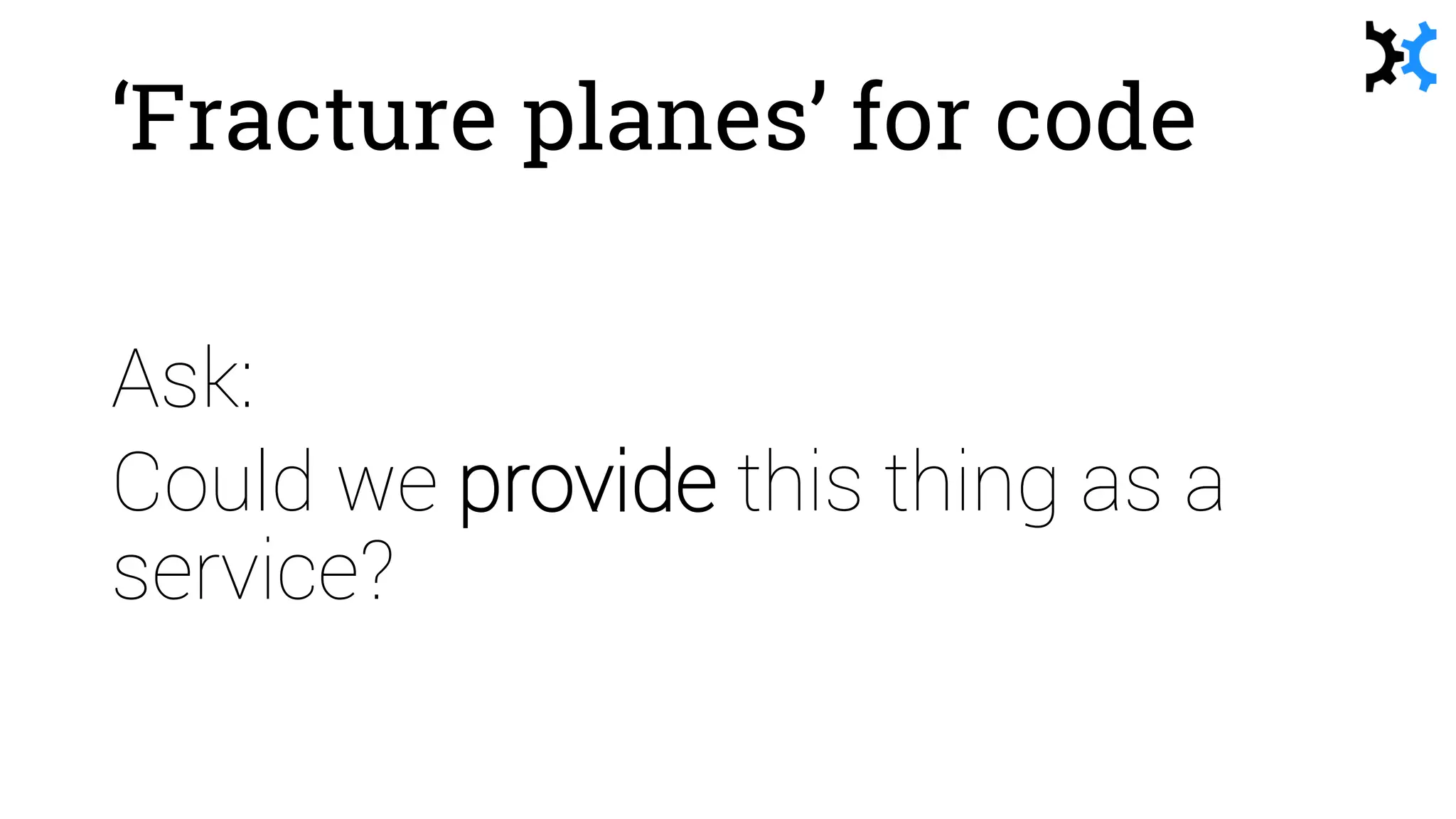

Ask:
Could we provide this thing as a
service?

Forensics
Your Code as a
Crime Scene
Adam Tornhill

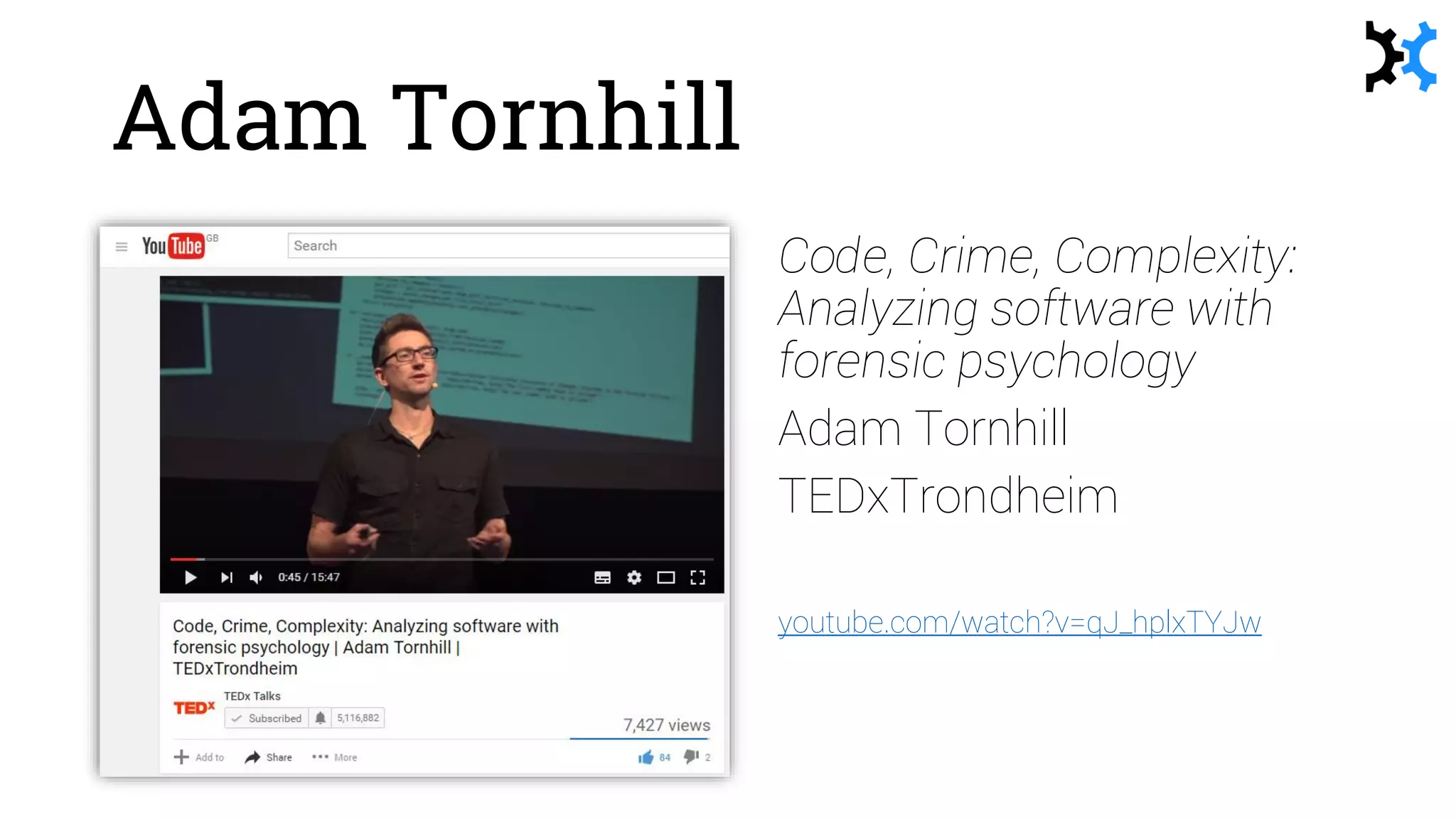

Adam Tornhill
Code, Crime, Complexity:
Analyzing software with
forensic psychology
Adam Tornhill
TEDxTrondheim
youtube.com/watch?v=qJ_hplxTYJw

Adam Tornhill, http://www.adamtornhill.com/articles/crimescene/codeascrimescene.htm

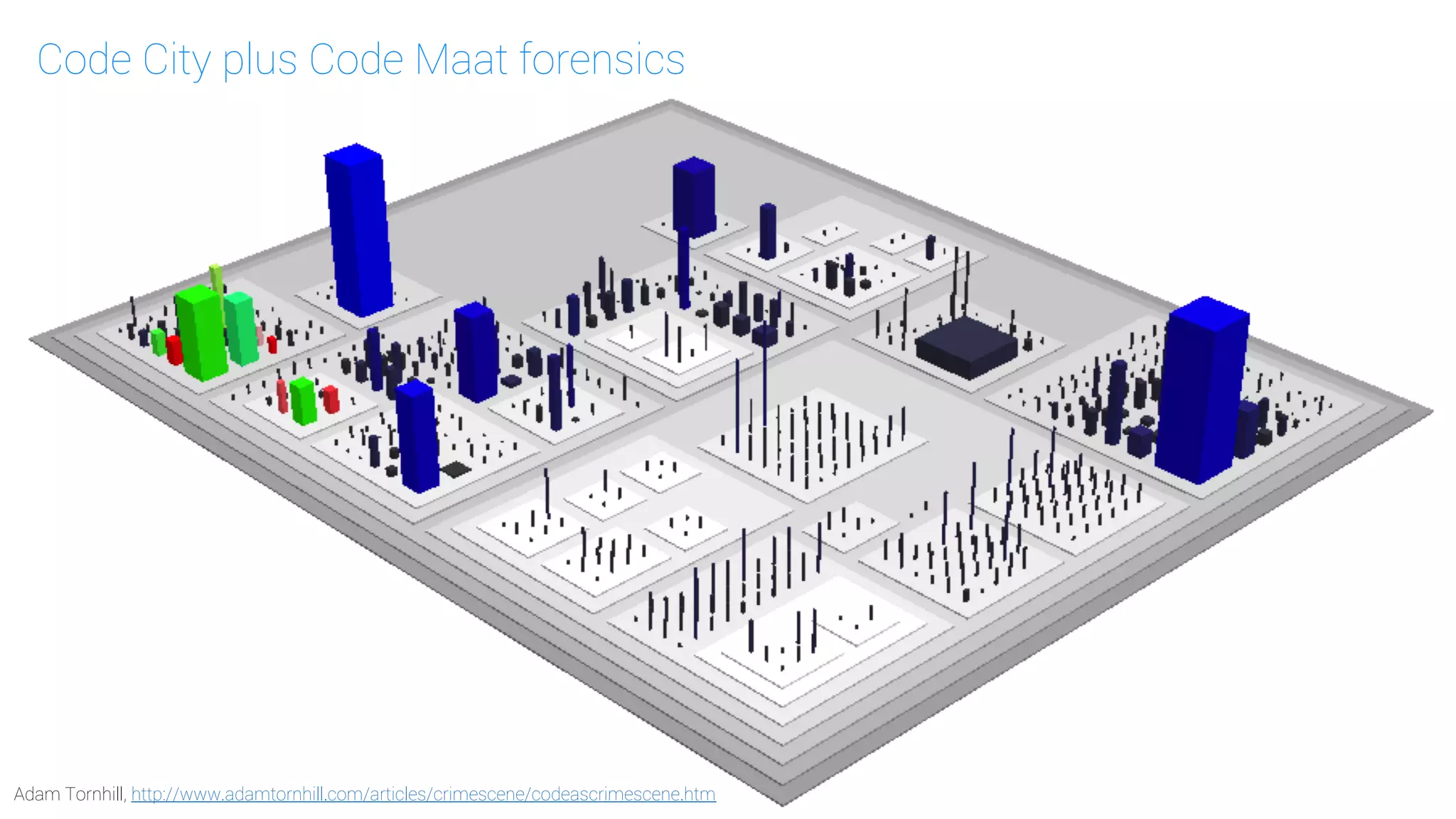

Code City plus Code Maat forensics

Beware of badly-named
subsystems

"information-poor abstract
names are magnets for extra
[unwanted] responsibilities"
– Adam Tornhill
p.185, Your Code as a Crime Scene

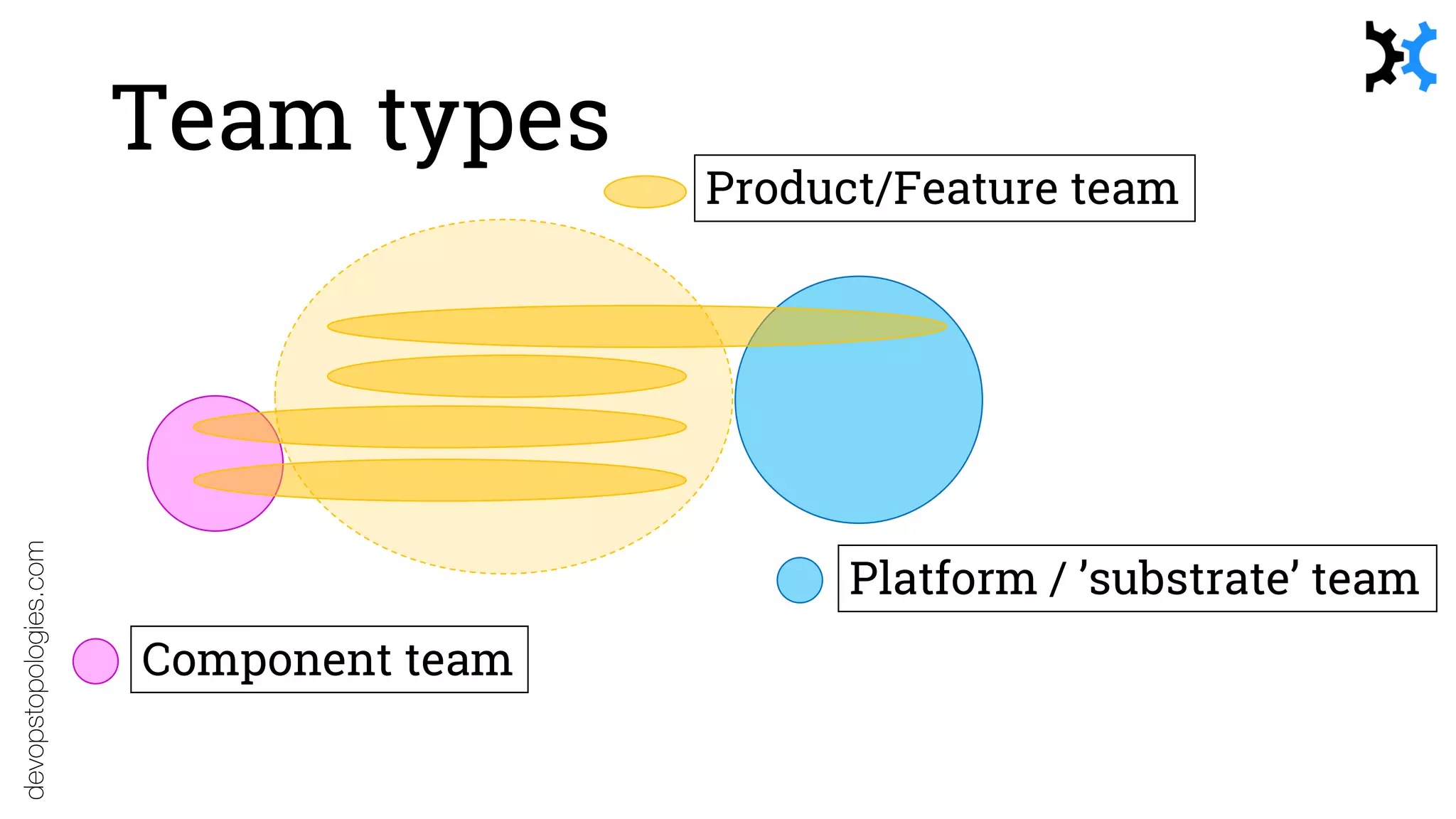

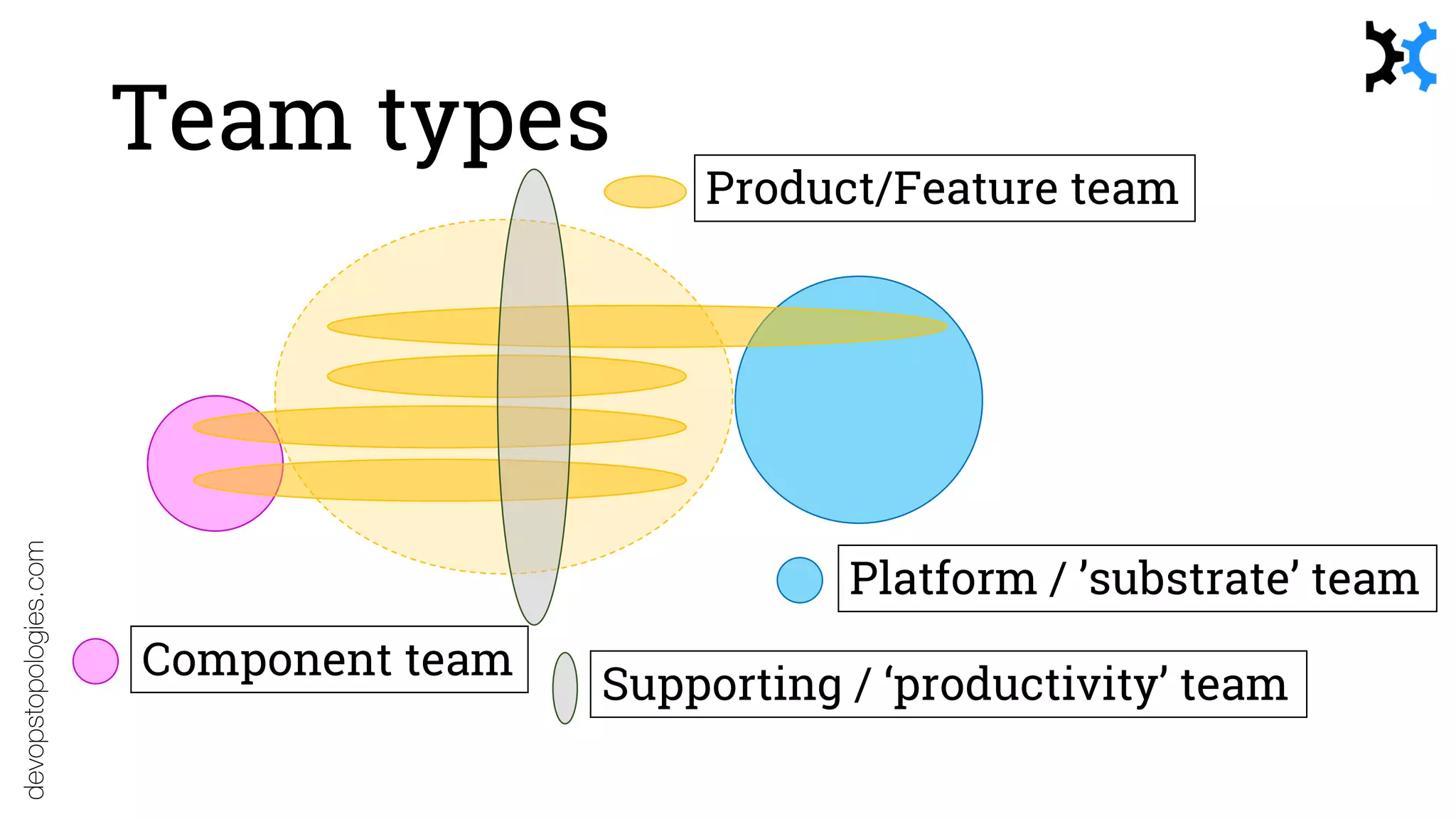

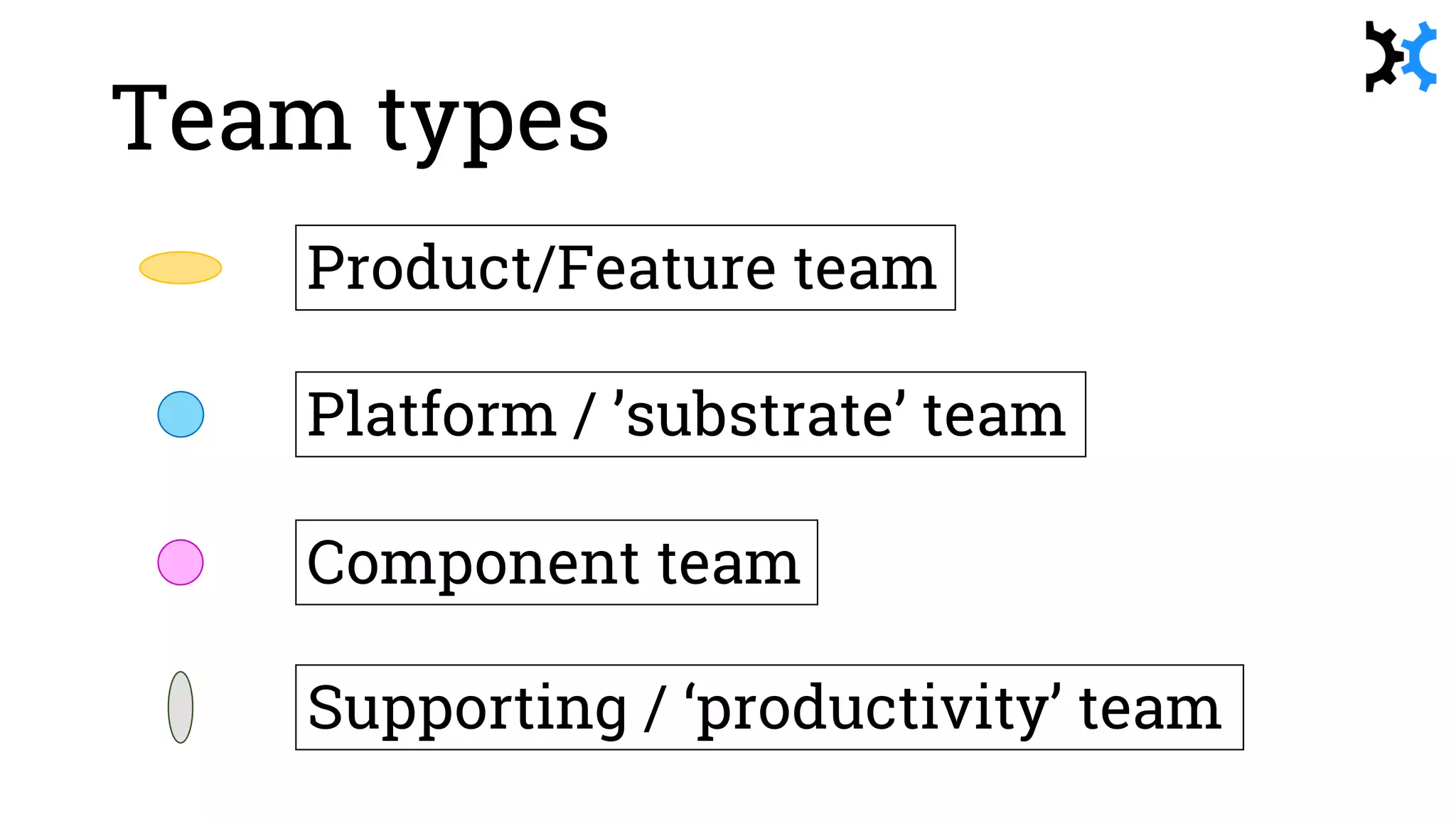

Team types
Component team
Platform / ’substrate’ team
Supporting / ‘productivity’ team
Product/Feature team

Team types

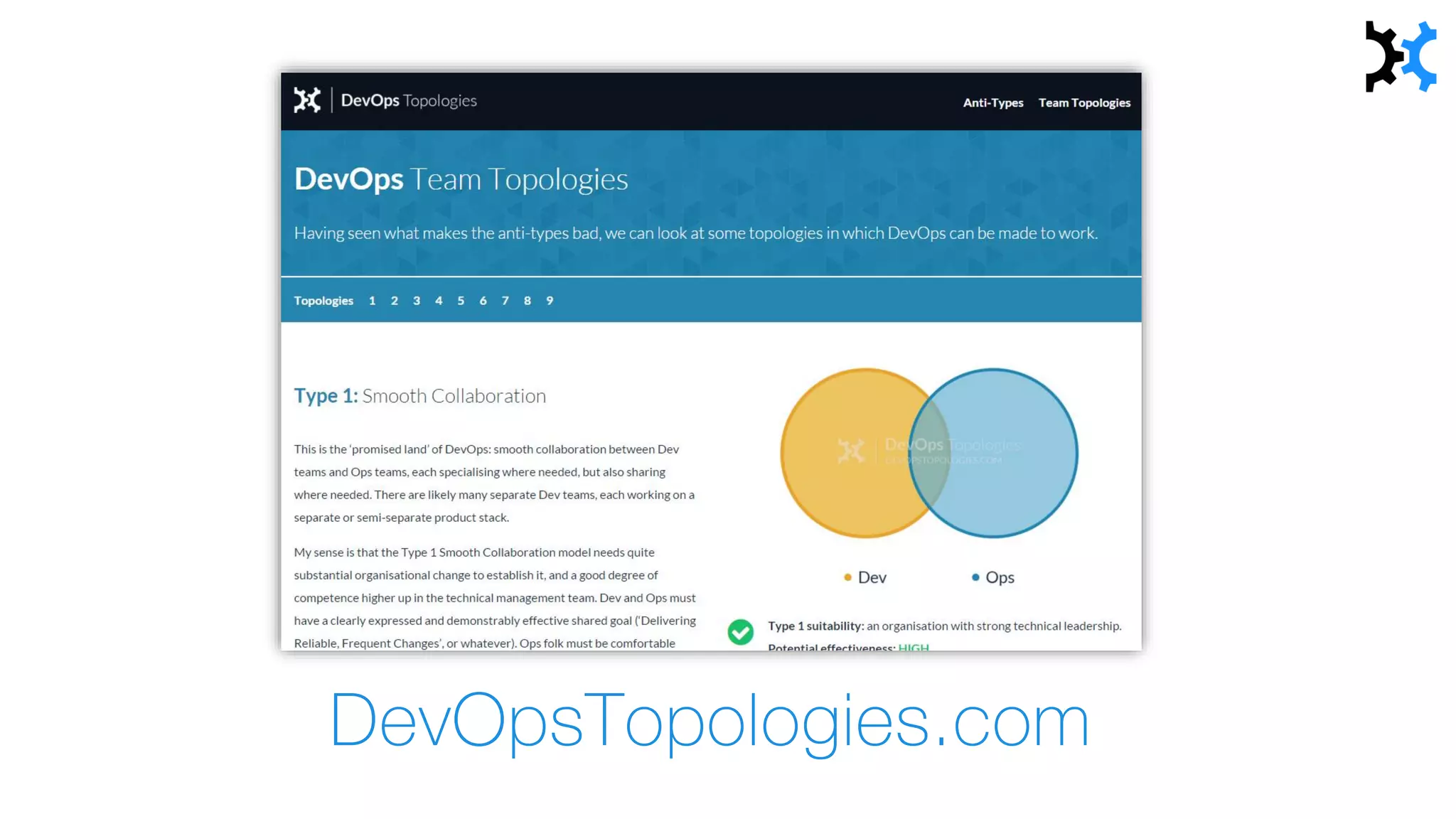

devopstopologies.com

Team types
Component team

Team types
Component team
Supporting / ‘productivity’ team

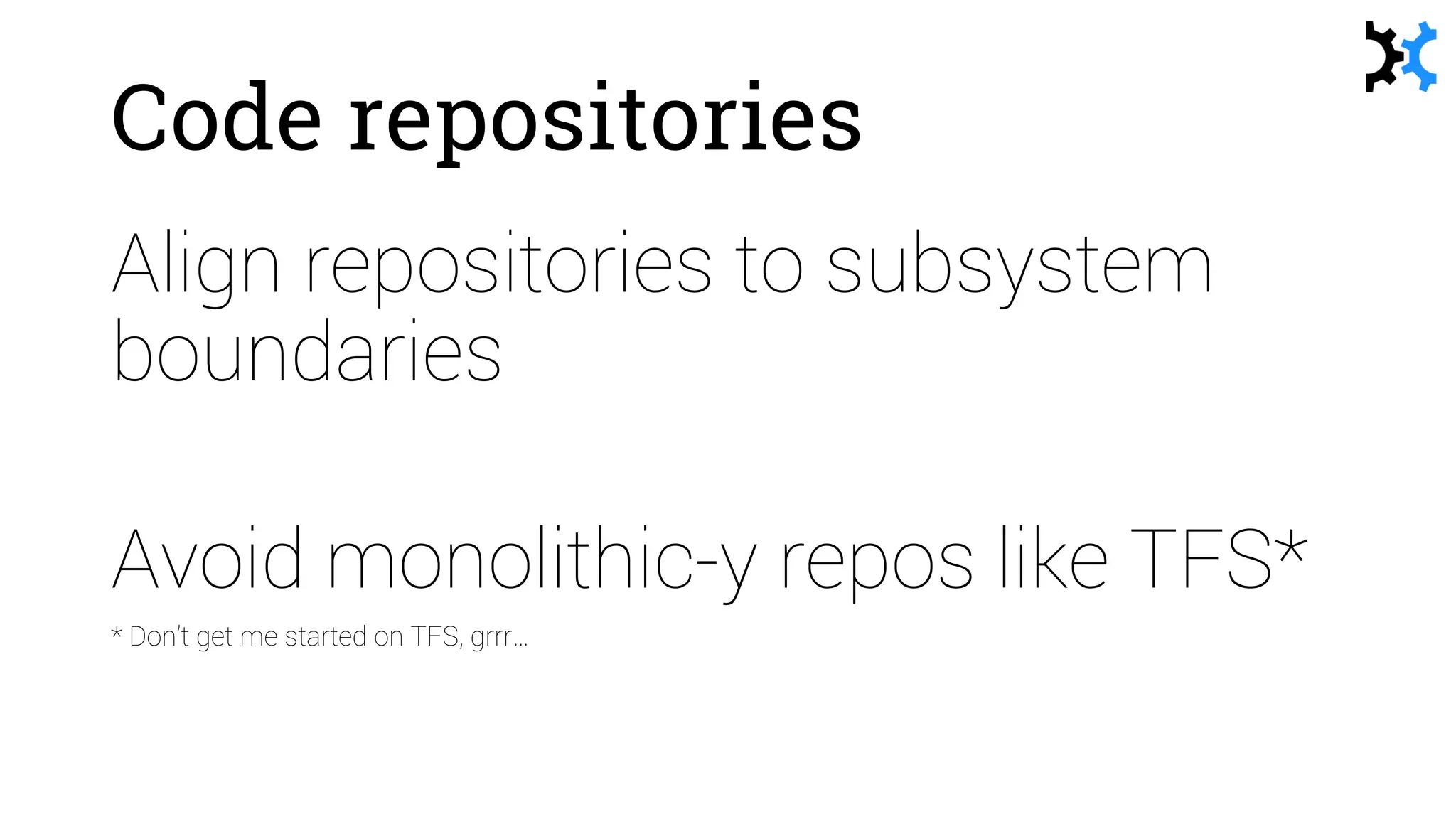

Code repositories
Align repositories to subsystem
boundaries
Avoid monolithic-y repos like TFS*
* Don’t get me started on TFS, grrr…

Code repositories
Repo 1 Build Test Deploy Run

“You can use a monorepo only if
your organisation has published a
scientific paper on Computer
Science. Otherwise, use one repo
per deployable runnable thing.”
– Matthew Skelton
LondonCD meetup group, 11 Oct 2016 

Find natural or available
‘fracture planes’ for splitting
a monolith
(with the team in mind)

Industry experience
Examples from recent work with clients
Different monoliths
Different ‘fracture planes’

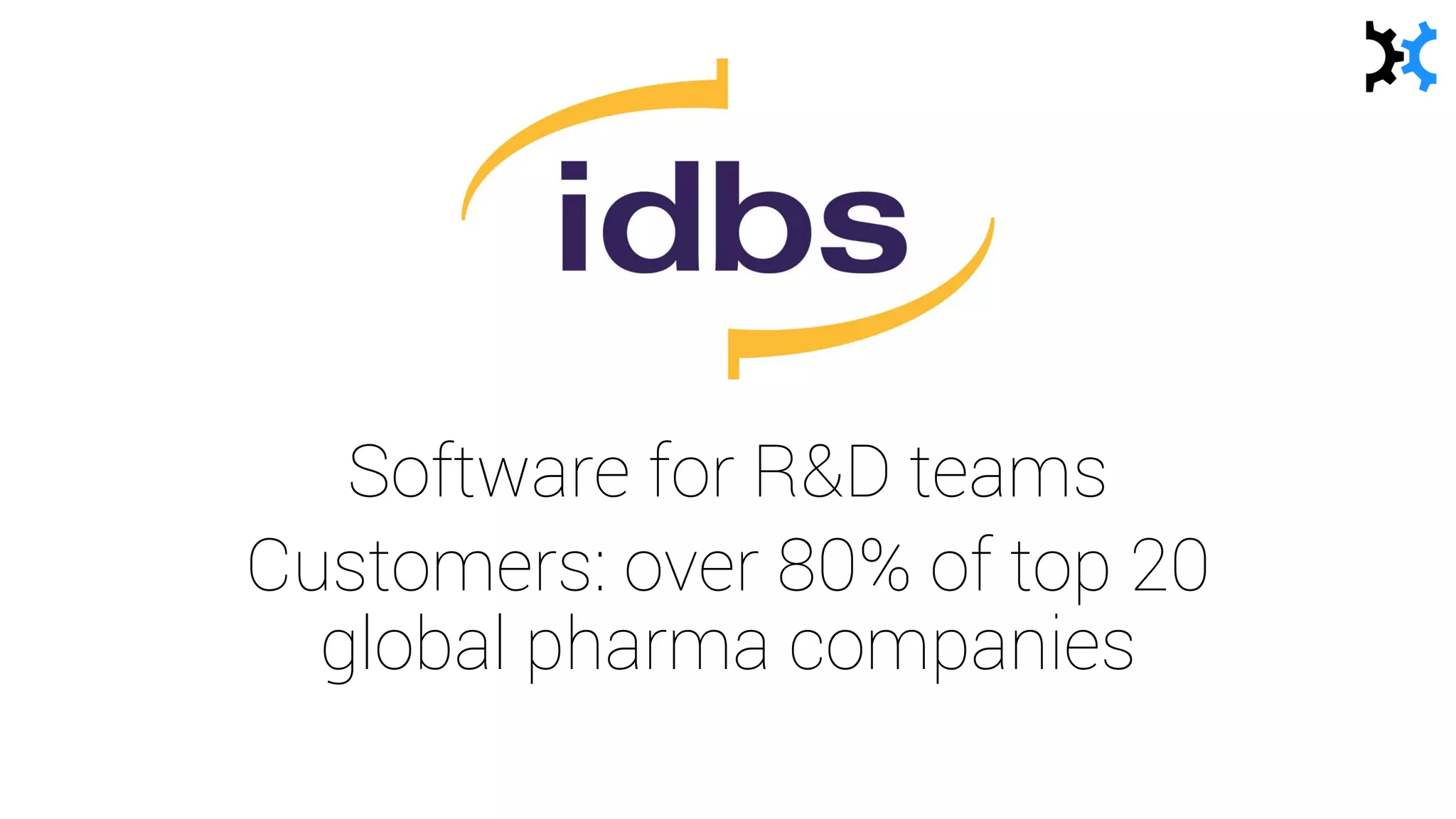

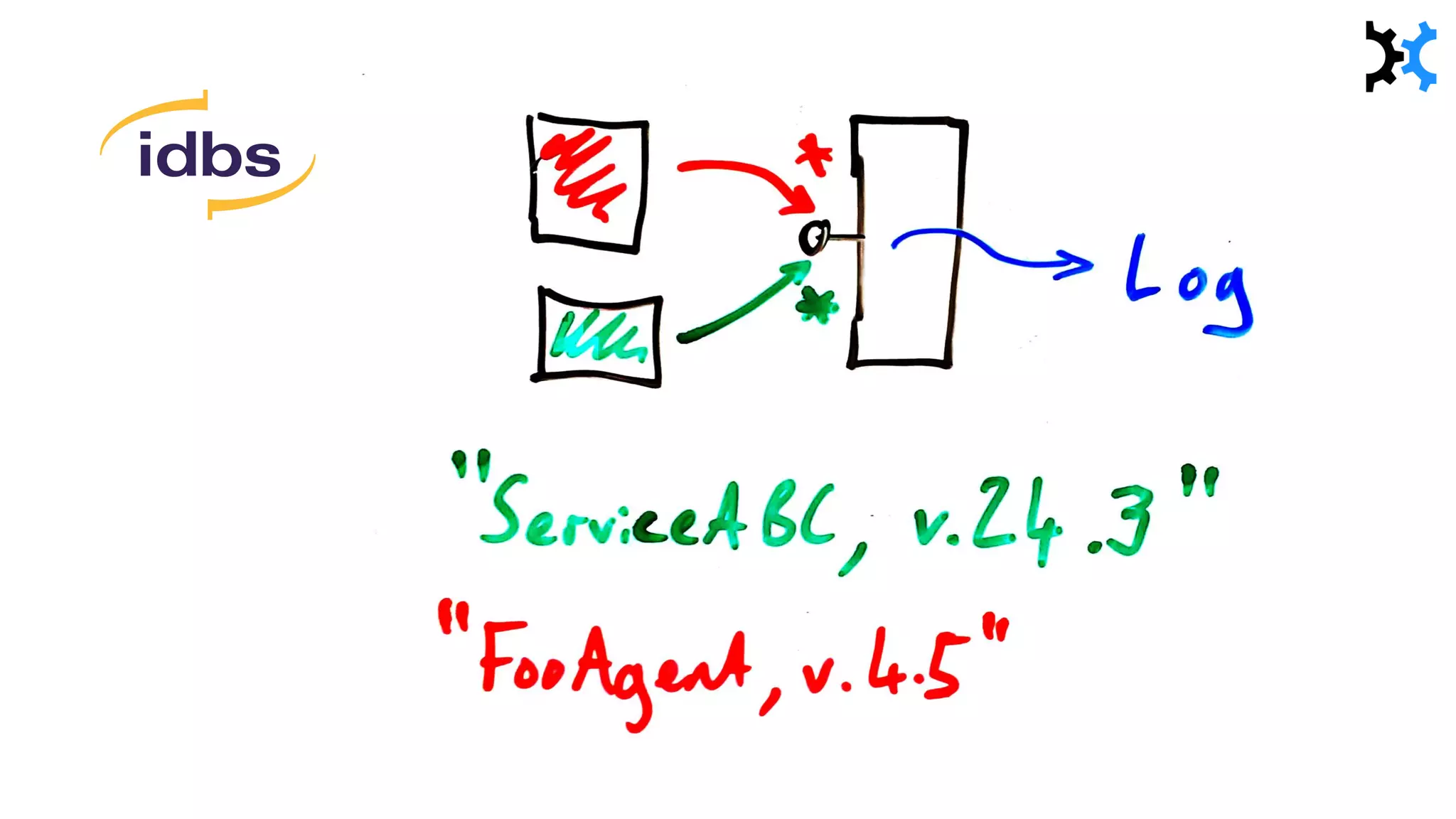

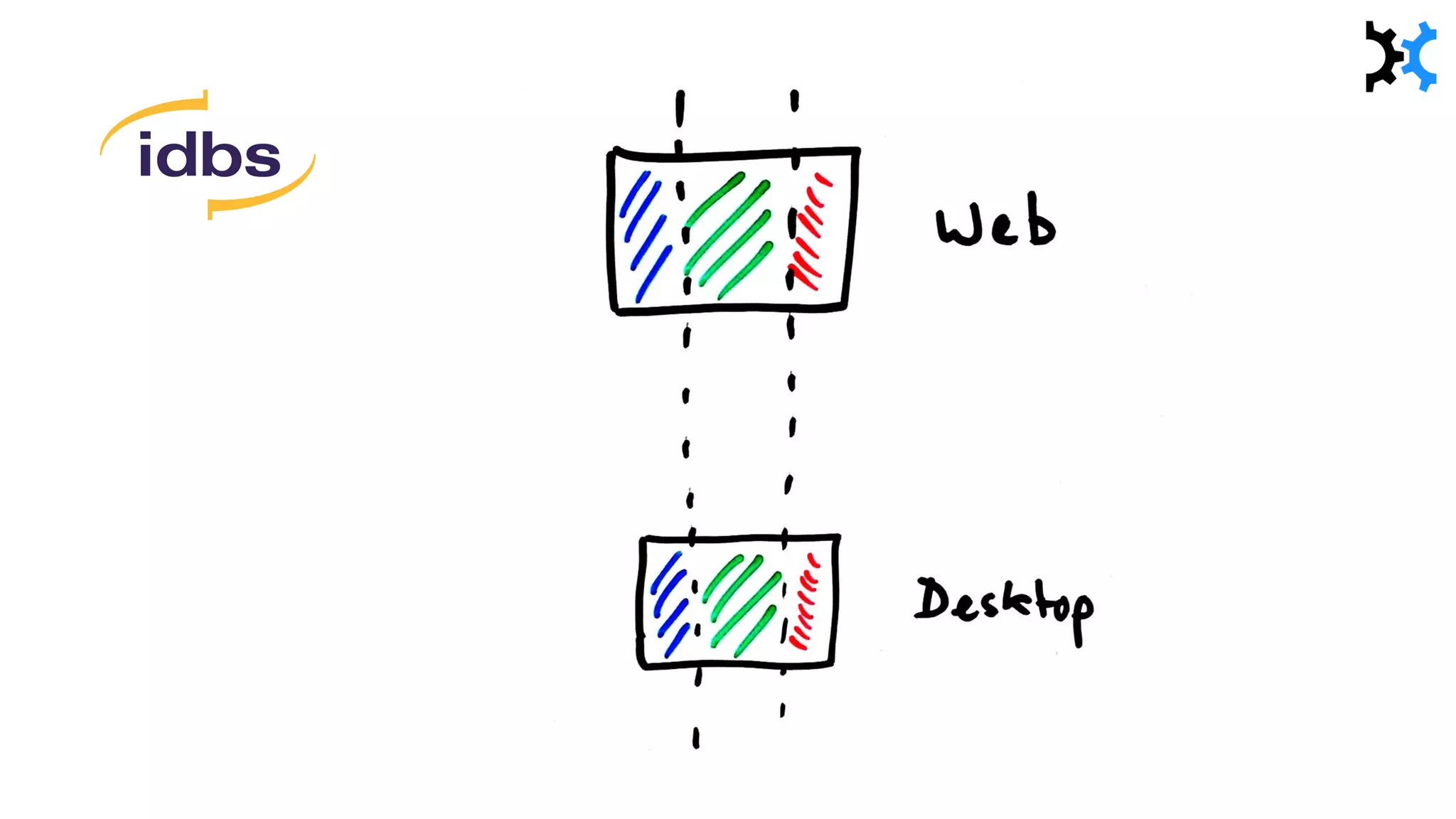

Software for R&D teams
Customers: over 80% of top 20
global pharma companies

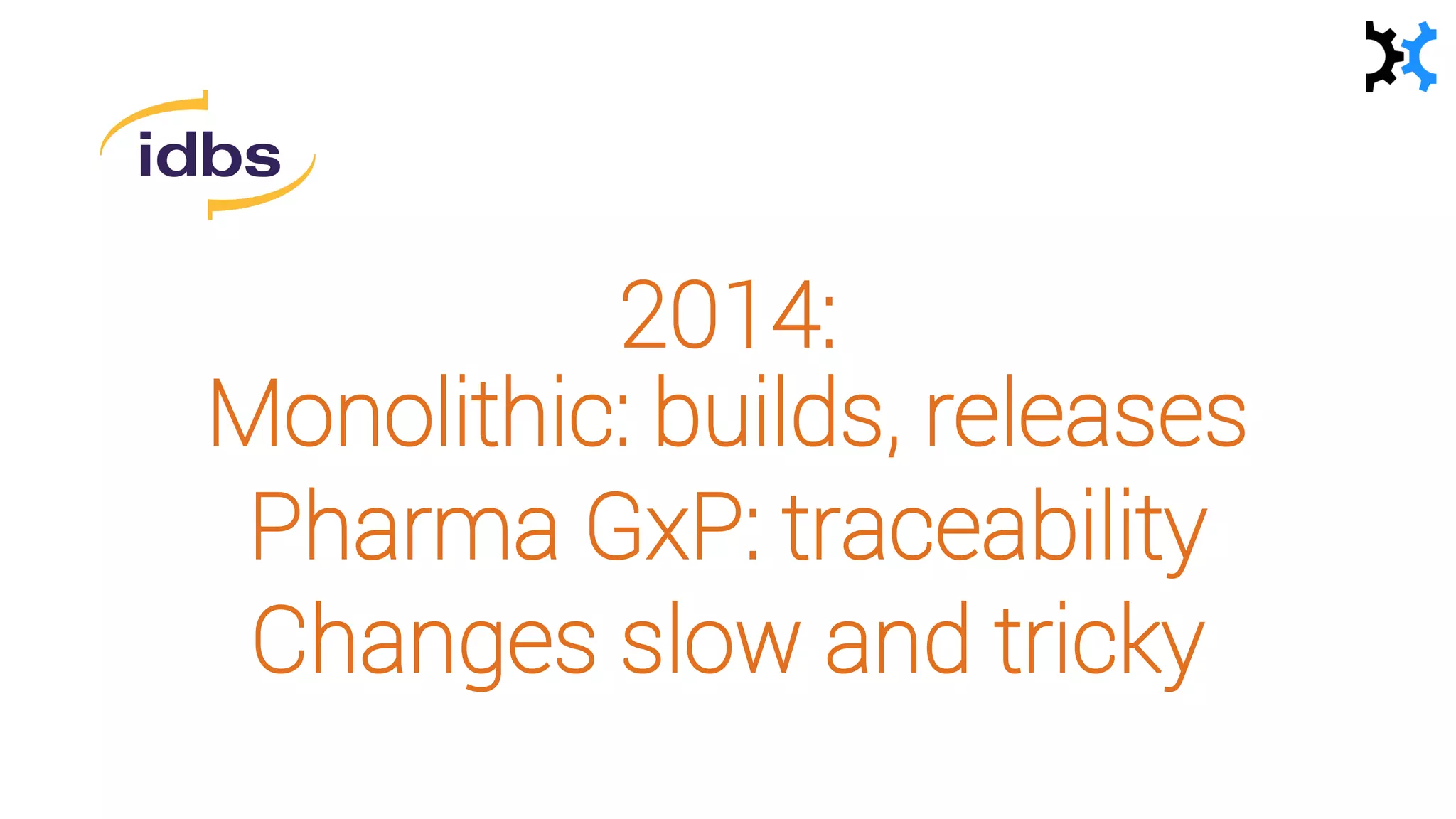

2014:
Monolithic: builds, releases
Pharma GxP: traceability
Changes slow and tricky

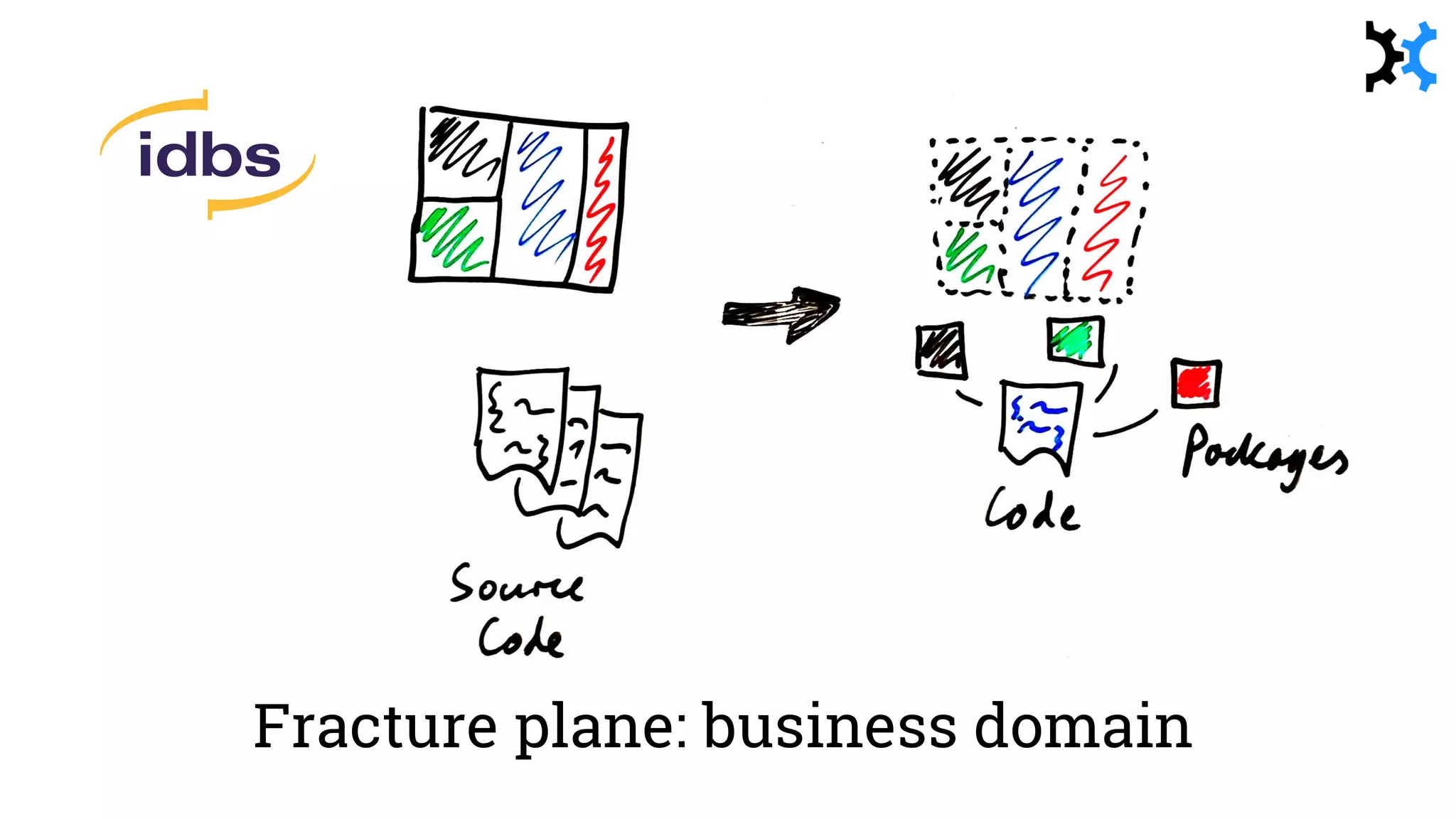

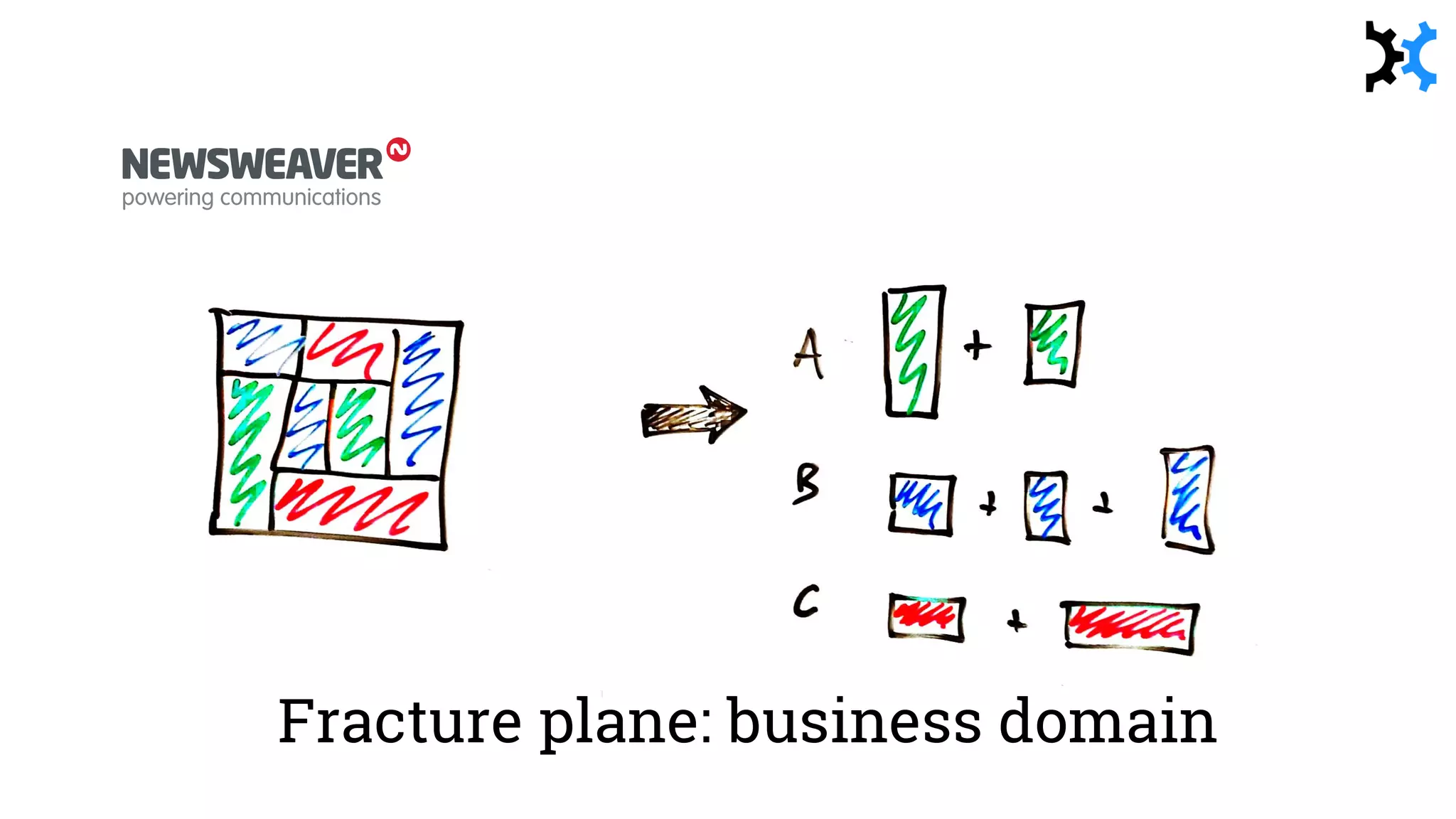

Fracture plane: business domain

Compose with packages
Logging for insights

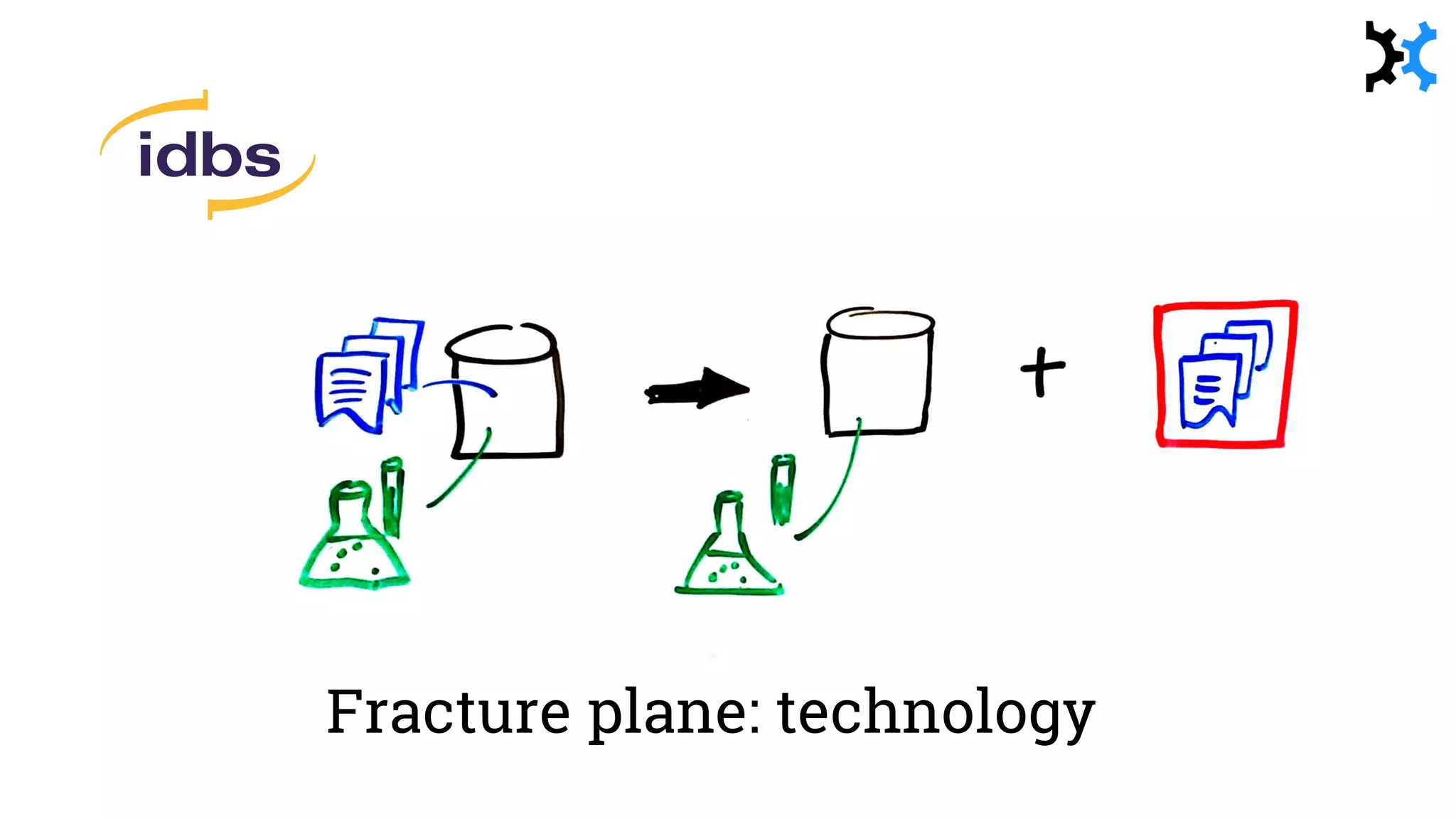

Technology splits
Improved traceability

Major UK broadcaster (TV + online)
Increasing digital delivery of content

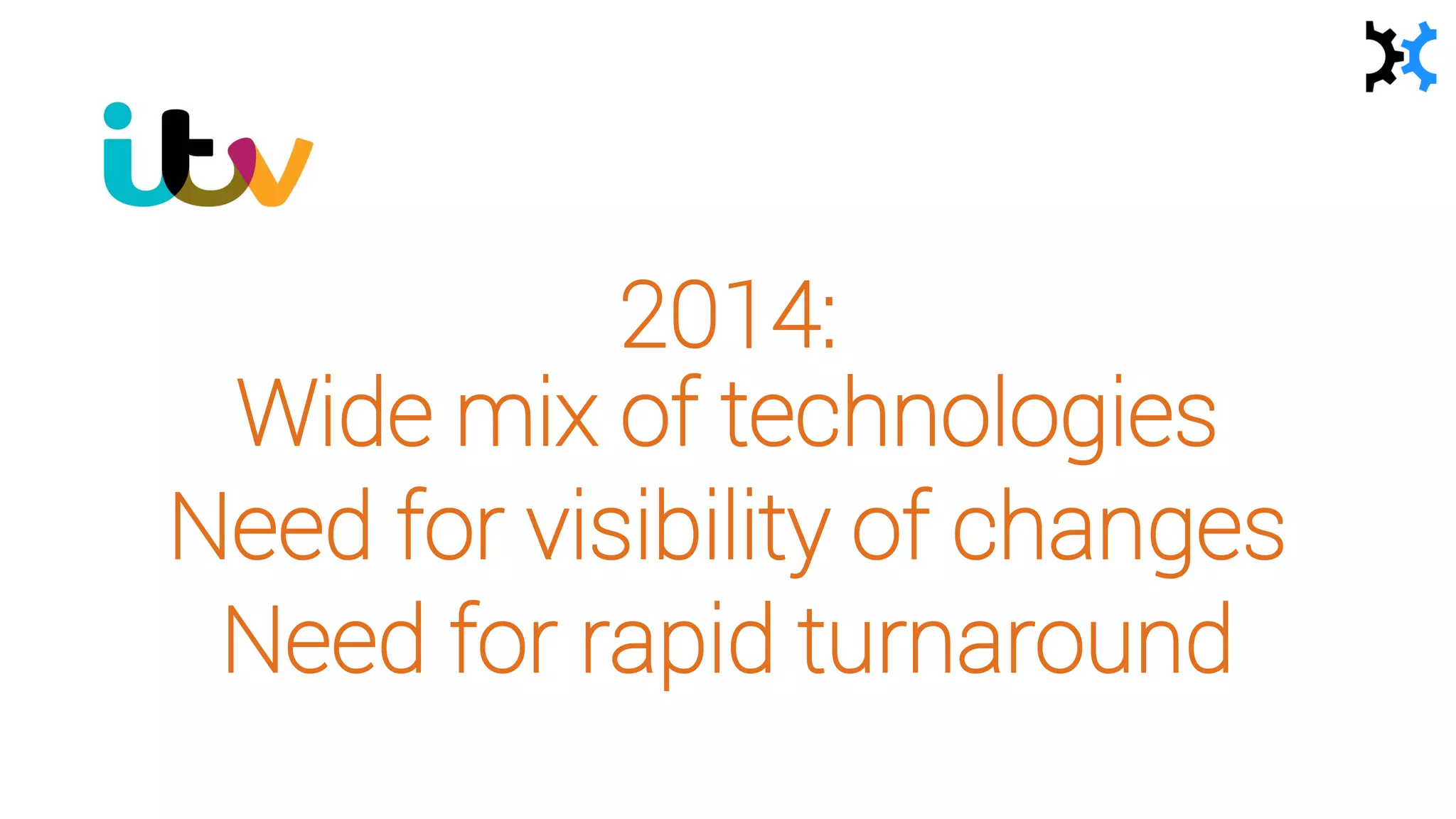

2014:
Wide mix of technologies
Need for visibility of changes
Need for rapid turnaround

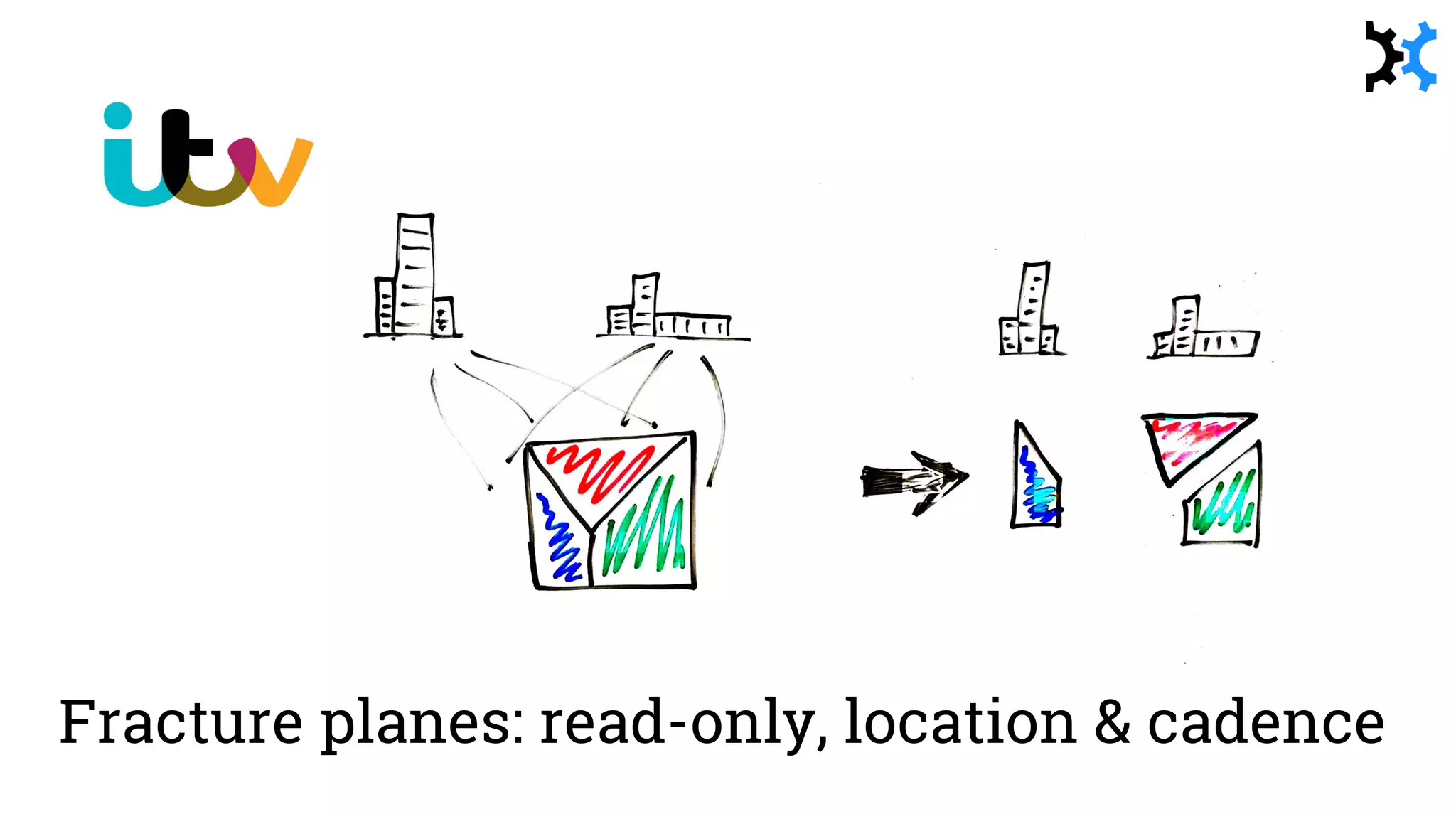

Fracture planes: read-only, location & cadence

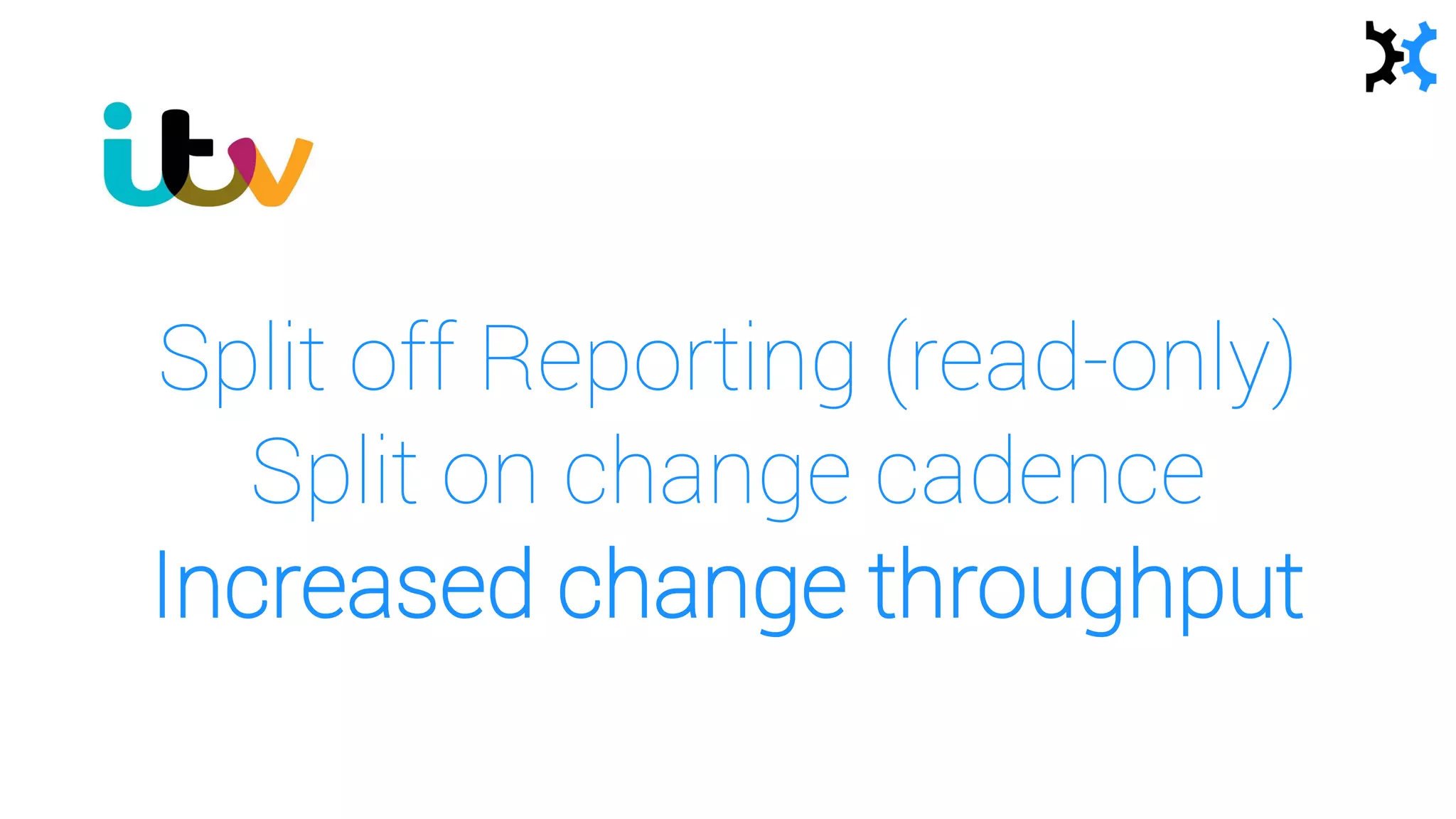

Split off Reporting (read-only)
Split on change cadence
Increased change throughput

UK’s second largest
credit reference agency
Customers: major banks + large orgs

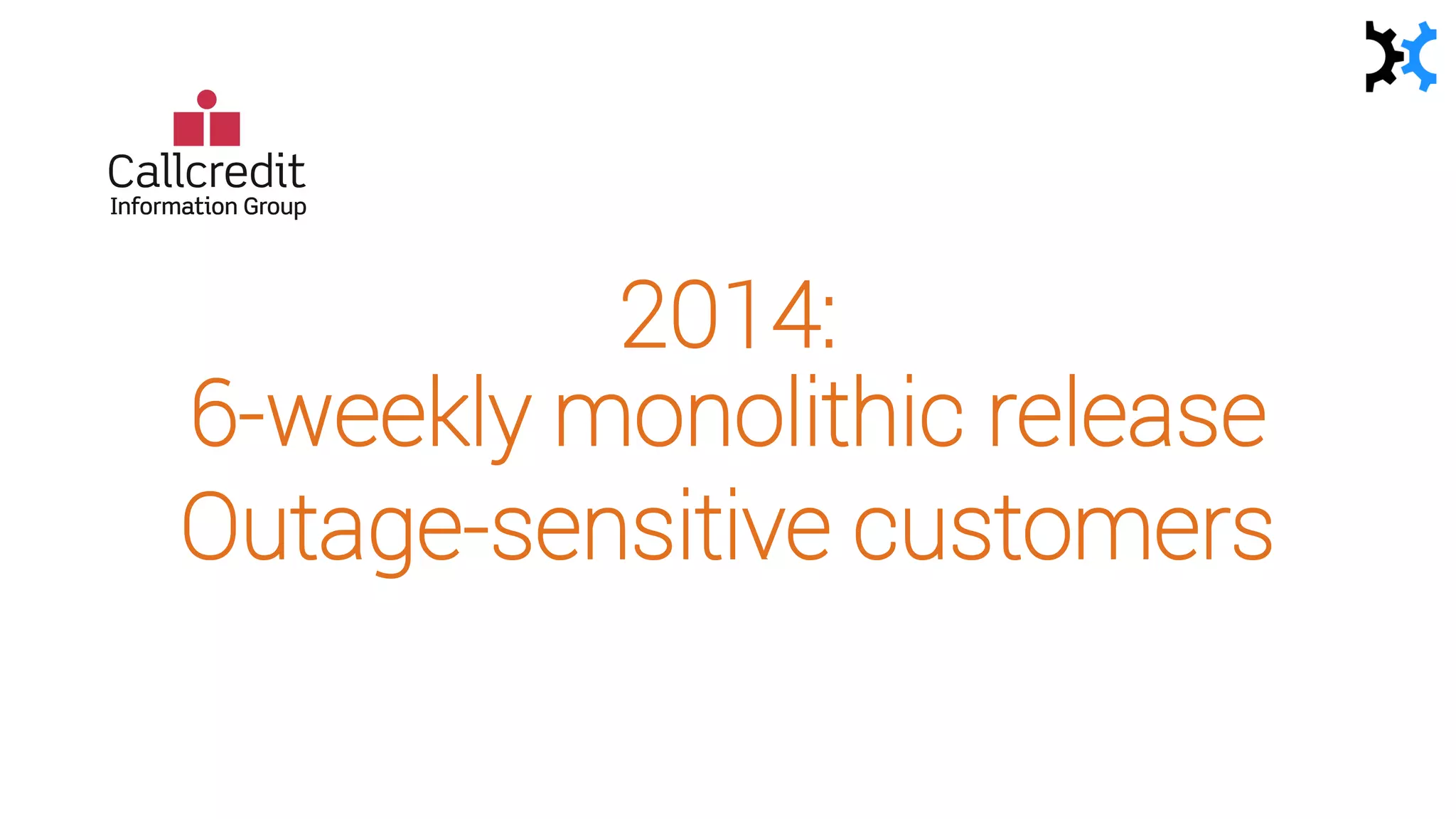

2014:
6-weekly monolithic release
Outage-sensitive customers

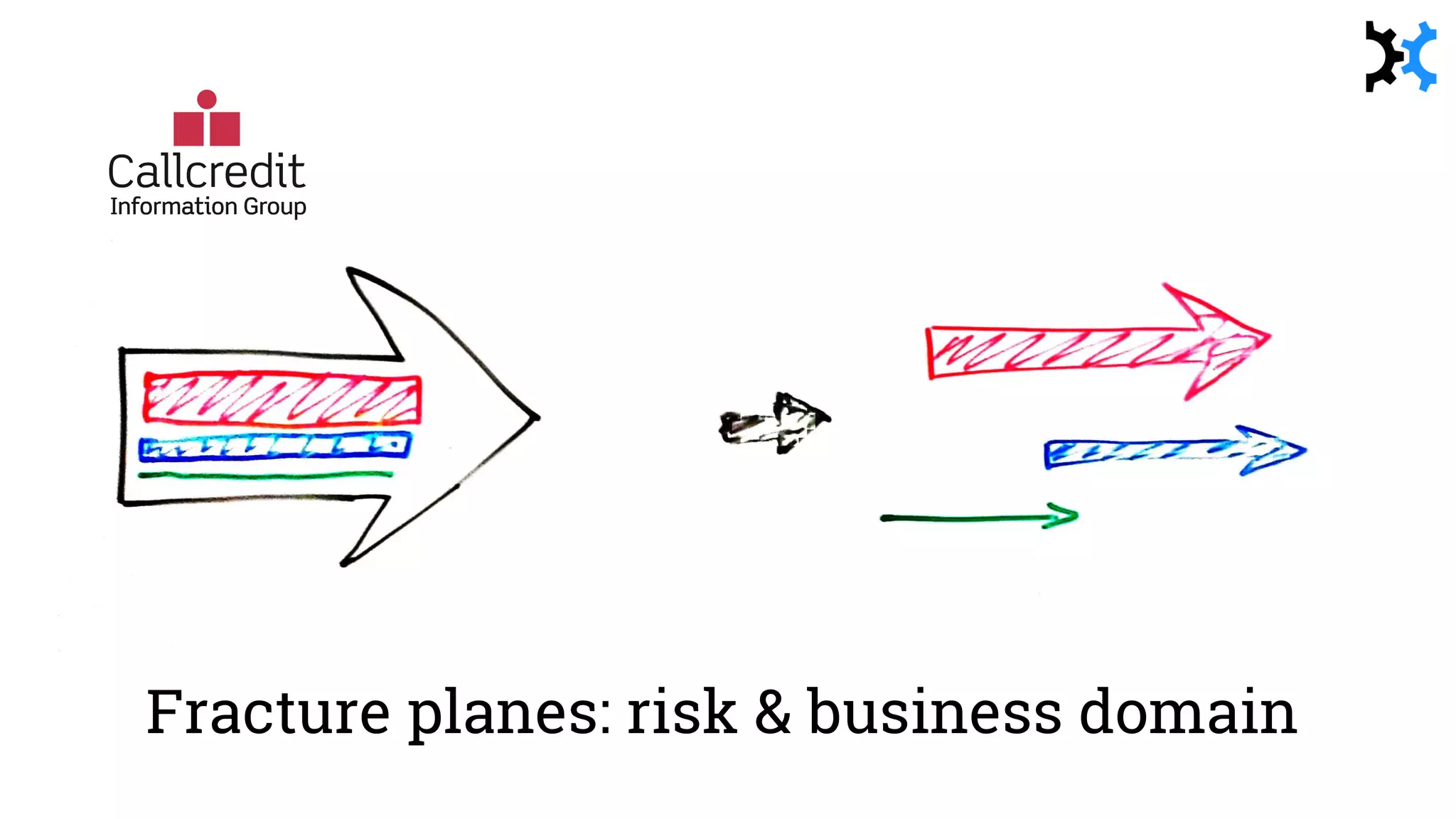

Fracture planes: risk & business domain

Split releases based on risk
Align teams to value streams
More rapid release cadence

Software for Internal Comms
Customers: FTSE 100 & Fortune 1000

2015:
Successful system (monolithic)
ISO 27001 compliance
Aim to expand the org (x N)

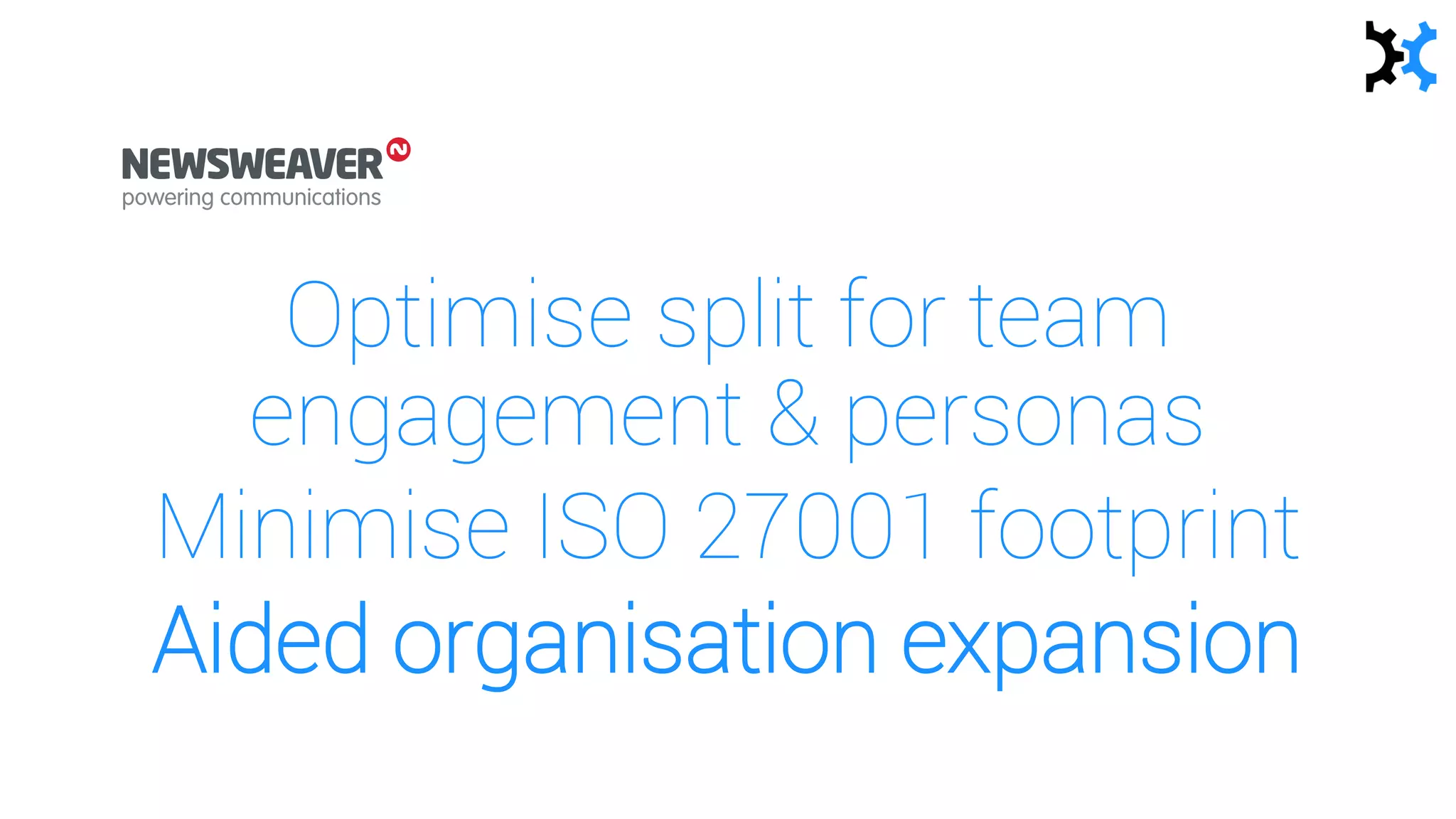

Optimise split for team
engagement & personas
Minimise ISO 27001 footprint
Aided organisation expansion

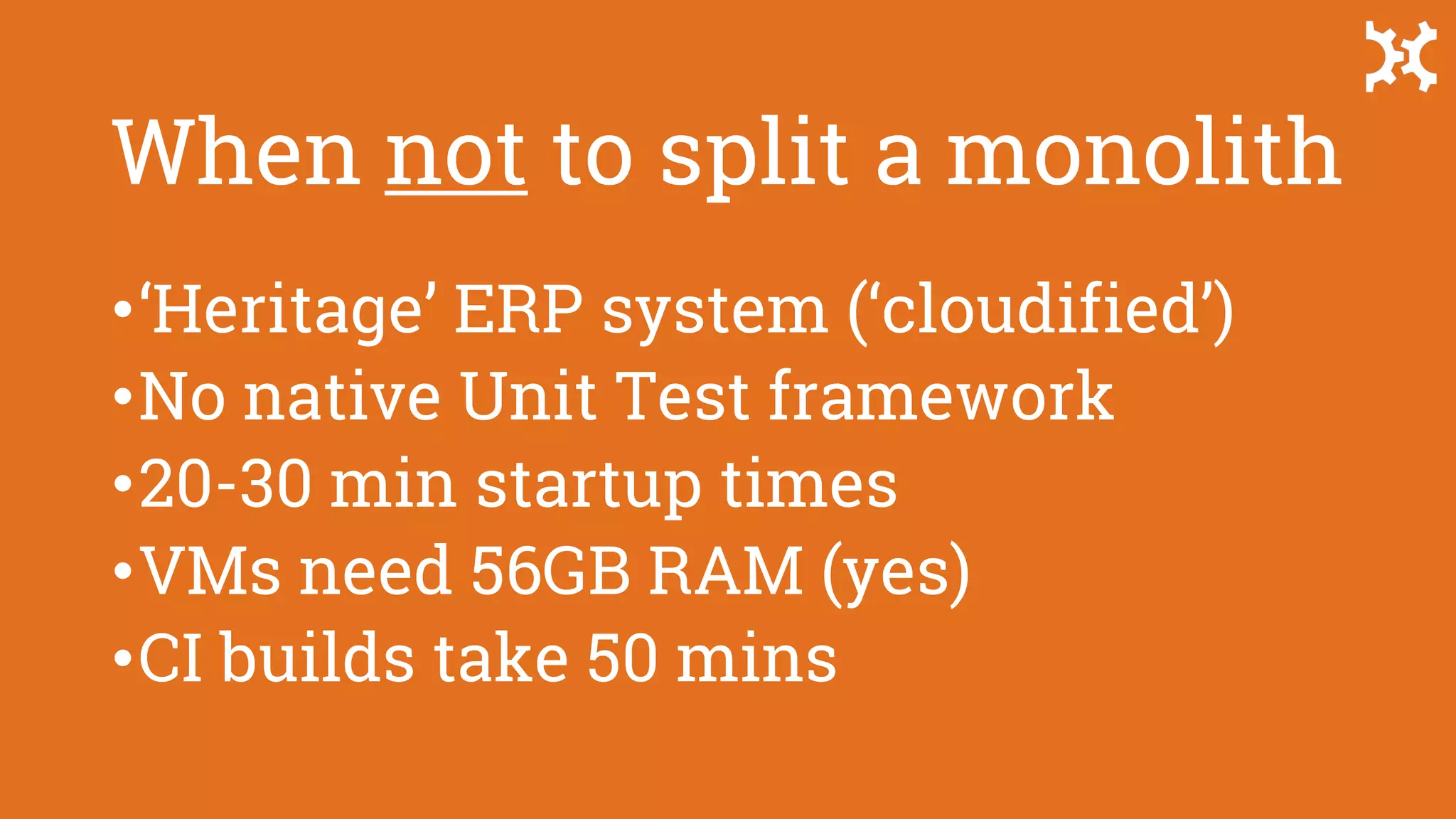

When not to split a monolith
•‘Heritage’ ERP system (‘cloudified’)
•No native Unit Test framework
•20-30 min startup times
•VMs need 56GB RAM (yes)
•CI builds take 50 mins

Tried and tested!

1. Instrument the monolith – logging
2. Grok data flows and fault responses
3. Align teams to available segments
4. Split off segments one-by-one

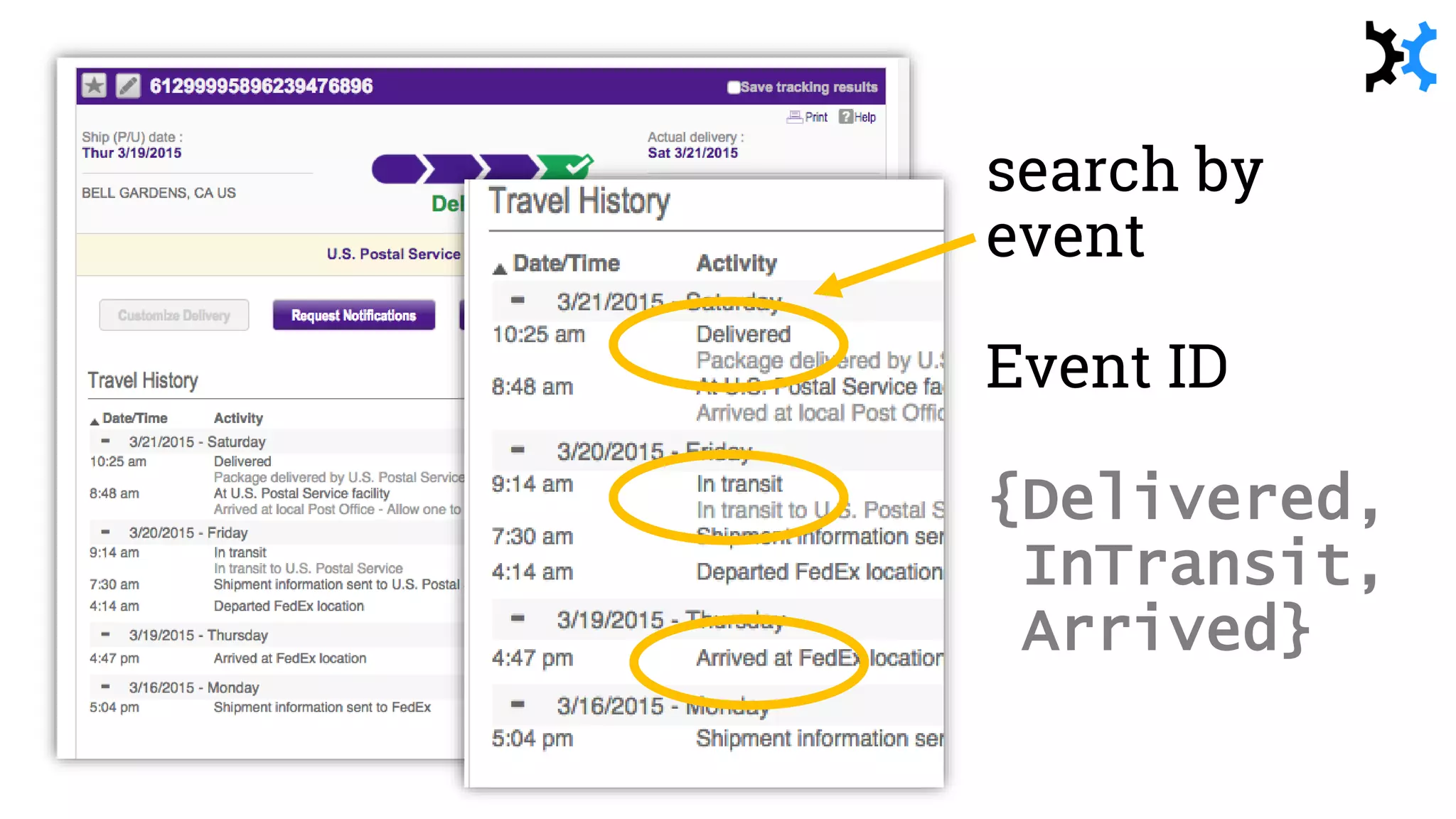

search by
event
Event ID
{Delivered,
InTransit,
Arrived}

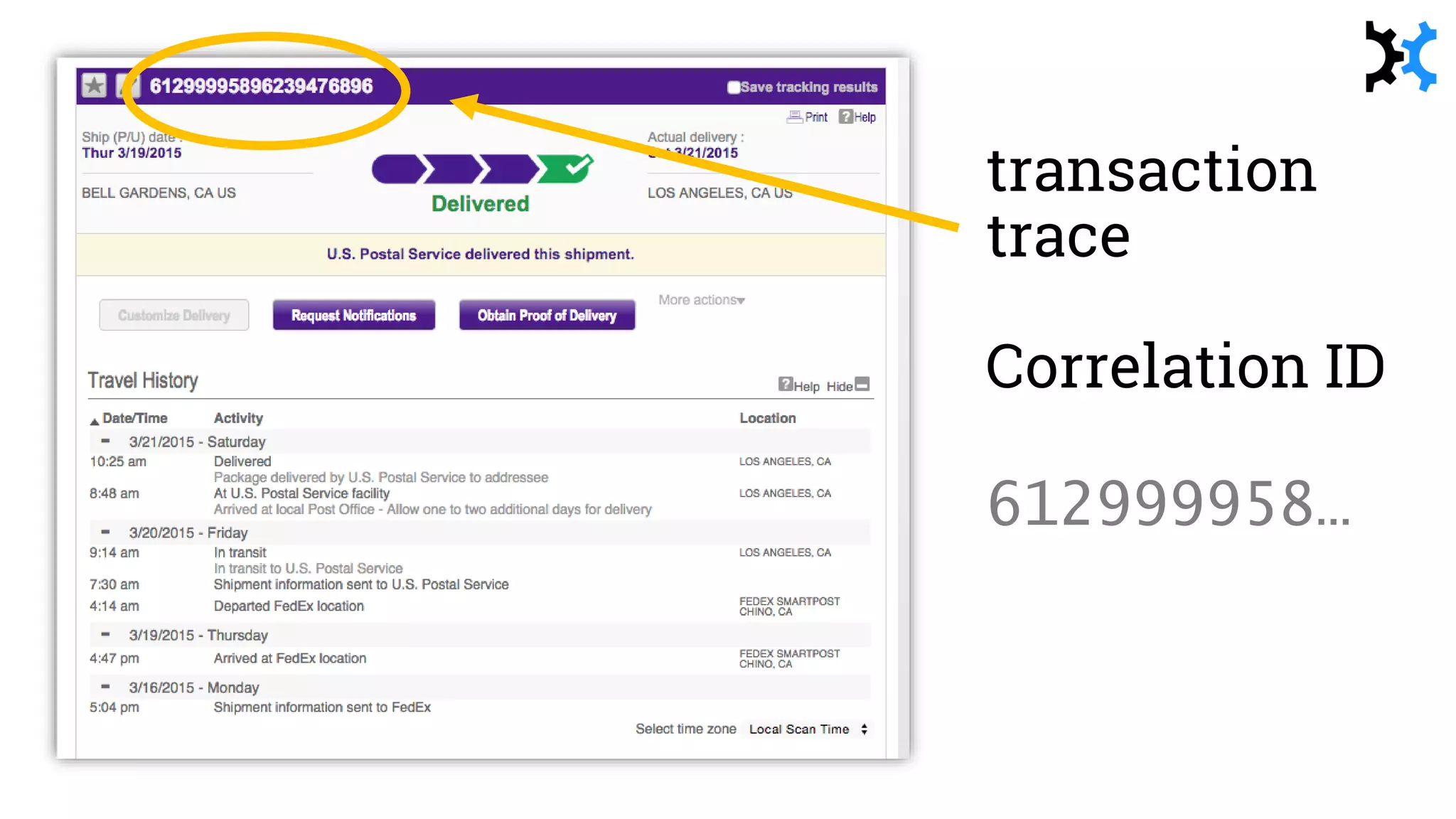

transaction
trace
Correlation ID
612999958…

Technical
Domain

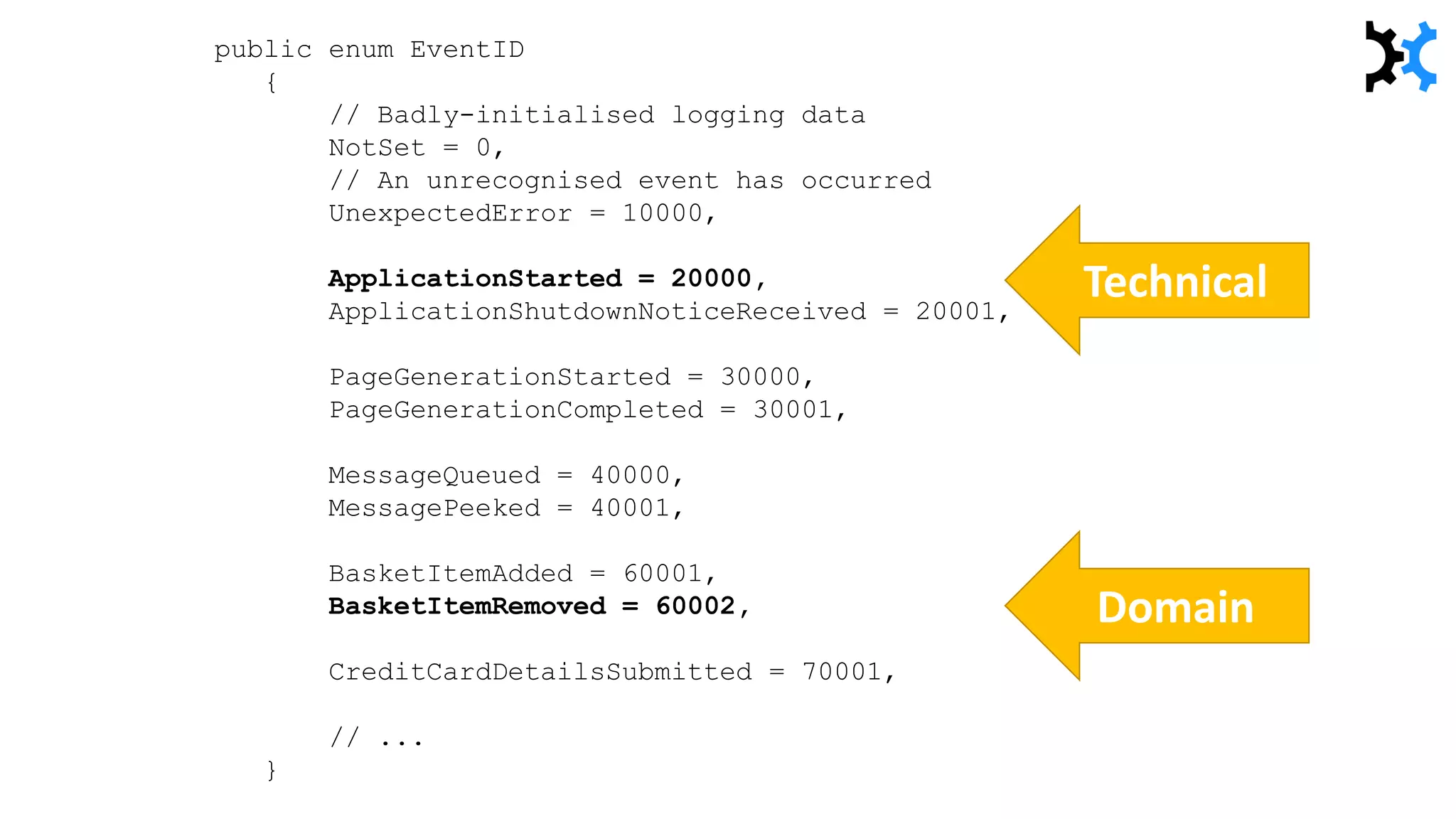

public enum EventID
{
// Badly-initialised logging data
NotSet = 0,
// An unrecognised event has occurred
UnexpectedError = 10000,
ApplicationStarted = 20000,
ApplicationShutdownNoticeReceived = 20001,
PageGenerationStarted = 30000,
PageGenerationCompleted = 30001,
MessageQueued = 40000,
MessagePeeked = 40001,
BasketItemAdded = 60001,
BasketItemRemoved = 60002,
CreditCardDetailsSubmitted = 70001,
// ...
}

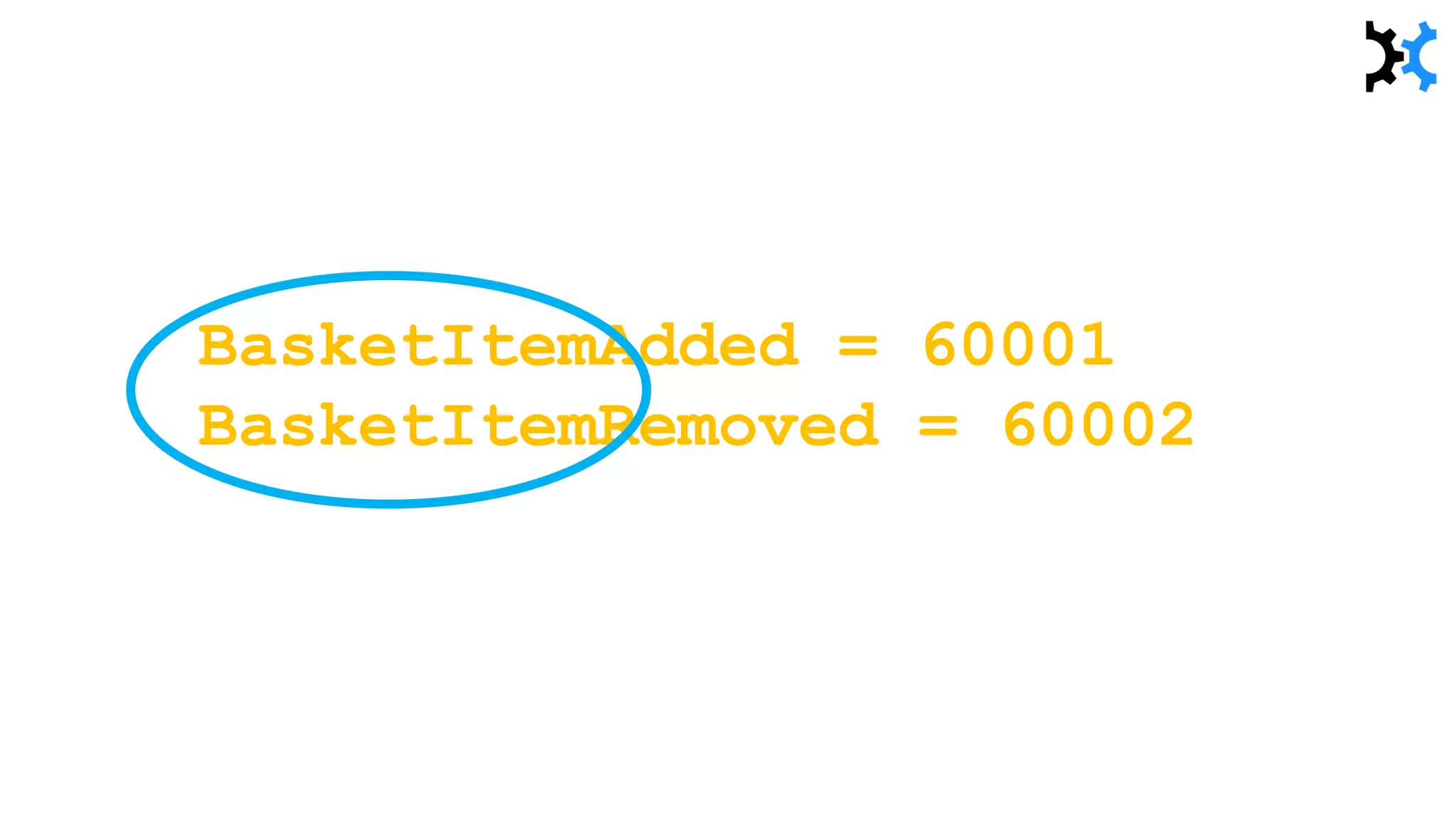

BasketItemAdded = 60001
BasketItemRemoved = 60002

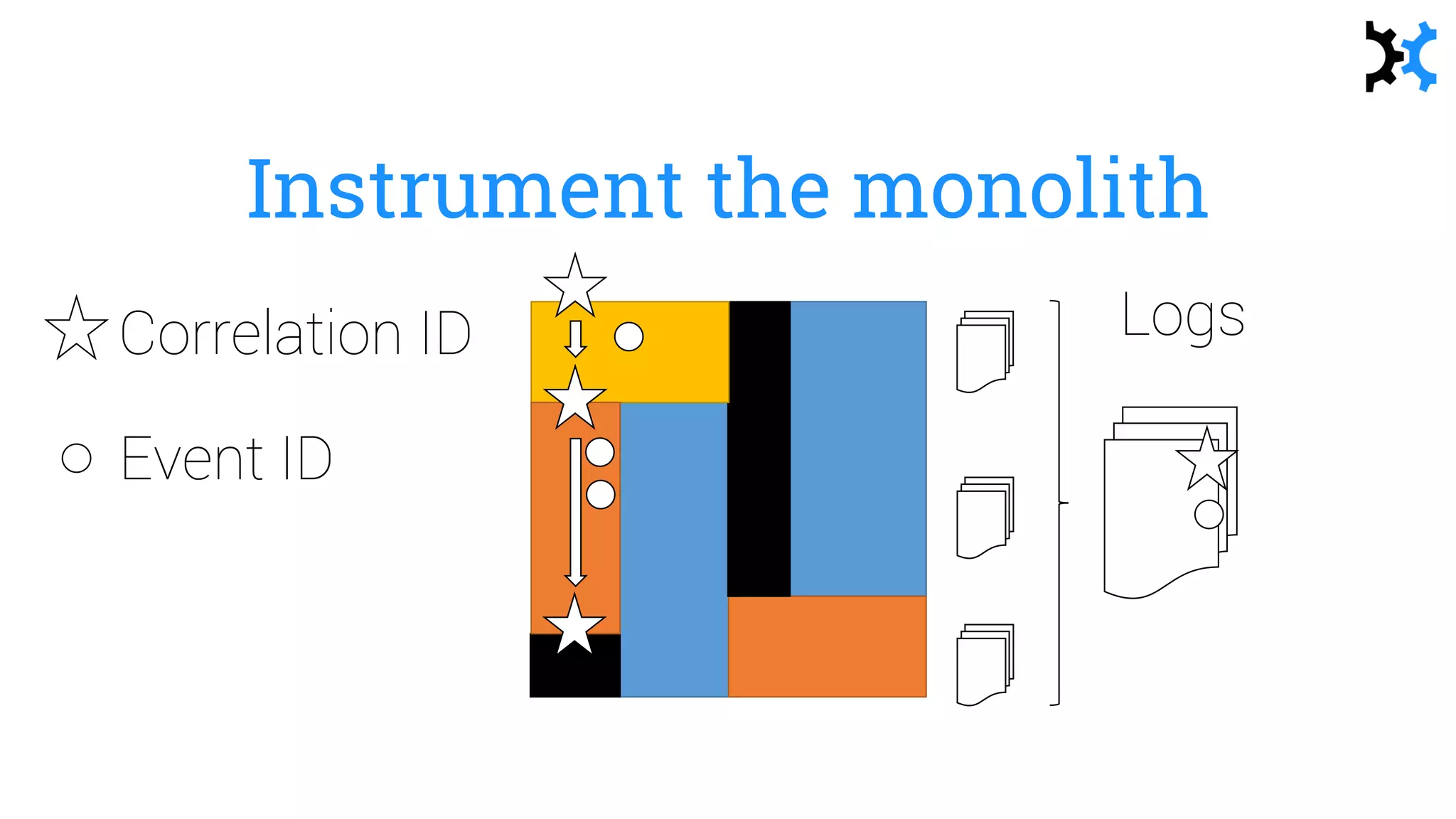

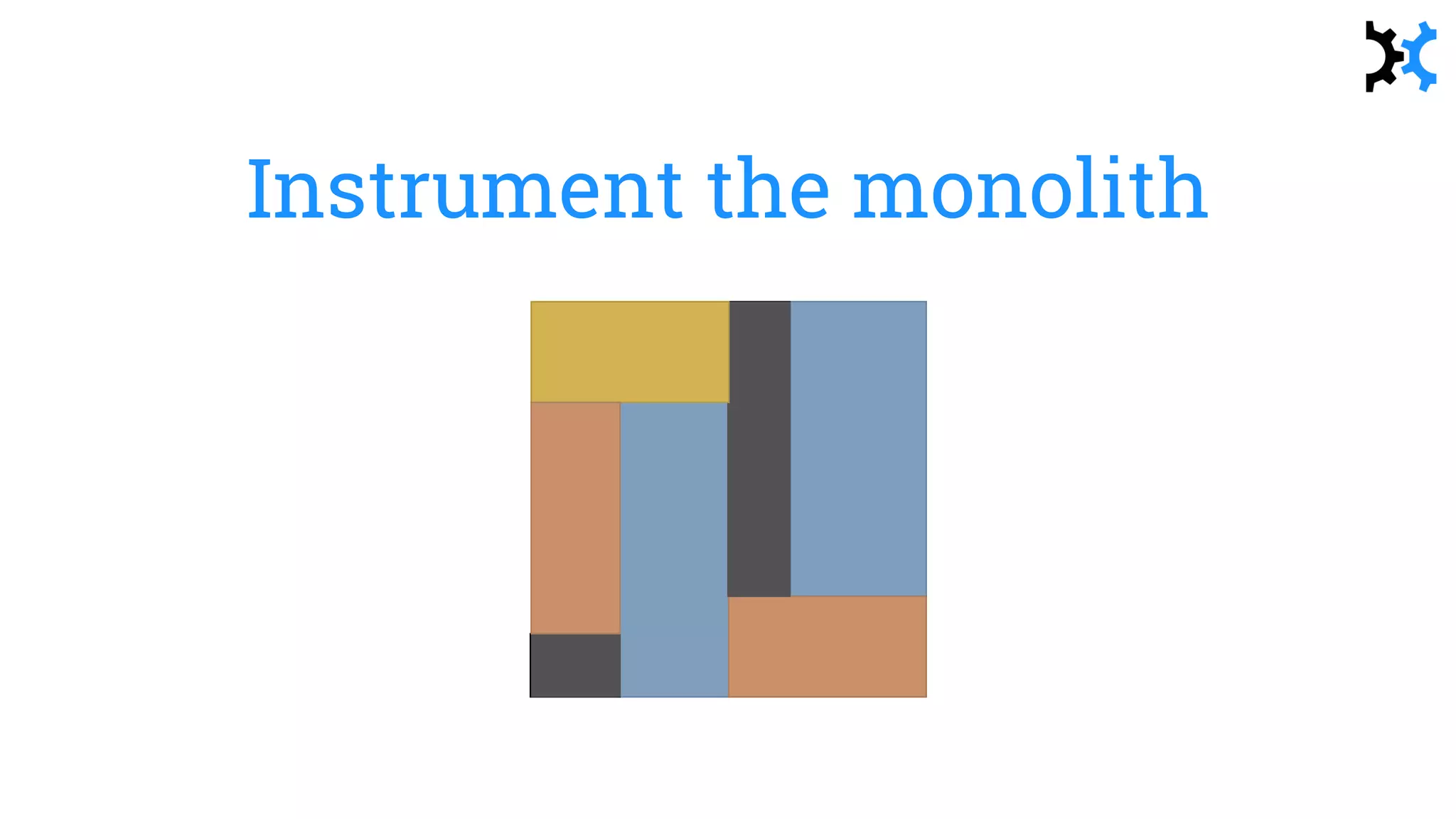

Instrument the monolith

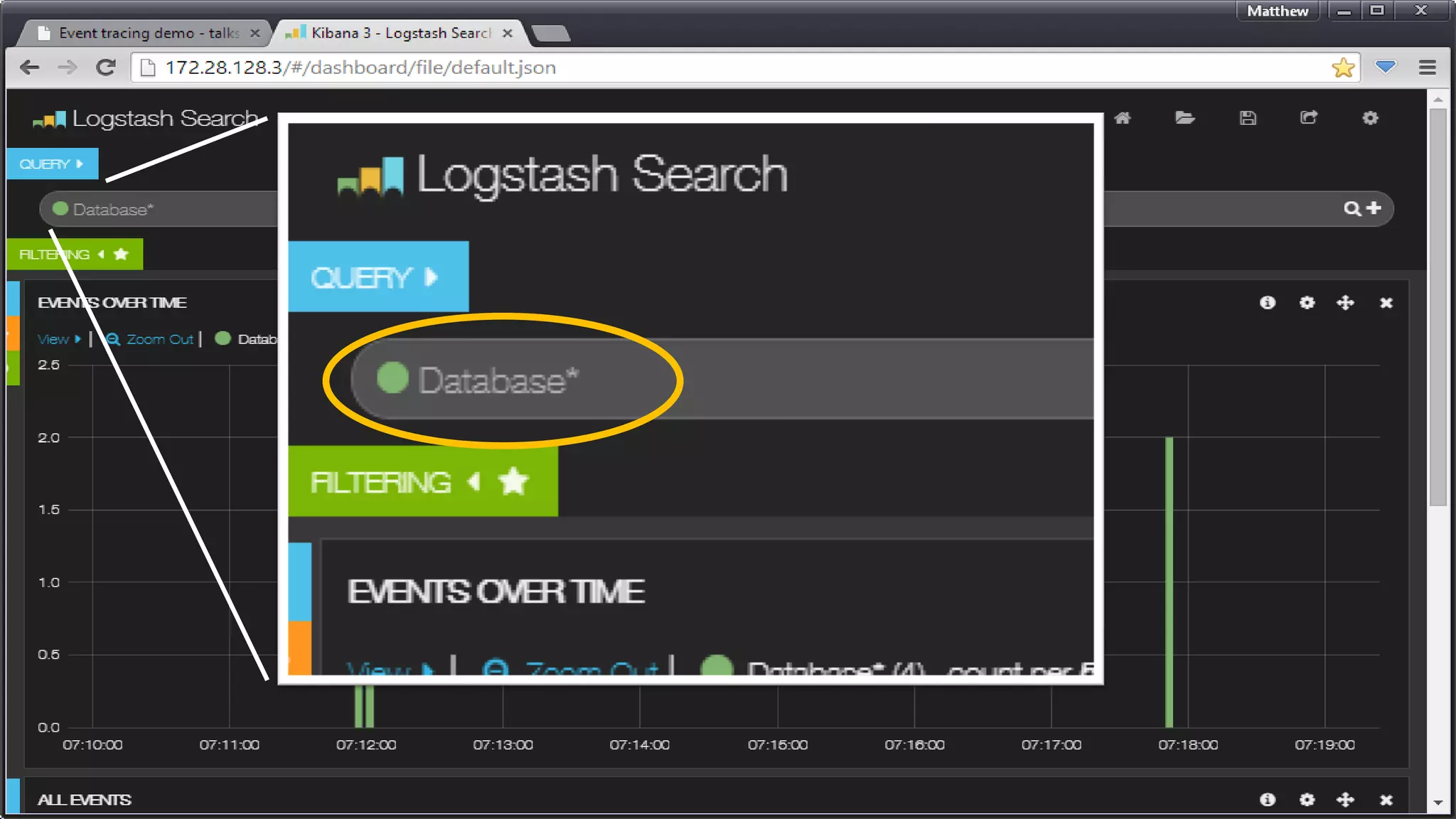

Correlation ID Logs
Event ID

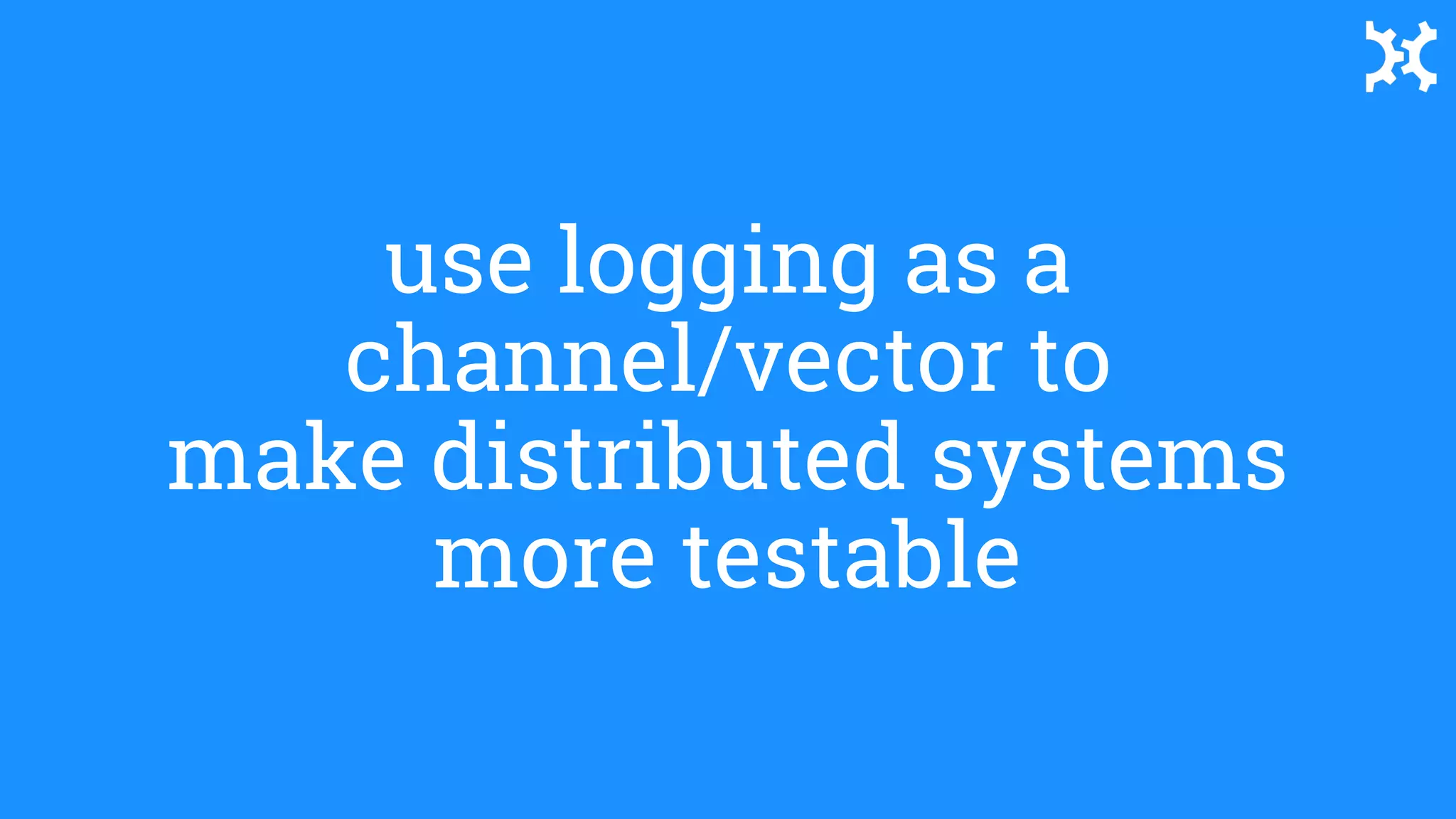

use logging as a
channel/vector to
make distributed systems
more testable
use logging as a
channel/vector to
more testable

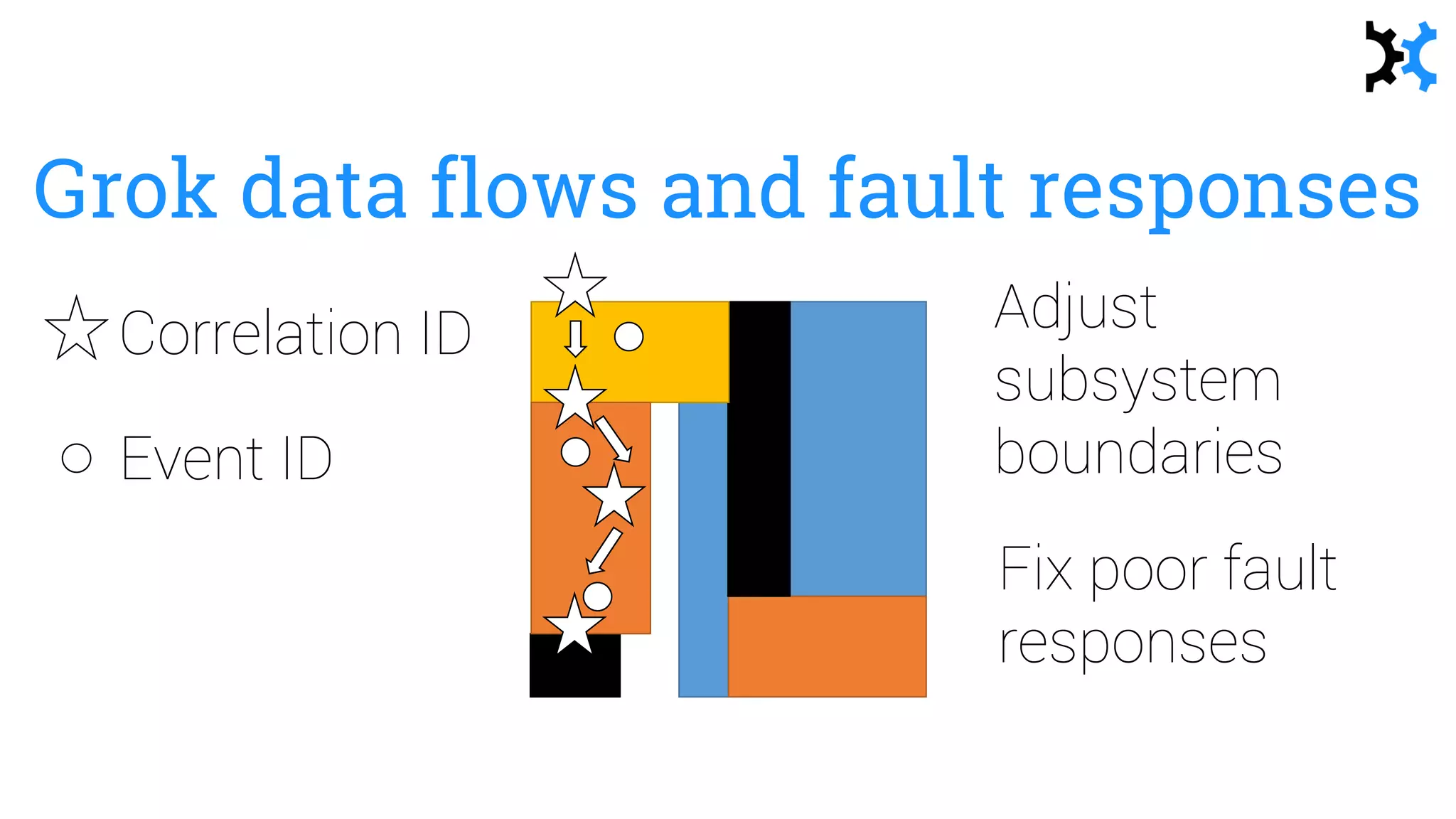

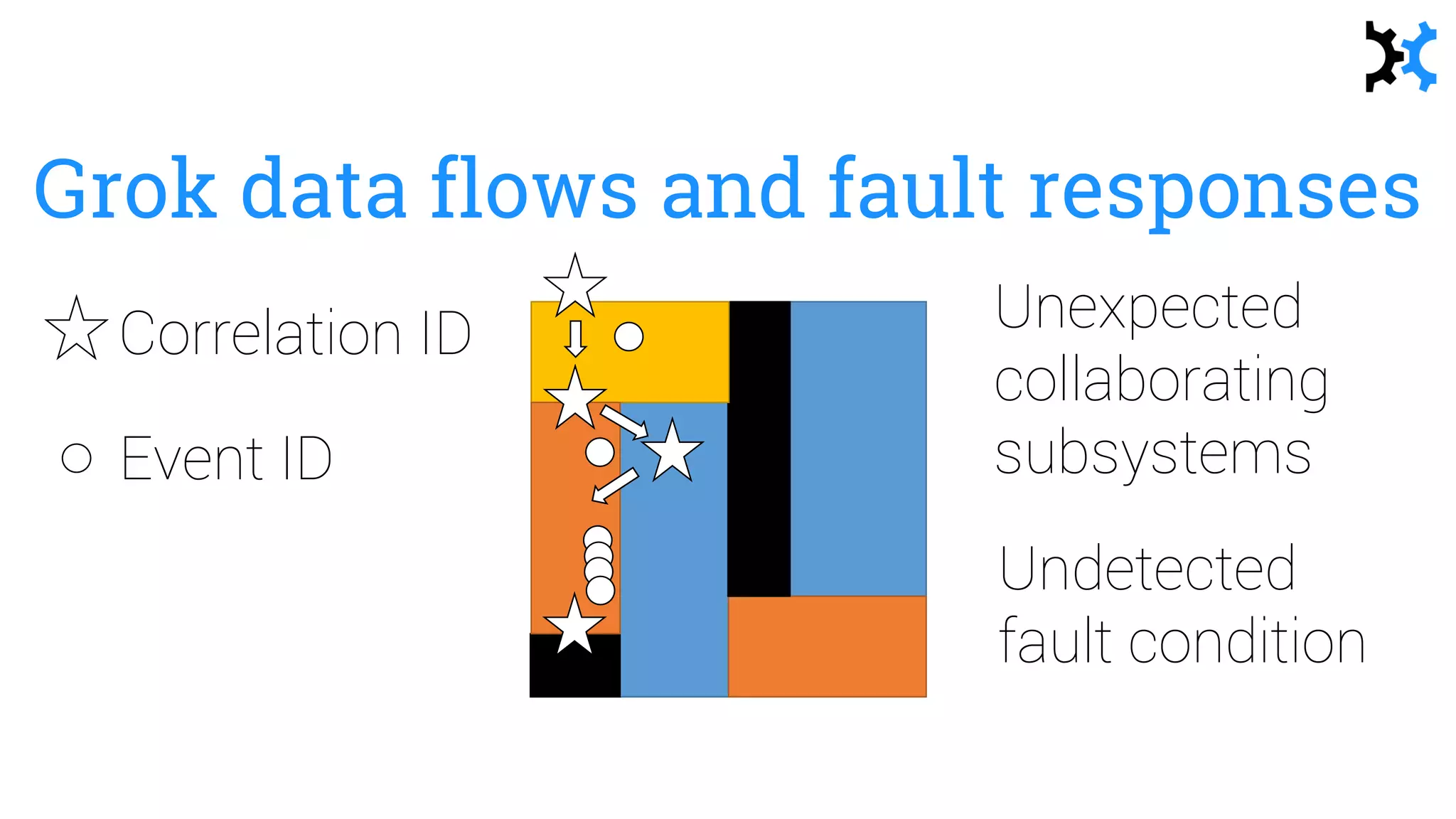

Grok data flows and fault responses

Correlation ID
Event ID
Unexpected
collaborating
subsystems
Undetected
fault condition

Correlation ID
Event ID
Adjust
subsystem
boundaries
Fix poor fault
responses

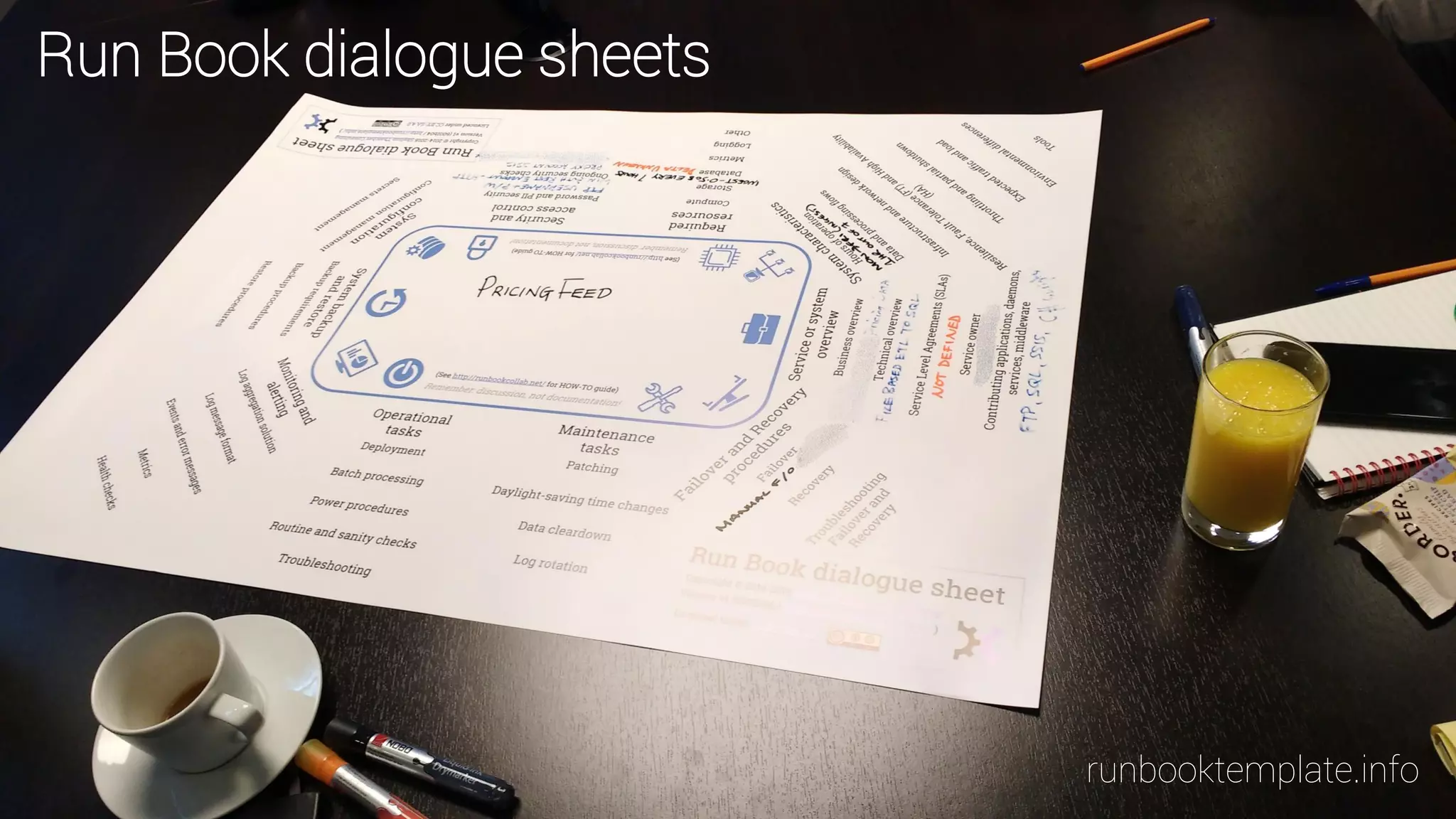

runbooktemplate.info
Run Book dialogue sheets

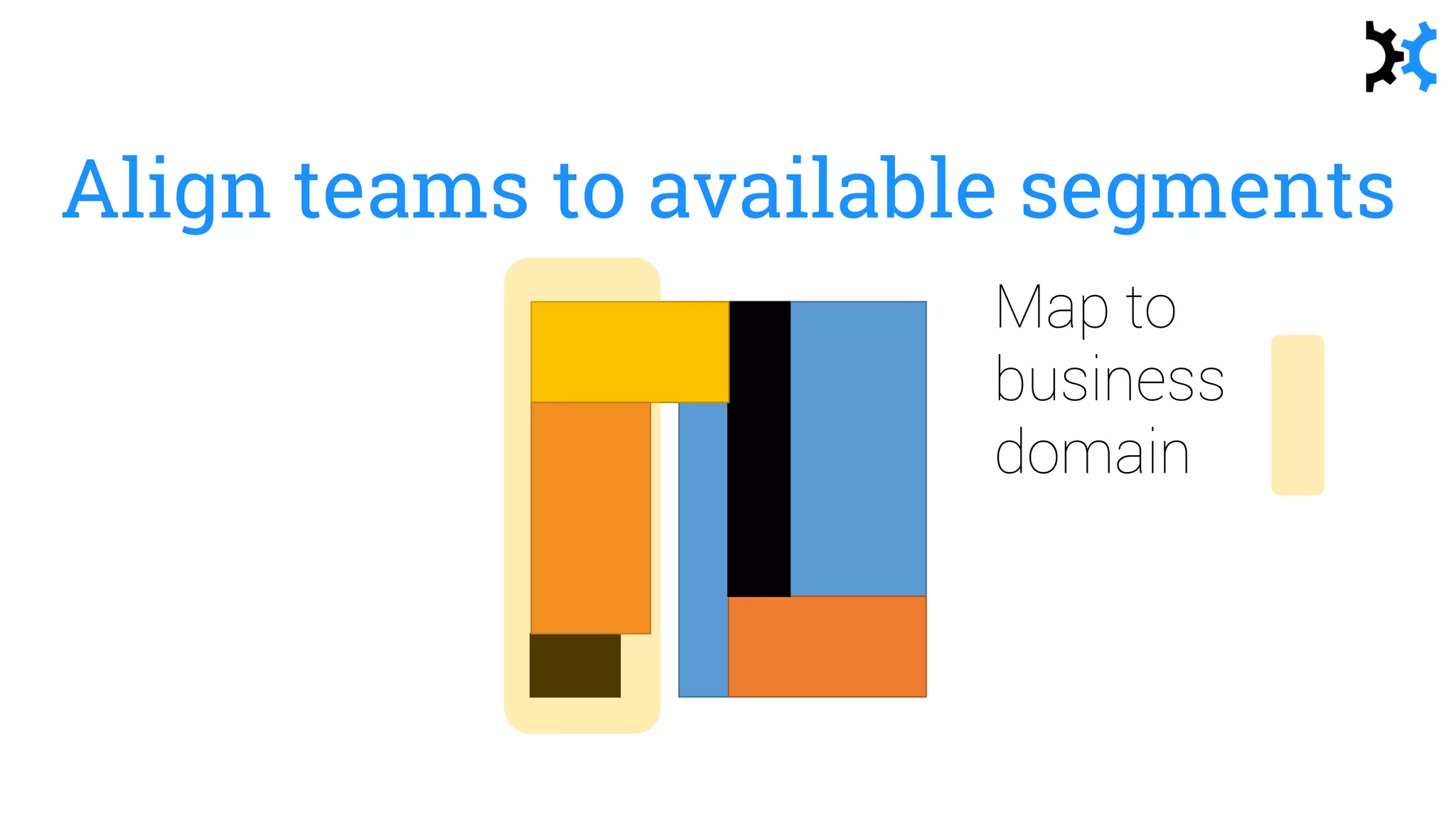

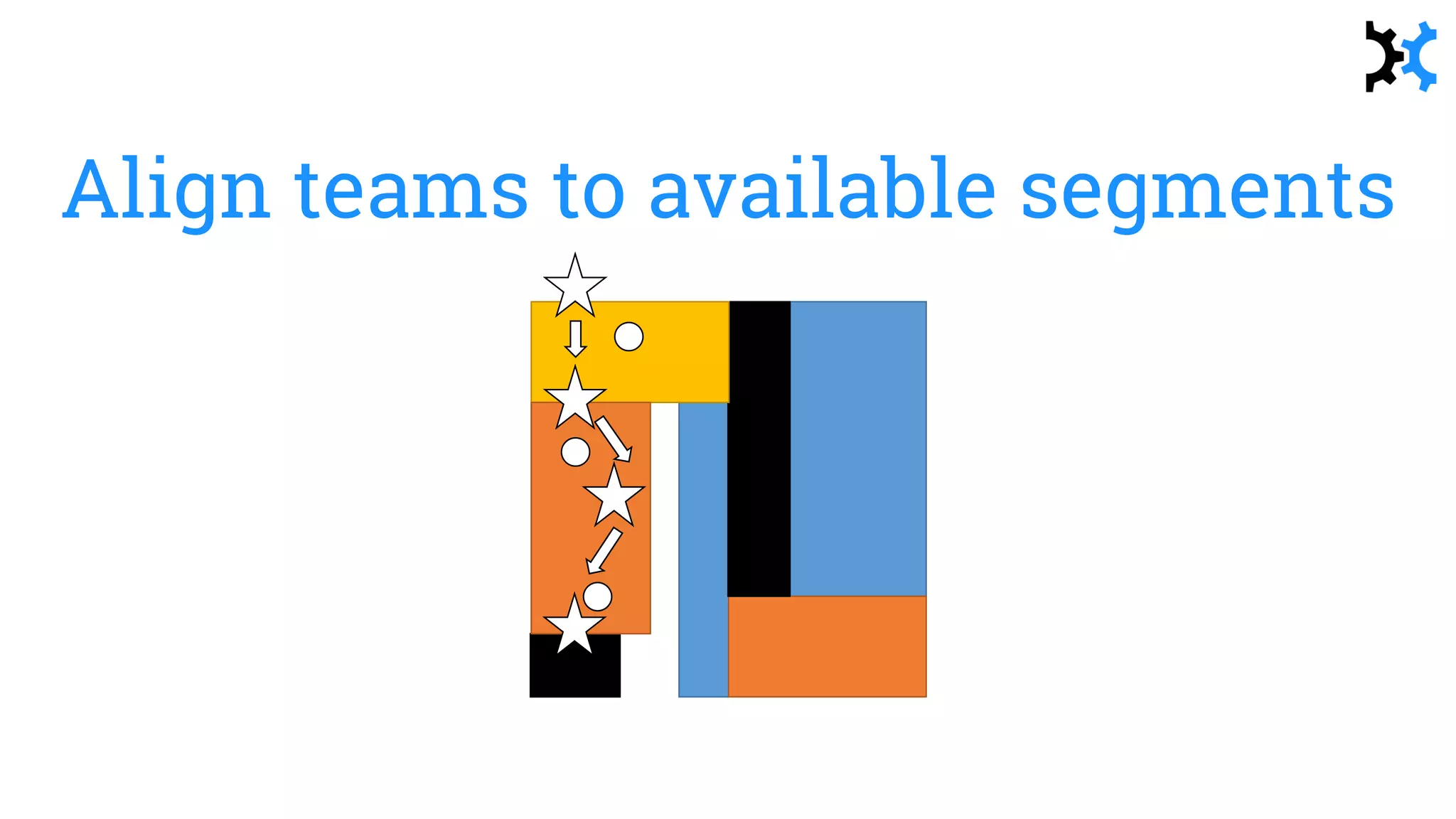

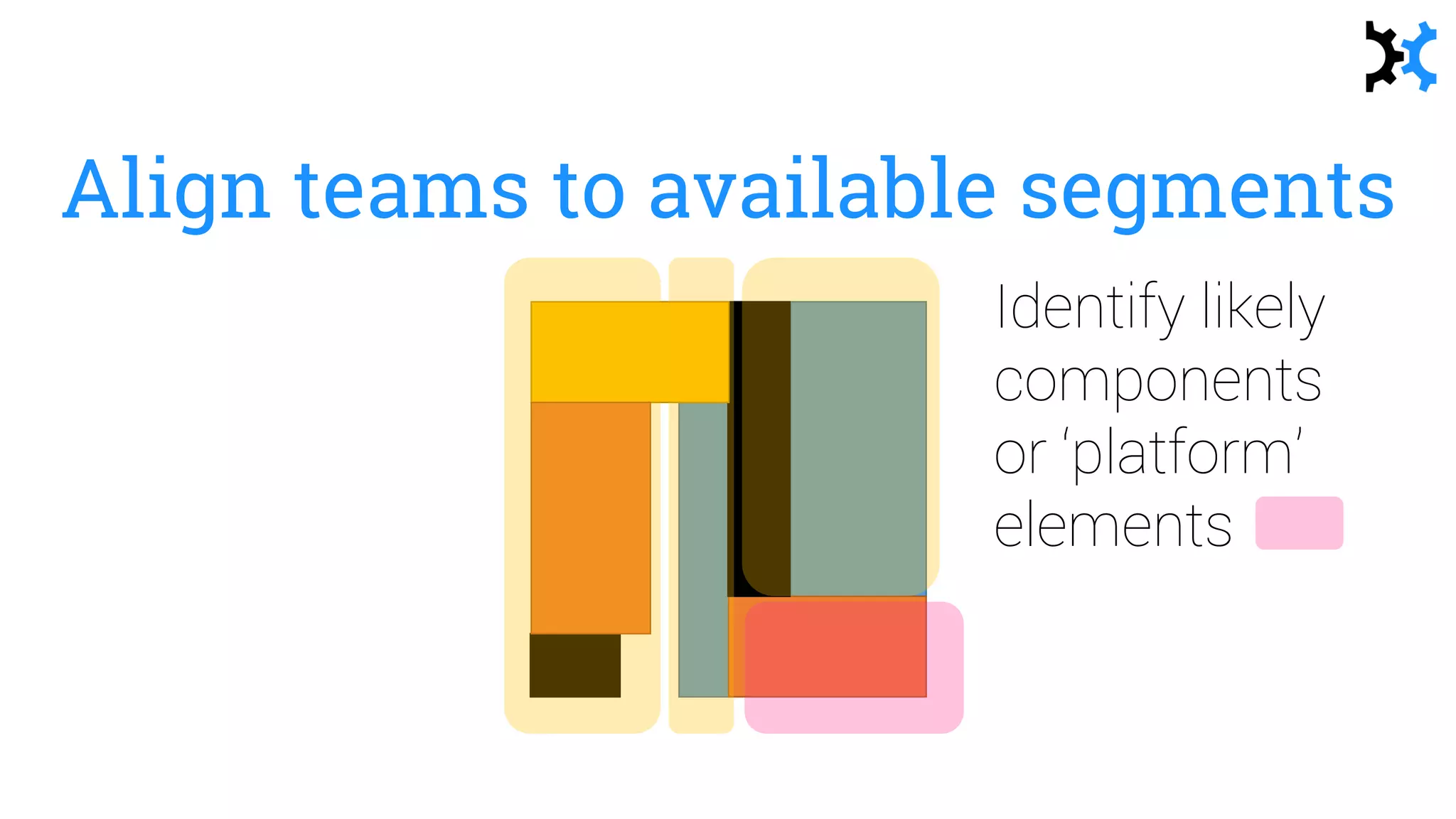

Align teams to available segments

Map to
business
domain

Identify likely
components
or ‘platform’
elements

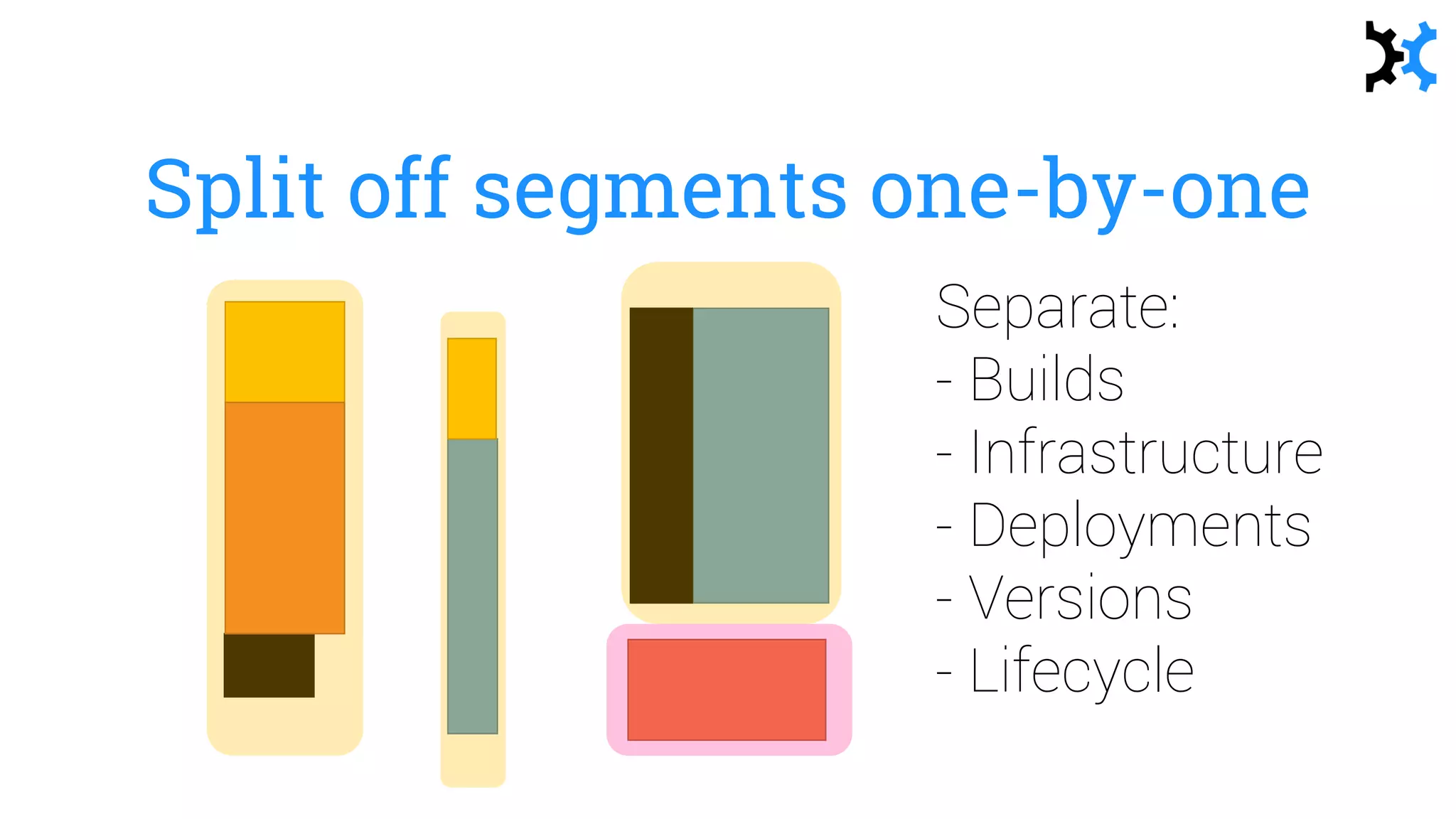

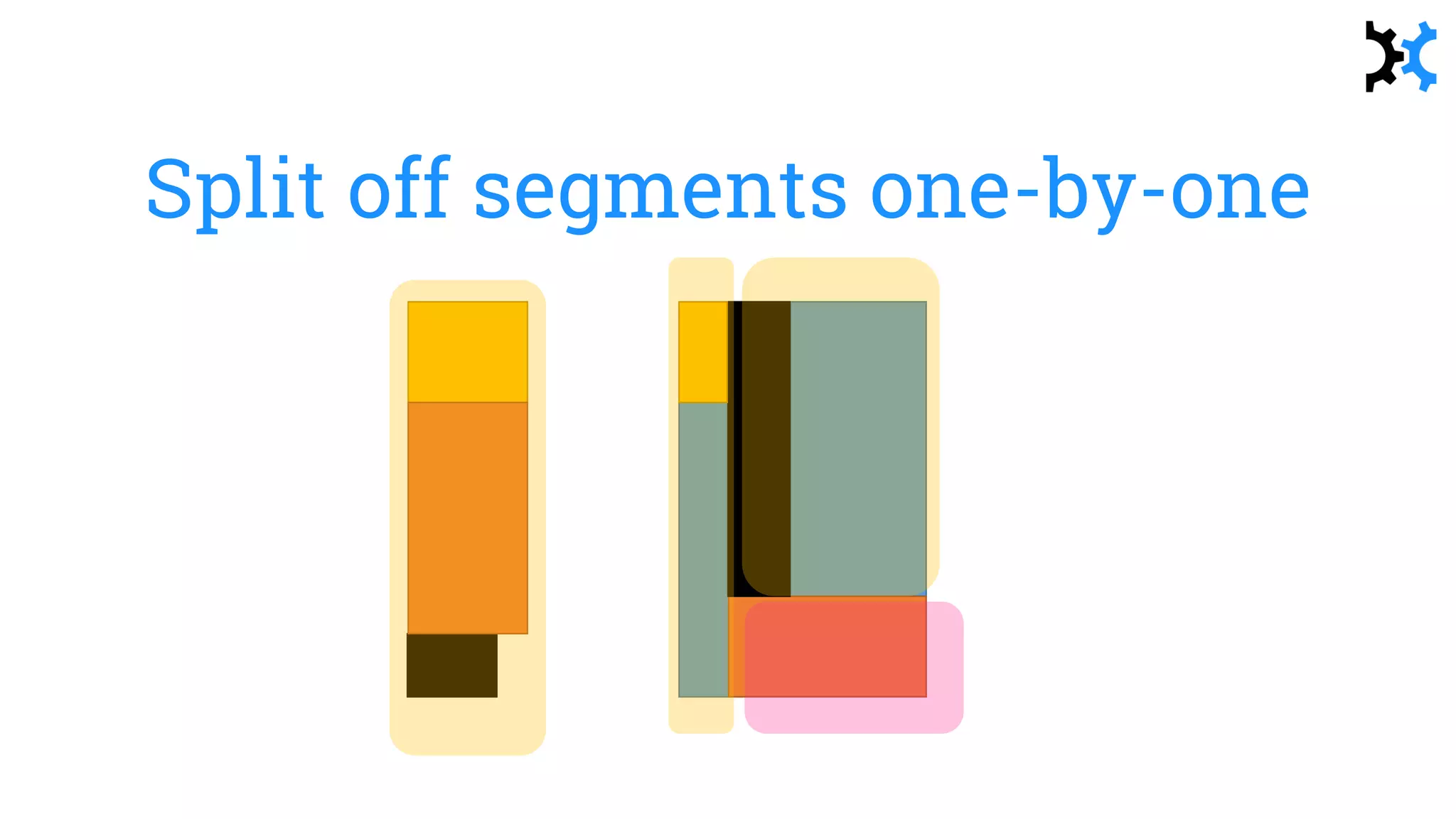

Split off segments one-by-one
Separate:
- Builds
- Infrastructure
- Deployments
- Versions
- Lifecycle

Team needs / responsibilities /
capabilities come first

use logging as a
channel/vector to
more testable
Invest in
Build & Release Engineering

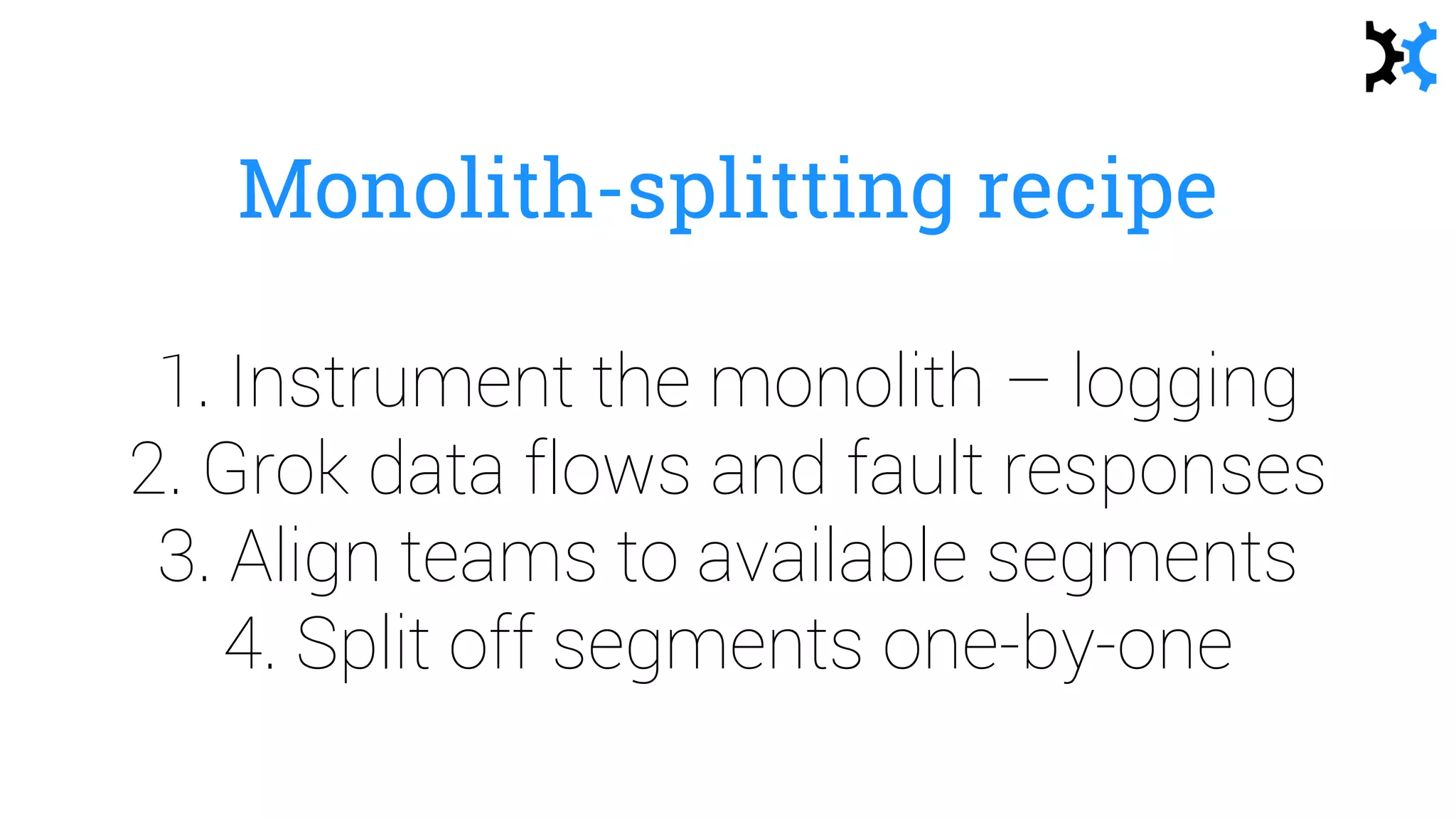

Monolith-splitting recipe *
1. Instrument the monolith – logging
2. Grok data flows and fault responses
3. Align teams to available segments
4. Split off segments one-by-one
(5. Invest in Build & Release Engineering)
* The simplistic version

1. Instrument
2. Grok behaviour
3. Align teams
4. Split off segments
5. Invest in Build & Release

Determine monolith type
(Apply ‘Code Forensics’)
Find ‘fracture planes’
Assess cognitive load for teams
Use the monolith-splitting recipe
without destroying your team

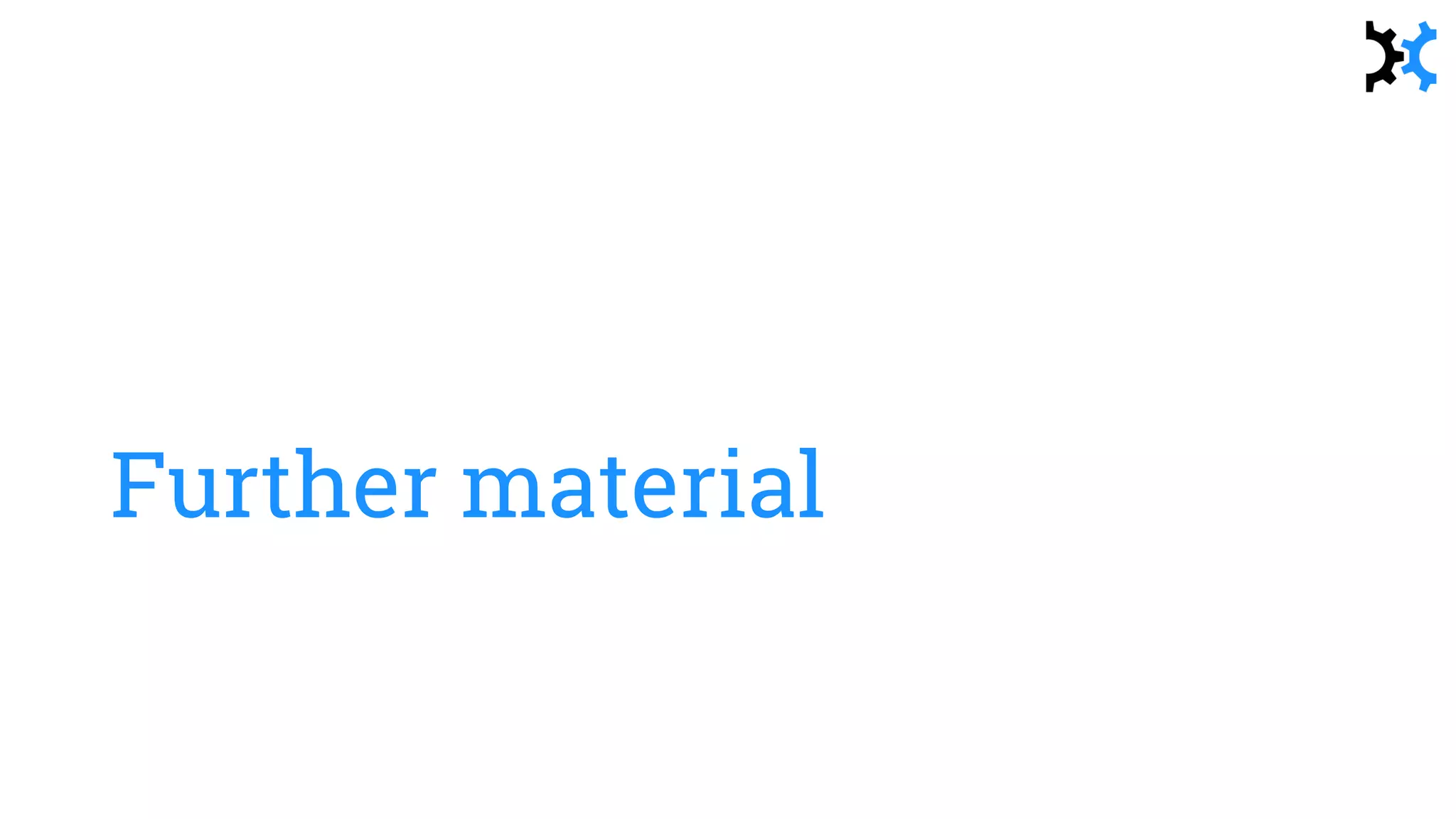

Books & articles
• Working Effectively with Legacy Code, by Michael Feathers
• Building Microservices by Sam Newman (O’Reilly, 2015)
• Managing Cognitive Load for Team Learning by Jo Pearce
http://12devsofxmas.co.uk/2015/12/day-3-managing-cognitive-load-
for-team-learning/
• Continuous Delivery with Windows and .NET by Matthew Skelton and
Chris O’Dell (O’Reilly, 2016) http://cdwithwindows.net/
• Team Guide to Software Operability by Matthew Skelton and Rob
Thatcher (Skelton Thatcher Publications, 2016)
http://operabilitybook.com/
• Ye Olde Monolith by Pter Pilgrim https://dzone.com/articles/ye-olde-
monolith

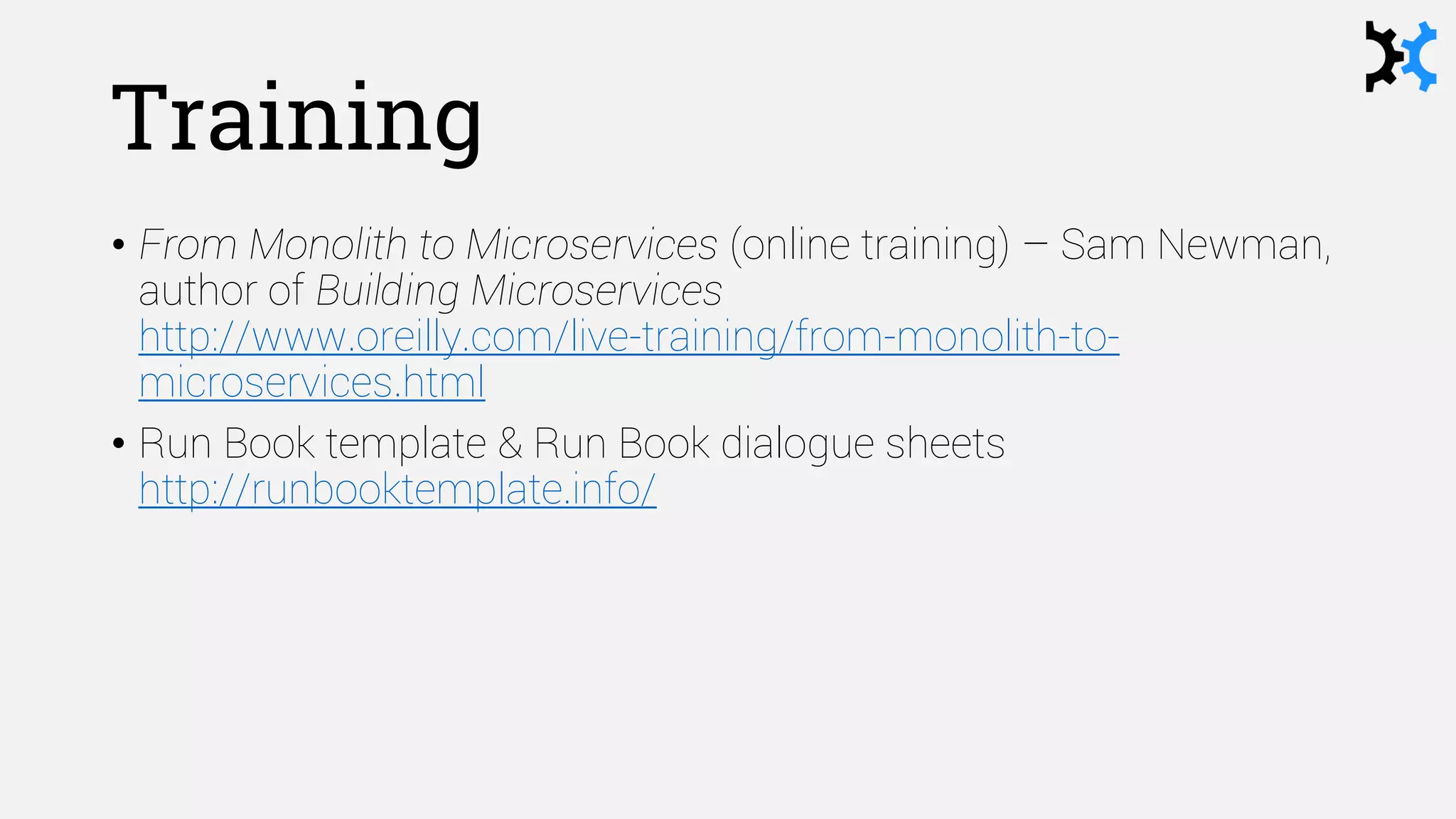

Training
• From Monolith to Microservices (online training) – Sam Newman,
author of Building Microservices
http://www.oreilly.com/live-training/from-monolith-to-
microservices.html
• Run Book template & Run Book dialogue sheets
http://runbooktemplate.info/

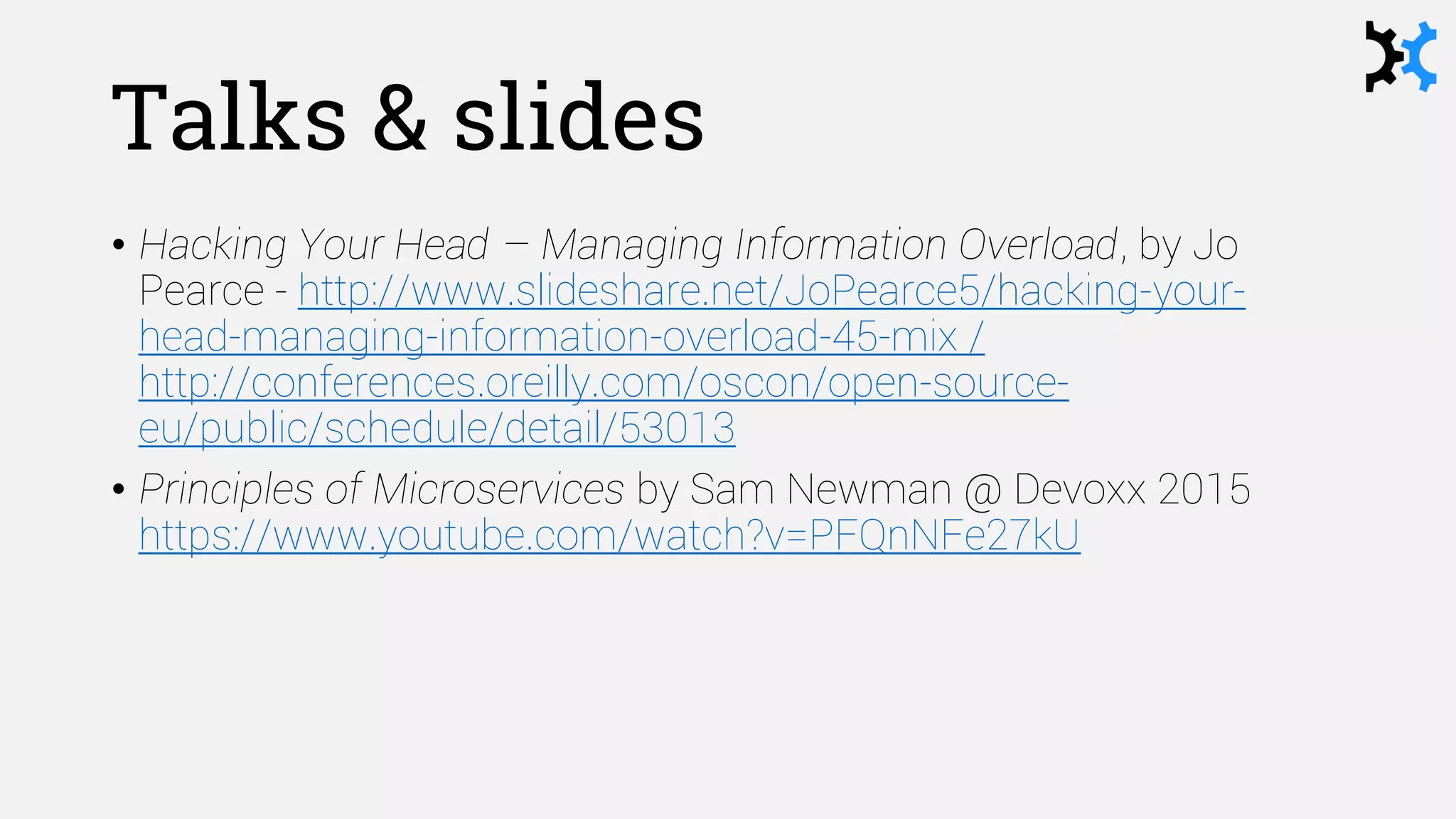

Talks & slides
• Hacking Your Head – Managing Information Overload, by Jo
Pearce - http://www.slideshare.net/JoPearce5/hacking-your-
head-managing-information-overload-45-mix /
http://conferences.oreilly.com/oscon/open-source-
eu/public/schedule/detail/53013
• Principles of Microservices by Sam Newman @ Devoxx 2015
https://www.youtube.com/watch?v=PFQnNFe27kU

Research papers
• Driskell, James E., Eduardo Salas, and Joan Johnston. ‘Does Stress Lead to a Loss of Team
Perspective?’ Group Dynamics: Theory, Research, and Practice 3, no. 4 (1999): 291.
• Fan, Xiaocong, Po-Chun Chen, and John Yen. ‘Learning HMM-Based Cognitive Load Models for
Supporting Human-Agent Teamwork’. Cognitive Systems Research 11, no. 1 (2010): 108–119.
• Ilgen, Daniel R., and John R. Hollenbeck. ‘Effective Team Performance under Stress and Normal
Conditions: An Experimental Paradigm, Theory and Data for Studying Team Decision Making in
Hierarchical Teams with Distributed Expertise’. DTIC Document, 1993.
http://oai.dtic.mil/oai/oai?verb=getRecord&metadataPrefix=html&identifier=ADA284683.
• Johnston, Joan H., Stephen M. Fiore, Carol Paris, and C. A. Smith. ‘Application of Cognitive Load Theory
to Developing a Measure of Team Decision Efficiency’. DTIC Document, 2002.
http://oai.dtic.mil/oai/oai?verb=getRecord&metadataPrefix=html&identifier=ADA525820.
• Sweller, John. ‘Cognitive Load Theory, Learning Difficulty, and Instructional Design’. Learning and
Instruction 4 (1994): 295–312.
• Sweller, John. ‘Cognitive Load during Problem Solving: Effects on Learning’. Cognitive Science 12, no. 2
(1988): 257–285.

thank you
Matthew Skelton
@matthewpskelton
skeltonthatcher.com

Teams and monoliths - Matthew Skelton - Velocity EU 2016

More Related Content

What's hot

Similar to Teams and monoliths - Matthew Skelton - Velocity EU 2016

More from Skelton Thatcher Consulting Ltd

Recently uploaded

Teams and monoliths - Matthew Skelton - Velocity EU 2016
