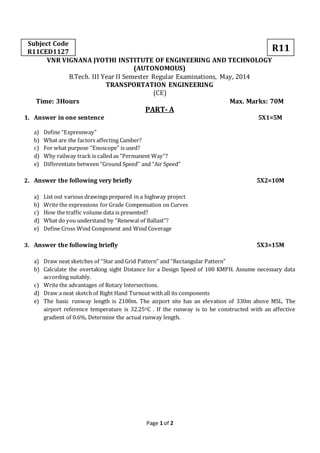

1. Page 1 of 2
Subject Code
R11CED1127 R11
VNR VIGNANA JYOTHI INSTITUTE OF ENGINEERING AND TECHNOLOGY
(AUTONOMOUS)
B.Tech. III Year II Semester Regular Examinations, May, 2014
TRANSPORTATION ENGINEERING
(CE)
Time: 3Hours Max. Marks: 70M
PART- A
1. Answer in one sentence 5X1=5M
a) Define “Expressway”
b) What are the factors affecting Camber?
c) For what purpose “Enoscope” is used?
d) Why railway track is called as “Permanent Way”?
e) Differentiate between “Ground Speed” and “Air Speed”
2. Answer the following very briefly 5X2=10M
a) List out various drawings prepared in a highway project
b) Write the expressions for Grade Compensation on Curves
c) How the traffic volume data is presented?
d) What do you understand by “Renewal of Ballast”?
e) Define Cross Wind Component and Wind Coverage
3. Answer the following briefly 5X3=15M
a) Draw neat sketches of “Star and Grid Pattern” and “Rectangular Pattern”
b) Calculate the overtaking sight Distance for a Design Speed of 100 KMPH. Assume necessary data
according suitably.
c) Write the advantages of Rotary Intersections.
d) Draw a neat sketch of Right Hand Turnout with all its components
e) The basic runway length is 2100m. The airport site has an elevation of 330m above MSL. The
airport reference temperature is 32.25OC . If the runway is to be constructed with an affective
gradient of 0.6%. Determine the actual runway length.

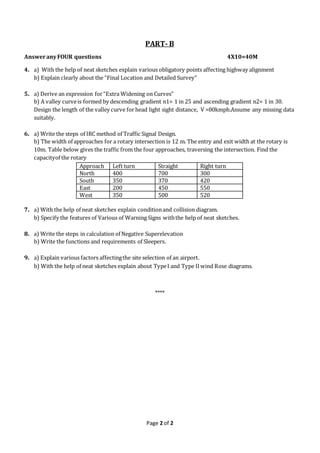

2. Page 2 of 2
PART- B
AnsweranyFOUR questions 4X10=40M
4. a) With the help of neat sketches explain various obligatory points affecting highway alignment
b) Explain clearly about the “Final Location and Detailed Survey”
5. a) Derive an expression for“Extra Widening on Curves”
b) A valley curveis formed by descending gradient n1= 1 in 25 and ascending gradient n2= 1 in 30.
Design the length of the valley curve for head light sight distance, V =80kmph.Assume any missing data
suitably.
6. a) Write the steps of IRC method of Traffic Signal Design.
b) The width of approaches for a rotary intersection is 12 m. The entry and exit width at the rotary is
10m. Table below gives the traffic from the four approaches, traversing the intersection. Find the
capacityof the rotary
Approach Left turn Straight Right turn
North 400 700 300
South 350 370 420
East 200 450 550
West 350 500 520
7. a) With the help of neat sketches explain conditionand collision diagram.
b) Specify the features of Various of Warning Signs withthe help of neat sketches.
8. a) Write the steps in calculation of Negative Superelevation
b) Write the functions and requirements of Sleepers.
9. a) Explain various factors affectingthe site selection of an airport.
b) With the help of neat sketches explain about TypeI and Type IIwind Rose diagrams.
****
