Ship-to-Shore Solutions
The document discusses network solutions provided by Nortel for the US Navy. It describes a converged shipboard network architecture that supports up to 300 shore users and 80 ship users scalable to 160. The network enhances ship-to-shore collaboration with solutions like secure wireless access points, IP handsets, and mobile devices. It enables seamless communications between the Navy's second fleet headquarters and deployed flagships through commercial satellite links, digital IP PBX systems, and network management software.
More Related Content
Ship-to-Shore Solutions
- 1. U.S. Navy ForceNetSolutions USNS MERCY Presented By: Jon R. Marcy DON Team Leader USS IWO JIMA
- 2. COMSECONDFLT Distributed Staff > Objective • Provide a seamless IP communications link between 2nd Fleet HQ and deployed Flagship, enabling comprehensive collaboration and communications between ship and shore personnel, built to support 300 users on the shore, and 80 on the ship, scalable to 160 > Functional Requirements • Enhance ship to shore collaboration • Deploy smaller staff • Maintain efficiency and survivability • Demonstrate fundamental improvements in overall Navy communications > Technical Requirements • JITC certified solution • Inherent Bandwidth Efficiencies • Red “Push-to-Talk” phones to identify handset as a secure phone • Comprehensive IP solution (Voice and Data) • Modular, transportable architecture, w/ follow me phone #’s and account profiles • Full Feature sets – Voice Mail, Conferencing, Unified Messaging • Maintain Quality of Service (QoS) • Interoperable with legacy applications and networks • Shore based Network Management System • 19” Rack mountable solution 2
- 3.

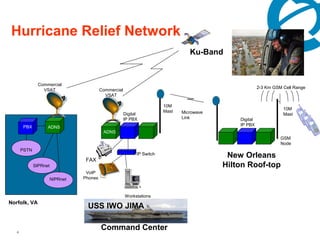

- 4. Hurricane Relief Network Ku-Band Commercial 2-3 Km GSM Cell Range VSAT Commercial VSAT 10M 10M Mast Microwave Digital Mast IP PBX Link Digital PBX IP PBX ADNS ADNS GSM Node PSTN FAX IP Switch New Orleans SIPRnet Hilton Roof-top VoIP NIPRnet Phones Workstations Norfolk, VA USS IWO JIMA 4 Command Center
- 5. USNS MERCY Tsunami Relief Mission 5
- 6. Tsunami Relief Network Challenge Athena PSTN 10 Mile RF Range GSM Mercy Node Shipboard Digital Network PBX Banda Aceh Coast Line 6

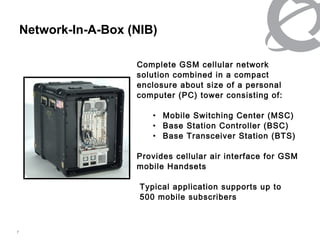

- 7. Network-In-A-Box (NIB) Complete GSM cellular network solution combined in a compact enclosure about size of a personal computer (PC) tower consisting of: • Mobile Switching Center (MSC) • Base Station Controller (BSC) • Base Transceiver Station (BTS) Provides cellular air interface for GSM mobile Handsets Typical application supports up to 500 mobile subscribers 7
- 8. USNS MERCY Wireless Communications 8

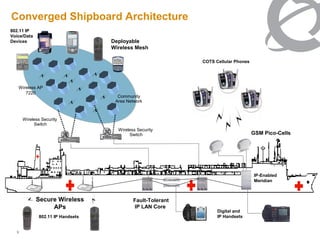

- 9. Converged Shipboard Architecture 802.11IP Voice/Data Devices Deployable Wireless Mesh COTS Cellular Phones Wireless AP 7220 Community Area Network Wireless Security Switch Wireless Security Switch GSM Pico-Cells IP-Enabled Meridian Secure Wireless Fault-Tolerant APs IP LAN Core Digital and 802.11 IP Handsets IP Handsets 9

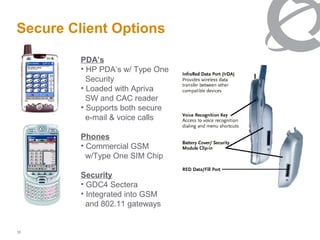

- 10. Secure Client Options PDA’s • HP PDA’s w/ Type One Security • Loaded with Apriva SW and CAC reader • Supports both secure e-mail & voice calls Phones • Commercial GSM w/Type One SIM Chip Security • GDC4 Sectera • Integrated into GSM and 802.11 gateways 10

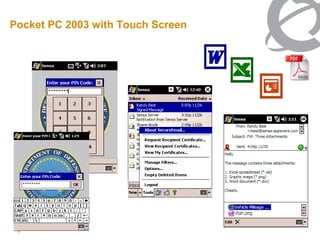

- 11. Pocket PC 2003with Touch Screen 11

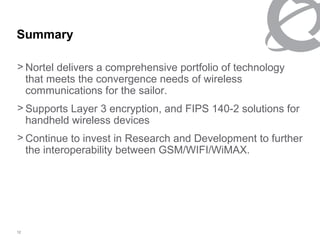

- 12. Summary > Nortel deliversa comprehensive portfolio of technology that meets the convergence needs of wireless communications for the sailor. > Supports Layer 3 encryption, and FIPS 140-2 solutions for handheld wireless devices > Continue to invest in Research and Development to further the interoperability between GSM/WIFI/WiMAX. 12
Editor's Notes
- #2 Nortel Corporate Presentation © 2005 Nortel NORTEL SENSITIVE
- #3 Nortel Corporate Presentation © 2005 Nortel NORTEL SENSITIVE 2 nd Fleet HQ in Bldg. W-5 , 2 nd Fleet Flagship, USS Iwo Jima. Because of a smaller command ship, the leadership required a lighter foot print that provided collaborative capabilities for distributed staff. Voice was the primary medium needed to accomplish collaborative planning. COMSECONDFLT evaluated 3 vendors (e.g. Avaya, Cisco and Nortel), and Nortel was chosen for JITC requirements.
