The MineAxTM wireless RFID miner tracking system provides personnel tracking and minewide communications through integrated solutions, approved by MSHA. It features a network of wireless readers capable of tracking asset and personnel locations, with options for emergency signaling and remote monitoring. The system is designed for simple installation and maintenance while ensuring operational safety in underground mining environments.

1. MineAx™Wireless RFIDMiner Tracking SystemWe work where you work!

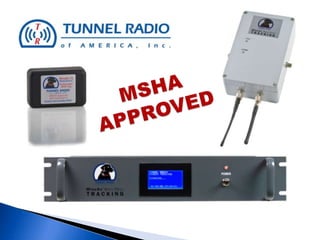

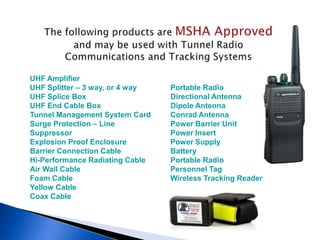

2. MSHA APPROVED

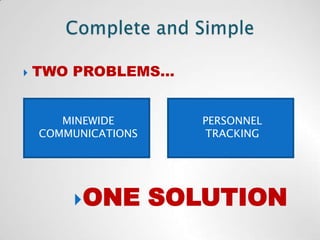

3. Complete and SimpleTWO PROBLEMS…PERSONNEL TRACKINGMINEWIDE COMMUNICATIONSONE SOLUTION

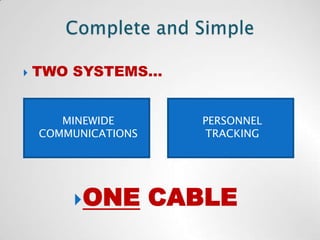

4. Complete and SimpleTWO SYSTEMS…PERSONNEL TRACKINGMINEWIDE COMMUNICATIONSONE CABLE

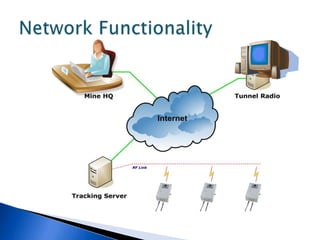

5. Network Functionality

6. Communications OverviewUltraComm System

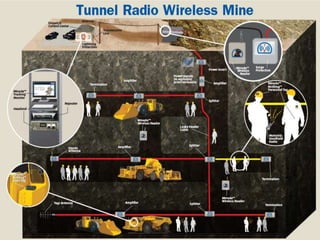

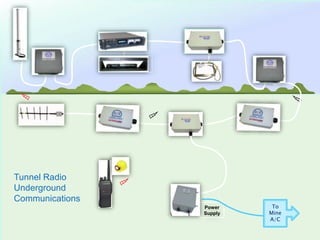

8. Tunnel RadioUnderground Communications To Mine A/CPowerSupply

9. UltraComm CommunicationsUSA Patent No. 6,195,561

10. UltraComm CommunicationsBasic System Features Person to Person Wireless Communication Across Network Surface to Underground Use

11. Fully Mine Tested

12. Simple to Install

13. Simple to MaintainUltraComm CommunicationsAdvanced System FeaturesEthernet Compatible

14. Fully Digital Capable

15. Network Compatible

16. Multi-Channel Capable

17. Enhanced Range for Emergency Use

18. Emergency Operational Features

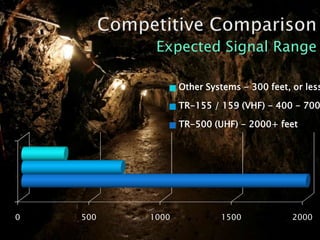

19. Wireless Data TransmissionCompetitive ComparisonExpected Signal Range

20. Digital TrackingOverviewMineAx System

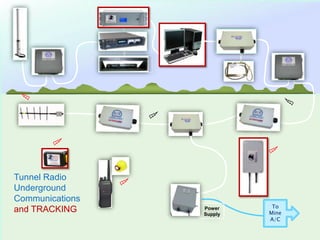

22. Tunnel RadioUnderground Communications and TRACKINGTo Mine A/CPowerSupply

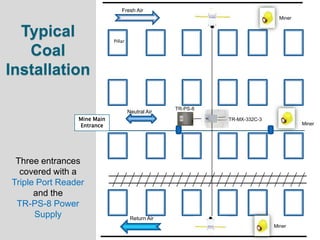

23. TypicalCoalInstallationThree entrances covered with aTriple Port Readerand theTR-PS-8 Power SupplyFresh AirMinerPillarTR-PS-8Neutral AirTR-MX-332C-3Mine Main EntranceMinerReturn AirMiner

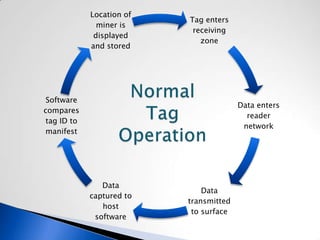

24. Normal Tag Operation

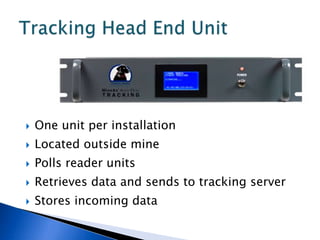

25. One unit per installationLocated outside minePolls reader unitsRetrieves data and sends to tracking serverStores incoming dataTracking Head End Unit

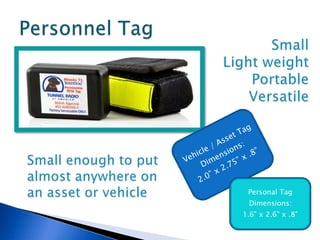

26. Personnel TagSmallLightweight PortableVersatileVehicle / Asset TagDimensions:2.0” x 2.75” x .8”Personal TagDimensions:1.6” x 2.6” x .8”Small enough to put almost anywhere on an asset or vehicle

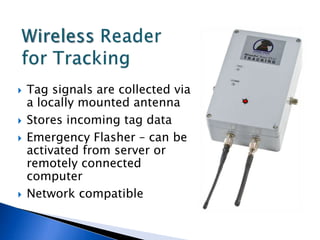

27. Wireless Reader for TrackingTag signals are collected via a locally mounted antennaStores incoming tag dataEmergency Flasher – can be activated from server or remotely connected computerNetwork compatible

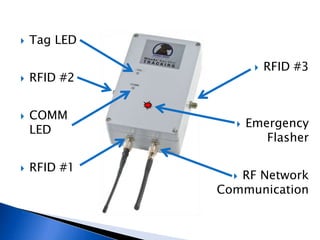

28. Tag LEDRFID #2COMM LEDRFID #1RFID #3

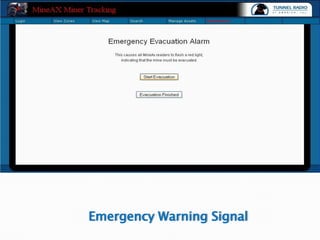

29. Emergency Flasher

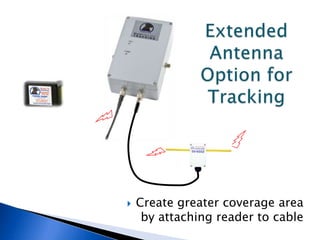

30. RF Network CommunicationExtendedAntennaOption for TrackingCreate greater coverage area by attaching reader to cable

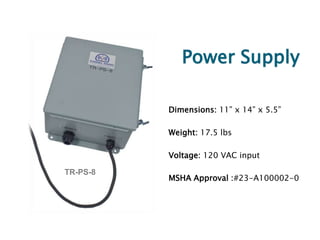

31. Power SupplyDimensions: 11” x 14” x 5.5”Weight: 17.5 lbsVoltage: 120 VAC inputMSHA Approval :#23-A100002-0TR-PS-8

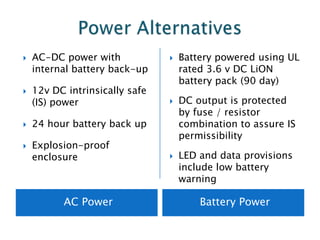

32. Power AlternativesAC PowerBattery PowerAC-DC power with internal battery back-up12v DC intrinsically safe (IS) power24 hour battery back upExplosion-proof enclosureBattery powered using UL rated 3.6 v DC LiON battery pack (90 day)DC output is protected by fuse / resistor combination to assure IS permissibilityLED and data provisions include low battery warning

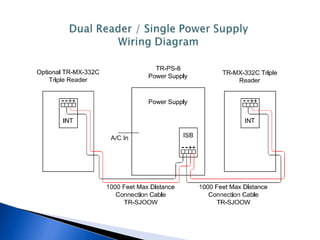

33. Dual Reader / Single Power SupplyWiring Diagram

34. Digital TrackingSoftware FeaturesMineAx System

35. Network Functionality

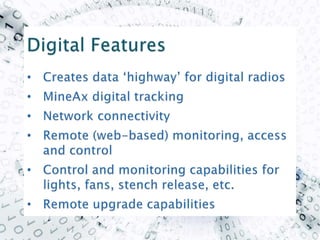

36. Digital FeaturesCreates data ‘highway’ for digital radios

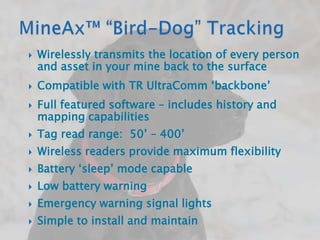

37. MineAx digital tracking

38. Network connectivity

39. Remote (web-based) monitoring, access and control

40. Control and monitoring capabilities for lights, fans, stench release, etc.

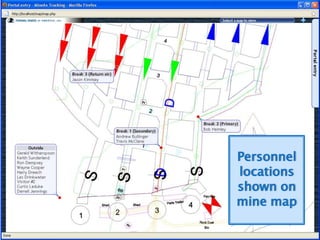

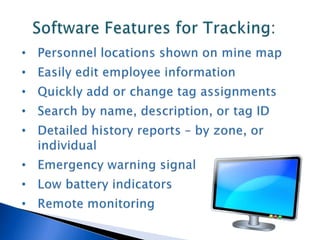

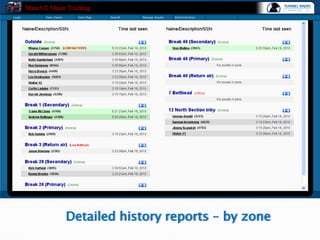

41. Remote upgrade capabilitiesSoftware Features for Tracking:Personnel locations shown on mine map

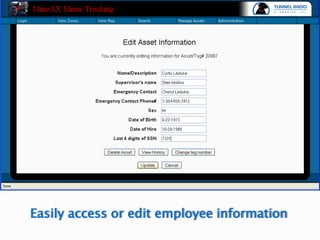

42. Easily edit employee information

43. Quickly add or change tag assignments

44. Search by name, description, or tag ID
