This document summarizes a management system created for Satyanarayan Ice Cream Parlour. The system was created to help with billing, accounting, and inventory management. It allows users to track customer and supplier information, generate reports, and maintain accurate financial records. The system was built using Visual Basic 6.0 and an Oracle database to provide a user-friendly interface for efficient parlour operations.

1. Satyanarayan Ice cream
Parlour Management System

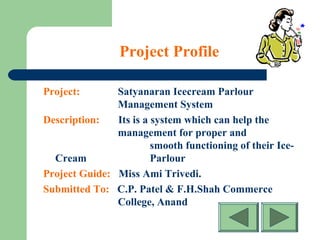

2. Project Profile
Project: Satyanaran Icecream Parlour
Management System
Description: Its is a system which can help the
management for proper and
smooth functioning of their Ice-
Cream Parlour
Project Guide: Miss Ami Trivedi.
Submitted To: C.P. Patel & F.H.Shah Commerce
College, Anand

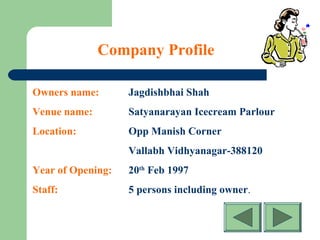

3. Company Profile
Owners name: Jagdishbhai Shah
Venue name: Satyanarayan Icecream Parlour
Location: Opp Manish Corner
Vallabh Vidhyanagar-388120
Year of Opening: 20th
Feb 1997
Staff: 5 persons including owner.

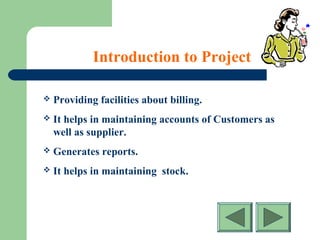

4. Introduction to Project
 Providing facilities about billing.
 It helps in maintaining accounts of Customers as
well as supplier.
 Generates reports.
 It helps in maintaining stock.

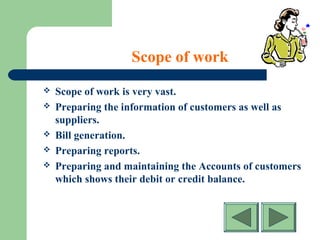

5. Scope of work
 Scope of work is very vast.
 Preparing the information of customers as well as
suppliers.
 Bill generation.
 Preparing reports.
 Preparing and maintaining the Accounts of customers
which shows their debit or credit balance.

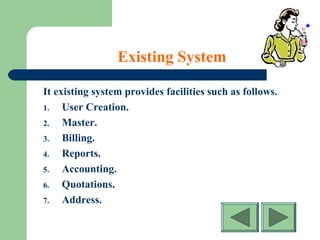

6. Existing System
It existing system provides facilities such as follows.
1. User Creation.
2. Master.
3. Billing.
4. Reports.
5. Accounting.
6. Quotations.
7. Address.

7. Need for the New system
 To provide security to the database used by the system.
 To keep the system in step with the advanced technology.
 To maintain the accounts of customers accurately.
 Instead of old manual system, new system automatically
generates the reports & easily maintains the stock
calculations.
 To provide facilities for viewing,updating and deletion of
data according to usernames.
 The better GUI is provided to make the system User
Friendly.

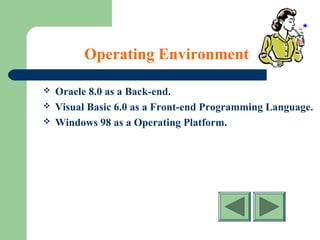

8. Operating Environment
 Oracle 8.0 as a Back-end.
 Visual Basic 6.0 as a Front-end Programming Language.
 Windows 98 as a Operating Platform.

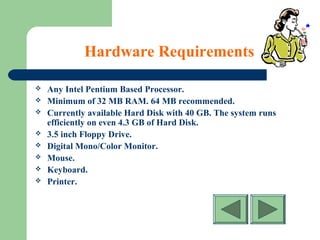

9. Hardware Requirements
 Any Intel Pentium Based Processor.
 Minimum of 32 MB RAM. 64 MB recommended.
 Currently available Hard Disk with 40 GB. The system runs
efficiently on even 4.3 GB of Hard Disk.
 3.5 inch Floppy Drive.
 Digital Mono/Color Monitor.
 Mouse.
 Keyboard.
 Printer.

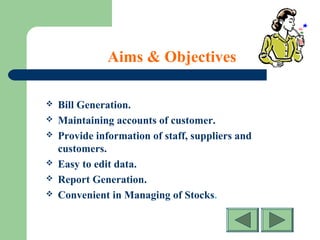

10. Aims & Objectives
 Bill Generation.
 Maintaining accounts of customer.
 Provide information of staff, suppliers and
customers.
 Easy to edit data.
 Report Generation.
 Convenient in Managing of Stocks.

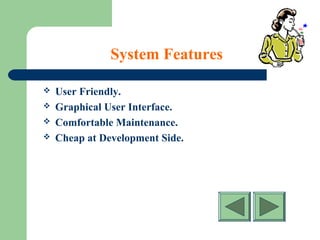

11. System Features
 User Friendly.
 Graphical User Interface.
 Comfortable Maintenance.
 Cheap at Development Side.

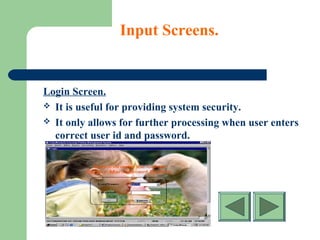

12. Input Screens.
Login Screen.
 It is useful for providing system security.
 It only allows for further processing when user enters
correct user id and password.

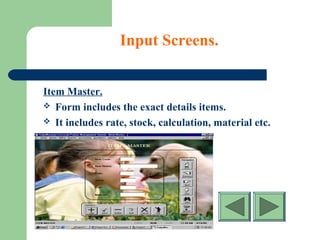

13. Input Screens.
Item Master.
 Form includes the exact details items.
 It includes rate, stock, calculation, material etc.

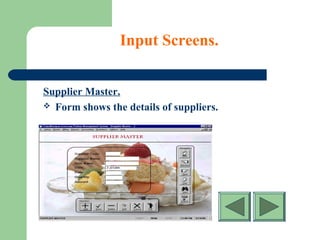

14. Input Screens.
Supplier Master.
 Form shows the details of suppliers.

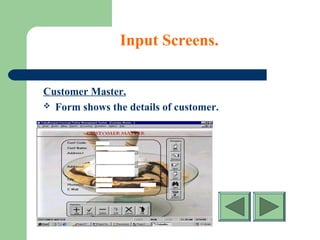

15. Input Screens.
Customer Master.
 Form shows the details of customer.

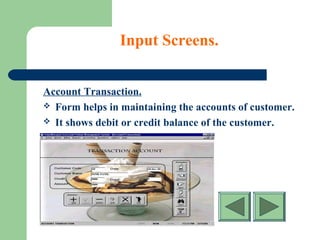

16. Input Screens.
Account Transaction.
 Form helps in maintaining the accounts of customer.
 It shows debit or credit balance of the customer.

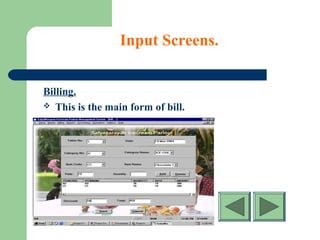

17. Input Screens.
Billing.
 This is the main form of bill.

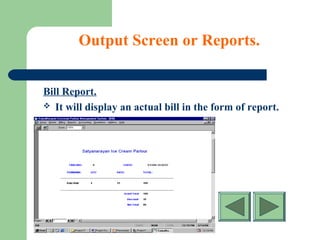

18. Output Screen or Reports.
Bill Report.
 It will display an actual bill in the form of report.

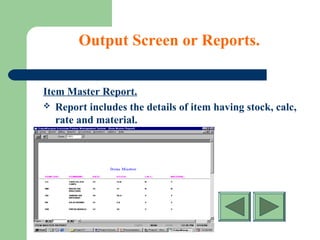

19. Output Screen or Reports.
Item Master Report.
 Report includes the details of item having stock, calc,
rate and material.

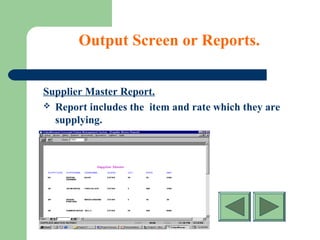

20. Output Screen or Reports.
Supplier Master Report.
 Report includes the item and rate which they are
supplying.

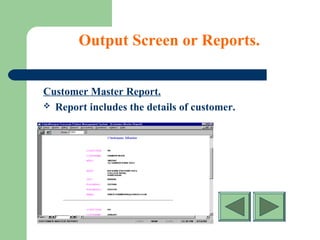

21. Output Screen or Reports.
Customer Master Report.
 Report includes the details of customer.

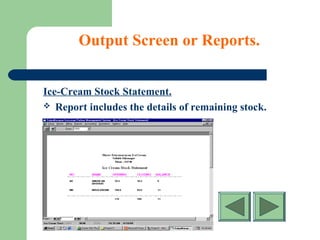

22. Output Screen or Reports.
Ice-Cream Stock Statement.
 Report includes the details of remaining stock.

23. Context Diagram
CustomerCustomer
Satyanarayan
Ice-Cream Parlour
Management System
Payment
Order
Info
Service
provided
Bill

24. Data Flow Diagrams (0 LEVEL)
1.0
Purchase
2.0
Sales
Supplier Master
Supp
Info
Supplier
Stock
Customer Master
Cust
Info
Customer
Supply
Stock
Supply
Request

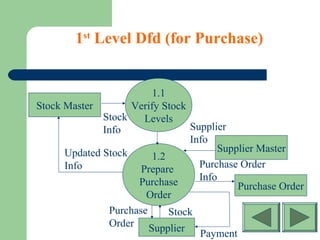

25. 1st
Level Dfd (for Purchase)
1.1
Verify Stock
Levels
1.2
Prepare
Purchase
Order
Stock Master
Stock
Info
Updated Stock
Info
Supplier
Purchase
Order
Stock
Payment
Purchase Order
Supplier Master
Supplier
Info
Purchase Order
Info

26. 1st
Level Dfd (for 2.0)
Sales
Customer
2.1
Verification of
Request
2.2
Service of the
request and
Bill generation
Customer
MasterStock Master
Bill
Master
Stock
Info
Sales Info
Update Stock
Details Bill
Info
Bill Detail
Bill
Bill
Order Served
Order Info
Order
Served
Cust
Info
Cust
Info
Paym
ent
Payment

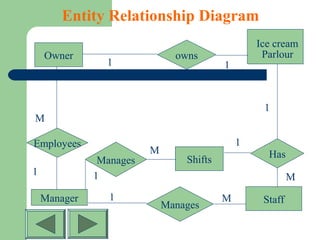

27. Entity Relationship Diagram
owns
Employees
Manages
Owner
Manager
Shifts
Staff
1
1
Has
M
1
M
1
1
1
Manages
1 M
M
Ice cream
Parlour
1

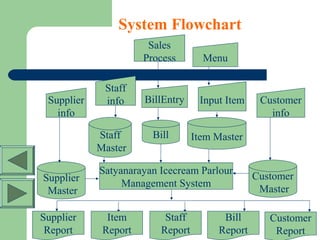

28. System Flowchart
Satyanarayan Icecream Parlour
Management System
Supplier
Master
Staff
Master
Bill
Supplier
info
Staff
info BillEntry
Sales
Process
Bill
Report
Customer
Report
Item
Report
Supplier
Report
Staff
Report
Customer
Master
Item Master
Menu
Input Item Customer
info

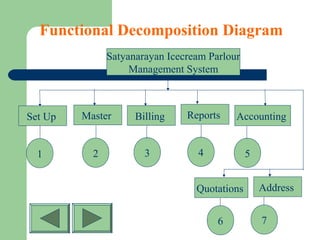

29. Functional Decomposition Diagram
1
Satyanarayan Icecream Parlour
Management System
Set Up
2 3 4
Master Billing Reports Accounting
AddressQuotations
76
5

30. Functional Decomposition Diagram
1
User Creation Exit
2
Customer
Master
Category
Master
Item
Master
Staff
Master
Stock
Master
Supplier
Master

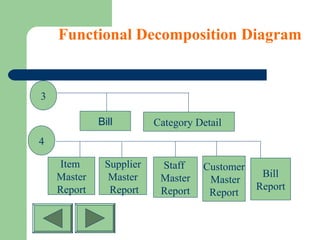

31. Functional Decomposition Diagram
3
Bill Category Detail
4
Item
Master
Report
Supplier
Master
Report
Staff
Master
Report
Customer
Master
Report
Bill
Report

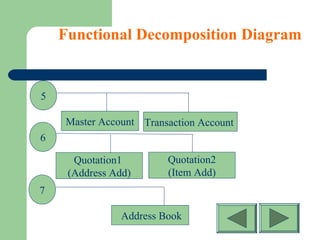

32. Functional Decomposition Diagram
5
Master Account Transaction Account
6
Quotation1
(Address Add)
Quotation2
(Item Add)
7
Address Book

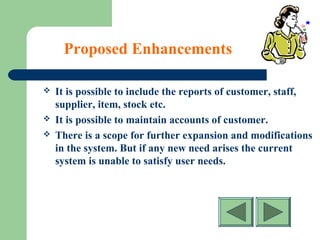

33. Proposed Enhancements
 It is possible to include the reports of customer, staff,
supplier, item, stock etc.
 It is possible to maintain accounts of customer.
 There is a scope for further expansion and modifications
in the system. But if any new need arises the current
system is unable to satisfy user needs.

34. Thank You
Created and Edited By:
Dharesh Thakkar
