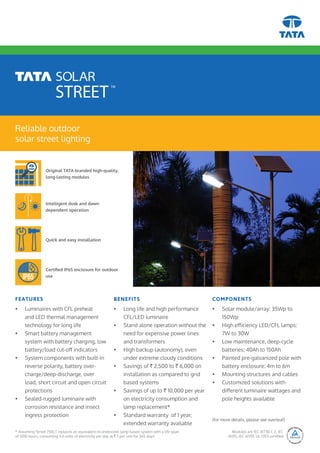

1. Reliable outdoor
solar street lighting
FEATURES
• Luminaires with CFL preheat
and LED thermal management
technology for long life
• Smart battery management
system with battery charging, low
battery/load cut-off indicators
• System components with built-in
reverse polarity, battery over-
charge/deep-discharge, over
load, short circuit and open circuit
protections
• Sealed-rugged luminaire with
corrosion resistance and insect
ingress protection
BENEFITS
• Long life and high performance
CFL/LED luminaire
• Stand alone operation without the
need for expensive power lines
and transformers
• High backup (autonomy), even
under extreme cloudy conditions
• Savings of ` 2,500 to ` 6,000 on
installation as compared to grid
based systems
• Savings of up to ` 10,000 per year
on electricity consumption and
lamp replacement*
• Standard warranty of 1 year,
extended warranty available
COMPONENTS
• Solar module/array: 35Wp to
150Wp
• High efficiency LED/CFL lamps:
7W to 30W
• Low maintenance, deep-cycle
batteries: 40Ah to 150Ah
• Painted pre-galvanized pole with
battery enclosure: 4m to 6m
• Mounting structures and cables
• Customized solutions with
different luminaire wattages and
pole heights available
(for more details, please see overleaf)
* Assuming Street 750LT replaces an equivalent incandescent lamp based system with a life span
of 1200 hours, consuming 3.6 units of electricity per day at ` 7 per unit for 365 days.
Original TATA branded high-quality,
long-lasting modules
Intelligent dusk and dawn
dependent operation
Quick and easy installation
Certified IP65 enclosure for outdoor
use
Modules are IEC 61730-1, 2, IEC
61215, IEC 61701, UL 1703 certified

2. Tata Power Solar is committed to enabling solar
everywhere and bringing the power of the sun to people
in the most efficient and cost effective way possible.
For sales,
service and
other enquiries
Nationwide network
of over 1000 dealers
and service centres
YOUR LOCAL DEALER
Call toll free
1800 419 8777
or sms ’TPS’ to
56677
25th
year of operations
Over 24 million lives
touched
www.tatapowersolar.com
TATA SOLAR STREETTM
series
Our products in this range Street
2525
LED street lighting CFL street lighting
SPECIFICATIONS 200LS 300LS 400LS 750LT 350CS 600CS
Type of lamp LED LED LED LED CFL CFL
Lamp (WxQty.) 7x1 12x1 15x1 30x1 11x1 11x2
PV array wattage (WpxQty.) 35x1 65x1 80x1 75x2 75x1 60x2
Battery (Ah) 40 60 75 150 75 100
Pole height (m) 4 4 4 6 4 4
Light output (lumens) 630 1080 1350 2700 900 1800
Recommended hours of charging at
full sun shine (1kW/m2
irradiance) for
daily usage of 12 hours*
5 4.5 4.5 5 3.5 4.5
Maximum autonomy days, assuming
12 hours of usage per day (days)
3 3 3 3 4 3
Maximum continuous back up (hours) 45 40 40 40 56 36
Diameter spread on ground (m) 5 5 5 8 5 5
Savings per year as compared to a
grid based system (`) **
2,470 3,310 4,950 9,920 2,470 4,950
Specifications are subject to change without notification
* The charging time mentioned above is indicative only. It will vary with the age of the battery, previous day usage and other environmental factors.
** Assuming Street 750LT replaces an equivalent incandescent lamp based system with a life span of 1200 hours, consuming 3.6 units of electricity per day at ` 7 per unit for 365 days.
Applications
Communities
and campuses
Streets, roads
and highways
Parks and
pathways
Farms and
villas
Forest and
offgrid areas
Perimeter and
security lighting
Parking areas Gate lighting Railway yards
and stations
Rural villages
and panchayats
LIT-STREET-032014-VER01
