Products

SOLAR LANTERN CFL
Maitreya Solar Photovoltaic Lantern is a lighting system consisting of lamp, battery
and high efficient electronics all placed in a suitable compact enclosure made of
plastic along with an external Solar Photo Voltaic module. The battery is charged by
electricity generated by the PV Module. The lantern is a portable lighting device
suitable for either indoor or outdoor lighting. The Solar Portable Lantern is a quiet,
Rechargeable, battery power source designed for small remote lighting needs.

FEATURES :

• Complete Assembled and
ready to use

• Simple plug & go operation

• Renewable energy source

• Rainproof solar panel

• Environmental friendly

• Rugged and attractive body

• Built in over charge & deep
discharge protection

Solar Lanterns Ideal for : Remote homes, During power cuts, Disaster relief,
Light source in un electrified tribal areas, Military outpost, Camping and
boating, Emergency Lighting, tool sheds, Construction sites, Field work, farms,
petroling.

MODEL SPV MODULE BATTERY LAMP DURATION

HOME 12V / 8WATT 12V / 7,2 AH 7W CFL 3 – 4 HRS

RURAL 12 V / 10 WATT 12 V / 7.2 AH 7W CFL 4 – 5 HRS

PDF Created with deskPDF PDF Writer - Trial :: http://www.docudesk.com

SOLAR LED LANTERN

SOLAR LED LANTERN which is made by
optimum quality raw materials. The wide
assortment of power LED lantern offered
by us is designed as per current market
requirements. These power LED lanterns
are rechargeable in nature and hence a
cost effective and durable product. The
unmatched features of the power LED
lantern make it highly demandable
product in global market. Avail our quality
reach power LED lantern at pocket
friendly price.

MODEL SPV MODULE BATTERY LAMP DURATION

HOME 6V / 5WATT 6V / 4.5 AH LED 6 HRS


SOLAR HOME LIGHT SYSTEM - CFL
Maitreya solar home light system are designed for lighting requirements of the
entire house by solar energy. This comes with a solar panel to be mounted on roof
top, battery and electronic. These systems supply electricity for lighting,
entertainment and information to homes that are not connected to utility power grids.
The Maitreya Home Lighting Systems includes electronic system safeguards and
provides years of reliable service and convenience. Suitable for homes, hospitals,
shops, clinics etc.

FEATURES :

• Safe & easy to install
• Free from noise, smoke and pollution
• Requires very little attention
• Possible to expand the system in
future
• Available in different configurations
• Elegant and efficient luminaries
• Provisions for operating extra loads
• Highly advanced Microcontroller
based charge controller
• Longer battery life ensured
• Adequate protections and indications

SPV
MODEL BATTERY LAMP DURATION
MODULE

2 x 9 WATT
ECOLIGHT 1 20 WP 12 V / 20 Ah 3 – 4 HRS
CFL

3 x 9 WATT
ECOLIGHT 2 30 WP 12 V / 26 AH 3 – 4 HRS
CFL

4 x 9 WATT
ECOLIGHT 3 40 WP 12 V / 40 AH 3 – 4 HRS
CFL


SOLAR LED HOME LIGHT SYSTEM
Maitreya Solar Led Home light System gives higher brightness at very low power
consumption which require very small solar panel and battery. We offer an array of
very efficient Solar led home light system to our respected clients. This solar led
home light system is compact High performance and easy to fix solar equipment
which is highly appreciated by our clients. Known to reliable and cost effective
service, this Solar led home light systems are high on demand. Unlike other
manufacturers we use Maintenance free SMF sealed batteries.

• EASY AND SAFE TO INSTALL

• FREE FROM NOISE, SMOKE AND POLLUTION

• ELEGENT AND EFFICIENT LED BULB

• HIGHLY ADVANCE CHARGE CONTROLLER

• ADEQUATE PROTECTION AND INDICATIONS

SPV
MODULE

2NOS. x 5
WATT BRIGHT
SUNLIGHT 1 10 WP 12 V / 7 AH 6 HRS
WHITE LED
BULB

4 NOS. x 5
WATT BRIGHT
SUNLIGHT 2 20 WP 12 V / 12 AH 6 HRS
WHITE LED
BULB

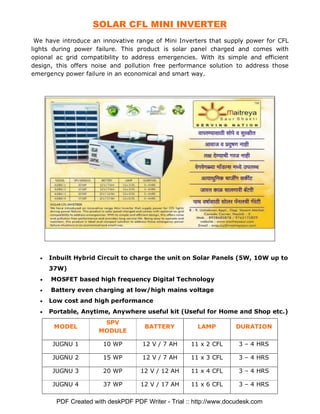

SOLAR CFL MINI INVERTER
We have introduce an innovative range of Mini Inverters that supply power for CFL
lights during power failure. This product is solar panel charged and comes with
opional ac grid compatibility to address emergencies. With its simple and efficient
design, this offers noise and pollution free performance solution to address those
emergency power failure in an economical and smart way.

• Inbuilt Hybrid Circuit to charge the unit on Solar Panels (5W, 10W up to
37W)
• MOSFET based high frequency Digital Technology
• Battery even charging at low/high mains voltage
• Low cost and high performance
• Portable, Anytime, Anywhere useful kit (Useful for Home and Shop etc.)
SPV
MODULE

JUGNU 1 10 WP 12 V / 7 AH 11 x 2 CFL 3 – 4 HRS





SOLAR LED STREET LIGHT
SOLAR LED STREET LIGHTS PRESENT THE PERFECT AND COST-EFFECTIVE
SOLUTION FOR SECURITY, ROADWAYS, HI-WAYS, INNER STREET ROADS AND
OTHER GENERAL ARE LIGHTING APPLICATIONS. WE ARE RELIABLE NAME DEALING
IN MANUFACTURING, EXPORTING, AND SUPPLYING A WIDE RANGE OF SOLAR LED
STREET LIGHT, MADE FROM OPTIMUM QUALITY RAW MATERIALS. OUR SOLAR LED
STREET LIGHT IS EASY TO OPERATE, HIGHLY DURABLE, AND COST EFFECTIVE
PRODUCT. WE TAKE ADVANTAGES OF THESE INHERENT QUALITIES OF LED’S FOR
DESIGNING ITS LATEST RANGE OF SOLR LED STREET LIGHT SYSTEM.

• Attractive and weatherproof (IP65)
luminaries
• 50000 hours led life for a better
life
• Focusing lenses to make it high
height using
• Toughened glass to avoid any
problem
• MNRE approved circuit for life
time performance
• Street light designed for life time
using
• Auto switch on an at Dusk and auto
switch off at down.

SOLAR
BATTERY POWER DUTY CYCLE AUTONOMY
MODULE

37 WP 40 AH TUBULOR 10 WATT LED DUSK TO DOWN 2 DAYS

75 WP 75 AH TUBULOR 18 WATT LED DUSK TO DOWN 2 DAYS


SOLAR STREET LIGHT – CFL
SOLAR STREET LIGHTING SYSTEM IS A DEVICE THAT OPERATES USING THE LIGHT
ENERGY AVAILABLE FROM THE SUN TO PROVIDE LIGHTING DURING NIGHTTIME.
THE SOLAR PV OUTDOOR LIGHTING IS A RELIABLE AND AN EFFICIENT STAND-
ALONE SYSTEM. IT CONSISTS OF A SOLAR PV MODULE, A BATTERY & A LUMINARY
WITH VERY HIGH EFFICIENT ELECTRONICS ALL MOUNTED ONTO A POLE WITH
NECESSARY HARDWARE & CABLES.

• Automatic Dusk to Down Controller

• High efficient charge controller

• Adequate protection & indications

• Weather proof luminaries

• Long life solar pv modules

SOLAR MODULE BATTERY POWER DUTY CYCLE

37WP 12 V / 40 AH 11WATT CFL DUCK TO DOWN

75 WP 12V / 74 AH 11 WATT CFL DUSK TO DOWN

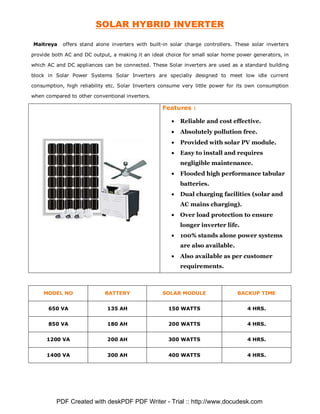

SOLAR HYBRID INVERTER

Maitreya offers stand alone inverters with built-in solar charge controllers. These solar inverters

provide both AC and DC output, a making it an ideal choice for small solar home power generators, in

which AC and DC appliances can be connected. These Solar inverters are used as a standard building

block in Solar Power Systems Solar Inverters are specially designed to meet low idle current

consumption, high reliability etc. Solar Inverters consume very little power for its own consumption

when compared to other conventional inverters.

Features :

• Reliable and cost effective.
• Absolutely pollution free.
• Provided with solar PV module.
• Easy to install and requires
negligible maintenance.
• Flooded high performance tabular
batteries.
• Dual charging facilities (solar and
AC mains charging).
• Over load protection to ensure
longer inverter life.
• 100% stands alone power systems
are also available.
• Also available as per customer
requirements.

MODEL NO BATTERY SOLAR MODULE BACKUP TIME

650 VA 135 AH 150 WATTS 4 HRS.

850 VA 180 AH 200 WATTS 4 HRS.

1200 VA 200 AH 300 WATTS 4 HRS.

1400 VA 300 AH 400 WATTS 4 HRS.


SOLAR BLINKER / FLASHER

Key Features:

Easy to install, No electrical wiring
required.
High quality weatherproof
construction for long term all
weather durability.
Premium quality Solar cells.
Automatic Dusk/Dawn switching.
Super bright white LED with
minimum 50,000 hours burning
life.


Application:-

Road Divider, Under-Construction sites & Police Barrier.
It can be used at the low and medium traffic roads at where it can serve well, as the alternate
of Traffic Signal.
Road side indication for construction activities.
Entry Gate for Important buildings.
High Rise Buildings for Aviation Warning Purpose.

Advance Technology Based Solar Charge Controller: Advance Peak Microprocessor
based Controller which enhances the durability of the system. We are the pioneer in providing
this type of technology which you might not going to get from any other suppliers. This is an
advance technology being used in highly sensitive electronics devices like laptops, mobiles,
TVs and many other Electronics and Electrical systems.

Advantages of the Micro-Processor Based Solar Charged Controller: Protection against
short circuit, Over voltage, over current, Over Charged. Increase life of Battery and Solar
Panel. Fine control over operation of system, panel, blinking, battery etc. Proper facility for
cooling as LED is highly sensitive device and problem of cooling can affect ageing of LED’s.

High Strength Pole: Our Solar Traffic Blinker’s Pole is made up of high strength G.I. poles
with best coated materials.

Solar Panel: Highly efficient Solar Panel utilizes highest amount of solar energy for the
system to get charged as early as possible. We are offering Warranty for 10 Years with life
span of more than 20 years for panel.

Dusk-Down Operation: Internal suitable adjustment in the micro-processor based circuit
which operates the blinker automatically when the Solar Light dims (For 12 hours Operation).
So no manual operations required.

Dome Body: Metal Body with weather proof coating which is not easily breakable.

Anti theft protection for Battery: In built Battery system which doesn’t allow the theft of
batteries which is usual problems with recent blinkers.

Front Glass: Front acrylic glass which gives proper and transparent visibility to more than
500 meters as dusting problem is minimized. “Fit and Forgot” device.


Model No. SLB-12 SLB-24

Working Hours 12 Hours 24 Hours

Solar Panel 12V / 20 W 12V / 25 W

Battery Capacity 12V / 17 Ah 12V / 26 Ah

Battery Inbuilt Maintenance Free Inbuilt Maintenance Free

Pole 4 meter 4 meter

Output >300mcd >300mcd

Autonomy 2-3 Days 2-3 Days

Aspect Diameter 300mm 300mm

Protection IP65 IP65

Cooling Natural Air Cooled Natural Air Cooled

Ambient
-20˚C to +50˚C -20˚C to +50˚C
Temperature

Visibility More than 500 meters More than 500 meters

Controller, Clamp, Controller, Clamp,
Accessories
Connector etc. Connector etc.

Color Amber & Red Amber & Red

Dusk Down
Yes No Need
Operation


SOLAR DOMESTIC WATER PUMP
The Innovative Solar Domestic Water Pumping System consists of high
efficiency, highly reliable Solar Pump and a Solar Photovoltaic Panel directly
connected to the pump with or without an intermediate battery backup. The
uniqueness of this system is that it is used both in urban & rural areas with high
efficiency & reliability.

12 Volt Pv Input Current Suction Head Discharge Water Delivery Time
Module (Watts) (Amp.) (Ft.) Hight (Ft.) Delivery (Ltr.) (Minutes)
75 3.6 10 50 50 7.5
75 3.5 12 40 50 8
Dimensions : 102 MM X 127 MM X 203 MM, Weight :3.6 kgs.
