1. Systems Integration in the Cloud Era
with Apache Camel
Kai Wähner, Principal Consultant

2. Kai Wähner
Main Tasks
Requirements Engineering
Enterprise Architecture Management
Business Process Management
Architecture and Development of Applications
Service-oriented Architecture
Integration of Legacy Applications
Cloud Computing
Big Data
Consulting
Developing Contact
Coaching
Email: kwaehner@talend.com
Speaking
Writing Blog: www.kai-waehner.de/blog
Twitter: @KaiWaehner
Social Networks: Xing, LinkedIn
© Talend 2011 2

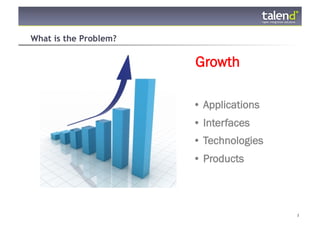

3. What is the Problem?
Growth
• Applications
• Interfaces
• Technologies
• Products
© Talend 2011 3

4. A new Era: Cloud Computing
© Talend 2011 4

5. Solution: Systems Integration
All Roads lead
to Rome ...
© Talend 2011 5

6. Wishes
• Standardized Modeling
• Efficient Realization
• Automatic Testing
© Talend 2011 6

7. Systems Integration in the Cloud Era
© Talend 2011 7

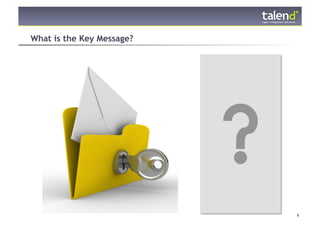

8. What is the Key Message?
© Talend 2011 8

9. Key Messages
The Cloud already arrived, and must be integrated!
© Talend 2011 9

10. Key Messages
The Cloud already arrived, and must be integrated!
Cloud Integration is already possible!
© Talend 2011 10

11. Key Messages
The Cloud already arrived, and must be integrated!
Cloud Integration is already possible!
Apache Camel helps a lot!
© Talend 2011 11

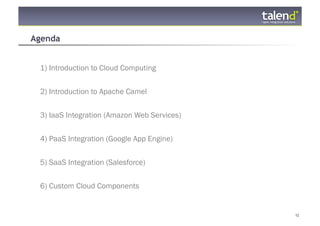

12. Agenda
1) Introduction to Cloud Computing
2) Introduction to Apache Camel
3) IaaS Integration (Amazon Web Services)
4) PaaS Integration (Google App Engine)
5) SaaS Integration (Salesforce)
6) Custom Cloud Components
© Talend 2011 12

13. Agenda
1) Introduction to Cloud Computing
2) Introduction to Apache Camel
3) IaaS Integration (Amazon Web Services)
4) PaaS Integration (Google App Engine)
5) SaaS Integration (Salesforce)
6) Custom Cloud Components
© Talend 2011 13

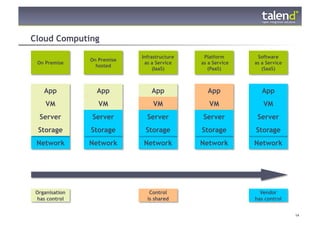

14. Cloud Computing
Infrastructure Platform Software
On Premise
On Premise as a Service as a Service as a Service
hosted
(IaaS) (PaaS) (SaaS)
App App App App App
VM VM VM VM VM
Server Server Server Server Server
Storage Storage Storage Storage Storage
Network Network Network Network Network
Organisation Control Vendor
has control is shared has control
© Talend 2011 14

15. Every Vendor offers Cloud Products
© Talend 2011 15

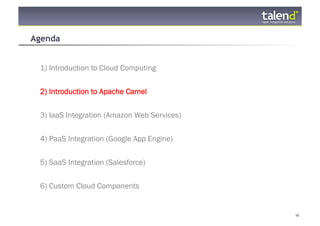

16. Agenda
1) Introduction to Cloud Computing
2) Introduction to Apache Camel
3) IaaS Integration (Amazon Web Services)
4) PaaS Integration (Google App Engine)
5) SaaS Integration (Salesforce)
6) Custom Cloud Components
© Talend 2011 16

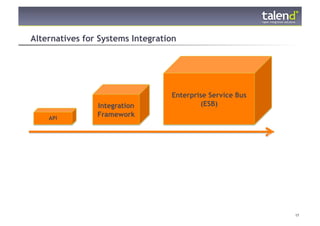

17. Alternatives for Systems Integration
Enterprise Service Bus
Integration (ESB)
API
Framework
Complexity
of Integration
Low High
© Talend 2011 17

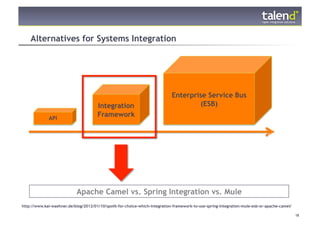

18. Alternatives for Systems Integration
Enterprise Service Bus
Integration (ESB)
API
Framework
Complexity
of Integration
Low High
Apache Camel vs. Spring Integration vs. Mule
http://www.kai-waehner.de/blog/2012/01/10/spoilt-for-choice-which-integration-framework-to-use-spring-integration-mule-esb-or-apache-camel/
© Talend 2011 18

19. Enterprise Integration Patterns (EIP)
Apache Camel
Implements the EIPs
© Talend 2011 19

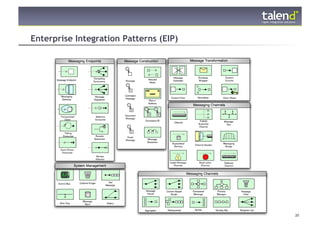

20. Enterprise Integration Patterns (EIP)
© Talend 2011 20

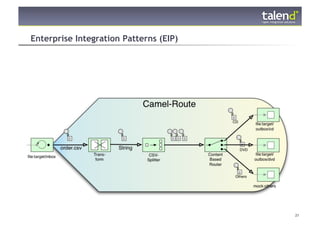

21. Enterprise Integration Patterns (EIP)
© Talend 2011 21

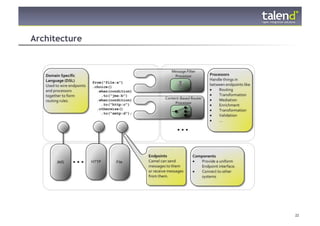

22. Architecture
http://java.dzone.com/articles/apache-camel-integration
© Talend 2011 22

23. Choose your favorite DSL
XML
(not production-ready yet)
© Talend 2011 23

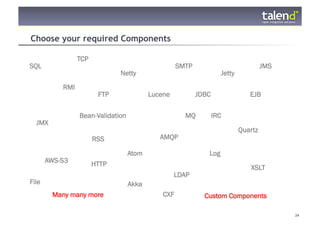

24. Choose your required Components
TCP
SQL SMTP JMS
Netty Jetty
RMI
FTP Lucene JDBC EJB
Bean-Validation MQ IRC
JMX
Quartz
RSS AMQP
Atom Log
AWS-S3 HTTP
XSLT
LDAP
File Akka
Many many more CXF Custom Components
© Talend 2011 24

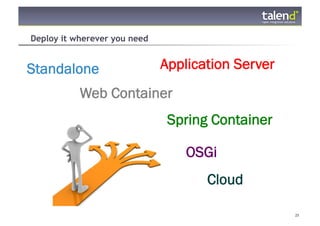

25. Deploy it wherever you need
Standalone Application Server
Web Container
Spring Container
OSGi
Cloud
© Talend 2011 25

26. Enterprise-ready
• Open Source
• Scalability
• Error Handling
• Transaction
• Monitoring
• Tooling
• Commercial Support
© Talend 2011 26

27. Live Demo
Apache Camel in Action
© Talend 2011 27

28. Agenda
1) Introduction to Cloud Computing
2) Introduction to Apache Camel
3) IaaS Integration (Amazon Web Services)
4) PaaS Integration (Google App Engine)
5) SaaS Integration (Salesforce)
6) Custom Cloud Components
© Talend 2011 28

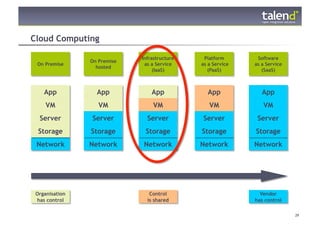

29. Cloud Computing
Infrastructure Platform Software
On Premise
On Premise as a Service as a Service as a Service
hosted
(IaaS) (PaaS) (SaaS)
App App App App App
VM VM VM VM VM
Server Server Server Server Server
Storage Storage Storage Storage Storage
Network Network Network Network Network
Organisation Control Vendor
has control is shared has control
© Talend 2011 29

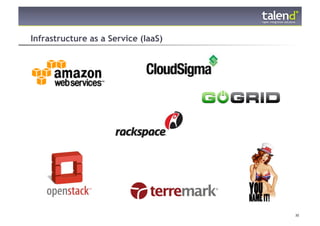

30. Infrastructure as a Service (IaaS)
© Talend 2011 30

31. IaaS Concepts (Example: AWS)
Compute
Amazon Elastic Compute Cloud (EC2)
Amazon Elastic MapReduce (EMR)
Storage
Amazon Simple Storage Service (S3)
Amazon Elastic Block Store (EBS)
SimpleDB (SDB)
Database
Amazon Relational Database Service (RDS)
Amazon DynamoDB (DDB)
Amazon ElastiCache
Application Services
Amazon Simple Workflow Service (SWF)
Amazon Simple Queue Service (SQS)
Amazon Simple Notification Service (SNS)
Amazon Simple Email Service (SES)
Many more ...
© Talend 2011 31

32. Code Example - AWS S3 (Java API)
AmazonS3 s3 = new AmazonS3Client(new PropertiesCredentials(
S3Sample.class.getResourceAsStream("AwsCredentials.properties")));
String bucketName = "my-first-s3-bucket-" + UUID.randomUUID();
String key = "MyObjectKey";
try {
s3.createBucket(bucketName);
s3.putObject(new PutObjectRequest(bucketName, key, createSampleFile()));
S3Object object = s3.getObject(new GetObjectRequest(bucketName, key));
ObjectListing objectListing = s3.listObjects(new ListObjectsRequest()
.withBucketName(bucketName)
.withPrefix("My"));
s3.deleteObject(bucketName, key);
s3.deleteBucket(bucketName);
} catch (AmazonServiceException ase) {
// error handling...
} catch (AmazonClientException ace) {
// error handling...
}
© Talend 2011 32

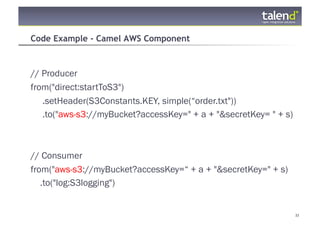

33. Code Example - Camel AWS Component
// Producer
from("direct:startToS3")
.setHeader(S3Constants.KEY, simple(“order.txt"))
.to("aws-s3://myBucket?accessKey=" + a + "&secretKey= " + s)
// Consumer
from("aws-s3://myBucket?accessKey=“ + a + "&secretKey=" + s)
.to("log:S3logging")
© Talend 2011 33

34. Live Demo
IaaS Integration in Action
© Talend 2011 34

35. Agenda
1) Introduction to Cloud Computing
2) Introduction to Apache Camel
3) IaaS Integration (Amazon Web Services)
4) PaaS Integration (Google App Engine)
5) SaaS Integration (Salesforce)
6) Custom Cloud Components
© Talend 2011 35

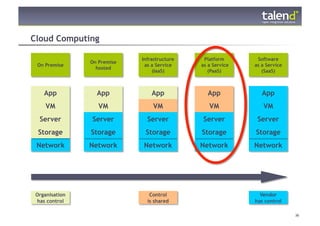

36. Cloud Computing
Infrastructure Platform Software
On Premise
On Premise as a Service as a Service as a Service
hosted
(IaaS) (PaaS) (SaaS)
App App App App App
VM VM VM VM VM
Server Server Server Server Server
Storage Storage Storage Storage Storage
Network Network Network Network Network
Organisation Control Vendor
has control is shared has control
© Talend 2011 36

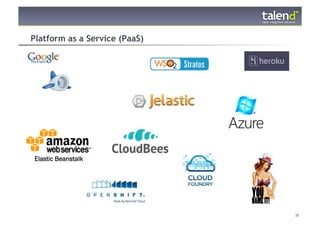

37. Platform as a Service (PaaS)
Elastic Beanstalk
© Talend 2011 37

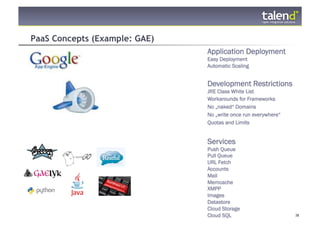

38. PaaS Concepts (Example: GAE)
Application Deployment
Easy Deployment
Automatic Scaling
Development Restrictions
JRE Class White List
Workarounds for Frameworks
No „naked“ Domains
No „write once run everywhere“
Quotas and Limits
Services
Push Queue
Pull Queue
URL Fetch
Accounts
Mail
Memcache
XMPP
Images
Datastore
Cloud Storage
© Talend 2011 Cloud SQL 38

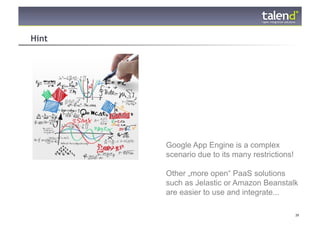

39. Hint
Google App Engine is a complex
scenario due to its many restrictions!
Other „more open“ PaaS solutions
such as Jelastic or Amazon Beanstalk
are easier to use and integrate...
© Talend 2011 39

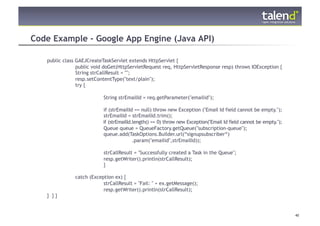

40. Code Example - Google App Engine (Java API)
public class GAEJCreateTaskServlet extends HttpServlet {
public void doGet(HttpServletRequest req, HttpServletResponse resp) throws IOException {
String strCallResult = "";
resp.setContentType("text/plain");
try {
String strEmailId = req.getParameter("emailid");
if (strEmailId == null) throw new Exception ("Email Id field cannot be empty.");
strEmailId = strEmailId.trim();
if (strEmailId.length() == 0) throw new Exception("Email Id field cannot be empty.");
Queue queue = QueueFactory.getQueue("subscription-queue");
queue.add(TaskOptions.Builder.url(“signupsubscriber“)
.param("emailid",strEmailId));
strCallResult = "Successfully created a Task in the Queue";
resp.getWriter().println(strCallResult);
}
catch (Exception ex) {
strCallResult = "Fail: " + ex.getMessage();
resp.getWriter().println(strCallResult);
} }}
© Talend 2011 40

41. Code Example – Camel GAE Component
© Talend 2011 41

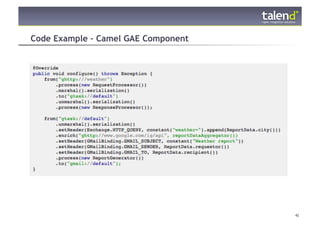

42. Code Example – Camel GAE Component
© Talend 2011 42

43. Live Demo
PaaS Integration in Action
© Talend 2011 43

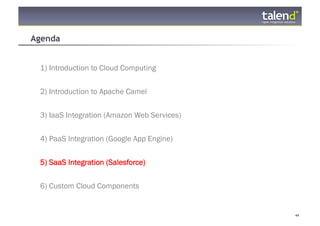

44. Agenda
1) Introduction to Cloud Computing
2) Introduction to Apache Camel
3) IaaS Integration (Amazon Web Services)
4) PaaS Integration (Google App Engine)
5) SaaS Integration (Salesforce)
6) Custom Cloud Components
© Talend 2011 44

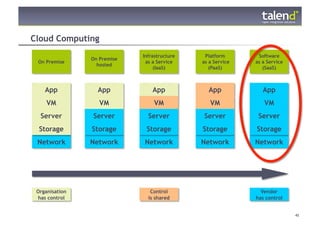

45. Cloud Computing
Infrastructure Platform Software
On Premise
On Premise as a Service as a Service as a Service
hosted
(IaaS) (PaaS) (SaaS)
App App App App App
VM VM VM VM VM
Server Server Server Server Server
Storage Storage Storage Storage Storage
Network Network Network Network Network
Organisation Control Vendor
has control is shared has control
© Talend 2011 45

46. Software as a Service (SaaS)
© Talend 2011 46

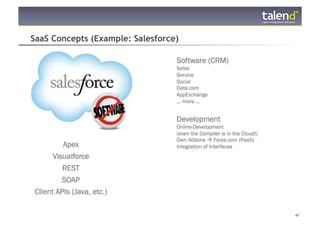

47. SaaS Concepts (Example: Salesforce)
Software (CRM)
Sales
Service
Social
Data.com
AppExchange
... more ...
Development
Online-Development
(even the Compiler is in the Cloud!)
Own Addons  Force.com (PaaS)
Apex Integration of Interfaces
Visualforce
REST
SOAP
Client APIs (Java, etc.)
© Talend 2011 47

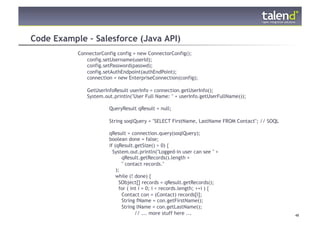

48. Code Example – Salesforce (Java API)
ConnectorConfig config = new ConnectorConfig();
config.setUsername(userId);
config.setPassword(passwd);
config.setAuthEndpoint(authEndPoint);
connection = new EnterpriseConnection(config);
GetUserInfoResult userInfo = connection.getUserInfo();
System.out.println("User Full Name: " + userInfo.getUserFullName());
QueryResult qResult = null;
String soqlQuery = "SELECT FirstName, LastName FROM Contact"; // SOQL
qResult = connection.query(soqlQuery);
boolean done = false;
if (qResult.getSize() > 0) {
System.out.println("Logged-in user can see " +
qResult.getRecords().length +
" contact records."
);
while (! done) {
SObject[] records = qResult.getRecords();
for ( int i = 0; i < records.length; ++i ) {
Contact con = (Contact) records[i];
String fName = con.getFirstName();
String lName = con.getLastName();
© Talend 2011
// ... more stuff here ... 48

49. Code Example – Camel Salesforce Component
// Producer
from("direct:toSalesforce“)
.to("salesforce://Article__c?user=u&password=p&item=myItem");
// Consumer
from("salesforce://Article__c?user=u&password=p")
.to("mock:fromSalesforce");
© Talend 2011 49

50. Live Demo
SaaS Integration in Action
© Talend 2011 50

51. Agenda
1) Introduction to Cloud Computing
2) Introduction to Apache Camel
3) IaaS Integration (Amazon Web Services)
4) PaaS Integration (Google App Engine)
5) SaaS Integration (Salesforce)
6) Custom Cloud Components
© Talend 2011 51

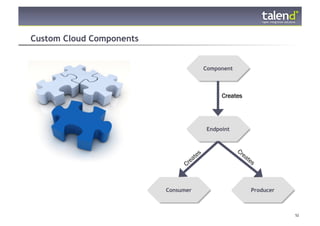

52. Custom Cloud Components
Component
Creates
Endpoint
Consumer Producer
© Talend 2011 52

53. Live Demo
Custom Cloud Component in Action
© Talend 2011 53

54. Alternative for Custom Cloud Components
• SOAP
• REST
© Talend 2011 54

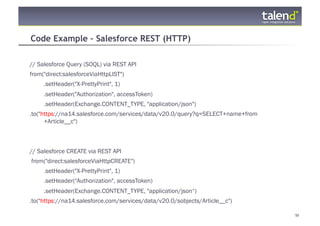

55. Code Example – Salesforce REST (HTTP)
// Salesforce Query (SOQL) via REST API
from("direct:salesforceViaHttpLIST")
.setHeader("X-PrettyPrint", 1)
.setHeader("Authorization", accessToken)
.setHeader(Exchange.CONTENT_TYPE, "application/json")
.to("https://na14.salesforce.com/services/data/v20.0/query?q=SELECT+name+from
+Article__c")
// Salesforce CREATE via REST API
from("direct:salesforceViaHttpCREATE")
.setHeader("X-PrettyPrint", 1)
.setHeader("Authorization", accessToken)
.setHeader(Exchange.CONTENT_TYPE, "application/json“)
.to("https://na14.salesforce.com/services/data/v20.0/sobjects/Article__c")
© Talend 2011 55

56. Live Demo
Cloud Integration via REST in Action
© Talend 2011 56

57. Did you get the Key Message?
© Talend 2011 57

58. Key Messages
The Cloud already arrived, and must be integrated!
Cloud Integration is already possible!
Apache Camel helps a lot!
© Talend 2011 58

59. Did you get the Key Message?
© Talend 2011 59

60. Whet your Appetite?
© Talend 2011 60

61. Thank you for your attention. Questions?
kwaehner@talend.com
0049 / 154 19 260 34
www.kai-waehner.de
LinkedIn / Xing
@KaiWaehner
