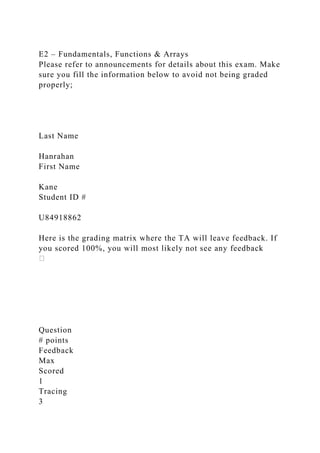

1. E2 – Fundamentals, Functions & Arrays
Please refer to announcements for details about this exam. Make
sure you fill the information below to avoid not being graded
properly;
Last Name
Hanrahan
First Name
Kane
Student ID #
U84918862
Here is the grading matrix where the TA will leave feedback. If
you scored 100%, you will most likely not see any feedback
Question
# points
Feedback
Max
Scored
1
Tracing
3

2. 2
Testing
2
3
Refactoring
2
4
Debugging
3
Interlude – How to Trace Recursive Programs
To help you fill the trace table in question #1, we start with an
example of a small recursive program & provide you with the
trace table we expect you to draw.
Example Program to Trace
This program implements a power function recursively. We do
not have local variables in either function, thus making the
information in each activation record a bit shorter.
#include
#include
int pwr(int x, int y){
if( y == 0 ) return 1;
if( y == 1 ) return x;
return x * pwr(x, y-1);
}
int main(){

3. printf("%d to power %d is %dn", 5, 3, pwr(5,3));
return EXIT_SUCCESS;
}
Example Trace Table
Please note the following about the table below;
We only write down the contents of the stack when it is
changed, i.e. when we enter a function or assign a new value to
a variable in the current activation record.
When we write the contents of the stack, we write the contents
of the whole stack, including previous activation records.
Each activation record is identified by a bold line specifying the
name of the function & the parameters passed to it when it was
invoked.
It is followed by a bullet list with one item per parameter or
local variable.
New activation records are added at the end of the contents of
the previous stack
Line #
What happens?
Stack is
10
Entering main function
main’s activation record
No local vars / parameters
11
Invoking function pwr as part of executing the printf
Stack is the same, no need to repeat it
4
Entering pwr function with arguments 5 & 3

4. main’s activation record
No local vars / parameters
pwr(5,3) activation record
x is 5
y is 3
5
Testing if y is 0
false
6
Testing if y is 1
false
7
Invoking pwr(5,2) as part of return statement
4
Entering pwr function with arguments 5 & 2
main’s activation record
No local vars / parameters
pwr(5,3) activation record
x is 5
y is 3
pwr(5,2) activation record
x is 5
y is 2
5
Testing if y is 0
false
6
Testing if y is 1

5. false
7
Invoking pwr(5,1)
4
Entering pwr function with arguments 5 & 1
main’s activation record
No local vars / parameters
pwr(5,3) activation record
x is 5
y is 3
pwr(5,2) activation record
x is 5
y is 2
pwr(5,1) activation record
x is 5
y is 1
5
Testing if y is 0
false
6
Testing if y is 1
true
6
Return value x which is 5
7
Back from invocation of pwr(5,1) with result 5.
main’s activation record
No local vars / parameters

6. pwr(5,3) activation record
x is 5
y is 3
pwr(5,2) activation record
x is 5
y is 2
7
Return the result * x
= 5 * 5
= 25
7
Back from invocation of pwr(5,2) with result 25
main’s activation record
No local vars / parameters
pwr(5,3) activation record
x is 5
y is 3
7
Return the result * x
= 5 * 25
= 125
11
Back from invocation of pwr(5,3) with result 125
main’s activation record
No local vars / parameters
11
Printf now displays
“5 to the power 3 is 125
12
return EXIT_SUCCESS from main function
Stack is empty
Question #1 – Tracing Programs

7. We are going to trace the following program, i.e. simulate in
your head how it would execute on a computer. To help you, a
trace table is provided for you to fill. Unlike exam E1, our
focus here is not only on keeping track of the values of each
variables but also the activation records pushed on the
program’s execution stack.
Program to Trace
#include
#include
int mystery(int v1, int v2){
if( (v1 < 1) || (v2 < 1) ) return 0;
if( v1 < v2 ) return mystery(v1, v2-1)+1;
if( v2 < v1 ) return mystery(v1-1, v2)+1;
return mystery(v1-1, v2-1);
}
int main(){
int tmp = 0;
tmp = mystery(3,2);
printf("result is %dn", tmp);
return EXIT_SUCCESS;
}
Trace Table to Fill
Feel free to add / remove rows if necessary
Line #
What happens?
Stack is
11
Entering main function
main’s activation record
No local vars/ parameters
12

8. Define & initialize tmp
main’s activation record
tmp is 0
4
Question #2 – Testing Programs
You are going to write tests for the following program.
Its requirements are to
Take an integer array
data
of SIZE elements
Take a positive, non-null, integer value
n
If the value is null or negative, the program should not alter the
array
If it is positive, each element in the array should be shifted
right by
n
positions
If an element is pushed past the end of the array, we keep
pushing it as if the end of the array connected to its start. Our
array is a kind of “ring”.
Your objective is to write tests which will guarantee
The program conforms to the requirements; the program below
might or might not, your tests need to be able to determine this
All possible execution paths have been tested
Your program does not feature any of the novice errors
discussed in the textbook / videos / …
Program to Test
// all arrays in this program will have same size
#define SIZE 3
void rotate(int data[], int n){

9. int index = 0;
int tmp[SIZE];
// copying data into tmp array
for(index = 0 ; index < SIZE ; index++){
tmp[index] = data[index];
}
for(index = 0 ; index < SIZE ; index++){
next = (index + n) % SIZE;
data[next] = tmp[index];
}
}
Tests Table to Fill
Feel free to add / remove rows if necessary
Test #
Inputs’ Values
Expected Results
Explanations;
What did you use this test for?
Why is it not redundant with others?
data
n
data
0
1
2

10. 0
1
2
1
2
3
4

11. 5
Question #3 – Refactoring Programs
Refactor the following code; i.e. improve its quality without
modifying its behavior;
Use meaningful names for variables, parameters & functions
Provide proper documentation as required in the PAs
Provide proper indentation & programming style similar to the
examples from the textbook, videos & PAs
Remove useless code
Simplify program
Improve performance
You will provide your version in the “Your Modified Version”
subsection which is already pre-filled with the original. Then,
for each improvement you applied, use the table in the
“Summary” subsection to explain what you did & why you did
it.
Program to Refactor
int mystery(int v1, int v2){
if( (v1 < 1) || (v2 < 1) ) return 0;
if( v1 < v2 ) return mystery(v1, v2-1)+1;
if( v2 < v1 ) return mystery(v1-1, v2)+1;
return mystery(v1-1, v2-1);a
}
Your Improved Version
int mystery(int v1, int v2){

12. if( (v1 < 1) || (v2 < 1) ) return 0;
if( v1 < v2 ) return mystery(v1, v2-1)+1;
if( v2 < v1 ) return mystery(v1-1, v2)+1;
return mystery(v1-1, v2-1);
}
Summary of Improvements
Feel free to add rows to, or remove rows from, this table as
needed;
What did you modify
How did you modify it?
Why did you modify it?
Question #4 – Debugging Programs
The following function has all sorts of problems in
implementing the requirements. We need you to list the errors
you found in the table below along with how you would fix
them. You will then provide the fixed version of the function.
Here is the documentation for the
interleave
function. You will use this information as requirements;
Role
Modifies the array result so it contains alternated elements from
d1 & d2
Example - if d1 = {1,3,5} & d2 = {2,4,6} then result =

13. {1,2,3,4,5,6}
Parameters
d1 & d2 arrays of SIZE integers
result array of SIZE*2 integers
No need to pass the size of the arrays, we expect SIZE to have
been globally #define’d
Return Values
n/a
Program to Debug
// arrays passed as d1 / d2 have the following size
// array passed as result will always be 2*SIZE
#define SIZE 3
void interleave(int d1[], int d2[], int result[]){
int n=0;
for( ; n <= SIZE ; n++){
result[n] = d1[n];
result[n+1] = d2[n];
}
}
Bugs Table
Identify each bug you find & provide the lines # where it
happens. In addition, explain what the problem was, then how
you fixed it. If the same bug appears at different line, just enter
it one time in the table but specify all the lines where it
happens.
Bug #
Lines #
Problem you identified
How you fixed it

14. Your Fixed Version
Apply all the fixes you listed in the table to the code below to
make it your fixed version. Please note that if a bug is fixed
below but not in the table, or the other way around, you won’t
get credit for it. You need to have both the bug and its
explanations in the table and have it fixed below.
// arrays passed as d1 / d2 have the following size
#define SIZE 3
void interleave(int d1[], int d2[], int result[]){
int n=0;
for( ; n <= SIZE ; n++){
result[n] = d1[n];
result[n+1] = d2[n];
}
}
