Algorithms

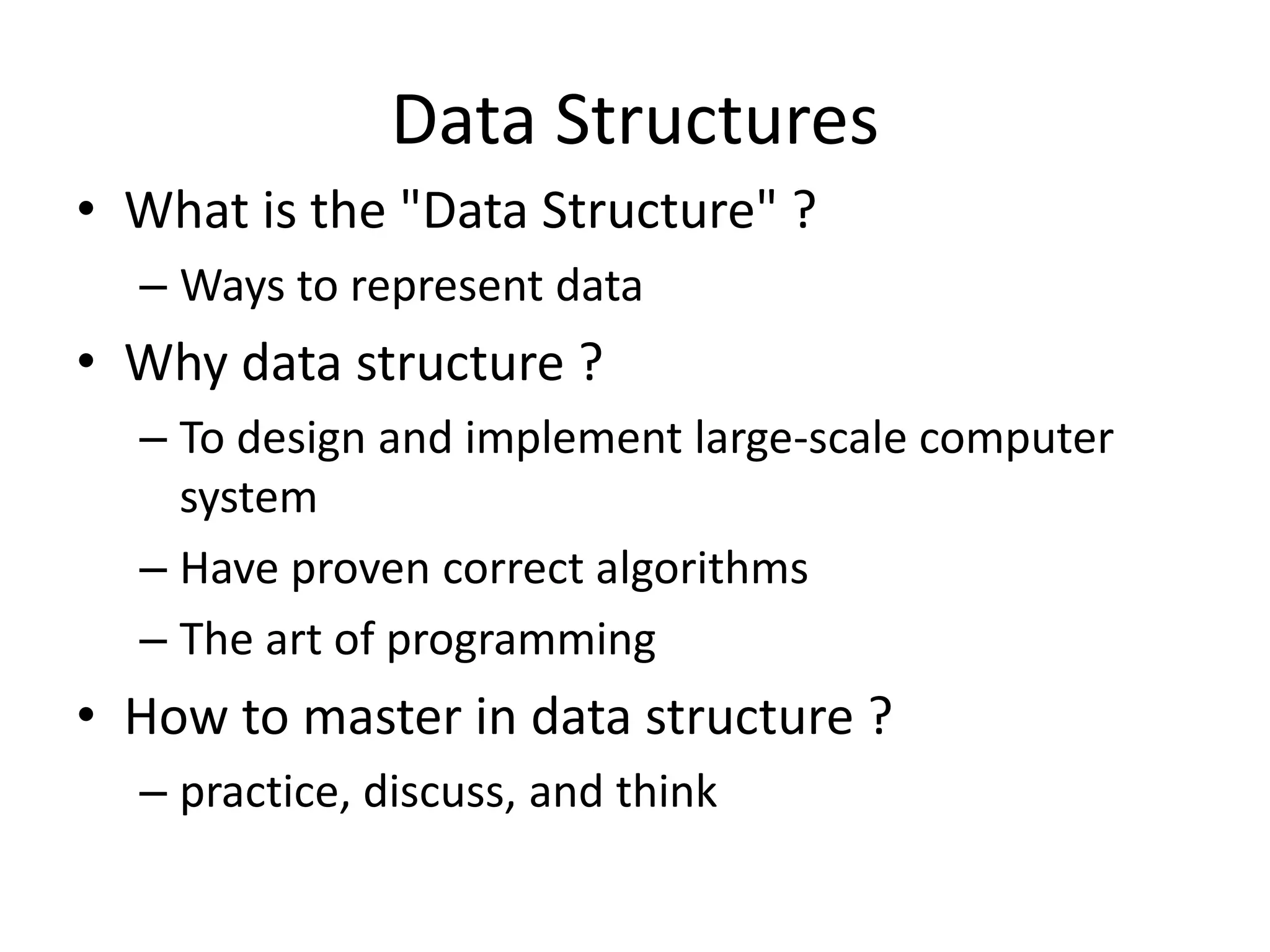

Data Structures
• What is the "Data Structure" ?
– Ways to represent data
• Why data structure ?
– To design and implement large-scale computer
system
– Have proven correct algorithms
– The art of programming
• How to master in data structure ?
– practice, discuss, and think

Algorithms
• Algorithms are the building blocks of computer programs. They
are as important to programming as recipes are to cooking.
• An algorithm is a well-defined procedure that takes input and
produces output. ... The main difference here is that algorithms are
mathematical or textual in nature.
• A programming algorithm is a computer procedure that is a lot
like a recipe (called a procedure) and tells your computer precisely
what steps to take to solve a problem or reach a goal.
• The ingredients are called inputs, while the results are called the
outputs.

Applications/Use of algorithms:
• In mathematics and computer science, an algorithm is a step-by-
step procedure for calculations.
• Algorithms are used for calculation, data processing, and
automated reasoning.

Algorithm Specification
• Definition
– An algorithm is a finite set of instructions that, if
followed, accomplishes a particular task. In
addition, all algorithms must satisfy the following
criteria:
(1)Input. There are zero or more quantities that are
externally supplied.
(2)Output. At least one quantity is produced.
(3)Definiteness. Each instruction is clear and
unambiguous.

Algorithm Specification
(4)Finiteness. If we trace out the instructions of an
algorithm, then for all cases, the algorithm
terminates after a finite number of steps.
(5)Effectiveness. Every instruction must be basic
enough to be carried out, in principle, by a person
using only pencil and paper. It is not enough that
each operation be definite as in (3); it also must
be feasible.

Describing Algorithms
• Natural language
– English
• Instructions must be definite and effectiveness
• Graphic representation
– Flowchart
• work well only if the algorithm is small and simple
• Pseudo language
– Readable
– Instructions must be definite and effectiveness
• Combining English and C++
– In this text

Translating a Problem into an
Algorithm
• Problem
– Devise a program that sorts a set of n>= 1 integers
• Step I - Concept
– From those integers that are currently unsorted, find the
smallest and place it next in the sorted list
• Step II - Algorithm
– for (i= 0; i< n; i++){
Examine list[i] to list[n-1] and suppose that the smallest
integer is list[min];
Interchange list[i] and list[min];
}

Recursive Algorithms
• Direct recursion
– Functions call themselves
• Indirect recursion
– Functions call other functions that invoke the calling
function again
• When is recursion an appropriate mechanism?
– The problem itself is defined recursively
– Statements: if-else and while can be written
recursively
– Art of programming
• Why recursive algorithms ?
– Powerful, express an complex process very clearly

10
Analysis of algorithms
• Issues:
– correctness
– time efficiency
– space efficiency
– optimality
• Approaches:
– theoretical analysis
– empirical analysis

11
Theoretical analysis of time
efficiency
Time efficiency is analyzed by determining the
number of repetitions of the basic operation
as a function of input size
• Basic operation: the operation that contributes
most towards the running time of the
algorithm

12
Theoretical analysis of time
efficiency
T(n) ≈ copC(n)
running time execution time
for basic operation
Number of times
basic operation is
executed
input size

13
Input size and basic operation
examples
Problem Input size measure Basic operation
Searching for key in a
list of n items
Number of list’s items, i.e.
n
Key comparison
Multiplication of two
matrices
Matrix dimensions or total
number of elements
Multiplication of two
numbers
Checking primality of a
given integer n
n’size = number of digits
(in binary representation)
Division
Typical graph problem #vertices and/or edges
Visiting a vertex or
traversing an edge

14
Empirical analysis of time efficiency
• Select a specific (typical) sample of inputs
• Use physical unit of time (e.g., milliseconds)
or Count actual number of basic
operation’s executions
• Analyze the empirical data
• We mostly do theoretical analysis (may do
empirical in assignment)

A. Levitin “Introduction to the Design &
Analysis of Algorithms,” 3rd ed., Ch. 2
©2012 Pearson Education, Inc. Upper
15
Best-case, average-case, worst-
case
For some algs C(n) is independent of the input set. For others, C(n)
depends on which input set (of size n) is used. Example on next
slide (Search). Consider three possibilities:
• Worst case: Cworst(n) – maximum over inputs of size n
• Best case: Cbest(n) – minimum over inputs of size n
• Average case: Cavg(n) – “average” over inputs of size n
– Number of times the basic operation will be executed on
typical input

16
Best-case, average-case, worst-
case
– NOT the average of worst and best case
– Expected number of basic operations considered as a
random variable under some assumption about the
probability distribution of all possible inputs of size n
– Consider all possible input sets of size n, average C(n)
for all sets
• Some algorithms are same for all three (eg all
case performance)

17
Example: Find maximum
• Worst case
• Best case
• Average case: depends on assumputions
about input (eg proportion of found vs not-
found keys)
• All case

18
Order of growth
• Most important: Order of growth within a
constant multiple as n→∞
• Examples:
– How much faster will algorithm run on computer that
is twice as fast? What say you?
• Time = …
– How much longer does it take to solve problem of
double input size? What say you?
• Time =

Performance Analysis
• Performance evaluation
– Performance analysis
– Performance measurement
• Performance analysis - prior
– an important branch of CS, complexity theory
– estimate time and space
– machine independent
• Performance measurement -posterior
– The actual time and space requirements
– machine dependent

Time Complexity
Definition
The time complexity, T(p), taken by a program P is
the sum of the compile time and the run time
Total time
T(P)= compile time + run (or execution) time
= c + tp(instance characteristics)
Compile time does not depend on the instance
characteristics
How to evaluate?
Use the system clock
Number of steps performed
machine-independent

Cont..
Definition of a program step
A program step is a syntactically or semantically
meaningful program segment whose execution
time is independent of the instance characteristics
(10 additions can be one step, 100 multiplications
can also be one step)

Comp 122
Asymptotic Complexity
• Running time of an algorithm as a function of
input size n for large n.
• Expressed using only the highest-order term
in the expression for the exact running time.
– Instead of exact running time, say Q(n2).
• Describes behavior of function in the limit.
• Written using Asymptotic Notation.

Asymptotic Notation(O, , Q)
• motivation
– Target: Compare the time complexity of two programs that
computing the same function and predict the growth in run time
as instance characteristics change
– Determining the exact step count is difficult task
– Not very useful for comparative purpose
ex: C1n2+C2n <= C3n for n <= 98, (C1=1, C2=2, C3=100)
C1n2+C2n > C3n for n > 98,
– Determining the exact step count usually not worth(can not get
exact run time)
• Asymptotic notation
– Big "oh“ O
• upper bound(current trend)
– Omega 
• lower bound
– Theta Q
• upper and lower bound

Comp 122
Asymptotic Notation
• Q, O, 
• Defined for functions over the natural numbers.
– Ex: f(n) = Q(n2).
– Describes how f(n) grows in comparison to n2.
• Define a set of functions; in practice used to compare
two function sizes.
• The notations describe different rate-of-growth
relations between the defining function and the
defined set of functions.

Comp 122
Q-notation
Q(g(n)) = {f(n) :
 positive constants c1, c2,
and n0, such that n  n0,
we have 0  c1g(n)  f(n) 
c2g(n)
}
For function g(n), we define
Q(g(n)), big-Theta of n, as the set:
g(n) is an asymptotically tight bound for f(n).
Intuitively: Set of all functions that
have the same rate of growth as g(n).

Comp 122
O-notation
O(g(n)) = {f(n) :
 positive constants c and n0,
such that n  n0,
we have 0  f(n)  cg(n) }
O(g(n)), big-O of n, as the set:
g(n) is an asymptotic upper bound for f(n).
Intuitively: Set of all functions
whose rate of growth is the
same as or lower than that of
g(n).
f(n) = Q(g(n))  f(n) = O(g(n)).
Q(g(n))  O(g(n)).

Comp 122
 -notation
g(n) is an asymptotic lower bound for f(n).
Intuitively: Set of all functions
whose rate of growth is the
same as or higher than that of
g(n).
f(n) = Q(g(n))  f(n) = (g(n)).
Q(g(n))  (g(n)).
(g(n)) = {f(n) :
 positive constants c and n0,
such that n  n0,
we have 0  cg(n)  f(n)}
(g(n)), big-Omega of n, as the
set:

Comp 122
Relations Between Q, O, 

Comp 122
Relations Between Q, , O
• I.e., Q(g(n)) = O(g(n))  (g(n))
• In practice, asymptotically tight bounds are
obtained from asymptotic upper and lower
bounds.
Theorem : For any two functions g(n) and
f(n),
f(n) = Q(g(n)) iff
f(n) = O(g(n)) and f(n) = (g(n)).

Standard Notation and
Common Functions
• Monotonicity
A function f(n) is monotonically increasing if m  n
implies f(m)  f(n) .
A function f(n) is monotonically decreasing if m  n
implies f(m)  f(n) .
A function f(n) is strictly increasing
if m < n implies f(m) < f(n) .
A function f(n) is strictly decreasing
if m < n implies f(m) > f(n) .

Cont..
• Floors and ceilings
For any real number x, the greatest integer less than
or equal to x is denoted by x.
For any real number x, the least integer greater than
or equal to x is denoted by x.
For all real numbers x,
x1 < x  x  x < x+1.
Both functions are monotonically increasing.

Cont..
• Exponentials
For all n and a1, the function an is the exponential function
with base a and is monotonically increasing.
• Logarithms
Textbook adopts the following convention
lg n = log2n (binary logarithm),
ln n = logen (natural logarithm),
lgk n = (lg n)k (exponentiation),
lg lg n = lg(lg n) (composition),
lg n + k = (lg n)+k (precedence of lg).
ai

• Important relationships
For all real constants a and b such that a>1,
nb = o(an)
that is, any exponential function with a base
strictly greater than unity grows faster than any
polynomial function.
For all real constants a and b such that a>0,
lgbn = o(na)
that is, any positive polynomial function grows
faster than any polylogarithmic function.
Cont..

Cont..
• Factorials
For all n the function n! or “n factorial” is given by
n! = n  (n1)  (n  2)  (n  3)  …  2  1
It can be established that
n! = o(nn)
n! = (2n)
lg(n!) = Q(nlgn)

• Functional iteration
The notation f (i)(n) represents the function f(n) iteratively applied
i times to an initial value of n, or, recursively
f (i)(n) = n if n=0
f (i)(n) = f(f (i1)(n)) if n>0
Example:
If f(n) = 2n
then f (2)(n) = f(2n) = 2(2n) = 22n
then f (3)(n) = f(f (2)(n)) = 2(22n) = 23n
then f (i)(n) = 2in
Cont..

• Iterated logarithmic function
The notation lg* n which reads “log star of n” is defined as
lg* n = min {i0 : lg(i) n  1
Example:
lg* 2 = 1
lg* 4 = 2
lg* 16 = 3
lg* 65536 = 4
lg* 265536 = 5
Cont..

Comp 122
• There are mainly three ways for solving recurrences.
• 1) Substitution Method: We make a guess for the
solution and then we use mathematical induction to
prove the guess is correct or incorrect.
• For example consider the recurrence T(n) = 2T(n/2) + n
We guess the solution as T(n) = O(n Log n).
• Now we use induction to prove our guess. We need to
prove that T(n) <= cn Log n.
• We can assume that it is true for values smaller than n.
Substitution Method

L2.43
Recursion-tree method
• A recursion tree models the costs (time) of a
recursive execution of an algorithm.
• The recursion tree method is good for generating
guesses for the substitution method.
• The recursion-tree method can be unreliable, just
like any method that uses ellipses (…).
• The recursion-tree method promotes intuition,
however.

L2.44
Example of recursion tree
Solve T(n) = T(n/4) + T(n/2) + n2:

L2.45
T(n)
Solve T(n) = T(n/4) + T(n/2) + n2:

L2.46
T(n/4) T(n/2)
n2
Solve T(n) = T(n/4) + T(n/2) + n2:

L2.47
Solve T(n) = T(n/4) + T(n/2) + n2:
n2
(n/4)2 (n/2)2
T(n/16) T(n/8) T(n/8) T(n/4)

L2.48
(n/16)2 (n/8)2 (n/8)2 (n/4)2
(n/4)2 (n/2)2
Q(1)
Solve T(n) = T(n/4) + T(n/2) + n2:
n2

L2.49
Solve T(n) = T(n/4) + T(n/2) + n2:
(n/16)2 (n/8)2 (n/8)2 (n/4)2
(n/4)2 (n/2)2
Q(1)
2
n
n2

L2.50
Solve T(n) = T(n/4) + T(n/2) + n2:
(n/16)2 (n/8)2 (n/8)2 (n/4)2
(n/4)2 (n/2)2
Q(1)
2
16
5 n
2
n
n2

L2.51
Solve T(n) = T(n/4) + T(n/2) + n2:
(n/16)2 (n/8)2 (n/8)2 (n/4)2
(n/4)2
Q(1)
2
16
5 n
2
n
2
256
25 n
n2
(n/2)2
…

L2.52
Solve T(n) = T(n/4) + T(n/2) + n2:
(n/16)2 (n/8)2 (n/8)2 (n/4)2
(n/4)2
Q(1)
2
16
5 n
2
n
2
256
25 n
   
 
1
3
16
5
2
16
5
16
5
2





n
…
Total =
= Q(n2)
n2
(n/2)2
geometric series

L2.53
The master method
Master Theorem-
Master’s Theorem is a popular method for solving the
recurrence relations.
Master’s theorem solves recurrence relations of the form-
Here, a >= 1, b > 1, k >= 0 and p is a real number.

L2.54
Cont..
Master Theorem Cases-
To solve recurrence relations using Master’s theorem, we
compare a with bk.
Then, we follow the following cases-
Case-01:
If a > bk, then T(n) = θ (nlog
b
a)
Case-02:
If a = bk and
If p < -1, then T(n) = θ (nlog
b
a)

L2.55
Cont..
If p = -1, then T(n) = θ (nlog
b
a.log2n)
If p > -1, then T(n) = θ (nlog
b
a.logp+1n)
Case-03:
If a < bk and
If p < 0, then T(n) = O (nk)
If p >= 0, then T(n) = θ (nklogpn)

L2.56
Cont..
PRACTICE PROBLEMS BASED ON MASTER
THEOREM-
Problem-01:
Solve the following recurrence relation using Master’s
theorem-
T(n) = 3T(n/2) + n2
Solution-
We compare the given recurrence relation with T(n) =
aT(n/b) + θ (nklogpn).
Then, we have-
a = 3

L2.57
Cont..
b = 2
k = 2
p = 0
Now, a = 3 and bk = 22 = 4.
Clearly, a < bk.
So, we follow case-03.
Since p = 0, so we have-
T(n) = θ (nklogpn)
T(n) = θ (n2log0n)
Thus,
T(n) = θ (n2)

L2.58
Cont..
Problem-02:
Solve the following recurrence relation using Master’s
theorem-
T(n) = 2T(n/2) + nlogn
Solution-
We compare the given recurrence relation with T(n) =
aT(n/b) + θ (nklogpn).
Then, we have-
a = 2
b = 2
k = 1
p = 1

L2.59
Cont..
Now, a = 2 and bk = 21 = 2.
Clearly, a = bk.
So, we follow case-02.
Since p = 1, so we have-
T(n) = θ (nlog
b
a.logp+1n)
T(n) = θ (nlog
2
2.log1+1n)
Thus,
T(n) = θ (nlog2n)

Amortized Analysis
• Amortized Analysis is used for algorithms where an
occasional operation is very slow, but most of the other
operations are faster.
• In Amortized Analysis, we analyze a sequence of
operations and guarantee a worst case average time
which is lower than the worst case time of a particular
expensive operation.
• The example data structures whose operations are
analyzed using Amortized Analysis are Hash Tables,
Disjoint Sets and Splay Trees.

Cont..
• Not just consider one operation, but a sequence of operations
on a given data structure.
• Average cost over a sequence of operations.
• Probabilistic analysis:
– Average case running time: average over all possible inputs
for one algorithm (operation).
– If using probability, called expected running time.
• Amortized analysis:
– No involvement of probability
– Average performance on a sequence of operations, even
some operation is expensive.
– Guarantee average performance of each operation among
the sequence in worst case.

Three Methods of Amortized Analysis
• Aggregate analysis:
– Total cost of n operations/n,
• Accounting method:
– Assign each type of operation an (different) amortized cost
– overcharge some operations,
– store the overcharge as credit on specific objects,
– then use the credit for compensation for some later operations.
• Potential method:
– Same as accounting method
– But store the credit as “potential energy” and as a whole.

Example for amortized analysis
• Stack operations:
– PUSH(S,x), O(1)
– POP(S), O(1)
– MULTIPOP(S,k), min(s,k)
• while not STACK-EMPTY(S) and k>0
• do POP(S)
• k=k-1
• Let us consider a sequence of n PUSH, POP, MULTIPOP.
– The worst case cost for MULTIPOP in the sequence is O(n),
since the stack size is at most n.
– thus the cost of the sequence is O(n2). Correct, but not tight.

Aggregate Analysis
• In fact, a sequence of n operations on an initially
empty stack cost at most O(n). Why?
Each object can be POP only once (including in MULTIPOP) for each time
it is PUSHed. #POPs is at most #PUSHs, which is at most n.
Thus the average cost of an operation is O(n)/n = O(1).
Amortized cost in aggregate analysis is defined to be average cost.

Another example: increasing a binary counter
• Binary counter of length k, A[0..k-1] of bit array.
• INCREMENT(A)
1. i0
2. while i<k and A[i]=1
3. do A[i]0 (flip, reset)
4. ii+1
5. if i<k
6. then A[i]1 (flip, set)

Analysis of INCREMENT(A)
• Cursory analysis:
– A single execution of INCREMENT takes
O(k) in the worst case (when A contains all
1s)
– So a sequence of n executions takes O(nk)
in worst case (suppose initial counter is 0).
– This bound is correct, but not tight.
• The tight bound is O(n) for n executions.

Amortized (Aggregate) Analysis of INCREMENT(A)
Observation: The running time determined by #flips
but not all bits flip each time INCREMENT is called.
A[0] flips every time, total n times.
A[1] flips every other time, n/2 times.
A[2] flips every forth time, n/4 times.
….
for i=0,1,…,k-1, A[i] flips n/2i times.
Thus total #flips is i=0
k-1 n/2i
< ni=0
 1/2i
=2n.

Amortized Analysis: Accounting Method
• Idea:
– Assign differing charges to different operations.
– The amount of the charge is called amortized cost.
– amortized cost is more or less than actual cost.
– When amortized cost > actual cost, the difference is saved
in specific objects as credits.
– The credits can be used by later operations whose
amortized cost < actual cost.
• As a comparison, in aggregate analysis, all operations
have same amortized costs.

Accounting Method (cont.)
• Conditions:
– suppose actual cost is ci for the ith operation in the sequence,
and amortized cost is ci',
– i=1
n ci' i=1
n ci should hold.
• since we want to show the average cost per operation is
small using amortized cost, we need the total amortized cost
is an upper bound of total actual cost.
• holds for all sequences of operations.
– Total credits is i=1
n ci' - i=1
n ci , which should be
nonnegative,
• Moreover, i=1
t ci' - i=1
t ci ≥0 for any t >0.

Accounting Method: Stack Operations
• Actual costs:
– PUSH :1, POP :1, MULTIPOP: min(s,k).
• Let assign the following amortized costs:
– PUSH:2, POP: 0, MULTIPOP: 0.
• Similar to a stack of plates in a cafeteria.
– Suppose $1 represents a unit cost.
– When pushing a plate, use one dollar to pay the actual
cost of the push and leave one dollar on the plate as
credit.
– Whenever POP ing a plate, the one dollar on the plate is
used to pay the actual cost of the POP. (same for
MULTIPOP).

Cont..
– By charging PUSH a little more, do not charge POP or
MULTIPOP.
• The total amortized cost for n PUSH, POP, MULTIPOP is O(n),
thus O(1) for average amortized cost for each operation.
• Conditions hold: total amortized cost ≥total actual cost, and
amount of credits never becomes negative.

Accounting method: binary counter
• Let $1 represent each unit of cost (i.e., the flip of one bit).
• Charge an amortized cost of $2 to set a bit to 1.
• Whenever a bit is set, use $1 to pay the actual cost, and store
another $1 on the bit as credit.
• When a bit is reset, the stored $1 pays the cost.
• At any point, a 1 in the counter stores $1, the number of 1’s is
never negative, so is the total credits.
• At most one bit is set in each operation, so the amortized cost of
an operation is at most $2.
• Thus, total amortized cost of n operations is O(n), and average is
O(1).

The Potential Method
• Same as accounting method: something prepaid is used later.
• Different from accounting method
– The prepaid work not as credit, but as “potential energy”,
or “potential”.
– The potential is associated with the data structure as a
whole rather than with specific objects within the data
structure.

The Potential Method (cont.)
• Initial data structure D0,
• n operations, resulting in D0, D1,…, Dn with costs c1, c2,…, cn.
• A potential function : {Di}  R (real numbers)
• (Di) is called the potential of Di.
• Amortized cost ci' of the ith operation is:
ci' = ci + (Di) - (Di-1). (actual cost + potential change)
• i=1
n ci'= i=1
n (ci + (Di) - (Di-1))
• = i=1
nci + (Dn) - (D0)

The Potential Method (cont.)
• If (Dn)  (D0), then total amortized cost is an upper bound of
total actual cost.
• But we do not know how many operations, so (Di)  (D0) is
required for any i.
• It is convenient to define (D0)=0,and so (Di) 0, for all i.
• If the potential change is positive (i.e., (Di) - (Di-1)>0), then ci'
is an overcharge (so store the increase as potential),
• otherwise, undercharge (discharge the potential to pay the
actual cost).

Potential method: stack operation
• Potential for a stack is the number of objects in the stack.
• So (D0)=0, and (Di) 0
• Amortized cost of stack operations:
– PUSH:
• Potential change: (Di)- (Di-1) =(s+1)-s =1.
• Amortized cost: ci' = ci + (Di) - (Di-1)=1+1=2.
– POP:
• Potential change: (Di)- (Di-1) =(s-1) –s= -1.
• Amortized cost: ci' = ci + (Di) - (Di-1)=1+(-1)=0.
– MULTIPOP(S,k): k'=min(s,k)
• Potential change: (Di)- (Di-1) = –k'.
• Amortized cost: ci' = ci + (Di) - (Di-1)=k'+(-k')=0.

Cont..
• So amortized cost of each operation is O(1), and total
amortized cost of n operations is O(n).
• Since total amortized cost is an upper bound of actual cost,
the worse case cost of n operations is O(n).

Potential method: binary counter
• Define the potential of the counter after the ith INCREMENT is
(Di) =bi, the number of 1’s. clearly, (Di)0.
• Let us compute amortized cost of an operation
– Suppose the ith operation resets ti bits.
– Actual cost ci of the operation is at most ti +1.
– If bi=0, then the ith operation resets all k bits, so bi-1=ti=k.
– If bi>0, then bi=bi-1-ti+1
– In either case, bibi-1-ti+1.
– So potential change is (Di) - (Di-1) bi-1-ti+1-bi-1=1-ti.
– So amortized cost is: ci' = ci + (Di) - (Di-1)  ti +1+1-ti=2.
• The total amortized cost of n operations is O(n).
• Thus worst case cost is O(n).

Algorithms

Recommended

Recommended

More Related Content

Similar to Algorithms

Similar to Algorithms (20)

Recently uploaded

Recently uploaded (20)

Algorithms
