SUSE Linux for HPC - It Just Keeps Getting Better
- 1. SUSE High Performance Computing: It just keeps getting better Jay Kruemcke Sr. Product Manager, HPC, ARM, POWER jayk@suse.com

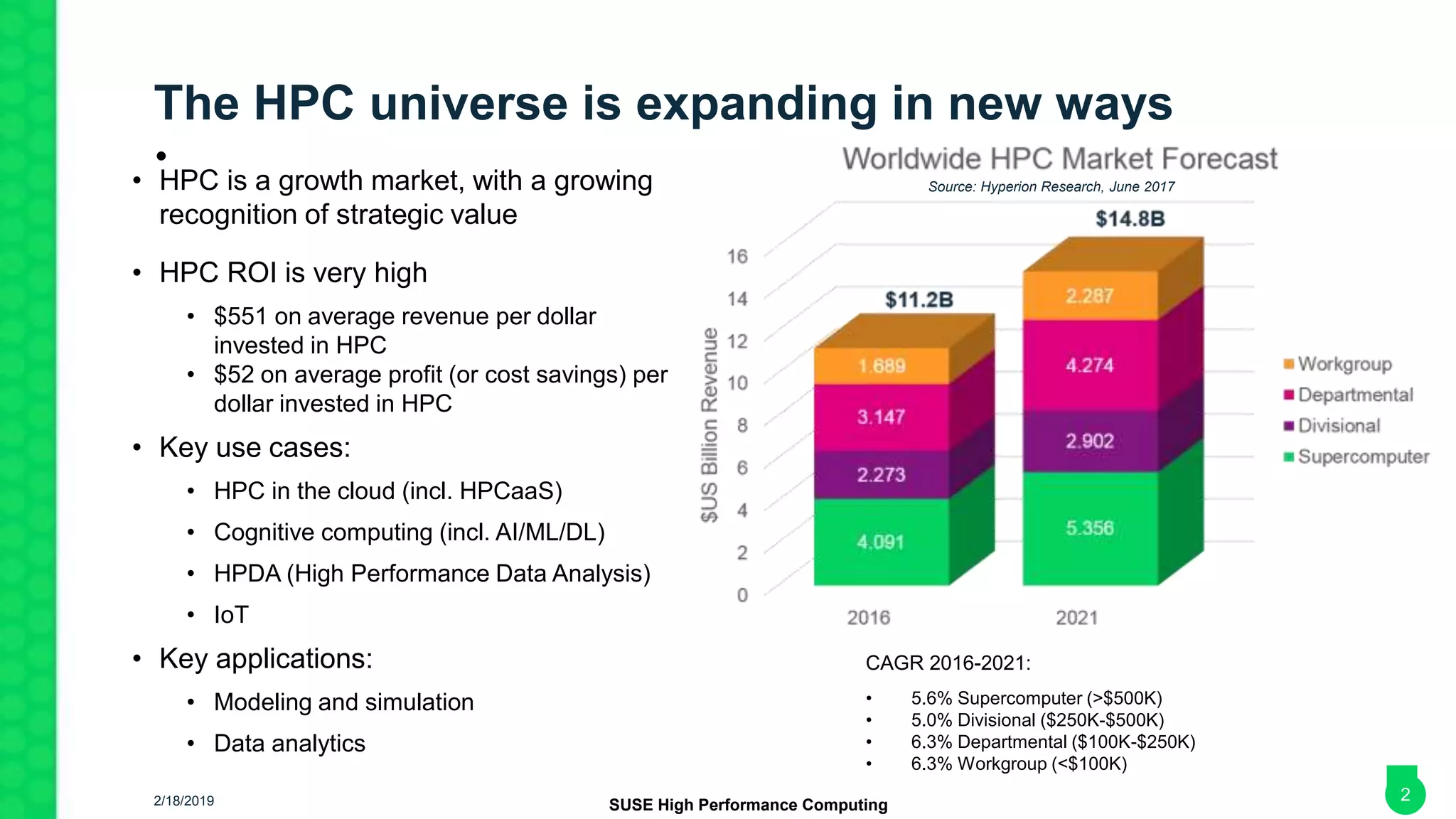

- 2. The HPC universe is expanding in new ways 2 CAGR 2016-2021: • 5.6% Supercomputer (>$500K) • 5.0% Divisional ($250K-$500K) • 6.3% Departmental ($100K-$250K) • 6.3% Workgroup (<$100K) • HPC is a growth market, with a growing recognition of strategic value • HPC ROI is very high • $551 on average revenue per dollar invested in HPC • $52 on average profit (or cost savings) per dollar invested in HPC • Key use cases: • HPC in the cloud (incl. HPCaaS) • Cognitive computing (incl. AI/ML/DL) • HPDA (High Performance Data Analysis) • IoT • Key applications: • Modeling and simulation • Data analytics Source: Hyperion Research, June 2017 • SUSE High Performance Computing2/18/2019 2
- 3. HPC Customer Pain Points Complexity Maintenance Time to Solution “My IT staff doesn’t have time to update and test all the different software components.” • Better management software is needed, and deployment approach needs to be updated to leverage HPC and cloud infrastructure • Stack components provided by multiple vendors, making it more challenging to maintain “I need to maximize application performance, scale workloads, and minimize overhead.” • Parallel software is lacking with many applications needing a major re-design • Stack components provided by multiple vendors, making managing more challenging • Segmented into commercial and scientific, and there is not enough collaboration • “Composing a working HPC environment is difficult, time-consuming, requiring experts.” • Clusters are hard to use and manage as they become more complex in heterogeneous environments • Storage access time and data management are becoming new bottlenecks SUSE High Performance Computing 32/18/2019
- 4. Key HPC Partnerships SUSE High Performance Computing2/18/2019 4
- 5. SUSE is the preferred HPE partner for Linux, HPC, OpenStack and Cloud Foundry solutions SUSE technology is embedded on every HPE ProLiant Server to power the intelligent provisioning feature SUSE High Performance Computing2/18/2019 5
- 6. Arm SoC partners driving HPC adoptions in the modern data center Catalyst UK initiative with HPE and SUSE HPE Apollo 70 first SUSE “Yes” certification for an Arm server Optimize infrastructure costs with increased server density on latest 64-bit Arm processors SUSE High Performance Computing2/18/2019 6
- 7. Goal: Propel the Arm HPC ecosystem and exascale computing in the UK • More than 12,000 Arm-based cores running across three universities • 64 Apollo 70 systems per site • Two 32 core Cavium ThunderX2 processors per system • Running SUSE Linux Enterprise for High Performance Computing Catalyst UK project: HPE, Arm, SUSE, and three leading UK universities establish one of the largest Arm-based supercomputer deployments in the world SUSE High Performance Computing 72/18/2019
- 8. Cray Linux Environment (CLE) is based on SUSE Linux Arm-powered Cray delivered to a UK consortium Cray has a majority share of the Top500 sites SUSE High Performance Computing2/18/2019 8
- 9. Isambard – UK Tier 2 HPC service from GW4 • Cray “Scout” XC50 series system - 10,000+ Armv8 cores – Cavium ThunderX2 - Aries interconnect - Cray Linux Environment based on SUSE Linux SUSE High Performance Computing2/18/2019 9
- 10. Scalable system framework in cooperation with OpenHPC, designed to work for small clusters to the largest supercomputers Scale and balance for compute- and data- intensive applications Strong platform for AI and visualization SUSE High Performance Computing2/18/2019 10
- 11. AI/ML/DL workloads Jointly define scope of Lenovo HPC stack using SUSE HPC componentry LiCO adaptation (Lenovo Intelligent Computing Orchestration) Barcelona Supercomputing Center 2/18/2019 SUSE High Performance Computing 11

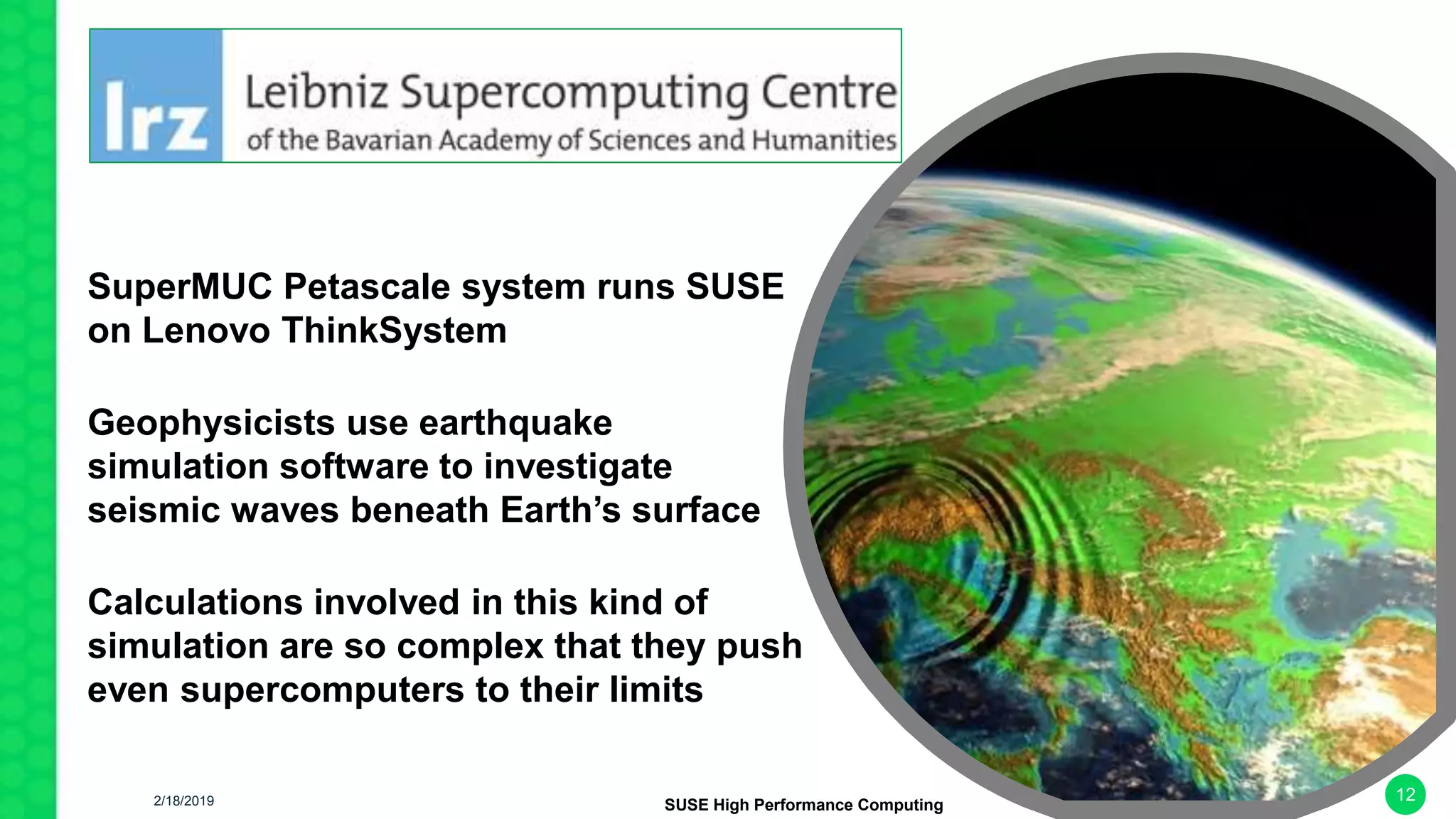

- 12. SuperMUC Petascale system runs SUSE on Lenovo ThinkSystem Geophysicists use earthquake simulation software to investigate seismic waves beneath Earth’s surface Calculations involved in this kind of simulation are so complex that they push even supercomputers to their limits SUSE High Performance Computing 122/18/2019

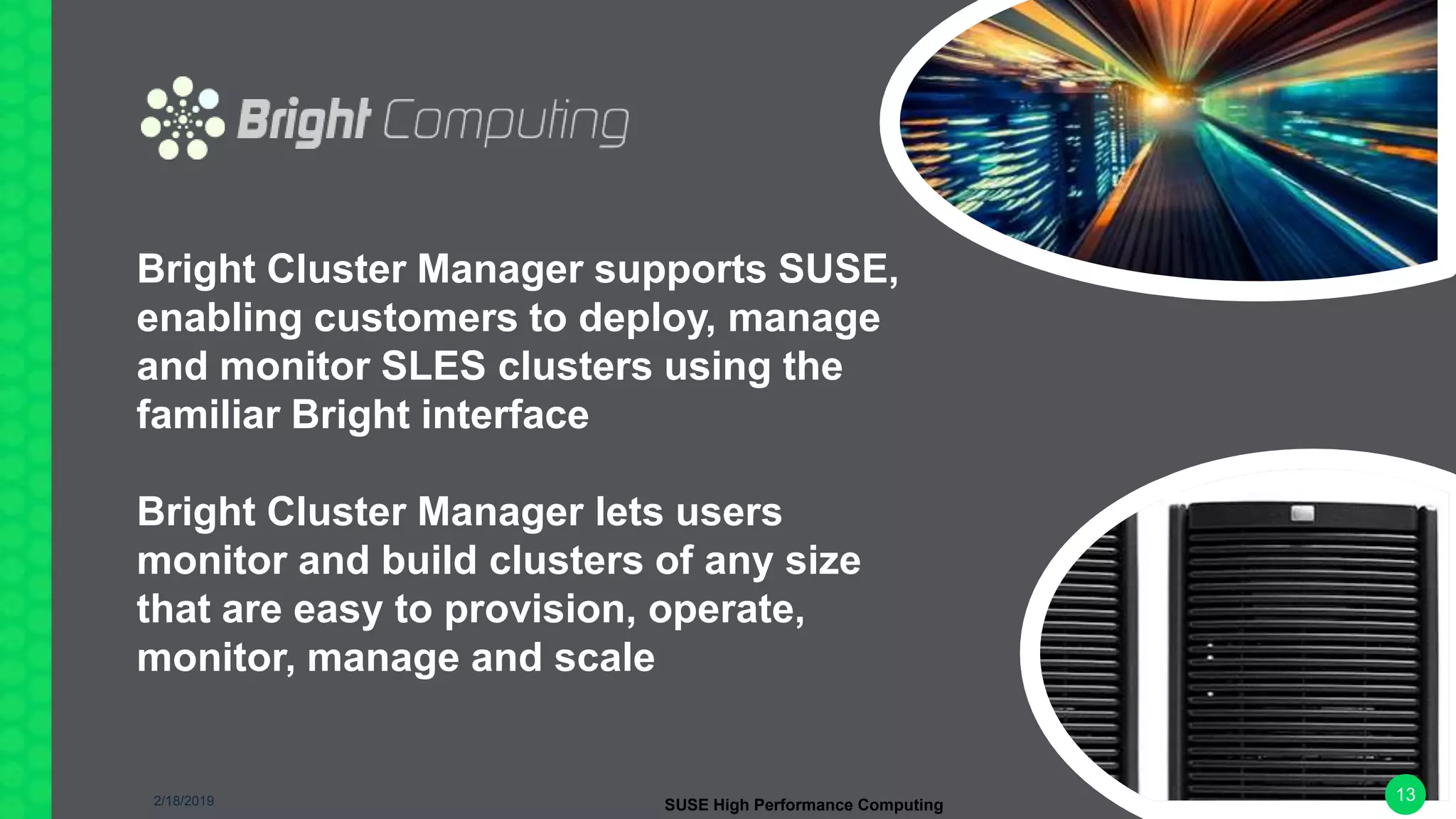

- 13. Bright Cluster Manager supports SUSE, enabling customers to deploy, manage and monitor SLES clusters using the familiar Bright interface Bright Cluster Manager lets users monitor and build clusters of any size that are easy to provision, operate, monitor, manage and scale SUSE High Performance Computing2/18/2019 13
- 14. SUSE continues to work with NVIDIA to enable support for the latest NVIDIA GPU cards – important in HPC modeling and simulation NVIDIA’s expertise in programmable GPUs has led to breakthroughs in parallel processing which make supercomputing inexpensive and widely accessible SUSE High Performance Computing2/18/2019 14

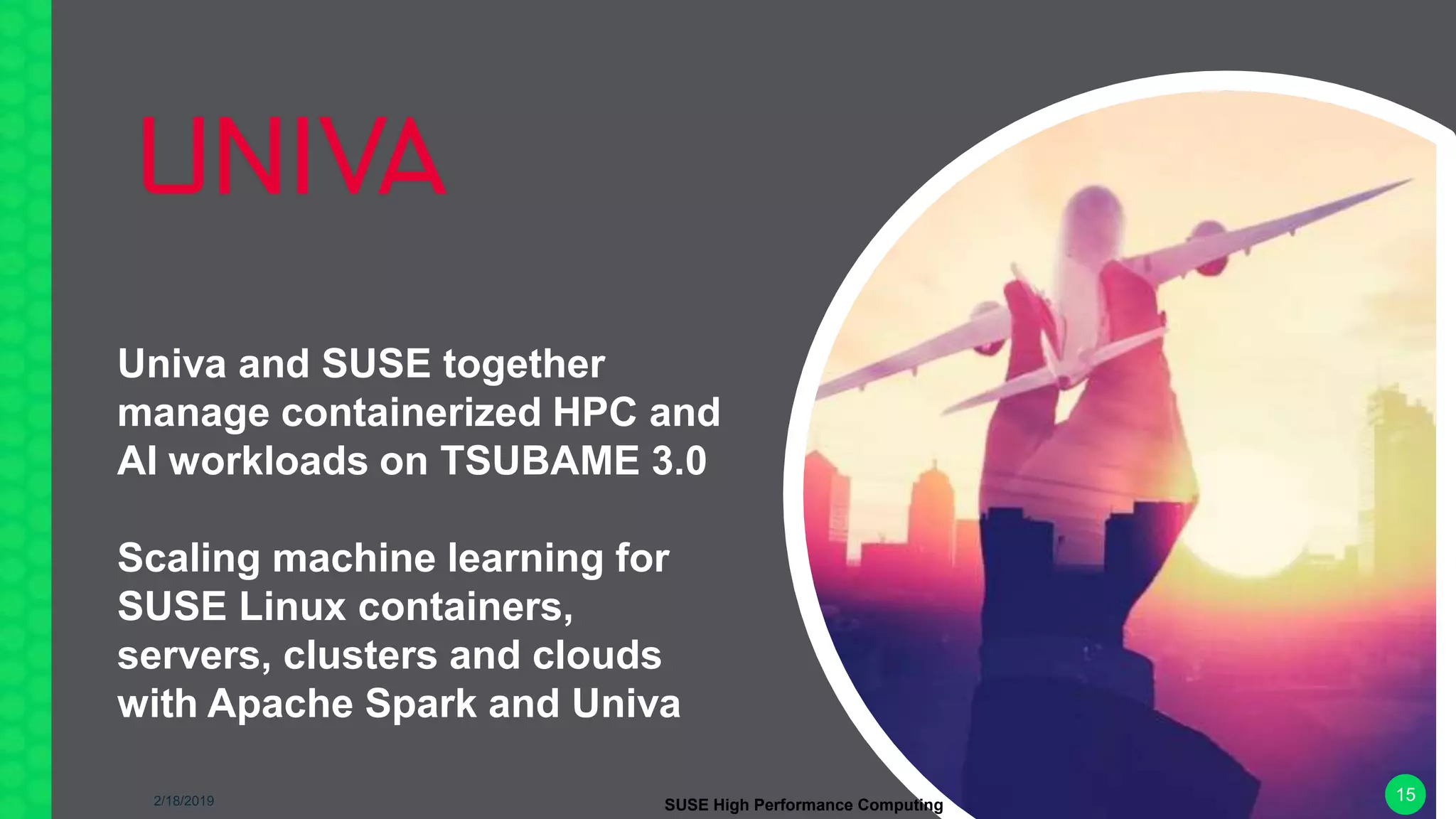

- 15. Univa and SUSE together manage containerized HPC and AI workloads on TSUBAME 3.0 Scaling machine learning for SUSE Linux containers, servers, clusters and clouds with Apache Spark and Univa SUSE High Performance Computing2/18/2019 15
- 16. Altair makes HPC faster, smarter & easy to manage with PBS Works™ Altair provides services for software applications that streamline the workflow management of compute- intensive tasks including solvers, optimization, modeling, visualization and analytics SUSE High Performance Computing2/18/2019 16

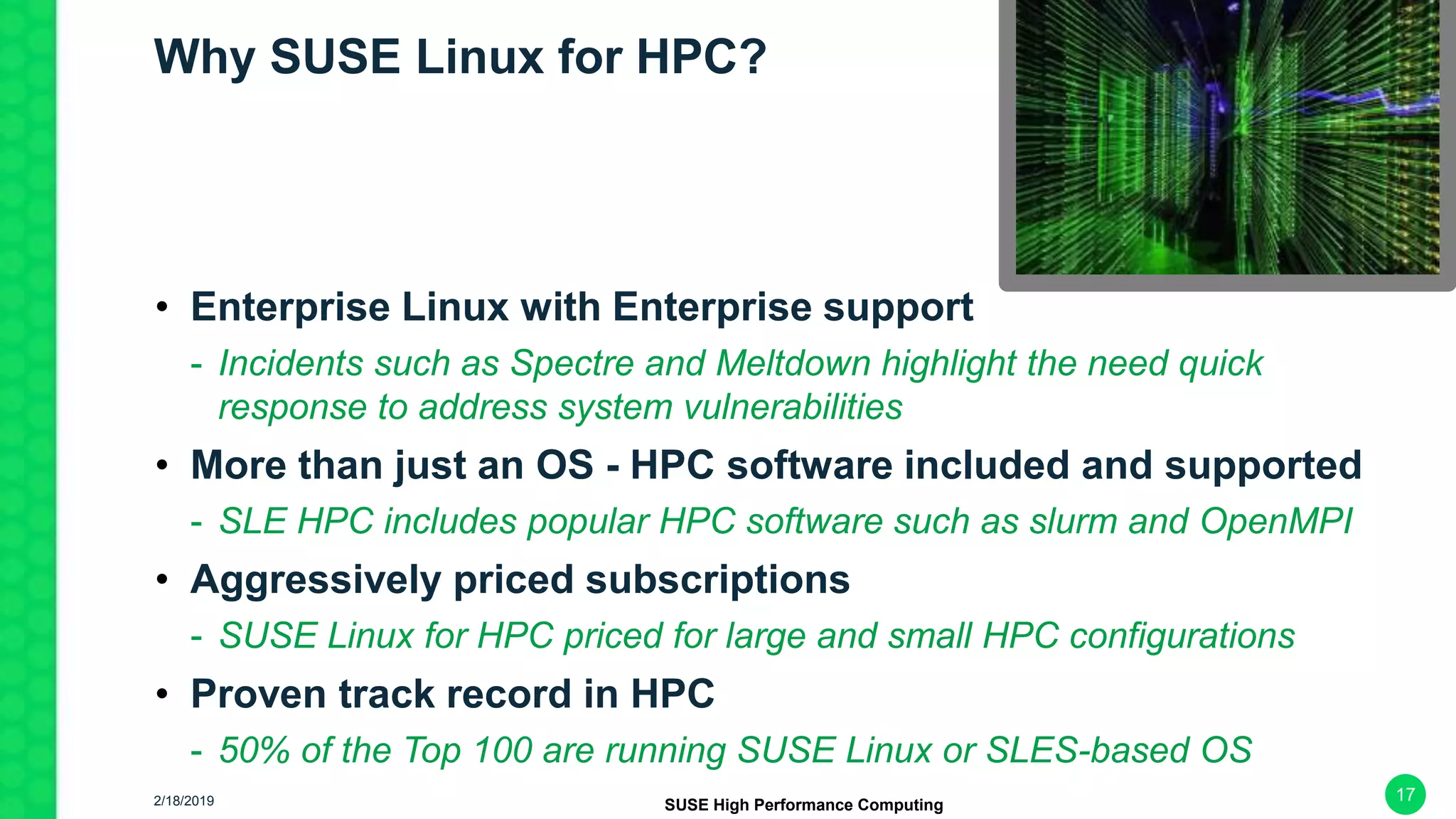

- 17. Why SUSE Linux for HPC? • Enterprise Linux with Enterprise support - Incidents such as Spectre and Meltdown highlight the need quick response to address system vulnerabilities • More than just an OS - HPC software included and supported - SLE HPC includes popular HPC software such as slurm and OpenMPI • Aggressively priced subscriptions - SUSE Linux for HPC priced for large and small HPC configurations • Proven track record in HPC - 50% of the Top 100 are running SUSE Linux or SLES-based OS SUSE High Performance Computing 172/18/2019

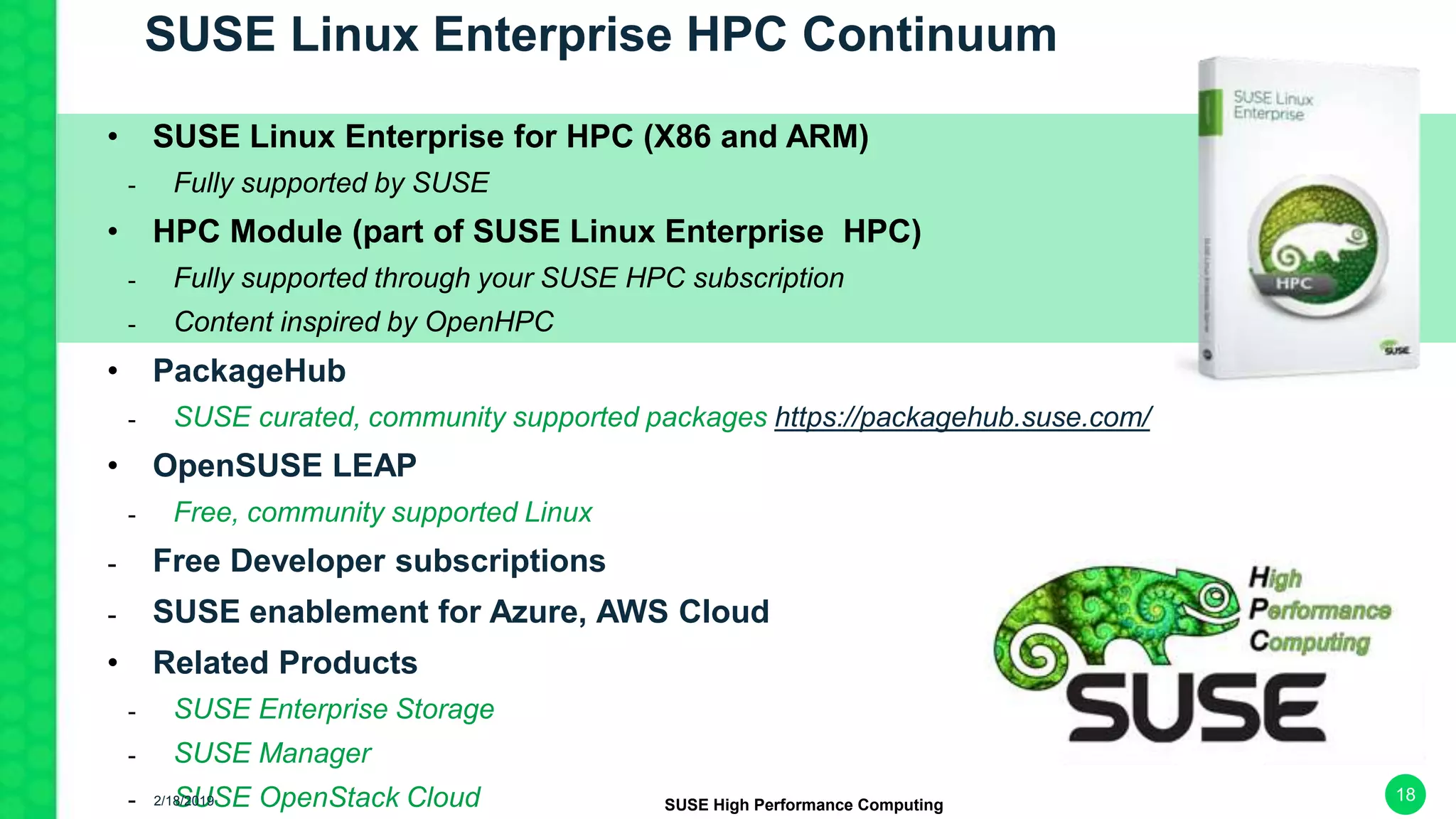

- 18. SUSE Linux Enterprise HPC Continuum • SUSE Linux Enterprise for HPC (X86 and ARM) - Fully supported by SUSE • HPC Module (part of SUSE Linux Enterprise HPC) - Fully supported through your SUSE HPC subscription - Content inspired by OpenHPC • PackageHub - SUSE curated, community supported packages https://packagehub.suse.com/ • OpenSUSE LEAP - Free, community supported Linux - Free Developer subscriptions - SUSE enablement for Azure, AWS Cloud • Related Products - SUSE Enterprise Storage - SUSE Manager - SUSE OpenStack Cloud SUSE High Performance Computing2/18/2019 18
- 19. SUSE Linux Enterprise Server for ARM SUSE High Performance Computing Offering commercial Linux support for ARM AArch64 since November 2016 20182017 SLES 15 •Now available (X86, ARM, Power, system z) •Bi-modal: traditional and CaaSP •Simplified management •Kernel 4.12 •Toolchain gcc 7+ SLES 12 for ARM (SP2) •Initial commercial release AArch64 •SoC: Cavium, Xilinx, AMD, others •Focus on solution enablement •Kernel 4.4 •Toolchain gcc 6.2.1 SLES 12 HPC Module •Supported HPC packages •Subset of OpenHPC •Initially includes 13 packages slurm, pdsh, hwloc, etc. SLES 12 for ARM (SP3) •Second SUSE release for AArch64 •Additional SoC enablement •Expand to early adopters •Kernel 4.4 •Toolchain gcc 6.2.1 -> gcc 7 SLES 12 HPC Module •New packages mpich,hdf5, munge, mv`apich2, numpy, papi, openblas, openmpi, netcdf, SCALapack, … Q3Q1 Q2 Q4Q3Q4 Q2 Q4Q1 SUSE Enterprise Storage 5 •Ceph software defined storage •X86 and ARM SLES for ARM Raspberry Pi •Commercial support focused on IoT SLES 12 SP4 •Additional Arm enablement SLES 12 HPC Module •Additional HPC packages •Nagios, adios, metis, ocr, R, scalasc,, …. 2/18/2019 19
- 20. SUSE Linux Enterprise HPC offerings • Available for X86 and Arm HPC clusters • Extended Service Pack Overlap Support (ESPOS) • Long Term Service Pack Support (LTSS) • Simple, one price per cluster node • Significantly reduced list prices • Support for smaller cluster sizes • New product – SLE HPC 15 - Separate from general purpose SLES SUSE High Performance Computing 202/18/2019
- 21. SUSE Linux HPC Module MUNGE ScaLAPACK genders • All packages supported by SUSE via SUSE Linux Enterprise HPC • Available for x86 and Arm- based platforms • Flexible release schedule • SLE 12 and SLE HPC 15 SUSE High Performance Computing 212/18/2019

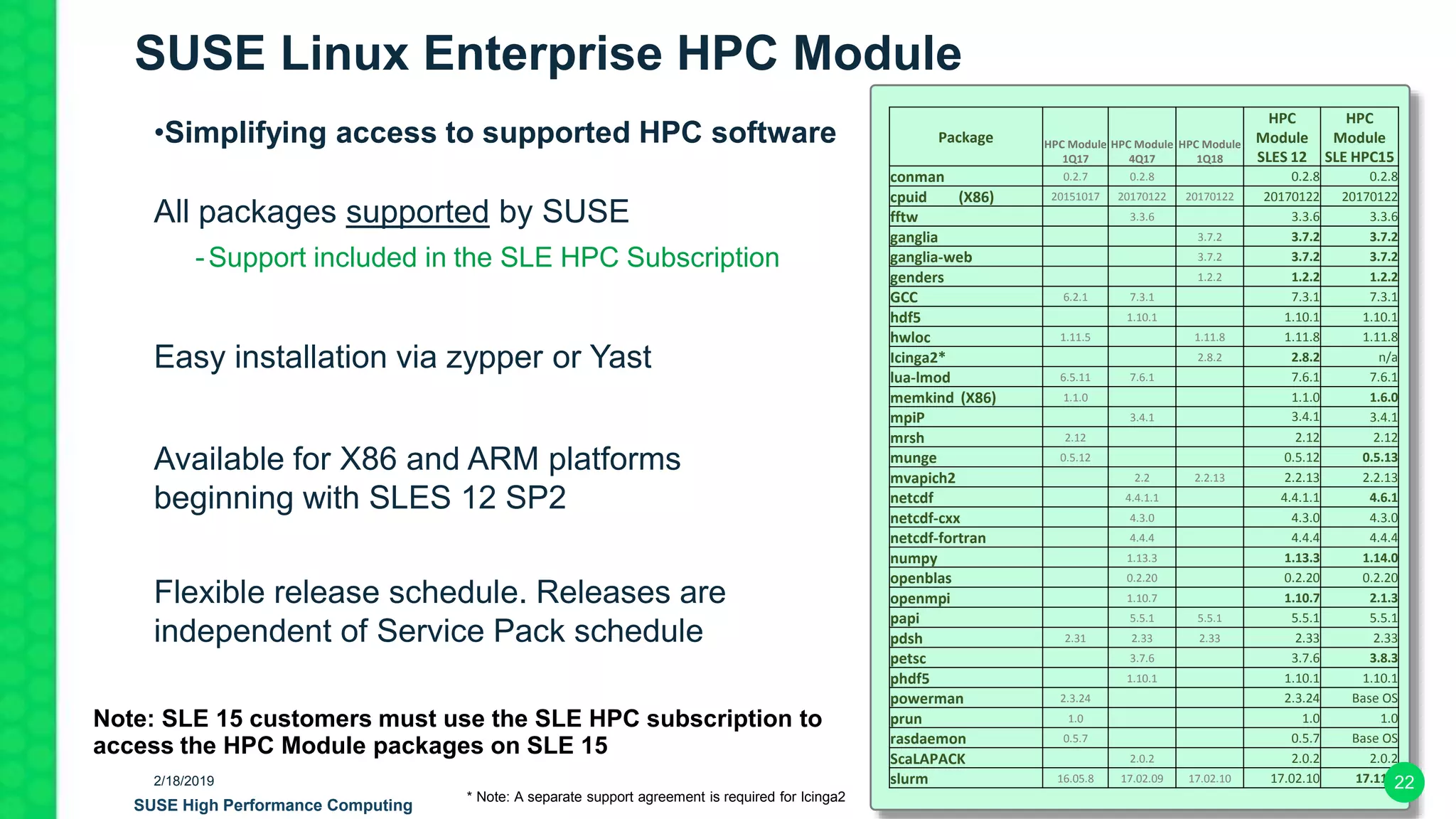

- 22. SUSE Linux Enterprise HPC Module All packages supported by SUSE -Support included in the SLE HPC Subscription Easy installation via zypper or Yast Available for X86 and ARM platforms beginning with SLES 12 SP2 Flexible release schedule. Releases are independent of Service Pack schedule •Simplifying access to supported HPC software * Note: A separate support agreement is required for Icinga2 Package HPC Module 1Q17 HPC Module 4Q17 HPC Module 1Q18 HPC Module SLES 12 HPC Module SLE HPC15 conman 0.2.7 0.2.8 0.2.8 0.2.8 cpuid (X86) 20151017 20170122 20170122 20170122 20170122 fftw 3.3.6 3.3.6 3.3.6 ganglia 3.7.2 3.7.2 3.7.2 ganglia-web 3.7.2 3.7.2 3.7.2 genders 1.2.2 1.2.2 1.2.2 GCC 6.2.1 7.3.1 7.3.1 7.3.1 hdf5 1.10.1 1.10.1 1.10.1 hwloc 1.11.5 1.11.8 1.11.8 1.11.8 Icinga2* 2.8.2 2.8.2 n/a lua-lmod 6.5.11 7.6.1 7.6.1 7.6.1 memkind (X86) 1.1.0 1.1.0 1.6.0 mpiP 3.4.1 3.4.1 3.4.1 mrsh 2.12 2.12 2.12 munge 0.5.12 0.5.12 0.5.13 mvapich2 2.2 2.2.13 2.2.13 2.2.13 netcdf 4.4.1.1 4.4.1.1 4.6.1 netcdf-cxx 4.3.0 4.3.0 4.3.0 netcdf-fortran 4.4.4 4.4.4 4.4.4 numpy 1.13.3 1.13.3 1.14.0 openblas 0.2.20 0.2.20 0.2.20 openmpi 1.10.7 1.10.7 2.1.3 papi 5.5.1 5.5.1 5.5.1 5.5.1 pdsh 2.31 2.33 2.33 2.33 2.33 petsc 3.7.6 3.7.6 3.8.3 phdf5 1.10.1 1.10.1 1.10.1 powerman 2.3.24 2.3.24 Base OS prun 1.0 1.0 1.0 rasdaemon 0.5.7 0.5.7 Base OS ScaLAPACK 2.0.2 2.0.2 2.0.2 slurm 16.05.8 17.02.09 17.02.10 17.02.10 17.11.5 Note: SLE 15 customers must use the SLE HPC subscription to access the HPC Module packages on SLE 15 SUSE High Performance Computing 222/18/2019

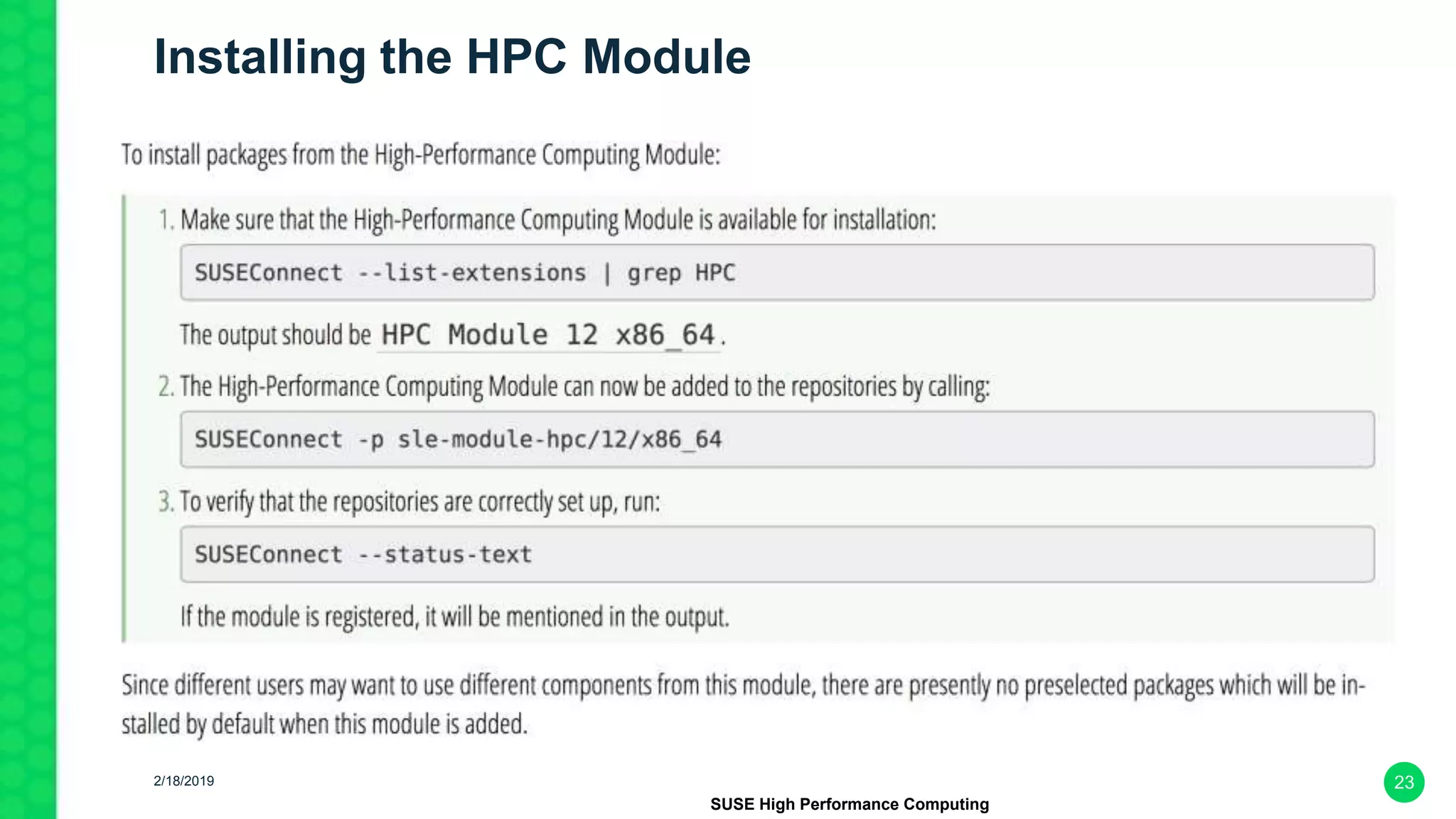

- 23. Installing the HPC Module SUSE High Performance Computing 232/18/2019

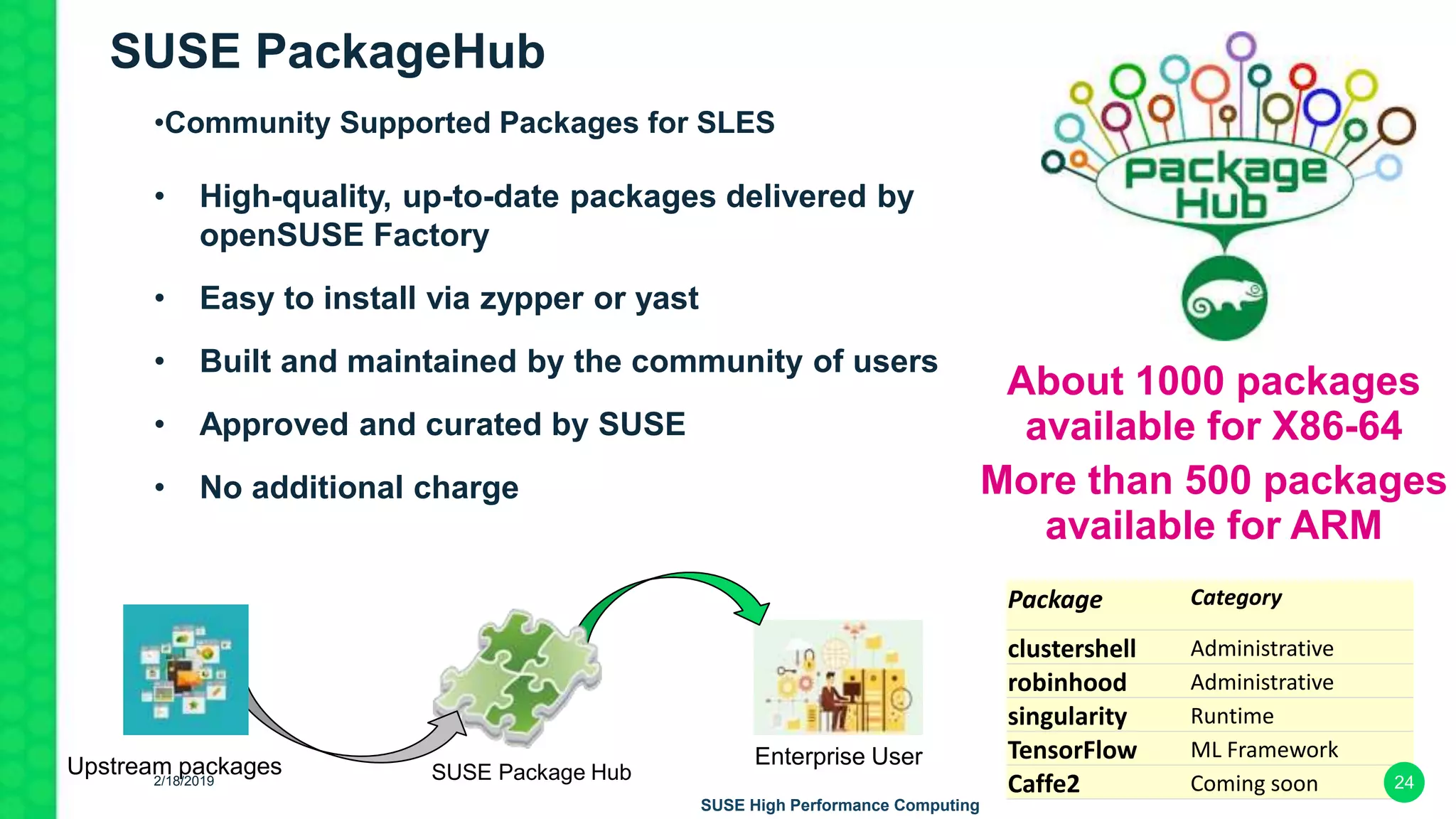

- 24. Enterprise User SUSE PackageHub • High-quality, up-to-date packages delivered by openSUSE Factory • Easy to install via zypper or yast • Built and maintained by the community of users • Approved and curated by SUSE • No additional charge •Community Supported Packages for SLES About 1000 packages available for X86-64 More than 500 packages available for ARM SUSE Package HubUpstream packages Package Category clustershell Administrative robinhood Administrative singularity Runtime TensorFlow ML Framework Caffe2 Coming soon SUSE High Performance Computing 242/18/2019

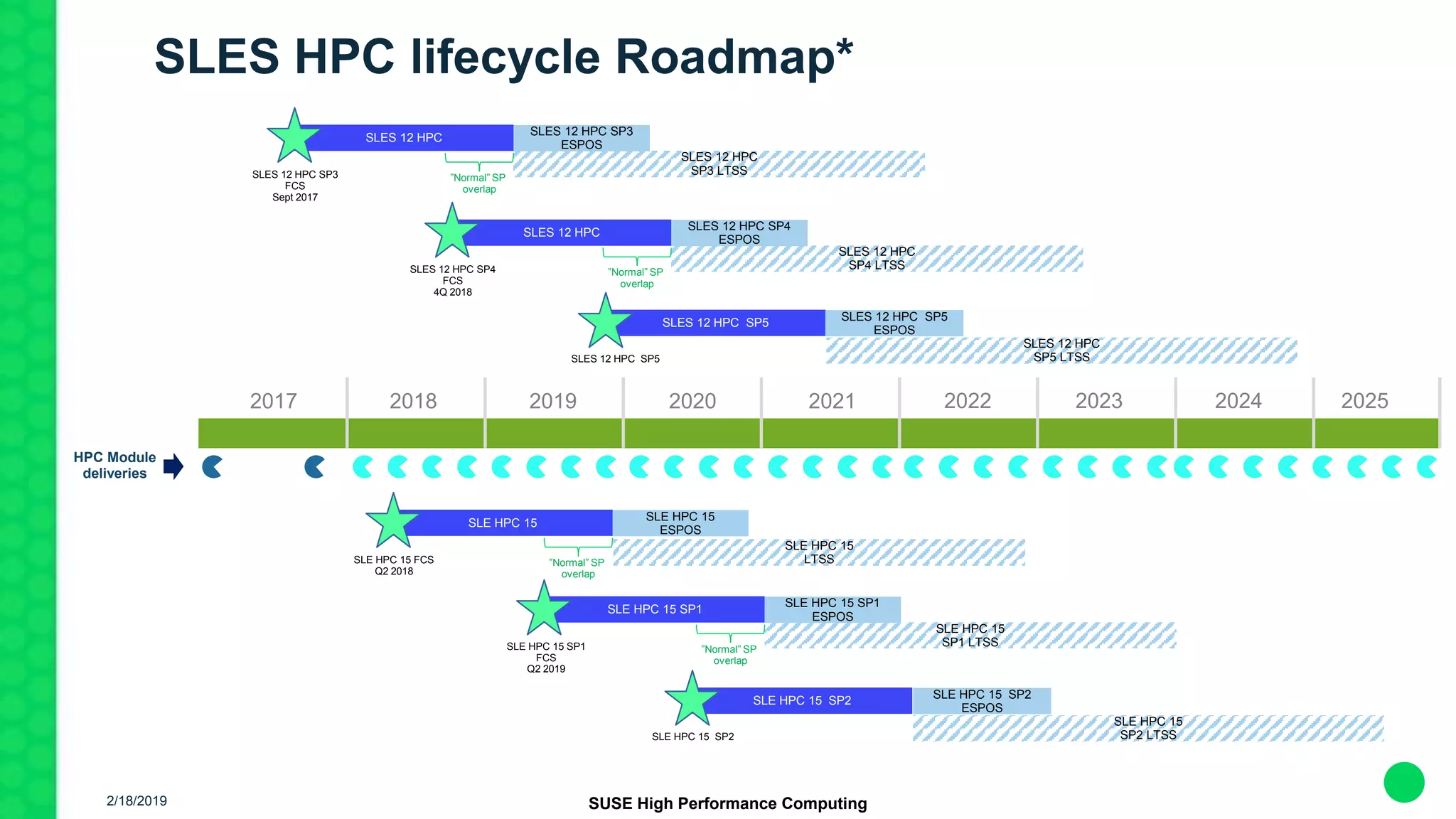

- 25. SLES HPC lifecycle Roadmap* SUSE High Performance Computing SLES 12 HPC SP5 SLES 12 HPC SP5 LTSS SLES 12 HPC SP5 SLES 12 HPC SP5 ESPOS 2017 2018 2019 2020 2021 2022 20252023 2024 SLES 12 HPC SP3 LTSS SLES 12 HPC SP3 ESPOS SLES 12 HPC SP3 FCS Sept 2017 SLES 12 HPC ”Normal” SP overlap SLES 12 HPC SP4 LTSS SLES 12 HPC SP4 ESPOS SLES 12 HPC SP4 FCS 4Q 2018 SLES 12 HPC ”Normal” SP overlap SLE HPC 15 ESPOS SLE HPC 15 FCS Q2 2018 SLE HPC 15 ”Normal” SP overlap SLE HPC 15 SP2 SLE HPC 15 SP2 SLE HPC 15 SP2 LTSS SLE HPC 15 SP2 ESPOS SLE HPC 15 SP1 LTSS SLE HPC 15 SP1 ESPOS SLE HPC 15 SP1 FCS Q2 2019 SLE HPC 15 SP1 ”Normal” SP overlap HPC Module deliveries 2/18/2019 *NOTE: All future dates are estimates for illustration purposes and are not intended as committed dates. SLE HPC 15 LTSS
- 26. Other HPC related SUSE Products SUSE High Performance Computing SUSE OpenStack Cloud Compute nodes for Arm 64 coming SUSE Enterprise Storage X86-64 and Arm 64 since early 2017 SUSE Manager Managed node for Arm 64 available 262/18/2019
- 27. SUSE Enterprise Storage Solution for HPC Most Common Use Case as Tier 2 Storage Low Latency Storage (Lustre, XFS, NFS etc) HPC Compute Cluster SUSE Enterprise Storage • Use Cases: • Primary Storage (Certain Use Cases) • Nearline or Archival Storage • Home Directories • Certified with HPE Data Management Framework (DMF) and iRODS* *: Coming Soon SUSE High Performance Computing 272/18/2019

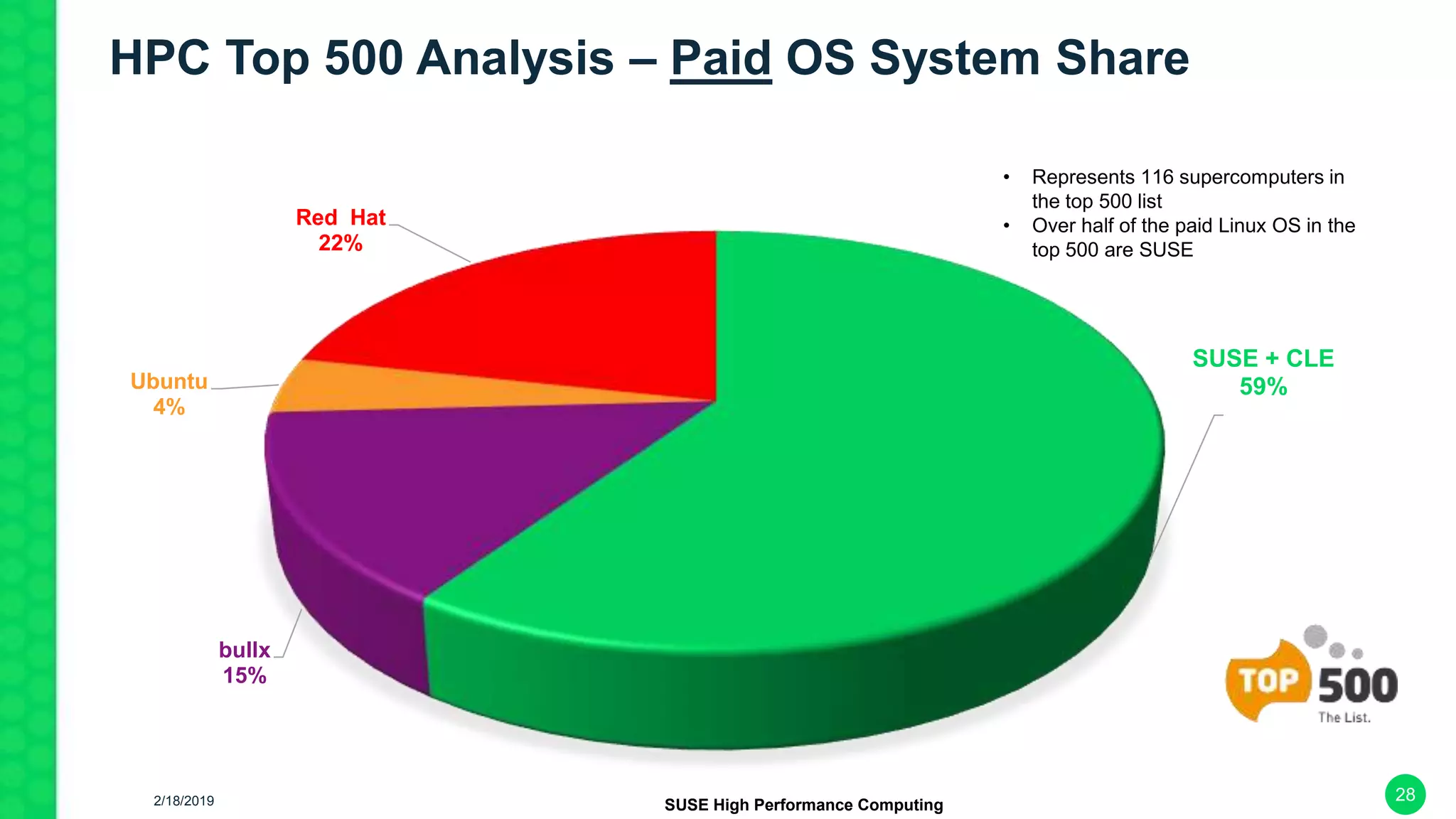

- 28. SUSE + CLE 59% bullx 15% Ubuntu 4% Red Hat 22% • Represents 116 supercomputers in the top 500 list • Over half of the paid Linux OS in the top 500 are SUSE HPC Top 500 Analysis – Paid OS System Share SUSE High Performance Computing 282/18/2019

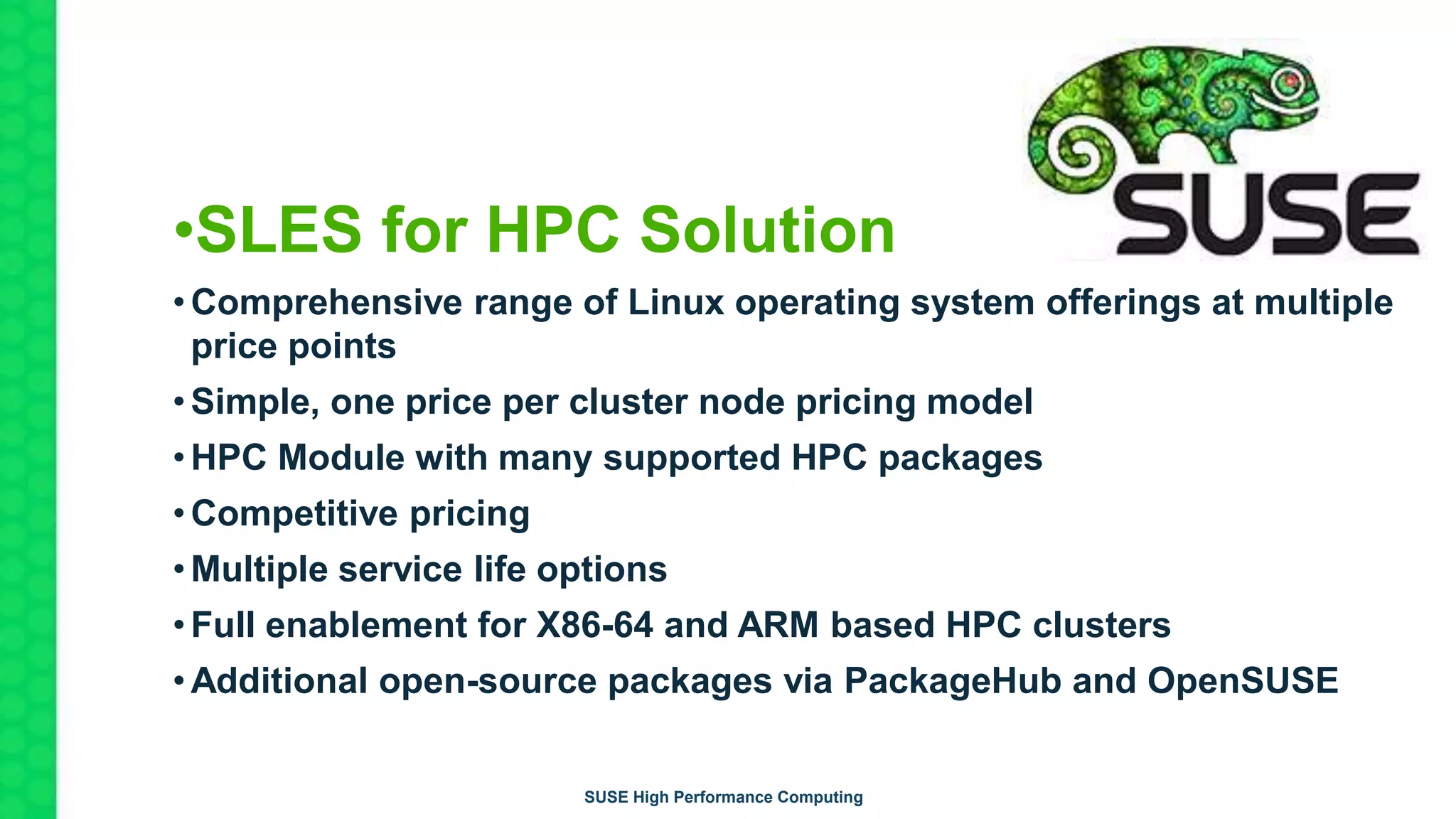

- 29. SUSE High Performance Computing •SLES for HPC Solution •Comprehensive range of Linux operating system offerings at multiple price points •Simple, one price per cluster node pricing model •HPC Module with many supported HPC packages •Competitive pricing •Multiple service life options •Full enablement for X86-64 and ARM based HPC clusters •Additional open-source packages via PackageHub and OpenSUSE
Editor's Notes
- 2
- But of course it’s not a perfect world and there are still some customer challenges to address. I grouped them into three categories here. Complexity includes several issues: Cluster management can be complicated, especially when dealing with a very heterogeneous environment. And this is a highly parallel processing environment – which means that the applications must be written to take advantage of the parallelism within the HPC stack. So there are complexities not only in administration and management, but complexities within the software workloads. Maintenance points to the heterogeneous environment and the fact that many components from different vendors are likely to be involved. Ensuring that they all continue to be supported and interoperate with each other is a big concern and can be a big headache. And time to solution is always going to put demands on how the applications run effectively – and how all of the underlying components work together. So it’s a combination of the other two categories. The biggest issue here is that parallel software is lacking with many applications – with the need sometimes for major re-designs. What we can do at SUSE is ensure that we provide a strong open source operating system that leverages the HPC hardware and ensures that we have a cohesive, interoperable HPC stack.
- In the HPC Space – customers can use SES as primary or secondary storage. Most customers today use SES as second tier storage, although we have some customers who are using CephFS as primary storage also. Primary storage is limited to smaller clusters (<250 Nodes). In HPC space, customers are very tuned into their workloads and understand what data is needed where and when. The model here is that a customer will keep the data on SES, and load it onto their primary storage when a job needs to be run. Eg: A customer needs to run a weather simulation. They will go ahead and retrieve the data from SES (CephFS) onto Lustre/GPFS/NetApp and then run the simulation. Once the simulation is complete – they will put the results back onto SES. Home Directories is another way to do the above. Works for most customers. One Caution: We don’t support CephFS Quotas which would be an issue for some customers. Will be supported in SES6. Backup Storage: SES would be a good backup repo also, and used primarily by either major ISVs, or (most likely in HPC Space) SES is also certified with HPE Data Management Framework
