Developers at Indigo will store project source code in a Subversion repository to prevent loss of work from untested updates. The repository automatically tracks file changes, allowing developers to revert to previous versions or merge changes. Subversion is suitable when projects involve multiple developers, files, and revisions over time. Developers will check out projects to their local machines, make changes, test them, and commit updates with comments to the repository.

1. Source Code Repository

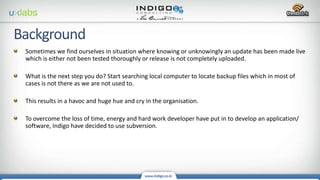

2. Sometimes we find ourselves in situation where knowing or unknowingly an update has been made live
which is either not been tested thoroughly or release is not completely uploaded.
What is the next step you do? Start searching local computer to locate backup files which in most of
cases is not there as we are not used to.
This results in a havoc and huge hue and cry in the organisation.
To overcome the loss of time, energy and hard work developer have put in to develop an application/
software, Indigo have decided to use subversion.

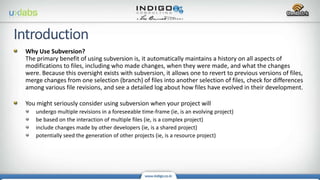

3. Why Use Subversion?
The primary benefit of using subversion is, it automatically maintains a history on all aspects of
modifications to files, including who made changes, when they were made, and what the changes
were. Because this oversight exists with subversion, it allows one to revert to previous versions of files,
merge changes from one selection (branch) of files into another selection of files, check for differences
among various file revisions, and see a detailed log about how files have evolved in their development.
You might seriously consider using subversion when your project will
undergo multiple revisions in a foreseeable time-frame (ie, is an evolving project)
be based on the interaction of multiple files (ie, is a complex project)
include changes made by other developers (ie, is a shared project)
potentially seed the generation of other projects (ie, is a resource project)

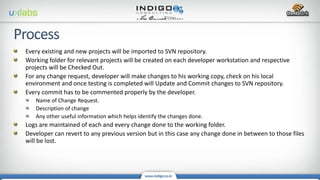

5. Every existing and new projects will be imported to SVN repository.
Working folder for relevant projects will be created on each developer workstation and respective
projects will be Checked Out.
For any change request, developer will make changes to his working copy, check on his local
environment and once testing is completed will Update and Commit changes to SVN repository.
Every commit has to be commented properly by the developer.
Name of Change Request.
Description of change
Any other useful information which helps identify the changes done.
Logs are maintained of each and every change done to the working folder.
Developer can revert to any previous version but in this case any change done in between to those files
will be lost.

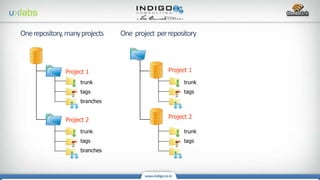

6. tags
branches
trunk
Project 1
Root
Project 2
tags
branches
trunk
tags
trunk
Project 1
Repository parent dir
Project 2
tags
trunk

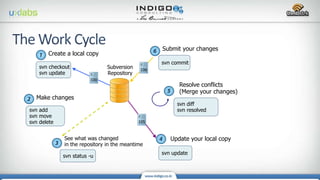

7. svn checkout
svn update
Create a local copy
svn add
svn move
svn delete
Make changes
svn status -u
See what was changed
in the repository in the meantime
svn update
Update your local copy
svn diff
svn resolved
Resolve conflicts
(Merge your changes)
svn commit
Submit your changes
105
100
106
Subversion
Repository

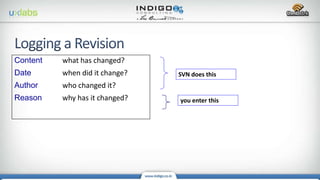

8. Content what has changed?
Date when did it change?
Author who changed it?
Reason why has it changed?
SVN does this
you enter this

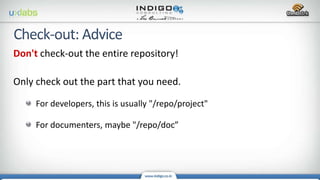

9. Don't check-out the entire repository!
Only check out the part that you need.
For developers, this is usually "/repo/project"
For documenters, maybe "/repo/doc”

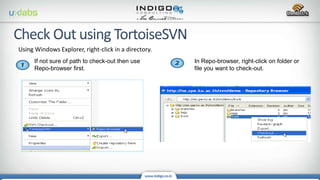

10. Using Windows Explorer, right-click in a directory.
If not sure of path to check-out then use
Repo-browser first.
In Repo-browser, right-click on folder or
file you want to check-out.

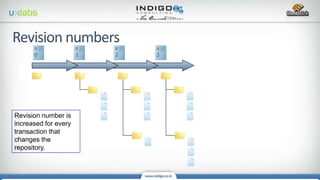

11. 0 1 2 3
Revision number is
increased for every
transaction that
changes the
repository.

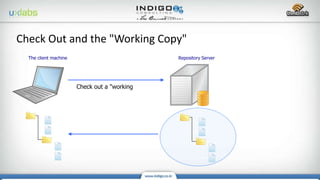

12. Repository ServerThe client machine
Check out a "working copy"
Check Out and the "Working Copy"

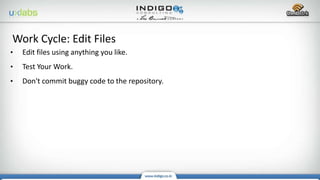

13. • Edit files using anything you like.
• Test Your Work.
• Don't commit buggy code to the repository.
Work Cycle: Edit Files

14. • Before "committing" your work, check for updates in the repository.
• Something might have changed while you were working.
• Subversion requires you to synchronize before commit.
Check for Updates

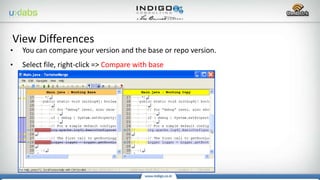

15. • You can compare your version and the base or repo version.
• Select file, right-click => Compare with base
View Differences

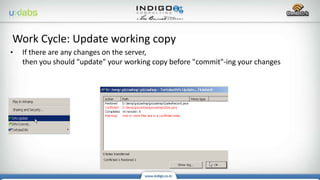

16. • If there are any changes on the server,
then you should "update" your working copy before "commit"-ing your changes
Work Cycle: Update working copy

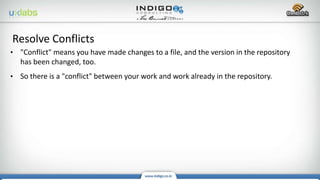

17. • "Conflict" means you have made changes to a file, and the version in the repository
has been changed, too.
• So there is a "conflict" between your work and work already in the repository.
Resolve Conflicts

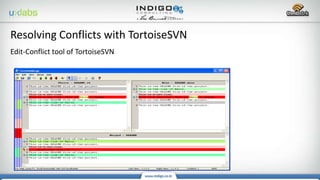

18. Edit-Conflict tool of TortoiseSVN
Resolving Conflicts with TortoiseSVN

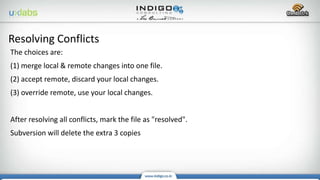

19. The choices are:
(1) merge local & remote changes into one file.
(2) accept remote, discard your local changes.
(3) override remote, use your local changes.
After resolving all conflicts, mark the file as "resolved".
Subversion will delete the extra 3 copies
Resolving Conflicts

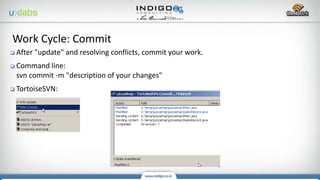

20.  After "update" and resolving conflicts, commit your work.
 Command line:
svn commit -m "description of your changes"
 TortoiseSVN:
Work Cycle: Commit

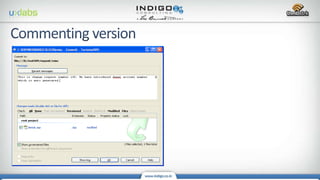

24. Commenting version

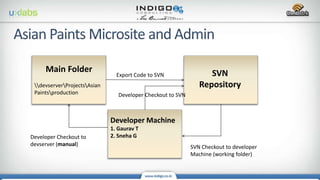

26. Main Folder
devserverProjectsAsian
Paintsproduction
SVN
Repository
Developer Machine
1. Gaurav T
2. Sneha G
Export Code to SVN
SVN Checkout to developer
Machine (working folder)
Developer Checkout to
devserver (manual)
Developer Checkout to SVN

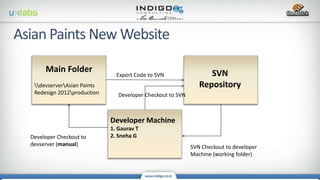

27. Main Folder
devserverAsian Paints
Redesign 2012production
SVN
Repository
Developer Machine
1. Gaurav T
2. Sneha G
Export Code to SVN
SVN Checkout to developer
Machine (working folder)
Developer Checkout to
devserver (manual)
Developer Checkout to SVN

28. Main Folder
devserverAsian Paints
Redesign 2012Mobile
Siteproduction
SVN
Repository
Developer Machine
1. Tirupati
Export Code to SVN
SVN Checkout to developer
Machine (working folder)
Developer Checkout to
devserver (manual)
Developer Checkout to SVN
