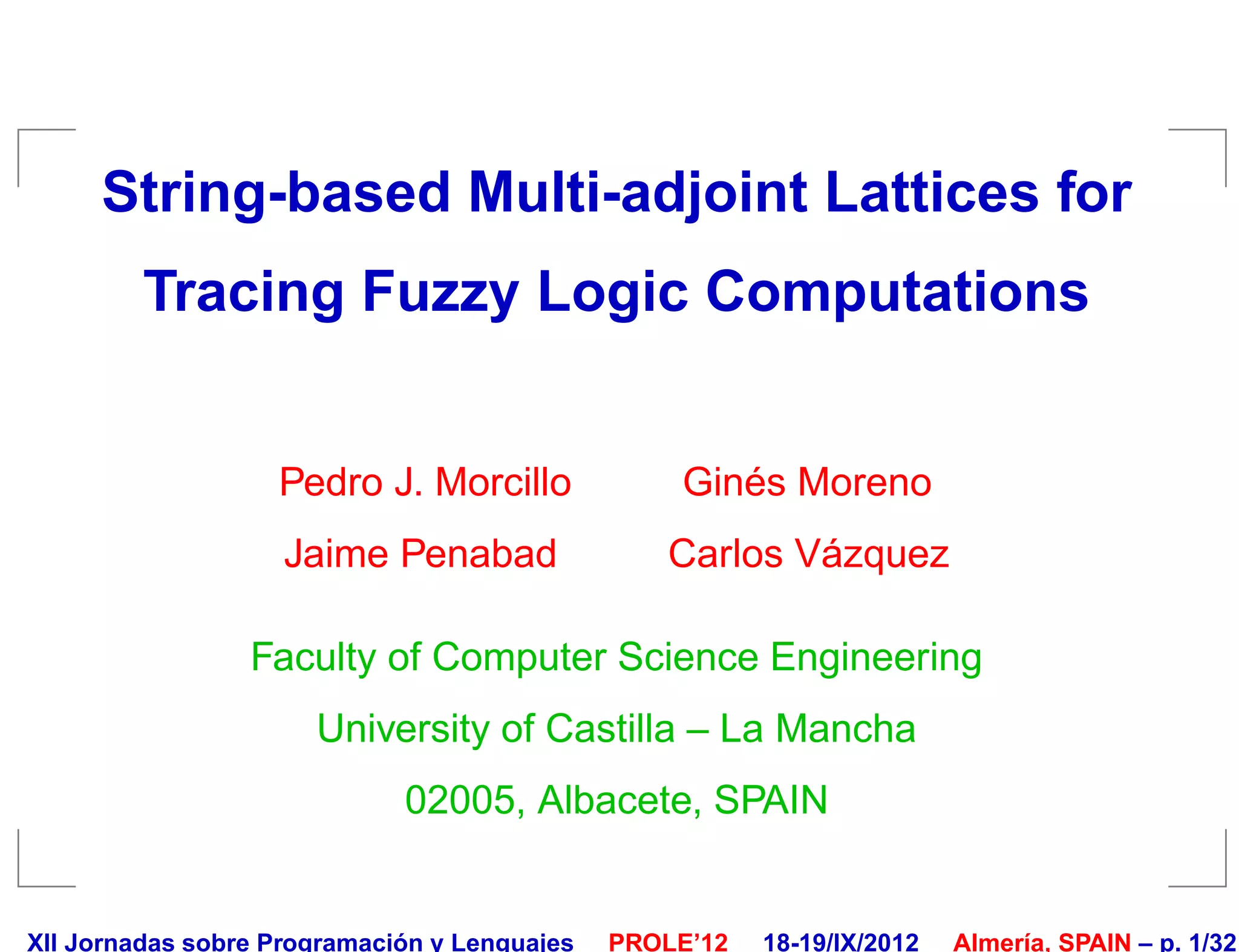

String-based Multi-adjoint Lattices for
Tracing Fuzzy Logic Computations

Pedro J. Morcillo Ginés Moreno
Jaime Penabad Carlos Vázquez

Faculty of Computer Science Engineering
University of Castilla – La Mancha
02005, Albacete, SPAIN

XII Jornadas sobre Programación y Lenguajes PROLE’12 18-19/IX/2012 Almería, SPAIN – p. 1/32

String-based Multi-adjoint Lattices for Tracing Fuzzy Logic Computations

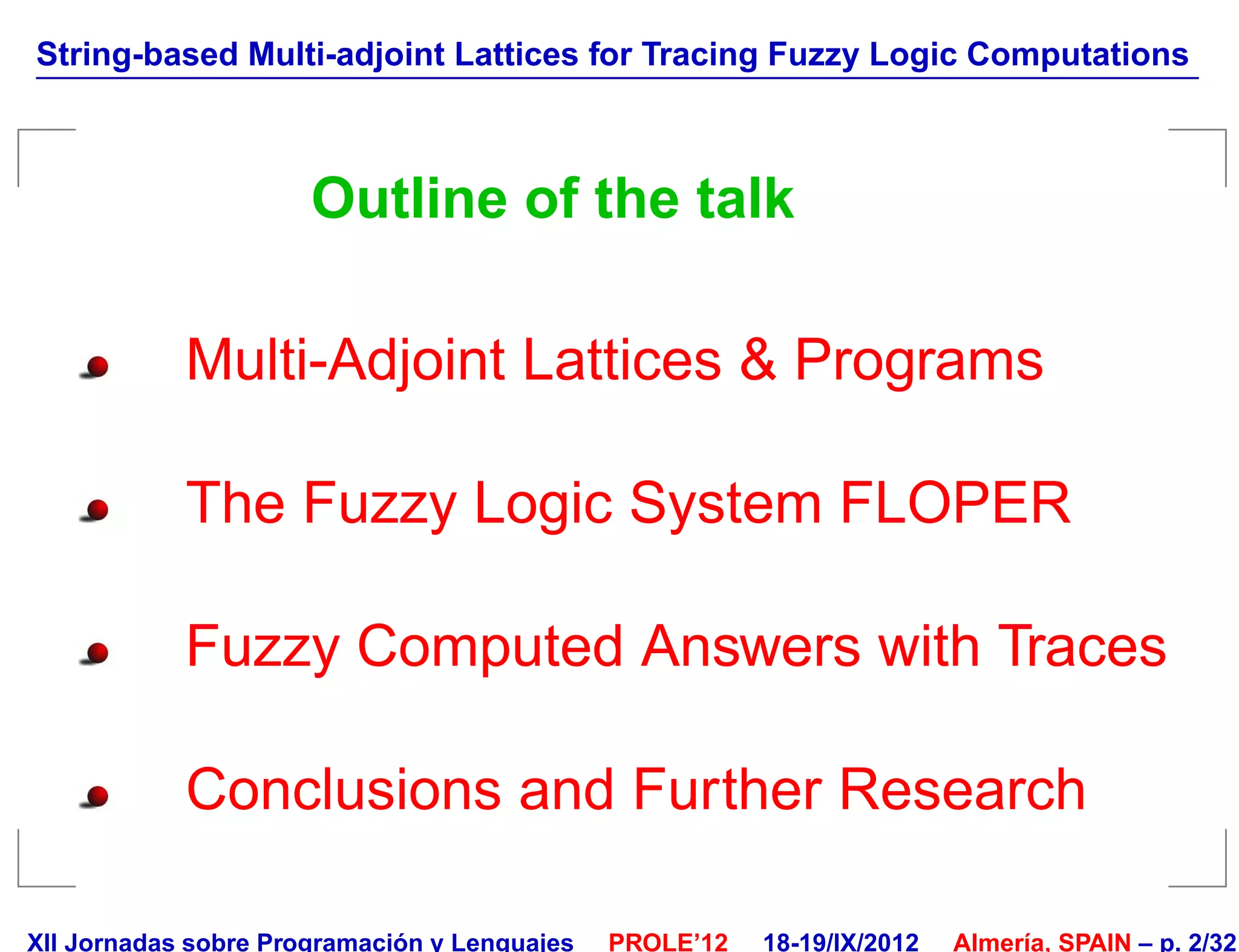

Outline of the talk

Multi-Adjoint Lattices & Programs

The Fuzzy Logic System FLOPER

Fuzzy Computed Answers with Traces

Conclusions and Further Research



Multi-Adjoint Lattices
A tuple (𝐿, ≤, ←1 , &1 , . . . , ←𝑛 , &𝑛 ) is a multi-adjoint
lattice if it veriﬁes the following claims:
𝑖) (𝐿, ≤) is a complete lattice, with ⊥ and ⊤ elements.
𝑖𝑖) (&𝑖 , ←𝑖 ) is an adjoint pair in (𝐿, ≤), i.e.:
1) &𝑖 is increasing in both arguments and
⊤&𝑖 𝑣 = 𝑣&𝑖 ⊤ = 𝑣 .
2) ←𝑖 is increasing in the ﬁrst argument and
decreasing in the second one.
3) Adjoint property: 𝑥 ≤ (𝑦 ←𝑖 𝑧) ⇐⇒ (𝑥&𝑖 𝑧) ≤ 𝑦

The Cartesian product 𝐿 = 𝐿1 × ⋅ ⋅ ⋅ × 𝐿𝑛 of multi-adjoint
lattices is a multi-adjoint lattice too.


∙ ℬ . Boolean values with the classical adjoint pair (&, ←).
∙ 𝒱 . Real numbers in the unit interval with adjoint pairs
from the fuzzy logics of Product, Gödel and Łukasiewicz :
&P (𝑥, 𝑦) ≜ 𝑥 ∗ 𝑦 ←P (𝑥, 𝑦) ≜ min(1, 𝑥/𝑦)
⎧
⎨1 if 𝑦 ≤ 𝑥
&G (𝑥, 𝑦) ≜ min(𝑥, 𝑦) ←G (𝑥, 𝑦) ≜
⎩𝑥 otherwise

&L (𝑥, 𝑦) ≜ max(0, 𝑥 + 𝑦 − 1) ←L (𝑥, 𝑦) ≜ min{𝑥 − 𝑦 + 1, 1}

∙ 𝒲 . Natural numbers with the inverted ordering where
“+” plays the role of a conjuntion (or t-norm) operator.



∙ 𝒮 . Strings or sequences of symbols belonging to a given
alphabet (ASCII) for which “𝑎𝑝𝑝𝑒𝑛𝑑” acts as a conjunctor.

KEYPOINT. Establish a bijection between 𝒮 and 𝒲 !!!
[𝑎1 . . . 𝑎𝑚 ] = (𝑐𝑜𝑑(𝑎1 ) + 1)𝑛𝑚−1 + ⋅ ⋅ ⋅ + (𝑐𝑜𝑑(𝑎𝑚 ) + 1)𝑛0
< 𝑚 >=< ⌊(𝑚 − 1)/𝑛⌋ > .𝑎𝑠𝑐((𝑚 − 1)%𝑛)

[𝑠𝑒𝑎] = (𝑐𝑜𝑑(𝑠) − 1)1282 + (𝑐𝑜𝑑(𝑒) − 1)128 + (𝑐𝑜𝑑(𝑎) − 1) =
(115 − 1)1282 + (101 − 1)128 + (97 − 1) = 1880672
[𝑠𝑜𝑛] = . . . = 1881965
[𝑠𝑒𝑎𝑠𝑜𝑛] = . . . = 3944056928109



Multi-Adjoint Logic Programming
Let ℒ be a PROLOG-like ﬁrst order language, with:
constants variables functions
predicates quantiﬁers: ∀, ∃ BUT MORE connectives!!!
&1 , &2 , ..., &𝑘 (conjunctions)
∨1 , ∨2 , ..., ∨𝑙 (disjunctions)
←1 , ←2 , ..., ←𝑚 (implications)
@1 , @2 , ..., @𝑛 (aggregations)
Instead of naive {𝑡𝑟𝑢𝑒, 𝑓 𝑎𝑙𝑠𝑒}, use a multi–adjoint
lattice to model truth degrees ⟨𝐿, ⪯, ←1 , &1 , . . . , ←𝑛 , &𝑛 ⟩.
⟨[0, 1], ⪯, ←Luka , &Luka , ←Prod , &Prod , ←Godel , &Godel ⟩



SYNTAX: Assume some connective deﬁnitions like:
&Godel (𝑥1 , 𝑥2 ) ≜ 𝑚𝑖𝑛(𝑥1 , 𝑥2 ) - - in brief &G
&Prod (𝑥1 , 𝑥2 ) ≜ 𝑥1 ∗ 𝑥2 - - in brief &P
∨Luka (𝑥1 , 𝑥2 ) ≜ 𝑚𝑖𝑛(1, 𝑥1 + 𝑥2 ) - - in brief ∨L
@aver (𝑥1 , 𝑥2 ) ≜ (𝑥1 + 𝑥2 )/2
A program is a set of “weighted” rules A ←i ℬ with 𝛼:
ℛ1 : 𝑝(𝑋) ←P &G (𝑞(𝑋), @aver (𝑟(𝑋), 𝑠(𝑋))) 𝑤𝑖𝑡ℎ 0.9
ℛ2 : 𝑞(𝑎) ← 𝑤𝑖𝑡ℎ 0.8
ℛ3 : 𝑟(𝑋) ← 𝑤𝑖𝑡ℎ 0.7
ℛ4 : 𝑠(𝑋) ← 𝑤𝑖𝑡ℎ 0.5




STATE : Is a pair with form ⟨𝑔𝑜𝑎𝑙; 𝑠𝑢𝑏𝑠𝑡𝑖𝑡𝑢𝑡𝑖𝑜𝑛⟩

INPUT (goal): For instance, ⟨𝑝(𝑋); 𝑖𝑑⟩
OUTPUT (fuzzy computed answer): Is a (ﬁnal) state of
the form ⟨𝑡𝑟𝑢𝑡ℎ_𝑑𝑒𝑔𝑟𝑒𝑒; 𝑠𝑢𝑏𝑠𝑡𝑖𝑡𝑢𝑡𝑖𝑜𝑛⟩
PROCEDURAL SEMANTICS:
Operational phase: Admissible steps (→𝐴𝑆 )
Interpretive phase: Interpretive steps (→𝐼𝑆 )
Given a program 𝒫 , goal 𝒬 and substitution 𝜎 , we
deﬁne an STATE TRANSITION SYSTEM whose
transition relations are →𝐴𝑆 and →𝐼𝑆


ADMISSIBLE STEP OF KIND →𝐴𝑆1

⟨𝒬[𝐴]; 𝜎⟩ →𝐴𝑆1 ⟨(𝒬[𝐴/𝑣&𝑖 ℬ])𝜃; 𝜎𝜃⟩ if
(1) 𝐴 is the selected atom in 𝒬,
(2) 𝜃 = 𝑚𝑔𝑢({𝐴′ = 𝐴}),
(3) 𝐴′ ←𝑖 ℬ with 𝑣 in 𝒫 and ℬ is not empty.
EXAMPLE. Let p(a)←prod p(f(a)) with 0.7 be a rule
⟨(p(b)&G p(X))&G q(X); id⟩ →𝐴𝑆1
⟨(p(b)&G 0.7&prod p(f(a)))&G q(a); {X/a}⟩



ADMISSIBLE STEP OF KIND →𝐴𝑆2

⟨𝒬[𝐴]; 𝜎⟩ →𝐴𝑆2 ⟨(𝒬[𝐴/𝑣])𝜃; 𝜎𝜃⟩ if
(1) 𝐴 is the selected atom in 𝒬,
(2) 𝜃 = 𝑚𝑔𝑢({𝐴′ = 𝐴}), and
(3) 𝐴′ ← with 𝑣 in 𝒫 .
EXAMPLE. Let p(a)← with 0.7 be a rule
⟨(p(b)&G p(X))&G q(X); id⟩ →𝐴𝑆2
⟨(p(b)&G 0.7)&G q(a); {X/a}⟩



INTERPRETIVE STEP →𝐼𝑆

⟨𝑄[@(𝑟1 , 𝑟2 )]; 𝜎⟩ →𝐼𝑆 ⟨𝑄[@(𝑟1 ,𝑟2 )/[[@]](𝑟1 ,𝑟2 )];𝜎⟩
where [[@]] is the truth function of connective @
in the multi-adjoint lattice associated to 𝒫

EXAMPLE. Since the truth function associated
to &prod is the product operator, then
⟨(0.8&luka ((0.7&prod 0.9)&G 0.7)); {𝑋/𝑎}⟩ →𝐼𝑆
⟨(0.8&luka (0.63&G 0.7)); {𝑋/𝑎}⟩



⟨𝑝(𝑋); 𝑖𝑑⟩ →𝐴𝑆1 ℛ1
⟨&P (0.9, &G (𝑞(𝑋1 ), @aver (𝑟(𝑋1), 𝑠(𝑋1)))); {𝑋/𝑋1 }⟩ →𝐴𝑆2 ℛ2
⟨&P (0.9, &G (0.8, @aver (𝑟(𝑎), 𝑠(𝑎)))); {𝑋/𝑎}⟩ →𝐴𝑆2 ℛ3
⟨&P (0.9, &G (0.8, @aver (0.7, 𝑠(𝑎)))); {𝑋/𝑎}⟩ →𝐴𝑆2 ℛ4
⟨&P (0.9, &G (0.8, @aver (0.7, 0.5))); {𝑋/𝑎}⟩ →𝐼𝑆
⟨&P (0.9, &G (0.8, 0.6)); {𝑋/𝑎}⟩ →𝐼𝑆
⟨&P (0.9, 0.6); {𝑋/𝑎}⟩ →𝐼𝑆
⟨0.54; {𝑋/𝑎}⟩
So, for derivation 𝐷1 the f.c.a is ⟨0.54; {𝑋/𝑎}⟩




http://dectau.uclm.es/ﬂoper/
PROLOG has been largely used for four purposes.....

Implementing the tool (about 1000 clauses, DCG’s)

Compiling fuzzy programs (compiled code in Prolog):
∙ HIGH LEVEL: transparent execution of goals
∙ LOW LEVEL: drawing derivations and trees

Modeling multi-adjoint lattices (represent truth degrees)



Basic options for...
∙ Loading a prolog file with extension “.pl”
∙ Parsing a “.fpl” fuzzy program. The resulting Prolog
code is also asserted in the system
∙ Saving the generated Prolog code into a “.pl” file
∙ Listing both the fuzzy and Prolog code
∙ Clean, Stop and Quit
Advanced options for...
∙ Running a fuzzy program after introducing a goal
∙ Drawing derivations and unfolding trees (varying its
depth and the level of detail of interpretive steps)
∙ Loading/showing multi-adjoint lattices (“.pl” files)



The Fuzzy Logic System FLOPER. Option RUN
𝑃 𝑅𝑂𝐺𝑅𝐴𝑀 : p(X) ←P &G (q(X), @aver (r(X), s(X))) with 0.9
q(a) with 0.8 r(X) with 0.7 s(_) with 0.5
———————————————»»»»»>
p(X, TV0) : − q(X, TV1), r(Y, TV2), s(X, TV3),
agr_aver(TV2, TV3, TV4),
and_godel(TV1, TV4, TV5),
and_prod(0.9, TV5, TV0).
q(a, 0.8). r(X, 0.7). s(_, 0.5).

𝐺𝑂𝐴𝐿 : p(X) —–»»»»»> ? − p(X, Truth_degree)
𝑂𝑈 𝑇 𝑃 𝑈 𝑇 : [X = a, Truth_degree = 0.54]



The Fuzzy Logic System FLOPER. Option LAT
∙ Prolog ﬁle modeling an inﬁnite lattice of real numbers [0, 1]
member(X) :- number(X),0=<X,X=<1. leq(X,Y) :- X=<Y.
bot(0). top(1).

and_luka(X,Y,Z) :- pri_add(X,Y,U1),pri_sub(U1,1,U2),pri_max(0,U2,Z).
and_godel(X,Y,Z) :- pri_min(X,Y,Z).
and_prod(X,Y,Z) :- pri_prod(X,Y,Z).

or_luka(X,Y,Z) :- pri_add(X,Y,U1),pri_min(U1,1,Z).
or_godel(X,Y,Z) :- pri_max(X,Y,Z).
or_prod(X,Y,Z) :- pri_prod(X,Y,U1),pri_add(X,Y,U2),pri_sub(U2,U1,Z).

agr_aver(X,Y,Z) :- pri_add(X,Y,U),pri_div(U,2,Z).

pri_add(X,Y,Z) :- Z is X+Y. pri_min(X,Y,Z) :- (X=<Y,Z=X;X>Y,Z=Y).
pri_sub(X,Y,Z) :- Z is X-Y. pri_max(X,Y,Z) :- (X=<Y,Z=Y;X>Y,Z=X).
pri_prod(X,Y,Z) :- Z is X * Y. pri_div(X,Y,Z) :- Z is X/Y.



∙ Prolog ﬁle modeling a ﬁnite lattice with partial ordering
members([bottom,alpha,beta,top]).
⊤ top(top). bot(bottom).

leq(bottom,X). leq(alpha,alpha). leq(alpha,top).
leq(beta,beta). leq(beta,top). leq(X,top).

𝛼 𝛽 and_godel(X,Y,Z) :- pri_inf(X,Y,Z).

pri_inf(bottom,X,bottom):-!.
pri_inf(alpha,X,alpha):-leq(alpha,X),!.
pri_inf(beta,X,beta):-leq(beta,X),!.
⊥ pri_inf(top,X,X):-!.
pri_inf(X,Y,bottom).



EXAMPLE: maintain the program and goal, but change
the lattice of truth degrees, redeﬁning “average”:
Instead of: @aver (𝑥1 , 𝑥2 ) ≜ (𝑥1 + 𝑥2 )/2, in PROLOG:
agr_aver(X, Y, Z) : −pri_add(X, Y, U), pri_div(U, 2, Z).
Use now: @aver (𝑥1 , 𝑥2 ) ≜ (∨G (𝑥1 , 𝑥2 ) + ∨L (𝑥1 , 𝑥2 ))/2
agr_aver(X, Y, Z) : −or_godel(X, Y, Z1), or_luka(X, Y, Z2),
pri_add(Z1, Z2, Z3), pri_div(Z3, 2, Z).
Now, without changing the same program and goal,
the solution for p(X) is not [Truth = 0.54, X = a] but
[Truth = 0.72, X = a]



The Fuzzy Logic System FLOPER. Option TREE

𝑝(𝑋) ←P &G (𝑞(𝑋), @aver (𝑟(𝑋), 𝑠(𝑋))) with 0.9
—————————————————————–»»»»»»>
rule(number(1),
head(atom(pred(p,1),[var(’X’)])),
impl(prod),
body(and(godel,2,
[atom(pred(q,1),[var(’X’)]),
agr(aver,2,
[atom(pred(r,1),[var(’X’)]),
atom(pred(s,1),[var(’X’)])
])])),
td(0.9)).



The Fuzzy Logic System FLOPER. Option TREE
∙ Unfolding tree showing admissible steps
R0 <p(X),{}>
R1 <&prod(0.9,&godel(q(X1),@aver(r(X1),s(X1)))),{X/X1} >
R2 <&prod(0.9,&godel(0.8,@aver(r(a),s(a)))),{X/a,X1/a}>
R3 <&prod(0.9,&godel(0.8,@aver(0.7,s(a)))),{X/a,X1/a,X11/a}>
R4 <&prod(0.9,&godel(0.8,@aver(0.7,0.5))),{X/a,X1/a,X11/a}>
result < 0.7200000000000001,{X/a,X1/a,X11/a}>

∙ Unfolding tree displaying interpretive steps too
R0 <p(X),{}>
R1 <&prod(0.9,&godel(q(X1),@aver(r(X1),s(X1)))),{X/X1} >
R2 <&prod(0.9,&godel(0.8,@aver(r(a),s(a)))),{X/a,X1/a}>
R3 <&prod(0.9,&godel(0.8,@aver(0.7,s(a)))),{X/a,X1/a,X11/a}>
R4 <&prod(0.9,&godel(0.8,@aver(0.7,0.5))),{X/a,X1/a,X11/a}>
is <&prod(0.9,&godel(0.8,0.85)),{X/a,X1/a,X11/a}>
is <&prod(0.9,0.8),{X/a,X1/a,X11/a}>
is <0.7200000000000001,{X/a,X1/a,X11/a}>



Let the “proof weight” lattice 𝒲 of [Rodríguez & Romero-08]
that is, natural numbers with the inverted ordering and
operator “+” assigned to all connectives ( &P , &G , @aver )
ℛ1 : 𝑝(𝑋) ←P &G (𝑞(𝑋), @aver (𝑟(𝑋), 𝑠(𝑋))) 𝑤𝑖𝑡ℎ 1
ℛ2 : 𝑞(𝑎) ← 𝑤𝑖𝑡ℎ 1
ℛ3 : 𝑟(𝑋) ← 𝑤𝑖𝑡ℎ 1
ℛ4 : 𝑠(𝑋) ← 𝑤𝑖𝑡ℎ 1
Fuzzy Computed Answer counting admissible steps
» run.
[Truth_degree=4, X=a]



Consider a lattice where truth degrees are strings and
append is assigned to all connectives ( &P , &G , @aver )
𝑝(𝑋) ←P &G (𝑞(𝑋), @aver (𝑟(𝑋), 𝑠(𝑋))) 𝑤𝑖𝑡ℎ ′ 𝑟𝑢𝑙𝑒1.′

𝑞(𝑎) ← 𝑤𝑖𝑡ℎ ′ 𝑟𝑢𝑙𝑒2.′

𝑟(𝑋) ← 𝑤𝑖𝑡ℎ ′ 𝑟𝑢𝑙𝑒3.′

𝑠(𝑋) ← 𝑤𝑖𝑡ℎ ′ 𝑟𝑢𝑙𝑒4.′

Fuzzy Computed Answer detailing admissible steps
» run.

[Truth_degree=’rule1.rule2.rule3 rule4.’,X=a]



∙ Multi-adjoint lattices as CARTESIAN PRODUCTS:
member(info(X,Y)):-number(X),0=<X,X=<1,string(Y). bot(info(0,_)).
leq(info(X1,_),info(X2,_)) :- X1 =< X2. top(info(1,_)).

and_prod(info(X1,X2),info(Y1,Y2),info(Z1,Z2)) :- pri_prod(X1,Y1,Z1),
pri_app(X2,Y2,Label),pri_app(Label,’&PROD.’,Z2).

pri_app(X,Y,Z) :- name(X,L1),name(Y,L2),append(L1,L2,L3),name(Z,L3).

𝑝(𝑋) ←P &G (𝑞(𝑋), @aver (𝑟(𝑋), 𝑠(𝑋))) with info(0.9,′ rule1.′ )
...

∙ [X=a, Truth_degree=info(0.72, rule1.rule2.rule3.rule4.
@AVER. &GODEL. &PROD. )]


∙ More on multi-adjoint lattices as Cartesian products:
“attaching” now appropriate labels to primitive operators
pri_prod(X,Y,Z,’#PROD.’):-Z is X * Y.

and_prod(info(X1,X2),info(Y1,Y2),info(Z1,Z2)):-
pri_prod(X1,Y1,Z1,DatPROD),pri_app(X2,Y2,Dat1),
pri_app(Dat1,’&PROD.’,Dat2),pri_app(Dat2,DatPROD,Z2).

∙ [X=a, Truth_degree=info(0.72, rule1.rule2.rule3.rule4.
@AVER. |GODEL. #MAX. |LUKA. #ADD.#MIN. @aver.
#ADD.#DIV. &GODEL. #MIN. &PROD. #PROD. )]



⟨𝑝(𝑋); 𝑖𝑑⟩ →𝐴𝑆1 ℛ1
⟨&P (info(0.9, ‘RULE1.′ ), &G (𝑞(𝑋1 ), @aver2 (𝑟(𝑋1), 𝑠(𝑋1)))); {𝑋/𝑋1 }⟩ →𝐴𝑆2 ℛ2

⟨&P (info(0.9, ‘RULE1.′ ), &G (info(0.8, ‘RULE2.′ ), @aver2 (𝑟(𝑎), 𝑠(𝑎))))); {𝑋/𝑎}⟩ →𝐴𝑆2 ℛ3

⟨&P (info(0.9, ‘RULE1.′ ), &G (info(0.8, ‘RULE2.′ ),

@aver2 (info(0.7, ‘RULE3.′ ), 𝑠(𝑎))))); {𝑋/𝑎}⟩ →𝐴𝑆2 ℛ4

⟨&P (info(0.9, ‘RULE1.′ ), &G (info(0.8, ‘RULE2.′ ),

@aver2 (info(0.7, ‘RULE3.′ ), info(0.5, ‘RULE4.′ )))); {𝑋/𝑎}⟩ →𝐼𝑆

⟨&P (info(0.9, ‘RULE1.’), &G (info(0.8, ‘RULE2.′ ), info(0.85, ∗))); {𝑋/𝑎}⟩ →𝐼𝑆

⟨&P (info(0.9, ‘RULE1.′ ), info(0.8, ‘RULE2.RULE3...′ )); {𝑋/𝑎}⟩ →𝐼𝑆

⟨info(0.72, ‘RULE1.RULE2.RULE3.RULE4.@AVER2.∣GODEL.#MAX.∣LUKA.....′ ); {𝑋/𝑎}⟩.
———————————————————————————————————————–
∗ ‘RULE3.RULE4.@AVER2.∣GODEL.#MAX.∣LUKA.#ADD.#MIN.@AVER.#ADD.#DIV.′




http://dectau.uclm.es/FuzzyXPath/
Management of XML documents by using ﬂexible
variants of standard XPath/XQuery languages

MALP implementation using FLOPER & SWI-Prolog:
member(tv(N,L)) :- number(N),0=<N,N=<1,
(L=[];L=[_|_]).

and_prod(tv(X1,X2),tv(Y1,Y2),tv(Z1,Z2)) :-
Z1 is X1*Y1, append(X2,Y2,Z2).



Fuzzy Logic Programming LANGUAGE:
The Multi-Adjoint Logic Programming approach
FLOPER provides advanced options with “fuzzy taste”:
Compilation to Prolog code [RUN]: simplicity,
transparency, complete evaluation of goals...
Low level representation [TREE]: traces, derivations,
detailed computation steps (interpretive)...
Multi-adjoint lattices [LAT]: modeled in Prolog,
rich/ﬂexible behaviour of computations...
f.c.a’s with traces: [RUN] with appropriate [LAT]
mimics [TREE] without extra computational effort



However, more efforts are needed for.....
Increasing expressivity: new computation rules, testing
formal properties of fuzzy connectives, connection with
other fuzzy languages, graphical interface, etc
Including transformation techniques: optimization by
Fold/Unfold, specialization by Partial Evaluation,
thresholded tabulation, etc
Ongoing application: we are currently implementing
with FLOPER fuzzy variants of XPath/XQuery for the
ﬂexible manipulation of XML documents


String-based Multi-adjoint Lattices for Tracing Fuzzy Logic Computations

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (11)

Similar to String-based Multi-adjoint Lattices for Tracing Fuzzy Logic Computations

Similar to String-based Multi-adjoint Lattices for Tracing Fuzzy Logic Computations (20)

More from Jornadas SISTEDES 2012 {JISBD; PROLE; JCIS}

More from Jornadas SISTEDES 2012 {JISBD; PROLE; JCIS} (11)

Recently uploaded

Recently uploaded (20)

String-based Multi-adjoint Lattices for Tracing Fuzzy Logic Computations
