1. STREET BUILDER

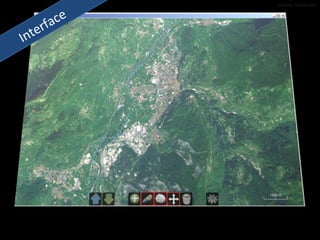

2. Interface Stefano Tranquillini

3. Interface Load : permits to load shape or shapes from file. Save : store shape or shapes into a file. Add : Adding a shape (street). Edit : adding or removing pieces of the shape. Pick : select a shape. Move : permits to move the points of the street, and the Bezier control point. Delete : remove the current shape. Setting : change the setting of the system. Information : show information about current and total streets. Stefano Tranquillini

4. Interface ADD Dialog Select texture and guardrail Options Dialog Specify some options Stefano Tranquillini

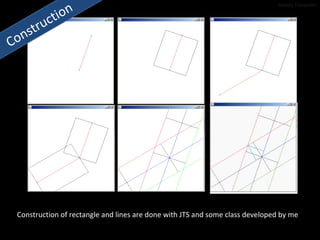

5. Construction Construction of rectangle and lines are done with JTS and some class developed by me Stefano Tranquillini

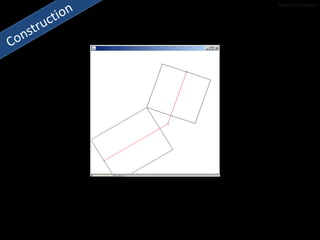

6. Construction Stefano Tranquillini

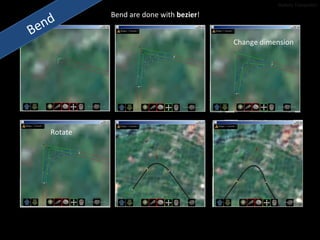

7. Bend Bend are done with bezier ! Change dimension Rotate Stefano Tranquillini

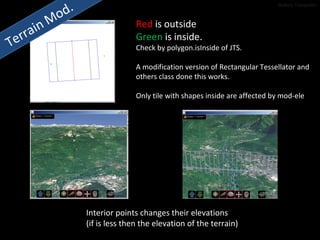

8. Terrain Mod. Red is outside Green is inside. Check by polygon.isInside of JTS. A modification version of Rectangular Tessellator and others class done this works. Only tile with shapes inside are affected by mod-ele Interior points changes their elevations (if is less then the elevation of the terrain) Stefano Tranquillini

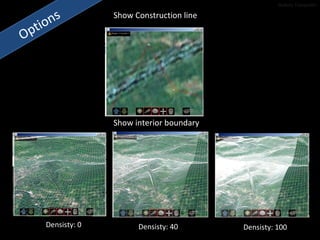

9. Options Show Construction line Show interior boundary Densisty: 40 Densisty: 0 Densisty: 100 Stefano Tranquillini

10. END Stefano Tranquillini
