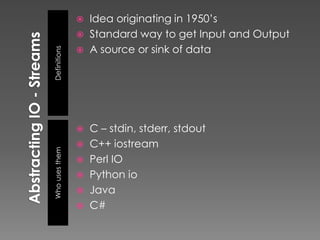

2.  Idea originating in 1950’s
 Standard way to get Input and Output
A source or sink of data
Definitions

 C – stdin, stderr, stdout
 C++ iostream
Who uses them
 Perl IO
 Python io
 Java
 C#

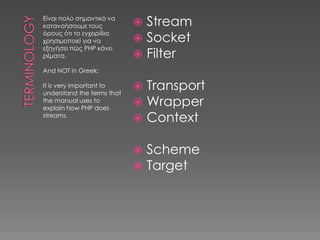

3. Είναι πολύ σημαντικό να
κατανοήσουμε τους  Stream
 Socket
όρους ότι το εγχειρίδιο
χρησιμοποιεί για να
εξηγήσει πώς PHP κάνει
ρέματα.  Filter
And NOT in Greek:
It is very important to
understand the terms that
 Transport
the manual uses to
explain how PHP does
 Wrapper
streams.
 Context
 Scheme
 Target

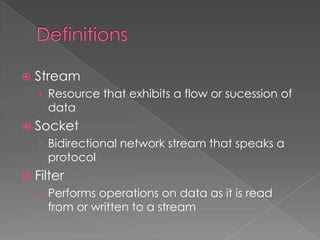

4.  Stream
› Resource that exhibits a flow or sucession of
data
 Socket
› Bidirectional network stream that speaks a
protocol
 Filter
› Performs operations on data as it is read
from or written to a stream

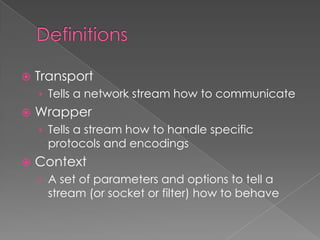

5.  Transport
› Tells a network stream how to communicate
 Wrapper
› Tells a stream how to handle specific
protocols and encodings
 Context
› A set of parameters and options to tell a
stream (or socket or filter) how to behave

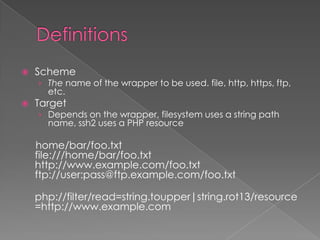

6.  Scheme
› The name of the wrapper to be used. file, http, https, ftp,
etc.
 Target
› Depends on the wrapper, filesystem uses a string path
name, ssh2 uses a PHP resource
home/bar/foo.txt
file:///home/bar/foo.txt
http://www.example.com/foo.txt
ftp://user:pass@ftp.example.com/foo.txt
php://filter/read=string.toupper|string.rot13/resource
=http://www.example.com

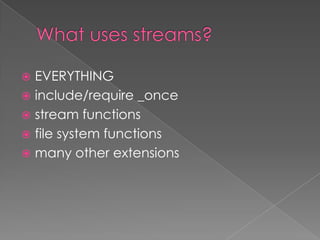

7.  EVERYTHING
 include/require _once
 stream functions
 file system functions
 many other extensions

8. What are and how to use
Streams, Sockets and Filters

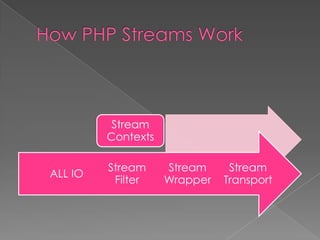

9. Stream
Contexts
Stream Stream Stream
ALL IO
Filter Wrapper Transport

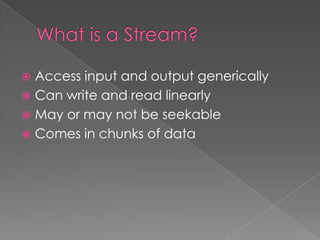

10.  Access input and output generically
 Can write and read linearly
 May or may not be seekable
 Comes in chunks of data

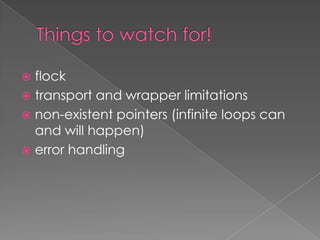

12.  flock
 transport and wrapper limitations
 non-existent pointers (infinite loops can
and will happen)
 error handling

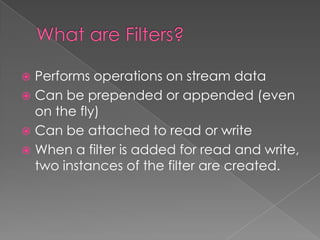

13.  Performs operations on stream data
 Can be prepended or appended (even
on the fly)
 Can be attached to read or write
 When a filter is added for read and write,
two instances of the filter are created.

15.  Data has an input and output state
 When reading in chunks, you may need
to cache in between reads to make
filters useful
 Use the right tool for the job

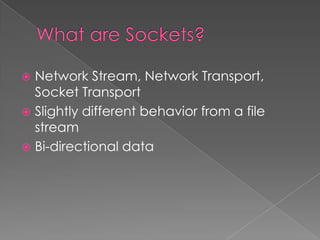

16.  Network Stream, Network Transport,
Socket Transport
 Slightly different behavior from a file
stream
 Bi-directional data

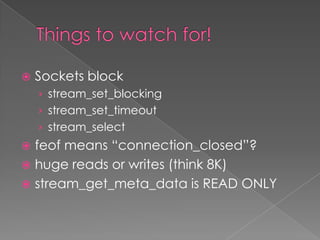

18.  Sockets block
› stream_set_blocking
› stream_set_timeout
› stream_select
 feof means “connection_closed”?
 huge reads or writes (think 8K)
 stream_get_meta_data is READ ONLY

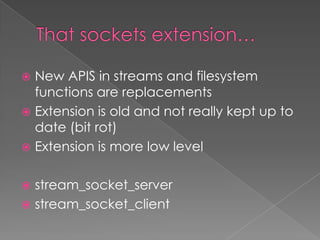

19.  New APIS in streams and filesystem
functions are replacements
 Extension is old and not really kept up to
date (bit rot)
 Extension is more low level
 stream_socket_server
 stream_socket_client

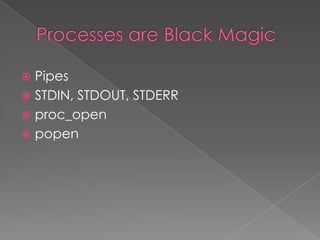

20.  Pipes
 STDIN, STDOUT, STDERR
 proc_open
 popen

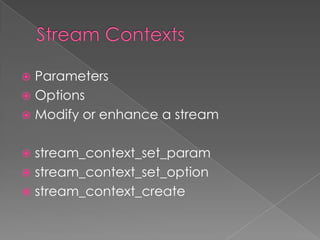

21.  Parameters
 Options
 Modify or enhance a stream
 stream_context_set_param
 stream_context_set_option
 stream_context_create

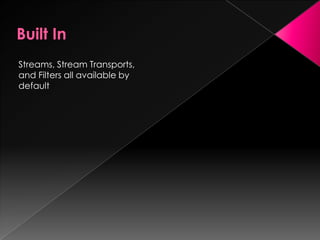

22. Streams, Stream Transports,
and Filters all available by
default

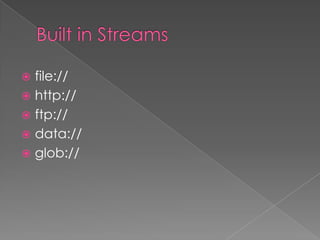

23.  file://
 http://
 ftp://
 data://
 glob://

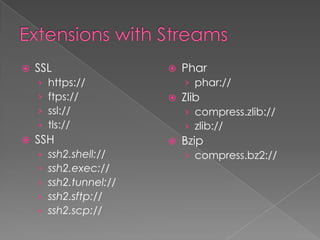

25.  SSL  Phar
› https:// › phar://
› ftps://  Zlib
› ssl:// › compress.zlib://
› tls:// › zlib://
 SSH  Bzip
› ssh2.shell:// › compress.bz2://
› ssh2.exec://
› ssh2.tunnel://
› ssh2.sftp://
› ssh2.scp://

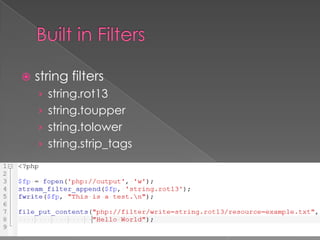

29.  string filters
› string.rot13
› string.toupper
› string.tolower
› string.strip_tags

30.  convert filters
› convert.*
 base64-encode
 base64-decode
 quoted-printable-encode
 quoted-printable-decode
 dechunk
› decode remote HTTP chunked encoding
streams
 consumed
› eats data (that’s all it does)

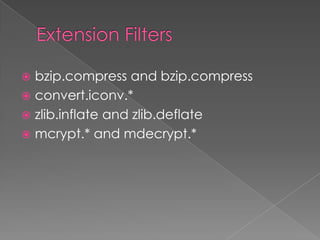

31.  bzip.compress and bzip.compress
 convert.iconv.*
 zlib.inflate and zlib.deflate
 mcrypt.* and mdecrypt.*

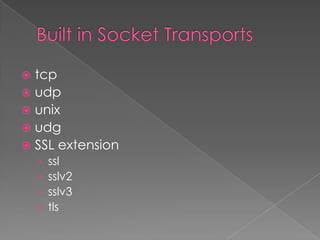

32.  tcp
 udp
 unix
 udg
 SSL extension
› ssl
› sslv2
› sslv3
› tls

33.  php://stdin
 php://stdout
 php://stderr
 php://output
 php://input
 php://filter (5.0.0)
 php://memory (5.1.0)
 php://temp (5.1.0)

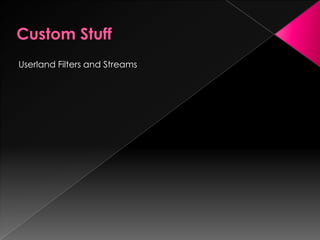

35. Userland Filters and Streams

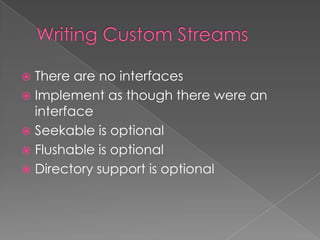

36.  There are no interfaces
 Implement as though there were an
interface
 Seekable is optional
 Flushable is optional
 Directory support is optional

37.  fopen
 file_get_contents
Information
 Return true or false
 $this->context will have any context
metadata
Code

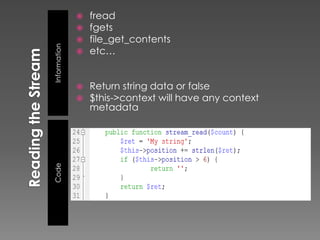

38.  fread
 fgets
 file_get_contents
Information
 etc…
 Return string data or false
 $this->context will have any context
metadata
Code

39.  fwrite
 file_put_contents
Information
 get in a string of data to deal with
 return how many bytes you wrote
Code

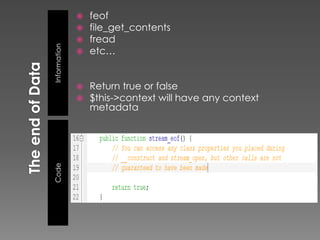

40.  feof
 file_get_contents
 fread
Information
 etc…
 Return true or false
 $this->context will have any context
metadata
Code

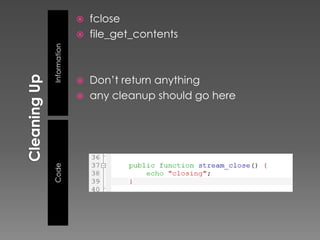

41.  fclose
 file_get_contents
Information
 Don’t return anything
 any cleanup should go here
Code

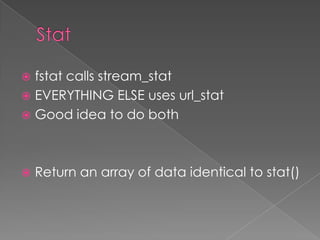

42.  fstat calls stream_stat
 EVERYTHING ELSE uses url_stat
 Good idea to do both
 Return an array of data identical to stat()

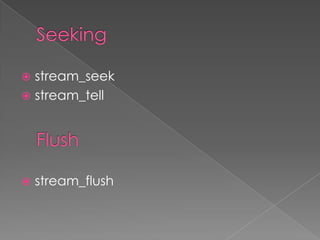

43.  stream_seek
 stream_tell
 stream_flush

44.  mkdir
 rmdir
 dir_closedir
 dir_opendir
 dir_readdir
 dir_rewinddir

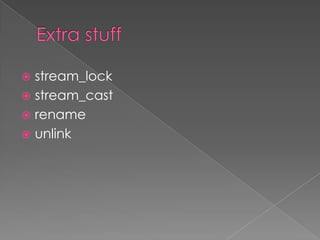

45.  stream_lock
 stream_cast
 rename
 unlink

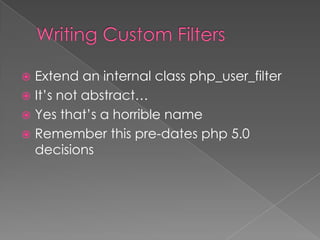

46.  Extend an internal class php_user_filter
 It’s not abstract…
 Yes that’s a horrible name
 Remember this pre-dates php 5.0
decisions

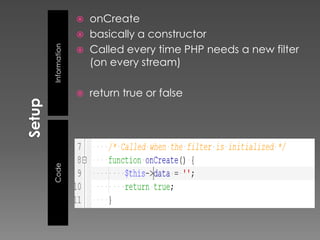

47.  onCreate
 basically a constructor
Called every time PHP needs a new filter
Information

(on every stream)
 return true or false
Code

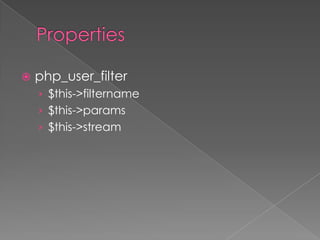

48.  php_user_filter
› $this->filtername
› $this->params
› $this->stream

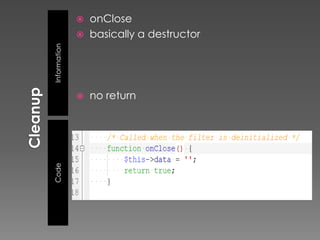

49.  onClose
 basically a destructor
Information
 no return
Code

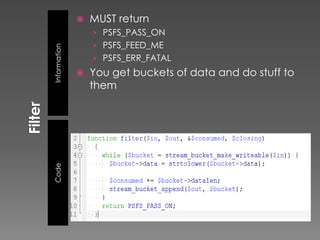

50.  MUST return
› PSFS_PASS_ON
› PSFS_FEED_ME
Information › PSFS_ERR_FATAL
 You get buckets of data and do stuff to
them
Code

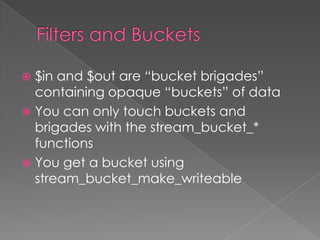

52.  $in and $out are “bucket brigades”
containing opaque “buckets” of data
 You can only touch buckets and
brigades with the stream_bucket_*
functions
 You get a bucket using
stream_bucket_make_writeable

53. Use Case land – when streams
make sense

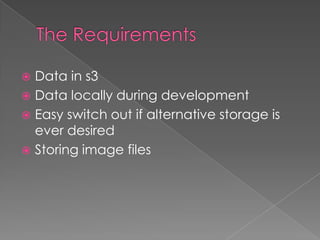

54.  Data in s3
 Data locally during development
 Easy switch out if alternative storage is
ever desired
 Storing image files

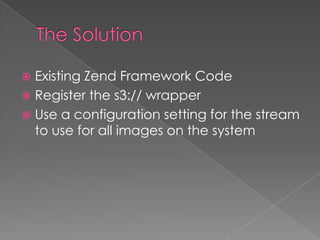

55.  Existing Zend Framework Code
 Register the s3:// wrapper
 Use a configuration setting for the stream
to use for all images on the system

56.  Store and edit template files in a
database
 Have the snappiness of including from
disk
 Minimal Configuration

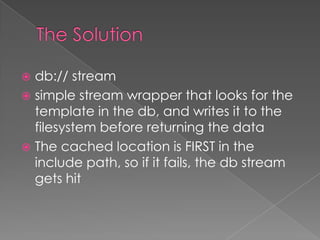

57.  db:// stream
 simple stream wrapper that looks for the
template in the db, and writes it to the
filesystem before returning the data
 The cached location is FIRST in the
include path, so if it fails, the db stream
gets hit

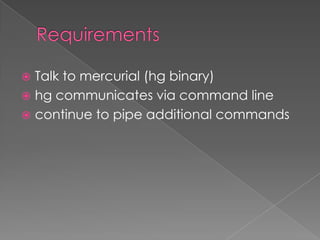

58.  Talk to mercurial (hg binary)
 hg communicates via command line
 continue to pipe additional commands

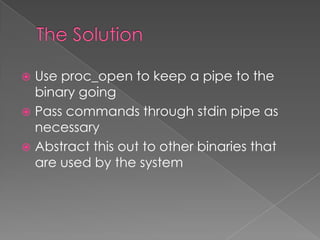

59.  Use proc_open to keep a pipe to the
binary going
 Pass commands through stdin pipe as
necessary
 Abstract this out to other binaries that
are used by the system

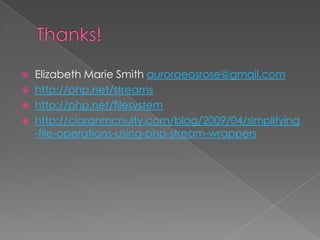

60.  Elizabeth Marie Smith auroraeosrose@gmail.com
 http://php.net/streams
 http://php.net/filesystem
 http://ciaranmcnulty.com/blog/2009/04/simplifying
-file-operations-using-php-stream-wrappers
